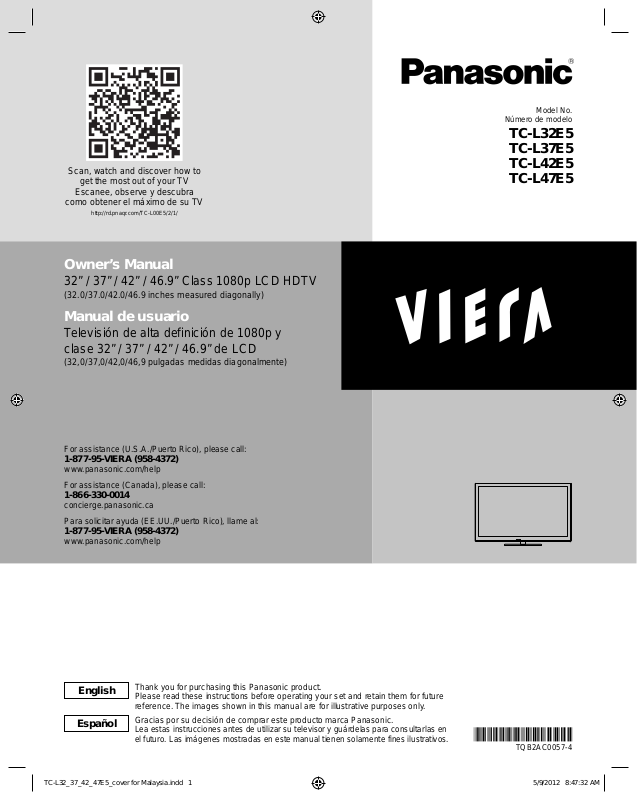

Panasonic TC-L42E5, TC-L37E5, TC-L32E5 User Manual

Download

Page 1

Scan, watch and discover how to

get the most out of your TV

Escanee, observe y descubra

como obtener el máximo de su TV

http://rd.pnaqr.com/TC-L00E5/2/1/

Owner’s Manual

32” / 37” / 42” / 46.9” Class 1080p LCD HDTV

(32.0/37.0/42.0/46.9 inches measured diagonally)

Manual de usuario

Televisión de alta definición de 1080p y clase 32” / 37” / 42” / 46.9” de LCD

(32,0/37,0/42,0/46,9 pulgadas medidas diagonalmente)

Model No.

Número de modelo

TC-L32E5 TC-L37E5 TC-L42E5 TC-L47E5

For assistance (U.S.A./Puerto Rico), please call:

1-877-95-VIERA (958-4372)

www.panasonic.com/help For assistance (Canada), please call:

1-866-330-0014

concierge.panasonic.ca Para solicitar ayuda (EE.UU./Puerto Rico), llame al:

1-877-95-VIERA (958-4372)

www.panasonic.com/help

English

Español

Thank you for purchasing this Panasonic product. Please read these instructions before operating your set and retain them for future reference. The images shown in this manual are for illustrative purposes only.

Gracias por su decisión de comprar este producto marca Panasonic. Lea estas instrucciones antes de utilizar su televisor y guárdelas para consultarlas en el futuro. Las imágenes mostradas en este manual tienen solamente fines ilustrativos.

TQB2AC0057-4

Page 2

This product incorporates the following software or technology:

(1) the software developed independently by or for Panasonic Corporation, (2) the software owned by third party and licensed to Panasonic Corporation, (3) the software based in part on the work of the Independent JPEG Group, (4) the software developed by the FreeType Project, (5) the software licensed under the GNU LESSER GENERAL PUBLIC LICENSE (LGPL) and/or, (6) open sourced software other than the software licensed under the LGPL. (7) “PlayReady”(digital right management technology) licensed by Microsoft Corporation or its affiliates.

For the software categorized as (5), please refer to the terms and conditions of LGPL, as the case may be at http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html In addition, the software categorized as (5) are copyrighted by several individuals. Please refer to the copyright notice of those individuals at http://www.am-linux.jp/dl/DTV12U/ The LGPL software is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. At least three (3) years from delivery of products, Panasonic will give to any third party who contact us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under LGPL. Contact Information [email protected] Source code covered under LGPL is also freely available to you and any other member of the public via our website below. http://www.am-linux.jp/dl/DTV12U/

For the software categorized as (5) and (6), please refer to the applicable license terms included in the “Setup” menu on product. Further, for PlayReady categorized as (7), please be aware of the following.

(a) This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft. (b) Content owners use Microsoft PlayReady(TM) content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device’s ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

Page 3

VIERA Link™ is a trademark of Panasonic Corporation.

HDMI, the HDMI logo and HighDefinition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

SDXC Logo is a trademark of SD3C, LLC.

“AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation.

DLNA®, the DLNA Logo and DLNA CERTIFIED™ are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

This product qualifies for ENERGY STAR in the “Home Use” setting and this is the setting in which energy savings will be achieved. Any modifications to the “Home Use” setting or other factory default settings could result in greater energy consumption beyond levels that meet ENERGY STAR qualifications.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

HDAVI Control™ is a trademark of Panasonic Corporation.

This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

Please read before using the unit

Safety Precautions ·································· 4

•

Getting started

Accessories/Optional Accessory ················ 8

•

Connections ·········································11

•

Identifying Controls ································14

•

First Time Setup ···································15

•

Basic Features

Watching TV ·········································20

•

Using VIERA TOOLS ······························24

•

Watching content from external devices ·····25

•

Using Media player ································26

•

Advanced Features

VIERA LinkTM “HDAVI ControlTM” ················32

•

Using Network services ··························38

•

Network Connections ····························39

•

Network settings ···································40

•

Using EASY IPTV ·································43

•

Using DLNA feature ······························44

•

Network Camera ··································45

•

Editing and Setting Channels ···················46

•

How to Use Menu Functions ····················48

•

Picture settings ····································49

•

Audio settings ······································50

•

Network settings ···································51

•

Timer settings ······································51

•

Lock ··················································51

•

Setup ·················································52

•

Support Information

Ratings List for parental control ················54

•

Technical Information ·····························55

•

Care and Cleaning ·································59

•

Specifications ·······································60

•

Frequently Asked Questions (FAQ) ···········61

•

Index ··················································64

•

Limited Warranty

•

(for U.S.A. and Puerto Rico only) ··············65 Customer Services Directory

•

(for U.S.A. and Puerto Rico) ····················66 Limited Warranty (for Canada) ··················67

•

Getting started

Advanced Support InformationBasic

Page 4

Safety Precautions

The lightning flash with arrowhead

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel.

Note to CATV System Installer

This reminder is provided to direct the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Secure Ventilation

Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to ensure reliable operation of the LCD TV and to protect it from overheating. These openings must not be blocked or covered. There should be at least 10 cm of space around the TV. The openings should never be blocked by placing the LCD TV on a bed, sofa, rug or other similar surface. This LCD TV should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

Important Safety Instructions (TV set)

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments / accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) Operate only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your television dealer or local power company.

16) Follow all warnings and instructions marked on the LCD TV.

17) Never push objects of any kind into this LCD TV through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the LCD TV.

18) If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. In the U.S. Section 810-21 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER (NEC) NATIONAL ELECTRICAL CODE

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons.

The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance.

GROUND CLAMPS

ANTENNA LEAD-IN WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

Page 5

19) An outside antenna system should not be located in the vicinity of overhead power lines, other electric light, power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

20) Unplug this LCD TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the LCD TV. c. If the LCD TV has been exposed to rain or water. d. If the LCD TV does not operate normally by following the operating instructions.

e. If the LCD TV has been dropped or the cabinet has been damaged. f. When the LCD TV exhibits a distinct change in performance - this indicates a need for service.

21) When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer

have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other

that hazards.

22) WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN,

23) WARNING: SMALL PARTS CAN PRESENT CHOKING HAZARD IF ACCIDENTALLY SWALLOWED. KEEP SMALL

24) WARNING: To prevent the spread of fire, keep candles or other open flames away from this product at all

25) WARNING: Do not place this TV in any medical institutions or locations with medical devices.

26) WARNING: Do not use this TV near any automatic control devices such as automatic doors or fire alarms.

27) WARNING: Keep this TV away at least 9 inches (22 cm) from the location where a cardiac pacemaker is implanted.

28) CAUTION: The Power switch on this unit will not completely shut off all power from AC outlet. Since the power cord serves

29) CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS PLUG WITH A RECEPTACLE OR OTHER OUTLET

30) CAUTION: USE WITH OTHER STAND MAY RESULT IN INSTABILITY POSSIBLY CAUSING INJURY.

31) CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME

32) CAUTION: This LCD TV is for use only with the following optional accessory. Use with any other type of optional

NOTE: This equipment is designed to operate in North America and other countries where the broadcasting system and AC

house current are exactly the same as in North America.

Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the LCD TV to normal operation.

MOISTURE, DRIPPING OR SPLASHING. DO NOT PLACE LIQUID CONTAINERS (FLOWER VASES, CUPS, COSMETICS, ETC.) ABOVE THE SET (INCLUDING ON SHELVES ABOVE, ETC.).

PARTS AWAY FROM YOUNG CHILDREN. DISCARD UNNEEDED SMALL PARTS AND OTHER OBJECTS, INCLUDING PACKAGING MATERIALS AND PLASTIC BAGS/SHEETS TO PREVENT THEM FROM BEING PLAYED WITH BY YOUNG CHILDREN, CREATING THE POTENTIAL RISK OF SUFFOCATION.

times.

Radio waves from this TV may interfere with the medical devices and cause accidents due to the malfunction. Radio waves from this TV may interfere with the automatic control devices and cause accidents due to the

malfunction. Radio waves from this TV may interfere with the operation of the pacemaker. as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power.

Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

OR EQUIVALENT TYPE.

accessories may cause instability which could result in the possibility of injury.

(All of the following accessories are manufactured by Panasonic Corporation)

• Wall-hanging bracket: TY-WK3L2RW Always be sure to ask a qualified technician to carry out set-up.

Page 6

FCC and IC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by Panasonic Corp. of North America could void the user’s authority to operate this device.

FCC Declaration of Conformity

Models: TC-L32E5, TC-L37E5, TC-L42E5, TC-L47E5 Responsible Party: Panasonic Corporation of North America

Contact Source: Panasonic Consumer Marketing Company of North America Telephone No.: 1-877-95-VIERA (958-4372) Email: [email protected]

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RF Exposure Warning:

• This TV is provided with USB port on rear enclosure for exclusive use for insertion of optional provided Wireless LAN Adapter.

• Other transmitters shall not be used in this port, unless specifically recommended. Other third-party wireless transmitters have not been RF exposure evaluated for use with this TV and may not comply with RF exposure requirements.

• This transmitter complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment for mobile use with minimum 8 inches (20 cm) spacing requirement between transmitters and all person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation.

One Panasonic Way, Secaucus, NJ 07094

<Only for Wireless Adaptor if capable of transmission in the 5.15 ~ 5.25 GHz frequency band> This product is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC and IC require this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this product.

■About wireless LAN adapter (Optional Accessory)

Wireless LAN adapter and Access point need to be obtained separately.

●

For the latest information on applicable wireless LAN adapters, check the following website: http://Panasonic.com/NetConnect Check that the Access point supports WPS*.

●

(If it does not support WPS, “Password” of the Access point is required when configuring settings.) Follow the instructions on the Access point setup screen and configure the appropriate security settings.

●

For more details on setting of Access point, please refer to operating manual for the Access point. We recommend using 11n (5 GHz) for the wireless system between the wireless LAN adapter and Access point.

●

Communication is also possible with 11a, 11b, and 11g (2.4 GHz), but the communication speed may be slower. If the wireless system of the Access point is changed, devices that could connect by wireless LAN may no longer be able to

●

connect. When Online Movies, DLNA, or other device is using the network, do not disconnect the wireless LAN adapter.

●

Data transmitted and received over radio waves may be intercepted and monitored.

●

Keep the TV away from the following devices as much as possible:

●

Wireless LAN, microwaves, and other devices that use 2.4 GHz and 5 GHz signals. Otherwise, the TV failures such as malfunction may occur due to the radio wave interference. When noises occur due to the static electricity, etc., the TV might stop operating for the protection of the devices. In this case,

●

turn the TV Off with power On / Off switch, then turn it On again.

* WPS: Wi-Fi Protected Setup

Page 7

CEA CHILD SAFETY NOTICES

WARNING

Flat panel displays are not always supported on the proper stands or installed according to the manufacturer’s recommendations. Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and may cause personal injury or even death.

The consumer electronics industry (of which Panasonic is a member) is committed to making home entertainment enjoyable and safe. To prevent personal injury or death, be sure to follow the following safety guidelines:

TUNE INTO SAFETY:

• One size does NOT fit all. Follow the manufacturer’s recommendations for the safe installation and use of your flat panel display.

• Carefully read and understand all enclosed instructions for proper use of this product.

• Don’t allow children to climb on or play with furniture and television sets.

• Don’t place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers.

• Remember that children can become excited while watching a program, especially on “larger than life” flat panel displays. Care should be taken to install the display where it cannot be pushed, pulled over, or knocked down.

• Care should be taken to route all cords and cables connected to the flat panel display so that they cannot be pulled or grabbed by curious children.

WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:

• Use a mount that has been recommended by the display manufacturer and/or listed by an independent laboratory (such as UL, CSA, ETL).

• Follow all instructions supplied by the display and wall mount manufacturers.

• If you have any doubts about your ability to safely install your flat panel display, contact your retailer about professional installation.

• Make sure the wall where you are mounting the display is appropriate. Some wall mounts are not designed to be mounted to walls with steel studs or old cinder block construction. If you are unsure, contact a professional installer.

• A minimum of two people are required for installation. Flat panel displays can be heavy.

Panasonic recommends that a qualified installer perform the wall-mount installation. See page 8.

The American Academy of Pediatrics discourages media viewing for children younger than two years. For more details, see www.aap.org.

Page 8

Accessories/Optional Accessory

Accessories

Check you have all the items shown.

Accessories

Remote Control Transmitter

N2QAYB000779

•

Batteries for the Remote Control Transmitter (2)

AA Battery

•

Pedestal

How to assemble (p. 9)

Power cord

TC-L32E5,

•

TC-L37E5, TC-L42E5

TC-L47E5

•

Owner’s Manual Quick Start Guide Child safety

Product Registration Card (U.S.A.)

Cable clamper

Component/AV adapter

K2KYYYY00199

•

Optional Accessory

Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please refer to the optional accessories installation manual.

Wireless LAN Adaptor for VIERA and exclusive stand

TY-WL20U

●

Wall-hanging bracket

Please contact a professional installer to purchase the recommended UL qualified wall-hanging bracket. For additional details, please refer to the wall-hanging bracket installation manual.

Back of the TV

• To use the Wireless LAN Adaptor for VIERA, an access point needs to be obtained.

• It is recommended to use the Wireless Adaptor for VIERA with its exclusive stand.

• To avoid malfunctions caused by radio wave interference, keep the TV away from devices such as other wireless LAN devices, microwaves and the devices that use 2.4 GHz and 5 GHz signals when using the Wireless Adaptor for VIERA.

• Depending on the area, this optional accessory may not be available.

• Additional information for Wireless LAN Adaptor and access point may be on the following website. http://panasonic.jp/support/global/cs/tv/

Screw for fixing the TV onto the wall-hanging bracket (not supplied with the TV)

Depth of screw: Minimum: 0.39” (10.0 mm) Maximum: 0.55” (14.0 mm)

TC-L32E5, TC-L37E5 only

TY-WK3L2RW

●

Holes for wall-hanging bracket installation

a : 7.9” (200 mm) (TC-L32E5, TC-L37E5) / 15.7” (400 mm) (TC-L42E5, TC-L47E5) b : 7.9” (200 mm) (TC-L32E5, TC-L37E5) / 15.7” (400 mm) (TC-L42E5, TC-L47E5)

WARNING

Always be sure to ask a qualified technician to carry out set-up.

•

Do not mount the unit directly below ceiling lights (such as spotlights, floodlights or halogen lights) that typically give off

•

high heat. Doing so may warp or damage plastic cabinet parts. Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before

•

hanging bracket. To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.

•

Incorrect wall-hanging bracket or incorrect fitting may cause equipment to fall, resulting in injury and product damage.

•

Panasonic disclaims liability for any damage or injury arising from incorrect wall-hanging bracket, incorrect fitting or

•

otherwise failure to follow the above instructions.

(View from the side)

Page 9

Attaching the pedestal to TV

■

Assembling the pedestal

Fix securely with assembly screws A. (Total 4 screws)

•

Tighten screws firmly.

•

Bracket

Front

■

Set-up

Tighten assembly screws B (total 4 screws) loosely at first, then

•

tighten them firmly to fix securely.

Rear view

Arrow mark

Base

Rear side

Make sure that the bracket is anchored before fixing the screws.

(Image)

Accessories

Assembly screws (4 of each)

XSS5+15FNK size (M5 × 15)

XYN4+F25FJK size (M4 × 25)

Bracket (1)

TBL5ZA32261 (TC-L32E5) TBL5ZA32591 (TC-L37E5) TBL5ZA32821 (TC-L42E5, TC-L47E5)

Base (1)

TBL5ZX0278 (TC-L32E5) TBL5ZX0274 (TC-L37E5) TBL5ZX0268 (TC-L42E5) TBL5ZX0270 (TC-L47E5)

Getting started

•

Accessories/Optional Accessory

Arrow mark

Base

(Image)

Removing the pedestal from the TV

Be sure to remove the pedestal in the following way when using the wall hanging bracket or repacking the TV.

Remove the assembly screws B from the TV. Lift the TV from the pedestal. Remove the assembly screws A from the bracket.

WARNING

Do not disassemble or modify the pedestal.

Otherwise the TV may fall over and become damaged, and personal injury may result.

•

Caution

Do not use any pedestal other than that provided with this TV.

Otherwise the TV may fall over and become damaged, and personal injury may result.

•

Do not use the pedestal if it becomes warped or physically damaged.

If you use the pedestal when it is physically damaged, personal injury may result. Contact your nearest Panasonic

•

Dealer immediately.

During set-up, make sure that all screws are securely tightened.

If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong

•

enough to support the TV, and it might fall over and become damaged, and personal injury may result.

When removing the pedestal, do not remove the pedestal by any methods other than the specified procedure (above).

Otherwise the TV and/or pedestal may fall over and become damaged, and personal injury may result.

•

Work on a flat surface

Hole for pedestal installation

bracket

Page 10

Hook

Installing the remote’s batteries

Pull open

Note the correct polarity (+ or -).

Power cord connection

Insert the power cord plug (included) firmly into place.

•

When disconnecting the power cord, be absolutely sure to disconnect the power cord plug from the wall outlet first. The included power cord is for use with this unit only.

Caution

Incorrect installation may cause battery

•

leakage and corrosion, resulting in damage to the remote control.

Do not mix old and new batteries.

•

Do not mix different battery types (such as

•

alkaline and manganese batteries). Do not use rechargeable (Ni-Cd) batteries.

•

Do not burn or break batteries.

•

Page 11

Connections

Connection Panels

Back of the TV

Ethernet connector

PC terminal

DIGITAL AUDIO OUT

A B C

SD card slot (p. 26)

USB 1/2 terminal (p. 26)

For A, B, C connections,

●

please refer to p. 12

Getting started

•

Connections

Accessories/Optional Accessory

Antenna or Cable connection

Back of the TV

Power Cord (Connect after all the other connections have been made.)

VHF/UHF Antenna

• NTSC (National Television System Committee):

• ATSC (Advanced Television Systems Committee): Digital TV Standards include digital high-definition television (HDTV), standard-definition television (SDTV), data broadcasting, multi-channel surround sound audio and interactive television.

Cable

You need to subscribe to a cable TV service to enjoy viewing their programming.

●

You may need to subscribe to a high-definition (HD) cable service to enjoy HD programming.

●

The connection for high-definition can be done with the use of an HDMI or Component Video cable. (p. 12)

Note

When using a Cable box, external equipment and video cables shown in this manual are not supplied with the TV.

●

When disconnecting the power cord, be absolutely sure to disconnect the power cord plug from the wall outlet first.

●

For additional assistance, visit us at: www.panasonic.com/help

●

www.panasonic.ca

VHF/UHF Antenna

Cable TV

Page 12

Best

AV cable connection

To use HDMI terminals

HDMI-DVI

white

red

Conversion cable

white white

red red

(not in use)

Component/AV adapter

To use COMPONENT terminals

white

red

HDMI AV OUT

DVI OUT

AUDIO OUT

AV Equipment

e.g. Blu-ray Disc player

AV Equipment

e.g. Blu-ray Disc player

Good

Basic

(Not HD)

white

red

greengreen/

blueblue

redred

whitewhite

redred

yellow

white

red

yellow

Component/AV adapter

To use COMPOSITE terminals

Component/AV adapter

green/ yellow

(not in use)

green

blue

red

white

red

yellow

white

red

green

blue

red

white

red

yellow

white

red

COMPONENT VIDEO OUT

AUDIO OUT

COMPOSITE OUT

AV Equipment

e.g. Blu-ray Disc player

AV Equipment

e.g. DVD Recorder

e.g. VCR

Note

In some cases, it is not possible to connect depending on the type of cable or equipment.

●

The Green/Yellow terminal is shared for both the COMPONENT and COMPOSITE (VIDEO IN)

●

connection. When using COMPOSITE (VIDEO IN) connection, the Yellow connector (Video) should be inserted into Green/Yellow connection.

Input select:

INPUT

Video

Comp.

select

Page 13

Audio connection

Optical cable

PC / Computer connection (VGA)

Audio equipment

DIGITAL AUDIO IN

e.g. Amplifier

Component/AV adapter

(not in use)

white white

red red

Cable Binding Instructions

Connect cable which matches the audio out terminal on the computer

Audio cable

Audio OUT

PC OUT

RGB PC cable Conversion adapter

(if necessary)

To attach

Cable clamper

To bundle

hole

Insert

Getting started

Computer

•

Connections

To remove

Snaps

Keep pushing both sides till they snap

To loosen

hooks

Do not bundle the Antenna cable and AC cord together (could cause distorted image).

●

Fasten the cables with the Cable clamper as necessary.

●

When using the options, follow the option’s assembly manual to fix cables.

●

Set

knob

Keep pushing the knob

Page 14

Identifying Controls

TV controls/indicators

Front of the TV

Back of the TV

Changes the input mode Chooses menu and submenu entries (Press and hold down for MENU function)

Selects channels in sequence

Power indicator ( on: red, off: no light)

C.A.T.S (Contrast Automatic Tracking System)

Remote control sensor within about 23 feet (7 meters) in front of the TV set

Note

The TV consumes a small amount of electric energy even when turned off.

•

Do not place any objects between the TV remote control sensor and remote control.

•

Switches TV On or Off (Standby) Select source to watch (p. 25)

Displays Main Menu (p. 48) Displays Option Menu for special

functions (when available) (p. 22) Colored buttons

(used for various functions) Volume up/down

Sound mute On/Off

Changes aspect ratio and zoom (p. 21, 55)

Switches to previously viewed channel or input

External equipment operations (p. 37)

Accesses NETFLIX service directly

• You need a Broadband environment to use this service

• This service might be stopped or the conditions changed without notice.

Remote control

POWER

OPTION

MUTE INFO

PQRS

LAST

CC SAP

INPUT EXIT

SURROUND

GYBR

VOL

FORMAT

ABC DEF

GHI

JKL

TUV

NETFLIX

RETURN

FAVORITE

MNO

WXYZ

SD/USB

Volume up/down

POWER button

• An image of the control panel is displayed on the screen while using it.

Closed Caption On/Off (p. 21) Selects Secondary Audio Programming

(p. 21) Exits from menu screen

Switches surround sound setting Display the Online Movies screen

(p. 43) Display VIERA TOOLS Menu (p. 24)

Selects/OK/Change Go back to previous menu Channel up/down, when viewing from

ANT/Cable source

Operates the Favorite channel list function (p. 22)

Displays or removes the channel banner (p. 21)

Numeric keypad to select any channel or press to enter alphanumeric input in menus

Use for digital channels. (p. 20) Viewing from external media (SD/USB)

(p. 26 - 31)

Page 15

First Time Setup

The first time setup screen is displayed only when the TV is turned on for the first time after the power cord is inserted into a wall outlet and when “Auto power on” (p. 53) is set to “No”.

Turn the TV On with the POWER button

POWER

(TV) (Remote)

Configure your viewing mode

Select your language

Language / Idioma / Langue

Select your language Seleccione su idioma Sélection de la langue

English Español Français

Select Selección Sélection

Select your country

Country

Select the country where this TV is being used.

U.S.A. Canada Other

Select

RETURN

POWER

Step 1 of 7 / Paso 1 de 7 / Étape 1 de 7

Step 2 of 7

select OK

Getting started

•

First Time Setup

Identifying Controls

Select your viewing mode (Be sure to select “Home use”)

Set viewing mode

Select your viewing environment

Home use Store Demonstration

Step 3 of 7

select OK

Select

RETURN

Please confirm your selection (Home Use) before pressing OK button.

●

■If you select “ Store Demonstration” by mistake in ,

confirmation screen will be displayed.

You are selecting the store demonstration mode.

Yes

If you select “Yes”, the picture mode will regularly reset to “Vivid” and a Picture Refresh message will be displayed on the screen.

Select “No” and return to previous screen .

●

If you select “Yes”, screen enters the store demonstration mode.

●

To display the “Set viewing mode” screen again as shown above and select

“Home use”, do one of the following:

• Press and hold down the rear POWER button for at least five seconds.

• Unplug power cord for 30 seconds and plug in again.

Note

If you use any other step other than

●

button to quit before completing the settings, the next time you turn the TV on, “First time setup” will not be automatically displayed.

• The settings up to that point are saved.

• You can start “First time setup”. (p. 53) Language, ANT/Cable setup, Input labels, Clock can also be changed from the

●

Settings Menu. (p. 52)

select OK

then turn the TV off, or if you used the EXIT

Page 16

EXIT

RETURN

■ Press to exit from

a menu screen

EXIT

■

Press to go back to the previous screen

RETURN

Note

About broadcasting

•

systems

Analog (NTSC):

Conventional broadcasting

Digital (ATSC):

New programming that allows you to view more channels featuring high-quality video and sound

ANT/Cable setup

Do you use a Cable, Satellite or Fiber Optic box with this TV?

ANT/Cable setup

Do you use a Cable, Satellite or Fiber Optic box with this TV?

Yes No

Select

RETURN

a Select signal type

(Cable/Antenna)

ANT/Cable setup

How does the TV receive its programming content?

Cable service

Over-the-Air

(No box)

Antenna

Select

RETURN

Select scan type

Auto program

Start scanning for available channels in your area?

Yes No

Select

RETURN

Start scanning

Auto program

Progress

Number of analog channels

Number of digital channels This may take some time to complete. Press RETURN to quit

RETURN

Complete scanning

Auto program completed. Press OK to continue.

Number of analog channels

Number of digital channels

OK RETURN

ANTENNA/ CABLE IN

Yes

Step 4 of 7

10 20

Yes

b Select connection type

for Cable or Satellite box and go to labels)

ANT/Cable setup

select OK

select

Which wiring method is used to connect your box to the TV?

HDMI

Component

Composite

Select

RETURN

Antenna/Cable in

AV IN

Antenna Cable In

(Input

Step 4 of 7

Page 17

Label the inputs for easy identification (Label inputs)

RETURN

Select

GHI

PQRS

ABC

JKL

TUV

DEF

MNO

WXYZ

- ,

LAST

ABC abc

GAME

Video

GAME

To name each input, follow the instructions on screen. When done, select NEXT and press OK to go to the next step.

EXIT

RETURN

Label inputs

What is connected to HDMI 1 ? For your convenience, you may name each input for easy identification. The labels will be shown in the “Input select” menu.

HDMI 1

HDMI 2 HDMI 3 HDMI 4 Component Video PC Next

Select

RETURN

Customize label

To edit the labels to match your connected devices.

Label: [BLANK] Blu-ray/CABLE/SATELLITE/DVD/DVD REC/DVR/GAME/HOME

THTR/RECEIVER/COMPUTER/MEDIA CTR/MEDIA EXT/VCR/CAMERA/ MONITOR/AUX/OTHER/Not used

• Select “Not used” for any back-panel input that has no device connected to it. Afterward, the input will be skipped when pressing INPUT, for your convenience.

• The input labels can be changed at any time from the TV’s setup menu

Configure Network settings

Select the Network type

Network settings

Select Ethernet cable of wireless network.

Ethernet cable Wireless(Wifi) Set later

Select

RETURN

Select the setting mode

Network settings

Checks for proper network connection, settings and communication to the Internet and server automatically.

Automatic Manual

ETHERNET

Step 5 of 7

Step 6 of 7

select

HDMI

set

Follow the instructions on screen to complete the following operations.

Getting started

•

First Time Setup

Set later: Go to Wireless (WiFi)

Automatic: Press OK to start setup automatically.

Manual: Go to Manual setting.

You can set in “Setup” menu later.

: Start “Wireless network” (p. 19)

Error screen is displayed when Network connection has failed.

■ Press to exit from

a menu screen

EXIT

■

Press to go back to the previous screen

RETURN

Select

RETURN

Manual

Automatic

Start connection test ■Manual setting

Network settings

Connection test

Check Ethernet cable connection Validate IP address Check for IP address duplication

Check connection to the Internet Check communication with EASY IPTV server.

Test in progress...

RETURN

Step 6 of 7

Connection test

Complete “Network settings”

Helpful information is displayed when you successfully complete “Network settings”.

Network settings

Network settings are complete. You can use EASY IPTV. EASY IPTV lets you enjoy Internet contents on your VIERA TV.

OK RETURN

Step 6 of 7

Connection error

Network settings

Configure settings of the network connection.

IP setting mode

Automatic

IP address

192.168.0.4

Subnet mask

255.255.255.0

Default gateway

192.168.0.1

DNS setting mode

Automatic

DNS

192.168.0.1

Proxy address Proxy port Connect test Mac address

00-00-aa-cc-33-ab

Select

Change

RETURN

Manual

■Error screen

Network settings

Connection test

Check Ethernet cable connection Validate IP address Check for IP address duplication

Check connection to the Internet Check communication with EASY IPTV server.

Connection to local network (router) failed. Ensure wireless network availability

Retry Manual Set later

Select

RETURN

Retry: Go to “Start connection test” Set later: Go to

Step 6 of 7

Page 18

RETURN

0 9

DST

Minutes

EXIT

RETURN

Adjust the Clock (Set clock)

When done, select NEXT and press OK to go to the next step.

■Manual setting

Set clock

Adjust the TV's date and time

Mode

Year

Month Day Hour Minute Time zone DST Next

Edit

Select

Change

RETURN

0-9

Manual

- - -

Step 7 of 7

select

set

Follow the instructions on screen to complete the following operations.

■Auto setting

Set clock

Adjust the TV's date and time

2011/4/5 6:00 AM

Mode

Year Month Day Hour Minute Time zone DST Next

Select

Change

RETURN

Auto

EST Off

Step 7 of 7

■ Press to exit from

a menu screen

EXIT

■

Press to go back to the previous screen

RETURN

Mode

Time zone

DST

Manual: Adjust the clock manually (Year/Month/Day/Hour/Minute) Auto: The clock is adjusted automatically via Internet service. Only available when the TV is on a network.

Set “Network settings” first.

Select your time zone. (EST/CST/MST/PST/AKST/HST/NST/AST) Set DST (Daylight Saving Time) setting. (On/Off)

On: Advances the clock one hour from the time it is set according to the time zone.

Complete First time setup

Congratulations! You are done. The First time setup can be repeated at any time.

Press MENU and select SETUP; then “First time setup”.

Congratulations! Setup is complete.

Enjoy your Panasonic VIERA TV.

RETURN

To watch TV via a Cable box, Satellite receiver, or any other source (DVD, DVR, gaming device, etc.), press the INPUT button and select the appropriate input.

Page 19

■About wireless LAN

Wireless LAN adapter and Access point need to be obtained separately.

●

For the latest information on applicable LAN adapters, check the following website: http://Panasonic.com/NetConnect Check that the Access point supports WPS*.

●

(If it does not support WPS, the encryption key of the Access point is required when configuring settings.) Follow the instructions on the Access point setup screen and configure the appropriate security settings.

●

able to connect. When EASY IPTV, Network camera, DLNA, or other device is using the network, do not disconnect the wireless LAN

●

adapter. Keep the TV away from the following devices as much as possible:

●

Wireless LAN, microwaves, and other devices that use 2.4 GHz and 5 GHz signals. Otherwise, the TV failures such as malfunction may occur due to the radio wave interference.

* WPS: Wi-Fi Protected Setup

■Wireless network (First time setup) in

Display “Wireless network” Select the connection method

Wireless network

Please choose connection method:

Search for wireless networks WPS (Wi-Fi Protected Setup using push button)

Follow the directions on screen to complete the setting.

●

See page 39 for more information.

●

select

Getting started

•

First Time Setup

Page 20

Watching TV

POWER

OPTION

PQRS

INPUT

FORMAT

FAVORITE

INFO

ABC DEF

JKLGHI

TUV

SAP

MNO

WXYZ

Turn power on

(Remote) (TV)

POWER

Note

Please select correct input

•

INPUT

(p. 25)

Select a channel number

• You can also press the CH up/down button on the TV (p. 14)

[For Cable/Satellite box connection]

- Use your connected box’s remote control.

down

ABC DEF

JKLGHI

TUV,PQRS

MNO

WXYZ

Note

Reselect “Cable” or “Antenna” in “ANT in” of “ANT/Cable setup” to switch the signal

•

reception between cable TV and antenna. (p. 16, 46) The channel number and volume level remain the same even after the TV is turned

•

off.

■ To directly enter the digital

channel number

When tuning to a digital channel, press the button to enter the minor number in a compound channel number.

example: CH15-1:

JKL

Page 21

■Other Useful Functions

Listen with SAP (Secondary Audio Programming)

■Select the Audio mode for watching TV

Digital mode

SAP

Press SAP to select next Audio track (if available) when receiving a digital channel.

Audio track 1 of 2

Analog mode

Press SAP to select the desired Audio mode.

• Each press of SAP will change the Audio mode. (Stereo/SAP/Mono)

•

(English)

SAP is not available when watching TV with a Cable or Satellite box connected via HDMI. Contact your Cable or Satellite operator for instructions on enabling SAP with their box.

Closed Caption

■Switches the Closed Caption mode On or Off

Closed Caption is not available when watching TV with a Cable or Satellite box connected via HDMI.

•

Contact your Cable or Satellite operator for instructions on enabling CC with their box.

•

Displaying Information

Closed caption OnClosed caption Off

Closed caption On mute

■Displays and removes information. When watching programming via the Antenna/Cable input,

shows the channel banner.

INFO

Channel

15-2 12:30 PM ABC-HD

Station identifier

THE NEWS

CC SAP

SAP indication

TV-G 1080i Standard 4:3

Signal resolution

Rating Level

Picture mode

Aspect ratioClosed caption

Clock

Sleep timer remaining time

Basic

•

Watching TV

Change aspect ratio and Zoom the picture

■Press FORMAT to cycle through the aspect modes (p. 55)

FORMAT

• 480i, 480p: FULL/JUST/4:3/ ZOOM

• 1080p, 1080i, 720p: FULL/H-FILL/JUST/4:3/ZOOM Use when the picture does not fill the whole screen (bars appears on either side of the

image) or portions of the picture is trimmed.

Note

1. Some content, such as film-based movies, are available in extra-wide format. Top and bottom bars are unavailable.

2. Connected devices, such as Cable/Satellite box, DVD/Blu-ray players and game consoles have their own aspect (format) settings. Adjust the device’s aspect settings.

Page 22

Display the SUB MENU

Favorite channels

1/3

26-1

1 2 3 4 5

Set favorite 1/3

26-1

1 2 3 4 5

Set favorite 1/3

26-1

1 2 3 4 5

■Press OPTION to show the Sub Menu screen

This menu consists of shortcuts to convenient functions. Sub menu is only available when the TV is using the Antenna/Cable input, not when using Cable or Satellite box.

OPTION

Setup SUB MENU

Channel surf mode

All Set favorite Edit CH caption Signal meter

Specify favorites or type of channels to view when pressing the channel up/ down button.

Set favorite channel (below) Edit the channel identifier (p. 47) Check the signal strength (p. 47)

Call up a favorite channel

■ FAVORITE

Channel numbers registered in Favorite are displayed on the favorite tune screen. Select the desired broadcast station with the cursor or use the number buttons. (p. 20)

FAVORITE

select

ABC DEF

JKLGHI

MNO

WXYZ

TUV,PQRS

■Set the Favorite channel

OPTION

Setup SUB MENU

Channel surf mode

All

Set favorite

Edit CH caption Signal meter

PQRS

select the list

number

save the displayed

channel

GHI

select the list number

ABC DEF

(to save the channel without pressing OK)

MNO

JKL

WXYZ

TUV

■Delete a favorite channel

select

delete

(while holding down)

■To change the page

FAVORITE

Press repeatedly to change between pages (1/3, 2/3, 3/3 or exit)

Favorite channels cannot be set when using Cable or Satellite box.

●

Changes the page forward/backward

Page 23

■Other Useful operations

RETURN

GHI

PQRS

ABC

JKL

TUV

DEF

MNO

WXYZ

- ,

LAST

Delete$%&ĺDEF

6HOHFW

3UR[\VHWWLQJ

3UR[\DGGUHVV

Proxy port

1 4 8

Entering characters

You can use the remote control keys to enter the alphanumeric characters.

■Switches input mode

ABC → abc → 123

↑

_____________

3LFWXUH

$XGLR

/RFN

Setup

■Press each number key

to cycle through the alphanumeric character

Navigation area

You can also use a USB keyboard (not supplied) to enter the alphanumeric characters.

●

Keyboard type (p. 53)

●

Password setting/entering

You need to enter the password when you access locked channel or inputs.

Input your 4-digit password

Password

Enter password.


* * * -

Audio

Network

Lock

ABC DEF

GHI

JKL

TUV,PQRS

If it is your first time entering the password, enter the password twice in

●

order to register it.

MNO

Make a note of your password. Do not forget it. (If you have forgotten

●

WXYZ

your password, consult your local dealer.) When you select a locked channel, a message will be displayed that

●

allows you to view the channel after you input your password. Change password (p. 51)

●

Operate USB keyboard

You can operate non-character keys as remote control keys.

■Key chart

Keyboard key Remote key Keyboard key Remote key

UP/DOWN/LEFT/RIGHT Cursor key F4 Input

Enter OK F5 Channel Down(-)

BackSpace Return (when you do not

input character)

F6 Channel up(+)

0-9 0-9 F7 Volume Down(-)

F1 Menu F8 Volume up(+) F2 VIERA Tools F9(Red)/F10(Green)/ F3 Submenu

For more details on setting and operation of the USB keyboard, please also read the operating manuals for the USB

●

F11(Blue)/F12(Yellow)

Color key

(Red/Blue/Yellow/Green)

keyboard. Some keyboards do not have these keys.

●

Basic

•

Watching TV

Page 24

Using VIERA TOOLS

VIERA TOOLS is the easy way to access the TV’s special features. They are displayed as shortcut icons on the TV screen.

Display VIERA TOOLS

Select the item

The icons displayed differ depending on your country or area you select. (p. 15)

●

(example)

select

Set each item

Media player

•

Media player (p. 26-31)

DLNA

•

Using DLNA feature (p. 44)

EXIT

RETURN

■ Press to exit from

a menu screen

EXIT

■

Press to go back to the previous screen

RETURN

VIERA Link

•

Game mode

•

Eco mode

•

VIERA Link (p. 36-37)

Change to “Game” mode. Picture mode (p. 49)

ECO/energy saving (p. 52)

Page 25

Watching content from external devices

With the connected equipment turned On

Display the Input select menu

INPUT

Select the input mode

PQRS

ABC DEF

JKLGHI

TUV

MNO

WXYZ

Input select

ANT/Cable In

HDMI 1

HDMI 2

HDMI 3

HDMI 4

Video Comp.

HDMI 1

GAME

(example)

Terminal Label

(example)

ABC DEF

JKLGHI

MNO

WXYZ

TUV,PQRS

select

Input label

Setup ANT/Cable (p. 46)

Edit Device labels

enter

Input labels (p. 52)

(shortcut) press the corresponding NUMBER button on the remote control to select the input of your choice. Or, press the INPUT button repeatedly to cycle through the available inputs. * set unused input to “Not used”

(below) for quick skipping.

Select the input of your choice, then press OK.

COMPONENT and COMPOSITE (VIDEO) IN terminals are shared. You need to select “Video” (VIDEO IN) or “Comp.” (COMPONENT IN) in Input select menu when you use these terminals. (Default: Video)

During the selection, if no action

●

is taken for several seconds, the “Input select” menu disappears. The terminal and label (names)

●

of the connected equipment are displayed.

Basic

•

Watching content from external devices

Using VIERA TOOLS

Note

The input label will be displayed on the “Input select” screen if the Input label was

●

customized. For side input terminals (HDMI 4), “GAME” Input label is set as default.

●

Operate the connected equipment directly or using the remote control supplied with the equipment

Note

For details, see the manual for the connected equipment.

●

PC adjustments (p. 49)

●

Page 26

Using Media player

You can view still and motion images and play music saved on a USB flash memory and an SD card.

Basic features for Media player

■Available contents and features

Photos Videos Music

sotohp llAPhotos reyalP aideM

Trip1 Trip2 Trip3 Trip4 Trip5 Room Nature1

Nature2 Nature3 Nature4 Nature5 Nature6 2009_4 2009_7

2009_9

OKSelect

OPTION

RETURN

Sort

SD memory card

Info

Media selectSlideshow Drive select

OKSelect

OPTION

RETURN

B Y

Drive select Media select Information panel Option menu

Drive select

OK Select RETURN

OKSelect

SUB MENU

SD memory card

Info

RETURN

Sort

Media selectSlideshow Drive select

SD memory card

sotohp llAPhotos reyalP aideM

Media Select

OK Select RETURN

OKSelect

Photos Videos Music

SUB MENU

SD memory card

Info

RETURN

Sort

Device selectSlideshow Media select

sotohp llAPhotos reyalP aideM

SD memory card

Titles/Folders viewVideos reyalP aideM

SD memory card

Info

Media selectPlay Drive select

INFO

1/70

File name:


Date:

15/04/2011

Size:

640x480

OKSelect

OPTION

Info

RETURN

Sort

Displays data information.

select

select OK

(File name, Date, and Size etc.) * Information differs depending on

selected data.

Media Player Music

My Music_1 My Music_2 My Music_3

SD memory card

Media selectSlideshow Drive select

OKSelect

OPTION

RETURN

sotohp llAPhotos reyalP aideM

Setup SUB MENU

Slideshow settings Thumbnails size

OPTION

Option menu

Photos p. 28-29 Videos p. 30 Music p. 31

Info

Select

RETURN

OKSelect RETURN

Sort

Media information

■Inserting or removing an SD card/USB flash memory

SD card USB flash memory

Insert the card

●

Gently insert the SD Card label surface facing front.

Label surface

Push until a

click is heard

Cutout

Remove the card

●

Press in lightly

on SD Card,

then release.

Insert the device

●

Insert straight in

Remove the device

●

Pull straight out

Media selectPlay Folder Drive select

OPTION

Info

SD memory card

Folders

sotohp llAotohP reyalP aideM

SD memory card

Media selectSlideshow Drive select

Compliant card type (maximum capacity):

●

SDXC Card (64 GB), SDHC Card (32 GB), microSDHC

Media player only supports USB Mass storage

●

class devices. Card (32 GB), SD Card (2 GB), miniSD Card (2 GB), microSD Card (2 GB) (requiring microSDHC Card/miniSD Card/microSD Card/ adapter) If a microSDHC Card, miniSD Card or microSD Card is

●

used, insert / remove it together with the adapter.

For more information and cautions on SD card and USB flash memory (p. 56)

●

Page 27

Viewing Contents

Insert a Media (SD card or USB flash memory)

• Auto play setting Image viewer auto play (p. 53)

Display Media player

SD/USB

EXIT

INFO

RETURN

SD/USB

OPTION

R Y

FORMAT

■ Press to exit from

a menu screen

EXIT

■

Press to go back to the previous screen

RETURN

(example)

Select Drive

(Display connected drive)

Media Player

select OK

Drive select

SD memory card

OK Select RETURN

Select the Media

Media Player

Media select

SD memory card

OK Select RETURN

Photos Videos Music

select OK

Select the data (Photos/Videos/Music)

How to view the data differs depending on data storage conditions.

Select Title/Folder

Media Player Photos

23/10/2009 25/10/2009 01/11/2009 05/11/2009 10/11/2009 22/11/2009 23/11/2009

24/11/2009 01/12/2009 03/12/2009 20/12/2009 22/12/2009

OKSelect

OPTION

RETURN

Sort

Sort by Date

select OK

SD memory card

Info

Media selectSlideshow Drive select

(e.g. Photos)

Select file

sotohp llAPhotos reyalP aideM

select OK

OKSelect

OPTION

RETURN

Sort

SD memory card

Info

Media selectSlideshow Drive select

(e.g. Photos)

View or Play

Single view

Rotate

Prev.

Next RETURN

Stop

select OK

(e.g. Photos)

Thumbnail / Playback view image and operation are differ depending on selected contents.

Photos view p. 28-29

●

Videos view p. 30

●

Music view p. 31

●

Basic

•

Using Media Player

Page 28

Photos view

[Photos thumbnail] [Features]

OPTION

OKSelect RETURN

sotohp llAPhotos reyalP aideM

Media selectSlideshow Drive select

SD memory card

Info

Sort

Slideshow setting

•

Sort

•

Drive select

•

Media select

•

[Photos playback screen]

Photo status

Single view

Slideshow

Single view

Navigation Guide

Slideshow

Rotate

Prev.

Next RETURN

Stop

Prev.

Stop

Next RETURN

Single view

Prev.

Rotate

Stop

Next RETURN

Sort

Display “Sort select” menu and select item Displayed each view

Folders

Sort by date

Sort by month

select

Media Player Photos

23/10/2009 25/10/2009 01/11/2009 05/11/2009 10/11/2009 22/11/2009 23/11/2009

24/11/2009 01/12/2009 03/12/2009 20/12/2009 22/12/2009

OPTION

OKSelect RETURN

Info

Sort

(e.g. Sort by date)

Photo options

Display “Option Menu” and select item

OPTION

Option Menu

Slideshow settings

Thumbnails size

select

■Slideshow settings (p. 29)

■Thumbnails size

To change the number of photos on a thumbnail screen at a time

(7 × 4 10 × 6)

To display/hide

●

Guide and Banner

Sort by Date

• Folders (ascending order of numeric/alphabetical)

• Sort by month (ascending order of the month)

• Sort by date

Media selectSlideshow Drive select

SD memory card

INFO

Page 29

Slideshow

Display “Slideshow settings” Adjust items and select “Slideshow start”

Slideshow settings

Start Slideshow

Frame Photo effect Transition effect

Photo size Burst playback Display interval Repeat playback Soundtrack settings

Select

Change RETURN

OPTION

Normal

OKSelect RETURN

Off Off Off

Off

Info

Sort

(example)

Media selectSlideshow Drive select

SD memory card

sotohp llAotohP reyalP aideM

Slideshow settings

Start Slideshow

Frame

Photo effect Transition effect Photo size Burst playback Display interval Repeat playback Soundtrack settings

Select

Change RETURN

Off Off Off

Normal

Off

Normal

select

To stop in mid-cycle

●

(example)

■Slideshow settings

Settings Item Description

Frame*

Select the Frame (Off/Array/Collage/Drift(with calendar)/Drift/Gallery(with calendar)/Gallery/Cinema)

Photo effect* Select the display effect (Off/Sepia/Gray scale)

Select the Transition effect shown between photos (Off/Fade in/Wipe ↓/Wipe ↑/Wipe →/Wipe ←/

Transition effect Photo size*

Slide in ↓/Slide in ↑/Slide in →/Slide in ←/Zoom in/Comb ↑↓/Comb →←/Dissolve/Checker wipe/Motion/Random)

Removes the black borders that are added according to the size of the photo being displayed. (Normal/Zoom)

Burst playback* Continuously plays photos that were shot. (On/Off) Display interval

Set “Display interval” each image is displayed in the Slideshow mode.

(Short/Fast/Normal/Slow/Very slow)

Repeat playback Turn the Slideshow Repeat (cycle) function on or off (Off/On). Soundtrack

settings

Select the music (Off/Music 1/Music 2/Music 3/Music 4/Music 5/User selected*/Auto*) User selected: Plays the soundtrack registered in the “Soundtrack settings”. (below)

Auto: Plays the songs on the SD card or USB flash memory.

• Picture quality may become lower depending on the slideshow settings.

• Picture setting may not work depending on the slideshow settings. * When using DLNA (DMP mode) feature these menus are not displayed.

DMP: Digital media player p. 38

■Soundtrack settings

Select “Soundtrack

settings”

Slideshow settings

Start Slideshow Frame Photo effect Transition effect Photo size Burst playback Display interval Repeat playback

Soundtrack settings

Off Off Off

Normal

Off

Normal

(example)

Select “User

selected”

Soundtrack settings

OFF Music 1 Music 2 Music 3 Music 4 Music 5

User selected

Auto

User selected 03 XXXX

Select the song and register

sotohp llAPhotos reyalP aideM

Soundtrack settings

This song

All songs in folder

Select OK

RETURN

OPTION

OKSelect RETURN

Info

Sort

This song: Register current music. All songs in folder : Register the music in a folder.

Media selectSlideshow Drive select

SD memory card

RETURN

Basic

•

Using Media Player

select

Page 30

Videos view

[Videos thumbnail] [Features]

Trip1 Trip2 Trip3 Trip4 Trip5 Room Nature1

Nature2 Nature3 Nature4 Nature5 Nature6 2009_4 2009_7

2009_9

OKSelect

OPTION

RETURN

Titles/Folders viewVideos reyalP aideM

Media selectPlay Drive select

SD memory card

Info

Play

•

Drive select

•

Media select

•

Aspect change

•

[Videos playback screen]

01/04/2010 15:34SD

RETURN

Subtitles are not supported

●

in MKV file.

00:00.10

00:00.03

Movie banner

Drive type (SD/USB/DLNA)

01/04/2010 15:34SD 00:00.10

Date and time or File name

Navigation area

RETURN

Video options

Displayed menu will differ depending on contents.

Select “Video options” in “Option Menu”

OPTION

Option Menu

Video options

FORMAT

00:00.03

Elapsed time of current movie * Counter may not work correctly with DLNA

feature. In this case “--:--:--”is displayed.

To display/hide Guide and Banner

●

30 seconds skip (In DLNA mode only (depends on content)) Forward

Play/Pause Stop

Reverse

• Forward/Reverse Five level of 1 to 5 (x2, x5, x30, x70, x100) are available.

INFO

■Repeat playback

Set play repeat function (On/Off)

Video options

Repeat playback

select

Compatible Data format for Media player (SD card/ USB flash memory)/DLNA

Media Compatible format

• JPEG files (DCF and EXIF standards)


Sub-sampling - 4:4:4, 4:2:2 and 4:2:0 Image resolution - 8 × 8 to 30,712 × 17,272 pixels

• SD-Video Files (SD-Video Standard Ver.1.3) Modified data with a PC may not be displayed correctly.

• AVCHD Standard compatible files

Modified data with a PC may not be displayed correctly.

Videos

• MP4 files (Video codec H.264 | Audio codec MP3/AC-3/LPCM)

• MKV files (Video codec H.264 | Audio codec MP3/AC-3/LPCM)

• MPEG-2 PS files*

• MPEG-2 TS files*

• Motion JPEG files

• MP3 files (MPEG Audio Layer-3)

• AAC files (MPEG2-AAC / MPEG4-AAC)

Music

• LPCM files*

• FLAC files

• WAV files

For more data format information. (p. 56) * For DLNA only.

●

• AVI files

• MOV files

• M4V files

• FLV files

• 3GP files

• VRO files

• VOB files

• TS files

• PS files

Page 31

Music view

[Music thumbnail] [Features]

Media Player Music

My Music_1 My Music_2 My Music_3

OPTION

OKSelect RETURN

Info

Media selectPlay Folder Drive select

Folders

SD memory card

Play folder

•

Drive select

•

Media select

•

[Music playback screen]

Navigation area

AAAAAA BBBBBBB

RETURN

Artist name Album name Song name

XXXXXXX

00:00.05 / 00:00.49

Elapsed time of current song * Counter may not work correctly with

DLNA feature. In this case “--:--:--”is displayed.

RETURN

Music options

Select “Music options” in “Option Menu”

OPTION

Option Menu

Music options

Forward

Play/Pause Stop

Reverse

To display/hide Guide and Banner

●

• Forward/Reverse Five level of 1 to 5 (x2, x5, x30, x70, x100) are available.

INFO

Basic

■Repeat playback

Set play repeat function (Off/Repeat Folder/One

song)

Music options

Repeat playback

Off

•

select

Using Media Player

Other settings in Media player

Display “Menu”

Select the item


Audio VIERA Link

Set

select

■Adjust the Picture and Audio

Picture 1/2

Reset to defaults

Picture mode

Back light Contrast Brightness Color Tint Sharpness

Vivid 20 0 0 0 0 0

example: Picture menu Picture menu/Audio menu (p. 49-50)

■Use VIERA Link function

VIERA Link control

Recorder

Speaker output

Back to TV

VIERA Link menu (p. 36)

select

adjust

select

change

Page 32

VIERA Link

Simultaneously control all Panasonic “HDAVI Control” equipped components using one button on the TV remote. Enjoy additional HDMI Inter-Operability with compatible Panasonic products. This TV supports “HDAVI Control 5” function. Connections to equipment (Blu-ray Disc player, DVD recorder DIGA, HD Camcorder, Home theater system, Amplifier, etc.) with HDMI cables enables VIERA Link controls.

Equipment with the “HDAVI Control” function enables the following operations:

Version Operations (See p. 34-37, for more information)

HDAVI Control or later

HDAVI Control 2 or later

HDAVI Control 3 or later

HDAVI Control 4 or later HDAVI Control 5

•

“ HDAVI Control

Automatic Input Switching Power on link Power off link Default speakers Speaker control

VIERA Link control only with the TV’s remote control Unselected device energy save (for available equipment only)

Provides setting information (Language, time, etc.) Automatic lip-sync function

Energy saving mode (with Quick Start mode) Audio Return Channel

Audio Return Channel (ARC) is a function that enables digital sound signals to be sent via an HDMI cable back from the TV to a connected audio device.

”

■When adding new equipment, reconnecting equipment or changing the setup after the connection,

turn the equipment on and then switch the TV on. Set the input mode to HDMI 1, HDMI 2, HDMI 3 or HDMI 4 (p. 25), and make sure that the image is displayed correctly.

VIERA Link “HDAVI Control”, is based on the control functions provided by HDMI and industry standard known as HDMI CEC (Consumer Electronics Control), with unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed. Please refer to the individual manuals for other manufacturers’ equipment supporting the VIERA Link function.

■HDMI cable

This function needs an HDMI compliant (fully wired) cable. Non-HDMI-compliant cables cannot be utilized. It is recommended that you use Panasonic’s HDMI cable. Recommended part number: RP-CDHS15 (4.9 ft/1.5 m), RP-CDHS30 (9.8 ft/3.0 m), RP-CDHS50 (16.4 ft/5.0 m) * For more details on the external equipment’s connections, please refer to the operating manual for the equipment.

Page 33

VIERA Link™ Connections (with VIERA Link function)

■Terminal overview

Back of the TV

■Connecting Blu-ray Disc player/DVD Recorder (DIGA)

•

VIERA Link

“HDAVI Control

HDMI cable

Blu-ray Disc player/DVD recorder (DIGA) with VIERA Link function

■Connecting Home theater system/AV amp

HDMI 1 is recommended.

HDMI cable

Optical cable

No optical cable is necessary when connecting a Home Theater supporting “HDAVI control 5” with an HDMI cable. Audio will be supported via ARC (Audio Return Channel) (p. 32)

One AV amp and one Blu-ray Disc player/DVD recorder (DIGA) can be operated with this unit.

●

Home theater systems with VIERA Link function

AV amp with VIERA Link function

Blu-ray Disc player/DVD recorder (DIGA) with VIERA Link function

■Connecting HD Camcorder/Digital camera

Press INPUT and select an available HDMI terminal, then connect the camcorder to this input. After connection, confirm the HDAVI control functions. (p. 34-37).

HDMI / mini HDMI cable

If connection (or setting) of equipment compatible with HDAVI control is changed, switch the power of this unit Off and On again while the power of all equipment is On (so that the unit can correctly recognize the connected equipment) and check that the connected equipment playback operates.

Note

Individual HDMI equipment may require additional menu settings specific to each model. Please refer to their respective manuals.

●

When audio from other equipment connected to this unit via HDMI is output using “DIGITAL AUDIO OUT” of this unit,

●

the system switches to 2CH audio. (When connecting to an AV amp via HDMI, you can enjoy higher sound quality.) Some devices use Mini-HDMI terminal. HDMI (type A) to Mini-HDMI (type C) cable or adapter should be used.

●

HD Camcorder

with VIERA Link

function

LUMIX

with VIERA Link

function

”

Advanced

Page 34

VIERA Link settings and Available features

To use all VIERA Link functions: After everything is connected, in VIERA Link settings menu, set “VIERA Link” to “On”. Some features are disabled depending on the “HDAVI Control” version of the equipment. Please check the list (p. 32)

Display the menu

Network


Audio

Timer

Lock

Setup

Channel surf mode

Language Clock ANT/Cable setup Input labels Closed caption

VIERA Link settings

ECO/energy saving

All

1/2

select

EXIT

RETURN

Select “VIERA Link settings” in “Setup”

Select “VIERA Link”

VIERA Link settings

VIERA Link


Power on link Power off link

Audio

Energy saving mode

Network

Unselected device energy save

Timer

Default speakers

Lock

Setup

Quick start

No (stay on)

On No

Yes

select

■ Press to exit from

a menu screen

EXIT

■

Press to go back to the previous screen

RETURN

Select “On”

(default is On)

Select and make other settings

VIERA Link settings

VIERA Link


Power on link Power off link

Audio

Energy saving mode

Network

Unselected device energy save

Timer

Default speakers

Lock

Setup

Quick start

No (stay on)

On No

Yes

change

select

Page 35

Automatic Input Switching

When using a Blu-ray Disc player, DVD player/recorder or Home theater system, the TV will automatically change to the appropriate input, when playback begins on one of those devices.

• For a Home theater system the speakers automatically switch to the theater system.

Power on link

Yes: The TV is turned on automatically and switches to the appropriate HDMI input whenever VIERA Link compatible equipment is initially turned on and the Play mode is selected.

Power off link

When “Yes” is selected and the TV is turned off, all connected VIERA Link compatible equipment is also automatically turned off.

• A Panasonic DVD Recorder will not turn off if it is still in Rec mode.

• The TV remains on even if the VIERA Link compatible equipment is turned off.

Energy saving mode

Quick Start: When TV is turned off, all connected VIERA Link compatible equipment is moved to ECO Standby mode* automatically under these conditions.

• Power off link:(Yes), The connected equipment has “HDAVI Control 4 or later (with Quick Start mode)” * Minimum power consumption of Standby condition for the equipment.

Unselected device energy save

Yes: The connected VIERA Link compatible equipment will be turned off automatically when not in use under these conditions.

• The connected equipment has “HDAVI Control 2 or later” (for available equipment only) [ Example of timing for operation ]

• When the input is switched from the HDMI.

Default speakers

“TV” is the default setting. To set the Home theater system as Default speakers, change the Default speakers setting from “TV” to “Theater”. Sound will be output from the Home theater whenever the TV is powered on.

Automatic lip-sync function

Minimizes lip-sync delays between the picture and audio when you connect to a Panasonic theater system or Amplifier.

TV provided setting information

The following information about the TV settings can be transmitted to each piece of equipment (Recorder/Home theater/Player) that has “HDAVI Control 3 or later” function connected to a TV with an HDMI cable.

Transmittable data Recorder Home theater Player

On Screen Display Language setting

(English/Español/Français)

Panel Aspect Ratio

(16:9 fixed)

Closed caption information

(Mode/CC type/Digital setting)

○○○

○

--- ---

•

VIERA Link

“HDAVI Control

”

Advanced

Note

There is a possibility that all the GUI language information might be set from equipment that has an HDMI CEC

●

function connected to the TV with an HDMI cable. Depending on the operating conditions or the specification for each piece of equipment the setting may or may not be applied. For more details on the external equipment’s operation, please refer to the operating manual for the equipment.

●

Page 36

VIERA Link menu and Available features

Some features are disabled depending on the “HDAVI Control” version of the equipment. Please check the list (p. 32)

Display the VIERA Link menu

SAP

OPTION

MUTE

PQRS

VOL

ABC DEF

JKLGHI

TUV

BR Y

EXIT

RETURN

MNO

WXYZ

This function is not available depending on your country or area you select. (p. 15)

(example)

Select the item

select

VIERA Link control

Recorder

Speaker output

Back to TV

Items in the VIERA Link menu may be grayed out

●

if no compatible equipment is connected (must be HDAVI Control 2 or later) or if the equipment has not initiated a connection with the TV. In that case, switch the equipment’s power Off and On while the TV is On. For further details, see “VIERA Link” on page 34.

select next

■ Press to exit from

a menu screen

EXIT

■

Press to go back to the previous screen

RETURN

Select

VIERA Link control

Home theater

Speaker output

Back to TV

Set

change

Page 37

Speaker control

You can select the Home theater or TV speakers for audio output. Control the theater speakers with the TV remote control. This function is available only when a Panasonic Amplifier or Player theater is connected.

Select “Speaker output” Select “Home theater” or “TV”

VIERA Link control

Recorder

Speaker output

Back to TV

select change

■Home theater: Adjustment for the equipment

Volume up / down Mute

•

MUTE

The sound of the TV is muted. When the equipment is turned off, the TV speakers take over. Selecting “Home theater” turns the equipment on automatically if it is in Standby mode.

VOL

■TV: The TV speakers are on.

VIERA Link control only with the TV’s remote control

In the VIERA Link menu, you can select HDMI connected equipment and access it quickly. Continue using your TV remote control to operate the equipment, pointing it at the TV.

Select “VIERA Link control” Select the equipment you want to access

(Recorder/Home theater/Player/Camcorder/LUMIX/ Digital camera/ Network camera)

Using VIERA TOOLS (p. 24)

●

VIERA Link control

Recorder

Speaker output

Back to TV

You can select available items only.

select change

If there is more than one equipment item, a number

●

after the name indicates the number of items. (e.g. Recorder 1/Recorder 2/Recorder 3...) The number of equipment items that can be connected

●

is three for recorders, and a total of three for Home theater/Player/Camcorder/LUMIX/Digital camera/ Network camera.

Note

There is a limit to the number of HDMI connectors.

●

Operate the equipment with the TV remote

control, pointing it at the TV

To operate the equipment, read the manual of the

●

equipment.

■Available TV remote control buttons

Whether an operation is available differs depending on the connected equipment.

RETURN

OPTION

EXIT

GYBR

Move the cursor/Select Play Set/Access Stop

Return to previous menu

Display the functions menu on the equipment

Exit Channel Up/Down

WXYZ

0-9 Select digital subchannel Available when the purpose of the keys is displayed on screen

SAP

Reverse/Forward Press and hold to Skip backward/ forward

Pause Closed caption

SAP (Select Audio Mode)

•

VIERA Link

“HDAVI Control

”

Advanced

Back to TV

Returns the input selection of the device selected with the VIERA Link Control to the TV input.

Select “Back to TV”

VIERA Link control

Recorder

Speaker output

Back to TV

select

Page 38

Using Network services

Available Network service and features

■Using EASY IPTV p. 43

■Using DLNA feature (Home network) p. 44

This TV is a DLNA Certified™ product. DLNA (Digital Living Network Alliance) is a standard that makes DLNA Certified digital electronics easier and more convenient to use on a home network. To learn more, visit www.dlna.org. It allows you to share photos, videos and music stored in the DMS (for example, PC with Windows 7 installed, etc.) connected to your home network, and enjoy watching them on the TV screen as DMP.

DMS (Digital Media Server)

Ensure the connected equipment has a DLNA Certified media server. Store photos, videos or music into the media server, and then you can watch them on the TV. “Windows 7” is the server software that has been tested for the performance with this TV (current as of January , 2011). For installing, read the manual of the server software.

The DLNA control function of Windows 7 is not supported with this TV.

●

When a server software for the media server is installed on the PC, the data may be at risk of being accessed

●

by other people. Please take care of the settings and connections under the network circumstances at the office, hotel or even at home when not using a router.

DMP (Digital Media Player)

Finds the content on DMS and provides playback.

■Using Network camera p. 45

Page 39

Back of TV

Network Connections

Contact your Broadband service provider

NOTICE: If you don’t have Internet service by your local provider, please order a high-speed Internet service at no less than the following connection speed. If you already have such service, make sure that the connection speed exceeds the following.

Required speed (effective): at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively.

●

Dial-up Internet service cannot be used for EASY IPTV.

●

Select wired or wireless connection

If the Cable/DSL modem is close to the TV and you have only one TV set, you may choose a wired connection. If the Cable/DSL modem is far from the TV and/or you have more TVs in the house, you may want to use a wireless network.

Connecting to the Internet

Wired connection (Directly connected)

If you are not using the network for connecting anything else but the TV, you could just connect the TV directly to the Cable/DSL Ethernet connection.

Wired connection (Using Router)

If you are using the network for connecting various equipments and want to connect the TV, you should use a router to connect the TV to the Internet.

Wireless connection

If you are using the network for connecting various equipments and want to connect the TV, you could also use a wireless LAN adapter and Access point to connect the TV to the Internet.

Internet

LAN cable

(shielded)

Modem

•

Using Network services

Back of TV

To use only DLNA features or Network camera, you can operate the features without Broadband network environment.

●

Back of TV

Ensure to use a LAN straight cable for this connection.

LAN cable

(shielded)

Ensure to use a LAN cross cable for this connection.

LAN cable

(shielded)

Hub, Router

Access point

DLNA Certified media server

Internet

Modem

Home network (DLNA feature)

DLNA Certified media server (for example, PC, etc.)

Network camera

Advanced

Page 40

Network settings

This is a setting for connecting to a broadband environment.

Display the menu

EXIT

RETURN

Select “Network”

Network

Connection test


Network connection Wireless network settings

Audio

IP address/DNS settings

Network

Network link Online Movies settings

Timer

Software update New software notice

Lock

Network status

Setup

Wireless (WiFi)

Select the settings and set

■ Press to exit from

a menu screen

EXIT

■

Press to go back to the previous screen

RETURN


Audio

Network

Timer

Lock

Setup

Network

Connection test

Network connection Wireless network settings IP address/DNS settings Network link Online Movies settings Software update New software notice Network status

Wireless (WiFi)

select

adjust

Connection test

Check that the Network settings are as shown below, and then start “Connection test”.

Select “Connection test” and press OK

(It takes a while to cancel the test.)

Displayed Connection test screen

Connection test

Check Ethernet cable connection Validate IP address Check for IP address duplication

Check connection to the Internet Checking communications with server.

Test in progress...

Complete Connection test

Success

-->

Completion screen is displayed. Error-->Follow the directions on screen to complete the setting. If you perform the Proxy settings, check the Proxy address and the Proxy port number.

Network connection

Select Network type (Ethernet cable/Wireless (WiFi))

Wireless network settings

■Sets/Changes wireless network settings

Press “Wireless network settings” and display Wireless networks

Or select connection method (below) with color key.

Follow the directions on screen to complete the setting

Wireless networks

0024A5C1C1FE_A-1 11n(5GHz) sssss 11n(5GHz) 001D73C528A0_G 11g(2.4GHz) 001D73D24884 11n(2.4GHz) 001D73D24884-2 11n(2.4GHz)

Select your wireless network.

Select

RETURN

WPS Push

WPS PIN

Wireless type StatusNetwork name (SSID)

11n(5GHz)0024A5C1C1FE_A

Manual settings Search again

select

* Wi-Fi Protected Setup is an easy setting of the Wi-Fi

Alliance’s certification

For more details on setting of an Access point, please

●

refer to operating manual for the Access point.

WPS (Push button):

You can connect the Access point by pressing this button.

WPS (PIN):

Set the PIN code that is displayed on the TV on the Access point.

Manual settings:

Manually set SSID, Security type, and Encryption type to

match the settings of the Access point to which to connect.

Search Again:

Search again an available wireless network within the range.

When connecting by 11n (5 GHz), select “AES” as the

●

Encryption type for the wireless LAN.

Page 41

IP address/DNS settings

Select “IP/DNS setting mode” and set to

“Automatic”

(When IP/DNS automatic acquisition in DHCP can be used)

IP address/DNS settings

IP setting mode


IP address 192.168.0.5 Subnet mask 255.255.255.0

Audio

Default gateway 192.168.0.254

Network

DNS setting mode Automatic DNS 192.168.0.20

Timer

Automatic

select

The acquired address is displayed.

Each IP address is acquired automatically

If you are using a broadband router, IP automatic acquisition in DHCP can be used under normal circumstances. If you are not sure, check with the person who installed the equipment, or check the instructions for each device.

■Manual setting

Select “IP/DNS setting mode” and set to “Manual” Select the item and press OK Check the specifications of the broadband router and

enter each IP address. Or Enter each IP address as was specified by the provider

IP address

Proxy setting

Set only if specified by the provider. It is not required for normal household use.

0 . 0 . 0 . 0

•

Using Network services

Select “Proxy setting”

IP address/DNS settings

IP setting mode


IP address 192.168.0.5 Subnet mask 255.255.255.0

Audio

Default gateway 192.168.0.254

Network

DNS setting mode Automatic DNS 192.168.0.20

Timer

Proxy setting

Automatic

select

Select item and press OK


Audio

Proxy setting

Proxy address

Proxy port

select

Enter address or port number and press OK

Network link

■Edit the name of this TV

Sets your favorite name for this TV. This name will be used to display the name of this TV on the screen of the other Network compatible equipment.

Select “VIERA network name”

Network link

VIERA network name


DLNA remote control Enable

Audio

DLNA remote volume control

Network

Network remote control Enable

VIERA

Enable

Edit the name and press OK

select

■Proxy address

This is the address of the relay server that is connected to the target server instead of the browser and sends data to the browser. Setting is only required if specified by the provider.

■Proxy port

This number is specified by the provider together with the Proxy address.

■Switches DLNA remote control (Disable/Enable)

Switches DLNA remote control “Disable” or “Enable”

DLNA remote control Enable

select

■Volume setting in DMR operation (Disable/Enable)

Sets volume setting in DMR operation

• Available only when “Enable” is selected in “DLNA remote control”

DLNA remote volume control

Enable

select

Advanced

■Switches Network remote control (Disable/Enable)

Switches remote control of network device like smartphone “Disable” or “Enable”.

Network remote control Enable

select

Page 42

Online Movies settings

Select “Online Movies settings”

Network

Connection test


Network connection Wireless network settings

Audio

IP address/DNS settings

Network

Network link

Online Movies settings

Timer

Software update New software notice

Lock

Network status

Setup

Wireless (WiFi)

select

Select item and set to “Off”

(Available services are displayed.) The items are not displayed on Online Movies screen.

Software update

Select “Software update”

Network

Connection test


Network connection Wireless network settings

Audio

IP address/DNS settings

Network

Network link Online Movies settings

Timer

Software update

New software notice

Lock

Network status

Setup

Wireless (WiFi)

select

Press OK to start the Software update screen

Follow directions on the screen

Set “Clock” first. (Press MENU -> Setup -> Clock)

●

New software notice

Displays new software update information when TV is turned on.

Select “New software notice” Set the status (On/Off)

Network

Connection test


Network connection Wireless network settings

Audio

IP address/DNS settings

Network

Network link Online Movies settings

Timer

Software update

New software notice

Lock

Network status

Setup

Wireless (WiFi)

select

Change

Network status

Select “Network status” and press OK Display current network status.

Displayed items differ depending on the type of network connection.

●

Network status

Network connection Wi-Fi (Adapter): Network name (SSID) :

: ---

Wireless type

Security type

Encryption type

Connection status

Signal strength

: XX-XX-XX-XX-XX-XX

MAC Address

: ---.---.---.---

IP address

: ---.---.---.---

Subnet mask

: ---.---.---.---

Default gateway

: ---.---.---.---

DNS

Proxy address

: 0

Proxy port

(example)

Page 43

Using EASY IPTV

This function allows you to access VOD (Video-on-demand) services, easily with selecting the icon.

You need broadband environment to use this service.

●

Preparations

Network connections (p. 39)

●

Network settings (p. 40-42)

●

EXIT

RETURN

■ Press to exit from

a menu screen

EXIT

■

Press to go back to the previous screen

RETURN

Display the Online Movies screen

Select the item and press OK

select

view

(example)

Depending on the usage conditions, it may take a while to read all the data.

• The services are subject to change without notice.

• Not all VOD services are available depending on the country and area. Displayed items can be changed by Online Movies settings. (p. 42)

●

■Using USB keyboard

Keyboard type (p. 53)

●

Operate USB keyboard/Entering characters (p. 23)

●

•

Using Network services

Other settings

Display “Menu”

Select the item


Audio VIERA Link

Set

Advanced

■Adjust the Picture and Audio

Picture 1/2

Reset to defaults

Picture mode

Back light Contrast Brightness Color Tint Sharpness

select

example: Picture menu Picture menu/Audio menu (p. 49-50)

Vivid 20 0 0 0 0 0

select adjust

■Use VIERA Link function

VIERA Link control

Recorder

Speaker output

Back to TV

VIERA Link menu (p. 36)

select change

Page 44

Using DLNA feature

You can share the contents (Photo, Video, Music, etc.) stored in DLNA Certified media server with your home network system.

Preparations

Network connections (p. 39)

●

Network settings (p. 40-42)

●

OPTION

INFO

EXIT

RETURN

Display VIERA TOOLS

Select the “DLNA”

(example)

select next

Select server

Display available server.

DLNA server

SERVER1

SERVER2

SERVER3

OKSelect

SUB

RETURN

Info

(DLNA server list)

Available DLNA servers

select

Total listed number

To display Information

●

INFO

■ Press to exit from

a menu screen

EXIT

■

Press to go back to the previous screen

RETURN

Select contents

Display contents of selected server.

DLNA server

SERVER1 > Photos > All photos

P000102 2008-10-05 09:54

Size: Screen format

SUB MENU

3648x2736

P000135 2008-11-20 13:18 P000180 2008-12-07 11:31 P000214 2008-12-10 15:20

JPEG

P000251 2008-12-19 12:39 P000276 2008-12-25 14:06 P000293 2009-01-06 13:52 M10025 2009-01-12 15:56

OKSelect

M10042 2009-01-20 10:08 M10054 2009-01-28 14:48

RETURN

M10078 2009-02-09 19:58

wohsedilS

Contents type

Info

(File list)

Thumbnail

View/Play

See “Using Media player” to operate. (p. 26-31)

select

To display Information

●

INFO

To display “Slideshow

●

settings” (p. 29) (photo only) To display Optional

●

OPTION

Page 45

Network Camera

You can operate the Network camera from the TV remote and also check the images from the Network camera on

VIERA Link control only with the TV’s remote control (p. 37)

●

your TV .

Preparations

Network connections (p. 39)

●

Network settings (p. 40-42)

●

Before connecting the Network camera to the TV, please complete “IP setting” and run

EXIT

●

“Connection test”

With all connected equipment turned on

RETURN

Display “VIERA Link” menu

This function is not available depending on your country or area you select. (p. 15)

(example)

If there is no registered camera displayed, please set it in Network Camera settings.

●

(p. 45) There is also an option to start with sensor detection.

●

select next

Select “Network camera”

VIERA Link control

Network camera

Speaker output

Back to TV

select

•

Using Network services

■ Press to exit from

a menu screen

EXIT

■

Press to go back to the previous screen

RETURN

View

4 split screen

Multi screen

Camera name

Model

Select OK

4 cam / 8 cam

Camera 1

BL-C210A

(1/4)

RETURN

select

OK to Single screen

9 split screen

Multi screen

Camera name

Model

Select OK

4 cam / 8 cam

Camera 1

BL-C210A

(1/9)

1-9

RETURN

select

OK to Single screen

Single screen Navigation area

Single screen

Camera name

Model

Pan

Tilt

1-9

Preset position Home position

Camera 1

BL-C210A

RETURN

Pan Tilt

1-9

Note

A number of VIERA-compatible network cameras can be found at the following sites:

●

http://www.panasonic.com/ http://panasonic.net/pcc/products/netwkcam/ For more details on setting and operation of the Network camera, please also read

●

the operating manuals for the Network camera.

Default camera setting (p. 45)

●

RETURN

Preset position Home position

Advanced

Page 46

Editing and Setting Channels

Auto program

All channels

Analog only Digital only


Audio

Timer

Network

Cable

ANT/Cable setup

ANT in

Auto program

Manual program Signal meter


Audio

Network

The current channel settings can be changed according to your needs and reception conditions.

ANT/Cable setup and operation

Display the menu

EXIT

RETURN

Select “Setup”

Setup

Channel surf mode


Audio

Network

Timer

Lock

Setup

Language Clock ANT/Cable setup Input labels Closed caption VIERA Link settings ECO/energy saving

All

1/2

select

GHI

PQRS

ABC DEF

MNO

JKL

WXYZ

TUV

Select “ANT/Cable setup”


Audio

Network

Timer

Lock

Setup

Channel surf mode

Language Clock

ANT/Cable setup

Input labels Closed caption VIERA Link settings ECO/energy saving

All

1/2

select

■ Press to exit from

a menu screen

EXIT

Auto program (Set automatically)

Automatically searches and adds available channels to the memory.

Select “ANT in” Select a scanning mode (p. 16)

Select “Cable” or “Antenna”

Or select “Not used”.

Select “Auto program”

next select

After the scanning is completed, select “Apply”.

●

(see p. 47 ). All previously saved channels are erased.

●

next select

Page 47

Manual program (Set manually)

Set favorite 1/3

26-1

1 2

Use this procedure when changing the channel setup or changing the channel display. Also, use this to add or skip channels from the channel list manually. You can select a channel tuning mode (Digital only/ Analog only) in “Channel surf mode” (p. 52)

Select “Edit”

Manual program

Edit CancelApply

Channel

Caption Favorite Add

...

2 ...

...

3 ...

...

4 ...

...

5 ...

Yes Yes Yes Yes

Select the item to edit

Manual program

Edit CancelApply

Channel

Caption Favorite Add

...

2 ...

...

3 ...

...

4 ...

...

5 ...

...

6 ... 7 ... 8 ... 9 ...

Select

Prev.page Next page

... ...

Caption

...

OK RETURN

Favorite

Go back to the previous page

Yes Yes Yes Yes Yes Yes

Add

Yes Yes

Proceed to next page

● Caption:

Changes the station identifier

● Favorite:

Registers channels to the Favorite List

● Add:

Adds or skips channels

select next

select the item

to edit (Caption/ Favorite/Add)

Edit

Caption

●

Edit CH caption

Channel

Caption

Select

OK RETURN

DeleteABC → abc

80-101

---

D A

change set

Caption

Select or edit the station identifier. (maximum 7 characters available)

Favorite

●

Set favorite

Add

●

Select the number

Press OK to select “Yes (add)” or “No (skip)”

Move the cursor to a channel number

Manual program

Edit CancelApply

Channel

Caption Favorite Add

...

2 ...

...

3 ...

Yes Yes

select

press OK to tune

Select “Apply”

program

Caption Favorite Add

...

CancelApply

...

Yes

select OK

PQRS

RETURN

select

set

RETURN

to the channel.

ABC DEF

JKLGHI

MNO

WXYZ

TUV

RETURN

•

Editing and Setting Channels

Advanced

To cancel the Edit

Manual program

Edit CancelApply

Caption Favorite Add

Channel

...

2 ...

...

3 ...

...

4 ...

...

5 ...

Signal meter (Check signal strength)

Check the signal strength if interference is found or freezing occurs on a digital image.

Signal meter

Channel


Tune manually

Audio

Signal strength

Network

Current 86%

Timer

Peak level 98%

Lock

Setup

Yes Yes Yes Yes

ABC DEF

JKLGHI

MNO

WXYZ

PQRS

TUV

Signal intensity

select next

Changes will be lost. Continue?

Yes No

If the signal is weak, check the antenna.

change

channel

●

If no problem is found, consult your local dealer.

Note

Not available if “Cable” is selected in “ANT in”

●

(returns to “ANT/ Cable setup”)

select “Y es”

(see p. 46). Available only for digital antenna channels.

●

Page 48

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions so that you can enjoy watching TV best suited for you.

Display the menu

Shows the functions that can be adjusted.

●

Some functions will be disabled depending on the

●

type of input signal.

EXIT

RETURN

■ Press to exit from

a menu screen

EXIT

■

Press to go back to the previous screen

RETURN

Menu structure

Audio

Reset to defaults


Bass Treble

Audio

Balance

Network

Advanced audio

DTV language and SAP settings

Timer

Lock

Preferred language and audio for hearing or visually impaired, if offered during digital

Setup

broadcast. (Available only in the U.S.)

Select OK

RETURN

0 0 0

Menu bar Press OK to move to the Menu items.

Menu items Press OK to proceed to next screen if available.

Help information

Operation guide

(example: Audio)

Select the menu


Picture settings

Audio

Audio settings

Network

Network settings

Timer

Timer (Sleep, On/Off timer)

Lock

Lock (Channel, Game, Program, etc.)

Setup

Setup (other settings)

Adjust or select a menu item

Picture 1/2

Reset to defaults


Picture mode

Back light

Audio

Contrast

Network

Brightness Color

Timer

Tint Sharpness

Lock

Setup

(example: Picture menu)

Vivid +80 +95 +50 +50

+50

adjust or select

Page 49

“Reset to defaults” will be grayed out if no changes are made in the following menus:

●

“Picture”, “PC adjustments”, “Audio” and “Closed caption”.

Picture settings

Settings Items Item Description Reset to defaults Picture mode Vivid

Standard Cinema Custom (Photo)

Game

Back light Adjusts the luminance of the back light. Contrast, Brightness,

Color, Tint, Sharpness

Color temp. Color mgmt. Off/On A.I. picture Off/On C.A.T.S. Off/On Video NR Off/On

• Some menus are grayed out depending on the input signal or condition. (e.g. “Zoom adjustments” will be grayed out if the aspect is not set to Zoom.)

Aspect adjustments

PC adjustments Reset to defaults

Cool/Normal/Warm

Screen format FULL/H-FILL/

HD size Size 1/Size 2

H size Size 1/Size 2

Zoom adjustments

Sync H & V

Dot clock H-position

Adjust the image or picture quality

Resets all picture adjustments to factory default settings except for “Advanced picture”.

Provides enhanced picture contrast and sharpness for viewing in a well-lit room. Recommended for normal viewing conditions with subdued room lighting. For watching movies in a darkened room. It provides a soft, film-like picture. Customizes each item according to your taste.

Photo is displayed in JPEG menu. For playing video games.

Adjusts the color, brightness, etc. for each picture mode to suit your taste

• Display range Contrast/Brightness/Color/Sharpness : 0 - 100

Tint : -50 - +50 Selects a choice of Cool (blue), Normal, or Warm (red) color.

On: Enhances green and blue color reproduction, especially outdoor scenes. Controls dark areas without affecting the black level or brightness in the overall picture. Automatically adjusts the screen brightness according to the ambient lighting condition. Reduces noise, commonly called snow. Leave it off when receiving a strong signal.

Changes the format (aspect ratio).

JUST/4:3/ZOOM

Adjusts vertical alignment and size when aspect setting is “ZOOM”. Resets PC adjustments.

On green

Alleviates the problem if a picture appears to be vertically-striped, flickers partially or is blurred. Adjusts the horizontal position.

Lets you choose the aspect depending on the format of received signal. (p. 55)

Selects between 95 % (Size 1) or 100 % (Size 2) for the scanning area with High-definition signal. Select “Size 1” if noise is generated on the edges of the screen.

Size 1: Selected item for “HD size”. Scanning 95 %

●

Size 2: Selected item for “HD size”. Scanning 100 %

●

Adjusts the horizontal display range to reduce noise of both side edges of an image. Size 2: Adjusts the image size according to the aspect mode to reduce noise. (p. 55)

The H and V sync signals are input from the HD/VD connector. (p. 58) Uses a synchronized signal on the Video G signal, which is

input from the G connector. (p. 58)

•

How to Use Menu Functions

Advanced

V-position

Clock phase

Input resolution

H-frequency V-frequency

Adjusts the vertical position.

Alleviates the problem if the whole picture appears to flicker or is blurred. First adjust the Dot Clock to get the best possible picture, then adjust the clock Phase so that a clear picture appears.

It may not be possible to display a clear picture due to poor input signals.

●

Switches to wide display.

VGA (640×480 pixels), WVGA (852×480 pixels), XGA (1,024×768 pixels),

●

WXGA (1,280×768 pixels) Options change depending on signals

●

Displays the H (Horizontal)/V (Vertical) frequencies. Display range Horizontal: 15 - 110 kHz Vertical: 48 - 120 Hz

Page 50

Settings Items Item Description HDMI settings HDMI/DVI RGB

range (HDMI 1-4)

Contents type (HDMI 1-4)

Auto/ Standard (16-235)/ Nonstandard

Off/Auto/Photo/ Graphics

Prevents the blown out highlights and blocked up shadows when a wide-range signal is received. Selects between standard RGB range (16-235 bits) or non-compliance (0-255 bits). Auto: Switches the RGB range (Standard (16-235)/Nonstandard) depending on the HDMI signal information.

Sets content type to each HDMI input. Auto: Switches content type automatically depending on the HDMI signal information. Photo: Best setting for JPEG viewing. Graphics: Best setting for On-Screen display of connected equipment.

• Some menus are grayed out depending on the input signal or condition. (e.g. “3:2 pulldown” will be grayed out if the input signal is high definition or you are viewing photos, etc.)

Advanced picture

3D Y/C filter Off/On Color matrix SD/HD

Block NR Off/On Mosquito NR Off/On

Black level Dark/Light 3:2 pulldown Off/On/Auto

Minimizes noise and cross-color in the picture. Selects image resolution of component-connected devices.

SD: Standard Definition HD: High Definition Only used with 480p video signal.

Reduces noise of specific digital signals of DVD, Cable box, etc. Reduces HDTV flicker noise in the contoured sections of an

image. Selects Dark or Light. Valid only for external input signals. Adjusts the picture recorded in 24 fps for optimum quality.

Audio settings

Adjust Audio quality

Settings Items Item Description Reset to defaults Resets Bass, Treble, and Balance adjustments to factory default settings. Bass Increases or decreases the bass response. Treble Increases or decreases the treble response. Balance Emphasizes the left / right speaker volume. Advanced audio A.I. sound Off/On

Surround Off/On Bass boost Off/On Volume leveler TV speakers Off/On

HDMI 1-4 in Digital/

Component/ Video

DTV language and SAP settings

Preferred language

Preferred audio type

English/ Spanish/ French

Main Audio/ Hearing Impaired/ Visually Impaired

Equalizes overall volume levels across all channels and external inputs.

Enhances audio L/R response when listening to stereo. Enhances bass to provide powerful sound.

Minimizes volume disparity after switching to external inputs. Switches to “Off” when using external speakers.

Off: “A.I sound”, “Surround” and “Volume leveler” do not work if “Off” is selected.

The default setting is “Digital” for the HDMI connection. (Digital input signal) Select audio input terminal when DVI cable is connected. (Analog audio input signal)

Sets language priority.

• The setting in Preferred language takes precedence over Preferred audio type.

Narration settings for impaired users Hearing Impaired: Activates closed captioning when available on broadcasts. Visual Impaired: Activates the narration soundtrack when available on broadcasts.

• For Digital TV only

Page 51

Network settings

Settings Item Description Connection test Network connection Wireless network settings IP address/DNS settings Network link Online Movies settings Software update New software notice Network status

Configure Network settings

See p. 40-42 for more detail.

Timer settings

If the Timer settings are grayed out, first set the clock (see p. 52) and make sure “Auto power on” is set to “No” (see p. 53)

Settings Items Item Description Sleep (Off timer) Sleep (minutes) Off/15/30/60/90 Timer 1-5

(On/Off timer)

Lock

You will be asked to enter your password each time you display the Lock menu.

• Password setting/entering (p. 23) Set “Custom” in “Mode” to specify “Channel”, “Game”, “Program” and “EASY IPTV” settings.

Settings Items Item Description Mode Off

Channel

(These channels will be blocked regardless of the program rating.)

Game On/Off Program

(To set a rating level)

( EASY IPTV)* On/Off

Change password

• This television is designed to support the “Downloadable U.S. Region Rating System” when available. (Available only in U.S.A.)

• The Off rating is independent of other ratings.

• When placing a lock on a specific-age-based-rating level, the Off rating and any other more restrictive ratings will also be blocked.

Locks specified channels or shows to prevent children from watching objectionable content.

The TV can automatically turn On/Off at the designated date and time.

Select how long for the TV to automatically turn off.

Timer set Inputs Channel Day

On time

Off time

All Custom Mode

Channel 1-7

Mode

MPAA U.S.TV

C.E.L.R. C.F.L.R.

Enables or disables this timer. (Off/On) Sets the input to select when the TV turns on. Sets the channel to select when the TV turns on. Sets the day when the TV turns on.

[SUN/MON/TUE/WED/THU/FRI/SAT(displays the nearest future date) MON-FRI/SAT-SUN/DAILY/Every SUN/Every MON/Every TUE/Every WED/Every THU/Every FRI/ Every SAT]

Sets the time when the TV turns on. The TV will turn off after 90 minutes or as specified.

Sets the time when the TV turns off within 24 hours.

Unlocks all the Lock settings of “Channel”, “Game”, “Program” and “EASY IPTV”. Locks all the inputs regardless of the Lock settings of “Channel”, “Game”, “Program” and “EASY IPTV Locks specified inputs of “Channel”, ”Game”, “Program” and “EASY IPTV”. Set channel lock status. (Off/All/Custom)

All: Locks all channels Off: Unlocks all channels Custom: Locks specified channels. Set “Channel 1” - “Channel 7”

Select a channel to lock. (Select up to 7 (1-7) channels to block.) Locks Channel 3, Channel 4, and external inputs. Set program lock status. (Off/On) “V-chip” technology enables restricted shows to lock

according to TV ratings. On: Set each rating level (MPAA, US.TV, C.E.L.R., C.F.L.R.) Select U.S. movie ratings to lock.

U.S. TV program ratings. Canadian English ratings. Canadian French ratings. On: Locks EASY IPTV. When you select EASY IPTV icon on VIERA TOOLS screen,

the EASY IPTV Lock screen is displayed. Type the correct password to enter the screen.

* The menus displayed differ depending on your county or area you select (p. 15)

Change the password. Input the new 4-digit password twice.

For more information (p. 54)

•

How to Use Menu Functions

Advanced

”.

Page 52

Setup

Other function settings

Settings Items Item Description Channel surf

mode

All/Favorite/ Digital only/

Sets the mode to select the channel with the Channel up/down button. Favorite: Only channels registered as FAVORITE. (p. 22)

Analog only

Language English/

Selects the screen menu language.

Español/ Français

Clock

Adjusts the clock. (p. 18)

ANT/Cable setup See p. 46-47 for more detail.

Input labels

(Display labels of connected devices)

Selects the terminal and label of the external equipment. Devices connected to external input terminals can be labeled for easier identification during the input selection. (Input select (p. 25)) Terminals: HDMI 1-4/Component/V

ideo/PC Label: [BLANK] Blu-ray/CABLE/SATELLITE/DVD/DVD REC/DVR/GAME/HOME THTR/ RECEIVER/COMPUTER/MEDIA CTR/MEDIA EXT/VCR/CAMERA/MONITOR/AUX/OTHER/ Not used

• You can also enter the label name directly. (Entering characters (p. 23))

Closed caption

• The settings in “Analog” or “Digital”

Reset to defaults Resets all Closed caption settings to factory default settings. Mode On/Off/

CC on mute

depend on the broadcaster.

Analog CC1-4/T1-4

Digital Primary/Second./

Service 3/4/5/6

Digital setting

(Set display settings in digital program)

Size Font Style Foreground Fore. opacity Background Back. opacity Outline

VIERA Link settings

ECO/energy saving

See p. 34-35 for more detail.

Power save (Standard/ Saving)

No signal for 10 minutes (Stay on/ Power TV off)

No activity for 3 hours (Stay on/ Power TV off)

Reduces screen brightness to lower power consumption. Eye-friendly for viewing in a dark room.

To conserve energy, the TV automatically turns off when NO SIGNAL and NO OPERATION continue for more than 10 minutes.

• Not in use when “Auto power on” is set to “Yes”, or “On/Off Timer” is set.

• “No signal for 10 minutes was activated” will be displayed for about 10 seconds when the TV is turned on for the first time after the power was turned off by “No signal for 10 minutes”.

• The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining minutes prior to the shut-off.

To conserve energy, the TV automatically turns off when no operation of remote and side panel key continues for more than 3 hours.

• Not in use when “Auto power on” is set to “Yes”, or “On/Off Timer” is set, or while “PC inputs” is selected.

• “No activity for 3 hours was activated” will be displayed for about 10 seconds when the TV is turned on for the first time after the power was turned off by “No activity for 3 hours”.

• The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining minutes prior to the shut-off.

On: To display Closed captions. CC on mute: To display Closed captions when the audio is muted. (When not using, select “Off”).

Choose the Closed caption service of Analog broadcasting. CC1-4: Information related to pictures (Appears at the bottom of the screen) T1-4: Textual information (Appears over the entire screen)

The Digital Closed caption menu lets you configure the way you choose to view the digital captioning.

Text size Text font Text style (Raised, Depressed, etc.) Color of text Opacity of text Color of text box Opacity of text box Outline color of text (Identify the setting options on the screen.)

Page 53

Settings Items Item Description

Keyboard type

Advanced setup

First time setup About Reset to defaults

Auto power on (No/Yes)

Image viewer auto play

Select keyboard type. Operate USB keyboard (p. 23)

(U.S./Canadian French/Canadian Multilingual Standard/Spanish (Latin America)/Spanish (Spain))

Turns TV On automatically when the cable box or connected device is turned On. TV AC cord must be plugged into this device. TV turns on every time the power is restored.

Slideshow/ Photos/Videos/ Music Set later/Off

Restarts the first time setup from “Language” setting. (p. 15) Displays TV version and software license. Performing Reset will clear all settings made with Setup, such as channel

settings.

• Password setting/entering (p. 23)

Sets the media contents or playback type to play back SD cards automatically. Set later: “Image viewer settings” menu will be displayed repeatedly. “Using Media player” (p. 26)

•

How to Use Menu Functions

Advanced

Page 54

Ratings List for parental control

“V-chip” technology enables you to lock channels or shows according to standard ratings set by the entertainment industry.

■ U.S. MOVIE RATINGS (MPAA)

G GENERAL AUDIENCES. All ages admitted.

PG PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children.

PG-13 PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under 13.

R RESTRICTED. Under 17 requires accompanying parent or adult guardian.

NC-17 NO ONE 17 AND UNDER ADMITTED.

X ADULTS ONLY.

■ U.S. TV PROGRAMS RATINGS (U. S. TV)

Age-based

Group

NR (Not Rated)

Youth

Guidance

FV: Fantasy/Cartoon Violence. V: Violence S: Sex L: Offensive Language D: Dialogue with sexual content.

■ CANADIAN ENGLISH RATINGS (C. E. L. R.)

E C Programming intended for children under age 8. No offensive language, nudity or sexual content.

C8+

G General programming, suitable for all audiences.

PG Parental Guidance suggested. Some material may not be suitable for children. 14+ 18+ 18+ years old. Programming restricted to adults. Contains constant violence or scenes of extreme violence.

■ CANADIAN FRENCH RATINGS (C. F. L. R.)

E Exempt - Exempt programming.

8 ans+ 13 ans+ 16 ans+

18 ans+ Programming restricted to adults. Contains constant violence or scenes of extreme violence.

Caution

The V-Chip system that is used in this set is capable of blocking “NR” programs (non rated, not applicable and none) as per

●

FCC Rules Section15.120(e)(2). If the option of blocking “NR” programs is chosen “unexpected and possibly confusing results may occur, and you may not receive emergency bulletins or any of the following types of programming:”

• Emergency Bulletins (Such as EAS messages, weather warnings and others)

• Locally originated programming • News • Political • Public Service Announcements • Religious • Sports • Weather

5454

NO RATING (NOT RATED) AND NA (NOT APPLICABLE) PROGRAMS. Movie which has not been rated or where rating does not apply.

Age-based

Ratings

TV-NR

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

Exempt - Exempt programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming.

Programming generally considered acceptable for children 8 years and over. No profanity, nudity or sexual content.

Programming contains themes or content which may not be suitable for viewers under the age of 14. Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens.

General - Programming intended for audience of all ages. Contains no violence, or the violence content is minimal or is depicted appropriately.

8+ General - Not recommended for young children. Programming intended for a broad audience but contains light or occasional violence. Adult supervision recommended.

Programming may not be suitable for children under the age of 13 - Contains either a few violent scenes or one or more sufficiently violent scenes to affect them. Adult supervision strongly suggested.

Programming may not be suitable for children under the age of 16 - Contains frequent scenes of violence or intense violence.

Possible Content

Selections

● Viewable

● Blocked

● Viewable

● Blocked

● FV Blocked

● Viewable

● Blocked

● Viewable

● Blocked

● D,L,S,V (all selected)

● Any combination of

D, L, S, V

● D,L,S,V (all selected)

● Any combination of

D, L, S, V

● L,S,V (all selected)

● Any combination of

L, S, V

Description

Not Rated. All children. The themes and elements in this program are specifically

designed for a very young audience, including children from ages 2-6. Directed to older children. Themes and elements in this program may

include mild physical or comedic violence, or may frighten children under the age of 7.

General audience. It contains little or no violence, no strong language, and little or no sexual dialogue or situations.

Parental guidance suggested. The program may contain infrequent coarse language, limited violence, some suggestive sexual dialogue and situations.

Parents strongly cautioned. This program may contain sophisticated themes, sexual content, strong language and more intense violence.

Mature audiences only. This program may contain mature themes, profane language, graphic violence, and explicit sexual content.

Page 55

Technical Information

Aspect Ratio ( FORMAT)

Press the FORMAT button to cycle through the aspect modes. This lets you choose the aspect depending on the format of the received signal and your preference. (p. 21) (e.g.: in case of 4:3 image)

•

FULL

•

JUST

Enlarges the 4:3 image horizontally to the screen’s side edges. (Recommended for anamorphic picture)

H-FILL

•

H-FILL

Enlarges the 4:3 image horizontally to the screen’s side edges. The side edges of the image are cut off.

ZOOM

•

ZOOM

Enlarges the 4:3 image to the entire screen. (Recommended for Letter Box)

Zoom adjustments

•

Vertical image position and size can be adjusted in “ZOOM”.

Select “Zoom adjustments” on the “Picture” menu. (p. 49) V-position: Vertical position adjustment V-size: Vertical size adjustment

To reset the aspect ratio

•

Aspect Ratio: 4:3

•

(OK)

Stretches to justify the 4:3 image to the four corners of the screen. (Recommended for normal TV broadcast)

4:3

•

Standard (Note that “Image retention” of the side bar may occur from displaying it for a long time.)

Note

480i (4:3), 480i (16:9), 480p (4:3), 480p (16:9):

•

FULL, JUST, 4:3 or ZOOM 1080p / 1080i / 720p:

•

FULL, H-FILL, JUST, 4:3 or ZOOM

H size

Side bar

•

Ratings List for parental control

•

Technical Information

Support Information

Size 1 Size 2

Aspect Ratio: FULL/JUST(H-FILL/ZOOM)

•

Size 1 Size 2

See page 49 for more information.

The width will be decreased on both sides

•

to reduce noise.

The width will be increased on both sides

•

to reduce noise.

Page 56

Data format information

Compatible Data format for Media player (SD card/USB flash memory)/DLNA p. 30

●

DCF (Design rule for camera file system): A Japan Electronics and Information Technology Industries Association’s standard EXIF: Exchangeable Image File Format

Note

Format the card with the recording equipment.

●

The picture may not appear correctly on this TV depending on the recording equipment used.

●

Display may take some time when there are many files and folders.

●

The function (VIERA Image Viewer/Media player) cannot display Motion JPEG and still image not DCF formatted (i.e. TIFF, BMP).

●

Data modified with a PC may not be displayed.

●

Images imported from a PC must be compatible with EXIF 2.0, 2.1 and 2.2.

●

Partly degraded files might be displayed at a reduced resolution.

●

All “.JPG” extension data in the card and USB flash memory will be read in Photo viewer Mode.

●

The folder and file names may be different depending on the digital camera used.

●

Do not use two-byte characters or other special codes.

●

The card may become unusable with this TV if file or folder names are changed.

●

For the suitable SD Memory Cards, please confirm the latest information on the following website.

●

http://panasonic.jp/support/global/cs (This site is in English only)

Cautions when handling SD Cards

Use an SD Card which meets SD standards. If not, it may cause the TV to malfunction.

●

Do not remove the card while the unit is accessing data (this can damage card or unit).

●

Do not touch the terminals on the back of the card.

●

Do not subject the card to high pressure or impact.

●

Insert the card in the correct direction (otherwise, card or unit may be damaged).

●

Electrical interference, static electricity or erroneous operation may damage the data or card.

●

Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic

●

operation of the unit. (Panasonic is not liable for any deterioration or damage of recorded data.)

32 mm

24 mm

2.1 mm

SD Card/ USB flash memory warning messages

Message Meaning

No media. Please insert an SD memory card or USB storage device.

No media. Device removed. No photos/ No movies/No music files to play/ No

playable media Cannot read file

The device is not inserted.

●

The device is removed.

●

The device has no data or this type of data is not

●

supported. The file is broken or unreadable.

●

The TV does not support the format.

●

Page 57

VIERA LinkTM “ HDAVI ControlTM”

HDMI connections to some Panasonic equipment allow you to interface automatically. (p. 33)

This function may not work normally depending on the equipment condition.

●

The equipment can be operated by other remote controls with this function on even if the TV is in Standby mode.

●

Image or sound may not be available for the first few seconds when playback starts.

●

Image or sound may not be available for the first few seconds when input mode is switched.

●

Volume function will be displayed when adjusting the volume of the equipment.

●

If you connect equipment that has “HDAVI Control 2 or later” function to the TV with an HDMI cable, the sound from the

●

DIGITAL AUDIO OUT terminal can be output as multi-channel surround. “HDAVI Control 5” is the newest standard (current as of December, 2010) for the HDAVI Control compatible equipment.

●

This standard is compatible with the conventional HDAVI equipment.

HDMI connection

HDMI (high-definition multimedia interface) allows you to enjoy high-definition digital images and high-quality sound by connecting the TV unit and HD devices. HDMI-compatible equipment (*1) with an HDMI or DVI output terminal, such as a Cable or Satellite box or a DVD player, can be connected to the HDMI connector using an HDMI compliant (fully wired) cable.

HDMI is the world’s first complete digital consumer AV interface complying with a non-compression standard.

●

If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable (*2).

●

When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal.

●

Audio settings can be made on the “HDMI 1 in”, “HDMI 2 in”, “HDMI 3 in” or “HDMI 4 in” menu screen. (p. 50)

●

Applicable audio signal sampling frequencies (L.PCM): 48 kHz, 44.1 kHz, 32 kHz

Caution

Use with a PC is not assumed.

●

All signals are reformatted before being displayed on the screen.

●

If the connected device has an aspect adjustment function, set the aspect ratio to “16:9”.

●

These HDMI connectors are “type A”.

●

These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.

●

A device having no digital output terminal may be connected to the input terminal of either “COMPONENT”, or “VIDEO” to

●

receive analog signals. The HDMI input terminal can be used with only the following image signals: 480i, 480p, 720p, 1080i and 1080p.

●

Match the output setting of the digital device. For details of the applicable HDMI signals, see p. 58.

●

(*1): The HDMI logo is displayed on an HDMI-compliant device.

(*2): Enquire at your local digital equipment retailer shop.

DIGITAL AUDIO OUT terminal

You can enjoy your Home theater by connecting a Dolby Digital (5.1 channel) decoder and “Multi Channel” amplifier to the DIGITAL AUDIO OUT terminals.

Caution

Depending on your DVD player and DVD-Audio software the copyright protection function may operate and disable optical

●

output. When an ATSC channel is selected, the output from the DIGITAL AUDIO OUT jack will be Dolby Digital. When an NTSC

●

channel is selected, the output will be PCM. When playing a movie on SD Card Movie player, when the sound has been recorded in Dolby Digital, the output from the

●

DIGITAL AUDIO OUT terminal will be Dolby Digital. When the sound is recorded in other formats, the output will be PCM.

Closed Caption (CC)

For viewing the CC of digital broadcasting, set the aspect to FULL (If viewing with H-FILL, JUST, ZOOM or 4:3;

●

characters might be cut off). The CC can be displayed on the TV only when the receiver (such as a Cable box or satellite receiver) has the CC set

●

to ON within the device itself. Check with your Cable or Satellite provider for instructions. The TV’s CC button does not operate the Satellite or Cable box’s CC function. If the CC is set to On on both the receiver and TV when the signal is 480i (except for the HDMI connection), the CC

●

may overlap on the TV. If a digital program is being output in analog format, the CC data will also be output in analog format.

●

If the recorder or output monitor is connected to the TV, the CC needs to be set up on the recorder or output monitor.

●

•

Technical Information

Support Information

Page 58

PC Input Terminals

Signal Names for D-sub 15P Connector

●

15 14 13 12 11

678 3 9

Pin Layout for PC Input Terminal

Pin No.

Signal Name

R GND (Ground) NC (not connected) G GND (Ground) NC B GND (Ground) HD/SYNC

NC (not connected) NC (not connected) VD

GND (Ground) GND (Ground) NC

Pin No.

Signal Name

Pin No.

Signal Name

Input signal that can be displayed

* Mark: Applicable input signal for Component (Y, PB, PR), HDMI and PC

horizontal frequency (kHz) vertical frequency (Hz) COMPONENT HDMI PC

525 (480) / 60i 15.73 59.94 525 (480) /60p 31.47 59.94 750 (720) /60p 45.00 59.94 1,125 (1,080) /60i 33.75 59.94 1,125 (1,080)/60p 67.43 59.94 1,125 (1,080)/60p 67.50 60.00 1,125 (1,080)/24p 26.97 23.98 1,125 (1,080)/24p 27.00 24.00 640 × 480 @60 31.47 59.94 852 × 480 @60 31.44 59.89 800 × 600 @60 37.88 60.32 1,024 × 768 @60 48.36 60.00 1,280 × 768 @60 47.78 59.87 1,280 × 1,024 @60 63.98 60.02 1,366 × 768 @60 48.39 60.04

Note

Signals other than above may not be displayed properly.

●

The above signals are reformatted for optimal viewing on your display.

●

Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning

●

frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)

Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim any liability or damage arising from operation and/or performance from usage of such other maker’s peripheral devices.

** ** ** **

* * * *

* * * * * * *

Page 59

Care and Cleaning

First, unplug the Power cord plug from the wall outlet.

Display panel

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint-free cloth.

If the surface is particularly dirty, soak a soft, lint-free cloth in diluted mild liquid dish soap (1 part mild liquid dish soap

●

diluted by 100 times the amount of water) and then wring the cloth to remove excess liquid. Use this cloth to wipe the surface of the display panel, then wipe it evenly with a dry cloth of the same type until the surface is dry. Do not scratch or hit the surface of the panel with fingernails or other hard objects. Furthermore, avoid contact with

●

volatile substances such as insect sprays, solvents, and thinner; otherwise, the quality of the surface may be adversely affected.

Cabinet

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

If the cabinet is particularly dirty, soak the cloth in a weak mild liquid dish soap and then wring the cloth dry. Use this

●

cloth to wipe the cabinet and then wipe it dry with a dry cloth. Do not allow any mild liquid dish soap to come into direct contact with the surface of the LCD TV.

●

If water droplets get inside the unit, operating problems may result. Avoid contact with volatile substances such as insect sprays, solvents, and thinner; otherwise, the quality of the cabinet

●

surface may be adversely affected or the coating may peel off. Do not let articles made from rubber or PVC be in contact with the TV for long periods of time.

●

Pedestal

Cleaning

●

Wipe the surfaces with a soft, dry cloth. If the unit is particularly dirty, clean it using a cloth soaked with water to which a small amount of mild liquid dish soap has been added and then wipe with a dry cloth. Do not use products such as solvents, thinner, or household wax for cleaning, as they can damage the surface coating. (If using a chemically-treated cloth, follow the instructions supplied with the cloth.) Do not attach sticky tape or labels, as they can make the surface of the pedestal dirty. Do not allow long-term contact

●

with rubber, vinyl products, or the like. (Doing so will cause deterioration.)

Power cord plug

Wipe the plug with a dry cloth at regular intervals. (Moisture and dust can lead to fire or electrical shock.)

•

Technical Information

•

Care and Cleaning

Support Information

Page 60

Specifications

TC-L32E5 TC-L37E5 TC-L42E5 TC-L47E5

Power Source

Consumption

Rated Power

Power

Consumption

AC 110-127 V

71 W 81 W 85 W 112 W

, 60 Hz

Standby condition

Display panel

Aspect Ratio

Visible screen size

(No. of pixels)

Sound

Speaker Audio Output

PC signals

Channel CapabilityATSC/NTSC (Digital/Analog)

Operating Conditions

VIDEO IN

Connection Terminals

COMPONENT IN

HDMI 1-4 USB

LAN (for IPTV) PC Card slot

DIGITAL AUDIO OUT

FEATURES

Dimensions

(W × H × D)

Including TV stand

TV Set only

Mass

Including TV stand TV Set only

0.15 W 0.15 W 0.1 W 0.1 W 16:9

32” class (32 inches measured diagonally)

2,073,600 (1,920 (W) x 1,080 (H)) [5,760 x 1,080 dots] 1-way 2 bottom SP System 20 W [10 W + 10 W] (10 % THD)

VGA, WVGA, SVGA, XGA, WXGA, SXGA Horizontal scanning frequency 31 - 64 kHz Vertical scanning frequency 59 - 61 Hz

VHF/ UHF: 2 - 69, CATV: 1 - 135 Temperature: 32 °F – 95 °F (0 °C – 35°C)

Humidity: 20 % – 80 % RH (non-condensing) VIDEO: RCA PIN Type × 1 1.0 V[p-p] (75 Ω) AUDIO L - R: RCA PIN Type × 2 0.5 V [rms] Y: 1.0 V [p-p] (including synchronization) PB, PR: ±0.35 V [p-p] AUDIO L-R: RCA PIN Type × 2 0.5 V [rms] TYPE A Connector × 4

This TV supports “HDAVI Control 5” function.

•

USB 2.0 Type A connector x 2 (DC5V MAX500mA) RJ45 (10BASE-T/100BASE-TX) D-SUB 15PIN: R, G, B / 0.7 V [p-p] (75 Ω)

SD CARD slot × 1 PCM / Dolby Digital, Fiber Optic 3D Y/C FILTER

V-Chip VIERA IMAGE VIEWER

30.1 ” × 20.5 ” × 9.1 ” (764 mm × 519 mm × 230 mm)

30.1 ” × 18.7 ” × 2.1 ” (764 mm × 473 mm × 52 mm)

24.3 lb. (11

19.9 lb. (9

) NET 29.8 lb. (13.5 ) NET 37.5 lb. (17 ) NET 44.1 lb. (20 ) NET

) NET 25.4 lb. (11.5 ) NET 30.9 lb. (14 ) NET 36.4 lb. (16.5 ) NET

37” class (37 inches measured diagonally)

HD, VD / 1.0 - 5.0 V [p-p] (high impedance)

CLOSED CAPTION EASY IPTV Media player

34.4 ” × 22.9 ” × 9.4 ” (874 mm × 581 mm × 238 mm)

34.4 ” × 21.1 ” × 2.1 ” (874 mm × 534 mm × 52 mm)

abcdef

TC-L32E5

TC-L37E5

TC-L42E5

TC-L47E5

30.1 ”

(764 mm)

34.4 ”

(874 mm)

39.3 ”

(997 mm)

43.6 ”

(1107 mm)

42” class (42 inches measured diagonally)

Vesa compatible HDAVI Control 5

39.3 ” × 25.6 ” × 9.8 ” (997 mm × 650 mm × 247 mm)

39.3 ” × 23.8 ” × 2.1 ” (997 mm × 604mm × 52 mm)

20.5 ”

(519 mm)

22.9 ”

(581 mm)

25.6 ”

(650 mm)

28.1 ”

(712 mm)

9.1 ”

(230 mm)

9.4 ”

(238 mm)

9.8 ”

(247 mm)

10.6 ”

(268 mm)

47” class (46.9 inches measured diagonally)

43.6 ” × 28.1 ” × 10.6 ” (1107 mm × 712 mm × 268 mm)

43.6 ” × 26.3 ” × 2.1 ” (1107 mm × 666 mm × 52 mm)

13.8 ”

(350 mm)

(375 mm)

(400 mm)

(430 mm)

14.8 ”

15.8 ”

17.0 ”

(473 mm)

(534 mm)

(604 mm)

(666 mm)

18.7 ”

21.1 ”

23.8 ”

26.3 ”

2.1 ”

(52 mm)

2.1 ”

(52 mm)

2.1 ”

(52 mm)

2.1 ”

(52 mm)

Note

Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

•

Page 61

Frequently Asked Questions (FAQ)

If there is a problem with your TV, please refer to the table below to determine the symptoms, then carry out the suggested check. If this does not solve the problem, visit the Panasonic web site for further assistance. (see cover)

AnswersQuestions

How do I view the picture from devices such as a: Cable/Satellite box, game console, Blu-ray or DVD player?

Why is there no picture or just a blue, black or snowy screen being displayed?

Why doesn’t the picture look like it is in High Definition?

Why do black bars appear on the


top and bottom and/or sides of the screen?

Press the INPUT button on the remote to select the correct input source.

•

Check that the device is turned on and functioning correctly.

•

Check if the power cord is plugged in and the TV is turned on (front red

•

LED light should be on, not blinking) Press the INPUT button on the remote to select the correct input source.

•

Ensure all connections are correct and secure.

•

When using external video source, such as a Cable/Satellite box or

•

DVD player, check that the device is on and functioning correctly. Press MENU on the TV’s remote control. If the menu is displayed, then

•

the TV is working; recheck above steps. Press the INFO button on the remote to confirm the type of signal being

•

received (p. 21). HD signal should be 720p, 1080i or 1080p. Select a High Definition channel from your HD source (Cable, Satellite

•

or fiber optic service). HD channels sometimes broadcast non-HD content. Ensure that your HD source (HD box, Blu-ray player, etc.) is connected

•

to the TV with an HDMI or Component cable and set to output an HD video signal.

Change the format (aspect ratio) of the picture by pressing the FORMAT

•

button on the remote control. (p. 21) Check the aspect settings on your external video source, such as Cable/

•

Satellite box, DVD/Blu-ray Disc player, etc. Note: Some content, such as film-based movies, are available in extra-

wide format. Top and bottom bars are unavoidable.

•

Frequently Asked Questions (FAQ)

Why is the picture snowy when “ANT/Cable in” is selected?

Why is the picture chaotic and/ or torn and/or with a buzz in the speakers?

Why is there a black box on the screen?

Why is the screen blank and the power indicator blinking?

Why do some small spots on the screen remain bright or dark?

When using a cable service (without a box), check that all connections

•

are secure. When using a cable or satellite box, change the connection (wiring) to

•

Composite, Component or HDMI. (p. 12) If you’re using an antenna, then check that connections are secure.

•

Change the position or direction of the antenna and check the “Signal meter”. (p. 47)

Check if electrical products such as kitchen appliances, fluorescent

•

lights or light dimmers are nearby. They may interfere with the TV’s picture. Try viewing a picture from another device, such as a DVD player or a

•

game console, to narrow down the source of the problem.

Change settings of Closed Caption (CC). (p. 21, 52)

•

The TV has gone into shutdown mode to protect itself. Try unplugging

•

it for a few minutes and connecting it again. If there was a temporary power surge on the AC line it may now be OK. If the blinking returns, call 1-877-95-VIERA (U.S.A.) or 1-866-330-0014 (Canada).

The LCD panel is made up of a few million pixels and is produced with

•

advanced technology through an intricate process. Sometimes a few pixels may be bright or dark. These pixels do not indicate a defective panel and will have no impact on the performance of the TV.

•

Specifications

Support Information

Page 62

Why is there no sound coming from the TV?

Sound Other

Why is the sound unusual, distorted, low volume or in another language?

Why is there a clicking, ticking or buzzing sound coming from the TV unit?

AnswersQuestions

Make sure the volume is up and MUTE is off.

•

Confirm the TV speakers are set to ON by pressing MENU and selecting

•

“Audio” “Advanced audio”. (p. 50) Check that the correct SAP (Secondary Audio Program) is selected by

•

pressing the SAP button on the remote control. (p. 21) If the TV is connected to a Panasonic Home Theater via HDMI cable,

•

then check VIERA Link controls. (p. 37) If the TV is connected to a Home Theater via optical cable, then: Check

•

the connection, the audio system is on, the correct input is selected. Check “HDMI 1 in”, “HDMI 2 in”, “HDMI 3 in” or “HDMI 4 in” analog/

•

digital audio settings. (p. 50) Check that the correct SAP (Secondary Audio Program) is selected by

•

pressing the SAP button on the remote control. Check that all connections of external equipment connected to the TV

•

are secure. When using Cable or Satellite box, check the device’s audio settings.

•

(example: try changing the box’s Audio Range to ‘narrow’) When TV power is turned on or shut off there are electrical components

•

that make a click sound. This is normal operation. Changes in the temperature and humidity of the room may cause

•

thermal expansion and contraction that can produce sounds. This is not a sign of faulty operation or a malfunction.

What is the easiest and best way to connect a High-Definition Cable or Satellite box to the TV?

Why does the CC button not display Closed Caption?

Why does the screen and back cover of the TV get warm?

Why doesn’t the Remote Control work?

Why is the “ANT/Cable” option at the top of the “Input select” menu gray-out and cannot be selected?

Some menu items are grayed-out and cannot be selected. Why?

Use an HDMI cable. It carries both digital video and audio signal in HD.

•

HDMI cable is the only cable needed to connect an HD device to the TV.

When viewing TV via an HDMI connected device, such as a Cable or

•

Satellite box, CC must be enabled at the device. Closed Caption is available only at supported TV programming.

•

The main unit radiates heat and some of the parts may become hot.

•

This is normal operation and does not affect the performance of the set. Ensure good ventilation.

•

Do not block the ventilation holes of the TV and do not place the TV on

•

top of other equipment. Check that the batteries are fresh, are of the same type and are

•

installed with the correct polarity (+ & -). To operate other devices, such as changing channels when using Cable

•

or Satellite boxes or operating non-Panasonic Blu-ray players, use the remote supplied with the device.

During “First time setup”, you indicated in step - that you are using

•

Cable or Satellite box and in step - b that the box is connected to one of the TV’s AV inputs. In this case, the Antenna/Cable input is deactivated to prevent unintentional switching into unused tuner. To re-activate, press MENU, select SETUP and repeat “First time setup”.

Depending on certain modes or the selected input, some options are not

•

available. For example, Zoom adjustments are only available when the FORMAT is changed to zoom mode.

Page 63

How do I get EASY IPTV to work on my TV?

Networking

How do I check for the latest software (firmware) version for my TV?

AnswersQuestions

1. You need a broadband (high speed) Internet service with a speed of no less than 1.5 Mbps (p. 39).

2. Connect the TV to the Internet through your router by an Ethernet cable or a compatible Panasonic USB wireless adapter.

3. Run the “Connections Test”, under the Network Settings menu. If Connection test fails, then check with your Internet service provider or router/modem manufacturer if there are firewall, content filter or proxy settings that may block the TV from accessing the Internet.

In the main menu, select “Setup”. Highlight “Network Settings” and

•

press OK. Select “Software Update”. The current version and latest version software will be shown. If software update is “grayed out”, the TV is not connected to the Internet. If newer version is available, update your TV. Follow the on-screen instructions, do not power off the TV until the update is complete. Be patient; firmware update may take a while.

Can I use any USB WiFi adapter to connect the TV to my wireless network?

How do I reset my TV to all factory defaults and settings?

The TV’s internal software was designed to work with Panasonic’s

•

wireless adapter model TY-WL20U*. Check www.panasonic.com/NetConnect for updated information.

In the main menu, select “Setup”. Highlight “Reset to defaults” and

•

press OK. Enter your password (if created earlier) or create a temporary new password. Select Yes to reset the TV.

* Model number is subject to change without notice.

•

Frequently Asked Questions (FAQ)

Support Information

Page 64

Index

A Accessories .............................................................8

ANT/Cable ....................................................... 16, 46

Antenna ............................................................11, 16

Audio ...................................................................... 50

Audio, Advanced ....................................................50

Auto power on ........................................................ 53

Auto Program ......................................................... 46

B Battery ...................................................................10

C Cable ................................................................11-13

Care & Cleaning

CC Closed Caption .......................................... 21, 57

Channel .................................................20-22, 46-47

Channel Surf Mode ..........................................22, 52

Clock ...................................................................... 18

Colored buttons .....................................................14

COMPONENT ........................................................12

COMPOSITE ......................................................... 12

Connections ...................................................... 11-13

D DLNA ......................................................... 24, 38, 44

E EASY IPTV ...................................................... 43, 51

ECO/energy .....................................................

Enjoy Online movies .............................................. 43

Exit ......................................................................... 14

F FAQ’s ................................................................61-63

Favorite .................................................................. 22

First

Time Setup ..........................................15-19, 53

Format ............................................................. 21, 55

H HDAVI Control .................................................. 32, 57

HDMI ................................................................

Home Use ..............................................................15

I Image Viewer Auto ................................................. 53

Info ......................................................................... 21

Input .................................................................

L Language ......................................................... 15, 52

Last ........................................................................ 14

Lock / Parental control

M Media player ...............................................24, 26-31

Menu ...................................................................... 48

Movies/V

Music ..................................................................... 31

Mute ....................................................................... 14

N Network camera .........................................37, 39, 45

Network services ..................................

P Pedestal ............................................................... 8, 9

Photo ................................................................28-29

Picture, Advanced

Picture settings ......................................................49

Power ..................................................................... 14

R Remote control ...................................................... 14

Reset ...................................................

....................................................

..................................... 51, 54

ideo ......................................................... 30

17, 38-45, 51

.................................................. 50

49, 50, 52, 53

24,

12, 57

25, 52

S Safety ....................................................................4-5

SAP ........................................................................21

Scan ................................................................. 16, 46

SD Card ........................................................... 26, 56

Signal Meter ........................................................... 47

Sleep ...................................................................... 51

Specifications ......................................................... 60

Store Demonstration ..............................................15

Sub menu ..............................................................22

T Technical Information ........................................ 55-58

Timer ......................................................................

U USB ........................................................... 26, 30, 56

V VIERA Link ............................................ 24, 32-37, 57

VIERA

Viewing contents .................................................... 27

Volume ...................................................................14

W Warranty .......................................................... 65, 67

Watching

Wireless LAN Adaptor ..................................8, 19, 39

Z ZOOM .............................................................. 21, 55

OOLS .......................................................24

TV, DVD, Blu-ray, etc. ...................... 20, 25

Page 65

Limited Warranty (for U.S.A. and Puerto Rico only)

Panasonic Consumer Marketing Company of North America, Division of Panasonic Corporation of North America One Panasonic Way Secaucus, New Jersey 07094

Panasonic LCD Television

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Marketing Company of North America (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by the warrantor.

LCD TV CATEGORIES PARTS LABOR SERVICE

Up to 42” (diagonal)

46” (diagonal) and larger On-Site

(Passive - non battery operated)

During the “Labor” Limited Warranty period there will be no charge for labor. During the “Parts” Limited Warranty period, there will be no charge for parts. You must carry-in your product or arrange for on-site service during the Limited Warranty period. If non-rechargeable batteries are included, they are not warranted. This Limited Warranty only applies to products purchased and serviced in the United States or Puerto Rico. This Limited Warranty is extended only to the original purchaser of a new product which was not sold “as is”. A purchase receipt or other proof of the original purchase date is required for Limited Warranty service.

On-Site or Carry-In Service

For On-Site or Carry-In Service in the United States and Puerto Rico call 1-877-95-VIERA (1-877-958-4372). On-site service where applicable requires clear, complete and easy access to the product by the authorized servicer and does not include

removal or re-installation of an installed product. It is possible that certain on-site repairs will not be completed on-site, but will require that the product or parts of the product, at the servicer’s discretion be removed for shop diagnosis and/or repair and then returned.

Mail-In Service

For assistance in the U.S.A. and Puerto Rico in obtaining replacement, please ship the product prepaid to: Panasonic Exchange Center

[email protected] When shipping the unit, carefully pack, include all accessories, and send it prepaid, adequately insured and preferably in the

original carton. When shipping Lithium Ion batteries please visit our Web Site at www.panasonic.com/BatteryHandling as Panasonic is committed to providing the most up to date information. Include a letter detailing the complaint, a return address and provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty.

Limited Warranty Limits And Exclusions

This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage, nor does it cover markings or retained images on the glass panel resulting from viewing fixed images (including, among other things, non-expanded standard 4:3 pictures on wide screen TVs, or onscreen data in a stationary and fixed location). The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product, service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY. (As examples, this excludes damages for

lost time, cost of having someone remove or re-install an installed unit if applicable, or travel to and from the servicer. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE LIMITED

WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied Limited Warranty lasts, so the exclusions may not apply to you.

This Limited Warranty gives you specific legal rights and you may also have others rights which vary from state to state. If a problem with this product develops during or after the Limited Warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE (INCLUDING COST OF AN ON-SITE SERVICE CALL, WHERE APPLICABLE) WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.

3D Eyewear

4900 George McVay Drive Suite B McAllen, TX 78503

Limited Warranty

1 (ONE) YEAR 1 (ONE) YEAR

90 (NINETY) Days Not Applicable Mail In

Carry-In

•

Limited Warranty (for U.S.A. and Puerto Rico only)

•

Index

Support Information

Page 66

Customer Services Directory (for U.S.A. and Puerto Rico)

Customer Services Directory (United States and Puerto Rico)

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service Center; purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web Site at:

http://www.panasonic.com/help

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at: 1-877-95-VIERA (958-4372) Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.

■ For hearing or speech impaired TTY users, TTY: 1-877-833-8855

Accessory Purchases (United States and Puerto Rico)

Purchase Parts, Accessories and Instruction Books on line for all Panasonic Products by visiting our Web Site at:

http://www.pstc.panasonic.com

or, send your request by E-mail to:

[email protected]

You may also contact us directly at: 1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday - Friday 9 am to 9 pm, EST.)

Panasonic Consumer Marketing Company of North America - National Parts Center

20421 84th Avenue South, Kent, WA 98032 (We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)

■ For hearing or speech impaired TTY users, TTY: 1-866-605-1277

Page 67

Limited Warranty (for Canada)

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC PRODUCT – LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.

Viera TV (46” & over) In-home service One (1) year, parts (including panel) and labour. Viera TV (under 46”) Carry-in service One (1) year, parts (including panel) and labour.

In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized Panasonic service facility.

In-home service requires clear, complete and easy access to the product by the Authorized Servicer and does not include removal or re-installation of an installed product. If removal is required to service the product, it will be at the discretion of the Servicer and in no event will Panasonic Canada Inc. or the Servicer be liable for any special, indirect or consequential damages.

This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging.

IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED

LIMITATIONS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God. Dry cell batteries are also excluded from coverage under this warranty.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is not exhaustive, but for illustration only.)

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you specific legal rights and you may have other rights which vary depending on your province or territory.

•

Customer Services Directory (for U.S.A. and Puerto Rico)

•

Limited Warranty (for Canada)

Support Information

WARRANTY SERVICE

For product operation and information assistance, please contact:

Our Customer Care Centre: 1-800 #: 1-866-330-0014 or visit our website: https://concierge.panasonic.ca

For product repairs, please contact Viera Customer Care Agent using the above contact info.

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton.

Include details of the defect claimed, and proof of date of original purchase.

Page 68

Note

Page 69

Note

Page 70

TC-L32E5

32" LCD HDTV

SPECIFICATIONS

Dimensions (W x H x D) 30.1" (764 mm) x 20.5" (519 mm) x 9.1" (230 mm) (Including TV stand)

30.1" (764 mm) x 18.7" (473 mm) x 2.1" (52 mm) (TV Set only)

Mass 24.3 lb. (11.0 kg) (Including TV stand)

19.9 lb. (9.0 kg) (TV Set only)

Power Source AC 110-127 V, 60 Hz Power Consumption 71 W (Rated power)

0.15 W (Standby power)

DIMENSIONS JACKS

Top View

Front View

Back View

30.1 (764)

13.8 (350)

7.9 (200)

Side View

2.1 (52)

18.7 (473)

20.5 (519)

3.2 (79)

Side Panel

9.1 (230)

Bottom Panel

7.9 (200)

Note: To make sure that the LCD TV fits the cabinet properly when a high degree of precision is required, we recommend that you use the LCD TV itself to make the necessary cabinet measurements. Panasonic cannot be responsible for inaccuracies in cabinet design or manufacture.

Specifications are subject to change without notice. Non-metric weights and measurements are approximate.

P120327

Page 71

TC-L37E5

37" LCD HDTV

SPECIFICATIONS

Dimensions (W x H x D) 34.4" (874 mm) x 22.9" (581 mm) x 9.4" (238 mm) (Including TV stand)

34.4" (874 mm) x 21.1" (534 mm) x 2.1" (52 mm) (TV Set only)

Mass 29.8 lb. (13.5 kg) (Including TV stand)

25.4 lb. (11.5 kg) (TV Set only)

Power Source AC 110-127 V, 60 Hz Power Consumption 81 W (Rated power)

0.15 W (Standby power)

DIMENSIONS JACKS

Top View

Front View

Back View

34.4 (874)

14.8 (375)

7.9 (200)

Side View

21.1 (534)

22.9 (581)

3.5 (87)

Side Panel

2.1 (52)

9.4 (238)

Bottom Panel

7.9 (200)

Specifications are subject to change without notice. Non-metric weights and measurements are approximate.

P120327

Page 72

TC-L42E5

42" LCD HDTV

SPECIFICATIONS

Dimensions (W x H x D) 39.3" (997 mm) x 25.6" (650 mm) x 9.8" (247 mm) (Including TV stand)

39.3" (997 mm) x 23.8" (604 mm) x 2.1" (52 mm) (TV Set only)

Mass 37.5 lb. (17.0 kg) (Including TV stand)

30.9 lb. (14.0 kg) (TV Set only)

Power Source AC 110-127 V, 60 Hz Power Consumption 85 W (Rated power)

0.1 W (Standby power)

DIMENSIONS JACKS

Top View

Front View

Back View

39.3 (997)

15.8 (400)

Side View

23.8 (604)

25.6 (650)

3.8 (96)

Side Panel

2.1 (52)

9.8 (247)

Bottom Panel

15.8 (400)

Specifications are subject to change without notice. Non-metric weights and measurements are approximate.

P120327

Page 73

TC-L47E5

47" LCD HDTV

SPECIFICATIONS

Dimensions (W x H x D) 43.6" (1,107 mm) x 28.1" (712 mm) x 10.6" (268 mm) (Including TV stand)

43.6" (1,107 mm) x 26.3" (666 mm) x 2.1" (52 mm) (TV Set only)

Mass 44.1 lb. (20.0 kg) (Including TV stand)

36.4 lb. (16.5 kg) (TV Set only)

Power Source AC 110-127 V, 60 Hz Power Consumption 112 W (Rated power)

0.1 W (Standby power)

DIMENSIONS JACKS

Top View

Front View

Back View

43.6 (1107)

17.0 (430)

15.8 (400)

Side View

26.3 (666)

28.1 (712)

4.7 (117)

Side Panel

2.1 (52)

10.6 (268)

Bottom Panel

15.8 (400)

Specifications are subject to change without notice. Non-metric weights and measurements are approximate.

P120327

Page 74

USA only: Disposal may be regulated in your community due to Environmental considerations. For disposal or recycling information, please visit Panasonic website: http://www.panasonic.com/environmental or call 1-888-769-0149.

Sólo Estados Unidos: La disposición puede estar regulada en su comunidad debido a consideraciones ambientales. Para información sobre la disposición o reciclaje, por favor visite la página web de Panasonic: http://www.panasonic.com/environmental ó llame al 1-888-769-0149.

Customer’s Record

The model number and serial number of this product can be found on its back cover. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Anotación del cliente

El modelo y el número de serie de este producto se encuentran en su panel posterior. Deberá anotarlos en el espacio provisto a continuación y guardar este manual, más el recibo de su compra, como prueba permanente de su adquisición, para que le sirva de ayuda al identificarlo en el caso de que le sea sustraído o lo pierda, y también para disponer de los servicios que le ofrece la garantía.

Modelo Número de serie

Panasonic Consumer Marketing Company of North America, Division of Panasonic Corporation of North America

One Panasonic Way, Secaucus New Jersey 07094 U.S.A.



Panasonic Canada Inc.

5770 Ambler Drive Mississauga, Ontario L4W 2T3 CANADA

Printed in USA

Impreso en EE.UU
