Panasonic TC-L42E3 Operating Instruction

Owner’s Manual

42” Class 1080p LCD HDTV

(42.0 inches measured diagonally)

Manual de usuario

Televisión de alta definición de 1080p y
clase 42” de LCD

(42,0 pulgadas medidas diagonalmente)

Model No.

Número de modelo

TC-L42E3

For assistance (U.S.A./Puerto Rico), please call:

1-877-95-VIERA (958-4372)

www.panasonic.com/help
For assistance (Canada), please call:

1-866-330-0014

www.vieraconcierge.ca
Para solicitar ayuda (EE.UU./Puerto Rico), llame al:

1-877-95-VIERA (958-4372)

www.panasonic.com/help

English

Español

Thank you for purchasing this Panasonic product.
Please read these instructions before operating your set and retain them for future
reference. The images shown in this manual are for illustrative purposes only.

Gracias por su decisión de comprar este producto marca Panasonic.
Lea estas instrucciones antes de utilizar su televisor y guárdelas para consultarlas en
el futuro. Las imágenes mostradas en este manual tienen solamente fines ilustrativos.

TQB2AA0620

Experience an amazing level of
multimedia excitement

Enjoy rich multimedia

VCR

Amplifier with

Speaker system

USB device

DVD recorder/

Blu-ray Disc recorder

SD memory card

DVD player/

Blu-ray Disc player

Camcorder

Personal computer

Cable box

2

VIERA Link™ is a trademark of
Panasonic Corporation.

HDMI, the HDMI logo and High­Definition Multimedia Interface are
trademarks or registered trademarks
of HDMI Licensing LLC in the United
States and other countries.

Contents

SDXC Logo is a trademark of SD­3C, LLC.

“AVCHD” and the “AVCHD” logo
are trademarks of Panasonic
Corporation and Sony Corporation.

DLNA®, the DLNA Logo and DLNA
CERTIFIED™ are trademarks,
service marks, or certification
marks of the Digital Living Network
Alliance.

This product qualifies for ENERGY
STAR in the “Home Use” setting
and this is the setting in which
energy savings will be achieved.
Any modifications to the “Home
Use” setting or other factory default
settings could result in greater
energy consumption beyond
levels that meet ENERGY STAR
qualifications.

Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.

HDAVI Control™ is a trademark of Panasonic Corporation.

TM

This product is licensed under the AVC patent portfolio
license for the personal and non-commercial use of a
consumer to (i) encode video in compliance with the AVC
Standard (“AVC Video”) and/or (ii) decode AVC Video
that was encoded by a consumer engaged in a personal
and non-commercial activity and/or was obtained from a
video provider licensed to provide AVC Video. No license
is granted or shall be implied for any other use. Additional
information may be obtained from MPEG LA, LLC.
See http://www.mpegla.com.

Please read before using the unit

Safety Precautions ·········································4

•

Getting started

Accessories/Optional Accessory ···················7

•

Connections ··················································9

•

Identifying Controls ······································11

•

First Time Setup ··········································12

•

Basic Features

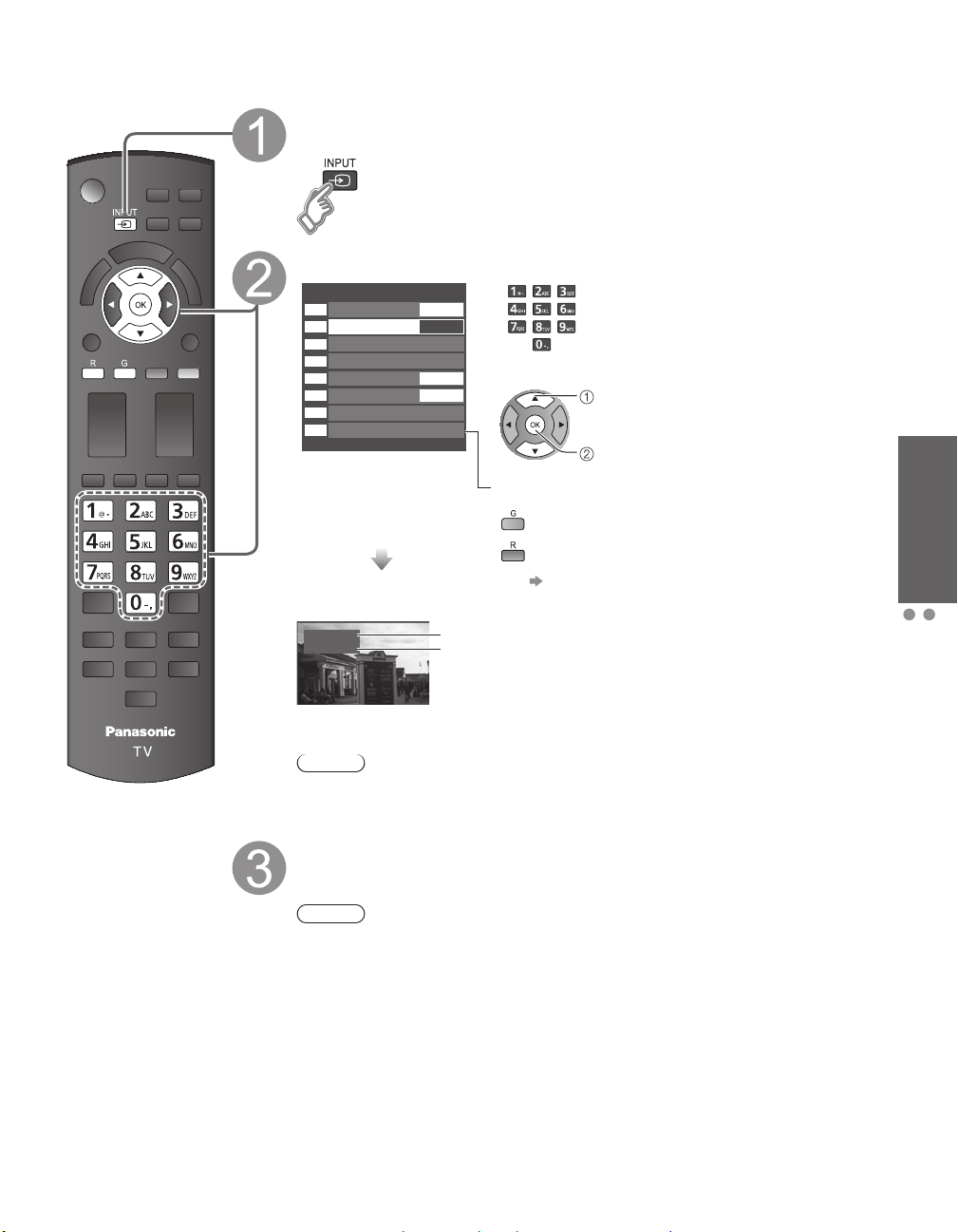

Watching TV ·················································17

•

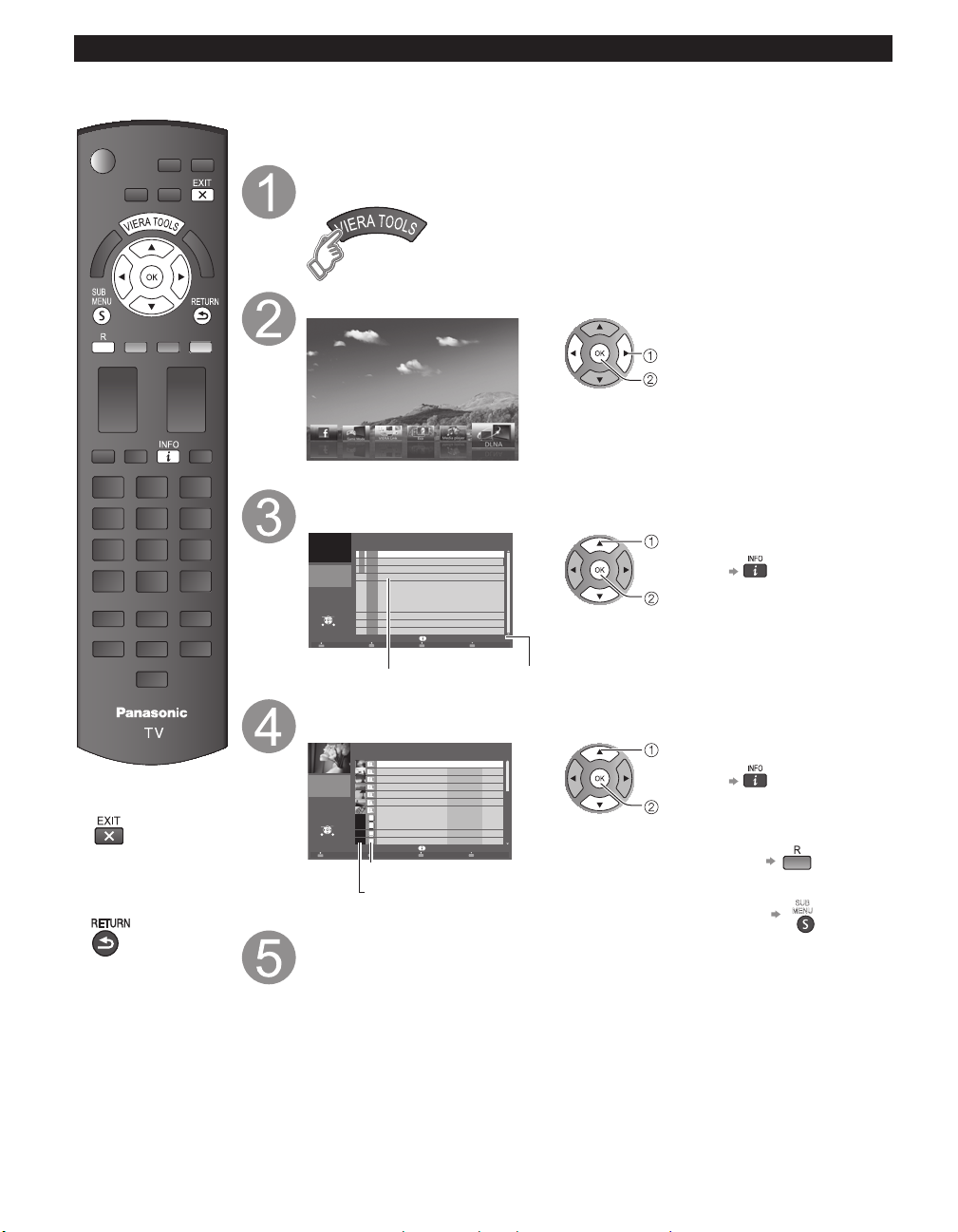

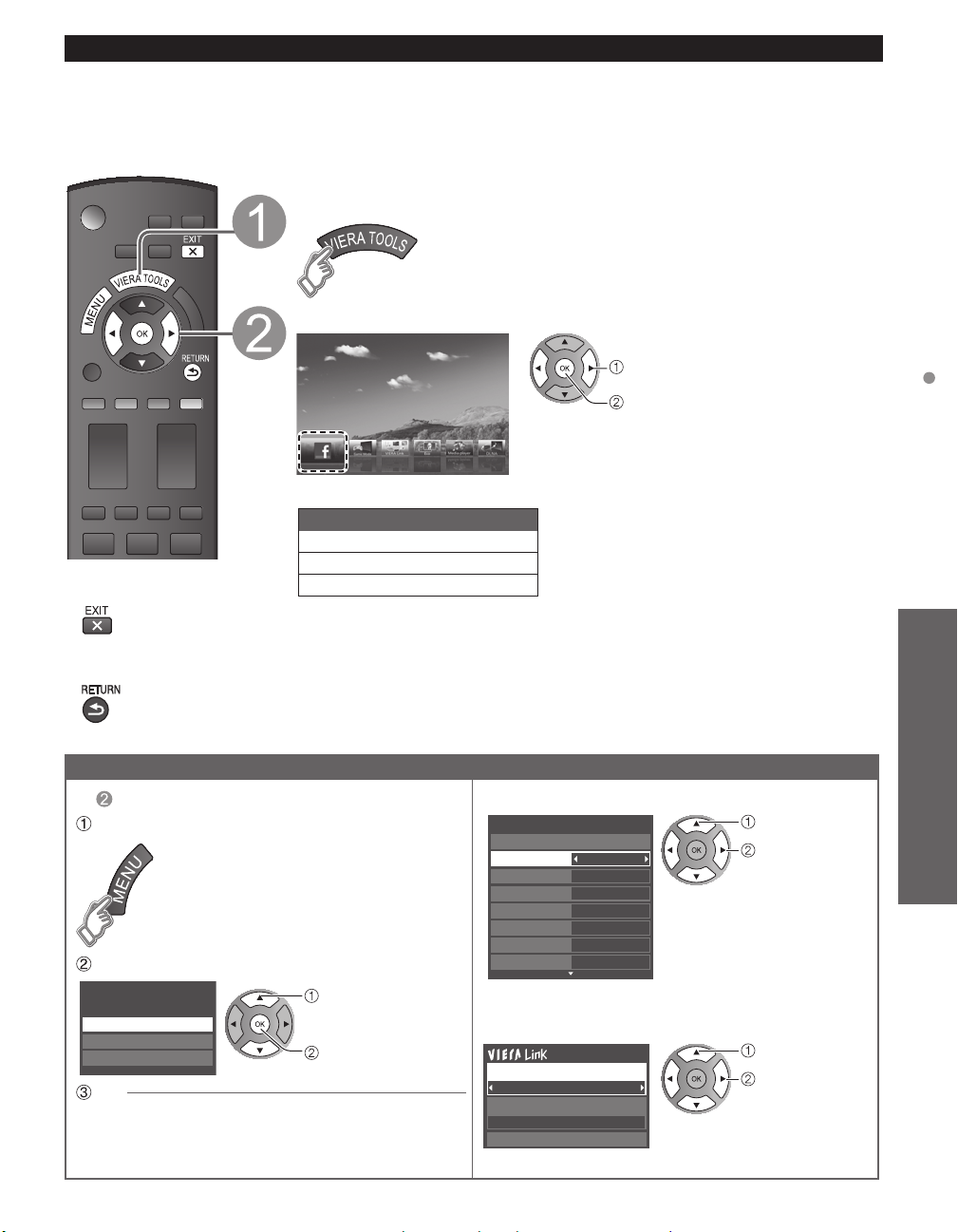

Using VIERA TOOLS ···································20

•

Watching content from external devices ······21

•

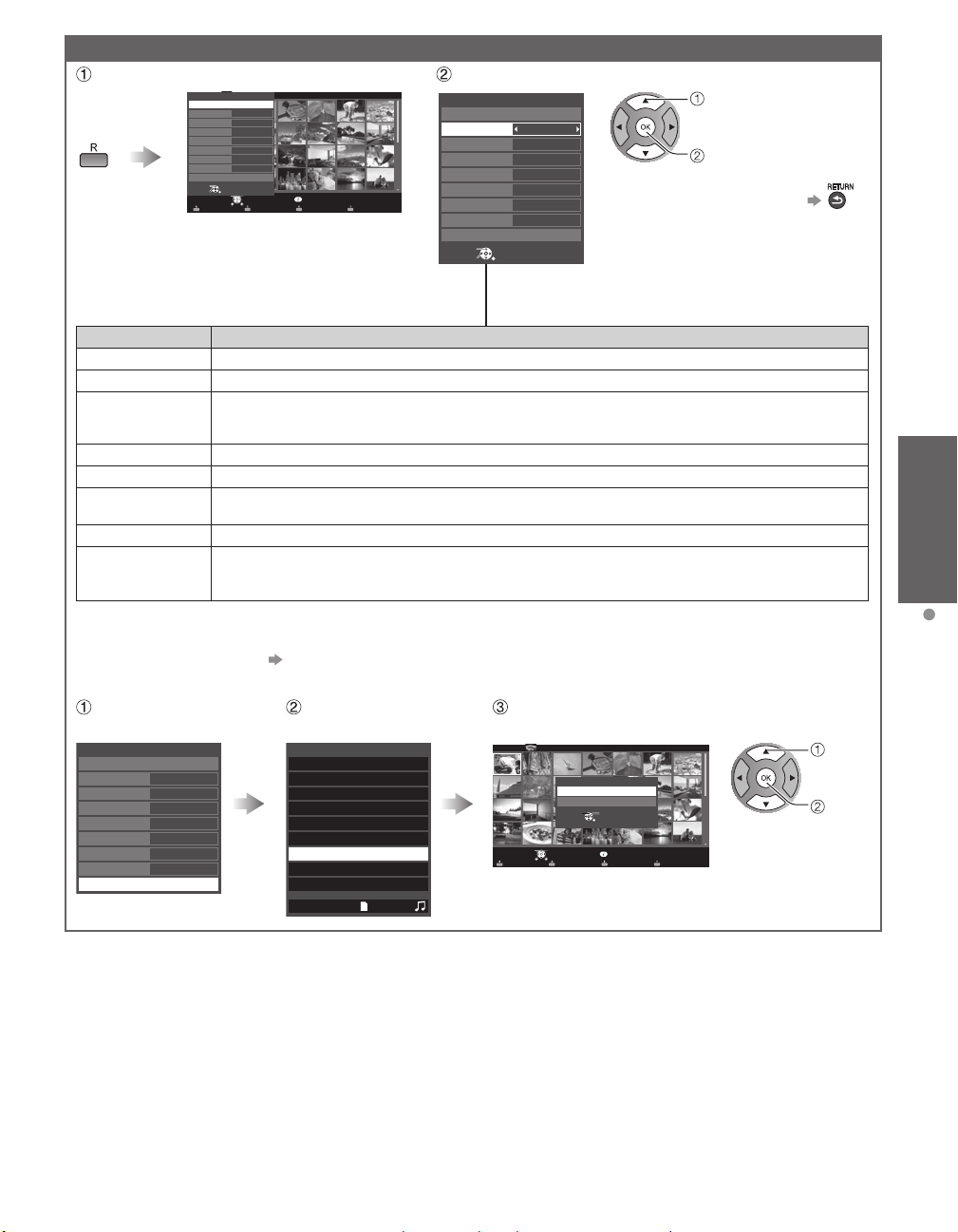

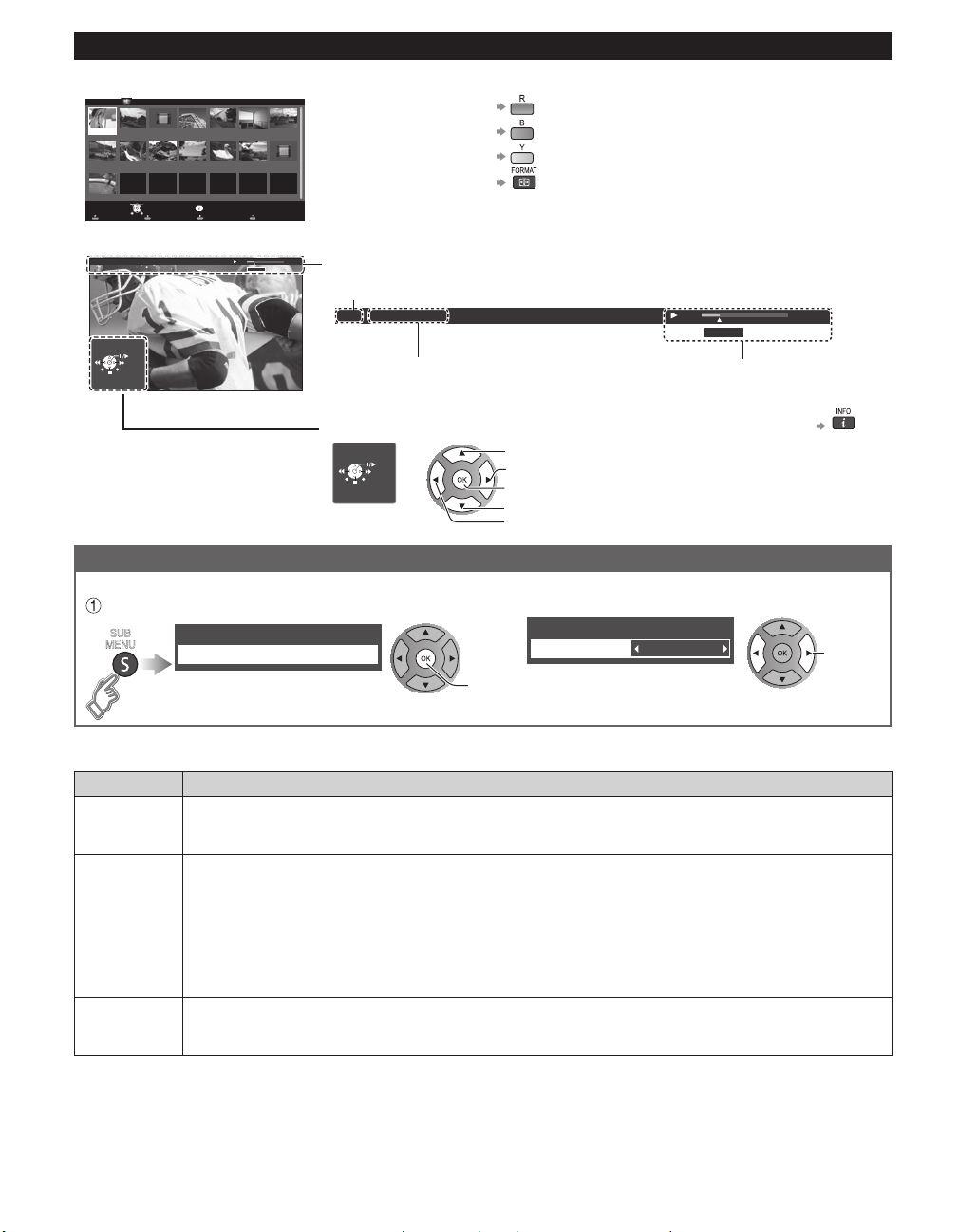

Using Media player ······································22

•

Advanced Features

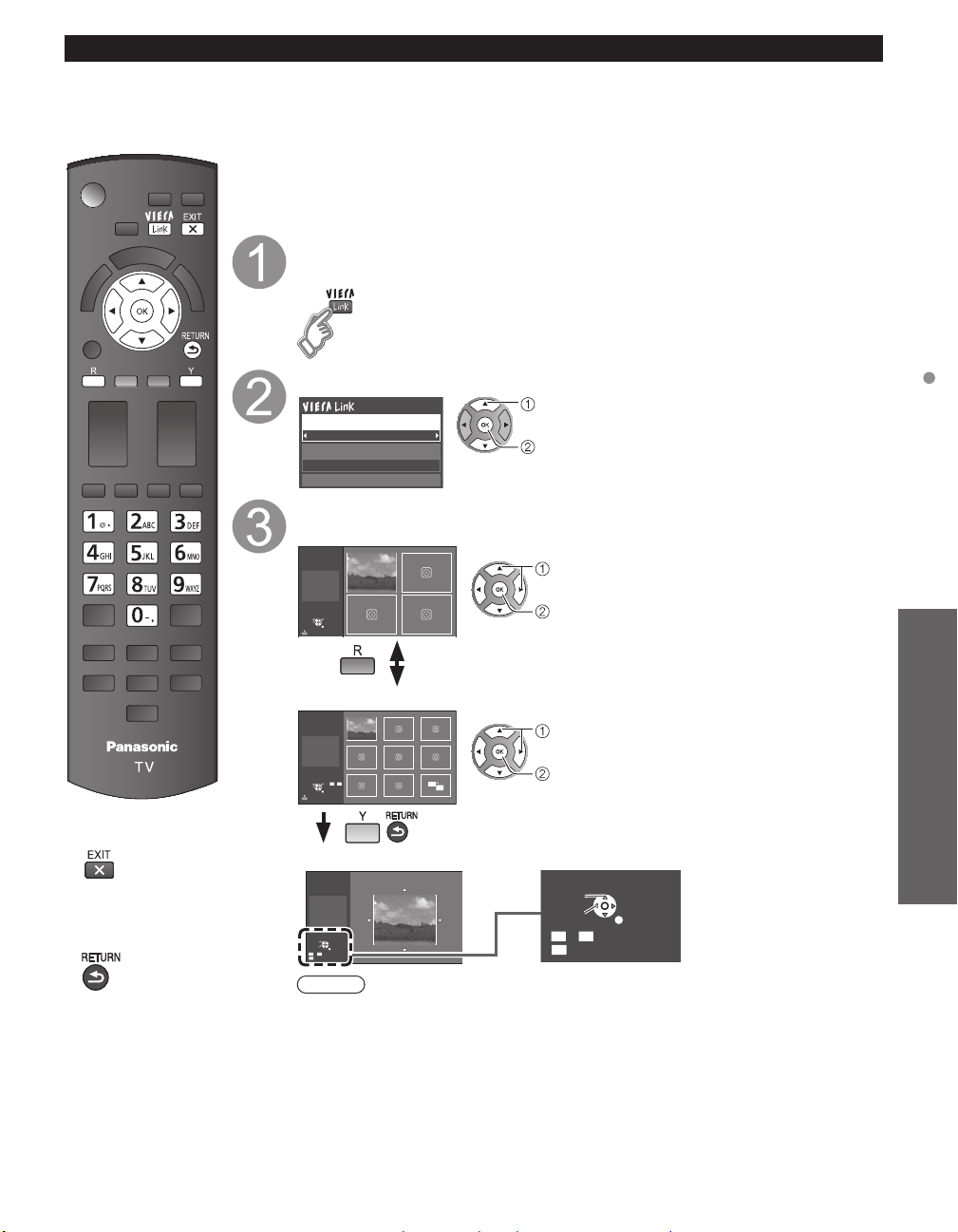

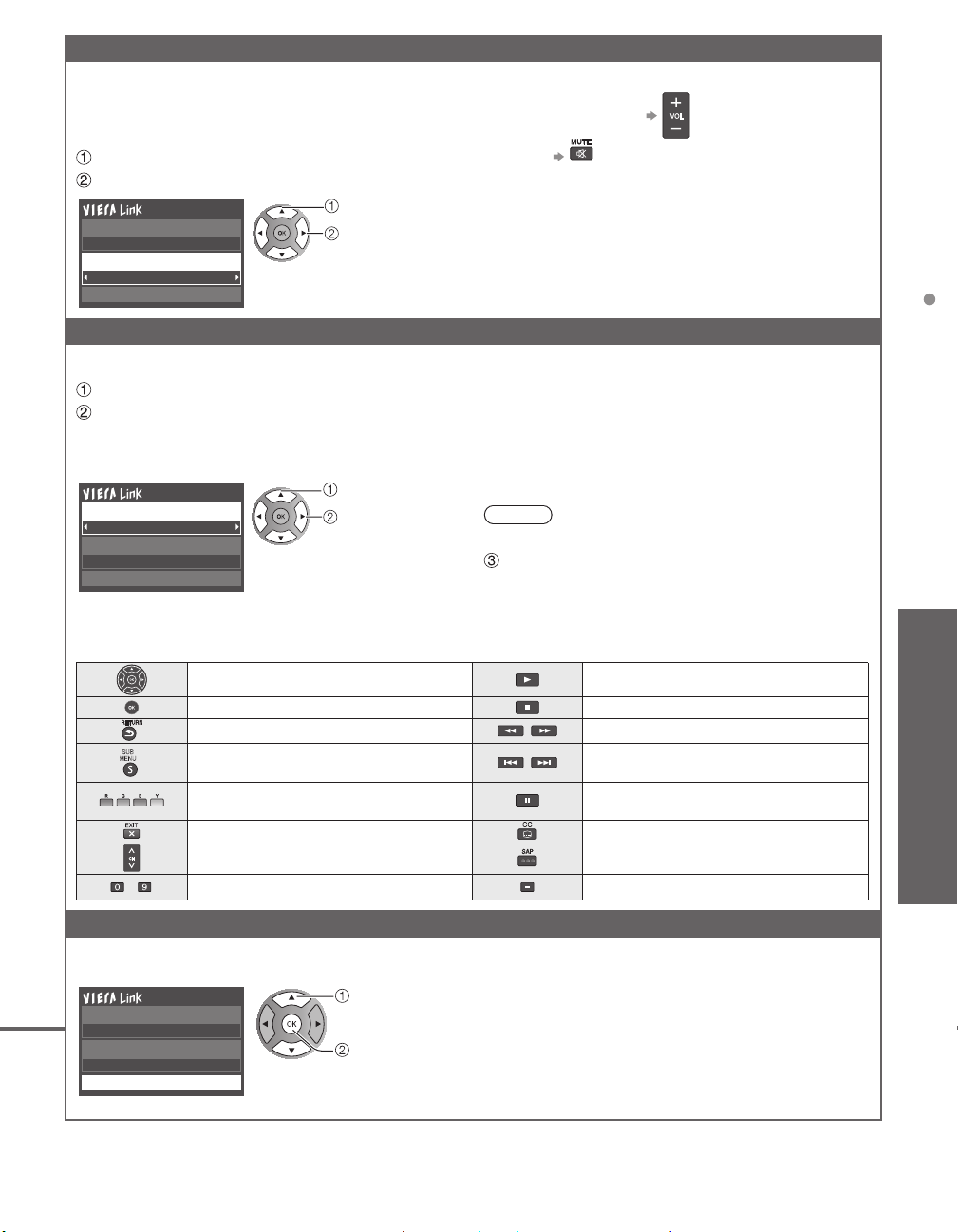

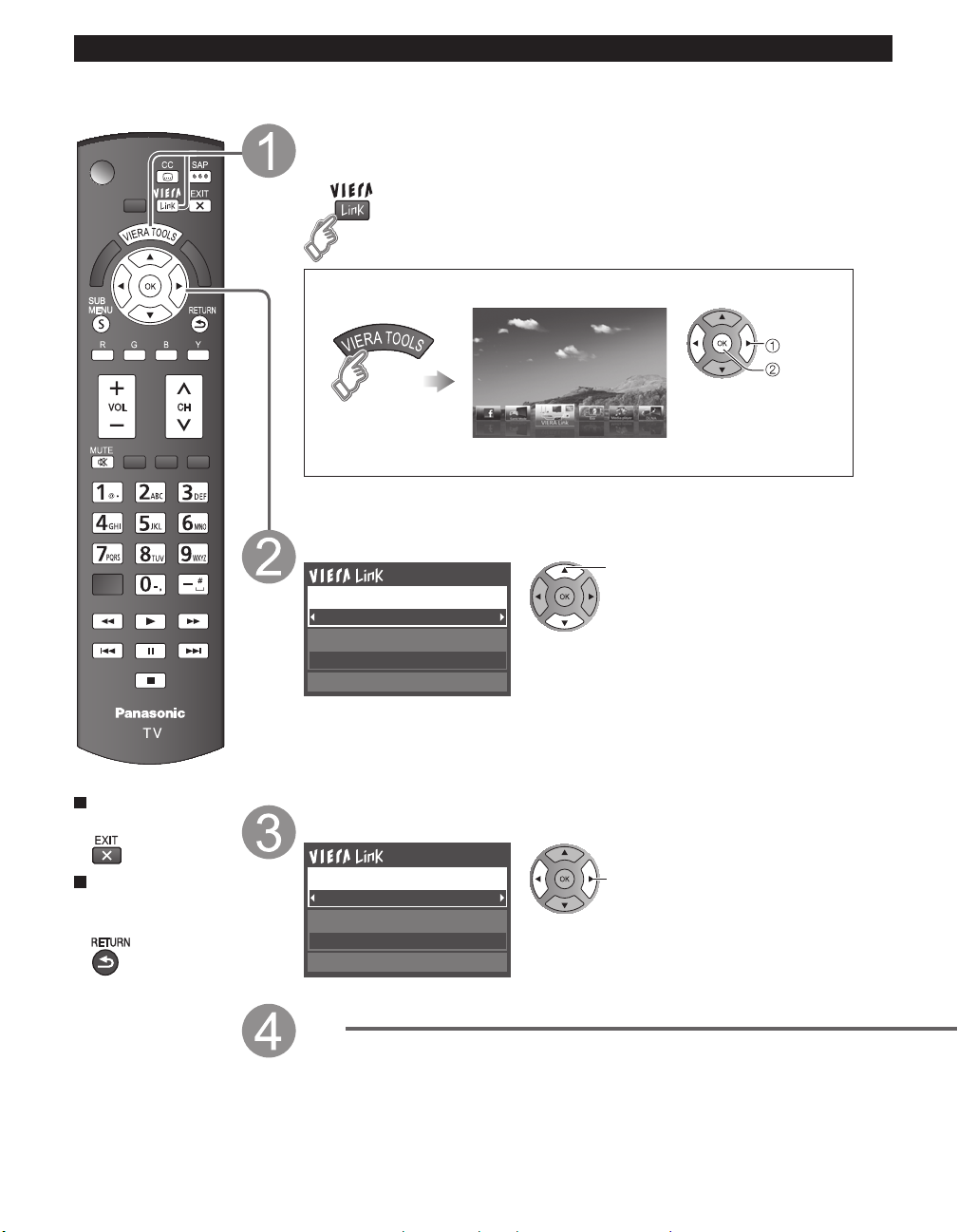

VIERA LinkTM “HDAVI ControlTM” ···················28

•

Using Network services ·······························34

•

Network Connections ··································35

•

Network settings ·········································36

•

Using EASY IPTV ·······································39

•

Using DLNA feature ····································40

•

Network Camera ·········································41

•

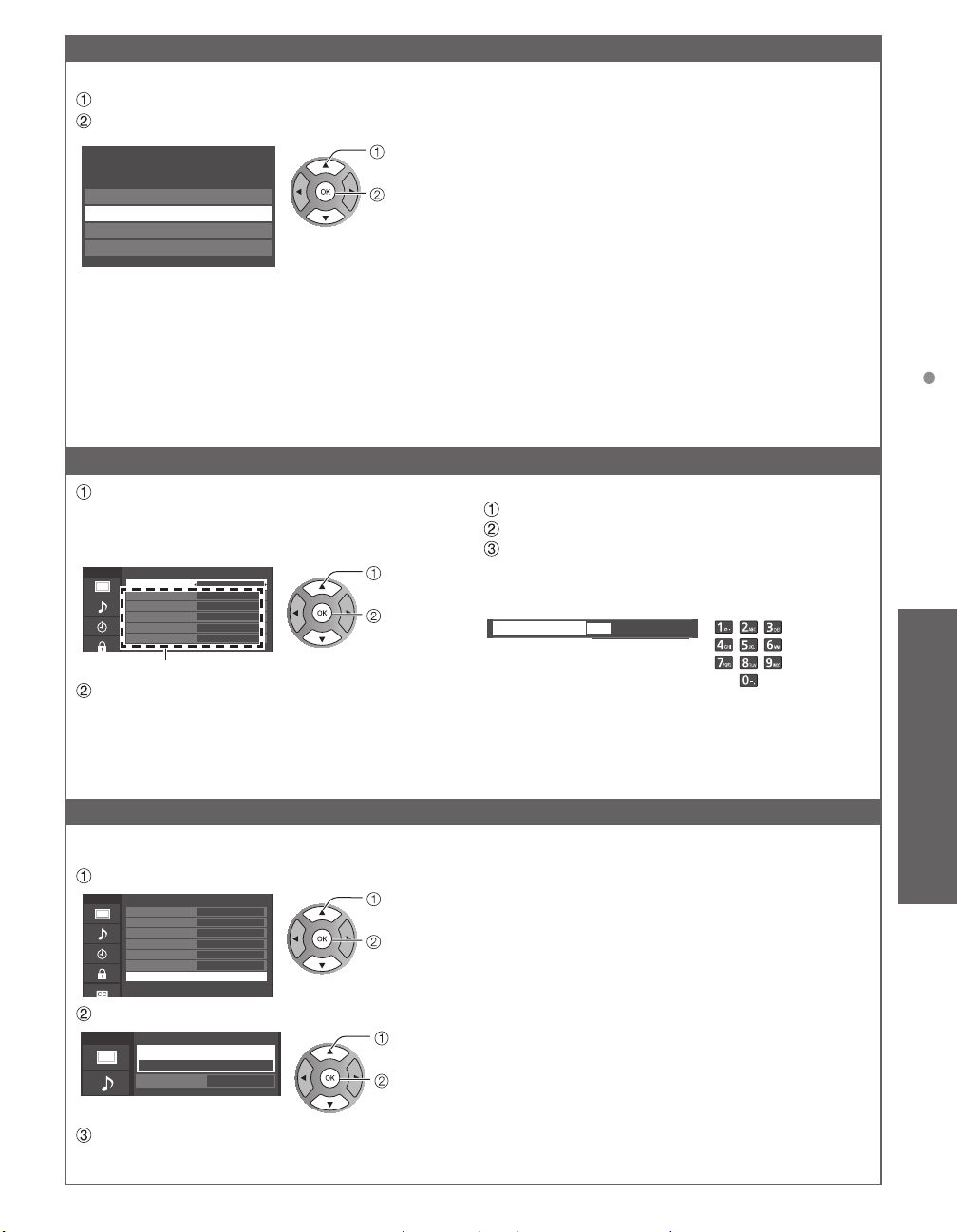

Editing and Setting Channels ·······················42

•

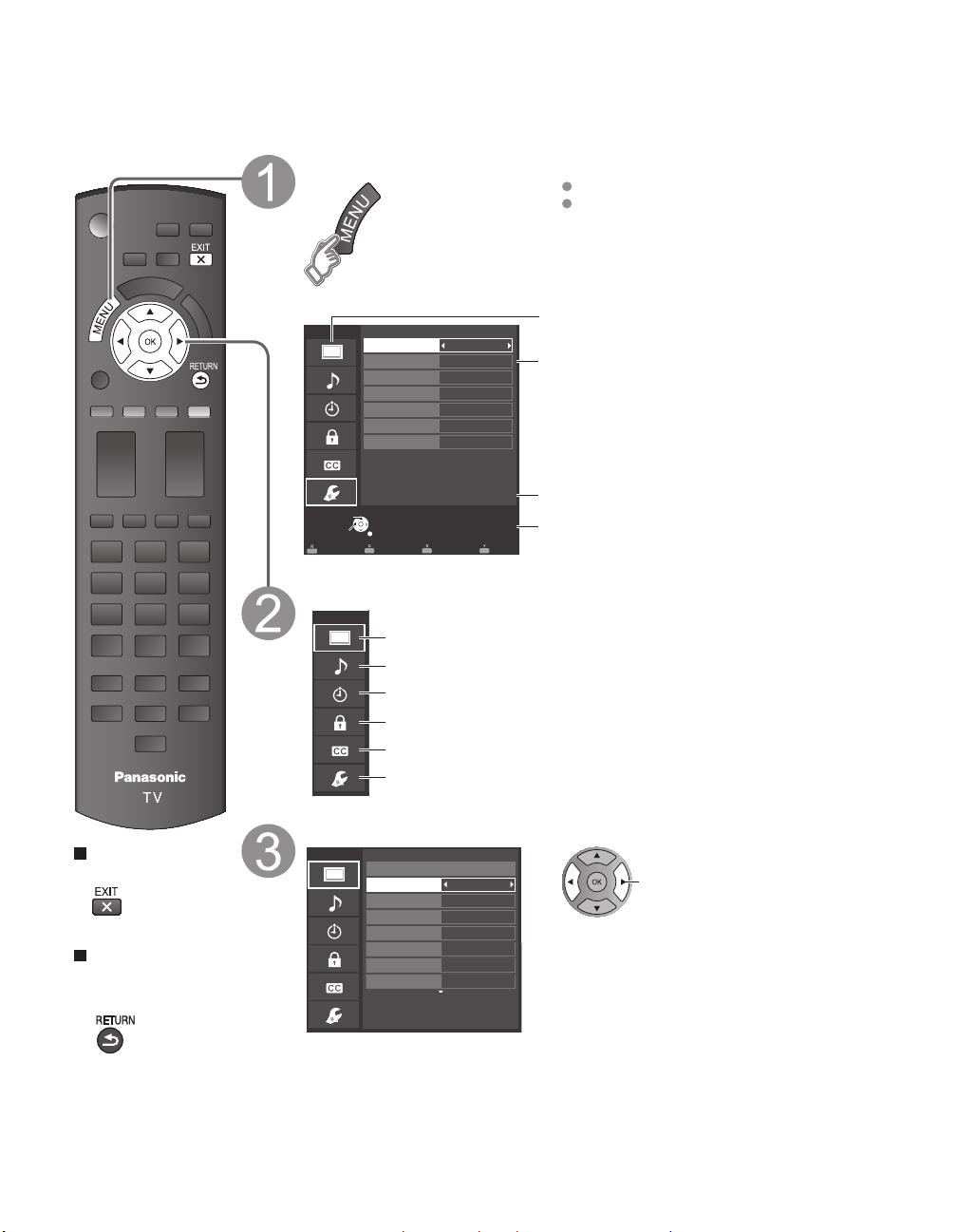

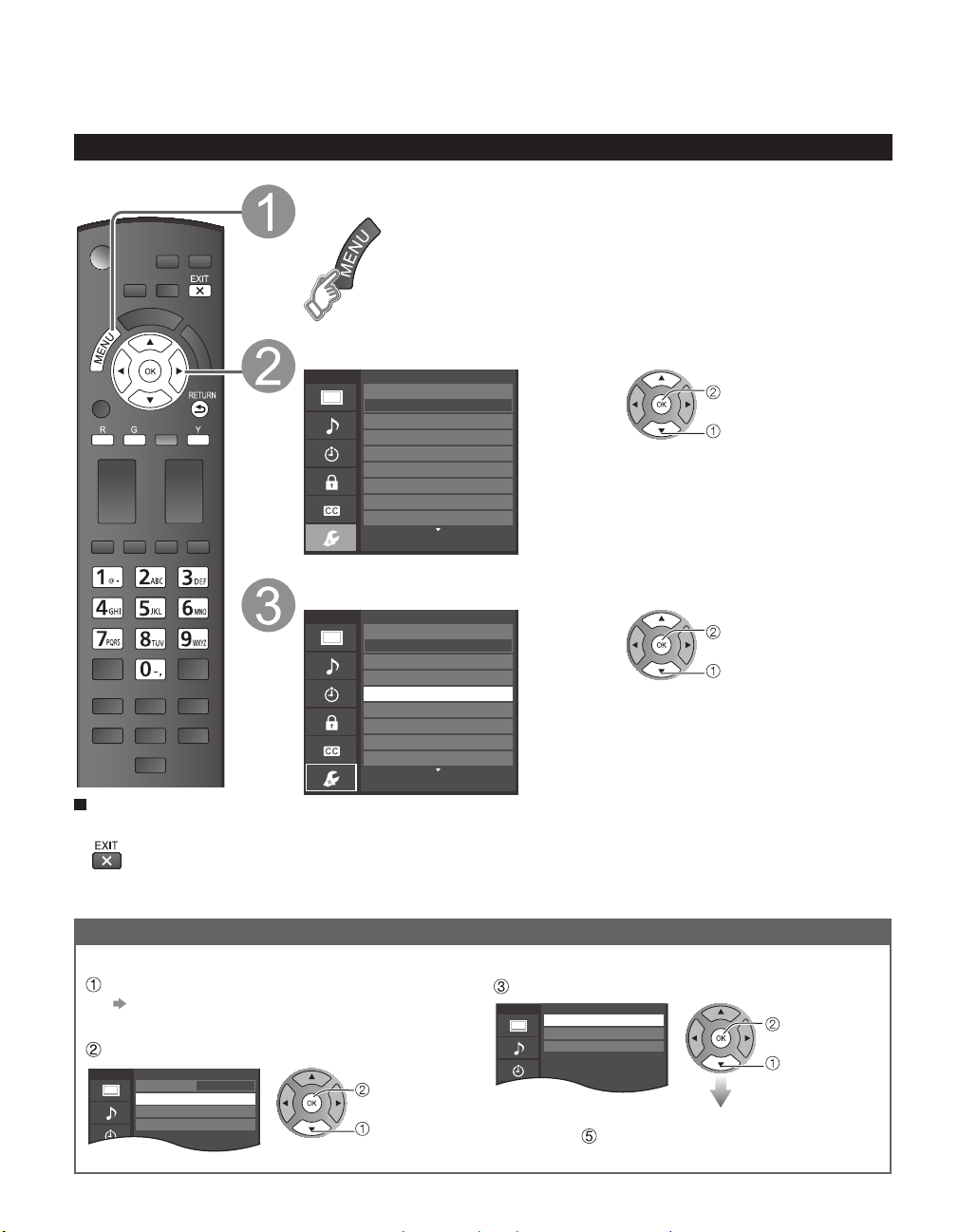

How to Use Menu Functions ························44

•

Picture settings ···········································45

•

Audio settings ·············································46

•

Timer settings ·············································46

•

Lock ····························································47

•

Closed caption ············································47

•

Setup ··························································48

•

Support Information

Ratings List for parental control ···················49

•

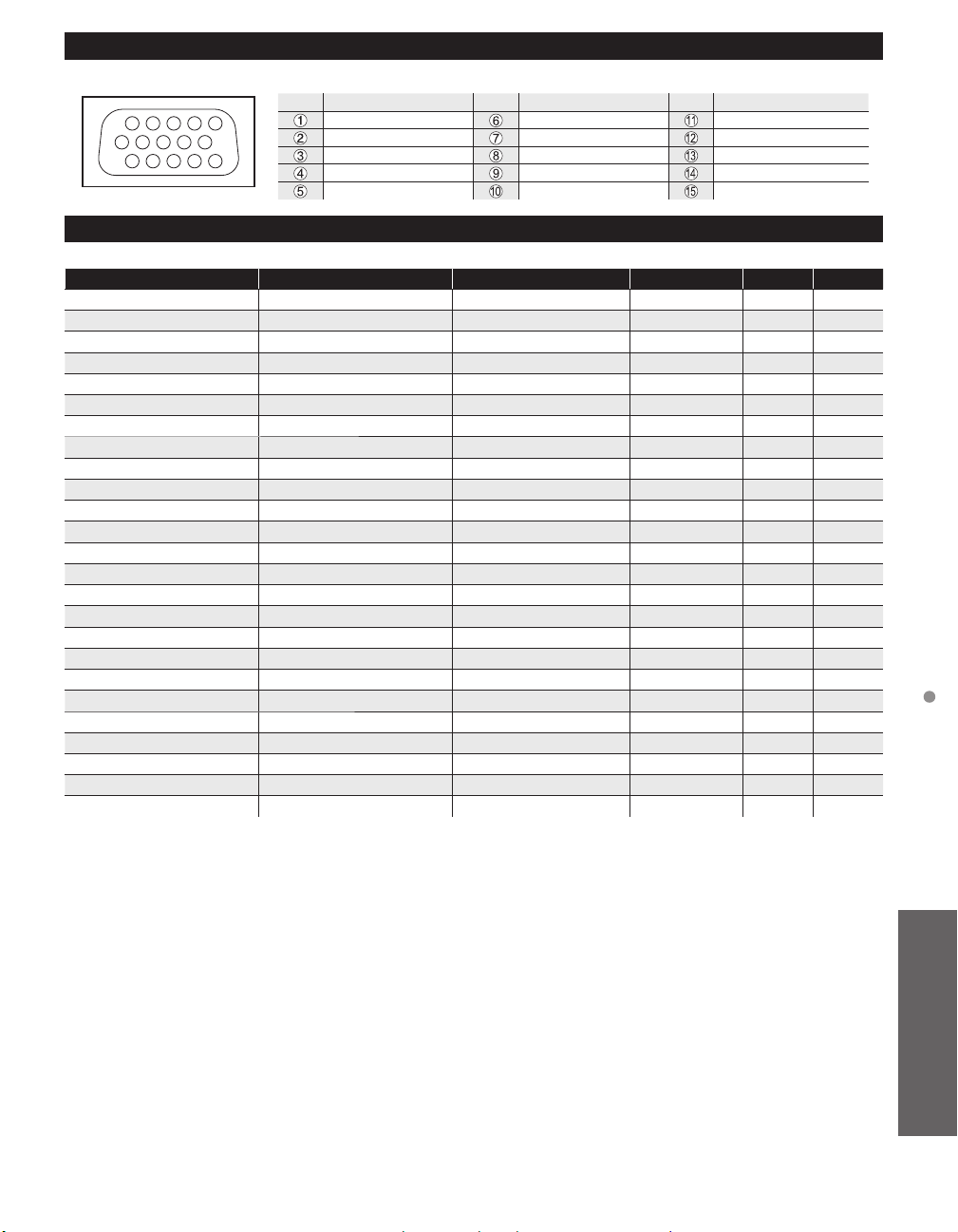

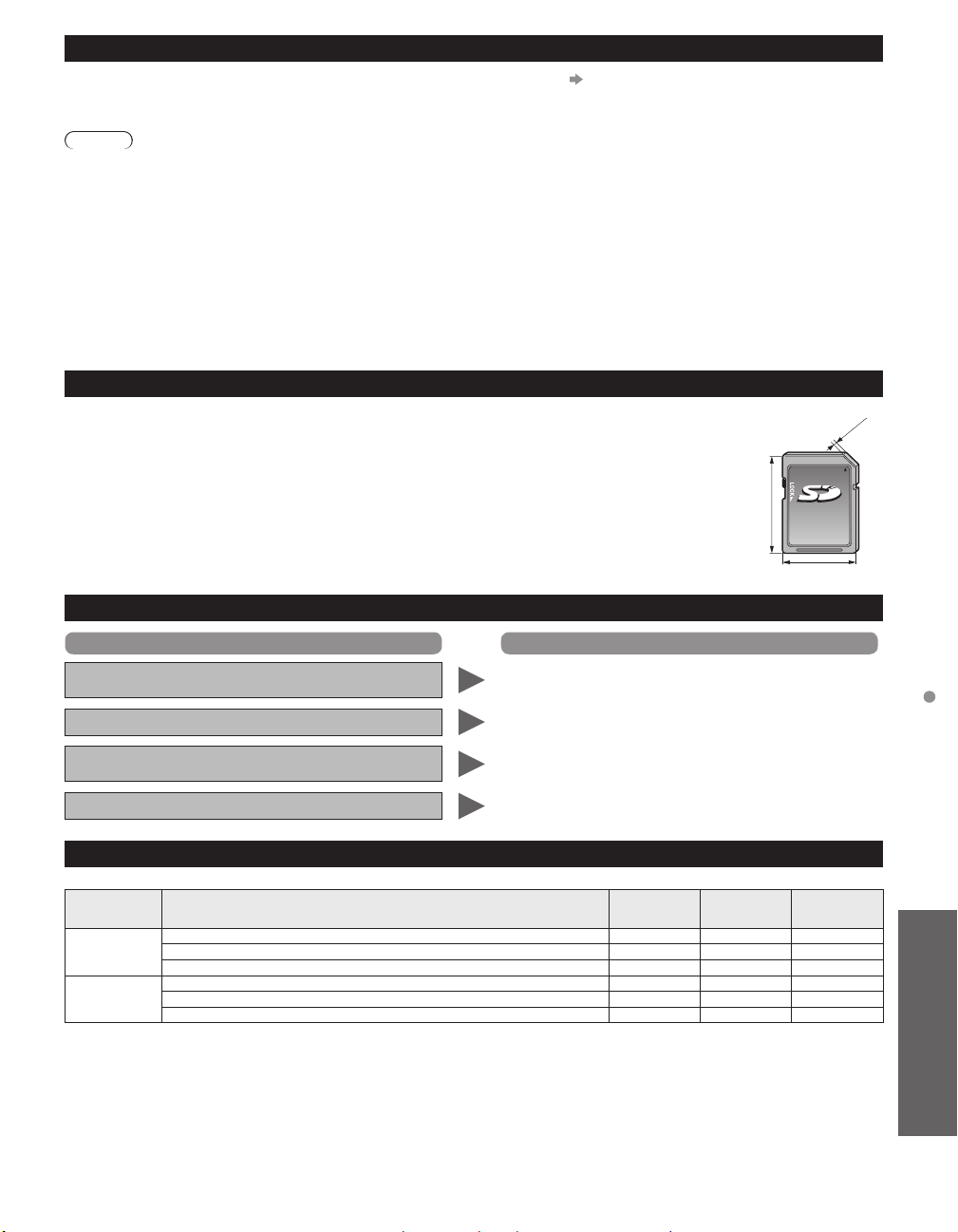

Technical Information ···································50

•

Care and Cleaning ·······································54

•

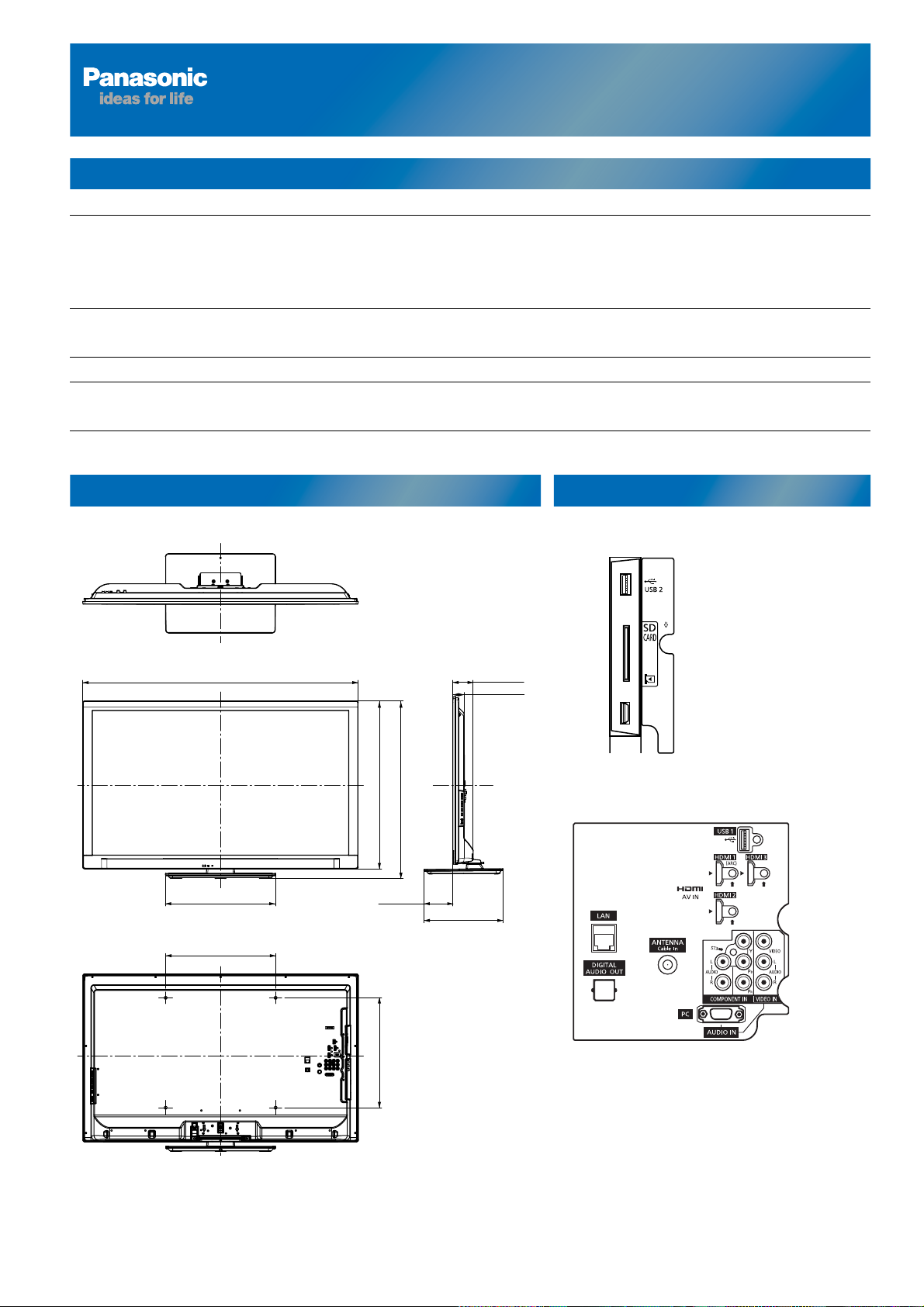

Specifications ···············································55

•

Frequently Asked Questions (FAQ) ·············56

•

Index ····························································59

•

Limited Warranty

•

(for U.S.A. and Puerto Rico only) ·················60
Customer Services Directory

•

(for U.S.A. and Puerto Rico) ························61
Limited Warranty (for Canada) ·····················62

•

Getting started

Basic Advanced Support Information

3

Safety Precautions

The lightning flash with arrowhead

CAUTION

RISK OF ELECTRIC SHOCK

WARNING: To reduce the risk of electric shock, do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service personnel.

DO NOT OPEN

Note to CATV System Installer

This reminder is provided to direct the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for
proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as
close to the point of cable entry as practical.

Secure Ventilation

Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to ensure reliable operation of the LCD
TV and to protect it from overheating. These openings must not be blocked or covered. There should be at least 10 cm of space
around the TV. The openings should never be blocked by placing the LCD TV on a bed, sofa, rug or other similar surface. This
LCD TV should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that
produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.

11) Only use attachments / accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) Operate only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied
to your home consult your television dealer or local power company.

16) Follow all warnings and instructions marked on the LCD TV.

17) Never push objects of any kind into this LCD TV through cabinet
slots as they may touch dangerous voltage points or short out parts
that could result in a fire or electric shock. Never spill liquid of any
kind on the LCD TV.

18) If an outside antenna is connected to the television equipment,
be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges.
In the U.S. Section 810-21 of the National Electrical Code
provides information with respect to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors, location of
antenna discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.

EXAMPLE OF ANTENNA
GROUNDING AS PER
(NEC) NATIONAL
ELECTRICAL
CODE

GROUND CLAMP

ELECTRIC
SERVICE
EQUIPMENT

POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)

4

within a triangle is intended to tell the
user that parts inside the product are a
risk of electric shock to persons.

The exclamation point within a
triangle is intended to tell the
user that important operating and
servicing instructions are in the
papers with the appliance.

ANTENNA
LEAD-IN WIRE

ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)

GROUNDING
CONDUCTORS
(NEC SECTION 810-21)

GROUND CLAMPS

19) An outside antenna system should not be located in the vicinity of overhead power lines, other electric light, power circuits, or
where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to
keep from touching such power lines or circuits as contact with them might be fatal.

20) Unplug this LCD TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the LCD TV.
c. If the LCD TV has been exposed to rain or water.
d. If the LCD TV does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions as improper adjustment of other

e. If the LCD TV has been dropped or the cabinet has been damaged.
f. When the LCD TV exhibits a distinct change in performance - this indicates a need for service.

When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that

21)
have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.

22) WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN,

23) WARNING: SMALL PARTS CAN PRESENT CHOKING HAZARD IF ACCIDENTALLY SWALLOWED. KEEP SMALL

24) WARNING: To prevent the spread of fire, keep candles or other open flames away from this product at all

25) CAUTION: The Power switch on this unit will not completely shut off all power from AC outlet. Since the power

26) CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS PLUG WITH A RECEPTACLE OR OTHER OUTLET

27) CAUTION: USE WITH OTHER STAND MAY RESULT IN INSTABILITY POSSIBLY CAUSING INJURY.

28) CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME

NOTE: This equipment is designed to operate in North America and other countries where the broadcasting system and AC

house current are exactly the same as in North America.

controls may result in damage and will often require extensive work by a qualified technician to restore the
LCD TV to normal operation.

MOISTURE, DRIPPING OR SPLASHING.
DO NOT PLACE LIQUID CONTAINERS (FLOWER VASES, CUPS, COSMETICS, ETC.) ABOVE THE SET
(INCLUDING ON SHELVES ABOVE, ETC.).

PARTS AWAY FROM YOUNG CHILDREN.
DISCARD UNNEEDED SMALL PARTS AND OTHER OBJECTS, INCLUDING PACKAGING MATERIALS AND
PLASTIC BAGS/SHEETS TO PREVENT THEM FROM BEING PLAYED WITH BY YOUNG CHILDREN,
CREATING THE POTENTIAL RISK OF SUFFOCATION.

times

cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to
shut down all power.
Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from AC outlet
in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when
left unused for a long period of time (for example, when on vacation).

UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

OR EQUIVALENT TYPE.

5

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.

FCC Caution:
To assure continued compliance, follow the attached installation instructions and use only shielded interface cables
when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by
Panasonic Corp. of North America could void the user’s authority to operate this device.

FCC Declaration of Conformity

Model No. TC-L42E3

Responsible Party: Panasonic Corporation of North America
Contact Source: Panasonic Consumer Electronics Company
email: [email protected]

One Panasonic Way, Secaucus, NJ 07094
1-877-95-VIERA (958-4372)

CEA CHILD SAFETY NOTICES

WARNING

Flat panel displays are not always supported on the
proper stands or installed according to the manufacturer’s
recommendations. Flat panel displays that are inappropriately
situated on dressers, bookcases, shelves, desks, speakers,
chests or carts may fall over and may cause personal injury or
even death.

The consumer electronics industry (of which Panasonic is
a member) is committed to making home entertainment
enjoyable and safe. To prevent personal injury or death, be
sure to follow the following safety guidelines:

TUNE INTO SAFETY:

• One size does NOT fit all. Follow the manufacturer’s
recommendations for the safe installation and use of your
flat panel display.

• Carefully read and understand all enclosed instructions for
proper use of this product.

• Don’t allow children to climb on or play with furniture and
television sets.

• Don’t place flat panel displays on furniture that can easily be
used as steps, such as a chest of drawers.

• Remember that children can become excited while watching
a program, especially on “larger than life” flat panel
displays. Care should be taken to install the display where it
cannot be pushed, pulled over, or knocked down.

• Care should be taken to route all cords and cables
connected to the flat panel display so that they cannot be
pulled or grabbed by curious children.

WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT
YOUR FLAT PANEL DISPLAY, ALWAYS:

• Use a mount that has been recommended by the display
manufacturer and/or listed by an independent laboratory
(such as UL, CSA, ETL).

• Follow all instructions supplied by the display and wall
mount manufacturers.

• If you have any doubts about your ability to safely
install your flat panel display, contact your retailer about
professional installation.

• Make sure the wall where you are mounting the display
is appropriate. Some wall mounts are not designed to
be mounted to walls with steel studs or old cinder block
construction. If you are unsure, contact a professional
installer.

• A minimum of two people are required for installation. Flat
panel displays can be heavy.

Panasonic recommends that a qualified installer perform
the wall-mount installation. See page 7.

The American Academy of Pediatrics discourages
television viewing for children younger than two years
of age.

6

Accessories/Optional Accessory

Accessories

Check you have all the items shown.

Accessories

Remote Control
Transmitter

N2QAYB000570

Batteries for the
Remote Control
Transmitter (2)

AA Battery

Pedestal

TBL5ZX0037

Getting started

How to assemble (p. 8)

Owner’s Manual
Quick Start Guide

Optional Accessory

Back of the TV

Holes for wall-hanging bracket
installation

WARNING

Always be sure to ask a qualified technician to carry out set-up.
Do not mount the unit directly below ceiling lights (such as spotlights, floodlights or halogen lights) which typically give off

high heat. Doing so may warp or damage plastic cabinet parts.

Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall

before hanging bracket.
To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.
Incorrect wall-hanging bracket or incorrect fitting may cause equipment to fall, resulting in injury and product damage.
Panasonic disclaims liability for any damage or injury arising from incorrect wall-hanging bracket, incorrect fitting or

otherwise failure to follow the above instructions.

15.7 ”

(400 mm)

15.7 ”

(400 mm)

Please contact professional installer to purchase the recommended UL qualified
wall-hanging bracket. For additional details, please refer to the wall-hanging
bracket installation manual.

Screw for fixing the TV onto the
wall-hanging bracket
(not supplied with the TV)

Depth of screw:
Minimum: 0.24 ” (6.0 mm)
Maximum: 0.71 ” (18.0 mm)

M6

(View from the side)

Child safety
Product Registration Card (U.S.A.)

Accessories/Optional Accessory

7

Attaching the pedestal to TV

■

Assembling the pedestal

Fix securely with assembly screws A (Total 4 screws).
Tighten screws firmly.

A

Bracket

Front

Hold the bracket
not to fall over

Accessories

Assembly screws
(4 of each)

A

XSS5+15FNK
size(M5 x 15)

B

Base

■

Set-up

Fix securely with assembly screws (Total 4 screws).

Tighten screws firmly.

B

Foam mat or thick
soft cloth

WARNING

Do not disassemble or modify the pedestal.

Otherwise the TV may fall over and become damaged, and personal injury may result.

Caution

Do not use any pedestal other than that provided with this TV.

Otherwise the TV may fall over and become damaged, and personal injury may result.

Do not use the pedestal if it becomes warped or physically damaged.

If you use the pedestal when it is physically damaged, personal injury may result. Contact your nearest Panasonic

Dealer immediately.

During set-up, make sure that all screws are securely tightened.

If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong

enough to support the TV, and it might fall over and become damaged, and personal injury may result.

B

XYN4+F30FJK
size (M4 × 30)

Bracket (1)

Base (1)

Installing the remote’s batteries

Caution

Incorrect installation may cause

battery leakage and corrosion,
resulting in damage to the remote
control.

Do not mix old and new batteries.

•

Do not mix different battery types (such

•

as alkaline and manganese batteries).
Do not use rechargeable (Ni-Cd)

•

batteries.

Do not burn or break batteries.

Hook

Open

Close

Note the correct polarity
(+ or -).

8

Connections

ST4

AV IN
HDMI 4

Connection Panels

Front of the TV

USB 2
connector

SD card
slot (p. 22)

HDMI 4
terminal

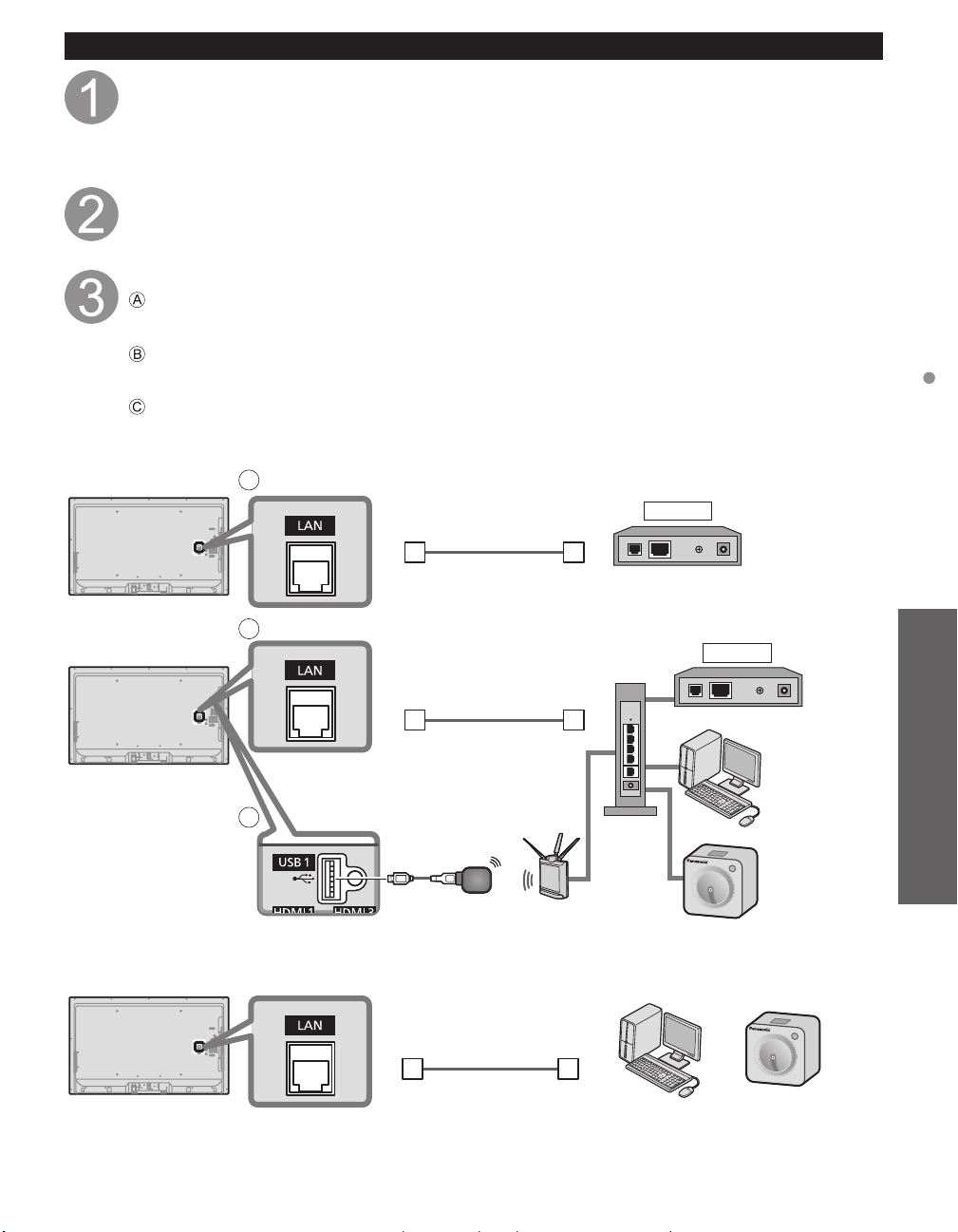

LAN connector USB 1 connector

A

Getting started

C

Back of the TV

DIGITAL AUDIO OUT

B

Antenna or Cable connection

Back of the TV

Power Cord
(Connect after
all the other
connections have
been made.)

VHF/UHF Antenna

• NTSC (National Television System Committee):

• ATSC (Advanced Television Systems Committee):
Digital TV Standards include digital high-definition television (HDTV), standard-definition television
(SDTV), data broadcasting, multichannel surround-sound audio and interactive television.

Cable

You need to subscribe to a cable TV service to enjoy viewing their programming.

●

You may need to subscribe to a high-definition (HD) cable service to enjoy HD programming.

●

The connection for high-definition can be done with the use of an HDMI or Component Video cable. (p. 10)

Note

When using a Cable box, external equipment and video cables shown in this manual are not supplied with the TV.

●

For additional assistance, visit us at: www.panasonic.com/help

●

www.panasonic.ca

VHF/UHF Antenna

Cable TV

or

PC terminal

Connections

Accessories/Optional Accessory

Connection references

■

Antenna terminal

Firmly tighten by hand.

●

■

Pin terminals

green

bluered

green/ yellow

Insert firmly.

●

■

HDMI terminal

Insert firmly.

●

9

AV cable connection

Best

Good

Basic

(Not HD)

To use HDMI terminals

HDMI-DVI
Conversion cable

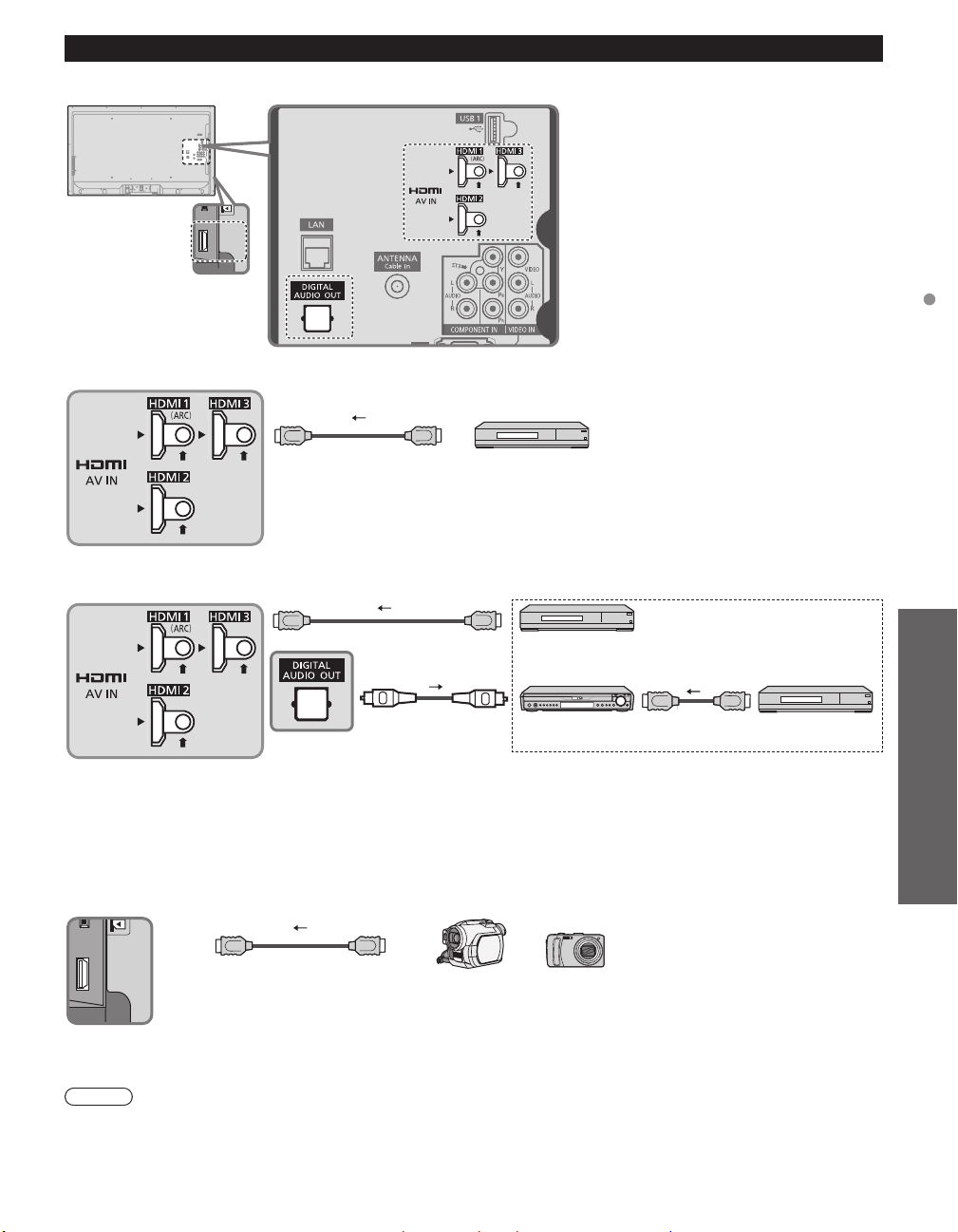

VIERA Link connection, please refer to p. 29

●

The HDMI connection is required for a 1080p signal.

●

To use COMPONENT terminals

green

blue
red

white
red

To use COMPOSITE terminals

yellow
white
red

green

blue

red

white

red

yellow

white

red

green

blue

red

white

red

yellow

white

red

Y

P

PR

L

R

L

R

HDMI
AV OUT

DVI OUT

L

AUDIO OUT

R

B

COMPONENT
VIDEO OUT

AUDIO
OUT

COMPOSITE
OUT

AV Equipment

e.g. Blu-ray Disc
player

AV Equipment

e.g. Blu-ray Disc
player

AV Equipment

e.g. Blu-ray Disc
player

AV Equipment

e.g. DVD Recorder

or

e.g. VCR

10

Audio connection

Optical cable

For HDMI-ARC (Audio Return Channel) connection, see P. 28

●

PC / Computer connection (VGA)

RGB PC cable

Audio cable

Conversion adapter (if necessary)

Audio equipment

DIGITAL
AUDIO IN

e.g. Amplifier

Computer

PC OUT
Audio OUT

Connect cable which matches the
audio out terminal on the computer

Identifying Controls

TV controls/indicators

Front of the TV

Selects channels in sequence
Volume up/down

Menu navigations

Remote control sensor
within about 23 feet
(7 meters) in front of the
TV set

Power indicator
( on: red, off: no light)

C.A.T.S (Contrast Automatic Tracking System)

Note

The TV consumes a small amount of electric energy even when turned off.
Do not place any objects between the TV remote control sensor and remote control.

POWER button

Remote control

Switches TV On or Off (Standby)
Select source to watch (p. 21)

Displays Main Menu (p. 44)

Displays Sub Menu for special functions
(when available) (p. 18)

Colored buttons
(used for various functions)

Volume up/down

Sound mute On/Off

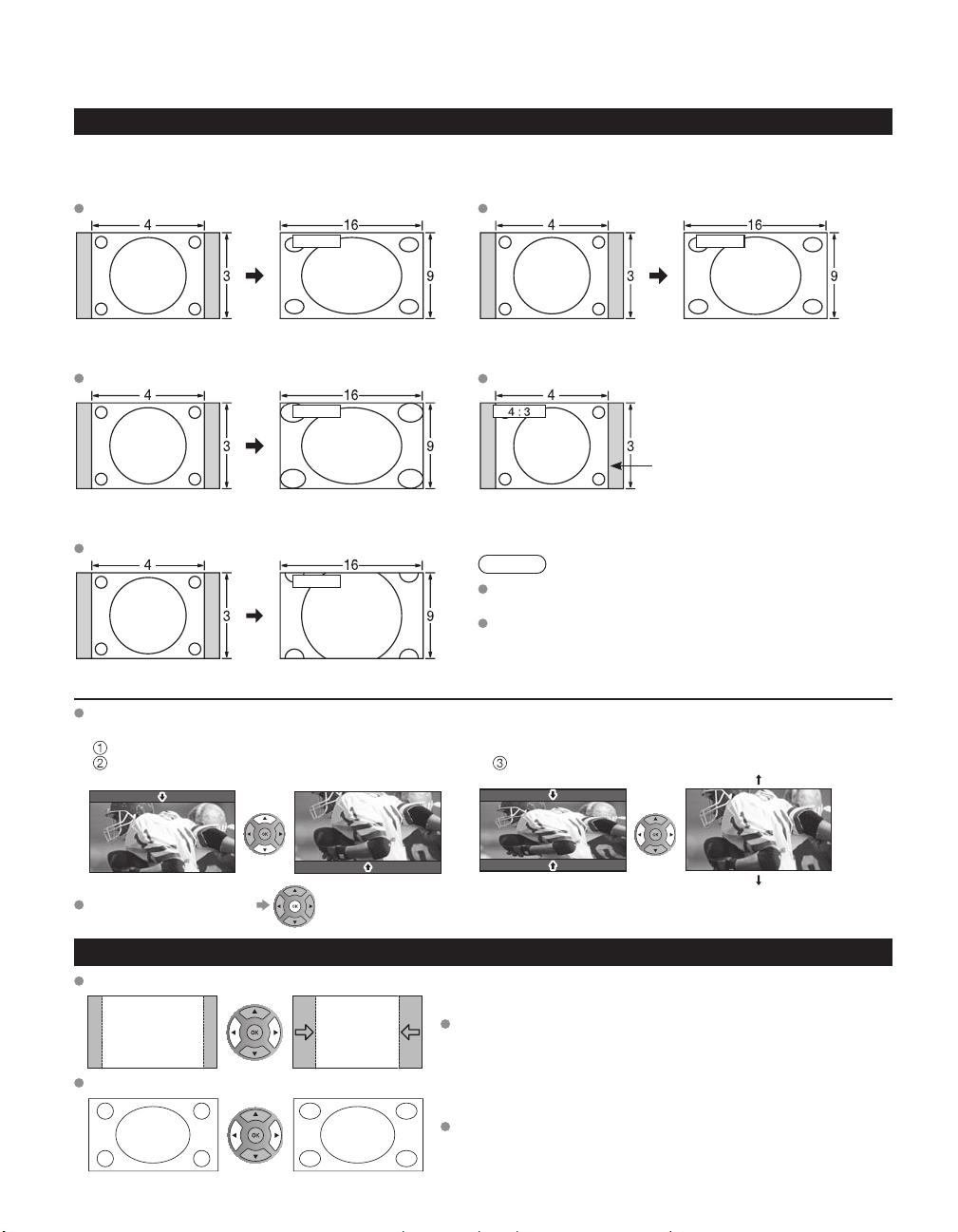

Changes aspect ratio and zoom
(p. 18, 50)

Switches to previously viewed channel
or input

External equipment operations
(p. 33)

Changes the input mode
Chooses menu and submenu entries

Closed Caption On/Off (p. 17)
Selects Secondary Audio Programming

(p. 17)
Exits from menu screen

VIERA Link menu (p. 32-33)
Display VIERA TOOLS Menu (p. 20)

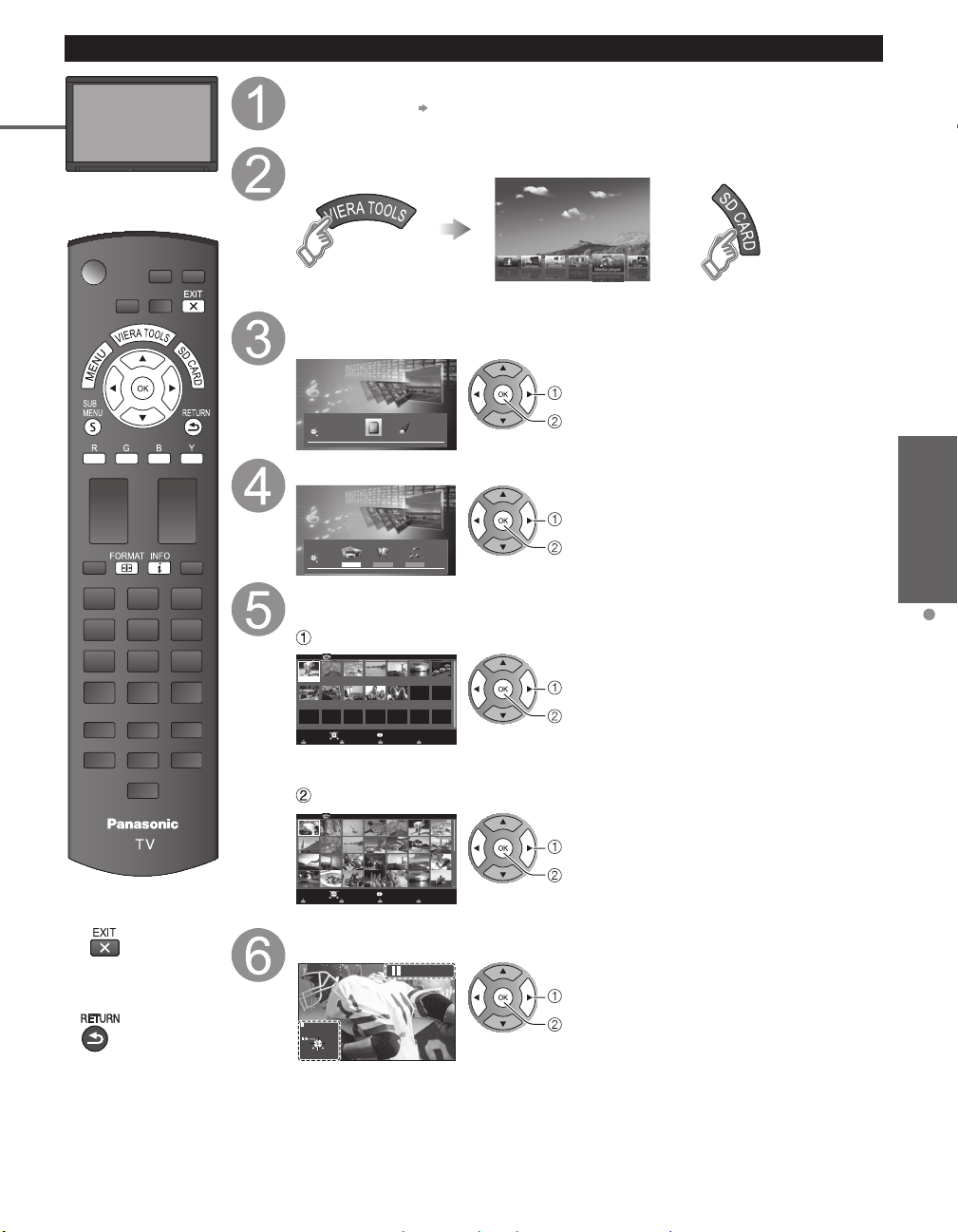

Viewing from SD Card (p. 22-27)
Selects/OK/Change
Go back to previous menu
Channel up/down, when viewing from

ANT/Cable source
Displays or removes the channel

banner (p. 17)
Operates the Favorite channel list

function (p. 18)
Numeric keypad to select any channel

or press to enter alphanumeric input in
menus

Use for digital channels. (p. 17)

Getting started

Identifying Controls

Connections

11

First Time Setup

The first time setup screen is displayed only when the TV is turned on for the first time after the power cord
is inserted into a wall outlet and when “Auto power on” (p. 48) is set to “No”.

Turn the TV On with the POWER button

(Remote)(TV)

or

or

Configure your viewing mode

Select your language

Language / Idioma / Langue

Select your language
Seleccione su idioma
Sélection de la langue

English Español Français

Step 1 of 7 / Paso 1 de 7 / Étape 1 de 7

select

OK

OK

Select
Selección
Sélection

Select your country

Country

Select the country where this TV is being used.

U.S.A. Canada Other

Step 2 of 7

select

OK

OK

Select

RETURN

Select your viewing mode (Be sure to select “Home use”)

Set viewing mode

Select your viewing environment

Home use Store Demonstration

Step 3 of 7

select

OK

OK

Select

RETURN

Please confirm your selection (Home Use) before pressing OK button.

●

■If you select “ Store Demonstration” by mistake in ,

confirmation screen will be displayed.

You are selecting the store demonstration mode.

Yes

If you select “Yes”, the picture mode will regularly reset
to “Vivid” and a Picture Refresh message will be displayed on the
screen.

Select “No” and return to previous screen .

●

If you select “Yes”, Screen enters the store demonstration mode.

●

To display the “Set viewing mode” screen again as shown above and
select “Home Use”, do one of the following:

• Press and hold down the side POWER button for at least five seconds.

• Unplug power cord for 30 seconds and plug it again.

No

select

OK

12

Note

If you use any other step other than

●

then turn the TV off, or if you used
the EXIT button to quit before completing the settings, the next time you turn
the TV on, “First time setup” will not be automatically displayed.

• The settings up to that point are saved.

• You can start “First time setup”. (p. 48)
Language, ANT/Cable setup, Input labels, and Clock can also be changed

●

in the Settings Menu. (p. 48)

Press to exit from

a menu screen

Press to go back to
the previous screen

ANT/Cable setup

Do you use a Cable, Satellite or Fiber Optic box with this TV?

ANT/Cable setup

Do you use a Cable, Satellite or Fiber Optic box with this TV?

Yes No

OK

Select

Return

a Select signal type

(Cable/Antenna)

ANT/Cable setup

How does the TV receive its programming content?

Cable service

Over-the-Air Antenna

(No box)

OK

Select

Return

Select scan type

Auto program

Start scanning for available channels in your area?

Yes No

OK

Select

Return

Start scanning

Auto program

Progress

Number of analog channels

Number of digital channels
This may take some time to complete.
Press RETURN to quit

RETURN

Complete scanning

Auto program

Number of analog channels
Number of digital channels

Auto program completed.

Press OK to continue.

OK
RETURN

No

Antenna
Cable In

Yes

Step 4 of 7

Step 4 of 7

Step 4 of 7

1%

10

0

Yes

b Select connection type

for Cable or Satellite
box and go to
labels)

ANT/Cable setup

Which wiring method is used to connect your box to the TV?

Select

Component

Composite

OK
Return

AV IN

HDMI

select

OK

select

OK

0

Antenna/Cable in

Antenna
Cable In

(Input

Step 4 of 7

Getting started

First Time Setup

Note

About broadcasting

systems

Analog (NTSC):
Conventional

broadcasting

Digital (ATSC):

New programming
that allows you to
view more channels
featuring high-quality
video and sound

13

Label the inputs for easy identification (Label inputs)

RETURN

OK

Select

1

@.

4

GHI

7

PQRS

2

ABC

5

JKL

8

TUV

3

DEF

6

MNO

9

WXYZ

0

- ,

LAST

ABC abc

GAME

Video

PC
Next

GAME

To name each input, follow the instructions on screen.
When done, select NEXT and press OK to go to the next step.

Label inputs

What is connected to HDMI 1 ?
For your convenience, you may name each input for easy identification.
The labels will be shown in the “Input select” menu.

HDMI 1

HDMI 2
HDMI 3
HDMI 4
Component
Video
PC
Next

OK

Select

Return

Customize label

--> To edit the labels to match your connected devices.

Label: [BLANK] Blu-ray/CABLE/SATELLITE/DVD/DVD REC/DVR/GAME/HOME

THTR/RECEIVER/COMPUTER/MEDIA CTR/MEDIA EXT/VCR/CAMERA/
MONITOR/AUX/OTHER/Not used

• Select “Not used” for any back-panel input that has no device connected to it.
Afterward, the input will be skipped when pressing INPUT, for your convenience.

• The input labels can be changed at any time from the TV’s setup menu

Step 5 of 7

HDMI

select
set

or

Follow the instructions on
screen to complete the
following operations.

Configure Network settings

Select the Network type

Network settings

Select Ethernet cable of wireless network.

Ethernet cable Wireless(Wifi) Set later

OK

Select

Return

Select the setting mode

Network settings

Checks for proper network connection, settings and
communication to the Internet and server
automatically.

Automatic Manual

Step 6 of 7

Step 6 of 7

Set later: Go to
You can set in “Setup” menu later.
Wireless (WiFi)

: Start “Wireless network” (p. 16)

Automatic: Press OK to start setup automatically.
Error screen is displayed when

Network connection has failed.

Manual: Go to Manual setting.

14

Press to exit from

a menu screen

■

Press to go back to
the previous screen

OK

Select

RETURN

Automatic

Start connection test

Network settings

Connection test

Check Ethernet cable connection
Validate IP address
Check for IP address duplication

Check connection to the Internet
Check communication with EASY IPTV server.

Test in progress...

Step 6 of 7

Connection test

Connection

RETURN

error

Complete “Network settings”

Helpful information is displayed when you
successfully complete “Network settings”.

Network settings

Network settings are complete.
You can use EASY IPTV.
EASY IPTV lets you enjoy
Internet contents on
your VIERA TV.

OK
Return

Step 6 of 7

Manual

■Manual setting

Network settings

Configure settings of the network connection.

IP setting mode

Automatic

IP address

192.168.0.4

Subnet mask

255.255.255.0

Default gateway

192.168.0.1

DNS setting mode

Automatic

DNS

192.168.0.1

Proxy address
Proxy port
Connect test
Mac address

00-00-aa-cc-33-ab

Select

Change

RETURN

Step 6 of 7

Manual

■Error screen

Network settings

Connection test

Check Ethernet cable connection
Validate IP address
Check for IP address duplication

Check connection to the Internet
Check communication with EASY IPTV server.

Connection to local network (router) failed.
Ensure wireless network availability

Retry Manual Set later

OK

Select

RETURN

Retry: Go to “Start connection test”
Set later: Go to

Step 6 of 7

Adjust the Clock (Set clock)

RETURN

OK

0 9

DST

Minutes

10

When done, select NEXT and press OK to go to the next step.

■Manual setting

Set clock

Adjust the TV's date and time

Mode

Year

Month
Day
Hour
Minute
Time zone
DST
Next

Edit

Select

Change

RETURN

0-9

Manual

- - -

- - -

- - -

- - -

- - -

Step 7 of 7

select
set

or

Follow the instructions on
screen to complete the
following operations.

■Auto setting

Set clock

Adjust the TV's date and time

2011/4/5 6:00 AM

Mode

Auto

Year
Month
Day
Hour
Minute
Time zone

EST
Off

DST
Next

Select

Change

RETURN

Mode

Manual: Adjust the clock manually (Year/Month/Day/Hour/Minute)
Auto: The clock is adjusted automatically via Internet service. Only
available when the TV is on a network. -->Set “Network settings” first.

Time zone

DST

Select your time zone. (EST/CST/MST/PST/AKST/HST/NST/AST)
Set DST (Daylight Saving Time) setting. (On/Off)

On: Advances the clock one hour from the time it is set according to the
time zone.

Complete First time setup

Congratulations! You are done.

Step 7 of 7

Getting started

First Time Setup

Press to exit from

a menu screen

■

Press to go back to
the previous screen

The First time setup can be repeated at any time.
Press MENU and select SETUP; then “First time setup”.

Congratulations!
Setup is complete.

Enjoy your Panasonic VIERA TV.

OK
RETURN

To watch TV via a Cable box, Satellite receiver, or any other source (DVD,
DVR, gaming device, etc.), press the INPUT button and select the appropriate
input.

15

■About wireless LAN

Wireless LAN adapter and Access point need to be obtained separately.

●

For the latest information on applicable LAN adapters, check the following website:
http://Panasonic.com/NetConnect
Check that the Access point supports WPS*.

●

(If it does not support WPS, the encryption key of the Access point is required when configuring settings.)
Follow the instructions on the Access point setup screen and configure the appropriate security settings.

●

For more details on setting of Access point, please refer to operating manual for the Access point.
We recommend using 11n (5 GHz) for the wireless system between the wireless LAN adapter and Access point.

●

Communication is also possible with 11a, 11b, and 11g (2.4 GHz), but the communication speed may be slower.
If the wireless system of the Access point is changed, devices that could connect by wireless LAN may no longer be

●

able to connect.
When EASY IPTV, Network camera, DLNA, or other device is using the network, do not disconnect the wireless LAN

●

adapter.
Keep the TV away from the following devices as much as possible:

●

Wireless LAN, microwaves, and other devices that use 2.4 GHz and 5 GHz signals. Otherwise, the TV failures such as
malfunction may occur due to the radio wave interference.

* WPS: Wi-Fi Protected Setup

■Wireless network (First time setup) in

Display “Wireless network”
Select the connection method

Wireless network

Please choose connection method:

Search for wireless networks
WPS (Wi-Fi Protected Setup using push button)

Follow the directions on screen to complete the setting.

●

See page 37 for more information.

●

select

OK

16

Watching TV

Turn power on

(Remote)

or

(TV)

Note

Please select correct input --> (p. 21)

Select a channel number

up

or

down

• Also available side CH button on the unit.

[For Cable/Satellite box connection]

- Use your connected box’s remote control.

Note

Reselect “Cable” or “Antenna” in “ANT in” of “ANT/Cable setup” to switch the signal

reception between cable TV and antenna. (p. 13, 42)

The channel number and volume level remain the same even after the TV is turned

off.

■Other Useful Functions

Listen with SAP (Secondary Audio Programming)

■Select the Audio mode for watching TV

Digital mode

Press SAP to select next Audio track (if available) when receiving a digital channel.

Audio track 1 of 2

Analog mode

Press SAP to select the desired Audio mode.

• Each press of SAP will change the Audio mode. (Stereo/SAP/Mono)
SAP is not available when watching TV with a Cable or Satellite box connected via HDMI.

Contact your Cable or Satellite operator for instructions on enabling SAP with their box.

(English)

Closed Caption

■Switches the Closed Caption mode On or Off

Closed caption OnClosed caption Off

Closed caption On mute

To directly enter the digital channel

number

When tuning to a digital channel,
press the button to enter the minor
number in a compound channel
number.

example: CH15-1:

Getting started

Basic

Watching TV

First Time Setup

Closed Caption is not available when watching TV with a Cable or Satellite box connected via HDMI.
Contact your Cable or Satellite operator for instructions on enabling CC with their box.

Displaying Information

■Displays and removes information. When watching programming via the Antenna/Cable input,

shows the channel banner.

Channel

15-2 12:30 PM
ABC-HD

Station
identifier

THE NEWS
CC SAP

SAP
indication

TV-G 1080i Standard 4:3

Signal
resolution

Rating Level

mode

Aspect ratioClosed caption

Clock

30

Sleep timer
remaining time

17

Change aspect ratio and Zoom the picture

Favorite channels

1/3

26-1

1
2
3
4
5

Set favorite 1/3

26-1

1
2
3
4
5

Set favorite 1/3

26-1

1
2
3
4
5

■Press FORMAT to cycle through the aspect modes (p. 50)

• 480i, 480p: FULL/JUST/4:3/ ZOOM

• 1080p, 1080i, 720p: FULL/H-FILL/JUST/4:3/ZOOM
Use when the picture does not fill the whole screen (bars appears on either side of

the image) or portions of the picture is trimmed.

Note

1. Some content, such as film-based movies, are available in extra-wide format.
Top and bottom bars are unavailable.

2. Connected devices, such as Cable/Satellite box, DVD/Blu-ray players and game
consoles have their own aspect (format) settings. Adjust the device’s aspect
settings.

Display the SUB MENU

■Press SUB MENU to show the Sub Menu screen

This menu consists of shortcuts to convenient functions.
Sub menu is only available when the TV is using the Antenna/Cable input, not when using Cable or Satellite box.

SUB

MENU

Setup SUB MENU

Channel surf mode

All
Set favorite
Edit CH caption
Signal meter

Specify favorites or type of channels to view when pressing the channel up/
down button.

Set favorite channel (below)
Edit the channel identifier (p. 43)
Check the signal strength (p. 43)

Call up a favorite channel

■ FAVORITE

Channel numbers registered in Favorite are displayed on the favorite tune screen. Select the desired broadcast
station with the cursor or use the number buttons. (p. 17)

select

■Set the Favorite channel

MENU

■Delete a favorite channel

■To change the page

18

or

SUB

Setup SUB MENU

Channel surf mode

All

Set favorite

Edit CH caption
Signal meter

Press repeatedly to change between pages (1/3, 2/3, 3/3 or exit)

Changes the page forward/backward

Favorite channels cannot be set when using Cable or Satellite box.

●

or

select the list number
(to save the channel
without pressing OK)

select

the list

number
save the displayed

channel

select

delete
(while holding down)

■Other Useful operations

1

@.

4

GHI

7

PQRS

2

ABC

5

JKL

8

TUV

3

DEF

6

MNO

9

WXYZ

0

- ,

LAST

Menu

Proxy setting

Proxy address

0

Proxy port

Entering characters

You can use the remote control keys to enter the alphanumeric characters.

■Switches input mode

ABC → abc → 123

1 4 8

■Press each number key

to cycle through the
alphanumeric character

Navigation area

You can also use a USB keyboard (not supplied) to enter the alphanumeric characters.

●

Keyboard type (p. 48)

●

Password setting/entering

You need to enter the password when you access locked channel or inputs.

Select

OK
RETURN

DeleteABC → abc

Input your 4-digit password

Menu

Password

Enter password.

* * * -

If it is your first time entering the password, enter the password twice in

●

order to register it.
Make a note of your password. Do not forget it. (If you have forgotten

●

your password, consult your local dealer.)
When you select a locked channel, a message will be displayed that

●

allows you to view the channel after you input your password.
Change password (p. 47)

●

Operate USB keyboard

You can operate non-character keys as remote control keys.

■Key chart

Keyboard key Remote key Keyboard key Remote key

UP/DOWN/LEFT/RIGHT Cursor key F4 Input

Enter OK F5 Channel Down(-)

BackSpace Return (when you do not

input character)

F6 Channel up(+)

0-9 0-9 F7 Volume Down(-)

F1 Menu F8 Volume up(+)
F2 VIERA Tools F9(Red)/F10(Green)/
F3 Submenu

For more details on setting and operation of the USB keyboard, please also read the operating manuals for the USB

●

F11(Blue)/F12(Yellow)

Color key

(Red/Blue/Yellow/Green)

keyboard.
Some keyboards do not have these keys.

●

Basic

Watching TV

19

Using VIERA TOOLS

VIERA TOOLS is the easy way to access the TV’s special features. They are displayed as shortcut icons on
the TV screen.

Display VIERA TOOLS

Select the item

The icons displayed differ depending on your country or area you select. (p. 12)

●

select

next

Press to exit from

a menu screen

Press to go back

to the previous
screen

EASY IPTV

(example)

Set each item

Using EASY IPTV p. 39

Part of Icons on VIERA TOOLS screen above provide you usable

Internet service such as VOD (Video-on-demand), Music distributer
or social networking service etc.

Game mode

Change to “Game” mode.
Picture mode (p. 45)

VIERA Link

VIERA Link (p. 32-33)

Eco mode

ECO/energy saving (p. 48)

Media player

Media player (p. 22-27)

DLNA

20

Using DLNA feature (p. 40)

Watching content from external devices

With the connected equipment turned On

Display the Input select menu

Select the input mode

Input select

1

ANT/Cable In

2

HDMI 1

3

HDMI 2

4

HDMI 3

5

HDMI 4

6

Component

7

Video

8

PC

HDMI 1

GAME

Not used

GAME

GAME

AUX

(example)

Terminal
Label

(example)

or

Input label

Setup ANT/Cable (p. 42)
Edit Device labels

Input labels (p. 48)

(shortcut) press the corresponding
NUMBER button on the remote
control to select the input of your
choice. Or, press the INPUT
button repeatedly, to cycle through
the available inputs.
* set unused input to “Not used”

select

enter

(below) for quick skipping.

Select the input of your choice,
then press OK.

During the selection, if no action

●

is taken for several seconds,
the “Input select” menu
disappears.
The terminal and label (names)

●

of the connected equipment are
displayed.

Basic

Watching content from external devices

Using VIERA TOOLS

Note

The input label will be displayed on the “Input select” screen if the Input label was

●

customized.
For side input terminals (HDMI 4), “GAME” Input label is set as default.

●

Operate the connected equipment directly or using the
remote control supplied with the equipment

Note

For details, see the manual for the connected equipment.

●

PC adjustments (p. 45)

●

21

Using Media player

You can view still and motion images and play music saved on a USB flash memory and an SD card.

Basic features for Media player

■Available contents and features

Photos

SUB MENU

Drive select

Drive select

OK
Select
RETURN

OKSelect

SUB MENU

RETURN

SD memory card

Sort

OKSelect
RETURN

sotohp llAPhotos player aideM

SD memory card

Info

Sort

Info

Media selectSlideshow Drive select

SD memory card

Media selectSlideshow Drive select

sotohp llAPhotos player aideM

Media select

Media Select

OK
Select
RETURN

SUB MENU

SD memory card

Videos

Trip1 Trip2 Trip3 Trip4 Trip5 Room Nature1

Nature2 Nature3 Nature4 Nature5 Nature6 2009_4 2009_7

2009_9

OKSelect

SUB MENU

RETURN

OKSelect

Photos Videos Mus ic

RETURN

Sort

SD memory card

Info

Device selectSlideshow Media select

Info

Information panel

sotohp llAPhotos player aideM

SUB MENU

File name:

Date:

Size:

Titles/Folders viewVideos playeraideM

Media selectPlay Drive select

SD memory card


OKSelect
RETURN

Sort

15/04/2011

640x480

1/70

Info

Displays data information.
select
OK

select
OK

(File name, Date, and Size etc.)

*

Information differs depending
on selected data.

Media information

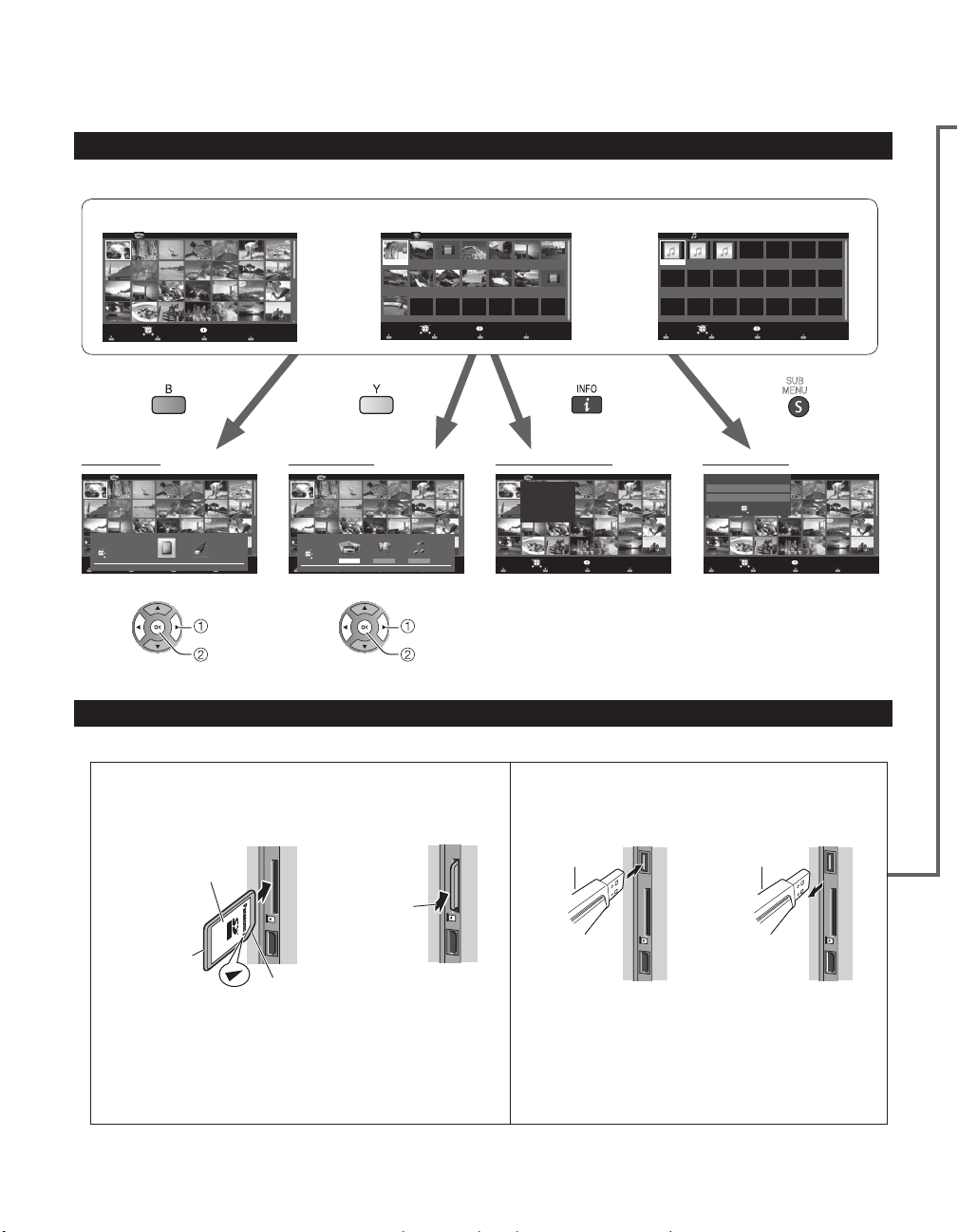

■Inserting or removing an SD card/USB flash memory

SD card USB flash memory

Insert the card

●

Gently insert the SD Card
label surface facing front.

Label surface

Remove the card

●

Insert the device

●

Insert straight in Pull straight out

Music

Media player Music

My Music_1 My Music_2 My Music_3

SD memory card

Media selectSlideshow Drive select

OKSelect

SUB MENU

RETURN

Option menu

sotohp llAPhotos playeraideM

Setup SUB MENU

Slideshow settings
Thumbnails size

SUB MENU

Option menu

Photos --> p. 24-25
Videos --> p. 26
Music --> p. 27

Remove the device

●

Folders

SD memory card

Info

Media selectPlay Folder Drive select

SUB

MENU

sotohp llAotohP reyalP aideM

OK

Select

RETURN

OKSelect
RETURN

Sort

SD memory card

Info

Media selectSlideshow Drive select

22

Press in lightly

on SD Card,

then release.

Push until a

click is heard

Cutout

Compliant card type (maximum capacity):

●

SDXC Card (64 GB), SDHC Card (32 GB), microSDHC

Media player only supports USB Mass storage

●

class devices.
Card (32 GB), SD Card (2 GB), miniSD Card (2 GB),
microSD Card (2 GB) (requiring microSDHC Card/
miniSD Card/microSD Card/ adapter)
If a microSDHC Card, miniSD Card or microSD Card is

●

used, insert / remove it together with the adapter.

For more information and cautions on SD card and USB flash memory (p. 51)

●

Viewing Contents

Insert a Media (SD card or USB flash memory)

• Auto play setting Image viewer auto play (p. 48)

Display Media player

or

(example)

Select Drive

(Display connected drive)

Media player

select

Drive select

SD memory card

OK
Select
RETURN

OK

Select the Media

Media player

select

Media select

SD memory card

OK
Select
RETURN

Photos Videos Music

OK

Select the data (Photos/Videos/Music)

How to view the data differs depending on data storage conditions.

Select Title/Folder

Media player Photos

23/10/2009 25/10/2009 01/11/2009 05/11/2009 10/11/2009 22/11/2009 23/11/2009

24/11/2009 01/12/2009 03/12/2009 20/12/2009 22/12/2009

OKSelect

SUB MENU

RETURN

Sort

(e.g. Photos)

Sort by Date

select

SD memory card

Info

Media selectSlideshow Drive select

OK

Basic

Using Media player

■Press to exit from

a menu screen

■

Press to go back to
the previous screen

Select file

OKSelect
RETURN

Sort

Info

(e.g. Photos)

SUB MENU

View or Play

Single view

Rotate

Prev.

Next
RETURN

Stop

(e.g. Photos)

Media selectSlideshow Drive select

SD memory card

sotohp llAPhotos player aideM

select
OK

Thumbnail / Playback view image

select
OK

and operation are differ depending
on selected contents.

Photos view --> p. 24-25

●

Videos view --> p. 26

●

Music view --> p. 27

●

23

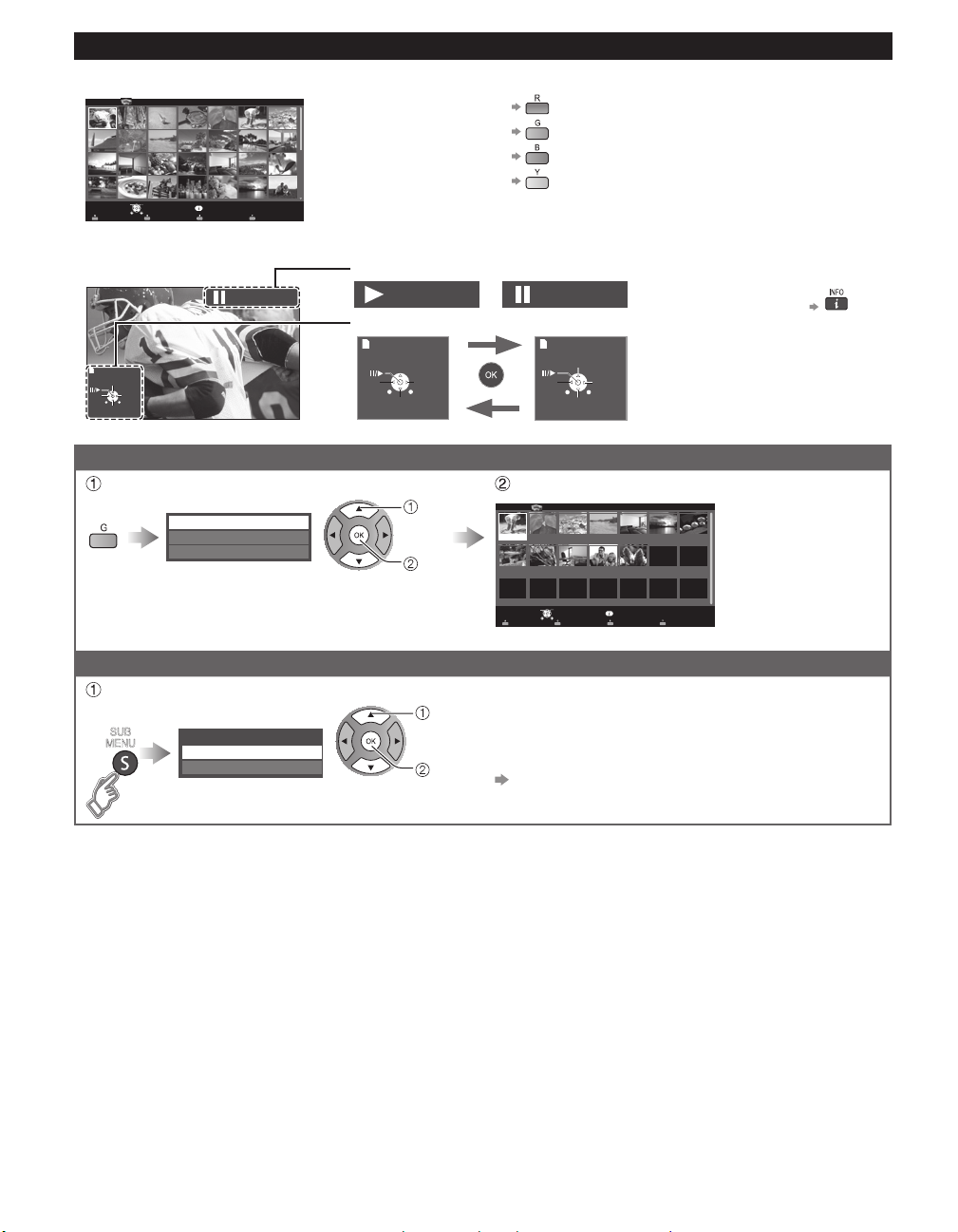

Photos view

[Photos thumbnail]

SUB MENU

OKSelect
RETURN

Info

Sort

[Photos playback screen]

Single view

Media selectSlideshow Drive select

SD memory card

sotohp llAPhotos player aideM

[Features]

Slideshow setting

●

Sort

●

Drive select

●

Media select

●

Photo status

Navigation Guide

Slideshow

Rotate

Prev.

Next
RETURN

Stop

Prev.

Stop

Sort

Display “Sort select” menu and select item

Folders

Sort by date

Sort by month

Photo options

Display “Setup SUB MENU” and select item

SUB

MENU

Setup SUB MENU

Slideshow settings

Thumbnails size

Next
RETURN

select

OK

select

OK

To display/hide

Single viewSlideshow

Single view

Prev.

Rotate

Stop

Next
RETURN

●

Guide and Banner

Displayed each view

Media selectSlideshow Drive select

Sort by Date

• Folders

• Sort by month

SD memory card

• Sort by date

(ascending order of
numeric/alphabetical)

(ascending order of
the month)

Media player Photos

23/10/2009 25/10/2009 01/11/2009 05/11/2009 10/11/2009 22/11/2009 23/11/2009

24/11/2009 01/12/2009 03/12/2009 20/12/2009 22/12/2009

SUB MENU

OKSelect
RETURN

Info

Sort

(e.g. Sort by date)

■Slideshow settings (p. 25)

■Thumbnails size

To change the number of photos on a thumbnail screen
at a time

(7 × 4 ⇔ 10 × 6)

24

Slideshow

Display “Slideshow settings”

Slideshow settings

Start Slideshow

Off

Frame

Off

Photo effect

Off

Transition effect

Normal

Photo size

Off

Burst playback

Normal

Display interval

On

Repeat playback
Soundtrack settings

Select

Change RETURN

SUB MENU

OKSelect
RETURN

Info

Sort

SD memory card

Media selectSlideshow Drive select

(example)

sotohp llAotohP reyalP aideM

Adjust items and select “Slideshow start”

Slideshow settings

Start Slideshow

Frame

Photo effect
Transition effect
Photo size
Burst playback
Display interval
Repeat playback
Soundtrack settings

Select

Change RETURN

Off
Off
Off

Normal

Off

Normal

On

(example)

■Slideshow settings

Settings Item Description

Frame*

Select the Frame (Off/Array/Collage/Drift(with calendar)/Drift/Gallery(with calendar)/Gallery/Cinema)

Photo effect* Select the display effect (Off/Sepia/Gray scale)

Select the Transition effect shown between photos (Off /Fade in/Wipe ↓/Wipe ↑/Wipe →/Wipe ←/

Transition effect
Photo size*

Slide in ↓/Slide in ↑/Slide in →/Slide in ←/Zoom in/Comb ↑↓/Comb →←/Dissolve/Checker
wipe/Motion/Random)

Removes the black borders that are added according to the size of the photo being displayed. (Normal/Zoom)

Burst playback* Continuously plays photos that were shot. (On/Off)
Display interval

Set “Display interval” each image is displayed in the Slideshow mode.

(Short/Fast/Normal/Slow/Very slow)

Repeat playback Turn the Slideshow Repeat (cycle) function on or off (Off/On).
Soundtrack

settings

Select the music (Off/Music 1/Music 2/Music 3/Music 4/Music 5/User selected*/Auto*)
User selected: Plays the soundtrack registered in the “Soundtrack settings”. (below)

Auto: Plays the songs on the SD card or USB flash memory.

• Picture quality may become lower depending on the slideshow settings.

• Picture setting may not work depending on the slideshow settings.
* When using DLNA (DMP mode) feature these menus are not displayed.
DMP: Digital media player p. 34

■Soundtrack settings

Select “Soundtrack

settings”

Slideshow settings

Start Slideshow
Frame
Photo effect
Transition effect
Photo size
Burst playback
Display interval
Repeat playback

Soundtrack settings

Off
Off
Off

Normal

Off

Normal

On

(example)

Select “User select”

Soundtrack settings

OFF
Music 1
Music 2
Music 3
Music 4
Music 5

User selected

Auto

User selected 03 XXXX

Select the song and register

Soundtrack settings

This song

All songs in folder

Select OK

RETURN

OKSelect

SUB MENU

RETURN

Sort

This song: Register current music.
All songs in folder : Register the
music in a folder.

select

OK

To stop in mid-cycle Press

●

sotohp llAPhotos player aideM

Media selectSlideshow Drive select

SD memory card

Info

Basic

Using Media player

select

OK

25

Videos view

[Videos thumbnail]

Titles/Folders viewVideos playeraideM

Trip1 Trip2 Trip3 Trip4 Trip5 Room Nature1

Nature2 Nature3 Nature4 Nature5 Nature6 2009_4 2009_7

2009_9

SUB MENU

OKSelect
RETURN

Info

Media selectPlay Drive select

SD memory card

[Features]

Play

●

Drive select

●

Media select

●

Aspect change

●

[Videos playback screen]

01/04/2010 15:34SD

00:00.10

00:00.03

Movie banner

Drive type (SD/USB/DLNA)

01/04/2010 15:34SD

RETURN

Date and time or
File name

Navigation area

Subtitles are not supported

●

in MKV file.

RETURN

Video options

Displayed menu will differ depending on contents.

Select “Video options” in “Setup SUB MENU”

SUB

MENU

Setup SUB MENU

Video options

00:00.03

Elapsed time of current movie
* Counter may not work correctly with DLNA

feature. In this case “--:--:--”is displayed.

To display/hide Guide and Banner

●

30 seconds skip (In DLNA mode only (depends on content))
Forward
Play/Pause

Stop
Reverse

• Forward/Reverse
Five level of 1 to 5 (x2, x5, x30,
x70, x100) are available.

■Repeat playback

Set play repeat function (On/Off)

Video options

Repeat playback

next

On

00:00.10

select

Compatible Data format for Media player (SD card/USB flash memory)/DLNA

Media Compatible format

• JPEG files (DCF and EXIF standards)


Sub-sampling - 4:4:4, 4:2:2 and 4:2:0
Image resolution - 8 × 8 to 30,712 × 17,272 pixels

• SD-Video Files (SD-Video Standard Ver.1.3)
Modified data with a PC may not be displayed correctly.

• AVCHD Standard compatible files

Videos

Modified data with a PC may not be displayed correctly.

• MP4 files (Video codec H.264 | Audio codec MP3/AC-3/LPCM)

• MKV files (Video codec H.264 | Audio codec MP3/AC-3/LPCM)

• MPEG-2 PS files*

• MPEG-2 TS files*

• MP3 files (MPEG Audio Layer-3)

Music

• AAC files (MPEG2-AAC / MPEG4-AAC)

• LPCM files*

For more data format information. (p. 51) * For DLNA only.

●

26

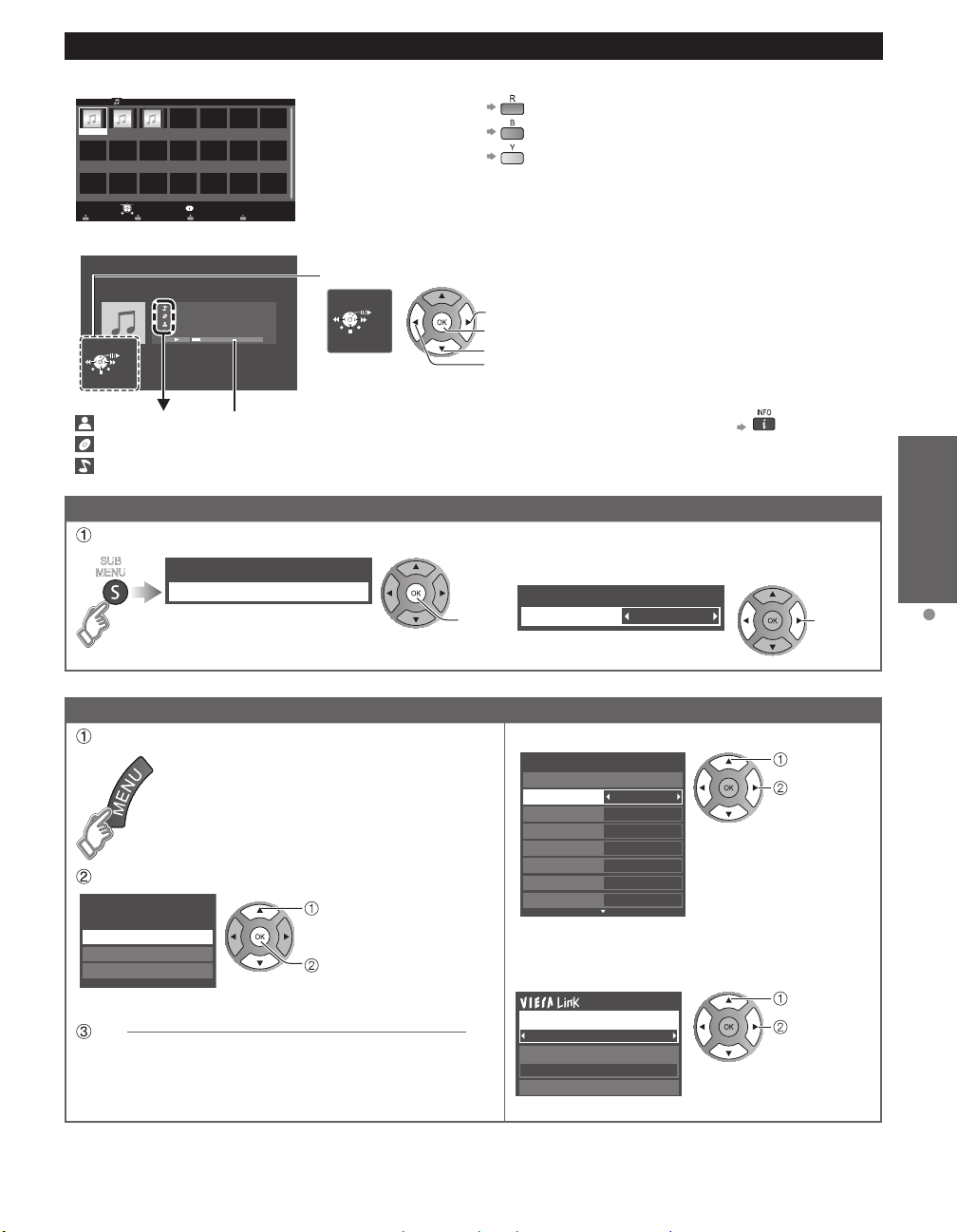

Music view

[Music thumbnail]

Media player Music

My Music_1 My Music_2 My Music_3

OKSelect

SUB MENU

RETURN

Folders

Media selectPlay Folder Drive select

SD memory card

Info

[Features]

Play folder

●

Drive select

●

Media select

●

[Music playback screen]

Navigation area

AAAAAA
BBBBBBB

RETURN

Artist name
Album name
Song name

XXXXXXX

00:00.05 / 00:00.49

Elapsed time of current song
* Counter may not work correctly with

DLNA feature.

In this case “--:--:--”is displayed.

RETURN

Music options

Select “Music options” in “Setup SUB MENU”

SUB

MENU

Setup SUB MENU

Music options

Forward
Play/Pause
Stop
Reverse

To display/hide Guide and Banner

●

• Forward/Reverse
Five level of 1 to 5 (x2, x5, x30,
x70, x100) are available.

■Repeat playback

Set play repeat function (Off/Repeat Folder/One
song)

Music options

next

Repeat playback

On

select

Basic

Using Media player

Other settings in Media player

Display “Menu”

Select the item

Menu


Audio
VIERA Link

Set

select

OK

■Adjust the Picture and Audio

Picture 1/2

Reset to defaults

Picture mode

Back light
Contrast
Brightness
Color
Tint
Sharpness

Vivid
20
0
0
0
0
0

example: Picture menu
Picture menu/Audio menu
(p. 45-46)

■Use VIERA Link function

VIERA Link control

Recorder

Speaker output

Back to TV

VIERA Link menu (p. 32)

TV

select
adjust

select
change

27

VIERA Link

Simultaneously control all Panasonic “HDAVI Control” equipped components using one button on the TV remote.
Enjoy additional HDMI Inter-Operability with compatible Panasonic products.
This TV supports “HDAVI Control 5” function.
Connections to equipment (DVD recorder DIGA, HD Camcorder, Home theater system, Amplifier, etc.) with HDMI cables
enables VIERA Link controls.

Equipment with the “HDAVI Control” function enables the following operations:

Version Operations (See p. 30-33, for more information)

HDAVI Control or later

HDAVI Control 2 or later

HDAVI Control 3 or later

HDAVI Control 4 or later
HDAVI Control 5

•

•

•

•

•

•

•

•

•

•

•

“ HDAVI Control

Automatic Input Switching
Power on link
Power off link
Default speakers
Speaker control

VIERA Link control only with the TV’s remote control
Unselected device energy save (for available equipment only)

Provides setting information (Language, time. etc.)
Automatic lip-sync function

Energy saving mode (with Quick Start mode)
Audio Return Channel

Audio Return Channel (ARC) is a function that enables digital sound signals to
be sent via an HDMI cable back from the TV to a connected audio device.

TM

TM

”

■When adding new equipment, reconnecting equipment or changing the setup after the connection,

turn the equipment on and then switch the TV on. Set the input mode to HDMI1, HDMI2 , HDMI 3 or
HDMI 4 (p. 21), and make sure that the image is displayed correctly.

VIERA Link “HDAVI Control”, is based on the control functions provided by HDMI and industry standard known as HDMI
CEC (Consumer Electronics Control), with unique function that we have developed and added. As such, its operation with
other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.
Please refer to the individual manuals for other manufacturers’ equipment supporting the VIERA Link function.

■HDMI cable

This function needs an HDMI compliant (fully wired) cable. Non-HDMI-compliant cables cannot be utilized.
It is recommended that you use Panasonic’s HDMI cable. Recommended part number:
RP-CDHS15 (4.9 ft/1.5 m), RP-CDHS30 (9.8 ft/3.0 m), RP-CDHS50 (16.4 ft/5.0 m)
* For more details on the external equipment’s connections, please refer to the operating manual for the equipment.

28

VIERA Link™ Connections (with VIERA Link function)

AV IN
HDMI 4

AV IN
HDMI 4

■Terminal overview

Back of the TV

■Connecting DVD Recorder (DIGA)

HDMI cable

DVD recorder (DIGA)
with VIERA Link function

VIERA Link

TM

“HDAVI Control

■Connecting Home theater system/AV amp

HDMI 1 is recommended.

HDMI cable

Optical cable

No optical cable is necessary when connecting a Home Theater
supporting “HDAVI control 5” with an HDMI cable. Audio will be
supported via ARC (Audio Return Channel) (p. 28)

One AV amp and one DVD recorder (DIGA) can be operated with this unit.

●

Home theater systems
with VIERA Link function

AV amp with
VIERA Link function

DVD recorder (DIGA)
with VIERA Link function

■Connecting HD Camcorder/Digital camera

Press INPUT and select an available HDMI terminal, then connect the camcorder to this input. After connection,
confirm the HDAVI control functions. (p. 30-33).

HDMI / mini HDMI cable

If connection (or setting) of equipment compatible with HDAVI control is changed, switch the power of this unit Off and
On again while the power of all equipment is On (so that the unit can correctly recognize the connected equipment) and
check that the connected equipment playback operates.

Note

Individual HDMI equipment may require additional menu settings specific to each model. Please refer to their respective manuals.

●

When audio from other equipment connected to this unit via HDMI is output using “DIGITAL AUDIO OUT” of this unit,

●

the system switches to 2CH audio.
(When connecting to an AV amp via HDMI, you can enjoy higher sound quality.)
Some devices use Mini-HDMI terminal. HDMI (type A) to Mini-HDMI (type C) cable or adapter should be used.

●

HD Camcorder

with VIERA Link

function

LUMIX

with VIERA Link

function

TM

”

Advanced

29

VIERA Link settings and Available features

To use all VIERA Link functions: After everything is connected, in VIERA Link settings menu, set “VIERA Link” to “On”.
Some features are disabled depending on the “HDAVI Control” version of the equipment.
Please check the list (p. 28)

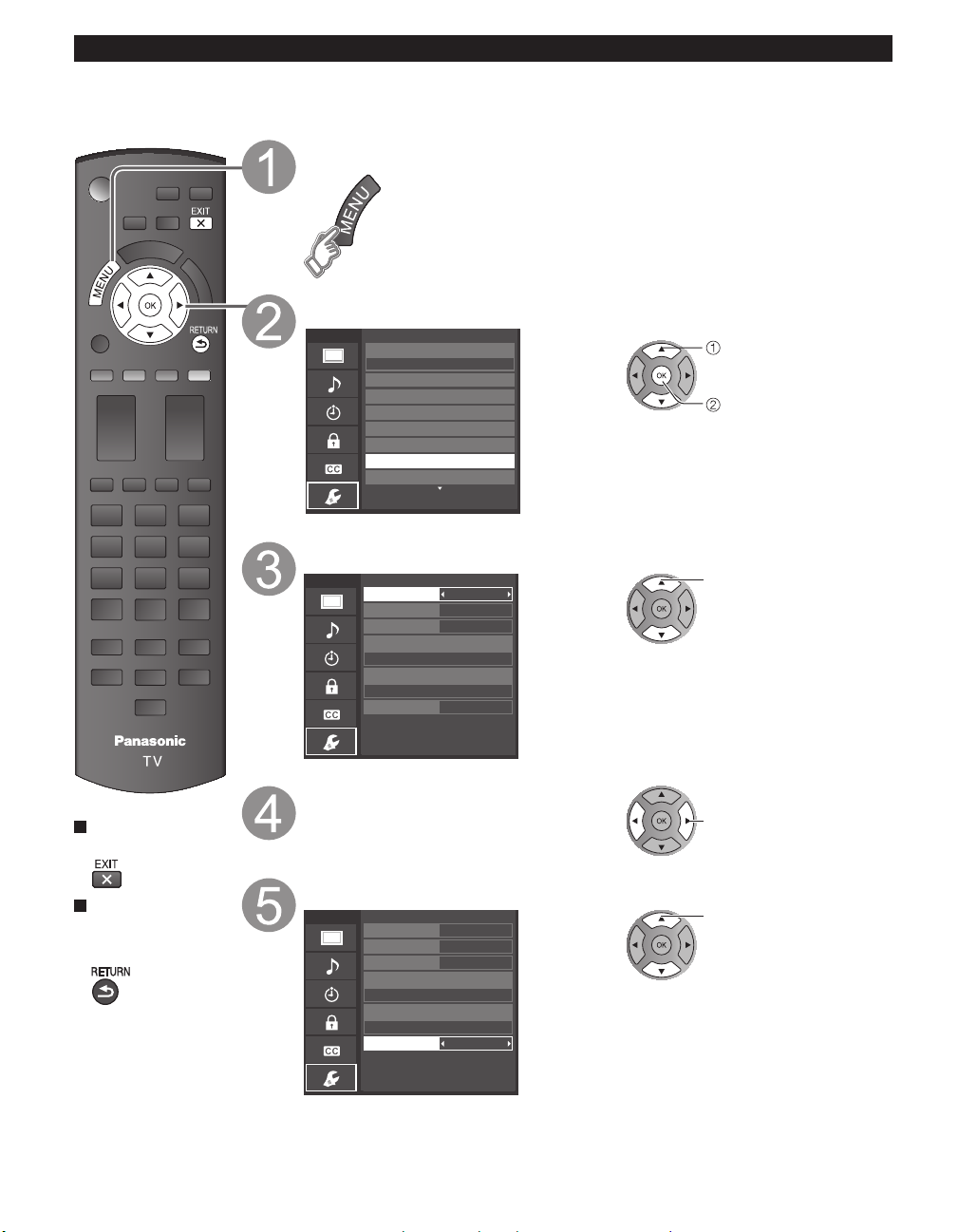

Display the menu

Select “VIERA Link settings” in “Setup”

Menu

Setup

Channel surf mode

Language
Clock
ANT/Cable setup
Input labels
Network settings

VIERA Link settings

ECO/energy saving

All

1/2

select

next

Select “VIERA Link”

Menu

VIERA Link settings

VIERA Link

Power on link
Power off link
Energy saving mode

Unselected device energy save

No (stay on)

Default speakers

On
No
Yes

Quick start

TV

select

30

Press to exit from

a menu screen

Press to go back

to the previous
screen

Select “On”

(default is On)

Select and make other settings

Menu

VIERA Link settings

VIERA Link
Power on link
Power off link
Energy saving mode

Unselected device energy save

No (stay on)

Default speakers

On
No
Yes

Quick start

TV

change

select

Automatic Input Switching

When using a Blu-ray Disc player, DVD player/recorder or Home theater system, the TV will automatically change to
the appropriate input, when playback begins on one of those devices.

• For a Home theater system the speakers automatically switch to the theater system.

Power on link

Yes: The TV is turned on automatically and switches to the appropriate HDMI input whenever VIERA Link compatible
equipment is initially turned on and the Play mode is selected.

Power off link

When “Yes” is selected and the TV is turned off, all connected VIERA Link compatible equipment is also automatically
turned off.

• A Panasonic DVD Recorder will not turn off if it is still in Rec mode.

• The TV remains on even if the VIERA Link compatible equipment is turned off.

Energy saving mode

Quick Start: When TV is turned off, all connected VIERA Link compatible equipment is moved to ECO Standby mode*
automatically under these conditions.

• Power off link:(Yes), The connected equipment has “HDAVI Control 4 or later (with Quick Start mode)”
* Minimum power consumption of Standby condition for the equipment.

Unselected device energy save

Yes: The connected VIERA Link compatible equipment will be turned off automatically when not in use under these
conditions.

• The connected equipment has “HDAVI Control 2 or later” (for available equipment only)
[ Example of timing for operation ]

• When the input is switched from the HDMI.

Default speakers

“TV” is the default setting. To set the Home theater system as Default speakers, change the Default speakers setting
from “TV” to “Theater”. Sound will be output from the Home theater whenever the TV is powered on.

Automatic lip-sync function

Minimizes lip-sync delays between the picture and audio when you connect to a Panasonic theater system or
Amplifier.

TV provided setting information

The following information about the TV settings can be transmitted to each piece of equipment (Recorder/Home
theater/Player) that has “HDAVI Control 3 or later” function connected to a TV with an HDMI cable.

Transmittable data Recorder Home theater Player

On Screen Display Language setting

(English/Español/Français)

Panel Aspect Ratio

(16:9 fixed)

Closed caption information

(Mode/CC type/Digital setting)

Channel information

(Input signal/Channel list/Caption information)

○○○

○○○

○

○

--- ---

--- ---

VIERA Link

TM

“HDAVI Control

TM

”

Advanced

Note

There is a possibility that all the GUI language information might be set from equipment that has an HDMI CEC

●

function connected to the TV with an HDMI cable. Depending on the operating conditions or the specification for
each piece of equipment the setting may or may not be applied.
For more details on the external equipment’s operation, please refer to the operating manual for the equipment.

●

31

VIERA Link menu and Available features

Some features are disabled depending on the “HDAVI Control” version of the equipment.
Please check the list (p. 28)

Display the VIERA Link menu

or

This function is not available depending on your country or area you select. (p. 12)

(example)

Select the item

select

VIERA Link control

Recorder

Speaker output

Press to exit from

a menu screen

TV

Back to TV

Select

Items in the VIERA Link menu may be grayed out

●

if no compatible equipment is connected (must be
HDAVI Control 2 or later) or if the equipment has
not initiated a connection with the TV. In that case,
switch the equipment’s power Off and On while the
TV is On.
For further details, see “VIERA Link” on page 30.

select
next

32

Press to go back

to the previous
screen

VIERA Link control

Home theater

Speaker output

TV

Back to TV

Set

change

Speaker control

You can select the Home theater or TV speakers for audio
output.
Control the theater speakers with the TV remote control.
This function is available only when a Panasonic Amplifier
or Player theater is connected.

Select “Speaker output”
Select “Home theater” or “TV”

VIERA Link control

Recorder

Speaker output

TV

Back to TV

select
change

■Home theater: Adjustment for the equipment

Volume up / down
Mute

The sound of the TV is muted.

•

When the equipment is turned off, the TV speakers

•

take over.
Selecting “Home theater” turns the equipment on

•

automatically if it is in Standby mode.

■TV: The TV speakers are on.

VIERA Link control only with the TV’s remote control

In the VIERA Link menu, you can select HDMI connected equipment and access it quickly. Continue using your TV
remote control to operate the equipment, pointing it at the TV.

Select “VIERA Link control”
Select the equipment you want to access

(Recorder/Home theater/Player/Camcorder/LUMIX/
Digital camera/ Network camera)

Using VIERA TOOLS (p. 20)

●

VIERA Link control

Recorder

Speaker output

TV

Back to TV

You can select available items
only.

select
change

If there is more than one equipment item, a number

●

after the name indicates the number of items. (e.g.
Recorder 1/Recorder 2/Recorder 3...)
The number of equipment items that can be connected

●

is three for recorders, and a total of three for Home
theater/Player/Camcorder/LUMIX/Digital camera/
Network camera.

Note

There is a limit to the number of HDMI connectors.

●

Operate the equipment with the TV remote

control, pointing it at the TV

To operate the equipment, read the manual of the

●

equipment.

■Available TV remote control buttons

Whether an operation is available differs depending on the connected equipment.

Move the cursor/Select Play
Set/Access Stop

SUB

MENU

-

Return to previous menu Reverse/Forward
Display the functions

menu on the equipment
Available when the purpose of the keys

is displayed on screen
Exit Closed caption

Channel Up/Down SAP (Select Audio Mode)
0-9 Select digital subchannel

Skip Reverse/Forward

Pause

VIERA Link

TM

“HDAVI Control

TM

”

Advanced

Back to TV

Returns the input selection of the device selected with the VIERA Link Control to the TV input.

Select “Back to TV”

VIERA Link control

Recorder

Speaker output

TV

Back to TV

select

OK

33

Using Network services

Available Network service and features

■Using EASY IPTV p. 39

■Using DLNA feature (Home network) p. 40

This TV is a DLNA Certified™ product.
DLNA (Digital Living Network Alliance) is a standard that makes DLNA Certified digital electronics easier and more
convenient to use on a home network. To learn more, visit www.dlna.org.
It allows you to share photos, videos and music stored in the DMS (for example, PC with windows 7 installed, etc.)
connected to your home network, and enjoy watching them on the TV screen as DMP.

DMS (Digital Media Server)

Ensure the connected equipment has a DLNA Certified media server.
Store photos, videos or music into the media server, and then you can watch them on the TV.
“Windows 7” is the server software that has been tested for the performance with this TV (current as of January , 2011).
For installing, read the manual of the server software.

The DLNA control function of Windows 7 is not supported with this TV.

●

When a server software for the media server is installed on the PC, the data may be at risk of being accessed

●

by other people. Please take care of the settings and connections under the network circumstances at the office,
hotel or even at home when not using a router.

DMP (Digital Media Player)

Finds the content on DMS and provides playback.

■Using Network camera p. 41

34

Back of TV

Network Connections

Contact your Broadband service provider

NOTICE: If you don’t have Internet service by your local provider, please order a high-speed Internet service at
no less than the following connection speed. If you already have such service, make sure that the connection
speed exceeds the following.

Required speed (effective): at least 1.5 Mbps for SD and 6 Mbps for HD picture quality, respectively.

●

Dial-up Internet service cannot be used for EASY IPTV.

●

Select wired or wireless connection

If the Cable/DSL modem is close to the TV and you have only one TV set, you may choose a wired connection.
If the Cable/DSL modem is far from the TV and/or you have more TVs in the house, you may want to use a
wireless network.

Connecting to the Internet

Wired connection (Directly connected)

If you are not using the network for connecting anything else but the TV, you could just connect the TV
directly to the Cable/DSL Ethernet connection.

Wired connection (Using Router)

If you are using the network for connecting various equipments and want to connect the TV, you should use
a router to connect the TV to the Internet

Wireless connection

If you are using the network for connecting various equipments and want to connect the TV, you could also
use a wireless LAN adapter and Access point to connect the TV to the Internet

A

Internet

LAN cable
(shielded)

B

Ensure to use a LAN straight
cable for this connection.

Modem

Internet

Using Network services

LAN cable

(shielded)

Back of TV

C

To use only DLNA features or Network camera, you can operate the features without Broadband network environment.

●

Ensure to use a LAN cross
cable for this connection.

LAN cable

Back of TV

(shielded)

Hub, Router

or

Access point

DLNA Certified
media server

Modem

Home network
(DLNA feature)

DLNA Certified
media server
(for example, PC,
etc.)

Network
camera

Network camera

Advanced

35

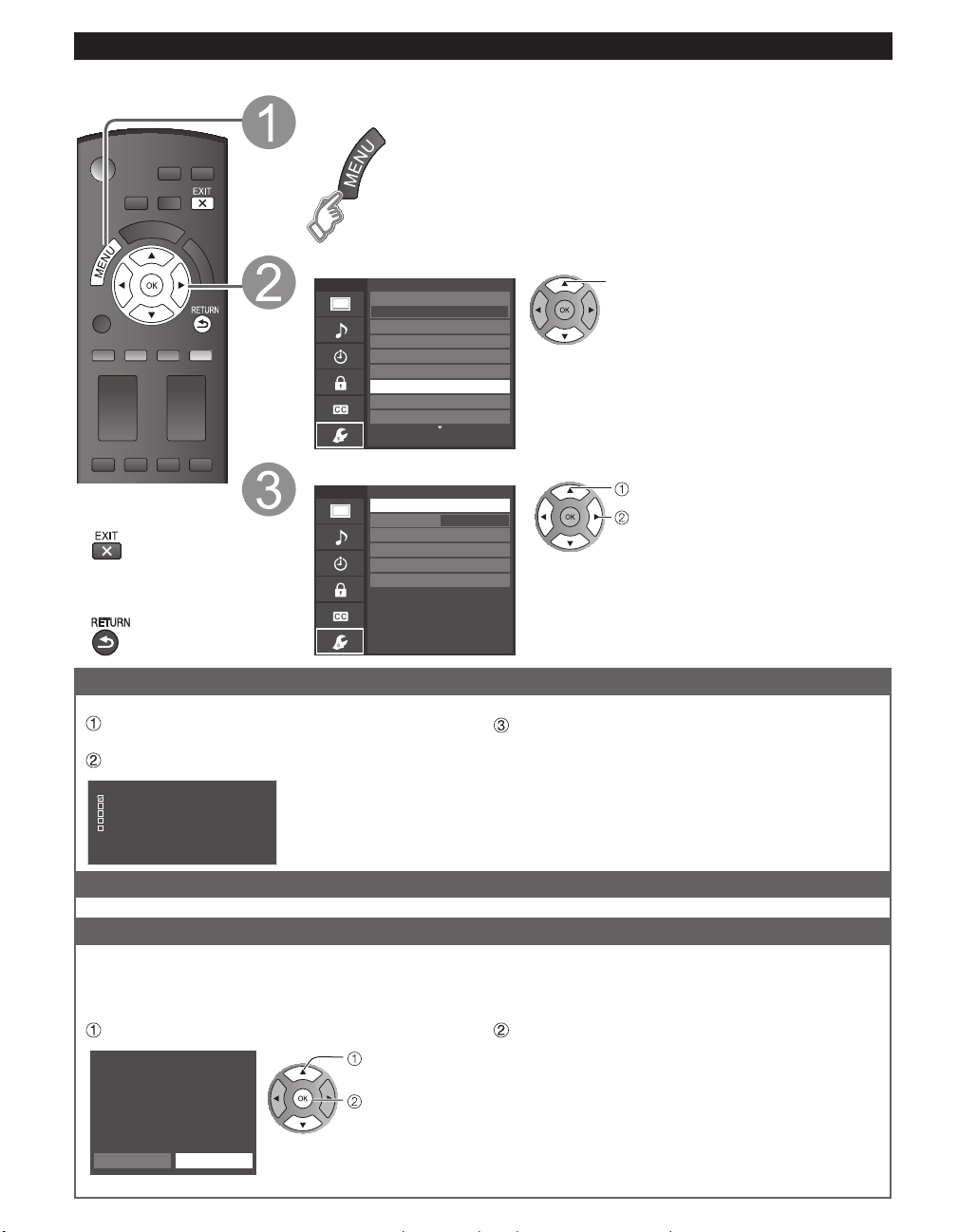

Network settings

This is a setting for connecting to a broadband environment.

Display the menu

Select “Network settings”

Menu

Setup

Channel surf mode

Language
Clock
ANT/Cable setup
Input labels

Network settings

VIERA Link settings
ECO/energy saving

All

1/2

select

Select the settings and set

Menu

■Press to exit from

a menu screen

■

Press to go back to
the previous screen

Network settings

Connection test

Network connection
Wireless network
IP address/DNS settings
Network cameras list
Software update
Mac address

Wireless (WiFi)

00-0b-97-7c-65-e9

Connection test

Check that the Network settings are as shown below, and then start “Connection test”.

Select “Connection test” and press OK

(It takes a while to cancel the test.)

Displayed Connection test screen

Connection test

Check Ethernet cable connection
Validate IP address
Check for IP address duplication

Check connection to the Internet
Check communication with EASY IPTV server.

Test in progress...

Complete Connection test

Success

-->

Completion screen is displayed.
Error-->Follow the directions on screen to complete the setting.
If you perform the Proxy settings, check the Proxy address
and the Proxy port number.

select
adjust

36

Network connection

Select Network type (Ethernet cable/Wireless (WiFi))

Wireless network (Confirm Current settings and status)

This setting is performed only when “Wireless (WiFi)” is selected in “Network connection” above.

■Displayed “Current settings and status” screen (If connected with wireless LAN adapter)

You can confirm the AP connection status.
(SSID/Wireless type/Security type/Encryption type/Connection status /Signal strength)

Press “Wireless network”

Wireless network

SSID :
Wireless type :
Security type:
Encryption type :
Connection status :
Signal strength :
Connect using these settings?

Yes No

(example)

select

OK

When you change “Wireless network” -->Press “No”

See “Sets / Changes wireless network setting” on p. 37
and follow the directions on screen to complete the
setting.

You need to be “Connected” to use network devices.
Please set Access point settings to “Connected”.

Wireless network (Wireless network setting)

Menu

Proxy setting

Proxy address

0

Proxy port

■Sets / Changes wireless network setting

Press “Wireless network” and display setting screen
Follow the directions on screen to complete the setting

Wireless network

Please choose connection method:

Search for wireless networks

WPS (Wi-Fi Protected Setup using push button)

WPS (Wi-Fi Protected Setup using PIN number)
Manual settings

select

OK

* Wi-Fi Protected Setup is an easy setting of the Wi-Fi

Alliance’s certification

For more details on setting of an Access point, please

●

refer to operating manual for the Access point.

Search for Wireless networks:

Select an access point from the ones searched for

WPS (Wi-Fi Protected Setup* using push button):

You can connect the Access point to press the

WPS (Wi-Fi Protected Setup using PIN number):

Set the PIN code that is displayed on the TV on the

Manual settings:

Manually set SSID, Security type, and Encryption type

●

IP address/DNS settings

Select “IP/DNS setting mode” and set to

“Automatic”

(When IP/DNS automatic acquisition in DHCP can be
used)

Menu

IP address/DNS settings

IP setting mode

IP address 192.168.0.5
Subnet mask 255.255.255.0
Default gateway 192.168.0.254
DNS setting mode Automatic
DNS 192.168.0.20

Automatic

The acquired address is displayed.

Each IP address is acquired automatically

If you are using a broadband router, IP automatic
acquisition in DHCP can be used under normal
circumstances. If you are not sure, check with the person
who installed the equipment, or check the instructions for
each device.

select

OK

IP address

automatically, and configure the settings as instructed
on the screen.

buttons.

Access point.

to match the settings of the Access point to which to
connect.

When connecting by 11n (5 GHz), select “AES” as the
Encryption type for the wireless LAN.

■Manual setting

Select “IP/DNS setting mode” and set to “Manual”
Select the item and press OK
Check the specifications of the broadband router and

enter each IP address.
Or Enter each IP address as was specified by the
provider

0 . 0 . 0 . 0

OK

10

I

Using Network services

Advanced

Proxy setting

Set only if specified by the provider. It is not required for normal household use.

Select “Proxy setting”

Menu

IP address/DNS settings

IP setting mode
IP address 192.168.0.5
Subnet mask 255.255.255.0
Default gateway 192.168.0.254
DNS setting mode Automatic
DNS 192.168.0.20

Proxy setting

Automatic

Select item and press OK

Enter address or port number and press OK

Entering characters (p. 19)

●

select

OK

select

OK

■Proxy address

This is the address of the relay server that is connected
to the target server instead of the browser and sends
data to the browser. Setting is only required if specified
by the provider.

■Proxy port

This number is specified by the provider together with the
Proxy address.

37

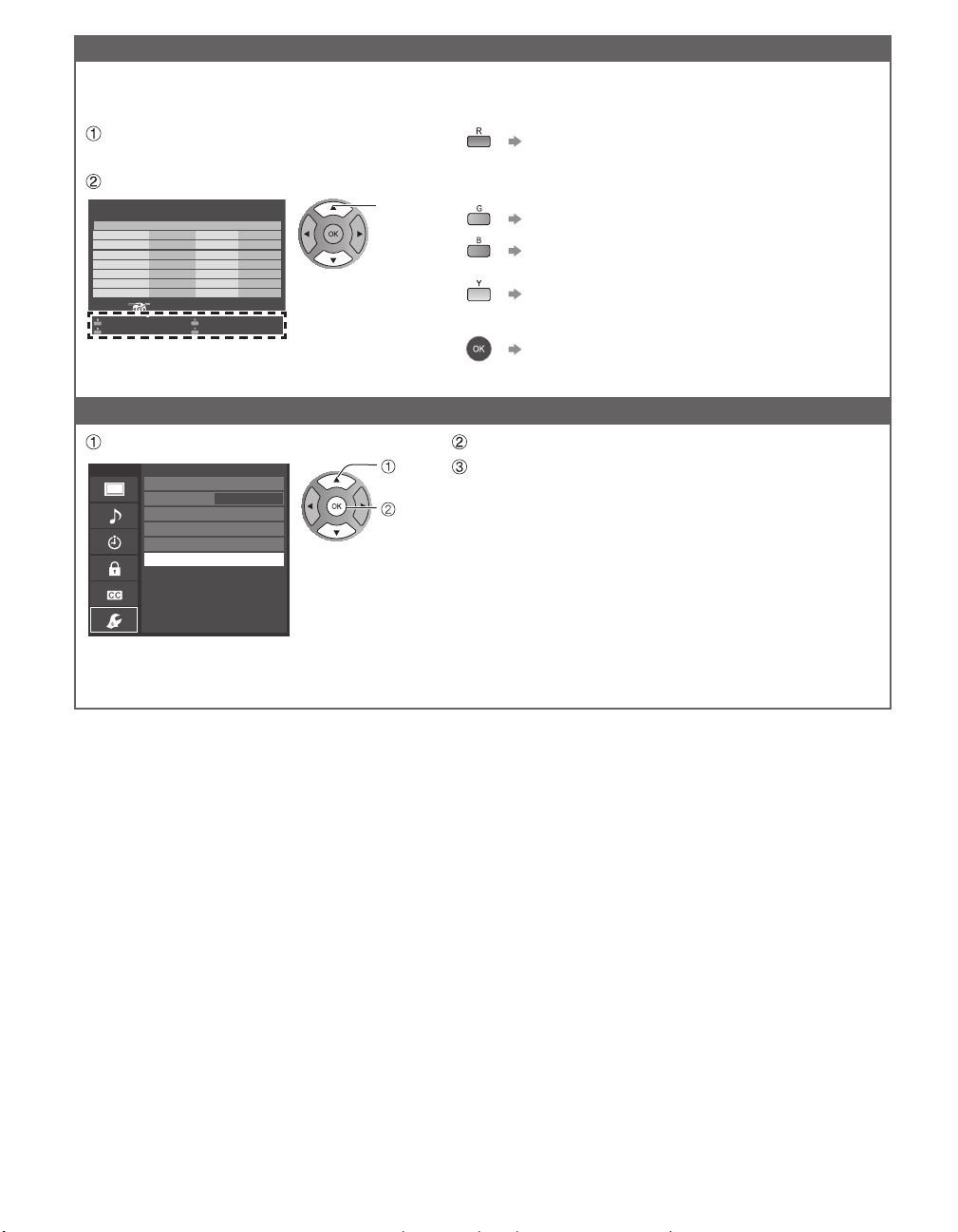

Network cameras list

Before using a Network camera, you need to register the camera as shown below. You can also set
Default camera or Disconnect/Delete the registered cameras.

Press “Network cameras list” and

display screen

Set Network camera setting

Network cameras list

Camera name

...
...
...
...
...
...
...

Model Status Default

BL-C210A ConnectedCamera 1

...

...

...

...

...

...

...

...

...

...

...

...

...

OK
RETURN

...

Select

Find cameras Delete
Disconnect Default camera

For this operation, please refer to the operating

●

manual for the Network camera.

Software update

Select “Software update”

Menu

Network settings

Connection test
Network connection
Wireless network
IP address/DNS settings
Network cameras list

Software update

Mac address

Wireless (WiFi)

00-0b-97-7c-65-e9

select

select

OK

Start camera search.

Before you start to search for a camera, switch the

●

camera to registration mode.
Search condition also depends on “Network settings”

●

Delete camera information.
Disconnect to camera.

“Disconnected” will be displayed in “Status”.

Set to default use.

Displayed “(Default)” next to camera name.

(Available only when reconnecting)

Connect to Camera. “Connect” will be displayed in

“Status”.

Press OK to start the Software update screen

Follow directions on the screen

Set “Clock” first. (p. 15)

●

38

Using EASY IPTV

This function allows you to access Internet services, such as VOD (Video-on-demand), music distribution or
social networking service etc, easily with selecting the VIERA TOOLS icon.

You need a broadband environment to use this service.

●

Preparations

Network connections (p. 35)

●

Network settings (p. 36-38)

●

Display VIERA TOOLS

Select the item

■Press to exit from

a menu screen

■

Press to go back to
the previous

Other settings

In

Display “Menu”

Select the item

Menu


Audio
VIERA Link

Set

select

next

(example)

Services contents

VOD (Video-On-Demand)
Music distribution/Radio service
SNS (Social Network Service)

Not all EASY IPTV services are available depending on your country or area your

●

select. (p. 12)
Available EASY IPTV services are subject to change without notice.

●

■Using USB keyboard

USB connections (p. 51)

●

Keyboard type (p. 48)

●

Operate USB keyboard/Entering characters (p. 19)

●

■Adjust the Picture and Audio

select
adjust

select

Picture 1/2

Reset to defaults

Picture mode

Back light
Contrast
Brightness
Color
Tint
Sharpness

example: Picture menu
Picture menu/Audio menu (p. 45-46)

Vivid
20
0
0
0
0
0

■Use VIERA Link function

OK

VIERA Link control

Recorder

Speaker output

TV

Back to TV

VIERA Link menu (p. 32)

select
change

Using Network services

Advanced

39

Using DLNA feature

You can share the contents (Photo, Video, Music etc.) stored in DLNA Certified media server with your home network system.

Preparations

Network connections (p. 35)

●

Network settings (p. 36-38)

●

Display VIERA TOOLS

Select the “DLNA”

select
next

(example)

Select server

Display available server.

DLNA server

A

SERVER1

5

SERVER2

g

SERVER3

OKSelect

SUB

RETURN

MENU

Info

(DLNA server list)

Available DLNA servers

select

next

3

Total listed number

To display Information

●

40

■Press to exit from

a menu screen

■Press to go back

to the previous
screen

Select contents

Display contents of selected server.

DLNA server

SERVER1 > Photos > All photos

P000102 2008-10-05 09:54

3648x2736

JPEG

OKSelect

RETURN

Contents type

P000135 2008-11-20 13:18
P000180 2008-12-07 11:31
P000214 2008-12-10 15:20
P000251 2008-12-19 12:39
P000276 2008-12-25 14:06
P000293 2009-01-06 13:52
M10025 2009-01-12 15:56
M10042 2009-01-20 10:08
M10054 2009-01-28 14:48
M10078 2009-02-09 19:58

Info

wohsedilS

(File list)

28

Size:
Screen format

SUB
MENU

Thumbnail

View/Play

See “Using Media player” to operate. (p. 22-27)

select

next

To display Information

●

To display “Slideshow

●

settings” (p. 25) (photo
only)
To display Optional

●

menu

SUB

MENU

Network Camera

You can operate the Network camera from the TV remote and also check the images from the Network
camera on

VIERA Link control only with the TV’s remote control (p. 33)

●

your TV .

Preparations

Network connections (p. 35)

●

Network settings (p. 36-38)

●

Before connecting the Network camera to the TV, please complete “IP setting” and run

●

“Connection test”

With all connected equipment turned on

Display “VIERA Link” menu

If there is no registered camera displayed, please set it in

●

Network Camera settings. (p. 38)
There is also an option to start with sensor detection.

●

■Press to exit from

a menu screen

■Press to go back

to the previous
screen

Select “Network camera”

VIERA Link control

Network camera

Speaker output

Back to TV

TV

select

OK

View

4 split screen

Multi screen

(1/4)

Camera name

Camera 1

Model

BL-C210A

Select OK

RETURN

4 cam / 8 cam

9 split screen

Multi screen

(1/9)

Camera name

Camera 1

Model

BL-C210A

1-9

Select OK

RETURN

4 cam / 8 cam

Single screen

Single screen

Camera name

Camera 1

Model

BL-C210A

Pan

Tilt

RETURN

1-9

Preset position
Home position

0

Note

A number of VIERA-compatible network cameras can be found at the following sites:

●

http://www.panasonic.com/
http://panasonic.net/pcc/products/netwkcam/
For more details on setting and operation of the Network camera, please also read

●

the operating manual for the Network camera.

Default camera setting (p. 38)

●

select

OK to Single screen

select

OK to Single screen

Navigation area

Pan

Tilt

1-9

0

RETURN

Preset position

Home position

Using Network services

Advanced

41

Editing and Setting Channels

Menu

Cable

ANT/Cable setup

ANT in

Auto program

Manual program
Signal meter

Menu

Auto program

All channels

Analog only
Digital only

The current channel settings can be changed according to your needs and reception conditions.

ANT/Cable setup and operation

Display the menu

Select “Setup”

Menu

Select “ANT/Cable setup”

Menu

Setup 1/2

Channel surf mode

Language
Clock
ANT/Cable setup
Input labels
Network settings
VIERA Link settings
ECO/energy saving

Setup 1/2

Channel surf mode

Language
Clock

ANT/Cable setup

Input labels
Network settings
VIERA Link settings
ECO/energy saving

All

All

next

select

next

select

42

Press to exit from

a menu screen

Auto program (Set automatically)

Automatically searches and adds available channels to the memory.

Select “ANT in”

Select “Cable” or “Antenna”

Or select “Not used”.

Select “Auto program”

next

select

Select a scanning mode (p. 13)

After the scanning is completed, select “Apply”.

●

(see p. 43 ).
All previously saved channels are erased.

●

OK

select

Manual program ( Set manually)

Set favorite 1/3

26-1

1
2

Use this procedure when changing the channel setup or
changing the channel display.
Also, use this to add or skip channels from the channel list
manually.
You can select a channel tuning mode (Digital only/Analog
only) in “Channel surf mode”(p. 48)

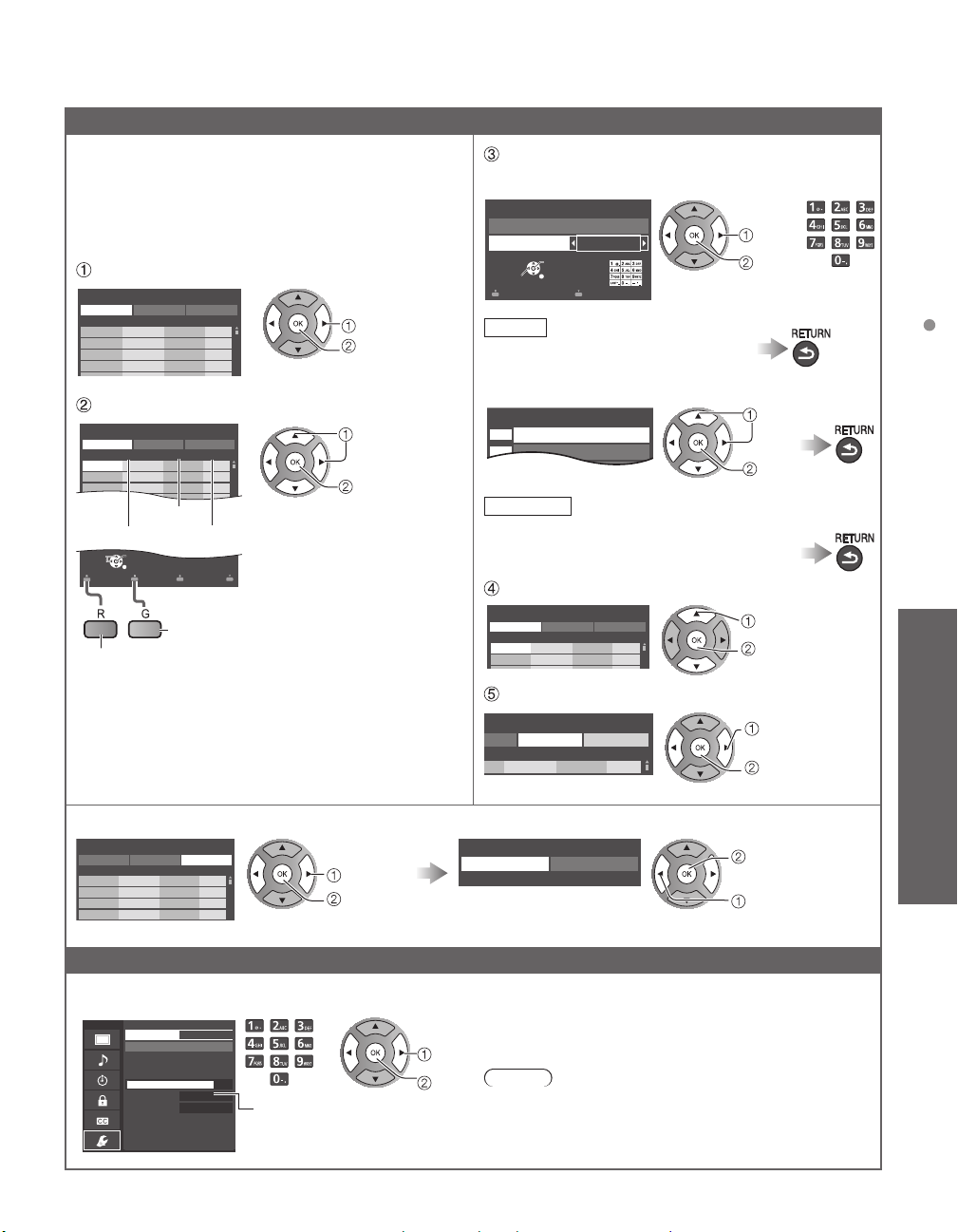

Select “Edit”

Manual program

Edit CancelApply

Channel

Caption Favorite Add

...

2 ...

...

3 ...

...

4 ...

...

5 ...

Yes
Yes
Yes
Yes

Select the item to edit

Manual program

Edit CancelApply

Channel

Caption Favorite Add

...

2 ...

...

3 ...

...

4 ...

...

5 ...

...

6 ...

...

7 ...

...

8 ...

Caption

...

9 ...

Select

OK
RETURN

Prev.page Next page

Go back to the previous
page

Favorite

Proceed to
next page

Add

Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes

Caption:

•

Changes the station

identifier
Favorite:

•

Registers channels to the

Favorite List
Add:

•

Adds or skips channels

select
next

select the i

to edit (Caption/
Favorite/Add)

tem

next

Edit

Caption

●

Edit CH caption

Channel

Caption

Select

Caption

OK
RETURN

@

DeleteABC → abc

80-101

---

D A

change

set

Select or edit the station identifier.
(maximum 7 characters available)

Favorite

●

select

set

Set favorite Select the number

Add

●

Press OK to select “Yes (add)” or “No (skip)”

Move the cursor to a channel number

Manual program

Edit CancelApply

Channel

Caption Favorite Add

...

2 ...

...

3 ...

Yes
Yes

select
press OK to tune

to the channel.

Select “Apply”

program

l

Caption Favorite Add

...

...

CancelApply

Yes

select

OK

or

Editing and Setting Channels

Advanced

To cancel the Edit

Manual program

Edit CancelApply

Channel

Caption Favorite Add

...

2 ...

...

3 ...

...

4 ...

...

5 ...

Signal meter (Check signal strength)

Check the signal strength if interference is found or freezing occurs on a digital image.

Menu

Signal meter

Channel

Tune manually

Signal strength

Current 86%
Peak level 98%

Yes
Yes
Yes
Yes

--

or

Signal intensity

select
next

Changes will be lost. Continue?

Yes No

If the signal is weak, check the antenna.

●

If no problem is found, consult your local dealer.

change
channel

OK

Note

Not available if “Cable” is selected in “ANT in” (see p. 42).

●

Available only for digital antenna channels.

●

OK

(returns to “ANT/
Cable setup”)

select “Y es”

43

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions so that you can enjoy
watching TV best suited for you.

Display the menu

Shows the functions that can be adjusted.
Some functions will be disabled depending on

the type of input signal.

Press to exit from

a menu screen

Press to go back

to the previous
screen

Menu structure

Menu

Input labels

HDMI 1

HDMI 2
HDMI 3
HDMI 4
Component
Video
PC

Select or enter the name of the device
connected to the HDMI 1 terminal.

Select

Change

RETURN

Customize label

Menu bar
Press OK to move to the Menu items.

Menu items
Press OK to proceed to next screen if
available.

Help information
Operation guide

(example: Input labels)

Select the menu

Menu

Picture settings
Audio settings
Timer (Sleep, On/Off timer)
Lock (Channel, Game, Program etc.)
Closed Caption setting
Setup (other settings)

Adjust or select a menu item

Menu

Picture 1/2

Reset to defaults

Picture mode

Back light
Contrast
Brightness
Color
Tint
Sharpness

Vivid
20
0
0
0
0
0

(example: Picture menu)

adjust
or
select

44

“Reset to default” will be grayed out if no changes are made in the following menus:

●

“Picture”, “PC adjustments”, “Audio” and “Closed caption”.

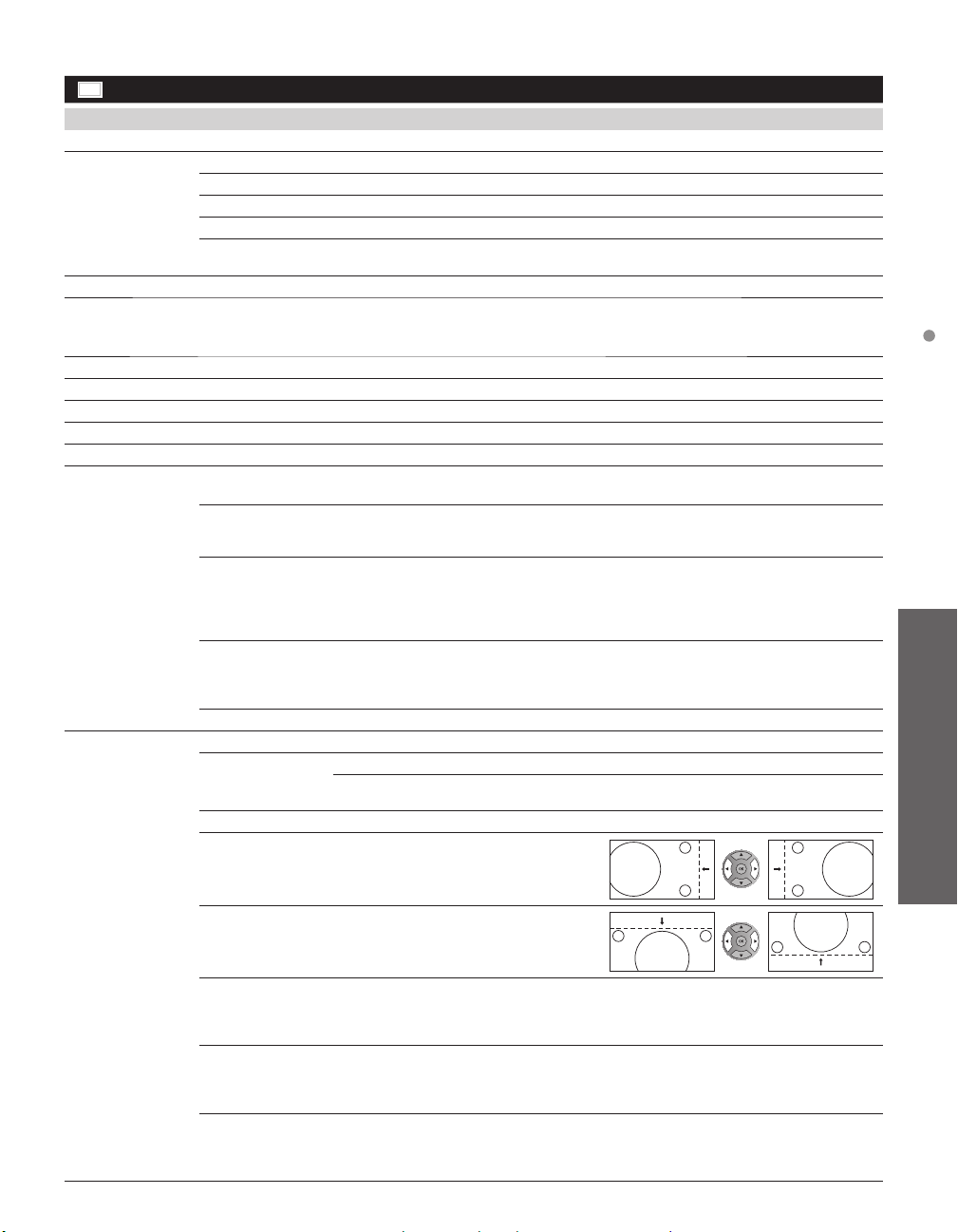

Picture settings

Settings Items Item Description
Reset to defaults
Picture mode Vivid

Standard
Cinema
Game
Custom (Photo)

Back light Adjusts the luminance of the back light.
Contrast, Brightness,

Color, Tint,
Sharpness

Color temp.
Color mgmt. Off/On
A.I. picture Off/On
C.A.T.S. Off/On
Video NR Off/On

• Some menus are grayed out depending on the input signal or condition.
(e.g. “Zoom adjustments” will be grayed out if the aspect is not set to Zoom.)

Aspect
adjustments

PC adjustments Reset to defaults

Cool/Normal/Warm

Screen format FULL/H-FILL/

HD size Size 1/Size 2

H size Size 1/Size 2

Zoom adjustments

Sync H & V

Dot clock
H-position

Adjust the image or picture quality

Resets all picture adjustments to factory default settings except for “Advanced picture”.

Provides enhanced picture contrast and sharpness for viewing in a well-lit room.
Recommended for normal viewing conditions with subdued room lighting.
For watching movies in a darkened room. It provides a soft, film-like picture.
For playing video games.
Customizes each item according to your taste.

Photo is displayed in JPEG menu.

Adjusts the color, brightness, etc. for each picture mode to suit your taste

• Display range Contrast/Brightness/Color/Sharpness : 0 - 100

Tint : -50 - +50
Selects a choice of Cool (blue), Normal, or Warm (red) color.

On: Enhances green and blue color reproduction, especially outdoor scenes.
Controls dark areas without affecting the black level or brightness in the overall picture.
Automatically adjusts the screen brightness according to the ambient lighting condition.
Reduces noise, commonly called snow. Leave it off when receiving a strong signal.

Changes the format (aspect ratio).

JUST/4:3/ZOOM

Adjusts vertical alignment and size when aspect setting is “ZOOM”.
Resets PC adjustments.

On green

Alleviates the problem if a picture appears to be vertically-striped, flickers partially or is blurred.
Adjusts the horizontal position.

Lets you choose the aspect depending on the format of
received signal. (p. 50)

Selects between 95 % (Size 1) or 100 % (Size 2) for the
scanning area with High-definition signal.
Select “Size 1” if noise is generated on the edges of the screen.

Size 1: Selected item for “HD size”. Scanning 95 %

•

Size 2: Selected item for “HD size”. Scanning 100 %

•

Adjusts the horizontal display range to reduce noise of both side
edges of an image.
Size 2: Adjusts the image size according to the aspect mode to
reduce noise. (p. 50)

The H and V sync signals are input from the HD/VD connector. (p. 53)
Uses a synchronized signal on the Video G signal, which is

input from the G connector. (p. 53)

How to Use Menu Functions

Advanced

V-position

Clock phase

Input
resolution

H-frequency
V-frequency

Adjusts the vertical position.

Alleviates the problem if the whole picture appears to flicker or is blurred.
First adjust the Dot Clock to get the best possible picture, then adjust the clock Phase
so that a clear picture appears.

It may not be possible to display a clear picture due to poor input signals.

●

Switches to wide display.

VGA (640×480 pixels), WVGA (852×480 pixels), XGA (1,024×768 pixels),

●

WXGA (1,280×768 pixels)
Options change depending on signals

●

Displays the H (Horizontal)/V (Vertical) frequencies.
Display range
Horizontal: 15 - 110 kHz
Vertical: 48 - 120 Hz

45

Settings Items Item Description
HDMI settings HDMI/DVI RGB

range (HDMI 1-4)

Contents type
(HDMI 1-4)

Auto/
Standard
(16-235)/
Nonstandard

Off/Auto/Photo/
Graphics

Prevents the blown out highlights and blocked up shadows when
a wide-range signal is received. Selects between standard RGB
range (16-235 bits) or non-compliance (0-255 bits).
Auto: Switches the RGB range (Standard (16-235)/Nonstandard)
depending on the HDMI signal information.

Sets content type to each HDMI input.
Auto: Switches content type automatically depending on the
HDMI signal information.
Photo: Best setting for JPEG viewing.
Graphics: Best setting for On-Screen display of connected
equipment.

• Some menus are grayed out depending on the input signal or condition.
(e.g. “3:2 pulldown” will be grayed out if the input signal is high definition or you are viewing photos, etc.)

Advanced

3D Y/C filter Off/On
Color matrix SD/HD

Block NR Off/On
Mosquito NR Off/On

Black level Dark/Light
3:2 pulldown Off/On/Auto

Minimizes noise and cross-color in the picture.
Selects image resolution of component-connected devices.

SD: Standard Definition HD: High Definition
Only used with 480p video signal.

Reduces noise of specific digital signals of DVD, Cable box, etc.
Reduces HDTV flicker noise in the contoured sections of an

image.
Selects Dark or Light. Valid only for external input signals.
Adjusts the picture recorded in 24 fps for optimum quality.

Audio settings

Adjust Audio quality

Settings Items Item Description
Reset to defaults Resets Bass, Treble, and Balance adjustments to factory default settings.
Bass Increases or decreases the bass response.
Treble Increases or decreases the treble response.
Balance Emphasizes the left / right speaker volume.
Advanced audio A.I. sound Off/On

Surround Off/On
Volume leveler
TV speakers Off/On

HDMI 1-4 in Digital/

Component/
Video

Timer settings

The TV can automatically turn On/Off at the designated date and time.

Equalizes overall volume levels across all channels and
external inputs.

Enhances audio L/R response when listening to stereo.
Minimizes volume disparity after switching to external inputs.

Switches to “Off” when using external speakers.
Off: “A.I sound”, “Surround” and “Volume leveler” do not work if
“Off” is selected.

The default setting is “Digital” for the HDMI connection. (Digital
input signal)
Select audio input terminal when DVI cable is connected.
(Analog audio input signal)

If the Timer settings are grayed out, first set the clock (see p. 48) and make sure “Auto power on” is set to “No” (see p. 48)

Settings Items Item Description
Sleep (Off timer) Sleep (minutes) Off/15/30/60/90
Timer 1-5

(On/Off timer)

Timer set
Inputs
Channel
Day

On time

Off time

Enables or disables this timer. (Off/On)
Sets the input to select when the TV turns on.
Sets the channel to select when the TV turns on.
Sets the day when the TV turns on.

[SUN/MON/TUE/WED/THU/FRI/SAT(displays the nearest future date)
MON-FRI/SAT-SUN/DAILY/Every SUN/Every MON/Every TUE/Every
WED/Every THU/Every FRI/ Every SAT]

Sets the time when the TV turns on. The TV will turn off after 90 minutes or as
specified.

Sets the time when the TV turns off within 24 hours.

Select how long for the TV to automatically turn off.

46

Lock

Locks specified channels or shows to prevent children from watching objectionable content.

You will be asked to enter your password each time you display the Lock menu.

• Password setting/entering (p. 19)
Set “Custom” in “Mode” to specify “Channel”, “Game”, “Program” and “EASY IPTV” settings.

Settings Items Item Description
Mode Off

All
Custom

Channel

Mode

(These channels
will be blocked
regardless of the
program rating.)

Channel 1-7
Game On/Off
Program

Mode

(To set a rating
level)

MPAA

U.S.TV

C.E.L.R.

C.F.L.R.
(EASY IPTV)* On/Off

Change password

Unlocks all the Lock settings of “Channel”, “Game”, “Program” and “EASY IPTV”.
Locks all the inputs regardless of the Lock settings of “Channel”, “Game”, “Program” and “EASY IPTV”.
Locks specified inputs of “Channel”, ”Game”, “Program” and “EASY IPTV”.
Set channel lock status. (Off/All/Custom)

All: Locks all channels
Off: Unlocks all channels
Custom: Locks specified channels. Set “Channel 1” - “Channel 7”

Select a channel to lock. (Select up to 7 (1-7) channels to block.)
Locks Channel 3, Channel 4, and external inputs.
Set program lock status. (Off/On) “V-chip” technology enables restricted shows to lock

according to TV ratings. On: Set each rating level (MPAA, US.TV, C.E.L.R., C.F.L.R.)
Select U.S. movie ratings to lock.

U.S. TV program ratings.
Canadian English ratings.
Canadian French ratings.
On: Locks EASY IPTV. When you select EASY IPTV icon on VIERA TOOLS screen,

the EASY IPTV Lock screen is displayed. Type the correct password to enter the
screen.

* The menus displayed differ depending on your county or area you select (p. 12)

For more
information
(p. 49)

Change the password. Input the new 4-digit password twice.

• This television is designed to support the “Downloadable U.S. Region Rating System” when available.
(Available only in U.S.A.)

• The Off rating is independent of other ratings.

• When placing a lock on a specific-age-based-rating level, the Off rating and any other more restrictive ratings will also be blocked.

How to Use Menu Functions

Closed caption Display closed caption

The television includes a built-in decoder that is capable of providing a text display of the audio.
The program being viewed must be transmitting the Closed caption (CC) information. (p. 52)

Settings Items Item Description
Reset to defaults Resets all Closed caption settings to factory default settings.
Mode On/Off/

CC on mute

Analog CC1-4/T1-4

Digital Primary/Second./

Service 3/4/5/6

Digital setting

(Set display
settings
in digital program)

Size
Font
Style
Foreground
Fore. opacity
Background
Back. opacity
Outline

• The settings in “Analog” or “Digital” depend on the broadcaster.

On: To display Closed captions.
CC on mute: To display Closed captions when the audio is muted.
(When not using, select “Off”).

Choose the Closed caption service of Analog broadcasting.
CC1-4: Information related to pictures (Appears at the bottom of the screen)
T1-4: Textual information (Appears over the entire screen)

The Digital Closed caption menu lets you configure the way you choose to view
the digital captioning.

Text size
Text font
Text style (Raised, Depressed, etc.)
Color of text
Opacity of text
Color of text box
Opacity of text box
Outline color of text (Identify the setting options on the screen.)

Advanced

47

Setup

Other function settings

Settings Items Item Description
Channel surf

mode

All/Favorite/
Digital only/

Sets the mode to select the channel with the Channel up/down button.
Favorite: Only channels registered as FAVORITE. (p. 18)

Analog only

Language English/

Selects the screen menu language.

Español/
Français

Clock

Adjusts the clock. (p. 15)

ANT/Cable setup See p. 42-43 for more detail.

Input labels

(Display labels
of connected
devices)

Selects the terminal and label of the external equipment.
Devices connected to external input terminals can be labeled for easier identification during the
input selection. (Input select (p. 21))

erminals: HDMI 1-4/Component/Video/PC

T

Label: [BLANK] Blu-ray/CABLE/SATELLITE/DVD/DVD REC/DVR/GAME/HOME THTR/
RECEIVER/COMPUTER/MEDIA CTR/MEDIA EXT/VCR/CAMERA/MONITOR/AUX/OTHER/
Not used

• You can also enter the label name directly. (Entering characters (p. 19))

Network settings
VIERA Link settings

ECO/energy
saving

Keyboard type

See p. 36-38 for more detail.
See p. 30-31 for more detail.

Power save
(Standard/
Saving)

No signal for 10
minutes
(Stay on/ Power
TV off)

No activity for 3
hours
(Stay on/ Power
TV off)

Reduces screen brightness to lower power consumption. Eye-friendly for
viewing in a dark room.

To conserve energy, the TV automatically turns off when NO SIGNAL and NO
OPERATION continue for more than 10 minutes.

• Not in use when “Auto power on” is set to “Yes”, or “On/Off Timer” is set.

• “No signal for 10 minutes was activated” will be displayed for about 10 seconds
when the TV is turned on for the first time after the power was turned off by “No
signal for 10 minutes”.

• The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining
minutes prior to the shut-off.

To conserve energy, the TV automatically turns off when no operation of remote and
side panel key continues for more than 3 hours.

• Not in use when “Auto power on” is set to “Yes”, or “On/Off Timer” is set, or while
“PC inputs” is selected.

• “No activity for 3 hours was activated” will be displayed for about 10 seconds when
the TV is turned on for the first time after the power was turned off by “No activity
for 3 hours”.

• The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining
minutes prior to the shut-off.

Select keyboard type. Operate USB keyboard (p. 19)

(U.S./Canadian French/Canadian Multilingual Standard/Spanish (Latin
America)/Spanish (Spain))

Advanced setup

Auto power on
(No/Yes)

Image viewer
auto play

Turns TV On automatically when the cable box or connected device is turned On.
TV AC cord must be plugged into this device. TV turns on every time the power is restored.

Slideshow/
Photos/Videos/
Music
Set later/Off

First time setup
About
Reset to defaults

Restarts the first time setup from “Language” setting. (p. 12)
Displays TV version and software license.
Performing Reset will clear all settings made with Setup, such as channel

settings.

• Password setting/entering (p. 19)

Sets the media contents or playback type to play back SD
cards automatically.
Set later: “Image viewer settings” menu will be displayed repeatedly.
“Using Media player” (p. 22)

48

Ratings List for parental control

“V-chip” technology enables you to lock channels or shows according to standard ratings set by the
entertainment industry.

U.S. MOVIE RATINGS (MPAA)

NR

G GENERAL AUDIENCES. All ages admitted.

PG PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children.

PG-13 PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under 13.

R RESTRICTED. Under 17 requires accompanying parent or adult guardian.

NC-17 NO ONE 17 AND UNDER ADMITTED.

X ADULTS ONLY.

NO RATING (NOT RATED) AND NA (NOT APPLICABLE) PROGRAMS. Movie which has not been rated or
where rating does not apply.

U.S. TV PROGRAMS RATINGS (U. S. TV)

Age-based

Group

NR
(Not Rated)

Youth

Guidance

FV: Fantasy/Cartoon Violence. V: Violence S: Sex L: Offensive Language D: Dialogue with sexual content.

Age-based

Ratings

TV-NR

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

Possible Content

Selections

Viewable

•

Blocked

•

Viewable

•

Blocked

•

FV Blocked

•

Viewable

•

Blocked

•

Viewable

•

Blocked

•

D,L,S,V (all selected)

•

Any combination of

•

D, L, S, V
D,L,S,V (all selected)

•

Any combination of

•

D, L, S, V
L,S,V (all selected)

•

Any combination of

•

L, S, V

Description

Not Rated.
All children. The themes and elements in this program are specifically

designed for a very young audience, including children from ages 2-6.
Directed to older children. Themes and elements in this program may

include mild physical or comedic violence, or may frighten children
under the age of 7.

General audience. It contains little or no violence, no strong language,
and little or no sexual dialogue or situations.

Parental guidance suggested. The program may contain infrequent
coarse language, limited violence, some suggestive sexual dialogue
and situations.

Parents strongly cautioned. This program may contain sophisticated
themes, sexual content, strong language and more intense violence.

Mature audiences only. This program may contain mature themes,
profane language, graphic violence, and explicit sexual content.

CANADIAN ENGLISH RATINGS (C. E. L. R.)

E
C Programming intended for children under age 8. No offensive language, nudity or sexual content.

C8+

G General programming, suitable for all audiences.

PG Parental Guidance suggested. Some material may not be suitable for children.
14+
18+ 18+ years old. Programming restricted to adults. Contains constant violence or scenes of extreme violence.

Exempt - Exempt programming includes: news, sports, documentaries and other information programming,
talk shows, music videos, and variety programming.

Programming generally considered acceptable for children 8 years and over. No profanity, nudity or sexual content.

Programming contains themes or content which may not be suitable for viewers under the age of 14. Parents
are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens.

CANADIAN FRENCH RATINGS (C. F. L. R.)

E Exempt - Exempt programming.

G

8 ans+
13 ans+
16 ans+

18 ans+ Programming restricted to adults. Contains constant violence or scenes of extreme violence.

Caution

The V-Chip system that is used in this set is capable of blocking “NR” programs (non rated, not applicable and none) as per
FCC Rules Section15.120(e)(2). If the option of blocking “NR” programs is chosen “unexpected and possibly confusing results
may occur, and you may not receive emergency bulletins or any of the following types of programming:”

• Emergency Bulletins (Such as EAS messages, weather warnings and others)

• Locally originated programming • News • Political • Public Service Announcements • Religious • Sports • Weather

General - Programming intended for audience of all ages. Contains no violence, or the violence content is
minimal or is depicted appropriately.

8+ General - Not recommended for young children. Programming intended for a broad audience but contains
light or occasional violence. Adult supervision recommended.

Programming may not be suitable for children under the age of 13 - Contains either a few violent scenes or one
or more sufficiently violent scenes to affect them. Adult supervision strongly suggested.

Programming may not be suitable for children under the age of 16 - Contains frequent scenes of violence or
intense violence.

Ratings List for parental control

How to Use Menu Functions

Advanced Support Information

49

Technical Information

Aspect Ratio (FORMAT)

Press the FORMAT button to cycle through the aspect modes. This lets you choose the aspect depending on the format
of the received signal and your preference. (p. 18)
(e.g.: in case of 4:3 image)

FULL JUST

FULL

JUST

Enlarges the 4:3 image horizontally to the screen’s side edges.
(Recommended for anamorphic picture)

H-FILL

H-FILL

Enlarges the 4:3 image horizontally to the screen’s side
edges. The side edges of the image are cut off.

ZOOM

ZOOM

Enlarges the 4:3 image to the entire screen.
(Recommended for Letter Box)

Zoom adjustments
Vertical image position and size can be adjusted in “ZOOM”.
Select “Zoom adjustments” on the “Picture” menu. (p. 45)
V-position: Vertical position adjustment V-size: Vertical size adjustment

To reset the aspect ratio (OK)

Stretches to justify the 4:3 image to the four corners of the
screen.
(Recommended for normal TV broadcast)

4:3

Side bar

Standard
(Note that “Image retention” of the side bar may occur from
displaying it for a long time.)

Note

480i (4:3), 480i (16:9), 480p (4:3), 480p (16:9):

FULL, JUST, 4:3 or ZOOM

1080p / 1080i / 720p:

FULL, H-FILL, JUST, 4:3 or ZOOM

Aspect Ratio: 4:3

Size 1 Size 2

Aspect Ratio: FULL/JUST(H-FILL/ZOOM)

Size 1 Size 2

See page 45 for more information

50

H size

The width will be decreased on both sides to

reduce noise.

The width will be increased on both sides to

reduce noise.

Data format information

Compatible Data format for Media player (SD card/USB flash memory)/DLNA p. 26

●

DCF (Design rule for camera file system): A Japan Electronics and Information Technology Industries Association’s standard
EXIF: Exchangeable Image File Format

Note

Format the card with the recording equipment.

●

The picture may not appear correctly on this TV depending on the recording equipment used.

●

Display may take some time when there are many files and folders.

●

The function (VIERA Image Viewer/Media player) cannot display Motion JPEG and still image not DCF formatted (i.e. TIFF, BMP).

●

Data modified with a PC may not be displayed.

●

Images imported from a PC must be compatible with EXIF 2.0, 2.1 and 2.2.

●

Partly degraded files might be displayed at a reduced resolution.

●

All “.JPG” extension data in the card and USB flash memory will be read in Photo viewer Mode.

●

The folder and file names may be different depending on the digital camera used.

●

Do not use two-byte characters or other special codes.

●

The card may become unusable with this TV if file or folder names are changed.

●

For the suitable SD Memory Cards, please confirm the latest information on the following website.

●

http://panasonic.jp/support/global/cs (This site is in English only)

Cautions when handling SD Cards

Use an SD Card which meets SD standards. If not, it may cause the TV to malfunction.

●

Do not remove the card while the unit is accessing data (this can damage card or unit).

●

Do not touch the terminals on the back of the card.

●

Do not subject the card to high pressure or impact.

●

Insert the card in the correct direction (otherwise, card or unit may be damaged).

●

Electrical interference, static electricity or erroneous operation may damage the data or card.

●

Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic

●

operation of the unit. (Panasonic is not liable for any deterioration or damage of recorded data.)

32 mm

24 mm

2.1 mm

SD Card/USB flash memory warning messages

Message Meaning

No media. Please insert an SD memory card or USB
storage device.

No media. Device removed.
No photos/ No movies/No music files to play/ No

playable media
Cannot read file

Recommended USB device connections

Number of

USB device

1

2

A: Flash memory A
A: Wireless LAN adapter A
A: Keyboard A
A: Flash memory B: Keyboard A B
A: Wireless LAN adapter B:Keyboard A B
A: Flash memory B:Wireless LAN adapter A B

Connections (Recommended) Memory

The device is not inserted.

●

The device is removed.

●

The device has no data or this type of data is not supported.

●

The file is broken or unreadable.

●

The TV does not support the format.

●

A/B: each USB terminal

Wireless LAN

adapter

Keyboard

Technical Information

Support Information

51

VIERA LinkTM “HDAVI ControlTM”

HDMI connections to some Panasonic equipment allow you to interface automatically. (p. 29)

This function may not work normally depending on the equipment condition.

●

The equipment can be operated by other remote controls with this function on even if the TV is in Standby mode.

●

Image or sound may not be available for the first few seconds when playback starts.

●

Image or sound may not be available for the first few seconds when input mode is switched.

●

Volume function will be displayed when adjusting the volume of the equipment.

●

If you connect equipment that has “HDAVI Control 2 or later” function to the TV with an HDMI cable, the sound from the

●

DIGITAL AUDIO OUT terminal can be output as multi-channel surround.
“HDAVI Control 5” is the newest standard (current as of December, 2010) for the HDAVI Control compatible equipment.

●

This standard is compatible with the conventional HDAVI equipment.

HDMI connection

HDMI (high-definition multimedia interface) allows you to enjoy high-definition digital images and high-quality sound by connecting
the TV unit and HD devices.
HDMI-compatible equipment (*1) with an HDMI or DVI output terminal, such as a Cable or Satellite box or a DVD player, can be
connected to the HDMI connector using an HDMI compliant (fully wired) cable.

HDMI is the world’s first complete digital consumer AV interface complying with a non-compression standard.

●

If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable (*2).

●

When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal.

●

Audio settings can be made on the “HDMI 1 in”, “HDMI 2 in”, “HDMI 3 in” or “HDMI 4 in” menu screen. (p. 46)

●

Applicable audio signal sampling frequencies (L.PCM): 48 kHz, 44.1 kHz, 32 kHz
(*1): The HDMI logo is displayed on an HDMI-compliant device.
(*2): Enquire at your local digital equipment retailer shop.

Caution

Use with a PC is not assumed.

●

All signals are reformatted before being displayed on the screen.

●

If the connected device has an aspect adjustment function, set the aspect ratio to “16:9”.

●

These HDMI connectors are “type A”.

●

These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.

●

A device having no digital output terminal may be connected to the input terminal of either “COMPONENT”, or “VIDEO” to

●

receive analog signals.

The HDMI input terminal can be used with only the following image signals: 480i, 480p, 720p, 1080i and 1080p.

●

Match the output setting of the digital device.

For details of the applicable HDMI signals, see p. 53.

●

DIGITAL AUDIO OUT terminal

You can enjoy your Home theater by connecting a Dolby Digital (5.1 channel) decoder and “Multi Channel” amplifier to the
DIGITAL AUDIO OUT terminals.

Caution

Depending on your DVD player and DVD-Audio software the copyright protection function may operate and disable optical

●

output.

When an ATSC channel is selected, the output from the DIGITAL AUDIO OUT jack will be Dolby Digital. When an NTSC

●

channel is selected, the output will be PCM.

When playing a movie on SD Card Movie player, when the sound has been recorded in Dolby Digital, the output from the

●

DIGITAL AUDIO OUT terminal will be Dolby Digital. When the sound is recorded in other formats, the output will be PCM.

Closed Caption (CC)

For viewing the CC of digital broadcasting, set the aspect to FULL (If viewing with H-FILL, JUST, ZOOM or 4:3;

●

characters might be cut off).

The CC can be displayed on the TV only when the receiver (such as a Cable box or satellite receiver) has the CC set

●

to ON within the device itself. Check with your Cable or Satellite provider for instructions. The TV’s CC button does

not operate the Satellite or Cable box’s CC function.

If the CC is set to On on both the receiver and TV when the signal is 480i (except for the HDMI connection), the CC

●

may overlap on the TV.

If a digital program is being output in analog format, the CC data will also be output in analog format.

●

If the recorder or output monitor is connected to the TV, the CC needs to be set up on the recorder or output monitor.

●

52

PC Input Terminals

Signal Names for D-sub 15P Connector

●

15 14 13 12 11

678 3 9

1

Pin Layout for PC Input Terminal

10

45

2

Pin No.

Signal Name

R GND (Ground) NC (not connected)
G GND (Ground) NC
B GND (Ground) HD/SYNC

NC (not connected) NC (not connected) VD

GND (Ground) GND (Ground) NC

Pin No.

Signal Name

Pin No.

Signal Name

Input signal that can be displayed

* Mark: Applicable input signal for Component (Y, PB, PR), HDMI and PC

horizontal frequency (kHz) vertical frequency (Hz) COMPONENT HDMI PC

525 (480) / 60i 15.73 59.94
525 (480) /60p 31.47 59.94
750 (720) /60p 45.00 59.94
1,125 (1,080) /60i 33.75 59.94
1,125 (1,080)/60p 67.43 59.94
1,125 (1,080)/60p 67.50 60.00
1,125(1,080)/24p 26.97 23.98
1,125(1,080)/24p 27.00 24.00
640 × 400 @70 31.47 70.08
640 × 480 @60 31.47 59.94
Macintosh13” (640 × 480) 35.00 66.67
640 × 480 @75 37.50 75.00
852 × 480 @60 31.44 59.89
800 × 600 @60 37.88 60.32
800 × 600 @75 46.88 75.00
800 × 600 @85 53.67 85.08
Macintosh16” (832 × 624) 49.73 74.55
1,024 × 768 @60 48.36 60.00
1,024 × 768 @70 56.48 70.07
1,024 × 768 @75 60.02 75.03
1,024 × 768 @85 68.68 85.00
Macintosh 21” (1,152 × 870) 68.68 75.06
1,280 × 768 @60 47.78 59.87
1,280 × 1,024 @60 63.98 60.02
1,366 × 768 @60 48.39 60.04

Note

Signals other than above may not be displayed properly.

●

The above signals are reformatted for optimal viewing on your display.

●

Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning

●

frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)

**
**
**
**

*
*
*
*

*
*
*
*
*
*
*
*
*
*
*
*

Technical Information

*
*
*
*
*

Support Information

53

Care and Cleaning

First, unplug the Power cord plug from the wall outlet.

Display panel

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint­free cloth.

If the surface is particularly dirty, soak a soft, lint-free cloth in diluted mild liquid dish soap (1 part mild liquid dish soap diluted

by 100 times the amount of water) and then wring the cloth to remove excess liquid. Use this cloth to wipe the surface of the
display panel, then wipe it evenly with a dry cloth of the same type until the surface is dry.

Do not scratch or hit the surface of the panel with fingernails or other hard objects. Furthermore, avoid contact with volatile

substances such as insect sprays, solvents, and thinner; otherwise, the quality of the surface may be adversely affected.

Cabinet

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

If the cabinet is particularly dirty, soak the cloth in a weak mild liquid dish soap and then wring the cloth dry. Use this cloth to

wipe the cabinet and then wipe it dry with a dry cloth.

Do not allow any mild liquid dish soap to come into direct contact with the surface of the LCD TV.

If water droplets get inside the unit, operating problems may result.

Avoid contact with volatile substances such as insect sprays, solvents, and thinner; otherwise, the quality of the cabinet

surface may be adversely affected or the coating may peel off.

Do not let articles made from rubber or PVC be in contact with the TV for long periods of time.

Pedestal

Cleaning

Wipe the surfaces with a soft, dry cloth. If the unit is particularly dirty, clean it using a cloth soaked with water to which a small
amount of mild liquid dish soap has been added and then wipe with a dry cloth.
Do not use products such as solvents, thinner, or household wax for cleaning, as they can damage the surface coating.
(If using a chemically-treated cloth, follow the instructions supplied with the cloth.)

Do not attach sticky tape or labels, as they can make the surface of the pedestal dirty. Do not allow long-term contact with

rubber, vinyl products, or the like. (Doing so will cause deterioration.)

Power cord plug

Wipe the plug with a dry cloth at regular intervals. (Moisture and dust can lead to fire or electrical shock.)

54

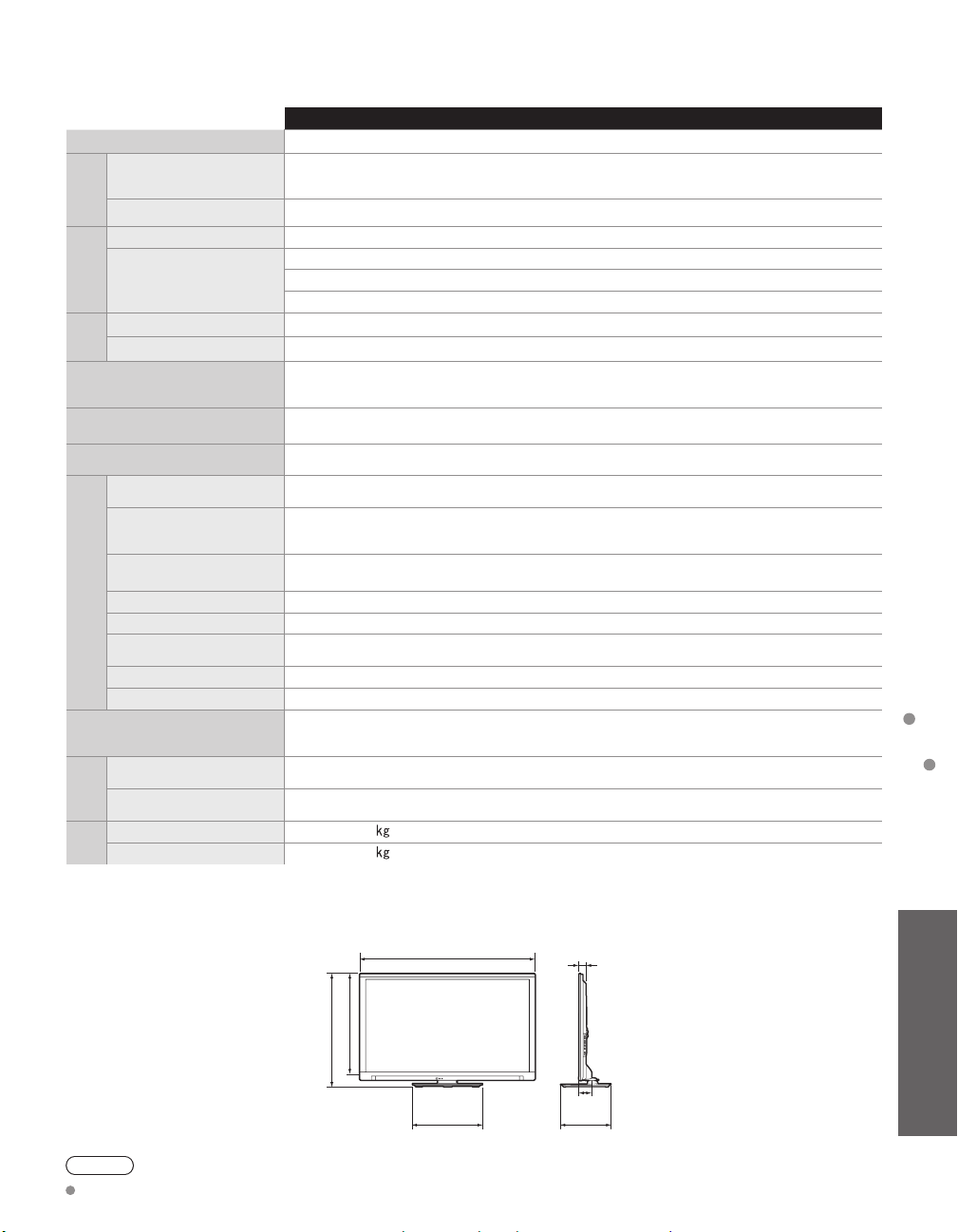

Specifications

10-127 V, 60 Hz

Power Source

Consumption

Power

Rated Power
Consumption

Standby condition
Aspect Ratio

Display

panel

Visible screen size
(W × H × Diagonal)
(No. of pixels)

Sound

Speaker
Audio Output

PC signals

Channel Capability­ATSC/NTSC (Digital/Analog)

Operating Conditions

VIDEO IN

Connection Terminals

COMPONENT IN

HDMI 1-4
USB 1-2

LAN (for IPTV)
PC
Card slot

DIGITAL AUDIO OUT

FEATURES

(W × H × D)

Dimensions

Including TV stand
TV Set only

Mass

Including TV stand
TV Set only

AC 1

131 W

0.2 W
16:9

42” class (42.0 inches measured diagonally)

36.6 ” × 20.6 ” × 42.0” (930 mm × 523 mm × 1,067 mm)
2,073,600 (1,920 (W) × 1,080(H)) [5,760 × 1,080 dots]
1-way 2 bottom SP System

20 W [10 W + 10 W] (10 % THD)
VGA, SVGA, XGA, WXGA, SXGA

Horizontal scanning frequency 31 - 69 kHz
Vertical scanning frequency 59 - 86 Hz

VHF/ UHF: 2 - 69, CATV: 1 - 135
Temperature: 32 °F – 95 °F (0 °C – 35°C)

Humidity: 20 % – 80 % RH (non-condensing)
VIDEO: RCA PIN Type × 1

AUDIO L - R: RCA PIN Type × 2 0.5 V [rms]
Y: 1.0 V [p-p] (including synchronization)

P

B, PR: ±0.35 V [p-p]

AUDIO L-R: RCA PIN Type × 2 0.5 V [rms]
TYPE A Connector × 4

This TV supports “HDAVI Control 5” function.

•

USB 2.0 Type A connector x 2 (DC5V MAX500mA)
RJ45 (10BASE-T/100BASE-TX)
D-SUB 15PIN: R,G,B / 0.7 V [p-p] (75 Ω)

HD, VD / 1.0 - 5.0 V [p-p] (high impedance)
SD CARD slot × 1
PCM / Dolby Digital, Fiber Optic
3D Y/C FILTER CLOSED CAPTION

V-Chip EASY IPTV
VIERA IMAGE VIEWER Media player HDAVI Control 5

39.5 ” × 25.5 ” × 11.4 ” (1,002 mm × 646 mm × 288 mm)

39.5 ” × 24.1 ” × 1.7 ” (3.0 ”) (1,002 mm × 611 mm × 41 mm (75 mm))

38.5 lb. (18.0

31.0 lb. (14.0

) NET
) NET

TC-L42E3

1.0 V[p-p] (75 Ω)

Care and Cleaning

Specifications

[TC-L42E3]

39.5 ” (1,002 mm)

24.1 ” (611 mm)

25.5 ” (646 mm)

15.8 ”

(400 mm)

1.7 ”
(41 mm)

3.0 ”

(75 mm)

11.4 ” (288 mm)

Note

Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

Support Information

55

Frequently Asked Questions (FAQ)

If there is a problem with your TV, please refer to the table below to determine the symptoms, then carry out the
suggested check. If this does not solve the problem, visit the Panasonic website for further assistance. (see cover)

Questions Answers

How do I view the picture from
devices such as a: Cable/
Satellite box, game console,
Blu-ray or DVD player?

Why is there no picture or just
a blue, black or snowy screen
being displayed?

Why doesn’t the picture look
like it is in High Definition?

Why do black bars appear on
the top and bottom and/or sides


of the screen?

Why is the picture snowy when
“ANT/Cable in” is selected?

Press the INPUT button on the remote to select the correct

input source.

Check that the device is turned on and functioning

correctly.

Check if the power cord is plugged in and the TV is turned
on (front red LED light should be on; not blinking)
Press the INPUT button on the remote to select the correct input source.
Ensure all connections are correct and secure.
When using external video source, such as a Cable/Satellite box or
DVD player, check that the device is on and functioning correctly.

Press MENU on the TV’s remote control. If the menu is

displayed, then the TV is working; recheck above steps.
Press the INFO button on the remote to confirm the type of signal

being received (p. 17). HD signal should be 720P, 1080i or 1080p.

Select a High Definition channel from your HD source

(Cable, Satellite or fiber optic service). HD channels
sometimes broadcast non-HD content.

Ensure that your HD source (HD box, Blu-ray player, etc.)

is connected to the TV with an HDMI or Component cable
and set to output an HD video signal.

Change the format (aspect ratio) of the picture by pressing

the FORMAT button on the remote control. (p.18)

Check the aspect settings on your external video source,

such as Cable/Satellite box, DVD/Blu-ray Disc player, etc.
Note: Some content, such as film-based movies, are available in

extra-wide format. Top and bottom bars are unavoidable.

When using a cable service (without a box), check that all

connections are secure.

When using a cable or satellite box, change the connection

(wiring) to Composite, Component or HDMI. (p.10)

If you’re using an antenna, then check that connections are

secure. Change the position or direction of the antenna and
check the “Signal meter”. (p.43)

56

Why is the picture chaotic and/
or torn and/or with a buzz in the
speakers?

Why is there a black box on the
screen?

Why is the screen blank and the
power indicator blinking?

Why do some small spots on
the screen remain bright or
dark?

Check if electrical products such as kitchen appliances,

fluorescent lights or light dimmers are nearby. They may
interfere with the TV’s picture.
Try viewing a picture from another device, such as a DVD player
or a game console, to narrow down the source of the problem.

Change settings of Closed Caption (CC). (p. 17, 47)

The TV has gone into shutdown mode to protect itself. Try unplugging
it for a few minutes and connecting it again. If there was a temporary
power surge on the AC line it may now be OK. If the blinking returns,
call 1-877-95VIERA (U.S.A.) or 1-866-330-0014 (Canada).

The LCD panel is made up of a few million pixels and is

produced with advanced technology through an intricate
process. Sometimes a few pixels may be bright or dark.
These pixels do not indicate a defective panel and will have
no impact on the performance of the TV.

Questions Answers

Why is there no sound coming
from the TV?

Sound Other

Why is the sound unusual,
distorted, low volume or in
another language?

Why is there a clicking, ticking
or buzzing sound coming from
the TV unit?

Make sure the volume is up and MUTE is off.
Confirm the TV speakers are set to ON by pressing MENU
and selecting “Audio” --> “Advanced audio”. (p.46)
Check that the correct SAP (Secondary Audio Program) is selected
by pressing the SAP button on the remote control. (p.17)
If the TV is connected to a Panasonic Home Theater via HDMI
cable, then check VIERA Link controls. (p.33)
If the TV is connected to a Home Theater via optical cable,
then: Check the connection, the audio system is on, the
correct input is selected.
Check “HDMI 1 in”, “HDMI 2 in”, “HDMI 3 in” or “HDMI 4 in”
analog/digital audio settings. (p. 46)

Check that the correct SAP (Secondary Audio Program) is
selected by pressing the SAP button on the remote control.

Check that all connections of external equipment

connected to the TV are secure.
When using Cable or Satellite box, check the device’s audio
settings. (example: try changing the box’s Audio Range to ‘narrow’)

When TV power is turned on or shut off there are electrical
components that make a click sound. This is normal operation.
Changes in the temperature and humidity of the room may
cause thermal expansion and contraction that can produce
sounds. This is not a sign of faulty operation or a malfunction.

What is the easiest and best
way to connect a High-Definition
Cable or Satellite box to the TV?

Why does the CC button not
display Closed Caption?

Why does the screen and back
cover of the TV get warm?

Why doesn’t the Remote
Control work?

Why is the “ANT/Cable” option
at the top of the “Input select”
menu gray-out and cannot be
selected?

Some menu items are grayed­out and cannot be selected.
Why?

Use an HDMI cable. It carries both digital video and audio

signal in HD. HDMI cable is the only cable needed to
connect an HD device to the TV.

When viewing TV via an HDMI connected device, such as

a Cable or Satellite box, CC must be enabled at the device.
Closed Caption is available only at supported TV programming.

The main unit radiates heat and some of the parts may

become hot. This is normal operation and does not affect

the performance of the set.
Ensure good ventilation.
Do not block the ventilation holes of the TV and do not

place the TV on top of other equipment.
Check that the batteries are fresh, are of the same type

and are installed with the correct polarity (+ & -).
To operate other devices, such as changing channels when

using Cable or Satellite boxes or operating non-Panasonic

Blu-ray players, use the remote supplied with the device.

During “First time setup”, you indicated in step - that

you are using Cable or Satellite box and in step - b that

the box is connected to one of the TV’s AV inputs. In this

case, the Antenna/Cable input is deactivated to prevent

unintentional switching into unused tuner. To re-activate,

press MENU, select SETUP and repeat “First time setup”.

Depending on certain modes or the selected input, some

options are not available. For example, Zoom adjustments are

only available when the FORMAT is changed to zoom mode.

Frequently Asked Questions

Support Information

57

Questions Answers

How do I get EASY IPTV to work
on my TV?

Networking

How do I check for the latest
software (firmware) version for
my TV?

1. You need a broadband (high speed) Internet service with a

speed of no less than 1.5 Mbps (p. 35).

2. Connect the TV to the Internet through your router by an

Ethernet cable or a compatible Panasonic USB wireless
adapter.

3. Run the “Connections Test”, under the Network Settings

menu.
If Connection test fails, then check with your Internet
service provider or router/modem manufacturer if there are
firewall, content filter or proxy settings that may block the
TV from accessing the Internet.

In the main menu, select “Setup”. Highlight “Network

Settings” and press OK. Select “Software Update”. The
current version and latest version software will be shown. If
software update is “grayed out”, the TV is not connected to
the Internet. If newer version is available, update your TV.
Follow the on-screen instructions, do not power off the TV
until the update is complete. Be patient; firmware update
may take a while.

Can I use any USB WiFi adapter
to connect the TV to my
wireless network?

How do I reset my TV to all
factory defaults and settings?

The TV’s internal software was designed to work with

Panasonic’s wireless adapter model DY-WL10*.
Check www.panasonic.com/NetConnect for updated
information.

In the main menu, select “Setup”. Highlight “Reset to

Defaults” and press OK. Enter your password (if created
earlier) or create a temporary new password. Select Yes to
reset the TV.

* Model number is subject to change without notice.

58

Index

A Accessories .............................................................7

ANT/Cable ....................................................... 13, 42

Antenna ............................................................. 9, 13

Audio ...................................................................... 46

Audio, Advanced ....................................................46

Auto Power ON ...................................................... 48

Auto Program ......................................................... 42

B Battery .....................................................................8

Blinking LED

C Cable .................................................................9, 10

Care & Cleaning

CC Closed Caption .................................... 17, 47, 52

Channel ...........................................13, 17-18, 42-43

Channel Surf Mode .......................................... 18, 48

Clock ...................................................................... 15

Colored buttons ......................................................11

Component ...................................................... 10, 55

Composite .............................................................. 10

Connections ........................................................9-10

Customer Services Directory ................................. 61

D DLNA .........................................................20, 34, 40

E ECO/energy ..................................................... 20, 48

Exit ..........................................................................

F FAQ’s ................................................................56-58

Favorite ..................................................................

First Time Setup ..........................................12-16, 48

Format ............................................................. 18, 50

H HDAVI Control ........................................................

HDMI .......................................................... 10, 52, 55

Home Use .............................................................. 12

I Image Viewer Auto ................................................. 48

Info .........................................................................

Input ................................................................. 21, 48

IPTV service ..............................................20, 34, 39

L Language ......................................................... 12, 48

Last .........................................................................

Lock / Parental control ..................................... 47, 49

M Media player ...............................................20, 22-27

Menu ......................................................................

Movies/Video .........................................................26

Music ..................................................................... 27

Mute ........................................................................11

N Network camera .................................... 33-35, 38, 41

Network services

P Pedestal ............................................................... 7, 8

Photo ................................................................

Picture, Advanced ..................................................46

Picture settings ......................................................45

Power ......................................................................11

R Remote control .......................................................11

Reset .....................................................................

.......................................................... 56

.................................................... 54

11

18

28

17

11

44

..................................14, 34-38, 48

24-25

48

S Safety ....................................................................... 4

SAP ........................................................................17

Scan ................................................................. 13, 42

SD Card ........................................................... 22, 51

Signal Meter ........................................................... 43

Sleep ...................................................................... 46

Specifications ......................................................... 55

Store Demonstration .............................................. 12

Sub menu ..............................................................18

T Technical Information ........................................50-53

T

imer ...................................................................... 46

U USB ........................................................... 22, 51, 55

V VIERA Link ..................................................20, 28-33

VIERA

TOOLS .......................................................20

Viewing contents .................................................... 23

Volume ....................................................................1 1

W Warranty .......................................................... 60, 62

W

atching TV, DVD, Blu-ray, etc. ...................... 17, 21

Wireless LAN Adapter ......................................16, 35

Z Zoom ................................................................18, 50

Frequently Asked Questions

Index

Support Information

59

Limited Warranty (for U.S.A. and Puerto Rico only)

PANASONIC CONSUMER ELECTRONICS COMPANY,
DIVISION OF:
PANASONIC CORPORATION OF NORTH AMERICA
One Panasonic Way
Secaucus, New Jersey 07094

Panasonic LCD Televisions

Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics
Company (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with
the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts,
(b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to
repair, replace or refund will be made by the warrantor.

LCD TV CATEGORIES PARTS LABOR SERVICE

Up to 42” (diagonal)

46” (diagonal) and larger On-Site

During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will
be no charge for parts.
You must carry-in your product or arrange for on-site service during the Limited warranty period. If non-rechargeable
batteries are included, they are not warranted. This warranty only applies to products purchased and serviced in the
United States or Puerto Rico. This warranty is extended only to the original purchaser of a new product which was not
sold “as is”. A purchase receipt or other proof of the original purchase date is required for warranty service.

On-Site or Carry-in Service

For On-Site or Carry-In Service in the United States and Puerto Rico call 1-877-95-VIERA (1-877-958-4372)
On-site service where applicable requires clear, complete and easy access to the product by the authorized servicer and

does not include removal or re-installation of an installed product. It is possible that certain on-site repairs will not be
completed on-site, but will require that the product or parts of the product, at the servicer’s discretion be removed for shop
diagnosis and/or repair and then returned.

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal
wear and tear or cosmetic damage, nor does it cover markings or retained images on the LCD panel resulting from
viewing fixed images (including, among other things, non-expanded standard 4:3 pictures on wide screen TV’s, or
onscreen data in a stationary and fixed location). The warranty ALSO DOES NOT COVER damages which occurred in
shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents,
misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty installation, set-up adjustments,
misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or
commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product, service by anyone
other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE
USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes

damages for lost time, cost of having someone remove or re-install an installed unit if applicable, or travel to and from the
servicer. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES,

INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED
WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how
long an implied warranty lasts, so the exclusions may not apply to you.

This warranty gives you specific legal rights and you may also have others rights which vary from state to state.
If a problem with this product develops during or after the warranty period, you may contact your dealer or
Service Center. If the problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs
Department at the addresses listed for the warrantor.

PARTS AND SERVICE (INCLUDING COST OF AN ON-SITE SERVICE CALL, WHERE APPLICABLE) WHICH
ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.

1 (ONE) YEAR 1 (ONE) YEAR

Carry-In

60

Customer Services Directory (for U.S.A. and Puerto Rico)

Customer Services Directory (United States and Puerto Rico)

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service Center;
purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web
Site at:

http://www.panasonic.com/help

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at:
1-877-95-VIERA (958-4372)
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.

For hearing or speech impaired TTY users, TTY: 1-877-833-8855

■

Accessory Purchases (United States and Puerto Rico)

Purchase Parts, Accessories and Instruction Books on line for all Panasonic Products by visiting our Web
Site at:

http://www.pstc.panasonic.com

or, send your request by E-mail to:

[email protected]

You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday - Friday 9 am to 9 pm, EST.)
Panasonic Service and Technology Company
20421 84th Avenue South,
Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)

For hearing or speech impaired TTY users, TTY: 1-866-605-1277

■

Customer Services Directory (for U.S.A. and Puerto Rico)

Limited Warranty (for U.S.A. and Puerto Rico only)

Support Information

61

Limited Warranty (for Canada)

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC PRODUCT – LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and
for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with
new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase
price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.

Viera TV (42” & over) In-home service One (1) year, parts (including panel) and labour.
Viera TV (under 42”) Carry-in service One (1) year, parts (including panel) and labour.

In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized Panasonic
service facility.

In-home service requires clear, complete and easy access to the product by the Authorized Servicer and does not include
removal or re-installation of an installed product. If removal is required to service the product, it will be at the discretion of
the Servicer and in no event will Panasonic Canada Inc. or the Servicer be liable for any special, indirect or consequential
damages.

This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic
brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada,
which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging.

IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR
OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS
REQUIRED

LIMITATIONS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal
wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or
failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents,
misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment
of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand,
humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or
service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God. Dry cell batteries are
also excluded from coverage under this warranty.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY
EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the
Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is
not exhaustive, but for illustration only.)

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or
the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives
you specific legal rights and you may have other rights which vary depending on your province or territory.

WARRANTY SERVICE

For product operation and information assistance, please contact:

Our Customer Care Centre: 1-800 #: 1-866-330-0014
Email link: “Contact us → email” on www.vieraconcierge.ca

For product repairs, please contact Viera Customer Care Agent using the above contact info.

Carefully pack and send prepaid, adequately insured and preferably in the original carton.

Include details of the defect claimed, and proof of date of original purchase.

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

62

TC-L42E3

42" LCD HDTV

SPECIFICATIONS

Dimensions (W x H x D) 39.5" (1,002 mm) x 25.5" (646 mm) x 11.4" (288 mm)
(Including TV stand)

39.5" (1,002 mm) x 24.1" (611 mm) x 1.7" (3.0") (41 mm (75 mm))
(TV Set only)

Mass 38.5 lb. (18.0 kg) (Including TV stand)

31.0 lb. (14.0 kg) (TV Set only)

Power Source AC 110-127 V, 60 Hz
Rated Power Consumption 131 W
Standby condition 0.2 W

DIMENSIONS JACKS

Top View

Front View

Back View

39.5 (1002)

15.8 (400)

15.8 (400)

Side View

24.1 (611)

25.5 (646)

4.2 (105)

11.4 (288)

3 (75)

1.7 (41)

Side Panel

Rear Panel

AV IN
HDMI 4

ST4

15.8 (400)

Note:
To make sure that the LCD TV fits the cabinet properly when a high degree of precision
is required, we recommend that you use the LCD TV itself to make the necessary
cabinet measurements. Panasonic cannot be responsible for inaccuracies in cabinet
design or manufacture.

Specifications are subject to change without notice.
Non-metric weights and measurements are
approximate.

P110118

Note

Limited Warranty (for Canada)

Support Information

63

USA Only: Disposal may be regulated in your community due to
Environmental considerations. For disposal or recycling information,
please visit Panasonic website: http://www.panasonic.com/environmental
or call 1-888-769-0149.

Customer’s Record

The model number and serial number of this product can be found on its back cover. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your
purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Anotación del cliente

El modelo y el número de serie de este producto se encuentran en su panel posterior. Deberá anotarlos en el
espacio provisto a continuación y guardar este manual, más el recibo de su compra, como prueba permanente de su
adquisición, para que le sirva de ayuda al identificarlo en el caso de que le sea sustraído o lo pierda, y también para
disponer de los servicios que le ofrece la garantía.

Modelo Número de serie

Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America

One Panasonic Way, Secaucus
New Jersey 07094 U.S.A.

©

2011 Panasonic Corporation of North America. All Rights Reserved.

©

2011 Panasonic Corporation of North America. Todos los Derechos Reservados.

Panasonic Canada Inc.

5770 Ambler Drive
Mississauga, Ontario
L4W 2T3 CANADA

Printed in U.S.A.

Impreso en EE.UU.

M0111-0
