Operating Instructions
32”/37”/42” Class 1080p LCD HDTV
(31.5/37.0/42.0 inches measured diagonally)
Manual de instrucciones
Televisión de alta definición de 1080p y clase 32”/37”/42” de LCD
(31,5/37,0/42,0 pulgadas medidas diagonalmente)
For assistance (U.S.A./Puerto Rico), please call:
1-877-95-VIERA (958-4372)
or visit us at www.panasonic.com/contactinfo
For assistance (Canada), please call:
1-866-330-0014
or visit us at www.vieraconcierge.ca
Para solicitar ayuda (EE.UU./Puerto Rico), llame al:
1-877-95-VIERA (958-4372)
ó visítenos en www.panasonic.com/contactinfo
Model No.
Número de modelo
TC-L32U22
TC-L37U22
TC-L42U22
Quick Start Guide
See page 7-14
Guía de inicio rápido
vea la página 7-14
TM
English
Español
Thank you for purchasing this Panasonic product.
Please read these instructions before operating your set and retain them for future reference. The images shown in this manual are for illustrative purposes only.
Gracias por su decisión de comprar este producto marca Panasonic.
Lea estas instrucciones antes de utilizar su televisor y guárdelas para consultarlas en el futuro. Las imágenes mostradas en este manual tienen solamente fines ilustrativos.
TQB2AA0568
Experience an amazing level of multimedia excitement
Enjoy rich multimedia
VCR
Amplifier
Home theater system
DVD recorder/
Blu-ray Disc recorder DVD player/
Blu-ray Disc player
|
|
|
|
|
|
|
|
|
|
HDMI, the HDMI logo and High- |
|
|
||
Definition Multimedia Interface are |
VIERA Link™ is a trademark of |
|
||
trademarks or registered trademarks |
SDHC Logo is a trademark of |
|||
of HDMI Licensing LLC in the United |
Panasonic Corporation. |
SD-3C, LLC. |
||
States and other countries. |
|
|
||
|
|
|
|
|
|
|
|
Manufactured under license from Dolby |
|
HDAVI Control™ is a trademark of |
Laboratories. |
|
||
Dolby and the double-D symbol are |
|
|||
Panasonic Corporation. |
|
|||
trademarks of Dolby Laboratories. |
|
|||
|
|
|
|
|
|
|
|
|
|
2
SD memory card
Personal computer
Camcorder
Set Top Box
● Safety Precautions·········································4
● Accessories/Optional Accessory····················7 |
StartQuick Guide |
|
● Basic Connection ···········································9 |
||
● |
Identifying Controls ······································ 11 |
|
● |
First Time Setup···········································12 |
|
|
|
Enjoy your TV!
Basic Features
● Watching TV·················································15 |
Viewing |
|
● Using VIERA TOOLS ···································17 |
||
● Viewing with VIERA IMAGE VIEWER··········18 |
||
● |
Watching Videos and DVDs·························20 |
|
● |
Displaying PC Screen on TV························22 |
|

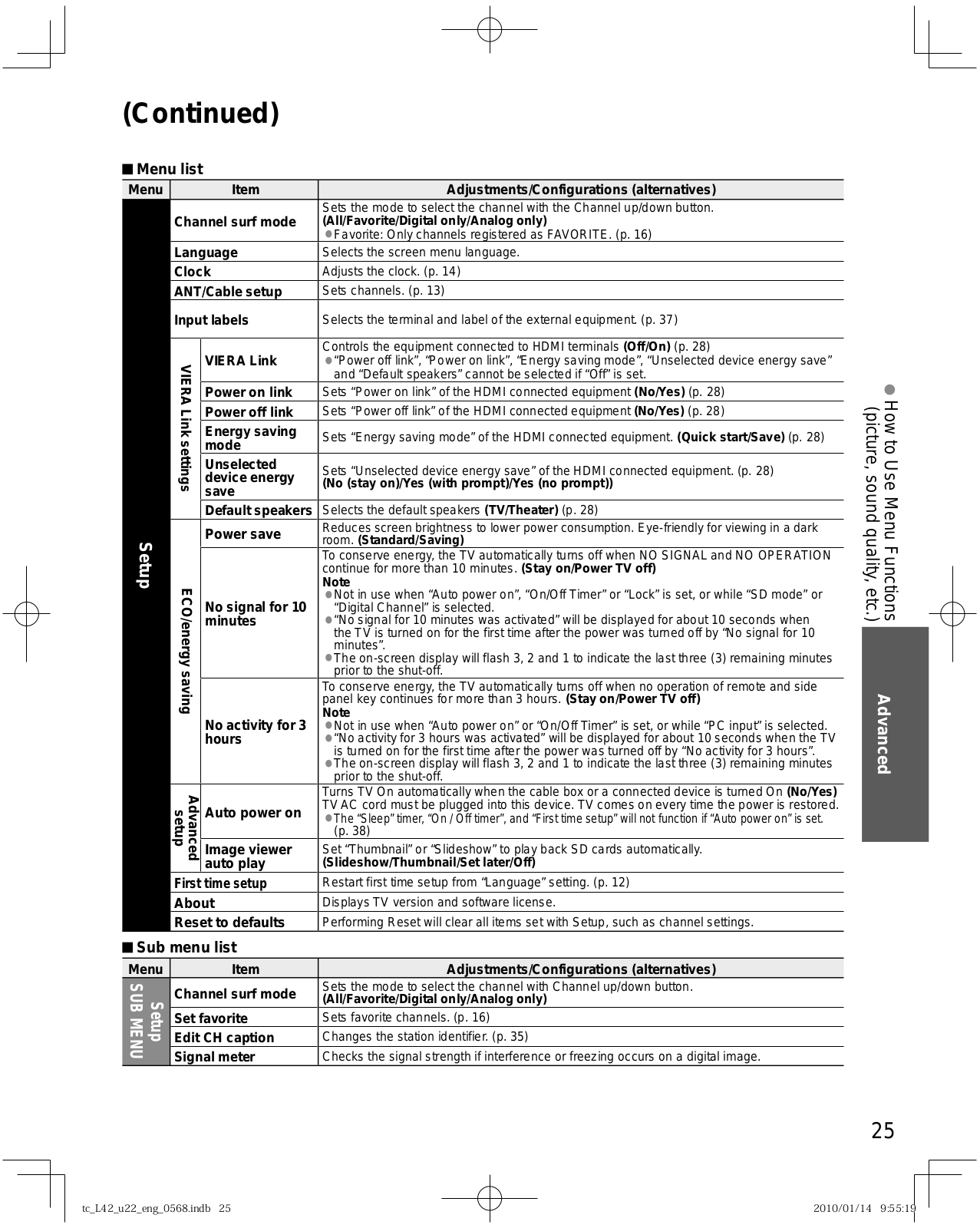

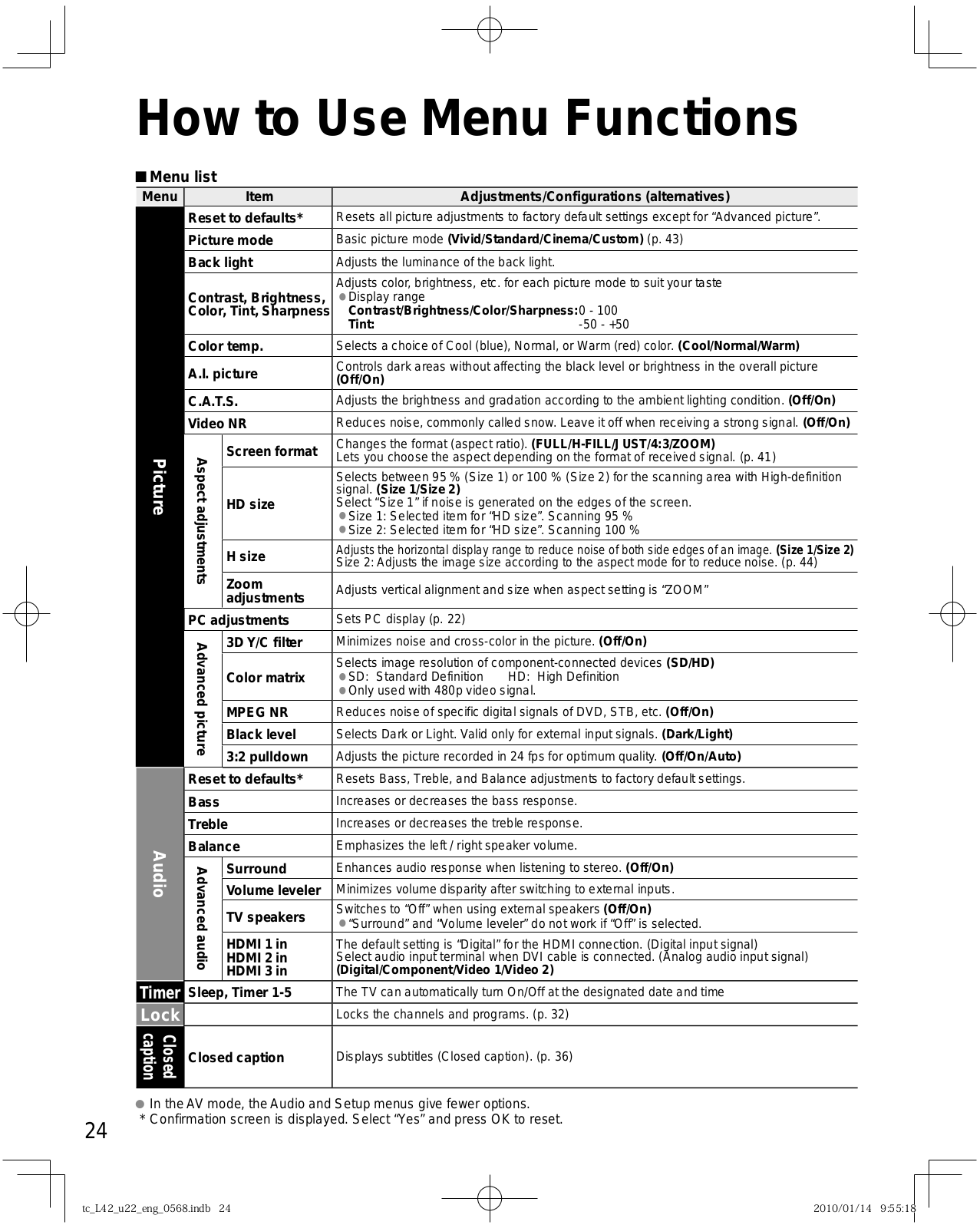

● How to Use Menu Functions |
|
|
(picture, sound quality, etc.) ·························23 |
|
|
● VIERA LinkTM “HDAVI ControlTM” ··················26 |
Advanced |
|
● Lock ·····························································32 |
||
|
||
● Editing and Setting Channels·······················34 |
|
|
● Closed Caption ············································36 |
|
|
● Input Labels ·················································37 |
|
|
● Using Timer··················································38 |
|
|
● Recommended AV Connections ··················39 |
|
This product qualifies for ENERGY STAR in the “Home Use” setting and this is the setting in which energy savings will be achieved.
Any modifications to the “Home Use” setting or other factory default settings could result in greater energy consumption beyond levels that meet ENERGY STAR qualifications.
●Ratings List for Lock ····································40

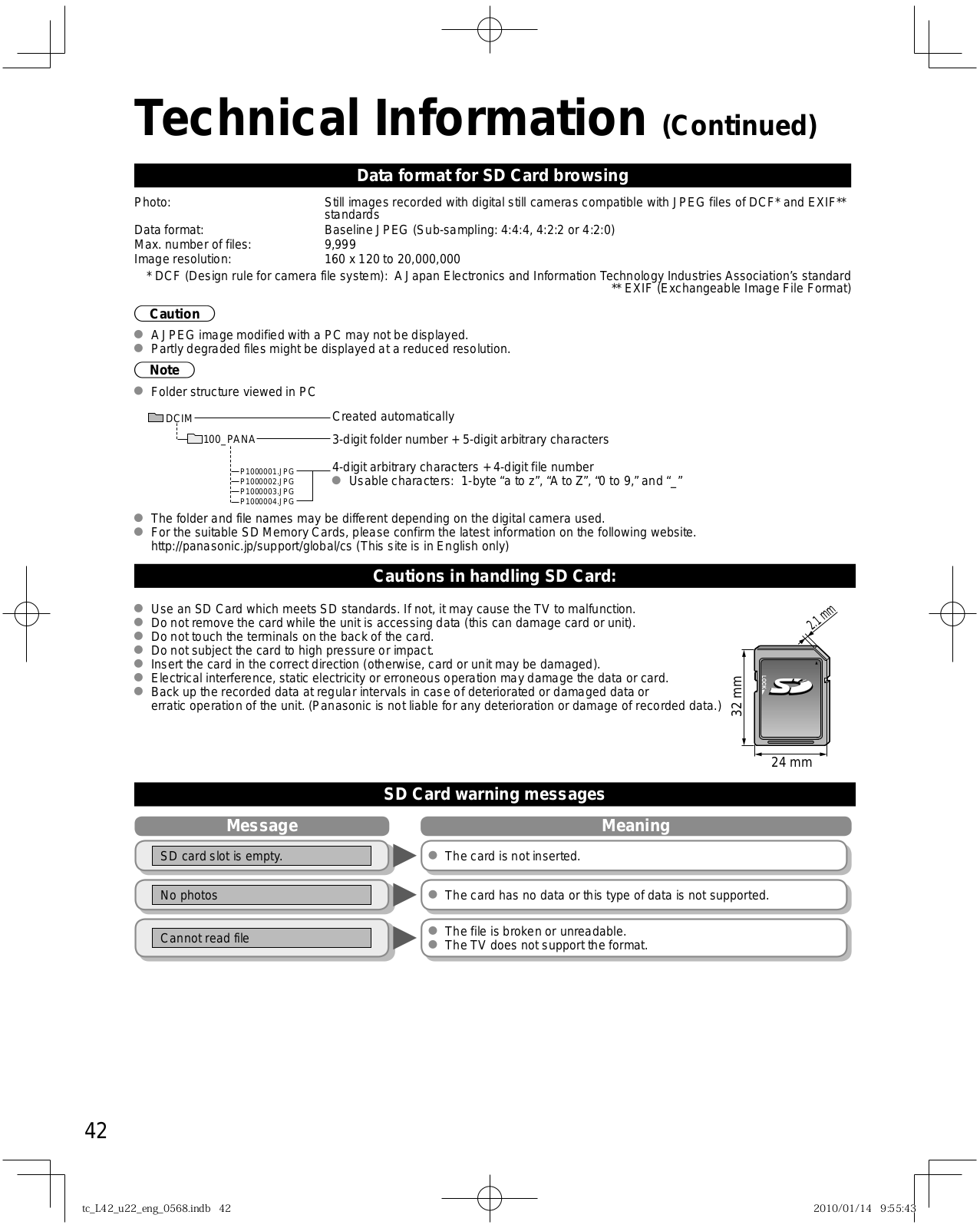

●Technical Information ···································41
●Care and Cleaning ·······································45
●FAQ······························································46
●Specifications···············································48
●Limited Warranty
(for U.S.A. and Puerto Rico only)·················49
●Customer Services Directory
(for U. S. A. and Puerto Rico)························50
●Limited Warranty (for Canada)·····················51
.etc FAQs,
3
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel.
The lightning flash with arrowhead within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons.
The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance.
Note to CATV System Installer
This reminder is provided to direct the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
Secure Ventilation
Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to ensure reliable operation of the LCD TV and to protect it from overheating. These openings must not be blocked or covered. There should be at least 10 cm of space from these openings. The openings should never be blocked by placing the LCD TV on a bed, sofa, rug or other similar surface. This LCD TV should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.
Important Safety Instructions
1)Read these instructions.
2)Keep these instructions.
3)Heed all warnings.
4)Follow all instructions.
5)Do not use this apparatus near water.
6)Clean only with dry cloth.
7)Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8)Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
9)Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10)Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11)Only use attachments / accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.
13)Unplug this apparatus during lightning storms or when unused for long periods of time.
14)Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15)Operate only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home consult your television dealer or local power
company.
16)Follow all warnings and instructions marked on the LCD TV.
17)Never push objects of any kind into this LCD TV through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the LCD TV.
18)If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges.
In the U.S. Section 810-21 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
EXAMPLE OF ANTENNA
GROUNDING AS PER
(NEC) NATIONAL |
ANTENNA |
|
ELECTRICAL |
||
CODE |
LEAD-IN WIRE |
|
GROUND CLAMP |
||
|
ANTENNA |
|
ELECTRIC |
DISCHARGE UNIT |
|
(NEC SECTION 810-20) |
||
SERVICE |
||
GROUNDING |
||
EQUIPMENT |
||
|
CONDUCTORS |
|
|
(NEC SECTION 810-21) |
|
|
GROUND CLAMPS |
|
|
POWER SERVICE GROUNDING |
|
|
ELECTRODE SYSTEM |
|
|
(NEC ART 250, PART H) |
4
19)An outside antenna system should not be located in the vicinity of overhead power lines, other electric light, power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
20)Unplug this LCD TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a.When the power cord or plug is damaged or frayed.
b.If liquid has been spilled into the LCD TV.
c.If the LCD TV has been exposed to rain or water.
d.If the LCD TV does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the LCD TV to normal operation.
e.If the LCD TV has been dropped or the cabinet has been damaged.
f.When the LCD TV exhibits a distinct change in performance - this indicates a need for service.
21)When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.
22)WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING.
DO NOT PLACE LIQUID CONTAINERS (FLOWER VASES, CUPS, COSMETICS, ETC.) ABOVE THE SET (INCLUDING ON SHELVES ABOVE, ETC.).
23) WARNING: SMALL PARTS CAN PRESENT CHOKING HAZARD IF ACCIDENTALLY SWALLOWED. KEEP SMALL
PARTS AWAY FROM YOUNG CHILDREN.
DISCARD UNNEEDED SMALL PARTS AND OTHER OBJECTS, INCLUDING PACKAGING MATERIALS AND PLASTIC BAGS/SHEETS TO PREVENT THEM FROM BEING PLAYED WITH BY YOUNG CHILDREN, CREATING THE POTENTIAL RISK OF SUFFOCATION.
24) CAUTION: The Power switch on this unit will not completely shut off all power from AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).
25) CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
26)CAUTION: USE WITH OTHER STAND MAY RESULT IN INSTABILITY POSSIBLY CAUSING INJURY.
27)CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME
OR EQUIVALENT TYPE.
28) CAUTION: This LCD TV is for use only with the following optional accessory. Use with any other type of optional accessories may cause instability which could result in the possibility of injury.
(All of the following accessories are manufactured by Panasonic Corporation)
•Wall-hanging bracket: TY-WK3L2RW
Always be sure to ask a qualified technician to carry out set-up.
NOTE: This equipment is designed to operate in North America and other countries where the broadcasting system and AC house current are exactly the same as in North America.
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Caution:
To assure continued compliance, follow the attached installation instructions and use only shielded interface cables when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by Panasonic Corp. of North America could void the user’s authority to operate this device.
FCC Declaration of Conformity
Model No. TC-L32U22, TC-L37U22, TC-L42U22
Responsible Party: |
Panasonic Corporation of North America |
|
One Panasonic Way, Secaucus, NJ 07094 |
Contact Source: |
Panasonic Consumer Electronics Company |
|
1-877-95-VIERA (958-4372) |
email: |
consumerproducts@panasonic.com |
5
Safety Precautions (Continued)
CEA CHILD SAFETY NOTICES: Flat panel displays are not always supported on the proper stands or installed according to the manufacturer’s recommendations. Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and may cause personal injury or even death.
The consumer electronics industry (of which Panasonic is a member) is committed to making home entertainment enjoyable and safe. To prevent personal injury or death, be sure to follow the following safety guidelines:
TUNE INTO SAFETY:
•One size does NOT fit all. Follow the manufacturer’s recommendations for the safe installation and use of your flat panel display.
•Carefully read and understand all enclosed instructions for proper use of this product.
•Don’t allow children to climb on or play with furniture and television sets.
•Don’t place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers.
•Remember that children can become excited while watching a program, especially on “larger than life” flat panel displays. Care should be taken to install the display where it cannot be pushed, pulled over, or knocked down.
•Care should be taken to route all cords and cables connected to the flat panel display so that they cannot be pulled or grabbed by curious children.
WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:
•Use a mount that has been recommended by the display manufacturer and/or listed by an independent laboratory (such as UL, CSA, ETL).
•Follow all instructions supplied by the display and wall mount manufacturers.
•If you have any doubts about your ability to safely install your flat panel display, contact your retailer about professional installation.
•Make sure the wall where you are mounting the display is appropriate. Some wall mounts are not designed to be mounted to walls with steel studs or old cinder block construction. If you are unsure, contact a professional installer.
•A minimum of two people are required for installation. Flat panel displays can be heavy.
The American Academy of Pediatrics discourages television viewing for children younger than two years of age.
This product incorporates the following software:
(1)software developed independently by or for Panasonic Corporation,
(2)software owned by a third party and licensed to Panasonic Corporation,
(3)software licensed under the GNU General Public License, Version 2 (GPL v2),
(4)software licensed under the GNU LESSER General Public License (LGPL) and/or,
(5)open source software other than software licensed under the GPL and/or LGPL
For the software categorized as (3) or (4), please refer to the terms and conditions of GPL v2 and LGPL, as the case may be. at http://www.gnu.org/licenses/old-licenses/gpl-2.0.html and http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html In addition, software categorized as (3) or (4) is copyrighted by several individuals and/or entities. Please refer to the copyright notice of those individuals at http://www.am-linux.jp/dl/DTV10UT/.
GPL/LGPL SOFTWARE IS DISTRIBUTED IN THE HOPE THAT IT WILL BE USEFUL, BUT WITHOUT ANY WARRANTY, EXPRESS, IMPLIED OR STATUTORY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
For at least three (3) years from delivery of products, Panasonic will give to anyone who contacts us at the address provided below, for a charge of no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL v2/LGPL. Contact Information
cdrequest@am-linux.jp
Source code is also freely available to you and any other member of the public via our website below. http://www.am-linux.jp/dl/DTV10UT/
6
Accessories Check you have all the items shown.
Accessories
Remote Control |
Batteries for the |
Transmitter |
Remote Control |
N2QAYB000485 |
Transmitter (2) |
|
AA Battery |
Operating Instructions
VIERA Concierge and Quick Start
Guide
Pedestal
TBL4GA0042 (TC-L32U22) TBL2AX0029 (TC-L37U22) TBL2AX0031 (TC-L42U22)
How to assemble (p. 8)
Product Registration Card (U.S.A)
Optional Accessory |
Please contact your nearest Panasonic dealer to purchase the recommended |
Wall-hanging bracket |
wall-hanging bracket. For additional details, please refer to the wall-hanging |
bracket installation manual. |
|
TY-WK3L2RW |
|
Back of the TV |
Screw for fixing the TV onto the |
|
|
7.9 ” |
wall-hanging bracket |
|
|
(not supplied with the TV) |
|
||
(200 mm) |
|
||
Depth of screw: |
|||
7.9 ” |
|||
Minimum: 0.39” |
(10.0 mm) |
||
(200 mm) |
Maximum: 0.47” |
(12.0 mm)(32”/37”) |
|
|
1.57” |
(40.0 mm) (42”) |
|
|
M6 |
|
|
Holes for wall-hanging bracket |
(View from the side) |
|
WARNING |
installation |
||
|
|||
|
|
Customers assumes liability if mounting the unit themselves or if a Panasonic bracket is not used. Any damage resulting from not having a professional installer mount your unit will void your warranty.
Always be sure to ask a qualified technician to perform any necessary set-up. Incorrect fitting may cause equipment to fall, resulting in injury and product damage.
Do not mount the unit directly below ceiling lights (such as spotlights, floodlights or halogen lights) which typically give off high heat. Doing so may warp or damage plastic cabinet parts.
Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.
When using an angled-type wall hanging bracket, please ensure that there is sufficient space for the connecting cables so that they do not to press against the wall when the TV is tilted forward.
For safety reasons, remove units no longer being used from their wall-mounted locations.
Accessory Accessories/Optional Start Quick
Guide
Installing the remote’s batteries
Open
Close
Hook
Note the correct polarity (+ or -).
Caution
Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.
•Do not mix old and new batteries.
•Do not mix different battery types (such as alkaline and manganese batteries).
•Do not use rechargeable (Ni-Cd) batteries.
Do not burn or break batteries. |
7 |
|
Accessories/Optional Accessory
(Continued)
Attaching the pedestal to TV
■Assembling the pedestal
Fix securely with assembly screws A . (Total 4 screws) Tighten screws firmly.
A
Bracket
Front
Accessories
Assembly screws (4 of each)
A
XSS4+16FJK
M4 × 16
B
|
Base |
XYN4+F12FJK |
|
M4 × 12 |
|
(Image: TBL2AX0029) |
|
|
■Set-up |
|
Bracket (1) |
|
|
Fix securely with assembly screws . (Total 4 screws)
Tighten screws firmly.
B |
B
Base (1)
Foam mat or thick soft cloth
WARNING
Do not disassemble or modify the pedestal.
Otherwise the TV may fall over and become damaged, and personal injury may result.
Caution
Do not use any other TV and displays.
Otherwise the TV may fall over and become damaged, and personal injury may result.
Do not use the pedestal if it becomes warped or physically damaged.
If you use the pedestal when it is physically damaged, personal injury may result. Contact your nearest Panasonic Dealer immediately.
During set-up, make sure that all screws are securely tightened.
If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.
Reference of connection
Antenna terminal
Firmly tighten by hand.
8
Pin terminals |
HDMI terminal |
red blue green |
|
green |
|
Match colors of plugs and terminals. |
Insert firmly. |
Insert firmly. |
|
Example
TV
Connecting Antenna (To watch TV)
|
|
|
|
|
|
VHF/UHF Antenna |
VHF/UHF Antenna |
• NTSC (National Television System Committee): |
|||||
|
|
|
|
|
|
Conventional broadcasting |
|
|
|
|
|
|
• ATSC (Advanced Television Systems Committee): |
Cable TV |
|
|
|
|
Digital TV Standards include digital high-definition television (HDTV), |
|
|
|
|
|
|
|
standard-definition television (SDTV), data broadcasting, multi- |
|
|
|
|
|
|
|
|
|
|
|
|
|
channel surround-sound audio and interactive television. |
To connect the antenna terminal
VHF/UHF Antenna |
AC 110-127 V |
|
60 Hz |
||
|
||
Cable TV or |
Power Cord |
|
|
||
|
(Connect after all the |
|
|
other connections.) |
|
|
Back of the TV |
Cable
•You need to subscribe to a cable TV service to enjoy viewing their programming.
•You can enjoy high-definition programming by subscribing to a high-definition cable service.
The connection for high-definition can be done with the use of HDMI or Component Video cable. (p. 10)
•To view high-definition programming select the correct video input. (p. 20)
Note
Not all cables and external equipment shown in this book are supplied with the TV.
For more details on the external equipment’s connections, please refer to the operating manuals for the equipment. For additional assistance, visit us at: www.panasonic.com
www.panasonic.ca
Start Quick
Guide
TV) + (Antenna Connection Basic
Accessory Accessories/Optional
9
Basic Connection (Continued)
AV cable connections
Definition-High
Definition-Standard
To use HDMI terminals
AV Equipment
HDMI AV OUT
e.g. Blu-ray Disc player
Connecting to the HDMI terminals will enable you to enjoy high-definition digital images and high-quality sound.
The HDMI connection is required for a 1080p signal.
For “VIERA LinkTM connections”, please refer to p. 27.
To use COMPONENT terminals
|
|
Y |
|
|
green |
green |
green |
COMPONENT |
|
|
|
PB |
|
|
blue |
blue |
blue |
VIDEO OUT |
AV Equipment |
|
|
PR |
|
|
red |
|
|
|
|
red |
red |
|
|
|
|
|
|
||
|
|
L |
|
e.g. Blu-ray Disc |
white |
white |
white |
AUDIO |
player |
red |
|
R |
OUT |
|
red |
red |
|
|
To use COMPOSITE terminals
|
|
|
|
AV Equipment |
|
yellow |
yellow |
yellow |
COMPOSITE |
e.g. DVD Recorder |
|
|
|
L |
or |
||
white |
white |
white |
OUT |
||
|
|||||
red |
|
R |
|
|
|
red |
red |
|
e.g. VCR |
||
|
|
Note
For more details on the external equipment’s connections, please refer to the operating manual for the equipment.
10
TV controls/indicators
Front of the TV
Remote control sensor within about 23 feet
(7 meters) in front of the TV set
Power indicator
(on: red, off: no light)
Selects channels in sequence
Volume up/down
Menu navigations
Changes the input mode
Chooses menu and submenu entries
POWER button
C.A.T.S (Contrast Automatic Tracking System)
Note
The TV consumes a small amount of electric energy even when turned off.
Do not place any objects between the TV remote control sensor and remote control.
Remote control
Switches TV On or Off (Standby)
Changes the input mode (p. 20)
Displays Main Menu (p. 23)
Displays Sub Menu (p. 15, 25)
Colored buttons
(used for various functions) (for example, p. 14, 18, 31)
Volume up/down
Sound mute On/Off
Changes aspect ratio (p. 16, 41)
Switches to previously viewed channel or input modes
External equipment operations (p. 31)
Closed Caption On/Off (p. 15)
Selects Audio Mode for TV viewing (p. 15)
Exits from menu screen
VIERA Link menu (p. 30-31)
Display VIERA TOOLS (p. 17)
Viewing from SD Card (p. 18-19)
Selects/OK/Change
Returns to previous menu
Channel up/down
Displays or removes the channel banner (p. 16)
Operates the Favorite channel list function (p. 16)
Numeric keypad to select any channel (p. 15) or press to enter alphanumeric input in menus
(p. 14, 20, 22, 30, 32, 34, 37, 38)
Use for digital channels. (p. 15)
Controls Identifying Start Quick
connections) cable (AV Connection Basic Guide
11
First time setup screen is displayed only when the TV is turned on for the first time after the power cord is inserted into a wall outlet and when “Auto power on” (p. 25) is set to “No”.
Turn the TV On with the POWER button
(TV) |
(Remote) |
or |
or |
|
Configure your viewing mode
Select your language
Language / Idioma / Langue
English |
|
|
|
|
Español |
Français |
|||
|
|
|
|
|
select
OK
Select your viewing mode (Be sure to select “Home use”)
Set viewing mode |
|
Step 2 of 6 |
|
|
Home Use |
|
|
|
Store Demonstration |
||
|
|
|
|
Select |
OK |
Please select your viewing environment. |
|
RETURN |
Select “Home Use” when using this TV in your |
||
|
home. |
||
|
|
||
|
|
|
|
select
OK
Please confirm your selection (Home Use) before pressing OK button.
If you select “Store Demonstration” by mistake in , confirmation screen will be displayed.
You are selecting the store demonstration mode.
Yes |
|
No |
If you select “Yes”, the picture mode will regularly reset
to “Vivid” and a Picture Refresh message will be displayed on the screen.
select
OK
Select “No” and return to previous screen .
If you select “Yes”, Screen enters the store demonstration mode.
To display the “Set viewing mode” screen again as shown above and select “Home Use”, do one of the following:
•Press and hold down the side POWER button for at least five seconds.
•Unplug power cord for 30 seconds and plug it again.
Note
is not available on - .
is not available on .
When you have used to turn the TV off, the next time you turn the TV on the “Language” settings will be displayed.
If you use any other step other than to turn the TV off, or if you used the EXIT button to quit before completing the settings, the next time you turn the TV on “First time setup” will not be automatically displayed.
•The settings up to that point are saved.
•You can reset the settings using “First time setup”. (p. 25)
To change the setting (Language, ANT/Cable setup, Input labels, Clock) later, go to the Menu screen (p. 25)
12
Press to return to the previous screen
Auto channel setup (ANT/Cable setup)
Select the connected Antenna in terminal
ANT/Cable setup |
|
Step 3 of 6 |
|
Not used: Go to |
Cable |
Antenna |
Not used |
|
(Label inputs) |
|
|
|
select |
|
|
|
Cable In |
|
|
|
|
ANTENNA |
|
|
|
|
ANTENNA |
OK |
|
|
|
Cable In |
|
Select |
OK |
Select “Not used” when viewing TV via |
RETURN |
Satellite receiver or Cable box. Note: Select |
|
|
“Cable” when viewing via Cable DTA Box. |
Select “Not used” when no wire is connected to the “Antenna/Cable” terminal. Typical when a Cable/Satellite box is connected to a TV input.
Prevents accidental tuning to an unavailable signal.
Select “Start”
Auto program |
|
Step 4 of 6 |
||
|
Start |
|
|
|
|
Skip |
|||
|
OK |
Start scanning for channels via the TV’s |
||
Select |
RETURN |
built-in tuner. Select “Skip” when viewing TV |
||
channels via Satellite receiver or Cable box. |
||||
|
||||
|
|
|
|
Skip: Go to
(Label inputs)
select
OK
Start scanning the channels
(Available channels are automatically set.)
Auto program
Progress |
8% |
Number of analog channels |
10 |
Number of digital channels |
0 |
Press RETURN to quit
RETURN
Complete the Auto program setup
Completion message is displayed when the Auto program scan is successfully
completed. |
|
If there is no available |
|
Auto program |
OK |
||
Number of analog channels |
channel, return to |
- |
|
10 |
(ANT/ Cable setup). |
|
|
Number of digital channels |
0 |
|
|
Auto program completed. |
|
“Not used” will be selected. |
Press OK to continue.
OK
RETURN
Operation of the EXIT button during “First time setup”
Press the button once to display confirmation screen. Press again to close confirmation screen.
[EXIT confirmation screen]
Are you sure you want to exit the First Time Setup? |
Yes |
Exit “First time setup” |
||
|
|
|
No |
Return to the original screen. |
Yes |
|
No |
||
|
|
|
To repeat the First Time Setup, select “First time setup” in the Setup Menu.
Setup Time First Start Quick
Guide
13
First Time Setup (Continued)
Select the Input labels (Label inputs)
Select NEXT then press OK to go to next step.
Label inputs |
|
Step 5 of 6 |
select |
|
Video 2 |
|
GA GA |
Blu-r |
|
|
|
|
|
||||||
|
|
|
or |
|
|
||||
HDMI 1 |
|
|
|
NEXT |
|
|
|
|
|
HDMI 2 |
|
|
set |
|
|
|
|
||
HDMI 3 |
|
|
|
|
OK |
|
1 @. |
2 ABC 3 DEF |
|
Component |
|
|
|
|
|
||||
|
|
|
|
Select |
|
4 GHI |
5 JKL 6MNO |
||
Video 1 |
|
|
|
|
RETURN |
7PQRS |
8 TUV 9WXYZ |
||
Video 2 |
Blu-ray, DVD ... |
|
|
|
LAST |
0 - , |
|||
|
|
|
|
||||||
PC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Next |
HDMI |
HDMI |
|
R |
|
G ABC |
abc |
B |
Y Delete |
|
|
|
|
|
|
|
|
|
|
Follow the instructions on |
Select |
Edit |
4 |
GHI 5 |
JKL |
6MNO |
Press RIGHT to select a label for each input. |
|
|
|
1 |
@. 2 ABC |
3 DEF |
Press OK to customize the label. |
screen to complete the |
|
Change |
|
7PQRS 8 TUV |
9WXYZ |
Example: DVD, Blu-ray, etc. or “Not used”. |
|
||
|
RETURN LAST 0 |
- , |
|
following operations. |
|||
R |
G ABC |
abc B |
|
|
Y Delete |
Label: [BLANK] Not used/Blu-ray/DVD/DVD REC/HOME THTR/GAME/COMPUTER/
VCR/CABLE/SATELLITE/DVR/CAMERA/MONITOR/AUX/RECEIVER/MEDIA
CTR/MEDIA EXT/OTHER
Adjust the Clock (Set clock)
Select NEXT then press OK to go to next step.
Set clock |
|
Step 6 of 6 |
select |
or |
Minute |
10 |
10 |
|
Year |
-- |
|
|
Next |
|
|
|
|
Month |
-- |
|
set |
|
|
|
|
|
Day |
-- |
|
|
|
|
0 |
9 |
|
Hour |
-- |
|
|
|
|
OK |
||
Minute |
-- |
|
|
|
Select |
|
|
|
Next |
|
|
|
|
RETURN |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Follow the instructions on |
Select |
Edit |
0 9 |
Current year. |
||
|
|
screen to complete the |
|||
Change |
RETURN |
|
|
|
|
|
|
|
|
|
following operations. |
|
|
|
|
|
Complete the First time setup
Completion message is displayed when you successfully completed the First time setup.
Setup is complete. Enjoy your
Panasonic VIERA TV.
|
OK |
Press OK to exit. |
|
RETURN |
|
|
|
|
Note
About broadcasting systems
Analog (NTSC):
Conventional broadcasting
Digital (ATSC):
New programming that allows you to view more channels featuring
high-quality video and sound
14
Basic connection (p. 9-10)
To watch TV and other functions
Turn power on
(Remote) |
(TV) |
Note |
If the mode is not TV, press and select TV. (p. 20)
or
Select a channel number
(Remote)
up
or down
(TV)
To directly enter the digital channel number
When tuning to a digital channel, press the button to enter the minor number in a compound channel number.
example: CH15-1:
Note
Reselect “Cable” or “Antenna” in “ANT in” of “ANT/Cable setup” to switch the signal reception between cable TV and antenna. (p. 13, 35)
The channel number and volume level remain the same even after the TV is turned off.
Other Useful Functions (Operate after )
Select Audio mode for watching TV
Listen with SAP (Secondary Audio Program)
Closed caption
Digital mode
Press SAP to select next audio track (if available) when receiving a digital channel.
Audio track 1 of 2 (English)
Analog mode
Press SAP to select the desired audio mode.
• Each press of SAP will change the audio mode. (Stereo/SAP/Mono)
Switches the Closed caption mode On or Off
Closed caption Off |
|
|
|
Closed caption On |
|
|
|
Closed caption On mute |
||||
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Press SUB MENU to show the sub menu screen (p. 25)
This menu consists of shortcuts to convenient functions.
Display the |
MENU |
Channel surf mode |
|
SUB |
Setup SUB MENU |
SUB MENU |
|
All |
|
|
Set favorite |
|
|
Edit CH caption |
|
|
Signal meter |
Start Quick
Guide
TV Watching Viewing
Setup Time First
15
Watching TV (Continued)
Displays or removes the channel banner
Channel Clock
Information |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
THE NEWS |
|
|
|
|
|
|
|
|
|
|||||
15-2 |
|
|
|
|
|
12:30 PM |
|
|||||||||
recall |
ABC-HD |
CC SAP |
TV-G 1080i |
Standard 4:3 |
30 |
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Station |
|
SAP |
|
Signal |
Picture |
|
Sleep |
timer |
|||||||
|
identifier |
|
indication |
resolution |
mode |
|
remaining time |
|||||||||
|
|
|
Closed |
caption |
Rating level |
|
Aspect ratio |
Change aspect ratio
Call up a favorite channel
Press FORMAT to cycle through the aspect modes (p. 41)
• 480i, 480p: FULL/JUST/4:3/ZOOM
• 1080p, 1080i, 720p: FULL/H-FILL/JUST/4:3/ZOOM
FAVORITE
Channel numbers registered in Favorite are displayed on the favorite tune screen. Select the desired broadcast station with the cursor or use number buttons. (see below)
Favorite Feature
Set the Favorite Feature
1 Display the SUB MENU.
SUB
MENU
2 Select “Set favorite”
Setup SUB MENU
Channel surf mode
All
Set favorite
Edit CH caption
Signal meter
3 Set the displayed channel
Set favorite |
1/3 |
|
1 |
26-1 |
|
2 |
|
|
3 |
|
|
4 |
|
or |
5 |
|
|
Delete a favorite channel |
||
Set favorite |
1/3 |
|
1 |
26-1 |
|
2 |
|
|
3 |
|
|
4 |
|
|
5 |
|
|
select
OK
select the list number
save the displayed channel
select the list number (to save the channel without pressing OK)
select
delete
(while holding down)
Use the Favorite Feature
1 Display “Favorite channels”
2 Select the channel |
select |
||
Favorite channels |
1/3 |
||
1 |
26-1 |
|
|
2 |
|
|
or |
3 |
|
|
|
4 |
|
|
|
5 |
|
|
|
3 Set Favorite channel |
|
||
Favorite channels |
1/3 |
OK |
|
1 |
26-1 |
|
|
2 |
|
|
|
3 |
|
|
|
4
5
To change the page
Press repeatedly to change between pages(1/3, 2/3, 3/3 or exit)
Changes the page forward/backward
16
