Before connecting, operating or adjusting this product,
please read the instructions completely.
Please keep this manual for future reference.
Note:
“EB” on the packaging indicates the United Kingdom.
Operations in these instructions are described using
remote control, but you can do the operations with the
main unit if the controls are the same.
Your unit may not look exactly as illustrated.

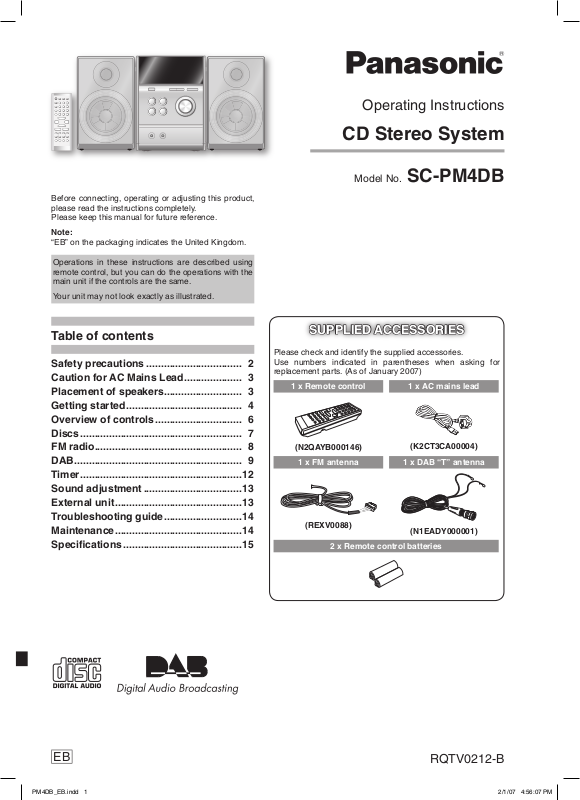

Operating Instructions
CD Stereo System
Model No. SC-PM4DB
Table of contents
Safety precautions ................................. 2
Caution for AC Mains Lead .................... 3
Placement of speakers ........................... 3
Getting started ........................................ 4
Overview of controls .............................. 6
Discs ........................................................ 7
FM radio ................................................... 8
DAB .......................................................... 9
Timer ........................................................ 12
Sound adjustment .................................. 13
External unit ............................................ 13
Troubleshooting guide ........................... 14
Maintenance ............................................ 14
Specifi cations ......................................... 15
SUPPLIED ACCESSORIESSUPPLIED ACCESSORIES
Please check and identify the supplied accessories.
Use numbers indicated in parentheses when asking for
replacement parts. (As of January 2007)
1 x Remote control
(N2QAYB000146)
1 x FM antenna
(REXV0088)
2 x Remote control batteries
1 x AC mains lead
(K2CT3CA00004)
1 x DAB “T” antenna
(N1EADY000001)
EB
RQTV0212-B
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these
instructions carefully.
These operating instructions are applicable to the following
system.
System SC-PM4DB
Main unit SA-PM4DB
Speakers SB-PM4
Side of product
Inside of product
THIS UNIT IS INTENDED FOR USE IN MODERATE
CLIMATES.
This product may receive radio interference caused by
mobile telephones during use. If such interference is
apparent, please increase separation between the product
and the mobile telephone.
The socket outlet shall be installed near the equipment
and easily accessible.
The mains plug of the power supply cord shall remain
readily operable.
To completely disconnect this apparatus from the AC
Mains, disconnect the power supply cord plug from AC
receptacle.
RQTV0212
2
Safety precautions
Placement
Set the unit up on an even surface away from direct
sunlight, high temperatures, high humidity, and excessive
vibration. These conditions can damage the cabinet and
other components, thereby shortening the unit’s service life.
Place it at least 15 cm away from wall surfaces to avoid
distortion and unwanted acoustical effects.
Do not place heavy items on the unit.
Voltage
Do not use high voltage power sources. This can overload
the unit and cause a fi re.
Do not use a DC power source. Check the source carefully
when setting the unit up on a ship or other place where DC
is used.
AC mains lead protection
Ensure the AC mains lead is connected correctly and not
damaged. Poor connection and lead damage can cause fi re
or electric shock. Do not pull, bend, or place heavy items on
the lead.
Grasp the plug fi rmly when unplugging the lead. Pulling the
AC mains lead can cause electric shock.
Do not handle the plug with wet hands. This can cause
electric shock.
Foreign matter
Do not let metal objects fall inside the unit. This can cause
electric shock or malfunction.
Do not let liquids get into the unit. This can cause electric
shock or malfunction. If this occurs, immediately disconnect
the unit from the power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain
fl ammable gases which can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is
interrupted, indicators fail to light, smoke appears, or any
other problem that is not covered in these instructions occurs,
disconnect the AC mains lead and contact your dealer or
an authorized service center. Electric shock or damage to
the unit can occur if the unit is repaired, disassembled or
reconstructed by unqualifi ed persons.
Extend operating life by disconnecting the unit from the
power source if it is not to be used for a long time.
■ Sales and Support Information
(For the United Kingdom and Republic of Ireland)
Customer Care Centre
• For UK customers: 08705 357357
• For Republic of Ireland customers: 01 289 8333
• Visit our website for product information
• E-mail: customer.care@panasonic.co.uk
Direct Sales at Panasonic UK
• Order accessory and consumable items for your product
with ease and confi dence by phoning our Customer
Care Centre Monday-Friday 9:00am-5:30pm. (Excluding
public holidays)
• Or go on line through our Internet Accessory ordering
application at www.panasonic.co.uk
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are
provided directly by Panasonic UK Ltd.
• It couldn’t be simpler!
• Also available through our Internet is direct shopping for
a wide range of fi nished products, take a browse on our
website for further details.
Interested in purchasing an extended guarantee?
Please call 0870 240 6284 or visit our website
www.panasonic.co.uk/guarantee.
Caution for AC Mains Lead
(For United Kingdom)
– If you see this symbol –
Information on Disposal for Users of Waste Electrical &
Electronic Equipment (private households)
(“EB” area code model only)
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains plug for your
safety and convenience.
A 5-ampere fuse is fi tted in this plug.
Should the fuse need to be replaced please ensure that the replacement
fuse has a rating of 5-ampere and that it is approved by ASTA or BSI
to BS1362.
Check for the ASTA mark m or the BSI mark o on the body of the
fuse.
If the plug contains a removable fuse cover you must ensure that it is
refi tted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a replacement
cover is obtained.
A replacement fuse cover can be purchased from your local dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUI T ABLE FOR THE
SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD
BE RE MOVED AND THE PLUG CUT OFF AND DIS POSED OF
SAFELY.
THERE IS A DANGER OF SEVERE ELECTRI CAL SHOCK IF THE
CUT OFF PLUG IS IN SERTED INTO ANY 13-AMPERE SOCKET.
If a new plug is to be fi tted please observe the wiring code as stated
below.
If in any doubt please consult a qualifi ed electrician.
IMPORTANT
The wires in this mains lead are coloured in accor dance with the
following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured Blue must be connected to the terminal which
is marked with the letter N or col oured Black or Blue.
The wire which is coloured Brown must be connected to the terminal
which is marked with the letter L or coloured Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH
TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH
SYMBOL n OR COLOURED GREEN OR GREEN/YELLOW.
For proper treatment, recovery and recycling, please take
these products to designated collection points, where they
will be accepted on a free of charge basis. Alternatively, in
some countries you may be able to return your products
to your local retailer upon the purchase of an equivalent
new product.
Disposing of this product correctly will help to save valuable
resources and prevent any potential negative effects on
human health and the environment which could otherwise
arise from inappropriate waste handling. Please contact
your local authority for further details of your nearest
designated collection point.
Penalties may be applicable for incorrect disposal of this
waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment,
please contact your dealer or supplier for further
information.
Information on Disposal in other Countries outside the
European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your
local authorities or dealer and ask for the correct method
of disposal.
Placement of speakers
This symbol on the products and/or
accompanying documents means that used
electrical and electronic products should not be
mixed with general household waste.
THIS PLUG IS NOT WATERPROOF—KEEP DRY.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of AC mains plug
(fi gures A and B). Confi rm the AC mains plug fi tted and follow the
instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A Figure B
Fuse cover
2. Replace the fuse and close or attach the fuse cover.
Figure A Figure B
Fuse
(5 ampere)
Fuse
(5 ampere)
Speakers are designed identically so that no left or right
channel orientation is necessary.
Use only the supplied speakers.
The combination of the main unit and speakers provide the
best sound. Using other speakers can damage the unit and
sound quality will be negatively affected.
Note
• Keep your speakers at least 10 mm away from the system for
proper ventilation.
• These speakers do not have magnetic shielding. Do not place
them near televisions, personal computers or other devices easily
infl uenced by magnetism.
• You cannot take the front net off the speakers.
Caution
• Use the speakers only with the recommended
system. Failure to do so can damage the amplifi er
and speakers, and can cause fi re. Consult a qualifi ed
service person if damage occurs or if a sudden
change in performance is apparent.
• Do not attach these speakers to walls or ceilings.
RQTV0212
3
Getting started
Step 1Step 1
Connect the AC mains lead only after all other connections have been made.
1
- Making the connections - Making the connections
Connect the speaker cables.
Red (ª)
Black (·)
Incorrect connection can damage the unit.
Black (·)
Red (ª)
2
Connect the DAB “T” antenna
The cross bar of the T should be kept fi rmly stretched.
Find a position with good reception.
There is a function on the unit to check signal quality.
For best reception
A DAB outdoor antenna is recommended
(refer to page 5).
Be sure to fully
tighten the screw.
Adhesive tape
RQTV0212
4
3
Connect the FM antenna.
Adhesive tape
FM antenna
Tape the FM antenna to a wall or column, in a position
with least amount of interference.
To household
mains socket
4
Connect the AC mains lead.
FOR THE UNITED KINGDOM ONLY
READ THE CAUTION FOR THE AC
MAINS LEAD ON PAGE 3 BEFORE
CONNECTION.
The included AC mains lead is for use
with this unit only. Do not use it with other
equipment.
Insertion of connector
ConnectorAppliance inlet
Even when the connector is perfectly inserted,
depending on the type of inlet used, the front
part of the connector may jut out as shown
in the drawing. However there is no problem
using the unit.
Optional antenna connectionsOptional antenna connections
DAB outdoor antenna
(not included)
Be sure to fully
tighten the screw.
■ DAB outdoor antenna
• Never use an outdoor antenna during a lightning storm.
Step 2Step 2
Step 3Step 3
- Inserting batteries into the remote control - Inserting batteries into the remote control
- DEMO function - DEMO function
■ Batteries
• Insert so the poles (+ and –) match those in the remote control.
• Remove if the remote control is not going to be used for a long period of
time. Store in a cool, dark place.
• Do not use rechargeable type batteries.
• Mishandling of batteries in the remote control can cause electrolyte
leakage, which may cause a fi re.
Do not:
• mix old and new batteries;
• use different types of batteries at the same time;
• heat or expose to fl ame;
• take apart or short-circuit;
• attempt to recharge alkaline or manganese batteries;
• use batteries if their covering has been peeled off.
■ Use
Aim at the remote control sensor, avoiding obstacles, at a maximum
range of 7 m directly in front of the unit.
Refer to page 6 for remote control signal sensor position.
When the unit is fi rst plugged in, a demonstration of its functions may be
shown on the display.
If the demo setting is off, you can show a demonstration by selecting
“DEMO ON”.
Press and hold [
The display changes each time the button is held down.
7, –DEMO].
$%-//&& $%-//.
While in standby mode, select “DEMO OFF” to reduce power
consumption.
RQTV0212
5
Overview of controls
Main unitMain unit
Refer to the numbers in parentheses for page reference.
Disc lid (7)
Top of unit
Disc lid open/close (7)
AC supply indicator (AC IN)
This indicator lights when the unit is
connected to the AC mains supply.
Press to switch the unit from on to standby mode
1 Standby/on switch (y/l) (7, 12)
or vice versa. In standby mode, the unit is still
consuming a small amount of power
2 Disc play/pause (7, 8)
3 Music port selection (13)
Music port jack (13)
Avoid listening for prolonged periods
of time to prevent hearing damage.
Headphone jack (A)
Plug type: 3.5
mm stereo
(not included)
.
Remote controlRemote control
Buttons such as 1 function the same as the controls on the main unit.
1
Sleep (12) / Auto off
Program (7, 8, 10)
Play mode (7, 8, 9, 10)
Repeat (7)
Display (7, 10)
3
6
5
Album selection (7, 10, 11)
Clock/Timer (12)
Play timer (12)
Numeric (7, 8, 10)
Delete (8)
2
/
Clear (7, 8)
Stop
Track skip/search, tune/
preset channel selection,
time adjustment, bass/treble
adjustment (7 to 13)
Display panel
Remote control sensor
4 Bass/Treble selection (13)
Track skip/search, tune/
preset channel selection,
time adjustment, bass/
treble adjustment
5 Volume control
6 Tuner/Band selection (8, 9)
Stop/Demo (5, 7, 8)
This function allows you
to turn off the unit in disc
mode only after left unused
for 10 minutes.
The setting is maintained
even if the unit is turned off.
Dims the display panel.
RQTV0212
6
Enter (7, 10, 11, 13)
Surround (13)
DAB menu (10, 11)
DAB secondary (10)
4
Preset EQ (13)
Muting
Dimmer
Mutes the sound.
• Press the button to activate.
• Press again to cancel.
Discs
Basic playBasic play
MP3
CD
Press [y] to turn the unit on.
1
Press [CD OPEN/CLOSE 0] to open the disc lid and
2
then load the disc. Close the lid.
Label must
face upward
Press [CD 6] to start play.
3
Adjust the volume.
4
To
stop the disc
pause play
skip tracks
search through
tracks
skip album
Play Mode functionPlay Mode function
MP3
CD
Press [CD 6].
1
Press [PLAY MODE] to select the desired mode.
2
Mode
1-TRACK
1TR
1-ALBUM
1ALBUM
RANDOM
RND
1-ALBUM
RANDOM
1ALBUM RND
Note
• During RANDOM or 1-ALBUM RANDOM play, you cannot skip to
tracks that have been played.
• The current play mode is cleared when you change a disc or open
the disc lid.
CD
• During RANDOM play, you can search backward or forward only
within the current track.
Action
Press [CLEAR 7 ].
Press [CD 6].
Press again to resume play.
Press [ /4] or [ /¢].
CD
Press and hold [ /4] or [ /¢] during
play or pause.
MP3
Press [ALBUM or ] in the play mode.
Press [ALBUM
numeric buttons in the stop mode.
To play
one selected track on the disc.
Press the numeric buttons to select the track.
MP3
one selected album on the disc.
Press [ALBUM
a disc randomly.
MP3
all tracks in one selected album randomly.
Press [ALBUM
or ] once and then the
or ] to select the album.
or ] to select the album.
Display functionDisplay function
This function allows you to display the information of the
current track.
Press [DISPLAY] repeatedly during play or pause mode.
CD
Elapsed play time Remaining play time
MP3
Elapsed time Album name Track name
ID3 (Artist)
Note
• Maximum number of displayable characters: approximately 30
• This unit supports ver. 1.0 & 1.1 ID3 tags. Text data that is not
supported will not be displayed.
• ID3 is a tag embedded in MP3 tracks to provide information about
the track.
ID3 (Track) ID3 (Album)
Advanced playAdvanced play
Repeat playRepeat play
You can repeat program play or other selected play mode.
MP3
CD
Press [REPEAT] before or during play.
“REPEAT ON” and “
To cancel
Press [REPEAT] again.
“REPEAT OFF” is displayed and “
Program playProgram play
This function allows you to program up to 24 tracks.
CD
Press [CD 6] and then [CLEAR 7 ].
1
Press [PROGRAM].
2
Press the numeric buttons to select your desired
3
track.
Repeat this step to program other tracks.
Example:
Press [CD 6] to start play.
4
MP3
Press [CD 6] and then [CLEAR 7 ].
1
Press [PROGRAM].
2
Press [ALBUM or ] to select your desired
3
album.
Press [ /¢] once and then the numeric buttons to
4
select your desired track.
Press [ENTER].
5
Repeat steps 3 to 5 to program other tracks.
Example:
4
5
” are displayed.
” is cleared.
Track number Program number
Program indicator
Album number
Press [CD 6] to start play.
6
Track number
RQTV0212
7
To
cancel program mode Press [PROGRAM] in the stop mode.
replay the program Press [PROGRAM] then [CD 6].
check program
contents
add to the program
clear the last track Press [DEL] in the stop mode.
clear all programmed
tracks
Note
• When you try to program more than 24 tracks, “PGM FULL”
appears.
• The program memory is cleared when you open the disc lid.
CD
• During program play, you can search backward or forward only
within the current track.
Note
• This unit can play MP3 fi les and CD-DA format audio CD-R/RWs
that have been fi nalized.
• It may not be able to play some CD-R/RWs depending on the
condition of the recording.
• Do not use irregularly shaped discs.
• Do not use discs with labels and stickers that are coming off or with
adhesive exuding from under labels and stickers.
• Do not attach extra labels or stickers on the disc.
• Do not write anything on the disc.
CD
• This unit can access up to 99 tracks.
• Choose a CD with this mark:
Action
[ /4] or [ /¢] when “PGM”
Press
is displayed in the stop mode.To check
while programming, press [PROGRAM]
twice after “PGM” appears, then press
[ /4] or [ /¢].
CD
Repeat step 3 in the stop mode.
MP3
Repeat steps 3 to 5 in the stop mode.
Press [CLEAR 7
“CLR ALL” is displayed.
] in the stop mode.
Using DualDiscs
The “CD” sides of DualDiscs do not meet the CD-DA standard so it
may not be possible to play them on this unit.
MP3
• Files are treated as tracks and folders are treated as albums.
• This unit can access up to 999 tracks, 255 albums and 20
sessions.
• Disc must conform to ISO9660 level 1 or 2 (except for extended
formats).
• To play in a certain order, prefi x the folder and fi le names with the
3-digit numbers in the order you want to play them.
FM radio
Manual tuningManual tuning
To tune automatically
[ /4] or [ /¢] for a moment until the frequency
Press
starts changing rapidly. The unit begins auto tuning, stopping
when it fi nds a station.
• Auto tuning may not function when there is excessive
interference.
• To cancel auto tuning, press
[ 4] or [ /¢] once
again.
To improve FM sound qualityTo improve FM sound quality
Press and hold [PLAY MODE] to display “MONO”.
To cancel
Press and hold [PLAY MODE] again until “MONO”
disappears.
• MONO is also cancelled if the frequency is changed.
• Turn off “MONO” for normal listening.
Memory presetMemory preset
Up to 20 stations can be set in the FM bands.
Preparation
Press [TUNER/BAND] to select “FM”.
Automatic presettingAutomatic presetting
Press and hold [PROGRAM] to start presetting.
Manual presettingManual presetting
Press [PLAY MODE] to select “MANUAL”.
1
Press [ /4] or [ /¢] to tune to the required
2
station.
Press [PROGRAM].
3
Press numeric buttons to select a channel.
4
The station occupying a channel is erased if another
station is preset in that channel.
Repeat steps 2 to 4 to preset more stations.
5
Selecting a preset stationSelecting a preset station
Press numeric buttons to select the channel.
For channels 10 to 20 press [
OR
Press [PLAY MODE] to select “PRESET”.
1
Press [ /4] or [ /¢] to select the channel.
2
h
10], then the two digits.
RQTV0212
8
Press [TUNER/BAND] to select “FM”.
1
Press [PLAY MODE] to select “MANUAL”.
2
Press [ /4] or [ /¢] to select the frequency of
3
the required station.
“ ST ” is displayed when a stereo FM broadcast is being
received.
DAB
DAB stands for digital audio broadcasting. It is a new form
of radio that is broadcast digitally. Unlike regular analogue
broadcasting, digital radio deteriorates less, and is thus able
to provide quality sound close to that of a disc.
DAB structureDAB structure
Bands
There are two types of DAB bands, “BAND III” (Receivable
in this unit) and “L BAND”(Not broadcast in the United
Kingdom, and not receivable on this unit).
Frequencies
There are 41 frequencies on BAND III. Among those
frequencies, 7 are used in the United Kingdom (current as
of January, 2007).
Ensemble, station and service
The number of stations that make up one frequency differ
between DAB and analogue radio. Analogue stations all
broadcast on different frequencies, even if it is the same
company doing the broadcasting. With DAB however, it is
possible to broadcast a number of stations on the same
frequency.
In DAB terminology, a group of stations on the same frequency
is called an ensemble.
Station Memory Updating
When there is a station name change, or a new station
begins broadcasting, the unit memory is automatically
updated when:
• The previous station name is displayed by selecting
“STATION TUNE”.
• One of the stations already broadcasting on the same
frequency with the new station is displayed by selecting
“STATION TUNE”.
Note
• Deleting stations that are no longer broadcasting is not automatic. If
you want to delete a station, perform Auto scan again and the new
memory is created.
• When a new frequency begins broadcasting, stations on that new
frequency are not automatically added to memory. Perform Auto
scan to add them to memory. Also, you may need to change the
Auto scan range if the new frequency is outside the factory set Auto
scan range (
STATION TUNE
You can select stations from the memory created as shown
above in alphanumeric order. You can easily select your
favorite stations by using presets (➡ page 10).
page 11).
➡
DAB operationDAB operation
Press [TUNER/BAND] to enter DAB mode.
1
The unit comes on.
As shown in the diagram, an ensemble consists of a group
of stations which have primary services, they can also
have secondary services. This means, for example, that
commentary on sports events from different areas can all be
broadcast at once.
DAB reception method on this unitDAB reception method on this unit
Depending on the region there is a difference between
broadcast frequency and stations broadcast along the same
frequency. For this reason, a memory of receivable stations
should fi rst be created and then select from those memorized
stations as the reception method.
DAB Auto Scan
This function searches for currently receivable stations and
inputs them into unit memory.
When DAB is selected for the fi rst time, this function starts
automatically.
Note
Even if the station is stored into memory, some stations
may not broadcast depending on the time of day etc. If this
occurs,“NO SERVICE” is displayed.
Note
“Scan Failed.” appears if no stations are memorized. If this occurs,
adjust the antenna and try Auto scanning or change the Auto scan
frequency range. (➡ page 11)
Press [PLAY MODE] to select “STATION TUNE”.
2
Each time you press the button:
“STATION TUNE”
Press [ /4] or [ /¢] to select a station.
3
The station name changes in alphanumeric order.
“PRESET TUNE”
RQTV0212
9
DAB Auto ScanDAB Auto Scan
DisplayDisplay
Press and hold [PLAY MODE] until “DAB Auto Scan”
appears.
When a frequency is tuned by Auto scanning on this unit,
the ensemble corresponding to the frequency is displayed
for approximately 2 seconds.
Note
• When updating memory with Auto scan, preset stations are not
erased or changed.
• When a frequency cannot be received, the previous memory is
restored.
• Total stations received is displayed for approximately 2 seconds.
PresettingPresetting
Presetting channel
Up to 20 channels can be set.
Press [ /4] or [ /¢] to select a station.
1
Press [PROGRAM].
2
Press the numeric buttons to select a channel.
3
To preset more stations, press [PLAY MODE] to
4
select “STATION TUNE” and then repeat steps 1 to 3.
Note
You cannot preset stations when the station is not broadcasting or
when you are selecting a secondary service.
Selecting a preset channel
Press [PLAY MODE] to select “PRESET TUNE”.
1
Press [ /4] or [ /¢] or numeric buttons to
2
select a channel.
Press [DISPLAY] to select the display.
The information scroll through the display.
Each time you press the button:
Turning automatic clock Turning automatic clock
adjustment function onadjustment function on
To adjust the time information during DAB broadcasting and
automatic time adjustment.
Press [DAB MENU] to enter menu mode.
1
Within 10 seconds, press [ALBUM or ] to select
2
“AUTO CLOCK ADJ.” and then press [ENTER].
10
Listening to the secondary Listening to the secondary
serviceservice
Press the [DAB SECONDARY] to select the secondary
service.
“
” is displayed if there is a secondary service broadcast.
The secondary services are selected each time the button
is pressed. The primary service is returned to after the last
secondary service.
RQTV0212
Within 10 seconds, press [ALBUM or ] to
3
select “ADJUST ON” and then press [ENTER].
Select “ADJUST OFF” to turn the automatic clock adjustment
function off.
To exit
Press [DAB MENU] again.
Checking the DAB signal qualityChecking the DAB signal quality
Changing the Auto scan Changing the Auto scan
frequency rangefrequency range
To improve reception by adjusting the antenna while
monitoring signal quality on the display.
Press [DAB MENU] to enter menu mode.
1
Note
“Scan Failed.”appears if no stations are memorized. If this occurs,
adjust the antenna and try Auto scanning or change the Auto scan
frequency range.
Within 10 seconds, press [ALBUM or ] to
2
select “SIGNAL QUALITY” and then press [ENTER].
Press [ALBUM or ] to select the frequency.
3
Frequency block
Reception quality
0 (poor) − 8 (excellent)
To exit
Press [DAB MENU] again.
Note
In order to enjoy the new stations after adjusting the antenna, it is
necessary to perform Auto scanning to update the station memory.
Frequency
Only the frequencies currently used in the UK as of January
2007 on BAND III are Auto scanned (“United Kingdom”,
factory setting).
Select “ALL BAND III” when you want to store stations on
other frequencies to memory.
Press [DAB MENU] to enter menu mode.
1
Within 10 seconds, press [ALBUM or ] to
2
select “DAB SCAN MODE” and then press [ENTER].
Within 10 seconds, press [ALBUM or ] to
3
select “UNITED KINGDOM” or “ALL BAND III” and
then press [ENTER].
Auto scan begins automatically after the change has been
made.
To exit
Press [DAB MENU] again
Note
When the “DAB SCAN MODE” is changed, the DAB preset channels
are erased and if the DAB play timer has been set the timer switches
to off.
RQTV0212
11
Timer
Using the play timerUsing the play timer
Setting the clockSetting the clock
This is a 24-hour clock.
Press [CLOCK/TIMER] to select “CLOCK”.
1
Each time you press the button:
CLOCK
Original display
Within 5 seconds, press [ /4] or [ /¢] to set
2
the time.
Press [CLOCK/TIMER] again to confirm.
3
Displaying the clock
Press [CLOCK/TIMER] to display the clock for few
seconds.
Note
The clock may lose or gain minutes over a period of time. Readjust
as necessary.
˚ PLAY
Using the sleep timerUsing the sleep timer
This function enables you to turn off the unit automatically
after the set time.
Press [SLEEP] repeatedly to select your desired time.
Sleep timer indicator
To cancel
Press [SLEEP] to select “OFF”.
Changing the remaining time
Press [SLEEP] to show the remaining time, and press
[SLEEP] again to select your desired time.
Note
• The play and sleep timer can be used together.
• The sleep timer always has priority. Be sure not to overlap timer
settings.
You can set the timer to come on at a certain time to wake
you up.
Preparation
Turn the unit on and set the clock.
Prepare the music source you want to listen to; disc, radio
or music port source, and set the volume.
Press [CLOCK/TIMER] repeatedly to select play
1
timer.
CLOCK ˚ PLAY
Original display
Within 5 seconds, press [ /4] or [ /¢] to set
2
the starting time.
Start time
Play timer indicator
Press [CLOCK/TIMER] to confirm.
3
Repeat steps 2 and 3 to set the finishing time.
4
Finish time
To activate the timer
Press [˚PLAY] to turn on the timer.
5
“˚PLAY” is displayed.
Press [y] to turn off the unit.
6
The unit must be off for the timer to operate.
To
change the settings Repeat steps 1 to 4 and 6.
change the source
or volume
check the settings
(when the unit is on
or in standby mode)
cancel Press [˚PLAY] to clear the timer indicator
Note
• The play timer will start at the preset time, with the volume
increasing gradually to the preset level.
• The timer comes on at the set time every day if the timer is on.
• The unit must be in the standby mode for the timer to function.
• If you turn the unit off and on again while a timer is functioning,
the fi nish time setting will not be activated.
• If MUSIC PORT is selected as the source when the timer
comes on, the system turns on and engages MUSIC PORT
as the source. If you wish to playback from the portable audio
equipment, activate the equipment’s play mode and increase the
volume. (See the portable audio equipment’s instruction manual.)
Action
1) Press [˚PLAY] to clear the timer
indicator from the display.
2) Make changes to the source or volume.
3) Perform steps 5 and 6.
Press [CLOCK/TIMER] repeatedly to
select ˚PLAY.
from the display.
12
RQTV0212
Sound adjustment
External unit
Selecting sound effectsSelecting sound effects
You can change the sound effect by selecting Preset EQ or
adjusting the bass or treble effect.
Preset EQPreset EQ
Press [PRESET EQ] repeatedly to select your desired
setting.
HEAVY
→
CLEAR → SOFT → VOCAL → EQ-OFF
Setting
HEAVY Adds punch to rock
CLEAR Clarifi es higher frequencies
SOFT For background music
VOCAL Adds gloss to vocal
EQ-OFF No effect
Bass or trebleBass or treble
Enable you to enjoy the lower or higher pitch sound.
Press [BASS/TREBLE] repeatedly to select your
1
desired setting.
Setting
BASS For lower pitch sound
TREBLE For higher pitch sound
Press [ /4] or [ /¢] to adjust the level.
2
Note
The tone level can be varied within -4 to +4.
Effect
BASS TREBLE
original display
Effect
Enjoying surround soundEnjoying surround sound
Connecting to a portable audio equipmentConnecting to a portable audio equipment
This feature enables you to enjoy music from portable audio
equipment.
MUSIC PORT
Audio cord (not included)
Portable audio equipment
(not included)
Playing from portable audio Playing from portable audio
equipmentequipment
Switch off the equalizer function (if there is any) of the
portable audio equipment before you plug into the MUSIC
PORT jack. Otherwise, sound from the speaker may be
distorted.
Plug the audio cord into the MUSIC PORT jack and
1
press [MUSIC PORT].
Play the portable audio equipment. (See the
2
portable audio equipment’s instruction manual.)
Note
All peripheral components and cables are sold separately.
Enable you to add natural width and depth to the stereo
sound.
To activate
Press [SURROUND] to display “
To cancel
Press [SURROUND] again to clear “
Note
• Surround-sound is less discernible when listening through
headphones.
• If interference in FM stereo reception increases, cancel the
surround-sound effect.
” indicator.
” indicator.
Changing the remote control codeChanging the remote control code
Change the code if you fi nd the remote control unintentionally
also controls other equipments.
Change the main unit’s code Change the main unit’s code
Press and hold [MUSIC PORT] on the main unit and then
press and hold [2] (or [1]) on the remote control.
“REMOTE 2” is displayed.
Change the remote control’s codeChange the remote control’s code
Press and hold [ENTER] and [2] (or [1]) on the remote
control for at least 2 second.
If the remote control and main unit are using different codes,
a message appears on the main unit’s display showing the
main unit’s current code. Follow the above step to change
the remote control’s code to match it.
RQTV0212
13
Troubleshooting guide
Before requesting service, make the below checks. If you can’t fi x the system as described below, or if something not
listed here occurs, refer to the enclosed directory to locate an Authorized Service Center convenient to you or contact your
dealer.
Common problems
No sound.
Sounds unfi xed, reversed or come from
one speaker only.
Humming heard during play.
“ERROR” is displayed.
“- -:- -” appears on the display.
“F76” is displayed.
Listening to the radio
Noise is heard.
The stereo indicator fl ickers or doesn’t
light.
Sound is distorted.
A beat sound is heard.
Listening to DAB
DAB reception is poor
DATA
SCRAMBLED
NO SERVICE
NO SIGNAL
Scan Failed
STATION FULL
Turn the volume up.
The speaker cords may not be connected properly. Turn the unit off, check and correct the
connections and turn the unit on (
Check the speaker connections (
An AC mains lead or fl uorescent light is near the cables. Keep other appliances and leads
away from this unit’s cables.
If possible in your area, turn the AC mains lead’s plug or connector over to reverse the
lead’s polarity.
Incorrect operation performed. Read the instructions and try again.
You plugged the AC mains lead in for the fi rst time or there was a power failure recently.
Set the time (
Check and correct the speaker cord connections (➡ page 4).
If this does not fi x the problem, there is a power supply problem. Consult the dealer.
The location and direction of the antenna are incorrect (
Turn the TV off or separate it from the unit.
Keep the antenna away from computers, televisions, other cables and cords.
Use an outdoor antennas (
Data broadcast being received over the DAB broadcast signal. Cannot be used on this unit.
The broadcast station being received cannot be accessed.
The station is currently not broadcasting.
This station cannot be received. Check your antenna (
Stations are not receivable. Check your antenna and try Auto scanning (
DAB station memory is full. Use the following method to clear station memory.
1. Press [DAB MENU].
2. Press [ALBUM
3. Press [ENTER].“OK? Push ENTER” is displayed.
4. Press [ENTER].
Station memory is erased and the unit automatically begins Auto scanning.
page 12).
➡
or ] to select “STATION CLEAR”.
page 5).
➡
page 4).
➡
page 4).
➡
page 4).
➡
page 4).
➡
page 4, 10).
➡
14
When there is a television set nearby
The picture on the TV disappears or
stripes appear on the screen.
The location and direction of the antenna are incorrect (
The TV antenna wire is too close to the unit. Separate the antenna wire of the TV set from
the unit.
Playing discs
The display is wrong or play won’t start.
The disc may be upside down (
Wipe the disc.
Replace the disc if it is scratched, warped, or nonstandard.
Condensation may have formed inside the unit due to a sudden change in temperature. Wait
about an hour for it to clear and try again.
page 7).
➡
The remote control
Remote control doesn’t work.
Check that the batteries are inserted correctly (
Replace the batteries if they are worn.
➡
Maintenance
If the surfaces are dirtyIf the surfaces are dirty
RQTV0212
To clean this unit, wipe with a soft, dry cloth.
• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, read the instructions that came with the cloth carefully.
page 5).
page 4).
➡
Specifi cations
AMPLIFIER SECTION
RMS OUTPUT POWER both channel
driven simultaneously
10 % Total harmonic distortion
10 W per channel (4 Ω)
Input impedance
MUSIC PORT 200 mV 8 kΩ
Output impedance
HEADPHONE 16 to 32 Ω
Phone jack
Terminal Stereo, 3.5 mm
Music Port jack
Terminal Stereo, 3.5 mm
DAB external antenna
Terminal F-connector (75 Ω)
FM TUNER SECTION
Frequency range
87.50 to 108.00 MHz (50 kHz step)
Antenna terminal(s) 75 Ω (unbalanced)
Preset station FM 20 stations
DAB SECTION
Frequency Band (Wavelength)
Band III (UK Only)
11B to 12D (218.640 MHz to 229.072 MHz)
Band III (Europe)
5A to 13F (174.928 MHz to 239.200 MHz)
Intermediate frequency
1st : 38.912MHz, 2nd : 2.048 MHz
Sensitivity *BER 4x10
MAX. input power 0 dBm
Min requirement -98 dBm
Selectivity
Adjacent Channel (Band III) 33 dB
Far-Off Channel (Band III) 45 dB
DAB memories 20 channels
-2
CD SECTION
Disc played [8 cm or 12 cm]
(1) CD-Audio (CD-DA)
(2) CD-R/RW (CD-DA, MP3 formatted
disc)
(3) MP3
Sampling frequency
CD 44.1 kHz
MP3 32 kHz, 44.1 kHz, 48 kHz
Bit rate
MP3 32 kbps to 384 kbps
Decoding 16/20/24 bit linear
Pickup
Wavelength 785 nm
Beam source Semiconductor laser
Laser power CLASS 1
Audio output (Disc)
Number of channels 2 channel
Frequency response
20 Hz to 20 kHz (+1, -2 dB)
Wow and fl utter Below measurable limit
Digital fi lter 8 fs
D/A converter MASH (1 bit DAC)
SPEAKER SECTION
Type 1 way, 1 speaker system
Speaker(s)
FULL RANGE 10 cm cone type (4 Ω)
Impedance 4 Ω
Input power (IEC) 10 W (MAX)
Output sound pressure 83 dB/W (1.0 m)
Frequency range 61 Hz to 17 kHz (-16 dB)
95 Hz to 15 kHz (-10 dB)
Dimensions (W x H x D)
139 mm x 227 mm x 136 mm
Mass 1.3 kg
GENERAL
Power supply AC 230 to 240 V, 50 Hz
Power consumption 38 W
Dimensions (W x H x D)
165 mm x 227 mm x 283 mm
Mass 2.2 kg
Operating temperature range
+5 to + 35˚C
Operating humidity range
5 to 90% RH (no condensation)
Power consumption in standby
mode 3.9 W (approx.)
Note
1. Specifi cations are subject to change
without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by
the digital spectrum analyzer.
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PRODUCT DAMAGE,
• DO NOT EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND THAT
NO OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE APPARATUS.
• USE ONLY THE RECOMMENDED ACCESSORIES.
• DO NOT REMOVE THE COVER (OR BACK); THERE
ARE NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION!
• DO NOT INSTALL OR PLACE THIS UNIT IN A
BOOK CASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS
WELL VENTILATED. TO PREVENT RISK OF
ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND
ANY OTHER MATERIALS DO NOT OBSTRUCT THE
VENTILATION VENTS.
• DO NOT OBSTRUCT THE UNIT’S VENTILATION
OPENINGS WITH NEWSPAPERS, TABLECLOTHS,
CURTAINS, AND SIMILAR ITEMS.
• DO NOT PLACE SOURCES OF NAKED FLAMES,
SUCH AS LIGHTED CANDLES, ON THE UNIT.
• DISPOSE OF BATTERIES IN AN
ENVIRONMENTALLY FRIENDLY MANNER.
RQTV0212
15
Matsushita Electric Industrial Co., Ltd.
Web Site: http://panasonic.net
En
RQTV0212-B
L0107LC0
Loading...
