Page 1

C": ^ V'

.yideo Cassette Recorder;

! -';'V \ . ¡.(„ '

iIj-, -

■ * ' '

NV-335^r

tOperating Instructions

VQT3733

VHS

Before attempting to connect, operate or adjust this product, please read these instructions completely.

Page 2

CONTENTS

Page

3 CAUTIONS

4 CONTROLS AND COMPONENTS

6 INFRA-RED REMOTE CONTROLLER

8 INSTALLATION

9 TUNING THE TV SET TO THE VIDEO PLAYBACK

CHANNEL

10 SETTING THE TUNER IN THE VTR

12 SETTING THE CLOCK TO THE PRESENT TIME

14 THE VIDEO CASSETTE

14 AUTO OPERATION

15 PLAYBACK

20 RECORDING FROM A TV BROADCAST SIGNAL

21 SUPER OTR FUNCTION (ONE-TOUCH TIMER

RECORDING)

23 TIMER RECORDING

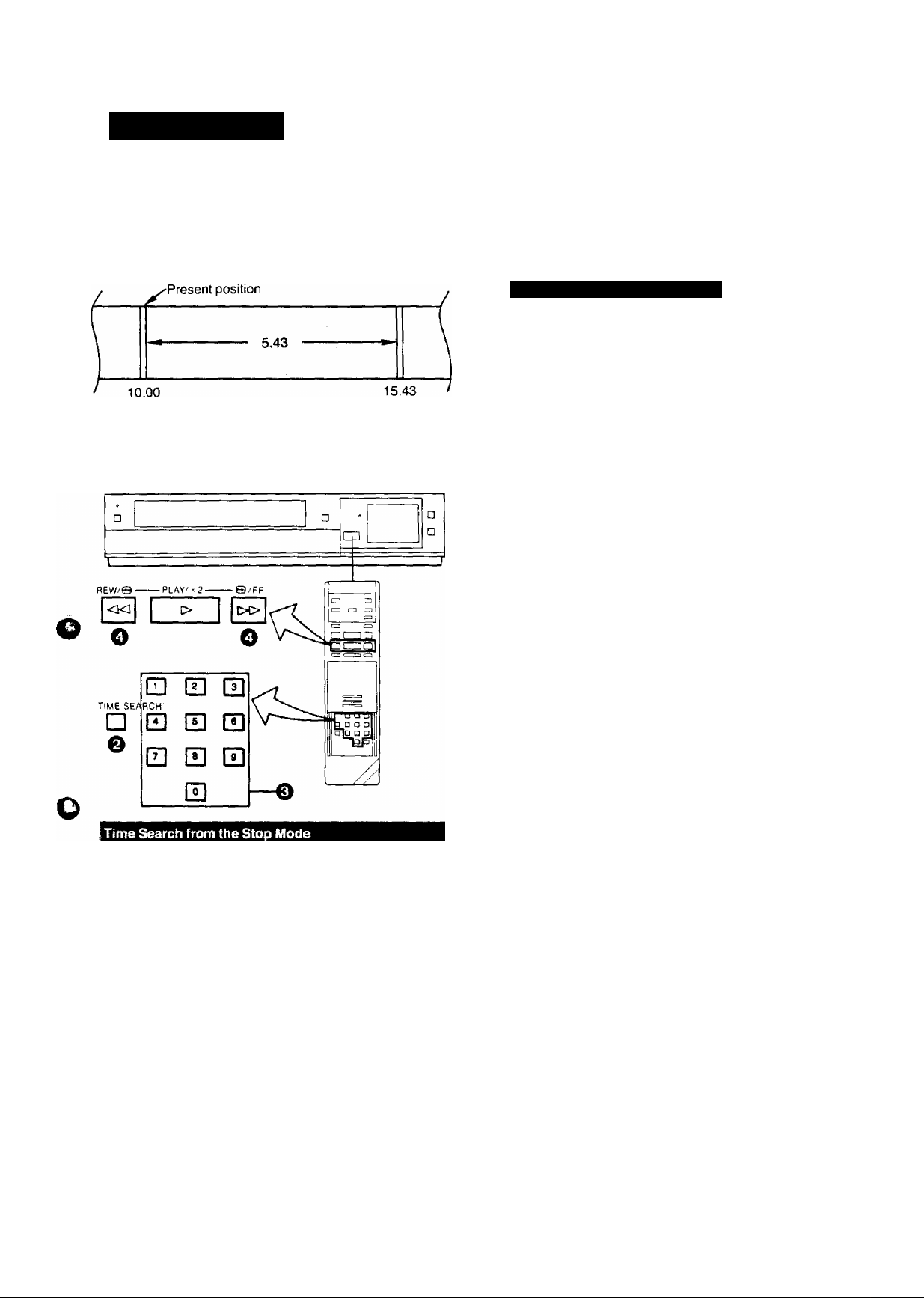

29 TIME SEARCH

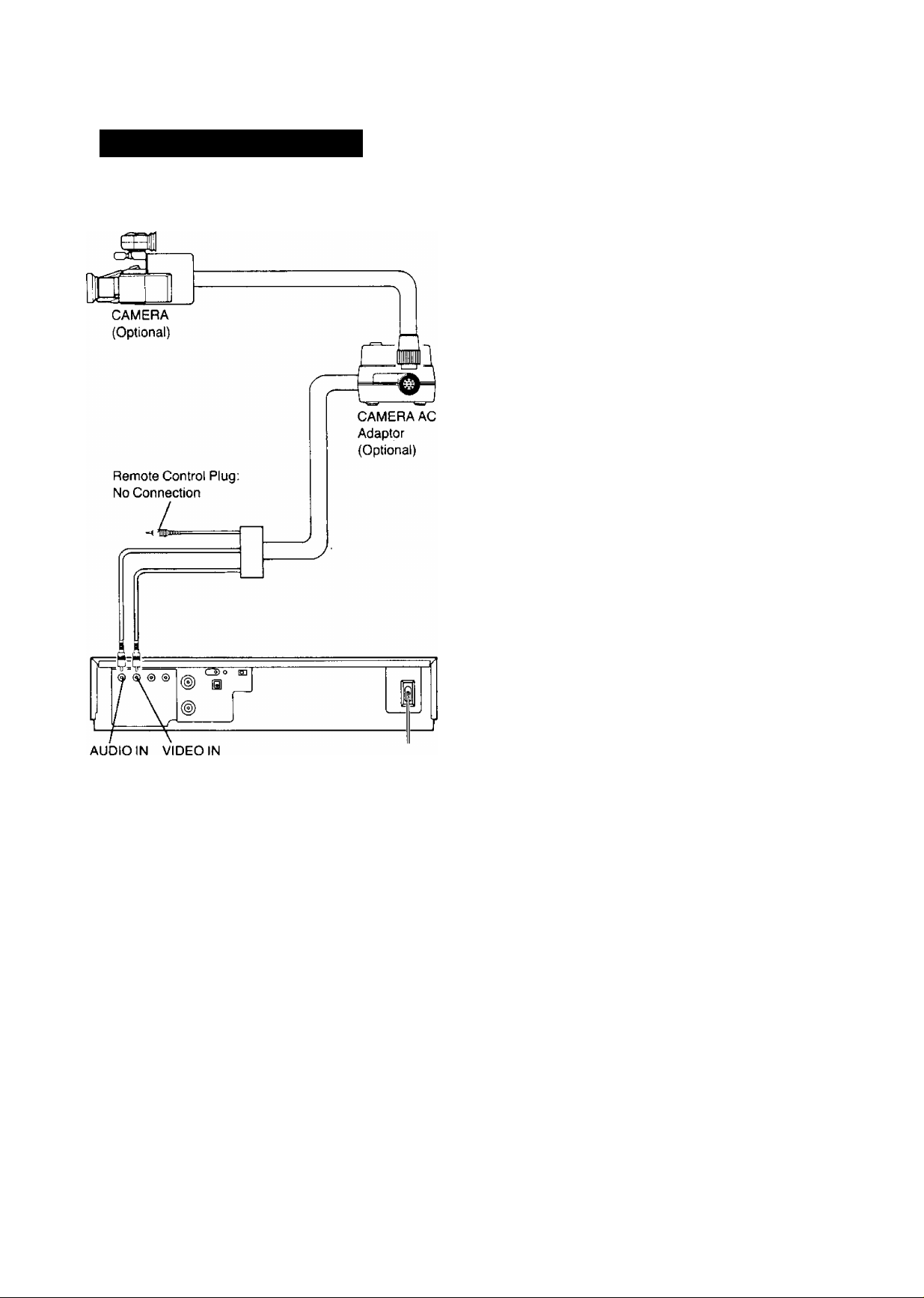

30 CAMERA RECORDING

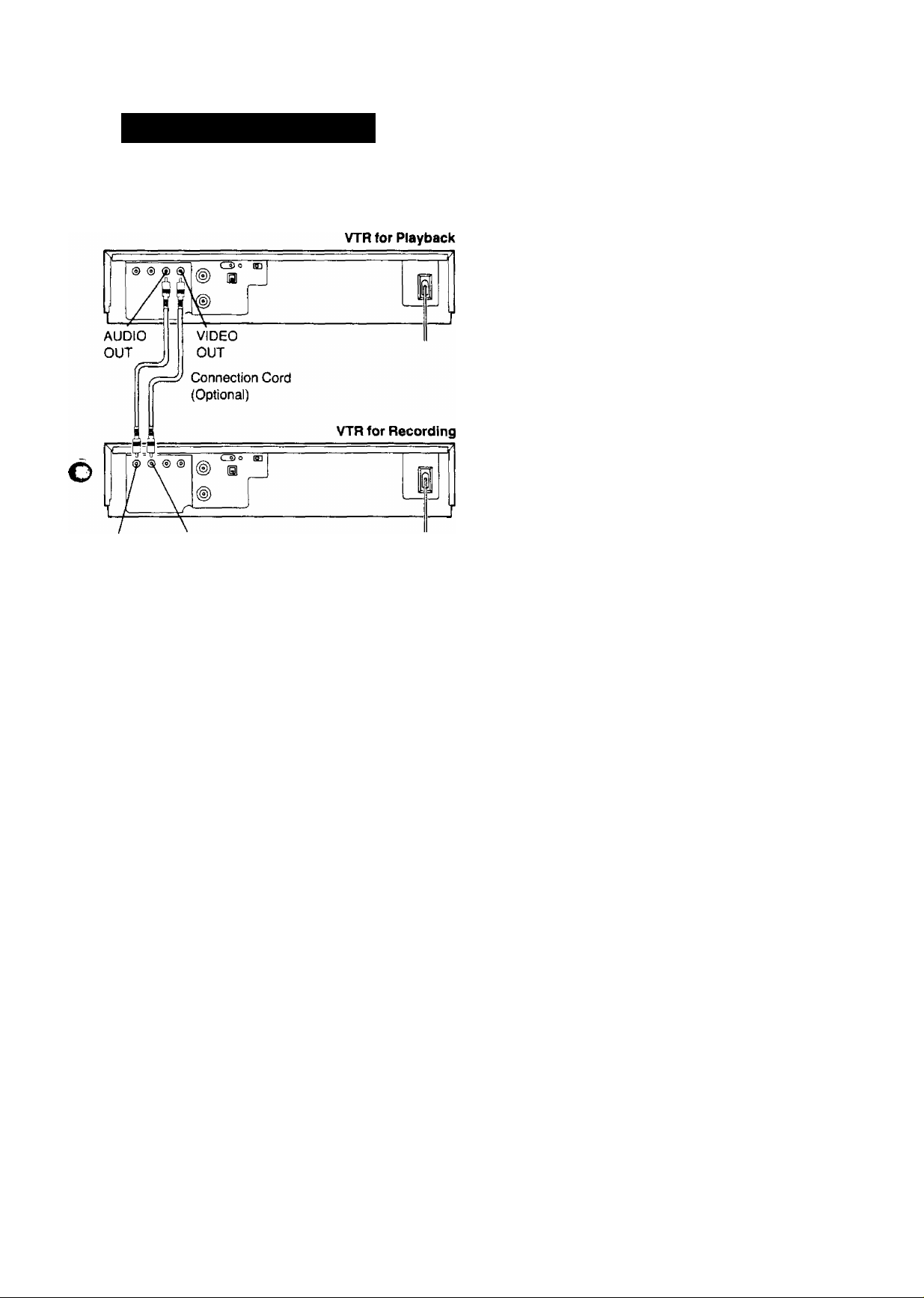

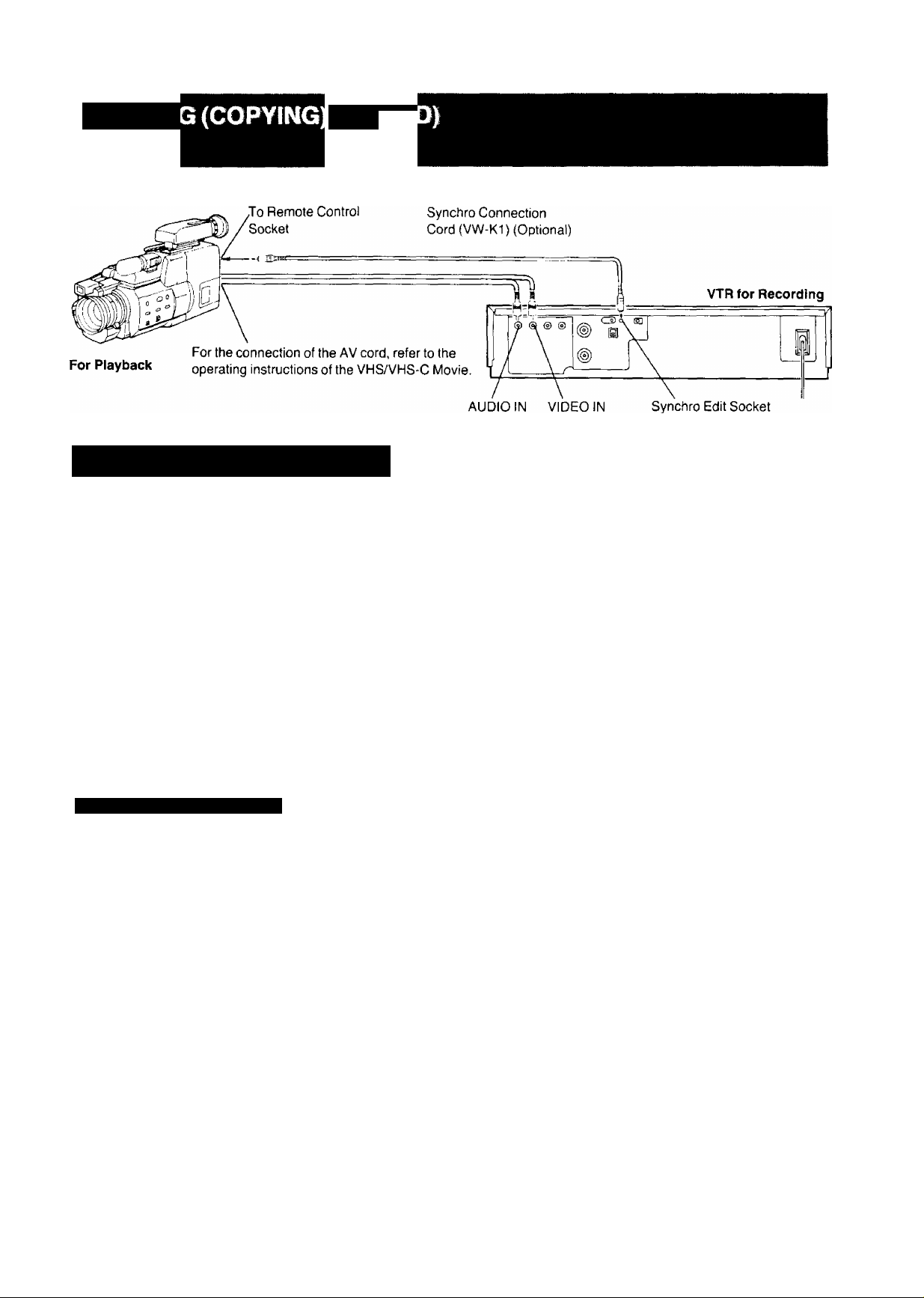

31 DUBBING (COPYING)

IMPORTANT

Your attention is drawn to the fact that

recording of pre-recorded tapes or discs or other published or broadcast material may infringe copyright laws.

WARNING

TO REDUCE THE RISK OF FIRE OR

SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

NV-J35A: Australian model NV-J35EA: New Zealand model

FOR YOUR SAFETY

■ DO NOT REMOVE OUTER COVER.

To prevent electric shock, do not remove

cover. No user serviceable parts inside. Refer servicing to quaiified service personnei.

is the safety information.

HQ (High Quality) Picture System

Video recorders carrying the HQ symbol mark feature the new VHS High Quality Picture System. This system as sures complete compatibility with VTRs that use the con ventional VHS system.

33 BEFORE REQUESTING SERVICE

35 SPECIFICATIONS

<2>

Page 3

Please read these cautions before you operate this VTR,

Cassette Compartment Door

When first unpacking the unit, you may notice that the

cassette compartment door is partially open. This condition

is due to the operation of a safety device designed to protect the unit from vibration during shipment: it is not a malfunction. When the AC mains lead is connected to a mains outlet, the door will return to its original position.

Stacking

Place the VTR in a horizontal position, and do not place anything heavy on it.

Lightning

To avoid damage by lightning, disconnect the aerial plug from the VTR.

Avoid Sudden Changes in Temperature

If the VTR is suddenly moved from a cold place to a warm

place, moisture may form on the tape and inside the VTR.

In this case, the Dew Indicator “d ” will flash on and off and

the VTR will not operate.

Humidity and Dust

Avoid places where there is high humidity or much dust,

which may cause damage to internal parts.

Do Not Obstruct the Ventilation Holes

The ventilation holes prevent abnormal increase in temper ature. Do not block or cover these holes. Especially avoid covering the holes with soft materials such as cloth or paper.

Keep away from High Temperature

Keep the VTR away from extreme direct heat such as direct sunlight, heating radiators, or closed automobiles.

Keep Magnets away

Never bring a magnet or magnetized object near the VTR because it will adversely affect the performance of the VTR.

No Fingers or Other Obj^s Inside

Touching internal parts of this VTR is dangerous, and may cause serious damage to the VTR. Do not attempt to dis assemble the VTR. There are no user serviceable parts

inside.

Keep Water away

Video Head Clogging

The video heads are the means by which the recorder places picture signals on the tape during recording, and reads picture signals from the tape during playback. If these heads become dirty and clogged from use, the signals can no longer be recorded correctly, and the playback picture will be distorted accordingly. This is the case, for example, during the playback of a tape, the sound is reproduced normally, but no picture is seen, or the picture is greatly distorted. When.such a symptom case occurs have the recorder checked by qualified service personnel.

If Dew Condensation Forms in the VTR

Condensation may form in the VTR if:

•The VTR is in a room where the heater has just been turned on.

• The VTR is in a room with steam or high humidity.

• The VTR is brought from cold surroundings into a wellheated room.

•The VTR is suddenly brought from cool surroundings, such as an air-conditioned room or car, to a place which is hot and humid.

When dew forms in the VTR: {Refer to page 5.)

The Dew Indicator “d ” on the Multi-Function Display will flash on and off and all the function buttons are made nonoperational to protect the tape and the video heads. When the Dew Indicator flashes, wait until this indicator

disappears.

• If dew condensation forms inside the VTR while the VTR

On/Off Switch is off, it will turn on automatically and the Dew Indicator will flash on and off. As soon as the dew condensation has been dissolved, the VTR will turn itself off again.

Keep the VTR away from flower vases, tubs, sinks, etc. CAUTION: If liquids are spilled into the VTR, serious damage could occur. If you spill any liquid into the VTR, consult qualified service personnel.

Cleaning the VTR

Wipe the VTR with a clean, dry cloth. Never use cleaning fluid, or other chemicals. And do not use compressed air to remove dust.

;3)

Page 4

CONTROLS AND COMPONENTS

FRONT

No. Description

Q VTR On/Off Switch with Indicator

Q Rewind ◄◄/Review Q Button

Q Play/X 2 Button

Q Fast Forward ►►/Cue Q Button

0 Stop Button (■)

0 Pause/Still Button (| I) 15

0 Record Button (•)

0 Cassette Compartment

0 Channel Selection Up and Down Buttons 10

0 OTR On Buttons 21 0 Band/AFC Button 10

0 OTR Off Buttons

0 Eject Button (A)

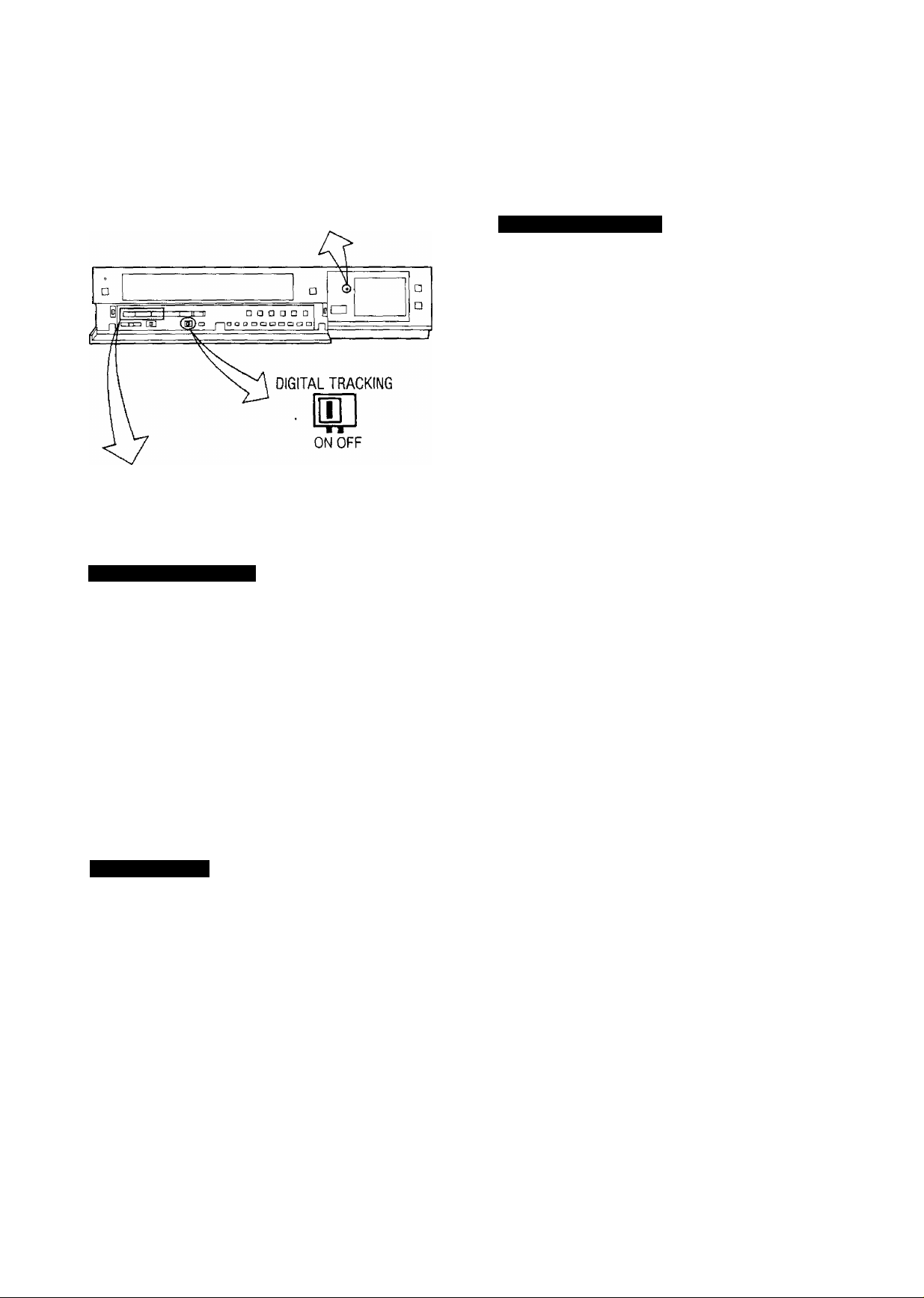

0 Digital Tracking Indicator 18

Page

No. Description

0 Clock/Counter Selector

0 Picture Sharpness Control

0 Noise Filter/Edit Selector

0 Digital Tracking Selector

0 Tape Speed Selector

0 VTR/TV Selector 9

0 Clock Button

0 Preset/Fine/Normal Button

0 Timer Controls

0 Clear Button

0 Timer Record Button

0 Infra-red Remote Control Receiver

Page

0 Multi-Function Display

0 Reset Button

Page 5

Multi-Function Display

®>-VTR

®-C0UNT_ .

©-MRljj

No. Description

^ Audio Input Socket

Page

When dew forms: ^ ^

Dew Indicator

No. Description Page

(i^ Cassette-in Indicator 14

@ Tape Running Display 15

@ Timer Recording Indicator

Double Speed Indicator

Recording Indicator

@ OTR Indicator

(7) Date Display

@ Ctock/Counter Indicator

@ Search Indicator

@ Repeat Indicator

0 Audio Output Socket

0 RF Output Socket

0 Vertical Lock Controls

0 Synchro Edit Socket

0 AC Mains Lead Socket

0 Video Input Socket

0 Video Output Socket

0 RF Input Socket

0 Video Playback Channel Selector

0 Test Signal Switch

(ll) Memory Indicator 19

@ Counter Mode Indicator

@ Tape Speed Indicator

^ Timer Programme Number

@ Channel Display

@ Position indicator

(l7) VTR Indicator 9

10 *

Page 6

INFRA-RED REMOTE CONTROLLER

^ VTR On/Off Button ^ Clock/Counter Selector

0 Reset Button Q Record Buttons (•) 0 Pause/Still Button (I I) 0 Stop Button (■) 0 Rewind ◄◄/Review © Button

0 Slow Buttons

0 Mode Selector Cover

(D Time Search Button 0 Monitor Button

0 Programme Position (Channel) Selector Buttons

Fast Forward ►►/Cue © Button

0 Play/x2 Button (►) 0 Still Advance Button (!!►)

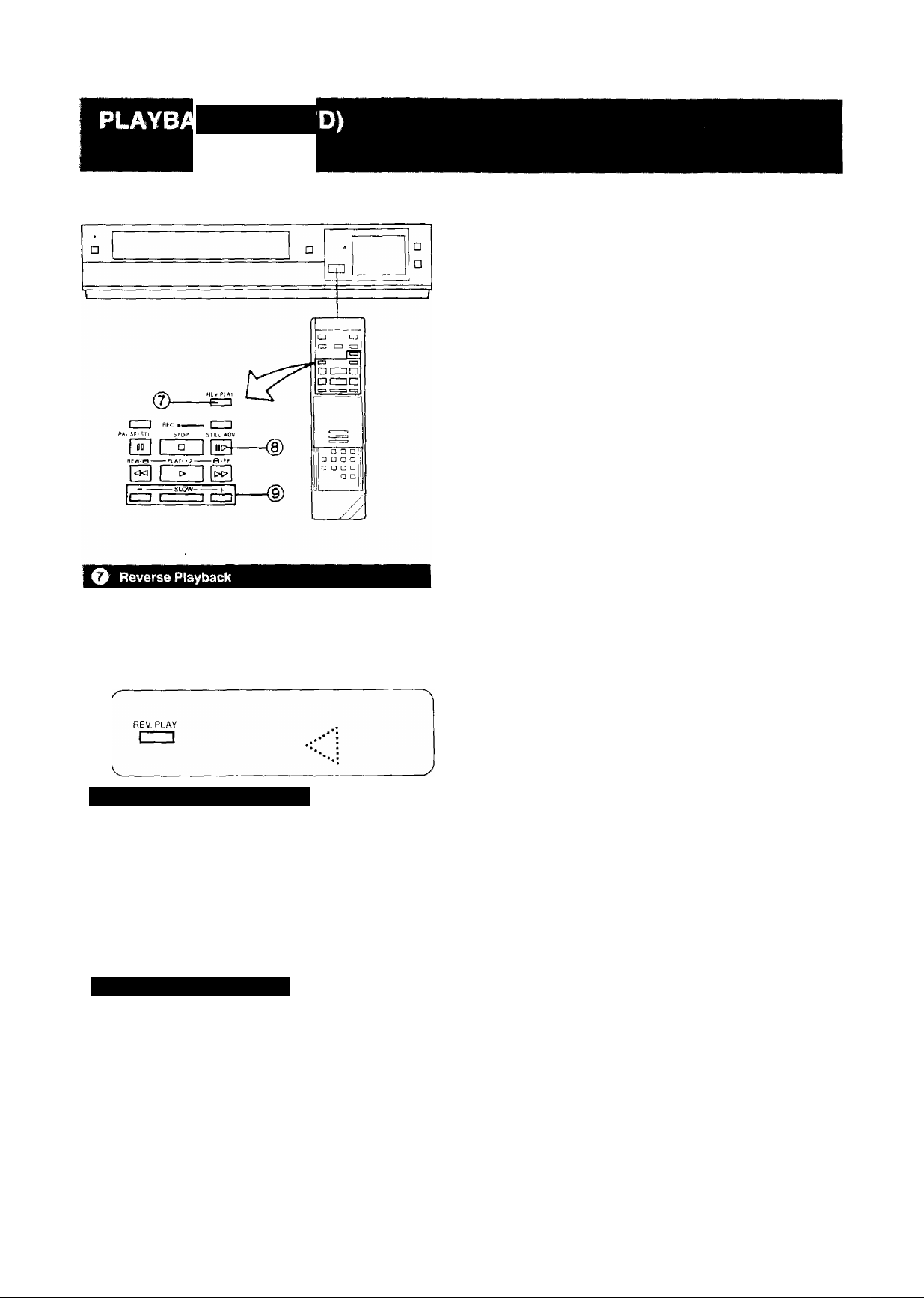

Reverse Play Button

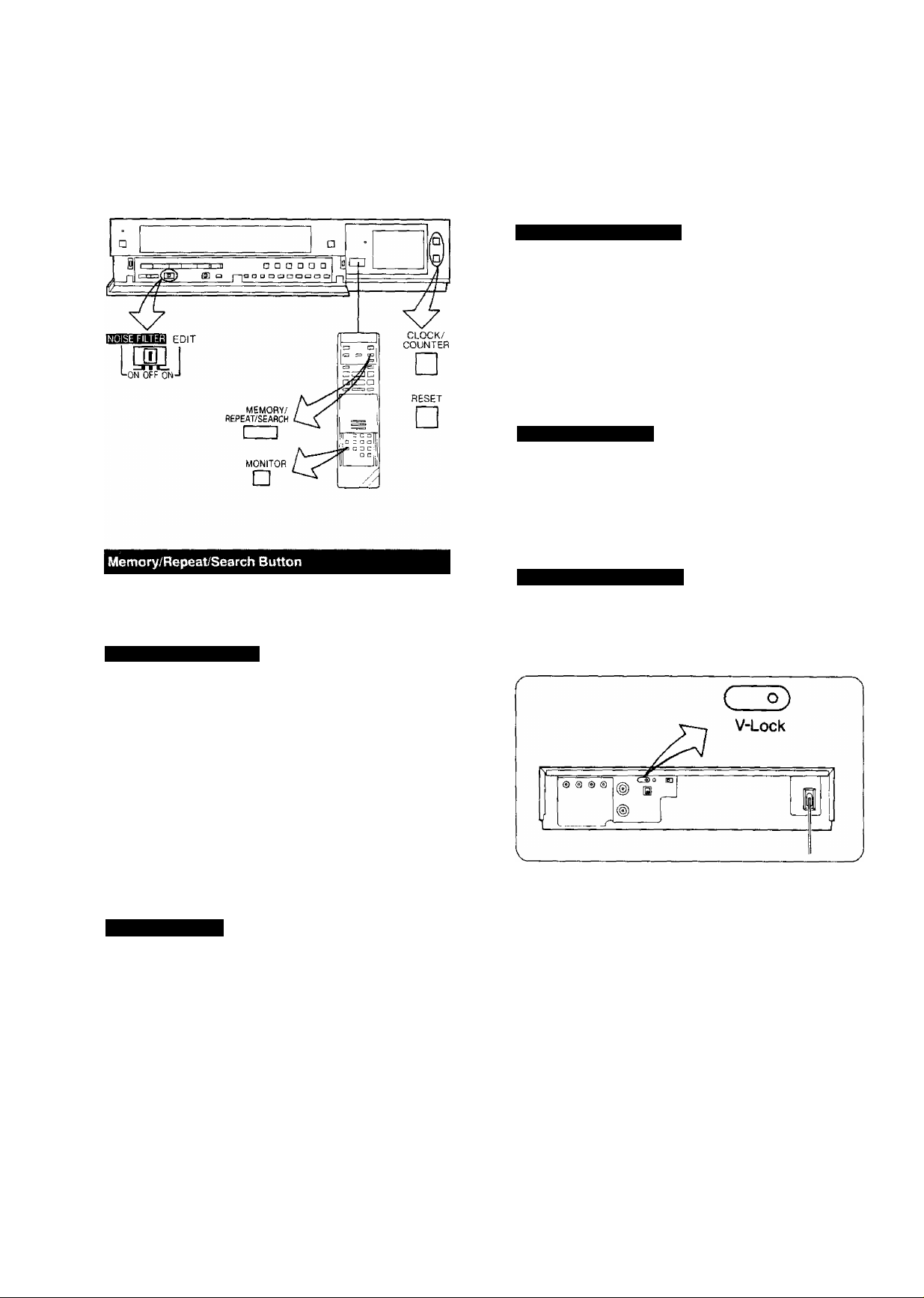

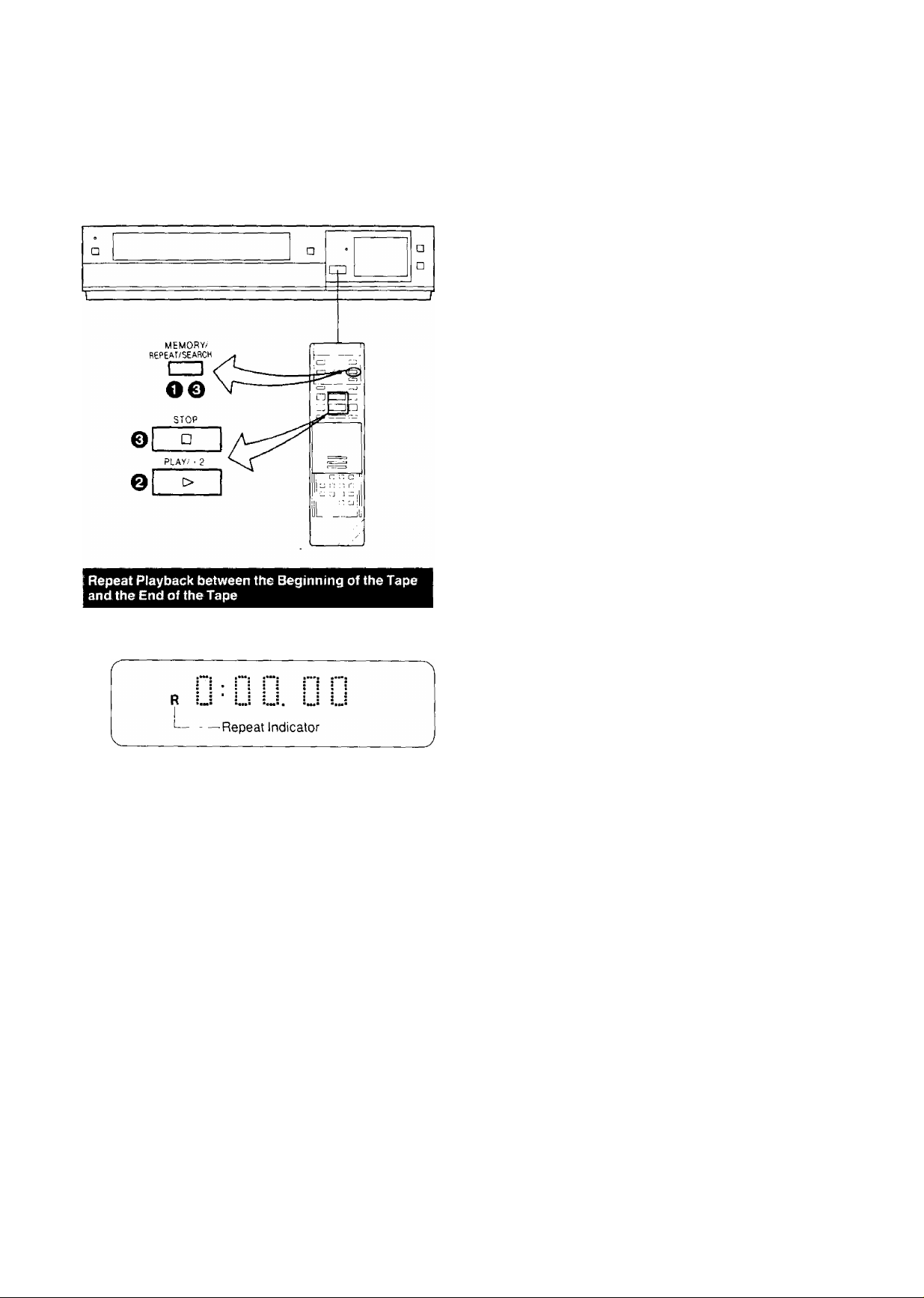

0 Memory/Repeat/Search Button

VTR/TV Selector

Use as Digital Scanner

Slide the Mode Selector Cover downward.

(j) Bar Code Reader Display

0 Channel Display

Start Time Display

0 End Time Display

Check Indicator

Digital Scanner On/Off Button

Bar Code Reading Section Transmit Button

When the Bar Codes Cannot Be Read

Although the lamp in the tip of the Bar Code Reading Section lights up:

•No figures appear in the Bar Code Reader Display

•No beep sounds is heard;

The tip of the Bar Code Reading Section is probably clogged with dirt.

Cleaning

(p Turn the Cap of the Bar Code Reading Section 90°

counterclockwise, as shown below.

Hole :^«!s.^Cap and dust from

the hole of the Cap.

Gently wipe the tip of the lamp with a soft doth.

Lamp »Reattach the Cap and lock it

by turning it clockwise.

(6)

Page 7

How to Operate the Remote Controller (Digital Scanner)

Press the Digital Scanner On/Off Button to “ON”.

• If no operation is performed for more than 25 seconds (4 minutes during setting of the clock time), the scanner will automatically switch over to the power-saving standby

condition and the lamp will go off. (In this case, if bar

codes have already been read but not yet transmitted to

the VTR, the data will be cancelled.)

• When the lamp is not lit, press the button to “ON” again.

Tracing the Bar Codes

(A) Place the Remote Controller on the Small Box. (B) Trace the bar code quickly in the direction of the arrow.

Power Source for the Remote Controller

■ The Remote Controller is powered by 2 I EC “R6” size batteries. The life of the batteries is about one year, however, it depends on the frequency of use. Inspect and if necessary, replace the batteries once a year.

CAUTION FOR BATTERY REPLACEMENT

• Load the new batteries with their polarities (-t- and -)

aligned correctly.

• Do not apply heat to batteries, or internal short-circuit may

occur.

• If you do not intend to use the Remote Controller for a

long period of time, remove the batteries and store them in a cool and dry place.

• Remove spent batteries immediately and dispose of them.

• Do not use an old and a new batteries together. (Also

never use an alkaline battery with a manganese battery.)

Load the batteries as follows:

^ Push back the battery compartment locking lever.

^ Lift off the battery compartment lid.

• Treat the Programming Sheet with care. If the sheet gels dirty or scratched, the bar code reading may become impossible.

• Protect the Remote Controller from strong shocks

and vibration. Keep it away from water and places

with high temperature and humidity.

• If the bar code is traced slowly, it cannot be read

correctly.

• When there is no “Beep” sound, the reading of the bar code is incomplete. Always check your Display

Window to confirm the function scanned has been

accepted.

• When using the Programming Sheet, put it on flat surface: Reading the bar codes while holding it in your hand or bending it, may result in incorrect op eration.

• Do not deviate from the bar code, nor stop tracing halfway.

0 Insert the batteries with their polarities aligned as indi

cated inside the battery compartment.

Q Replace the lid.

Note:

• The infra-red beam should be transmitted directly at the Infra-red Remote Control Receiver on the front of the VTR.

• Direct sunlight may interfere with the beam.

• The lighlsensing angle of the infra-red Remote Control

Receiver in the VTR is about 30^ for each side from the

centre.

• The unit should be used within a range of about 7 meters from the front of the VTR.

Recommendation

After the programming of timer recording(s) is completed, press the Digital Scanner On/Off Button so that the indica tions in the LCD Display disappear, in order to save battery power.

;7)

Page 8

INSTALLATION

Connection to a TV Set

NV-J35A: FOR YOUR SAFETY

Install any external aerial to AS 1417.1.

TV Set

(Select the video channel)

^ Connect the external aerial to the RF Input Socket on

the VTR.

@ Connect the aerial terminal on your TV set to the RF

Output Socket on the VTR with the supplied DIN-DIN Coaxial Cable.

@ If the TV set is equipped with separate video and audio

input sockets, it is recommended to connect the VTR to the TV set with separate video and audio cables,

(not supplied)

Q Connect the AC Mains Lead to the AC Mains Socket of

the VTR to the mains outlet.

^8)

Page 9

TUNING THE TV SETTO THE VIDEO PLAYBACK CHANNEL

The adjustments described on this page are not necessary, if the VTR is connected to the TV set via the Video/Audio output sockets.

Video Playback Channel Selector

This switch is used to select the Video Playback channel which is not occupied with any TV station. [NV-J35A; 0 or

1;NV-J35EA; 2or3]

Q Turn the TV set on and select the programme position

that is not occupied by any TV station.

@ Press the VTR On/Off Switch to turn the VTR On.

(FRONTSIDE)

VTR

□

• The corresponding indicator lights up.

Q Set the VTR/TV Selector to “VTR".

(FRONTSIDE)

VTR/TV

□

• VTR/TV Indicator will appear in the Multi-Function Display.

Q Set the Test Signal Switch to “On".

OFF ON

TEST

SIGNAL

@ Tune your TV to VHF channel as shown below.

Confirm by your TV that the received test pattern is as

shown below. NV-J35A: VHF channel 0 or r

NV-J35EA: VHF channel 2 or 3

NV-J35A only *ln some areas

channel 0 may be used by local TV station. In this case switch to channel 1,

@ Set the Test Signal Switch to “Off”. Your TV is now

ready to receive the RF output signai from the VTR.

Q To check, playback a pre-recorded tape and confirm

that the picture quality is satisfactory.

;9)

Page 10

SETTING THE TUNER IN THE VTR

The tuner in the VTR makes it possible to receive TV

broadcasts and to record these programmes without having to turn on the TV set.

VHF UHF

III U

□ □

PROG

= *

nj q]

[tracking}

PRESET pmasia

NE/NDRMAL

Preparation

• Turn the TV set on and select the programme position (channel) which you have tuned to the video playback channel.

• Press the VTR On/Off Switch to turn the VTR on,

• Set the VTR/TV Selector to “VTR".

PRE-PROGRAMMED TV CHANNELS (NV-J35A)

The local TV transmission channels 2, 7, 9 and 10 are factory-preset in this VTR. That is, if you can receive television broadcasts on VHF channels 2, 7, 9 and

10, these are already tuned on the programme positions with the matching numbers. However, it is possible to cancel these presettings and tune the local TV broadcast channels on any desired programme positions. For alternative settings and tuning of additional TV broadcasts channels, follow the Tuning Procedure below.

NEXT BAND/AFC

m □

O (2H-®

NV-J35A

NV-J35EA

The tuner in the VTR can be preset with up to 99 stations. Q Press the or Button until the picture of the

desired station on your TV is satisfactory.

• If the “4-" or Button is pressed while pressing the Next Button, the stations will change quickly.

1 J_. - PoJ j !“

0-5

1-3

; LI "'1-i

i • |il G ■ Mi .

During the station search (The position indication flashes on and off.)

• The tuned station is automatically memorized.

Repeat steps for each channel you want to tune to a station.

^ Press the Preset/Fine/Normal Button twice.

The indication on the Multi-Function Display changes back to the previous indication.

Fine Tuning Procedure

If fine tuning is necessary, for example for a weak station ^

which is close to a strong station: ^ (T^ Press the Preset/Fine/Normal Button twice.

5A-11

4-11

' [i;

Tuned condition

21-69

1 b

Tuning Procedure

Q Press the Preset/Fine/Normal Button.

The indication on the Multi-Function Display changes

from the clock indication to the position indication.

^ Press the Channel Up or Down Button to select a pro

gramme position (channel) which you want to tune to a TV station.

^ Press the Band/AFC Button to select the “I", “111" or

“U” position.

Press the “-f-” or Button to obtain the best tuning

condition.

• “AFC” Indicator will not be displayed.

►To return the tuning to its former state, press the Band/

AFC Button.

3) Press the Preset/Fine/Normal Button,

i10,>

Page 11

PRESET OEiaa =* V NEXT BAND/AFC CLEAR

PROG „

□ □ □ □ □ □ □

fine/normal tracking

Blanking of Unoccupied Programme Positions

^ Press the Preset/Fine/Normal Button. 0 Press the Channel Up or Down Button to select a pro

gramme position (channel) which you do not want to tune to a TV station.

Press the Clear Button ("—” will be displayed in the

Programme Position Indication).

I c I u

L ■ Hi

U ■ Hi

• Repeat steps Q and O for aoy programme positions on which no stations are to be tuned. Afterwards,

these programme positions will be skipped during

Up/Down selection of the programme position.

^ Press the Preset/Fine/Normal Button twice.

□

CLEAR

□ H H

El El

select channel press button

1-9

.ore”a;;f^e32

m-H respective channel

EEl-»[Zl-»[I]

Press the Preset/Fine/Normal Button. To cancel the blanking of a programme position, select

that programme position on the VTR and then press

the Clear Button. Press the Preset/Fine/Normal Button twice.

If more than 5 seconds pass between the first, second and third push, the channel will not be changed normally.

(ii:

Page 12

SETTING THE CLOCK TO THE PRESENT TIME

The built-in digital clock employs the 24-hour system. Q Press the “-h ’’ or “ - ” Button to set the date.

! 1 ! .

CLOCK PRESET fiiiiaaa = ^ NEXT

PROG n

□□□□□□

FINE/NORMAL TRACKING

-- i IJ 0*^

n : *"!

IJ ' t-l u

^ Press the Next Button. © Press the “+” or Button to set the hour.

= *0*

□ □

For Example: Set the clock for Sunday, October 10, 1999,

9:10

• Connect the VTR to the mains outlet.

• Press the VTR On/Off Switch to turn the VTR On. Q When connecting this VTR to the mains or after a long

power failure, the time indications flash.

^ n . n n i

- I_l ■ L! U ;

@ Press the Clock Button to start the date and time set

ting.

^ n ri ^

-L,U-

’ n ■ n n

Li • i_i U

@ Press the “ -f ” or “ - ” Button to set the year.

n . n n

IJ ■ u u

I G

n . n n

i_t ■ U IJ

Q Press the Next Button.

CLOCK

□

■= *

□ □

« *

□ □

0 Press the Next Button. 0 Press the “ -F ’’ or “ - Button to set the minute.

I ri 1 iJ i

■

□'* t n

^ d— I IJ ^

------

'Vnv''—---------------------------------------------------------^

Press the Clock Button when the present time be

comes exactly 9:10'00".

I n

I LI D

= *

□ □

CLOCK

□

'] ^ I !]:■

At every push of the Next Button, the flashing indication changes in the following order.

YEAR-> MONTHS DATE-^ HOUR

• In case of a power failure, the timer back-up system maintains the clock operation and timer content for

at least 60 minutes. However, depending on the charging time and the memory content, the back-up time may be considerably longer. However, it takes

more than 60 minutes for the back-up circuit to be come operational, after the VTR is connected to the mains.

• The Timer Record Function should be set to “Off”, otherwise the VTR cannot be operated normally. In this case, the Timer Record Indicator “0” will flash to warn you.

• During date setting, the corresponding day is si multaneously set.

•The clock/timer of the VTR is programmed with the calendar up to the end of the year 2087. The indications 88-99 are for the years 1988-1999. The indications 00-87 are for the years 2000-2087.

MINUTE

12:

Page 13

Setting the Clock to the Present Time Using the Bar

Codes

9 ? ?

____

I iiH K m

1 OMMW

I IM s Mt

4 o HIM

X m n nil

3 m I nil

3! iin 1 an

IW £ na

:i: nni 1 IK <0 mm

I IMI a iiH MM I Mi I MU

3 m I un

IM s HI z IM e IW ] lilt ■ MM ■ o §m •C |iM»

3 iHi a iw I HU a III!

II nn

\ -

|a m

■ IW D IW IW

I m ..H 3 IlM DM t III!

■ □ raw i: M ■ HI ■ lil

r z; giHI

' = «111 n m a NM 1 1«

• □ MIW 1 D IHW 1 = Hnu

• = IHW 11 D IHW

tz iHM •C IHW

tD llWI *2 %wm

niHt

* 2 MM

■ IMHI

<c raw

«D nni » 2 niw

n HM 0 IlMt

□ MM C INN

i:: HM c mw C IINI

lina

c UWI c liMI D I'MW

z; MW

Preparation

• Slide down the Mode Selector Cover on the Remote Controller so that the Bar Code Reader Display can be seen.

• Press the Digital Scanner On/Off Button to “ON”.

Q Trace the bar code “SETTING OF THE CLOCK”.

* ..

IMM ::: 111 n IM a IH

0 IIIW a »M

c raw C IIIW

2 niW

I MM I IIH a Ml

a IM 1 NN a im

I IM a IIH a Ml

a «N a III a am

a IIH a iiN a iM

3 llil a ail a HI

1 HM a HU a IM 1 m a Ml ■ IIH

a IIH a IM a nil

] IIH a IIN a MH

a nu a HH

= M c: UN :: Mi

SIS* 3-3=1*

HI a HI 3 M

T ini I im a IIH

^ HI a HI I Ml

IH a nil e im

1 IM am a IN

:: M a Hii ■ wi

- ll'

______ _____ _____ _____________

me HI III

•C IM »n II

-i: til ■- ‘M

•mZ III mC in

>i*= III ■>: III

mZ 'in -C ll>

■«Z !|I1 mZ UN ™iC HI mZ 11 I III >•: tin mZ ill »1 1*1 -Z IM !«■= HI! nz lU

mZ IM

z II I vll I iH z III 1 'IW I 'IK z til

V III T II Z Ml

^ ni

0 Trace the bar code for the hour (START TIME).

START TIME

1 nn

t'UU

0 Trace the bar code for the minute (MIN),

9 B-

MIN

- n~l

0 Press the Transmit Button on the Remote Controller

and then confirm that the time is displayed in the Multi-Function Display of the VTR.

0 Trace the bar code for the year (YEAR).

0 Trace the bar code for the month (MONTH).

0 Trace the bar code for the day of the month (DATE),

SETTING OF THE CLOCK

0 Press the Digital Scanner On/Off Button to “OFF".

• If the transmission was not received correctly, the “Beep-Beep, Beep-Beep” sound from the VTR will warn you. In this case, perform transmission again.

• If the Remote Controller is ¡eft with no operation per formed for more than 4 minutes, it will automatically

switch over to the power-saving standby condition and the lamp in the reading tip goes out. In this case, bar codes

that have already been read (but not yet transmitted to the VTR) will be cancelled.

•The bar codes “SETTING OF THE CLOCK”. “YEAR” and “MONTH” are located on page 3 of the Programming Sheet.

DATE

13)

Page 14

THE VIDEO CASSETTE AUTO OPERATION

Auto VTR On

When a cassette is inserted, the VTR turns itself on auto matically.

Auto Cue and Play

When inserting a video cassette which has the erasure prevention tab removed playback will start automatically. If nothing is recorded on the part of the tape where playback is started, the VTR will automatically be in the Cue playback

mode until the recorded part is reached, then it changes back to normal playback mode.

This applies only to previously unused tapes. Tapes which

have been erased or re-recorded will not exhibit this feature.

Q Insert the video cassette as shown. The VTR will be

turned on automatically and the cassette will be auto

matically drawn into the VTR.

0 When a video cassette is inserted, the “53” niark will

appear.

Notes:

• When a video cassette with broken out erasure prevention tab (for example a pre-recorded tape) is inserted, play

back will start immediately.

• Use VHSi video cassette tapes only.

Removing a Video Cassette

@ Press the Eject Button (a).

REJECT

Auto Rewind

When the tape reaches its end during recording (except ^ OTR and timer recording) or playback, it will automatically ^ be rewound to the beginning.

Auto Eject

When trying to record on a cassette whose tab is broken out, the cassette will automatically be ejected to warn that the recording cannot be made,

VTR-Off Eject

When the VTR is off, the inserted cassette can be ejected

simply by pressing the Eject Button, and the VTR will au- ^

tomaticalty turn itself off again. ™

Rewind Auto Shut Off

When the VTR On/Off Button is pressed during rewinding, the cassette will be ejected as soon as the beginning of the

tape is reached, and the VTR will turn itself off.

Simply press the Eject Button; the VTR turns itself on, ejects the cassette and turns itself off again.

To prevent accidental erasure

a screwdriver. adhesive tape.

To record again

(14)

Page 15

r»

PLAYBACK

(D ©® ®

REW/© — PLAY/X2 0/FF


□

SOFT

SHARP

STOP PAUSE/STILL OS«

EH Cue Playback

When the Fast Forward ►►/Cue Q Button is kept pressed while the VTR is in the playback mode, the tape will be played back at high speed in forward direction.

©/FF

□

Review Playback

When the Rewind -<</Review @ Button is kept pressed while the VTR is in the playback mode, the tape will be played back at high speed in reverse direction.

Note;

The playback functions Cue, Review, Still, Reverse, Double

Speed and Slow will work only in the SP mode.

Preparation

• Make sure that the Timer Record Function is set to “Off".

• Insert a recorded video cassette.

When a video cassette is already inside the VTR, press

the VTR On/Off Switch to turn it on.

•Turn the TV set on and select the video playback channel.

• Set the Noise Filter/Edit Selector to “Off".

• Set the Digital Tracking Switch to “On".

Normal Playback

Press the P(ay/x2 Button (►).

PLAY/X2

• Control the picture as you like with the Picture Sharpness Control {sharp or soft contours).

To Finish Playback

Press the Stop Button (■) to stop the playback.

REW/©

To make possible Cue or Review playback without having to keep the respective button pressed, first press the

Memory/Repeat/Search Button on the Remote Controller

so that the Search Indicator “S” appears in the Multi-

Function Display, and then press the Fast Forward ►►/

Cue Q Button or the Rewind ◄◄/Review @ Sutton.

To switch the VTR back to normal playback, press the Play/X2 Button (►).

• When Cue or Review playback continues for more than 10 minutes, the VTR will automatically switch back to the normal playback mode.

Qf Double Speed Playback

When the VTR is in the playback mode, press the Play/x2 Button to view the action at twice the normal playback speed. To change back to normal playback, press the Play/

x2 Button again.

PLAY/X2

O Super Still Playback

When the VTR is in the playback mode, press the Pause/ Still Button (II) to view a stilFpicture. To continue the nor mal playback, press this button again.

PAUSE/STILL

15>

Page 16

CK (COMT

€

Using the Remote Controller

When the VTR is in the playback mode, switching over to

Reverse Playback is possible by pressing the Reverse Playback Button.

• During Reverse Playback, noise bars may appear in the upper centre and lower centre parts of the picture.

O Super Still Advance Playback

Press the Still Advance Button (!!►) while the VTR is in the still playback mode. Each time you press this button, the still-picture will advance one single field.

STILL ADV

O Super Fine Stow Playback

During normal playback, the Slow-motion playback can be activated by pressing the Slow Button. The slow-motion playback speed can then be varied by using the Slow or Button.

• Press the Play/x2 Button (►) to continue the normal playback.

• If the Slow playback operation continues for more than 5 minutes, the VTR automatically switches over to the stop mode.

• While playing back a tape in the Super Still or Super Fine Slow playback mode on a TV set equipped with an automatic vertical hold control, the picture may shake vertically. In this case, set the TV set’s vertical hold (Auto/Manual) selector to the “Manual” position, and adjust the vertical hold control.

Slow Tracking Control

• When noise bars appear during Super Still, Super Still Advance or Super Fine Slow playback, switch over to Slow playback and adjust with the Tracking ( + ) or (-) Button to reduce the noise bars.

• It may not be possible to eliminate the noise bars com pletely.

• The sound will be played back only during normal playback.

• If you leave the VTR in the Still and Slow playback

mode for more than 5 minutes, the VTR will auto matically switch over to the Stop mode to protect the tape and the video heads.

• Noise which takes the form of horizontal bars ap pears on the TV in the Cue and Review playback

modes. This is not an indication of a malfunction.

• The top of the picture may become distorted in the Cue, Review or Super Still {LP) mode. This is not an

indication of a malfunction.

• When the picture rolls vertically in the Cue or Re

view mode, adjust the vertical hold control on the TV set.

• Immediately after starting Cue or Review playback,

the picture may be distorted. Also, when these modes are cancelled, some momentary picture distortion may occur, However, this is not due to any malfunction.

• In “LP” mode only;

1. During any playback mode other than normal playback, the picture distorted and black and white. This is not indication of malfunction,

2. When playing back a tape which was recorded on another VTR, it may be necessary to adjust the Tracking Control. In some cases the picture quality may still be inferior. This is due to limita tion of format.

When changing the slow-motion playback-^ speed, indicator flashes.

-SLOW-

CZl C

16;

Page 17

Repeat Playback

^ Press the Memory/Repeat/Search Button so that the

Repeat Indicator “R” lights up.

Press the Play/x2 Button.

• The playback will continue until the end of the tape. At this point, the tape will be rewound to the begin* ning and the playback will be repeated.

To stop the Repeat playback, press either the Stop

Button or the Memory/Repeat/Search Button (the Re peat Indicator “R" will go out).

/17)

Page 18

DIGITAL

REW/0 — PLAY/X2

Rewind and Fast Forward

Press the Rewind ◄◄/Review @ Button to rewind the tape.

-----------

©/FF

REW/0

Press the Fast Forward ►►/Cue © Button to wind the tape forward rapidly.

Digital Tracking Selector

Digital Tracking

ON: Select this position for digital tracking. When playback is started after inserting a cassette, and the VTR is turned on, the Digital Tracking function will be

activated automatically, the Digital Tracking indicator will flash for several seconds, and the tracking will be adjusted automatically (after the adjustment, the Digital Tracking Indicator will remain lit).

•When the Digital Tracking Indicator is lit and the tape speed (SP/LP) is changed, the Digital Tracking function will be activated. However, when the VTR is operating in other modes than the playback, insert editing and audio dubbing, this function will not work,

•During playback, the Digital Tracking function will be activated whenever the playback changes over from an unrecorded part to a recorded part, provided the recorded part is longer than 4 seconds. »

•When the picture is distorted by noise bars,' press the Tracking (+) or (-) Button to select manual tracking and adjust with these two buttons. The

Digital Tracking Indicator goes out.

To change back to Digital Tracking, press the

Tracking (+) and (-) Buttons simultaneously.

Manual Tracking

OFF; Select this position for manual tracking.

•When the playback picture is distorted by noise bars, adjust by pressing the Tracking (+) or (-) Button.

• To return the tracking control to the former setting, press the Tracking (+) and (-) Buttons simultaneously.

0/FF

Lap Time Counter

It shows the elapsed recording or playback time.

Hours \ ^

The indication will appear when the tape is rewound further than the tape counter position “O'.OO.OO".

• If the figures on the Tape Counter do not change during Fast Forward, Rewind or any of the Playback functions, this means that nothing is recorded on that tape section.

•The Tape Counter is automatically reset to “O'.OO.OO" when the video cassette is inserted.

Minutes

Seconds

18)

Page 19

Noise Filter/Edit Selector

EDIT ON: For editing operations such as dubbing.

OFF; For ordinary use of the VTR. NOISE FILTER ON; For playback of tapes with inferior picture quality caused, for example, by repeated dubbing.

Repeatedly pressing this button will change the indication in the following order; "M” (Memory)-^ “R” (Repeat)-> “S" (Search)—> both indications are off ^ “M”.,.

Ctock/Counter Selector

By pressing this button when the VTR On/ Off Switch is set to “On", it is possible to change over the display mode of

the Clock/Counter Display in the Multi-Function Display from “Clock" to “Counter” Display and vice versa.

• Even if the selector button is set for "Counter" the display

will automatically changes over to “Clock" Display in all

the following cases; When you set the VTR On/Off Switch to “Off", adjust the clock to present time, programme a timer recording, check a timer recording programme or programme and perform an OTR.

• When the Clock/Counter Display shows the time, the counter cannot be reset and the Memory and Search Function cannot be activated (“M", “R" and “S" indication does not light up.)

• When the Noise Filter/Edit Selector is set to “EDIT

ON", the picture sharpness cannot be adjusted with the Picture Sharpness Control.

Monitoring Function

When the Monitor Button is kept pressed during Playback or Still playback, the broadcast picture of the selected pro gramme position (channel) or input signal through Audio/ Video Input Socket will be displayed. When this button is released, the picture will change back to the playback picture of the tape.

Vertical Lock Adjustment

If vertical jitter occurs during Still playback, adjust the V-Lock Control (on the rear of the VTR) for the correspond ing recording tape speed with the screw driver. A one-time adjustment should be all that is necessary.

Memory Function

The Memory function makes it simple and fast to find a certain position on the tape later again, simply by pressing the Reset Button at that position to set the tape counter to

“O'.OO.OO" and by pressing the Memory/Repeat/Search Button, During Rewind or Fast Forward, the tape will then stop at approximately the desired position.

COUNT

Memory Indication

• Even if the Clock/Counter Display is switched over to “Clock" Display after pressing the Memory/Repeat/ Search Button, the Memory function will stop the tape at the desired position.

19)

Page 20

RECORDING FROM A TV BROADCAST SIGNAL

^ Select on the VTR, the programme position (channel)

to be recorded. In order to confirm proper reception, turn on the TV set and select the video playback channel.

e Press the Record Button (•).

----------------------------------------------------------------

When a video cassette with broken out tab is inserted, it will

RECORDING

□

SP/LP

be ejected automatically.

• During recording, the programme position (channel) on the VTR cannot be changed.

• To start a recording with the Remote Controller, press the two Record Buttons on the Remote Controller simulta neously.

To Rnish the Recording

REC

Preparation

• Make sure that the Timer Record Function is set to “Off".

• Reset the Tape Counter to “0:00.00".

• Insert a video cassette with the erasure prevention tab intact. When a video cassette is already inside the VTR, press the VTR On/Off Switch to turn it on.

• Set the Tape Speed Selector to “SP" or “LP".

• Set the VTR/TV Selector to “VTR".

Tape Speed Selector

For recording either of two tape speeds can be selected. During playback the recorder selects automatically the correct speed. Select the desired tape speed with the Tape Speed Selec tor before recording.

• Set to the “SP” position for normal speed.

• Set to the “LP" position for slow speed. The correspond ing indicator (SP or LP) lights up during recording and playback in the Multi-Function Display.

It is not recommended to change from the SP to the LP mode or vice versa in the middle of recording. Even if the switching is done while the VTR is in the pause mode, picture distortion will occur at the switching point during playback.

0 Press the Stop Button (I

If You Wish to Avoid Recording Unwanted Material

0 Press the Pause/Still Button (| |) to stop the tape tern- ||||

porarily.

PAUSE/STILL

• Press the Pause/Still Button (II) again to continue the recording.

• If you leave the VTR in the pause mode for more than 5 minutes, the VTR will automatically switch over to the

stop mode to protect the tape and the video heads.

Recording One TV Programme While Watching Another

1. Record (following steps 0 and @).

2. Set the VTR/TV Selector to “TV".

3. Select the desired programme position (channel) on your TV set.

• Disconnect all cables from the Video Input and Au

dio Input Sockets before starting the recording. If

they remain connected, it is impossible to record TV programmes.

•If pause is activated during record and the released,

some colour noise may be present for a short period of tape, this is not a mutfunction.

REC

:20)

Page 21

SUPER OTR FUNCTION (ONE-TOUCH TIMER RECORDING)

This convenient function makes it possible to easily pro

gramme the VTR for recording of TV programmes with im

mediate start or with start within 24 hours by precisely

setting the starting time and ending time to the desired

minute, and the VTR will automatically turn itself off when

the recording ends.

□

Preparation

• Make sure that the clock shows the present time correctly.

• Insert a video cassette with the erasure prevention tab intact. When a video cassette is already inside the VTR, press the VTR On/Off Switch to turn it on.

• Set the Tape Speed Selector to “SP” or “LP”.

It is possible to programme an OTR recording for a TV programme which will start immediately or within the next 24 hours,

(For example, OTR recording of a TV programme broad

cast from 10:30 to 11:00.) 0 Select the programme position (channel) to be re

corded,

@ Press the OTR On (+) or (-) Button to set the OTR

starting time to 10:30,

0 Press the OTR Off (-t-) or (-) Button to set the OTR

ending time to 11:00.

• When quickly and repeatedly pressing the OTR On (-h) or (-) Button or the OTR Off {+) or (-) Button; the corre sponding time indication changes in 1-minute steps. When it is kept pressed, the indication changes in

10-minute steps.

• After setting the OTR starting time in step the OTR Off {+) or (-) Button must be pressed within 8 seconds to select the OTR ending time, otherwise the selected start ing time will be cancelled.

After 4 seconds, the display will automatically change back to the starting time indication.

To confirm the OTR ending time, press the Check/Programme Button once. When this button is pressed twice,

the display will change to the clock indication mode.

When a video cassette with broken out tab is inserted, it will be ejected automatically.

►The VTR will automatically switch off, when the OTR is

completed. To turn the VTR on again, press the VTR On/Off Switch.

(21)

Page 22

SUPER OTR FUNCTION (ONE-TOUCH TIMER RECORDING) (CONT’D)

When the Check/Programme Button is pressed once, the present time wiil be displayed.

When the Clock/Counter Selector Button is pressed during OTR recording, the display will change over to the counter mode.

I I

OTR Function with Immediate Start

^ Select the programme position (channel) to be re

corded.

Q Press the OTR Off (+) or {-) Button to set the OTR

ending time to 11:00.

• When the tab of the inserted video cassette is broken out, it will be ejected automatically.

•The “OTR” indicator will be displayed.

'The VTR will automatically switch off, when the OTR is

completed. To turn the VTR on again, press the VTR On/Off Switch.

I l~i

i i

axHT

i_! ■

• When the tape reaches its end during an OTR the VTR will turn itself off.

• Make sure that the OTR Function {One-Touch Timer Recording) does not overlap a programmed timer recording. An OTR always takes precedence

over a timer recording.

• It is possible to change the OTR starting time or the

ending time before the recording starts.

• It is possible to perform any VTR operation (except

timer recording) until the recording starts.

• It is possible to change the OTR ending time even during the recording.

•To interrupt an OTR, press the VTR On/Off Switch to turn the VTR off.

• Disconnect all cables from the Video Input and Au dio Input Sockets before starting the recording. If they remain connected, it is impossible to record TV programmes.

n !"i

CLOCK/

COUNTER

;22;

Page 23

TIMER RECORDING

The programming of timer recordings is possible both on the VTR itself and via the Remote Control Unit. Programming of as many as 8 timer recording is possible up to one month in advance.

□□□□□□□

TRACKING

Preparation

• Make sure that the clock shows the present time correctly.

• Make sure that the Timer Record Function is set to “Off".

• Insert a video cassette with the erasure prevention tab intact. When a video cassette is already inside the VTR, press the VTR On/Off Switch to turn it on.

For Example:

Programming a timer recording for a TV programme that

will be broadcast on Wednesday, October 27, from 10:30 to

11:45, on programme position (channel) 12, on timer pro

gramme number 2. (Present date = October 10, 1999) Q Press the Check/Programme Button to select the next

unoccupied timer programme number,

• Press the Tape Speed Selector Button until the Indi cator of the desired tape speed ("SP” or “LP") is lit in the Multi-Function Display.

^ Press the ( + ) or (-) Button to select the programme

position (channel) on which the TV programme will be broadcast.

Q Press the (-h) or (-) Button to set the date.

0 Press the (-h) or (-) Button to select the hour of the

starting time of the TV programme.

0 Press the Next Button. 0 Press the (-I-) or (-) Button to select the minute of the

starting time of the TV programme.

(23)

Page 24

TIMER RECORDING (CONT’D)

0 Press the ( + ) or (-) Button to select the hour of the

end time of the TV programme.

Press the {+) or (-) Button to select the minute of the

end time of the TV programme.

For Everyweek Recording

For Example:

Programming a timer recording for a TV programme that is broadcast every week on Sunday, from 10:30 to 11:45 on timer programme number 7,

Programming for everyweek recording can be made on any of the timer programme numbers 1-8.

Execute the operation steps 0 to 0 Press the (-) Button repeatedly until the “SU" Indica

tor (= Sunday) is lit.

TIMER

REC

□

J ■ i i_rv%

•The tape speed {SP/LP) can be seiecfed in any of the steps O to

For Everyday Recording

For Everyday Recording, you have the choice between 3 different modes: Monday through Friday. Monday through Saturday, and Sunday through Saturday.

MO TO WE TH FR

---------

For example:

Programme time for timer recording every day from 10:30 to 11:45 on timer programme number 8,

Programming for everyday recording can be made on any of the timer programme numbers 1-8.

Execute the operation steps Q to ©.

0 Press the ( -) Button until the desired type of Everyday

Recording (®, (|), @) is displayed.

t— u

a 2 suaoRiKfETHfxs* C

n mnif ^

■= *

□ CD

Perform the operation steps 0 to 0.

(24/

Page 25

To Confirm the Programme of a Timer Recording

Make sure that the VTR is turned on. Make sure that the Timer Record Function is set to “On", Select the programme number to be checked, by repeated ly pressing the Check/Programme Button. The preset channel and start and ending times of the timer recording will be indicated for about 12 seconds.

(start time)

(end time)

(4 seconds) j—-j

OFF

■-I ’-j (next 8 seconds)

PROG

To Cancel a Timer Recording

Make sure that: the VTR is turned on, the Timer Record Function is set to “Off".

^ Press the Check/Programme Button repeatedly, until

the number of the timer programme that you want to cancel is displayed.

e Press the (+) and (-) Buttons simultaneously for more

than 3 seconds.

• After the programmed timer recording has been made, set the Timer Record Function to “Off", oth erwise the VTR cannot be operated normally.

• During recording, the programme position (channel) on the VTR cannot be changed.

• When you want to watch TV after setting a timer recording, select the desired channel on the TV set.

• To cancel a timer recording during recording, set the Timer Record Function to “Off”.

• It is impossible to confirm programmes of timer re

cordings while an OTR is being performed.

• To turn the VTR on and use it for playback or re

cording before the timer recording is performed, set

the Timer Record Function to “Off”.

• When the Timer Record Function is set to “On” but

no video cassette is inserted or no timer recording has been programmed, the Timer Recording Indi cator [g will flash to inform that the timer recording cannot be performed.

• If no cassette is inserted in the VTR, the “Ea" Mark

will flash.

• Disconnect all cables from the Video Input and Au dio Input Sockets before starting the recording. If they remain connected, it is impossible to record TV programmes.

(25)

Page 26

TIMER RECORDING (CONTO)

Timer Recording by Using the Remote Controller

Tracing the Bar Codes

^ ^ ^ o-[-®

:<g m .<>1

1 lid

<fi «m «1

1 m I lil

lili n

•i 4111 -1

> lili

V lili

«1 «II «I

xJ lili i>J

'<: lili

■ 1 lili

«II

'i 11«

«1 lili

4<l IHI |É1

'! iHI

tlll 4 lin H

■ I lili P1

" »11

'i: lili «II

lili

^l lili :>U

Ji im i-i

x: Itii

K lili 4 II»

«1 lid

>i 11«

"i m

-4 lili lili

-<1 IW x| ti» i-J lili :>N

I4 im d

4 lili

lili x|

lllf

lili «1

^ «III

XJ tlll

d lili «J

d un

ilil lili

■ d «11 ■ '!

Example: When programming a timer recording for a pro

gramme that will be broadcast on channel posi tion 4 on the 3rd of the month, from 7:02 to 7:30, trace the bar codes in the order of the numbered

arrows shown below. Press the Digital Scanner On/Off Button to “ON”. Q Trace the bar code for “CHANNEL”.

lili d

lEll

«ll

■ III lilid11» mi

HU «t»

•P!

IIN

tlli

Bill

lili

lili«111«

.Pi

«III

lili

.pj

■ III

lili

lilidlili

lili

«III

11«4l«l

■ III«1un lili Щ

■ Hl «11

lili ix? »11

.1]

«III

lili

■ ]

1«)

lili

«J

lili

■ m

■ 1

lili

11«

l«l 11«

•.■ 1

i«l

•i

11«

II» Wdlili n«l

lin

iJ|

llll

■ III

iiir

llll

ШН

XI ir»

4 lili

ini

!k;

iHI

><1 llll

4 tlli

■ 1

:*\

4 llll

II»

;ü

"I un

Н»

M>J 11«

B«

.M|

4 |l||

.M|

l«l

"J «III

МЧ llll

IIN

!>« «II

;ё1

iin

illl

внял«

llll

■ ■ ■ ■ M

»II

I'd

IIU

: IIM

t«l

■ III .ÉM.t*, IIIIH 1 llll

II«

«« «lini

111

limi

4 I ]

«№il

Г r.

«iiiii

% i '

i«im

1 ^ :

uiin

n. :

«lili

'1:1

mili IIIIU

iiaiii «mil ll■ lll

i.i

IIBIII

«mil

iiiiii

«illl

lliHl

■ lili

IIMI

IIMII

Íl«ll

•l:

Itlttt

IINIII

i ] IIBIII i i IIBIII

' il«ll

1 : lililí 1 1IIHI 'c: «III»

IIIIH IIIIU

: lifllir

: llilll

: IIBIII

Blllll Li nuil c: «Bill i.j iillll

u IHIII

U llilll

[J IIBIII

LJ IIIHI

i- imn

:: inn

1 lili»

tilín

i<J IIH

i-1 aiit

m llll

>1 llll llll

í «lll u!

lili

r>: ifll p|

'1 (lll

X; llll x; «l ll

•J «lll im <1

:>J llll

i' >11 1 x| t il 4 llll

d Bill 4

Bill

4 llll 4

L l«l

4 «II 4

llll

■ BU

■ fdl m

X] »:| H III

llll

4 «lll 4

>1 llll

4 llll 4

lili

x| IM >1 iii .4

4 llll 4

*1 IIH

.4 illl .4

14 Bill Bli

tlll .1.

iil IIH

4 illl >

1« llll

M «lll

: tlll

. illl

^5“

»II

>11 1

mi mi

Ш1

Iti

III III «li II» II»

«III

«tu

illl

ill

Mí

^ Trace the bar code for “END TIME”.

I i

П 3

I UL

3 0

OFF

1 nn 7 □-

t’fJU

(4) END TIME

@ Trace the bar code for “MIN".

•The “Bee Bee Bee Bee Beeeeep" sound signals that the scanner is now ready for data transmission.

• When no sound is heard, read the bar codes once again.

• If more than one bar code is read in the same

group, only the last code will be effective.

• If the “CANCEL” bar code is read, all bar codes that

have been read so far will be cancelled.

f t

OFF

^ Trace the bar code for “DATE”.

U 1

t D D

OFF

0 Trace the bar code for “START TIME”.

Ч Jo @ START TIME

ON OFF

luu

0 Trace the bar code for “MIN".

Ф CHANNEL

(D DATE

rn-m

;26)

Page 27

Transmit the Programming Data

Timer On/Off

Keep pressing the Transmit Button and confirm that the programmed data on the Multi-Function Display of the VTR are as desired. After releasing the button, the data will continue to be dis played for about 12 seconds.

• If the transmission was not received correctly, the “Beep-Beep, Beep-Beep’’ sound from the VTR will warn you. in this case, perform transmission again,

•The transmission is possible when the VTR is turned on but is not in any of the recording or playback operation modes. It .is also possible when the VTR is in the timer recording standby mode ([g indication is lit),

• The programming will be done on the next lower unoccu pied timer programme number (8-^ 1).

• If all programme numbers are occupied, the “Beep-Beep, Beep-Beep’’ sound from the VTR will warn you that the

programming cannot be made.

• When the Transmit Button is pressed, the VTR will auto matically be put into the timer recording standby condition

and the VTR wiil be turned off.

• To operate the VTR before the timer recording will be

performed, press the Timer Record Button to suspend the timer recording standby condition. After using the VTR, be sure to press the Timer Record Button again, otherwise the timer recording will not be made.

After programming a timer recording, the VTR is in the timer recording standby mode and cannot be used for any other operation, such as playback. If some other operation is desired, first trace the “TIMER ON/OFF” bar code and transmit it to the VTR with the Transmit Button. To later reset the VTR to the timer recording standby mode, trace the “TIMER ON/OFF” bar code again and transmit it with the Transmit Button.

TIMER ON/OFF

B-

For Programming More Than One Timer Recording in Succession

Repeat the following operation steps O~0-

Trace the “CANCEL” bar code on the Programming

^ Trace the bar codes for “CHANNEL”, “DATE”,

“START TIME” and “END TIME”.

o Confirm that the present time is displayed on the

Multi-Function Display of the VTR, and transmit the data.

• If the next timer programming data are transmitted while the previous timer programming data are still being displayed, the displayed timer recording data

will be cancelled.

(27)

Page 28

TIMER RECORDING (CONTD)

For Everyday Recording

0 Trace the “START TIME" and then the “END TIME"

bar codes, and transmit the data to the VTR.

When programming an everyday recording using the bar codes, you have the choice between 3 different modes:

Sunday through Saturday, Monday through Friday, and Monday through Saturday.

(SU>N/ SA)

□

(MO^ FR)

□

(MO .V. SA)

□

(J) Turn on the Digital Scanner and trace the “CHANNEL”

bar code.

(SU'-SA)

Trace the “START TIME” and then the “END TIME”

bar codes, and transmit the data to the VTR.

• Everyday recording will be performed from that day on.

• If a “DATE" bar code is traced after tracing the “EVERYDAY" bar code, everyday recording will not be

performed.

For Everyweek Recording

0 Turn on the Digital Scanner and trace the “CHANNEL”

bar code.

^ Trace the bar code for the desired day of the week

among the “EVERYWEEK" bar codes.

SU MO TU WE TH FR SA

ON OFF

SU MO TU WE TM FR SA

u u

OFF

tn n n

• uuu

EVERYWEEK

Sunday ------------------

-------------

IMI

ffijl

liuj

n n n n

C u u u

• Everyweek recording will be performed from that week on.

• if a "DATE” bar code is traced after tracing the “EVERY WEEK" bar code, everyweek recording will not be per

formed.

To Cofifirnt the Programme of a Timer Recording

To perform this operation, the VTR must be turned on or it

must be in the timer recording standby mode {[T] indication is lit).

(T) Trace the “CHECK" bar code.

CHECK

Perform transmission.

• After releasing the Transmit Button, the programmed data will be displayed for about 12 seconds on the Multi-Function Display.

• At every push of the Transmit Button, the timer pro gramme number advances to the next higher num ber.

To Cancel a Programmed Timer Recording

To perform this operation, the VTR must be turned on but not be in any of the recording or playback operation modes, or it must be in the timer recording standby mode ([g indi cation is lit). To cancel a programmed timer recording, its data must be displayed on the Multi-Function Display. If they are no longer displayed, first, trace the “CHECK" bar code and perform transmission (several times, if necessary, until the programme you want to cancel is displayed). Then, within 12 seconds.

0 Trace the “CANCEL" bar code. 0 Perform transmission.

• To programme a new timer recording, perform the programming from the beginning.

OFF

¿.¿..nn

u u

Saturday-----------------

-------------

riw]

- -frill

TllL

TtdI

;28)

Page 29

TIME SEARCH

The Time Search function makes it possible to quickly

advance the tape from any position by inputting the exact desired amount of playback time of the part that you want to

skip.

10 minutes from beginning of tape.

15 minutes

43 seconds from

beginning of tape.

Q Press the Fast Forward ►►/Cue Q Button or the

Rewind ■«(◄/Review @ Button. The playback starts after rewinding or fast forwarding to the tape position of the designated time.

Time Search from the Play Mode

The operation is the same as that for the stop mode but in operation step O, the Cue or Review (playback) is per formed to the tape position of the designated time and the playback will then start. If the time search function is activated during playback, a

time of up to 9 minutes 59 seconds can be input.

•The numbers in the Tape Counter do not change during parts of the tape on which there is no re cording.

•When the tape is inserted, the Tape Counter will automatically be reset to “0:00.00”.

•When no time is input for the time search, a

. 2-minute tape segment is skipped and the playback

will then resume. If the time search function is activated during play back, but no time is input, a 30-second tape seg ment will be skipped and the playback will then resume.

Q Put the VTR in “STOP” mode. ^ Press the Time Search Button.

The indication in the Multi-Function Display changes

as shown below.

COUHT

Input the time of the desired scene.

•The time is input by pressing the number buttons in the order: hour, minute, second.

•The" - ’’ indication will be counted as “0”.

COUHT

(29)

Page 30

CAMERA RECORDING

• If you leave the VTR in the pause mode for more than 5 minutes, the VTR will stop automatically to protect the tape and the video heads.

• Even if the video camera is equipped with video recorder remote control functions, this VTR can not be remote-controlled from the camera.

•Disconnect all cables from the Video Input and

Audio Input Sockets after finishing camera record

ing. If they remain connected, it is impossible to record

TV programmes.

Preparation

• Connect the Video Camera via the Camera AC Adaptor to the VTR as shown in the illustration above.

• Insert a video cassette with the erasure prevention tab intact. When a video cassette is already inside the VTR, press the VTR On/Off Switch to turn it on.

• Set the Tape Speed Selector to “SP” or “LP".

Q Turn the Camera AC Adaptor on and make the nec

essary adjustments on the camera. Refer to the operating instructions of the camera you are using.

^ Press the Record Button (•) on the VTR to start re

cording.

Avoid recording unwanted material:

Press the Pause/Still Button (II) on the VTR, and the re

cording will stop temporarily. To restart recording, press the

Pause/Still Button (I I ), again. 0 Press the Stop Button (■) on the VTR to stop the

recording.

(30)

Page 31

DUBBING (COPYING)

Dubbing (copying) from one video cassette to another.

AUDIO IN VIDEO IN

• To assure smooth, noiseless cuts when interrupting the recording, always use the Pause/Still Button

(II).

• To obtain smooth cuts when starting the recording

from the stop mode;

1. Play back the last part of the previously recorded material to confirm its ending point, and then press the Pause/Still Button (I I ).

2. Press the Record Button {#). (The VTR is still in the pause mode.)

3. To start recording, press the Pause/Still Button

(I I ) again.

•The picture quality of a re-recorded tape is not as good as that of the original.

• Disconnect all cables from the Video Input and Au dio Input sockets after finishing the recording. If they remain connected, it is impossible to record TV

programmes.

Preparation

• Make the necessary connections as shown in the connec tion diagram.

• Press the VTR On/Off Switches to turn both VTRs on.

• Make sure that the Noise Filter/Edit Selector of both the

recording and playback VTRs (if equipped) are in the

“EDIT ON” position. Set these switches to “OFF" for or

dinary use of the VTRs.

(The Noise Filter/Edit Selector is on the front panel.)

^ Place the recorded cassette in the playback VTR and a

blank video cassette with the erasure prevention tab

intact in the recording VTR. o Press the Record Button (♦) on the recording VTR. Q Press the Play/x2 Button (►) on the playback VTR. Q Press the Stop Button (■) on both VTRs to stop the

dubbing.

:31:

Page 32

DUBBIN

(CONF

Connecting to a VHS^VK&-C Movie Equipped: wittt Synchro Edit Function

It is possible to synchronize the playback start and stop of the VHS/VHS-C Movie with the recording start and stop of this VTR.

Preparation

• Make the necessary connections as shown in the con* nection diagram.

• Set the Edit Switch (Noise Filter/Edit Selector) on both the VHS/VHS-C Movie and on this VTR to “ON” (or “EDIT ON”).

^ Put the VTR in the recording pause mode. ^ Put the VHS/VHS-C Movie in the still playback mode.

• Put the Movie at the point where you want to start editing into the still playback mode.

0 Press the Pause/Still Button on the VTR.

•The VHS/VHS-C Movie changes over to the piayback

mode and the dubbing will start automatically.

To Leave Out Unwanted Scenes

(T) Press the Pause/Still Button on the VTR.

• The VTR changes over to the recording pause mode and the VHS/VHS-C Movie changes over to the still playback mode.

Operate the VHS/VHS-C Movie to skip the unwanted scenes and then put it in the still playback mode again.

Press the Pause/Still Button on the VTR.

• The dubbing will restart.

To stop the dubbing, press the Stop Button on the VTR and then put the VHS/VHS-C Movie in the stop mode.

/32)

Page 33

BEFORE REQUESTING SERVICE

Before requesting service, check the following points once again.

SYMPTOM

Power doesn't turn on. Mains lead is not connected.

The Timer Record Function is set to “On”.

Power is on but unit doesn’t operate.

TV programmes cannot be

recorded,

OTR Function (One-Touch Timer

Recording) cannot be performed. Unattended timer recording

cannot be performed.

Dew condensation inside the VTR.

Safety devices are operating.

Connection of aerial lead is not correct.

Reception channel is not properly tuned.

Cables are connected to the Video Input and Audio Input Sockets.

Clock is flashing “0:00”.

Recording start or recording stop time setting is incorrect.

The Timer Record Function is set to “Off”. Set the Timer Record Function to "On”.

CAUSE REMEDY

Connect mains lead to mains outlet.

Set the Timer Record Function to “Off".

Wait until the Dew Indicator “d " goes off.

Turn off the VTR On/Off Switch, disconnect mains cord from outlet, then reconnect mains cord to mains outlet and turn on the VTR On/Off Switch again.

Connect aerial lead correctly.

Tune reception channel.

Disconnect all cables from the Video Input and Audio Input Sockets.

Set clock to present time.

Set recording start and recording stop time correctly.

If you attempt to carry out Recording, Timer Recording, or OTR, the cassette will be automatically ejected.

Clock shows incorrect time. Adjust clock to present time.

Clock is flashing at "0:00".

Accidental erasure prevention tab on the cassette is broken out.

Set clock time and perform timer setting.

Cover tab hole with adhesive tape.

;33)

Page 34

BEFORE REQUESTING SERVICE (CONTO)

SYMPTOM

Playback picture is not in colour. Playback picture has large amounts of “snow".

Remote Controller does not work. Remote Controller is not being pointed at

Bar code reading with Remote Controller is impossible.

Reception channel was not adjusted correctly during recording.

TV set is not properly tuned to the video playback channel of the VTR.

The video heads are clogged with dirt.

The video heads are abraded.

Tape is old and/or defective.

Infra-red Receiver Window on the VTR. Distance is too far.

An obstacle is between Remote Controller and VTR.

Batteries are exhausted.

Battery polarities (-t-, -) are reversed.

The Remote Controller is in the power-saving standby condition.

CAUSE REMEDY

Readjust reception channel correctly.

Properly tune the TV set to the video playback channel of the VTR.

Consult qualified service personnel.

Use new tape.

Point the Remote Controller at Infra-red Receiver Window on the VTR.

Use the Remote Controller within 7 m from the • VTR. '

Remove obstacle.

Replace batteries.

Insert batteries correctly.

Press the Digital Scanner On/Off Button to “ON" again.

Transmission from the Remote Controller to the VTR cannot be

performed.

The bar code has been traced too slowly.

The bar code was not traced all the way from

the Small Box past the last bar.

The bar code was not traced straight.

The VTR is turned off.

The VTR is in an operation mode.

There is no unoccupied timer programme number left.

Reading a bar code was not followed by a “beep” sound from the Remote Controller.

The transmission was not followed by a repeated “beep” sound from the VTR.

Trace the bar code quickly.

Trace the bar code correctly.

Trace the bar code straight from left to right.

Turn the VTR on.

Put the VTR into the stop mode.

A maximum of 8 timer recordings can be programmed at the same time.

Perform the bar code reading again.

Keep pressing the Transmit Button until the confirmation sound is heard.

<34>

Page 35

SPECIFICATIONS

NV-J35A, EA

I Power Source:

i Power Consumption;

Video Recording System; Video Heads:

Tape Speed:

Tape Format:

Record/Playback Time;

FF/REW Time:

VIDEO

Teievision System:

Modulation System;

Input Level: Output Level:

AUDIO

Input Level: Output Level: Audio Track:

Video Horizontal Resolution: SignaMo-Noise Ratio:

Audio Frequency Response: Operating Temperature: Operating Humidity: Weight:

Dimensions:

Standard Accessories;

NV-J35A; 240 V AC 50-60 Hz |

NV-J35EA; 230 V AC 50-60 Hz J Approx. 22 watts i ^

..if f . ^ T'T

II III is the safety information.

2 rotary heads, helical scanning system 4 heads

SP; 23.39 mm/sec. LP; 11.7mm/eec.

iVHSi tape SP; 240 min. with NV-E240 LP; 480 min, with NV'E240 Less than 5.5 min. with NV-E180

CCIR; 625 lines, 50 fields, PAL colour signal Luminance: FM azimuth recording Colour signal; converted subcarrier phase shift recording VIDEO IN (PHONO): 1.0 Vp-p, VIDEO OUT (PHONO): 1.0 Vp-p,

RF Modulated; NV-J35A; VHF channel 0 or 1,

NV-J35EA: VHF channel 2 or 3,

AUDIO IN (PHONO); AUDIO OUT (PHONO):

1 track (Normal-mono only) Colour; more than 240 lines (SP) Video; more than 43 dB (SP) Audio; more than 43 dB (SP) 80 Hz-10 kHz (SP) 5“C-40°C

35%-80%

4.8 kg 380 (W)x82 (H)x345.5 (D) mm

1 pc. DIN-DIN Coaxial Cable

1 pc. Remote Controller

2 pcs. “R6” size batteries

1 pc. AC Mains Lead

-lOdB,

-6dB,

75 ohm, terminated 75 ohm, terminated 75 ohm, unbalanced 75 ohm, unbalanced

more than 50 kohm, unbalanced

less than 1 kohm, unbalanced

Weight and dimensions shown are approximate. Specifications are subject to change without notice.

<35)
