OPTOELECTRONICS OPN2002 Users Manual

Master Specifications

Laser Data Collector

Product Name

Publication No.

Edition Initial Release

Date of Publication 26 June, 2008

Original Specification No. SS07114

OPN-2002

Optoelectronics Co., Ltd.

4-12-17 Tsukagoshi,

Warabi-shi, Saitama,

335-0002 Japan

TEL: 81+(0)48-446-1183

FAX: 81+(0)48-434-2820

OPN-2002 SS07114

Revision History

Specification No.: SS07114

Product Name: OPN-2002

Revision Date Section Description of Changes

Initial

Release

- (Initial Release)

OPN-2002 SS07114

Table of Contents

1. Abstract........................................................................................................................4

2. Overview......................................................................................................................4

3. Basic Specifications.....................................................................................................5

4. Views of a device.........................................................................................................7

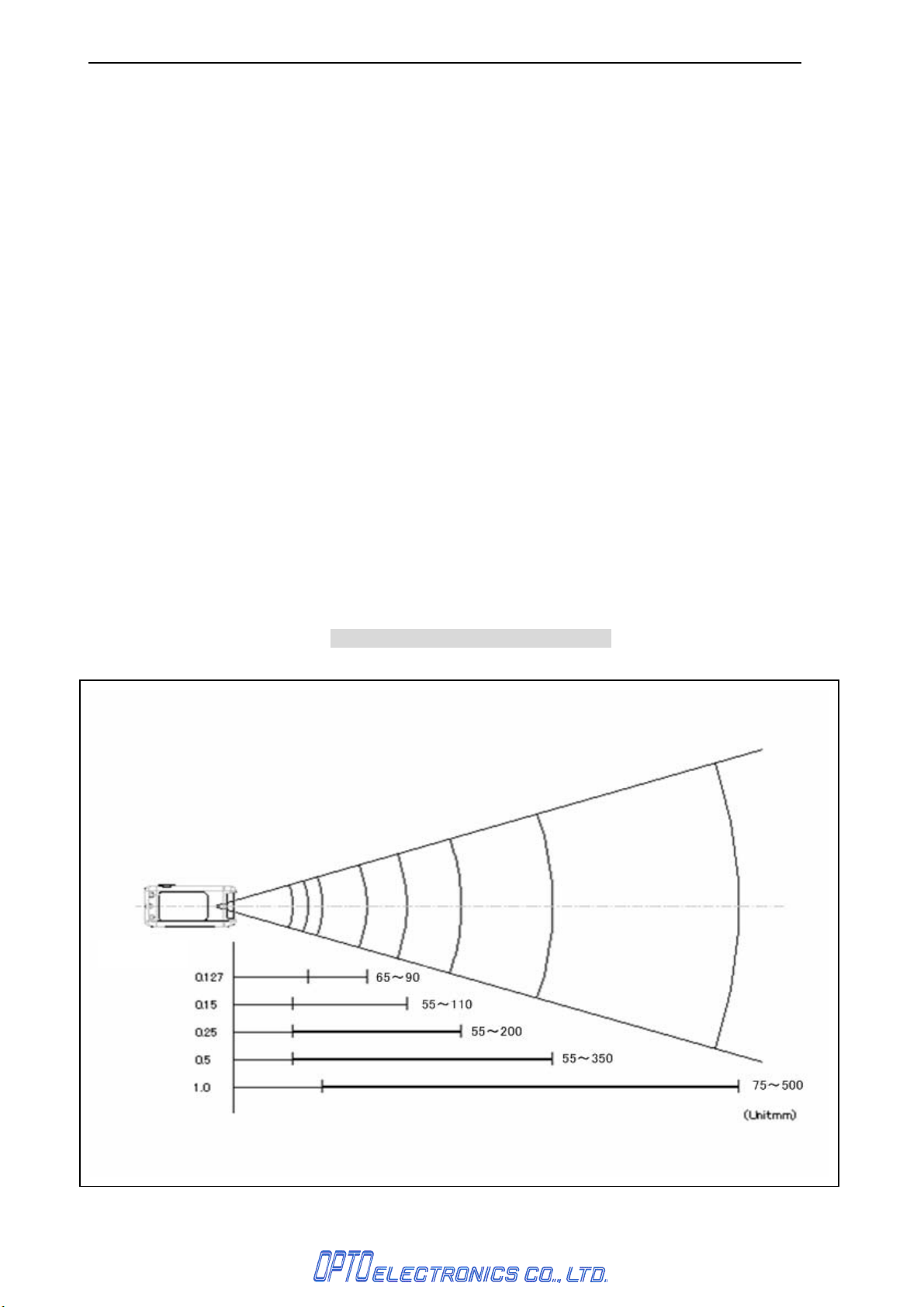

5. Optical Specifications ..................................................................................................8

6. Technical Specifications...............................................................................................9

7. Application Development Environment ......................................................................12

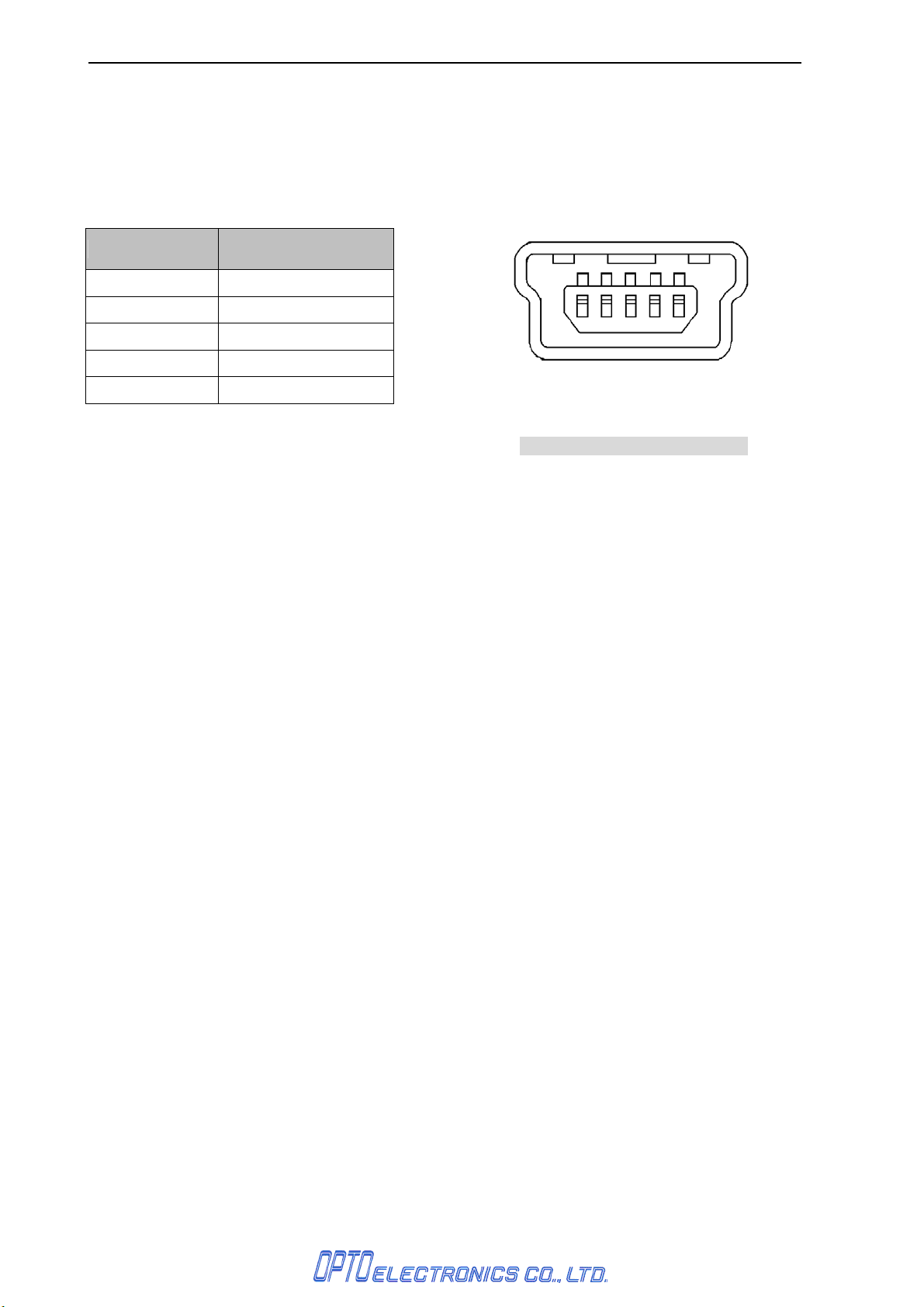

8. USB Interface Specifications .....................................................................................13

9. Wireless Connection..................................................................................................13

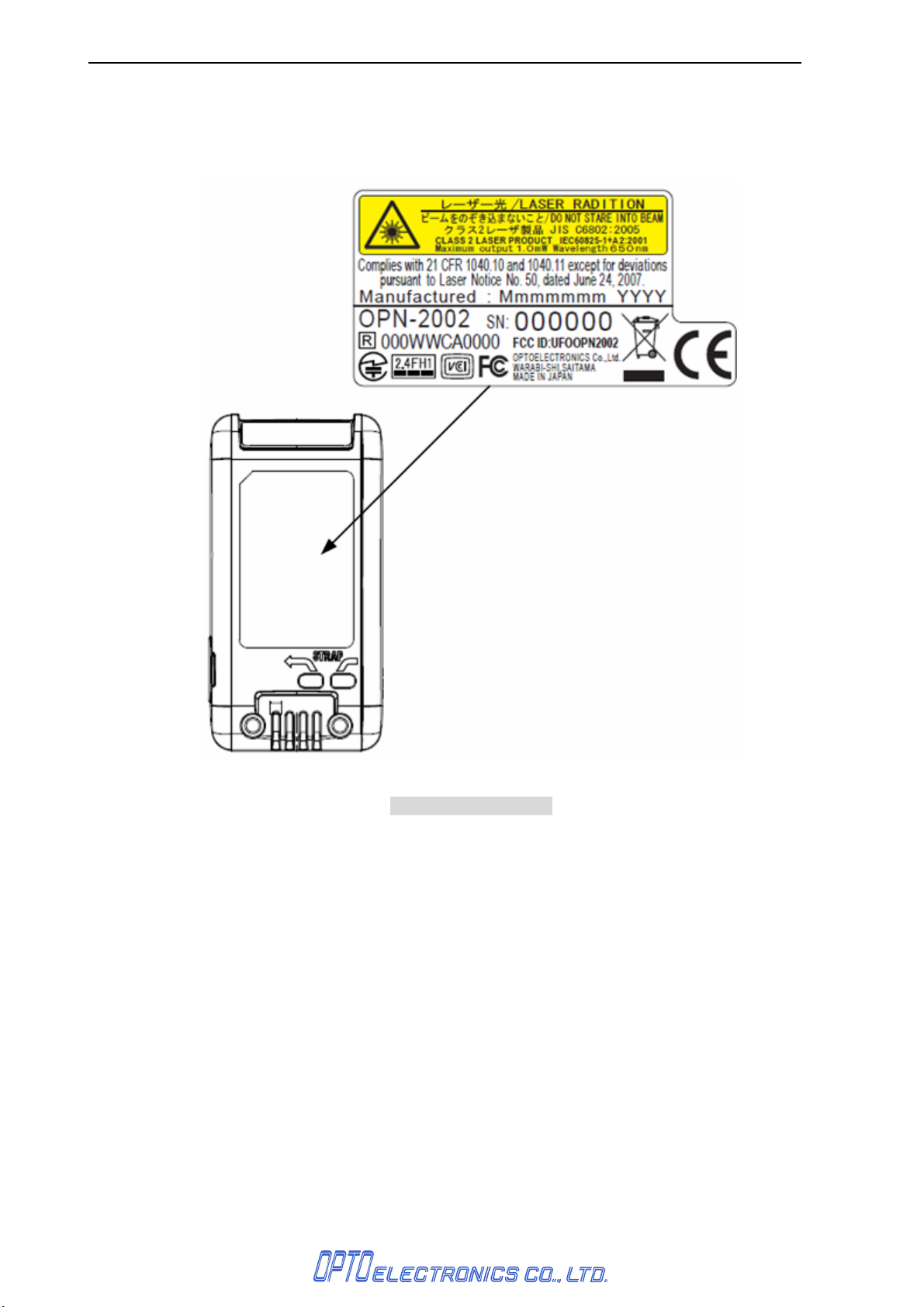

10. Serial Number..........................................................................................................14

11. Packaging Specifications .........................................................................................15

12. Durability..................................................................................................................16

13. Warranty..................................................................................................................18

14. Regulatory Compliance ...........................................................................................19

15. Reduction of Environmental Loads..........................................................................20

16. Precautions..............................................................................................................21

Appendix 1: Mechanical Drawing ..................................................................................23

OPN-2002 SS07114

1. Abstract

This document provides specifications on the OPN-2002 compact data collector equipped with

Bluetooth.

2. Overview

・The OPN-2002 is a simplified handheld data collector.

・The decoded text barcode images are output using USB, Bluetooth interfaces or a dedicated cradle

to hosts.

・Implemented Bluetooth SPP and HID profiles

・3.7V 240mAh lithium polymer battery is used as a power source of the OPN-2002.

・The OPN-2002 is rechargeable with a dedicated cradle.

・The OPN-2002 is a RoHS compliant product.

4

OPN-2002 SS07114

3. Basic Specifications

ITEMS SPECIFICATIONS NOTES

Section

Control

MPU 32bit ST MicroSTR710FZx

Clock 48MHz

Mem

ory

Part

Indicate

FROM 1Mbyte

SRAM 1Mbyte

OS

μITRON

Input

key input 2keys:Torrigar key/ Function key

LED

Double color LED (RED/GREEN) :2, Single color LED (Blue) :1

Buzzer

3 volumes (adjustable)

Wires

communication

port

frequency 2402MHz-2480MHz

Specifications Bluetooth Ver1.2

Communication Range 10m

Transmission Power Class2

Profile SPP, HID

USB

Ver1.1 Virtual COM Port

RTS

Year, Month, Day, Hour, Minute, Second (lunar equation ±90 seconds)

serial

2 ports to a cradle

power source

main battery lithium polymar 240mAh

battery hour more than 7 hours

It may differ depending on the
environmental conditions.

2 scans per 10 seconds at a
ambient temperarure,
Bluetooth always transmitted

5

OPN-2002 SS07114

ITEMS SPECIFICATIONS NOTES

Scan Method Bi-directional 100 ±20 scan/sec

Wavelength: 650±10nm
(at 25 deg. C)

Section

Optical

Light Emitting Element Red laser diode

Light Output ≤ 1.0 mW Laser Class 2 Product

JAN,EAN,UPC-A,UPC-E，NW-7(Codabar),
Industrial 2 of 5,Interleaved 2 of 5,
Code 11，Code 39，Code 93，Code 128，

Supported Symbologies

MSI/Plessey,UK/Plessey,IATA,Telepen,
Matrix 2 of 5,S Code,Tri-Optic,
Chinese Post Matrix 2 of 5,EAN 128,
RSS-14,RSS Limited,RSS Expanded,
PDF417,MicroPDF417

Dimensions

Weight

Environmental

Spec.

Regulations and Safety

62.0(D) × 32.0(W) × 17.0(H) (mm)

30g

Operating

Temperature

Storage

0 to 50 degrees C
20%RH～85％RH

-20 to 60 degrees C
20%RH～85％RH

no ice or condensation

no ice or condensation

Dropped from a height of 120 cm onto

Drop

a concrete surface. The drop test was
done 18 times.

Protective Structure IP42

Laser Safety

EMI

JIS C 6802：2005 Class 2
IEC 60825-1+A2:2001 Class 2
VCCI Class B, EN55022 Class 2, FCC

Part 15 Subpart C
Product Safety IEC/EN 60950-1
Other Certifications CE Marking

Logo Certifications

Certifications for Construction Design

of Specified Radio Equipment

Bluetooth Logo Certification

Development Environment Development language:C

6

Application
Development

OPN-2002 SS07114

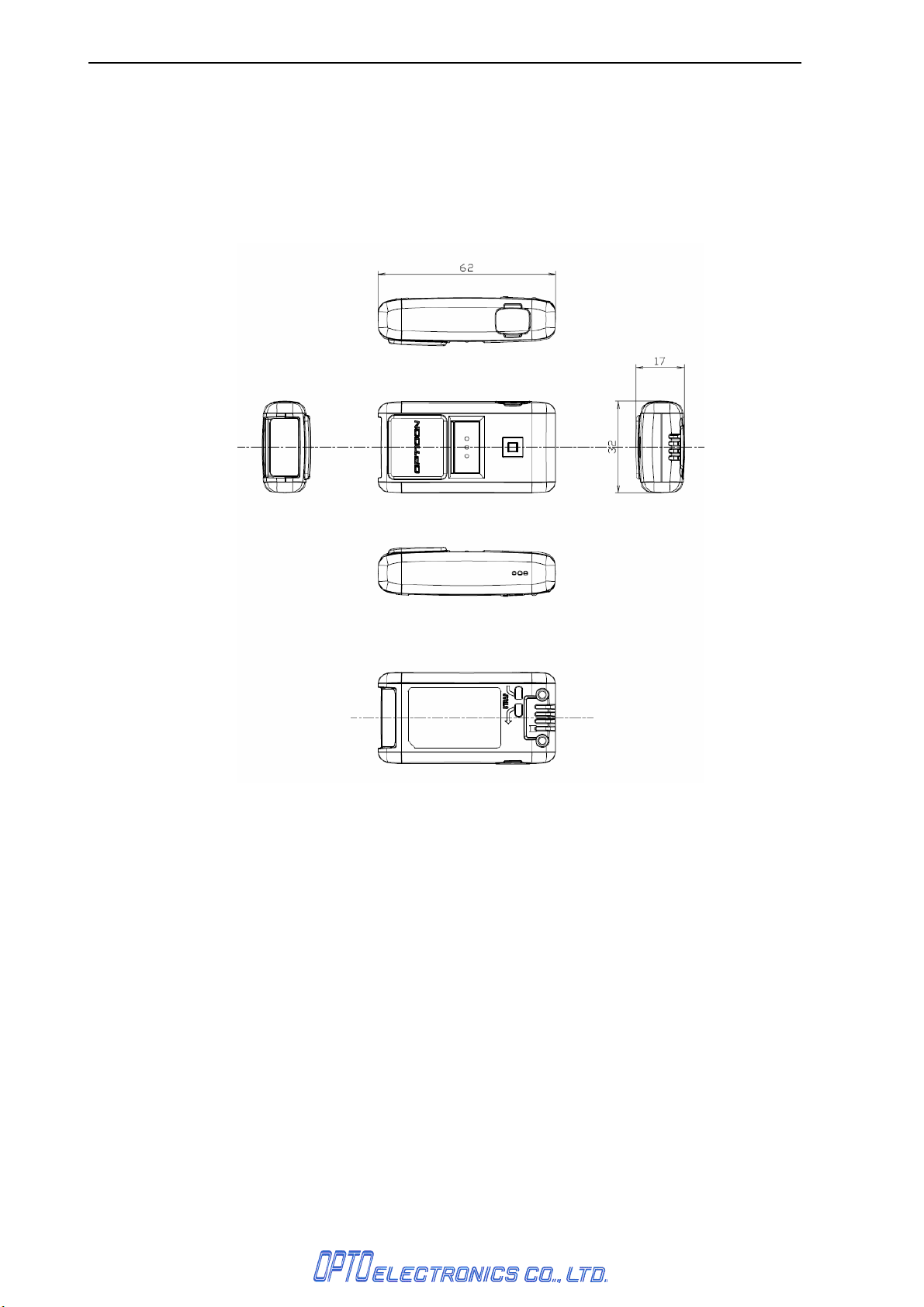

4. Views of a device

① Reading window The laser beam emits from here to scan the barcode.
② USB connector cap A cap for a USB connector.
③ Trigger key Press the key to scan barcodes
④ Function key A function key configurable by the application.
⑤ LED Indicate the status of barcode reading, Bluetooth connection or warning.
⑥ Buzzer Buzzer
⑦ Eyelet Fix a wrist strap here.
⑧ Connector A connector for recharging and data transmission to a dedicated cradle.

7
