SPECIFICATIONS MANUAL

OPN-2102n

1st

The information in this document is subject to change without notice.

Document History

Model Number: OPN-2102n Specification Number: SS16058
Edition: 1st Original Spec Number: (SS16047)
Date: 30-September-2016

© 2016 Opticon. All rights reserved.

This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted
to any electronic or machine readable form without prior written consent of Opticon.

Limited Warranty and Disclaimers

Please read this manual carefully before installing or using the product.

Serial Number

A serial number appears on all Opticon products. This official registration number is directly related to
the device purchased. Do not remove the serial number from your Opticon device. Removing the
serial number voids the warranty.

Warranty

Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in
materials and workmanship for two years after purchase excluding batteries. Opticon will repair or, at
its option, replace products that are defective in materials or workmanship with proper use during the
warranty period. Opticon is not liable for damages caused by modifications made by a customer. In
such cases, standard repair charges will apply. If a product is returned under warranty and no defect is
found, standard repair charges will apply. Opticon assumes no liability for any direct, indirect,
consequential or incidental damages arising out of use or inability to use both the hardware and
software, even if Opticon has been informed about the possibility of such damages.

Packaging

The packing materials are recyclable. We recommend that you save all packing material to use should
you need to transport your data collector or send it for service. Damage caused by improper
packaging during shipment is not covered by the warranty.

Trademarks

Trademarks used are the property of their respective owners.

Opticon Inc. and Opticon Sensors Europe B.V. are wholly owned subsidiaries of
OPTOELECTRONICS Co., Ltd., 12-17, Tsukagoshi 4-chome, Warabi-shi, Saitama, Japan 335-0002.
TEL [phone]; FAX [phone]

SUPPORT

USA Europe

Phone: [phone] Phone: [phone]
Email: [email protected] Email: [email protected]
Web: www.opticonusa.com Web: www.opticon.com

2

SPECIFICATIONS MANUAL

Revision History

Product Name : OPN-2102n

Edition Date Page Section Description of Changes

1st 2016/09 /30 - -

OPN-2102n

1st

3

SPECIFICATIONS MANUAL

OPN-2102n

1st

Contents

1 Abstract ............................................................................................................................ 6

2 Overview .......................................................................................................................... 6

3 Basic Specifications ....................................................................................................... 7

4 Detailed View ................................................................................................................... 9

5 Electrical Specifications ............................................................................................... 10

5.1 USB ........................................................................................................................................ 10

5.2 Wireless Charging .................................................................................................................. 10

6 Interface Specifications ................................................................................................ 10

6.1 USB Interface ......................................................................................................................... 10

6.1.1 Connector ....................................................................................................................... 10

6.1.2 USB Interface Circuit ...................................................................................................... 10

6.2 Bluetooth ................................................................................................................................ 11

6.3 NFC Tag ................................................................................................................................. 11

7 Optical Specifications ................................................................................................... 11

7.1 Basic Specifications ............................................................................................................... 11

7.2 Laser Scanning Standards ..................................................................................................... 12

7.2.1 Laser Scanning Tilt ......................................................................................................... 12

7.2.2 Laser Scanning Curvature .............................................................................................. 12

8 Technical Specifications .............................................................................................. 13

8.1 Barcode Test Sample ............................................................................................................. 13

8.2 Scan Area and Depth of Field ................................................................................................ 14

8.3 Printed Contrast Signal (PCS) ............................................................................................... 15

8.4 Minimum Resolution ............................................................................................................... 15

8.5 Pitch, Skew and Tilt ................................................................................................................ 15

8.6 Curvature ................................................................................................................................ 16

9 Environmental Specifications ...................................................................................... 16

9.1 Temperature ........................................................................................................................... 16

9.2 Humidity .................................................................................................................................. 16

9.3 Ambient Light Immunity .......................................................................................................... 17

9.4 Dust and Drip Proof ................................................................................................................ 17

9.5 Vibration Strength (without packing) ...................................................................................... 17

9.6 Vibration Strength (in individual packing) ............................................................................... 17

9.7 Drop Impact Strength (without packaging) ............................................................................. 18

9.8 Drop Impact Strength (in individual packaging) ..................................................................... 18

9.9 Electrostatic Discharge Immunity ........................................................................................... 18

10 Regulatory Compliance ................................................................................................ 19

10.1 LED Safety ............................................................................................................................. 19

10.2 Product Safety ........................................................................................................................ 19

10.3 EMC ........................................................................................................................................ 19

10.4 Other ....................................................................................................................................... 20

4

SPECIFICATIONS MANUAL

OPN-2102n

1st

11 RoHS .............................................................................................................................. 20

12 Reliability ....................................................................................................................... 20

13 Precautions .................................................................................................................... 20

13.1 Precaution against Laser Light ............................................................................................... 20

13.2 Handling ................................................................................................................................. 21

13.3 Radio Law............................................................................................................................... 21

13.4 Bluetooth ................................................................................................................................ 22

13.5 Frequency Band ..................................................................................................................... 22

14 Product Labels .............................................................................................................. 23

15 Packaging Specifications ............................................................................................. 24

15.1 Individual Packaging .............................................................................................................. 24

15.2 Collective Packaging .............................................................................................................. 25

16 Physical Features .......................................................................................................... 26

16.1 Dimensions ............................................................................................................................. 26

16.2 Weight .................................................................................................................................... 26

16.3 Mechanical Drawing ............................................................................................................... 26

17 Supported Symbologies ............................................................................................... 27

17.1 Default Setting ........................................................................................................................ 27

17.2 Supported Symbologies ......................................................................................................... 27

17.2.1 1D Barcodes ................................................................................................................... 27

17.2.2 GS1 Databar, Composite Code ...................................................................................... 28

Table of Figures

Figure 1: Detailed View ........................................................................................................................... 9

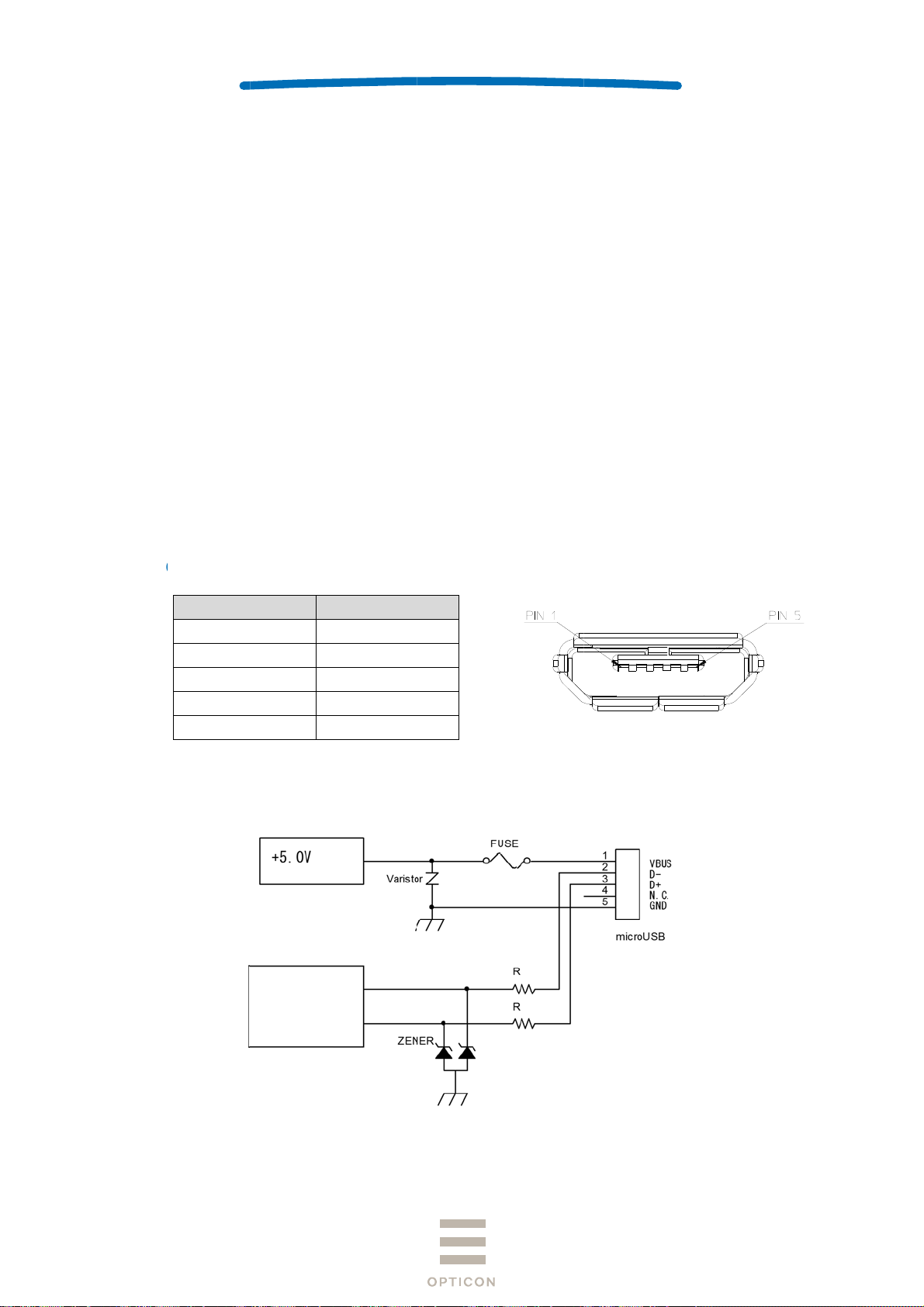

Figure 2: micro USB B Connector ......................................................................................................... 10

Figure 3: Interface Circuit (USB) ........................................................................................................... 10

Figure 4: Laser Scanning Specification ................................................................................................. 12

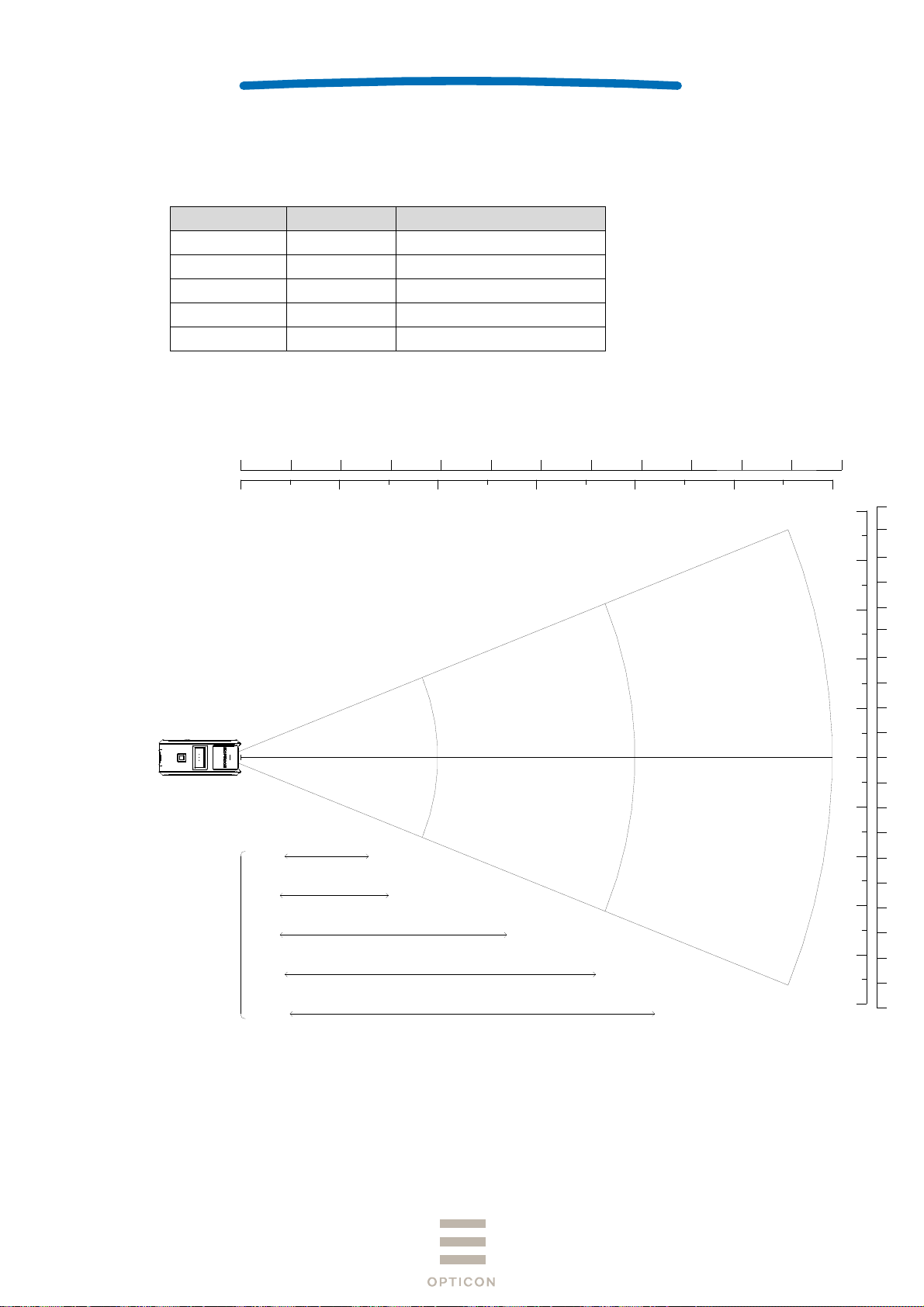

Figure 5: Scan Area and Depth of Field ................................................................................................ 14

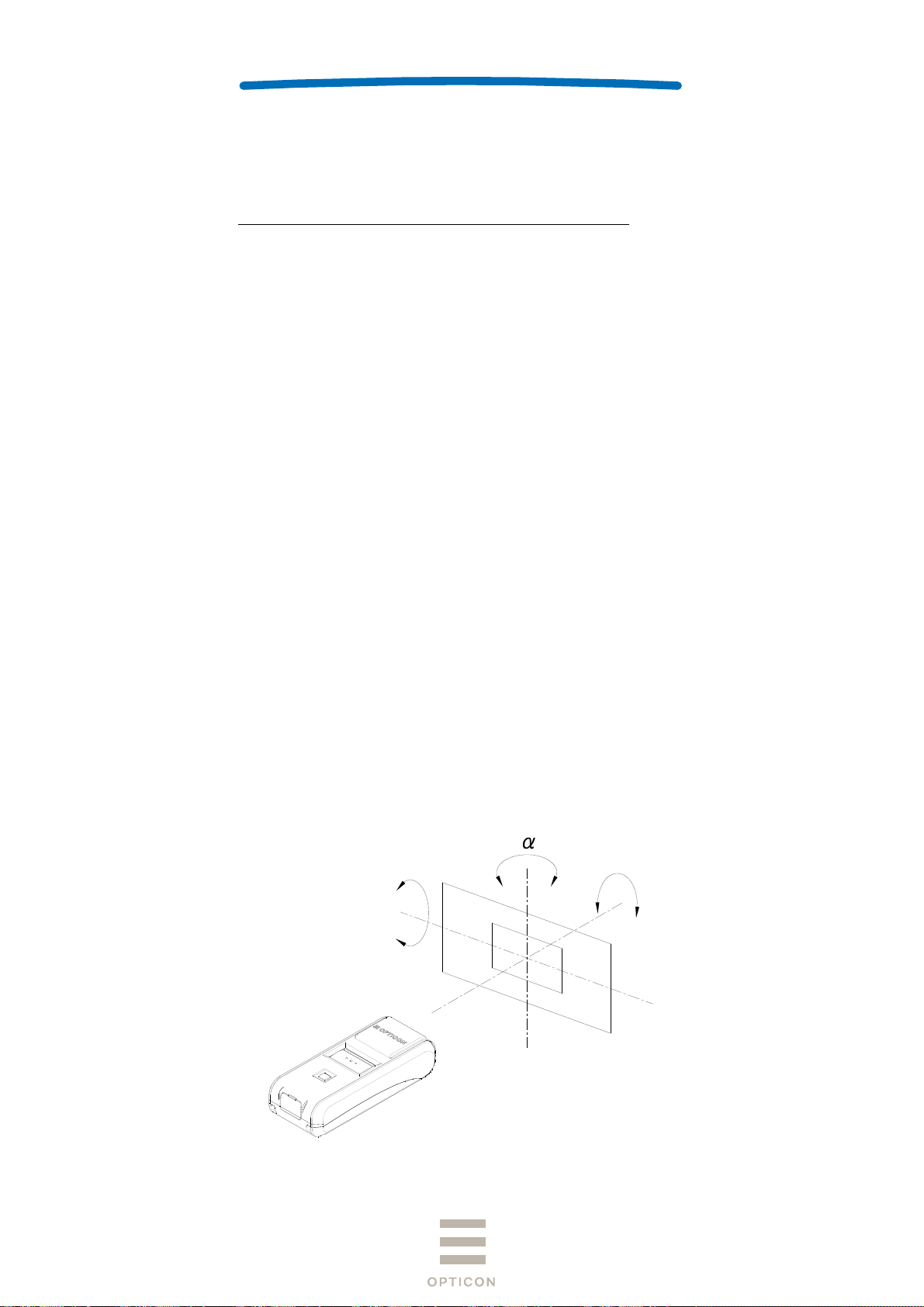

Figure 6: Pitch, Skew and Tilt ................................................................................................................ 15

Figure 7: Curvature ................................................................................................................................ 16

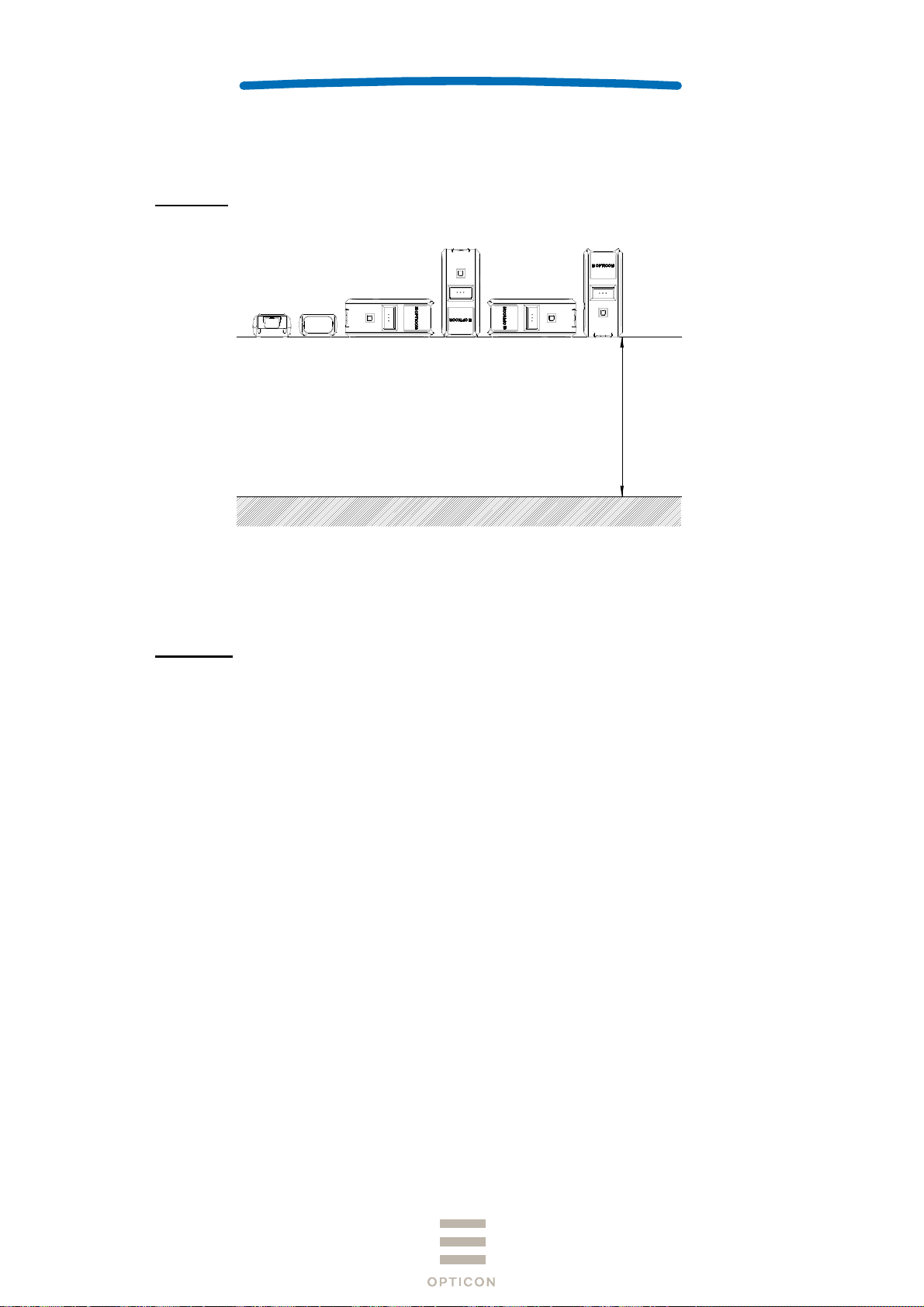

Figure 8: Drop Test ................................................................................................................................ 18

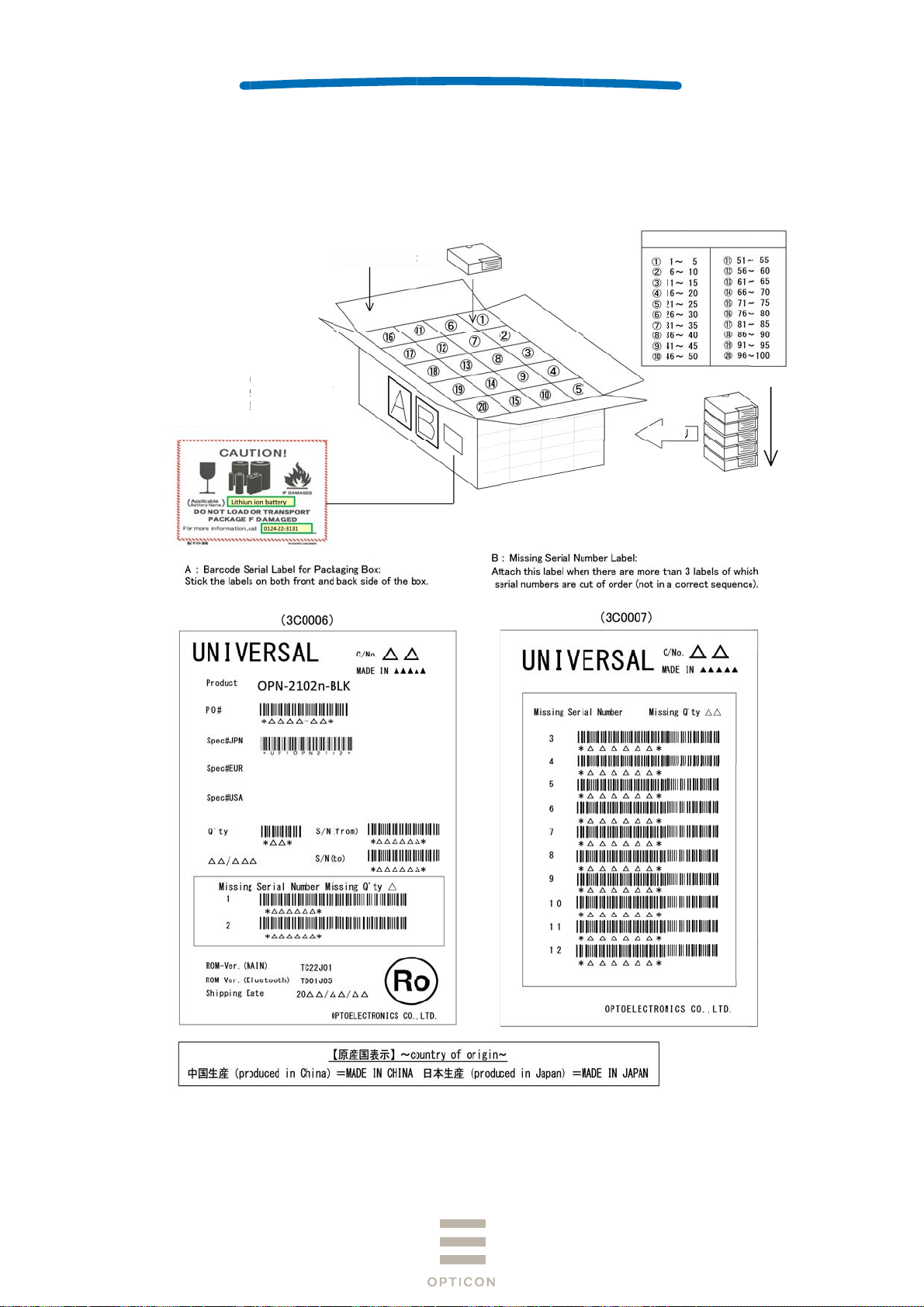

Figure 9: Product Label Position ........................................................................................................... 23

Figure 10: Individual Packaging ............................................................................................................ 24

Figure 11: Collective Packaging ............................................................................................................ 25

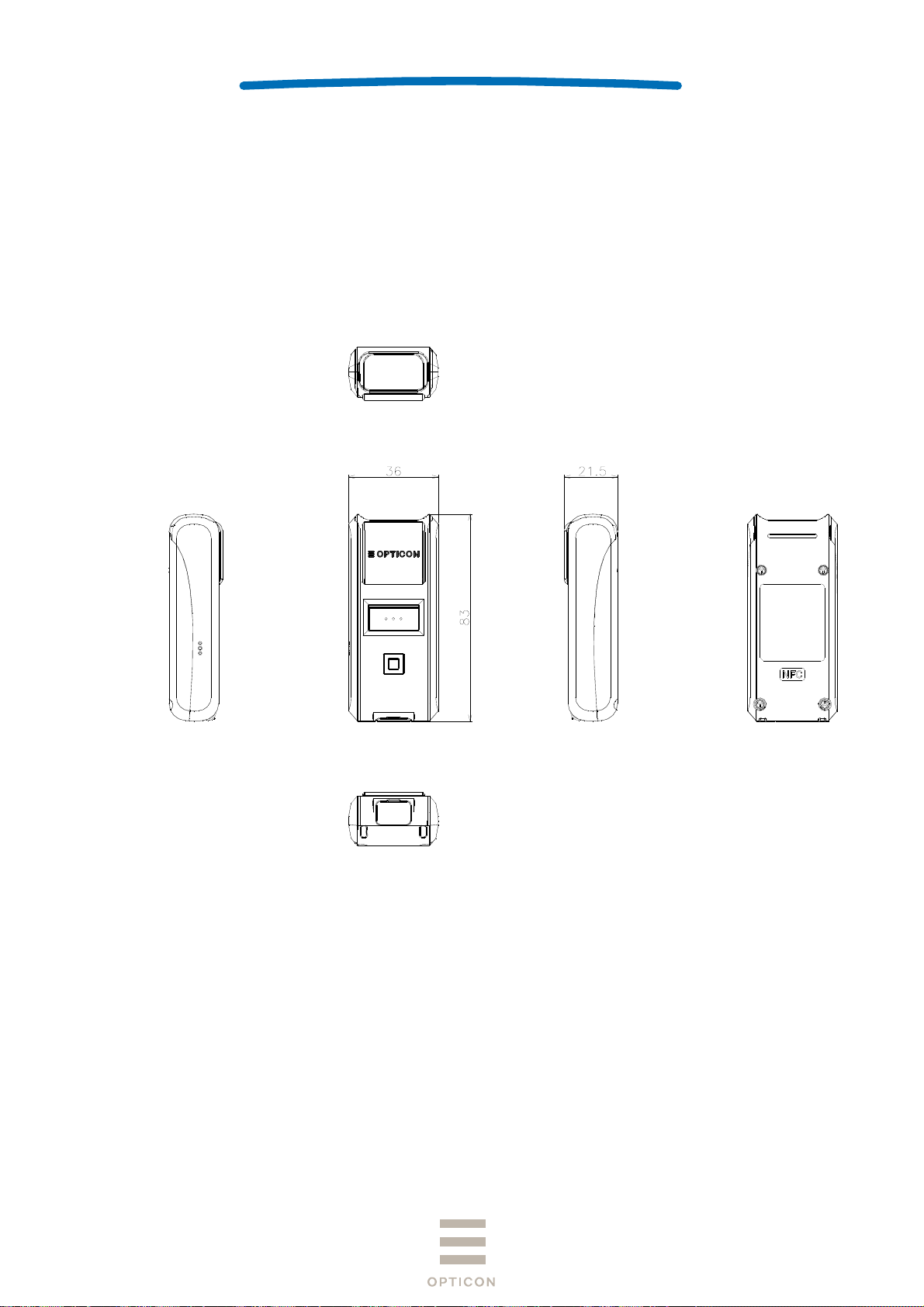

Figure 12: Mechanical Drawing ............................................................................................................. 26

5

SPECIFICATIONS MANUAL

OPN-2102n

1st

1 Abstract

This manual provides specifications for the OPN-2102n compact laser data collector with built-in
Bluetooth.

2 Overview

The OPN-2102n is compact battery powered portable laser scanner with a build-in wireless battery
charger. Below are some of the key features:

• The OPN-2102n is a handy and simple to use data collector.

• The scanned barcode data can be transmitted to a host device through the USB interface or via the

build-in Bluetooth interface.

• The scanner can work with many Bluetooth enabled host devices, such as PCs, tablets and smart
phones.

• Bluetooth SPP (Serial Port Profile) and HID (Human Interface Device Profile) are implemented.

• Built-in NFC tag allows for “tap to connect” on supported telephones which greatly simplifies the

pairing process of Bluetooth.

• A red LED aiming line toward a target bar code can help the users find the appropriate scanning
position.

• Alcohol can be used to wipe the scanner clean

• The power source is a 3.7 V 600 mAh (typ.) Li-ion polymer battery.

• The OPN-2102n supports wireless charging and a dedicated charging cradle, the CRD-3000 is

available for that. The OPN-2102n can also be charged via its USB interface.

6

SPECIFICATIONS MANUAL

3 Basic Specifications

Item Specification Note

CPU 32 bit CISC / 96 MHz

Section

Control

FROM 512 Kbyte + 32 Kbyte

OPN-2102n

1st

SRAM 96 Kbyte

FROM (storage) 1 Mbyte

Section

Input

Key type 2 key: trigger, function

Indicator

LED 2 bi-colors LEDs (red, green) and 1 blueLED

Buzzer Loudness (3-level) / tone adjustable

Vibration motor Strength (3-level) / duration adjustable

RTC

Contents Year, month, date, hour, minute, second

Accuracy ± 90 seconds per month

Frequency 2402 ~ 2480 MHz

Specification Bluetooth Ver 2.1 compliant

Bluetooth

Interface

Communication
distance

10 m

Output level Class 2

Profile SPP / HID

NFC tag

USB

Light-emitted element Red laser diode

Section

Optical

Laser wavelength
/ output

ISO/IEC 14443 TYPE A, TYPE B
JISX6319-4

・Full-Speed 12Mbps ( HID/COM )
・Hi-Power Bus-powered supported

650±10nm 1mW or less

Scan rate 100±20scan/sec

JAN,EAN,UPC-A,UPC-E,NW-7 (Codabar),

Symbologies

Industrial 2 of 5,Interleaved 2 of 5,
Code 11，Code 39，Code 93，Code 128

Minimum resolution Code 39 : 0.076mm

Supported 1D Symbologies

Curvature

Barcode width

R ≥ 15 mm ( 8-digit JAN)
R ≥ 20 mm (13-digit JAN)
100 mm wide 0.2 mm resolution Code 39 (DOF 150
mm) is readable:

Pitch : α ≦±35°

Scan angle

Skew : β ≦±50° (Excluding dead zone)

Tilt : γ ≦±20°

Resolution (1.0) 50 ~ 420

For data area only

Data and time are lost
when the main battery
is removed.

Not guaranteed.

Max output 4 dBm

Wavelength in
temperature 25℃

Refer to Section 17.
for details

PCS 0.9

PCS 0.9

PCS 0.9

Depth of Field Code 39

Resolution (0.5) 45 ~ 340

Resolution (0.25) 40 ~ 250

Resolution (0.15) 40 ~ 155

Resolution (0.127) 45 ~ 130

7

SPECIFICATIONS MANUAL

2

Item Specification Note

Minimum PCS 0.3 or more

OPN-2102n

1st

MRD 32% or more

Main battery Lithium-polymer 600 mAh (typ.)

Power Section

Up-time 25 hours or more

Feeding system

Electromagnetic guidance wireless charging,
microUSB

Operating (charging) voltage 4.5 ~ 5.5V

Current
consumption

Charging Less than 500 mA

Operating -10 ~ 50°C

Temperature

Environmental Specifications

Storage -20 ~ 60°C

Operating 20 ~ 85%

Humidity

Storage 20 ~ 85%

Ambient light
immunity

Fluorescent 4,000 lx or less

Sunlight 80,000 lx or less

10 Hz ~ 100 Hz, acceleration of 19.6 m/s

Vibration

minutes per cycle, repeat once in each X, Y and Z­direction

Drop

Drop the scanner 18 times (6 faces x 3) from a
height of 150 cm onto a concrete floor

Dust and drip proof IP54 equivalent

JIS C 6802：2011 Class2

LED safety

IEC 60825-1 Ed.2: 2007 Class 2
CDRH Class Ⅱ

Product safety

Regulatory Compliance

EN60950-1:2005
IEC60950-1:2006
EN 55024:2010
EN 55032:2012+AC: 2013
EN 301 489-1 V1.9.2

EMC

EN 301 489-17 V2.2.1
EN 300 328 V1.9.1
EN 302 291-2 V1.1.1
FCC Part 15 Subpart C, Subpart B ClassB
VCCI Class B

CE Marking

European conformity

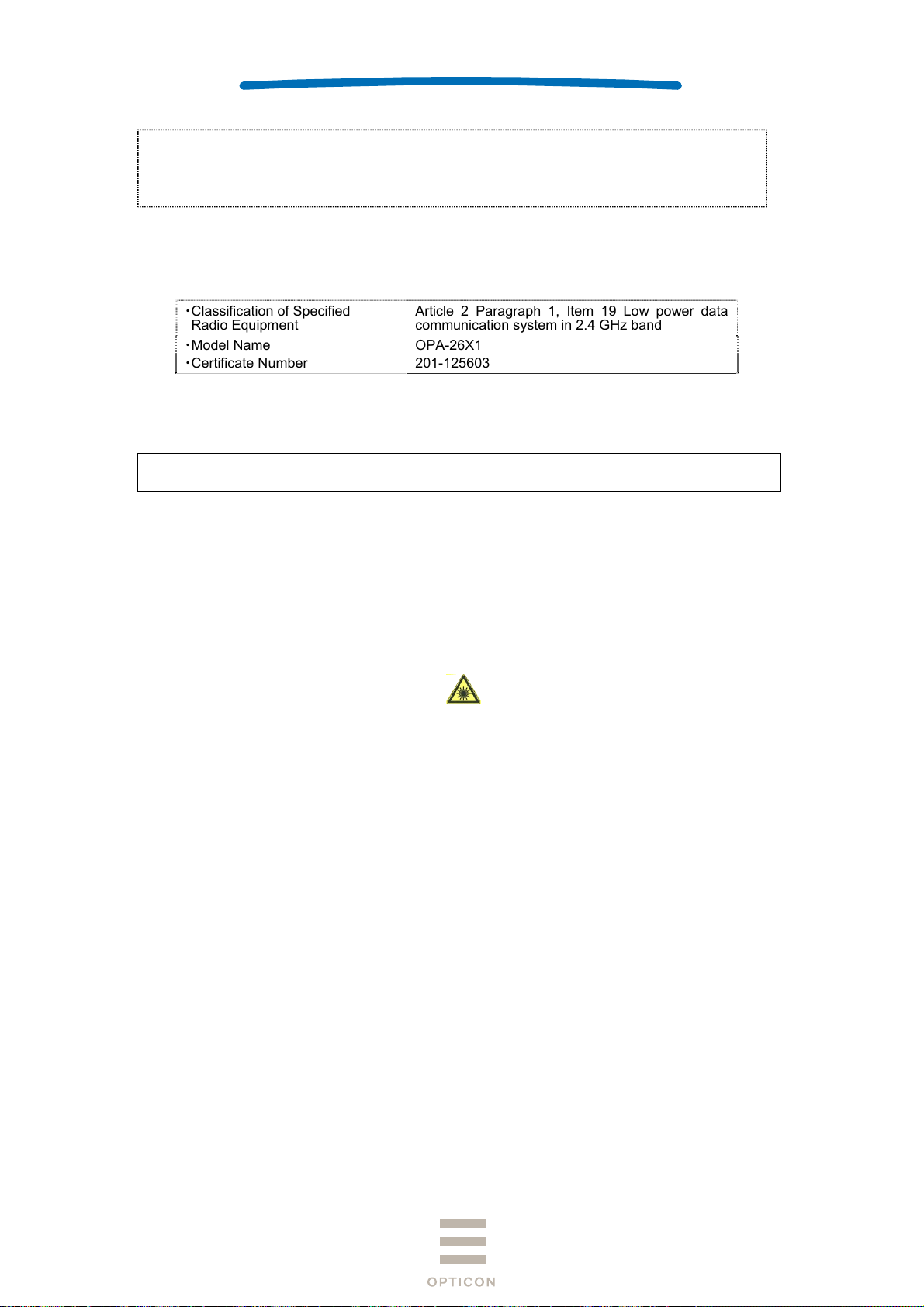

Certification for Construction Design of Specified
Radio Equipment

*1

Charging with USB

No condensing
No frost

, 60

For residential,
commercial and light­industrial
environments

Other Bluetooth logo certification

Immunity

Test

ESD

Features

Physical

Dimensions 83.0 × 36 × 21.5 (WDH mm)

Weight Approx. 60 g

No
distraction
No
malfunction

Air discharge (direct): ±15 kV

Air discharge (direct): ±8 kV

Conditions:
IEC61000-4-2
compliant

Excluding accessories

*1: When a barcode is read twice every 10 seconds at room temperature in a constant Bluetooth connection (SPP
master mode).

8

4 Detailed View

SPECIFICATIONS MANUAL

OPN-2102n

1st

1

5

8

9

6

7

Figure 1: Detailed View

No Name Description

1 Scan Window

The laser light is emitted through this window. Ensure that the lens is
not exposed to dust and dirt before scanning.

3

4

2

2 USB Cap Cap for USB connector part used to make the scanner IP54 water tight.

3 Trigger Key Press this key to enable the laser and start reading barcodes.

4 Function Key The function of this key depends on the installed application.

5 LED

6 Buzzer Orifice Holes for buzzer.

7 Strap Orifice Holes for attaching a hand strap.

8 Charging Coil

9 NFC

Indicates operating status, such as bar code reading, Bluetooth
connection, warning etc.

The charging coil is located here with which the dedicated cradle can
supply power to the scanner.

This is the location of the NFC tag. Hold an NFC reader close to this
area when the tag has to be read.

9

e

uBuCu

W

ePo

t

N

C

S

l

u

m

S

p

a

u

r

N

A

A(NC

a

a

a

p

C

t

w

p

SPECIFI

V

m

a

m

a

a

m

M

e

u

n

c

h

u

S

t

t

CATIONS

ANUAL

O

PN-2102n

1st

5 El

5.1 U

S

5.2

F

6 In

The OP

6.1 U

In

6.1.1

ctrical

SB

pply Voltag
s-power (C
rrent cons

ireless C

eding syste
wer consu

erface

-2102n su

SB Interf

terface is F

onnecto

Signal

VC

DAT

DAT

GN

pecific

e

ass)
mption

harging

m

ption

pecific

ports two ty

ce

ll Speed US

ame

C

(-)

(+)

)

D

tions

: 4.5-5.5
: 500mA
: Less th

: Electro
: Less th

tions

es of interf

B interface.

ontact Nu

1

2

3

4

5

ax (hi-pow

n 500mA

agnetic ind

n 5W

ces; USB a

ber

r)

ction

d Bluetoot

Fig

.

re 2: micro U

B B Connec

or

6.1.2

USB Interf

ce Circui

Po
Su

Micro­controller

er

ly

Figure 3:

Interface Cir

uit (USB)

USB Connec

tor

10

SPECIFICATIONS MANUAL

t

t

6.2 Bluetooth

The specifications of the OPN-2102n Bluetooth interface are as follows:
Frequency : 2402 ~ 2480 MHz

Specification : Bluetooth Ver 2.1 compliant

Communication distance : 10 m

Output level : Class 2 (max 4 dBm)

Implemented profile : SPP / HID

Communication configuration : 1 to 1

Operating mode in communication : Master / Slave mode

Security mode : Authentication supported

Encryption : Encryption supported

6.3 NFC Tag

OPN2102n has NFC tag built-in which record Bluetooth device address.
Frequency: 13.56MHz

Standard : ISO/IEC 14443 TYPE A, TYPE B and JISX6319-4
Recorded Contents:

Rewriting from external: possible

Total 928 byte

NDEF

Record #1

ype: ”application/vnd.bluetooth.ep.oob”
OOB data length: 8 Byte
MAC address: 00:12:6A:xx:xx:xx

Record #2

ype: ”T”
TEXT data length: 15 Byte
TEXT data: ”00126Axxxxxx”

Free area

Reserved area

*xx will differ according to product.

OPN-2102n

1st

7 Optical Specifications

7.1 Basic Specifications

Item

Light-Emitting Element Red laser diode -

Emission Wavelength 650 ±10 (25° C) nm

Light Output < 1.0 μW

Scanning Method Bi-directional scanning -

Scanning Speed 100 ±20 scans/sec

Scan Angle 54 ±5 deg

Scan Angle

Effective Scan
Angle

44 (Min) deg

Characteristics

Unit

11

SPECIFICATIONS MANUAL

7.2 Laser Scanning Standards

7.2.1 Laser Scanning Tilt

Vertical differences between both ends of a laser scanning line:

- Up to 1.2 degrees in a vertical direction from the scan origin (scanning mirror).

- Up to 3.1 mm measured at 150 mm from the scan origin and with zero skew angle.

- Measure in the middle of the scanning line.

7.2.2 Laser Scanning Curvature

The maximum differences between the laser scanning line and a straight line connecting the
both ends of the scanning line:

- Up to 1.27 degrees from the scan origin (scanning mirror).

- Up to 3.3 mm measured at 150 mm from the scan origin.

- Measure in the middle of the scanning line.

OPN-2102n

1st

Figure 4: Laser Scanning Specification

12

SPECIFICATIONS MANUAL

8 Technical Specifications

Ambient conditions are as follows unless otherwise specified in each section:

<Conditions>

Ambient Temperature and Humidity Room temperature, room humidity

Ambient Light 500 ~ 900 lx

Barcodes Refer to Section 8.1.

Background Black
Power supply voltage

Reading Test Accept the performance with 10 consecutive successes

8.1 Barcode Test Sample

<Code 39>

Resolution Symbology PCS

1.0 mm

0.5 mm 18 mm 3

0.25 mm 10 mm 8

0.25 mm 10 mm 9

0.15 mm 7 mm 10

0.127 mm 5 mm 4

0.076mm 5 mm 5

<JAN>

Resolution Symbology PCS

0.26 mm

0.26 mm 10 mm 8

Code 39 0.9

5V (USB)

in reading. Each reading should be done in 0.5 seconds
or less.

Quiet Zone

25 mm 1

Quiet Zone

JAN 0.9

10 mm 13

No. of Digits

No. of Digits

OPN-2102n

1st

13

SPECIFICATIONS MANUAL

8.2 Scan Area and Depth of Field

The scanner is able to read in the area between the two arcs that are centered on the scan
origin with a center line distance from the front of the scanner as indicated for each resolution.

Resolution No. of Digits Depth of Field (mm)

1.0mm 1 50 ~ 420

0.5mm 3 45 ~ 340

0.25mm 8 40 ~ 250

0.15mm 10 40 ~ 155

0.127mm 4 45 ~ 130

<Conditions>

Barcode : Code 39 specified in Section 8.1.

Angle : α = 0°, β = + 15°, γ = 0°

[ inch ]

[ mm ]

2" 4"

0

50 100 150 200 250 300

6" 8"

10" 12"

14" 16"0"

350

400

18"

450 500

OPN-2102n

1st

20"

22" 24"

550

600

Code 39

0.127mm ( 5mil )

0.15mm ( 6mil )

0.25mm ( 10mil )

0.5mm ( 20mil )

1.0mm ( 40mil )

8" 9" 10"

200 225 250

7"

175

3"

75

50

25

0

0" 2"2" 1"1"

25

50

75

3"

4" 4" 5" 6"5"6"

100 100 125 150125150

175

7"

200225250

8"9"10"

[ mm ]

[ inch ]

Figure 5: Scan Area and Depth of Field

14

SPECIFICATIONS MANUAL

8.3 Printed Contrast Signal (PCS)

PSC 0.3 or higher (70% or higher reflectivity of space and quiet zone)

PCS =

Note:
Be sure to keep the optical window clean without dirt or scratches, or it may have a detrimental effect on
the reading characteristics.

Reflectance of white space – Reflectance of black bar

Reflectance of white space

8.4 Minimum Resolution

Minimum Resolution 0.076mm

<Conditions>

Barcode Code 39 specified in Section 8.1
Distance 60 mm from the front edge of the scanner

Angle Skew angle β = 15°

OPN-2102n

1st

8.5 Pitch, Skew and Tilt

Pitch : α ≦ ±30°
Skew : β ≦ ±50°
Dead Zone : β ≦ ±8 °
Tilt : γ ≦ ±20°

<Conditions>

Bar code <Pitch, Skew and Dead Zone>

Resolution 0.25 mm, 9-digit Code 39 specified in Section 8.1.

<Tilt>

Resolution 0.26 mm, JAN-13 specified in Section 8.1.
Distance 100 mm from the edge of the scan engine
Curvature R = ∞
Angle Pitch angle : β = +15°, γ = 0°

Tilt angle : α = 0°, β = +15°

Skew angle / Dead zone: α = 0°, γ = 0°

(Excluding dead zone)

(Decoding may fail in some areas as a result of specular reflection)

-

β

-

+

-

γ

+

+

Figure 6: Pitch, Skew and Tilt

15

8.6 Curvature

8-digit JAN: R ≧ 15 mm
13-digit JAN: R ≧ 20 mm

<Conditions>
Barcode Resolution 0.26 mm, JAN specified in Section 8.1.
Distance 100 mm from the edge of the scan engine
Angle Skew angle β = +15°

SPECIFICATIONS MANUAL

バーコード

Bar code

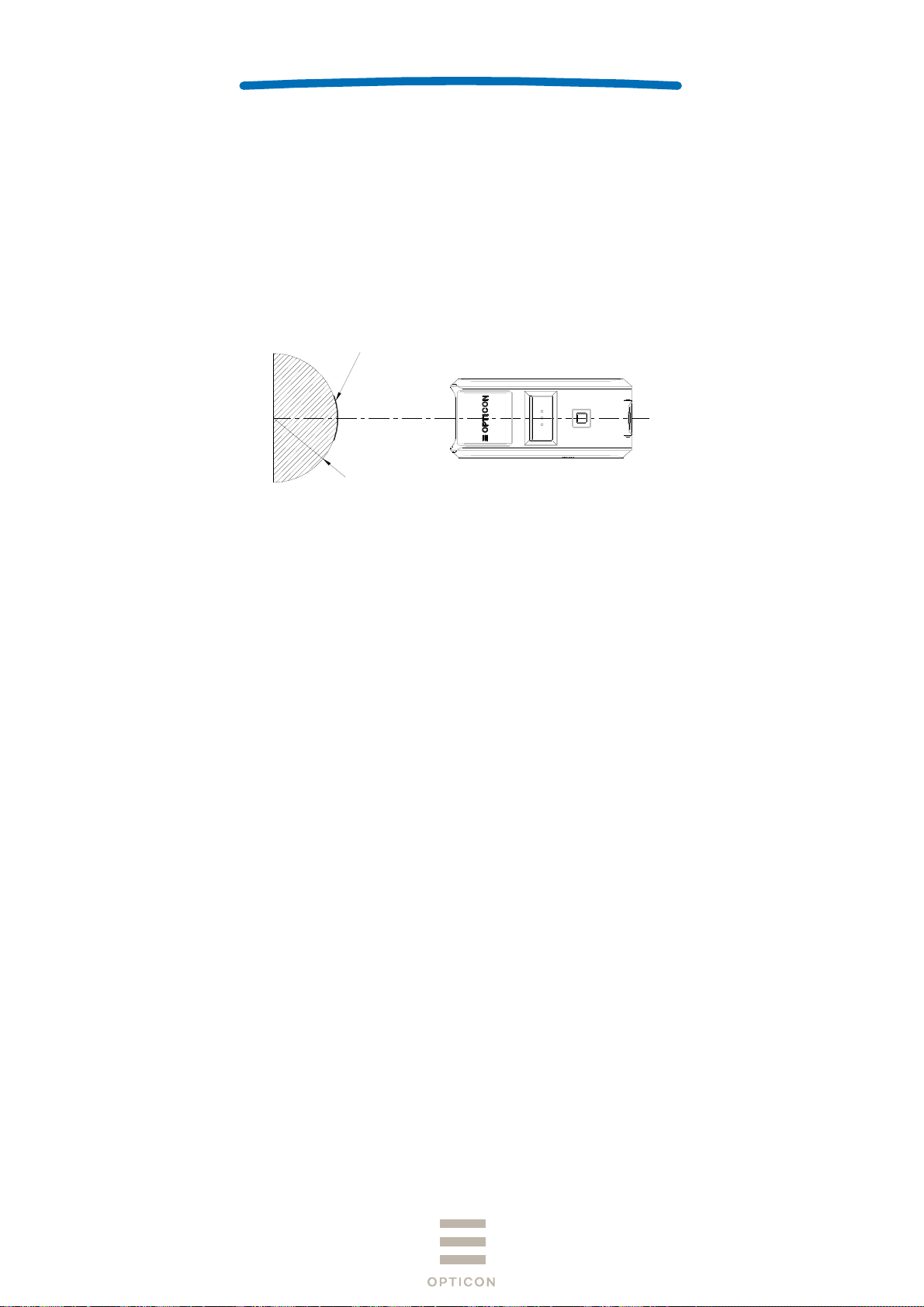

R

OPN-2102n

1st

Figure 7: Curvature

Note:
The reading performance may deteriorate if there is specular reflection of the laser light, this typically will occur
when the reflectivity of the barcode is high.

9 Environmental Specifications

9.1 Temperature

Scanning performance is guaranteed when the ambient temp. is within the following range:

Operating Temperature: -10 ~ 50
Storage Temperature : -20 ~ 60

Please charge when the temperature is between 0 and 40°C. When the temperature is over 40°C,
charging may stop to prevent battery breakdown..

9.2 Humidity

Scanning performance is guaranteed when the ambient humidity within following range:

Operating Humidity: 20 ~ 85%RH (no condensation, no frost)
Storage Humidity: 20 ~ 85%RH (no condensation, no frost)

°C
°C

16

SPECIFICATIONS MANUAL

9.3 Ambient Light Immunity

Scanning performance is guaranteed when the illumination on a barcode surface is between
zero and the following values:

Incandescent light: 4,000 lx
Fluorescent light: 4,000 lx (excluding high-frequency lighting)
Sunlight: 80,000 lx

<Conditions>

Barcode: Optoelectronics Test Sample

Resolution 0.25 mm, 9-digit Code 39,

Quiet Zone 10 mm, N/W Ratio = 1 : 2.5
Distance: 100 mm from the front edge of the scanner
Angle:

Curvature: R = ∞
Power-supply voltage: 5.0V

* Avoid direct or specula reflection from the laser beam as it may blind the scanners optical receiver.

α = 0°, β =＋15°, γ = 0°

9.4 Dust and Drip Proof

IEC IP54 equivalent

Protection against solid objects: Level 5 equivalent (Dust proof type)
Prevent dust ingress to inside. Even if slight dust intrusion will not inhibit normal operation.

Protection against liquids: Level 4 equivalent (Splash proof type)
Protected against water splash from any direction.

* () is JIS drip-proof type.

OPN-2102n

1st

9.5 Vibration Strength (without packing)

There shall be no sign of malfunction after the following vibration test.

Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated

velocity of 19.6m/s2 (2.0 G) for 30 minutes (60 minutes per cycle) in non-operating state.
Repeat this in each X, Y and Z direction.

9.6 Vibration Strength (in individual packing)

There shall be no sign of malfunction after the following vibration test.

Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated

velocity of 19.6 m/s2 (2.0 G) for 30 minutes (60 minutes per cycle) in individually packaged state.
Repeat this in each X, Y and Z direction.

17

SPECIFICATIONS MANUAL

9.7 Drop Impact Strength (without packaging)

There shall be no sign of malfunction after the following drop test.

Drop test: Drop the scanner 18 times in total (3 times at each 6 face), from a height of 150 cm

onto a concrete floor as shown below.

150cm

OPN-2102n

1st

Figure 8: Drop Test

9.8 Drop Impact Strength (in individual packaging)

There shall be no sign of malfunction after the following drop test.

Drop test: Drop an individually packaged scanner 10 times in total, at any of 1 corner, 3 edges,

and 6 faces, from a height of 150 cm onto a concrete floor.

9.9 Electrostatic Discharge Immunity

Air discharge ±8 kV max. (No malfunction)

±15 kV max. (No destruction)

Measurement environment An electrostatic testing device compliant with IEC 61000-4-2

Discharge resistance 330 Ω
Charging capacitor 150 pF

18

SPECIFICATIONS MANUAL

10 Regulatory Compliance

10.1 LED Safety

JIS C 6802：2011 Class 2
IEC 60825-1 Ed.2: 2007 Class 2
CDRH Class Ⅱ

10.2 Product Safety

EN60950-1:2005
IEC60950-1:2006

10.3 EMC

R & TTE Directive

・EN 55024:2010
・EN 55032:2012+AC: 2013
・EN 301 489-1 V1.9.2
・EN 301 489-17 V2.2.1
・EN 300 328 V1.9.1
・EN 302 291-2 V1.1.1

FCC Part 15 Subpart C, Subpart B ClassB

Federal Communications Commission Notices

This device complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
This product complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.

Harmful Interference Notice
This product has been tested and complies with the specifications for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used according to the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which is found by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment or devices

• Connect the equipment to an outlet other than the receiver's

• Consult a dealer or an experienced radio/TV technician for assistance
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

OPN-2102n

1st

19

SPECIFICATIONS MANUAL

VCCI Class B

This is a Class B product, to be used in a domestic environment, based on the Technical
Requirement of the Voluntary Control Council for Interference from Information Technology
Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it
may cause radio interference.

10.4 Other

・Bluetooth logo certification
・Certification for Construction Design of Specified Radio Equipment

・Classification of Specified

Radio Equipment

・Model Name OPA-26X1
・Certificate Number 201-125603

Article 2 Paragraph 1, Item 19 Low power data
communication system in 2.4 GHz band

11 RoHS

RoHS compliance.
RoHS: The restriction of the use of certain hazardous substances in electrical and
electronic equipment, 2011/65/EU

OPN-2102n

1st

12 Reliability

MTBF (Mean Time Between Failures) 50,000 hours

13 Precautions

13.1 Precaution against Laser Light

・ Do not stare into the laser light from the scanning window.

It may harm your eyes.

・ Do not point the laser directly at others’ eyes.

It may harm their eyes.

・ Do not stare into the beam with optical instruments.

It may harm your eyes.

・ Use of controls or adjustments or performance of procedures other than those specified

herein may result in hazardous radiation exposure.

20

SPECIFICATIONS MANUAL

13.2 Handling

Handle this product carefully. Do not deliberately subject it to any of the following.

(1) Shock:

・ Do not drop this product from a height greater than specified in this manual.

・ Do not place this product under or between any heavy items.

・ Do not swing the cable around.

(2) Temperature Conditions:

・ Do not use this product at temperatures outside the specified range.

・ Do not pour boiling water on this product.

・ Do not throw this product into a fire.

(3) Foreign Materials:

・ Do not immerse this product in water or other liquid.

・ Do not expose this product to chemicals.

Others

・ Do not disassemble this product.

・ Do not use this product near a radio or a TV. It may cause reception problems.

・ This product may be affected by a momentary voltage drop caused by lightning.

・ Please use within the range of operating voltage. Using outside of operating voltage may

cause malfunction.

・ Do not attach piece of metal or metal foil to the back of charging coil stored part and NFC coil

stored part. Also, do not fix anything that prevents placing to charging cradle.

・ Please securely close the USB cap to keep the waterproof.

・ Do not pull strong, fold and bend the cables.

・ Do not add shock or apply load to jack and connector.

・ When charging is completed, please remove USB cable from connector.

OPN-2102n

1st

13.3 Radio Law

This product qualifies as specified radio equipment for radio stations of 2.4 GHz band data

communication system and has obtained the Certification for Construction

Design of Specified Radio Equipment. Therefore, radio station license is not required in Japan.

The following activities are prohibited under the Radio Law:

・Remodelling and disassembly

・Peeling off the certificate label

Do not use this equipment under the following environment, as radio interference may affect

other device and end up with causing physical or material damage.

・Safety apparatus and medical device for human body protection

・Environment where is concerned to cause serious damage

21

SPECIFICATIONS MANUAL

13.4 Bluetooth

・This product supports Bluetooth wireless communication with other Bluetooth devices that

have the same profile

・This product complies with Bluetooth standards; however, its communication performance

with untested devices is not guaranteed.

・Bluetooth devices use the 2.4 GHz frequency band that is shared among other devices. It

may affect the communication speed and distance between this product and the host device.

・The communication speed and distance vary depending on the interference and radio wave

condition between this product and the host device.

13.5 Frequency Band

This product uses the 2.4 GHz frequency band. Read carefully the followings before using this

product.

In the frequency band of this product, scientific, medical and industrial devices including

microwaves are used. Also other radio stations including local private radio station for mobile

object identification requiring license for such as manufacturing lines at factories, specific

power-saving radio station requiring no license and amateur radio station are managed.

1. Make sure that “other radio stations” are not managed in the frequency band 2.4 GHz before

using this product.

2. In case that radio interference occurs between this product and “other radio stations,” change

the service space immediately, or stop transmitting radio wave to avoid the interference.

3. If you have any questions or troubles, please contact our sales office.

OPN-2102n

1st

* This specification manual is subject to change without prior notice.

22

SPECIFICATIONS MANUAL

14 Product Labels

The product labels are affixed to the scanner as shown below.

OPN-2102n

1st

Figure 9: Product Label Position

23

a

n

As

W

g

P

a

o

t

o

w

i

e

h

k

c

g

h

a

o

e

d

SPECIFI

5

0

o

p

w

M

P

s

c

G

e

o

2

*

O

*

2

u

『

c

y

*

09

-

e

CATIONS

ANUAL

O

PN-2102n

1st

15 P

15.1 I

ckagin

dividual

sembled p

eight: Appr

Place in

*Place

Specifi

ackagin

ckage size:
x. 140g

OPN-20

o the box wit

d

wn without t

ith Opticon l

ations

Approx. 12

12n

folded side

ped.

go upward.

× 112 × 40

(WDH mm)

Place the M

with conn

Place wit

bac

croUSB cabl
ctor far side.

taped side

ward.

*Do not fol

Place pr

neck stra

side, th

the barcode

Figure 1

duct in front

to the USB

an place QS

hen pasting

: Individual

ide, and plac
able connect

on the top.

OPN-21

UF1

OPN

ackaging

Display

1

3456=Produ

Displa

r

02n-BLK

PN2102

102N-

Individ

for the Serial

『123456』

t serial numb

6-digets seri

al box label:

*

No.

r.

al number.

3A0002

24

C

0AsW

b

P

o

a

o

y

n

g

*13962*

4

o

l

*OPN2102N

-

SPECIFI

5

1

r

09*

M

2

P

m

eTh

CATIONS

ANUAL

O

PN-2102n

1st

15.2

ollective

1

0pcs per b

sembled p

eight: Appr

Enter battery t

attery」and pho

22-31-31」. And

either side of the

ackagin

x
ckage size
x. 15kg

Packing box: 5B

pe 「Lithium ion

e number 「01-2
place 1pc next t

packing box labe

: Approx.

0008 (100pcs pe

-

.

95 × 520 ×

box)

45 (WDH

m)

e order of serial-

5 St

eps

No.

Figure 1

1: Collective

ackaging

25

16 Physical Features

16.1 Dimensions

83.0 × 36.0 × 21.5 (DWH mm)

16.2 Weight

Approx. 60 g (excluding accessories)

16.3 Mechanical Drawing

SPECIFICATIONS MANUAL

OPN-2102n

1st

Unit: mm

Figure 12: Mechanical Drawing

26

SPECIFICATIONS MANUAL

17 Supported Symbologies

17.1 Default Setting

The scanner is set to default by reading the following menu label.

Recorded contents of the NFC tag will also return to default.

Function Menu label Menu code

OPN-2102n

1st

SET

Default

END

_ZZ_
_SO_
_ZZ_

17.2 Supported Symbologies

17.2.1 1D Barcodes

Code type Default Minimum length Note

UPC ○ -

UPC Add-on 2
UPC Add-on 5

EAN (JAN) ○ -

EAN Add-on 2
EAN Add-on 5

EAN-13 ○

EAN-8 ○

Code 39 ○ 1 Not transmit ST/SP

Tri-Optic ○ - Not transmit ST/SP
Codabar (NW7) ○ 5 Not transmit ST/SP
Industrial 2 of 5 ○ 5
Interleaved 2of 5 ○ 6

S-Code 5
Code 128 ○ 1 GS1 conversion (setting required)
Code 93 ○ 1
IATA ○ 5
MSI/Plessey ○ 3

UK/Plessey 2
TELEPEN ○ 1

Code 11 1

Matrix 2 of 5 5

Chinese Post Matrix 2 of 5 -

Korean Postal Authority -

EAN-13 Add-on 2
EAN-13 Add-on 5

EAN-8 Add-on 2
EAN-8 Add-on 5

ZZ

SO

ZZ

27

SPECIFICATIONS MANUAL

17.2.2 GS1 Databar, Composite Code

Code type Default Note

GS1 DataBar

・GS1 DataBar Omnidirectional

・GS1 DataBar Truncated

・GS1 DataBar Stacked

・GS1 DataBar Stacked Omnidirectional

GS1 DataBar Limited

GS1 DataBar Expanded

・GS1 DataBar Expanded

・GS1 DataBar Expanded Stacked

OPN-2102n

1st

GS1

conversion (setting required)

28
