This manual provides specifications for the OPH-5000i Wireless

LAN Handy Terminal with imager scanner.

1

OPH-5000i

1st

The information in this document is subject to change without notice.

Document History

Model Number: OPH-5000i Specification Number: SS16051
Edition: 1st Original Spec Number: (SS16003)
Date: 01-September-2016

2016 Copyright Opticon. All rights reserved.

This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted
to any electronic or machine readable form without prior written consent of Opticon.

Limited Warranty and Disclaimers
PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING

OR USING THE PRODUCT.
Serial Number

A serial number appears on all Opticon products. This official registration number is directly related to
the device purchased. Do not remove the serial number from your Opticon device. Removing the
serial number voids the warranty.

Warranty

Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in
materials and workmanship for two years after purchase excluding batteries. Opticon will repair or, at
its option, replace products that are defective in materials or workmanship with proper use during the
warranty period. Opticon is not liable for damages caused by modifications made by a customer. In
such cases, standard repair charges will apply. If a product is returned under warranty and no defect is
found, standard repair charges will apply. Opticon assumes no liability for any direct, indirect,
consequential or incidental damages arising out of use or inability to use both the hardware and
software, even if Opticon has been informed about the possibility of such damages.

Packaging

The packing materials are recyclable. We recommend that you save all packing material to use should
you need to transport your data collector or send it for service. Damage caused by improper
packaging during shipment is not covered by the warranty.

Trademarks

Trademarks used are the property of their respective owners.

Opticon Inc. and Opticon Sensors Europe B.V. are wholly owned subsidiaries of
OPTOELECTRONICS Co., Ltd., 12-17, Tsukagoshi 4-chome, Warabi-shi, Saitama, Japan 335-0002.
TEL [phone]; FAX [phone]

SUPPORT

USA Europe

Phone: [phone]
Email: [email protected] Email: [email protected]
Web: www.opticonusa.com Web: www.opticon.com

2

Revision History

Product Name : OPH-5000i

Edition Date Page Section Description of Changes

1st 2016/09/01 - - -

OPH-5000i

1st

3

OPH-5000i

1st

Contents

1 Abstract ............................................................................................................................ 6

2 Overview .......................................................................................................................... 6

3 Basic Specifications ....................................................................................................... 7

4 Detailed View ................................................................................................................. 10

5 Electrical Specifications ............................................................................................... 13

5.1 Electrical Specifications .......................................................................................................... 13

5.2 Wireless Charging .................................................................................................................. 13

6 Interface Specifications ................................................................................................ 13

6.1 USB Interface ......................................................................................................................... 13

6.1.1 Connector ....................................................................................................................... 13

6.1.2 USB Interface Circuit ...................................................................................................... 13

6.2 Bluetooth ................................................................................................................................ 14

6.3 Wireless LAN .......................................................................................................................... 14

6.3.1 IEEE 802.11b .................................................................................................................. 14

6.3.2 IEEE 802.11g .................................................................................................................. 14

6.3.3 IEEE 802.11n .................................................................................................................. 14

6.4 Built-in NFC Tag ..................................................................................................................... 14

7 Optical Specifications ................................................................................................... 15

7.1 Basic Specifications ............................................................................................................... 15

7.2 Aiming Pattern ........................................................................................................................ 16

8 Technical Specifications .............................................................................................. 17

8.1 Barcode Test Sample ............................................................................................................. 17

8.2 Scan Area and Depth of Field ................................................................................................ 19

8.3 Printed Contrast Signal (PCS) ............................................................................................... 20

8.4 Minimum Resolution ............................................................................................................... 20

8.5 Barcode Width ........................................................................................................................ 20

8.6 Pitch, Skew and Tilt ................................................................................................................ 21

8.7 Curvature ................................................................................................................................ 21

8.8 Motion Tolerance .................................................................................................................... 22

9 Environmental Specifications ...................................................................................... 23

9.1 Temperature ........................................................................................................................... 23

9.2 Humidity .................................................................................................................................. 23

9.3 Ambient Light Immunity .......................................................................................................... 23

9.4 Dust and Drip Proof ................................................................................................................ 24

9.5 Vibration Strength (without packing) ...................................................................................... 24

9.6 Vibration Strength (in individual packing) ............................................................................... 24

9.7 Drop Impact Strength (without packaging) ............................................................................. 24

9.8 Drop Impact Strength (in individual packaging) ..................................................................... 25

9.9 Electrostatic Discharge Immunity ........................................................................................... 25

10 Regulatory Compliance ................................................................................................ 26

4

OPH-5000i

1st

10.1 LED Safety ............................................................................................................................. 26

10.2 Product Safety ........................................................................................................................ 26

10.3 EMC ........................................................................................................................................ 26

10.4 Other ....................................................................................................................................... 28

11 RoHS .............................................................................................................................. 28

12 Reliability ....................................................................................................................... 28

13 Precautions .................................................................................................................... 28

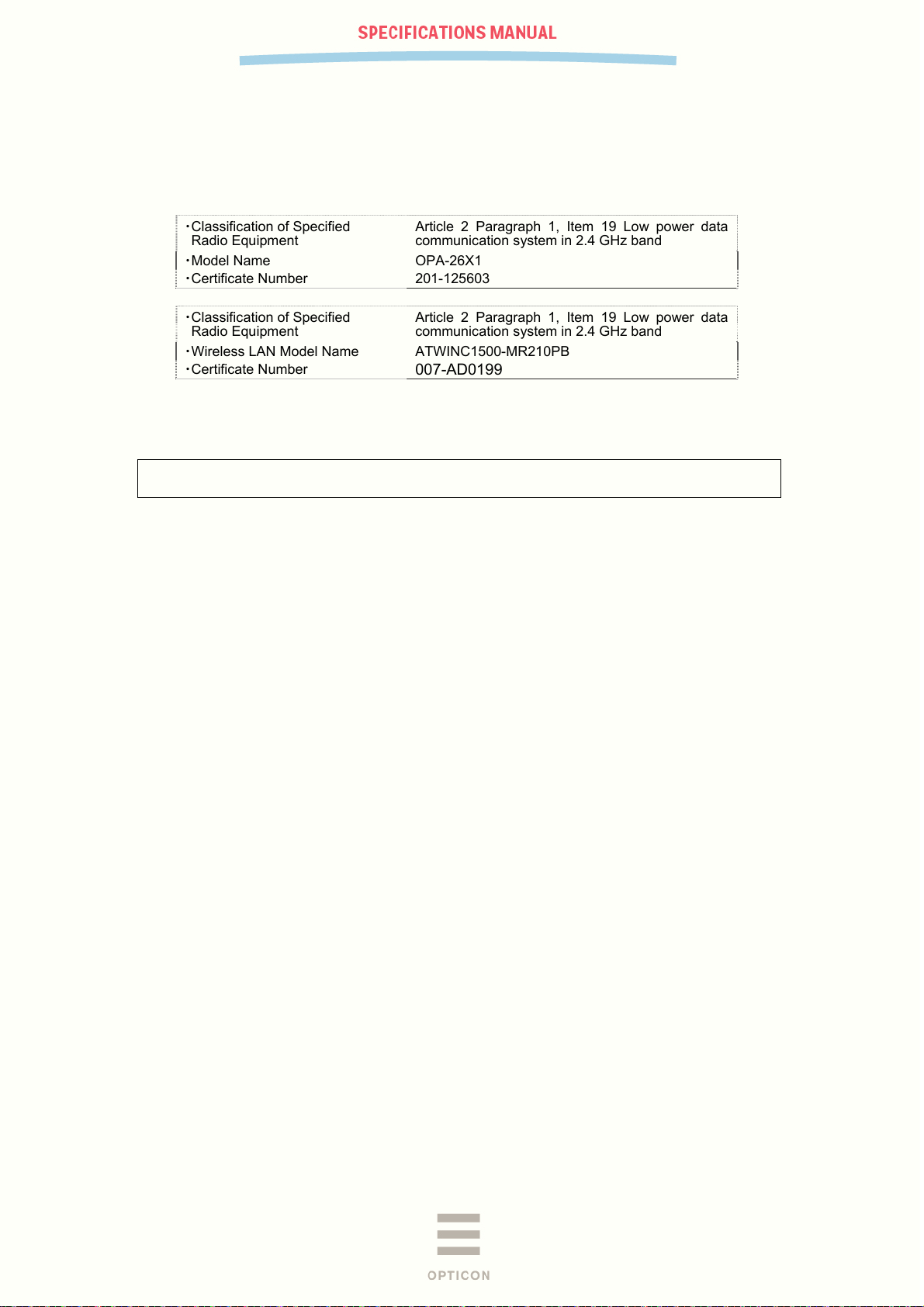

13.1 Radio Law............................................................................................................................... 29

13.2 Bluetooth ................................................................................................................................ 29

13.3 Frequency Baud ..................................................................................................................... 29

13.4 Usage Note ............................................................................................................................ 29

14 Product Labels .............................................................................................................. 30

15 Packaging Specifications ............................................................................................. 31

15.1 Individual Packaging .............................................................................................................. 31

15.2 Collective Packaging .............................................................................................................. 33

16 Physical Features .......................................................................................................... 34

16.1 Dimensions ............................................................................................................................. 34

16.2 Weight .................................................................................................................................... 34

16.3 Mechanical Drawing ............................................................................................................... 34

17 Supported Symbologies ............................................................................................... 35

17.1 Default Setting ........................................................................................................................ 35

17.2 Supported Symbologies ......................................................................................................... 35

17.2.1 1D Barcodes ................................................................................................................... 35

17.2.2 GS1 Databar, Composite Code ...................................................................................... 36

17.2.3 2D Codes ........................................................................................................................ 36

Table of Figures

Figure 1: Detailed View ......................................................................................................................... 11

Figure 2: micro USB B Connector ......................................................................................................... 13

Figure 3: Interface Circuit (USB) ........................................................................................................... 13

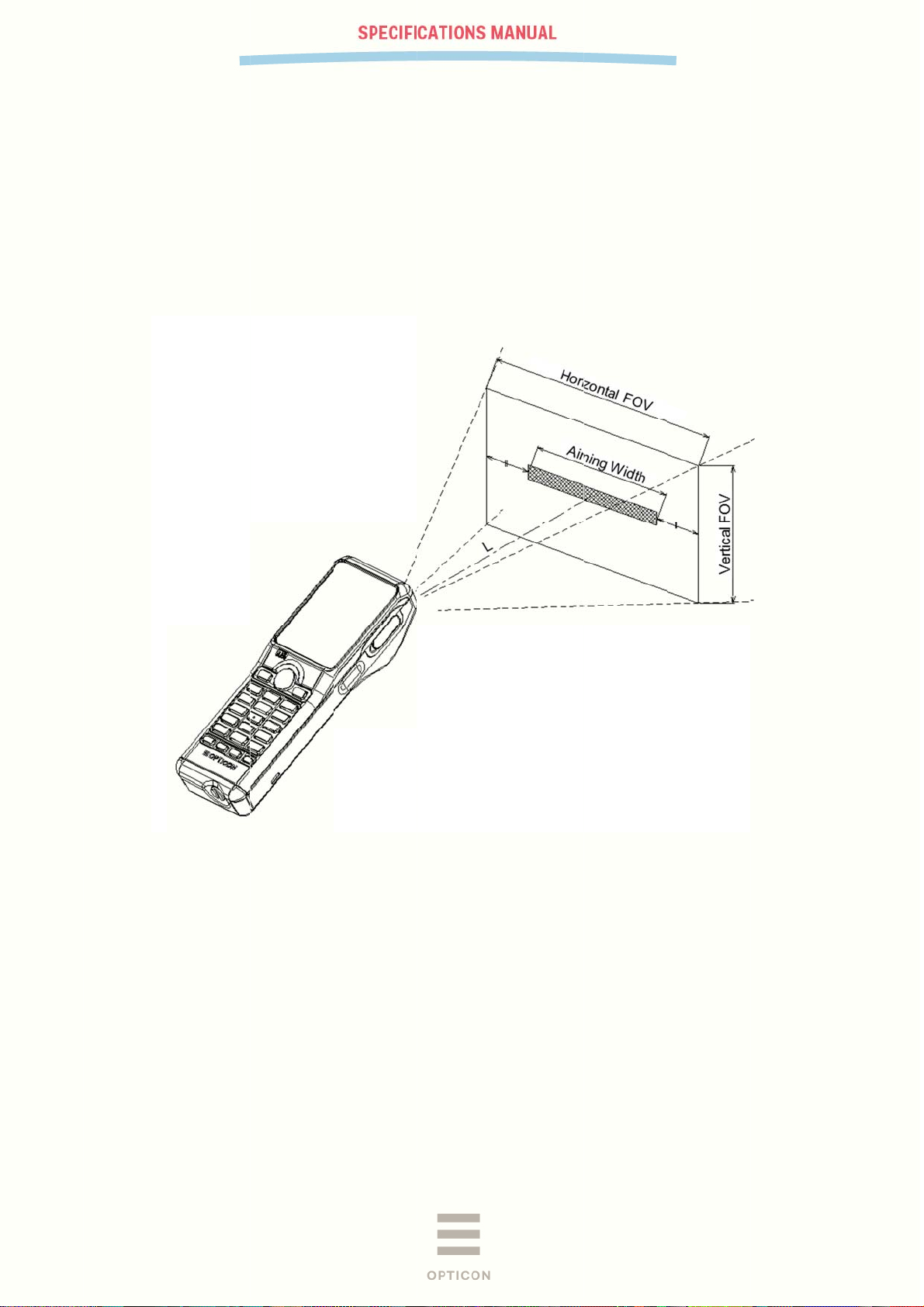

Figure 4: Aiming Pattern and Imaging Range ....................................................................................... 16

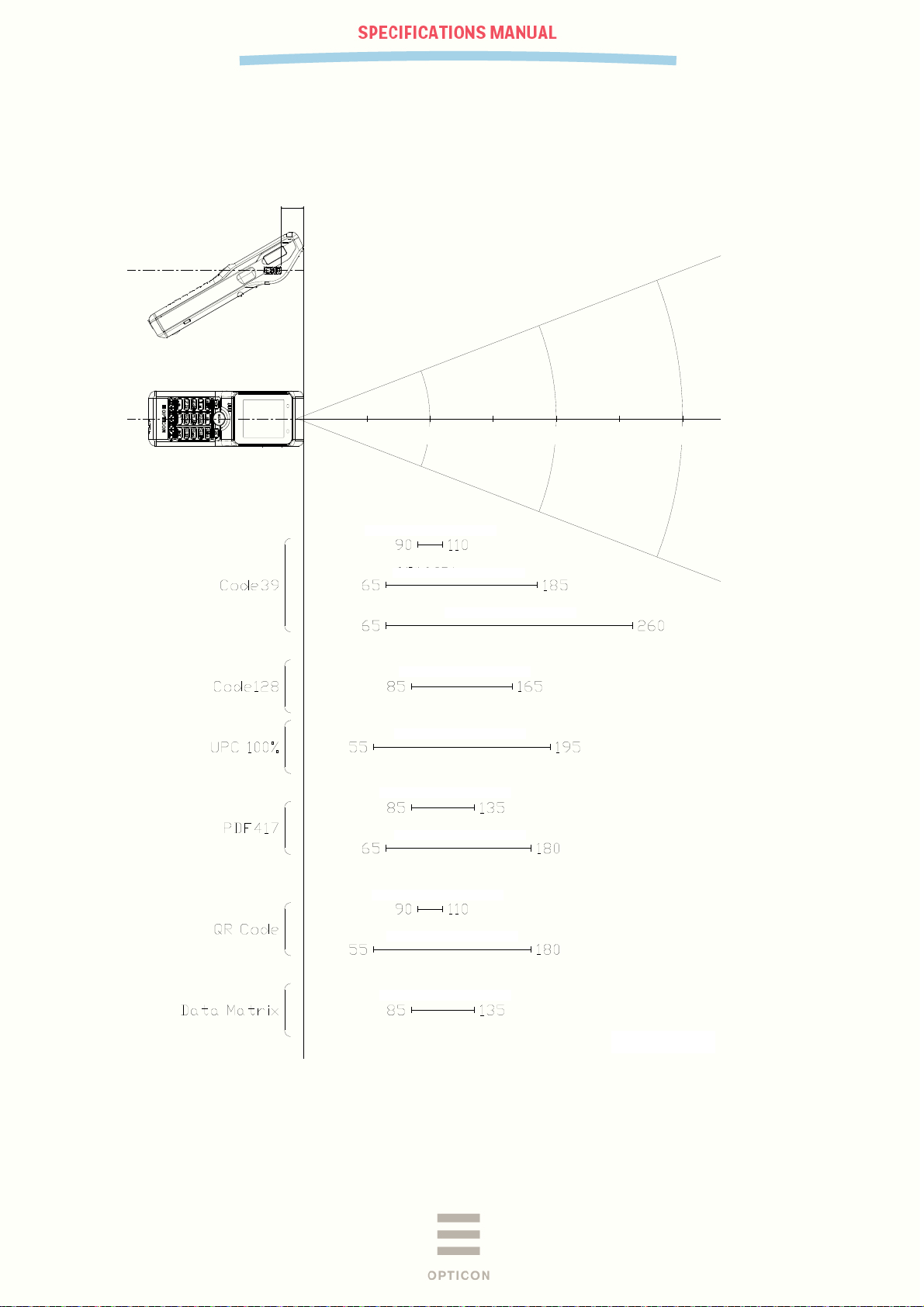

Figure 5: Scan Area and Depth of Field ................................................................................................ 19

Figure 6: Wide Barcode ......................................................................................................................... 20

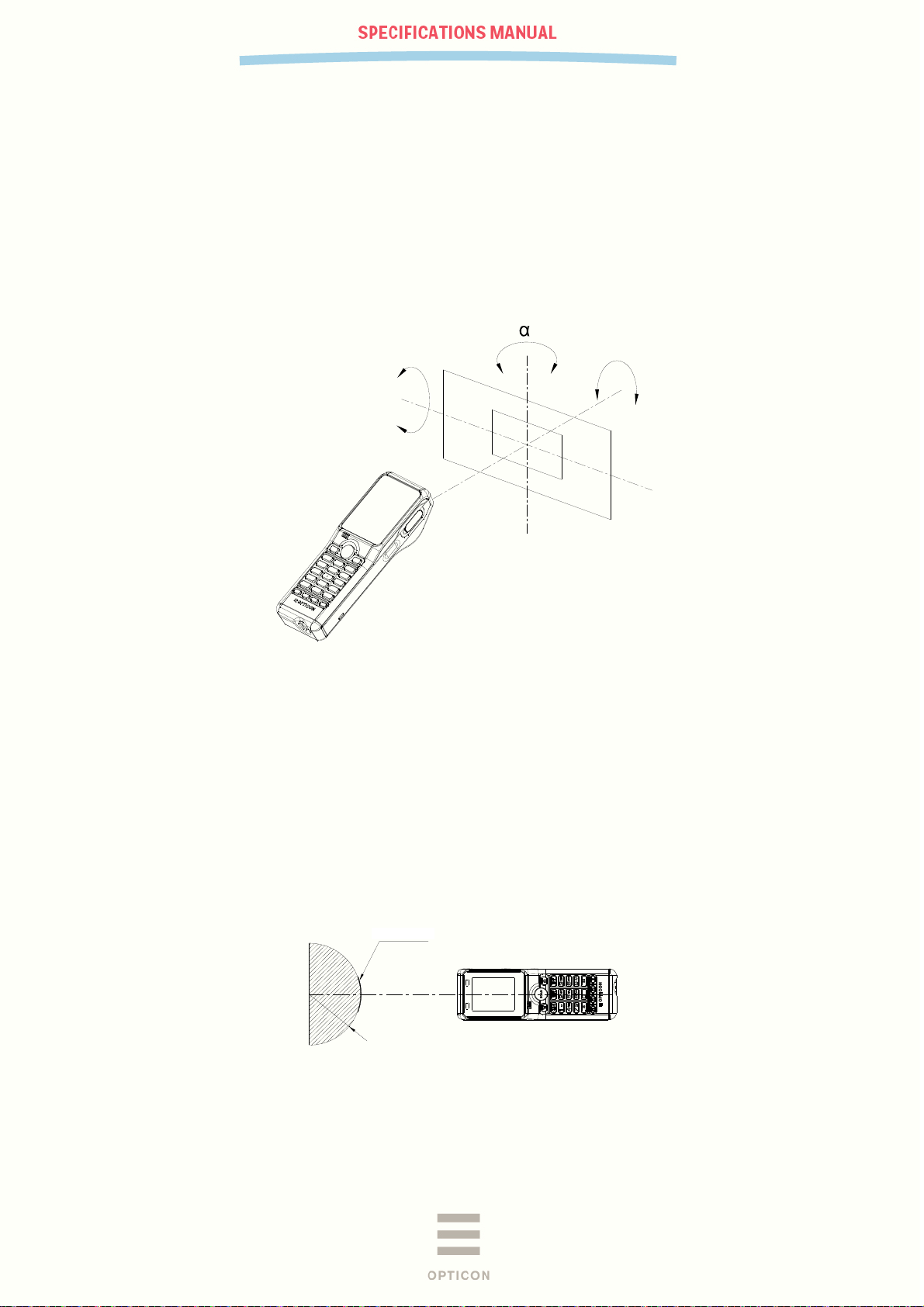

Figure 7: Pitch, Skew and Tilt ................................................................................................................ 21

Figure 8: Curvature ................................................................................................................................ 21

Figure 9: Motion Tolerance .................................................................................................................... 22

Figure 10: Drop Test .............................................................................................................................. 24

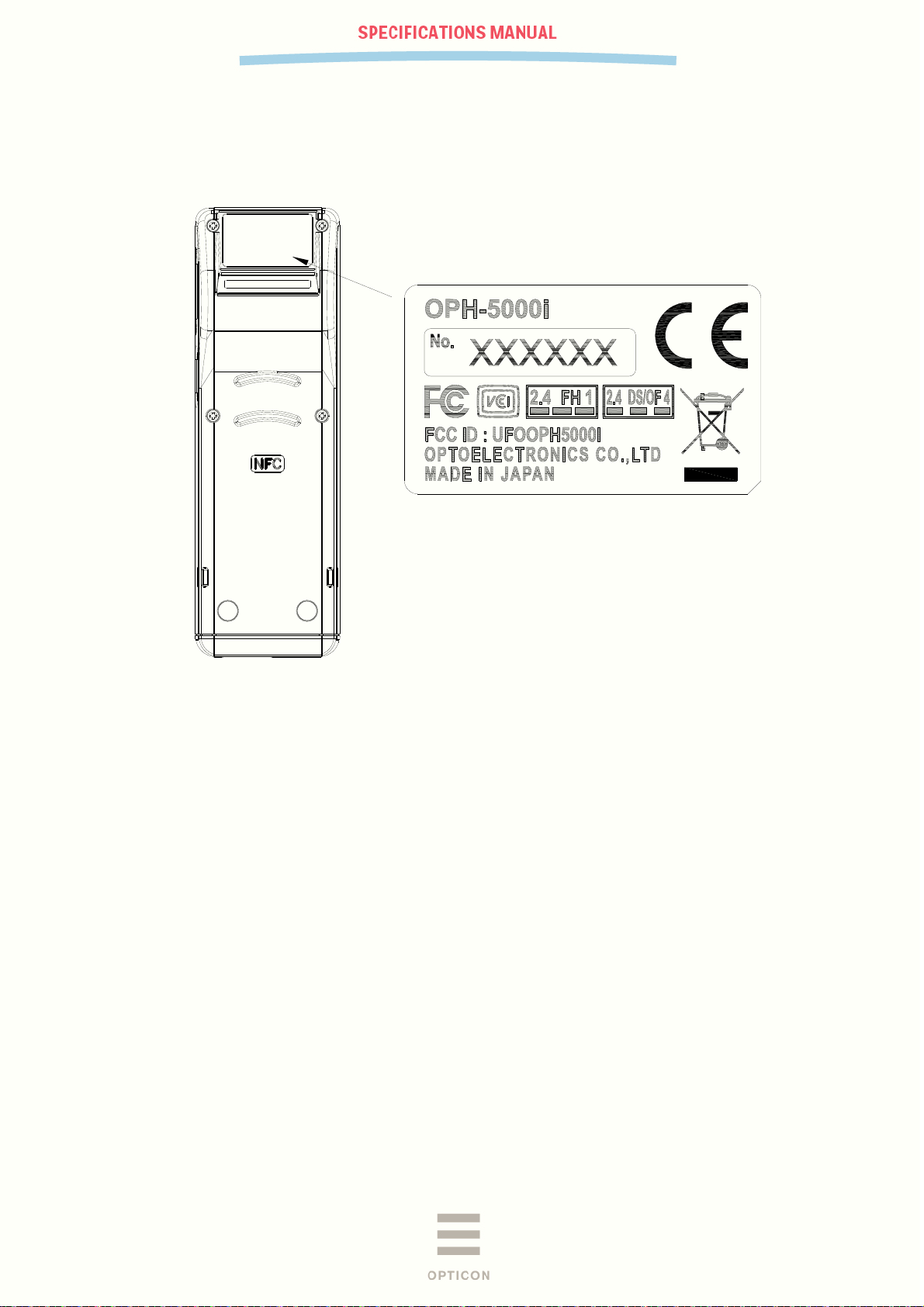

Figure 11: Product Label Position ......................................................................................................... 30

Figure 12: Individual Packaging ............................................................................................................ 31

Figure 13: Collective Packaging ............................................................................................................ 33

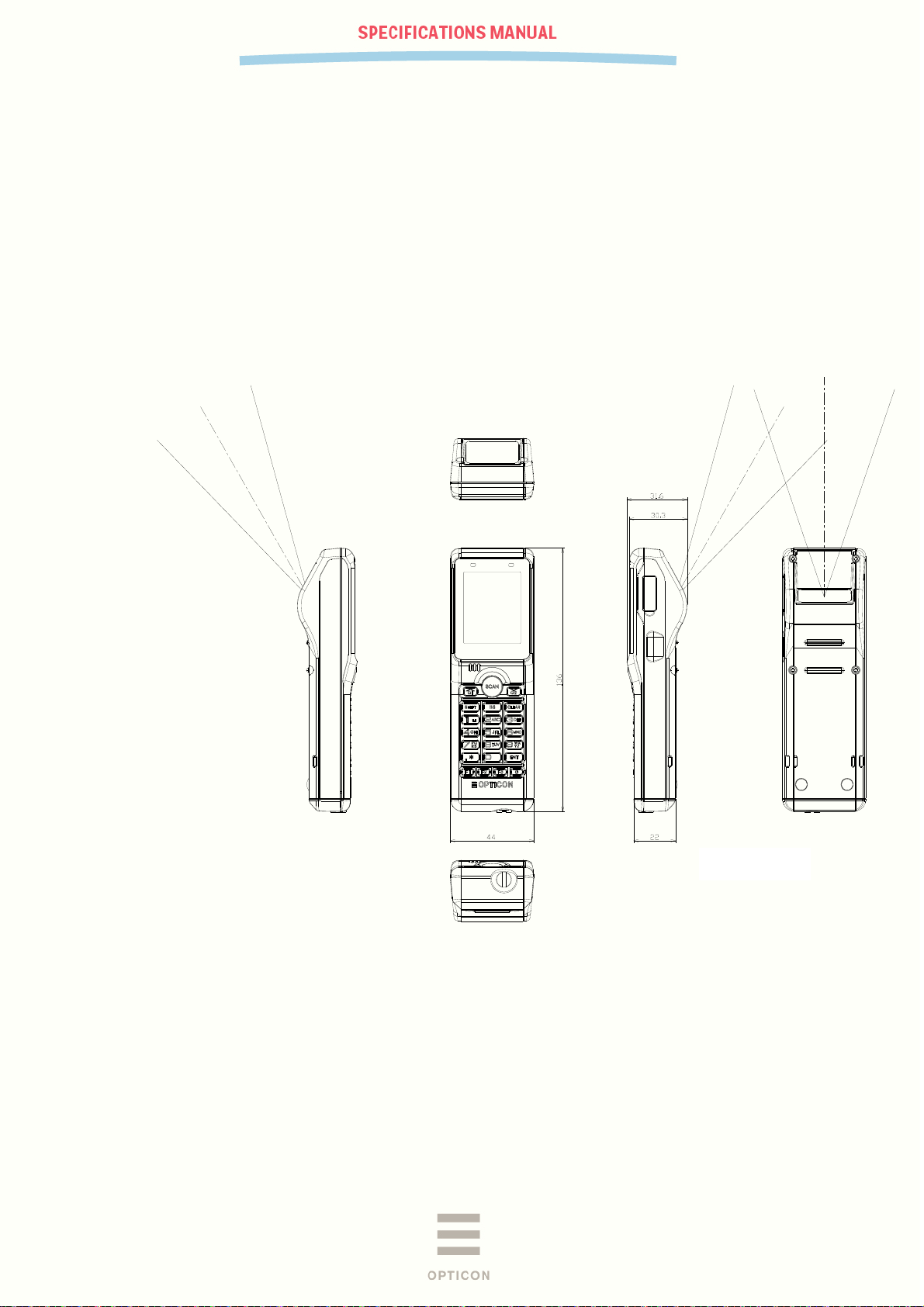

Figure 14: Mechanical Drawing ............................................................................................................. 34

5

OPH-5000i

1 Abstract

This manual provides specifications for the OPH-5000i 2D Handy Terminal with built-in Wireless LAN
and Bluetooth.

2 Overview

The OPH-5000i is compact imager scanner built-in and output scanned barcode and 2D code data to
hostdevice conected by TCP/IP via wiress LAN. Bluetooth is also aveliable for output.

・ OPH-5000i is handy terminal with a numeric keypad and TFT color LCD display.
・ All barcode data scanned is transmitted to a host device through the Wireless LAN, Bluetooth or

USB interface interface.

・ Wireless LAN supports IEEE 802.11 b/g/n.

・ Bluetooth SPP (Serial Port Profile) and HID (Human Interface Device Profile) are implemented.

・ In addition to the current buzzer sound and LED display, vibration function is also equipped.

・ A green LED aiming line toward a target barcode can help the users find the appropriate scanning

position.

・

Alcohol can be used to wipe the scanner clean
The power source is 3.7 V 1100 mAh (typ.) Li-ion battery.

・

・ The charging is done through a dedicated charging cradle or USB interface.

・ The scanner is Apple MFi certified.

1st

6

3 Basic Specifications

Item Specification Note

CPU 32bit CISC/96MHz

Control Section

FROM 2Mbyte + 32KByte

OPH-5000i

1st

System area

FROM 1Mbyte

RAM 16Mbyte

FROM (storage) 128Mbyte

Number 10 key
F1~F3 3 key

Input Section

Key type

Power 1 key
Up, down, SCAN (Placed on top
panel)
SHIFT, BS, CLEAR, decimal point,
ENT

3 key

5 key

Side touch sensor 1 sensor for scan

Backlight White

Display element TFT color LCD display

Backlight White, brightness adjustable

Display size 1.77 inch, (W)128× (L)128 dots

Font size 12/16/24 dot

Type of characters JIS Standard No.1 and 2, ANK

When in 12 dot Font mode

(digit × row)

Display Section

Reduced-size ANK: 21×21
Half-size character: 21×10
Kanji character: 10×10

When in 16 dot Font mode

(digit × row)

Structure of Characters

Reduced-size ANK: 16×16
Half-size character: 16×8
Kanji character: 8×8

When in 24dot Font mode

(digit × row)
Reduced-size ANK: 10×10
Half-size character: 10×5
Kanji character: 5×5

LED red, green one place, and blue 1 place

Application area

It may be cleared by
the removal of the
main battery.

For data area only

Buzzer Loudness (3-level) / tone adjustable

Vibration motor Strength (3-level) / duration adjustable

RTC

Contents Year, month, date, hour, minute, second

Accuracy ± 90 seconds per month

Specification IEEE 802.11 b/g/n compliant

Interface

Wireless LAN

Frequency 2412~2472MHz (1~13ch)

Maximum output 0.0026W/MHz

Access method Infrastructure mode (STA)

Security WEP,WPA,WPA2

Data and time are lost
when the main battery
is removed.

IEEE 802.11b

7

OPH-5000i

S

t
d

Symbologies

Item Specification Note

Network stack

TCP/IP, UDP, DHCP, ARP,
SSL, DNS

Frequency 2402 ~ 2480 MHz

1st

Specification Bluetooth Ver 2.1 compliant

Bluetooth

Communication
distance

Output level Class 2

Profile SPP / HID

Built-in NFC tag

USB

Scanning method VGA CMOS area sensor

Optical Section

ISO/IEC 14443 TYPE A, TYPE B
JISX6319-4

・Full-Speed 12Mbps ( HID/COM )
・Hi-Power Bus-powered supported

Scanning light source 1 Warm-White LED

Aiming light source 1 green LED

Effective pixels 0.30 million pixels

View angle

Horizontal: about 38.0°
Vertical: about 28.9°
UPC-A, UPC-A Add-on, UPC-E,
UPC-E Add-on, EAN-13, EAN-13 Add-on, EAN-8,
EAN-8 Add-on, JAN-8, JAN-13, Code 39, Tri-Optic,
NW-7, Industrial 2 of 5,

Symbologies

Interleaved 2 of 5, S-Code, IATA, Code 93,
Code 128, MSI/Plessey, UK/Plessey, TELEPEN,
Matrix 2 of 5, Chinese Post Matrix 2 of 5,
Code 11, Korean Postal Authority code, Postal
Code

Supported 1D Symbologies

Minimum resolution Code 39 : 0.1 mm

Curvature

R ≥ 16 mm ( 9-digit JAN)
R ≥ 20 mm (13-digit JAN)

10 m

Not guaranteed.

Max output 4 dBm

Refer to Chapter 17.
for details

PCS 0.9

PCS 0.9

Barcode width

Motion Tolerance

Depth of Field

GS1/Composite

Symbologies

Minimum resolution

uppor

2D

Symbologies

e

100 mm wide 0.2 mm resolution Code 39 (DOF 150
mm) is readable:

UPC 100% moving at 2m/sec (DOF 100 mm)
is readable:

Resolution (0.127) 90 ~ 110

Code 39

Resolution (0.254) 65 ~ 185

Resolution (0.508) 65 ~ 260

Code 128 Resolution (0.2) 85 ~ 165

UPC Resolution (0.33) 55 ~ 195

GS1 DataBar , GS1 DataBar Limited,
GS1 DataBar Expanded,
Composite GS1 DataBar, Composite GS1-128,
Composite EAN, Composite UPC
GS1 DataBar : 0.169mm
Composite Code: 0.169mm
PDF417 , MicroPDF417 , Codablock F ,
QR Code , MicroQR Code ,
Data Matrix ( ECC 0 - 140 / ECC 200 ) ,
MaxiCode( Modes 2 to 5 ) , Aztec Code ,
Chinese-sensible code

GS1 DataBar:
formerly called
“RSS”

Disable Code 128
when Codablock F is
enabled.

8

Item Specification Note

2

Minimum resolution (mm)

PDF417

Depth of
field
(mm)

QR Code

DataMatrix Resolution (0.254) 85 ~ 135

PDF417 : 0.169 mm
QR Code : 0.169 mm
DataMatrix : 0.169 mm

Resolution (0.169) 85~ 135

Resolution (0.254) 65 ~ 180

Resolution (0.212) 90 ~ 110

Resolution (0.381) 55 ~ 180

OPH-5000i

1st

PCS 0.9

PCS 0.9

Common

Scan angle

Pitch : ±70°

Skew : ±70°

Tilt : ±360°

Minimum PCS 0.2 or more

Main battery Lithium-ion 1100 mAh (typ.)

Up-time 20 hours or more

Power Section

Charging time Less than 3 hour

Feeding system

Electromagnetic guidance wireless charging,
microUSB

Operating (charging) voltage 4.5 ~ 5.5V

Current
consumption

Charging Less than 500 mA

Operating -10 ~ 50°C

Temperature

Environmental Specifications

Storage -20 ~ 60°C

Operating 20 ~ 85%

Humidity

Storage 20 ~ 85%

Ambient light
immunity

Fluorescent 10,000 lx or less

Sunlight 100,000 lx or less

10 Hz ~ 100 Hz, acceleration of 19.6 m/s

Vibration

minutes per cycle, repeat in each X, Y and Z­direction

Drop

Drop the scanner 18 times (6 faces x 3) from a
height of 150 cm onto a concrete floor

Dust and drip proof IP54 equivalent

JIS C 6802：2011 Class2

LED safety

Regulatory Compliance

Product safety

IEC 60825-1 Ed.2: 2007 Class 2
CDRH Class Ⅱ
EN60950-1:2005
IEC60950-1:2006
EN 55024:2010
EN 55032:2012+AC: 2013
EN 301 489-1 V1.9.2

EMC

EN 301 489-17 V2.2.1
EN 300 328 V1.9.1
EN 302 291-2 V1.1.1
FCC Part 15 Subpart C, Subpart B Class A
VCCI Class A

European conformity CE Marking

MRD 32% or more

*1

Using dedicated
cradle.
Room temperature
25℃

Charging with USB

No condensing
No frost

UPC 100%
Optical axis angle 75°
Distance: 100mm

, 60

For residential,
commercial and light­industrial
environments

9

Item Specification Note

Certification for Construction Design of Specified
Radio Equipment

Other

Immunity

Test

ESD

Features

Physical

Dimensions 136 × 44 × 30.3(22) (WDH mm)

Weight Approx. 120 g

*1: When a barcode is read twice every 10 seconds at room temperature 25℃.

No
distraction
No
malfunction

Bluetooth logo certification
MFi license

Air discharge (direct): ±15 kV

Air discharge (direct): ±8 kV

4 Detailed View

6

OPH-5000i

1st

Conditions:
IEC61000-4-2
compliant

() is grip dimension
Not include projection

Excluding accessories
Including main battery

4

12

13

14

15

1

2

11

16

3

6

10

9

7

5

8

10

Figure 1: Detailed View

OPH-5000i

1st

11

OPH-5000i

pply p

g

No Name Description

1 LED

2 LCD Indicates scanned barcodes and operational items.

3 MicroUSB Connecter Cap MicroUSB connector is stored.
4 Buzzer Orifice Holes for buzzer.
5 Strap Orifice Holes for attaching a hand strap.
6 Scan Window LED illumination is emitted from this window to read barcodes.
7 Battery Cover Rechargeable battery is stored.
8 Battery Cover Lock Used to lock / open the battery cover.

9 Charging Coil

10 NFC

11 Side Trigger Sensor Start an operation of reading code by touching.
12 Trigger Key Press when reading code.
13 Up and Down Key Key use for selecting item and moving cursor.

14 Numeric Keypad

15 F1, F2, F3 Function key.
16 Power Key Power On/Off key.

Indicates operational status, such as scanning and
communication.
It is able to be controlled by user’s programs.

The charging coil is located here with which the dedicated cradle
can su

ower to the scanner.
This is the location of the NFC tag. Hold an NFC reader close to
this area when the ta

has to be read.

Numeric, enter, decimal point key and the key’s to support these
inputs.

1st

12

e

uBuCu

W

ePo

t

H

C

S

S

l

u

m

S

r

a

u

r

N

A

A(NC

a

a

i

a

c

C

t

w

p

V

e

a

m

a

h

m

m

u

U

c

o

u

e

S

t

O

t

PH-5000i

1st

5 El

5.1 E

S

5.2

F

6 In

The OP

6.1 U

In

6.1.1

ctrical

lectrical

pply Voltag
s-power (C
rrent cons

ireless C

eding syste
wer consu

erface

-5000i inte

SB Interf

terface is F

onnecto

Signal

VC

DAT

DAT

GN

pecific

pecificat

e

ass)
mption

harging

m

ption

pecific

face is sele

ce

ll Speed US

ame

C

(-)

(+)

)

D

tions

ons

: 4.5-5.5
: Hi-Pow
: Less th

: Electro
: Less th

tions

table from t

B interface.

ontact Nu

1

2

3

4

5

r ( 500mA
n 500mA

agnetic ind

n 5W

ree types;

ber

ax )

ction

SB / Bluet

Fig

oth and Wir

re 2: micro U

less LAN.

B B Connec

or

6.1.2

USB Interf

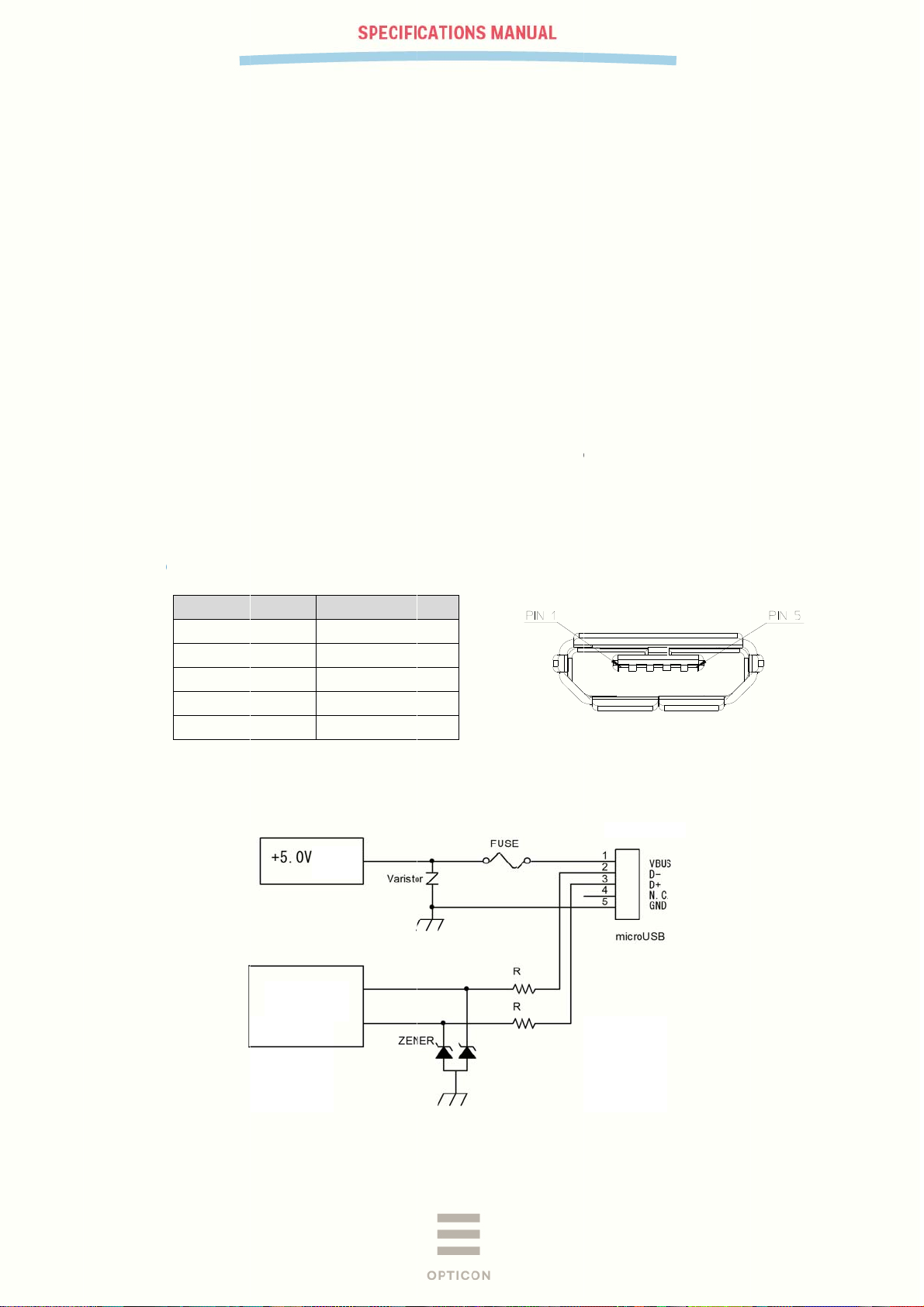

ce Circui

Po
Su

Micro­controller

er

ly

Figure 3:

Interface Cir

uit (USB)

USB Connec

tor

13

6.2 Bluetooth

The specifications of the OPH-5000i Bluetooth interface are as follows:
Specification : Bluetooth Ver 2.1 compliant

Frequency : 2402 MHz ~ 2480 MHz

Communication distance : 10 m

Output level : Class 2 (max 4 dBm)

Implemented profile : SPP / HID

Communication configuration : 1 to 1

Operating mode in communication : Master / Slave mode

Security mode : Authentication supported

Encryption : Encryption supported

6.3 Wireless LAN

The specifications of the OPH-5000i Bluetooth interface are as follows:
Specification : IEEE 802.11 b/g/n compliant

Frequency : 2412 MHz ~ 2472MHz (1~13ch)

Access method : Infrastructure mode, (STA)

Security : WEP 64/128, WPA-TKIP, 128-bit WPA2 CCMP (AES)

Network stack : IP, TCP, UDP, DHCP, ARP, SSL, DNS

OPH-5000i

1st

6.3.1 IEEE 802.11b

Maximum output : 0.0026W/MHz

Supported data rate : 1, 2, 5.5, 11Mbps

6.3.2 IEEE 802.11g

Maximum output : 0.0013W/MHz

Supported data rate : 6, 9, 12,18, 24, 36, 48, 54Mbps

6.3.3 IEEE 802.11n

Maximum output

Supported data rate

: 0.0007W/MHz

: 6.5, 7.2, 13.0, 14.4, 19.5, 21.7, 26.0, 28.9, 39.0, 43.3,

52.0, 57.8, 58.5, 65.0, 72.2Mbps

6.4 Built-in NFC Tag

OPH-5000i has NFC tag built-in which record Bluetooth device address.
Frequency : 13.56MHz

Standard : ISO/IEC 14443 TYPE A, TYPE B and JISX6319-4

14

Recorded Contents:

T

t

t

T

T

Rewriting from external: possible

OPH-5000i

1st

otal 928 byte

NDEF

Record #1

ype: ”application/vnd.bluetooth.ep.oob”
OOB data length: 8 Byte
MAC address: 00:12:6A:xx:xx:xx

Record #2

ype: ”T”

EXT data length: 15 Byte
EXT data: ”00126Axxxxxx”

Free area

Reserved area

*xx differ depending on the product.

7 Optical Specifications

7.1 Basic Specifications

Item Characteristics

Scan method CMOS area sensor (white / black) -

Number of effective pixel (Column) × (Row) 640 × 480 dots

Image capture speed (*1) Frame rate 100 fps

Focal distance Distance from the front edge of scanner 109.2mm

Horizontal Approx. 38.0°

View angle

Illumination light source
(LED × 1)

Aiming light source
(LED × 1)

*1 The fastest seed of image capture
*2 Reference value extracted from the datasheet.
*3, *4 Reference value based on the datasheet (25°C, IF = 140 mA ).

Vertical Approx. 28.9°

Diagonal Approx. 46.4°

Color Warm white

Color temperature

Maximum radiation output (*3) 114lm/W

Color Green

Peak wavelength 535 nm

Maximum radiation output (*4) 87.4m/W

2600～3700K

15

7.2

A

T12 T--

t

s

o

s

n

n

t

h

h

g

s

i

p

a

o

e

a

w

o

c

d

n

n

1

O

iming Pa

he aiming i
. Fill light t
. Fill light w

tern

used for t

recognize t

hen auto tri

e following

e appropri

ger is used.

urpose:

te reading r

nge.

PH-5000i

1st

he aiming

The horizo

a distance

The horizo

aiming wid

pecification

tal width of

of L=85±20

tal imaging

h.

are as foll
the imaging
mm from th

field of view

ws:
field of vie

front edge

at a distan

and the hor

f the scann

e of L=85 m

zontal aimi

r.

is 100%±

g width are

0% of the h

qual at

orizontal

F

gure 4: Aimin

g Pattern an

Imaging Ra

ge

16

OPH-5000i

1st

8 Technical Specifications

Aim the laser light at the center of a code to scan it. For long distance scanning, ambient light entering
the angle of view may affect the scanning performance. The conditions for technical specifications are
as follows, unless otherwise specified in each section.

<Conditions>
Ambient Temperature and Humidity Room temperature, room humidity

Ambient Light 100 ~200 lux (on the surface of a barcode)
Angles Pitch: α = 0°, Skew: β = 15°, Tilt: γ = 0°
Curvature R = ∞
Power Supply Voltage 5.0 V
PCS (1D and 2D) 0.9 or higher

Scanning Test Accept the performance with 90% or more success rate

for 10 tries of scan. One reading should be 2 seconds.

Barcode Test Sample (1D and 2D)

< Test chart >
For 1D codes, OPTOELECTRONICS test samples
For GS1 Databar, stacked codes and 2D codes, printed by a dedicated printer for barcode

Specified below.

8.1 Barcode Test Sample

1D Barcodes

<Code 39>

0.1 mm (3.9 mil)

0.127 mm (5 mil)

0.20 mm (7.9 mil)

0.254 mm (10 mil)

0.508 mm (20 mil)

<Code 128>

0.20 mm (7.9 mil) Code 128 0.9 52 × 10 36

<UPC>

0.330 mm (13 mil)

GS1 Databar/Composite

<GS1-limited>

0.169 mm (6.7 mil) Limited 0.9 12 × 1.5 14

0.169 mm (6.7 mil) Limited-Composite 0.9 12 × 3.0 26

Resolution Symbology PCS Size (mm) No. of Digits

Resolution Symbology PCS Size (mm) No. of Digits

Resolution Symbology PCS Size (mm) No. of Digits

Resolution Symbology PCS Size (mm) No. of Digits

Code 39 0.9

12-digit UPC
12-digit EAN

26 × 10 16
11 × 10 4

100 × 10 31

32.5 × 10 7
43 × 25 4

0.9/0.2 31.5 × 24.5 12/13

17

2D Codes

<PDF417>

<QR Code: Model-2>

<Data Matrix>

* The size is outline dimensions excluding the quiet zones.

Resolution Error Correction PCS Size (mm)

0.169 mm (6.7 mil)

0.254 mm (10 mil) 35 × 15

Level-3 0.9

Resolution Error Correction PCS Size (mm)

0.212 mm (8.4 mil)

0.381 mm (15 mil) 11 × 11

M 0.9

Resolution Model PCS Size (mm)

0.212 mm (8.4 mil)
ECC200 0.9

0.254 mm (10 mil) 6 × 6

23 × 10

5 × 5

4 × 4

OPH-5000i

1st

No. of Character

58

No. of Character

44

No. of Character

40

18

8.2 Scan Area and Depth of Field

The scan area is the depth of field range, measured from the front edge of the scanner, swept
over the entire scan arc.

18

OPH-5000i

1st

50 150 250

100 200 300

Figure 5: Scan Area and Depth of Field

[Unit: mm]

[単位：mm]

19

8.3 Printed Contrast Signal (PCS)

0.2 or higher

<Conditions>
MRD : 32% and higher

(70% or higher reflectivity of space and quiet zone)
Distance : 125mm from the front edge of the scanner
Barcode Sample : UPC specified in Chapter 8. (Resolution: 0.33 mm, PCS: 0.3)

MRD = Minimum reflectance of white bar - Maximum reflectance of black bar

PCS =

Reflectance of white space – Reflectance of black bar

Reflectance of white space

8.4 Minimum Resolution

1D Code : 0.1 mm (3.9 mil) Code 39 specified in Chapter 8.1
GS1-Databar : 0.169 mm (6.7 mil) GS1 Databar Limited specified in Chapter 8.1
Stacked Code : 0.169 mm (6.7 mil)
2D Code : 0.169 mm (6.7 mil) QR Code, Data Matrix specified in Chapter 8.1

<Conditions>
Barcode Sample : The above codes specified in Chapter 8.1
Distance : 95 mm from the front edge of the scanner
Angle

Curvature : R = ∞

PDF417, GS1 Databar Limited Composite specified in Chapter 8.1

: α = 0°, β =＋15°, γ = 0°

OPH-5000i

1st

8.5 Barcode Width

Code 39 with width of 100 mm and resolution of 0.2 mm can be read

<Conditions>
Barcode Sample : 0.20 mm Code 39 / PCS 0.9 specified in Chapter 8.1
Distance : 155 mm from the front edge of the scanner
Angle

Curvature : R = ∞

: α = 0°, β =＋15°, γ = 0°

Figure 6: Wide Barcode

20

8.6 Pitch, Skew and Tilt

Pitch : α = ±50°
Skew : β = ±50°
Tilt : γ = ±180°

<Conditions>
Barcode Sample : 0.33 mm Code 39 specified in Chapter 7.1
Distance : 125 mm from the front edge of the scanner
Curvature : R = ∞
* For the pitch angle and tilt angle measurement, set the skew angle β = +15°

OPH-5000i

1st

-

β

+

Figure 7: Pitch, Skew and Tilt

8.7 Curvature

0.33 mm 12-digit UPC : R ≧ 20 mm

0.15 mm 10-digit Codabar(NW-7) : R ≧ 16 mm

<Conditions>

Barcode Sample 0.33 mm UPC, 0.15 mm Codabar specified in Chapter 8.1
Distance 105 mm from the edge of the scan engine
Angle Skew angle β = +15°

バーコード

-

+

-

γ

+

R

Figure 8: Curvature

Note: Scanning may fail due to the specular reflection of the LED illumination when the reflectivity of the barcode
is high.

21

8.8 Motion Tolerance

UPC 100% can be read when it is moving at 2m/s.

<Conditions>

Ambient Temperature and Humidity : Room temperature and Room humidity
Ambient Light : 500 ~ 1000 lux
Distance : 125 mm from the front edge of the scanner
PCS (1D and 2D) : 0.9 or higher
Barcode Sample : Refer to Chapter 8.1.

* Scanning may fail due to the specular reflection of LED illumination when the reflectivity is high.

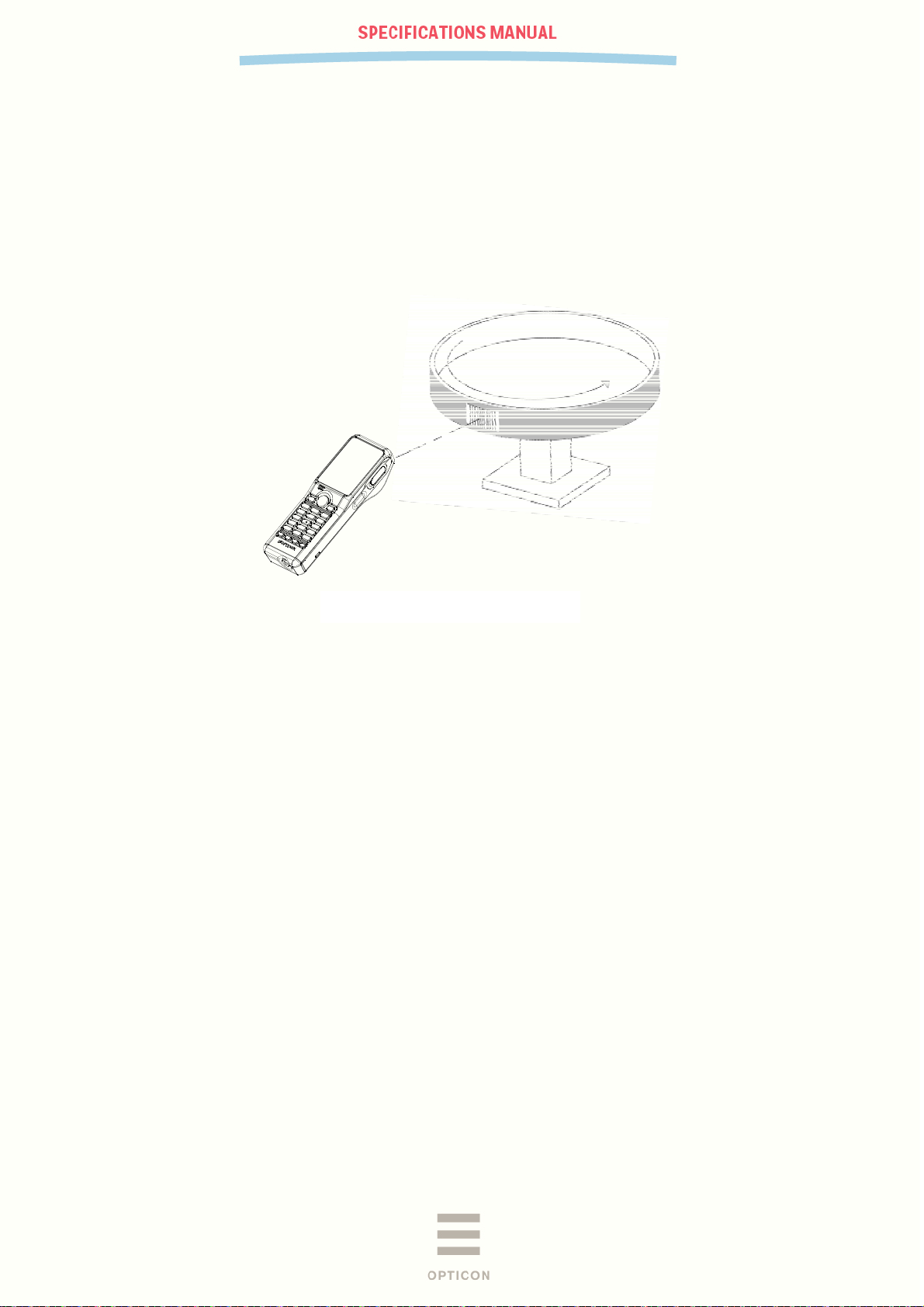

Figure 9: Motion Tolerance

OPH-5000i

1st

22

9 Environmental Specifications

9.1 Temperature

Scanning performance is guaranteed when the ambient temperature around the scanner is
within the following ranges:

Operating Temperature : -10 ~ 50
Storage Temperature : -20 ~ 60 °C

Please charge when the temperature is between 0 and 40°C. When the temperature is over 40°C,
charging may stop to prevent battery breakdown.

<Conditions>

Barcode : Resolution 0.33 mm, 9-digit Code 39 specified in Section 9.1.
Distance : 125 mm from the front edge of the scanner
Angle

Curvature : R = ∞
Scanning Test : Scan at interval 1000ms
Power consumption : 3.7V

: α = 0°, β =＋15°, γ = 0°

°C

OPH-5000i

1st

9.2 Humidity

Scanning performance is guaranteed when the ambient humidity around the scanner is within
the following ranges:

Operating Humidity : 20 ~ 85%RH (no condensation, no frost)
Storage Humidity : 20 ~ 85%RH (no condensation, no frost)

<Conditions>

Barcode : Resolution 0.33 mm, 9-digit Code 39 specified in Section 9.1.
Distance : 125 mm from the front edge of the scanner
Angle

Curvature : R = ∞
Scanning Test : Scan at interval 1000ms
Power consumption : 3.7V

: α = 0°, β =＋15°, γ = 0°

9.3 Ambient Light Immunity

Scanning performance is guaranteed when the range of illumination on a barcode surface is
between zero and the following values:

Incandescent light: 10,000 lx
Fluorescent light: 10,000 lx
Sunlight: 100,000 lx

<Conditions>

Barcode: Resolution 0.33 mm, 9-digit Code 39 specified in Section 9.1.
Distance: 125 mm from the front edge of the scanner
Angle:

Curvature: R = ∞
Power consumption: 3.7V

Avoid direct or specula reflection from the light source as it may blind the scanners optical receiver.

α = 0°, β =＋15°, γ = 0°

23

9.4 Dust and Drip Proof

IEC IP54 equivalent

Protection against solid objects: Level 5 equivalent (Dust proof type)
Prevent dust ingress to inside. Even if slight dust intrusion will not inhibit normal operation.

Protection against liquids: Level 4 equivalent (Splash proof type)
Protected against water splash from any direction.

* () is JIS drip-proof type.

9.5 Vibration Tolerance (without packing)

There shall be no malfunction after the following vibration test.

Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an acceleration

velocity of 19.6m/s2 (2.0 G) for 30 minutes (60 minutes per cycle) in the non-operating state.
Repeat this of each X, Y and Z direction.

9.6 Vibration Tolerance (in individual packing)

There shall be no malfunction after the following vibration test.

Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerattion

velocity of 19.6 m/s2 (2.0 G) for 30 minutes (60 minutes per cycle) in individually packaged state.
Repeat this of each X, Y and Z direction.

OPH-5000i

1st

9.7 Drop Impact Tolerance (without packaging)

There shall be no malfunction after the following drop test.

Drop test: Drop the scanner 18 times in total (3 times at each 6 face), from a height of 150 cm

onto a concrete floor as shown below.

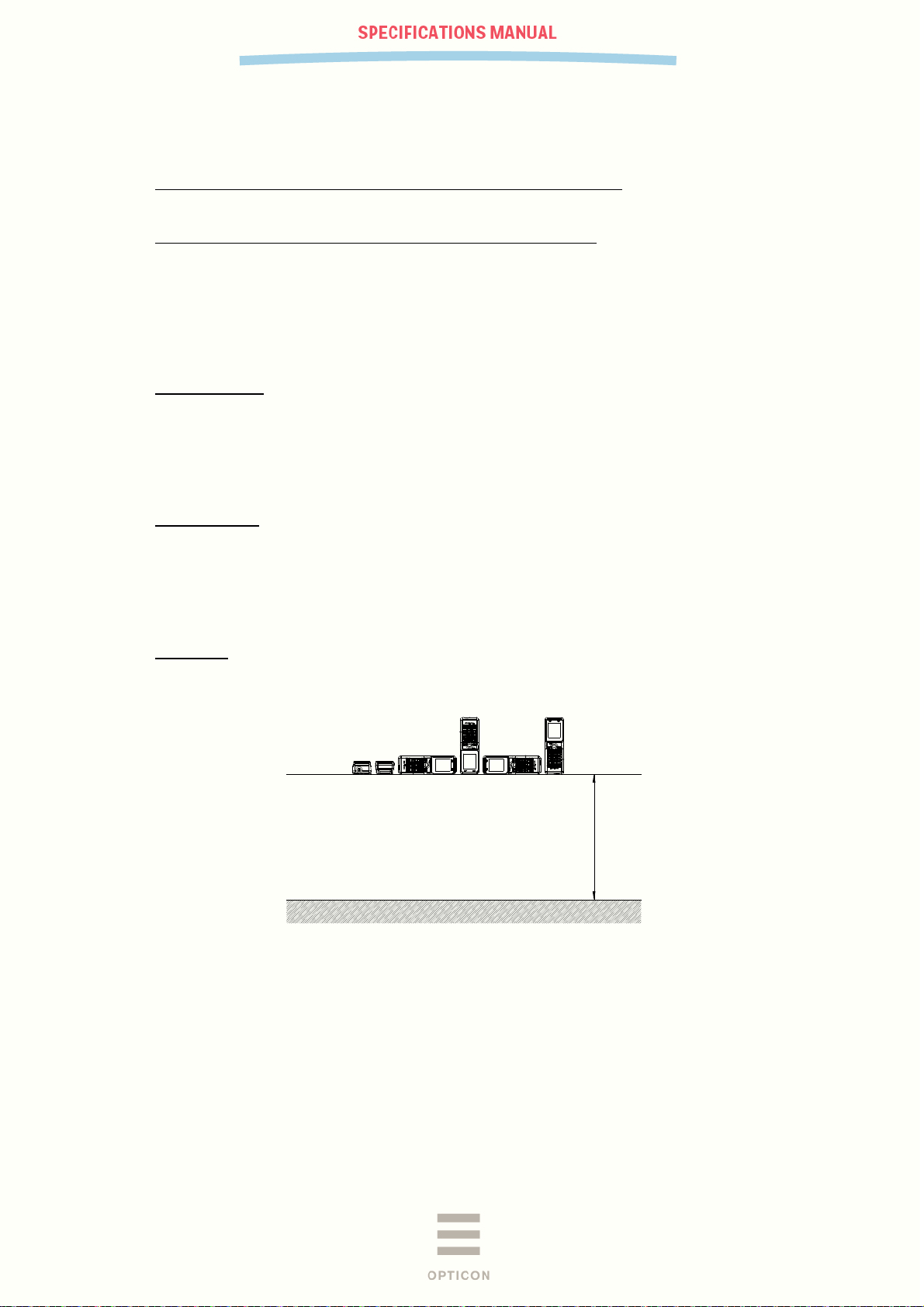

150cm

Figure 10: Drop Test

24

9.8 Drop Impact Tolerance (in individual packaging)

There shall be no sign of malfunction after the following drop test.

Drop test: Drop an individually packaged scanner 10 times in total, at any of 1 corner, 3 edges,

and 6 faces, from a height of 150 cm onto a concrete floor.

9.9 Electrostatic Discharge Immunity

Air discharge ±8 kV max. (No malfunction)

±15 kV max. (No destruction)

Measurement environment An electrostatic testing device compliant with IEC 61000-4-2

is used.
Discharge resistance 330 Ω
Charging capacitor 150 pF

OPH-5000i

1st

25

10 Regulatory Compliance

10.1 LED Safety

IEC 62471:2006 Exempt_Group

10.2 Product Safety

EN60950-1:2005
IEC60950-1:2006

10.3 EMC

・EN 55024:2010
・EN 55032:2012+AC: 2013
・EN 301 489-1 V1.9.2
・EN 301 489-17 V2.2.1
・EN 300 328 V1.9.1
・EN 302 291-2 V1.1.1

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the manufacturer. Dispose of
used batteries according to the manufacturer’s instructions

OPH-5000i

1st

26

FCC Part 15 Subpart C, Subpart B Class A

Federal Communications Commission Notices

This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case users will be required
to correct the interference at their own expense.

Harmful Interference Notice
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.

This device complies with FCC SAR exposure limits set forth for an uncontrolled
environment. SAR compliance for using the equipment in close proximity to the human
body has been evaluated at 0mm.

This equipment must not be co-located or operating in conjunction with any other antenna
or transmitter. End-users and installers must be provide with antenna installation
instructions and consider removing the no-collocation statement.

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.

Caution!
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

VCCI Class A

This is a Class A product based on the standard of the Voluntary Control Council for Interference
(VCCI). If this equipment is used in a domestic environment, radio interference may occur, in
which case the user may be required to take corrective actions.

OPH-5000i

1st

27

10.4 Other

・Bluetooth logo certification
・MFi license
・Certification for Construction Design of Specified Radio Equipment

・Classification of Specified

Radio Equipment

・Model Name OPA-26X1
・Certificate Number 201-125603

Article 2 Paragraph 1, Item 19 Low power data
communication system in 2.4 GHz band

・Classification of Specified

Radio Equipment

・Wireless LAN Model Name ATWINC1500-MR210PB
・Certificate Number

Article 2 Paragraph 1, Item 19 Low power data
communication system in 2.4 GHz band

007-AD0199

11 RoHS

RoHS compliance.
RoHS: The restriction of the use of certain hazardous substances in electrical and
electronic equipment, 2011/65/EU

OPH-5000i

1st

12 Reliability

MTBF (Mean Time Between Failures) 50,000 hours

13 Precautions

Handle this product carefully. Do not deliberately subject it to any of the following.

(1) Shock:

・ Do not drop this product from a height greater than specified in this manual.

・ Do not place this product under or between any heavy items.

・ Do not swing the cable around.

(2) Temperature Conditions:

・ Do not use this product at temperatures outside the specified range.

・ Do not pour boiling water on this product.

・ Do not throw this product into a fire.

(3) Foreign Materials:

・ Do not immerse this product in water or other liquid.

・ Do not expose this product to chemicals.

(4) Others

・ Do not disassemble this product.

・ Do not use this product near a radio or a TV. It may cause reception problems.

・ This product may be affected by a momentary voltage drop caused by lightning.

・ Do not place pieces of metal such as coins, nor attach metallic foil to the area where the

charging coil is located.
Also, do not affix anything which prevent from placing OPH-5000i to cradle.

・ Although surface of LCD is tempered glass, but do not drop or hit any hard object on purpose.

28

13.1 Radio Law

This product qualifies as specified radio equipment for radio stations of 2.4 GHz band data

communication system and has obtained the Certification for Construction

Design of Specified Radio Equipment. Therefore, radio station license is not required in Japan.

The following activities are prohibited under the Radio Law:

・Remodelling and disassembly

・Peeling off the certificate label

Do not use this equipment under the following environment, as radio interference may affect

other device and end up with causing physical or material damage.

・Safety apparatus and medical device for human body protection

・Environment where is concerned to cause serious damage

13.2 Bluetooth

・This product supports Bluetooth wireless communication with other Bluetooth devices that

have the same profile

・This product complies with Bluetooth standards; however, its communication performance

with untested devices is not guaranteed.

・Bluetooth devices use the 2.4 GHz frequency band that is shared among other devices. It

may affect the communication speed and distance between this product and the host device.

・The communication speed and distance vary depending on the interference and radio wave

condition between this product and the host device.

OPH-5000i

1st

13.3 Frequency Band

This product uses the 2.4 GHz frequency band. Read carefully the followings before using this

product.

In the frequency band of this product, scientific, medical and industrial devices including

microwaves are used. Also other radio stations including local private radio station for mobile

object identification requiring license for such as manufacturing lines at factories, specific

power-saving radio station requiring no license and amateur radio station are managed.

1. Make sure that “other radio stations” are not managed in the frequency band 2.4 GHz before
using this product.

2. In case that radio interference occurs between this product and “other radio stations,” change
the service space immediately, or stop transmitting radio wave to avoid the interference.

3. If you have any questions or troubles, please contact our sales office.

13.4 Usage Note

・Do not attach metal foil or piece of metal to charging coil storage part. Also, do not insert
metal like coins between scanner and dedicated cradle when charging.
・Be careful of dust or foreign objects inserting when opening battery cover. Precisions dust
and drip proof may not be satisfied.

* This specification manual is subject to change without prior notice.

29

14 Product Labels

The product labels are affixed to the scanner as shown below.

OPH-5000i

1st

Figure 11: Product Label Position

30

15 Packaging Specifications

15.1 Individual Packaging

Assembled package size: 125 × 112 × 40 (WDH mm)
Weight: Approx. xx kg

Packing bag

梱包袋：

Poly bag

2回、巻き付ける

Wrap twice

OPH-5000i

1st

MicroUSB cable

MicroUSBｹｰﾌﾞﾙ

Place as the

イラストの向きで

drawing on top.

一番上に入れる

余った梱包袋の上に

Place neck strap on

top of the space

ネックストラップを入れる

Neck strap

ﾈｯｸｽﾄﾗｯﾌﾟ

Individual box

個装箱

LDCを上にして入れる

Put in with LCD upward

【国内向】 個装箱ﾊﾞｰｺｰﾄﾞﾗﾍﾞﾙ (3A0002）

Model No.

MODEL NEME

OPH-5000i-BLK

Spec No.

*ﾊﾞｰｺｰﾄﾞ*

*UF1OPH5000*

ｼﾘｱﾙNo.の 表示に つ いて

123456＝ 製品ｼﾘｱﾙNo.

中国生産（produced in China）＝MADE IN CHINA
日本生産（produced in Japan）＝MADE IN JAPAN

『 123456 』

6桁のｼﾘｱﾙNo.を 表示

【原産国表示】～country of origin～

MADE IN

▲▲▲▲▲

Serial No.

*△△△△△△*

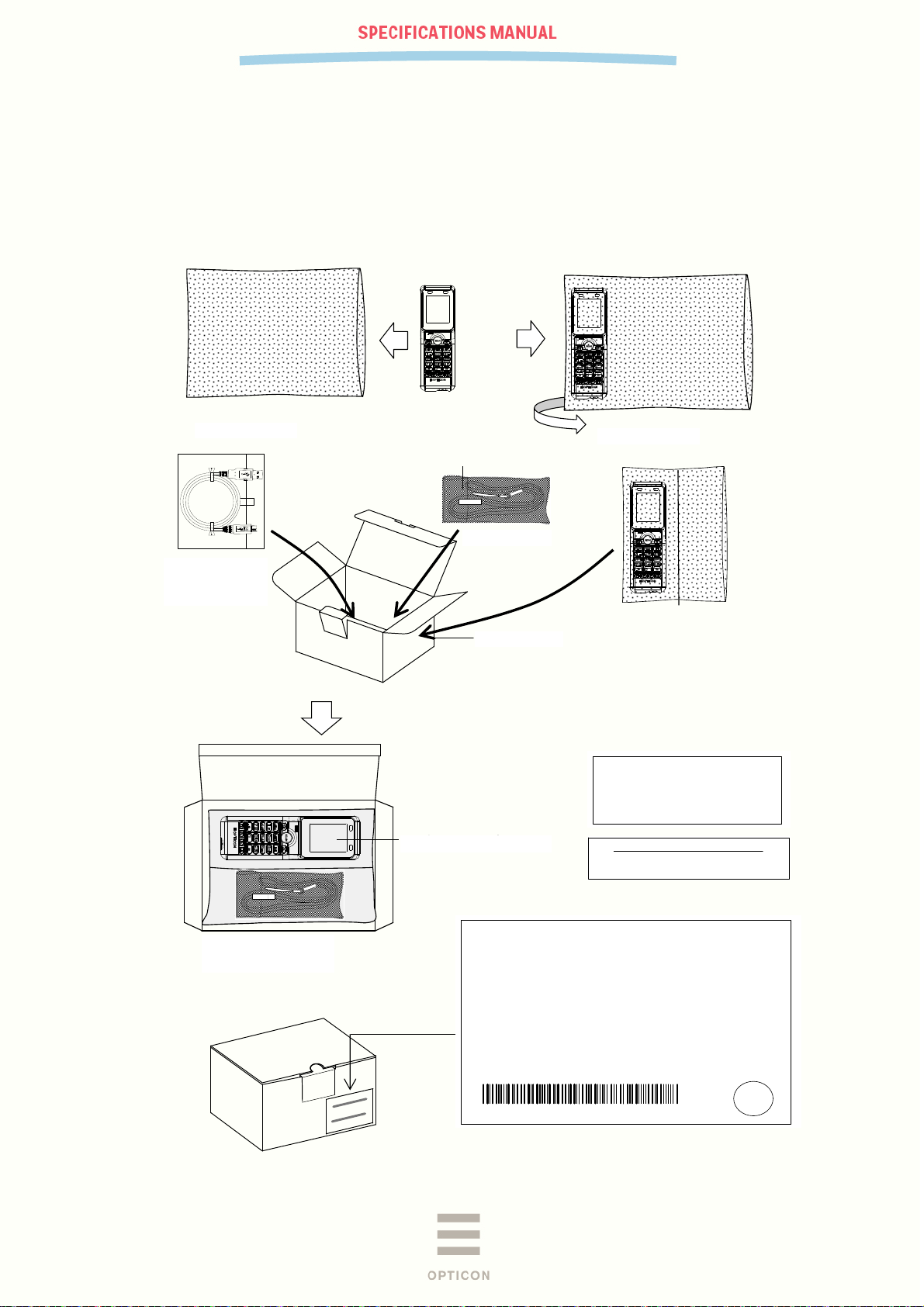

Figure 12: Individual Packaging

Quantity 1

Ｒｏ

31

OPH-5000i

1st

32

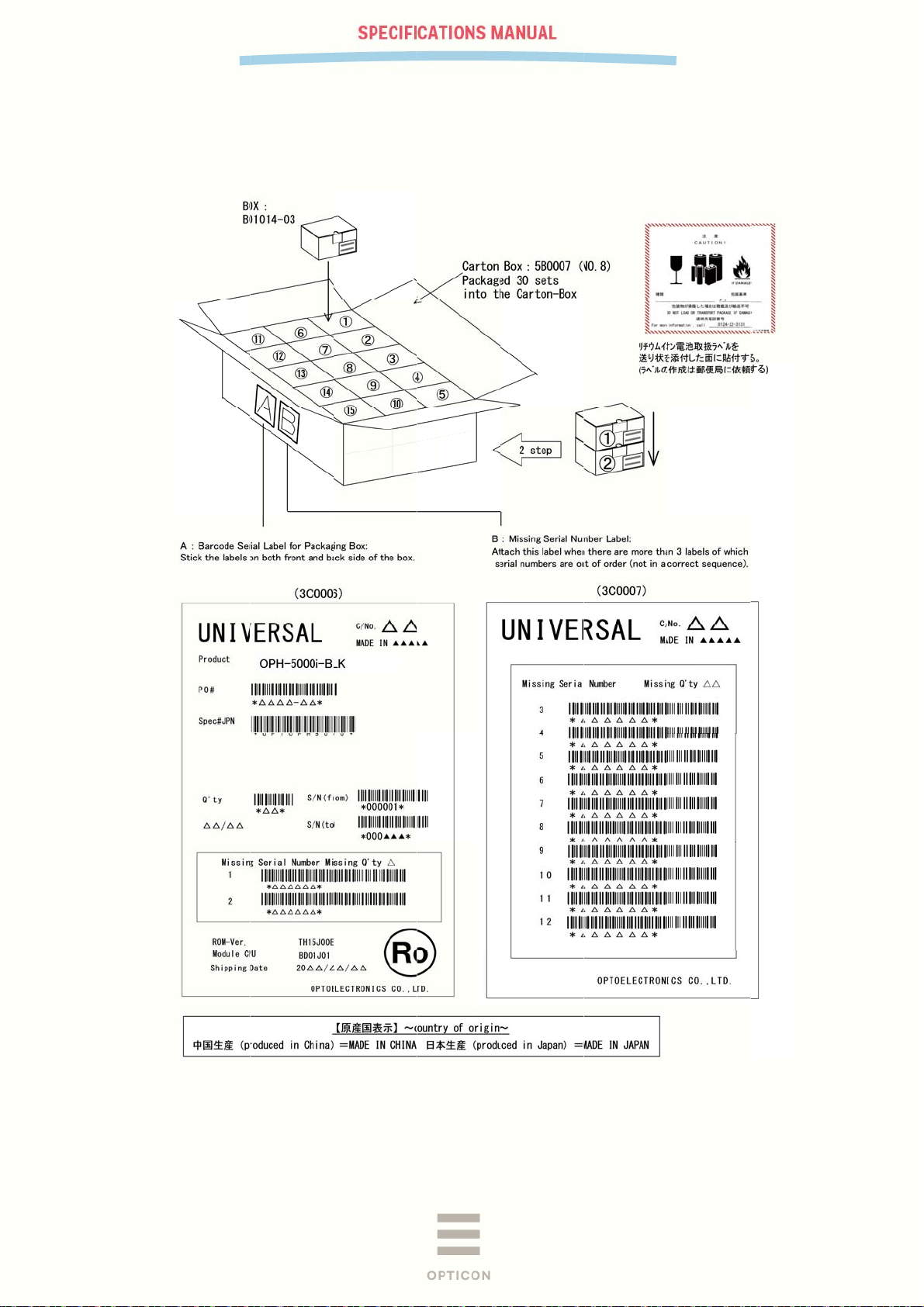

15.2

C

0AsW

oOp

P

o

a

o

s

g

a

0

3

e

P

o

n

O

e

ollective

1

0pcs per b

sembled p

eight: Appr

ackagin

x
ckage size
x. xx kg

: 595 × 52

× 245 (WD

H mm)

PH-5000i

1st

N

te: ‘Ro mark’
toelectronic

on the trays

Co., Ltd.

nd boxes ind

Figure 1

icates that th

: Collective

product is R

ackaging

HS complia

t as is declar

d by

33

16 Physical Features

16.1 Dimensions

136 × 44 × 30.3(22) (DWH mm) () is grip dimensions

16.2 Weight

Approx. 120 g (excluding accessories)

16.3 Mechanical Drawing

OPH-5000i

1st

Unit: mm

Figure 14: Mechanical Drawing

34

17 Supported Symbologies

17.1 Default Setting

The scanner is set to default by reading the following menu label.

Default

@MENU_OPTO@ZZ@SO@ZZ@OTPO_UNEM@

17.2 Supported Symbologies

17.2.1 1D Barcodes

Code type Default

UPC ○ -

UPC Add-on 2
UPC Add-on 5

EAN(JAN) ○ -

EAN Add-on 2
EAN Add-on 5

EAN-13 ○
EAN-13 Add-on 2

Code 39 ○ 1 Not transmit ST/SP

Tri-Optic ○ - Not transmit ST/SP

Codabar (NW7) ○ 1 Not transmit ST/SP

Industrial 2of 5 ○ 5

Interleaved 2of 5 ○ 6

S-Code 5
Code 128 ○ 1 GS1 conversion (setting required)

Code 93 ○ 1

IATA ○ 5

MSI/Plessey 3

UK/Plessey 2

Telepen 1

Code 11 1

Matrix 2 of 5 5

Chinese Post Matrix 2 of 5 -

Korean Postal Authority -

Intelligent Mail Barcode -

POSTNET -

JPN (Customer Barcode) -

EAN-13 Add-on 5
EAN-8 ○
EAN-8 Add-on 2
EAN-8 Add-on 5

Minimum

length

OPH-5000i

1st

Remarks

35

17.2.2 GS1 Databar, Composite Code

Code type Default Remarks

GS1 DataBar

・GS1 DataBar Omnidirectional
・GS1 DataBar Truncated
・GS1 DataBar Stacked
・GS1 DataBar Stacked Omnidirectional

GS1 DataBar Limited ○
GS1 DataBar Expanded

・GS1 DataBar Expanded
・GS1 DataBar Expanded Stacked

Composite GS1-DataBar

・CC-A
・CC-B
・Limited CC-A
・Limited CC-B
・Expanded CC-A
・Expanded CC-B

Composite GS1-128

・CC-A
・CC-B
・CC-C

Composite EAN

・EAN-13 CC-A
・EAN-13 CC-B
・EAN-8 CC-A
・EAN-8 CC-B

Composite UPC

・UPC-A CC-A
・UPC-A CC-B
・UPC-E CC-A
・UPC-E CC-B

OPH-5000i

1st

○

GS1

conversion (setting required)

○

GS1

GS1

GS1

GS1

conversion (setting required)

conversion (setting required)

conversion (setting required)

conversion (setting required)

17.2.3 2D Codes

PDF417 ○

Micro PDF417

Codablock F

QR Code ○ GS1 conversion (setting required)

Micro QR ○

Data Matrix (ECC 200) ○ GS1 conversion (setting required)

Data Matrix (ECC 000-140)

Aztec Code ○

Aztec Runes

Chinese-sensible code

Maxi Code

* The supported symbologies vary depending on specifications for the application to be loaded.

Code type Default Remarks

36
