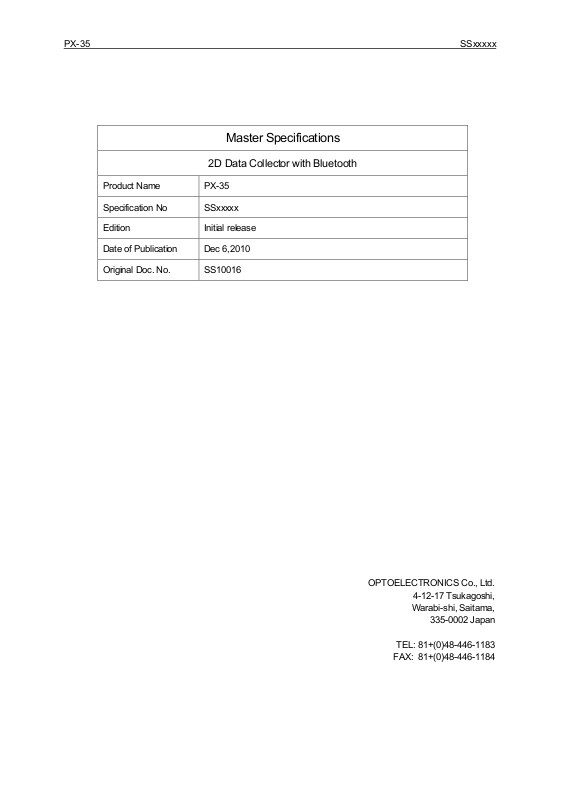

OPTOELECTRONICS PX35 User Manual

Page 1
PX-35 SSxxxxx
Master Specifications
2D Data Collector with Bluetooth
Product Name PX-35
Specification No SSxxxxx
Edition Initial release
Date of Publication Dec 6,2010
OPTOELECTRONICS Co., Ltd.
4-12-17 Tsukagoshi,
Warabi-shi, Saitama,
335-0002 Japan
TEL: 81+(0)48-446-1183
FAX: 81+(0)48-446-1184
Page 2
PX-35 SSxxxxx
Revision History
Specification No.: SSxxxxx Product name : PX-35
Revision Date Section Description of Changes
Initial release 2010/12/6 - -
Page 3
PX-35 SSxxxxx
Table of Contents
1. Abstract .........................................................................................................................................1
2. Overview .......................................................................................................................................1
3. Physical Features .........................................................................................................................2
4. Basic Specifications ......................................................................................................................4
5. Optical Specifications....................................................................................................................7
6. Technical Specifications................................................................................................................7
7. Bluetooth .....................................................................................................................................11
8. Serial Label .................................................................................................................................12
9. Packaging Specifications............................................................................................................13
10. Durability ...................................................................................................................................13
11. Warranty....................................................................................................................................16
12. Regulatory Compliance ............................................................................................................17
13. RoHS.........................................................................................................................................18
14. Precautions ...............................................................................................................................18
Appendix 1 ......................................................................................................................................21
Appendix 2 ......................................................................................................................................22
Page 4
PX-35 SSxxxxx
1. Abstract
This manual provides specifications for the data collector with an embedded 2D data collector which offers Bluetooth, PX-35.
2. Overview
・ PX-35 consists of CMOS image sensor and auto focus. ・ Scanned data is output via Bluetooth interface. ・ Bluetooth and IrDA (for the communication with the dedicated cradle) interface enables data
communication with higher models.
・ This product is compliant with RoHS.
2.1. Product / Model Name
Product name: PX-35
2.2. Features of PX-35
・ Compact and handy design ・ The data collector is able to read 2D barcodes. ・ Stored data is sent to the recipient through Bluetooth interface. On the other hand, IrDA can
communicate with host PC via the dedicated cradle.
・ Embedded Bluetooth is compliant to version 1.2 and has installed profile. ・ PX-35 can operate for a long time with a dedicated built-in lithium-ion battery (1880mh). ・ Unit is charged when placing it on the dedicated cradle.
(To directly connect the dedicated adapter to PX-35 can also charge the unit.)
1
Page 5
PX-35 SSxxxxx
3. Physical Features
3.1. Dimensions
26
140
44
Figure1 : Dimensions
単位:mm
Unit:mm
3.2. Weight
Max. 132g (including lithium-ion battery pack)
2
Page 6
PX-35 SSxxxxx
4
0
3.3. Physical Features
2
1
3
5
1
6
7
11
12
13
8
Figure2 : Physical features
9
No. Item Specification
1. Scanning window LED light for scanning barcode is emitted from the window.
2. IrDA Use for the communication with dedicated cradle
3. LED To notify the status of barcode scanning, Bluetooth communication, and warnings so on.
4. LCD Indicates scanned barcodes and operational items
5. Trigger key Press when scanning barcodes
6. Up / Down keys Used when selecting items from a menu.
7. 10 operational keys Used for numerical, “ENTER”, decimal point input.
8. DC Jack Used for the dedicated power supply
9. Speaker
10. Terminals
Used to charge a lithium-ion battery of a unit when placing the unit on the dedicated terminal
11. Battery cover Remove when replacing the rechargeable battery
12. Battery cover lock Used to lock / open the battery cover
13. Strap hole Hole for attaching a hand strap
3
Page 7
PX-35 SSxxxxx
4. Basic Specifications
Item Specification Remark
CPU 32Bit RISC Micro computer (ARM7 Core) Produced by ST Micro
Control section
Memory
OS μITRON
Display section
Operating section Key type 18 keys
Indication LED Tri-colored emitting elements (red/green/blue)
Buzzer Adjustable volume/tone
Bluetooth
Embedded ROM 256Kbyte + 16Kbyte (for DATA)
Embedded RAM 64Kbyte
FROM(NOR) 4Mbyte (User area: about 1Mbyte) OS/AP
SRAM
LCD semi-transmissive LCD
Number of dots 112×64 dots
Back light Available
Specification Bluetooth Ver1.2
Installed profile SPP
Frequency 2402MHz to 2480MHz
Transmission power Class 2
Communication range Perspective 10m
Baud rate 115.2kbps
2Mbyte (User area : about 480kbyte)
4Mbyte (Option)
for WORK/DATA
HCI module produced
by Kyocera
Stack produced by
iAnywhere
Communication range
may differ due to the
environments.
Antenna 1/4λ (surface mounted)
IrDA IrDA Ver1.2(physical layer compliant) Baud rate: Maximum 115.2Kbps
Main power Lithium-ion secondary battery 1880mAh
Regular voltage 3.7V
How to charge With a dedicated AC adapter or cradle
With a dedicated AC adapter: about 4 hours
Charging time
Power supply
Scanning frequency Over 30,000 times *1
Up-time 25 hours *2
Backup battery
Data holding time 72 hours or less
and half
With a dedicated cradle: about 7 hours and half
MS (Manganeese Silicon) lithium secondary
battery 3.4mAh
4
With a rubber pad for the
jack part
Without full discharge
After main battery has
been discharged.
Page 8
PX-35 SSxxxxx
Item Specification Remark
Scanning method CMOS area sensor (black/white)
MSI-2305
2D barcode
scanning section
(MDI-230x
specification)
Number of effective pixel
Light source White LED
Scanning angle range Horizontal: 40° Vertical: 23°
Supported symbology
900x512 pixels
PDF417, Micro PDF417, QR Code,
Micro QR Code, Data Matrix (ECC
0-140, ECC200), Maxi Code(mode2~5),
Aztec Code,
2D
EAN / UCC Composite bar code,
Intelligent Mail Barcode, Japanese
Postal, Postnet (US)
WPC (EAN, JAN, UPC-A / UPC-E
UPC-E1), Industrial 2 of 5, IATA,
Interleaved 2 of 5,
NW-7 (CODABAR), Code 39,
Code 93, Code 128, GS1-128,
1D
Tri-Optic, MSI / Plessey, UK / Plessey,
TELEPEN, S-Code,
Code 11, Matrix2 of 5,
Korean Postal Authority code,
CODABLOCK F, GS1 DataBar
Dimensions 140×44×26mm
Weight Max. 132g (including lithium-ion battery pack)
Operation temperature
and humidity
Conditions
Drop test *4
Dust and drip proof IP42
Regulatory
compliance
Accessories
Storage temperature and
humidity
Charging temperature 0 to 40°C
Frequency 6sides, 3cycles

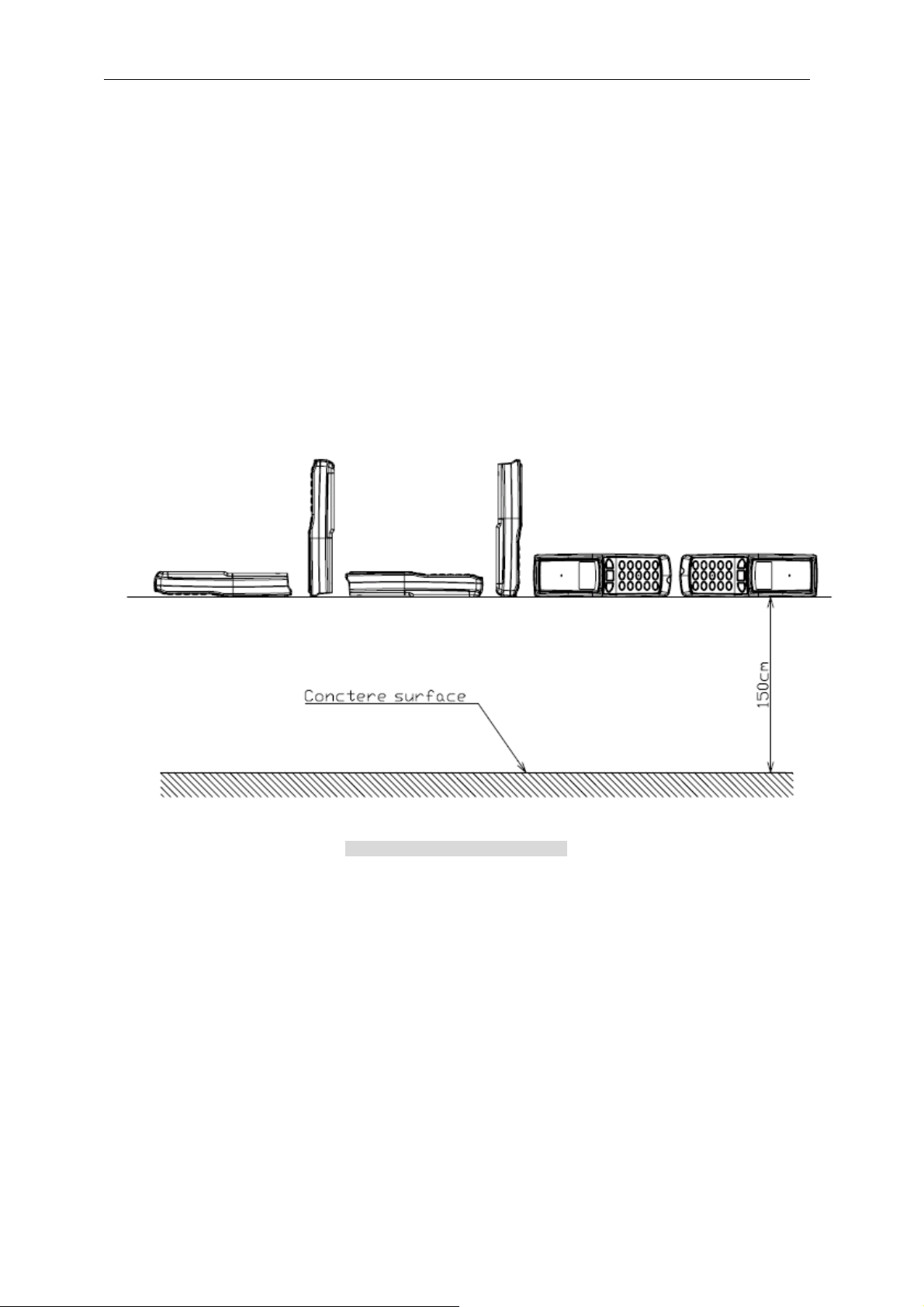

Height 150cm
Floor Concrete
IEC 60825-1:2007 Class 1
CE Marking, FCC
Bluetooth logo certification
Dedicated lithium-ion battery (1880mAh)
Hand strap
User’s manual
-10°C to 40°C
20%RH to 85%RH
-20°C to 60°C 20%RH~85%RH
No frost, no
condensation
No frost, no
condensation
5
Page 9
PX-35 SSxxxxx
Item
Dedicated cradle
Option
Dedicated AC adapter [6V/2000mA] For charging
*1 when scanning a barcode once per second at room temperature + frequency of connecting to Bluetooth.
*2 when scanning a barcode twice in 10 seconds at room temperature + frequency of connecting to Bluetooth.
*3 Shock resistance
Conditions of the shock resistance test are:
・ Does not count scratches or whitening on a surface as a malfunction. ・ Shock resistance is approved when no malfunction occurs after the test. ・ Shock resistance is approved if the battery cover is not unhooked after the test
Specification Remark
For IrDA
communication /
charging
6
Page 10
PX-35 SSxxxxx
5. Optical Specifications
Item Specifications Unit
Scanning method CMOS area sensor -
Scanning speed 80 fps Effective pixels 900(H)×512(V) Pixel
Aiming LED color temperature
(White LED x 2)
Scan angle Horizontal: 40 Vertical: 23 deg
8200 K
6. Technical Specifications
The conditions for technical specifications are as follows, unless otherwise specified in each section.
Conditions
Item Conditions
Ambient temperature and humidity Room temperature and humidity
Ambient light 1,000 to 1,500 lx ( barcode surface )
Light source 3 wave lengths inverter fluorescent Angles α= 0° β= +15° γ= 0°
Curvature R = ∞
Power supply voltage 3.3V
Decoding test
Barcode sample As specified below
<Bar Code>
Resolution Barcode PCS Size [mm] Digit
0.254mm Code 39 0.9 14×10 2
0.1mm Code 39 0.9 11×10 4
0.26mm JAN-13 0.9 25×19 13
0.26 mm JAN- 8 0.9 17.5×15.5 8
Barcode sample: OPTOELECTRONICS test sample – Resolution = 0.127mm
or
OPTOELECTRONICS test sample – Resolution = 0.26mm
N:W ratio = 1:2.5
<PDF417>
Resolution Error correction PCS Size [mm]
0.339mm Level-4 0.9 35×22 17
0.254mm Level-4 0.9 26×16 17
0.127mm Level-4 0.9 13×8 17
Barcodes printed by a normal printer – aspect ratio = 3 : 1
Approve the performance when decoding
is successful in 70% of ten tests performed.
Number of
character
7
Page 11
PX-35 SSxxxxx
<QR Code (Model-2)>
Resolution Error correction PCS Size [mm]
0.339mm M 0.9 10×10 44
0.169mm M 0.9 5×5 44
Barcodes printed by a normal printer
Number of
character
<Data Matrix>
Resolution Error correction PCS Size [mm]
0.339mm ECC200 0.9 8×8 40
0.169mm ECC200 0.9 4×4 40
Barcodes printed by a normal printer
*As for the size of each barcode, quiet zone length is excluded.
Number of
character
6.1. Decode Depth of Field and Resolution
The depth of decode field is measured from the case front the data collector.
Code39
JAN13
PDF417
QR Code
Data Matrix
Micro QR Code
100
分解能:0.127
35 110
35 220
45 320
35 110
40
35 190
分解能:0.169
35 90
35 140
分解能:0.127
35 100
分解能:0.254
110 900
分解能:0.127
分解能:0.254
分解能:0.381
分解能:0.254
200 300
分解能:1.0
分解能:0.33
220
400
unit:mm
[単位:mm]

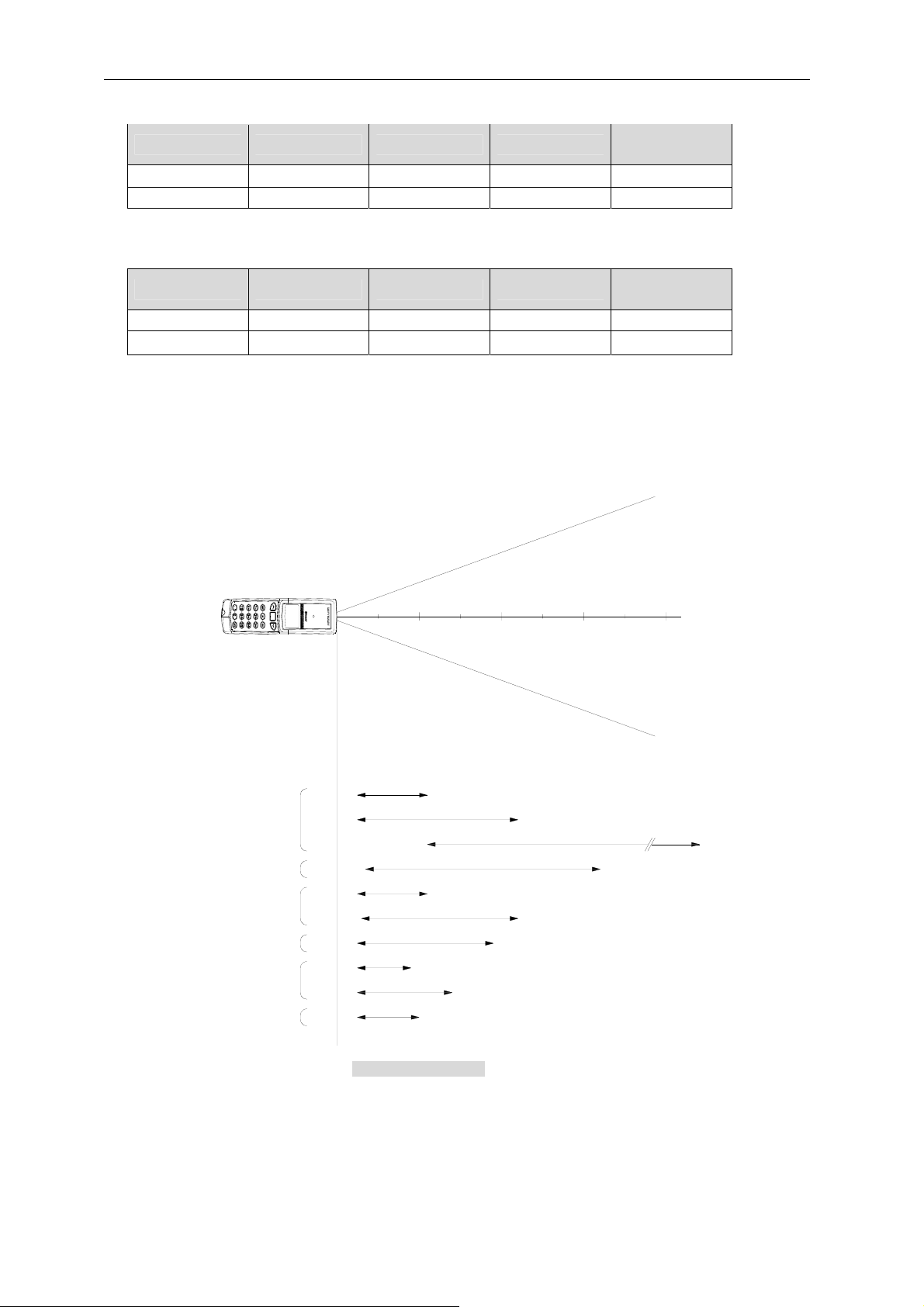

Figure3: Scanning field
8
Page 12
PX-35 SSxxxxx
6.2. Printed Contrast Signal
0.45 (MRD 32%) or higher (over 70% of reflectivity of space and ) *Scanning performance may decline if dirt or scratches mar the optical window. Keep the optical
window clean.
6.3. Pitch, skew and tilt
Pitch angle: α = ±50° Skew angle β = ±60
Tilt angle: γ = 360
Conditions: Barcode sample: Code39, PDF417, Resolution 0.254mm, PCS0.9 as specified in the section 6. Distance: 63mm from the focal plane of the data collector Curvature: R = ∞
*When scanning symbologies printed on highly glazed paper such as glossy paper or card case, scanning performance of this data collector may decline due to the specular reflection of LEDs. In such cases, adjust scanning angle by incline the data collector to 15 degrees toward the skew direction to improve scanning performance. When turning off the lighting LED, it may decline the scanning performance unless the ambient light is 1000 lx or higher. Also, the light or reflection light caught by the camera may decline scanning performance, when using codes on the above described paper.
° °
(For pitch/tilt angles, skew angle β = +15°)

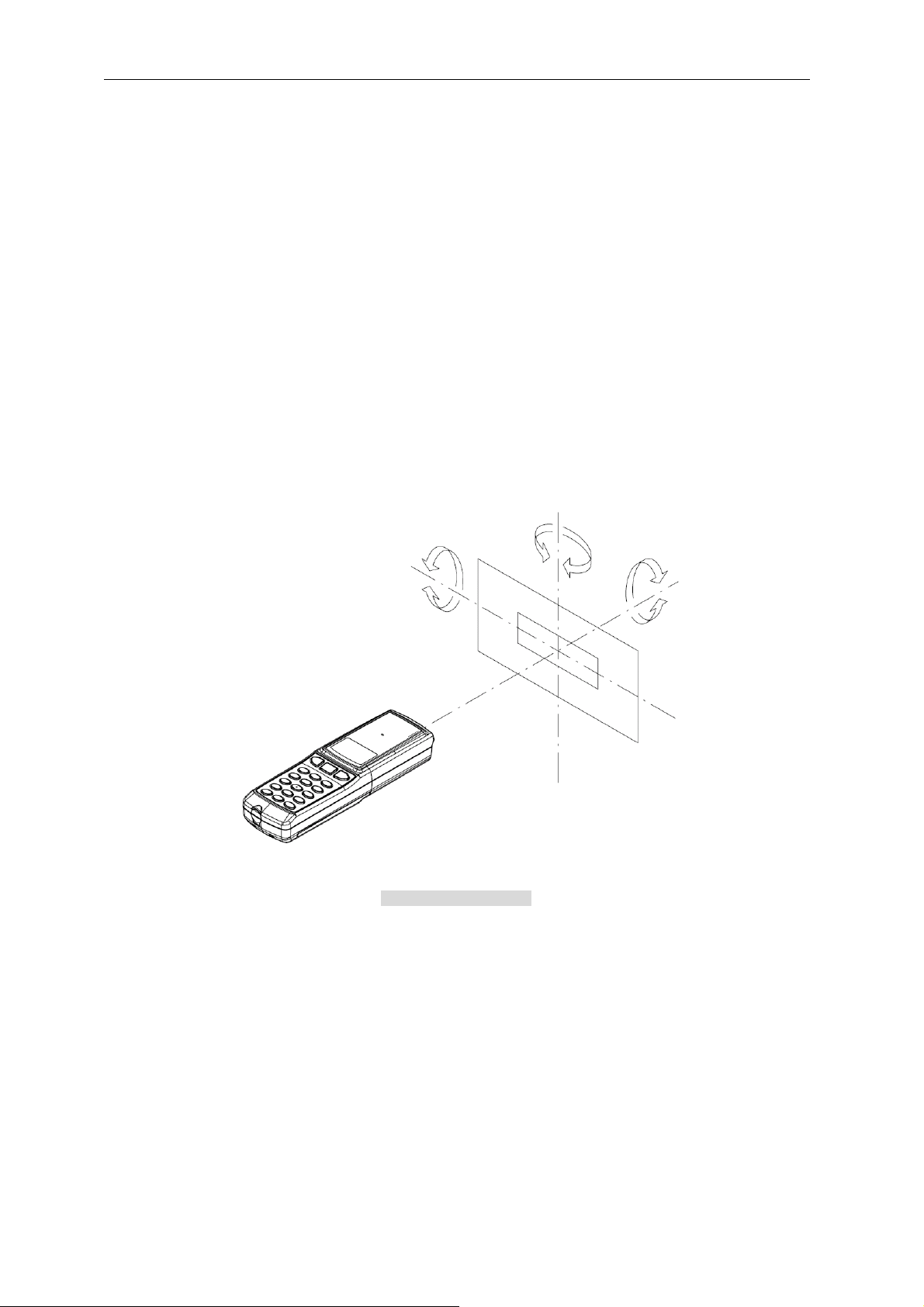

Figure4: Pitch, skew and tilt
9
Page 13
PX-35 SSxxxxx
6.4. Curvature
With 8-digit JAN barcode, decoding performance is guaranteed when R≥15 mm. With 13-digit JAN barcode, decoding performance is guaranteed when R≥20 mm.
Conditions Barcode sample: Code 39, PDF417, Resolution 0.254mm, PCS0.9 as specified in the section 6. Distance: 63mm from the focal plane of the data collector Curvature: R = ∞
(For pitch/tilt angles, skew angle β = +15°)

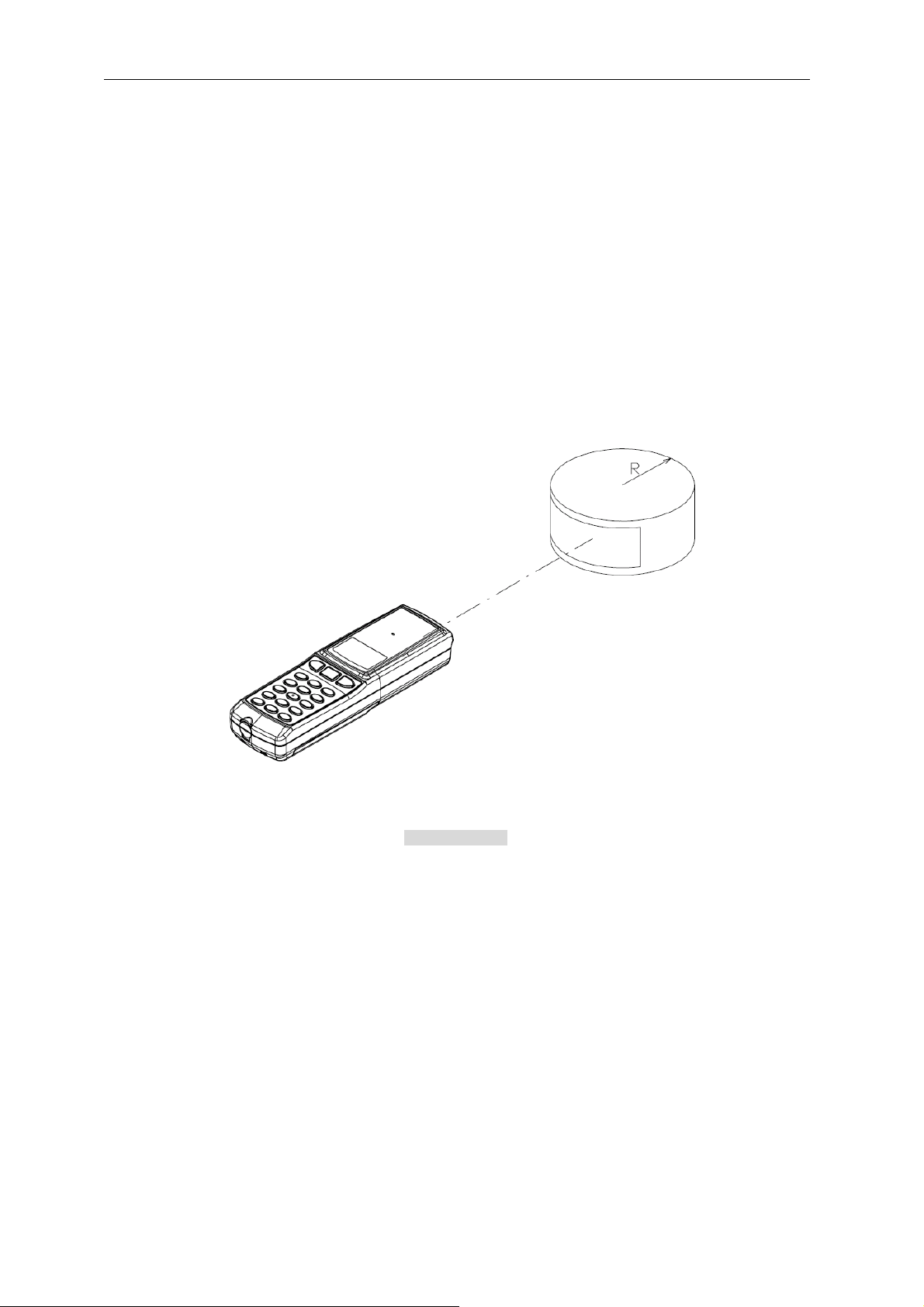

Figure5: Curvature
10
Page 14
PX-35 SSxxxxx
7. Bluetooth
Bluetooth wireless communication is used as a wireless interface.
7.1. Installed Profile
SPP(Serial Port Profile)
7.2. Communication Configuration
1 to 1 (One data collector to one host system)
7.3. Operating Mode While Connected to the Host System
Master / slave mode ( *1 )
*1 It can be set by the application software.
7.4. Security Mode
Authentication enabled
7.5. Encryption
Encryption enabled
11
Page 15
PX-35 SSxxxxx
8. Serial Label
The labels shown below are affixed to the data collector.
文字・ロゴ
印刷色:黒
(H=5)
シリアルNo. 印刷色:黒
生産年・生産月
印刷色:黒
(H=5)
(H=7)

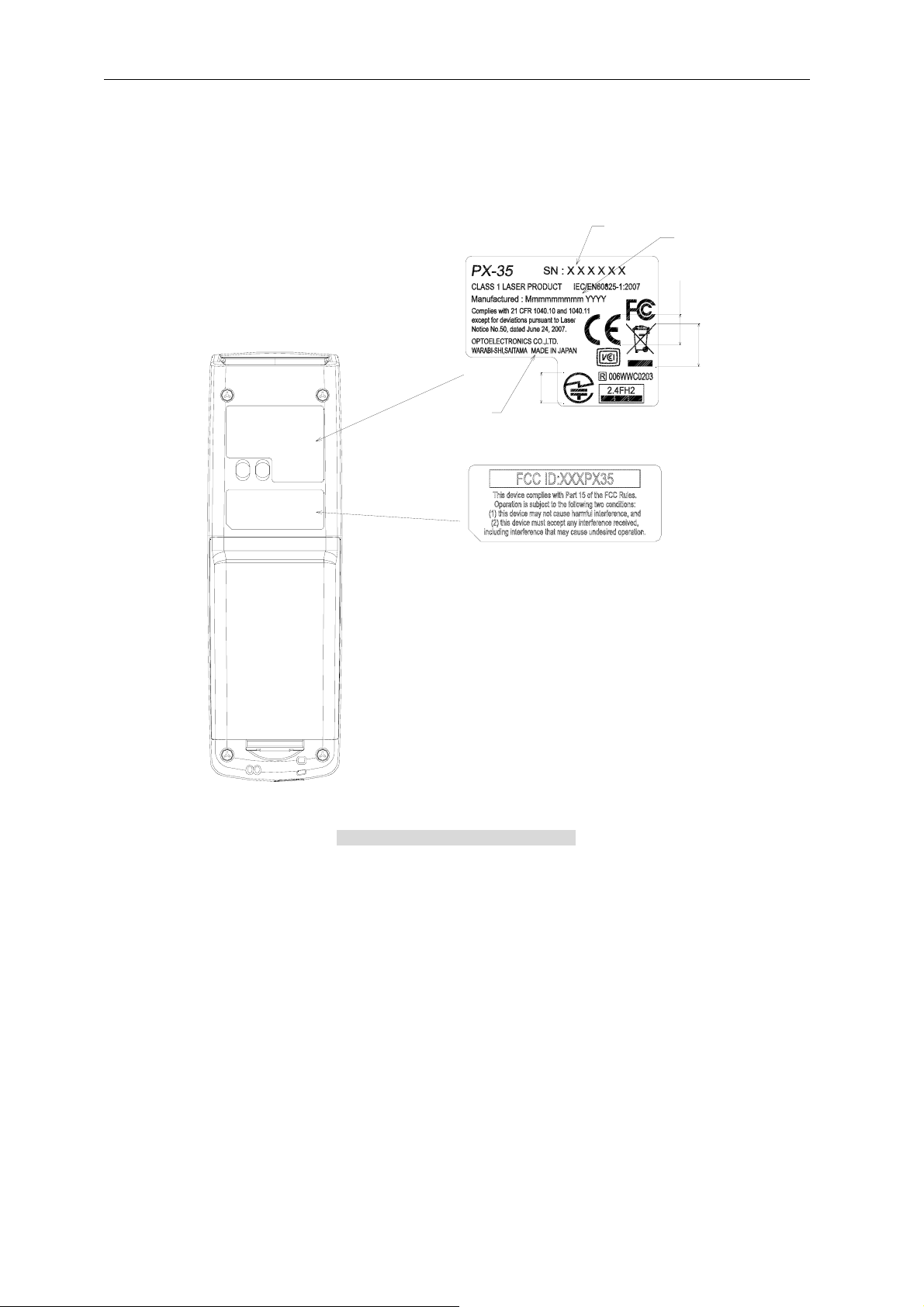

Figure 7: Serial label and FCC caution label
12
Page 16
PX-35 SSxxxxx
9. Packaging Specifications
9.1. Individual Packaging Specification

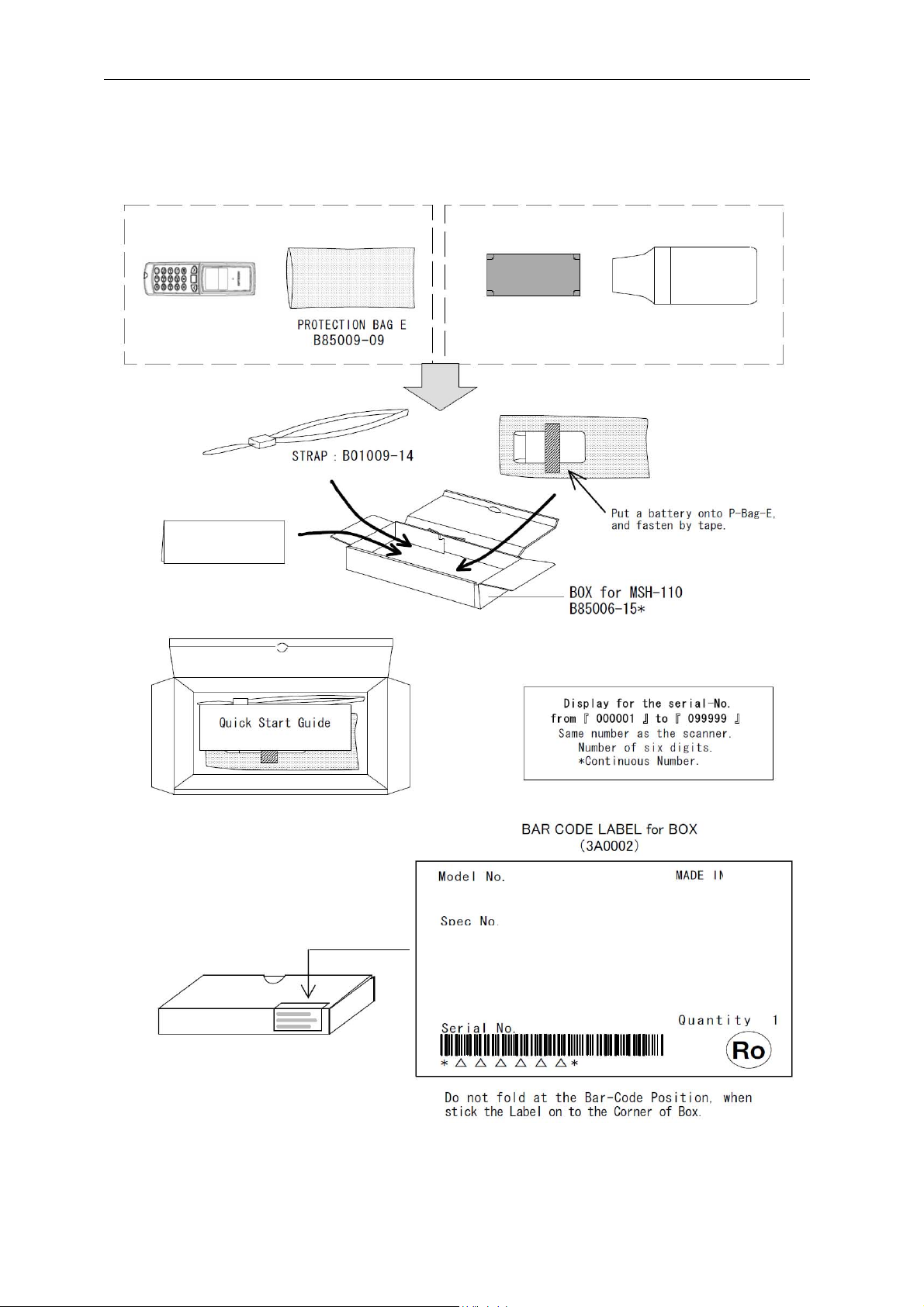

Put the data collector in a protective foam bag and place it in an individual packing box.
Size of the package (after assembly) 255(W) × 120(D) × 105(H) mm Refer to Appendix 1.

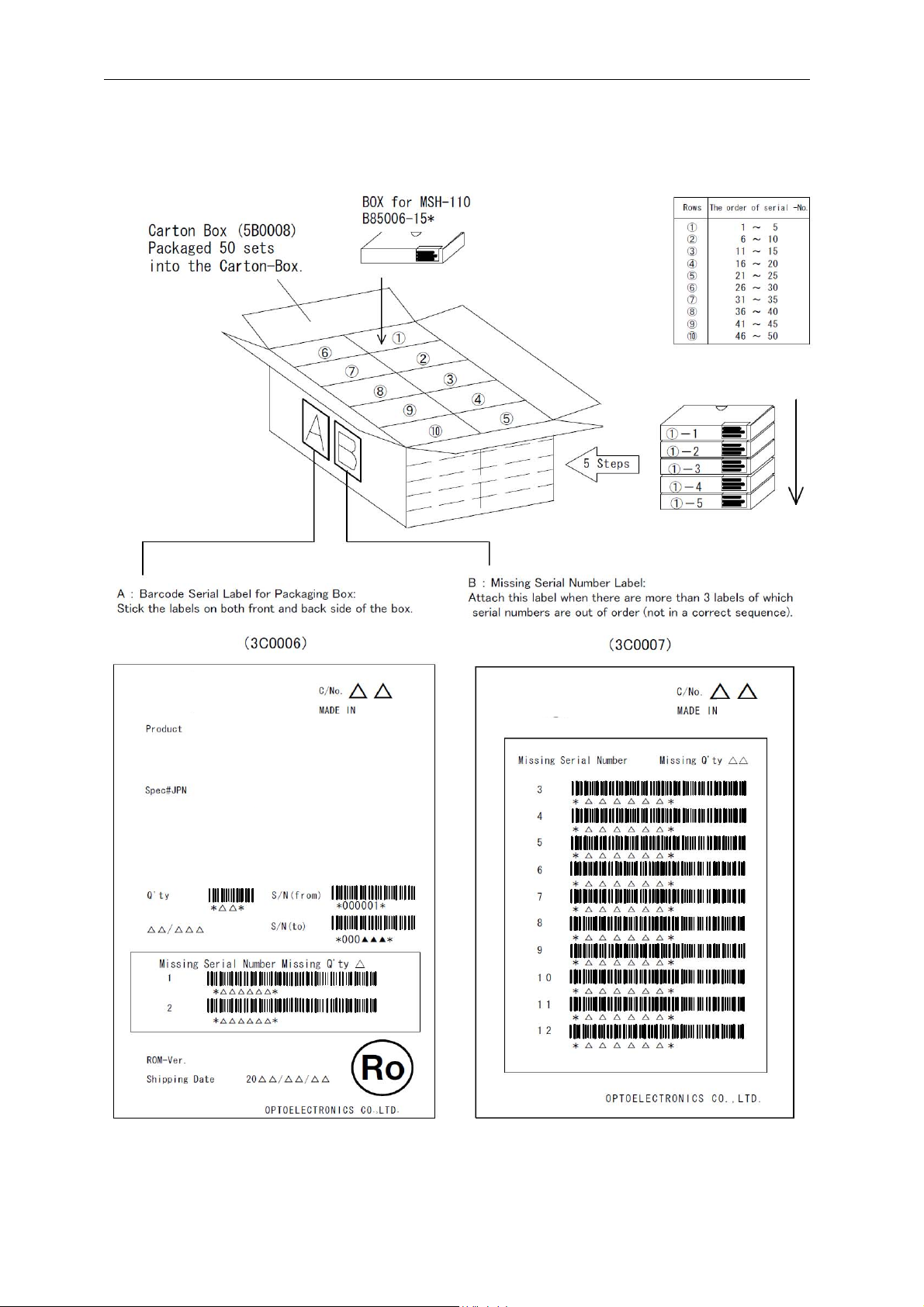

9.2. Collective Packaging Specification
Refer to Appendix 2.
Note: The “RO” mark labeled on the package tray or package box guarantees that the applicable
product has passed our test of RoHS restrictions compliance (the restriction of the use of certain hazardous substances in electrical and electronic equipment, 2002/95 EC).
However, this document does not have any legal weight in the European Union.
10. Durability
10.1. Ambient Light Immunity
Decoding performance is guaranteed when the range of illumination on a barcode surface is between zero and the following values:
Incandescent light 10,000 lx Fluorescent light 10,000 lx Sunlight 1000,000 lx
Conditions Barcode sample: Code39, Resolution 0.254mm, PCS0.9 as specified in the section 6. Distance: 63mm from the focal plane of the data collector Angles: α = 0°, β = +15°, γ = 0° Curvature: R = ∞
*
Direct light or specular reflection from a light source should be prevented from entering the
acceptance area.
10.2. Dust and Drip Proof
IP42
10.3. Vibration Strength (without packaging)
No malfunction occurred after the following test. Vibration test: Increase the frequency of the vibration from 10Hz to 100 Hz with accelerated velocity 19.6m Repeat this routine in each X, Y, Z direction once for 60 minutes each.
2
/s (2G) for 60 minutes in non-operating state
13
Page 17
PX-35 SSxxxxx
10.4. Vibration Strength (with individual packaging)
No malfunction occurred after the following test.
Vibration test: Increase the frequency of the vibration from 10Hz to 100 Hz with accelerated velocity 19.6m
2
/s (2G) for 60 minutes in individually packaged state.
Repeat this routine in each X, Y, Z direction once for 60 minutes each.
10.5. Drop Test (without packaging)
No malfunction occurred after the following test.
Drop test: Drop the data collector from a height of 150cm onto a concrete floor. (Three times in each of 6 angles)
Figure 9: Drop T est ( without p ackaging )
10.6. Drop Test (with individual packaging)
No malfunction occurred after the following test.
Drop test: Drop an individually packaged data collector from a height of 70cm onto a concrete floor once on its 1 corner, 3edges, and 6 sides. (10 total drop tests)
14
Page 18
PX-35 SSxxxxx
10.7. Static Electricity
Air discharge:
Contact discharge:
Measurement environment: Discharge resistance: 330 Ω Capacitor charging: 150 pF
±10 kV max. (No malfunction) ±15 kV max. (No destruction) ±6 kV max. (No malfunction) ±10 kV max. (No destruction)
Use electrostatic testing device compliant with IEC 61000-4-2.
10.8. Reliability
MTBF 10,000 hours
15
Page 19
PX-35 SSxxxxx
11. Warranty
11.1. Warranty Period
Optoelectronics Co., Ltd. (hereinafter ‘Optoelectronics’) warrants that this product is free of defects and malfunctions for a period of 12 (twelve) months beginning on the last day of the month in which it is shipped. Optoelectronics will repair product defects or malfunctions that arise in the course of normal usage during the twelve-month warranty period free of charge. Any repair or replacement of the product after the foregoing warranty period will be charged at regular rates. Repair or replacement of the product due to defects or malfunctions that arise as a result of customer mishandling will be charged at regular rates, even during the foregoing warranty period.
11.2. Delivery
Products for maintenance or repair shall be sent back to Optoelectronics. The sender is responsible for all shipping costs.
11.3. Repair Timeframe
Repaired products shall be shipped back to the customer within 20 days after acceptance by OPTOELECTRONICS. However, the time needed for the repair of products with early failures need to be separately discussed with Optoelectronics. Expedited repairs may be available, subject to terms agreed to by OPTOELECTRONICS and the customer.
11.4. Maintenance Period
The maintenance period of this product is 5 years after its shipment. OPTOELECTRONICS may discontinue maintenance for this product during the 5-year maintenance period if a satisfactory replacement product or maintenance solution is agreed to.
11.5. Others
Any additional warranty issues must be discussed with OPTOELECTRONICS on a case-by-case basis.
16
Page 20
PX-35 SSxxxxx
12. Regulatory Compliance
12.1. LED Safety
Lamp classification: IEC62471:2006 Exempt Group
12.2. LASER Safety
・ IEC 60825-1:2007 Class 1 ・
CDRH Class I
12.3. Product Safety
・ IEC60950-1 ・ EN60950-1
12.4. EMC
・EN55022 ・EN55024 ・FCC Part15 subpart B Class B
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions :
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
・FCC Part15 subpart C
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
Federal Communications Commission Notices
This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Harmful Interference Notice
This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used according to the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which is found by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment or devices
• Connect the equipment to an outlet other than the receiver's
• Consult a dealer or an experienced radio/TV technician for assistance
Changes or modifications to this equipment that have not been approved by Ruckus Wireless may void the
user's authority to operate this equipment.
17
Page 21
PX-35 SSxxxxx
・VCCI Class B
This is a Class B product, to be used in a domestic environment, based on the
Technical Requirement of the Voluntary Control Council for Interference from
Information Technology Equipment (VCCI). If this is used near a radio or
television receiver in a domestic environment, it may cause radio interference.
12.5. R&TTE
・ EN300 328 ・ EN301 489-1 ・ EN301 489-17
12.6. Others
・ Certification for Construction Design of Specified Radio Equipment ・ Bluetooth logo certification
13. RoHS
RoHS: The restriction of the use of certain hazardous substances in electrical and electronic equipment,
2002/95 EC.
14. Precautions
14.1. Precaution about the LED Light
Do not stare into the laser light from a scanning window. It may harm your eyes.
Caution - Use of controls or adjustments or performance of procedures other than those specified
herein may result in hazardous radiation exposure.
14.2. Radio Low
The data collector has obtained the Certification for Construction Design of Specified Radio Equipment. Therefore it does not need to have a radio station license in Japan. The following activities are prohibited under the Radio Law:
・ Remodeling and disassembly ・ Peeling off the certificate label
Do NOT use the data collector under the following environment: *Otherwise radio interference may affect other device and end up with causing physical or
material damage.
・ Safety apparatus and medical device for human body protection ・ Environment where is concerned to cause serious damage
18
Page 22
PX-35 SSxxxxx
14.3. Handling
Handle this product carefully. Do not deliberately subject it to any of the following.
(1) Shock
・ Do not drop from the non-standard height. ・ Do not place any heavy items on the data collector. ・ Do not squeeze it between any heavy items. ・ Do not swing around the cable.
(2) Temperature Conditions
・ Do not use the data collector at temperatures outside the specified range. ・ Do not pour boiling water on the data collector. ・ Do not throw the data collector into the fire.
(3) Foreign Materials
・ Do not put the data collector into liquid. ・ Do not put the data collector into chemicals.
(4) Others
・ Do not disassemble this product. ・ Do not use the data collector near a radio or a TV receiver. It may cause reception
problems.
・ The data collector may be damaged by voltage drops caused by lightning. ・ The data collector may not perform properly in environments when placed near a
flickering light, such as a CRT
14.4. Export Administration Regulations
This product is subject to the strategically controlled exports regulated under “Foreign Exchange
and Foreign Trade Laws”. Therefore, export of this product may require an export permission of Japanese government.
14.5. Bluetooth
To communicate via Bluetooth, the device which PX-35 is connected to must support the same Bluetooth version and profile as PX-35’s. ・ PX-35 is compliant to Bluetooth standards. However, we cannot assure the connection
between PX-35 and other Bluetooth devices which have not been tested.
・ Bluetooth supporting devices use 2.4 GHz frequency band. However, many other sorts of
devices also utilize this frequency band. It may effect the communication speed or communication range of this data collector.
・ The use of PX-35 outside of the European Union, the United States and Canada is punishable
under the law.
・ Communication speed and communication range of PX-35 may differ due to the obstacles
and radio wave conditions between PX-35 and the device, which PX-35 is connected to.
・ Conditions of the device, which PX-35 is connected to, may also affect the communication
speed and communication range of PX-35.
19
Page 23
PX-35 SSxxxxx
14.6. Frequency Baud
The frequency band 2.4 GHz is utilized by this scanner. Read carefully the followings before using this product.
In the frequency band of this scanner, scientific, medical and industrial devices including microwaves are used. Also other radio stations including local private radio station for mobile object identification requiring license for such as manufacturing lines at factories, specific power-saving radio station requiring no license and amateur radio station are managed.
Please make sure that “other radio stations” are not managed in the frequency band 2.4 GHz before using this scanner.
In case that radio interference occurs between this scanner and “other radio stations,” change
the service space immediately, or stop transmitting radio wave to avoid the interference.
If you have any questions or troubles, please contact our marketing group.
20
Page 24
PX-35 SSxxxxx
(PX
-
Appendix 1
Individual Packaging Specification
BATTERY
BTR040x
Quick Start Guide
35019062-0-00)
△△△△
PX-35
*XF1PX35*
21
Page 25
PX-35 SSxxxxx
XF
1
PX
35
Appendix 2
Collective Packaging Specification
PX-35
*
△△△△ △△△△
*
FM42J△△
22
Loading...
