OPTOELECTRONICS OPC3301I User Manual

Handheld Bluetooth 1D CCD Scanner

OPC-3301i

This manual provides specifications for the OPC­3301i handheld Bluetooth 1D CCD scanner.

Specifications Manual

All information subject to change without notice.

Document History

OPC-3301i

Specifications Manual

Model Number:

Edition:

Date:

OPC-3301i
1st
2014-10-20

Specification Number:

Original Spec Number:

(SS14023)
(SS14018)

Copyright 2014 Opticon. All rights reserved.

This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any
electronic or machine readable form without prior written consent of Opticon.

Limited Warranty and Disclaimers
PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE

PRODUCT.
Serial Number

A serial number appears on all Opticon products. This official registration number is directly related to the device
purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the
warranty.

Warranty

Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in materials and
workmanship for two years after purchase. Opticon will repair or, at its option, replace products that are defective
in materials or workmanship with proper use during the warranty period. Opticon is not liable for damages caused
by modifications made by a customer. In such cases, standard repair charges will apply. If a product is returned
under warranty and no defect is found, standard repair charges will apply. Opticon assumes no liability for any
direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and
software, even if Opticon has been informed about the possibility of such damages.

Packaging

The packing materials are recyclable. We recommend that you save all packing material to use should you need
to transport your scanner or send it for service. Damage caused by improper packaging during shipment is not
covered by the warranty.

Trademarks

Trademarks used are the property of their respective owners.

Opticon Inc. and Opticon Sensors Europe B.V. are wholly owned subsidiaries of OPTOELECTRONICS Co., Ltd.,
12-17, Tsukagoshi 4-chome, Warabi-shi, Saitama, Japan 335-0002. TEL [phone]; FAX +81-(0) 48­446-1184

SUPPORT

USA Europe

Phone: [phone]
Email: [e-mail] Email: [e-mail]
Web: www.opticonusa.com

Web: www.opticon.com

Specifications Manual

Revision History

Specification No. : (SS14023)
Product name : OPC-3301i

Edition Date Page Section Description of Changes

First 2014/10/20 - - Initial release

OPC-3301i

OPC-3301i

Specifications Manual

Contents

1. Abstract.............................................................................................................................................1

2. Overview............................................................................................................................................ 1

3. Basic Specifications......................................................................................................................... 2

4. Detailed View .................................................................................................................................... 4

5. Electrical Specifications..................................................................................................................5

5.1. Current Consumption................................................................................................................ 5

5.2. Operating Time and Charging Time ......................................................................................... 5

6. Interface Specifications...................................................................................................................5

6.1. Bluetooth ................................................................................................................................... 5

7. Optical Specifications...................................................................................................................... 6

7.1. Basic Optical Specifications...................................................................................................... 6

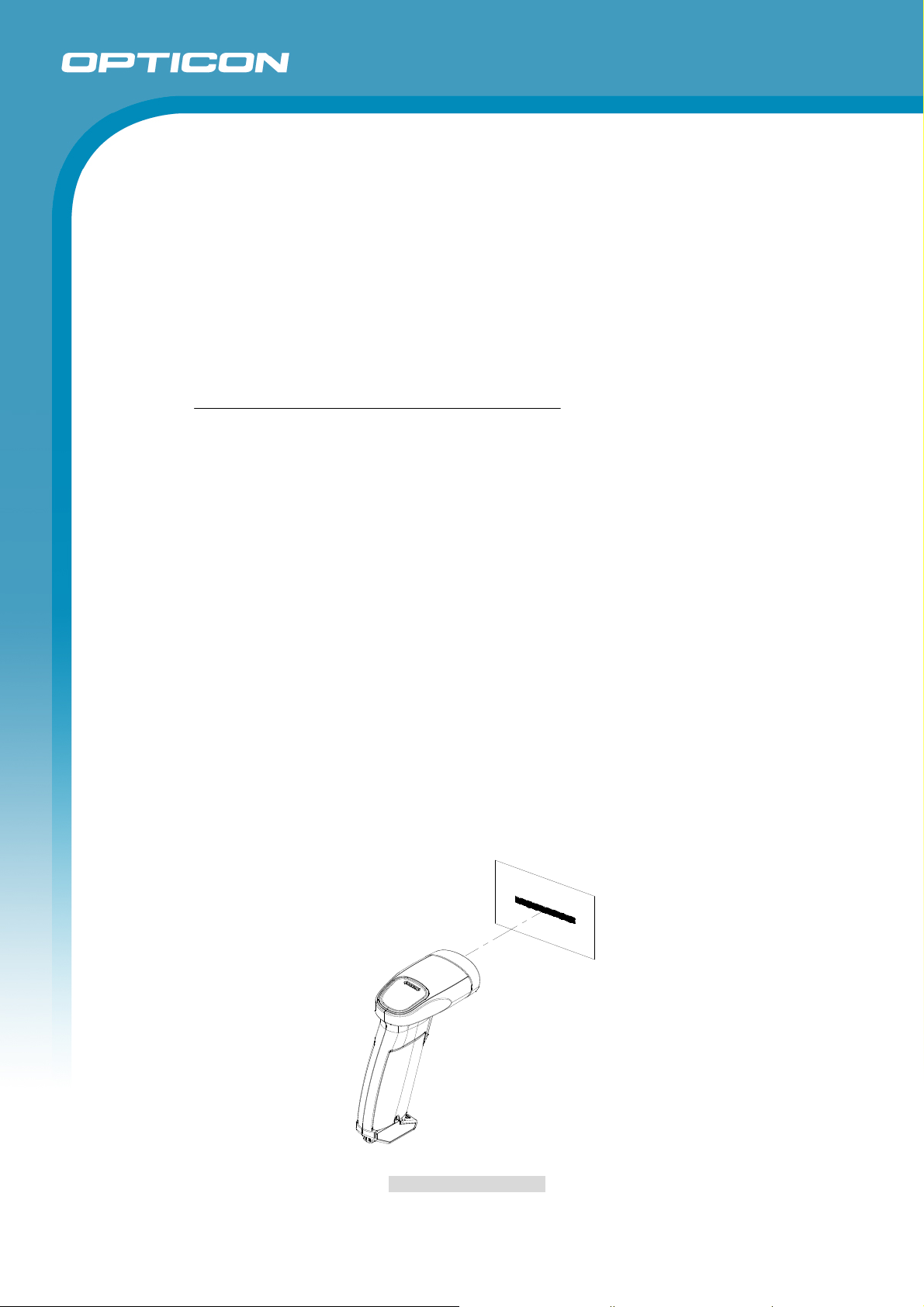

7.2. Aiming Pattern .......................................................................................................................... 6

8. Technical Specifications..................................................................................................................7

8.1. Bar Code Test Sample.............................................................................................................. 7

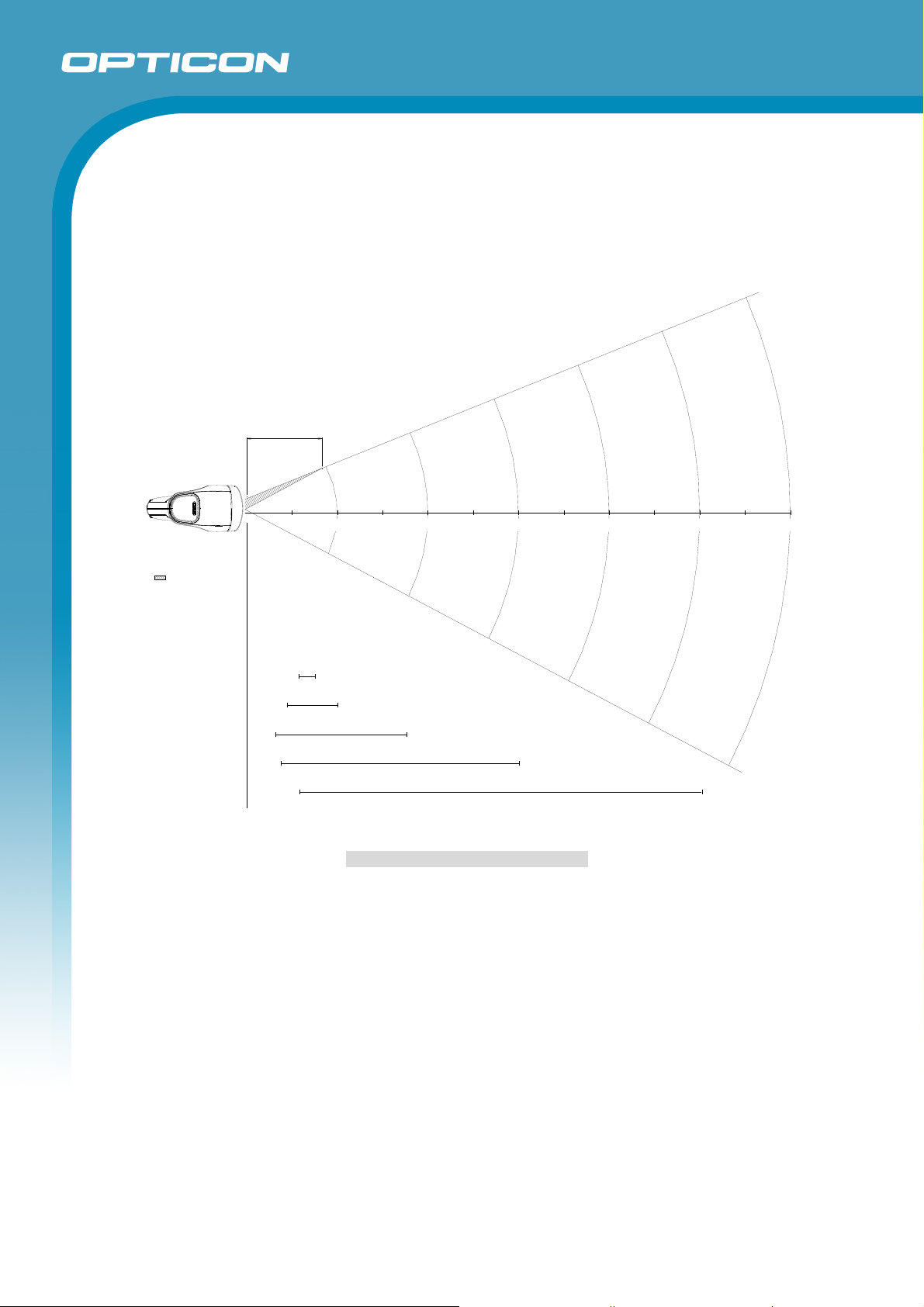

8.2. Scan Area and Depth of Field................................................................................................... 8

8.3. Printed Contrast Signal (PCS) .................................................................................................. 9

8.4. Minimum Resolution ................................................................................................................. 9

8.5. Wide Bar Code.......................................................................................................................... 9

8.6. Pitch, Skew and Tilt ................................................................................................................ 10

8.7. Curvature ................................................................................................................................ 10

8.8. Scanning from LCD Screen .................................................................................................... 11

8.9. Auto Trigger ............................................................................................................................ 11

8.9.1. Stand Detection............................................................................................................. 11

8.9.2. Auto Trigger Operation.................................................................................................. 12

9. Environmental Specifications....................................................................................................... 13

9.1. Temperature............................................................................................................................ 13

9.2. Humidity .................................................................................................................................. 13

9.3. Ambient Light Immunity .......................................................................................................... 13

9.4. Dust and Drip Proof ................................................................................................................ 13

9.5. Vibration Strength (without packing).......................................................................................13

9.6. Vibration Strength (in individual packing) ............................................................................... 14

9.7. Drop Impact Strength (without packaging) ............................................................................. 14

9.8. Drop Impact Strength (in individual packaging)...................................................................... 14

9.9. Electrostatic Discharge (ESD) Immunity................................................................................. 14

10. Regulatory Compliance ............................................................................................................... 15

10.1. LED Safety............................................................................................................................ 15

10.2. Product Safety ...................................................................................................................... 15

OPC-3301i

Specifications Manual

10.3. EMC ...................................................................................................................................... 15

10.4. Others ................................................................................................................................... 16

11. RoHS..............................................................................................................................................16

12. Reliability....................................................................................................................................... 16

13. Precautions................................................................................................................................... 16

13.1. Handling................................................................................................................................ 16

13.2. Radio Law ............................................................................................................................. 17

13.3. Bluetooth............................................................................................................................... 17

13.4. Frequency Baud.................................................................................................................... 17

14. Product Labels..............................................................................................................................18

15. Packaging Specifications............................................................................................................ 19

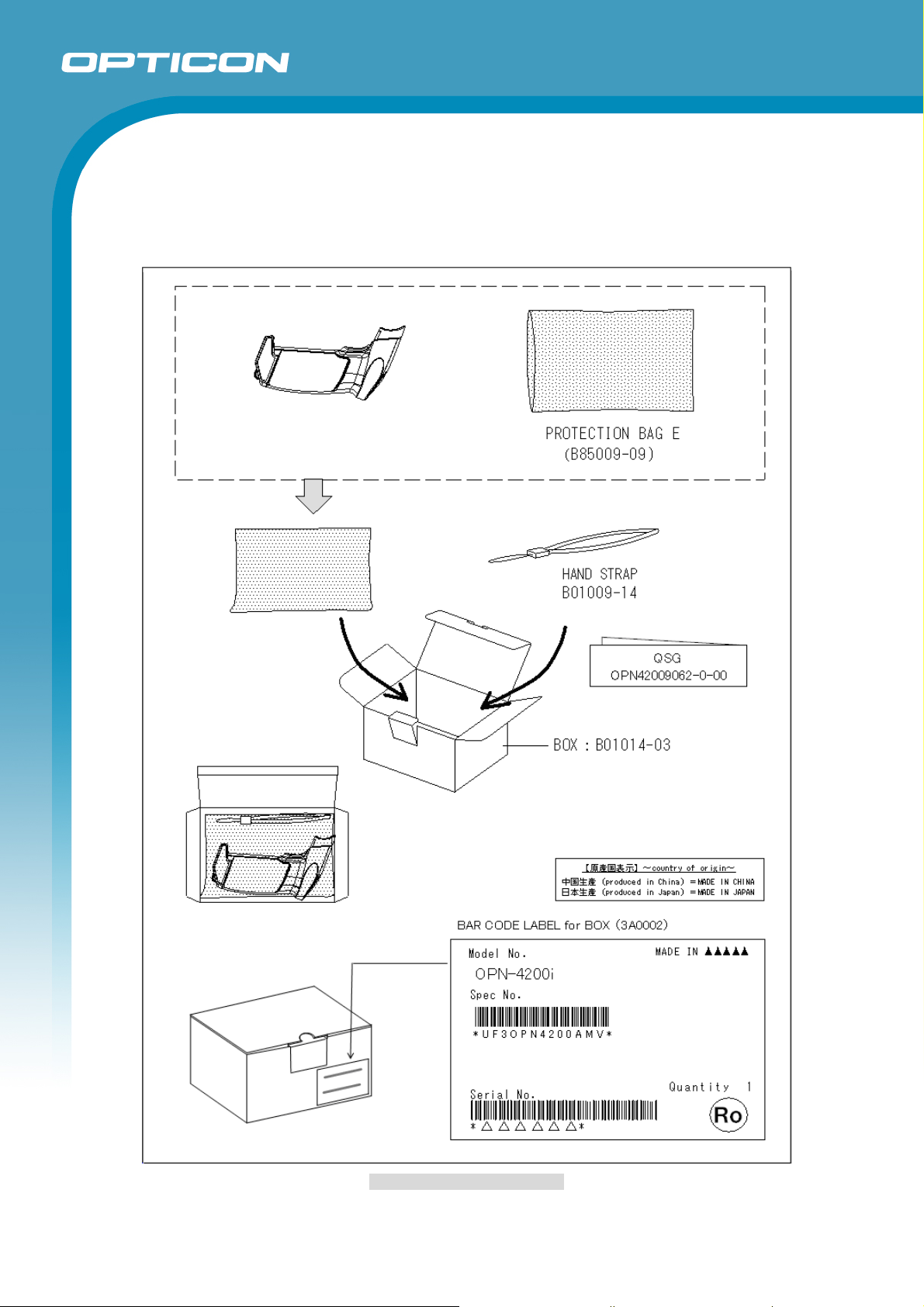

15.1. Individual Packaging ............................................................................................................. 19

15.2. Collective Packaging............................................................................................................. 20

16. Physical Features.........................................................................................................................21

16.1. Dimensions ........................................................................................................................... 21

16.2. Weight ................................................................................................................................... 21

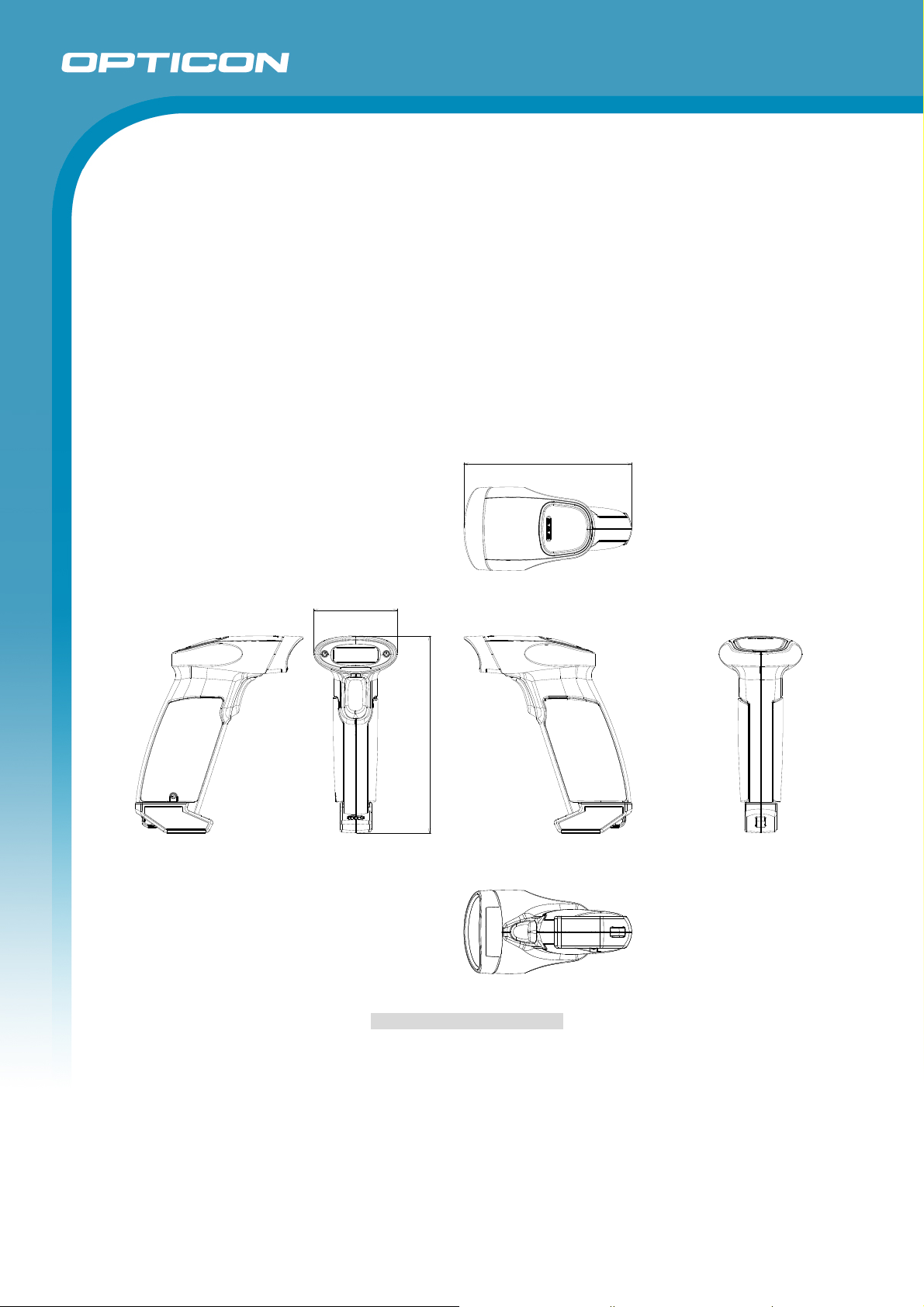

16.3. Mechanical Drawing.............................................................................................................. 21

17. Supported Symbologies.............................................................................................................. 22

17.1. Default Setting ...................................................................................................................... 22

17.2. Supported Symbologies........................................................................................................ 22

17.2.1. 1D Bar Codes .............................................................................................................. 22

17.2.2. GS1 Databar, Composite Code................................................................................... 23

OPC-3301i

Specifications Manual

1. Abstract

This manual provides specifications for the OPC-3301i handheld Bluetooth 1D CCD scanner.

2. Overview

The OPC-3301i is a handheld 1D scanner with a built-in CCD imager that enables high speed scanning
of standard linear (1D) symbologies. The scanned data is output via Bluetooth.

・ All bar code data scanned is transmitted to a host device through the Bluetooth interface.

・ The scanner can work with many Bluetooth-enabled host devices, such as PCs, tablet PCs and

smart phones.

・ Bluetooth SPP (Serial Port Profile) and HID (Human Interface Device Profile) are implemented.

・ The scanner can read bar codes from LCD screens.

・ This scanner is equipped with a vibrating function that can signal certain events to the users even

in noisy environments. Additionally it has a buzzer and a LED indicator.

・ A single red LED aiming line toward a target bar code can help the users find the appropriate

scanning position.

・ Special antimicrobial treatment is applied to the chassis, and alcohol can be used to wipe the

scanner clean (except for the scanning window and the logo panel).

・ The power source is 3.7 V 1100 mAh (typ.) lithium-ion battery.

・ A dedicated charging cradle CHG-3201 is supplied for recharging and easy storage of the

scanner.

・ The scanner is Apple MFi certified.

1

3. Basic Specifications

Item Specification Note

CPU 32 bit CISC / 96 MHz

Section

Control

FROM 512 Kbyte + 32 Kbyte

OPC-3301i

Specifications Manual

SRAM 96 Kbyte

FROM (storage) 1 Mbyte

Section

Input

Key type 1 key: trigger

Indicator

LED 2 colors (red, green) and 1 color (blue)

Buzzer Loudness (3-level) / tone adjustable

Vibration motor Strength (3-level) / duration adjustable

Frequency 2402 ~ 2480 MHz

Interface

Bluetooth

Specification Bluetooth Ver 2.1 compliant

Communication
distance

10 m

Output level Class 2

Profile SPP / HID

Scan method CCD linear image sensor

Section

Optical

Light source 1 red LED

Effective pixels 1500 pixels

View angle Horizontal: approx. 50°

JAN, EAN, UPC-A, UPC-E, NW-7 (Codabar),

Symbologies

Industrial 2 of 5, Interleaved 2 of 5, Code 11，
Code 39，Code 93，Code 128 etc.

Minimum resolution Code 39 : 0.1 mm

Curvature

Supported 1D Symbologies

Wide bar code

R ≥ 15 mm (8-digit JAN)
R ≥ 20 mm (13-digit JAN)
110 mm wide 0.2 mm resolution Code 39
(DOF 150 mm) is readable:

Pitch : ±50°

For data area only

It may be shorter
depending on usage
environments

Max output 4 dBm

Refer to Chapter 17. for
details

PCS 0.9

PCS 0.9

Scan angle

Skew : ±65° (excluding dead zone)

Tilt : ±25°

Resolution (0.127) 55 ~ 75

Resolution (0.15) 45 ~ 100

Depth of field
(mm)

Code 39

Resolution (0.25) 35 ~ 175

Resolution (0.5) 40 ~ 300

Resolution (1.0) 60 ~ 500

Minimum PCS 0.3 or more

MRD 32% or more

2

On LCD screen

Power Section

Main battery Lithium-ion 1100 mAh (typ.)

Up-time 48 hours or more

Specifications Manual

Item Specification Note

Brightness of white space 30 cd/m2 or more

Contrast ratio 100:1 or more

Charge the battery
before initial use

*1

OPC-3301i

Operating (charging) voltage 5.0 ~ 6.5V

Current
consumption

Charging Less than 1 A

Operating 0 ~ 50°C

Temperature

Environmental Specifications

Storage -20 ~ 60°C

Operating 20 ~ 85%

Humidity

Storage 20 ~ 85%

Ambient light
immunity

Fluorescent 10,000 lx or less

Sunlight 100,000 lx or less

10 Hz ~ 100 Hz, acceleration of 19.6 m/s2, 60

Vibration

minutes per cycle, repeat once in each X, Y
and Z-direction

Drop

Drop the scanner 30 times (6 faces x 5) from
the height of 150 cm onto a concrete floor

Dust and drip proof IP42 equivalent

LED safety IEC 62471-1:2006 Exempt_Group

Regulatory Compliance

Product safety

EN60950-1:2005
IEC60950-1:2006
EN 55022:2010
EN 301 489-1 V1.9.2

EMC

EN 301 489-17 V2.1.1
EN 300 328 V1.8.1
FCC Part 15 Subpart C, Subpart B ClassB
VCCI Class B
Bluetooth logo certification
MFi license

Other

CE Marking
Certification for Construction Design of

Immunity

Test

No distraction Air discharge (direct): ±15 kV

ESD

No malfunction

Features

Physical

Dimensions 113 × 56 × 132 (WDH mm)

Specified Radio Equipment

Contact discharge (direct / indirect): ±6 kV
Air discharge (direct): ±8 kV

Charging with charger

No condensing
No frost

Peak Wavelength
624 nm

For residential,
commercial and light­industrial environments

Conditions:
IEC61000-4-2
compliant

Weight Approx. 127 g

Excluding accessories

*1: When a bar code is read twice every 10 seconds at room temperature in a const Bluetooth connection (SPP

master mode).

3

4. Detailed View

OPC-3301i

Specifications Manual

3

2

1

5

Figure 1: Detailed View of OPC-3301i

No Name Description

1 Trigger Key A key to read bar codes

2 Scan Window LED illumination is emitted from this window to read bar codes.

3 Status LED

4 Buzzer Holes A sound from a built-in buzzer comes out through these holes.

5 Charging terminals Charging pins connected to the dedicated charging cradle CHG-3201

The operating statuses, such as bar code reading, Bluetooth connection
and warning, are indicated by different colors.

4
