Page 1
Nokia Customer Care
2112 (RH-57) Series Transceivers
Service Tools
Issue 1 07/2004 Company Confidential ©2004 Nokia Corporation
Page 2
2112 (RH-57)
Service Tools Nokia Customer Car e
Contents Page
Model 2112 Service Tools ............................................................................................................................ 3
Flashing, Testing, and Tuning ................................................................................................................... 7
Service Configuration 1: Point of Sales Flashing ............................................................................ 8
Service Configuration 2: Flash Programming Using Docking Station ....................................... 9
Service Configuration 3: Covers-Off Troubleshooting Using Service Jig............................... 10
Service Configuration 4: Automated Tuning and Alignment.................................................... 11
Page 2 ©2004 Nokia Corporation Company Confidential Issue 1 07/2004
Page 3
2112 (RH-57)
Nokia Customer Care Service Tools
Model 2112 Service Tools
JBV-1 Docking Station MJF-17 Docking Station Adapter
0770298 0774282
The docking station and the docking station adapter
are needed for Mbus, Fbus, RF, and audio connections.
This setup allows connection between flash prommers.
When the audio box is connected, it has to be connected to the phone’s audio connector. The dockingstation can be powered by FPS-8 (using the PCS-1 and
XRS-4 cables) or external power supply. You must
update your JBV-1 to the latest firmware to properly
operate LYNX-type handsets.
The MJF-17 works in conjunction with the JBV-1
docking station and the FPS-8 prommer box to allow
calibration, tuning, and software flashing of the phone.
It supports the LYNX battery interface, which does not
require BTEMP. The MJF-17 also has a built-in RUIM
card reader.
CA-25RS RF Test Cable SA-54 RF Calibration Adapter
0730316 0780318
After removing the A-cover, the CA-25RS snaps
directly on the phone’s RF connector and converts the
output oto an SMA connector. This test cable is used
for CDMA RF engine testing and tuning.
The SA-54 adapter is used to replicate the phone's RF
when calculating cable path losses.
Issue 1 07/2004 ©2004 Nokia Corporation Company Confidential Page 3
Page 4
2112 (RH-57)
Service Tools Nokia Customer Car e
FPS-8 Flash Prommer AAS-10A RF Probe
0080321 0730306
The FPS-8 flash prommer is used for flashing at service
centers with Phoenix service software.
The AAS-10A RF probe can be used for RF troubleshooting. The AAS-10A requires a SMA(M)-type connector on the test cable.
SS-13 Tuning Docking Station (CDMA) FLS-4S POS Flash Dongle
0080852 0081482
SS-13 is used with the MJF-x/DA-x flashing adapters
(shown with MJF-17).
The Point of Sale (POS) flash is a low-cost software
upgrade tool. This requires XCS-1 cable and ACF-8 for
operation.
Page 4 ©2004 Nokia Corporation Company Confidential Issue 1 07/2004
Page 5
2112 (RH-57)
Nokia Customer Care Service Tools
CA-22DS Service Cable MJ-42 Module Test Jig
0730311 0780317
This cable is used for bottom connector flashing using
FLS-4S or FLC-20.
This jig allows phone PWB-level service and troubleshooting for authorized service centers. The MJ-42
supports regulated and unregulated DC input voltages
and includes Local and Normal mode operations, a
headset jack for audio tests, a RUIM card reader, and a
second DC input for VCHAR used in EM tuning. The jig
also supports simultaneous RF connections to the
CDMA engine. A completely functional UI module is
provided on the right side. The MJ-42 supports the
RJ-32 RF cable.
DAU-9S F/MBUS Cable DAU-9T FBUS Cable
0730108 0730267
This is a general-purpose cable to support F / MBUS
communication between a Mod-10 device and a PC.
This cable is used for diagnostic purposes.
The MBUS cable DAU-9T provides a connection from
the serial port of the computer to the system
connector of the phone. This cable is used for
diagnostic purposes.
Note: This cable does not support M-BUS.
Issue 1 07/2004 ©2004 Nokia Corporation Company Confidential Page 5
Page 6
2112 (RH-57)
Service Tools Nokia Customer Car e
DKU-5F USB Single Flash Cable XCS-4 Modular Cable
0080738 0730178
For use with the Spirent UPST and UMPP service software.
Note: The cable cannot be used as a straight through
USB connection cable.
XCS-4 Service Cable is a modular cable for flashing
DCT4 products.
RJ-32 Rework Jig PKD-1 SW Security Device
0770757 0750018
The rework jig is a PWB component that allows
de-soldering and soldering.
SW security device PKD-1 is hardware device that,
when connected to the parallel (LPT) port of the PC,
enables the use of the service software. Without the
dongle present, it is not possible to use the service
software. Printers or other peripheral devices can be
connected to the PC through the dongle, if needed.
Caution: Make sure that you have switched off the PC
and the printer before making connections. Also, do not
connect the PKD-1 to the serial port. You may damage
your PKD-1.
Note: PKD-1RD dongles are restricted to Nokai Product
Creation Centers only.
Page 6 ©2004 Nokia Corporation Company Confidential Issue 1 07/2004
Page 7
2112 (RH-57)
Nokia Customer Care Service Tools
PCS-1 DC Power Cable
0730012
The PCS-1 Power Cable is used to connect the service
tools to an external power supply.
Flashing, Testing, and Tuning
Tightened performance specifications require more precise equipment and methods for
testing and alignment. Manual tuning cannot provide accurate results for the 2112,
which means that this test has to be automated.
These setups are intended to be with the Phoenix Service Software. Both manual testing
and automated tuning are permitted with Phoenix Service Software.
Issue 1 07/2004 ©2004 Nokia Corporation Company Confidential Page 7
Page 8
2112 (RH-57)
Service Tools Nokia Customer Car e
Service Configuration 1: Point of Sales Flashing
1
2
Item Name Type Code
1 FLS-4S flash device (sales pack)
(ACF-8 power supply is included in
the FLS-4S sale pack)
2 Service cable CA-22DS 0730311
Point-of-sale service software
NOTE Other POS flashing configurations
available:
USB single-flash cable (DCT4 only)
USB flash cable for DCT3/DCT4
handsets
FLS-4S 0080543
Diego
Phoenix
DKU-5F
FLC-20
8405139
8407840
0080738
0081544
Page 8 ©2004 Nokia Corporation Company Confidential Issue 1 07/2004
Page 9
2112 (RH-57)
Nokia Customer Care Service Tools
Service Configuration 2: Flash Programming Using Docking Station
1
5
3
4
2
Item Name Type Code
1 Flash prommer box (sales pack)
Included in FPS-8 sales pack:
Service cable
Serial cable
Power supply
2 Docking station JBV-1 0770298
3 Docking adapter MJF-17 0774282
4 DC power cable PCS-1 0730012
5 Modular cable XCS-4 0730178
Software protection key (not shown) PKD-1 0750018
FPS-8
CA-10DS
AXS-4
ACF-8
0080321
0730298
0730090
0680032
Service software CDMA Phoenix 8407840
Issue 1 07/2004 ©2004 Nokia Corporation Company Confidential Page 9
Page 10
2112 (RH-57)
Service Tools Nokia Customer Car e

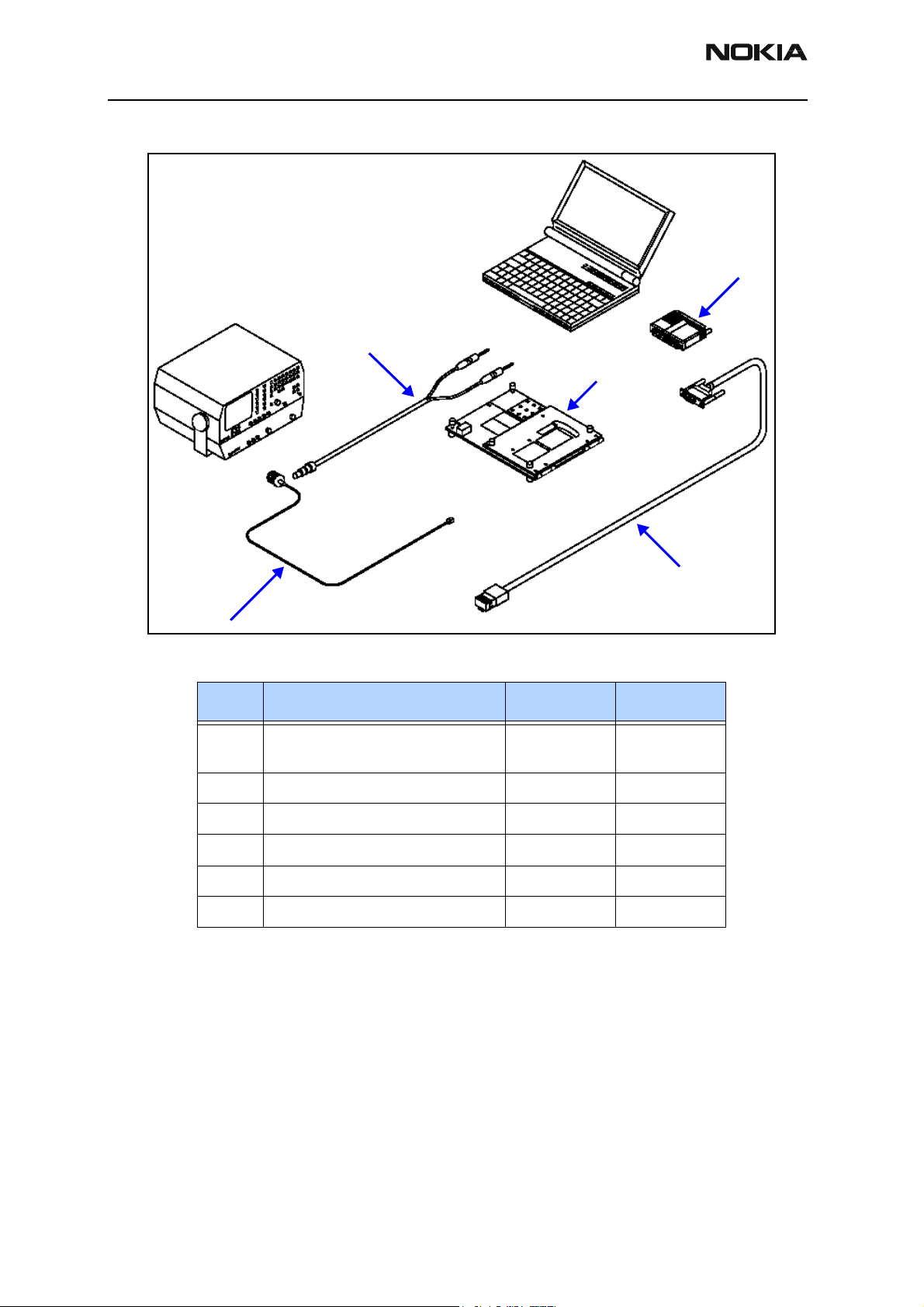

Service Configuration 3: Covers-Off Troubleshooting Using Service Jig
5
2
1
3
Item Name Type Code
1 Module repair jig
(includes RF test cable)
2 DC power cable PCS-1 0730012
3 RF test cable XRS-6 0730231
4 Service MBUS/FBUS cable DAU-9S 0730108
5 Software protection key PKD-1 0750018
Service software (not shown) Phoenix 8407840
MJ-42
CA-25RS
0780317
0730316
4
Page 10 ©2004 Nokia Corporation Company Confidential Issue 1 07/2004
Page 11
2112 (RH-57)
Nokia Customer Care Service Tools
Service Configuration 4: Automated Tuning and Alignment
This setup is used for tuning of the handset at Nokia Authorized Service Centers.
2
1
6
4
Automated Tuning and Alignment Equipment List
3
5
7
Item Name MFR Model # QTY Comment
1 Vector Signal Analyzer Agilent E4406A 1
2 Signal Generator Agilent E4420B 1 Digital signal generator with
high-stability oscillator and
high-spectral purity
3 RF Series GreenHill TVi9901 1
4 Power Supply Keithly K2306 2 Programmable with sense wire
5 Win2000 PC Dell with Pentium III or above,
network card, 256M RAM, 20GB
HD, CD-ROM, etc.
6 GPIB Interface NI GPIB-USB-A 2 USB to GPIB adapter
(184983G-01)
7 Docking Station Nokia SS-13 1 For DCT4 handset tuning. SS-13
is specifically designed for CDMA
RF tuning.
Issue 1 07/2004 ©2004 Nokia Corporation Company Confidential Page 11
Page 12
2112 (RH-57)
Service Tools N oki a Cu stom e r Ca r e
This page intentionally left blank.
Page 12 ©2004 Nokia Corporation Company Confidential Issue 1 07/2004
