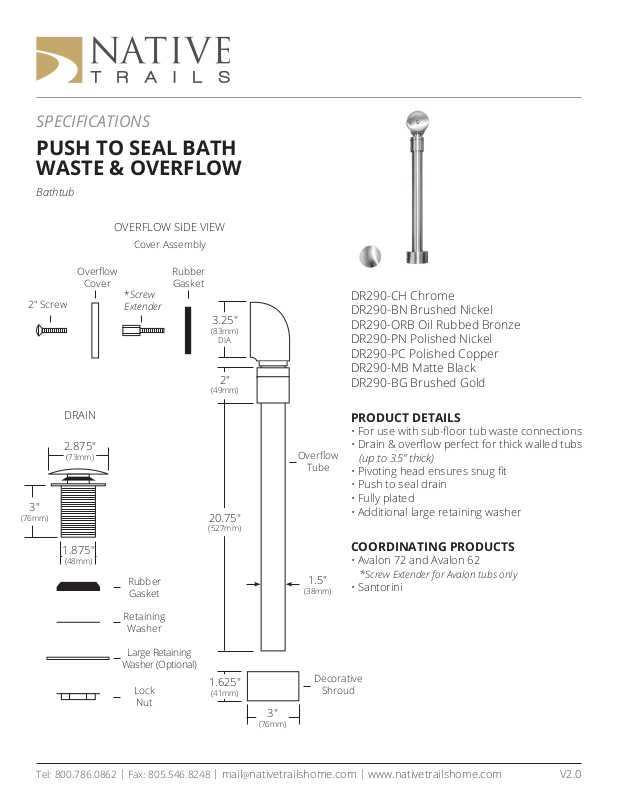

Native Trails XNT1693 Specifications

SPECIFICATIONS

PUSH TO SEAL BATH
WASTE & OVERFLOW

Bathtub

OVERFLOW SIDE VIEW

Cover Assembly

2" Screw

3"

(76mm)

Overow

Cover

DRAIN

2.875"

(73mm)

1.875"

(48mm)

*Screw

Extender

Rubber

Gasket

Rubber

Gasket

3.25"

(83mm)

DIA

2"

(49mm)

20.75"

(527mm)

Overow

Tube

1.5"

(38mm)

DR290-CH Chrome
DR290-BN Brushed Nickel
DR290-ORB Oil Rubbed Bronze
DR290-PN Polished Nickel
DR290-PC Polished Copper
DR290-MB Matte Black
DR290-BG Brushed Gold

PRODUCT DETAILS

• For use with sub-oor tub waste connections

• Drain & overow perfect for thick walled tubs

(up to 3.5” thick)

• Pivoting head ensures snug t

• Push to seal drain

• Fully plated

• Additional large retaining washer

COORDINATING PRODUCTS

• Avalon 72 and Avalon 62
*Screw Extender for Avalon tubs only

• Santorini

Retaining

Washer

Large Retaining

Washer (Optional)

Lock

Nut

Tel: [phone] | Fax: [phone]

1.625"

(41mm)

Decorative

Shroud

3"

(76mm)

|

[e-mail] | www.nativetrailshome.com V2.0
