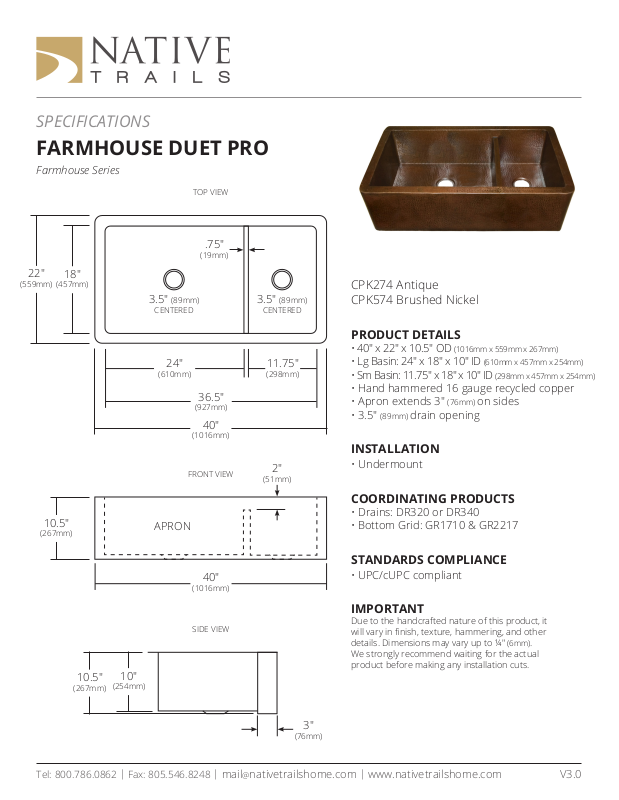

SPECIFICATIONS
FARMHOUSE DUET PRO
Farmhouse Series
TOP VIEW
.75"
(19mm)
22"
(559mm)
10.5"
(267mm)
18"
(457mm)
3.5" (89mm)
CENTERED
24"
(610mm)
FRONT VIEW
APRON
36.5"
(927mm)
40"
(1016mm)
40"
(1016mm)
3.5" (89mm)
CENTERED
11.75"
(298mm)
2"
(51mm)
CPK274 Antique
CPK574 Brushed Nickel
PRODUCT DETAILS
• 40" x 22" x 10.5" OD (1016mm x 559mm x 267mm)
• Lg Basin: 24" x 18" x 10" ID (610mm x 457mm x 254mm)
• Sm Basin: 11.75" x 18" x 10" ID (298mm x 457mm x 254mm)
• Hand hammered 16 gauge recycled copper
• Apron extends 3" (76mm) on sides
• 3.5" (89mm) drain opening
INSTALLATION
• Undermount
COORDINATING PRODUCTS
• Drains: DR320 or DR340
• Bottom Grid: GR1710 & GR2217
STANDARDS COMPLIANCE
• UPC/cUPC compliant
SIDE VIEW
10.5"
(267mm)
Tel: 800.786.0862 | Fax: 805.546.8248
10"
(254mm)
IMPORTANT
Due to the handcrafted nature of this product, it
will vary in nish, texture, hammering, and other
details. Dimensions may vary up to ¼" (6mm).
We strongly recommend waiting for the actual
product before making any installation cuts.
3"
(76mm)
|
mail@nativetrailshome.com | www.nativetrailshome.com V3.0
