Page 1

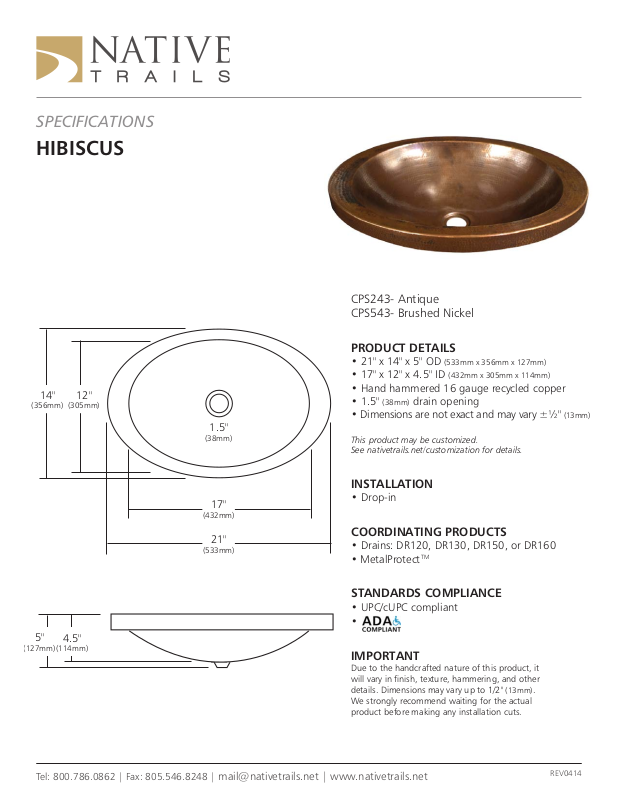

SPECIFICATIONS
HIBISCUS
14"
(356mm)
12"
(305mm)
1.5"
(38mm)
CPS243- Antique
CPS543- Brushed Nickel
PRODUCT DETAILS
• 21" x 14" x 5" OD (533mm x 356mm x 127mm)
• 17" x 12" x 4.5" ID (432mm x 305mm x 114mm)
• Hand hammered 16 gauge recycled copper
• 1.5" (38mm) drain opening
• Dimensions are not exact and may vary ±½" (13mm)
This product may be customized.
See nativetrails.net/customization for details.
INSTALLATION
17"
(432mm)
21"
(533mm)
• Drop-in
COORDINATING PRODUCTS
• Drains: DR120, DR130, DR150, or DR160
• MetalProtect
STANDARDS COMPLIANCE
• UPC/cUPC compliant
•
5"
(127mm)
4.5"
(114mm)
IMPORTANT
Due to the handcrafted nature of this product, it
will vary in finish, texture, hammering, and other
details. Dimensions may vary up to 1/2" (13mm).
We strongly recommend waiting for the actual
product before making any installation cuts.
Tel: 800.786.0862 | Fax: 805.546.8248 | [email protected] | www.nativetrails.net
TM
REV0414
