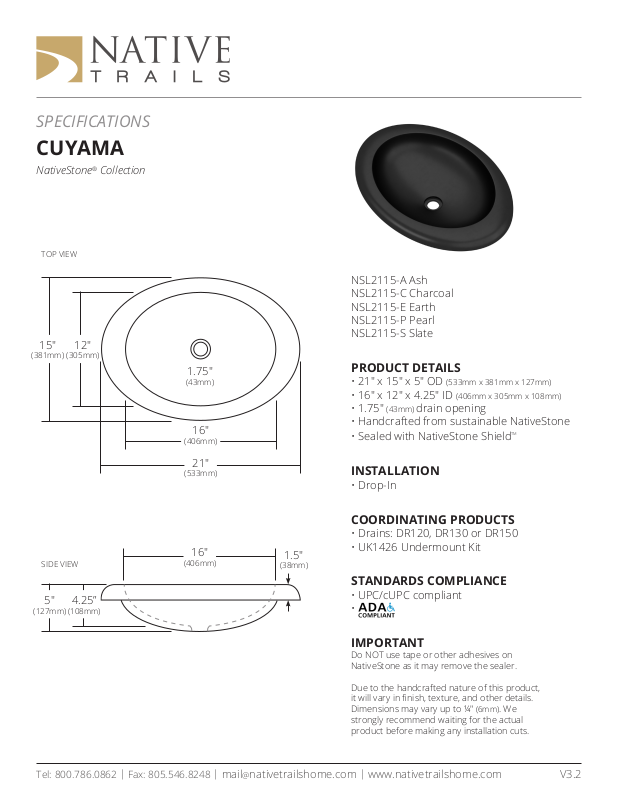

SPECIFICATIONS
CUYAMA
NativeStone® Collection
TOP VIEW
15"
(381mm)
12"
(305mm)
1.75"
(43mm)
16"
(406mm)
NSL2115-A Ash
NSL2115-C Charcoal
NSL2115-E Earth
NSL2115-P Pearl
NSL2115-S Slate
PRODUCT DETAILS
• 21" x 15" x 5" OD (533mm x 381mm x 127mm)
• 16" x 12" x 4.25" ID (406mm x 305mm x 108mm)
• 1.75" (43mm) drain opening
• Handcrafted from sustainable NativeStone
• Sealed with NativeStone Shield
TM
SIDE VIEW
5"
(127mm)
4.25”
(108mm)
21"
(533mm)
16"
(406mm)
1.5"
(38mm)
INSTALLATION
• Drop-In
COORDINATING PRODUCTS
• Drains: DR120, DR130 or DR150
• UK1426 Undermount Kit
STANDARDS COMPLIANCE
• UPC/cUPC compliant
•
IMPORTANT
Do NOT use tape or other adhesives on
NativeStone as it may remove the sealer.
Due to the handcrafted nature of this product,
it will vary in nish, texture, and other details.
Dimensions may vary up to ¼″ (6mm). We
strongly recommend waiting for the actual
product before making any installation cuts.
Tel: 800.786.0862 | Fax: 805.546.8248
|
mail@nativetrailshome.com | www.nativetrailshome.com V3.2
