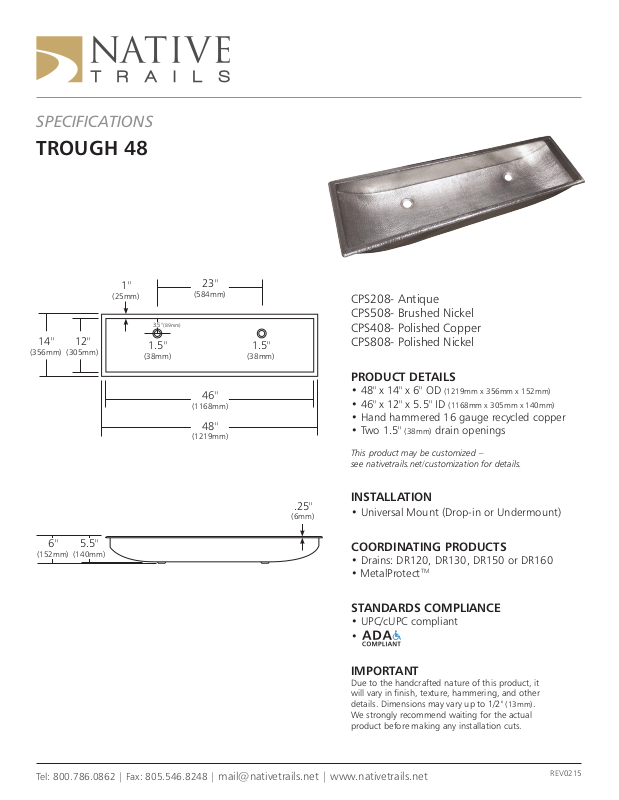

SPECIFICATIONS
TROUGH 48
14"
(356mm)
6"
(152mm)
12"
(305mm)
5.5"
(140mm)
1"
(25mm)
3.5 " (89mm)
1.5"
(38mm)
23"
(584mm)
46"
(1168mm)
48"
(1219mm)
1.5"
(38mm)
.25"
(6mm)
CPS208- Antique
CPS508- Brushed Nickel
CPS408- Polished Copper
CPS808- Polished Nickel
PRODUCT DETAILS
• 48" x 14" x 6" OD (1219mm x 356mm x 152mm)
• 46" x 12" x 5.5" ID (1168mm x 305mm x 140mm)
• Hand hammered 16 gauge recycled copper
• Two 1.5" (38mm) drain openings
This product may be customized –
see nativetrails.net/customization for details.
INSTALLATION
• Universal Mount (Drop-in or Undermount)
COORDINATING PRODUCTS
• Drains: DR120, DR130, DR150 or DR160
• MetalProtect
TM
STANDARDS COMPLIANCE
• UPC/cUPC compliant
•
IMPORTANT
Due to the handcrafted nature of this product, it
will vary in finish, texture, hammering, and other
details. Dimensions may vary up to 1/2" (13mm).
We strongly recommend waiting for the actual
product before making any installation cuts.
Tel: 800.786.0862 | Fax: 805.546.8248 | [email protected] | www.nativetrails.net
REV0215
