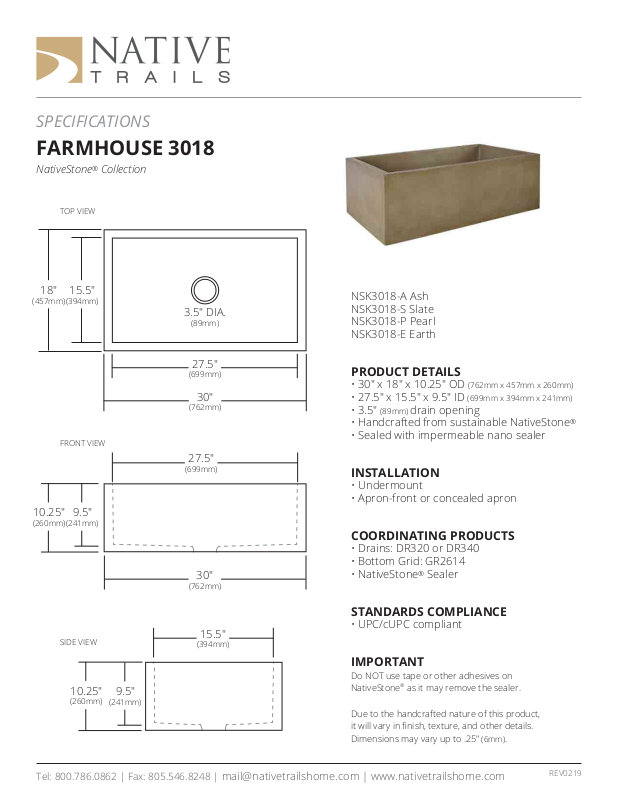

SPECIFICATIONS
FARMHOUSE 3018
NativeStone® Collection
TOP VIEW
18"
(457mm)
15.5"
(394mm)
3.5" DIA.
(89mm)
NSK3018-A Ash
NSK3018-S Slate
NSK3018-P Pearl
NSK3018-E Earth
10.25"
(260mm)
FRONT VIEW
9.5"
(241mm)
SIDE VIEW
27.5"
(699mm)
30"
(762mm)
27.5"
(699mm)
30"
(762mm)
15.5"
(394mm)
PRODUCT DETAILS
• 30" x 18" x 10.25" OD (762mm x 457mm x 260mm)
• 27.5" x 15.5" x 9.5" ID (699mm x 394mm x 241mm)
• 3.5" (89mm) drain opening
• Handcrafted from sustainable NativeStone
• Sealed with impermeable nano sealer
INSTALLATION
• Undermount
• Apron-front or concealed apron
COORDINATING PRODUCTS
• Drains: DR320 or DR340
• Bottom Grid: GR2614
• NativeStone
®
Sealer
STANDARDS COMPLIANCE
• UPC/cUPC compliant
®
IMPORTANT
Do NOT use tape or other adhesives on
10.25"
(260mm)
Tel: 800.786.0862 | Fax: 805.546.8248 | [email protected] | www.nativetrailshome.com
9.5"
(241mm)
NativeStone
Due to the handcrafted nature of this product,
it will vary in nish, texture, and other details.
Dimensions may vary up to .25″
®
as it may remove the sealer.
(6mm).
REV0219
