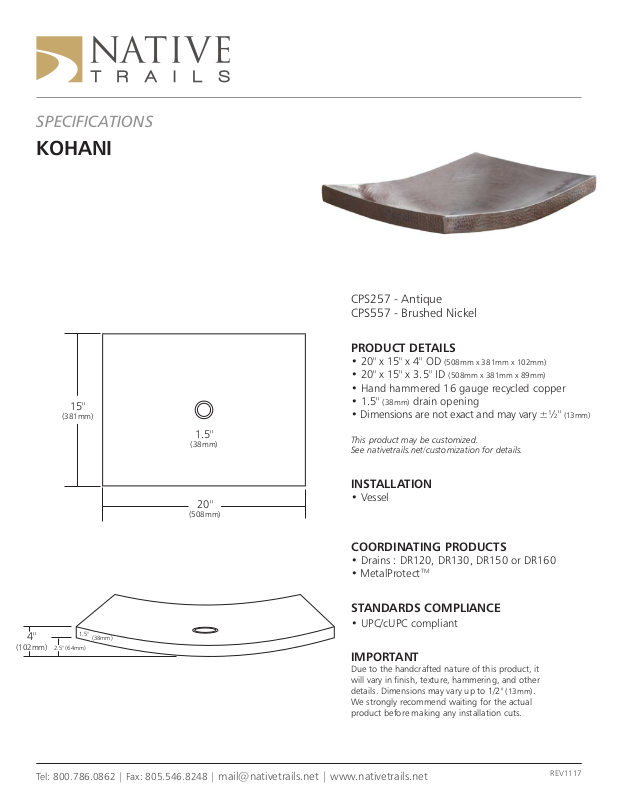

SPECIFICATIONS
KOHANI
15"
(381mm)
CPS257 - Antique
CPS557 - Brushed Nickel
PRODUCT DETAILS
• 20" x 15" x 4" OD (508mm x 381mm x 102mm)
• 20" x 15" x 3.5" ID (508mm x 381mm x 89mm)
• Hand hammered 16 gauge recycled copper
• 1.5" (38mm) drain opening
• Dimensions are not exact and may vary ±½" (13mm)
4"
(102mm)
2.5" (64mm)
1.5"
(38mm)
1.5"
(38mm)
20"
(508mm)
This product may be customized.
See nativetrails.net/customization for details.
INSTALLATION
• Vessel
COORDINATING PRODUCTS
• Drains : DR120, DR130, DR150 or DR160
• MetalProtect
TM
STANDARDS COMPLIANCE
• UPC/cUPC compliant
IMPORTANT
Due to the handcrafted nature of this product, it
will vary in finish, texture, hammering, and other
details. Dimensions may vary up to 1/2" (13mm).
We strongly recommend waiting for the actual
product before making any installation cuts.
Tel: 800.786.0862 | Fax: 805.546.8248 | [email protected] | www.nativetrails.net
REV1117
