Page 1

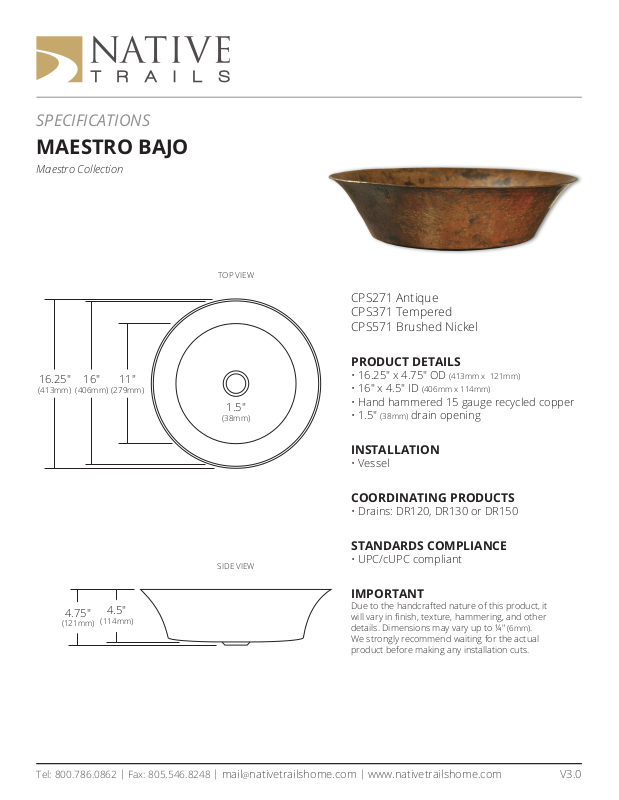

SPECIFICATIONS
MAESTRO BAJO
Maestro Collection
16.25"
(413mm)
16"
(406mm)
11"
(279mm)
TOP VIEW
1.5"
(38mm)
CPS271 Antique
CPS371 Tempered
CPS571 Brushed Nickel
PRODUCT DETAILS
• 16.25" x 4.75" OD (413mm x 121mm)
• 16" x 4.5" ID (406mm x 114mm)
• Hand hammered 15 gauge recycled copper
• 1.5" (38mm) drain opening
4.75"
(121mm)
4.5"
(114mm)
SIDE VIEW
INSTALLATION
• Vessel
COORDINATING PRODUCTS
• Drains: DR120, DR130 or DR150
STANDARDS COMPLIANCE
• UPC/cUPC compliant
IMPORTANT
Due to the handcrafted nature of this product, it
will vary in nish, texture, hammering, and other
details. Dimensions may vary up to ¼" (6mm).
We strongly recommend waiting for the actual
product before making any installation cuts.
Tel: 800.786.0862 | Fax: 805.546.8248
|
mail@nativetrailshome.com | www.nativetrailshome.com V3.0
