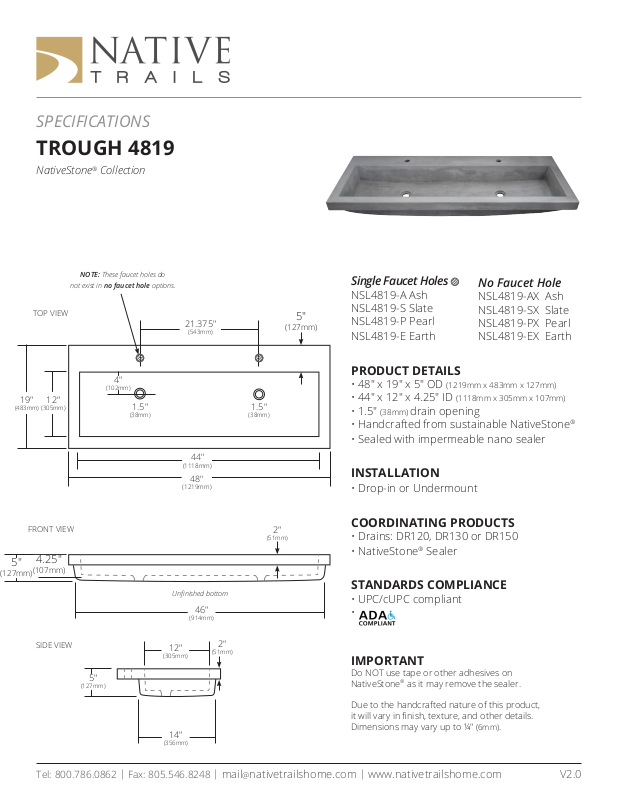

SPECIFICATIONS
TROUGH 4819
NativeStone® Collection
19"
(483mm)
5"
(127mm)
TOP VIEW
12"
(305mm)
FRONT VIEW
4.25"
(107mm)
NOTE: These faucet holes do
not exist in no faucet hole options.
4"
(102mm)
1.5"
(38mm)
21.375"
(543mm)
44"
(1118mm)
48"
(1219mm)
Unnished bottom
46"
(914mm)
1.5"
(38mm)
2"
(51mm)
5"
(127mm)
Single Faucet Holes
NSL4819-A Ash
NSL4819-S Slate
NSL4819-P Pearl
NSL4819-E Earth
No Faucet Hole
NSL4819-AX Ash
NSL4819-SX Slate
NSL4819-PX Pearl
NSL4819-EX Earth
PRODUCT DETAILS
• 48" x 19" x 5" OD (1219mm x 483mm x 127mm)
• 44" x 12" x 4.25″ ID (1118mm x 305mm x 107mm)
• 1.5" (38mm) drain opening
• Handcrafted from sustainable NativeStone
• Sealed with impermeable nano sealer
INSTALLATION
• Drop-in or Undermount
COORDINATING PRODUCTS
• Drains: DR120, DR130 or DR150
• NativeStone
®
Sealer
STANDARDS COMPLIANCE
• UPC/cUPC compliant
•
®
SIDE VIEW
5"
(127mm)
12"
(305mm)
14"
(356mm)
Tel: 800.786.0862 | Fax: 805.546.8248
2"
(51mm)
IMPORTANT
Do NOT use tape or other adhesives on
NativeStone® as it may remove the sealer.
Due to the handcrafted nature of this product,
it will vary in nish, texture, and other details.
Dimensions may vary up to ¼″ (6mm).
|
mail@nativetrailshome.com | www.nativetrailshome.com V2.0
