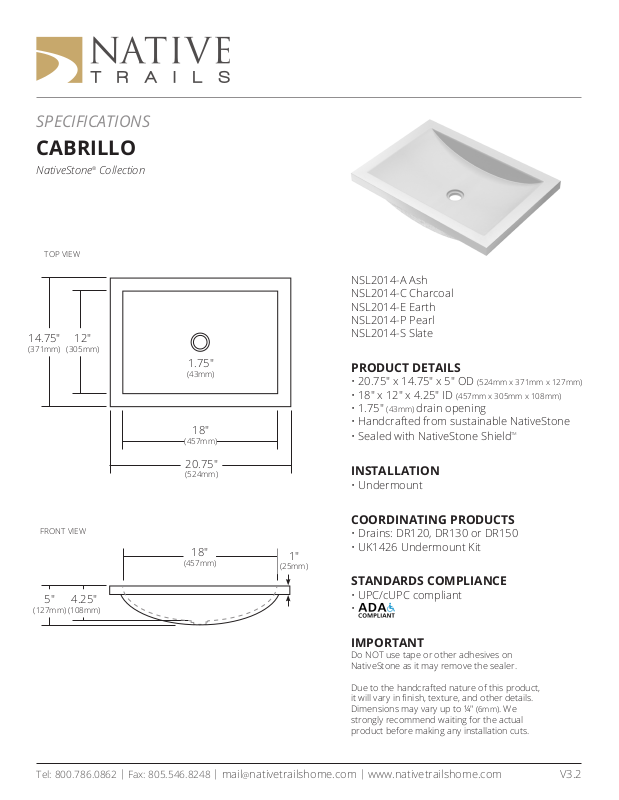

Page 1
SPECIFICATIONS
CABRILLO
NativeStone® Collection
TOP VIEW
14.75"
(371mm)
12"
(305mm)
1.75"
(43mm)
18"
(457mm)
NSL2014-A Ash
NSL2014-C Charcoal
NSL2014-E Earth
NSL2014-P Pearl
NSL2014-S Slate
PRODUCT DETAILS
• 20.75" x 14.75" x 5" OD (524mm x 371mm x 127mm)
• 18" x 12" x 4.25" ID (457mm x 305mm x 108mm)
• 1.75" (43mm) drain opening
• Handcrafted from sustainable NativeStone
• Sealed with NativeStone Shield
TM
FRONT VIEW
5"
(127mm)
4.25"
(108mm)
20.75"
(524mm)
18"
(457mm)
INSTALLATION
• Undermount
COORDINATING PRODUCTS
• Drains: DR120, DR130 or DR150
• UK1426 Undermount Kit
1"
(25mm)
STANDARDS COMPLIANCE
• UPC/cUPC compliant
•
IMPORTANT
Do NOT use tape or other adhesives on
NativeStone as it may remove the sealer.
Due to the handcrafted nature of this product,
it will vary in nish, texture, and other details.
Dimensions may vary up to ¼″ (6mm). We
strongly recommend waiting for the actual
product before making any installation cuts.
Tel: 800.786.0862 | Fax: 805.546.8248
|
mail@nativetrailshome.com | www.nativetrailshome.com V3.2
