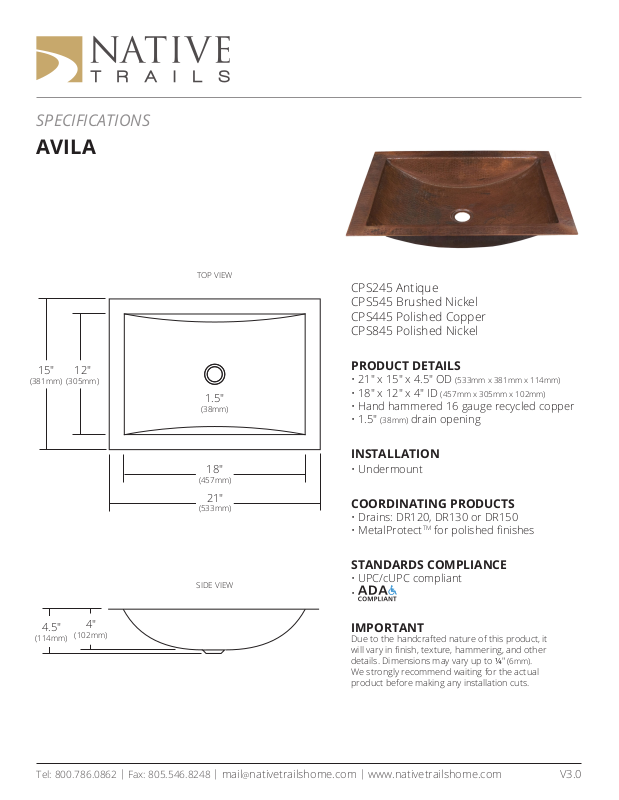

SPECIFICATIONS
AVILA
TOP VIEW
CPS245 Antique
CPS545 Brushed Nickel
CPS445 Polished Copper
CPS845 Polished Nickel
15"
(381mm)
4.5"
(114mm)
12"
(305mm)
4"
(102mm)
1.5"
(38mm)
18"
(457mm)
21"
(533mm)
SIDE VIEW
PRODUCT DETAILS
• 21" x 15" x 4.5" OD (533mm x 381mm x 114mm)
• 18" x 12" x 4" ID (457mm x 305mm x 102mm)
• Hand hammered 16 gauge recycled copper
• 1.5" (38mm) drain opening
INSTALLATION
• Undermount
COORDINATING PRODUCTS
• Drains: DR120, DR130 or DR150
• MetalProtect
TM
for polished nishes
STANDARDS COMPLIANCE
• UPC/cUPC compliant
•
IMPORTANT
Due to the handcrafted nature of this product, it
will vary in nish, texture, hammering, and other
details. Dimensions may vary up to ¼" (6mm).
We strongly recommend waiting for the actual
product before making any installation cuts.
Tel: 800.786.0862 | Fax: 805.546.8248
|
mail@nativetrailshome.com | www.nativetrailshome.com V3.0
