GUITAR RIG MOBILE – IV
Table Of Contents
1 WelcometoGUITARRIGMOBILE!.......................................................................................6
2 BeforeyouStart–ImportantNotes....................................................................................7
2.1 SerialNumbers&Nameplate...................................................................................7
2.2 UsingtheUnitSafely...............................................................................................7
2.2.1 Warning ........................................................................................... 7
2.2.2 Caution ........................................................................................... 8
2.2.3 Disposal Notice ................................................................................ 8
2.3 Disclaimer..............................................................................................................9
3 PartsoftheGUITARRIGMOBILEI/OAudioInterface......................................................... 10
4 InstallationunderWindowsXP/WindowsVista............................................................... 12
4.1 SoftwareInstallation............................................................................................. 12
4.2 HardwareInstallation............................................................................................ 15
4.3 Conguration........................................................................................................ 18
4.3.1 Conguring GUITAR RIG 4 ................................................................18
4.3.2 Using GUITAR RIG MOBILE I/O as your Default Audio Interface ............ 20
4.4 AudioConnectionsandLevels................................................................................22
4.4.1 Connecting the Input and Adjusting the Input Level ............................. 22
4.4.2 The Input Level of GUITAR RIG 4 ..................................................... 23
4.4.3 Connecting the Output ..................................................................... 24
5 InstallationunderMacOSX............................................................................................26
5.1 SoftwareInstallation.............................................................................................26
5.2 HardwareInstallation............................................................................................28
5.3 Conguration........................................................................................................28
5.3.1 Conguring GUITAR RIG 4 ............................................................... 29
5.3.2 Using GUITAR RIG MOBILE I/O as your Default Audio Interface ............ 30
5.4 AudioConnectionsandLevels................................................................................31
GUITAR RIG MOBILE – V
5.4.1 Connecting the Input and Adjusting the Input Level ............................. 32
5.4.2 The Input Level of GUITAR RIG 4 ..................................................... 33
5.4.3 Connecting the Output ..................................................................... 34
6 Troubleshooting..............................................................................................................36
6.1 AudioIssues.........................................................................................................37
6.1.1 No Sound or Low Volume ................................................................. 37
6.1.2 Distorted Signal .............................................................................. 37
6.1.3 Noise ............................................................................................ 37
6.1.4 Ground Loops ................................................................................. 38
6.2 Hardware-RelatedProblems..................................................................................38
6.2.1 Driver Issues .................................................................................. 38
6.2.2 USB Issues .................................................................................... 39
6.2.3 Using GUITAR RIG MOBILE with a Laptop ......................................... 40
7 TechnicalSpecications................................................................................................. 41
7.1 JacksandSockets................................................................................................41
7.2 AudioSpecications..............................................................................................42
7.3 PowerSupply........................................................................................................44
7.4 DimensionsandWeight.........................................................................................44
7.5 EnvironmentalSpecications.................................................................................45
7.6 SystemRequirements............................................................................................45
7.6.1 General System Specications .......................................................... 45
7.6.2 Supported Driver Interfaces .............................................................. 45
7.6.3 Supported Platforms ...................................................................... 45
GUITAR RIG MOBILE – 6
SPRACHE IN Paragraph-Style “05 - STANDARD Fließtext” passend einstellen
1 Welcome to GUITAR RIG MOBILE!
GUITAR RIG MOBILE is a professional recording-solution for guitar and bass. It comprises
the ultra-compact GUITAR RIG MOBILE I/O audio interface and the ESSENTIAL version of
the critically acclaimed GUITAR RIG 4 software.
The GUITAR RIG MOBILE I/O is a studio-quality audio-interface that connects to your computer via high-speed USB 2.0. It features a Hi-Z input for electric guitars and bass guitars and
a stereo line-out to connect to a hi- system, a mixer, a pair of active speakers or headphones.
The GUITAR RIG MOBILE I/O audio-interface is designed for use with Native Instruments
GUITAR RIG 4 software but will work with most professional audio software.
In this manual, you will learn more about GUITAR RIG MOBILE I/O’s features and how to
make the best use of them. Please read the manual carefully in order to get acquainted with
the product.
GUITAR RIG MOBILE – 7
2 Before you Start – Important Notes
First things rst; before using GUITAR RIG MOBILE, it is advised that you read this chapter
carefully.
2.1 Serial Numbers & Nameplate
GUITAR RIG MOBILE comes with two serial numbers. The GUITAR RIG MOBILE I/O hardware
serial number can be found on the bottom of the product, while the serial number for the
included version of GUITAR RIG 4 is located on the cover of the installation CD.
The nameplate is located on the bottom of the product. It lists the product model name and
other technical information.
2.2 Using the Unit Safely
Please read the following instructions thoroughly to prevent from health risks and damaging
the product.
2.2.1 Warning
To prevent hearing damage, always follow these important security advices:
•
This Product, in combination with an amplier, headphones or speakers, can produce
sounds in decibel ranges that may cause hearing damage.
•
For protection, set all volume levels to a minimum before using GUITAR RIG MOBILE I/O.
Gradually raise the volume controls while music is playing to set the desired listening level.
•
Do not operate it at high volume levels for long periods. If you experience any hearing problems or ringing in the ears, consult an audiologist immediately.
GUITAR RIG MOBILE – 8
2.2.2 Caution
To make sure that the GUITAR RIG MOBILE I/O or any device connected is not damaged
during usage or maintenance, it is important you follow these instructions:
•
Do not open the device or attempt to disassemble or modify the internal parts. The device
contains no user-serviceable parts. If it appears to be malfunctioning, discontinue use immediately and have it inspected by qualied service personnel.
• Do not expose the unit to rain, nor use it near water or in damp or wet conditions.
• Do not allow any objects or liquids of any kind to penetrate the unit.
•
Never use or store the unit in areas that are subject to temperature extremes (e.g. direct
sunlight in an enclosed vehicle or near heat-generating equipment) or high levels of vibration.
•
Do not place the GUITAR RIG MOBILE I/O in an unstable position where it is possible the
unit could accidentally fall. Remove all connected cables before moving the unit.
•
Before turning the power on or off for any component, set all volume levels to their minimum.
• Do not use excessive force on the knobs or connectors.
•
When cleaning the GUITAR RIG MOBILE I/O, use a soft, dry cloth. Never use paint thinners,
solvents, cleaning uids or chemical-impregnated wiping cloths.
2.2.3 Disposal Notice
Should this product become damaged beyond repair, or if you wish to dispose it, please observe the regulations of your area and country that relate to the disposal of electronic products.
GUITAR RIG MOBILE – 9
2.3 Disclaimer
Native Instruments GmbH cannot be held responsible for damage or lost or destroyed data
caused by improper use or modication to the GUITAR RIG MOBILE I/O.
The information contained in this manual is believed to be correct at the time of release.
However, Native Instruments reserves the right to make changes to the specications at any
time without notice or obligation to update existing units.
GUITAR RIG MOBILE – 10
3 Parts of the GUITAR RIG MOBILE I/O Audio
Interface
1
The input socket (¼” jack, TRS stereo) will accept instrument level signals. It allows you
to connect a variety of different sound sources, including your electric guitar or bass. For
stereo input, a split (insert cable / y-cable, not included) is needed.
2 The input level control allows adjusting the amplication of the incoming audio signal.
3 The input activity LED indicates the level of the audio signal at the input. A green light
shows that a signal is present, while a red light indicates clipping, meaning that the input
level is set too high.
4 The output socket (¼” jack, TRS stereo) transmits the output signal received from your
computer application, such as GUITAR RIG 4 or your sequencer. Depending on your
amplication system, a split (insert cable / y-cable, not included) might be needed for
stereo transmission.
GUITAR RIG MOBILE – 11
5
The output level control. Turn down volume before connecting anything to the output,
especially headphones.
6
The USB activity LED shows that the GUITAR RIG MOBILE I/O is connected to a USB
port.
7
The USB port allows connecting the unit to your computer. Your computer must fulll the
USB 2.0 specications in order for the GUITAR RIG MOBILE I/O to work.
GUITAR RIG MOBILE – 12
4 Installation under Windows XP / Windows Vista
This chapter describes the basic installation of GUITAR RIG MOBILE on Windows XP and
Vista, focusing on the GUITAR RIG MOBILE I/O audio interface. For detailed information about
the GUITAR RIG 4 software, please consult the Application Reference. You can nd it on
the product CD or in the GUITAR RIG 4 menu under Help > Open Manual > Your Language.
4.1 Software Installation
Make sure you are logged in with administrator privileges. Do not connect the GUITAR RIG
MOBILE I/O yet.
1. Browse the content of the product CD and locate the setup le. It is called “Guitar Rig
4 Setup”. If you are using a download version of GUITAR RIG 4, you need to extract the
setup les rst.
2. Double-click “Guitar Rig 4 Setup” to start the installation procedure.
GUITAR RIG MOBILE – 13
3.
Follow the on-screen instructions, which will guide you through the installation procedure.
4.
You will be asked to specify the path to the plug-in folder of your DAW (Digital Audio
Workstation, e.g. your sequencer software). If you are going to use GUITAR RIG 4 exclusively in standalone mode, or if you don’t know what a plug-in is, just use the standard
setting.
5.
You will be asked if you want to install drivers for the GUITAR RIG audio interfaces. Select
“Mobile I/O” and click on “Continue”.
6.
During installation of the driver, several Windows security messages will show up, e.g. “The
driver has not passed the Windows Logo Test” or “Windows can’t verify the publisher of
this driver software”. Don’t worry, everything is ne here. Simply click “Continue Anyway”
(Windows XP) or “Install this Driver Software Anyway” (Windows Vista) to continue the
installation.
GUITAR RIG MOBILE – 14
7. Restart your computer upon completion.
The following applications have been placed onto your hard drive:
• GUITAR RIG 4 – the fully featured standalone application.
•
GUITAR RIG 4 plug-ins – Use GUITAR RIG 4 as a plug-in for your Digital Audio Workstation
(DAW) of choice. On Windows computers, GUITAR RIG 4 supports the VST and RTAS®
plug-in formats.
•
Native Instruments Service Center – this application handles product activation as well as
update management. Please refer to the Setup Guide for details.
• The drivers for the GUITAR RIG MOBILE I/O audio interface.
%
If you have never owned a Native Instruments product, you will need to register by following
the on-screen instructions. More information about creating a NI User Account and about
activating GUITAR RIG 4 is available in the Service Center Quick Start Guide and manual located in
the Service Center installation folder.
GUITAR RIG MOBILE – 15
In case you want to install the hardware drivers only, a separate driver installer le is available
on the installation CD. You can also download its latest version from the Support section of
the Native Instruments website.
4.2 Hardware Installation

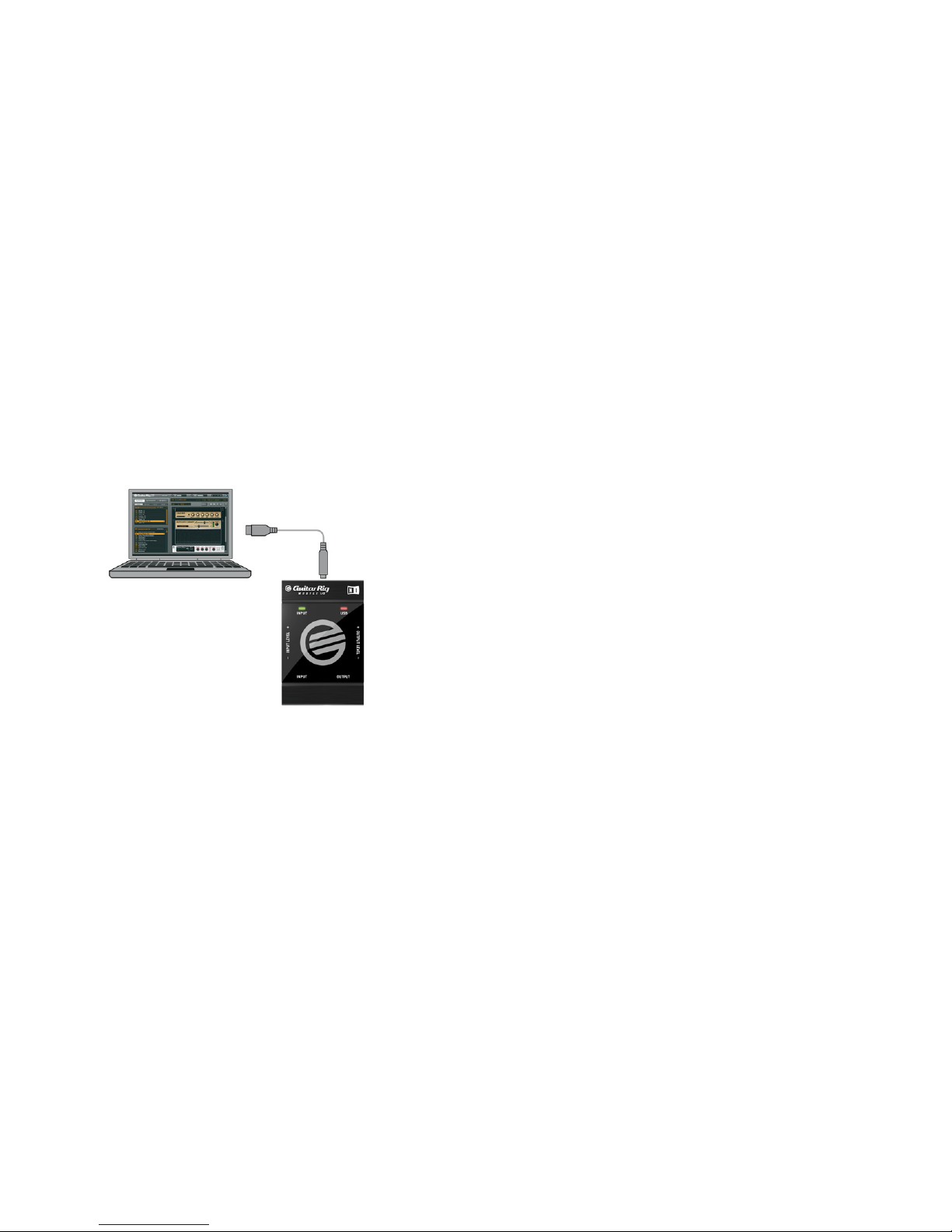

Use the supplied USB cable to connect the GUITAR RIG MOBILE I/O directly to a USB 2.0
port on your computer.
GUITAR RIG MOBILE I/O is powered via USB. Operation is guaranteed only with a USB 2.0
controller as a single device or with self-powered USB 2.0 hubs. On Windows XP systems,
Service Pack 2 is required for GUITAR RIG MOBILE I/O to work – you can nd out about your
Windows version in the System Properties window.
GUITAR RIG MOBILE – 16
After successfully installing the driver, the GUITAR RIG MOBILE I/O will be recognized automatically. If not, run the software installation again as explained above.
Several driver modules will be assigned to the GUITAR RIG MOBILE I/O now, each one causing a pop-up window in which you are asked how you want to install the new device.
1. Choose to not connect to the “Windows Update Web site”.
2.
Choose “Install the software automatically” (Windows XP) or “Locate and install driver
software” (Windows Vista).
GUITAR RIG MOBILE – 17
3. Follow the on-screen instructions to complete this procedure.
4.
During installation of the driver, several Windows security messages will show up, e.g. “The
driver has not passed the Windows Logo Test” or “Windows can’t verify the publisher of
this driver software”. Simply click “Continue Anyway” (Windows XP) or “Install this Driver
Software Anyway” (Windows Vista) to continue the installation.
On a Windows computer, the driver is associated with a particular USB port. If you plug the
USB cable into a different port than the one it was installed at, the driver assignment process
starts again – if this happens, just follow the steps described above.
If at any time the computer does not seem to recognize the GUITAR RIG MOBILE I/O, disconnect the USB cable, wait a few seconds, then re-connect it. If the problem remains, restart
your computer with the interface connected.
GUITAR RIG MOBILE – 18
4.3 Conguration
This chapter explains how to use the GUITAR RIG MOBILE I/O audio interface with Windows
XP / Windows Vista and particularly with the included GUITAR RIG 4. It is assumed that you
have already activated GUITAR RIG 4 using the Service Center – please refer to the Setup
Guide for help on this process.
4.3.1 Conguring GUITAR RIG 4
We will now set up GUITAR RIG 4 to use the GUITAR RIG MOBILE I/O audio interface. Start
the software before you proceed.
1.
When the software is started for the rst time, you will be prompted with the Audio Setup
window automatically, where you need to make the following settings. To access these
settings later on, select File > Audio and MIDI Settings from the program menu.
2. From the “Audio” tab, choose ASIO as the driver interface.
3. Select GUITAR RIG MOBILE I/O from the “Device” dropdown menu.
GUITAR RIG MOBILE – 19
If GUITAR RIG MOBILE I/O doesn’t appear in the list, something went wrong. Restart the
installation as explained in section 4.1.
You can access the Driver Control Panel by clicking on “ASIO Cong”. In the Driver Control
Panel, two status elds on the bottom show whether the GUITAR RIG MOBILE I/O hardware
is connected and ready to use.
The audio interface allows to be congured by the following parameters:
• Presets: Several presets for common types of usage are included, from minimal latency
suitable for fast systems with strong CPU power, to higher latencies suitable for slower systems. If you are experienced in setting up audio drivers and want to create your own custom
settings, select User Dened Settings.
•
USB Buffersize and Audio Buffersize: These parameters are grayed out, unless you have
selected User Dened Settings from the Presets Menu. Together, they dene the system’s
latency, i.e. the time that passes from the moment an audio signal is sent into the GUITAR
RIG MOBILE I/O hardware until the moment you hear it in your headphones or your speak-
GUITAR RIG MOBILE – 20
ers. The value for Audio Buffersize must always be at least twice as large as the Usb
Buffersize value. Note that the Usb Buffersize parameter has a direct impact on the CPU
usage of the system. The resulting CPU usage differs between computers, so it could make
sense to experiment with different settings.
•
Sample Rate: Choose a sample rate that is compatible with your music application and
suited to your computing power. Per default, the sample rate is set to 44100 Hz (CD-Quality).
Higher sample rates may improve sound quality, but cause a higher CPU load as well.
It is recommended that you try the latency presets rst and then continue with the subsequent steps of the installation. Once you are nished, you should revisit the Audio and MIDI
Settings to gure out the best latency setting for your system. If audio dropouts occur with
the preset minimal latency, you can try the low latency or standard latency settings instead.
Higher latency values will reduce the probability of audio dropouts.
4.3.2 Using GUITAR RIG MOBILE I/O as your Default Audio Interface
If you want to use the GUITAR RIG MOBILE I/O for playback of all audio applications on your
computer (not only for music software), you have to set it as your default audio interface.
For Windows XP, this works as follows:
1. Open Start > Control Panel > Sounds and Audio Devices.
2. Select the “Audio” tab.
3.
In the “Sound playback” and “Sound recording” sections, click on the Default Device
menu, and then select GUITAR RIG MOBILE I/O.
4. Click Ok to close the “Sounds and Audio Devices” dialog.
GUITAR RIG MOBILE – 21
For Windows Vista, this works as follows:
1. Open Start > Control Panel > Hardware and Sound > Sound.
2. Select the “Playback” tab.
3. In the device list, select GUITAR RIG MOBILE I/O and click on “Set Default.”
4. Select the “Recording” tab.
5. In the device list, select GUITAR RIG MOBILE I/O and click on “Set Default.”
6. Click Ok to close the dialog.
GUITAR RIG MOBILE – 22
4.4 Audio Connections and Levels
In the following chapters you will learn how to connect your guitar and your monitoring system to the GUITAR RIG MOBILE I/O and how to set the right amplication levels both on the
hardware and on the software side of your setup.
Please start GUITAR RIG 4 before you proceed.
4.4.1 Connecting the Input and Adjusting the Input Level
1. Turn down the volume on your monitoring system to prevent hearing damages.
2.
Plug the cable connected to your guitar or bass into the input jack socket of the interface.
Mind that, for an instrument that generates a stereo signal, you might need a split (insert
cable / y-cable, not included) to route both channels to the stereo input jack.
In order to achieve the best sound quality by providing the interface with a sufciently powerful signal, you need to carefully adjust the input level of the GUITAR RIG MOBILE I/O.
GUITAR RIG MOBILE – 23
The Input Level LED helps you identify the level of the incoming signal:
LED Status Meaning
LED is off No incoming signal
LED ashing green Incoming signal
LED ashing red Incoming signal is too loud
Before adjusting the input sensitivity, turn up the volume knob on your guitar. Strum some
chords at the volume level you are typically playing at and monitor the Input Level LED:
1. Turn up the input level knob just until the LED starts turning red when you play.
2. At that point, slightly turn the knob down until the LED no longer turns red, even when
you are playing really powerful chords.
Now the input sensitivity is set to its optimum level, enabling the GUITAR RIG MOBILE I/O
to provide the highest dynamic range without clipping.
4.4.2 The Input Level of GUITAR RIG 4
It is assumed that your guitar is connected to the GUITAR RIG MOBILE I/O and its input level
is properly adjusted (see section 4.4.1). Now you need to make sure that the input signal is
processed at the right level by the software.
Please take a look at the header of the GUITAR RIG 4 window: It consists of the input module
with channel selectors, a basic noise gate, the output module with a limiter and information
about the processing power consumed.
GUITAR RIG MOBILE – 24
%
For a detailed description and explanation of the Noise Reduction circuit, please refer to the
GUITAR RIG 4 Application Reference included on the product CD.
Note that the Input Meter shows an amplitude when you are playing. It also features an integrated volume fader that controls the input level of the software. Please adjust it to achieve
the highest possible level for your signal without clipping. This is indicated by the Level Meter
getting close to the red zone without actually hitting it.
Now we will set up the Input component to route your guitar signal to both channels. Because
almost all guitars are mono, GUITAR RIG 4 will receive a mono signal which is transmitted
on the left channel. Per default, GUITAR RIG 4 is set to process both input channels (L + R
are activated), so the right input channel remains mute. To change this, click the “R” button
on the left hand side of the Input Meter to deactivate the right input channel. This will route
the mono signal to both input channels.
4.4.3 Connecting the Output
GUITAR RIG MOBILE I/O provides a stereo output which works both for amplication systems
and for headphones. Keep in mind that using a mono cable (like a guitar cable) will result in
the transmission of one channel only – you might need a split (insert cable / y-cable) to route
both channels to the inputs of your amplication system.
Use a stereo cable to connect the GUITAR RIG MOBILE I/O to devices that feature a stereo
input jack.
GUITAR RIG MOBILE – 25
Before turning on your power amplication system or putting on your headphones, make sure
the output level of the audio interface is turned down.
•
If you are using an amplication system, connect the output jack to its input and turn it on.
• If you are using headphones, connect them to the output jack and put them on.
•
Go to the Preset Browser and select a preset by clicking on it. Start playing and carefully
turn up the output volume of the GUITAR RIG MOBILE I/O to the desired level. You’re all set
now and ready to rock!
%
If your instrument uses only one channel, set the other channel’s Gain Knob to zero.
GUITAR RIG MOBILE – 26
5 Installation under Mac OS X
This chapter describes the basic installation of GUITAR RIG MOBILE under Mac OS X, focusing on the GUITAR RIG MOBILE I/O audio interface. For detailed information about the
GUITAR RIG 4 software, please consult the Application Reference. You can nd it on the
product CD or in the Guitar Rig 4 menu under Help > Open Manual > Your Language.
5.1 Software Installation
Make sure you are logged in with administrator privileges. Do not connect the GUITAR RIG
MOBILE I/O yet.
1.
Browse the content of the product disc and locate the le “Guitar Rig 4 Installer.” If you
are using a download version of GUITAR RIG 4, you need to extract the installer le rst.
2. Double-click the installer le to start the installation procedure.
GUITAR RIG MOBILE – 27
3.
Follow the on-screen instructions, which will guide you through the installation procedure.
4.
You will be asked if you want to install drivers for the GUITAR RIG audio interfaces. Select
“MOBILE I/O” and click on “Continue.”
5. Restart your computer upon completion.
The following applications will be placed onto your hard drive:
• GUITAR RIG 4 – the fully featured standalone application.
•
GUITAR RIG 4 plug-in – Use GUITAR RIG 4 as a plug-in for your Digital Audio Workstation
(DAW) of choice.
•
Native Instruments Service Center – this application handles product activation as well as
update management. Please refer to the Setup Guide for details.
• The drivers for the GUITAR RIG MOBILE I/O audio interface.
%
If you have never owned a NATIVE INSTRUMENTS product, you will need to register by
following the on-screen instructions. More information about creating a NI User Account
and about activating GUITAR RIG 4 is available in the Service Center Quick Start Guide and manual
located in the Service Center installation folder.
In case you want to install the hardware drivers only, a separate driver installer le is available
on the installation CD. You can also download its latest version from the Support section of
the Native Instruments website.
GUITAR RIG MOBILE – 28
5.2 Hardware Installation
Use the supplied USB cable to connect the GUITAR RIG MOBILE I/O directly to a USB 2.0
port on your computer.
GUITAR RIG MOBILE I/O is powered via USB. Operation is guaranteed only with USB 2.0
controller as a single device or with self-powered USB 2.0 hubs.
After successfully installing the driver, the GUITAR RIG MOBILE I/O should be recognized automatically. If at any time the computer does not seem to recognize the GUITAR RIG MOBILE
I/O, disconnect the USB cable, wait a few seconds, then re-connect it. If this does not solve
the problem, restart your computer with the interface connected.
5.3 Conguration
This chapter explains how to use the GUITAR RIG MOBILE I/O audio interface under Mac
OS X and particularly with the included GUITAR RIG 4. It is assumed that you have already
activated GUITAR RIG 4 using the Service Center – please refer to the Setup Guide for help
on this process.
GUITAR RIG MOBILE – 29
5.3.1 Conguring GUITAR RIG 4
We will now set up GUITAR RIG 4 to use the GUITAR RIG MOBILE I/O audio interface. Start
the software before you proceed.
1.
Start GUITAR RIG 4. When the software is started for the rst time, you will be prompted
with the Audio Setup window automatically, where you need to make the following settings. If you want to access these settings later, select GUITAR RIG 4 > Preferences from
the program menu.
2. On the “Audio” tab, choose CoreAudio as the “Driver” interface.
3. Select GUITAR RIG MOBILE I/O from the “Device” dropdown menu.
If GUITAR RIG MOBILE I/O does not appear in the list even though it is connected, something
went wrong. Restart the installation as explained in section 5.1.
GUITAR RIG MOBILE – 30
The audio interface allows to be congured by the following parameters:
•
Sample Rate: Choose a sample rate that is compatible with your music application and
suited to your computing power. Per default, the sample rate is set to 44100 Hz (CD-Quality).
Higher sample rates may improve sound quality, but will cause a higher CPU load as well.
•
Latency: Use the Latency slider to set the buffer size of the audio interface, measured in
samples. The buffer size has two effects: The higher it is set, the lower is the probability of
dropouts during real-time audio processing. On the other hand, the size of the buffer directly affects the overall latency of your system. The time between the moment you hit a
note and the moment you hear the processed sound will be longer if the buffer size is increased.
It is recommended that you start with the default buffer size and continue with the subsequent steps of the installation. Once you are nished, you should load a clean preset and
revisit the Audio and MIDI Settings to gure out the best latency setting for your system. This
is done by gradually reducing the buffer size: Drag the latency slider to the left while playing
something. Once you begin to hear crackles or dropouts, carefully drag the latency slider to
the right until you reach the point where no crackles or dropouts occur.
5.3.2 Using GUITAR RIG MOBILE I/O as your Default Audio Interface
If you want to use the GUITAR RIG MOBILE I/O for all audio playback (not only for music software), you have to set it as your default audio interface. For Mac OS X, this works as follows:
1. From the Apple menu, select System Preferences.
2. In the panel opened, click on “Sound.”
GUITAR RIG MOBILE – 31
3.
On the Sound Effects tab, select GUITAR RIG MOBILE I/O in the “Play alerts and sound
effects through” menu.
4.
Click on the Output tab, and then select GUITAR RIG MOBILE I/O from the “Choose a
device for sound output” list.
5.
Click on the Input tab, and then select GUITAR RIG MOBILE I/O from the “Choose a
device for sound input” list.
5.4 Audio Connections and Levels
In the following chapters you will learn how to connect your guitar and your monitoring system to the GUITAR RIG MOBILE I/O and how to set the right amplication levels both on the
hardware and on the software side of your setup.
Please start the GUITAR RIG 4 software before you proceed.
GUITAR RIG MOBILE – 32
5.4.1 Connecting the Input and Adjusting the Input Level
1. Turn down the volume on your monitoring system to prevent hearing damages.
2.
Plug the cable connected to your guitar or bass into the input jack socket of the interface.
3.
Mind that, for an instrument that generates a stereo signal, you might need a split (insert
cable / y-cable, not included) to route both channels to the stereo input jack.
In order to achieve the best sound quality by providing the interface with a sufciently powerful signal, you need to carefully adjust the input level of the GUITAR RIG MOBILE I/O.
The Input Level LED helps you to identify the level of the incoming signal:
LED Status Meaning
LED is off No incoming signal
LED ashing green Incoming signal
LED ashing red Incoming signal is too loud
GUITAR RIG MOBILE – 33
Before adjusting the input sensitivity, turn up the volume knob on your guitar. Strum some
chords at the volume level you are typically playing at and look at the Input Level LED:
1. Turn up the input level knob just until the LED starts turning red when you play.
2. At that point, slightly turn the knob down until the LED no longer turns red, even when
you are playing really powerful chords.
Now the input sensitivity is set to its optimum level, enabling the GUITAR RIG MOBILE I/O
to provide the highest dynamical range without clipping.
5.4.2 The Input Level of GUITAR RIG 4
It is assumed that your guitar is connected to the GUITAR RIG MOBILE I/O and its input level
is properly adjusted (see section 5.4.1). Now we need to make sure that the input signal is
processed at the right level by the software.
Please take a look at the header of the GUITAR RIG 4 window: It consists of the input module
with channel selectors, a basic noise gate, the output module with a limiter and information
about the processing power consumed.
%
For a detailed description and explanation of the Noise Reduction circuit, please consult the
GUITAR RIG 4 Application Reference included on the product CD.
Note that the Input Meter shows an amplitude when you play. It also features an integrated
volume fader that controls the input level of the software. Please adjust it to achieve the
highest level possible for your signal without clipping. This is indicated by the Level Meter
getting close to the red zone without actually hitting it.
Now we will set up the Input component to route your guitar signal to both channels. Because
almost all guitars are mono, GUITAR RIG 4 will receive a mono signal which is transmitted
on the left channel. Per default, Guitar Rig 4 is set to process both input channels (L + R are
activated), so the right input channel remains mute. To change this, click on the “R” button
GUITAR RIG MOBILE – 34
on the left hand side of the Input Meter to deactivate the right input channel. This will route
the mono signal to both input channels.
5.4.3 Connecting the Output
GUITAR RIG MOBILE I/O provides a stereo output which works both for amplication systems
and for headphones. Keep in mind that using a mono cable (like a guitar cable) will result in
the transmission of one channel only – you might need a split (insert cable / y-cable) to route
both channels to the inputs of your amplication system.
Use a stereo cable to connect the GUITAR RIG MOBILE I/O to devices that feature a stereo
input jack.
Before turning on your power amplication system or putting on your headphones, make sure
that the output level of the audio interface is turned down.
GUITAR RIG MOBILE – 35
•
If you are using an amplication system, connect the output jack to its input and turn it on.
• If you are using headphones, connect them to the output jack and put them on.
•
Go to the Preset Browser and select a preset by clicking on it. Start playing and carefully
turn up the output volume of the GUITAR RIG MOBILE I/O to the desired level. You’re all set
now and ready to rock!
%
If your instrument uses only one channel, set the other channel’s Gain Knob to zero.
GUITAR RIG MOBILE – 36
6 Troubleshooting
Should you encounter any problems with your hardware, it is recommended that you follow
these steps to nd a solution to your problem before contacting Technical Support:
•
Visit NI’s online Knowledgebase. The easiest way to nd it is by selecting Help > Visit the
Knowledgebase… from the program menu.
• Visit the NI User Forum on our website (http://www.native-instruments.com/forum/) and
perform a search for helpful answers from the GUITAR RIG user community.
When contacting Technical Support, please make sure to have all relevant information about
your computer at hand. For information about the driver’s version and the rmware revision,
please check the Driver Control Panel.
• On Windows computers you can nd driver and rmware version by selecting the Driver
Control Panel in Start > Programs > Native Instruments > GUITAR RIG MOBILE I/O Driver.
Click on “About” to display the information desired.
•
On Mac OS X computers, you can access the Driver Control Panel from the system preferences. The information is shown in the main window.
Please visit this URL to contact the support team:
http://www.native-instruments.com/support/
All products by Native Instruments are tested extensively in real life situations during the
development phase. However, if your product needs to be returned, the Technical Support
team will assign you an RA (Return Authorization) number to expedite the processing of your
return. Please contact our Technical Support team prior to returning any item. Packages
returned without this RA number will not be correctly identied and as such might not be
processed efciently.
GUITAR RIG MOBILE – 37
6.1 Audio Issues
This section provides help with the most common audio issues you may encounter.
6.1.1 No Sound or Low Volume
There are several possible reasons for a silent or low audio output:
• Disconnected or broken cables. Please check all connections and cables.
•
Incorrect soundcard or audio input selected. Please check the Audio and MIDI Settings in
the GUITAR RIG 4 menu if the GUITAR RIG MOBILE I/O driver is selected.
•
Wrong channel selected in the Input module of GUITAR RIG 4. Switch to the other channel
by choosing “L” in the INPUT Module.
• The GUITAR RIG MOBILE I/O’s input gain is set too low. Turn up the Input Level.
• Your instrument’s volume is turned down. Gradually turn up the volume knob.
6.1.2 Distorted Signal
If the audio signal sounds distorted, and no distortion is being added by the GUITAR RIG 4
software, then this is most likely caused by the GUITAR RIG MOBILE I/O’s gain being set
too high. Reduce the Input Level at the Interface to prevent the preamp from clipping. If
your instrument delivers such a high signal that the preamp is always overdriven, you should
reduce its volume. Usually, this only happens if the instrument is equipped with special high
power pickups.
6.1.3 Noise
Audible hum can have several reasons, some of which are listed below:
•
Single-coil pickups are prone to collecting electrical interferences. Humbucker pickups
produce much less hum, which is why they got their name.
•
Your guitar is too close to electrical equipment. To reduce this type of hum, move the guitar
further away from the equipment.
GUITAR RIG MOBILE – 38
•
The guitar’s volume knob is set to a low level. Turn the knob up. If your guitar has more than
one volume knob, make sure to check all knobs.
• You are using a non-shielded or broken guitar cable. Your guitar’s shielding may also be
insufcient. Try replacing the cable with a shielded model rst. If this does not help, you
should consider having your guitar’s electronics serviced and shielded by a professional.
If you’re experiencing hiss, the input level of the GUITAR RIG MOBILE I/O might be too low.
Turn up the instrument’s volume or increase the input level on the GUITAR RIG MOBILE I/O.
For more information on setting the input level, see section 4.4 (Windows XP/ Windows Vista)
or section 5.4 (Mac OS X) of this manual.
6.1.4 Ground Loops
Ground loops (usually perceived as a hum or buzz) are a common problem when multiple
electrical devices are connected to the same power circuit. The following steps should help
to eliminate them:
• Disconnect all devices you are not currently using, e.g. peripheral devices you may have
connected to your computer (external data storage, CD burners).
•
Hook up a DI box behind the GUITAR RIG MOBILE I/O outputs. Most of these boxes have
a ground lift switch, which allows breaking the ground loop and eliminating the noise.
6.2 Hardware-Related Problems
Check the Native Instruments website and the NI Service Center for updates of the GUITAR
RIG MOBILE I/O driver and more information.
6.2.1 Driver Issues
Make sure that the GUITAR RIG MOBILE I/O is connected to the computer and open the
Driver Control Panel. See the intro to this chapter on how to nd the Control Panel.
GUITAR RIG MOBILE – 39
If the Control Panel is missing, the driver is most likely not installed at all. In this case, please
re-install the driver as described above.
If all the drop-down menus of the Control Panel are grayed out, the GUITAR RIG MOBILE
I/O is not recognized by the driver. Something might be wrong with the USB connection, see
the following sections for details.
6.2.2 USB Issues
GUITAR RIG MOBILE I/O is a USB 2.0 interface and will not work on a USB 1.0/1.1 port.
Always connect it directly to a USB 2.0 port on your computer. The port needs to fulll the
minimum power specication for a USB 2.0 port (500 mA). On certain computers, the USB
2.0 ports do not meet the ofcial USB 2.0 power specication. In this case, you may see a
message, saying that there is not enough power available to operate your device. The GUITAR
RIG MOBILE I/O may produce crackles or may not work at all.
• If your computer is unable to supply the necessary amount of bus power, try connecting
your GUITAR RIG MOBILE I/O to a USB 2.0 hub with external power-supply. Avoid connecting other devices to the hub, as every bus-powered device will diminish the total amount of
power available.
•
In case of failures, it is useful to check if GUITAR RIG MOBILE I/O works if you disconnect
any other USB device from the computer.
•
If you are experiencing audio dropouts or other problems that may be related to the USB
connection, try connecting the GUITAR RIG MOBILE I/O to another USB 2.0 port.
•
A bad USB cable can be responsible for audio dropouts and/or other connectivity problems.
Try using a different cable bearing the ofcial USB logo, in some cases using a shorter
cable might help.
•
If you are experiencing problems with GUITAR RIG MOBILE I/O crashing or performing
badly on a Windows machine, the rst thing to do is to disable power management for the
USB hubs, which is turned on by default. Go to the Device Manager (Control Panel > System
> Hardware) and right click a USB hub to bring up its properties. On the Power Management
page, uncheck all boxes. Repeat for each hub and reboot.
GUITAR RIG MOBILE – 40
6.2.3 Using GUITAR RIG MOBILE with a Laptop
Please check if your computer is suited for handling real-time audio processing without dropouts. There are a couple of freeware tools to analyze your system, for example:
www.thesycon.de/deu/latency_check.shtml
Start the tool with the GUITAR RIG MOBILE I/O disconnected. In case your computer is unable to handle glitch-free audio processing, the tool will show red latency bars and report this
in the box on the bottom.
In general, it is not recommended to use laptops with shared-memory graphic cards. You will
need all the memory and processing power available for your audio project.
There are ways to optimize your laptop’s audio performance:
•
It is not recommended to run the laptop on battery, as power management might slow the
clock rate of the CPU down to save battery.
• Disconnect all unused hardware (e.g. printer, scanner). This will increase the amount of
processing power available for your music software.
•
Laptops often are equipped with built-in devices which disturb audio processing, most commonly a network adapter or a wireless LAN card. You might need to disable these devices
while working with GUITAR RIG MOBILE.
GUITAR RIG MOBILE – 41
7 Technical Specications
This section contains all relevant technical specications of the GUITAR RIG MOBILE I/O
hardware.
7.1 Jacks and Sockets
• 1 input jack for stereo ¼” jacks (6.3mm plugs)
• 1 output jack for stereo ¼” jacks (6.3mm plugs)
• 1 USB 2.0 Type B jack
GUITAR RIG MOBILE – 42
7.2 Audio Specications
Audio Inputs (A/D)
Channels 2
Sample Rate 44.1, 48, 88.2, 96, 192 kHz
Bit Resolution 16, 24 Bit
Converter Cirrus Logic
Instrument Inputs
Input Impedance 1 MΩ unbalanced
Full Scale Level at Max. Gain -4.8 dBu
Maximum Input Level +15.8 dBu unbalanced
SNR (weighted) 100 dBu
THD+N 0.006%
Frequency Response (+/- 1 dBu) 10 - 40000 Hz
GUITAR RIG MOBILE – 43
Audio Outputs (D/A)
Channels 2
Sample Rate 44.1, 48, 88.2, 96, 192 kHz
Bit Resolution 16, 24 Bit
Converter Cirrus Logic
Line Outputs
Output Impedance 100 ohms unbalanced, 200 ohms balanced
Maximum Output Level +14.9 dBu
SNR (weighted) 100 dBu
THD+N 0.006%
Frequency Response (+/- 1 dBu) 10 - 40000 Hz
GUITAR RIG MOBILE – 44
Headphone Output
Load Impedance 16 - 600 ohms
Maximum Output Level
(100 ohms load)
2.165 V RMS (load 100 ohms), 4.345 V RMS
(no load)
SNR (weighted) 100 dB
THD+N (100 ohms) 0.06%
Frequency Response (+/- 1 dBu) 10 - 40000 Hz
7.3 Power Supply
Via USB 2.0 interface, 5V/ 500mA bus power
No additional power supply or battery is needed, only power from the USB is required.
However, proper operation is guaranteed only when MOBILE I/O is used as a single device
with a USB 2.0 controller, or with a self-powered USB 2.0 hub.
7.4 Dimensions and Weight
Dimensions: 90 x 58 x 24 mm (3.54 x 2.28 x 0.94 in)
Weight: 90 g (0.198 lb)
GUITAR RIG MOBILE – 45
7.5 Environmental Specications
Operating temperature: 0°C to 40°C (32°F to 104°F) (85% non-condensing humidity)
Storage temperature: -20°C to 50°C (-4°F to 122°F) (85% non-condensing humidity)
7.6 System Requirements
7.6.1 General System Specications
Windows XP with Service Pack 2 or Windows Vista (32/64 bit), Intel® Pentium™ or AMD®
Athlon™ XP 1.4 GHz, 1024 MB RAM, USB 2.0
Mac OS 10.5, Intel® Core™ Duo 1.66 GHz, 1024 MB RAM, USB 2.0
7.6.2 Supported Driver Interfaces
• Mac OS: Core Audio™
• Windows: ASIO® (recommended), DirectSound™, WASAPI™
7.6.3 Supported Platforms
• Mac OS: stand-alone, VST®, Audio Units™, RTAS® (Pro Tools 7/8)
• Windows: stand-alone, VST®, RTAS® (Pro Tools 7/8)
Loading...
