Description of the appliance
H 334 B, H 344-2 B
Control panel *
a Programme selector
b Input dial for entering settings
c Display
d Function dial for selecting oven
functions
4
Oven interior
e Heating element for top heat and
grilling with roof liner
f Air inlet for fan
g Runner heights 1, 2, 3, 4, 5
h Oven door
* depending on model
H 334 B KAT
Description of the appliance
Control panel *
a Programme selector
b Input dial for entering settings
c Display
d Function dial for selecting oven
functions
Oven interior
e Lever for switching the catalyser on
f Heating element for top heat and
grilling with roof liner
g Air inlet for fan
h Runner heights 1, 2, 3, 4, 5
i Oven door
* depending on model
5
Description of the appliance
Features
Electronic controls
In addition to operating the various
cooking programmes to bake, roast
and grill, the electronic controls also
offer the following features:
Clock display
–
Minute minder
–
Timer to automatically switch cooking
–
programmes on and off with auto
matic use made of residual heat
– Programme lock, to prevent
unintentional altering of programme
settings
– System lock, to prevent the
appliance being used unintentionally
– Safety cut-out
Cooling system
As soon as the oven is switched on a
cooling fan is automatically engaged.
The cooling fan mixes hot air from the
oven cavity with cool room air before
venting it out into the kitchen through
vents located between the appliance
door and the control panel.
The controls and door handle will get
slightly warm. They are quite safe to
touch.
-
Door contact switch
There is a door contact switch in the
right hand door hinge.
If the door is opened during operation,
the door contact switch causes the
oven heating, and the fan if a "Fan"
setting is being used, to be switched
off.
This helps reduce the amount of heat
lost from the oven cavity, e.g. when
basting a roast.
PerfectClean treated surfaces
The following surfaces are all treated
with PerfectClean enamelling.
– Oven interior
– Runners
– Baking tray
– Grill pan
– Anti-splash tray
– Rack
PerfectClean enamelled surfaces have
very good anti-stick properties and are
much easier to keep clean than
conventional enamel, if cleaned
regularly.
See "Cleaning and care" for more
information.
The cooling fan will continue to run for a
while after the oven has been switched
off to prevent any humidity building up
in the oven, on the control panel or in
the oven housing unit. When the
temperature in the oven has fallen
sufficiently the cooling fan will switch off
automatically.
6
Description of the appliance
Catalytic enamelled surfaces
The back panel, roof liner and side
liners (if fitted) are coated with dark
grey catalytic enamel. Soiling from oil
and fat is burnt off these surfaces when
very high temperatures are used in the
oven.
This makes it easier to clean
inaccessible areas of the oven.
See "Cleaning and care" for more
information.
Catalyser
Depending on model a catalyser is
fitted into the oven’s ventilation system.
It filters fat from the escaping vapours
and thus reduces cooking smells.
Energy efficiency rating
according to EN 50304

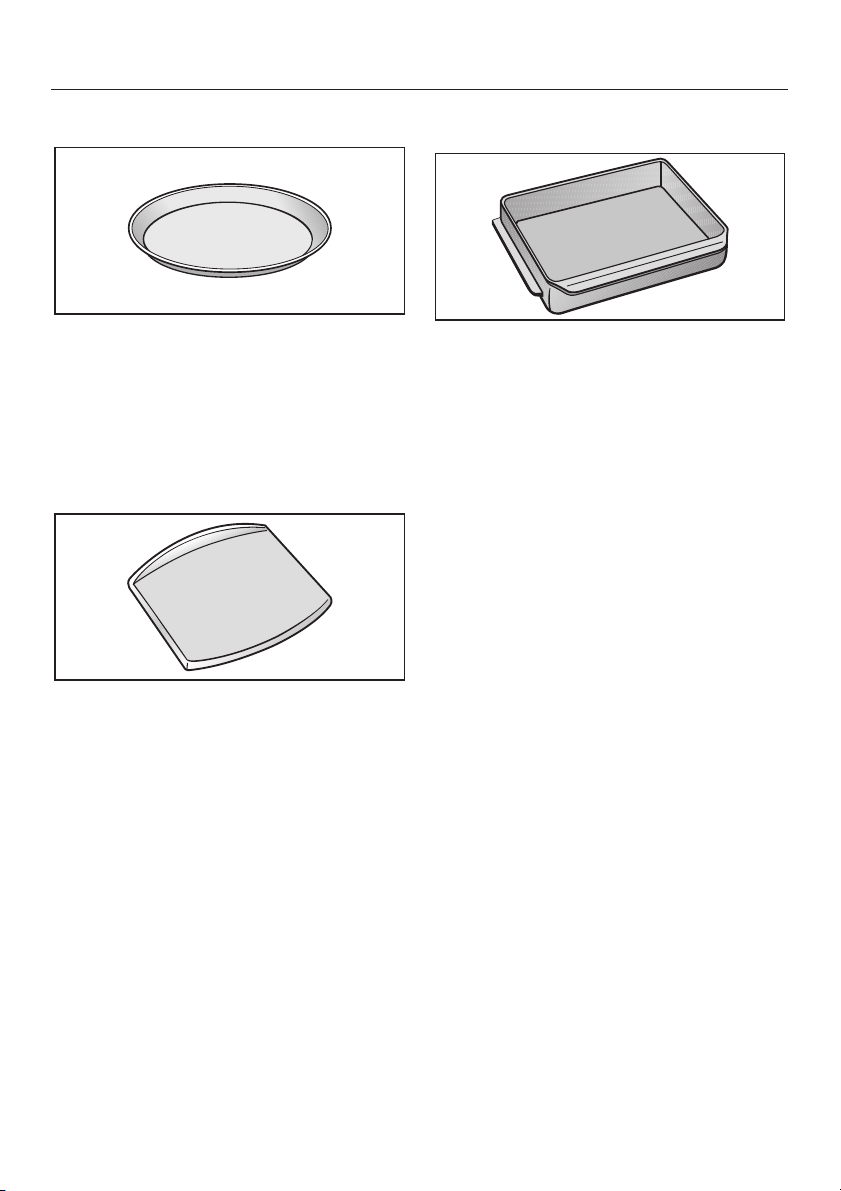

Accessories
The following accessories are supplied
with this oven.
These and other accessories are also
available to order from the Miele Spare
Parts Dept. or your Miele Dealer. See
"Extra Accessories" further on in this
booklet for more details.
Baking tray, grill pan and rack
The baking tray, grill pan and rack are
fitted with non-tip safety notches which
prevent them being pulled right out
when they only need to be partially
pulled out.
H 334 B, H 344-2 B
These appliances are rated energy
efficiency class B in accordance with
EN 50304. Tests were carried out using
the "Fan" oven function.
H 334 B KAT
These appliances are rated energy
efficiency class B in accordance with
EN 50304. Tests were carried out using
the "Fan" oven function with the
catalyser switched off.

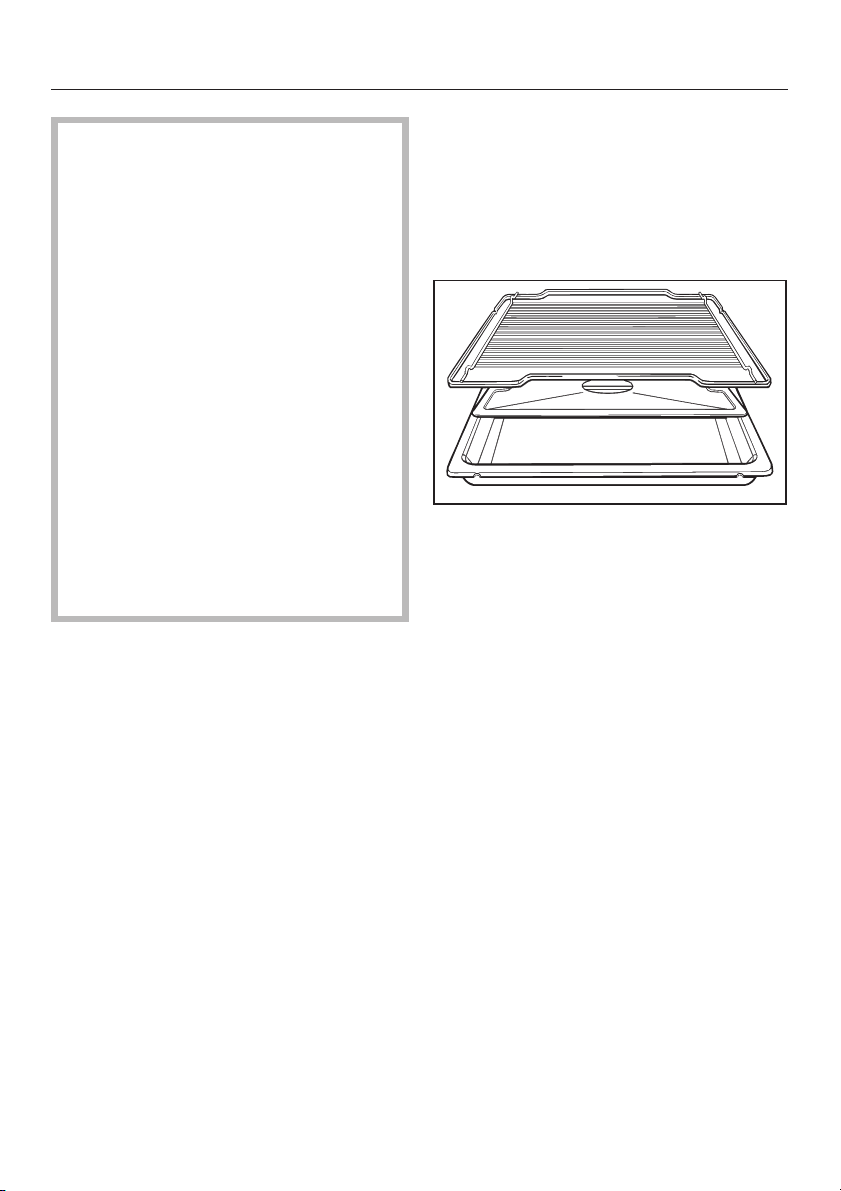

When pushing the tray, pan and rack
back in, always ensure that the
safety notches are at the rear of the
oven (see illustration).
The tray, pan and rack can then only be
taken out of the oven by raising them
upwards and then pulling out.
7
Description of the appliance
Roasting filter
The roasting filter must be fitted in front
of the fan when cooking anything fatty
or where food is likely to splatter, e.g.
when open roasting or grilling meat.
The droplets of fat caught up in the
circulating air are deposited on the
roasting filter. This helps to keep the
oven and the area behind the interior
back panel cleaner.
Do not use the roasting filter when
baking. This would increase the
times needed for baking and give
uneven browning results.
See "Extra accessories" for a
description and illustration of the
handle and anti-splash tray.
8
Caring for the environment
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed safely and kept
out of the reach of babies and young
children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
Old appliances contain materials which
can be reclaimed or recycled. Please
contact your dealer, your local waste
collection centre or scrap merchant
about potential recycling schemes.
Ensure that the appliance presents no
danger to children while being stored
for disposal.
See the appropriate section in the
Warning and safety instructions.
9
Warning and Safety instructions
Technical safety
This appliance conforms to current
safety requirements. Incorrect use
can, however, lead to personal injury
and damage to the appliance.
Before installation and before using
for the first time, read the operating
instructions carefully.
They contain important notes on
installation, safety, operation and
care of the appliance. This way you
will avoid the risk of accidents and
damage to the appliance.
Keep these instructions in a safe
place and pass them on to any
future user.
Correct usage
The appliance is intended for
domestic use to cook food, and in
particular to bake, roast, defrost, cook,
dry fruit etc, and to grill.
Any other usage is at the owner’s risk
and could be dangerous. The
manufacturer cannot be held liable for
damage caused by incorrect or
improper use of the appliance.
Do not let children access the
appliance or its controls. Supervise
its use by the elderly or infirm. If
allowing older children to use the
appliance without supervision please
ensure that they are aware of how the
oven works and understand the
dangers of improper use.
the voltage and frequency correspond
to the rating on the data plate,
otherwise the appliance could be
damaged.
Consult a competent person if in doubt.
when continuity is complete between
the appliance and an effective earthing
system, which complies with local and
national safety regulations. It is most
important that this basic safety
requirement is tested regularly, and if
there is any doubt the household wiring
system should be inspected by a
qualified electrician.
The manufacturer cannot be held
responsible for the consequences of an
inadequate earthing system (e.g.
electric shock).
electrical components are accessible.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user and can
cause operational faults.
Before connecting the appliance to
the mains supply make sure that
The electrical safety of this
appliance can only be guaranteed
The appliance must be built in
before operation to ensure that no
Never open the housing of the
appliance.
10
Warning and Safety instructions
Installation work and repairs may
only be carried out by suitably
qualified and competent persons in
accordance with local and national
safety regulations.
Repairs and other work by unqualified
persons could be dangerous and the
manufacturer will not be held liable.
The appliance is only completely
isolated from the electricity supply
when:
the mains fuse is withdrawn
–
or the screw-out fuse is removed (in
–
countries where this is applicable)
– it is switched off at the wall socket.
On appliances fitted with a plug
make sure you pull only on the plug
and not on the cable when
disconnecting from the mains.
Ensure that current is not supplied to
the appliance while maintenance or
repair work is being carried out.
Use
Caution, danger of burning.
High temperatures are produced by
the oven.
Great care should be taken to
ensure that small children do not
touch the appliance when it is being
used. Children’s skin is far more
sensitive to high temperatures than that
of adults.
External parts of the oven such as the
door glass, handle vent and control
panel can become quite hot.
Children should not be left alone or
unattended in an area where an
oven is in use. They should never be
allowed to sit or stand on any part of
the oven or play with it.
Do not store items of interest to children
in cabinets above an oven. Children
climbing on to the oven to reach these
items could be seriously injured.
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance, (e.g.
danger of overheating).
This equipment is not designed for
maritime use or for use in mobile
installations such as caravans, aircraft
etc. However it may be suitable for
such usage subject to a risk
assessment of the installation being
carried out by a suitably qualified
engineer.
Use of heat-resistant oven gloves
is recommended when placing
food in the oven, turning or removing it.
When working with "Conventional"
heating or when grilling, the element in
the roof of the oven gets very hot, and
there is a danger of being burnt.
When cleaning the roof of the oven
wait until the grill element has
cooled down before lowering it. Danger
of burning.
Do not use force to pull it down as
this can cause the element to
break.
11
Warning and Safety instructions
Do not use plastic containers.
These melt at high temperatures
and could damage the appliance.
Do not heat up unopened tins or
jars of food in the oven. Pressure
can build up and they may explode.
This could result in injury or damage.
Do not push pots and pans around
on the oven floor as this could
damage the surface.
Do not lean or sit on an open oven
door, or place heavy items on it.
This could damage the appliance. The
oven door can support a maximum load
of 15 kg.
Make sure that nothing gets
trapped between the door and the
oven.
Cover any food which is left in the
oven to be kept hot. Any moisture
in the food could lead to corrosion
damage in the oven. This also prevents
the food from drying out.
If food is left in the oven after
cooking, e.g. to take advantage of
the residual heat, turn the temperature
selector to the lowest setting. Leave the
function selector at the position set.
Do not switch the appliance off until the
food has been removed.
Moisture in the oven could lead to
condensation forming on the control
panel and surrounding kitchen furniture
and drops of moisture collecting under
the worktop.
Condensation can:
- damage the housing unit / worktop.
- lead to moisture damage in the oven.
On models fitted with a catalyser it
could also result in deposits remaining
in the catalyser, causing an unpleasant
smell to arise the next time the
appliance is switched on.
Bake larger deep-frozen items
such as pizzas on baking paper on
the rack itself or in the pizza pan (see
"Extra accessories"). Placing them on
the baking tray or in the grill pan can
cause the metal to distort. This
distortion would increase with
subsequent use.
Deep frozen foods such as oven chips
or potato croquettes can be cooked on
the baking tray or grill pan.
12
Warning and Safety instructions
Never add water to food on a hot
baking tray or grill pan or directly
onto food in a hot oven. The steam
created could cause serious burns or
scalding and the sudden change in
temperature can damage the enamel.
Never line the floor of the oven with
aluminium foil when using
Conventional heat A/Bottom heat B.
Do not place a dish, tin, baking tray or
grill pan on the floor of the oven.
If using a grill pan made by a different
manufacturer make sure that there is a
gap of at least 6 cm between the
bottom of the pan and the floor of the
oven.
If these instructions are not observed
the bottom heat will be blocked. This
can cause permanent damage to the
floor of the oven.
Protective aluminium foil panels are
available in retail outlets which are
supposed to protect the oven cavity
from soiling and reduce the need for
cleaning. If used cooking and baking
times will increase considerably.
They can also cause damage to the
appliance (e.g. by blocking the heat).
General notes
Never leave the appliance
unattended when cooking with oil
or fats as these are a fire hazard if
overheated.
Do not use the oven to heat up the
room. Due to the high temperatures
radiated, objects left near the oven
could catch fire.
Always ensure that food is
sufficiently cooked or reheated.
Many factors will affect the overall
cooking time, including the size and
amount of food, its temperature,
changes to the recipe and the shape
and size of cooking container.
Some foods may contain micro
organisms which are only destroyed by
thorough cooking at temperatures over
70°C C for a minimum of 10 minutes.
When cooking or reheating foods e.g.
poultry it is particulary important that
food is fully cooked through. If in doubt
select a longer cooking or reheating
time.
It is important that the heat is allowed to
spread evenly throughout the food
being cooked. This can be achieved by
stirring and/or turning the food, and by
observing a sufficiently long standing
time which should be added to the time
needed for cooking, reheating or
defrosting.
13
Warning and Safety instructions
When using kitchen appliances
connected to sockets near the
oven, ensure that the cable cannot get
trapped in a hot oven door, which could
melt the cable insulation and be
dangerous. Danger of electric shock.
Never use steam cleaning
apparatus to clean the appliance.
The steam could attack the electrical
components and cause a short circuit.
If using alcohol in your recipes
high temperatures can cause the
alcohol to vaporise and under adverse
circumstances the alcohol can catch
light on the hot heating elements.
Alcohol should be burnt off before the
dish is placed in the oven to avoid this
danger.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the appliance guarantee.
Disposal of your old appliance
Before throwing an old appliance
away it must first be made
unusable. Switch off and disconnect it
from the power supply, cut off the cable
directly behind the appliance and
render any plug useless. This should
be done by a competent person.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
14
Operation
After installation and before using the
oven for the first time:
Set the clock.
–
Switch the catalyser on, if fitted.
–
Clean the appliance.
–
Heat the oven up with nothing in it.
–
New appliances have a slight smell
on first use and this procedure will
dissipate the smells before you use
the oven to cook any food.
To save energy the display will go
dark a few seconds after setting the
time.
The time continues to run unseen in
the background.
The time can also be set to show
constantly in the display. See "To
show the time display all the time".
Setting the clock

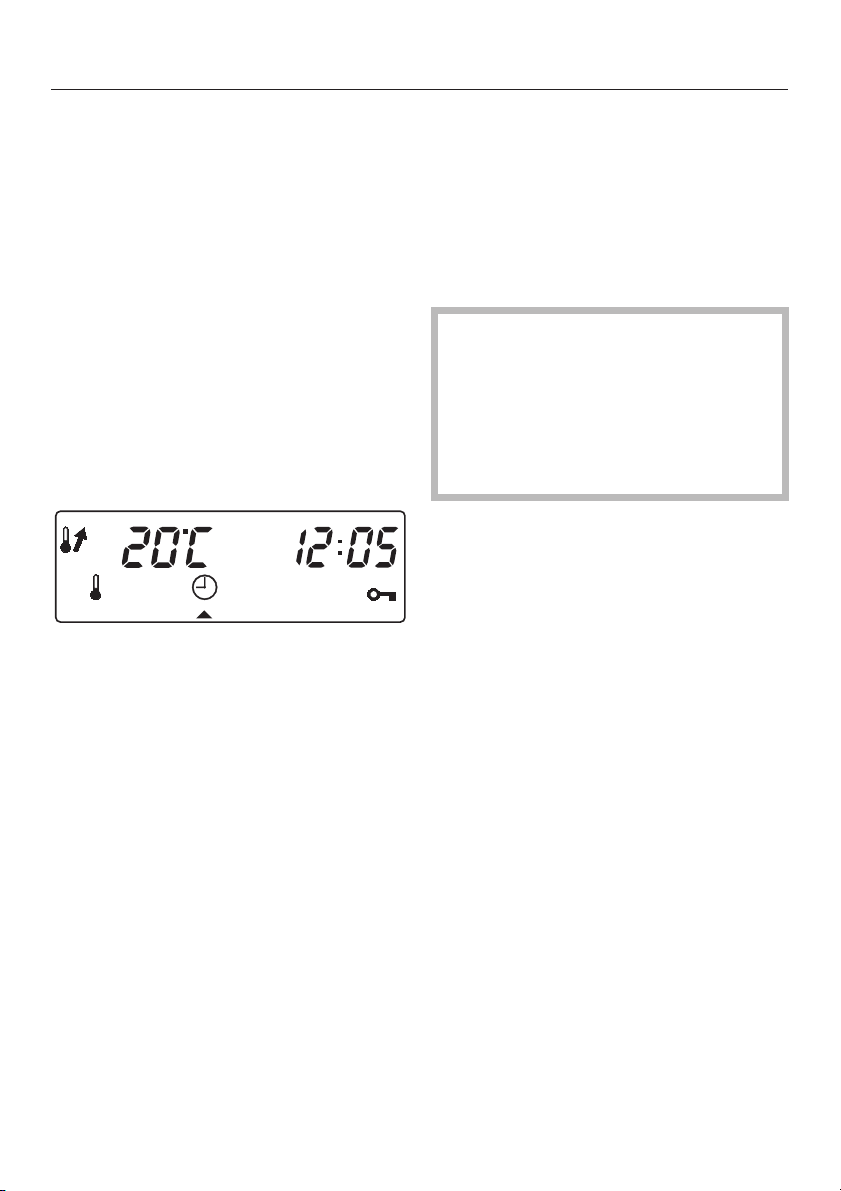

The following will appear in the display:
The m symbol (time of day),
–
"12:00" and the triangle V flashing
–
underneath the m symbol.
^ Use the (–/+) input dial to set the
time.
The clock has a 24 hour display.
When the time has been entered, the
display goes dark and the clock
advances minute by minute in the
background.
The time will appear again in the
display as soon as you move the
function selector.
The time can only be entered when
the programme selector is at "0".
15
Operation
Changing the time of day
In the following example the time of day
is changed from 12:05 to 13:33.
To do this:
^ Turn the programme selector to "0".
Whilst triangle V is flashing, turn the
^
(–/+) input dial clockwise until the
required time shows in the display.
The m symbol will go out after a couple
of seconds and the time set stored in
memory.
^
Turn the function selector (right hand
dial) until triangle V is underneath
the m symbol in the display.
16
If the display is set to show the time, the
time of day will then show in the
display.
To show the time display all
the time
Now turn the (–/+) input dial
^
clockwise.
Operation
Turn the programme selector to the
^
Light H position.
The time of day will show in the display.
^
Turn the function selector (right hand
dial) until triangle V is underneath
the m symbol in the display.
Four horizontal bars will then appear in
the display.
The time of day will show in the display.
^ Turn the programme selector to "0".
The time of day now shows constantly
in the display.
To switch off the time of day display
^ Turn the programme selector to the
Light H position.
^ Turn the function selector (right hand
dial) until triangle V is underneath
the m symbol in the display.
^
Now turn the (–/+) input dial
anti-clockwise.
Four horizontal bars will then appear in
the display.
^
Turn the programme selector to "0".
The display will go dark and the time
will continue unseen in the background.
17
Operation
Switching on the catalyser
Some appliances have a catalyser
built-in to the ventilation system.
When switched on, the catalyser
removes fat particles from the air
circulating in the oven and also
reduces cooking smells.
The oven is delivered with the catalyser
switched off (standard factory setting).

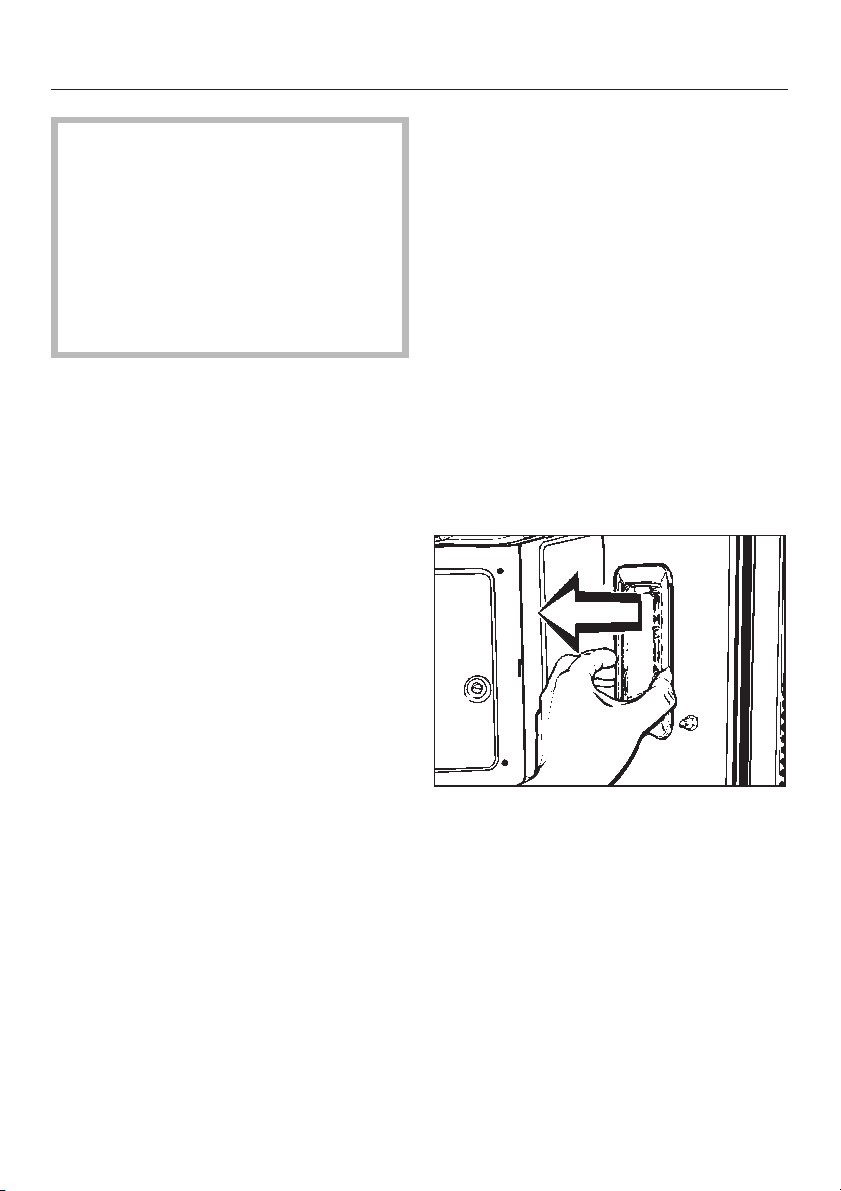

^ To switch the catalyser on, please
push the lever located underneath
the control panel to the right to
position "I".
Cleaning and heating up for
the first time
Before using the appliance heat it up
once with nothing in it. New
appliances have a slight smell on first
use and this procedure will dissipate
the smells before you use the oven to
cook any food.
Before use please remove
– any stickers from the floor of the
oven, baking trays, grill pan etc.
– any cork spacers at the sides
above the oven cavity.
^ Wipe out the oven interior using
warm water and a little washing up
liquid. Polish dry with a soft cloth.
Do not close the oven door until the
oven interior is dry.
^ Rinse the accessories.
18
Then run the oven for at least 1 hour at
a high temperature. To do this:
Turn the programme selector to the
^
Fan D position.
Operation
Whilst the triangle V is flashing
^
underneath the U symbol, use the
(–/+) input dial to set the temperature
to its highest setting (250 °C).

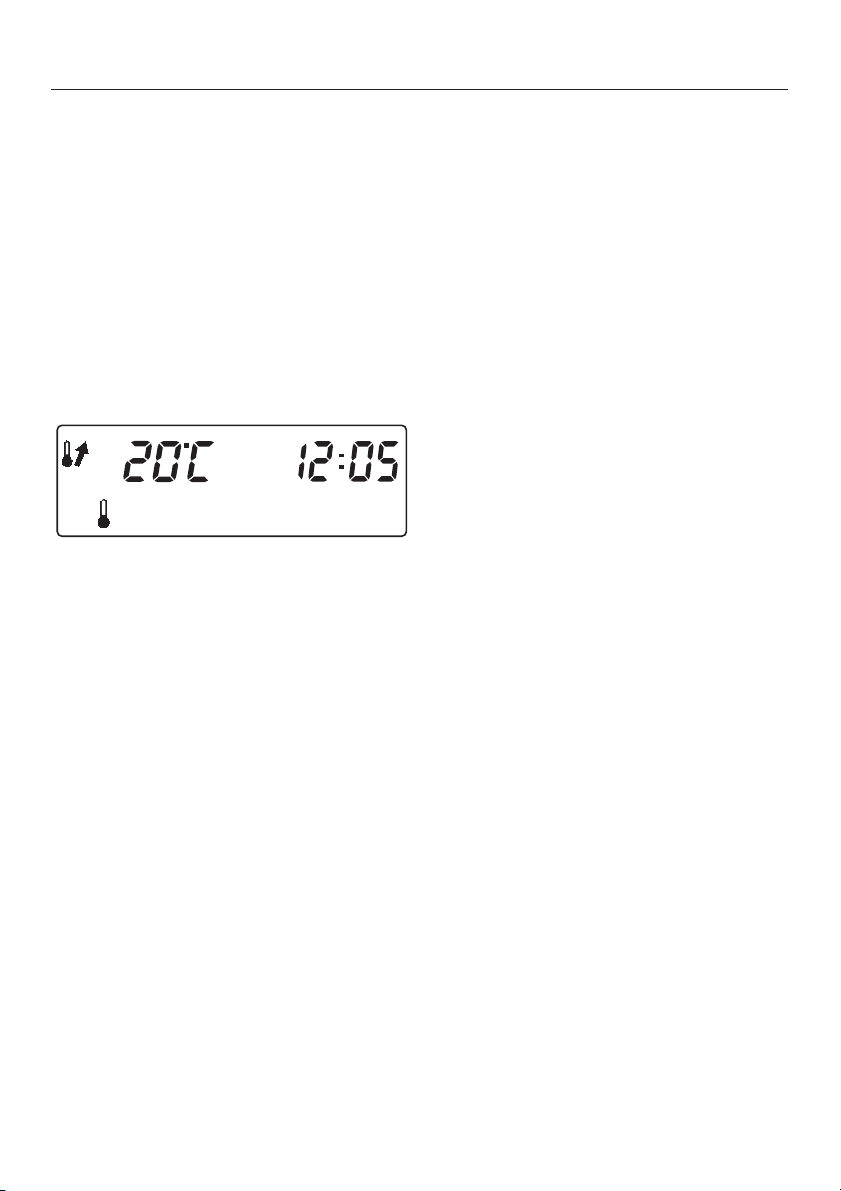

Once this setting has been accepted
– the oven heating will switch on,
– and the actual temperature in the
oven will show in the display.
The suggested temperature of 160 °C
appears in the display.
The timer can also be used to set the
finish time (see "Switching off
automatically").
Please ensure the room is well
ventilated during this operation.
19
Controls
The oven controls consist of:
the Programme selector, for
–
selecting oven functions with, e.g.
Lighting H, Fan D, Automatic
roasting E, ...
the V Function dial, for selecting
–
oven functions which require input
e.g. the time of day m, cooking
durations g, ...
the (–/+) Input dial, for entering and
–
changing settings on the oven
function selected with the Function
dial,
– the Display, where all changes and
settings are visible.
Programme selector
Display
The bottom line shows the symbols of
functions where data can be changed.
To highlight these functions turn the
function dial (V).
The triangle V will appear in the
display underneath the symbol of the
function you have selected.
The top line shows:
– the time (time of day or a
programmed cooking time).
– the oven temperature together with
the p or U symbol.
– the key symbol 0--§ will appear if
e.g. the programme selector is
turned when the system lock is
engaged or a cooking programme
has been locked using the
programme lock.
Use the programme selector to select
the required programme.
The programme selector can be turned
clockwise or anti-clockwise.
20
–
EC for Residual heat being utilised.
Night dimming
Between the hours of 22:00 and 6:00
the lighting in the clock / timer display
is dimmed automatically.
The display will appear dimmer during
this period if the time of day is set to be
on all the time.
Turning the Function or Input dial
during this period will bring the timer
display back on in full brightness.
Controls
Rotary dials
Use the V Function dial, for selecting
oven functions which require input e.g.
the time of day.
The V Function dial can be turned
clockwise or anti-clockwise.
To select a function, turn the function
dial until triangle V is underneath the
symbol in the display of the function
you wish to make changes to.
If triangle V
– is flashing, alterations can be made
to the settings of the function
selected.
–
is lit up, the function will be
displayed, but changes cannot be
made to it.
Whilst the V is flashing, use the
(–/+) Input dial immediately to make
any changes:
Turning it clockwise, increases the
–
value shown or engages the
function,
Turning it anti-clockwise, reduces
–
the value or switches the function off.
Triangle V will flash for approx. 5
secs.
Settings can only be changed whilst
it is flashing.
If this input period has elapsed you
will have to use the function dial to
re-select the function.
See chart for an overview of symbols in
the display and their settings.
The display will change at a different
rate depending on how quickly the dial
is turned:
– in one minute increments
–
in 10 minute increments or
–
hour by hour.
21
Display – functions and symbols
The position of the programme selector affects the settings available using the
function dial.
This chart gives an overview of these settings.
Function
symbol
m Change the time of
l Input minute minder
a Activate/de-activate
p – – Change the oven
U – – Switch Rapid heat
f – – Enter start time
g – – Enter duration
) – – Enter end time
Position "0" Light H Function
day
time (egg timer)
system lock
Programme selector position
Switch the time of
day on/off in the
display
Input minute minder
time (egg timer)
– Lock a cooking
Input minute minder
time (egg timer)
programme
temperature
up off (only with Fan
heat D, Automatic
roasting E,
Conventional heating
A)
–
22

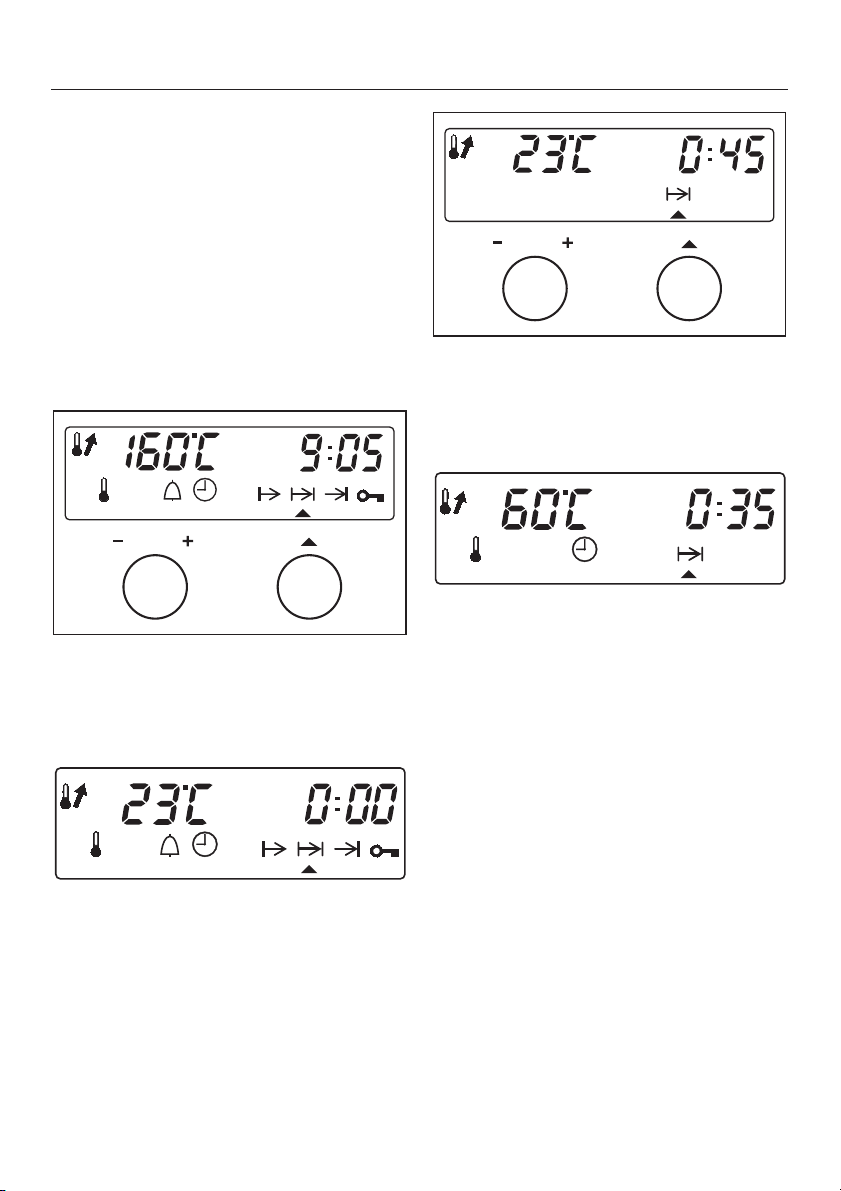

Temperatures, times and other functions are controlled using two rotary
dials:
Input dial (–/+)
–
– Function dial (V).
Programming sequence
To change a setting on the oven:
Turn the programme selector to the
^
required position.
Turn the function dial clockwise or
^
anti-clockwise until triangle V is
underneath the required symbol in
the display.
Whilst triangle V is flashing, use
^
the (–/+) Input dial immediately to
make any changes.
The triangle will flash for appox.
5 seconds. If this input period has
elapsed you will have to use the
function dial to re-select the function.
The display will show what these dials
are set to.
This principle applies whenever you
change a setting.
See "Changing the time of day" and
"Using the oven" for examples which
explain this principle in detail.
23
Loading...
