IMPAC Pyrometer
ISR 320
MANUAL
Confidential Information
The material contained herein consists of information that is the property of LumaSense Technologies and intended solely for use by the purchaser of the equipment described in this manual. All specifications are subject to change without notice. Changes are made periodically to the information in this publication, and these changes will be incorporated in new editions.
LumaSense Technologies prohibits the duplication of any portion of this manual or the use thereof for any purpose other than the operation or maintenance of the equipment described in this manual, without the express written permission of LumaSense Technologies.
Copyright
© LumaSense Technologies 2013. All rights reserved.
Trademarks
IMPAC is a trademark of LumaSense Technologies.
All other trademarks are trademarks, registered trademarks, and/or service marks of their respective holders.
|
Service Centers |
LumaSense Technologies, Inc. |
LumaSense Technologies GmbH |
North America |
Other Than North America |
Sales & Service |
Sales & Support |
Santa Clara, CA, USA |
Frankfurt, Germany |
Ph: +1 800 631 0176 |
Ph: +49 (0) 69 97373 0 |
Ph: +1 408 727 1600 |
Fax: +49 (0) 69 97373 167 |
Fax: +1 408 727 1677 |
|
Global and Regional Centers
Our Headquarters |
Americas, Australia, & Other Asia |
Europe, Middle East, Africa |
LumaSense Technologies, Inc. |
LumaSense Technologies, Inc. |
LumaSense Technologies GmbH |
Santa Clara, CA, USA |
Santa Clara, CA, USA |
Frankfurt, Germany |
Ph: +1 800 631 0176 |
Ph: +1 800 631 0176 |
Ph: +49 (0) 69 97373 0 |
Fax: +1 408 727 1677 |
Fax: +1 408 727 1677 |
Fax: +49 (0) 69 97373 167 |
Brazil |
India |
China |
LumaSense, Vendas Brasil |
LumaSense Technologies, India |
LumaSense Technologies, China |
Campinas, Brasil |
Mumbai, India |
Shanghai, China |
Ph: +55 19 3367 6533 |
Ph: + 91 22 67419203 |
Ph: +86 133 1182 7766 |
Fax: +55 19 3367 6533 |
Fax: + 91 22 67419201 |
Fax: +86 21 5877 2383 |
E-mail info@lumasenseinc.com support@lumasenseinc.com
Website http://www.lumasenseinc.com
Part No 03 903 209 - EN
Revision B
May 2013
Contents
1 |
General Information ......................................................................................................... |
5 |
||
|
1.1 |
Information about the user manual....................................................................... |
5 |
|
|
|
1.1.1 |
Legend ...................................................................................................................... |
5 |
|
|
1.1.2 |
Terminology ............................................................................................................. |
5 |
|
1.2 |
Safety |
......................................................................................................................... |
5 |
|
1.3 |
Limit of ................................................................................liability and warranty |
6 |
|
|
1.4 |
Unpacking .......................................................................................the Instrument |
6 |
|
|
1.5 |
Service .......................................................................Request, Repair, or Support |
6 |
|
|
1.6 |
Shipments ......................................................................to LumaSense for Repair |
7 |
|
|
1.7 |
Disposal ..................................................................................../ decommissioning |
7 |
|
2 |
Introduction....................................................................................................................... |
9 |
||
|
2.1 |
Appropriate ........................................................................................................use |
9 |
|
|
2.2 |
Scope ......................................................................................................of delivery |
9 |
|
|
2.3 |
Technical ...........................................................................................................Data |
9 |
|
|
2.4 |
Dimensions .............................................................................................................. |
11 |
|
|
2.5 |
Physical ...........................................................................................User Interface |
11 |
|
|
2.6 |
Accessories ............................................................................................(optional) |
11 |
|
|
|
2.6.1 ................................................................................................................ |
Mounting |
11 |
|
|
2.6.2 ........................................................................................................ |
Cooling Jacket |
11 |
|
|
2.6.3 ................................................................................................................. |
Air Purge |
12 |
|
|
2.6.4 ............................................................................................................... |
90° Mirror |
12 |
|
|
2.6.5 ..................................................................................................... |
Scanning Mirror |
12 |
|
|
2.6.6 ........................................................................................................ |
Flange System |
12 |
|
2.7 |
Transport, ..................................................................................Packing, Storage |
12 |
|
3 |
Controls and ................................................................................................Installation |
13 |
||
|
3.1 |
Electrical ..............................................................................................Installation |
13 |
|
|
|
3.1.1 ..........................................................................Pin assignment of the connector |
13 |
|
|
|
3.1.2 .......................................................................Connecting the pyrometer to a PC |
14 |
|
|
|
3.1.3 ............................................................................................. |
Connection to RS485 |
14 |
|
|
3.1.4 .......................................................Connection schematic for analyzing devices |
14 |
|
|
3.2 |
Sighting ................................................................................................................... |
15 |
|
|
|
3.2.1 ............................................................................................... |
LED Targeting Light |
15 |
|
|
3.2.2 . ...........................................................................Aligning with Variometer LEDs |
15 |
|
|
3.3 |
Optics ....................................................................................................................... |
|
16 |
|
|
3.3.1 ................................................................................................................ |
Spot Sizes |
16 |
|
|
3.3.2 .................................................Deviation from the focused measuring distance |
16 |
|
4 Settings / parameter .................................................................................descriptions |
17 |
|||
|
4.1 |
Emissivity .............................................................................................................. |
17 |
|
|
4.2 |
Emissivity ..................................................................................................Slope K |
17 |
|
|
|
4.2.1 ....................................................Temperature Errors Cause by Non-Graybodies |
18 |
|
|
4.3 |
Transmittance ....................................................................................................... |
19 |
ISR 320 Manual |
Contents iii |
|
4.4 |
Response Time (t90)................................................................................................. |
19 |
|
|
4.5 |
Clear Peak Memory (tCLEAR)..................................................................................... |
19 |
|
|
|
4.5.1 Single and Double Storage Modes ....................................................................... |
19 |
|
|
|
4.5.2 |
Clear Time Settings ................................................................................................ |
20 |
|
4.6 |
Analog Output ........................................................................................................ |
20 |
|
|
4.7 |
Relative Signal Strength ........................................................................................ |
21 |
|
|
4.8 |
“Dirty Window” Warning ...................................................................................... |
21 |
|
|
4.9 |
Minimum Intensity Switch-Off Level.................................................................... |
21 |
|
|
4.10 |
Operating Modes .................................................................................................... |
21 |
|
|
4.11 |
Sub Range................................................................................................................ |
22 |
|
|
4.12 |
Device Address........................................................................................................ |
22 |
|
|
4.13 |
Baud Rate................................................................................................................. |
22 |
|
|
4.14 |
Pyrometer Internal Temperature .......................................................................... |
22 |
|
|
4.15 |
Limit Switch (SP1)................................................................................................... |
22 |
|
5 |
Software InfraWin........................................................................................................... |
25 |
||
|
5.1 |
Connecting the pyrometer to a PC ....................................................................... |
25 |
|
|
5.2 |
Installation .............................................................................................................. |
25 |
|
|
5.3 |
Program start .......................................................................................................... |
25 |
|
|
5.4 |
Basic settings .......................................................................................................... |
26 |
|
|
|
5.4.1 |
Open/Save............................................................................................................... |
26 |
|
|
5.4.2 |
1 measure… ........................................................................................................... |
26 |
|
|
5.4.3 |
Print ........................................................................................................................ |
26 |
|
|
5.4.4 |
Close........................................................................................................................ |
26 |
|
|
5.4.5 |
Test.......................................................................................................................... |
26 |
|
5.5 |
Relative Signal ........................................................................................................ |
27 |
|
|
5.6 |
Warning Level / Switch-Off Level .......................................................................... |
28 |
|
|
5.7 |
Emissivity Slope K: AutoFind ................................................................................ |
28 |
|
|
5.8 |
Measurement online trend.................................................................................... |
29 |
|
|
5.9 |
Listing (analyzing) .................................................................................................. |
29 |
|
|
5.10 |
Output .TXT file (analyzing)................................................................................... |
30 |
|
|
5.11 |
Trend output (analyzing) ....................................................................................... |
30 |
|
|
5.12 |
PC sampling rate (time interval between two measurements) ........................ |
30 |
|
|
5.13 |
Spot size calculator................................................................................................. |
30 |
|
|
5.14 |
Search I/O Module................................................................................................... |
31 |
|
6 |

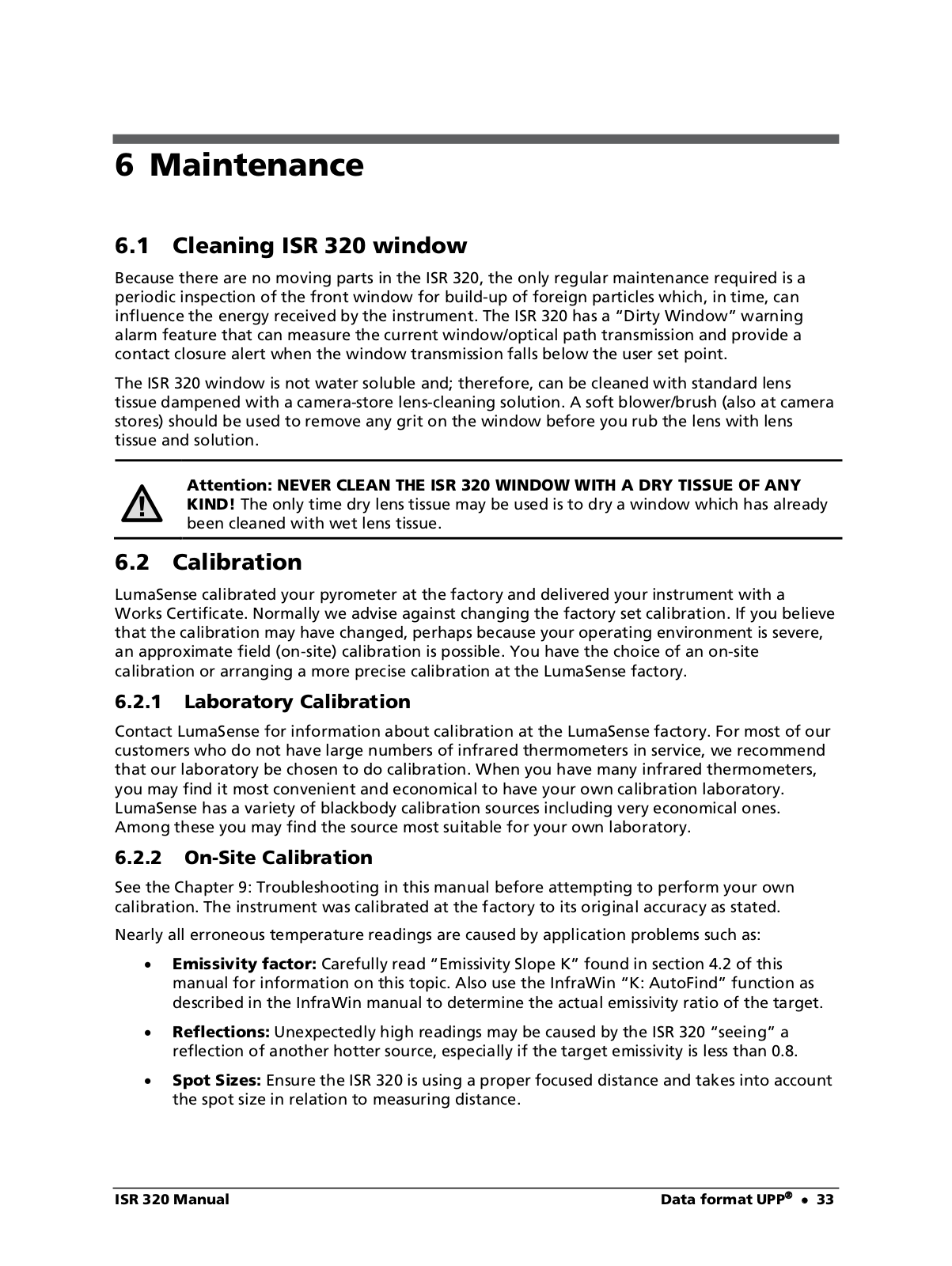

Maintenance .................................................................................................................... |
33 |
||
|
6.1 |
Cleaning ISR 320 window ...................................................................................... |
33 |
|
|
6.2 |
Calibration............................................................................................................... |
33 |
|
|
|
6.2.1 |
Laboratory Calibration .......................................................................................... |
33 |
|
|
6.2.2 |
On-Site Calibration ................................................................................................ |
33 |
7 Data format UPP (Universal Pyrometer Protocol) ....................................................... |
35 |
|||
8 |
Reference Numbers......................................................................................................... |
39 |
||
|
8.1 |
Reference numbers instrument ............................................................................ |
39 |
|
|
8.2 |
Reference numbers accessories ............................................................................ |
39 |
|
9 |
Troubleshooting .............................................................................................................. |
41 |
||
Index....................................................................................................................................... |
|
|
45 |
ISR 320 Manual |
Contents iv |
Congratulations on choosing the high quality and highly efficient IMPAC ISR 320 pyrometer.
This manual provides important information about the instrument and can be used as a work of reference for installing, operating, and maintaining your IMPAC ISR 320 pyrometer. It is important that you carefully read the information contained in this manual and follow all safety procedures before you install or operate the instrument.
To avoid handling errors, keep this manual in a location where it will be readily accessible.
Note: The note symbol indicates tips and useful information in this manual. All notes should be read to effectively operate the instrument.
Attention: This sign indicates special information which is necessary for a correct temperature measurement.
Warnings and Cautions: The general warnings and cautions symbol signifies the potential for bodily harm or damage to equipment.
MB Shortcut for Temperature range (in German: Messbereich)
The terminology used in this manual corresponds to the VDI- / VDE-directives 3511, Part 4.
This manual provides important information on safely installing and operating the IMPAC ISR 320 pyrometer. Several sections of this manual provide safety warnings to avert danger. These safety warnings are specified with a warning symbol. You must read and
understand the contents of this manual before operating the instrument even if you have used similar instruments or have already been trained by the manufacturer.
It is also important to continually pay attention to all labels and markings on the instrument and to keep the labels and markings in a permanent readable condition.
Warning: The pyrometer is only to be used as described in this manual. It is recommended that you only use accessories provided by the manufacturer.
In addition, signs and markings on the device is to be observed and maintained in legible condition.
ISR 320 Manual |
Contents v |
1.3Limit of liability and warranty
All general information and notes for handling, maintenance and cleaning of this instrument are offered according to the best of our knowledge and experience.
All Series 320 instruments from LumaSense Technologies have a regionally effective warranty period. This warranty covers manufacturing defects and faults which arise during operation, only if they are the result of defects caused by LumaSense Technologies.
Disassembly of the instrument is not allowed. The warranty is VOID if the instrument is disassembled, tampered with, altered, or otherwise damaged without prior written consent from LumaSense Technologies; or if considered by LumaSense Technologies to be abused or used in abnormal conditions.
The Windows compatible software was thoroughly tested on a wide range of Windows operating systems and in several world languages. Nevertheless, there is always a possibility that a Windows or PC configuration or some other unforeseen condition exists that would cause the software not to run smoothly. The manufacturer assumes no responsibility or liability and will not guarantee the performance of the software. Liability regarding any direct or indirect damage caused by this software is excluded.
There are no user-serviceable components in the instrument
Disassembly of the instrument is not allowed. The warranty is VOID if the instrument is disassembled, tampered with, altered, or otherwise damaged without prior written consent from LumaSense Technologies; or if considered by LumaSense Technologies to be abused or used in abnormal conditions.
Thoroughly inspect the instrument upon delivery to purchaser. Check all materials in the container against the enclosed packing list. LumaSense Technologies cannot be responsible for shortages against the packing list unless a claim is immediately filed with the carrier. Final claim and negotiations with the carrier must be completed by the customer.
Save all packing materials, including the carrier’s identification codes, until you have inspected the pyrometer and find that there is no obvious or hidden damage. Before shipment, the pyrometer was examined and has been tested. If you note any damage or suspect damage, immediately contact the carrier and LumaSense Technologies, Inc.
Contact LumaSense Technologies Technical Support in case of a malfunction or service request. Provide clearly stated details of the problem as well as the instrument model number and serial number. Upon receipt of this information, Technical Support will attempt to locate the fault and, if possible, solve the problem over the telephone.
If Technical Support concludes that the instrument must be returned to LumaSense Technologies for repair, they will issue a Return Material Authorization (RMA) number.
Return the instrument upon receipt of the RMA number, transportation prepaid. Clearly indicate the assigned RMA number on the shipping package exterior. Refer to Section 1.6, Shipments to LumaSense for Repair, for shipping instructions.
ISR 320 Manual |
General Information 6 |
Technical Support can be contacted by telephone or email:
Santa Clara, California
Telephone: +1 408 727 1600 or +1 800 631 0176
Email: support@lumasenseinc.com
Frankfurt, Germany
Telephone: +49 (0) 69 97373 0
Email: support@lumasenseinc.com
Erstein, France
Telephone +33 (0)3 88 98 98 01
Email support@lumasenseinc.com
All RMA shipments of LumaSense Technologies instruments are to be prepaid and insured by way of United Parcel Service (UPS) or preferred choice. For overseas customers, ship units airfreight, priority one.
The instrument must be shipped in the original packing container or its equivalent. LumaSense Technologies is not responsible for freight damage to instruments that are improperly packed.
Contact us to obtain an RMA number (if one has not already been assigned by Technical Support). Clearly indicate the assigned RMA number on the shipping package exterior.
Send RMA Shipments to your nearest technical service center:
Santa Clara, California |
Frankfurt, Germany |
LumaSense Technologies, Inc. |
LumaSense Technologies GmbH |
3301 Leonard Court |
Kleyerstr. 90 |
Santa Clara, CA 95054 USA |
60326 Frankfurt |
Telephone: +1 408 727 1600 |
Germany |
+1 800 631 0176 |
Telephone: +49 (0)69-97373 0 |
Email: support@lumasenseinc.com |
Email: support@lumasenseinc.com |
|
|
Inoperable IMPAC pyrometers must be disposed of in compliance with local regulations for electro or electronic material.
ISR 320 Manual |
General Information 7 |
To ensure consistent document formatting, this page was intentionally left blank.
ISR 320 Manual |
General Information 8 |
The IMPAC ISR 320 pyrometer is a stationary, digital pyrometer for non-contact temperature measurement on metals, ceramics, graphite, semiconductors etc. in the range between 700 and 1700 °C.
The pyrometer measures in 2-color mode (ratio principle) in which two adjacent wavelengths are used to calculate the temperature. This technique offers the following advantages when compared with standard one-color pyrometers:
The temperature measurement is independent of the emissivity of the object in wide ranges.
The measuring object can be smaller than the spot size.
Measurements are unaffected by dust and other “grey” contaminants in the field of view or by dirty viewing windows.
The pyrometer can also be switched to 1-color mode and used like a conventional pyrometer.
Pyrometer, PC adjustment, and evaluation software InfraWin, works certificate, and operating instructions.
Note: A connection cable is not included with the instrument and has to be ordered separately (see Chapter 8, Reference numbers).
Measurement
Temperature Range: |
700 to 1700 °C (MB 17) |
|
|
Sub Range: |
Any range adjustable within the temperature range, minimum span |
|
50 °C |
|
|
Spectral Range: |
Channel 1: 0.9 µm |
|
Channel 2: 1.05 µm |
Resolution: |
0.1 °C or 0.2 °F at interface; < 0.0015% of adjusted temperature range |
|
at analog output, 12 bit |
Emissivity : |
0.100 to 1.000 in steps of 1/1000 (1-color mode) |
Transmittance : |
0.100 to 1.000 in steps of 1/1000 (1-color mode) |
Emissivity Slope K: |
0.800 to 1.250 in steps of 1/1000 (2-color mode) |
Measurement Uncertainty: |
< 1300 °C: 0.5% of reading in °C + 2 °C |
( = 1, t90 = 1 s, TUmg. = 25 °C) |
> 1300 °C: 1% of reading in °C |
Note: the pyrometer must operate at least |
|
30 min before these values are valid |
|
Repeatability: |
0.2% of reading in °C + 2 °C |
( = 1, t90 = 1 s, TUmg. = 25 °C) |
|
ISR 320 Manual |
Introduction 9 |
Optics
Sighting: |
Built-in LED targeting light and LEDs for intensity alignment |
|
Optics: |
Fixed optics a=300 mm or a=800 mm |
|
Distance Ratio: |
approx. 100 : 1 |
|
Environment |
|
|
Protection Class: |
IP 65 IEC 60529 (value in mated condition) |
|
Operating Position: |
Any |
|
Ambient Temperature: |
0 to 70 °C at housing |
|
Storage Temperature: |
-20 to 80 °C |
|
Relative Humidity: |
Non condensating conditions |
|
Weight: |
0.3 kg |
|
Housing: |
Stainless steel |
|
CE-Label: |
According to EU directives about electromagnetic immunity |
|
Interface |
|
|
Connection: |
8-pin connector |
|
Parameters: |
Adjustable via interface: |
|
|
2-color / 1-color temperature signal, accordingly emissivity slope or |
|
|
emissivity, temperature sub range, settings for maximum value storage, |
|
|
address, baud rate, switch off limit, warning level lens contamination |
|
|
monitoring system, transmittance, response time t90, 0 to 20 mA or |
|
|
4 to 20 mA analog output range, °C / °F. |
|
|
Readable via interface: |
|
|
measured value, internal temperature of the unit |
|
Communication |
|
|
Analog Output: |
Adjustable 0 to 20 mA or 4 to 20 mA, linear with temperature |
|
Digital Interface: |
RS485 addressable (half-duplex) |
|
|
Baud rate: 1200 Bd to 115.2 kBd |
|
Switch Off Limit: |
2% to 50% (adjustable via interface) |
|
“Dirty Window” Warning or |
Opto Relay contact, max. continuous current 0.2 A, 50 V DC, |
|
Temperature Contact: |
Pmax = 300 mW |
|
Hysteresis: |
2 to 20 °C |
|
Exposure Time t90: |
10 ms adjustable to min; 0.01 s; 0.05 s; 0.25 s; 1 s; 3 s; 10 s |
|
Maximum Value Storage: |
Built-in single or double storage. Clearing with adjusted time tclear (off; |
|
|
10 ms; 50 ms; 250 ms; 1 s; 5 s; 25 s), via interface, automatically with the |
|
|
next measuring object, hold-function |
|
Electrical |
|
|
Power Supply: |
24 V DC ± 25%, ripple must be less than 50 mV |
|
Power Consumption: |
Max. 6 W (incl. LED) |
|
Load (analog output): |
0 to 500 Ohm |
|
Isolation: |
Power supply, analog output, and digital interface are galvanically |
|
|
isolated from each other |
Note: The calibration / adjustment of the instruments was carried out in accordance with VDI/VDE directive “Temperature measurement in industry, Radiation thermometry, Calibration of radiation thermometers”, VDI/VDE 3511, Part 4.4. For additional details on this directive, see http://info.lumasenseinc.com/calibration or order the directive from “Beuth Verlag GmbH” in D-10772 Berlin, Germany
ISR 320 Manual |
Introduction 10 |
All dimensions in mm
1 8-Pin Connector
2 Signal light for power supply
3 Intensity change indicators
Numerous accessories guarantee easy installation of the pyrometer. The following overview shows a selection of suitable accessories. You can find the entire accessory program with all reference numbers in Chapter 8, Reference numbers.
An adjustable mounting angle is available to easily mount the pyrometer and align it to the measured object.
The completely covered water cooling jacket is made from stainless steel and serves to protect the pyrometer if exposed to a hot environment. It is designed for ambient temperatures up to 200 °C.
ISR 320 Manual |
Introduction 11 |
The air purge protects the lens from contamination of dust and moisture. It has to be supplied with dry and oil-free pressurized air and generates an air stream shaped like a cone.
2.6.4 90° Mirror
The 90° mirror enables the capture of objects at an angle of 90° to the pyrometer axis.
The scanning mirror unit SCA 300 allows the measured object to be scanned over a certain range. The measuring beam of the pyrometer moves straight in one line across the object and collects temperature data of this line. This is useful when used in combination with the maximum value storage (peak picker) to measure objects which move out of the target area. The scanning angle of the mirror is 0 to 12° and the scanning frequency 0 to 5 Hz. Both values are easily adjustable at the scanner.
The flange system is a modular mounting system to fix the pyrometer on furnaces, vacuum chambers, etc.
Schematic drawing of the flange system
It can consist of e.g. mounting support, tube support with air purge and flange and an open or closed ceramic sighting tube. The mounting support can be equipped with a quartz window for vacuum applications. It may consist of an equipment rack, flange, and an open or closed ceramic tube. The equipment rack can be equipped for vacuum applications with a fused silica.
With faulty shipping, the instrument can be damaged or destroyed. To transport or store the instrument, please use the original box or a box padded with sufficient shock-absorbing material. For storage in humid areas or shipment overseas, the device should be placed in welded foil (ideally along with silica gel) to protect it from humidity.
The pyrometer is designed for a storage temperature of -20 to 80 °C with non-condensing conditions. Storing the instrument out of these conditions can cause damage or result in malfunction of the pyrometer.
ISR 320 Manual |
Introduction 12 |
The pyrometer is powered by 24 V DC ± 25% (very well stabilized, ripple max. 50 mV). It is important to ensure correct polarity when connecting the device to the power supply.
To meet the electromagnetic requirements (EMV), a shielded connecting cable must be used. LumaSense offers connecting cables, which are not part of the standard scope of delivery.
The shield of the connecting cable has to be connected only on the pyrometer’s side. If the connecting cable is extended, the shield of the extension also needs to be extended. The shield must be open on the power supply side (switch board), to avoid ground loops.
The connecting cable has wires for the power supply, interface, analog output and external LED switch via contact. The cable includes a short adaptor cable with a 9-pin D-SUB connector. This connector may be used in combination with the RS485 to USB adaptor.
Attention: When connecting the power supply, ensure the polarity is correct.
Once the instrument has been connected to the power supply, it is immediately ready for use. It needs to run for approximately 15 to 30 minutes before achieving full accuracy. The instrument can be switched off by interrupting the power supply or unplugging the electrical connector.
|
|
|
Pin |
Color |
Function |
|
|
|
|
|
|
|
|
|
1 |
white |
+ 24 V power supply |
|
|
|
2 |
brown |
0 V power supply |
|
|
|
3 |
green |
+ Iout analog output |
|
|
|
4 |
yellow |
– Iout analog output |
8-pin connector |
5 |
grey |
Switches on and off LED targeting light (via push |
||
|
|
button) (bridge to +24 V) |
|||
|
|
|
|
|
|
|
|
|
6 |
blue |
switch contact (reference point 0 V) |
|
5 |
|
7 |
violet |
A1 |
|
4 |
6 |
8 |
black |
B1 |
|
|
|
|||
3 |
8 |
7 |
7 |
red/blue |
A2 (bridge to A1) |
|
2 |
1 |
8 |
gray/pink |
B2 (bridge to B1) |
|
|
orange |
Screen only for cable extension, don't connect at |
||
|
|
|
|
||
|
|
|
|
|
the switchboard |
Pin assignment |
|
|
|
||
(view of the connector pins) |
|
|
ISR 320 Manual |
Controls and Installation 13 |
The pyrometer is equipped with an RS485 serial interface. With the RS485, long transmission distances can be realized and the transmission is, to a large extent, free of problems. The RS485 also allows several pyrometers to be connected in a bus system.
If an RS485 connection is not available at the PC, it can be accomplished using the RS485 to USB connector. When using a RS485 to USB adapter, make sure that the adapter is fast enough to receive the pyrometer’s answer to an instruction of the master. Most of the commonly used adapters are too slow for fast measuring equipment, so it is recommended to use the
RS485 USB converter “USB nano“ (ref. no. 3 852 600).
Half-duplex mode: A1 and A2 as well as B1 and B2 are bridged in the 8-pin round connector of the connecting cable, to prevent reflections due to long stubs.
|
Terminator |
Master |
120 Ohm |
A |
|
B |
|
S
GRND |
B2 |
A2 |
B1 |
A1 |
GRND |
B2 |
A2 |
B1 |
A1 |
GRND |
B2 |
A2 |
B1 |
A1 |
4 |
5 |
6 |
4 |
5 |
6 |
4 |
5 |
6 |
|
|
|
||||||
3 |
8 |
7 |
3 |
8 |
7 |
3 |
8 |
7 |
2 |
|
1 |
2 |
|
1 |
2 |
|
1 |
Pyrometer 1 |
Pyrometer 2 |
Pyrometer 32 |
||||||
e.g. address 00 |
e.g. address 01 |
e.g. address 31 |
RS485 Bus System
It also safeguards against the interruption of the RS485 Bus System should a connecting plug be pulled out. The master labels mark the connections on the RS485 converter. The transmission rate of the serial interface in Baud (Bd) is dependent on the length of the cable. Values between 1200 and 115200 Bd may be set.
For temperature indication of the pyrometer, LumaSense offers pure indicators (series DA 4000). LumaSense also offers indicators with features to change pyrometer parameters (DA 6000 and DA 6000-N) as well as a fast digital PID controller PI 6000.
Digital Display |
Parameterizing Indicator |
Digital Controller |
Additional analyzing instruments, including LED digital displays only need to be connected to a power supply and the analog outputs of the pyrometer (exception: the digital display DA 6000
