LumaSense Technologies IS 12-Al-S User Manual

Series IS 12

IS 12-AI • IS 12-AI/S

IMPAC Pyrometers

MANUAL

Confidential Information

The material contained herein consists of information that is the property of LumaSense Technologies and intended solely for use by the purchaser of the equipment described in this manual. All specifications are subject to change without notice. Changes are made periodically to the information in this publication, and these changes will be incorporated in new editions.

LumaSense Technologies prohibits the duplication of any portion of this manual or the use thereof for any purpose other than the operation or maintenance of the equipment described in this manual, without the express written permission of LumaSense Technologies.

Copyright

© LumaSense Technologies 2013. All rights reserved.

Trademarks

IMPAC is a trademark of LumaSense Technologies.

All other trademarks are trademarks, registered trademarks, and/or service marks of their respective holders.

	Service Centers
LumaSense Technologies, Inc.	LumaSense Technologies GmbH
North America	Other Than North America
Sales & Service	Sales & Support
Santa Clara, CA, USA	Frankfurt, Germany
Ph: [phone]	Ph: [phone]
Ph: [phone]	Fax: [phone]
Fax: [phone]

Global and Regional Centers

Our Headquarters	Americas, Australia, & Other Asia	Europe, Middle East, Africa
LumaSense Technologies, Inc.	LumaSense Technologies, Inc.	LumaSense Technologies GmbH
Santa Clara, CA, USA	Santa Clara, CA, USA	Frankfurt, Germany
Ph: [phone]	Ph: [phone]	Ph: [phone]
Fax: [phone]	Fax: [phone]	Fax: [phone]

Brazil	India	China
LumaSense, Vendas Brasil	LumaSense Technologies, India	LumaSense Technologies, China
Campinas, Brasil	Mumbai, India	Shanghai, China
Ph: [phone]	Ph: + 91 22 67419203	Ph: [phone]
Fax: [phone]	Fax: + 91 22 67419201	Fax: [phone]

E-mail [e-mail] [e-mail] [e-mail] [e-mail]

Website http://www.lumasenseinc.com

Part No 3 839 018-EN

Revision B

November 2013

Contents

1	General...........................................................................................................................			5
	1.1	Information about the user manual.....................................................................		5
		1.1.1	Legend.................................................................................................................	5
		1.1.2	Terminology ........................................................................................................	5
	1.2	Safety.....................................................................................................................		5
		1.2.1	Laser targeting light............................................................................................	5
		1.2.2	Electrical connection ...........................................................................................	6
	1.3	Limit of liability and warranty .............................................................................		6
	1.4	Unpacking the Instrument ....................................................................................		6
	1.5	Service Request, Repair, or Support.....................................................................		7
	1.6	Shipments to LumaSense for Repair ....................................................................		7
	1.7	Transport, packing, and storage...........................................................................		8
	1.8	Disposal / decommissioning .................................................................................		8
2	Introduction...................................................................................................................			9
	2.1	Appropriate use.....................................................................................................		9
		2.1.1	Application ..........................................................................................................	9
	2.2	Scope of Delivery ..................................................................................................		9
	2.3	Technical Data .......................................................................................................		9
	2.4	Dimensions ..........................................................................................................		11
	2.5	Physical User Interface ........................................................................................		11
	2.6	Accessories (Option)............................................................................................		12
3	Controls and Installation ............................................................................................			13
	3.1	Electrical Installation ..........................................................................................		13

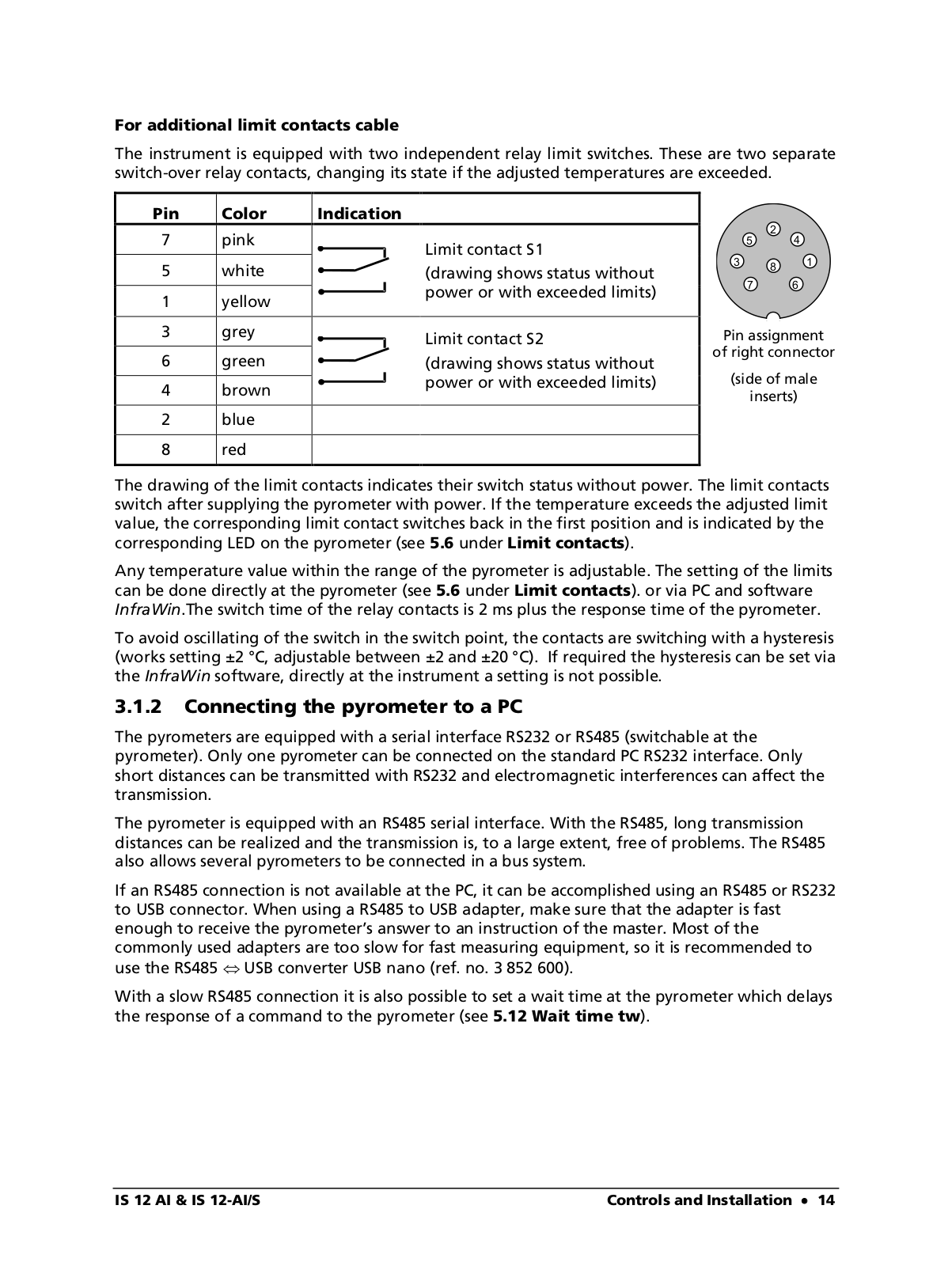

		3.1.1 Pin assignment for the connector on the back of the pyrometer ....................		13
		3.1.2 Connecting the pyrometer to a PC....................................................................		14
		3.1.3 Connection of additional analyzing devices .....................................................		15
	3.2	Sighting................................................................................................................		16
		3.2.1	Thru-lens view finder ........................................................................................	16
		3.2.2	Laser targeting light..........................................................................................	16
	3.3	Optics ...................................................................................................................		16
		3.3.1	Measuring distance ...........................................................................................	16

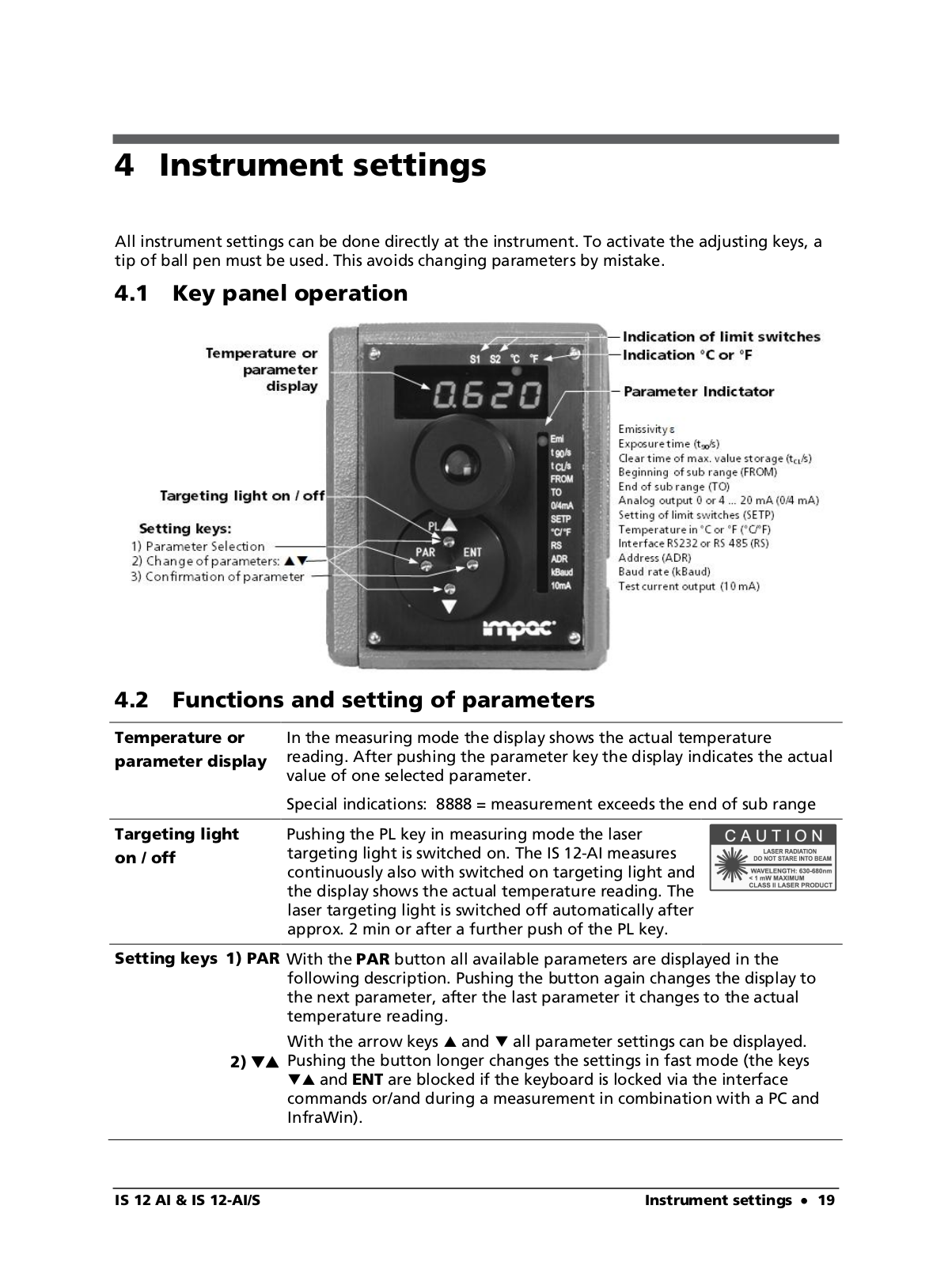

4	Instrument settings.....................................................................................................			19
	4.1	Key panel operation............................................................................................		19
	4.2	Functions and setting of parameters .................................................................		19

IS 12 AI & IS 12-AI/S

General 3

	4.3	Factory Settings...................................................................................................		20
	4.4	Types IS 12-Al/S with built-in scanner ................................................................		20
		4.4.1	Function .............................................................................................................	20
		4.4.2	Adjustments .......................................................................................................	21
5	Parameters		...................................................................................................................	23
	5.1	Emi (emissivity .................................................................................................)		23
	5.2	Exposure ..............................................................................................Time (t90)		23
	5.3	Clear time ..............................of the maximum / minimum value storage (tCL)		23
	5.4	FROM / ....................................................TO (beginning and end of sub range)		24
	5.5	Analog ....................................................................................Output (0 / 4 mA)		24
	5.6	SETP (limit ............................................................................................contacts)		24

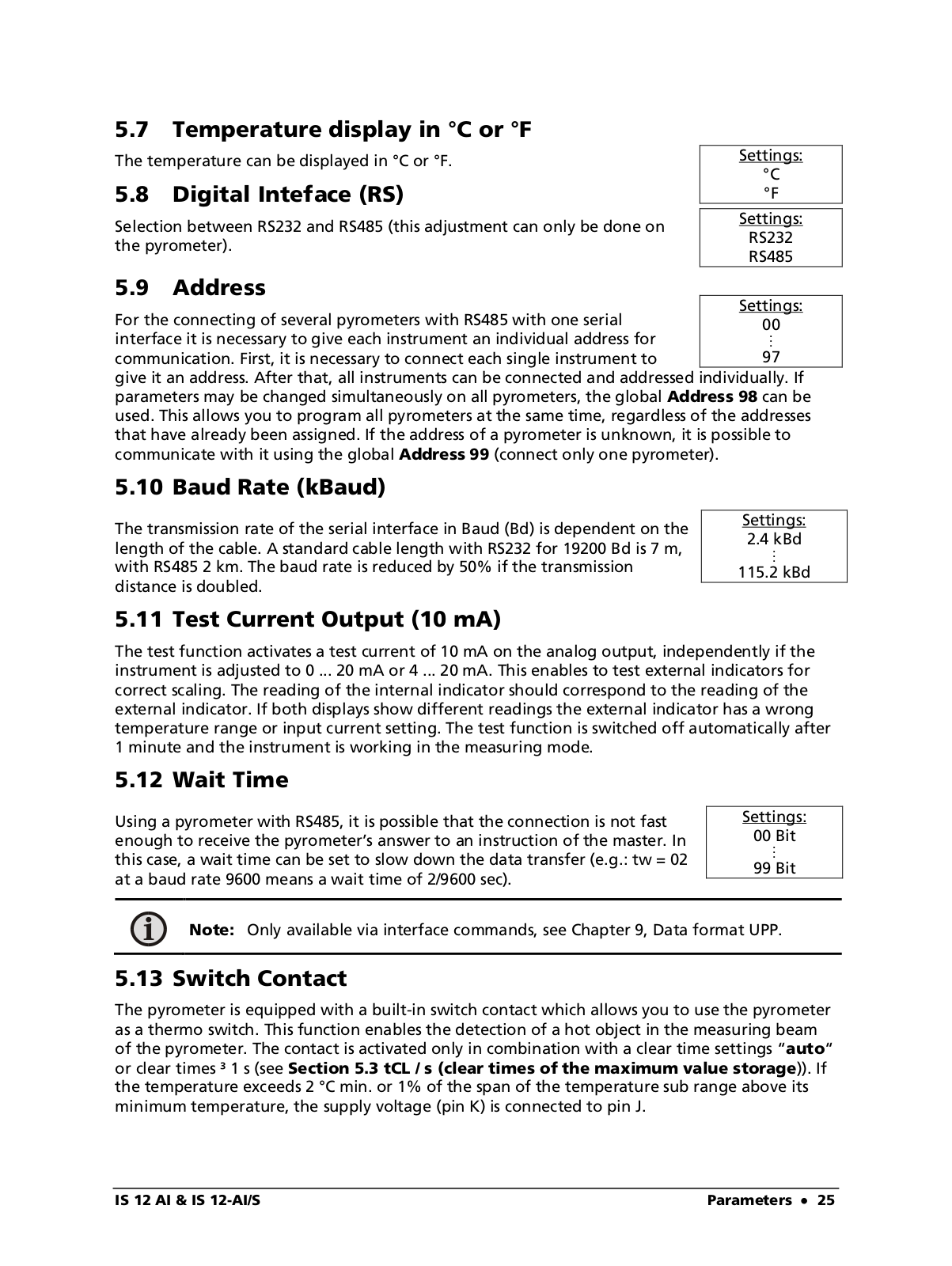

	5.7	Temperature ..........................................................................display in °C or °F		25
	5.8	Digital ............................................................................................Inteface (RS)		25
	5.9	Address ................................................................................................................		25
	5.10	Baud Rate ...............................................................................................(kBaud)		25
	5.11	Test Current ..............................................................................Output (10 mA)		25
	5.12	Wait Time.............................................................................................................		25
	5.13	Switch .....................................................................................................Contact		25
6	Software InfraWin.......................................................................................................			27
	6.1	Connecting .....................................................................the pyrometer to a PC		27
	6.2	Installation...........................................................................................................		27
	6.3	Program ......................................................................................................Start		27
7	Maintenance ................................................................................................................			29
	7.1	Cleaning ................................................................................the front window		29
	7.2	Changing ..............................................................................................of optics		29
8	Troubleshooting ..........................................................................................................			31

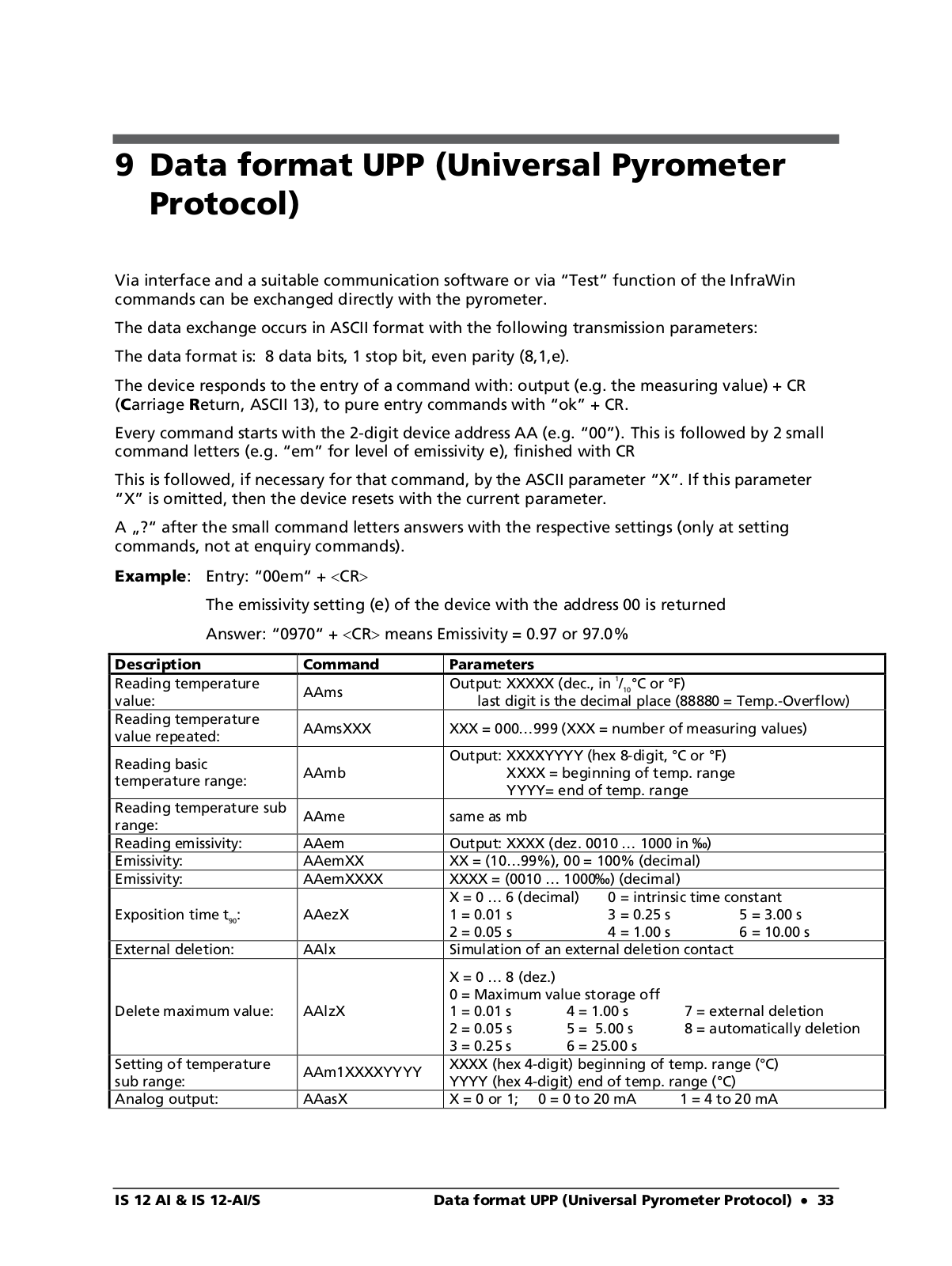

9	Data format ......................................................UPP (Universal Pyrometer Protocol)			33
10	Reference numbers......................................................................................................			35
	10.1	Reference ........................................................................numbers instruments		35
	10.2	Reference ..........................................................................numbers accessories		35

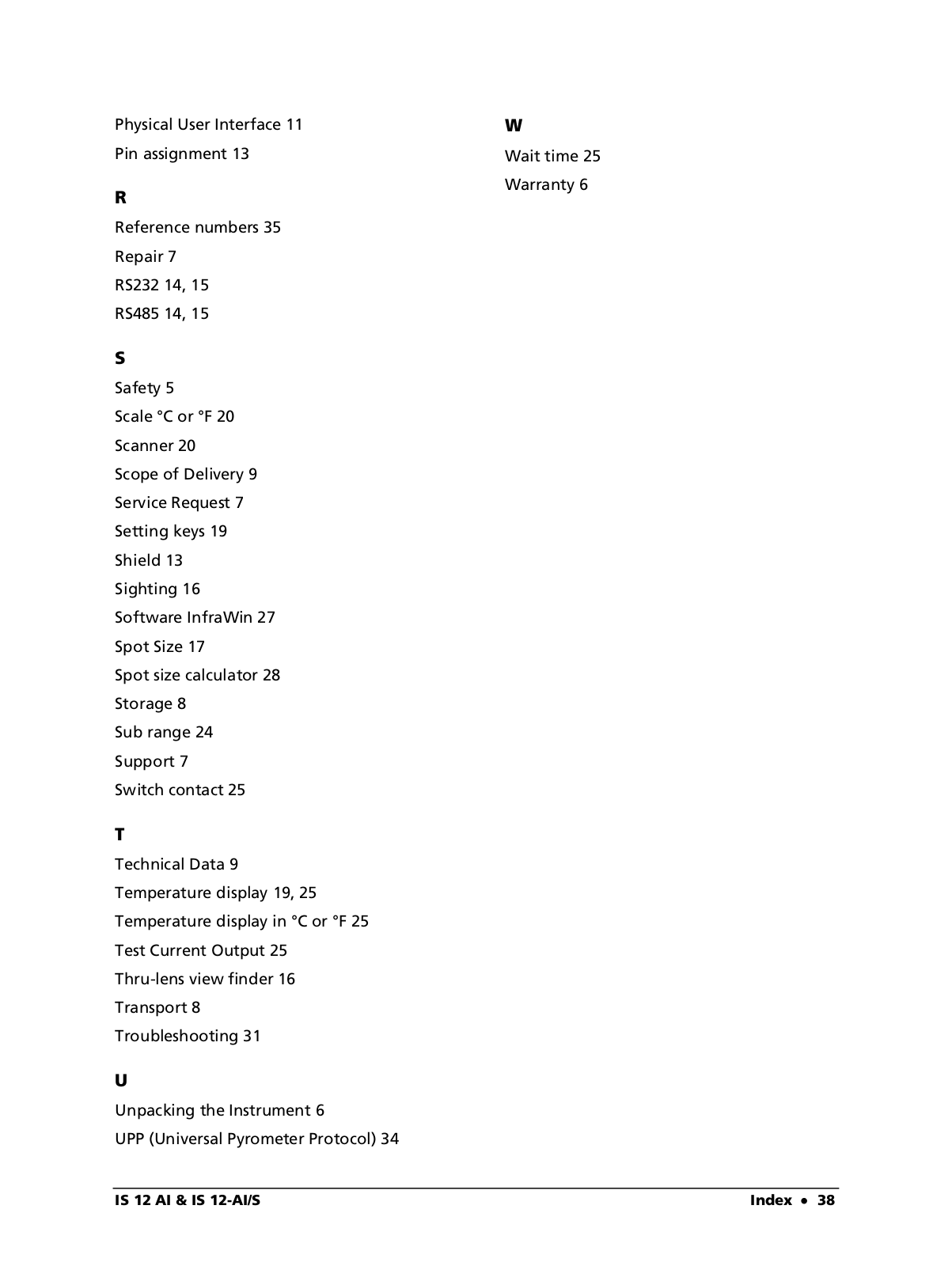

Index ..................................................................................................................................				37

IS 12 AI & IS 12-AI/S

General 4

1 General

1.1Information about the user manual

Congratulations on choosing this high quality and highly efficient pyrometer.

This manual provides important information about the instrument and can be used as a work of reference for installing, operating, and maintaining your pyrometer. It is important that you carefully read the information contained in this manual and follow all safety procedures before you install or operate the instrument.

To avoid handling errors, keep this manual in a location where it will be readily accessible.

1.1.1Legend

Note: The note symbol indicates tips and useful information in this manual. All notes should be read to effectively operate the instrument.

Attention: This sign indicates special information which is necessary for a correct temperature measurement.

Warnings and Cautions: The general warnings and cautions symbol signifies the potential for bodily harm or damage to equipment.

MB Shortcut for Temperature range (in German: Messbereich)

1.1.2Terminology

The terminology used in this manual corresponds to the VDI- / VDE-directives 3511, Part 4.

1.2Safety

This manual provides important information on safely installing and operating the

pyrometer. Several sections of this manual provide safety warnings to avert danger. These safety warnings are specified with a warning symbol. You must read and understand the contents of this manual before operating the instrument even if you have used similar instruments or have already been trained by the manufacturer.

It is also important to continually pay attention to all labels and markings on the instrument and to keep the labels and markings in a permanent readable condition.

Warning: The pyrometer is only to be used as described in this manual. It is recommended that you only use accessories provided by the manufacturer.

In addition, signs and markings on the device are to be observed and maintained in a legible condition.

1.2.1Laser targeting light

For easy alignment to the measuring object, the pyrometers can be equipped with a laser targeting light. This is a visible red light with a wavelength between 630 and 680 nm and a maximum power of 1 mW. The laser is classified as product of laser class II.

IS 12 AI & IS 12-AI/S

General 5

Warning: To reduce the risk of injury to the eyes, do not look directly into the targeting laser and do not point the targeting laser into anyone's eyes. The instrument is equipped with a class II laser that emits radiation.

Never look directly into the laser beam. The beam and spot can be watched safely from side.

Make sure that the beam will not be reflected into eyes of people by mirrors or shiny surfaces.

1.2.2Electrical connection

Follow common safety regulations for main voltage (230 or 115 V AC) when connecting additional devices. Touching the main voltage can be fatal. An incorrect connection and/or mounting can cause serious health or material damages.

Only qualified specialists are allowed to connect such devices to the mains voltage.

1.3Limit of liability and warranty

All general information and notes for handling, maintenance, and cleaning of this instrument are offered according to the best of our knowledge and experience.

LumaSense Technologies is not liable for any damages that arise from the use of any examples or processes mentioned in this manual or in case the content of this document should be incomplete or incorrect. LumaSense Technologies reserves the right to revise this document and to make changes from time to time in the content hereof without obligation to notify any person or persons of such revisions or changes.

All instruments from LumaSense Technologies have a regionally effective warranty period. Please check our website at http://info.lumasenseinc.com/warranty for up-to-date warranty information. This warranty covers manufacturing defects and faults which arise during operation, only if they are the result of defects caused by LumaSense Technologies.

The Windows compatible software was thoroughly tested on a wide range of Windows operating systems and in several world languages. Nevertheless, there is always a possibility that a Windows or PC configuration or some other unforeseen condition exists that would cause the software not to run smoothly. The manufacturer assumes no responsibility or liability and will not guarantee the performance of the software. Liability regarding any direct or indirect damage caused by this software is excluded.

The warranty is VOID if the instrument is disassembled, tampered with, altered, or otherwise damaged without prior written consent from LumaSense Technologies; or if considered by LumaSense Technologies to be abused or used in abnormal conditions.

There are no user-serviceable components in the instrument:

No adjustments may be made to the targeting laser. It is fixed at the factory.

No adjustments may be made to the targeting laser's power level.

1.4Unpacking the Instrument

Before shipment, each instrument is assembled, calibrated, and tested at the LumaSense Factory. When unpacking and inspecting your system components, you need to do the following:

1. Check all materials in the container against the enclosed packing list.

IS 12 AI & IS 12-AI/S

General 6

LumaSense Technologies cannot be responsible for shortages against the packing list unless a claim is immediately filed with the carrier. Final claim and negotiations with the carrier must be completed by the customer.

2.Carefully unpack and inspect all components for visible damage. If you note any damage or suspect damage, immediately contact the carrier and LumaSense Technologies, Inc.

3.Save all packing materials, including the carrier’s identification codes, until you have inspected all components and find that there is no obvious or hidden damage.

Note: LumaSense encourages you to register your product with us to receive updates, product information, and special service offers: http://www.info.lumasenseinc.com/registration.

1.5Service Request, Repair, or Support

Contact LumaSense Technologies Technical Support in case of a malfunction or service request. Provide clearly stated details of the problem as well as the instrument model number and serial number. Upon receipt of this information, Technical Support will attempt to locate the fault and, if possible, solve the problem over the telephone.

If Technical Support concludes that the instrument must be returned to LumaSense Technologies for repair, they will issue a Return Material Authorization (RMA) number.

Return the instrument upon receipt of the RMA number, transportation prepaid. Clearly indicate the assigned RMA number on the shipping package exterior. Refer to Section 1.6, Shipments to LumaSense for Repair, for shipping instructions.

Technical Support can be contacted by telephone or email:

Santa Clara, California

Telephone: [phone] or [phone]

Email: [e-mail]

Frankfurt, Germany

Telephone: [phone]

Email: [e-mail]

Erstein, France

Telephone: [phone]

Email [e-mail]

1.6Shipments to LumaSense for Repair

All RMA shipments of LumaSense Technologies instruments are to be prepaid and insured by way of United Parcel Service (UPS) or preferred choice. For overseas customers, ship units airfreight, priority one.

The instrument must be shipped in the original packing container or its equivalent. LumaSense Technologies is not responsible for freight damage to instruments that are improperly packed.

Contact us to obtain an RMA number (if one has not already been assigned by Technical Support). Clearly indicate the assigned RMA number on the shipping package exterior.

IS 12 AI & IS 12-AI/S

General 7

Send RMA Shipments to your nearest technical service center:

Santa Clara, California	Frankfurt, Germany
LumaSense Technologies, Inc.	LumaSense Technologies GmbH
3301 Leonard Court	Kleyerstr. 90
Santa Clara, CA 95054 USA	60326 Frankfurt
Telephone: [phone]	Germany
[phone]	Telephone: [phone]
Email: [e-mail]	Email: [e-mail]

1.7Transport, packing, and storage

With faulty shipping, the instrument can be damaged or destroyed. To transport or store the instrument, please use the original box or a box padded with sufficient shock-absorbing material. For storage in humid areas or shipment overseas, the device should be placed in welded foil (ideally along with silica gel) to protect it from humidity.

The pyrometer is designed for a storage temperature of -20 to 70 °C with non-condensing conditions. Storing the instrument out of these conditions can cause damage or result in malfunction of the pyrometer.

1.8Disposal / decommissioning

Inoperable IMPAC pyrometers must be disposed of in compliance with local regulations for electro or electronic material.

IS 12 AI & IS 12-AI/S

General 8

2 Introduction

2.1Appropriate use

The IS 12-Al is a special version of the pyrometer IS 12, designed for the measurement of aluminum. The robust die-cast housing with protection class IP65 is designed for the use in industrial environments.

The instruments IS 12-Al/S is equipped with an integrated scanner which moves the measuring beam adjustable up and down up to 4°.

2.1.1Application

The IS 12-Al is a special development of the well proven IS 10-Al for aluminum applications in temperature ranges between 350 and 1050 °C.

Conventional pyrometers – even 2-color pyrometers – are not able to measure the temperature of aluminum correctly due to the special physical properties of aluminum. To avoid the negative influence of these properties in the non-contact temperature measurement the

IS 12-Al operates in a special spectral range. In this spectral range solid aluminum has a very high and stable emissivity between 30 and 43%. That is why the instrument is suitable for aluminum applications such as extrusion, rolling, billet heating and other heating processes.

Note: Due to physical reasons the IS 12-Al is sensitive to light at the beginning of the temperature range. This sensitivity decreases with increasing temperature. In applications with low temperatures (at the start of the temperature range) the measuring area has to be screened against light to avoid its influence (see drawing).

2.2Scope of Delivery

Instrument with selectable optics, PC measurement and evaluation software InfraWin, works certificate, and operation manual.

2.3Technical Data

Temperature ranges:	350 to 900 °C	(MB 9)
	400 to 1050 °C	(MB 10.5)
Sub range:	any range adjustable within the temperature range, minimum span 51 °C
Signal processing:	photoelectric current, digitized
Spectral ranges:	narrow band in the near infrared
Power supply:	24 V DC (15 to 40 V DC) or 24 V AC (12 to 30 V AC), 48 to 62 Hz
Power consumption:	max. 7 W
Analog output:	0 to 20 mA or 4 to 20 mA switchable, load 0 to 500 Ohm
Test current output:	10 mA, fixed
Digital interface:	switchable: RS232 or RS485 addressable (half duplex),
	baud rate 2.4 up to 115.2 kBd
Display:	built-in 5 digit LED display, height 13 mm, additional function LED’s

IS 12 AI & IS 12-AI/S

Introduction 9

Resolution:	0.1 °C at interface and display,
	< 0.025% of temperature range at the analog output
Isolation:	power supply, digital interface, analog output are galvanically isolated
	against each other and housing
Parameters:	adjustable at the instrument or via serial interface:
	emissivity ; response time t90; clear times tCL of the maximum value
	storage; temperature sub range; analog output 0 to 20 or 4 to 20 mA;
	switch points for limit contacts; °C or °F; interface RS232 or RS485; address;
	baud rate; test current output
	additionally (only via interface adjustable):
	key lock, wait time, recalibration (with special software)
Emissivity :	0.100 to 1.000 in 1/1000 steps
Exposure time t90:	< 1.5 ms (with dynamical adaptation at low signal levels);
	adjustable at 0.01 s; 0.05 s; 0.25 s; 1 s; 3 s; 10 s
Maximum value	built-in single or double storage. Clearing with adjusted time tclear (off; 0.01 s;
storage:	0.05 s; 0.25 s; 1 s; 5 s; 25 s), extern, via interface or automatically with the
	next measuring object
Limit switches:	2 relay outputs (switch-over relay contacts), switch power max. 30 W
	(Imax: 1 A, Umax: 60 V DC)
	Rise and fall times: exposure time of the pyrometer + 2 ms
Accuracy:	0.3% of measured value in °C + 1 °C ( = 1, t90 = 1 s, TU = 15...40 °C, TM 400 °C)
Repeatability:	0.1% of measured value in °C + 1 °C
Scanner adjustments	scanning angle:	0 to 4°
(nur IS 12-Al/S):	scanning frequency:	4 to 10 Hz
Protection class:	IP65 (DIN 40 050)
Control panel:	4 keys, operate with tip of ball-point pen
Ambient temperature:	0 to 70 °C at housing
Storage temperature:	-20 to 70 °C
Relative humidity	non condensing conditions
Weight:	2.2 kg
Sighting:	built-in parallax free thru-lens view finder,
	optionally with an additional built-in laser targeting light
	(max. power level < 1 mW, = 630-680 nm, CDRH class II)
CE-label:	according to EU directives about electromagnetic immunity

Note: The calibration / adjustment of the instruments was carried out in accordance with VDI/VDE directive “Temperature measurement in industry, Radiation thermometry, Calibration of radiation thermometers”, VDI/VDE 3511, Part 4.4.

For additional details on this directive, see http://info.lumasenseinc.com/calibration or order the directive from “Beuth Verlag GmbH” in D-10772 Berlin, Germany.

IS 12 AI & IS 12-AI/S

Introduction 10

2.4Dimensions

2.5Physical User Interface

1			7
2			8
3			9
4			10
5			11
6			12
1	Display °C or °F as well as active limit	7		Laser warning label (only instruments
2	switches	8		with laser targeting light)
	LED display			Fixed or focusable optics
3	Parallax free thru-lens view finder	9		Label with optics information
4	Setting keys (operate with Tip of ball-point	10		Mounting holes
	pen)	11		Cap for scanner adjustments (only
5	Parameter indicator			IS 12-Al/S)
6	Main connection cable and	12		Type label (bottom side of the
	additional cable for limit contacts			instrument)

IS 12 AI & IS 12-AI/S

Introduction 11

2.6Accessories (Option)

Numerous accessories guarantee easy installation of the pyrometers. The following overview shows a selection of suitable accessories. You can find the entire accessory program with all reference numbers on no. Section 10.2 Reference numbers accessories.

Mounting

For mounting and aligning the pyrometer to the measured object a mounting angle or ball and socket mountings are available. The ball and socket mounting is an easy way to align the pyrometer or water cooling jacket (ball and socket mounting steel) to the measured object. The quick-clamping-screws of the ball and socket mounting enable an easy and fast adjustment of the pyrometer in all directions.

ball and socket ball and socket mounting, steel

mounting

mounting angle

Cooling

The pyrometer can be used in ambient temperatures outside of the specifications if preventive maintenance is taken.

The cooling plate is used to protect the pyrometer from heat coming from the front. The completely covered water cooling jacket made from stainless steel protects the pyrometer if exposed to a hot environment. It is designed for ambient temperatures up to 180 °C.

cooling plate

water cooling jacket

Miscellaneous

The air purge protects the lens from contamination with dust and moisture. It has to be supplied with dry and oil-free pressurized air and generates an air stream shaped like a cone.

The rotary mirror attachment ROT 10 can only be used in combination with pyrometers with fixed optics. A rotating mirror system moves the measuring beam in a line over the measuring object with a scanning angle up to 73°.

Displays

Additionally to the built-in temperature indicator of the pyrometer LumaSense offers several digital displays which can also be used for remote parametrizing of the pyrometer.

Air purge	Rotary mirror attachment ROT 10

digital display DA 6000

LED large display

Installation Note: Strong incidence of daylight or lamp light into the view finder can affect the measurement. In this case the ocular has to be covered.

IS 12 AI & IS 12-AI/S

Introduction 12
