M
ANUAL
IMPAC Pyrometer
IS 6 Advanced / IGA 6 Advanced
Confidential Information
Service Centers
LumaSense Technologies, Inc.
LumaSense Technologies GmbH
Global and Regional Centers
Our Headquarter
Americas, Australia, & Other Asia
Europe, Middle East, Africa
Brazil
India
China
The material contained herein consists of information that is the property of LumaSense
Technologies and intended solely for use by the purchaser of the equipment described in this
manual. All specifications are subject to change without notice. Changes are made periodically
to the information in this publication, and these changes will be incorporated in new editions.
LumaSense Technologies prohibits the duplication of any portion of this manual or the use
thereof for any purpose other than the operation or maintenance of the equipment described
in this manual, without the express written permission of LumaSense Technologies.
Copyright
© LumaSense Technologies 2012. All rights reserved.
Trademarks
IMPAC is a trademark of LumaSense Technologies.
All other trademarks are trademarks, registered trademarks, and/or service marks of their
respective holders.
North America
Sales & Service
Santa Clara, CA, USA
Ph: +1 800 631 0176
Ph: +1 408 727 1600
Fax: +1 408 727 1677
LumaSense Technologies, Inc.
Santa Clara, CA, USA
Ph: +1 800 631 0176
Fax: +1 408 727 1677
LumaSense, Vendas Brasil
Campinas, Brasil
Ph: +55 19 3367 6533
Fax: +55 19 3367 6533
LumaSense Technologies, Inc.
Santa Clara, CA, USA
Ph: +1 800 631 0176
Fax: +1 408 727 1677
LumaSense Technologies, India
Mumbai, India
Ph: + 91 22 67419203
Fax: + 91 22 67419201
E-mail info@lumasenseinc.com
support@lumasenseinc.com
Website http://www.lumasenseinc.com
Part No 03 914 001 - EN
Revision D
November 2013
Other Than North America
Sales & Support
Frankfurt, Germany
Ph: +49 (0) 69 97373 0
Fax: +49 (0) 69 97373 167
LumaSense Technologies GmbH
Frankfurt, Germany
Ph: +49 (0) 69 97373 0
Fax: +49 (0) 69 97373 167
LumaSense Technologies, China
Shanghai, China
Ph: +86 133 1182 7766
Fax: +86 21 5877 2383
Contents
1 General Information ...................................................................................................... 5
1.1 Information about the user manual ..................................................................... 5
1.1.1 Legend ................................................................................................................. 5
1.1.2 Terminology ........................................................................................................ 5
1.2 Safety ..................................................................................................................... 5
1.3 Limit of liability and warranty ............................................................................. 5
1.4 Unpacking the Instrument .................................................................................... 6
1.5 Service Request, Repair, or Support ..................................................................... 6
1.6 Shipments to LumaSense for Repair .................................................................... 7
1.7 Disposal / decommissioning ................................................................................. 7
2 Introduction ................................................................................................................... 9
2.1 Appropriate use ..................................................................................................... 9
2.2 Scope of delivery ................................................................................................... 9
2.3 Technical Data ....................................................................................................... 9
2.4 Dimensions .......................................................................................................... 11
2.5 Physical User Interface ........................................................................................ 11
2.6 Accessories (optional) ......................................................................................... 12
2.6.1 Mounting ........................................................................................................... 12
2.6.2 Cooling Jacket ................................................................................................... 12
2.6.3 Air Purge............................................................................................................ 12
2.6.4 Vacuum Pickup .................................................................................................. 12
2.6.5 Scanning Mirror ................................................................................................. 12
2.6.6 Flange System .................................................................................................... 12
2.7 Transport, Packing, Storage ................................................................................ 13
3 Controls and Installation ............................................................................................ 15
3.1 Electrical Installation .......................................................................................... 15
3.1.1 Pin assignment of the connector....................................................................... 15
3.1.2 Connecting the pyrometer to a PC .................................................................... 16
3.1.3 Connection to RS485 ......................................................................................... 16
3.1.4 Connection of Additional Units ........................................................................ 17
3.2 Sighting................................................................................................................ 18
3.2.1 Viewfinder ......................................................................................................... 18
3.2.2 Laser Targeting Light ........................................................................................ 18
3.3 Optics ................................................................................................................... 19
3.3.1 Spot Sizes ........................................................................................................... 19
3.3.2 Deviation from the focused measuring distance .............................................. 20
3.3.3 Finding the right measuring distance ............................................................... 20
4 Settings / parameter descriptions .............................................................................. 23
4.1 Temperature Display ........................................................................................... 23
4.2 Emissivity ε .......................................................................................................... 23
4.3 Transmittance t.................................................................................................... 23
IS 6 Advanced / IGA 6 Advanced Manual Contents · iii
4.4 Response Time (t90) .............................................................................................. 23
4.5 Clear Peak Memory (t
) ................................................................................... 24
CLEAR
4.5.1 Single and Double Storage Modes .................................................................... 24
4.5.2 Clear Time Settings ............................................................................................ 24
4.6 Analog Output ..................................................................................................... 25
4.7 Sub Range ............................................................................................................ 25
4.8 Device Address .................................................................................................... 25
4.9 Focused Distance ................................................................................................. 26
4.10 Baud Rate ............................................................................................................. 26
4.11 Pyrometer Internal Temperature ........................................................................ 26
5 Software InfraWin ....................................................................................................... 27
5.1 Connecting the pyrometer to a PC ..................................................................... 27
5.2 Installation........................................................................................................... 27
5.3 Program start....................................................................................................... 27
5.4 Basic settings ....................................................................................................... 28
5.4.1 Open/Save .......................................................................................................... 28
5.4.2 1 measure… ....................................................................................................... 28
5.4.3 Print ................................................................................................................... 28
5.4.4 Close .................................................................................................................. 28
5.4.5 Test .................................................................................................................... 28
5.5 Measurement online trend ................................................................................. 29
5.6 Listing (analyzing) ............................................................................................... 30
5.7 Output .TXT file (analyzing) ................................................................................ 30
5.8 Trend output (analyzing) .................................................................................... 30
5.9 PC sampling rate (time interval between two measurements) ........................ 31
5.10 Spot size calculator ............................................................................................. 31
5.11 Search I/O Module................................................................................................ 31
6 Maintenance ................................................................................................................ 33
6.1 Cleaning the front window ................................................................................ 33
6.2 Calibration ........................................................................................................... 33
6.2.1 Laboratory Calibration ...................................................................................... 33
6.2.2 On-Site Calibration ............................................................................................ 33
7 Data format UPPÒ (Universal Pyrometer Protocol) .................................................... 35
8 Reference Numbers ..................................................................................................... 39
8.1 Reference numbers instrument .......................................................................... 39
8.2 Reference numbers accessories .......................................................................... 39
9 Troubleshooting .......................................................................................................... 41
Index .................................................................................................................................. 43
IS 6 Advanced / IGA 6 Advanced Manual Contents · iv
1 General Information
1.1 Information about the user manual
Congratulations on choosing the high quality and highly efficient IMPAC IS 6 Advanced /
IGA 6 Advanced pyrometer.
This manual provides important information about the instrument and can be used as a work of
reference for installing, operating, and maintaining your IS 6 Advanced / IGA 6 Advanced
pyrometer. It is important that you carefully read the information contained in this manual and
follow all safety procedures before you install or operate the instrument.
To avoid handling errors, keep this manual in a location where it will be readily accessible.
1.1.1 Legend
Note: The note symbol indicates tips and useful information in this manual. All notes
should be read to effectively operate the instrument.
Attention: This sign indicates special information which is necessary for a correct
temperature measurement.
Warnings and Cautions: The general warnings and cautions symbol signifies the
potential for bodily harm or damage to equipment.
MB Shortcut for Temperature range (in German: Messbereich)
1.1.2 Terminology
The terminology used in this manual corresponds to the VDI- / VDE-directives 3511, Part 4.
1.2 Safety
This manual provides important information on safely installing and operating the
IS 6 Advanced / IGA 6 Advanced pyrometer. Several sections of this manual provide safety
warnings to avert danger. These safety warnings are specified with a warning symbol. You must
read and understand the contents of this manual before operating the instrument even if you
have used similar instruments or have already been trained by the manufacturer.
It is also important to continually pay attention to all labels and markings on the instrument and
to keep the labels and markings in a permanent readable condition.
Warning: The pyrometer is only to be used as described in this manual. It is
recommended that you only use accessories provided by the manufacturer.
In addition, signs and markings on the device is to be observed and maintained in legible
condition.
1.3 Limit of liability and warranty
All general information and notes for handling, maintenance and cleaning of this instrument
are offered according to the best of our knowledge and experience.
All Series 6 instruments from LumaSense Technologies have a regionally effective warranty
period. This warranty covers manufacturing defects and faults which arise during operation,
only if they are the result of defects caused by LumaSense Technologies.
IS 6 Advanced / IGA 6 Advanced Manual Contents · 5
Disassembly of the instrument is not allowed. The warranty is VOID if the instrument is
disassembled, tampered with, altered, or otherwise damaged without prior written consent
from LumaSense Technologies; or if considered by LumaSense Technologies to be abused or
used in abnormal conditions.
The Windows compatible software was thoroughly tested on a wide range of Windows
operating systems and in several world languages. Nevertheless, there is always a possibility that
a Windows or PC configuration or some other unforeseen condition exists that would cause the
software not to run smoothly. The manufacturer assumes no responsibility or liability and will
not guarantee the performance of the software. Liability regarding any direct or indirect
damage caused by this software is excluded.
There are no user-serviceable components in the instrument
· Disassembly of the instrument is not allowed. The warranty is VOID if the instrument is
disassembled, tampered with, altered, or otherwise damaged without prior written
consent from LumaSense Technologies; or if considered by LumaSense Technologies to
be abused or used in abnormal conditions.
· No adjustments may be made to the targeting laser. It is fixed at the factory.
· No adjustments may be made to the targeting laser's power level.
1.4 Unpacking the Instrument
Before shipment, each instrument is assembled, calibrated, and tested at the LumaSense Factory.
When unpacking and inspecting your system components, you need to do the following:
1. Check all materials in the container against the enclosed packing list.
LumaSense Technologies cannot be responsible for shortages against the packing list
unless a claim is immediately filed with the carrier. Final claim and negotiations with the
carrier must be completed by the customer.
2. Carefully unpack and inspect all components for visible damage. If you note any damage
or suspect damage, immediately contact the carrier and LumaSense Technologies, Inc.
3. Save all packing materials, including the carrier’s identification codes, until you have
inspected all components and find that there is no obvious or hidden damage.
Note: LumaSense encourages you to register your product with us to receive updates,
product information, and special service offers:
http://info.lumasenseinc.com/registration.
1.5 Service Request, Repair, or Support
Contact LumaSense Technologies Technical Support in case of a malfunction or service request.
Provide clearly stated details of the problem as well as the instrument model number and serial
number. Upon receipt of this information, Technical Support will attempt to locate the fault
and, if possible, solve the problem over the telephone.
If Technical Support concludes that the instrument must be returned to LumaSense Technologies
for repair, they will issue a Return Material Authorization (RMA) number.
Return the instrument upon receipt of the RMA number, transportation prepaid. Clearly
indicate the assigned RMA number on the shipping package exterior. Refer to Section 1.6,
Shipments to LumaSense for Repair, for shipping instructions.
IS 6 Advanced / IGA 6 Advanced Manual Contents · 6
Technical Support can be contacted by telephone or email:
Santa Clara, California
· Telephone: +1 408 727 1600 or +1 800 631 0176
· Email: support@lumasenseinc.com
Frankfurt, Germany
· Telephone: +49 (0) 69 97373 0
· Email: support@lumasenseinc.com
Erstein, France
· Telephone +33 (0)3 88 98 98 01
· Email support@lumasenseinc.com
1.6 Shipments to LumaSense for Repair
All RMA shipments of LumaSense Technologies instruments are to be prepaid and insured by
way of United Parcel Service (UPS) or preferred choice. For overseas customers, ship units airfreight, priority one.
The instrument must be shipped in the original packing container or its equivalent. LumaSense
Technologies is not responsible for freight damage to instruments that are improperly packed.
Contact us to obtain an RMA number (if one has not already been assigned by Technical
Support). Clearly indicate the assigned RMA number on the shipping package exterior.
Send RMA Shipments to your nearest technical service center:
Santa Clara, California Frankfurt, Germany
LumaSense Technologies, Inc.
3301 Leonard Court
Santa Clara, CA 95054 USA
Telephone: +1 408 727 1600
+1 800 631 0176
Email: support@lumasenseinc.com
LumaSense Technologies GmbH
Kleyerstr. 90
60326 Frankfurt
Germany
Telephone: +49 (0)69-97373 0
Email: support@lumasenseinc.com
1.7 Disposal / decommissioning
Inoperable IMPAC pyrometers must be disposed of in compliance with local regulations for
electro or electronic material.
IS 6 Advanced / IGA 6 Advanced Manual Contents · 7
To ensure consistent document formatting, this page was intentionally left blank.
IS 6 Advanced / IGA 6 Advanced Manual Contents · 8
2 Introduction
250 to
2500
°C (MB
25), IGA
Sub Range:
Any range adjustable within the tem
perature range, minimum span
Spectral Ranges:
IS: 0.7 to 1.1
µ
m
Resolution:
0.1 °C or 0.2 °F at interface;
< 0.0015% of adjusted temperature range
Emiss
ivitye:
0.
050to1.000insteps of 1/1000
Transmittance
t
:
0.050 to
1.000
in steps of 1/1000
Response Time
t90:
120 microseconds (for IGA 6, it is recommended for measu
ring
Measurement Uncertainty:
Umg
.
< 1500 °C: 0.3% of reading in °C + 2 °C
Repeatability:
0.15% of reading in
°C + 1 °C
Opti
cs:Manually focusable from rear cover measuring distance
Distance Ratio:
IGA: approx
.350 : 1
2.1 Appropriate use
The IMPAC IS 6 Advanced / IGA 6 Advanced are short wave infrared temperature measuring
devices with digital signal processing. They are used for non-contact temperature measurements
on metals, ceramics, graphite, etc. with a temperature range between 250 and 3000 °C.
2.2 Scope of delivery
Pyrometer, PC adjustment, and evaluation software InfraWin, works certificate, and operating
instructions.
Note: A connection cable is not included with the instrument and has to be ordered
separately (see Chapter 8, Reference numbers).
2.3 Technical Data
Measurement
Temperature Ranges:
250 to 1800 °C (MB 18), IGA
600 to 3000 °C (MB 30), IS
600 to 1800 °C (MB 18), IS
50 °C
IGA: 1.45 to 1.8 µm
at analog output, 16 bit; 1 °C or 1 °F on display
temperatures below 300 °C to set a response time of 1 ms (min);
adjustable to min; 1 ms; 3 ms; 5 ms; 10 ms; 50 ms; 250 ms; 1 s; 3 s; 10 s
(e = 1, t90 = 1 s, T
(e = 1, t
Optics
Sighting: Built-in laser aiming light (max. power level < 1 mW, λ = 630 to 680 nm,
= 1 s, T. = 25 °C)
= 25 °C)
> 1500 °C: 0.6% of reading in °C
CDRH class II) or through-lens sighting
a = 210 to 5000 mm
IS: approx. 350 : 1
IS 6 Advanced / IGA 6 Advanced Manual Introduction · 9
Environment
Relative Humidity:
Non condensating conditions
Display (
in rear cover
):
LED, 4 digit matrix, 5 mm high temperature signal or measuring
Parameter
s:Adjustable via interface:
Analog Output
:
Adjustable 0 to 20 mA or 4 to
20 mA, linear (via digital interface)
Digital Interf
ace:RS485 addressable (half
-
duplex)
Maximum Value Storage
:
Built
-
in single or double storage. Clearing with adjusted time t
(off; 10
Power Supply:
24 V DC ±
25%, ripple must be less than 50 mV
Power Consumption:
Max. 3 W (
incl. laser)
Load (analog output):
0 to
500
Ohm
Isolation:
Power supply, analog output
,
and digital interface are galvanically
Protection Class: IP 65 IEC 60529 (value in mated condition)
Operating Position: Any
Ambient Temperature:
Note: During operation the
instruments will warm up and might
reach an intrinsic temperature of up
to 58 °C
0 to 70 °C at housing
Storage Temperature: -20 to 80 °C
Weight: 0.6 kg
Housing: Stainless steel
CE-Label: According to EU directives about electromagnetic immunity
Interface
Connection: 12-pin connector
distance
emissivity, sub range, settings for maximum value storage, address,
baud rate, transmittance, response time t90, 0 to 20 mA or 4 to 20 mA
analog output range, °C/°F
Readable via interface: measured value, internal temperature of the
unit, measuring distance
Communication
Electrical
Note: The calibration / adjustment of the instruments was carried out in accordance
with VDI/VDE directive “Temperature measurement in industry, Radiation
thermometry, Calibration of radiation thermometers”, VDI/VDE 3511, Part 4.4.
For additional details on this directive, see http://info.lumasenseinc.com/calibration or
order the directive from “Beuth Verlag GmbH” in D-10772 Berlin, Germany.
Baud rate: 1200 Bd to 115.2 kBd (on request RS232, not addressable)
clear
ms; 50 ms; 250 ms; 1 s; 5 s; 25 s), via interface, automatically with the next
measuring object, hold-function
isolated from each other
IS 6 Advanced / IGA 6 Advanced Manual Introduction · 10
2.4 Dimensions
IS 6 Advanced / IGA 6 Advanced
with the view finder
IS 6 Advanced / IGA 6 Advanced
with laser sighting

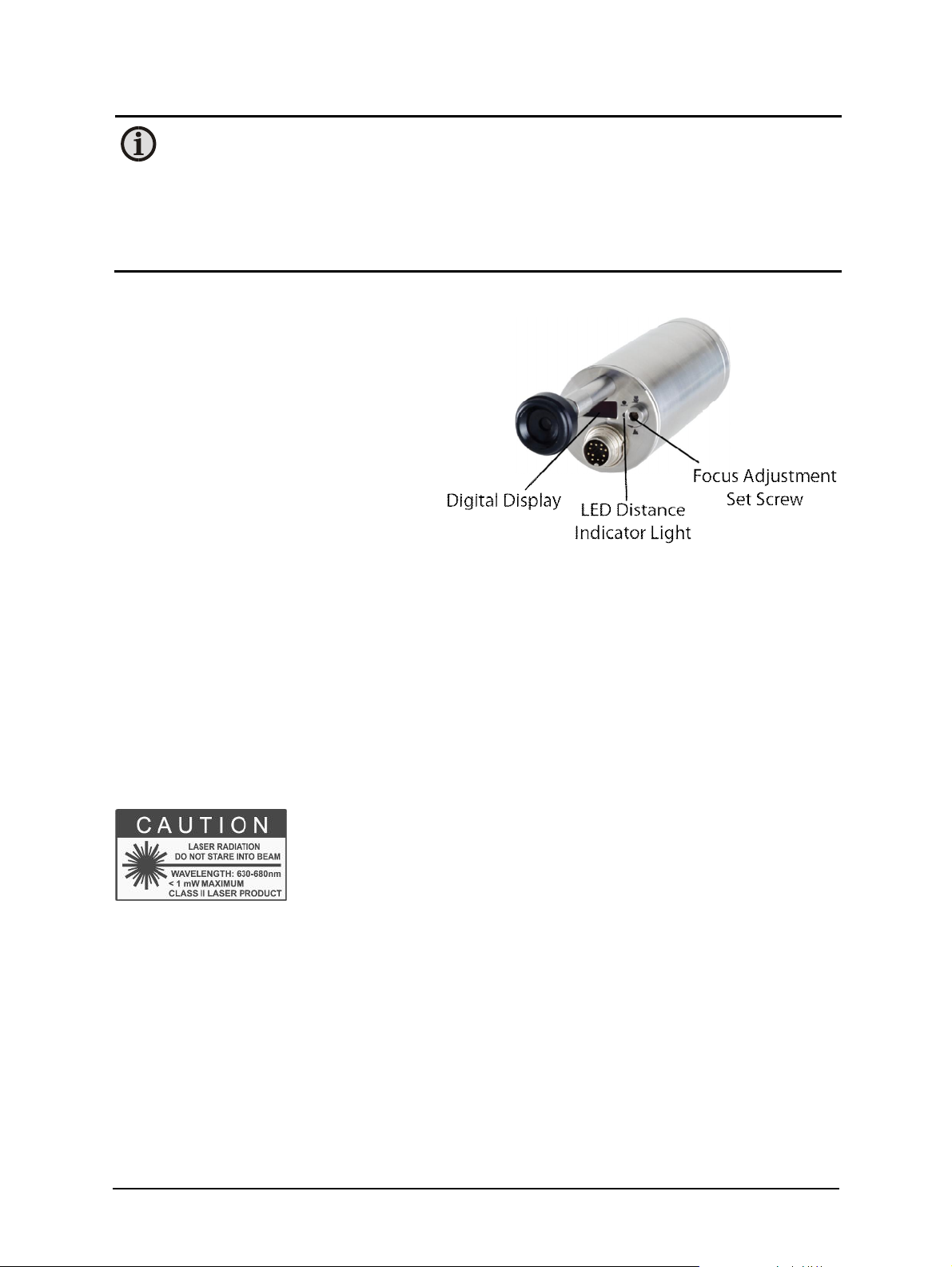

2.5 Physical User Interface
IS 6 Advanced /
IGA 6 Advanced with
laser sighting
Warning
: If selected, the IS 6 Advanced / IGA 6 Advanced
laser light option is a Class 2 and emits laser light.
To minimize the risk of eye injury, do not look directly into
the beam, and do not point the laser beam of the pilot light
into the eyes of another person.
IS 6 Advanced /
IGA 6 Advanced with
the view finder
1 12-pin connector
2 Digital display
3 Optional sighting
4 Screw to adjust the
focus
5 LED distance display
6 LED indicator light for
1-channel mode
7 Adjusting for the view
finder
IS 6 Advanced / IGA 6 Advanced Manual Introduction · 11
2.6 Accessories (optional)
T
he stainless steel housing with integrated water cooling air purge
The vacuum pickup
KF 16
with window allows the user to easily mount
Schematic drawing of the flange
system
Pyrometer
Ceremaic
Tube support
Instrument’s
Numerous accessories guarantee easy installation of the pyrometer. The following overview
shows a selection of suitable accessories. You can find the entire accessory program with all
reference numbers in Chapter 8, Reference numbers.
2.6.1 Mounting
Mounting brackets are available for safe mounting and alignment of
the pyrometer to the measuring object.
Mounting angle
2.6.2 Cooling Jacket
allows use of the pyrometer above the maximum permissible ambient
temperature. The pyrometer can be operated in ambient temperatures
up to 180 °C.
Water cooling jacket with
integrated air purge
2.6.3 Air Purge
The air purge protects the lens from contamination of dust and
moisture. It has to be supplied with dry and oil-free pressurized air and
generates an air stream shaped like a cone.
2.6.4 Vacuum Pickup
the pyrometer on vacuum systems.
2.6.5 Scanning Mirror
The scanning mirror unit SCA 5 allows the measured object to be
scanned over a certain range. The measuring beam of the pyrometer
moves straight in one line across the object and collects temperature
data of this line. This is useful when used in combination with the
maximum value storage (peak picker) to measure objects which move
out of the target area. The scanning angle of the mirror is 0 to 12° and
the scanning frequency 0 to 5 Hz. Both values are easily adjustable at
the scanner.
2.6.6 Flange System
The flange system is a modular mounting system
to fix the pyrometer on furnaces, vacuum
chambers, etc.
It can consist of e.g. mounting support, tube
support with air purge and flange and an open or
closed ceramic sighting tube. The mounting
IS 6 Advanced /
IGA 6 Advanced
with air purge
nozzle and
flange
support
Air purge
Vacuum Pickup
Scanning Mirror
sighting tube
600 x 24, closed
IS 6 Advanced / IGA 6 Advanced Manual Introduction · 12
support can be equipped with a quartz window for vacuum applicationsIt may consist of an
equipment rack, flange, and an open or closed ceramic tube. The equipment rack can be
equipped for vacuum applications with a fused silica.
2.7 Transport, Packing, Storage
With faulty shipping, the instrument can be damaged or destroyed. To transport or store the
instrument, please use the original box or a box padded with sufficient shock-absorbing
material. For storage in humid areas or shipment overseas, the device should be placed in
welded foil (ideally along with silica gel) to protect it from humidity.
The pyrometer is designed for a storage temperature of -20 to 80 °C with non-condensing
conditions. Storing the instrument out of these conditions can cause damage or result in
malfunction of the pyrometer.
IS 6 Advanced / IGA 6 Advanced Manual Introduction · 13
To ensure consistent document formatting, this page was intentionally left blank.
IS 6 Advanced / IGA 6 Advanced Manual Introduction · 14
3 Controls and Installation

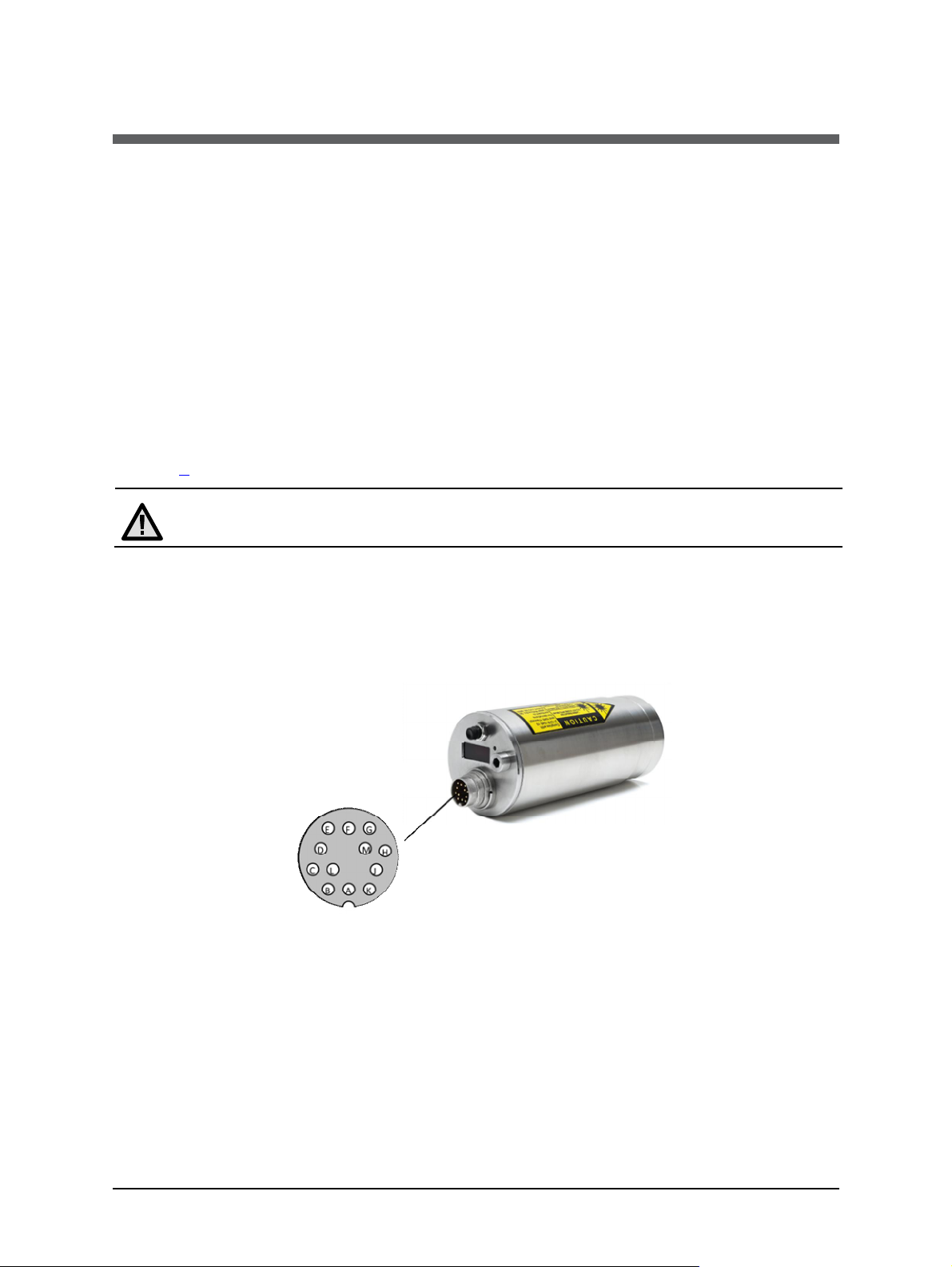

12-pin connector
Pin assignment
3.1 Electrical Installation
The IS 6 Advanced / IGA 6 Advanced is powered by a voltage of 24 V DC ± 25% (ripple < 50 mV).
It is important to ensure correct polarity when connecting the device to the power supply.
To meet the electromagnetic requirements (EMV), a shielded connecting cable must be used.
LumaSense offers connecting cables, which are not part of the standard scope of delivery. The
shield of the connecting cable has to be connected only on the pyrometer’s side. If the
connecting cable is extended, the shield of the extension also needs to be extended. The shield
must be open on the power supply side (switch board), to avoid ground loops.
The connecting cable has wires for the power supply, interface, analog output, switch contact,
and external clearing of the maximum value storage via contact and 12-pin connector (see
Chapter 8, Reference numbers).
Attention:
Once the instrument has been connected to the power supply, it is immediately ready for use.
Although it does not need to be warmed up, it does need to run for approximately 15 to 30
minutes before achieving full accuracy. The instrument can be switched off by interrupting the
power supply or unplugging the electrical connector.
When connecting the power supply, ensure the polarity is correct.
3.1.1 Pin assignment of the connector
(view of the connector pins)
IS 6 Advanced / IGA 6 Advanced Manual Controls and Installation · 15
Pin Color Function
K
white
+24 V DC
power supply
A
brown
0 V DC
power supply
L
green
+ I
Ausg.
analog output
B
yellow
–
I
Ausg.
analog outpu
t
Targeting light activate / deactivate via
External clearing of max. value storage
G
red
DGND
(GND
for interface
)
F
black
B1 (RS485) or
RxD (RS232)
C
violet
A1 (RS485) or
TxD (RS232)
D
gray-
pink
B2 (RS485) (
bridged with
F)
E
red-blue
A2 (RS485) (
bridged with
C)
Screen only for cable extension,
H gray
J pink
M orange
external switch (bridged with K)
(bridge to K) or hold function*
don’t connect at the switchboard
*The connector pin J can be used for two different functions:
1. External clearing of the maximum value storage: When the pyrometer is in
operating mode, pin J can be used for external clearing of maximum value storage.
When external clearing is selected from the tclear dropdown menu, pin J is connected
for a short time to pin K (power supply voltage) to clear the stored maximum value. The
function “external clearing” is triggered when the clear time is set to “extern”.
2. Hold function: When the hold function mode is activated, the current temperature
reading is frozen as long as pin J and pin K are connected. (See section 4.5 for clear time
for the maximum value storage).
3.1.2 Connecting the pyrometer to a PC
The pyrometer is equipped with an RS485 serial interface. With the RS485, long transmission
distances can be realized and the transmission is, to a large extent, free of problems. The RS485
also allows several pyrometers to be connected in a bus system.
If an RS485 connection is not available at the PC, it can be accomplished using the RS485 to USB
connector. When using a RS485 to USB adapter, make sure that the adapter is fast enough to
receive the pyrometer’s answer to an instruction of the master. Most of the commonly used
adapters are too slow for fast measuring equipment, so it is recommended to use the
RS485 ó USB converter “USB nano“ (ref. no. 3 852 600).
3.1.3 Connection to RS485
Half-duplex mode: A1 and A2 as well as B1 and B2 are bridged in the 12-pin round connector of
the connecting cable, to prevent reflections due to long stubs. It also safeguards against the
interruption of the RS485 bus system, should a connecting plug be pulled out. The master labels
mark the connections on the RS485 converter.
The transmission rate of the serial interface in Baud (Bd) is dependent on the length of the
cable. Adjusted values are from 1200 to 115200 Bd.
IS 6 Advanced / IGA 6 Advanced Manual Controls and Installation · 16
Terminator
Pyrometer 1
e.g. Address 00
Pyrometer 2
e.g. Address 01
Pyrometer 32
e.g. Address 31
RS485 Bus System
3.1.4 Connection of Additional Units
For temperature indication of the pyrometer, LumaSense offers pure indicators (series DA 4000).
LumaSense also offers indicators with features to change pyrometer parameters (DA 6000 and
DA 6000-N) as well as a fast digital PID controller PI 6000.
Digital Display Parameterizing Indicator Digital Controller
Additional analyzing instruments, including LED digital displays only need to be connected to a
power supply and the analog outputs of the pyrometer (exception: the digital display DA 6000
can also be connected with its serial interface, whereas the digital display DA 6000-N has to be
connected with its serial interface).
Connection of additional units
Other instruments like an analog controller or printer can be connected to the display in a series
as shown above (total load of resistance max. 500 Ohm).
IS 6 Advanced / IGA 6 Advanced Manual Controls and Installation · 17
3.2 Sighting
Viewfinder Adjustment Ring
The IS 6 Advanced / IGA 6 Advanced can be purchased with Through-Lens Sighting (viewfinder)
or with a Laser Targeting Light. These sighting options allow you to easily align the pyrometer
to the measuring object.
3.2.1 Viewfinder
The IS 6 Advanced / IGA 6 Advanced can be equipped with a viewfinder which offers throughlens sighting. The viewfinder is true-sided and parallax-free. A circle marks the position of the
measuring spot, but not the exact spot size.
The viewfinder is equipped with an adjustable eye-protection filter, which allows you to view
hot objects without exposing your eye to high intensity light. When you are viewing hot objects,
turn the adjustment ring on the viewfinder so the filter will let in less light.
Warning: To ensure eye protection, make sure you use the shaded filter when
viewing objects with temperatures of 1500 °C or higher.
Note: You can turn the adjustment ring on the viewfinder in both a clockwise and
counterclockwise direction to change the filter from light to dark.
When you are viewing low temperature objects, turn the viewfinder adjustment ring so the
filter will let in more light.
3.2.2 Laser Targeting Light
The IS 6 Advanced / IGA 6 Advanced can be equipped with a laser targeting light to assist with
aligning the pyrometer to the measuring object. The laser targeting light is a visible red light
with a wavelength between 630 and 680 nm and a maximum power of 1 mW. The laser is
classified as product of laser class II.
The laser spot marks the center of the measuring spot on the target. The diameter does not
correspond to the spot size. The smallest diameter of the laser spot approximately indicates the
measuring distance.
Warning:
that emits radiation.
To reduce the risk of injury to the eyes, do not look directly
into the targeting laser and do not point the targeting laser
into anyone's eyes.
The instrument is equipped with a class II laser
IS 6 Advanced / IGA 6 Advanced Manual Controls and Installation · 18
Never look directly into the laser beam. The beam and spot can be watched safely from side.
Push button for
Also, make sure that the beam will not be reflected into eyes of people by mirrors or shiny
surfaces.
The laser targeting light can be switched on and off by pressing the button of the rear cover of
the housing.
Laser Targeting Light
Note: The laser warning signs on the pyrometer should be easily viewable at all times,
even after it has been installed.
The laser targeting light can also be switched on and off by using an external contact (see
section 3.1.1 Pin Assignment) or through the InfraWin software. If it is not switched off by one
of the above-mentioned methods, it will be switched off automatically after approximately
2 minutes.
To prevent damage to the laser, the targeting light is also switched off automatically if the
internal temperature of the pyrometer exceeds 61 °C. It can only be used again once the
temperature falls below 61 °C.
3.3 Optics
3.3.1 Spot Sizes
The IS 6 Advanced / IGA 6 Advanced has a Vario optics, which can be manually adjusted at all
distances between 210 mm and 5000 mm.
The table of Spot Sizes in Relation to Measuring Distance shows examples of the pyrometer’s
spot size M [mm] in relation to the measuring distance a [mm] (min. 90% of the radiation
intensity). Increasing or decreasing the measuring distance will change the spot size.
Note: Since these are 1-color (mono) pyrometers, they can measure objects at any
distance (whether focused or non-focused). However, the object has to be bigger than,
or at least as big as, the spot size of the pyrometer in the measuring distance.
IS 6 Advanced / IGA 6 Advanced Manual Controls and Installation · 19
Aperture D for all temperature ranges is 13 to 15 mm with the aperture being the effective
Measuring Distance
IGA 6 Advanced
2100.6
3000.9
5001.5
8002.3
1300
3.
7
2000
5.
8
5000
15
diameter of the lens. This is dependent on the optical setting. The largest value applies to a very
small measuring distance, while the minimum value applies to the largest measuring distance.
a [mm]
Examples of Spot Sizes in Relation to Measuring Distance
Note: Effective aperture D for all temperature ranges is 13 mm (focused to longest
distance) to 15 mm (focused to shortest distance).
Focused spot sizes between the listed distances can be found by linear interpolation between
the listed values.
IS 6 Advanced
3.3.2 Deviation from the focused measuring distance
Spot sizes for non-focused distances (shorter or longer than the focused distance) may be
calculated by using the formula below.
Formula for Calculating Spot Sizes
The InfraWin software also includes a Spot Size Calculator that calculates the data for the
non-focused regions, if you enter the values of aperture D, focused measurement distance a,
and focused measuring field diameter M as found in the above table (see section 3.3.1).
3.3.3 Finding the right measuring distance
The measuring distance can be set using the Focus Adjustment Screw on the back of the device.
The focused distance value can be adjusted at all distances between 210 mm and 5000 mm. To
focus, turn the focus adjustment set screw to make the target image appear sharp and clear.
Note: The optics are manually focusable with a measuring distance of a = 210 to
5000 mm.
IS 6 Advanced / IGA 6 Advanced Manual Controls and Installation · 20
The LED Distance Indicator Light (labeled mm) will turn red and the approximate focused
measuring distance in mm will automatically be shown on the Digital Display for a few seconds
after making an adjustment using the Focus Adjustment Set Screw.
Note: Turning the focus adjustment screw counterclockwise will shorten the
measuring distance.
Turning the focus adjustment screw clockwise will lengthen the measuring distance.
IS 6 Advanced / IGA 6 Advanced Manual Controls and Installation · 21
To ensure consistent document formatting, this page was intentionally left blank.
IS 6 Advanced / IGA 6 Advanced Manual Controls and Installation · 22
4 Settings / parameter descriptions
The pyrometer is equipped with a wide range of settings for optimal adaptation to the required
measuring condition and to measure the temperature correctly.
All settings can be read and set only in the pyrometer parameters window of the
software InfraWin. Adjusting the settings at the instrument is not possible (detailed
description of the software see Chapter 5, Software InfraWin).
Selecting the pyrometer parameters window shows the current settings of the
pyrometer. Changing a value can either be done by typing a value in an input box or by
selecting a preset value from the list field.
4.1 Temperature Display
The Digital Display on the back of the pyrometer will show the temperature measurement in
either °C or °F. You can select which temperature scale you wish to use through the InfraWin
software or by using the UPP Data Format commands.
The Measuring Value can also be viewed at any time through the InfraWin Software or by using
the UPP Data Format commands.
4.2 Emissivity ε
Different materials have different emissivities ranging between 0% and 100%. The emissivity is
also dependent upon on the surface condition of the material, the spectral range of the
pyrometer, and the measuring temperature. The emissivity setting of the pyrometer has to be
adjusted accordingly.
Emissivity settings between 5% and 100% can be established through the InfraWin software or
by using the UPP Data Format commands.
Note: Emissivity e can be set from 5% to 100% in steps of 0.1%
4.3 Transmittance t
Transmittance is a parameter that can compensate for signal loss due to external windows etc.
For example, if the emissivity of the material is 0.6 and the transmittance of an additional
window is 0.9, then the product would be 0.54 which is well inside the allowed range.
The product of transmittance and emissivity (t x e) must not be less than 5%.
Note: Transmittance t can be set from 5% to 100% in steps of 0.1%
4.4 Response Time (t90)
The response time t90 is the time interval for the analog output of the pyrometer to go from a
low temperature value up to 90% of the temperature step to a high value when measuring an
abrupt increase from said low to said high temperature.
Independently of this, the pyrometer performs a measurement every 1 ms and updates the
analog output. Slower response times can be used to achieve a constant temperature reading
for measuring objects that have rapidly fluctuating temperatures.
IS 6 Advanced / IGA 6 Advanced Manual Settings / parameter descriptions · 23
The response time is set using the InfraWin software or by using the UPP Data Format commands.
Settings:
When the setting is set to min., the IS 6 Advanced / IGA 6 Advanced operate using a time constant
of approximately 120 µs. The response time can be extended to 0.01 s; 0.05 s; 0.25 s; 1 s; 3 s; 10 s.
Note: Settings for Response Time t
90
min, 1 ms; 3 ms; 5 ms; 10 ms; 50 ms; 250 ms; 1 s; 3 s; 10 s
4.5 Clear Peak Memory (t
The integrated maximum value storage is activated when the parameter t
is set to something other than “OFF” or “HOLD”.
If the maximum value storage is switched on, the highest last temperature
value will always be displayed and stored. As such, it may be beneficial to
periodically clear and reset the stored maximum values in order to obtain
new temperature readings.
CLEAR
)
clear
off
10 ms
50 ms
250ms
1 s
5 s
This storage also has to be cleared at regular intervals when fluctuating
object temperatures cause the display or the analog outputs to change too
rapidly or when the pyrometer is not constantly viewing an object to be
25 s
extern
auto
measured.
4.5.1 Single and Double Storage Modes
Depending upon the selected settings, the maximum value storage will either work in single
storage mode or in double storage mode.
Single Storage
Mode:
Single storage mode is used when you want to reset the stored value using
an external impulse via one contact closure from an external relay (such as
between two measured objects). The relay contact is connected directly to
the pyrometer between pins J and K. This mode allows a new value to be
established after each impulse from the reset signal. Single storage mode
also comes into effect when the Clear Peak Memory t
is set to AUTO.
clear
Double Storage
Mode:
Double storage mode comes into effect when selecting one of the reset
intervals. This mode utilizes two memories. With the first memory, the
highest measured value is held and is deleted alternately in the time
interval set (clear time). The other memory retains the maximum value
throughout the next time interval. The disadvantages of fluctuations in the
display with the clock frequency are thereby eliminated.
Note: The maximum value storage setting coincides with adjustments made to the
response time.
The response time setting (working like a low-pass filter) is applied first. After that,
the maximum storage is processed. So when using both, the maximum storage takes
the peak of the signal that was previously smoothed by the response time filter.
4.5.2 Clear Time Settings
The following settings are available through the InfraWin software or by using the UPP data
format commands.
OFF When set to OFF, the maximum value storage is switched off and all new
temperature values are measured but not stored.
IS 6 Advanced / IGA 6 Advanced Manual Settings / parameter descriptions · 24
10 ms…25,0 s If the clear time is set between 10 ms and 25.0 s, the maximum value is
Einstellu
n
gen:
Settings:
held in double storage mode. After the entered time, the value will be
cleared alternately from one of the storages, while the value of the other
storage is shown.
EXTERN
With the external clearing function, the storage operates in single storage
mode. The values are immediately cleared from the storage by contacting
the wires connected to pins J and K, if the EXTERN mode was selected.
AUTO The AUTO mode is used for discontinuous measuring tasks. For example,
when objects are being transported on a conveyer belt and pass the
measuring beam of the pyrometer only for a few seconds. In this case, the
maximum value for each object has to be obtained.
With the AUTO mode, the maximum value is stored until a new hot object
appears in the measuring beam. The temperature, which has to be
recognized as “hot” is defined by the low limit of the adjusted sub range.
The stored maximum value will be deleted once the temperature of the new
hot object exceeds the low limit of the sub range by 1% (transition in
positive direction) or by at least 2 °C. This is also valid if the sub range equals
the basic range.
HOLD The HOLD function allows you to freeze the current temperature reading at
any moment. This feature is activated using an external switch that has been
connected between connector pins J and K.
The temperature reading will remain frozen as long as the contact remains
closed.
4.6 Analog Output
The analog output has to be selected according to the signal input of the
connected instrument (controller, PLC, etc.). If 4 to 20 mA is set, the analog
output gives 3.9 mA for temperatures below lower range limit.
0 … 20 mA
4 … 20 mA
4.7 Sub Range
You have the opportunity to choose a sub range (minimum span 50 °C) within the basic
measuring range of the pyrometer. This sub range corresponds to the analog output.
Example: Range 250…2500 °C, Sub Range 925…975 °C.
The sub range setting also affects the maximum value storage when the Clear Peak Memory
t
is set to AUTO. For more information on the t
clear
AUTO setting, refer to section 4.5.
clear
Note: Settings for Sub Range - any range adjustable within the temperature range
with a minimum span of 50 °C.
4.8 Device Address
When connecting several pyrometers to one serial interface with RS485, it is
necessary for each instrument to have its own device address for
communication purposes. First, it is necessary to connect each instrument
separately to give it an address. After that, all instruments can be connected
and addressed individually.
IS 6 Advanced / IGA 6 Advanced Manual Settings / parameter descriptions · 25
00
97
.
.
.
Note: Only via own communication program with interface command (not
possible with InfraWin, because InfraWin automatically detects a connected
pyrometer): If parameters should be changed simultaneously on all pyrometers, the
global Address 98 can be used. This allows you to program all pyrometers at the
same time, regardless of the addresses that have already been assigned. If the address
of a pyrometer is unknown, it is possible to communicate with it using the global
Address 99 (connect only one pyrometer).
4.9 Focused Distance
The focused distance value can be
adjusted at all distances between 210 mm
and 5000 mm using the Focus Adjustment
Screw on the back of the device.
The LED Distance Indicator Light will turn
red and the focused measuring distance in
mm will automatically be shown on the
Digital Display within a few seconds of
making an adjustment using the Focus
Adjustment Set Screw.
The focused distance can be viewed at
any time through the InfraWin software or by using the UPP Data Format commands.
4.10 Baud Rate
The transmission rate of the serial interface in Baud (Bd) is dependent on the length of the
cable. A maximum cable length for 19200 Bd with RS485 is 2 km. The baud rate is reduced by
50% if the transmission distance is doubled.
Baud Rates can be set at 1200, 2400, 4800, 9600, 19200, 38400, 57600, or 115200.
4.11 Pyrometer Internal Temperature
The internal temperature of the pyrometer can be read through the PC interface using the
InfraWin software or by using the UPP Data format commands. It is a few degrees higher than
the ambient temperature due to the heat generated by the electronics.
When using the Laser Targeting Light, the targeting light is switched
off automatically if the internal temperature of the pyrometer exceeds
61 °C. This safety feature is used to prevent damage to the laser. It can
only be used again once the temperature falls below 61 °C.
IS 6 Advanced / IGA 6 Advanced Manual Settings / parameter descriptions · 26
5 Software InfraWin
The operating and analyzing InfraWin software is included with delivery of the pyrometer. In
addition to allowing you to make parameter adjustments, the InfraWin software also provides
temperature indication, data logging, and measurement analysis features.
This section gives an overview about the functions of the software. It also provides a description
of the individual icons found in the program's help menu. Click on the F1 button after loading
InfraWin or click on the ? in the menu bar.
The following descriptions refer to software InfraWin version 5.0. The latest version is available
for free as download from the homepage www.lumasenseinc.com.
5.1 Connecting the pyrometer to a PC
The program InfraWin can operate up to two devices. Two devices using RS485 may be operated
simultaneously by the same interface, if two different addresses have been properly entered
(see section 4.8 Device Address for more information).
5.2 Installation
To install the InfraWin software, select setup.exe from the InfraWin-CD or from the downloaded
and unpacked zip file from the internet and then follow the installation instructions.
5.3 Program start
The first time you load InfraWin 5, you will be prompted to select a default language. The
InfraWin software is available in German, English, Spanish, French, Portuguese, and Chinese.
Once installed, click Language/Languages if you would like to select another language.

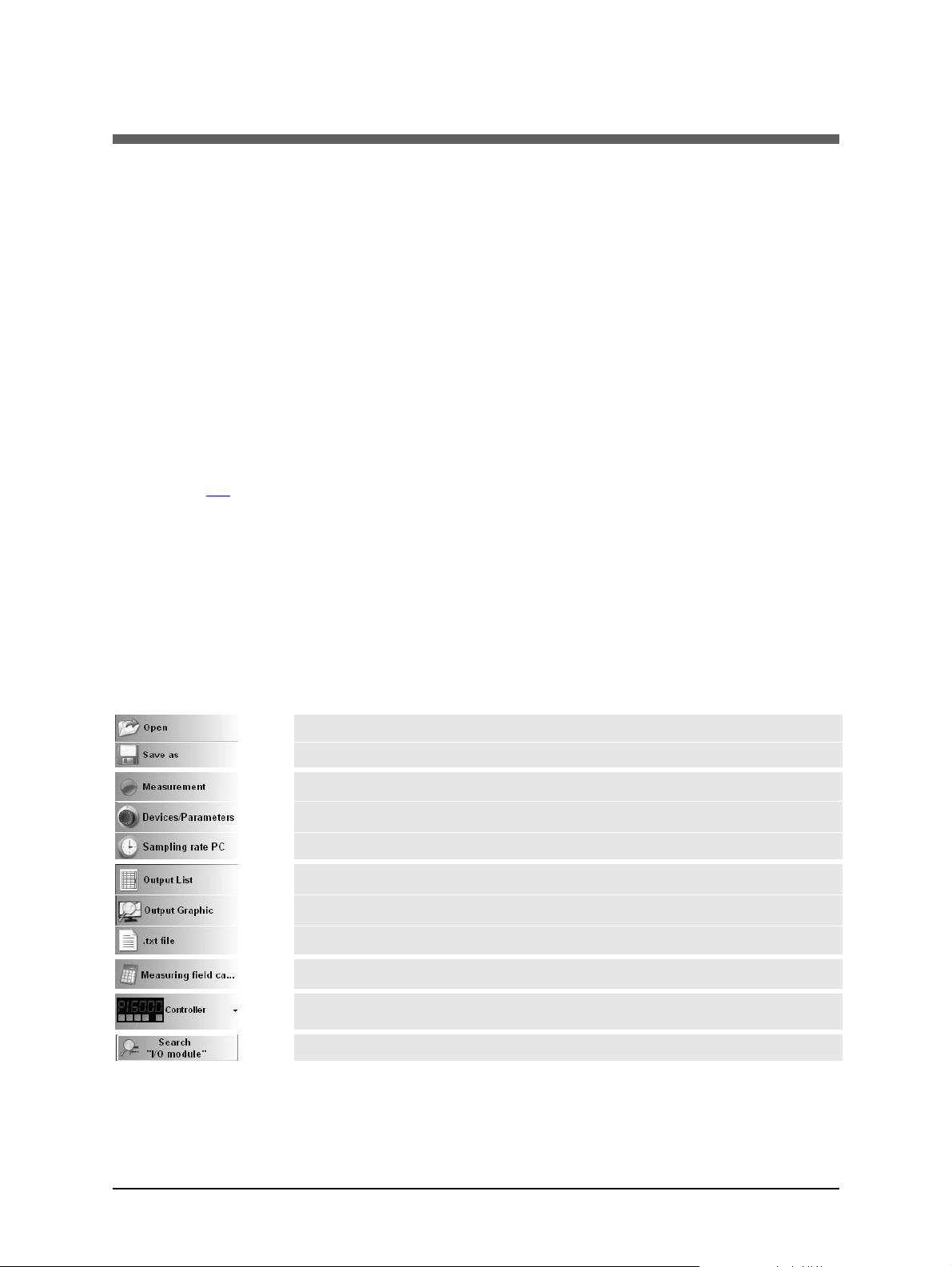

On the start page, the screen shows the following start menu icons.
Opens a saved file
Storage of measured values for further processing
Starts measurement for the selected device
Setting of the parameters of the instruments
Time interval between two measurements
Listing of measured or stored values in tabular form
Processing of measured (stored) readings in graph form
Processing of measured (stored) readings in a text file
Calculation of spot sizes in various measuring distances
Only if available: controls the programmable controller PI 6000
Search I/O module
IS 6 Advanced / IGA 6 Advanced Manual Controls and Installation · 27
5.4 Basic settings
All preset values for the
device can be displayed
and modified, if necessary under
the Devices/Parameters
window.
Changing an existing pyrometer
setting can be accomplished by
typing a value in an input box or
by selecting a preset value from
the list field. Choose the correct
settings for your application
from the displayed options.
This window contains the
parameter settings described in
Chapter 4, Parameters.
5.4.1 Open/Save
The open and save buttons enable you to save customized configurations, which can
then be opened and reused at any time.
5.4.2 1 measure…
The 1 measur… function shows the current measuring temperature in the
pyrometer parameters window for approximately 1 second.
5.4.3 Print
The print icon will generate a screenshot of the parameter form and allow you to
send it a printer.
5.4.4 Close
The close icon will close the pyrometer parameters window.
5.4.5 Test
Clicking on the Test
icon will open a
window that allows you to
directly communicate with the
pyrometer using the UPP
(Universal Pyrometer Protocol)
Data Format commands.
After entering an interface
command (00 is the adjusted
address ex works, ms is the
command reading
temperature value) and
clicking on Send, the window
shown to the right will be
opened.
This window already shows the answer of the pyrometer in 1/10°. The actual temperature
reading is 599.0 °C.
IS 6 Advanced / IGA 6 Advanced Manual Controls and Installation · 28
Len indicates the length of the answered data string, incl. Carriage Return (Chr(13)).
In the lower part of the window, the connection with the preset baud rate can be checked. Here
the command was sent 100 times with 19200 baud. It has taken 0.997 seconds without
transmission errors.

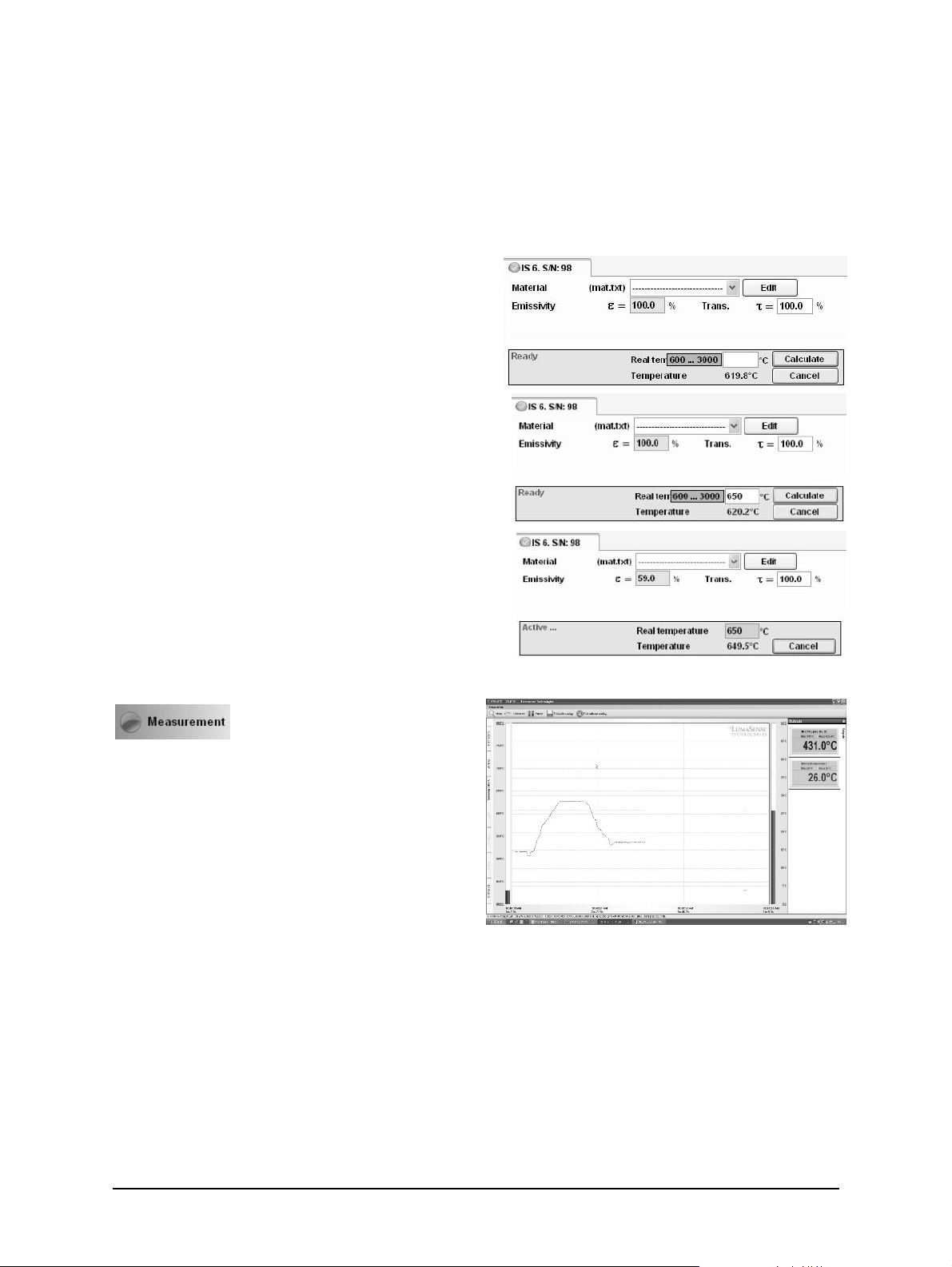

Emi: AutoFind: If the true temperature of the measured object is known, you can calculate the
emissivity of the measured object using the Emi: AutoFind function:
A measured temperature is displayed with the
current set emissivity (in this example 100%)
(here: 619.8 °C).
If you press Emi: Autofind a window will open
which allows you to enter the "true" temperature
(here 650 °C).
Once the temperature entry has been entered and
confirmed with Calculate, InfraWin will then
calculate the emissivity which occurs with the new
temperature (here 59.0%). This is displayed
immediately and can be used for further
temperature measurement.
5.5 Measurement online trend
The measurement function
allows you to access a number
of input tabs located on the left side of the
screen. The main or home tab is the Output
Screen. You can toggle the input tabs on and
off by clicking them. This window displays:
· temperature as graphical diagram
· internal temperature of the instrument
· current temperature
· quantity of the measured values and
file size of the current measurement
The example shows a sample reading over the period of approximately 15 seconds with a
temperature range between 400 and 800 °C. The final temperature (at the end of the reading) is
431 °C.
The Mark Zone button allows you to color mark a temperature range for easier recognition.
The Threshold button allows you to set a temperature value as a baseline to prevent recording
values above or below the baseline temperature. This allows you to keep the output file size
small.
The Scaling Trend button allows you to scale temperature trend view.
IS 6 Advanced / IGA 6 Advanced Manual Controls and Installation · 29
Note: The measuring values of “measurement online trend” are automatically saved
as "standard.i12". Should you need to edit the data later, you need to save the file as
another .i12-file because old values are over-written when a new measurement is
taken.
Files from older program versions (.i10-files) can be opened and saved as .i12.
5.6 Listing (analyzing)
For analyzing
the measured
values in this field, all measured
data appears in a numeric list.
The column between time and
temperature provides a time
resolution of milliseconds. The
value specifies the time in seconds
after midnight (0:00 h). The
amount of data depends on the
frequency that readings were taken
(settings at 10.9 PC sampling rates).
As the amount of data increases, so does the amount of storage space required to save it. In
order to save room, all .i12 data files are stored by a binary code.
5.7 Output .TXT file (analyzing)
The same file as under Output listing may be converted into a text file and
can be easily opened, for example with Microsoft Excel. With the standard
import settings, Excel automatically formats the columns accordingly (with tabs as separators).
5.8 Trend output (analyzing)
The graph’s curve depicts the
temperature change over time
within the specified temperature
range.
Additionally, other information
appears in this window; such as
recorded time (x-axis) and
temperature in degrees (y-axis) as
well as the time and temperature
at the vertical cursor line which can
be dragged with the mouse.
Selecting the Trend output initially
causes all the saved data to be
displayed.
If the data exceeds an amount that can be reasonably represented, you may “Zoom“ in on a
partial segment using the mouse (such as the segment represented in the example). Under
“Total” you can return to the representation of the entire curve.
IS 6 Advanced / IGA 6 Advanced Manual Controls and Installation · 30

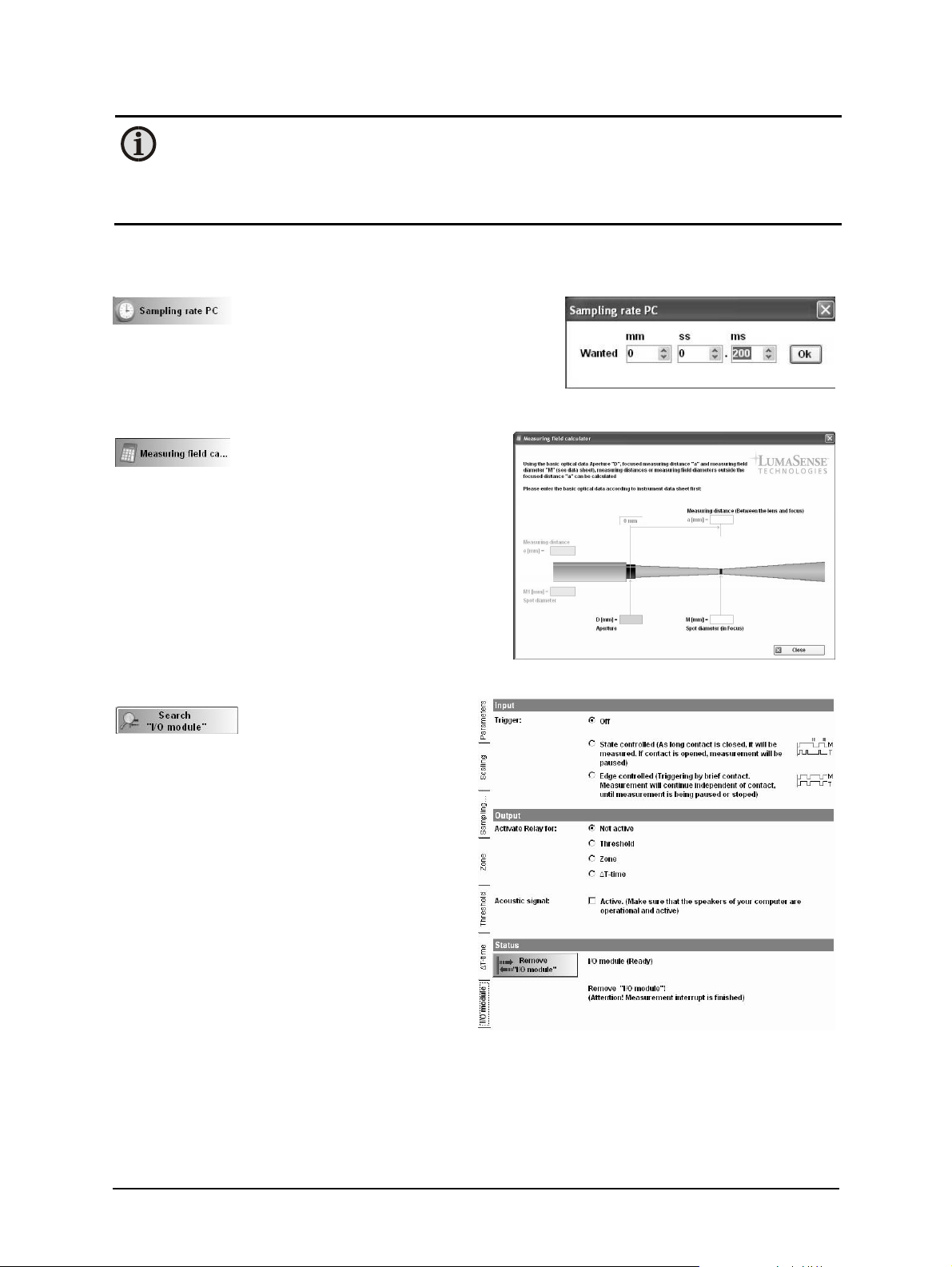

Note: The last reading is saved in the standard.i12 file and automatically appears in
this form upon opening Listing or Trend output.
Selecting file open with another file, the previous file will be overwritten and replaced by the standard.i12 file.
5.9 PC sampling rate (time interval between two
measurements)
This function sets a time interval. After
each interval, one measured value is
stored on the PC. Longer time intervals will result in
creating smaller stored file sizes. This function is mainly
used for long term measurements.
5.10 Spot size calculator
The InfraWin Spot Size Calculator
calculates the data for the nonfocused regions. To calculate data, enter the values
of aperture D, focused measurement distance a,
and focused measuring field diameter M as found
in the documentation relating to the optics
supplied with your specific pyrometer.
After entering the aperture and the main spot size,
the input of interim values calculates spot sizes in
different measuring distances of the fixed optics.
5.11 Search I/O Module
The I/O Module allows
accessories to connect to
the software and is used to trigger
measurement externally or to send a signal
(like a relay) under certain conditions.
IS 6 Advanced / IGA 6 Advanced Manual Controls and Installation · 31
To ensure consistent document formatting, this page was intentionally left blank.
IS 6 Advanced / IGA 6 Advanced Manual Controls and Installation · 32
6 Maintenance
6.1 Cleaning the front window
Since the device does not contain parts that require regular maintenance, the only regular
maintenance required is periodic inspection of the front window for build-up of foreign
particiles. If allowed to build up, the particles can influence the energy received by the
instrument.
The IS 6 Advanced / IGA 6 Advanced window is not water soluable and can be cleaned with
standard lens tissue dampened with a commercially available glasses or camera lens cleaning
solution. Use a soft blower/brush (available in camera stores) to remove any grit on the window
before you rub the lens with lens tissue and solution.
Attention: NEVER CLEAN THE IS 6 Advanced / IGA 6 Advanced WINDOW WITH A
DRY TISSUE OF ANY KIND! The only time dry lens tissue may be used is to dry a
window which has already been cleaned with wet lens tissue.
6.2 Calibration
LumaSense calibrated your IS 6 Advanced / IGA 6 Advanced pyrometer at the factory and
delivered your instrument with a Works Certificate. Normally we advise against changing the
factory set calibration. If you believe that the calibration may have changed, perhaps because
your operating environment is severe, an approximate field (on-site) calibration is possible. You
have the choice of an on-site calibration or arranging a more precise calibration at the
LumaSense factory.
6.2.1 Laboratory Calibration
Contact LumaSense for information about calibration at the LumaSense factory. For most of our
customers who do not have large numbers of infrared thermometers in service, we recommend
that our laboratory be chosen to do calibration. When you have many infrared thermometers,
you may find it most convenient and economical to have your own calibration laboratory.
LumaSense has a variety of blackbody calibration sources including very economical ones.
Among these you may find the source most suitable for your own laboratory.
6.2.2 On-Site Calibration
See Chapter 9 Troubleshooting before attempting to perform your own calibration. The
instrument was calibrated at the factory to its original accuracy as stated.
Nearly all erroneous temperature readings are caused by application problems such as:
· Reflections: Unexpectedly high readings may be caused by the IS 6 Advanced /
ISA 6 Advanced “seeing” a reflection of another hotter source, especially if the target
emissivity is less than 0.8.
· Spot Sizes: Ensure the IS 6 Advanced / IGA 6 Advanced is using a proper focused
distance and takes into account the spot size in relation to measuring distance. The
pyrometer can measure objects at any distance. However, the object has to be bigger
than or at least as big as the spot size of the pyrometer in the measuring distance.
· Obscured window: Clean the window. Refer to the cleaning window section 6.1.
IS 6 Advanced / IGA 6 Advanced Manual Maintenance · 33
To ensure consistent document formatting, this page was intentionally left blank.
IS 6 Advanced / IGA 6 Advanced Manual Maintenance · 34
7 Data format UPPÒ (Universal Pyrometer
Description
Command
Parameters
0 = 1200 Baud 1 = 2400 Baud 2 = 4800 Baud
600 Baud 7 = is not allowed 8 = 115200 Baud
Protocol)
Software commands can be exchanged directly with the pyrometer through an interface using
suitable communication software or by using the “Test” function located in the “Pyrometer
Parameters” window of the InfraWin software package.
The data exchange occurs in ASCII format with the following transmission parameters:
• The data format is: 8 data bits, 1 stop bit, even parity (8,1,e) no handshake;
• The device responds to the entry of a command with output (such as the measuring
value) + CR (Carriage Return, ASCII 13), to pure entry commands with “ok” + CR, or “no”
+ CR.
• Every command starts with the 2-digit device address AA followed by two lower case
command letters and finished with CR.
Example Read Command: Entry: “00em“ + <CR>
The emissivity setting (e) of the device with the address 00 is returned.
Answer: “0970“ + <CR> means Emissivity = 0.97 or 97.0%
• The ASCII parameter “X” indicates a change to be made in a parameter. When used, the
command contains the new value.
Example Write Command: Entry: “00emXXXX“ + <CR>
The parameter used for the emissivity setting (e) with the address 00 is changed.
Answer: “00em0853“ + <CR> changes the Emissivity to 0.853 or 85.3%
· A “?” after the lower case command letters answers with the limits of the respective
settings (only at setting commands, not at query commands).
Example Read Limits Command: Entry: “00em?“ + ˜CR!
Answer: Could be 00501000 + <CR>, which means that E can vary between 0.050 and
1.000 (or 5% and 100%)
Analog Output AAasX X=0 (0 to 20 mA) X=1 (4 to 20 mA)
Reference Number AAbn Output: XXXXXX (hex 6-digit)
Baud rate (set) AAbrX X = 0 to 6 or 8 (dec.)
3 = 9600 Baud 4 = 19200 Baud 5 = 38400 Baud
6 = 57
Emissivity e
Transmittance t of
window
AAemXXXX
AAem
AAetXXXX
AAet
XXXX = 0050 to 1000 e=0.050 to 1.000
Answer: DDDD 4 decimial digits 0050 to 1000
XXXX = 0050 to 1000 e=0.050 to 1.000
Answer: DDDD 4 decimial digits 0050 to 1000
IS 6 Advanced / IGA 6 Advanced Manual Data format UPPÒ· 35
Description
Command
Parameters
Response Time t90 AAezX X=0 to 9
Sub range (set)
0=min 1=1 ms 2=3 ms 3=5 ms
4=10 ms 5=50 ms 6=250 ms
7=1 s 8=3 s 9=10 s
Temp Display °C or °F AAfhX Output: X=0 Display in °C
X=1 Display in °F
Device address AAgaXX XX=(00 to 97)
00 to 97=regular device addresses
99=global address with response
Internal temperature
(read)
Laser AAlaX
Software simulation
AAgt
AAtm
AAla
AAlx
Answer: DDD 3 decimal digits (000 to 098 °C or
032 to 210 °F)
gt=current temp. tm=maximum temp. (memory)
X=0 off X=1 on
Answer: 1-digit: “0” or “1”
Clears maximum storage
of external clearance
Clear Peak Memory
t
clear
AAlzX X=0 bis 9
0=AUS 1=10 ms 2=50 ms 3=250 ms
4=1 s 5=5 s 6=25 s
7=EXTERN 8=AUTO 9=HOLD
Basic range (read) AAmb Answer: XXXXYYYY
2x4 hex-digit for lower and upper range limit (°C or °F)
Sub range (read) AAme Answer: XXXXYYYY
2x4 hex-digit for lower and upper range limit (°C or °F)
1. AAm1XXXXYYYY
AAm2 AAm2 confirms the change (auto reset)
2.
XXXXYYYY=2x4 hex-digit for lower and upper sub range
limit (°C or °F)
Measuring value AAms Answer: QQQQQ (88880=Overflow)
5 decimal digit (in °C or °F, last digit is 1/10 °C or °F)
Device type AAna Output: “IS 6 Advanced / IGA 6 Advanced”
(16 ASCII-characters)
Read Parameters AApa Answer: 15 decimal digits
DD............. : Emissivity (see em)
..D............ : Response time (see ez)
...D........... : Clear peak memory (see lz)
....D.......... : Analog output (see as)
.....DD........ : Internal temperature (see gt)
.......DD...... : Device address (see ga)
.........D..... : Baud rate (see br )
..........01000
: Fixed value
Serial number AAsn Output: XXXXX (hex 5-digit)
IS 6 Advanced / IGA 6 Advanced Manual Data format UPPÒ· 36
Description Command Parameters
Device type /
Software version
Communication
Module/ software
version in detail
Software version in
detail
AAve Answer: VVMMJJ VV=54
MM=Month JJ = Year of software version
AAvc tt.mm.jj XX.YY
tt = day; mm = month; jj = year;
XX.YY = Software version
AAvs tt.mm.jj XX.YY
tt = day; mm = month; jj = year;
XX.YY = Software version
Note: the lett er “l” means the lower case letter of “L”.
Additional instruction for the RS485 interface:
Requirements to the master system during half-duplex operation:
1. After an inquiry, the bus should be switched into a transmission time of 3 bits (some
older interfaces are not fast enough for this).
2. The pyrometer's response will follow after 5 ms, at the latest.
3. If there is no response, there is a parity or syntax error and the inquiry has to be
repeated.
4. After receiving the response, the master has to wait at least 1.5 ms before a new
command can be entered.
IS 6 Advanced / IGA 6 Advanced Manual Data format UPPÒ· 37
To ensure consistent document formatting, this page was intentionally left blank.
IS 6 Advanced / IGA 6 Advanced Manual Data format UPPÒ· 38
8 Reference Numbers
8.1 Reference numbers instrument
Temperature Range With Laser Targeting With Viewfinder
IGA 6 Advanced
250 to 2500 °C (MB 25)
IGA 6 Advanced
250 to 1800 °C (MB 18)
IS 6 Advanced
600 to 3000 °C (MB 30)
IS 6 Advanced
600 to 1800 °C (MB 18)
Ordering note:
A connection cable is not included in scope of delivery and has to be ordered separately.
3 914 010 3 914 020
3 914 050 3 914 060
3 914 510 3 914 520
3 914 550 3 914 560
8.2 Reference numbers accessories
3 820 320 Special connection cable with angled connector and additional targeting light push
button, 5 m long
3 820 330
3 820 500
3 820 510
3 820 810
3 820 820
3 820 520
3 820 340
3 820 530
3 820 540
3 820 830
3 820 840
3 820 550
Connection cable, 5 m, with straight connector
Connection cable, 10 m, with straight connector
Connection cable, 15 m, with straight connector
Connection cable, 20 m, with straight connector
Connection cable, 25 m, with straight connector
Connection cable, 30 m, with straight connector
Connection cable, 5 m, with right angle connector
Connection cable, 10 m, with right angle connector
Connection cable, 15 m, with right angle connector
Connection cable, 20 m, with right angle connector
Connection cable, 25 m, with right angle connector
Connection cable, 30 m, with right angle connector
(All connection cables
include a short
adapter cable with a
9-pin D-SUB
connector. This
connector may be
used in combination
with the RS485 to USB
adapter.)
3 826 510 PI 6000: PID programmable controller, very fast, for digital IMPAC pyrometers
3 826 720 USB to RS485 adapter cable, 1.8 m long
3 834 210 Mounting support (adjustable)
3 835 160 Air purge unit, aluminum
3 835 590 90° mirror for Series 5 and Series 6, quartz glass window
3 837 230 Water cooling jacket (heavy duty) with integrated air purge
3 843 250 ROT5 scanning mirror attachment up to 70°
3 843 430 Scanning mirror attachment up to 12°
IS 6 Advanced / IGA 6 Advanced Manual Reference Numbers · 39
3 846 260 Instrument's support (Series 5 & 6)
3 846 290 Instrument's support (Series' 5 & 6) with fused silica window
3 846 590 Vacuum support KF16 with quartz glass window
3 852 290
3 852 550
Power supply NG DC for DIN rail mounting; 100 to 240 V AC Þ 24 V DC, 1 A
Power supply NG 2D for DIN rail mounting; 85 to 265 V AC Þ 24 V DC, 600 mA with
two settable limit switches
3 890 640 DA 4000-N: LED-digital display to be built into the switchboard
3 890 650 DA 4000: like DA 4000-N, but additionally with 2 limit switches
3 890 570 DA 6000-N digital display to allow adjustment of the Pyrometer through the RS485
interface
3 890 530 DA 6000: like DA 6000-N with analog input and 2 limit switches for the RS485
interface
3 890 630 LD24-UTP; large digital indicator, 57 mm height of digits
3 834 210 Adjustable mounting support (Series 5 & 6)
IS 6 Advanced / IGA 6 Advanced Manual Reference Numbers · 40
9 Troubleshooting
No analog output
Reversed leads to IS 6
Advanced /
The
IS 6 Advanced /
Reversed leads to other instruments
Open circuit in lines connecting all
Total burden higher than 500 Ohms
Insufficient supply voltage (
See wiring
Temperature reading
Pyrometer output setting differs from
Check the 0 to 20 mA or
Temperature readings
Target size too small
3.2
Incorrect alignment of the pyrometer
Realign pyrometer to achieve
Dirty window or lens
6.1
Target temperature too low.
Incorrect slope adjustments
Faulty
IS 6
Advanced
/
Contact LumaSense. See
Temperature readings
Targets ho
tter than expected. (This
Verify target temperature
The measurement is influenced
by
Use mechanical accessories to
If target emissivity is less than 1,
Block reflection paths to see if
Incorrect spectral response for
See Technicial Specifications
Symptom Probable Cause Comments
even if the display
shows a temperature
above lower range
limit
differs between builtin display and external
instrumentation
are too low
IGA 6 Advanced
in the current loop
instruments in current loop
diagram)
external instrument’s input setting
Target is not at correct focus distance
to the object
IGA 6 Advanced is diode
protected if power leads are
reversed.
See section 3.1
4 to 20 mA on both sides
Check the sub range setting
on pyrometer against the
range setting on the external
instrument
See section
With small target/close focus
models, aiming may require XY positioning table for fine
adjustment during aiming
the maximum temperature
signal
See Section
are too high
IS 6 Advanced / IGA 6 Advanced Manual Troubleshooting · 41
IGA 6 Advanced
often happens with first time infrared
Pyrometer users)
reflections of hot machine parts
reflections from nearby hot objects
will influence readings
application. IS 6 Advanced /
IGA 6 Advanced may be “seeing”
through target
section 1.5
with contact type method.
(Thermocouples may not
accurately determine surface
temperature due to “heat
sink” effect)
avoid the influence of the
interfering radiation
readings drop to expected
temperature
Consult LumaSense for
analysis.
Symptom Probable Cause Comments
Temperature reading
s
Faulty
IS 6 Advanced /
Contact LumaSense. See
Electrical noise in lead wires caused
3.1
Lens or window clouding up
Increase or decrease air purge
Improper grounding of cable shield
IS 6 Advanced / IGA
6 Advanced
Noi
sy readings (fast
Target moves more than 95% out of
Application may require
Target may be changing temperature
Speed of response may be
Target may be reflecting nearby
Loose connec
tion in wiring
Electrical noise lead wires caused by
Cable run into in same conduit as AC
Flame or reflections of flame may be
Extremel
y dense steam, smoke, thick
Non-uniform emissivity of large
Slower response speed is
Faulty
IS 6 Advanced /
Contact LumaSense. See
Laser Targeting Light
The instrument‘s internal
Use cooling jacket
are too high
fluctuations)
IGA 6 Advanced
by intense magnetic fields and/or
improper selection of interconnecting
cable and/or cable run in same
conduit as AC power lines
and/or IS 6 Advanced /
IGA 6 Advanced housing (or cooling
jacket)
mounting not secure
field of view. Conveyor type
applications will also cause
fluctuations as targets move by the
field of view
quickly. (Thermocouples do not
respond as fast as the IS 6 Advanced /
IGA 6 Advanced)
section 1.5
See section
rate and/or investigate other
cause.
Maximum to be stored. Apply
t
settings. See section 4.5
clear
slowed down
Apply t90 settings. See section
4.4
fails
objects that have fluctuating
temperatures
intense magnetic fields, improper
selection of inter-connecting cable
power lines
entering the field of view
dust, personnel or moving machinery
intermittently blocking 95% of
optical path of IS 6 Advanced /
IGA 6 Advanced
moving targets
IGA 6 Advanced
temperature is higher than 61 °C
required
section 1.5
IS 6 Advanced / IGA 6 Advanced Manual Troubleshooting · 42
