Installation
Instructions
For Fully Integrated NoFrost
Combined Refrigerator-Freezers
HCB 1580 / 1581 7084 848-00
Important
Please Read and Follow these Instructions
These instructions contain Danger, Warning and Caution notes.
This information is important for safe and efficient installation and operation.
Always read and comply with all Danger, Warning and Caution notes!
DANGER!
Danger indicates a hazard which will cause serious injury or death if precautions are not followed.
WARNING!
Warning indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION!
Caution indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
IMPORTANT
This indicates information that is especially relevant to a problem-free installation and operation.
Note to the Installer
It is very important to follow the instructions in the manual to ensure proper installation and operation of the unit.
Before installing the unit, be sure to thoroughly read and understand all of the information in this manual.
WARNING!
Electrocution hazard.
Do not connect to the electrical outlet before the installation is completed.
Content |
Page |
Unit Dimensions ............................................................ |
4 |
Door Swing Clearance .................................................. |
4 |
Unit Venting ................................................................... |
4 |
Cabinet Opening Dimensions ....................................... |
5 |
Panel Dimensions - Inset Installation Style .................. |
6 |
Panel Dimensions - Frameless Installation Style.......... |
7 |
Mounting the Anti Tipping Device.................................. |
8 |
Cover Strips ................................................................... |
9 |
Water Connection Requirements.................................. |
10 |
Water Connection Adapter ........................................... |
10 |
Connection to the Water Supply................................... |
11 |
Leveling the Appliance.................................................. |
12 |
Fastening the Appliance in the Recess........................ |
12 |

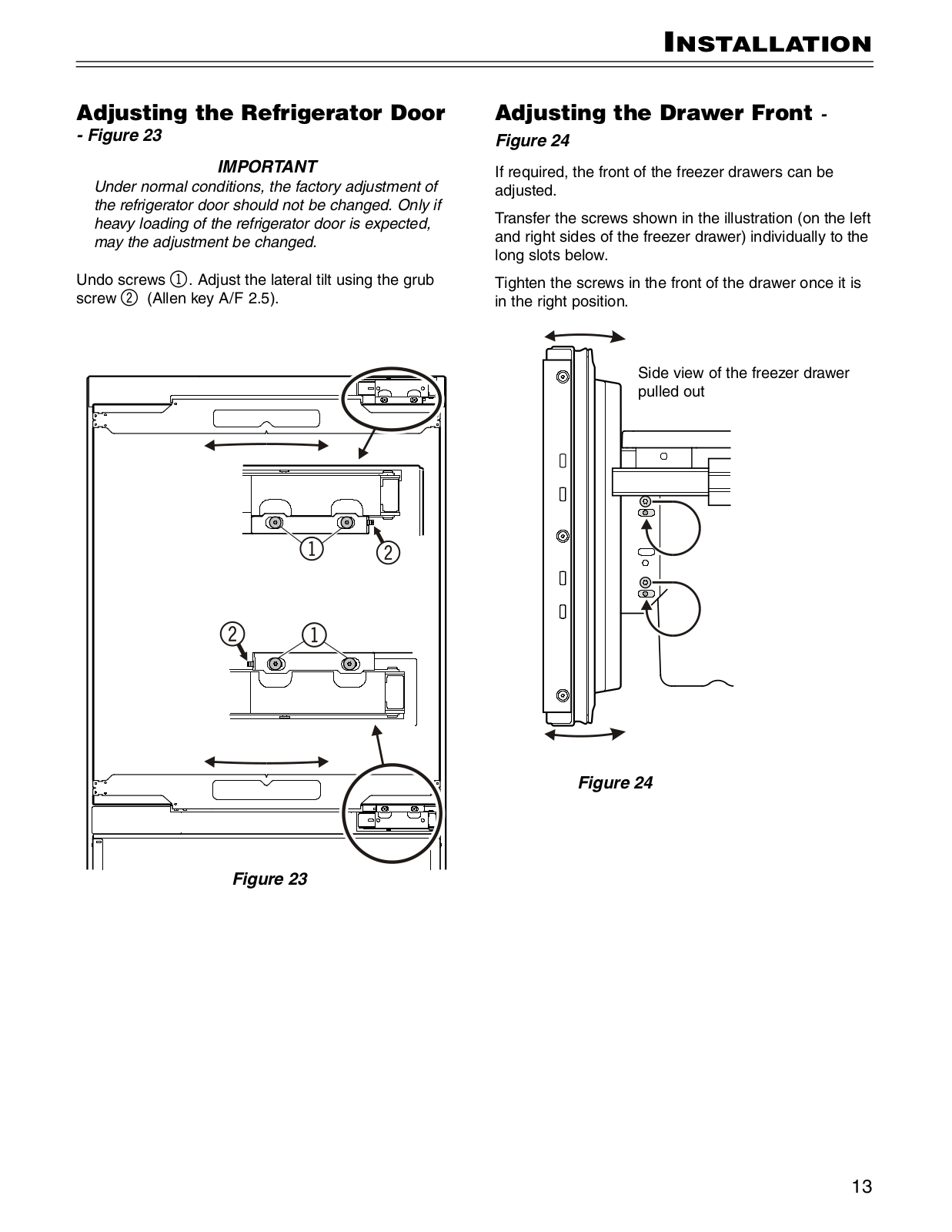

Adjusting the Refrigerator Door.................................... |
13 |
Adjusting the Drawer Front .......................................... |
13 |
Mounting the Ventilation Grille...................................... |
14 |
Before Mounting the Door Panels ................................. |
15 |
Mounting the Attachment Brackets onto the Door |
|
Panels............................................................................ |
16 |
Mounting the Refrigerator Door Panel.......................... |
17 |
Mounting the Freezer Drawer Panels .......................... |
19 |
R600a Refrigerant
WARNING!
The refrigerant contained within the appliance R600a is environmentally friendly, but flammable. Leaking refrigerant can ignite.
To prevent possible ignition follow the warnings below:
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not damage the refrigerant circuit.
•Any repairs and work on the appliance should only be performed by the customer service department.
2
Safety
Disposal of Old Appliance
DANGER!
Risk of child entrapment.
Child entrapment and suffocation are not problems of the past.
Junked or abandoned refrigerators are still dangerous – even if they will sit for “just a few days.”
If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents.
Before you discard old appliances:
•Take off the doors.
•Leave the shelves in place so that children may not easily climb inside.
•Cut off the power cable from the discarded refrigerator. Discard separately from the refrigerator.
•Be sure to follow your local requirements for disposal of appliances.
Contact the trash collection agency in your area for additional information.
Disposal of Carton
The packaging is designed to protect the appliance and individual components during moving and is made of recyclable materials.
WARNING!
Keep packaging materials away from children. Polythene sheets and bags can cause suffocation!
Please recycle packaging material where facilities are available.
Electrical Safety
Connect this appliance to a 15 amp or 20 amp, 110120 VAC, circuit which is grounded and protected by a circuit breaker or fuse.
We recommend using a dedicated circuit for this appliance to prevent circuit overload and the chance of interruption to the appliance.
This appliance is equipped with a three-prong (grounding) polarized plug for your protection against possible shock hazards.
Where a two-prong wall receptacle is encountered, contact a qualified electrician and have it replaced with a properly grounded three-prong receptacle in accordance with all local codes and ordinances.
Disconnect power before installing optional Side By Side Kit. Side by Side Kit is only to be installed on models HC 1551 and HCB 1561.
WARNING!
Electrocution hazard.
Electrical grounding required.
• Do not remove the round grounding prong from the plug.
• Do not use extension cords or ungrounded (two prong) adapters.
•Do not use a power cord that is frayed or damaged.
•Do not use a power strip.
Failure to follow these instructions may result in fire, electrical shock or death.
Blocking for Safety
WARNING!
To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.
3
Planning Information
Unit Dimensions
Figure 1
- Figure 1, Figure 2
A = 3" (76 mm)
B= 79-13/16" (2027 mm)
C= 29-7/8" (757 mm)
D= 24" (610 mm)
E= 55 1/4" (1413 mm)
F= 37-1/8" (952 mm)
This type of dimension line indicates the height measured from the floor.
Figure 2
Door Swing Clearance - Figure 3
Please allow for door
swing clearance at locations next to a wall.
The illustrated measurement is without mounted front panels. Be sure to add your panel thickness and handle depth to this measurement in order to avoid interferences.
Figure 3
Unit Venting - Figure 4
HCB appliances do not require any ventilation openings in the cabinet. The required air flow is directed through the toe kick area.
Only use the ventilation grille provided with the appliance. This grille is required for proper operation of the appliance.
This opening must not be covered with a cabinet base.
Failure to use the supplied grille can result in product failure and will void the warranty.
Figure 4
4
Planning Information
Cabinet Opening Dimensions - Figure 5
|
|
|
|
|
|
Cabinet |
Inset cabinet |
Frameless/faceframe cabinet |
|
For appliance with panel to be flush, |
|
Height |
Depth D |
Depth D |
|
adjacent cabinetry depth must equal |
|
80" |
24" + panel thickness |
24" |
|
appliance depth (24") plus panel |
|
|
|
|
|
thickness. |
|
84" |
24" + panel thickness |
24" |
|||
|
|
||||
|
|
|
|
|
The water line lead-through is at the bottom right of the appliance.
1
IMPORTANT
Do not install the shut-off valve behind the appliance.
|
|
|
|
|
|
|
1 |
||
|
|
|
|
|
|
|
|
|
This is where the power cord extends from the back of |
|
|
|
|
|
|
|
|
|
the appliance. |
|
|
|
Water line feed-in from |
|
|
Free length of the power cord = 90 inch (2280 mm) |
|||
|
|
|
left or right above the |
|
|
||||
|
|
|
|
|
|
||||
|
|
|
anti tipping bracket |
|
|
Be sure to take these specifications into consideration |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
when choosing the location of the electrical outlet. |
|
|
|
|
|
|
|
|
|
IMPORTANT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Water supply line |
|
|
|
|
|
The electrical outlet must not be situated behind the |
|
|
|
|
|
|
|
appliance and must be easily accessible. |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
30" Single |
|
|
|
|||
|
|
|
|
||||||
|
|
|
60" Side by Side |
|
|
|
|||
|
|
|
5
Planning Information
Panel Dimensions - Inset Installation Style - Figure 6
Side view of cabinet
Appliance and panels sit fully within the opening and are flush with what could be its own box, between two pantry cabinets or decorative columns, etc. This is the most common installation scenario.
Cabinet frame
Door panel |
You can order stainless steel panels for inset installation style.
Refrigerator door panel 80"- article number 9900 287-00 |
|
Refrigerator door panel 84"- article number 9900 285-00 |
|
Freezer drawer panels - article number 9900 283-00 |
|
Cabinet opening A Refrigerator door panel B |
|
80" (2032 mm) |
45-1/4" (1150 mm) |
84" (2134 mm) |
49-1/4" (1251 mm) |
The panels should be at least 5/8 inch (16 mm) thick to |
|
allow the connecting rails to be fastened to them. |
|
|
IMPORTANT |
The maximum panel thickness is 3/4" (19 mm). |
|
The door panel weight must not exceed 60 lb |
|
(27 kg). |
|
Figure 6
6
