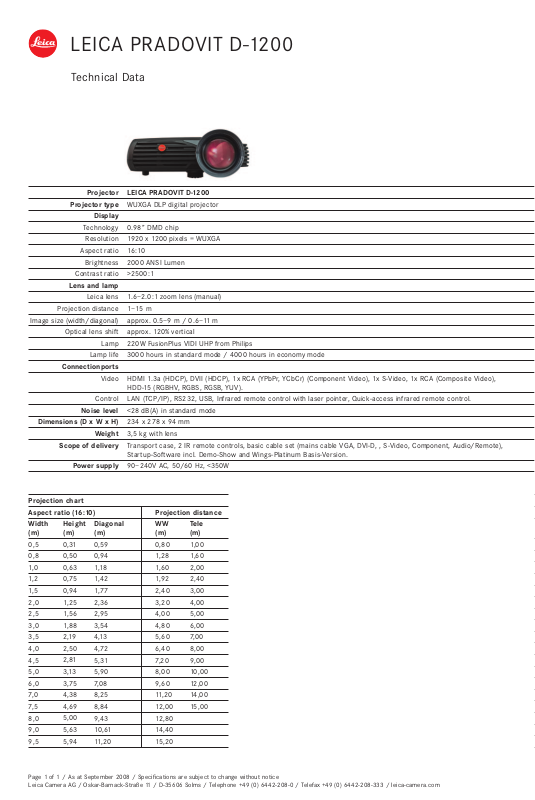

Leica D-1200 Product Sheet

LEICA PRADOVIT D-1200

Technical Data

LEICA PRADOVIT D-1200

WUXGA DLP digital projector

0.98’’ DMD chip
1920 x 1200 pixels = WUXGA
16:10
2000 ANSI Lumen
>2500:1

1.6–2.0:1 zoom lens (manual)
1–15 m
approx. 0.5–9 m / 0.6–11 m
approx. 120% vertical
220W FusionPlus VIDI UHP from Philips
3000 hours in standard mode / 4000 hours in economy mode

HDMI 1.3a (HDCP), DVII (HDCP), 1x RCA (YPbPr, YCbCr) (Component Video), 1x S-Video, 1x RCA (Composite Video),
HDD-15 (RGBHV, RGBS, RGSB, YUV).

LAN (TCP/IP), RS232, USB, Infrared remote control with laser pointer, Quick-access infrared remote control.
<28 dB(A) in standard mode
234 x 278 x 94 mm
3,5 kg with lens
Transport case, 2 IR remote controls, basic cable set (mains cable VGA, DVI-D, , S-Video, Component, Audio/Remote),

Startup-Software incl. Demo-Show and Wings-Platinum Basis-Version.
90–240V AC, 50/60 Hz, <350W

Projector

Projector type

Display

Technology

Resolution

Aspect ratio

Brightness

Contrast ratio

Lens and lamp

Leica lens

Projection distance

Image size (width/diagonal)

Optical lens shift

Lamp

Lamp life

Connectionports

Video

Control

Noise level

Dimensions (D x W x H)

Weight

Scope of delivery

Power supply

Projection chart
Aspect ratio (16:10)

Page 1 of 1 / As at September 2008 / Specifications are subject to change without notice
Leica Camera AG / Oskar-Barnack-Straße 11 / D-35606 Solms / Telephone [phone] / Telefax [phone] / leica-camera.com

Width
(m)

0,5
0,8
1,0
1,2
1,5
2,0
2,5
3,0
3,5
4,0
4,5
5,0
6,0
7, 0
7, 5
8,0
9,0
9,5

Height
(m)

0,31
0,50
0,63
0,75
0,94
1,25
1,56
1,88
2,19
2,50
2,81
3,13
3,75
4,38
4,69
5,00
5,63
5,94

Diagonal
(m)

0,59
0,94
1,18
1,42
1,77
2,36
2,95
3,54
4,13
4,72
5,31
5,90
7,08
8,25
8,84
9,43
10,61
11,20

WW
(m)

0,80
1,28
1,60
1,92
2,40
3,20
4,00
4,80
5,60
6,40
7,20
8,00
9,60
11,20
12,00
12,80
14,40
15,20

Tele
(m)

1,00
1,60
2,00
2,40
3,00
4,00
5,00
6,00
7,00
8,00
9,00
10,00
12,00
14,00
15,00

Projection distance
