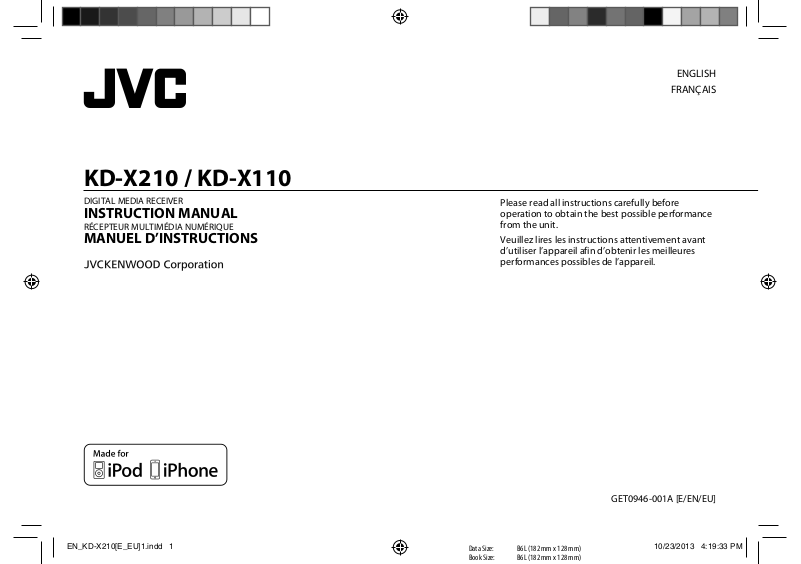

JVC KD-X210, KD-X110 User guide [ml]

KD-X210 / KD-X110

DIGITAL MEDIA RECEIVER

INSTRUCTION MANUAL

RÉCEPTEUR MULTIMÉDIA NUMÉRIQUE

MANUEL D’INSTRUCTIONS

ENGLISH

FRANÇAIS

Please read all instructions carefully before operation to obtain the best possible performance from the unit.

Veuillez lires les instructions attentivement avant d’utiliser l’appareil afin d’obtenir les meilleures performances possibles de l’appareil.

GET0946-001A [E/EN/EU]

Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for EU countries that have adopted separate waste collection systems)

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste. Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts. Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment. Notice: The sign “Pb” below the symbol for batteries indicates that this battery contains lead.

Information sur l’élimination des anciens équipements électriques et électroniques et piles électriques (applicable dans les pays de l’Union Européenne qui ont adopté des systèmes de collecte sélective)

Les produits et piles électriques sur lesquels le pictogramme (poubelle barrée) est apposé ne peuvent pas être éliminés comme ordures ménagères. Les anciens équipements électriques et électroniques et piles électriques doivent être recyclés sur des sites capables de traiter ces produits et leurs déchets. Contactez vos autorités locales pour connaître le site de recyclage le plus proche. Un recyclage adapté et l’élimination des déchets aideront à conserver les ressources et à nous préserver des leurs effets nocifs sur notre santé et sur l’environnement. Remarque: Le symbole “Pb“ ci-dessous sur des piles électrique indique que cette pile contient

du plomb.

For Israel

Declaration of Conformity with regard to the EMC Directive 2004/108/EC Declaration of Conformity with regard to the RoHS Directive 2011/65/EU Manufacturer:

JVC KENWOOD Corporation 3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan

EU Representative’s:

JVC Technical Services Europe GmbH Konrad-Adenauer-Allee 1-11, D-61118 Bad Vilbel, Germany

Déclaration de conformité se rapportant à la directive EMC 2004/108/EC Déclaration de conformité se rapportant à la directive RoHS 2011/65/EU Fabricant:

JVC KENWOOD Corporation 3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan

Représentants dans l’UE:

JVC Technical Services Europe GmbH Konrad-Adenauer-Allee 1-11, D-61118 Bad Vilbel, Germany

ENGLISH |

CONTENTS BEFORE USE

BEFORE USE 2

BASICS 3

GETTING STARTED 4

USB / iPod 5

RADIO 7

AUX 8

AUDIO SETTINGS 9

DISPLAY SETTINGS 10

MORE INFORMATION 11

TROUBLESHOOTING 12

SPECIFICATIONS 13

INSTALLATION / CONNECTION 14

How to read this manual

• Operations are explained mainly using buttons on the faceplate of

KD-X110

•

[XX]

indicates the selected items.

•

( XX)

indicates references are

available on the stated page.

Warning

Do not operate any function that takes your attention away from safe driving.

Caution

Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.

• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

• Avoid using the USB device or iPod/iPhone if it might hinder safe driving.

• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.

• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short circuit.

Remote control (RM-RK52):

• Do not leave the remote control in hot places such as on the dashboard.

• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type.

• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

• Keep the battery out of reach of children and in its original packaging when not in used. Dispose of used batteries promptly. If swallowed, contact a physician immediately.

Maintenance

Cleaning the unit: Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Cleaning the connector: Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector.

Connector (on the reverse side of the faceplate)

BASICS

Faceplate

KD-X210

Volume knob

(turn/press)

Display window

Attach

Detach

Detach button

KD-X210

How to reset

Your preset adjustments will also be erased.

To Do this (on the faceplate) Do this (on the remote control)

Turn on the power

Adjust the volume Turn the volume knob. Press VOL + or VOL –.

Select a source

Change the display information

Press B /SOURCE.

• Press and hold to turn off the power.

Press the volume knob to mute the sound or pause playback.

• Press again to cancel.

• Press B /SOURCE repeatedly.

• Press B /SOURCE, then turn the volume knob within 2 seconds.

Press DISP repeatedly.

• Press and hold to scroll the current display information.

( 11)

Remote control (RM-RK52)

KD-X110

can be remotely controlled with an

optionally purchased remote control.

Remote sensor (Do not expose to bright sunlight.)

Pull out the insulation sheet when using for the first time.

How to replace the battery

( not available )

Press

to mute the sound or pause playback.

• Press again to cancel.

Press SOURCE repeatedly.

( not available )

ENGLISH |

GETTING STARTED

Cancel the demonstration

Press and hold MENU.

1 2 Turn the volume knob to select 3 Turn the volume knob to select 4 Press MENU to exit.

Set the clock

Press and hold MENU.

1 2 Turn the volume knob to select 3 Turn the volume knob to select 4 Turn the volume knob to make the settings, then press the knob.

Day

Hour Minute

5 Turn the volume knob to select 6 Turn the volume knob to select

knob.

7 Press MENU to exit.

Set the basic settings

Press and hold MENU.

1 2 Turn the volume knob to make a selection (see the following table),

then press the knob.

3 Press MENU to exit.

To return to the previous setting item or hierarchy, press T/P.

[DEMO]

, then press the knob.

[DEMO OFF]

[CLOCK] [CLOCK SET]

[24H/ 12H] [12 HOUR]

, then press the knob.

[24 HOUR]

, then press the

CLOCK

CLOCK ADJ

CLOCK DISP ON

SETTINGS

BEEP

SRC SELECT

AUX

LANGUAGE

AUTO

:The clock time is automatically set using the Clock Time (CT) data in

FM Radio Data System signal.;

:The clock time is shown on the display even when the unit is turned

off.;

OFF

:Cancels.

:Activates the keypress tone.;

:Enables AM in source selection.;

:Enables AUX in source selection.; when the KS-BTA100 Bluetooth adapter is connected to the auxiliary input jack

( 8)

. The source name will change to BTAUDIO.

Selects the display language for menu and Tag information (folder name, file name, song title, artist name, album name) if applicable.

ENGLISH

:Display language is English.

РУССКИЙ

:Display language is Russian.

OFF

:Cancels.

OFF

:Deactivates.

OFF

:Disables.

:Disables.;

BT ADAPTER

F/W UPDATE

SYSTEM

F/W xxxx

* Not displayed when the corresponding source is selected.

YES

:Starts upgrading the firmware.; NO:Cancels (upgrading is not activated). For details on how to update the firmware, see: <http://www.jvc.net/cs/car/>.

Default:

:Select

USB / iPod

Start playback

The source changes automatically and playback starts.

USB

USB input terminal

USB 2.0 cable

(commercially available)

iPod/iPhone (for

KD-X210

)

USB input terminal

(Accessory of the iPod/iPhone)

• You can also change the source from the other source to iPod by pressing iPod.

Press 5 iPod MODE repeatedly to select the control mode (

[HEAD MODE]

[IPHONE MODE]

KD-X210

To Do this

Select a file

Select a folder

Reverse/

Press S/ T (or press H / I on RM-RK52).

Press 1 K / 2 J (or press J / K on RM-RK52).

Press and hold S/ T (or press and hold H / I on RM-RK52).

Fast-forward

Repeat play

Press 4  repeatedly to make a selection.

• JVC Playlist Creator (JPC) / JVC Music Control (JMC) file RPTOFF

• MP3/WMA/WAV/FLAC file: TRACKRPT, FOLDERRPT, RPTOFF

• iPod: ONE RPT, ALL RPT, RPT OFF

Random play

Press 3  repeatedly to make a selection.

• MP3/WMA/WAV/FLAC file or JPC / JMC file: FOLDERRND, ALLRND, RNDOFF

• iPod: SONGRND, ALLRND, RNDOFF

Do not leave the cable inside the car when not using.

Only for MP3/WMA/WAV/FLAC files. This does not work for iPod.

For iPod: Applicable under

[HEAD MODE]

only.

KD-X210

( 11)

: TRACKRPT,

ENGLISH |

USB / iPod

Select a file from a list

For iPod: Applicable only when

[HEAD MODE]

is selected.

( 5)

1 Press MENU 2 Turn the volume knob to make a selection, then press the knob.

• MP3/WMA/WAV/FLAC file: Select the desired folder, then a file.

• iPod or JPC / JMC file: Select the desired file from the list (PLAYLISTS,

ARTISTS, ALBUMS, SONGS, PODCASTS*, GENRES, COMPOSERS*, AUDIOBOOKS*).

Only for iPod.

If you have many files....

You can search through them quickly (on step volume knob quickly.

• Not applicable for iPod.

2 above) by turning the

Select a song by name

(For

KD-X210

While listening to the iPod and If you have many folders or files, you can search through them quickly according to the first character (A to Z, 0 to 9 and OTHERS).

• “OTHERS” appear if the first character is other than Ato Z, 0 to 9.

)

[HEAD MODE]

is selected

( 5)

....

1 Press MENU . 2 Turn the volume knob to select the desired list, then press the

knob.

3 Press 1 K / 2 J or turn the volume knob quickly to select the desired

character.

4 Turn the volume knob to select the desired folder or file, then press

the knob.

Change the USB drive

When a smartphone (Mass Storage Class) is connected to the USB input terminal, you can select its internal memory or external memory (such as an SD card) to playback the stored songs. You can also select the desired drive to playback when a multiple drives device is connected.

Press number button 5 repeatedly to select the desired drive.

(or)

1 Press and hold MENU . 2 Turn the volume knob to select 3 Turn the volume knob to select 4 Press the volume knob to select

The next drive is selected automatically. Repeat steps 1 to 4 to select the following drives. Selectable items:

[DRIVE1]

[DRIVE5]

[USB/IPOD] [USB]

, then press the knob.

[DRIVECHANGE]

Change the playback speed of the Audiobook

(For

KD-X210

While listening to the iPod and

)

[HEAD MODE]

is selected

( 5)

....

1 Press and hold MENU . 2 Turn the volume knob to select 3 Turn the volume knob to select

[USB/IPOD] [IPOD]

, then press the knob.

4 Turn the volume knob to make a selection, then press the knob.

BOOK NORMAL

speed of the Audiobooks sound file in your iPod/iPhone.

(Default: Depends on your iPod/iPhone setting.)

• To return to the previous setting item or hierarchy, press T/P.

• To cancel, press MENU.

BOOK FASTER

BOOK SLOWER

: Select the desired playback

RADIO

“ST” lights up when receiving an FM stereo broadcast with sufficient signal strength.

Search for a station

Press B /SOURCE to select FM or AM.

1 2 Press S/ T (or press H / I on RM-RK52) to search for a station

automatically.

(or) Press and hold S/ T (or press and hold H / I on RM-RK52) until

“M” flashes, then press repeatedly to search for a station manually.

Store a station

You can store up to 18 stations for FM and 6 stations for AM.

While listening to a station....

Press and hold one of the number buttons (1 to 6) to store.

(or) 1 Press and hold the volume knob until “PRESETMODE” flashes. 2 Turn the volume knob to select a preset number, then press the

knob.

The preset number flashes and “MEMORY” appears.

• To select a stored station: Press one of the number buttons (1to6).

(or)

Press MENU, then turn the volume knob to select a preset number and

press the knob to confirm.

Search for your favorite program (PTY Search)

Available only for FM source.

1 Press and hold T/P. 2 Turn the volume knob to select a PTY code, then press the knob to

start searching.

If there is a station broadcasting a program of the same PTY code as

you have selected, that station is tuned in.

PTY code:

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED

POP M

(music),

ROCK M

(music),

EASY M

(music),

LIGHT M

(music),

WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE

JAZZ, COUNTRY, NATION M

(music),

OLDIES, FOLK M

(music),

CLASSICS, OTHER M

DOCUMENT

Activate TA Standby Reception

Available only for FM source. Press T/P. The unit will temporarily switch to Traffic Announcement (TA) (if available) from any source other than AM.

• To deactivate, press T/P again.

Other settings

Press and hold MENU.

1 2 Turn the volume knob to select 3 Turn the volume knob to make a selection

knob.

[TUNER]

, then press the knob.

( 8)

, then press the

4 Press MENU to exit.

To return to the previous setting item or hierarchy, press T/P.

ENGLISH |

RADIO

Default:

RADIO TIMER

SSM

IF BAND

MONO

NEWS-STBY*ON

REGIONAL*ON

AF SET

* Only for FM source.

Turns on the radio at a specific time regardless of the current source.

1 ONCE/ DAILY/ WEEKLY/ OFF

on.

2 FM/ AM

:Select the FM or AM band.

3 01

to 18 (for FM)/ 01 to 06 (for AM):Select the preset station.

Set the activation day and time.

• “

” lights up when complete.

Radio Timer will not activate for the following cases.

• The unit is turned off.

•

[OFF]

is selected for

selected.

( 4)

SSM 01 – 06

18 stations for FM. “SSM” stops flashing when the first 6 stations are stored. Select

AUTO

adjacent FM stations. (Stereo effect may be lost.); interference noises from adjacent FM stations, but sound quality will not be degraded and the stereo effect will remain.

ON OFF

OFF

control.;

program in the same Radio Data System network with better reception when the current reception is poor.;

SSM 07 – 12

:Increases the tuner selectivity to reduce interference noises from

:Improves the FM reception, but the stereo effect will be lost.;

:Cancels.

:The unit will temporarily switch to News Programme if available.;

:Cancels.

: Switches to another station only in the specific region using the “AF”

: Automatically searches for another station broadcasting the same

OFF

:Cancels.

:Select how often the timer will be turned

[AM]

[SRC SELECT]

SSM 13 – 18

after Radio Timer for AM is

:Automatically presets up to

to store the following 12 stations.

OFF

: Cancels.

WIDE

:Subjects to

AUX

Use a portable audio player

Connect a portable audio player (commercially available).

2 Select 3 Press B /SOURCE to select AUX. 4 Turn on the portable audio player and start playback.

Use a Bluetooth® device

Connect the Bluetooth adapter, KS-BTA100 (separately purchased).

2 Register (pair) the Bluetooth device with KS-BTA100. 3 Select 4 Press B /SOURCE to select BT AUDIO. 5 Start using the Bluetooth device.

For details, refer to the instruction manual of KS-BTA100.

3.5mm stereo mini plug with “L” shaped connector (commercially available)

Auxiliary input jack

[ON]

for

[AUX]

[SRC SELECT]. ( 4)

Use a 3-core plug head stereo mini plug for optimum audio output.

Auxiliary input jack

[BT ADAPTER]

for

[AUX]

Portable audio player

Blue/white

Black

Brown

[SRC SELECT]. ( 4)

Wiring harness of the unit

( 15)

Blue/white: Remote

Black: Ground

Brown: Tel muting

+ 22 hidden pages

JVC KD-X210, KD-X110 User guide [ml]

Specifications and Main Features

Frequently Asked Questions

User Manual
