JLG Telehandler Personnel Work Platform Operator Manual

®

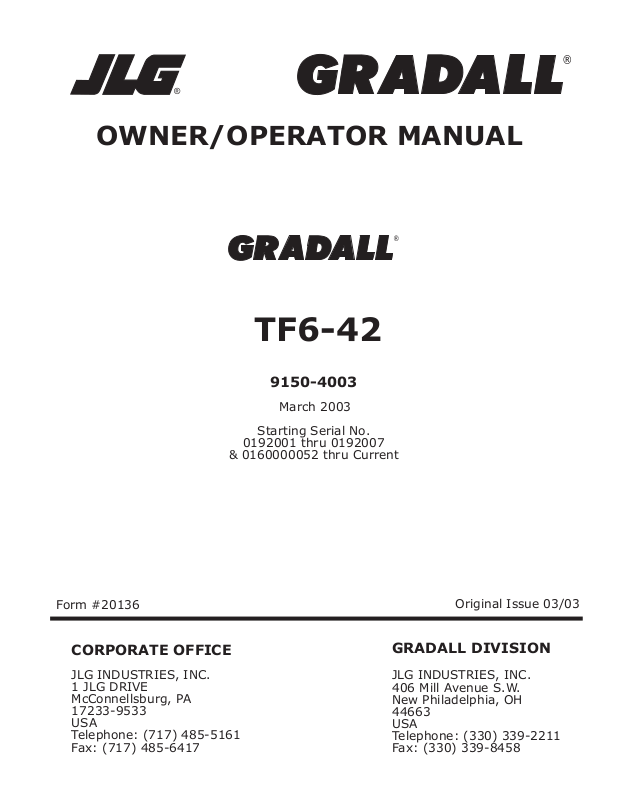

OWNER/OPERATOR MANUAL

®

TF6-42

®

Form #20136

CORPORATE OFFICE

JLG INDUSTRIES, INC. 1 JLG DRIVE McConnellsburg, PA 17233-9533 USA Telephone: (717) 485-5161 Fax: (717) 485-6417

9150-4003

March 2003

Starting Serial No.

0192001 thru 0192007

& 0160000052 thru Current

Original Issue 03/03

GRADALL DIVISION

JLG INDUSTRIES, INC. 406 Mill Avenue S.W. New Philadelphia, OH 44663 USA Telephone: (330) 339-2211 Fax: (330) 339-8458

TF6-42 MATERIAL HANDLER

“TRANSFORMER SERIES”

OWNER/OPERATOR MANUAL

COVERING OPERATION & PERIODIC MAINTENANCE

IMPORTANT!

Read and understand this Manual, the Transformer Series Work Platform Owner/Operator Manual, the Gradall Material Handler Safety Manual, the ANSI A92.5 Responsibilities Manual, and the EMI Aerial

material handler

Work Platform Safety Manual before starting, operating or performing maintenance procedures on this machine.

KEEP OPERATOR AND SAFETY MANUALS IN CAB

A Company

Form No. 20136

®

COVERS MATERIAL HANDLER TF6-42

STARTING SERIAL NUMBER 0192001 THRU 0192007

AND SERIAL NUMBER 0160000052 THRU CURRENT

Part No. 9150-4003

®

4

1234567890123456789012345678901212345678901234567890123456789012123456

1

23456789012345678901234567890121234567890123456789012345678901212345

6

1

6

1

6

1

6

1

6

1

6

1234567890123456789012345678901212345678901234567890123456789012123456

23456789012345678901234567890121234567890123456789012345678901212345

IMPORTANT SAFETY NOTICE

23456789012345678901234567890121234567890123456789012345678901212345

Safe operation depends on reliable equipment and proper operating procedures. Performing the checks and services described in this Manual will help keep your JLG/GRADALL Material Handler in reliable condition. Following recommended operating procedures can help you avoid accidents. Because some procedures may be new to even the experienced operator, we require that this Manual be read, understood and complied with by all who operate this machine.

Strict attention to and compliance with instructions provided in this Manual, the Transformer Series Work Platform Owner/Operator Manual, the GRADALL Material Handler Safety Manual, the ANSI A92.5 Responsibilities Manual, the EMI Aerial Work Platform Safety Manual, as well as instructional decals and plates affixed to the machine and attachments will help prevent injuries to personnel and damage to the equipment. The information provided herein is not intended to cover all situations; it is impossible to anticipate and evaluate all possible applications and methods of operation for this equipment.

This Manual covers recommended operating procedures and basic maintenance checks and services for the Material Handler. Detailed maintenance information is available in the appropriate Service Manual.

Any procedure not specifically recommended by JLG/GRADALL must be thoroughly evaluated from the standpoint of safety before it is placed in practice. If you are not sure, contact your JLG/GRADALL Material Handler Distributor before operating.

Use only JLG/GRADALL authorized parts. The use of counterfeit parts may cause premature failure which could lead to injuries and/or machine damage.

23456789012345678901234567890121234567890123456789012345678901212345678901234567890123

Do not modify this machine without written

23456789012345678901234567890121234567890123456789012345678901212345678901234567890123

permission from JLG/GRADALL. Use only

23456789012345678901234567890121234567890123456789012345678901212345678901234567890123

genuine JLG/GRADALL replacement parts.

23456789012345678901234567890121234567890123456789012345678901212345678901234567890123

OTHER NOTICES

JLG/GRADALL retains all proprietary rights to the information contained in this Manual.

JLG/GRADALL reserves the right to change specifications without notice.

GRADALL is a registered trademark for Hydraulic Excavators, Hydraulic Material Handlers and Attachments manufactured by The JLG/Gradall Company.

REVISIONS

This page is provided so you may determine that this Manual is complete and current with respect to JLG/ Gradall Engineering Specifications.

Page Date Revision

Form No. 20136 3/03 • TF6-42 Owner/Operator Manual

Operators of the material handler must be in good physical and mental condition, have normal reflexes and reaction time, good vision and depth perception and normal hearing. He must not be using medication which could impair abilities nor be under the influence of alcohol or any other intoxicant during the work shift.

The operator should possess a valid, applicable driver’s license and must have completed a training course for this type of equipment.

In addition, the operator must read/view, understand and comply with instructions contained in the following material furnished with the material handler:

• This Owner/Operator Manual

• The Transformer Series Work Platform Owner/Operator Manual

• ANSI Responsibilities Manual

• EMI Aerial Work Platform Safety Manual

• GRADALL Material Handler Safety Manual

• All instructional decals and plates

• Any optional equipment instructions furnished

INTRODUCTION

NOTE!

“Material handler” and handler are used interchangeably throughout this Manual.

NOTE!

Though no offense or discrimination is intended, only the masculine pronouns will be used throughout the remainder of this Manual.

NOTE!

In the U.S.A., the operator must have completed a training course meeting the OSHA Powered Industrial Truck Operator Training Requirements (CFR 1910.178)

FRONT

The operator must also read, understand and comply with all applicable Employer, Industry and Governmental rules, standards and regulations.

Orientation

LEFT

When used to describe the location of components in the material handler, the directions “front’”, “rear”, “right” and “left” relate to the orientation of a person sitting in the operator’s seat. (See figure I-1)

Related Manuals & Decals

Separate publications are furnished with the material handler to provide information concerning safety, replacement parts, maintenance procedures, theory of operation and vendor components. Replacement manuals, decals and instruction plates can be ordered from your JLG/GRADALL Distributor.

Models Covered

This Manual covers basic information for JLG/Gradall Material Handlers. Detailed information for each particular machine is in the maintenance section in the back of this manual. Be certain to refer to proper information for your unit and the optional equipment furnished on your machine.

REAR

Figure I-1

GRADALL IS A REGISTERED TRADEMARK FOR HYDRAULIC EQUIPMENT BUILT BY THE GRADALL CO. MANUFACTURED IN THE U.S.A.

406 MILL AVE. S.W., NEW PHILADELPHIA, OHIO 44663

(WITHOUT ATTACHMENTS)

CAPACITY WITH STANDARD

ATTACHMENT

48" & 72" CARRIAGE.

6.6

42'

24"

2.0' 26.9'

19430 LBS

C

B

1.0

4.6'

D

24"

A

24"

TRUCK &

CAP#

ATTACHMENT

DCBA

1000

WEIGHT

6.6

2.0'

20,180

42' 24" 24"

6.6

2.0'

20,290

42' 24"

24"

6.6

2.7'

20,460

42' 24" 24"

6.6

2.7'

20,650

24"24"42'

AS RELEASED FROM FACTORY THIS TRUCK MEETS THE DESIGN SPECIFICATIONS ESTABLISHED IN AMERICAN NATIONAL STANDARDS FOR POWERED INDUSTRIAL TRUCKS PART III ASME B56.6b-1998.

CAP# X1000

A

B

C

SAMPLE ONLY

D

SHIPPED WIT

48" CARRIAGE P/N 9140-5073 *

72" CARRIAGE P/N 9140-5074 *

48" SLOPE PILER P/N 9140-5101 *

72" SLOPE PILER P/N 9140-5079 *

Serial Number Location (See figure I-2)

Specify Model Number and Serial Number when ordering parts and when discussing specific applications and procedures with your Distributor. The model/serial number plate is located inside the operator’s cab, right wall.

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123

This machine has been equipped with a serial number specific Transformer Series

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123

Personnel Work Platform. Do not exchange transformer platforms between

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123

machines. Doing so will require calibration changes to the controller that must be

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123

performed by a qualified service technician. This platform assembly is designed

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123

soley for use with the

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123

Transformer Model Machines only.

Form No. 20136 3/03 • TF6-42 Owner/Operator Manual

Important Notice !

*WEIGHTS ARE BASED ON USING 2 X 4 X 48" FORKS (APPROX. 268# PER PAIR) **BUCKET DIMENSIONS (A & D) REFER TO BUCKET LIP HEIGHT. ***TRUSS BOOM & WINCH DIMENSIONS (A & D) REFER TO HOOK CENTER. ****WEIGHT IS BASED ON SP'L SWING MAST FORKS (APPROX. 230# PER PAIR) *****PLATFORM DIMENSIONS (A & D) REFER TO CENTER OF FLOOR.

FORKS RATED LESS THAN THE ATTACHMENT CAPACITY SHOWN ABOVE DECREASE CAPACITY OF ATTACHMENT TO THAT OF FORKS. FORKS RATED MORE THAN ATTACHMENT CAPACITY DO NOT INCREASE ATTACHMENT CAPACITY.

Figure I-2

9147-3131 (B)

RIGHT

SAFETY HIGHLIGHTS

DANGER

!

WARNING

!

CAUTION

!

WARNING

!

Read and understand all manuals and instructional material listed on cover, inside front cover and introduction page of this Manual before starting, operating or performing maintenance procedures on this equipment.

Regardless of previous experience operating similar equipment, the operator must be given sufficient opportunity to practice with the handler in a safe, open area (not hazardous to people or property) to gain operating skills and the proper “feel” for controls and operating clearances required for safe, efficient operation.

JLG/GRADALL Material Handlers are equipped with a right-side rearview mirror. This mirror is intended as an operator’s aid and does not replace the requirement for line-of-sight. Certain job site and machine conditions may require use of a signal person to help the operator when picking, placing or transporting a load. Never operate the handler until you know pick-up point, line of travel and landing point are clear. Always be aware that objects in mirror are closer than they appear.

Safety Precautions

Make sure all DANGER, WARNING, CAUTION and INSTRUCTIONAL DECALS are in place and can be read. Clean or replace decals as required.

Ensure handler is on a firm, level surface before lifting or placing load. Have surface leveled if necessary. Unit can tip over if load is raised with handler

on a soft or uneven surface.

Be aware that when rotating the platform within indicated area on capacity charts, it can swing into tires. Be sure to allow clearance to avoid damage to tires.

WATCH FOR THESE SYMBOLS ; THEY CALL YOUR ATTENTION TO SAFETY NOTICES.

This symbol indicates an extreme hazard which will result in high probability of death or serious injury if proper precautions are not taken.

This symbol indicates a hazard which could result in death or serious injury if proper precautions are not taken.

This symbol indicates a hazard which may result in injury or damage to equipment or property if proper precautions are not taken.

When traveling at high rates of speed, use two wheel front steer mode and

slow the machine prior to turning.

Do not change steer mode while the machine is traveling. Change the

steer mode only when machine is stopped.

Always look in the direction of travel. Reduce speed and be especially careful when traveling in reverse and/or turning. Bring the machine to a complete stop before changing the direction of travel.

Travel in reverse only at slow rates of speed.

When turning, the forks on the four wheel steer machine sweep through an arc beyond the turn radius of the tires. Maintain adequate clearance between

the forks/load and other objects.

If load or conditions obstruct view, use a signal person when lifting, carrying or placing a load.

Loose clothing can get caught in moving machinery and can also cause accidental actuation of controls. Dress properly for the job.

Be alert to any unusual response to controls. If unusual response is noticed, position handler in a safe area, lower forks to ground, apply parking brake, stop engine and remove key from ignition switch. Tag steering wheel to forbid operation and notify maintenance personnel.

Operator must be seated with seat belt fastened, transmission control lever in “Neutral” position, parking brake applied and all hydraulic controls in “Neutral” before starting engine.

1.0

SAFETY HIGHLIGHTS

Keep hands, gloves, shoes, control knobs and pedals clean. Slippery controls can cause accidents. Keep a firm grip on the steering wheel when traveling.

Load capacities are based on load center being within .6m (24 inches) from front vertical face of forks.

Release trapped pressure before disconnecting, opening or removing any

hydraulic component.

Keep all windows and mirror(s) clean. Adjust mirror(s) as visibility, before and during opera

Do not increase engine speed with the transmission in forward or reverse and the service brake pedal depressed in an attempt to get quicker

hydraulic performance. This could cause unexpected machine movement.

After bringing the material handler to a stop using the service brake, place the directional control lever in neutral, and set the park brake prior to lifting a load.

Allow the handler to slow down, or use the service brakes prior to down-shifting.

Do not downshift more than one gear at a time.

When traveling on downhill slopes, downshift to a lower gear and use the service brake as necessary to maintain a slow speed. Do not shift into neutral and

coast downhill.

tion.

required for maximum

WARNING

!

Contact The JLG/Gradall Company prior to welding on machine.

WARNING

!

Do not operate the “transformer series” platform without proper installation, including electrical and hydraulic connections in place.

Never permit diesel engine to run out of fuel. Doing so can cause severe engine damage.

DO NOT burn or drill holes in forks. Modifying any part of machine or attachment affects it’s capacity and/or stability of machine.

Keep head, arms, hands, legs and all other body parts inside the operator’s cab at all times.

DO NOT approach power lines, overhead or underground cables or other power sources with any part of your material handler or load unless all local, state/provincial and federal regulations have been met and the appropriate utility company’s hotline has been contacted to de-energize the lines.

Whenever leaving the cab, perform standard shut-down procedure:

Standard Shut-Down Procedure

Position the handler in a safe location, lower forks/attachment to ground, apply park brake, move all controls to minutes. emergency stop button in run mode. Chock wheels.

Rotate control station selector switch to “off”, remove key and place

“Neutral”, allow engine to run at low idle for 3 to 5

WARNING

!

Do not allow personnel to tamper with or operate the machine from the cab with personnel in the platform equipped with controls, except in an emergency.

Do not allow others to occupy cab while platform controls are in use.

Form No. 20136 3/03 • TF6-42 Owner/Operator Manual
