RECEIVER/AMPLIFIER
ABC-PB
Triple Speaker Selector Switch
R+
R- L- L+
INPUT A OUTPUT
Jamo
abc switch
B OUTPUT
R+
R- L- L+
R+
R- L- L+
A
B
C
C OUTPUT
R+
R- L- L+
RECEIVER/AMPLIFIER
ABC-PB
Triple Speaker Selector Switch
R+
R- L- L+
INPUT A OUTPUT
Jamo
abc switch
B OUTPUT
R+
R- L- L+
R+
R- L- L+
A
B
C
C OUTPUT
R+
R- L- L+

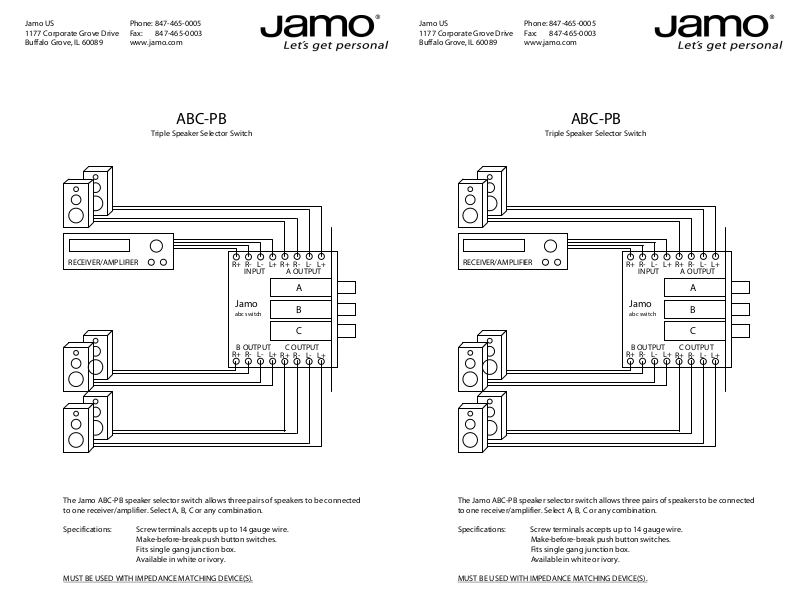

The Jamo ABC-PB speaker selector switch allows three pairs of speakers to be connected
to one receiver/amplifier. Select A, B, C or any combination.
Specifications: Screw terminals accepts up to 14 gauge wire.
Make-before-break push button switches.
Fits single gang junction box.
Available in white or ivory.
MUST BE USED WITH IMPEDANCE MATCHING DEVICE(S).
The Jamo ABC-PB speaker selector switch allows three pairs of speakers to be connected
to one receiver/amplifier. Select A, B, C or any combination.
Specifications: Screw terminals accepts up to 14 gauge wire.
Make-before-break push button switches.
Fits single gang junction box.
Available in white or ivory.
MUST BE USED WITH IMPEDANCE MATCHING DEVICE(S).
