Operating Instructions

Programat

P300

Views of the Furnace, List of Parts 4

1. Introduction / Signs and Symbols 8

1.1 Preface

1.2 Introduction

1.3 Notes regarding the Operating Instructions

2. Safety First 9

2.1 Indications

2.2 Health and safety instructions

3. Product Description 12

3.1 Components

3.2 Hazardous areas and safety equipment

3.3 Functional description

3.4 Accessories

4. Installation and Initial Start-Up 13

4.1 Unpacking and checking the contents

4.2 Selecting the location

4.3 Assembly

4.4 Dismounting the furnace head

4.4 Initial start-up

5. Operation and Conﬁguration 18

5.1 Introduction to the operation

5.2 Explanation of the key functions

5.3 Program structure

5.4 Adjustable parameters and possible value ranges

5.5 Settings / test programs and information

5.6 Explanation of the symbols on the display

5.7 Explanation of the beeper signals

6. Practical Use 23

6.1 Switching on/off

6.2 Firing using a standard program

6.3 Firing using an individual program

6.4 Other options and special features of the furnace

7. Maintenance, Cleaning and Diagnosis 25

7.1 Monitoring and maintenance

7.2 Cleaning

7.3 Diagnosis program

8. What if ... 27

8.1 Error messages

8.2 Technical malfunctions

8.3 Repair

9. Product Speciﬁcations 31

9.1 Delivery form

9.2 Technical data

9.3 Acceptable operating conditions

9.4 Acceptable transportation and storage conditions

10. Appendix 32

10.1 Delivery form

Table of contents

List of parts

Front view:

1 Sealing surface

2 Furnace head sealing ring

3 Insulation

4 Thermocouple

5 Firing plate

6 Display

7 Frame plate

8 QTK heating muffle

9 Furnace housing

10 Keypad

11 On/Off switch

12 Heating element fuse

13 Vacuum pump fuse

14 Control unit fuse

15 Fuse holder

16 Power cord

17 Power socket

18 Vacuum pump socket

19 Rating plate

20 Keys

21 Vacuum hose connection

23 Rubber feet

24 Protective cover vacuum

25 Furnace head housing

26 Thermocouple plug

27 Plug fuse

28 Heater plug

29 Heater plug socket

30 Thermocouple plug socket

32 Leaf spring

33 Air vents (base)

34 Cooling tray

35 Screw for cooling tray

36 Hood

37 Knurled screw for hood

38 Air vents furnace head

39 Air vents rear panel

40 Warnings

41 Furnace head mounting mark

42 Furnace base mounting mark

43 Furnace head mounting

44 Quartz-glass tube

46 Vacuum hose

47 Silicone rest

48 Firing plate holder

49 Thermocouple cable

50 Connecting rod

51 Plug-in console

49 26 30 29

27 2811

Control unit:

70 Program key

71 ESC key

72 ENTER key

73 START key

74 Start LED

75 STOP key

76 + key

77 – key

78 Settings / information

79 Cursor key right

80 Cursor key left

81 Stand-by temperature

82 Closing time

83 Temperature increase

84 Holding temperature

85 Holding time

86 Vacuum on

87 Vacuum off

88 Long-term cooling

90 Open furnace head

91 Close furnace head

92 Numeric keys

71 77

100 Programat ﬁring tray

101 Metal pin A

102 Metal pin B

103 Metal pin C

100

101

103

102

1. Introduction / Signs and Symbols

1.1 Preface

Dear Customer

Thank you for having purchased the Programat P300. It is a state-of-the-art furnace for dental applications.

The furnace has been designed according to the latest industry standards. Inappropriate use may damage the equipment and be harmful to personnel. Please observe the relevant safety instructions and read these Operating Instructions carefully.

Enjoy working with the P300.

1.2 Introduction

The signs and symbols in these Operating Instructions facilitate the ﬁnding of important points and have the following meanings:

Risks and dangers

Important information

Contraindication

Burn hazard

Risk of crushing

1.3 Notes regarding the Operating Instructions

Furnace concerned: Programat P300 Target group: Dental technologists

These Operating Instructions facilitate the correct, safe, and economic use of the Programat P300 furnace.

Should you lose the Operating Instructions, extra copies can be ordered at a nominal fee from your local Ivoclar Vivadent Service Center.

2. Safety ﬁrst

This chapter is especially important for personnel who work with the Programat P300 or who have to carry out maintenance or repair work. This chapter must be read and the corresponding instructions followed.

2.1 Indications

The Programat P300 must only be used to ﬁre dental ceramic materials and it should be used for this purpose only. Other uses than the ones stipulated, e.g. cooking of food, ﬁring of other materials, etc. are contraindicated. The manufacturer does not assume any liability for damage resulting from misuse. The user is solely responsible for any risk resulting from failure to observe these Instructions.

Further instructions to assure proper use of the furnace:

– The instructions, regulations, and notes in these

Operating Instructions must be observed.

– The instructions, regulations, and notes in the

material’s Instructions for Use must be observed.

– The furnace must be operated under the

indicated environmental and operating conditions (Chapter 9).

– The Programat P300 must be properly

maintained.

2.1.1

Risks and dangers

The furnace head should not be removed from the furnace base as long as the furnace head is connected by means of the heater cable.

2.1.2

Risks and dangers

Make sure that no liquids or other foreign objects enter the furnace.

2.1.3

Contraindication

Firing trays must not be placed in the area surrounding the ﬁring table, since this will obstruct the closing of the furnace head.

2.1.4

Contraindication

Foreign objects must not be placed on the furnace head or the air vents. Make sure that no liquids or other foreign objects enter the air vents, since this may

result in an electrical shock.

2.1.5

Risks and dangers

Never place objects in the ﬁring chamber by hand, since there is a burn hazard. Always use the tongs (accessories) supplied for this purpose. Never touch the hot surface of the furnace head, as there is a burn hazard. Please also refer to

the warnings on the furnace.

2.1.6

Risks and dangers

Do not carry the furnace head by the cooling tray.

2.1.7

Risks and dangers

Do not carry the furnace head by the cables, since the cables and

connections may be damaged.

2.1.8

Risks and dangers

The furnace has an electric drive and must be operated by means of the electronic controls. Never open the furnace head by hand, since the mechanism will be damaged.

2.1.9

Contraindication

Never use the furnace without a ﬁring table.

2.1.10

Contraindication

Do not touch the thermocouple and the quartz tube in the ﬁring chamber. Avoid contact with the skin (grease contamination), as the parts will be prematurely dama-

ged.

2.1.12

Risk of crushing and burn hazard

Never reach under the furnace head with the hand or other parts of the body during operation, since there is a risk of crushing

and a burn hazard.

2.1.13

Contraindication

Do not insert any foreign objects into the air vents. There is a risk of electrical shock.

2.1.14

Contraindication

This product contains ceramic ﬁbres and may release ﬁbre dust. Do not use compressed air on the furnace thus distributing the dust in the environment and observe the additional notes on page 11.

2.1.15

Risks and dangers

The furnace must not be operated if the quartz tube in the ﬁring chamber is damaged. There is a risk of electric shock upon contact with the heating wire.

2.2 Health and Safety Instructions

This furnace has been designed according to EN 61010-1 and has been shipped from the manufacturer in excellent condition as far as safety regulations are concerned. To maintain this condition and to assure risk-free operation, the user must observe the notes and warnings contained in these Operating Instructions.

– Place furnace on a ﬁre-proof table (observe local

regula-tions, e.g. distance to combustible substances or objects, etc.)

– Always keep the air vents at the rear and the

side of the furnace free from obstruction.

– Do not touch any parts that become hot during

the operation of the furnace. There is a burn hazard!

– Clean furnace only with a dry or slightly moist

cloth. Do not use any solvents! Disconnect power before cleaning.

– Use original packaging for transportation

purposes.

– The furnace must be cool before it is packed for

transportation purposes.

– The user must especially become familiar with

the warnings and the operating conditions to prevent injury to personnel or damage to materials. The manufacturer is not responsible for damage resulting from misuse or failure to observe the Operating Instructions. Warranty claims cannot be accepted in such cases.

– Before switching on the furnace, make sure that

the voltage indicated on the rating plate complies with your local power supply.

– The power socket must be equipped with a

residual current circuit breaker.

– The furnace must be plugged into a socket with

protected contacts.

– Before calibration, maintenance, repair, or

exchange of parts, the power must be disconnected if the furnace is to be opened.

– If calibration, maintenance, or repair has to be

carried out with the power connected and the furnace open, only qualiﬁed personnel, who are familiar with the risks and dangers, may perform these procedures.

– After maintenance, the required safety tests

(high voltage resistance, protective conductor, etc.) have to be carried out.

– Ensure that only fuses of the indicated type and

rated current are used.

– If it is assumed that safe operation is no longer

possible, the power must be disconnected to avoid accidental operation. Safe operation is no longer possible if – the furnace is visibly damaged – the furnace does not work – the furnace has been stored under

unfavourable conditions over an extended period of time

– Use only original spare parts.

– The temperature range for faultless operation is

+5 °C to +40 °C (+41 °F to +104 °F).

– If the furnace has been stored at very low

temperatures or high atmospheric humidity the head has to be opened and the unit dried or left to adjust to room temperature for approx. 1 hour (do not connect the power yet).

– The furnace has been tested for use at altitudes

of up to 2000 m above sea level.

– The furnace may only be used indoors.

Any disruption of the protective conductor either inside or outside the furnace or any loosening of the protec-

tive conductor connection may lead to danger for the user in case of malfunction. Deliberate interruptions are not tolerated. Materials developing harmful gases must not be ﬁred.

Warnings regarding the dismounting of the heating muffle

This product contains ceramic ﬁbres and may release ﬁbre dust. Fibre dust has proved to be carcinogenic in animal experiments. The correspon-

ding EU Safety Data Sheet must be observed.

The heat insulation of the ﬁring chamber in the Programat P300 & P500 consists of ceramic ﬁbres. After prolonged use of ceramic ﬁbres at temperatures of over 900 °C (1652 °F), silicogenic substances (Cristobalite) may be produced. In certain cases, e.g. upon changing of the heating muffle, the possible resulting dust exposure may cause irritation of the skin, eyes, and respiratory organs. Therefore, proceed as follows when changing the heating muffle:

– Make sure the corresponding staff wears long-

sleeved clothing, as well as headgear, goggles, and gloves.

– Place suction equipment at the source of the

dust or, if not possible, provide the staff with FFP3 facemasks or similar items.

– Once the procedure has been completed, any

dust possibly adhering to exposed skin must ﬁrst be rinsed off with cold water. Only after that should soap and warm water be used.

– The corresponding work clothes should be

washed separately.

Warning

The insulation on this product contains refractory ceramic ﬁbres (RCF) which pose a possible cancer hazard, if agitated and inhaled. May be irritating to the skin, eyes or respiratory tract if insulation is cracked or corrupted.

California Proposition 65 Warning: ”This product contains Refractory Ceramic Fibres, a substance known to the State of California to cause cancer.”

Disposal:

The furnaces must not be disposed in the normal domestic waste. Please correctly dispose of old furnaces according to the corresponding EU council directive.

3. Product description

3.1 Components

The Programat P300 comprises the following components: – Furnace base with electronic

controls

– Furnace head with ﬁring

chamber – Firing table – Cooling tray – Power cord and hose for

vacuum pump – Vacuum pump (accessory)

3.2 Hazardous areas and safety equipment

Description of the risk areas of the furnace:

3.3 Functional description

The ﬁring chamber may be heated up to max. 1200 °C (2192 °F) by means of a heating element. Furthermore, the ﬁring chamber has been designed in such a way that a vacuum may be created with a vacuum pump. The ﬁring process is controlled with the corresponding electronic controls and a software. Moreover, the set and actual temperatures are continuously compared.

3.4 Accessories

(not part of the delivery form)

– Temperature Checking Set 2 – Programat Accessories Set (large and small ﬁring

trays, ﬁring tongs, Temperature Checking Set)

– Vacuum pump

Description of the safety equipment of the furnace:

Protection from electrical shockElectrical fuses

Protection from electrical shockProtective conductor

Protective effectSafety equipment

Risk of electrical shockElectrical components

Risk of crushingOpening/closing mechanism

Risk of burningFiring chamber

Art der Type of riskHazardous area

4. Installation and initial start-up

4.1 Unpacking and checking the contents

The packaging provides the following advantages: – Reusable packaging – Closing mechanism with integrated transporta-

tion grips – Ideal protection by Styrofoam inserts – Easy handling / optimum unpacking – The packaging may be used in several ways

(modules)

Check the delivery for completeness (see delivery form in Chapter 9) and transportation damage. If parts are damaged or missing, contact your local Ivoclar Vivadent Service Center.

Remove the furnace components from their packaging and place it on a suitable table. Please observe the instructions on the outer packaging.

There are no special transportation grips on the furnace. Support the bottom of the furnace to carry it.

Packing and shipping of individual components:

The packaging of the P 300 permits simple and safe shipping of individual components. Simply use the two corresponding inserts. Fold the side ﬂaps (2) and combine the two packaging parts by means of the transportation ﬂaps. The packaging may be disposed with the regular household refuse.

4.2 Selecting the location

Place the furnace on a ﬂat table using the rubber feet. Make sure that the furnace is not placed in the immediate vicinity of heaters or other sources of heat. Make sure that air may properly circulate between the wall and the furnace.

Also ensure that there is enough space between the furnace and the user, as the furnace releases heat during the opening of the furnace head.

The furnace should neither be placed nor operated in areas where there is an explosion hazard.

4.3 Assembly

Make sure the voltage indicated on the rating plate (19) complies with the local power supply. If this is not the case, the furnace must not be connected.

We recommend keeping the original packaging for future service and transportation purposes.

Step 1: Assembling the cooling tray (34)

Remove both screws (35) including the silicone rest (47) for the cooling tray (34).

Step 2: Placing the ﬁring plate (5)

Place the ﬁring plate (5) on the ﬁring plate holder (48).

Secure the cooling tray (34) with the two screws (35) including the silicone rest (47).

Place the cooling tray (34) on the frame plate (7). Make sure that the cooling tray (34) is correctly positioned on the frame plate (7).

Step 3: Mounting the furnace head

The complete furnace head is best mounted with the rear panel of the furnace pointing towards the user. Lift the furnace head with both hands (see picture) and carefully position it on the furnace head mounting (43).

Ensure that the furnace head mounting mark (41) is aligned with the furnace base mounting mark (42).

Make sure that the ﬁring plate (5) is not damaged by mounting the furnace head.

Step 4: Connections

Connect the cables of the furnace head with the furnace base. Proceed as follows:

– Insert the thermocouple plug (26) (make sure

that the polarity of the plug is correct)

– Insert the heater plug (28)

Secure the heater plug (28) with the plug fuse (27) by turning it until the heater plug (28) has been secured.

Step 5: Mounting the hood (36)

Once all cables are properly connected to the furnace base, the hood (36) can be mounted.

Subsequently, secure the hood with the knurled screw (37).

The furnace may only be operated with the hood mounted.

Step 6: Establishing additional connections

Power connection

Please make sure that the voltage indicated on the rating plate complies with the local power supply. Connect the power cord (16) with the power socket (17) of the furnace.

Vacuum pump connection

Connect the vacuum pump plug with the vacuum pump socket (18).

We recommend using only the VP3 easy or VP3 vacuum pumps from Ivoclar Vivadent, since these pumps are especially coordinated with the furnace. If other pumps are used, please observe and do not exceed the maximum power consumption.

4.4 Removing the furnace head

Before the hood (36) is removed, the furnace has to be switched off and the power cord (16) disconnected from the power socket (17).

1. Loosen and remove the knurled screw (37) of the hood (36)

2. Remove the hood (36)

3. Disconnect the thermocouple plug (26)

4. Disconnect the heater plug (28)

5. Press the leaf spring (32) with a ﬁnger, lift off the furnace head at the same time and remove it

Make sure the furnace head has completely cooled down before it is removed (ﬁre hazard).

4.5 Initial start-up

1. Connect the power cord (16) with the wall socket.

2. Put the On/Off switch (11) at the rear of the furnace on position “I”.

The furnace will now automatically conduct a selftest. The performance of all furnace components is automatically checked. The display shows the following indications during the self-test:

1 Status bar 2 Firing hours 3 SW version 4 Current supply voltage

If any component is defective, the corresponding error number (ER xxx) will be indicated in the display. If all components work properly, the display shows the stand-by mode.

Stand-by mode

The stand-by mode is indicated after the self-test. The furnace is set to the last used program.

90 Program number 91 Current temperature 92 Temperature increase 93 Holding temperature

5. Operation and conﬁguration

5.1 Introduction to the operation

The Programat P300 is equipped with a graphical display (A) with backlighting. Moreover, the keypad features a parameter ﬁring curve (B) with the parameter keys (C), where the parameters can be selected. By means of the enter keys and the command keys (D), the furnace may be programmed and controlled.

5.2 Explanation of key functions

–T = Holding temperature (84)

Indicates the holding temperature (actual ﬁring temperature).

–H= Holding time (85)

Indicates the holding time (actual ﬁring time).

–S= Closing time (82)

Indicates the closing time of the furnace head (pre-drying time).

–B= Stand-by temperature (81)

Indicates the stand-by temperature.

–tÀ = Temperature increase (83)

Indicates the temperature increase per minute for heating up.

–V1Vacuum on temperature (86)

Indicates the temperature level at which the vacuum is switched on.

–V2Vacuum off temperature (87)

Indicates the temperature level at which the vacuum is switched off.

If this temperature equals the holding temperature T, the vacuum is maintained during the entire holding time.

Speciﬁc case: If the temperature V2 is exactly 1 °C (or 1 °F) higher than the holding temperature T during activated long-term cooling, the vacuum is maintained during the entire long-term cooling (e.g. recommended for the cleaning program).

–L= Long-term cooling temperature (88)

Indicates the temperature level at which the furnace head starts to open after the end of the holding time and free or controlled (tL) cooling.

–tL= Controlled cooling temperature gradient (°C or °F / min)

– “Cogwheel” key

Conﬁguration and information (78)

After pressing the settings key (2 cogwheels), a selection (information / settings) is displayed. Subsequently, the left key can be used to navigate through the information menu. The right key can be used to navigate between the settings and auxiliary programs.

– Cursor keys (79, 80)

The current cursor position is indicated by means of a ﬁx (nonblinking) frame around the value.

– Enter keys (76, 77, 92)

The values can be entered by using the + / – keys or the numeric keys.

Each value entered by means of the + or – key will be immediately accepted (as long as the value ranges are observed) without separately conﬁrming the entered value (pressing the key once will adjust the value by + or – 1). An active entry by means of the numeric keys will blink until the value has been conﬁrmed or the process aborted.

Each entry via the numeric keys can be conﬁrmed with the Enter key. However, the Program key, the START key or the parameter keys can be used to conﬁrm an entry by means of the numeric keys. Therefore, a program can be edited considerably faster (less keystrokes required).

If an invalid entry is made (outside the current value range), the invalid entry continues to blink after conﬁrmation. As an error message (Entry error: entry outside the value range) an exclamation mark will blink in the bottom line until a new value is entered and the entry is either conﬁrmed or the process aborted with the ESC key. If the process is aborted with ESC, the old valid value will reappear. Please refer to the respective parameter details for the value range.

– START key (73)

The program is started by pressing this key.

– STOP key (75)

Pressing this key once (program paused) Pressing this key twice (program will be interrupted and vacuum ﬂooded).

– Open furnace head key (90)

The furnace head is opened (not possible during a program in progress).

– Close furnace head key (91)

The furnace head is closed (not possible during a program in progress).

– P = Program and parameter key (70) with double function

– Indicates the program number – In addition, it is possible to switch from the stand-by mode

(or ﬁring curve display) to the parameter list.

5.3 Program structure

The furnace offers three types of programs:

a. Standard programs for Ivoclar Vivadent

materials

b. Free programs c. Auxiliary programs

All individual programs are equivalent and therefore full-ﬂedged programs. In each program, all the parameters can be adjusted.

a) Standard programs for Ivoclar Vivadent

materials (see chapter 10.1)

– IPS d.SIGN – IPS InLine – IPS Empress Esthetic – IPS e.max Ceram – Various Add-On materials

b) Free programs

– Free, individually adjustable programs

When the furnace is delivered ex works, the standard programs already contain the recommended material parameter settings.

However, the parameters can be changed and overwritten at any time, if required, if the programs are to be used for other purposes. Therefore, the 50 programs are also available as free programs.

The programs are designed in such a way that they can be either used as conventional, one-stage programs or as two-stage programs, if required. The mode can be changed via the symbol (one- or two-stage program) by using the + or – key.

c. Auxiliary programs

Various test programs are available. Please refer to chapter 5.5 Settings / conﬁguration and information.

5.4 Adjustable parameters and possible value ranges

Symbol Parameter Value range Value range

P Program number P 1–100

B Stand-by temperature 100–700 °C 212–1292 °F

S Closing time (min : sec) 00:18–30:00

tÀ Temperature increase rate 30–140 °C/min 54–252 °F/min

T Holding temperature 100–1200 °C 212–2192 °F

H Holding time (min : sec) 00.01–60:00

V1 Vacuum on 0 or 1–1200 °C 0 or 34–2192 °F

V2 Vacuum off 0 or 1–1200 °C 0 or 34–2192 °F

tÀ Temperature increase rate

t2À Second stage 30–140 °C/min 54–252 °F/min

T Holding temperature

Second stage 100–1200 °C 212–2192 °F

H Holding time

Second stage (min : sec) 00.01–60:00

V1 (V1 2) Vacuum on

Second stage 0 or 1–1200 °C 0 or 34–2192 °F

V2 (V2 2) Vacuum off

Second stage 0 or 1–1200 °C 0 or 34–2192 °F

L Long-term cooling 0 or 50–1200 °C 0 or 122–2192 °F

tL Cooling temperature rate 0 or 1–50 **) 0 or 32–90

Automatic plausibility check

The furnace is equipped with an automatic plausibility check function. The parameters (e.g. T 960 but L 1000) are checked upon each program start. In case of contradictory parameter combinations, the program stops automatically and the respective error number is indicated.

**) The maximum value of the cooling temperature rate is adjusted to the set holding temperature T and long-term

cooling L (e.g. with T 1180, L 1000 -> max. tÀ 100 °C possible, but with T 850 L 700 -> max. tÀ 50 °C)

5.5 Settings / conﬁguration and information

By pressing the "Settings" key (78), the following menu is displayed:

The left key (<) can be used to navigate through the information menu. The right key (>) is used to navigate through the settings and auxiliary programs. These displays can be aborted by pressing the Program key or ESC key.

5.5.1 Settings / Conﬁguration

Information Settings

Settings

Contrast

Temperature mode

User calibration value

Volume

Beeper tune

Time

Date

Display Short description

The contrast can be set by means of the + or – keys

The + and – keys can be used to switch from °C to °F

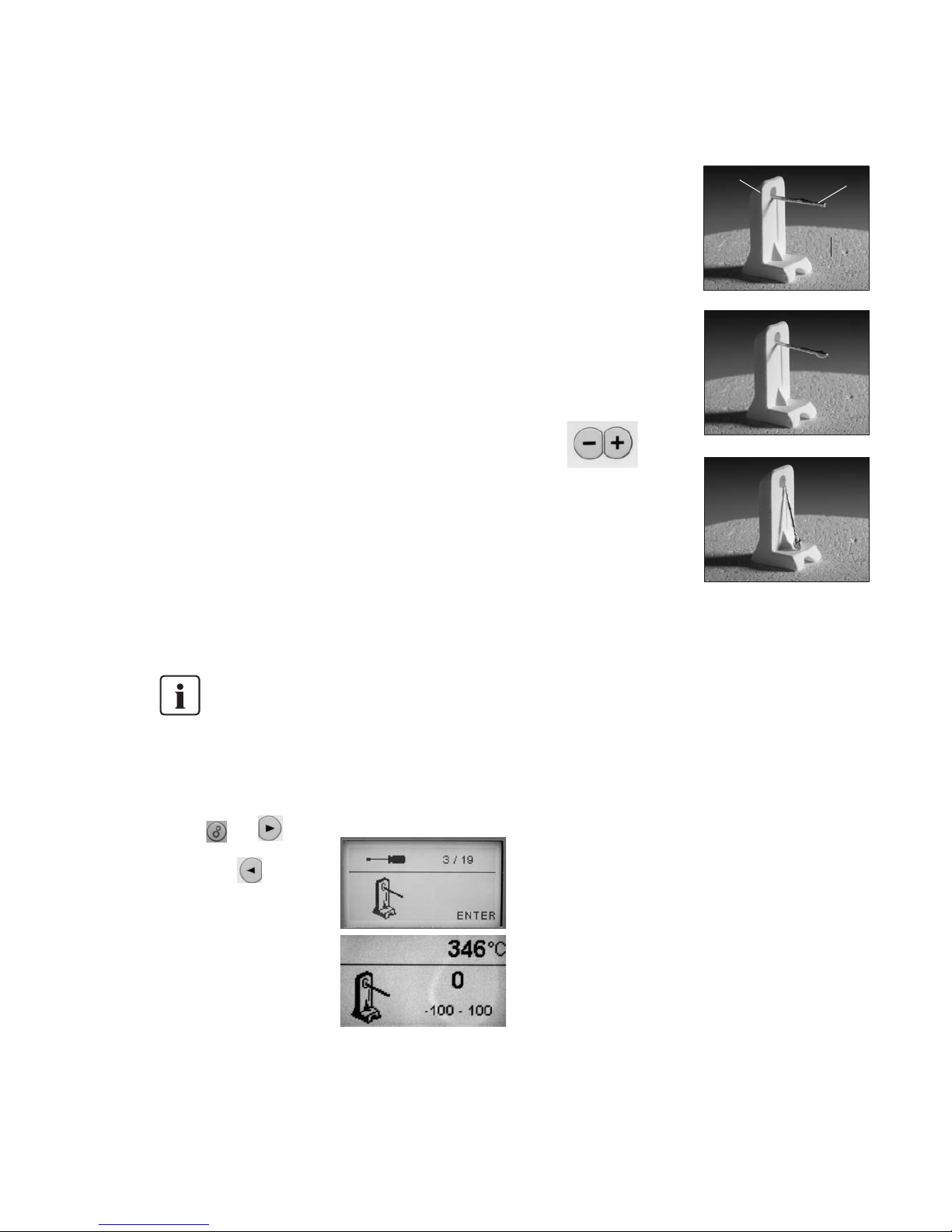

This program is suitable to conduct the temperature calibration by means of the Temperature Checking Set Type 2. The furnace head opens automatically if the Enter key is pressed. Place the test into the ﬁring chamber and start the program by means of the START key.

The desired volume can be set by means of the + or – keys

The tune can be set by means of the + or – keys

The time can be entered by using the numeric keys

The date can be selected by using the numeric keys

Settings

Write protection

”Ivoclar Vivadent optimized temperature control function“

Pre-drying

Vacuum test program

Heating muffle test program

Key test

Cleaning program

Dehumidiﬁcation program

Selection of factory settings

Display Short description

The + and – keys can be used to switch on the write protection. The function applies to all programs and cannot be individually set. Only after entry of the user code.

Only after entry of the STD code.

The + and – keys can be used to switch on the pre-drying function. The function applies to all programs and cannot be individually set.

Allows to check the vacuum quality of the system

Allows to check the heating muffle. The result is shown in graphical form after the end of the program

Allows to check the keypad

The program is used to clean the heating muffle and the insulation materials by a heat process.

Permits the dehumidiﬁcation of the furnace

With this setting, all values and parameters can be reset to the factory settings. Attention: All individual programs which have been created and saved will be deleted with this function.

5.5.2 Information

Settings

Reset ﬁring hours

Reset vacuum pump hours

Display Short description

The ﬁring hour count can be reset to 0. Only after entry of the user code.

The operating hour count of the vacuum pump can be reset to

0. Only after entry of the user code.

Settings

Serial number

Software version

Furnace head ﬁring hours

Operating hours furnace

Operating hours vacuum pump

Latest start of calibration program

Calibration value

Supply voltage

Error table

Total ﬁring hours

Display Short description

Serial number of the furnace

Shows the current supply voltage

Important information

The user code (6725) is required for some settings.

5.6 Symbols in the display 5.7 Explanation of beeper tunes

Symbol name

“One-stage program”

“Two-stage program”

“Standard opening of the furnace head” (can be switched with the + / – key)

“Quick opening of the furnace head” (can be switched with the + / – key)

Pre-drying

Meaning

Indicates that a conventional, onestage program is used

Indicates that a speciﬁc, two-stage program is used. The bold line indicates the values for the ﬁrst stage

Indicates that a speciﬁc, two-stage program is used. The bold line indicates the values for the second stage

Indicates that the furnace head is opened at normal speed after ﬁring.

Indicates that the furnace head is quickly opened after ﬁring.

Indicates that the option “Pre-drying” has been activated

Symbol

Beeper description

Beeper lasting for approx. 2 seconds with unchangeable “SELF-TEST signal” to indicate the completion of the self-test.

Beeper lasting for approx. 10 seconds with the beeper signal set by the user.

If the STOP key is not pressed during this time, the beeper sounds again after 5 minutes for a period of 5 minutes. Subsequently, there will be no further acoustic signal.

If the STOP key is not pressed during beeping (10 s or 5 min), the beeper is immediately switched off. There will be no further acoustic signal.

Beeper with unchangeable “error tune”. Only if the STOP key is pressed is the beeper switched off.

A short beeper signal will sound every time a key is pressed (approx. 0.5 seconds ON) basically at the volume set by the user. If the volume is set to OFF, then the signal sounds at a medium volume.

Explanation

SELF-TEST has been completed

Restart signal. The ﬁring process has been completed and the furnace head is open. Moreover, the furnace temperature has fallen below 550 °C.

Close-furnace-head signal. The ﬁring procedure is completed und the furnace head is open. Furthermore, the furnace temperature has dropped below 320 °C / 680 °F.

The ﬁring object can now be removed and cooled on the cooling plate.

Error messages are supported by the error tune *

Keypad test active

* The beeper can only be interrupted by means of the STOP key.

6. Practical use

The operating procedure for the Programat P300 will be explained with the help of two examples: one standard and one individual program.

6.1 Switching on/off

Put ON/OFF switch (11) on position “I”. The furnace conducts an automatic self-test, which will be indicated in the beginning. Subsequently, a status bar shows that the self-test is being conducted. Make sure that the furnace is not manipulated during this time.

6.1.1 Stand-by mode

After successful completion of the self-test, the Stand-by mode is shown in the display.

The cursor indicates the menu item which is currently active. The cursor can be moved with the cursor arrow keys.

If the cursor is positioned in the program display, the desired program can be selected by using the + and – keys. The desired program can also be selected by means of the numeric keys.

6.1.2 List of parameters

One-stage program

The list of parameters is accessed by pressing the Program key (70). The list shows all the parameters.

One-stage program

Two-stage program

If a two-stage program is used, the parameters are displayed for the ﬁrst and the second stage in a separate screen. The P key is used to switch back and forth between the two screens. Please note the appropriate symbol (ﬁrst or second stage).

Two-stage program

stage 1 is shown stage 2 is shown

If the cursor is positioned on the “one-stage symbol” and the symbol is switched to the “two-stage symbol” by pressing the + or – key, the program has been set to “two-stage”.

If the cursor is set on the “two-stage symbol” and the symbol is switched to the “one-stage symbol” by pressing the + or – key, the program has been set to “one-stage”.

Starting a program is possible at any time, even if the input screen for the second stage is still being displayed.

Special variant: Conducting a one-stage program, in which only part of the holding time is ﬁred with a vacuum (requirement: holding temperature 1 = holding temperature 2).

6.1.3 Description of the ﬁring curve display

If the program is started with the START key, the ﬁring curve display with the vacuum status is shown.

The following information is always displayed: a) Program number b) Remaining time c) Current temperature d) Status of vacuum e) Status bar

If a two-stage program is selected, two stages are shown.

a) stage 1 b) stage 2

6.2 Firing using a standard program

Step 1:

Select the desired program (1 to 50) according to the ﬁring table (Chapter 10).

Step 2:

Open the furnace head with the “Open furnace head” key (90) and place the object on the ﬁring tray in the furnace.

Step 3:

Press the START key (73) to start the program. The process is indicated in the ﬁring curve display.

6.3 Firing using an individual program

Step 1:

Select a free program.

Step 2:

Press the desired parameter (e.g. temperature increase). The input mask appears. In the lower ﬁeld, you will ﬁnd information about the acceptable temperature range (min. and max.). This will facilitate the entry and prevents input errors.

Step 3:

Press the START key (73) to start the program. The process is indicated in the ﬁring curve display.

6.4 Further possibilities and special features of the

furnace

6.4.1 Illogical values or incorrect entry:

If an illogical value is entered by means of the numeric keys (outside the current value range), the invalid entry still blinks after conﬁrmation.

As error message (entry error: entry outside the value range), an exclamation mark blinks in the bottom line until the next value is entered and successfully conﬁrmed or the process is

aborted with ESC. The old, valid value reappears. Please refer to the parameter details for the value range.

6.4.2 Program write protection

If all programs are write-protected, a closed lock

•

appears in the

stand-by mode, parameter list, and detailed parameter screen.

6.4.3 Stopping the running program

Press the STOP key once to pause a running program. The green LED in the START key blinks. Press the STOP key twice to completely stop the program or press START to continue.

6.4.4 Changing the parameters while the program is running

All parameters of the program, which have not yet been executed, can be changed while the program is stopped (green LED blinks).

6.4.5 Quick opening of the furnace head

By switching the symbol “standard opening of the furnace head” for the currently loaded program, the user may activate a "quick opening of the furnace head” at the end of the program.

7. Maintenance, Cleaning, and Diagnosis

This chapter describes the user maintenance and cleaning procedures for the Programat P300. All the other tasks must be performed by qualiﬁed service personnel at a certiﬁed Ivoclar Vivadent Service Center.

7.1 Monitoring and maintenance

The time for these maintenance procedures depends on the frequency of use and the working habits of the users. For that reason, the recommended times are only approximations.

daily Firing chamberCheck the quartz glass cylinder to make sure the quartz glass is not defective.

twice a year

Firing chamberCheck temperature. Use the temperature checking set to check and adjust the temperature in the furnace.

weeklyKeypad (10)Check the keypad for visible damage. If the keypad is damaged, it has to be replaced

by a certiﬁed Ivoclar Vivadent Service Center.

weeklySealing rims of the furnace head (2) and the furnace base (1)

Check if the sealing rims of the furnace head and the furnace base are clean and undamaged.

monthlyInsulation (3)Check the insulation for cracks and damages. If the insulation is worn down it has to

be replaced by a certiﬁed Ivoclar Vivadent Service Center. Fine hairline cracks on the surface of the insulation are harmless and do not inﬂuence the function of the furnace in a negative fashion.

weeklyThermocouple (4)Check if the thermocouple is straight and in the right place.

monthlyOpening mechanismCheck if the furnace head opens smoothly and without excessive noise.

weeklyVar. external connectionsCheck all plug-in connections for correct ﬁt

WhenPartWhat

This furnace has been developed for typical use in dental laboratories. If the product is used in a production enterprise, for industrial applications, and for continuous use, premature ageing of the expendable parts has to be

expected.

The expendable parts are as follows: – Heating muffle – Insulation material

Expendable parts are not covered by the warranty. Please also observe the shorter service and maintenance intervals.

If the furnace head is replaced, the furnace must be calibrated.

7.2 Cleaning

The furnace may only be cleaned when it is cool, since there is a burn hazard. Do not use any cleaning solutions.

The following parts have to be cleaned from time to time:

*Never clean with compressed air!

Item Frequency: Cleaning material:

Housing (9) and furnace if required soft, dry cloth head (25)

Keypad (10) weekly soft, dry cloth

Cooling tray daily cleaning brush * (34)

Insulation (3) daily cleaning brush *

Sealing rim of the furnace daily cleaning brush and head (2) and sealing a soft cloth surface (1)

7.3 Test programs

Press the 'cog-wheel' key (Settings/Information)

– Vacuum pump test program:

With this program, the vacuum performance of the furnace vacuum system can be automatically tested. For that purpose, the achieved (minimum) pressure in mbar is measured and indicated. If the pressure value is below 80 mbar, the vacuum performance of the system is adequate.

– Keypad test program

– Heating muffle test program

– Dehumidiﬁcation test program

– Cleaning program

7.4 Stand-by

We recommend keeping the furnace head closed, especially if the temperature drops below 150 °C (302 °F).

7.5 Dehumidiﬁcation program

The condensation of water in the insulation of the ﬁring chamber and the vacuum pump will result in a lower vacuum and thus to impaired ﬁring results. For that reason, the furnace head should be kept closed when the furnace is switched off, in order to prevent the absorption of humidity. Start the dehumidiﬁcation program if required (humidity in the insulation).

7.5 Calibration

Furnace calibration (Silver Test)

The sheathed thermocouple may be subject to changes with affect the furnace temperature, depending on the mode of operation. Check furnace temperature with the ‘Silver Test’ at least once a year and adjust if necessary. For

that purpose, the furnace features a special calibration program.

Procedure:

a) The Furnace must be at operating temperature (switched on for

at least 60 minutes) and have a stand-by temperature of 403 °C (757 °F).

b) Press and keys to

enter the Options menu.

Then press key until the Display shows this screen:

To select the calibration program press the ENTER-key. The following is displayed:

c) Insert silver wire into the Ivoclar

Vivadent sample holder.

d) Place the sample holder with the

silver strip in the centre of the ﬁring plate (6).

e) Press START (if error message Error 14 appears, the furnace

temperature is still too high fort he ‚Silver Test’ (>410 °C/770 °F)). The furnace closes automatically at the correct temperature and the program starts.

If the silver wire has started to melt (and has a ‚pitted’ appearance) at the end of the program, the furnace temperature is correctly calibrated (Figure B) If not, recalibration is necessary.

Recalibration

A change in temperature of ”+/-” 100 °C (180 °F) is possible in the Programat P300. Select calibration program to activate the calibration keys + and –. The program must not be started for this purpose. The latest calibration value is indicated on the Display.

– If the silver wire has not started

to melt after the Silver Test, recalibrate using the +key (Figure A)

– If the silver wire has melted

down to a ball after the Silver Test, recalibrate using the –key (Figure C).

Every time a calibration key is pressed, the set temperature changes by 1 °C (1.8 °F) Experience has shown that a recalibration of 5 °C (9 °F) is appropriate, which means pressing the relevant key ﬁve times.

While the calibration keys are in use, the calibration value in °C (°F) is shown in the Display. Entering the calibration value does not have to be conﬁrmed with ENTER. We recommend that you do not recalibrate the furnace immediately before it reached the holding temperature or during the holding time of the Silver Test program. Repeat the Silver Test until the silver wire starts to melt correctly (Figure B).

Fig. A Temperature too low

Fig. B Temperature just right

Fig. C Temperature too high

Sample holder

silver wire

Firing plate (6)

8. What if …

This chapter will help you to recognize malfunctions and take appropriate measures or, if possible and acceptable, to perform some simple repairs.

8.1 Error messages

The furnace continuously checks all functions during operation. If an error is detected, the respective error message is displayed.

In case of an error, the heater switches off for safety reasons.

The following error messages may be displayed:

Index

Ivoclar Vivadent Programat P300 Operating Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
