For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Workshop Manual
SC18 Sod Cutter
Removing Turf
Has Never Been Easier
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Husqvarna Turf Care
700 Park Street
Beatrice, NE 68310
FX: 1.800.254.2473
Husqvarna Sod Cutter Workshop Manual P/N : 109869
Rev 1, 10/01/03
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Service Manual
Sod Cutter SC-18
Contents
Introduction …………………………………………………………………. 3
Features & Controls ………………………………………………………… 6
Operating Instructions, Safety & Maintenance …………………………….. 7

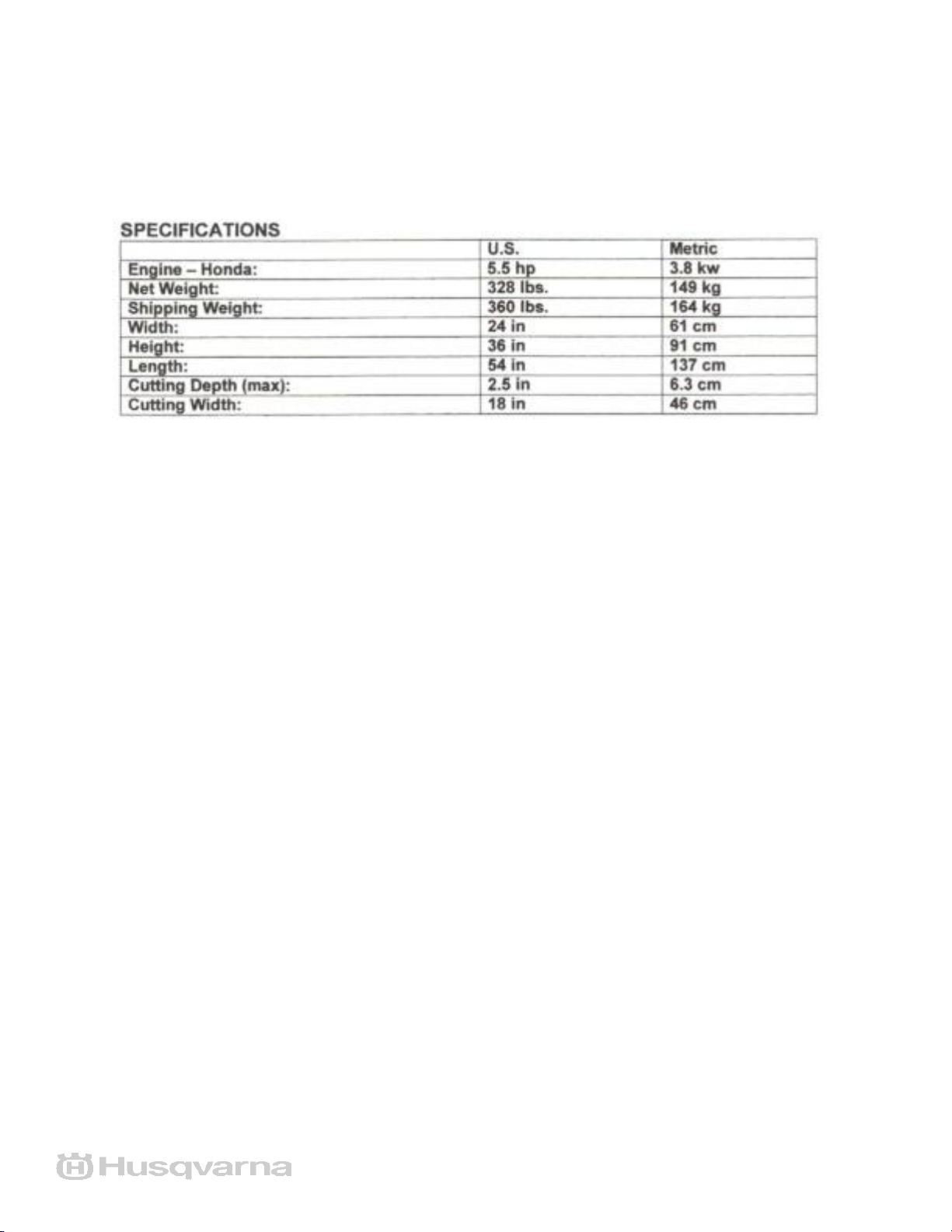

Specifications & Tools ……………………………………………………… 13
Main Frame
1. Handle Attachment …………………………………………………… 14

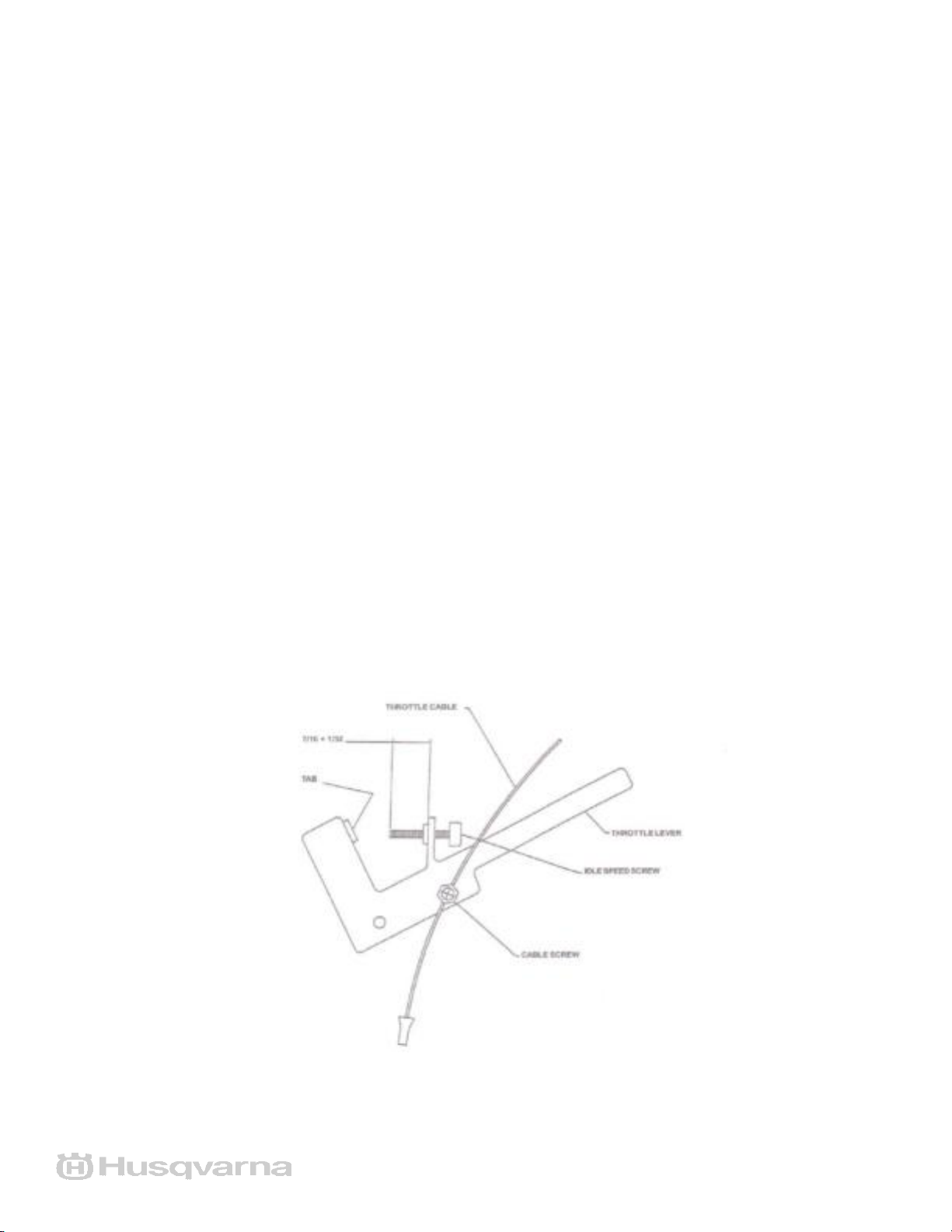

2. Throttle Cable Adjustment …………………………………………… 15
Power Train

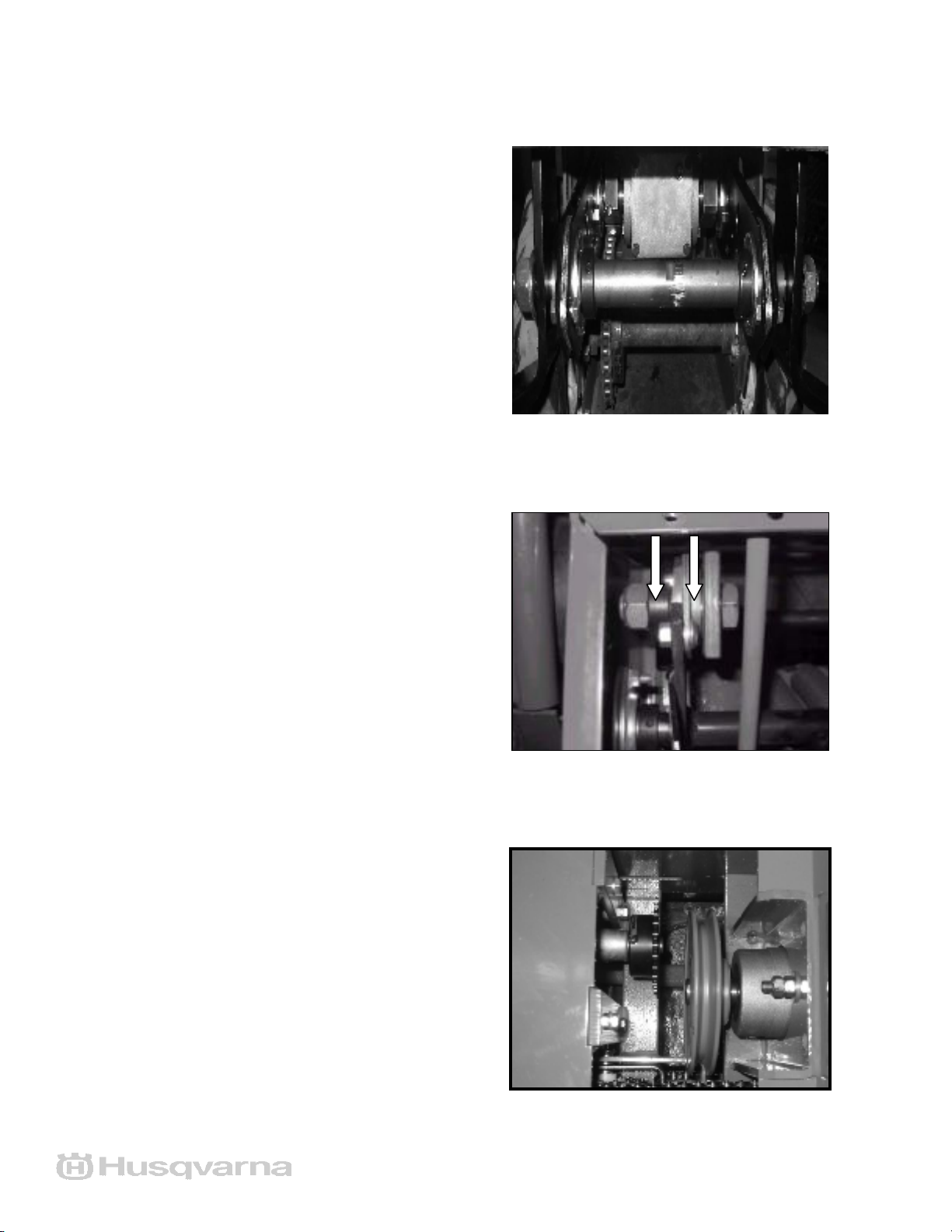

1. Axle Sprocket Location ……………………………………………… 16
2. Belt Keeper …………………………………………………………… 16
3. Chain Idler ……………………………………………………………. 16

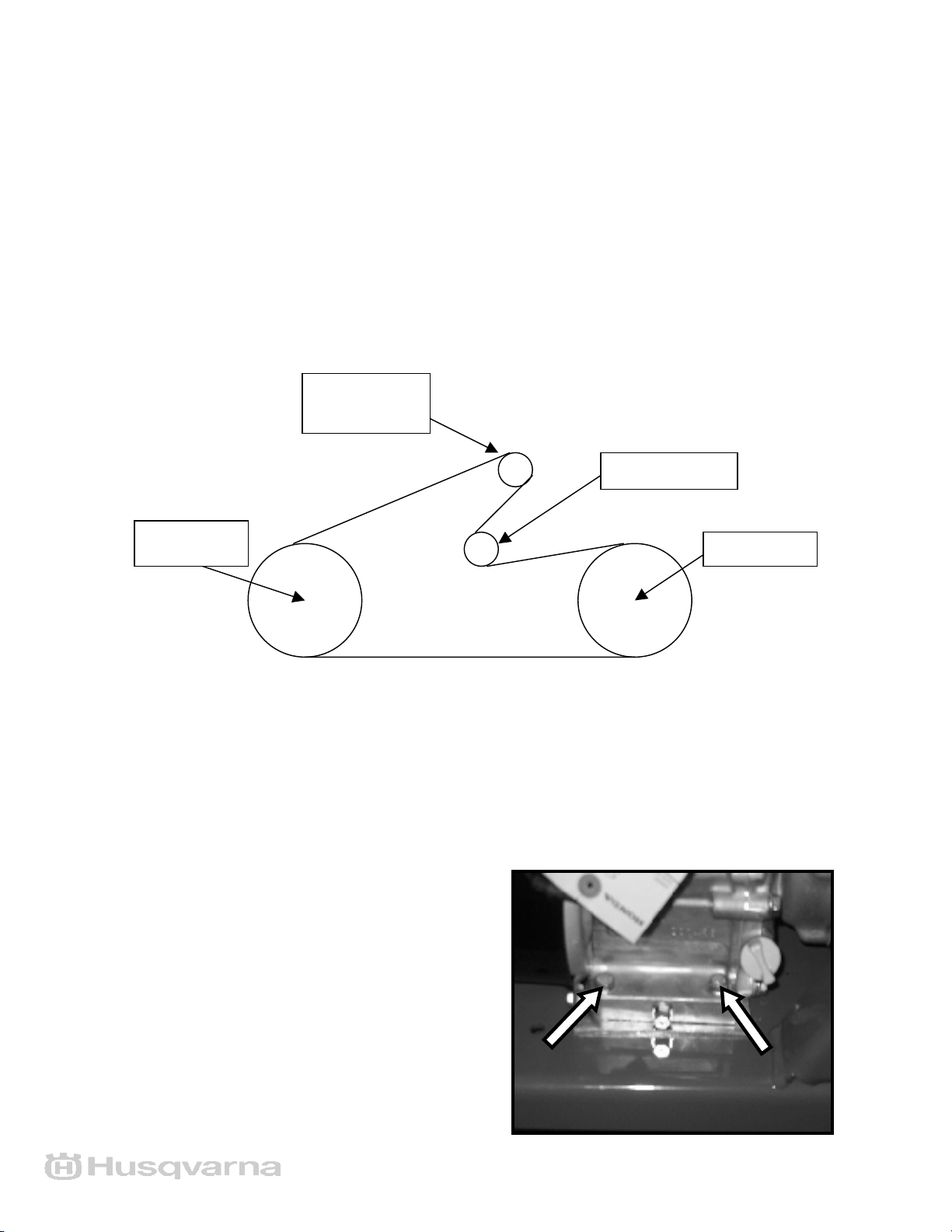

4. Chain Routing & Adjustment ………………………………………… 17
5. Engine Removal ………………………………………………………. 17
6. Upper Pulley Location ………………………………………………... 18
7. Sprocket Location …………………………………………………….. 18
8. Transmission Adjustment & Replacement ...…………………………. 19
Page
Blade Drive

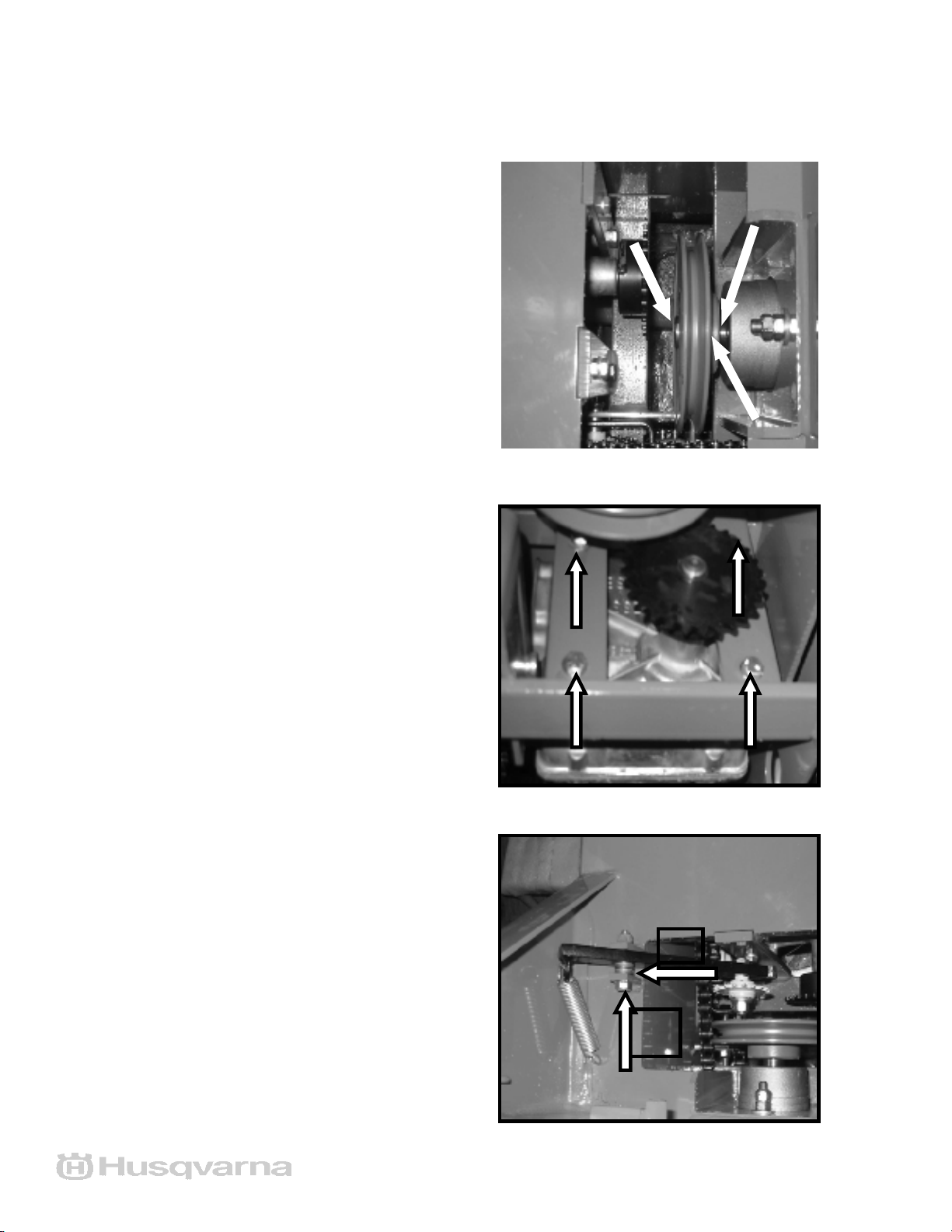

1. Blade Drive Assembly ……………………………………….………... 20
2. Belt Tension …………………………………………………………... 20
3. Blade Arm Replacement ………………………………………………. 21
4. Lower Pulley ………………………………………………………….. 21

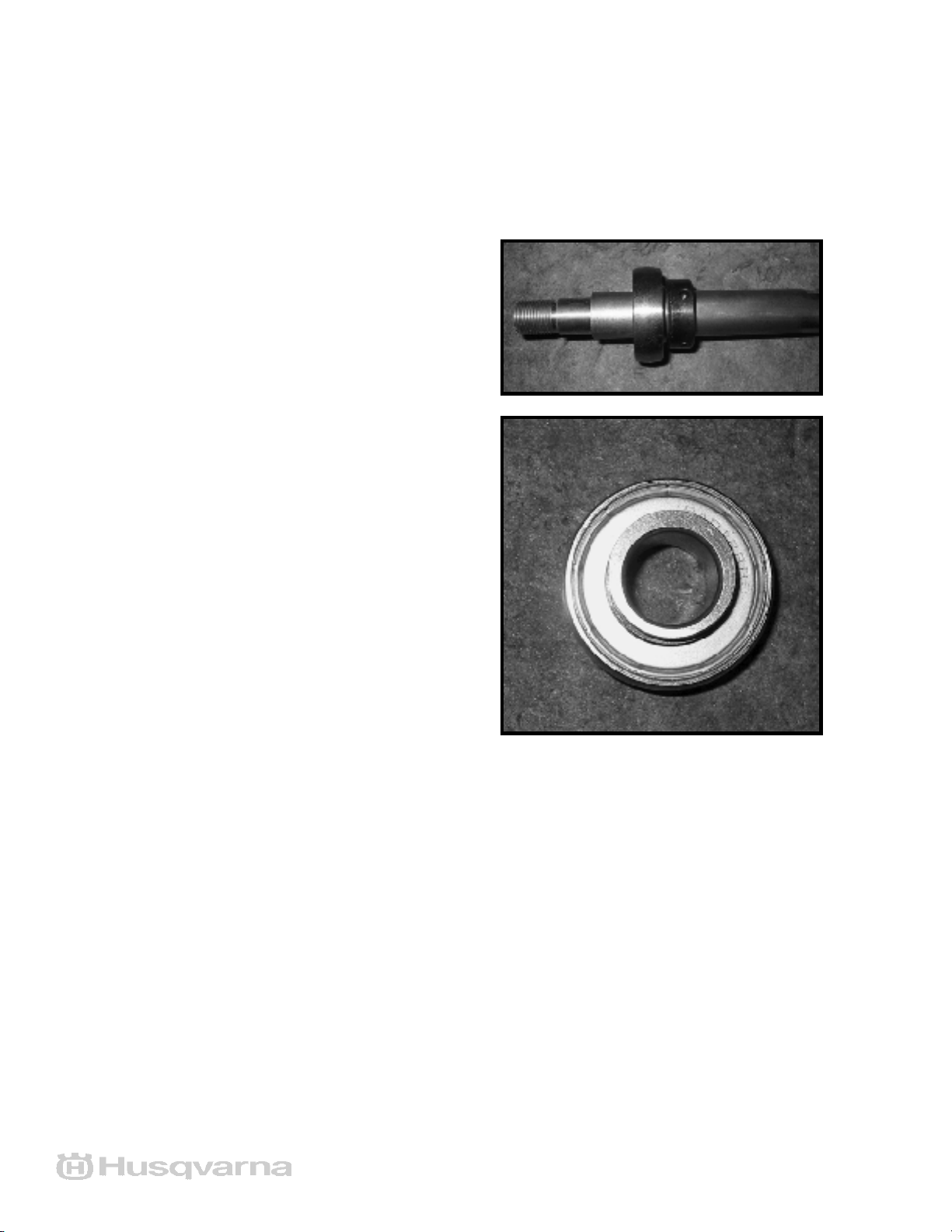

5. Bearing & Lock Collar ……………………………………………….. 22

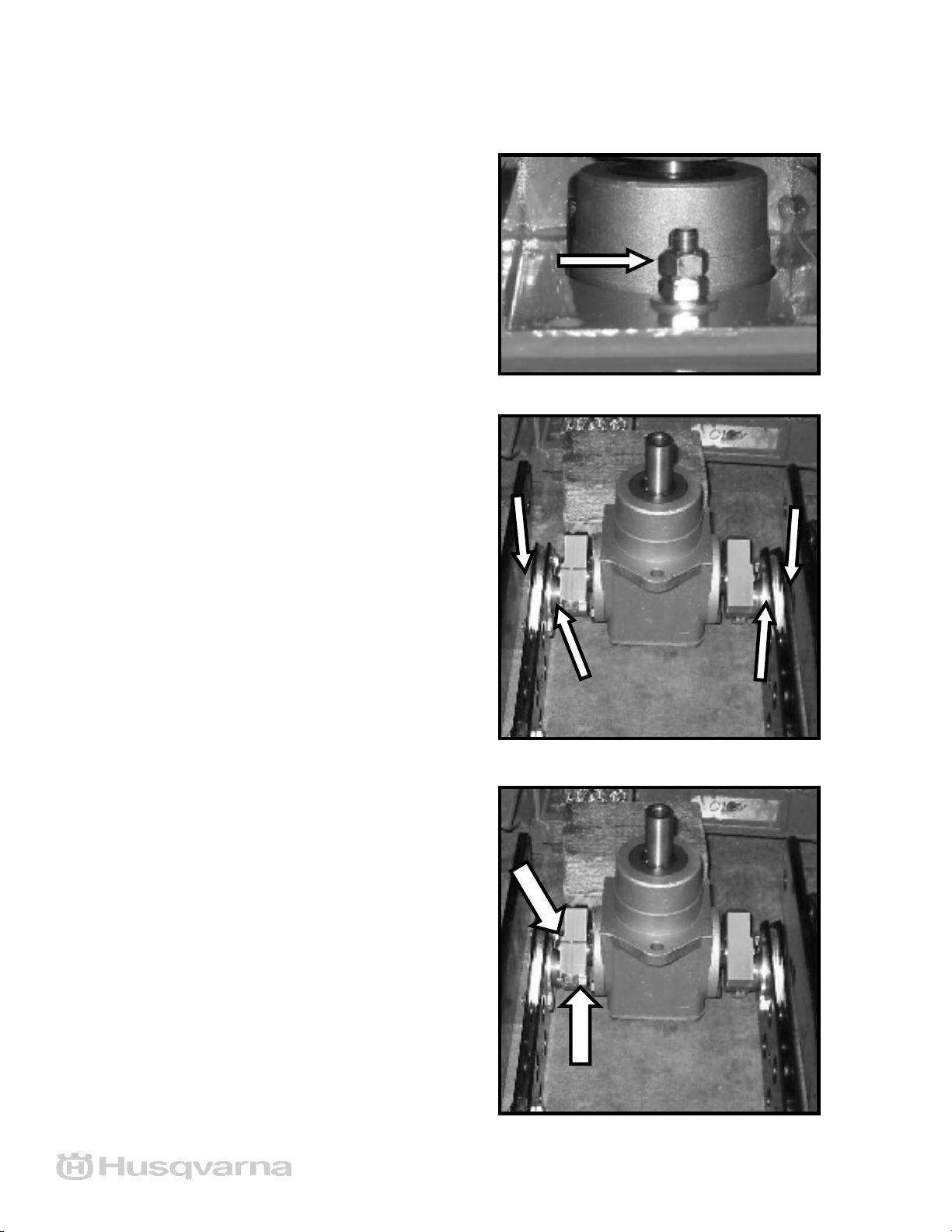

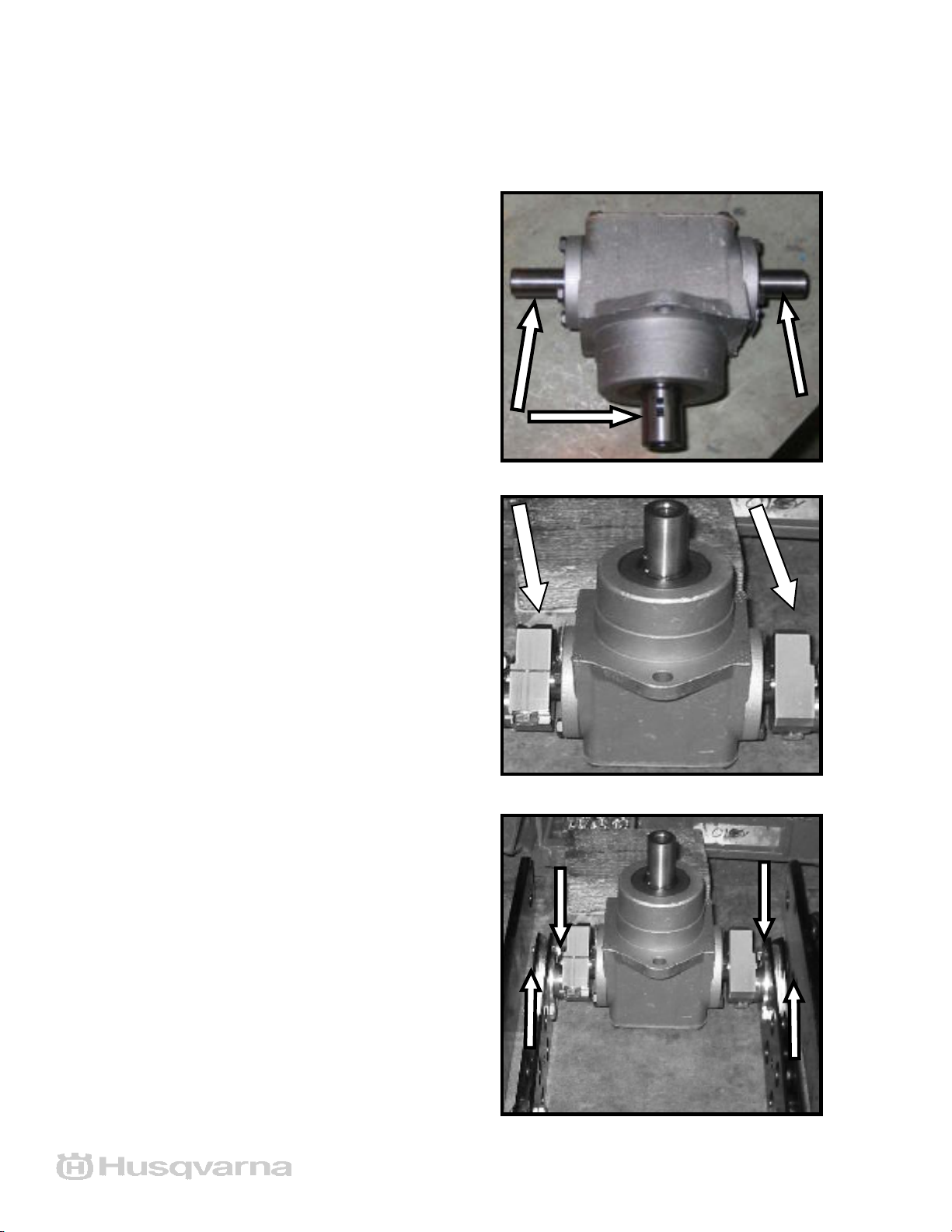

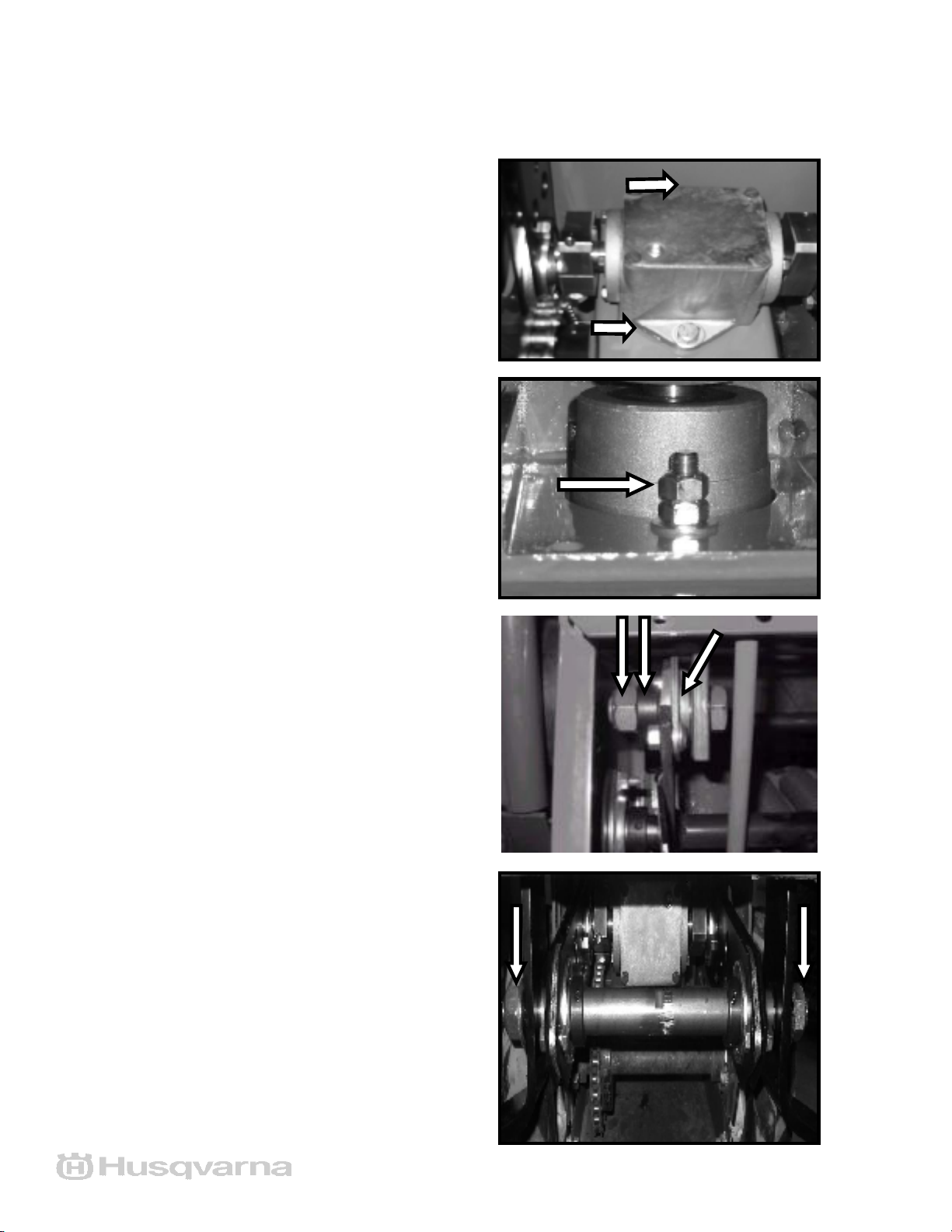

6. “T” Drive Replacement ………………………………………………. 23
Depth Control
1. Depth Control ………………………………………………………… 30

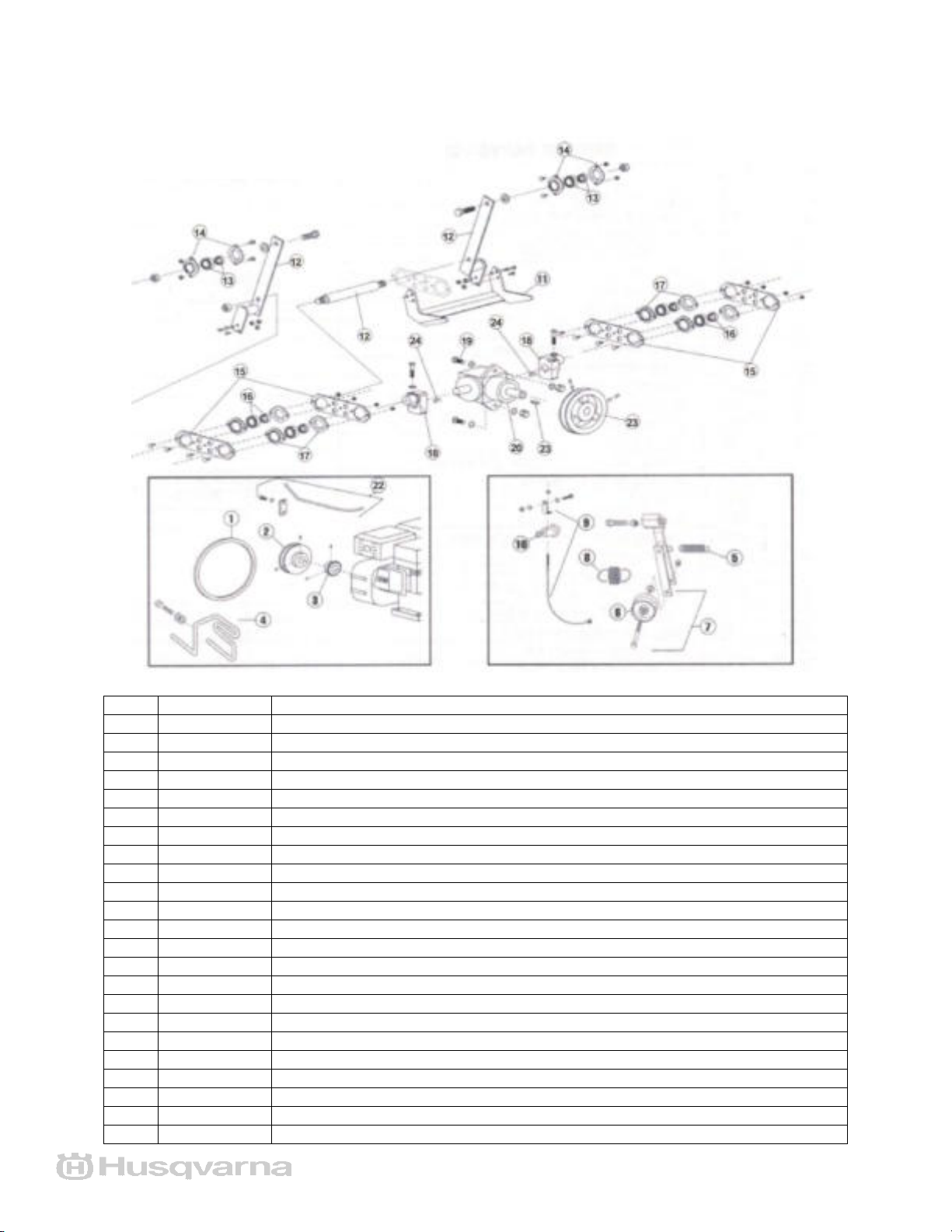

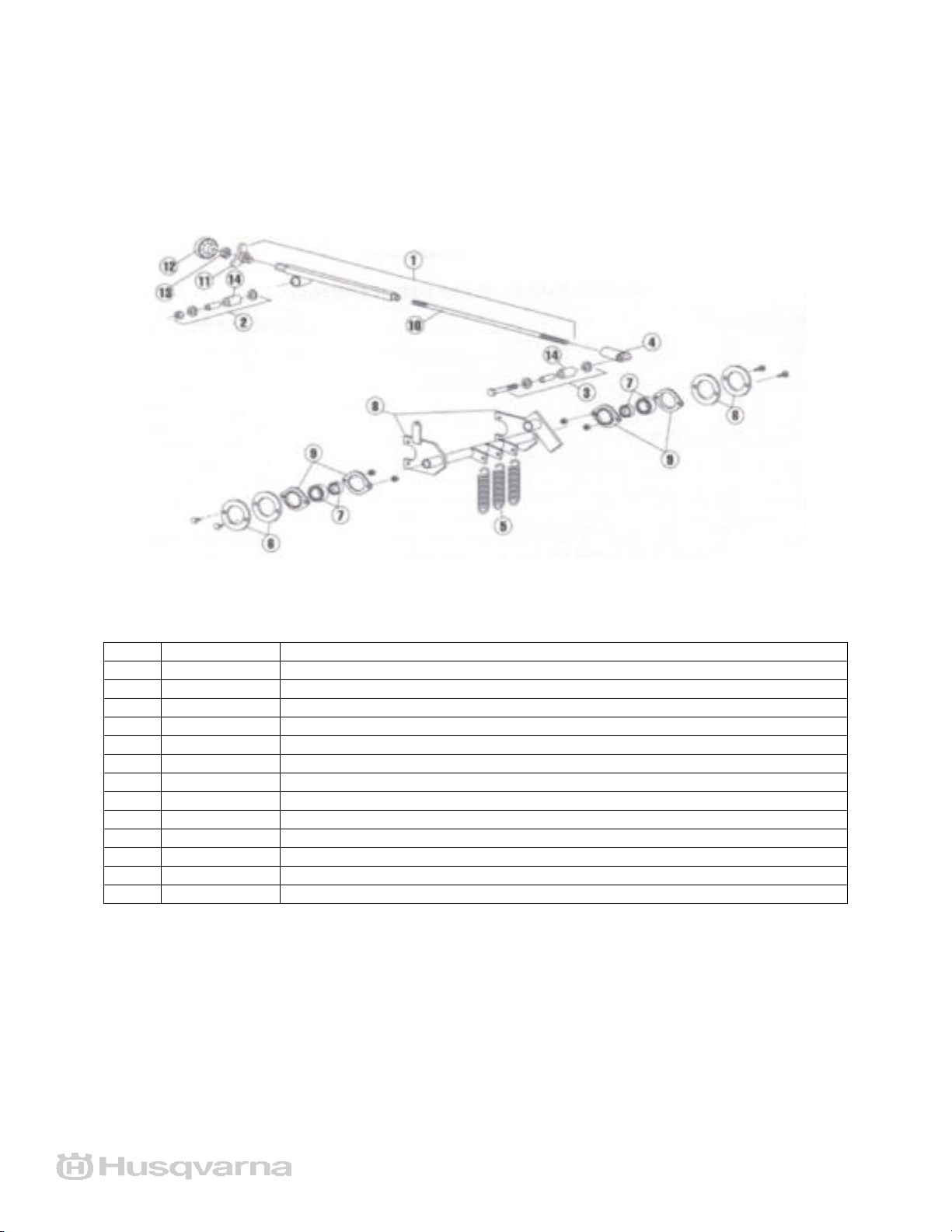

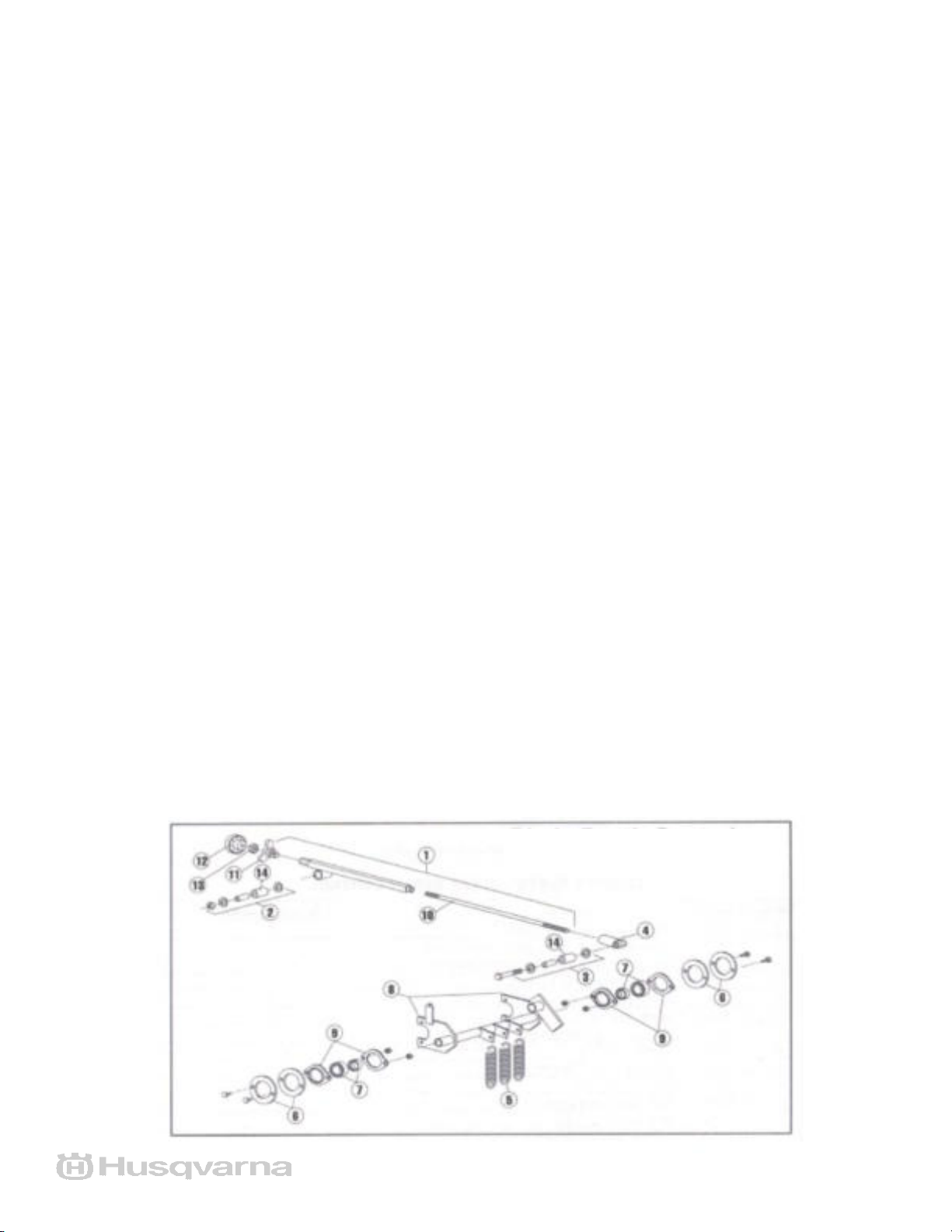

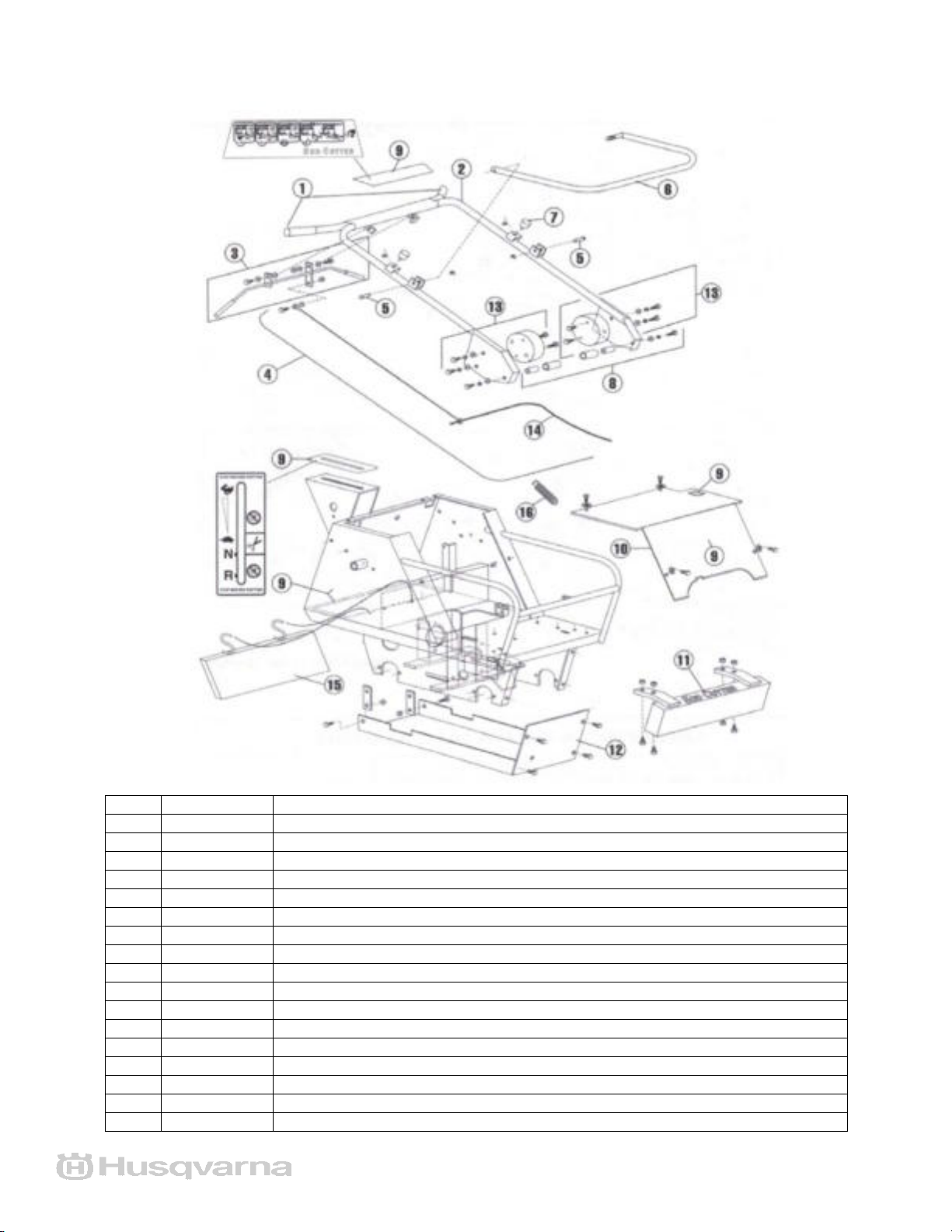

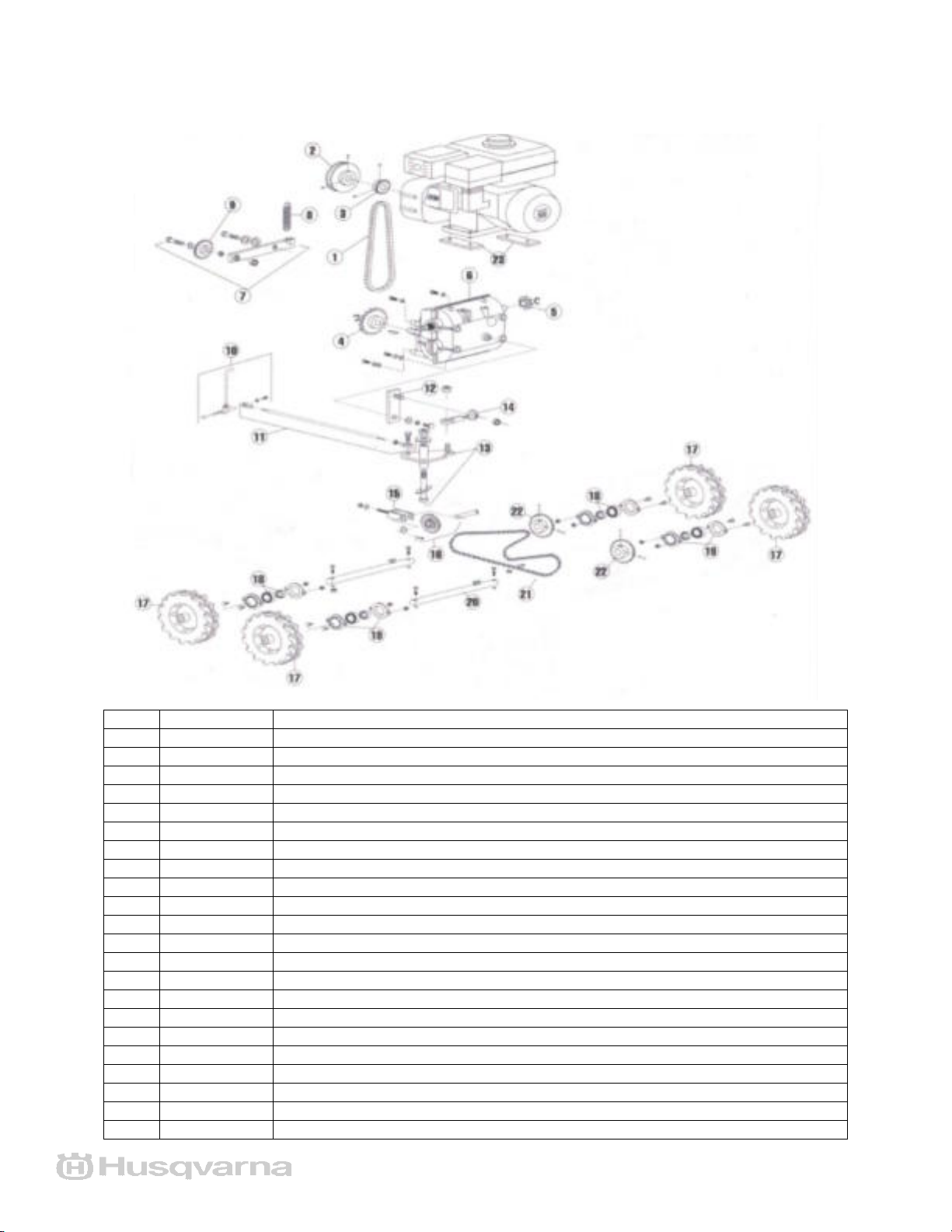

Illustrated Parts Lists ………………………………………………………… 31
Troubleshooting …………………………………………………………….. 35
2
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
SC18 Sod Cutter
Introduction
SOD CUTTING
Sod cutting cuts out existing sod by slicing a layer of soil with the grass and roots so it can be
rolled up and removed. Some applications could be for replacing a type of grass, turf removal,
adding a sidewalk or pathway, installing swimming pools or laying pipes or sprinklers. The usual
cutting depth is about 1 1/2 inches but can be used as deep as 2 1/2 inches. This application is
ideal for brick laying. The advantage in using a sod cutter is that it does not disturb the soil
beneath the cut.
PRODUCT FEATURES
Husgvarna's Sod Cutter has a four-speed transmission (two for cutting) with power reverse. The
cutting path is 18 inches wide. Low speed will cut 175 ft /min while second gear will cut 250
ft/min. The construction is of 7-gauge steel with l0-inch tractor tires and four-wheel drive.
The unit comes fully assembled except for the handle.
HANDLE ASSEMBLY INSTRUCTIONS
• Insert one side of the handle into the tube located in front of the large black rubber handle
mount. Make sure to keep the rubber sleeve on the standoff located on the handle.
• Spread the handle apart so that you can insert the other side of the handle in the same
manner as stated in step number one.
• Using the four 8 mm x 18 mm (Grd. 8) bolts, lockwashers and flat washers (flat washers
against the handle and lockwasher on top). Bolt the handle into the large black rubber
handle mount and tighten securely with Loctite.
• DO NOT CROSS THREAD THE BOLTS!
• Place the depth handle into the "U" brackets on the main handle and secure with the 5/16"
clevis pins and "C" clips.

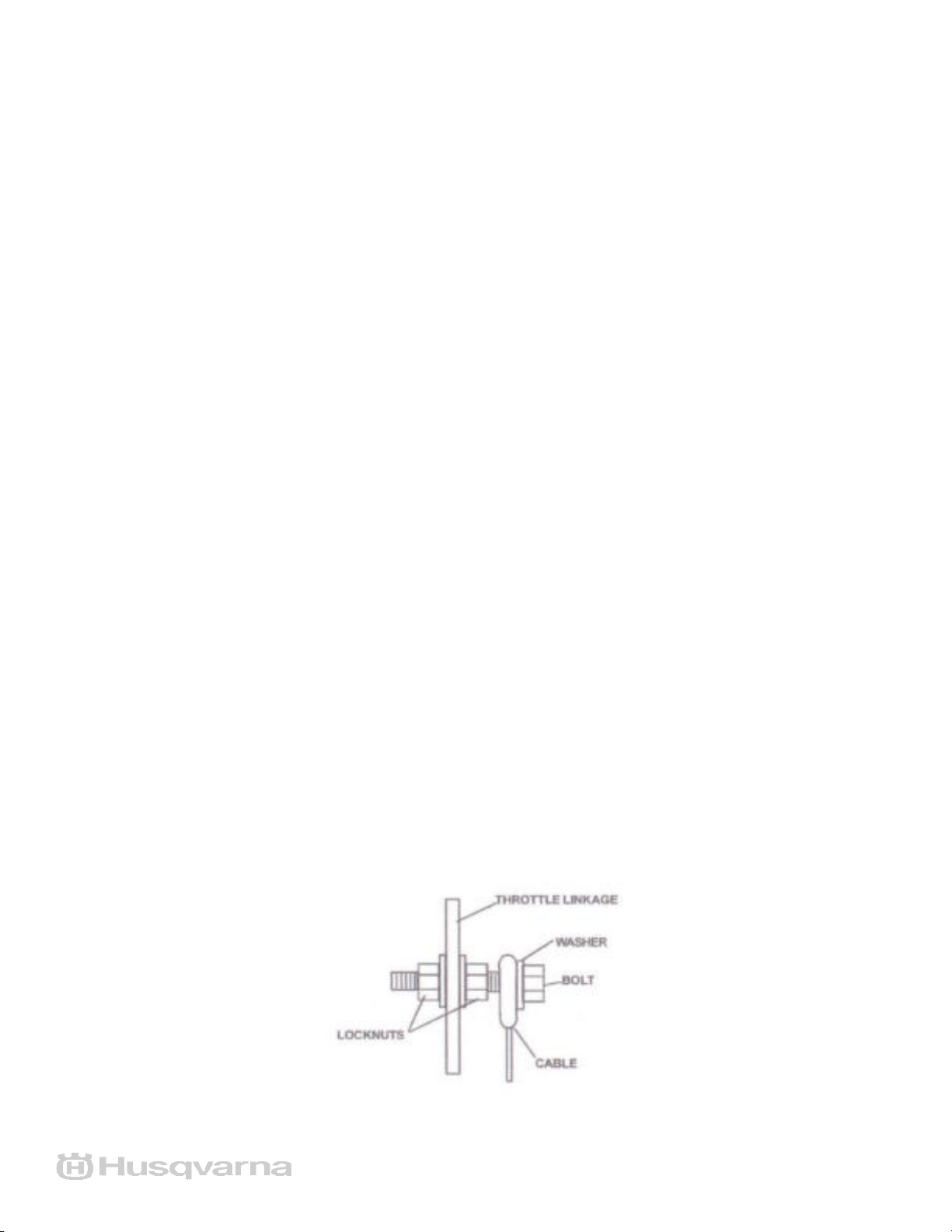

• Attach the throttle cable to the clutch handle using the fasteners located on the cable
assembly as illustrated in Figure 1, making sure that the cable pivots freely after you have
tightened the bolts.
• The throttle cable needs to be hooked up to the throttle control handle, make sure the cable
pivots after tightening. Adjust tension if necessary.
*See Throttle Assembly in the Power Train Section for complete installation instructions.
3
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
SC18 Sod Cutter
Introduction
OPERATOR TIPS
• Soil conditions will affect the cutting depth. The ground may need pre-watering. Watering
the day before should be sufficient. .
• The grass should be dry to provide adequate traction.
• There are 4 transport speeds, only 2 cutting speeds. Always use 1 cutting speed until the
operator is familiar with the unit.
• Terminate cuts by disengaging the engagement handle and driving out of the ground by
holding the throttle open.
• Cut downhill on unleveled soil. Do not operate on hills exceeding 35% grade.
• Do not attempt sharp turns with the sod cutter. Do not attempt turns while on a hill.
• Run the unit while in transport, utilizing the reverse, to prevent premature tire wear on
cement and concrete.
BEFORE STARTING
• Make sure engine oil is at the manufacturer's recommended level.
• The reduction gearbox connected to the engine must be filled with oil per Honda owner's
manual. Both take lOw 30 oil.
• Place shift lever in neutral and raise blade before starting engine.
• Mark sprinkler heads and remove unwanted debris before using.
LOADING THE SOD CUTTER
DO NOT ATTEMPT TO LIFT THE SOD CUTTER (320 pounds). The rental rate includes 2
ramps to load the unit into a truck or trailer. The unit can be driven on and off the truck by use of
the low gears, forward and reverse. Secure unit in truck or trailer.
SOD CUTTER OPERATION
• With engine running, put sod cutter in gear and lower blade by pulling back on
engagement handle.
• Only cut in the lowest two speeds as indicated by the scissors icon on the machine.
• Stop before shifting gears.
• The unit has a centrifugal clutch so the machine will not move until the throttle is
increased to above 1800 rpm. The maximum engine rpm is 3000.
• After cutting a few feet, stop unit to check depth of cut.
• Cut only deep enough to keep the sod intact and not damage the roots.
• The depth can be adjusted by turning the depth control knob clockwise for thin and
counterclockwise for thicker cut.
4
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
SC18 Sod Cutter
Introduction
MAINTENANCE
• Normal engine maintenance is required, check with owner's manual for specifics.
• Blade arm mounting and drive shaft must be properly tightened.
• Husgvarna-supplied belt allows for belt slippage.
• Inspect shaft, pulleys and keys for damage. Note: some pulleys have double set screws Use
blue Loctite on the set screws.
• The chains should be checked and adjusted after each use for the first fifty hours, every 20
hours after that.
• The chain can be adjusted from the rear without having to remove the skidpan.
• The chain must be lubricated with a dry chain lubricant to increase life.
• The depth adjustment knob and threaded screw must be lubricated frequently to prevent
rust and locking.
• Lubricate at all threads every 20 hours. Prevent direct water pressure in to the depth
adjustment assembly.
• The chain tension should be set with 1/4 -3/8" inch deflection between axle sprockets.
• Throttle cable and clutch cable should be checked before each use but should rarely need
attention once set properly.
• Belt tension can be increased by adjusting the cable.
• All pulleys should be checked for alignment and set screws for tightness. The lower drive
pulley has four setscrews.
5
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
6
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
SC18 Sod Cutter
Operating Instructions
Safety & Maintenance
GENERAL INFORMATION
This information will assist you in the safe operation and proper maintenance of your Husqvarna
equipment. Read it thoroughly before attempting to operate the machine. Do not hesitate to call
your dealer or Husqvarna if additional information is required.
This equipment should not be modified without the manufacturer's prior written authorization.
Doing so without our written permission may not only affect the equipment’s performance and
durability, but also create safety hazards for the operator and the surroundings. Warranty will be
void if changes are made to the equipment without the manufacturer's prior written authorization.
SAFETY PROCEDURES
DO:
• Only start with shift lever in neutral.
• Read all maintenance and service instructions before attempting work.
• Follow engine manufacturer operating and maintenance instructions.
• Inspect area to be cut and remove rocks, wire, string and other objects that might
present hazard before starting.
• Identify and mark all in ground objects to be avoided, such as sprinkler heads, stakes,
water valves, clothesline anchors, etc.
• This machine was designed for sod cutting only. It is not intended for any other use.
DO NOT:
• Do not start in gear.
• Do not cut at high transport speeds.
• Do not use on any surface other than grass.
• Do not operate on slopes exceeding 35% grade.
• Do not place hands or feet near moving or rotating parts.
• Do not run engine in an unventilated area.
• Do not shift with throttle engaged.
• Do not run engine while servicing. Remove spark plug wire before servicing.
• Do not remove guards when operating.
• Do not lift this 330-lb. machine
7
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
SC18 Sod Cutter
Operating Instructions
OPERATOR'S TIPS
• To engage reverse gear you may have to push the machine back and forth while pulling the
shift lever.
• Stop before shifting gears.
• Cut going down hill on ground that is not level.
• End cuts by pushing the blade engagement lever forward while still holding the throttle to
cut the end of the sod strip as the blade rises.
• Soil conditions will effect cutting depth. Readjusting the blade depth may be required as
you move from hard soil to soft or moist soil conditions.
• Do not attempt sharp turns while cutting.
• Should I water before cutting?
It is usually not necessary to water before cutting. In extreme conditions, such as clay soil that is
very compacted, a simple test as follows will determine if you need to water before cutting. Use
a garden hand spade, weed tool, or even a large screwdriver to test the ground's hardness. You
should be able to push the tool into the ground 2 to 3 inches with little effort.
Safety & Maintenance
If you are unable to do so, then watering may be advisable. Watering the day before should give
sufficient time for the soil to absorb the moisture. Use your hand tool to gauge the effectiveness
of your watering. Allow the grass to dry before cutting to provide adequate traction for sod
cutting.
OPERATING ON HILLS
WARNING – DO NOT operate on hills exceeding 35% grade to prevent machine from rolling
over. Please be aware that when operating on hills, you may experience:
• The need to exert greater effort to steer and maintain the balance of the machine.
• Uneven cutting depth, when operating across a hill. The shifted center of gravity may
cause the downhill side of the blade to penetrate to the maximum depth, while the uphill
side may not.
With these factors in mind, you may find it more effective to:
• Operate the machine cutting down rather than across hills. You will achieve even cutting
depth and enhance stability.
• Avoid hillside turns. Back up hills in reverse gear, then cut, going down.
8
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
SC18 Sod Cutter
Operating Instructions
Safety & Maintenance
BEFORE YOU START
• Read and understand this manual.
• Be sure engine oil is at engine manufacturer's recommended level. (Refer to engine
Manufacturer’s manual.)
• Put the sod cutter into neutral before starting.
• Place blade in transport position before starting.
TRANSPORTING
• Push the blade engagement lever forward to raise the blade.
• Select the desired gear (slow - fast - reverse).
• Pull the throttle while maintaining a firm grip on the handlebar.
• To make turns, push down on the handlebar to do "a wheelie," then turn.
• Load into truck or trailer by driving up ramps in low gear. DO NOT LIFT! This 330-lb.
machine is not intended to be lifted by hand.
SOD CUTTING (See Figure - Page 3)
1) Position the sod cutter at your starting point with the blade out of the ground.
2) Pull the blade engagement lever toward you with one hand while lifting the handlebar with
the other hand.
3) Place the shift lever in slow gear (turtle icon).
4) Pull the throttle while maintaining a slight down pressure on the handlebar and cut a short
distance, then stop. Put shift lever in neutral.
5) Lift the edge of the sod to check the cut depth.
6) To change the depth, push the blade engagement lever forward, unlock the depth lock knob
(red knob), and turn the depth adjustment knob clockwise for less depth, or counterclockwise
for more depth; then lock the depth lock knob.
7) Repeat steps 2 through 6 as necessary to set depth of cut.
End cuts by pushing the blade engagement lever forward while holding the throttle to cut the end
of the sod strip as the blade exits the ground.
9
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
SC18 Sod Cutter
Operating Instructions
Safety & Maintenance
CAUTION
*Any modifications or additions to this equipment without written authorization from the
manufacturer will void all manufacturers’ warranties.
*Do not operate this machine without first reading owner’s manual.
*Husqvarna parts have been designed and specified to meet commercial operating standards for
strength and durability. For reliability and preservation of design safety standards, replacements
should only be made with genuine Husqvarna parts or material of equivalent type and strength.
TWO MINUTE WARNING
Sod Cutters may be tipped on their engine guard for cleaning and access for no more than 2
minutes. Engine damage may result from gasoline draining into the crankcase if prolonged. See
engine manufacturer's operating and maintenance instructions.
ENGINE SERVICE AND WARRANTY
Contact your nearest engine manufacturers authorized servicing dealer for engine service and
warranty questions. Follow the engine manufacturers’ maintenance instructions. Should any malfunction occur with the engine during the warranty period, take it to an Authorized Service
Dealer.
• DO NOT tear down the engine, as this may void the Engine Manufacturer's Warranty.
10
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
SC18 Sod Cutter
Operating Instructions
Safety & Maintenance
PREVENTATIVE MAINTENANCE SCHEDULE
A) INSPECTION SCHEDULE
Item Each Use Every 20 hours
Engine Oil (see engine manual)
♦
Clutch Tension
Chain Tension
Decals and Warnings
Fasteners and fittings
Throttle cable
Blade condition and wear
Frame condition (rust, cracks, etc.)
Clutch and cable
Excessive vibration
Engine air cleaner (see engine manual)
Depth adjuster
B) LUBRICATION SCHEDULE
Item Lubricant
Every 20 hours Every 60 hours As Required Storage
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
Oil - See
Engine Oil
Chain
Linkage 30W oil
Grease depth
adjust screw
Owners Manual
30 W Motor oil or
Chain Lubricant
www.mymowerparts.com
♦ ♦ ♦
♦ ♦ ♦ ♦
♦
♦ ♦
11
Loading...
