Rider 11, Rider 13 H,
Rider 11 Bio, Rider 13 H Bio,
Rider 14 Pro, Rider 16 H
Workshop Manual
101 90 98-26
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Workshop manual
Rider 11, Rider 13 H
Rider 11 Bio, Rider 13 H Bio
Rider 14 Pro, Rider 16 H
Contents
Safety regulations ...............................................2
General instructions .........................................2
Special instructions ..........................................2
Special tools ........................................................3
Technical data .....................................................4
Dimensions ......................................................4
Engine..............................................................4
Gear box ..........................................................4
Transmission....................................................4
Play ..................................................................4
Tightening moments.........................................4
Mowing deck ....................................................5
Control points...................................................5
Delivery and dealer service................................6
Maintenance schedule........................................8
Delivery measures ............................................10

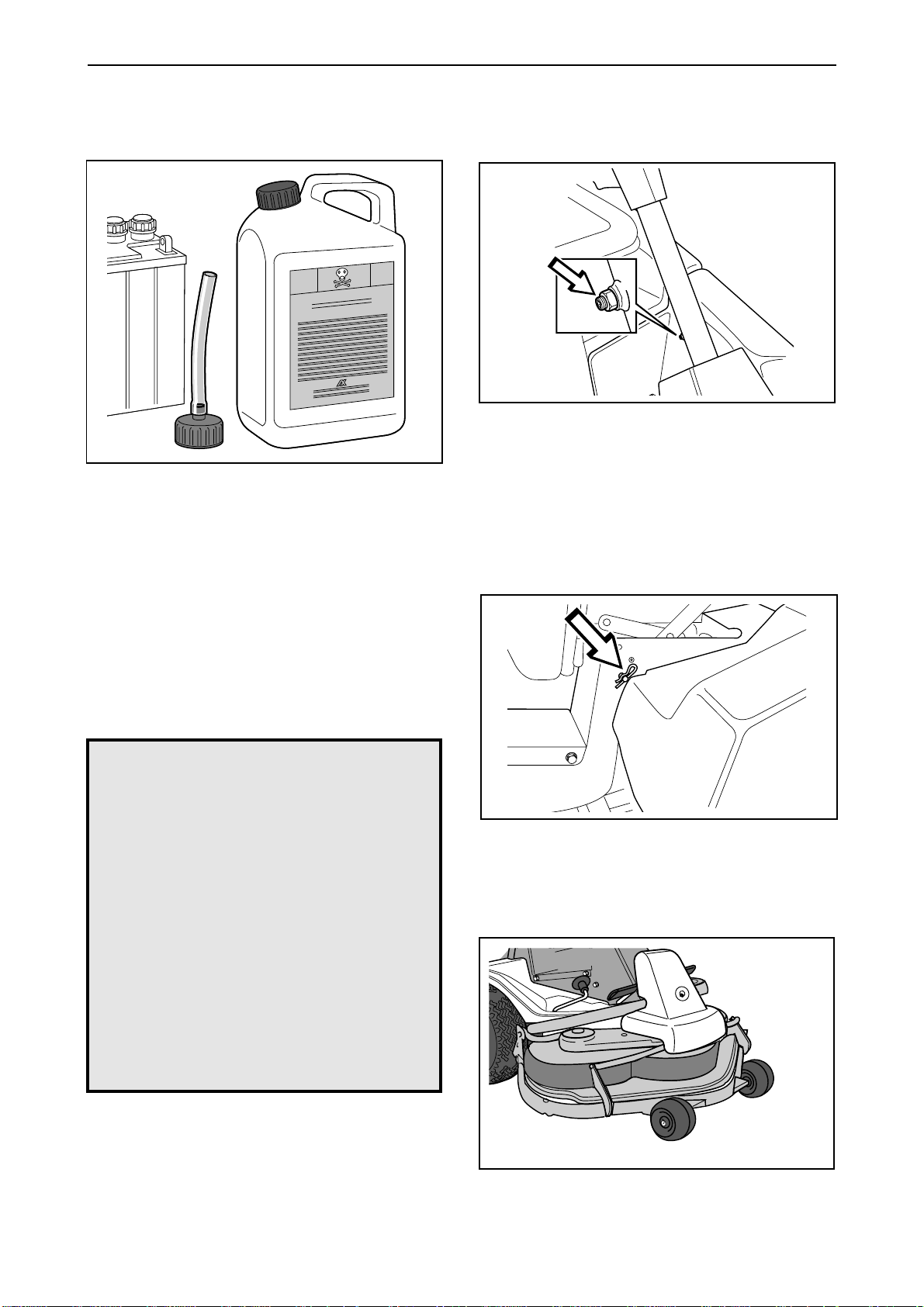

Refilling battery acid..................................10
Fastening steering wheel .......................... 10
Fastening seat ..........................................10
Fastening support wheels .........................10
Design and function.......................................... 11
General ..........................................................11
Engine............................................................12

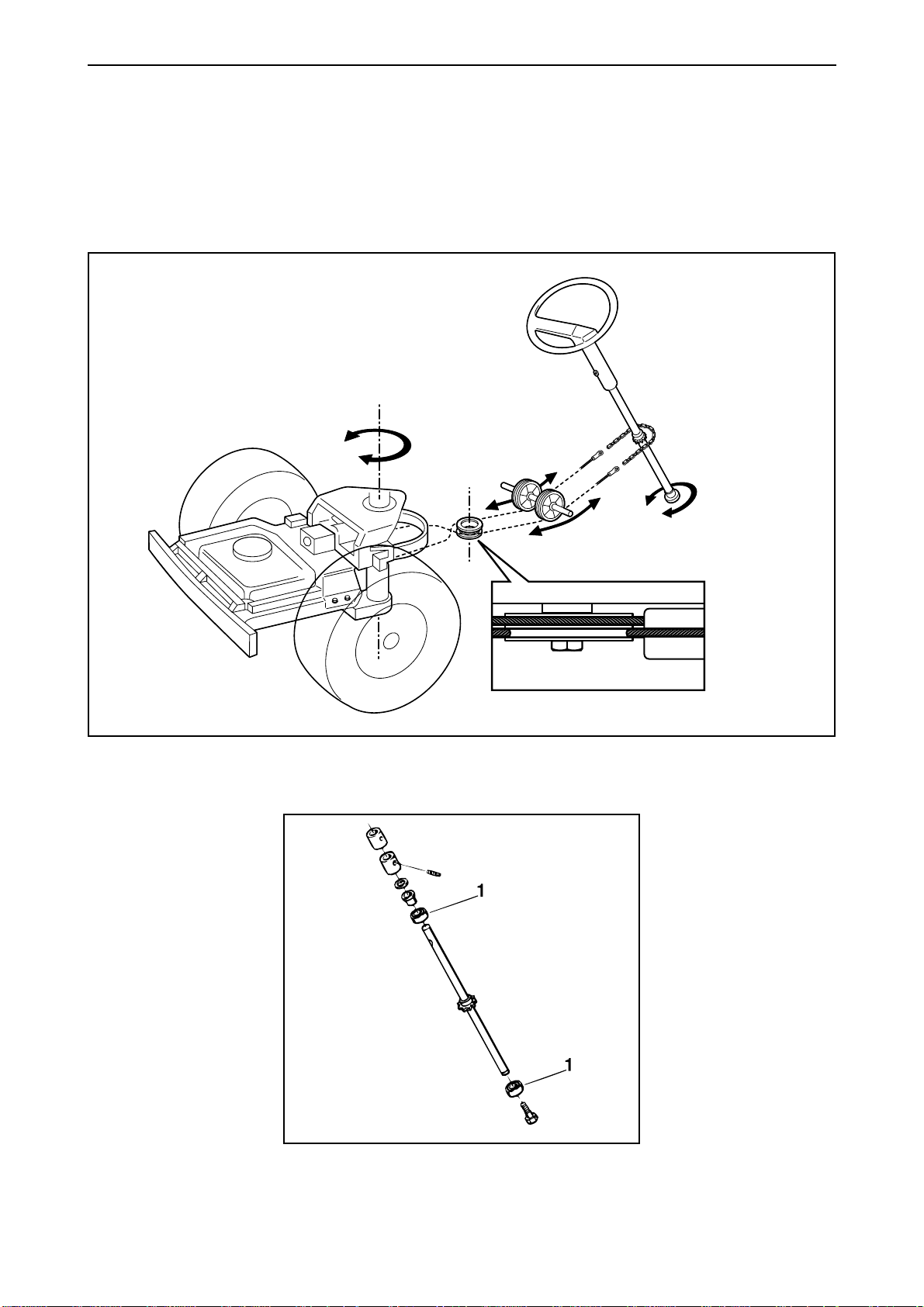

Steering.......................................................... 13
Driving............................................................14
Mowing deck ..................................................15
Reparation instructions....................................16
Removing engine ...........................................16
Replacing engine ...........................................18

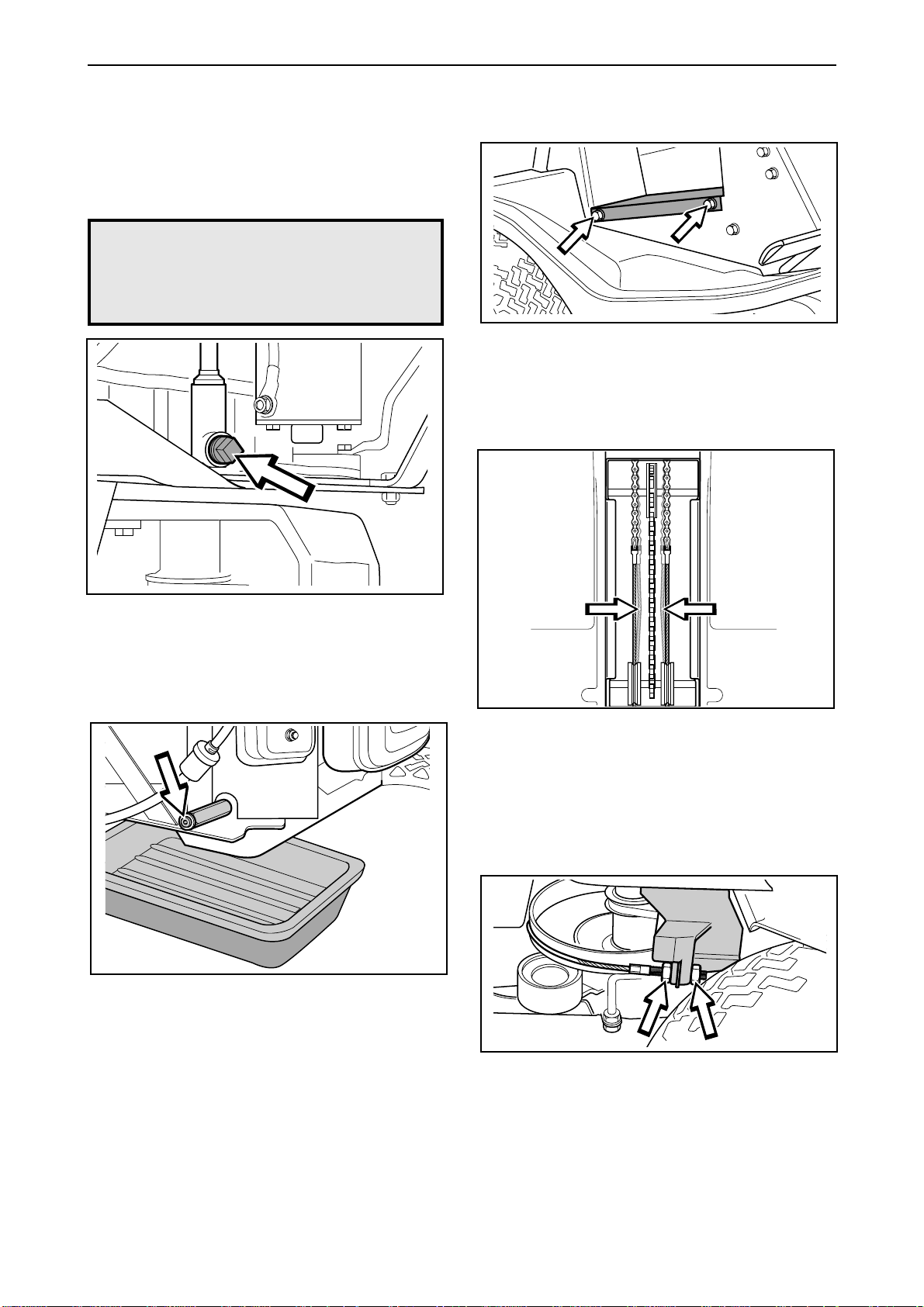

Changing engine oil .......................................21
Checking and adjusting steering wires ..........21

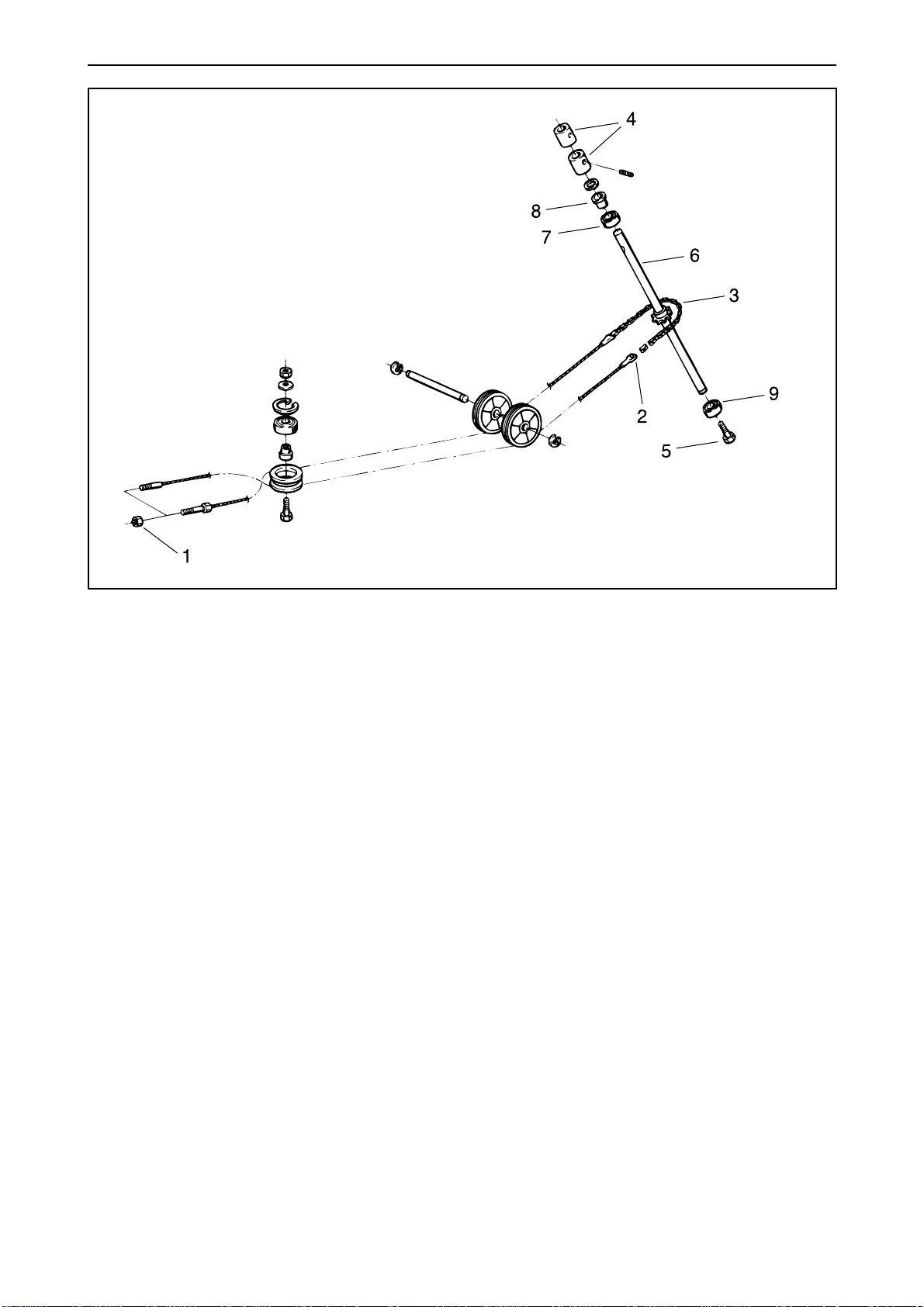

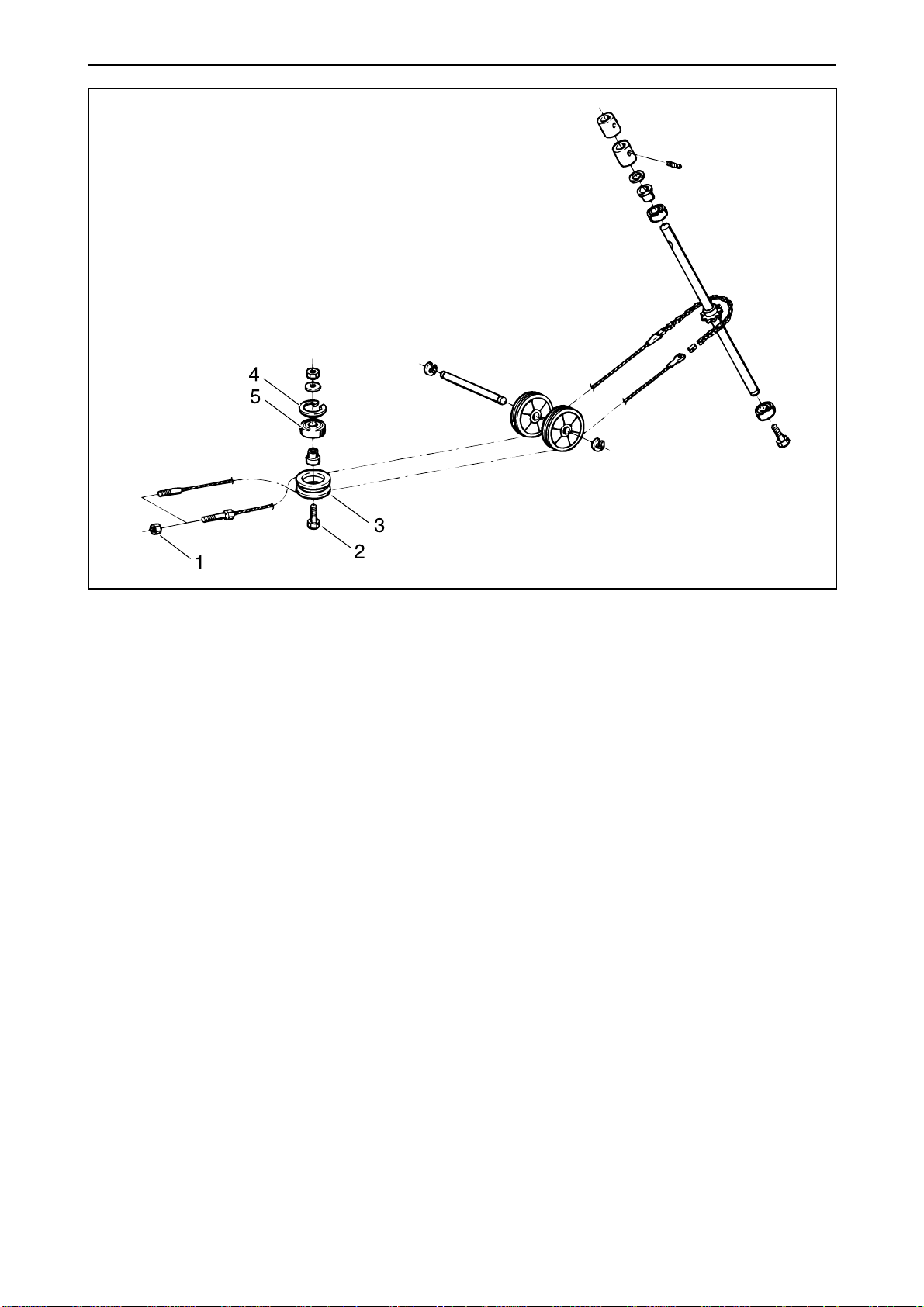

Replacing steering wires................................22
Removal/installation of steering axle .............22
Removal/installation of wire wheel.................23

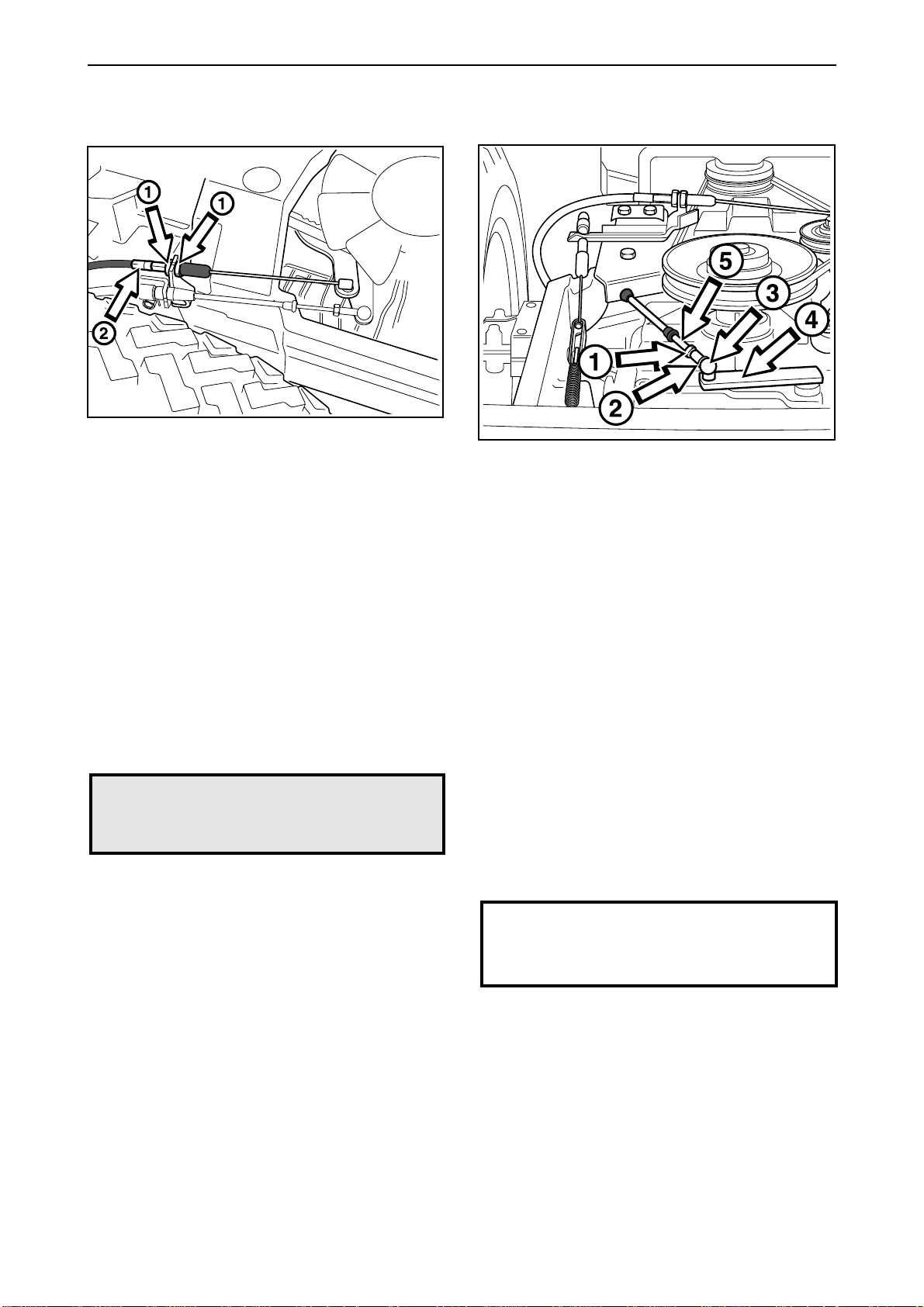

Checking and adjusting brake wire ................24
Checking and adjusting gear control.............. 25
Checking and adjusting throttle control..........26
Checking and adjusting freewheel clutch....... 26
Replacing articulated steering bearing........... 27
Removal of swing axle ...................................28
Replacing bushings........................................ 29
Installation of swing axle ................................29
Removal/installation of gear box....................30
Removal/installation of hydrostatic
transmission...................................................31

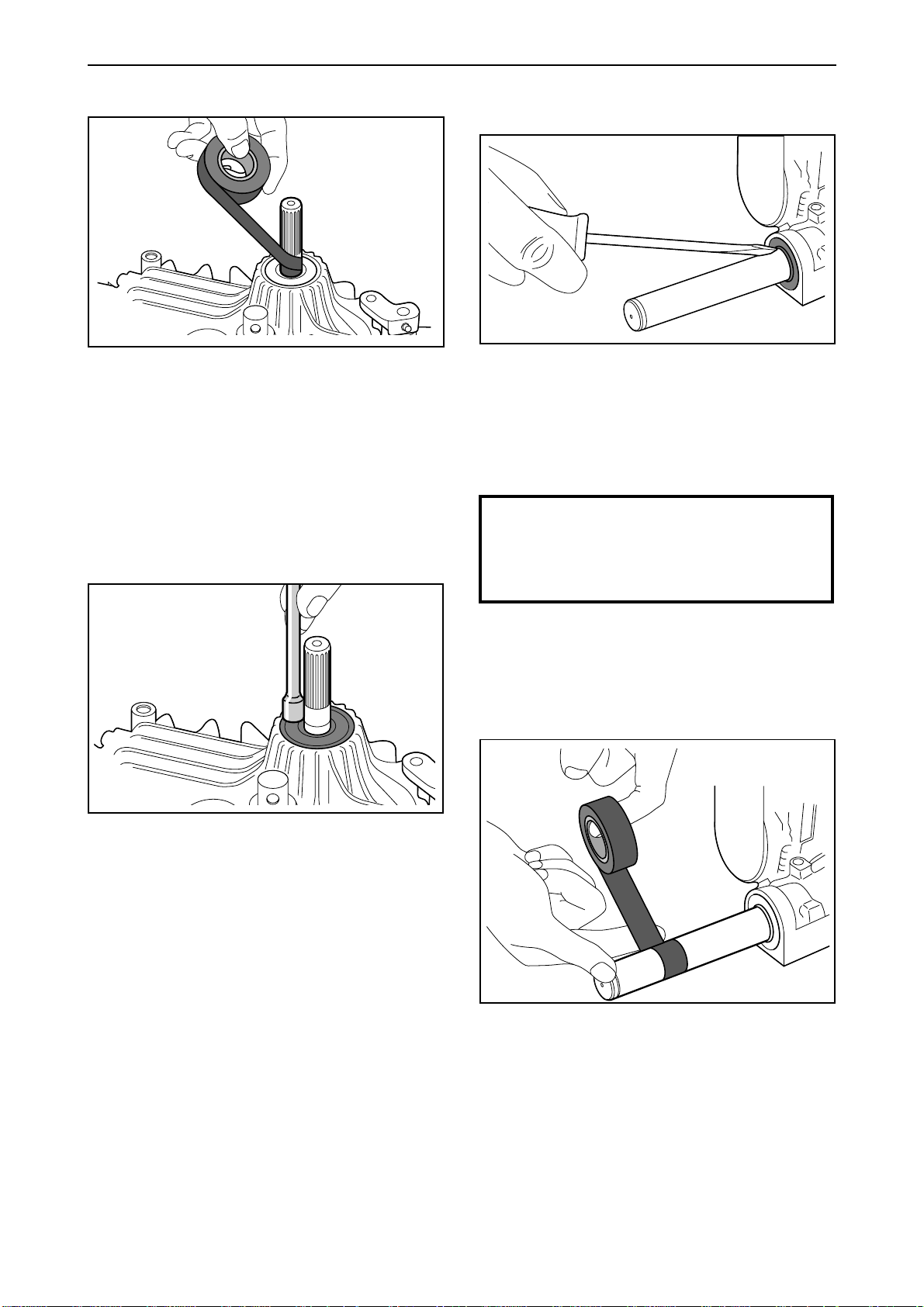

Replacing hydrostat. trans. axle seals ........... 33
Input axle ..................................................33
Outgoing axles .......................................... 34

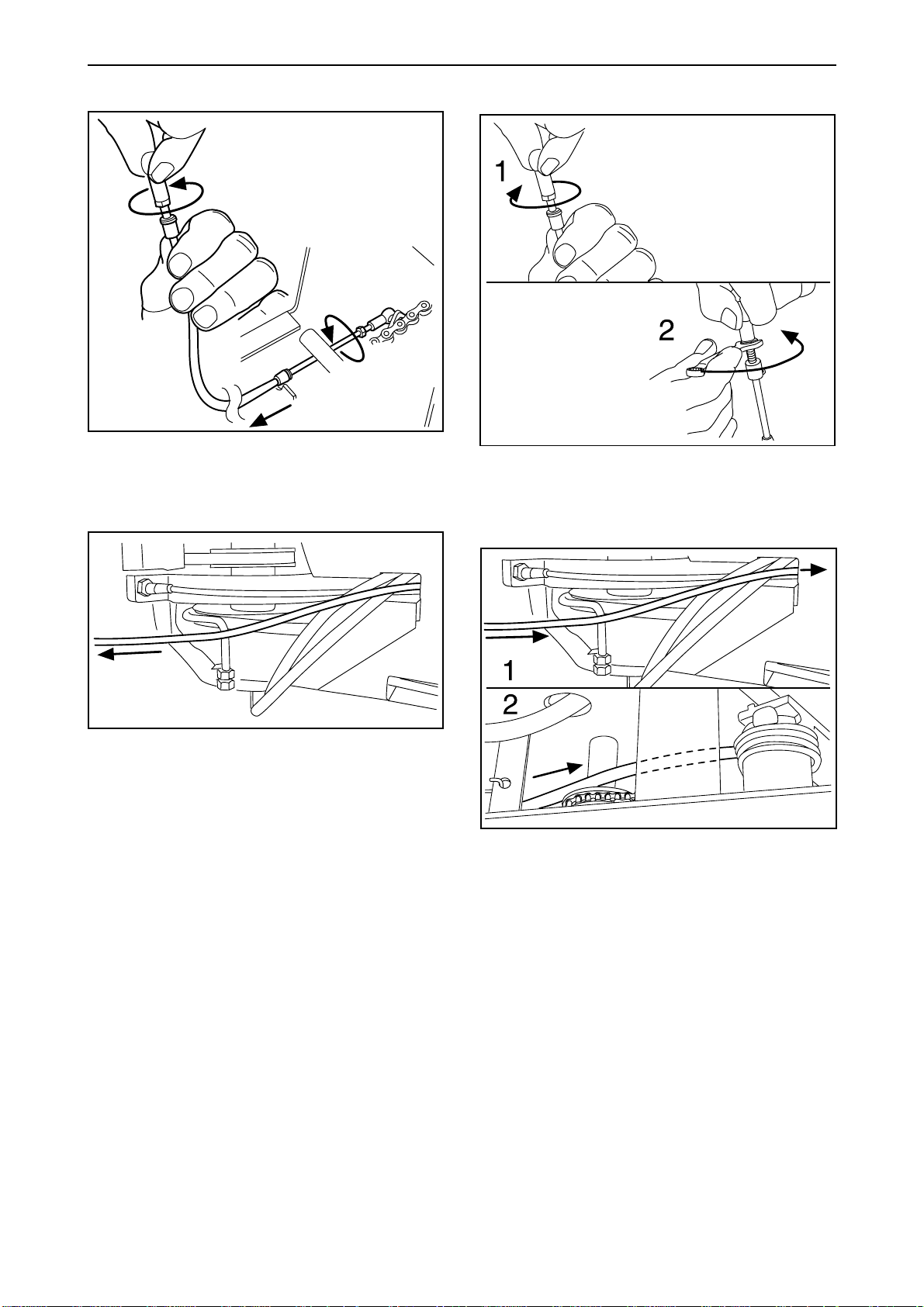

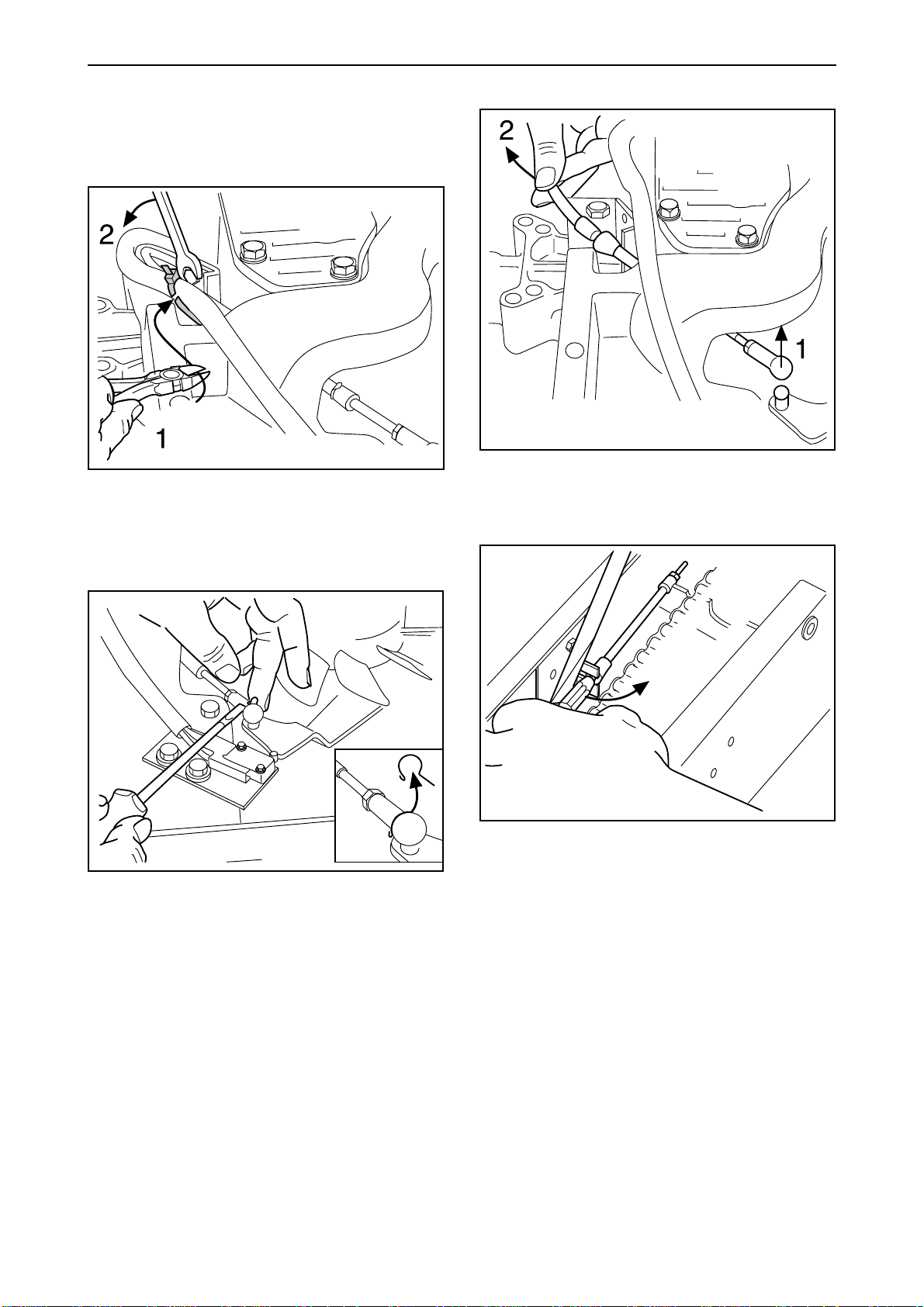

Replacing hydrostatic transmission wire........35
Hydrostatic transmission brake......................40
Removal of brake......................................40
Installation of brake...................................40
Adjustment of brake .................................. 41
Bleeding hydrostatic transmission oil system 42
Adjustment of transmission neutral position ..42

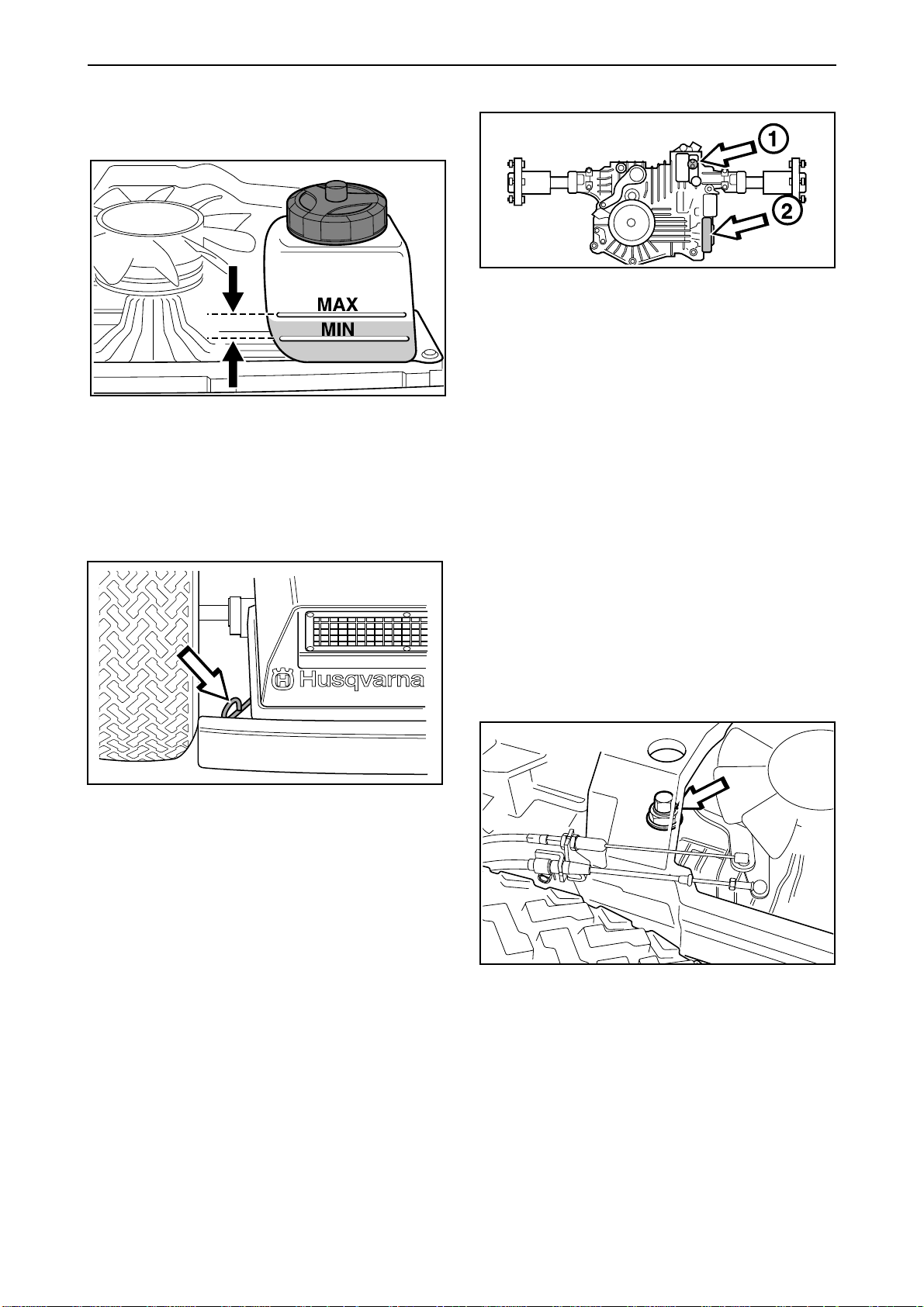

Transmission maintenance ............................43
Removal of belt ..............................................44

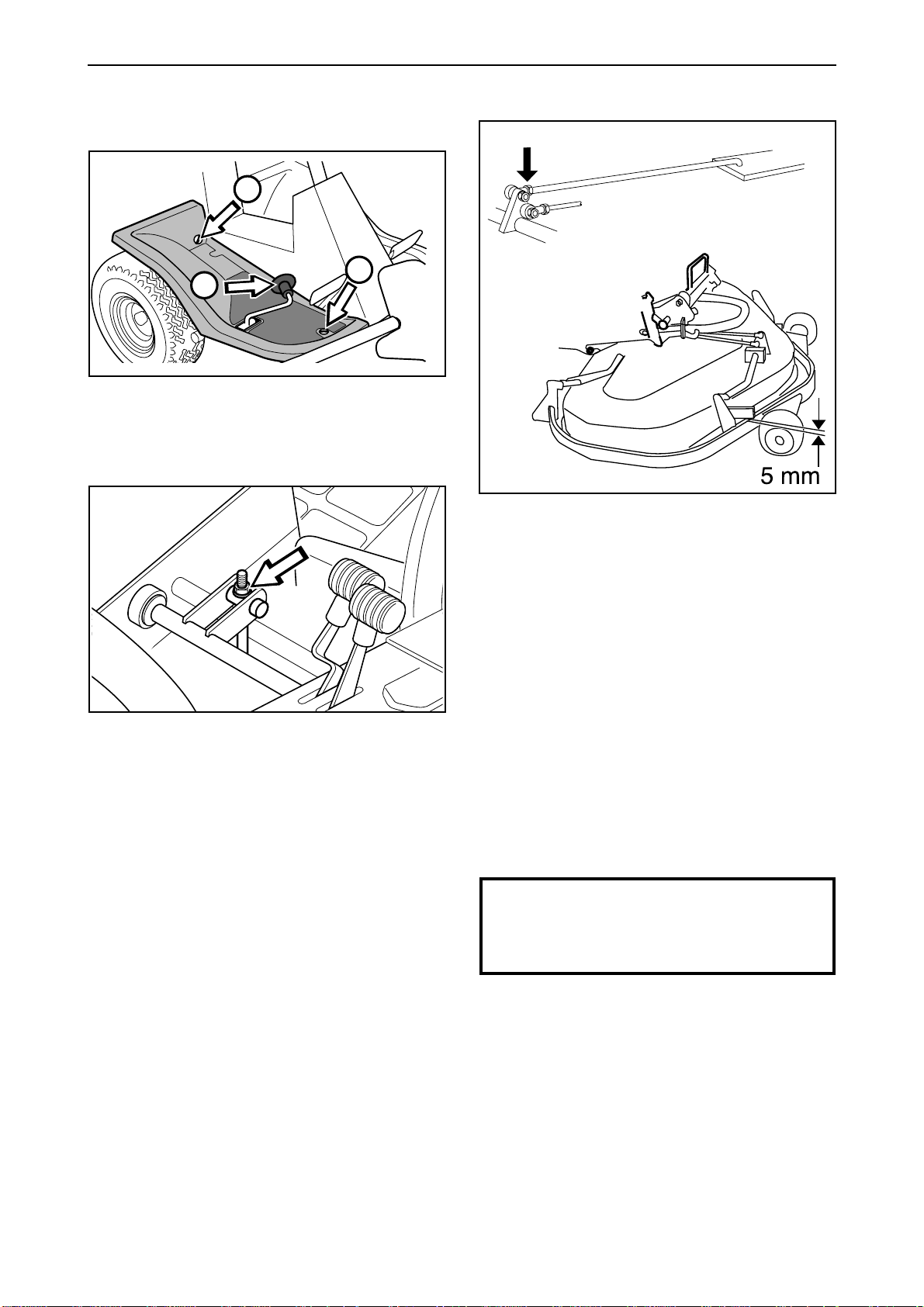

Checking and adjusting cutting unit ground
pressure .........................................................45
Checking and adjusting parallelism of the
mowing deck ..................................................45
Adjusting cutting height area.......................... 47
Adjusting cutting height..................................47

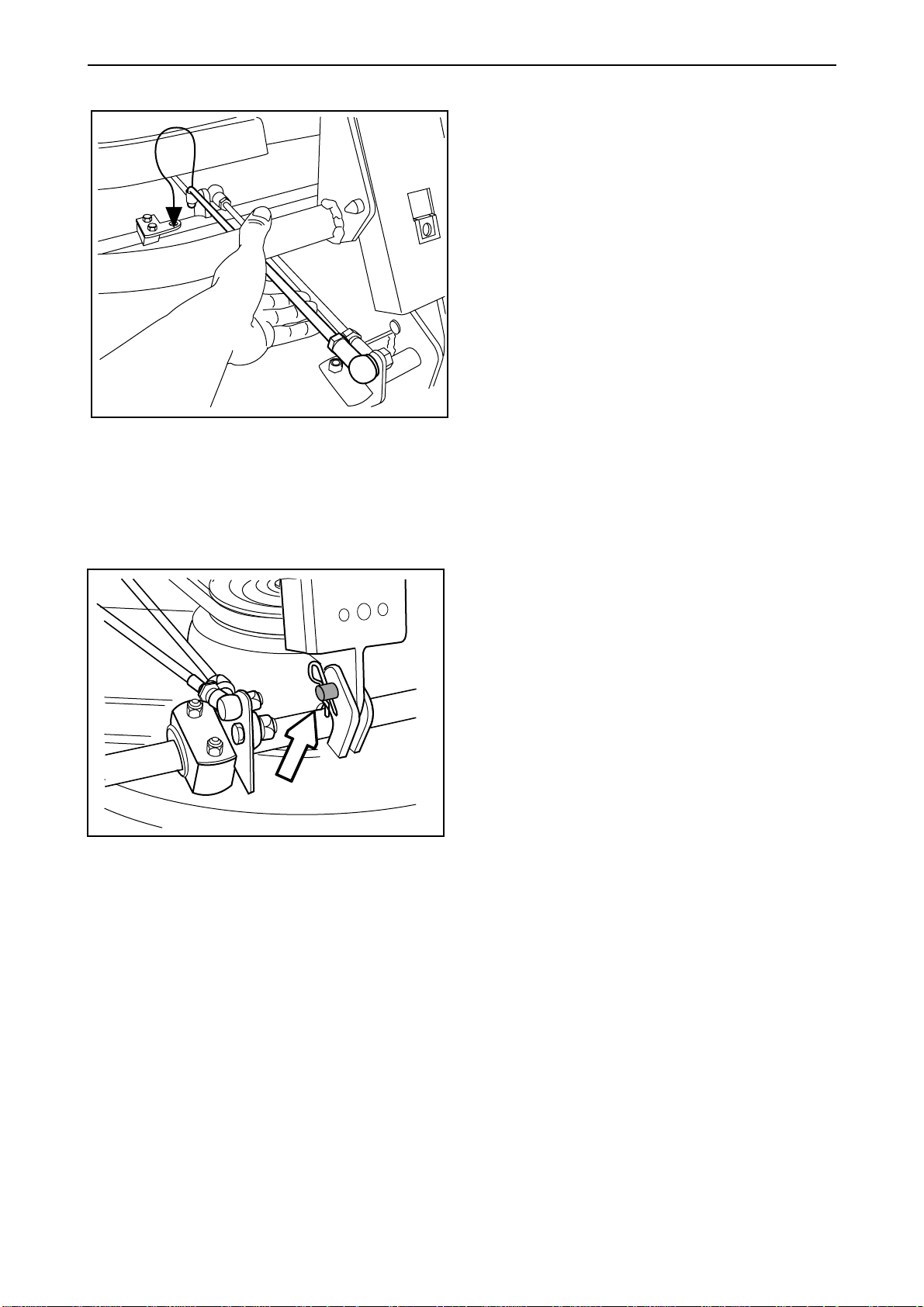

Removal of mowing deck...............................48
Replacing cutting unit belts ............................51
Belt replacement on Bio-unit.....................51
Belt replacement on mowing deck with
side- or rear discharge .............................. 53

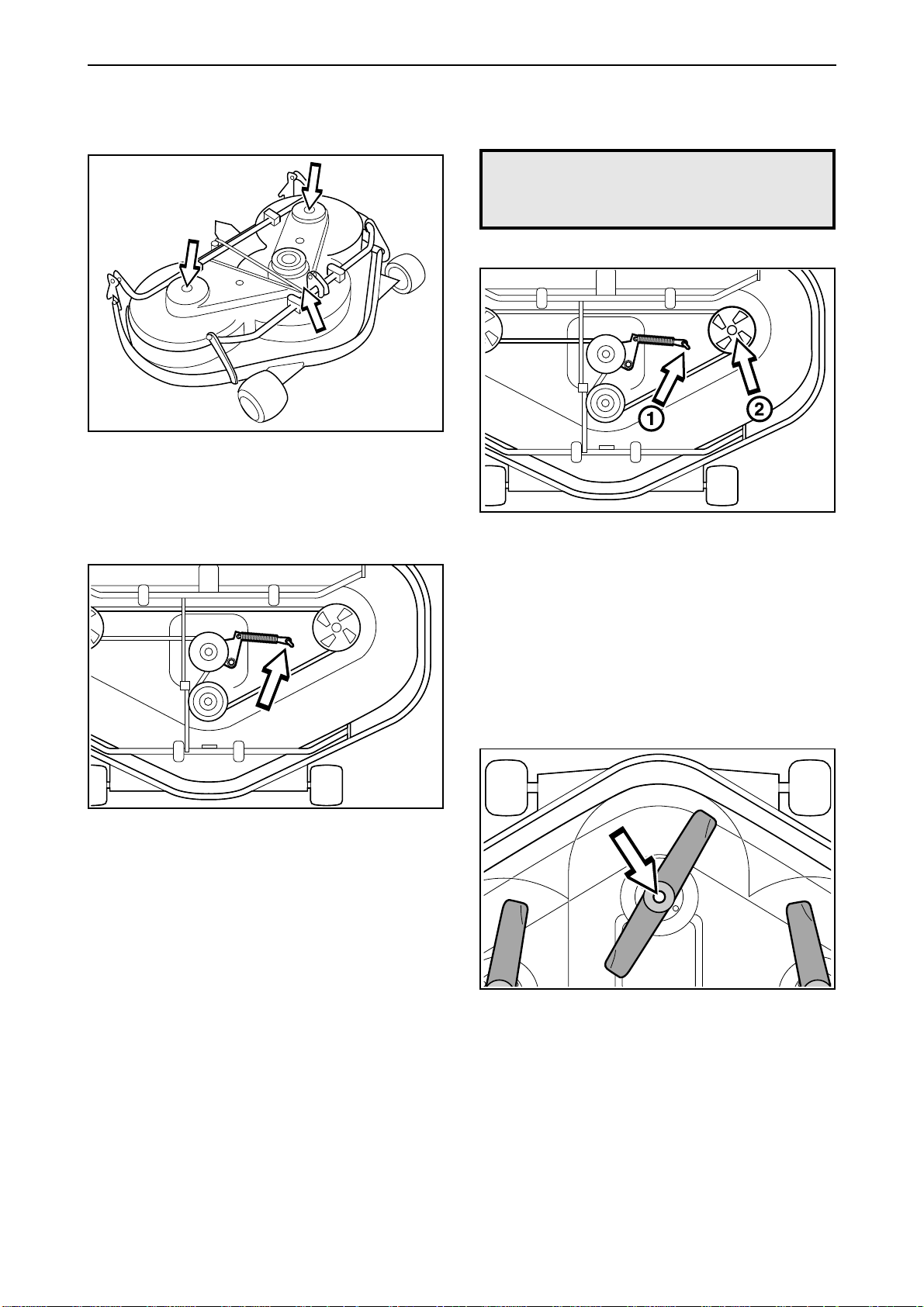

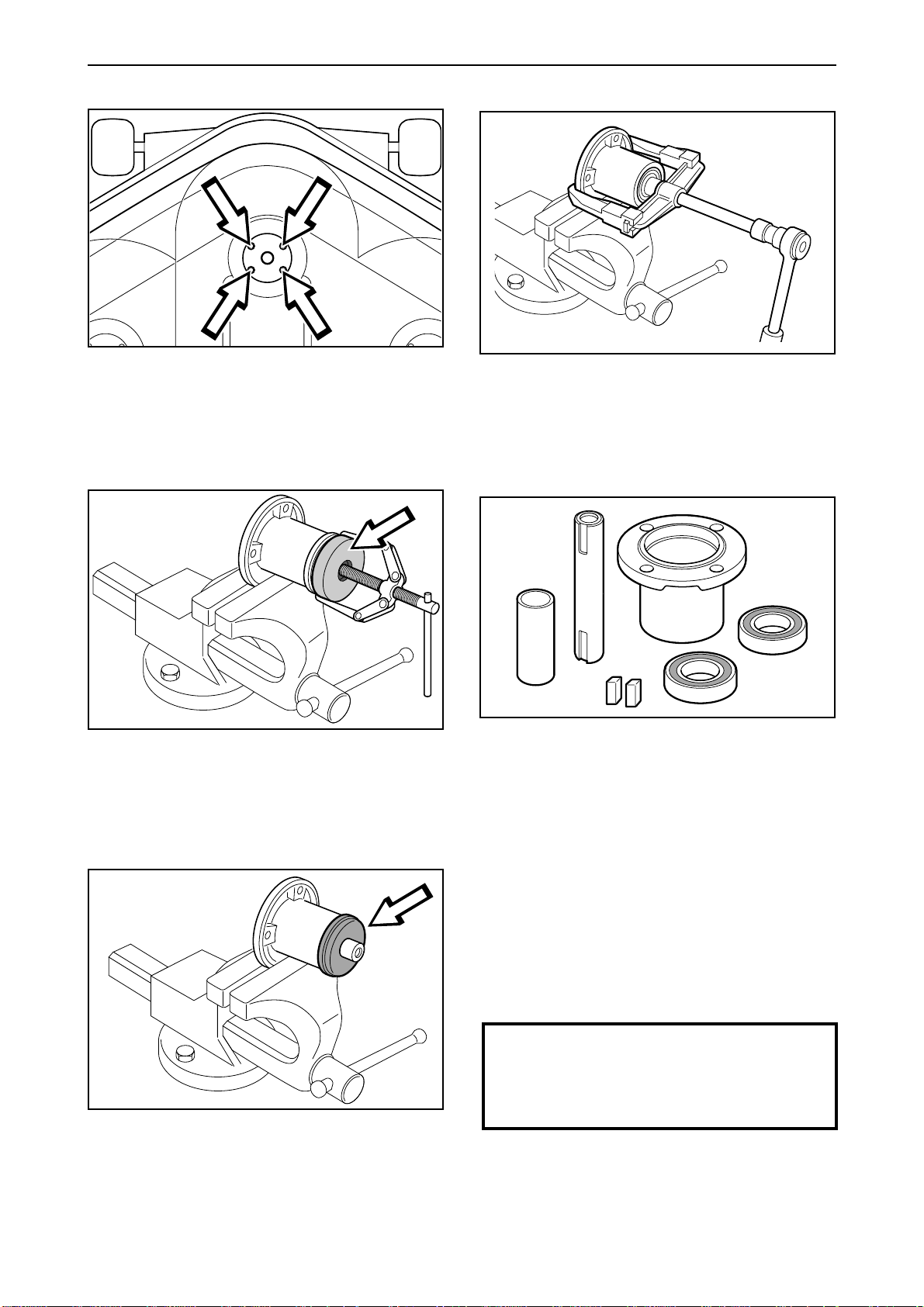

Removal of blades with bearings ...................53

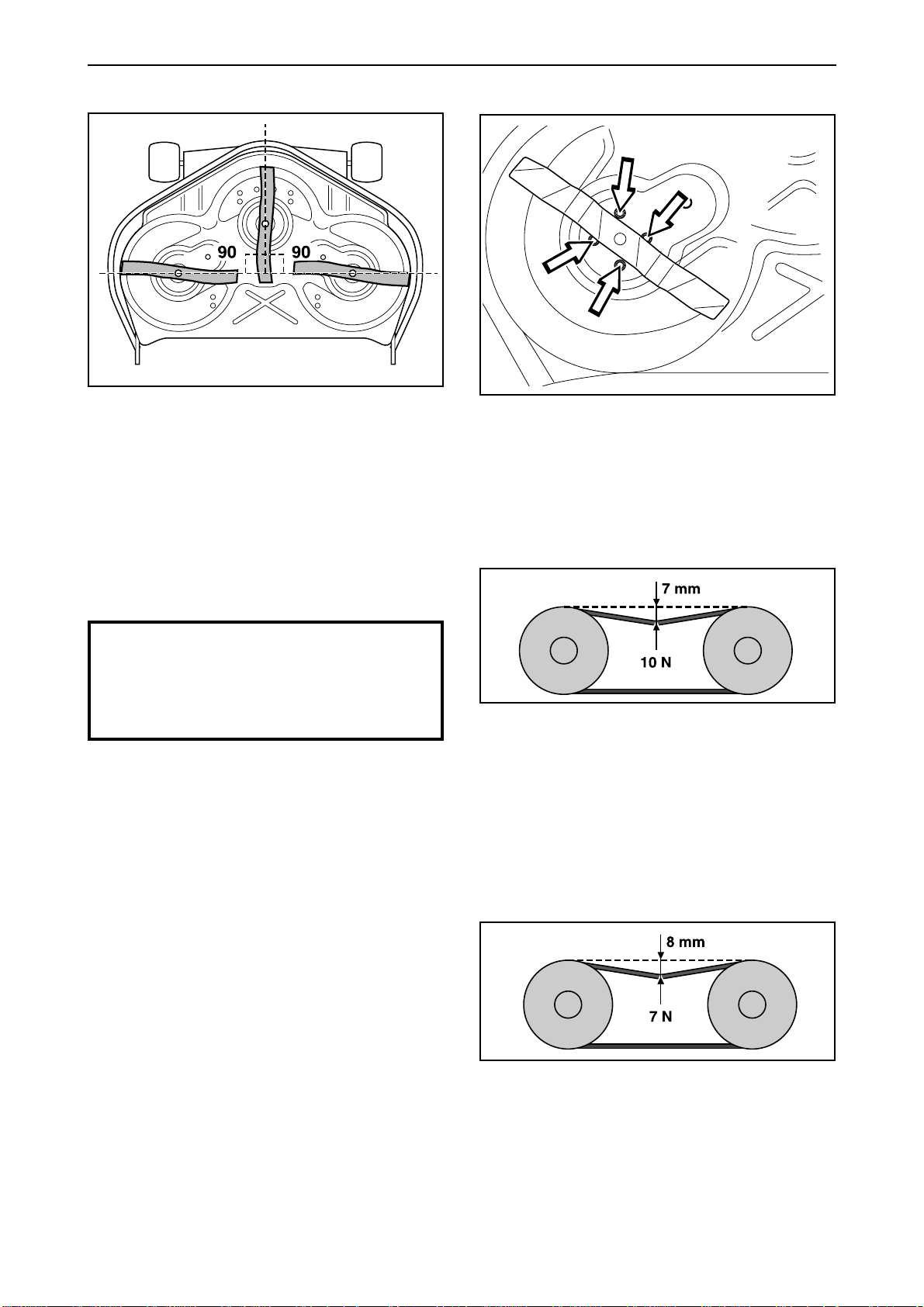

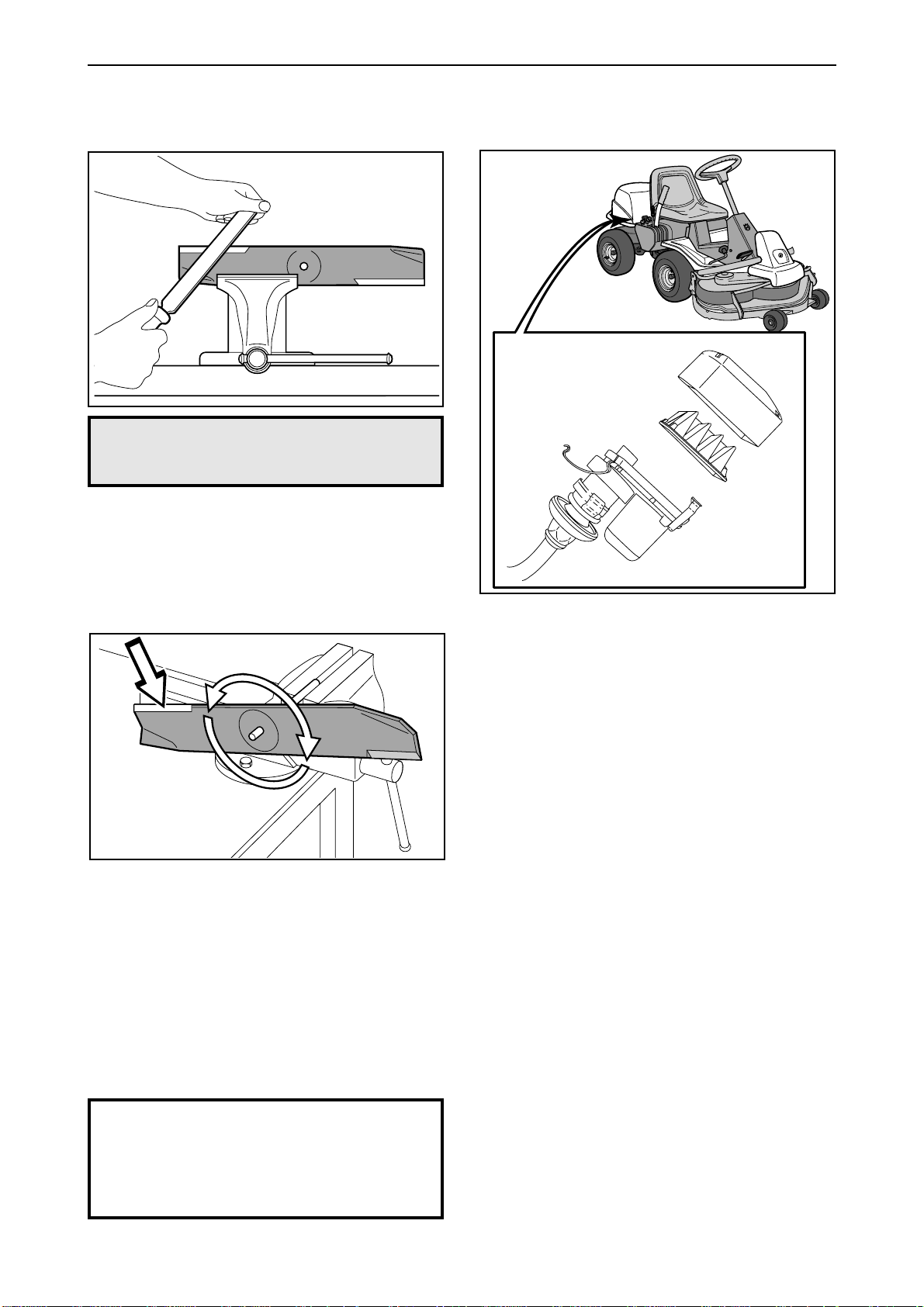

Grinding and balancing of blades ..................55
Pulse air valve intake filter .............................55
Troubleshooting chart ...................................... 56
Electrical system...............................................57

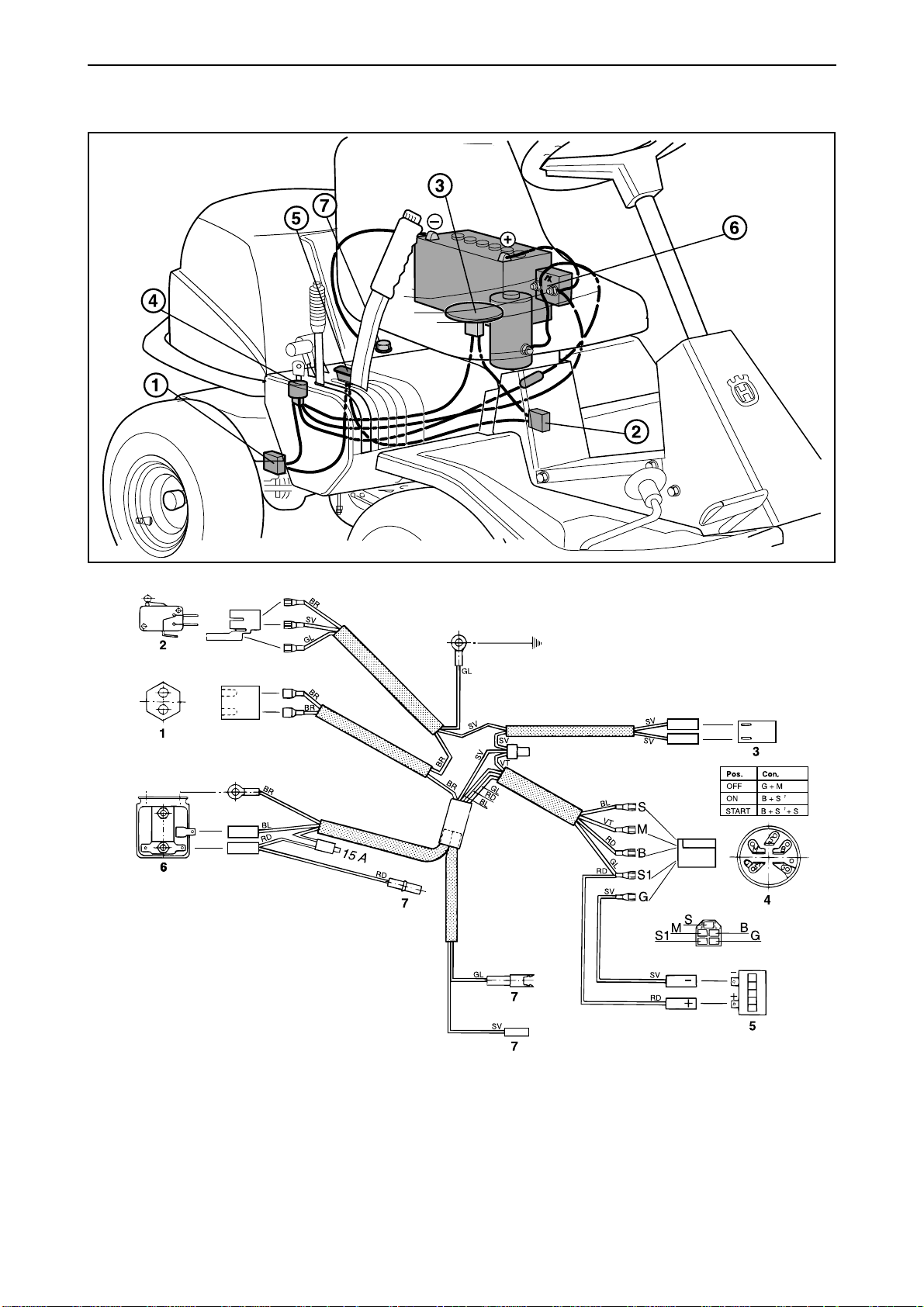

Circuit diagram Rider 11/11 Bio......................57

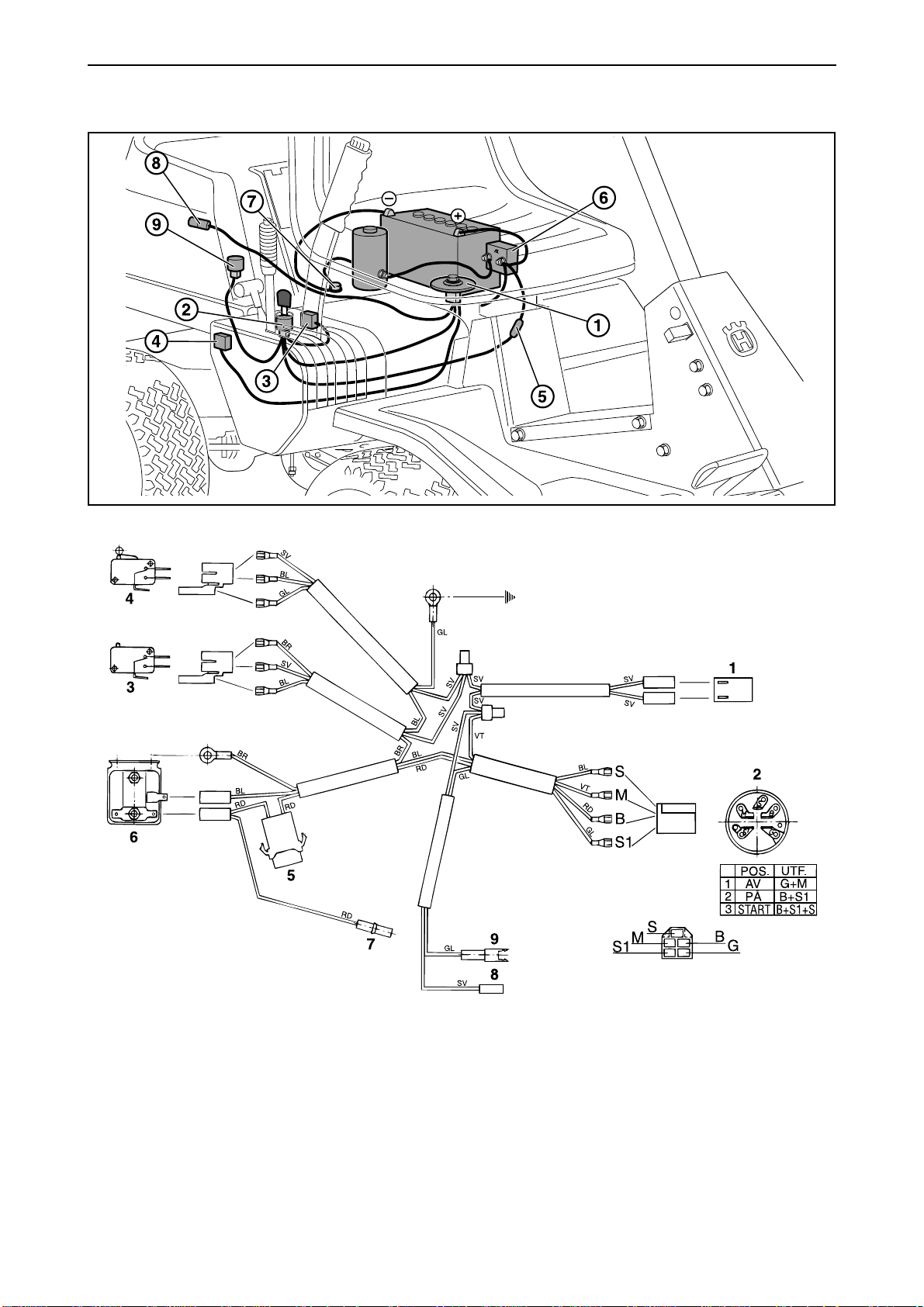

Circuit diagram Rider 13 H/13 H Bio/16 H .....58
Circuit diagram Rider 14 Pro.......................... 59
www.mymowerparts.com
English – 1
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Safety regulations
General instructions
The workshop handbook is written for personnel who
are assumed to have general ride-on mower reparation and service know-how .
The workshop where the ride-on mower is repaired
should be equipped with safety devices in
accordance with local regulations.
No-one should attempt to repair the ride-on mower
without having first read and understood the contents
of this handbook.
The machine is tested for safety and approved only
for equipment supplied or recommended by the
manufacturer.
The below-mentioned boxes are included in this
workshop handbook, as is appropriate.
WARNING!
!
IMPORTANT INFORMATION
This box indicates a risk of damage to the
material if the instructions are not
followed.
The warning box indicates a
risk of injury to persons if the
instructions are not followed.
Special instructions
The fuel used in the ride-on mower has the
following hazardous characteristics:
• Toxic fluid and fumes
• Can cause eye and skin complaints
• Can cause breathing difficulties
• Highly flammable
When using compressed air, do not direct the
compressed air stream towards your, or anybody
else's, body. Air can be forced into the blood
stream, thereby constituting a danger to life .
Use hearing protectors when test driving.
After test driving, do not touch the silencer before it
has cooled down. Risk of burn injuries. This
especially applies if the ride-on mower is equipped
with a catalytic converter. If consumed, the lining on
and in the catalytic converter element is dangerous
to health. Use protective gloves when working with
the catalytic converter/silencer.
The blades are sharp and can cause cutting
injuries. Always use protective gloves when you are
handling the blades.
Use protective glasses when working with the
mowing deck. If the belt's tension spring comes off
and flies upwards, this can cause injury to persons.
2 – English
Be extra careful when handling battery acid. Spilling
acid on the skin can cause severe burn injuries. If
acid is spilt on the skin, rinse immediately with
water. If acid gets into the eyes, this can cause
blindness. Contact a doctor.
Be careful with the maintenance of the battery.
Explosive gas is formed in the battery. Never
handle the battery when smoking or in the vicinity of
naked flames or sparks. Otherwise, the battery can
explode and cause severe injuries.
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

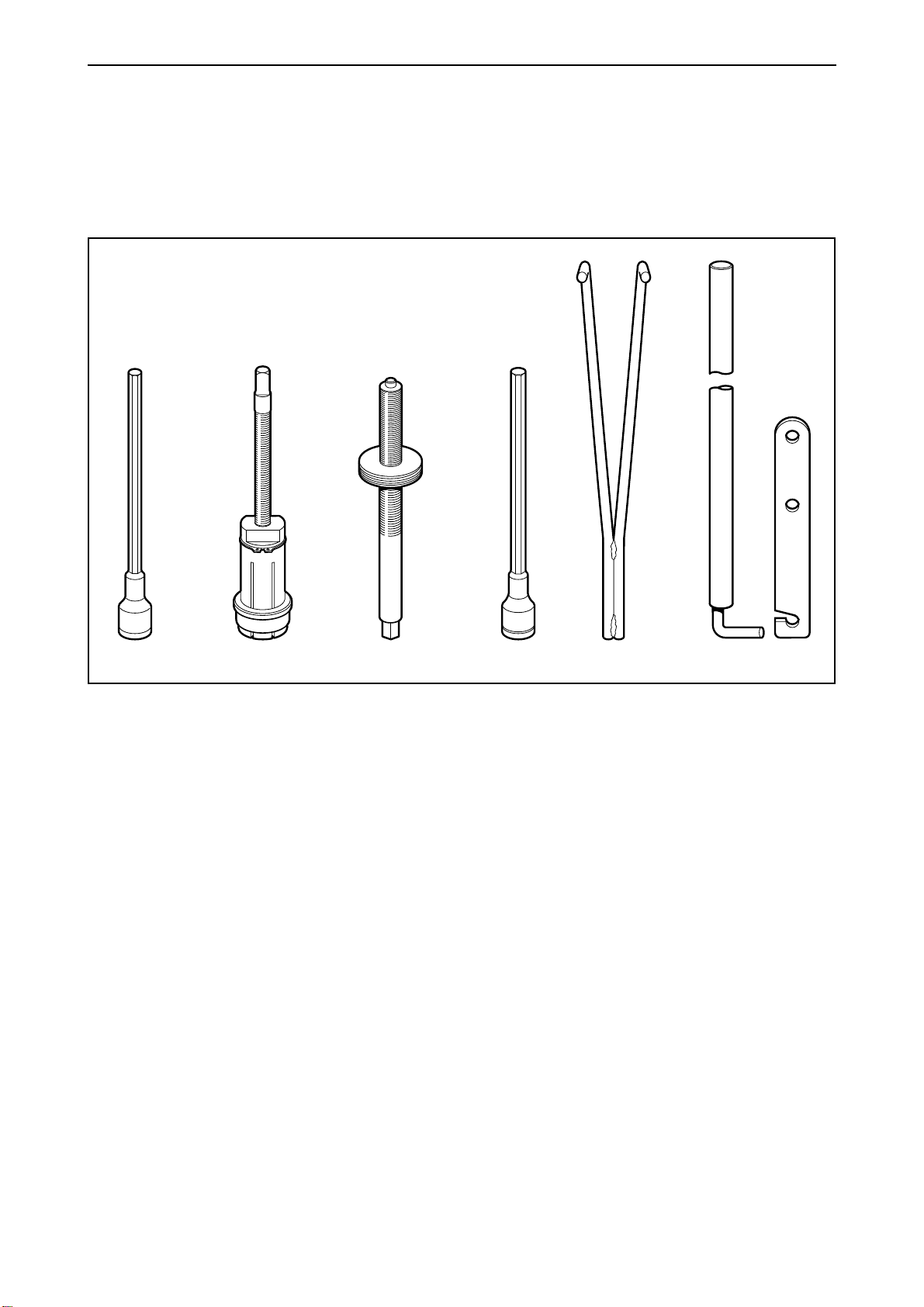

Special tools
The following special tools are used when working on the ride-on mower.
506 66 48-01 506 79 06-01506 57 00-01 506 89 92-01506 56 76-01 506 89 93-01
506 56 76-01 Ball-ended Allen key 5/16" to unscrew the engine pulley socket head cap screw (Kawazaki).
506 57 00-01 Wheel puller for Rider 11/11 Bio, Rider 13 H/13 H Bio and Rider 16 H.
506 66 48-01 Puller for engine pulley.

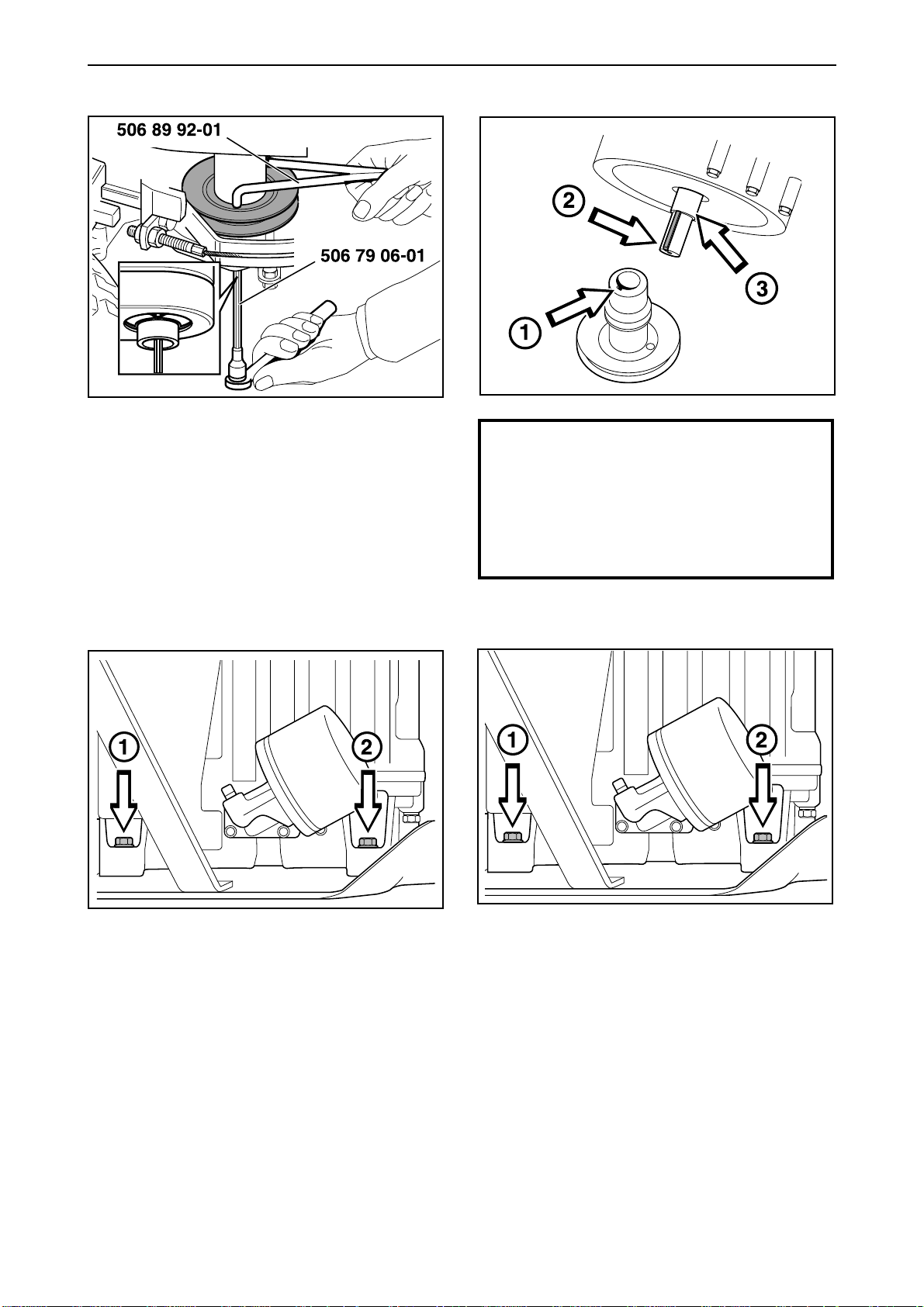

506 79 06-01 Ball-ended Allen key 3/8" to unscrew the engine pulley socket head cap screw (Briggs &
Stratton).
506 89 92-01 Holder-on for engine pulley removal.
506 89 93-01 Tool for removing steer return spring.
www.mymowerparts.com
English – 3
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Technical data
Dimensions: Rider 11/11 Bio Rider 13 H/13 H Bio
Length 2 090 mm 2 150 mm
Width 880 mm 880 mm
Height (over steering wheel) 1 070 mm 1 070 m
Weight 197 kg 197 kg
Track front 720 mm 720 mm
Track rear 620 mm 630 mm
Wheel base 860 mm 850 mm
Tyre size 16 x 6.50 x 8 16 x 6.50 x 8
Air pressure 60 kPa 60 kPa
Max. gradient 15° 15°
Engine: Rider 11/11 Bio Rider 13 H/13 H Bio
Manufacture Briggs & Stratton Briggs & Stratton
model 28N707 model 286707
Power 7,7/10,5 kW/hp 9,2/12,5 kW/hp
Displacement 362 cm
Fuel min. 85 octane unleaded min. 85 octane unleaded
Tank capacity 7 litres 7 litres
Oil SAE 30 or SAE 10W/30 SAE 30 or SAE 10W/30
class CD–F class CD–SF
Oil capacity 1,4 litres 1,4 litres
Start Electric start Electric start
3
465 cm
3
Gearbox: Rider 11/11 Bio Rider 13 H/13 H Bio
Manufacture Peerless MST 205 Tuff Torq K55
Oil SAE 10W/30
class CD-SF
Oil capacity 2,2 litres
Gears, forwards 5
Gears, reverse 1
Electrical system Rider 11/11 Bio Rider 13 H/13 H Bio
Type 12 V, negative earth 12 V, negative earth
Battery 12 V, 24 Ah 12 V, 24 Ah
Spark plug Champion CJ8 or J8 Champion CJ8 or J8
Spark plug gap 0,7 - 0,8 mm 0,7 - 0,8 mm
Tightening moments
Carrier steering 5–10 Nm
Pulley steering wire 20–30 Nm
Belt wheel 35–40 Nm
Blades 45–50 Nm
Blade bearings 20–25 Nm
Belt tensioner wheel 15–25 Nm
Holder screws, engine 20–25 Nm
Holder screws, gear box 20–25 Nm
Brake drum bolts hydrostatic transmission 27 Nm
Engine pulley 70–80 Nm
Wheel axle nut 100–150 Nm
Play
Clutch wire: 8–10 mm
Brake control lever against stop bolt: 0–1 mm
Brake control lever: 7–9 mm
Brake wire hydrostatic transmission: 0 mm
4 – English
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Technical data
Dimensions: Rider 14 Pro Rider 16 H
Length 2 120 mm 2 080 mm
Width 880 mm 880 mm
Height (over steering wheel) 1 070 mm 1 070 mm
Weight 234 kg 210 kg
Track front 720 mm 720 mm
Track rear 640 mm 630 mm
Wheel base 860 mm 860 mm
Tyre size 16 x 7.50 x 8 18 x 6.50 x 8
Air pressure 60 kPa 60 kPa
Max. gradient 15° 15°
Engine: Rider 14 Pro Rider 16 H
Manufacture Briggs & Stratton Briggs & Stratton
Vanguard V-Twin model 28N707
model 294777
Power 12/14 kW/hp 11,4/15,5 kW/hp
Displacement 480 cm
Fuel min 85 octane unleaded min 85 octane unleaded
Tank capacity 7 litres 7 litres
Oil SAE 30 or 10W/30 SAE 30 or 10W/30
class CD-CF class CD-CF
Oil capacity 1,5 litres 1,2 litres
Start Electric start Electric start
3
465 cm
3
Gearbox: Rider 14 Pro Rider 16 H
Manufacture Tuff Torq K 61 Tuff Torq K 55
Oil SAE 10W/30 SAE 10W/30
class CD-CF class CD-CF
Oil capacity 3,3 litres 2,2 litres
Electrical system Rider 14 Pro Rider 16 H
Type 12 V, negative earth 12 V, negative earth
Battery 12 V, 24 Ah 12 V, 24 Ah
Spark plug Champion RC12YC Champion CJ8 or J8
Spark plug gap 0,7 - 0,8 mm 0,7 - 0,8 mm

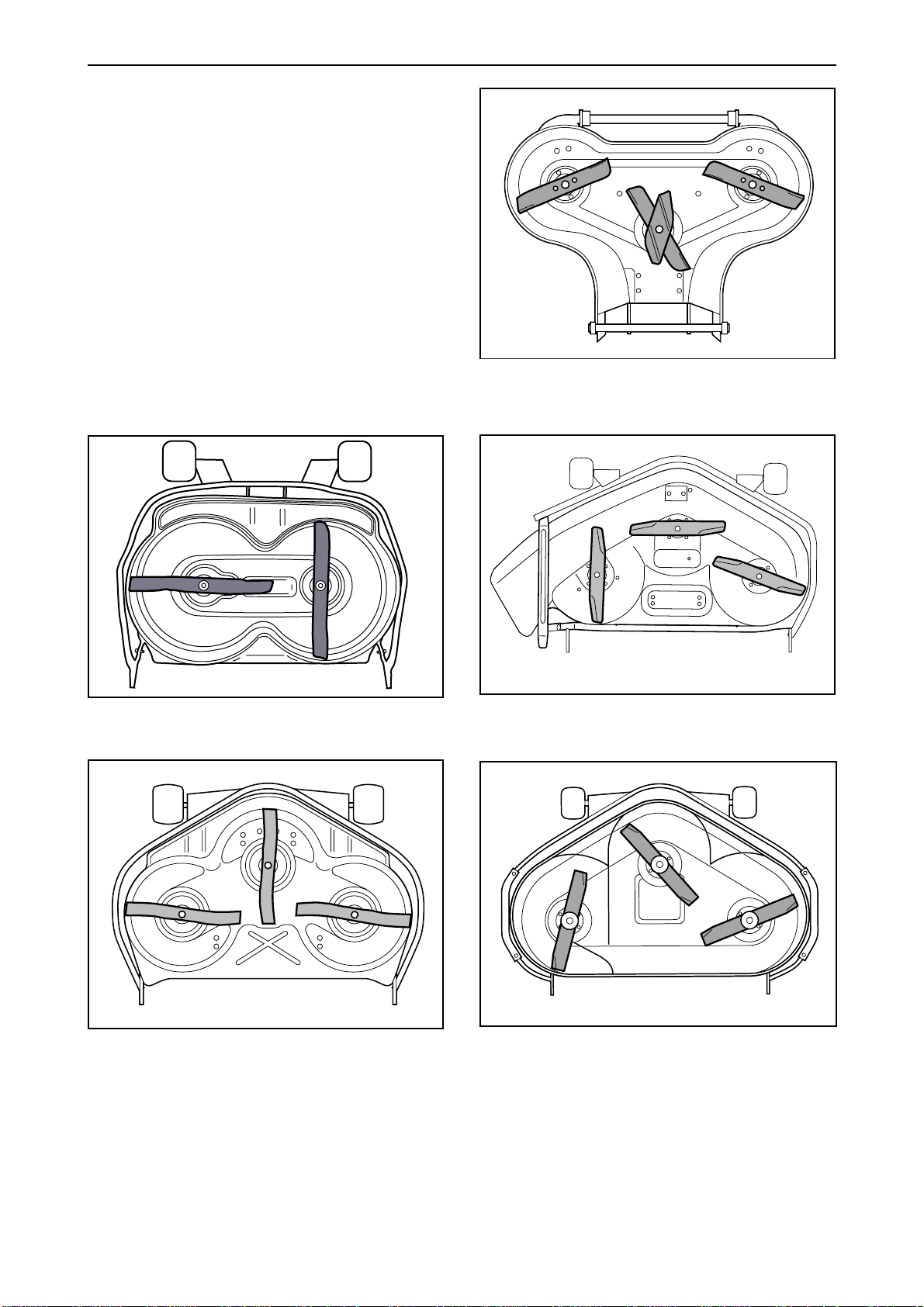

Mowing deck: Rear ejector 85 Rear ejector 97 Rear ejector 120 Bio 90 Bio 103
Cutting width 850 mm 970 mm 1 200 mm 900 mm 1 030 mm
Cutting height 40-90 mm 40-90 mm 40-90 mm 45-95 mm 45-95 mm
Blade length 350 mm 440 mm 440 mm 410 mm
Noise level 100 dB(A) 100 dB(A) 100 dB(A) 100 dB(A) 100 dB(A)
Weight 28,0 kg 40,0 kg 60,2 kg 38,0 kg 44,0 kg
Overall width 950 mm 1 075 mm 1 305 mm 1 000 mm 1 115 mm
Control points
Mowing deck parallelism with cutting height in pos. 1: ± 2 mm
Cutting height control in pos. 1: Rider 11= 37 ± 2 mm
Bio = 45 ± 2 mm
Other = 40 ± 2 mm
Synchronous transmission belt tension Bio 103 at 10 N force, impression: 7 mm
Synchronous transmission belt tension Bio 90 at 7 N force, impression: 8 mm
Dist. between support plate and drive belt: 3–6 mm
Distance belt tensioner control lever
and belt guide, disengaged unit: 17 ± 5 mm
www.mymowerparts.com
English – 5
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Delivery and dealer service
Pre-delivery service
1. Top up battery with acid and recharge for four hours.
2. Fit steering wheel, seat and any optional equipment.
3. Fit cutting unit.
4. Adjust cutting unit:
Adjust lift springs (effective weight of cutting unit should be
12–15 kg, or set to maximum lift if brush is to be fitted).
Adjust cutting unit so that rear edge is about 2–4 mm higher than front edge.
Adjust cutting unit height setting so that cutting height limit is 5 mm above the frame of the unit at the
lowest cutting height.
5. Check that engine has correct amount of oil.
6. Check and adjust tyre pressure (60 kPa, 0.6 bar).
7. Connect battery.
8. Fill with fuel and start engine.
9. Check that machine does not move in neutral.
10. Check:
Forward drive.
Reverse drive.
Operation of blades.
Seat safety switch.
Lift lever safety switch.
Parking brake safety switch.
11. Check engine revs 3,000–3,100 rpm.
12. Tell customer about:
Need and benefits of following the service schedule.
Need and benefits of having machine serviced every 300 hours.
Servicing and the influence of this journal on the second-hand value of the machine.
Range of applications for BioClip.
13. Complete proof of sale, etc.
After first 5 hours
1. Change engine oil.
6 – English
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Delivery and dealer service
25 hour service
1. Change engine oil (50 hours).
(25 hours if operating conditions severe).
2. Clean/replace air pre-filter or oil-foam element
if fitted (25 hours).
(more regularly in dusty working conditions)
3. Clean/replace air filter cartridge (25 hours, 100
hours if pre-filter fitted).
(more regularly in dusty working conditions)
4. Clean engine cooling air intake.
50 hour service
1. Change engine oil.
2. Clean/replace air pre-filter or oil-foam element
if fitted.
3. Clean/replace air filter cartridge (25 hours, 100
hours if pre-filter fitted)
(more regularly in dusty working conditions)
300 hour service
1. Change engine oil.
2. Replace air filter (pre-filter).
3. Replace air filter (paper).
4. Check/adjust cutting height setting.
5. Check/adjust parking brake.
6. Inspect flame guard/spark arrestor (optional
equipment)
7. Replace engine oil filter.
8. Clean/replace spark plug.
9. Replace fuel filter in fuel line.
10. Clean pulse-air filter.
11. Clean cooling system.
12. Check engine valve clearance.
13. Carry out 300 hour service at authorised dealer.
4. Clean engine cooling air intake.
5. Check/adjust cutting height setting.
6. Check/adjust parking brake.
7. Inspect flame guard/spark arrestor (optional
equipment)
100 hour service
1. Change engine oil.
2. Clean/replace air pre-filter or oil-foam element
if fitted.
3. Clean/replace air filter cartridge (25 hours, 100
hours if pre-filter fitted).
(more regularly in dusty working conditions)
4. Check/adjust cutting height setting.
5. Check/adjust parking brake.
6. Inspect flame guard/spark arrestor (optional
equipment)
7. Replace engine oil filter.
8. Clean/replace spark plug.
9. Replace fuel filter in fuel line.
At least once a season
1. Change engine oil (50 hours).
(25 hours in severe operating conditions).
2. Clean/replace air pre-filter or oil-foam element if
fitted (25 hours).
(more regularly in dusty working conditions)
3. Clean/replace air filter cartridge (25 hours, 100
hours if pre-filter fitted).
(more regularly in dusty working conditions)
4. Check/adjust cutting height setting.
5. Check/adjust parking brake.
6. Inspect flame guard/spark arrestor, optional
equipment
(50 hours).
7. Replace engine oil filter (100 hours).
8. Clean/replace spark plug (100 hours).
9. Replace fuel filter in fuel line (100 hours).
10. Clean pulse-air filter.
11. Clean cooling system (100 hours).
(more regularly in dusty working conditions)
10. Clean pulse-air filter.
11. Clean cooling system.
12. Check engine valve clearance.
www.mymowerparts.com
12. Check engine valve clearance (100 hours).
13. Carry out 300 hour service at authorised dealer.
English – 7
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Maintenance schedule
The following is a list of the maintenance which should be conducted on the machine. Most of the points that
are not covered by this workshop manual are covered by the operator’s manual.
Daily main-
PageMaintenance
tenance
before after
Check for fuel and oil leakage - ❍
Check the parking brake 23 ●
Check the engine oil level (when you
refuel) 20 ●
Check the fuel pump air filter 21 ●
Check the seat safety switch 23 ●
Check the lift lever safety switch 23 ●
Check the parking brake safety switch 23 ●
Check/clean the engine cooling air intake 20 ●
Check the cutting unit: 27 ●
• blades are secure 29 ●
• condition of blades (sharpness,
shape, etc.) 29 ●
• blade synchronisation (90° between
BioClip) 29 ●
Check steering wires (for play, etc.) 22 ●
Check fasteners (screws, nuts, etc.) - ❍
Start engine and blades, listen for noise - ❍
Clean underside of cutting unit 29 ●
Clean transmission air intake 21 ●
Check battery acid level 23 ●
Check transmission oil level 21 ●
Check condition of V-belts, pulleys, etc. - ❍
Check for damage - ❍
Check tyre pressures (60 kPa) 39 ●
Check for damage to wire guide at
articulated joint - ❍
Clean thoroughly around engine - ❍
Clean air filter (pre-filter) 24 ●
Clean thoroughly around transmission - ❍
Clean all belts, pulleys, etc. - ❍
Lubricate pivot (nipple) 37 ●
Lubricate belt tensioner (nipple) 37 ●
Lubricate triangle link (nipple) 37 ●
Lubricate seat suspension - ❍
Lubricate all wires 37 ●
Lubricate safety lock on cutting unit 28 ●
Lubricate inner stud on cutting unit 28 ●
Lubricate slot for cutting unit tool frame 28 ●
Lubricate bearing surfaces on cutting unit 28 ●
Clean inside frame tunnel - ❍
Lubricate pedal mechanism inside frame
tunnel - ❍
Weekly
maintenance
3)
At least
once a
year
Maintenance interval in
hours
25 50 100 300
8 – English
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Maintenance schedule
PageMaintenance
Daily maintenance
before after
Weekly
maintenance
3)
At least
once a
year
Maintenance interval in
hours
25 50 100 300
Lubricate throttle control - ❍
Lubricate choke control - ❍
Smörj styrkedja i ramtunnel. - ❍
Lubricate steering chain inside frame
tunnel - ❍
Clean engine cooling air intake 20 ●●
Clean pre-filter or oil-foam element,
if fitted 24 ●●
Clean air filter cartridge
Change engine oil
2)
1)
24 ●● ●
36 ●●
Check/adjust cutting height setting 27 ●●
Check/adjust parking brake 23 ●●
Inspect flame guard/spark arrestor
(optional equipment) - ❍❍
Replace engine oil filter 37 ●●
Clean/replace spark plugs - ❍❍
Replace fuel filter in pipe 39 ●●
Clean pulse-air filter 39 ●●
Clean cooling system - ❍❍
Check engine valve clearance
Replace air filter (pre-filter)
Replace air filter (paper filter)
Carry out 300 hour service
1)
First change after 5 hours.
every 25 hours if pre-filter is not fitted. Clean and replace the filter more often in dusty conditions.
lubrication should be conducted twice a week.
2)
When driving with a heavy load or when the ambient temperature is high, replace every 25 hours. Clean
4)
2)
2)
4)
4)
- ❍❍
24 ●●
24 ●●
- ❍❍
3)
Conducted by authorised service workshop.
For daily use of the machine
● = Covered by this workshop manual.
❍ = Not covered by this workshop manual.
!
WARNING!
No service procedures must be conducted on the engine or cutting unit unless:
• The engine is switched off.
• The ignition key is removed.
• The parking brake is applied.
• The cutting unit is disengaged.
• The ignition cables are removed
from the plugs.
www.mymowerparts.com
English – 9
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Delivery measures
Refilling battery acid
The battery is delivered dry from the factory.
• Slowly fill the battery acid up to the mark on the
battery.
• Wait 20 minutes and fill, as is required, with more
battery acid.
Fastening steering wheel
• Fasten the steering wheel with steering column
on the steering shaft.
• Tighten the socket head cap screw, make sure
that it sits in its groove on the steering shaft.
• Securely lock the socket head cap screw with the
locking nut.
Fastening seat
• Charge the battery (12 V, 6 A) for four hours.
• Check the level of acid and fill, as is required,
with distilled water up to the correct level.
!
The battery acid is highly corrosive. Use
rubber gloves and protective glasses. Avoid
breathing in the acid fumes.
External: Rinse thoroughly with water .
Internal: Drink large quantities of water or
Eyes: Rinse thoroughly with water.
The battery gives off explosive gas. Sparks,
naked flames and cigarettes must absolutely
not be in the near vicinity of the battery.
WARNING!
Measures for contact with acid
milk. Contact a doctor as soon as
possible.
Contact a doctor as soon asap.
Insert the seat pin through the hole in the frame and
seat attachment and fasten spring pin.
Fastening support wheels
10 – English
Fasten the support wheels with axles, spacers and
nuts in the support wheels holder.
www.mymowerparts.com
Page 12
RIDER
850
RIDER
850
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Design and function
General

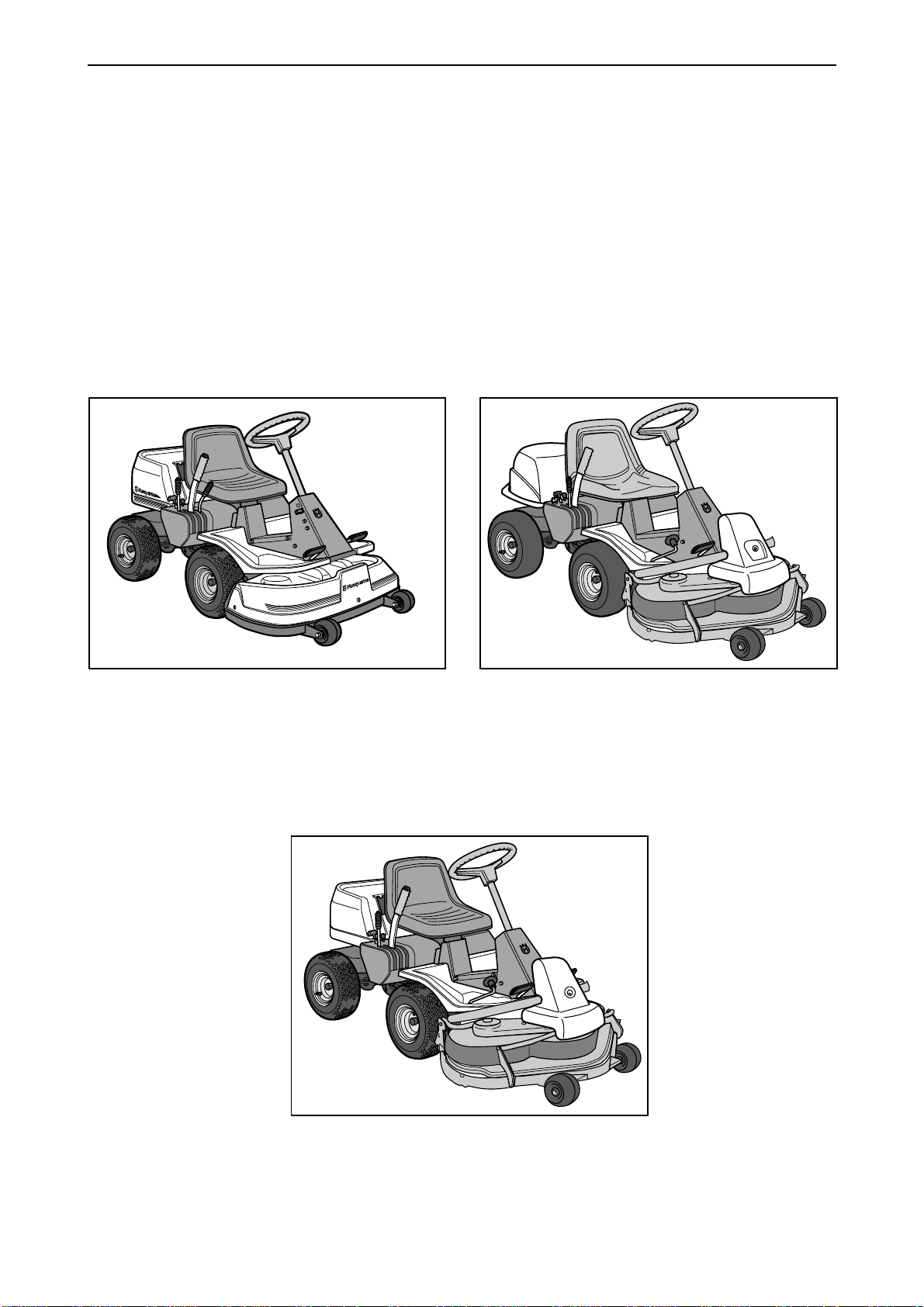

Husqvarna Riders is a series of ride-on mowers
with a large capacity. There are six sizes, from the
smallest Rider 11 to the largest Rider 20 ProFlex.
This manual refers mainly to the smaller machines;
the larger ProFlex machines are covered by a
separate manual. All Riders have articulated
steering in order to easily cut around trees and
other obstacles. Moreover, they all have frontmounted mowing decks for controlled cutting and
for best possible cutting results.
R
R
I
I
D
D
E
E
R
R
8
8
5
5
0
0
RIDER 850
RIDER 850
Husqvarna Riders can, moreover, be equipped
with various accessories such as moss rake and
dozer blade which make them flexible working
tools throughout the year.
Rider 11 and Rider 11 Bio can be delivered with a
manual gearbox, while the other models are only
available with hydrostatic transmission.
Rider 11 and Rider 13 H have a mowing deck with
rear ejection. They can also be ordered with a Bio
deck, in which case they are called the Rider 11 Bio
or Rider 13 H Bio.
Rider 16 H can be delivered with four different
mowing decks.
Bak 97 (rear ejection)
Sido 97 (side ejection)
Bio 90 or Bio 103
Rider 14 Pro can be delivered with four different
mowing decks.
Bak 97 (rear ejection)
Sido 97 (side ejection)
Bio 90 or Bio 103
www.mymowerparts.com
English – 11
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Design and function

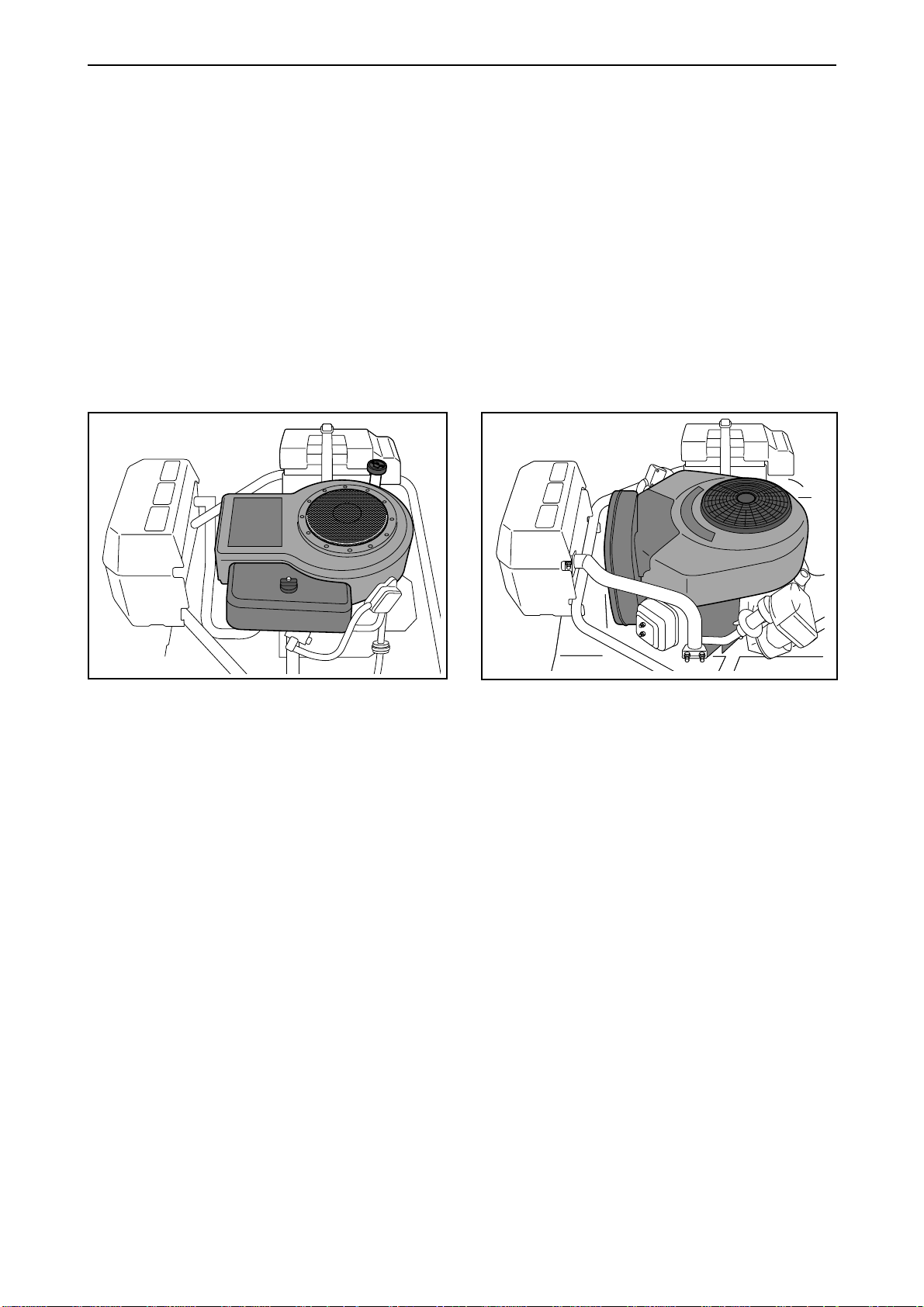

Engine
All Husqvarna Riders have engines from Briggs &
Stratton. The Rider 11/11 Bio, Rider 13 H/13 H bio
and Rider 16 H have single-cylinder engines, while
the Rider 14 Pro has a twin-cylinder engine. Both
the single and two-cylinder engines are air cooled.
More intricate engine repairs are not described in
this workshop handbook, these can instead be read
in Briggs & Stratton's own handbooks which contain
detailed information about adjusting and repairing
the engines. The handbooks can be ordered from
an authorized service workshop.
The order numbers for the respective Rider models
are found in the table below. Please state these
when ordering manuals:
Model B & S model no.
Rider 11/11 Bio 28B707
Rider 13 H/13 H Bio 286707
Rider 14 Pro 294777
Rider 16 H 28N707
It is important that only original spare parts are
used when repairing the engines. If other parts are
used, the guarantee shall no longer be valid.
Rider 11/11 Bio and Rider 13 H/13 H Bio have a
single-cylinder side valve engine with spray
lubrication with power outputs of 10.5 and 12.5 hp
respectively.
Rider 16 H has a 15.5 hp single-cylinder overhead
valve engine.
The Rider 14 Pro has a twin-cylinder overhead
valve engine with pressure lubrication and a
separate oil filter. This engine is equipped with a
catalytic converter that reduces emissions of
hydrocarbons and nitrogen oxides by up to 65%
and reduces carbon dioxide by up to 45%.
12 – English
www.mymowerparts.com
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Design and function
Steering
All the ride-on mowers in Husqvarna's Rider-series
have articulated steering. The steering force from
the steering wheel is transferred to the rear section
via wires and a chain. This ensures that the ride-on
mower is easy to manoeuvre, as well as having
high-precision steering. A Rider easily cuts around
all obstacles that may be found on the lawn.
Thanks to the articulated steering, the turning
radius is extremely small, the uncut circle when the
steering wheel is fully turned is just 20–30 cm
depending on which model is chosen.
Outline diagram of the articulated steering function.
Rider machines have a sliding bearing (1) on the
steering column.
www.mymowerparts.com
English – 13
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Design and function
Driving
Rider 13 H/13 H Bio, Rider 16 H, Rider 14 Pro are
equipped with hydrostatic transmission which
provides the driver complete control. Continuously
variable speed control, forwards and reverse, is by
means of a foot pedal.
Rider 11 and Rider 11 Bio have a manual gear box
with five forward gears, neutral and one reverse
gear. This gear box is an "inline" type, which means
that you can change from neutral to fifth gear
without having to go through all the other gears.

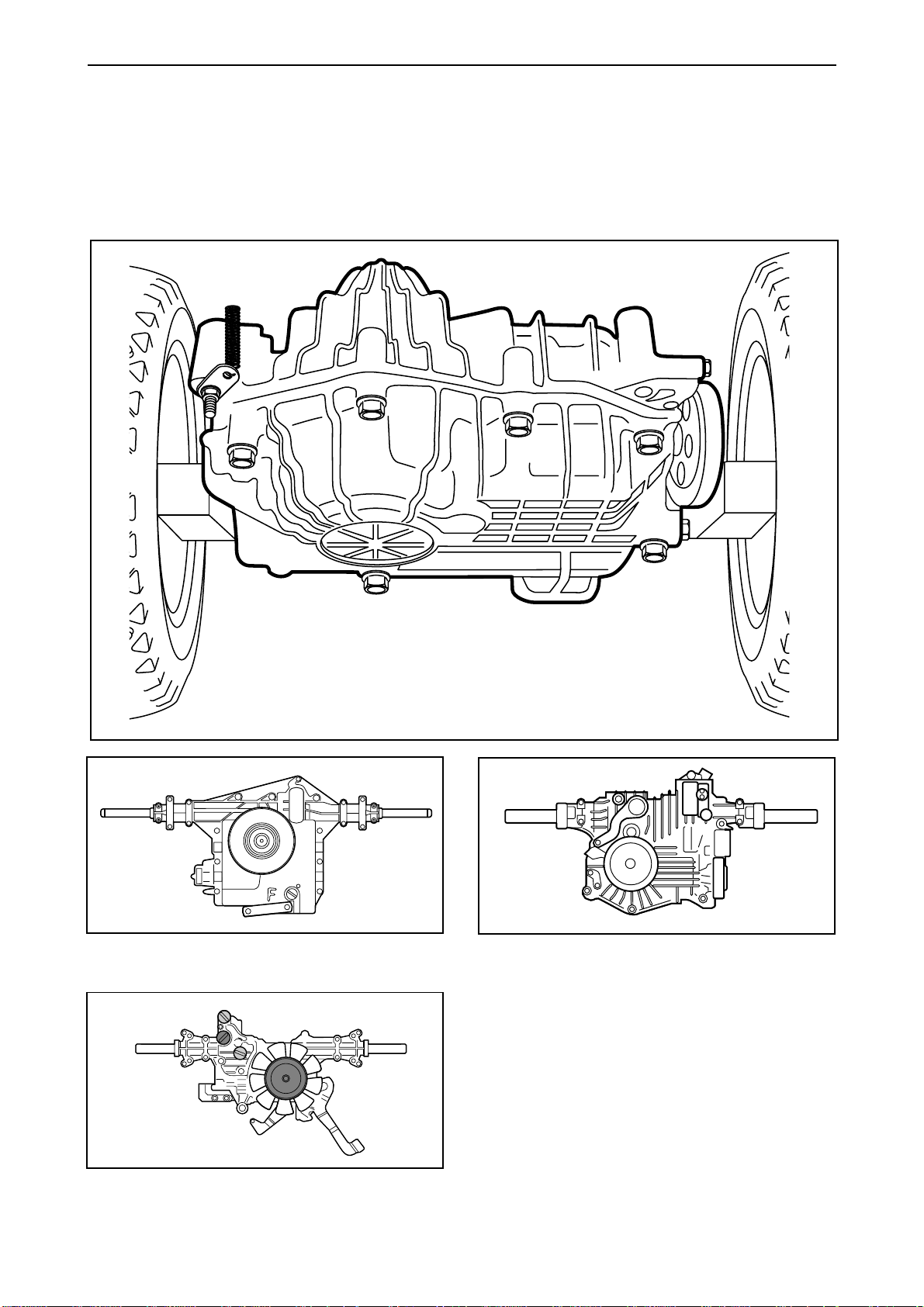

Manual gear box on Rider 11 and Rider 11 Bio. Hydrostatic transmission on Rider 14 Pro.
Hydrostatic transmission on Rider 13 H, Rider 13 H
Bio and Rider 16 H.
14 – English
www.mymowerparts.com
Page 16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Design and function
Mowing deck
The entire Rider series is equipped with frontmounted mowing decks to ensure effective cutting
even in confined areas.
Rider 1 1 and Rider 13 H have a mowing deck with
rear ejection and a cutting width of 850 mm.
Rider 11 Bio and Rider 13 H Bio have a Bio deck
with a cutting width of 900 mm.
The remaining Rider machines can be delivered
with a choice of mowing decks, with rear ejection,
side ejection or Bio.
Mowing deck with rear ejection, 850 mm.
Bio 90
Bio 103
Mowing deck with side ejection.
Mowing deck with rear ejection
www.mymowerparts.com
English – 15
Page 17
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

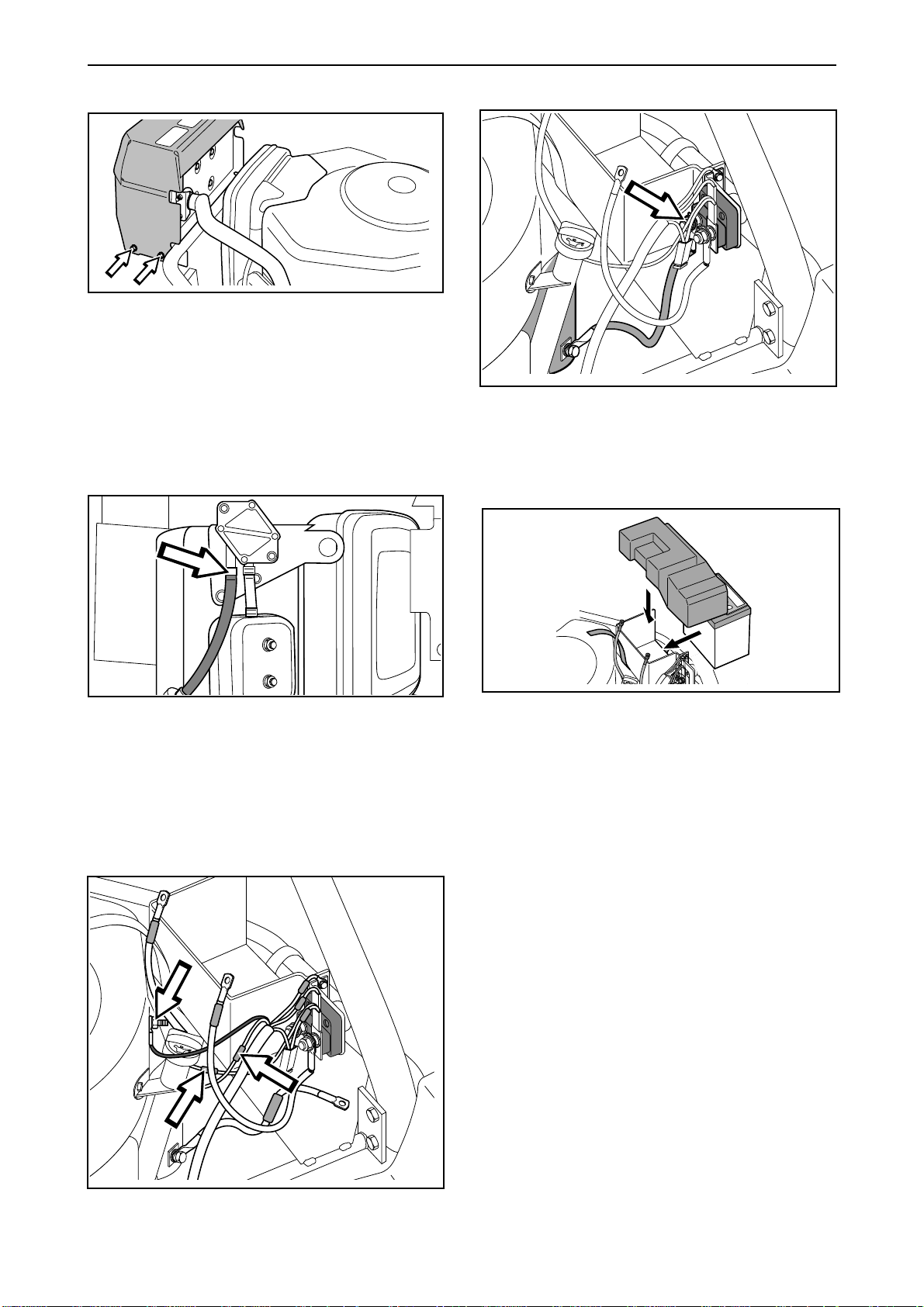

Reparation instructions

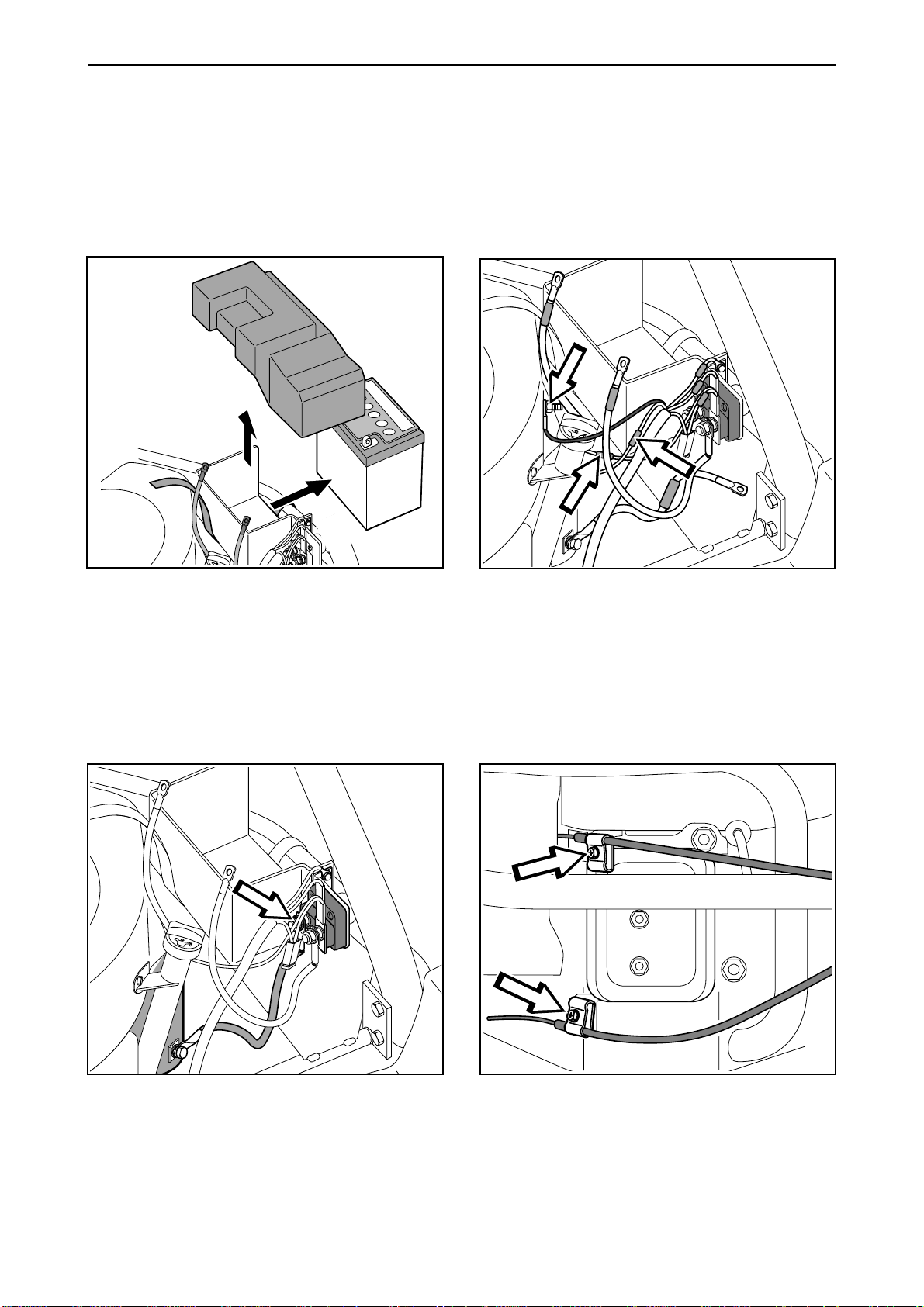

Removing engine
1
Remove the battery's fixing belt. Remove the safety
guard and remove the cable connections. Then, lift
out the battery.
3

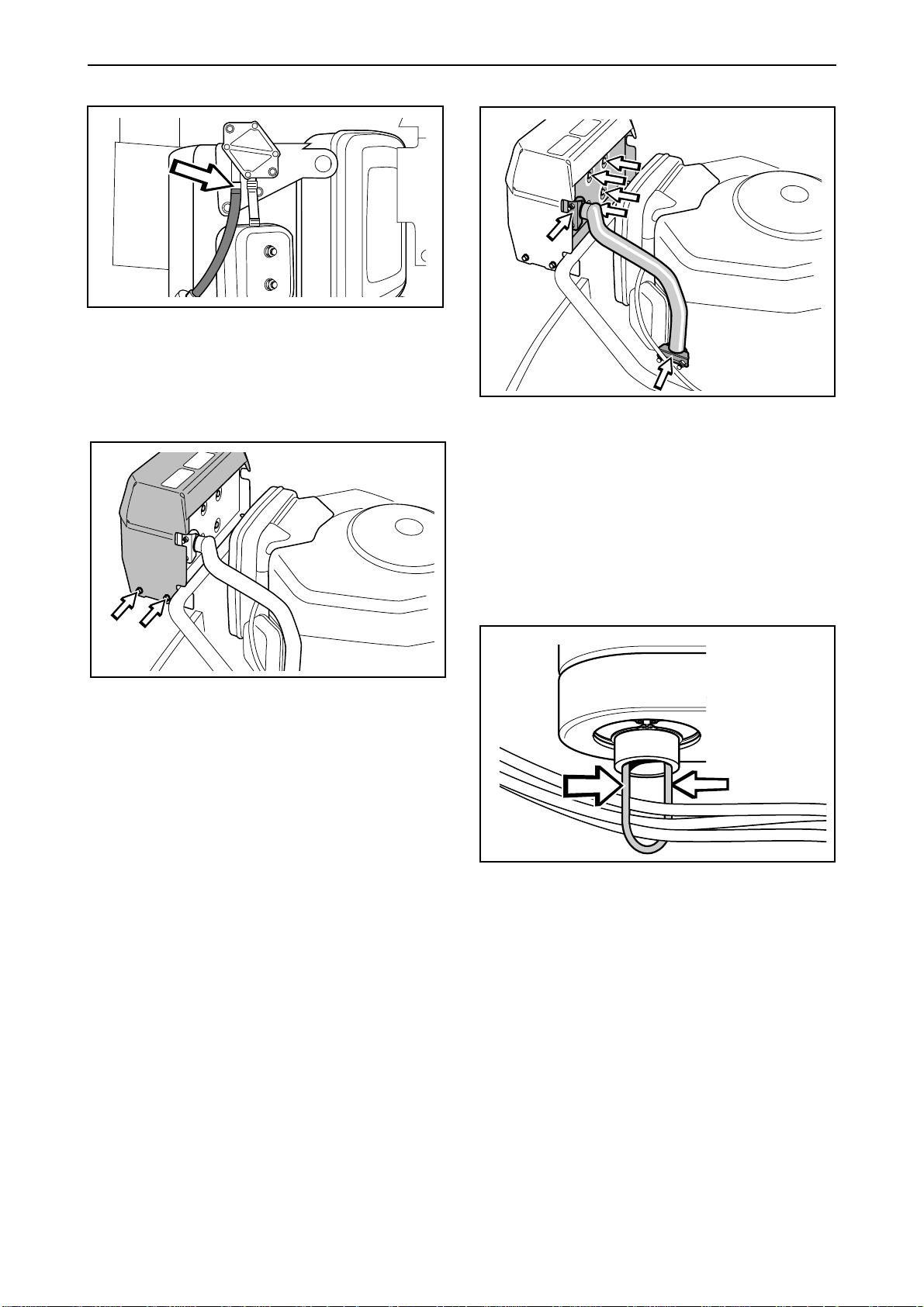

Mark up and remove the engine's electrical
connections.
2
Remove the cable which leads from the starter
relay to the start motor.
4
Remove the clamps which hold the throttle and
choke wires. Unhook the wires from their
attachment in the carburettor.
Rider 11/11 Bio, Rider 13 H/13 H Bio and Rider
16 H have just one wire which controls both the
throttle and the choke.
16 – English
www.mymowerparts.com
Page 18
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
57
Remove the fuel line hose clamp from the fuel
pump and pull the fuel line downwards.
6
Remove the cover plate over the silencer (two
screws on either side of the silencer) and lift out the
plate.
Remove the exhaust pipe clamps and the silencer’s
four retaining bolts. Then remove the silencer,
exhaust pipe and the accompanying pulse air valve.
On Rider 11/11 Bio, Rider 13 H/13 H Bio and
Rider 16 H the exhaust pipe is removed without
removing the silencer.
8
Clamp together the wire holder under the engine
pulley with a pair of flat pliers and pull the wire
holder downwards.
www.mymowerparts.com
English – 17
Page 19
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
9
Insert tool no. 506 79 06-01 into the centre of the
engine pulley. Unscrew and remove the socket
head cap screw which holds the pulley and the
engine axle together. Use tool no. 506 89 92-01 as
a holder-on. Remove the pulley from the engine
axle.
Replacing engine

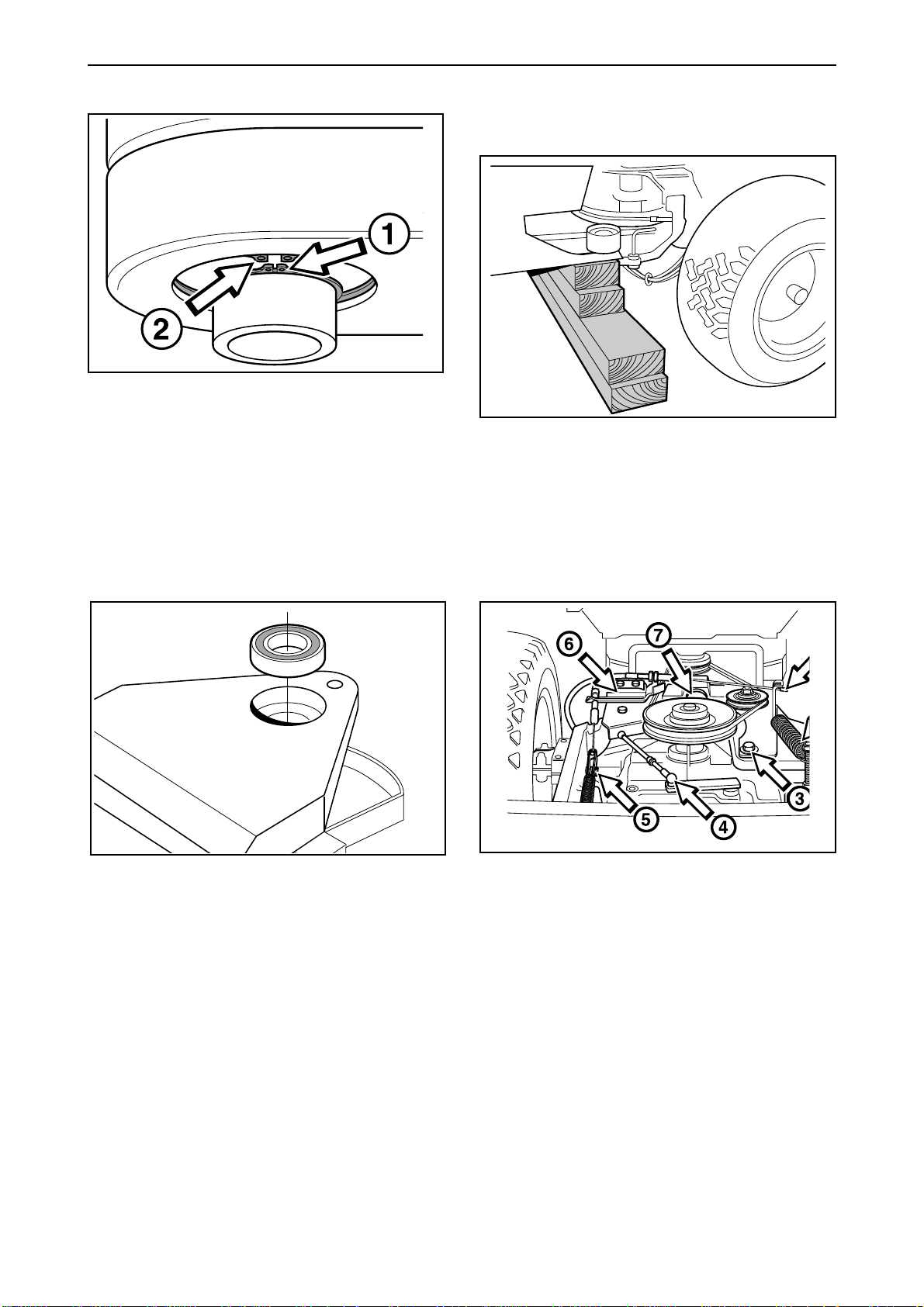

IMPORTANT INFORMATION
When installing the engine, it is important
that the pulley groove (1) is in a position so
the outgoing axle key (2) fits into the groove
(see diagram). Also check that both spacing
collars (3) and the key (2) are firmly attached
on the engine axle. Grease the engine axle.
10
Remove the engine attachments, two on each side
of the engine, and remove the engine from the
mower.
1
Lower the engine and tighten the engine
attachments (two on each side of the engine) with
moment (25 Nm).
18 – English
www.mymowerparts.com
Page 20
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions

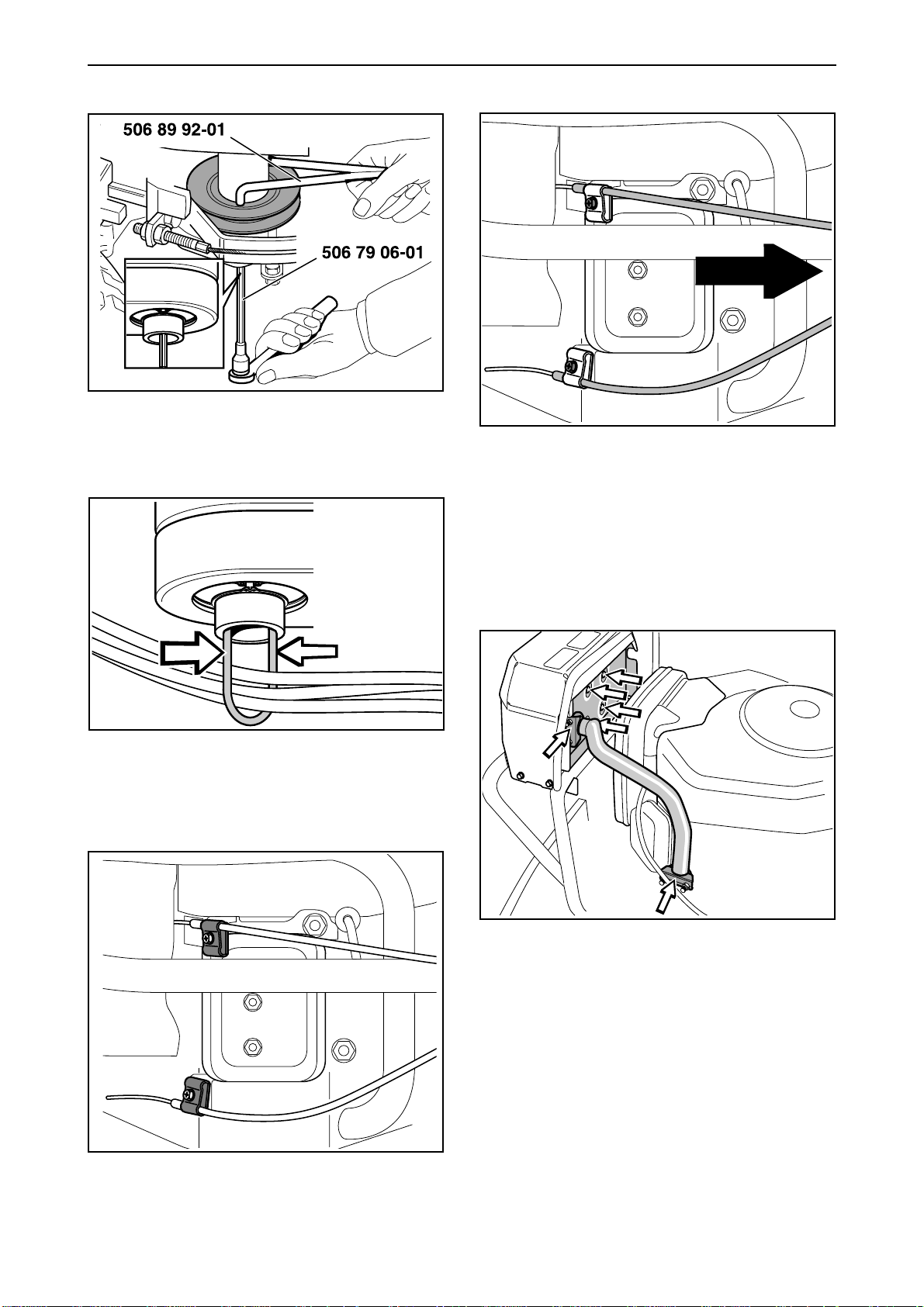

2
Position the pulley with tool no. 506 79 06-01 and
tighten it with moment (80 Nm). Use tool no. 506 89
92-01 as a holder-on.
3
5
Set the throttle control to full throttle and the choke
control to full choke. Pull the wires' outer cover as
far as possible to the right and tighten the clamp
screws.
Rider 11/11 Bio, Rider 13 H/13 H Bio and Rider 16
H have
one
wire to the gas/choke control.
Position the wires in the wire holder, clamp the
holder together and, from below, lead it up through
the centre of the belt tensioner until it hooks over
the tensioner's upper edge.
4
6
Attach the silencer and exhaust pipe and tighten
the holder screws and pipe clamps.
Rider 11/11 Bio, Rider 13 H/13 H Bio and Rider
16 H:
only
exhaust pipe.
Attach the throttle and choke wires to the
carburettor and position the wire clamps without
tightening them.
www.mymowerparts.com
English – 19
Page 21
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
7
Securely fasten the protective plate over the
silencer, two screws on each side of the silencer.
Only Rider 14 Pro.
8
10
Tightly screw the cable from the start motor to the
starter relay.
11
Firmly press the fuel line against the fuel pump and
tightly screw the pump's upper hose clamp.
9
Lift the battery into place and fasten the cable
connections and safety guard. Tighten the catching
belt.
Attach the engine's electrical connections.
20 – English
www.mymowerparts.com
Page 22
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
Changing the oil
The engine oil should be replaced after the first five
hours of running time, see service chart. Thereafter
it should be replaced every 50 hours of running
time (25 hours in harsh operating conditions).
WARNING!
!
Engine oil can be very hot if it is
drained off directly after the engine
is stopped. Therefore allow the
engine to cool down first.
Checking and adjusting steering wires
1
Remove the frame plate by releasing the screws
(two on either side).
2
Drain plug on Rider 11/11 Bio, Rider 13 H/13 H Bio and
Rider 16 H
Tip! When draining the engine oil use a folded
piece of cardboard to funnel the oil into the container.
Drain plug on Rider 14 Pro
Place a container under the drain plug on the left
side of the engine.
Remove the dipstick and drain plug. Let the oil
drain into the container.
Refit the drain plug and tighten it.
Fill with oil up to the “FULL” mark on the dipstick.
Pour the oil into the same hole the dipstick goes in.
Use engine oil SAE 30 or SAE 10W/30, class CDSF.
Run the engine until warm, then check that there
are no oil leaks from the drain plug.
The tension is checked by squeezing together the
wires (as shown in the diagram). Without having to
apply too much force, the wires should be able to
be squeezed to half the distance between them.
3
Stretch the wires by tightening the adjuster nuts
(one wire on each side of the ride-on mower). Do
not overtension them, they should only be tightened
up to the steering rim. Stretch both wires equally so
that the steering wheel position is not changed.
Check the wire tension after adjustments have
been made, in accordance with point 2.
www.mymowerparts.com
English – 21
Page 23
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
Replacing steering wires
1
Release the steering wires' rear attachment (1).
2
Release the steering wires' front attachment (2) at
the steering transmission chain (6) and pull the
steering wires out throught the frame.
Note. If the old wires are still complete, the new
wires can be attached to the old ones when
they are pulled out through the frame, the
new wires will then come automatically into
place.
3
Attach the new wires. Once the new wires are in
place, check the wire tension (see “Checking and
adjusting steering wires”).

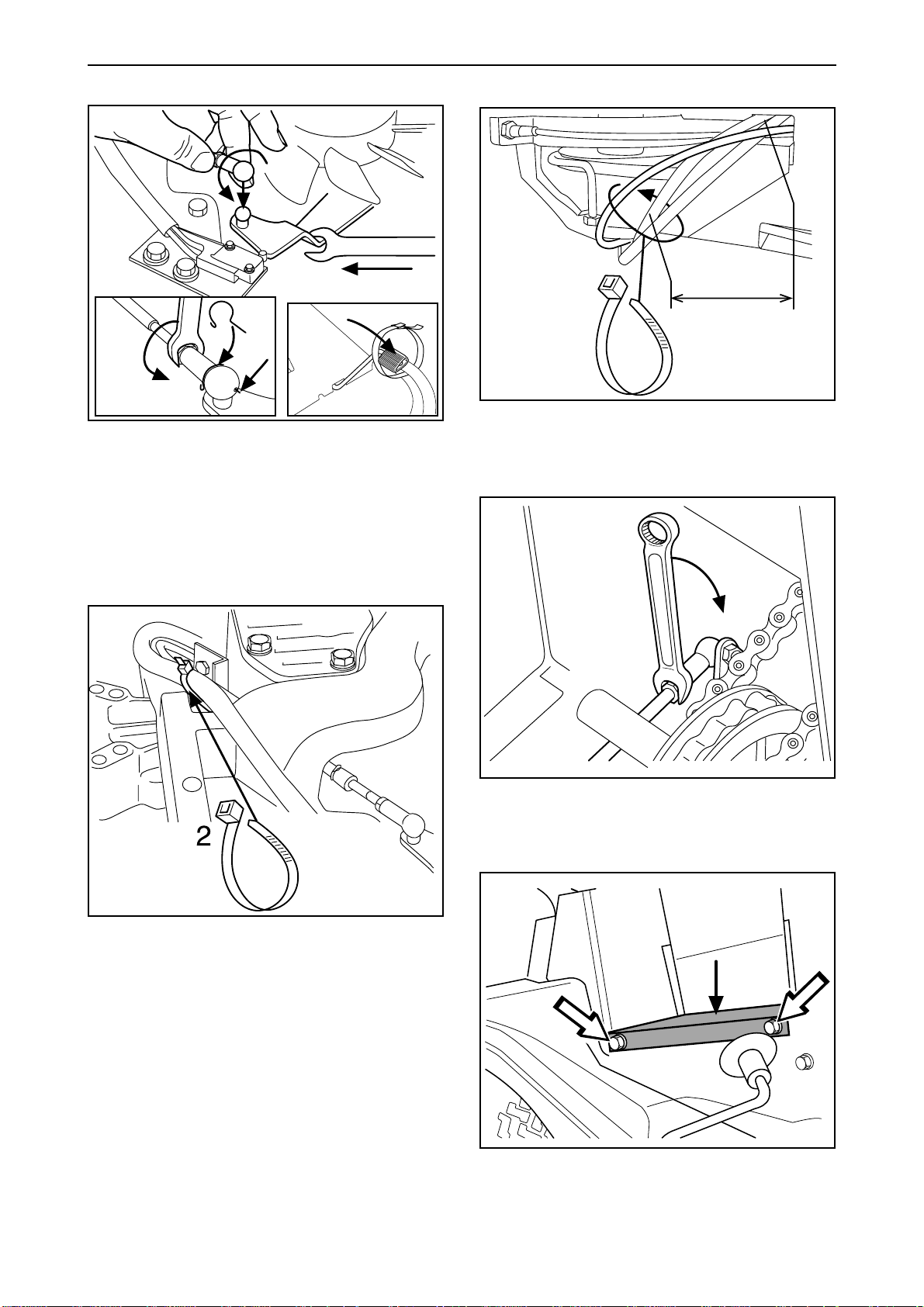

Removal/installation of steering axle
1
Release the steering wires' rear attachment (1).
Remove the frame plate.
2
Remove the steering wheel and steering column by
releasing the lock nut and unscrewing the locking
screw, lift the steering wheel and steering column
upwards.
3
Remove the two steering wheel rod carriers (2).
4
Unscrew the bolt (5) from the bottom end of the
steering column.
5
Pull the steering axle (6) upwards and move the
lower part of the axle backwards to remove the
steering transmission chain (3).
6
Move the upper bearing (7) uppwards until it goes
free from the steering axle (6). If the bearing is to
be replaced, the bushing (8) must be knocked out
of the bearing.
7
Slide the bearing (9) off the bottom end.
8
Take the steering axle out (6) downwards.
9
To assemble the steering axle, the reverse order is
applied. For assembly purposes, the two steering
wheel rod carriers (4), are tightened with moment
(5–10 Nm).
22 – English
www.mymowerparts.com
Page 24
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
Removal/installation of wire wheel
1
Detach the steering wires' rear attachment (1) .
2
Remove the screw (2) and detach the wire wheel
(3).
3
Remove the bearing's circlip (4) and knock out the
bearing (5).
4
To install the wire wheel, the reverse order is
applied.
After installation, check the wire tension (see
“Checking and adjusting steering wires”).
www.mymowerparts.com
English – 23
Page 25
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions

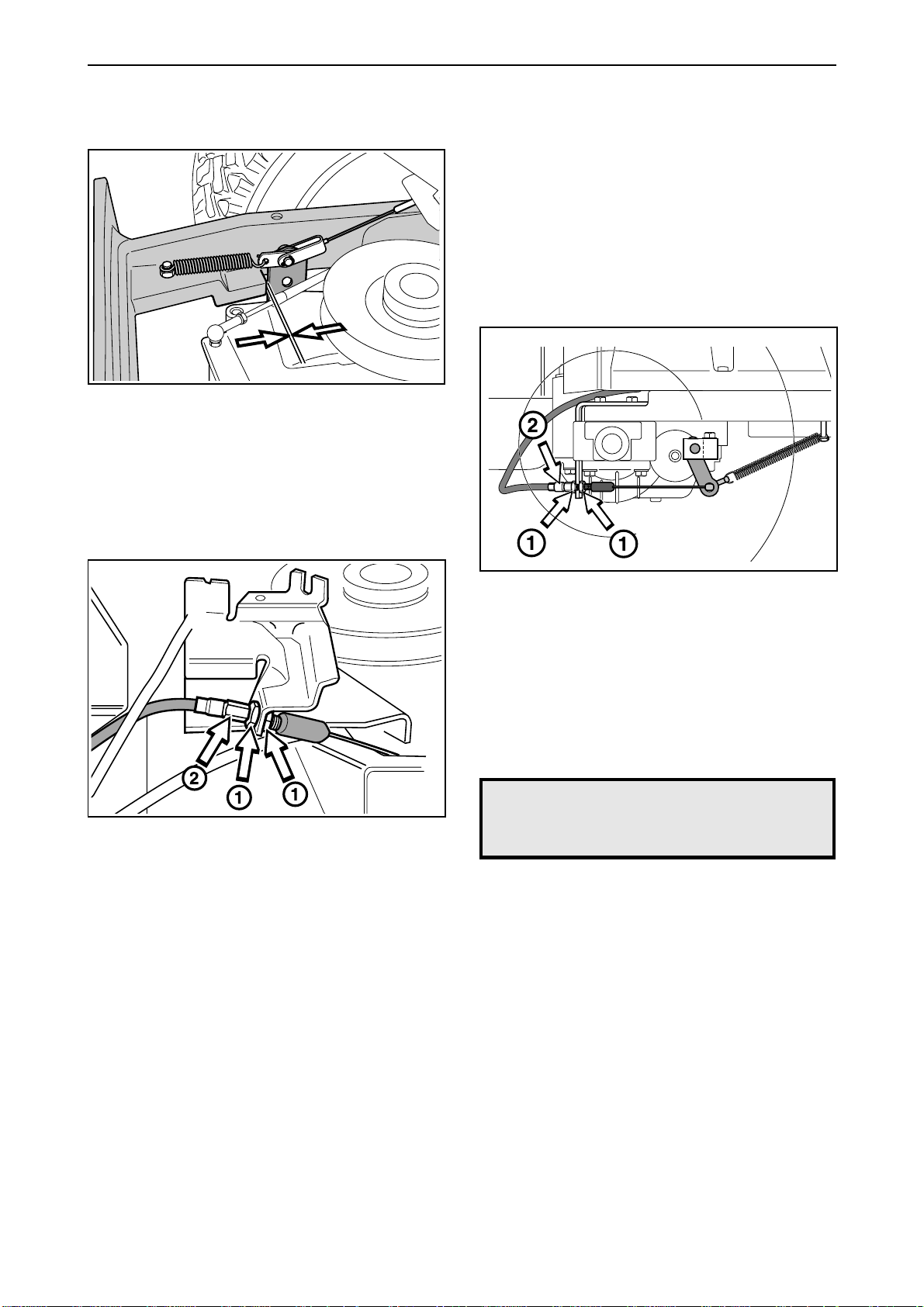

Checking and adjusting brake wire
Checking and adjusting Rider 11/11 Bio
Check that the brake is correctly adjusted by
measuring the distance between the brake lever
and the front edge of the recess on the chassis.
The distance should be 0–1 mm when the brake is
not applied.
Checking and adjusting Rider 13 H/13 H Bio and
Rider 16 H
Check that the brake is correctly adjusted by
positioning the ride-on mower on a gentle slope
and applying the brake.
If the ride-on mower does not stand still, the brake
needs to be adjusted.
The brake is adjusted in the following way:
1
Remove the lock nuts (1).
2
Stretch the wire with the adjuster screw (2) so that
the distance between the brake lever and the front
edge of the recess on the chassis is 1 mm.
3
Tighten the lock nuts (1) after adjustment.
When the brake wire has been adjusted, check that
the brake lever does not have too much movement.
If the lever's free movement exceeds 9 mm, this
should be adjusted by tightening the nut on the
brake lever.
1
Release the lock nuts (1).
2
Stretch the wire with the adjuster screw (2) until all
the play in the wire disappears.
3
Tighten the lock nuts (1) and finally check that the
brake is correctly adjusted.
WARNING!
!
A badly adjusted brake can lead
to reduced braking capacity.
24 – English
www.mymowerparts.com
Page 26
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
Checking and adjusting Rider 14 Pro
Check that the brake is correctly adjusted by
positioning the ride-on mower on a gentle slope
and applying the brake.
If the ride-on mower does not stand still, the brake
needs to be adjusted.
The brake is adjusted in the following way:
Checking and adjusting gear control Rider 11/
11 Bio
Check the gear control adjustment by setting the
gear change lever to the ”N” position. When the
lever (4) goes easily into the neutral position, the
control is correctly adjusted.
In other cases, the control is adjusted in the
following way:
1
Release the lock nuts (1).
2
Stretch the wire with the adjuster screw (2) until all
the play in the wire disappears.
3
Tighten the lock nuts (1) and finally check that the
brake is correctly adjusted.
WARNING!
!
A badly adjusted brake can lead
to reduced braking capacity.
1
Detach the lock nut (1) on the ball joint.
2
Press the locking spring (2) backwards so that the
spherical socket (3) can be lifted away from the pivot
on the lever (4).
3
Adjust the spherical socket (3) position on the
connecting rod (5) until the right adjustment is
obtained.
4
Lock the setting with the lock nut (1) and press the
locking spring (2) into position.
IMPORTANT INFORMATION
Check that the locking spring goes
through the hole in the spherical socket.
www.mymowerparts.com
English – 25
Page 27
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions

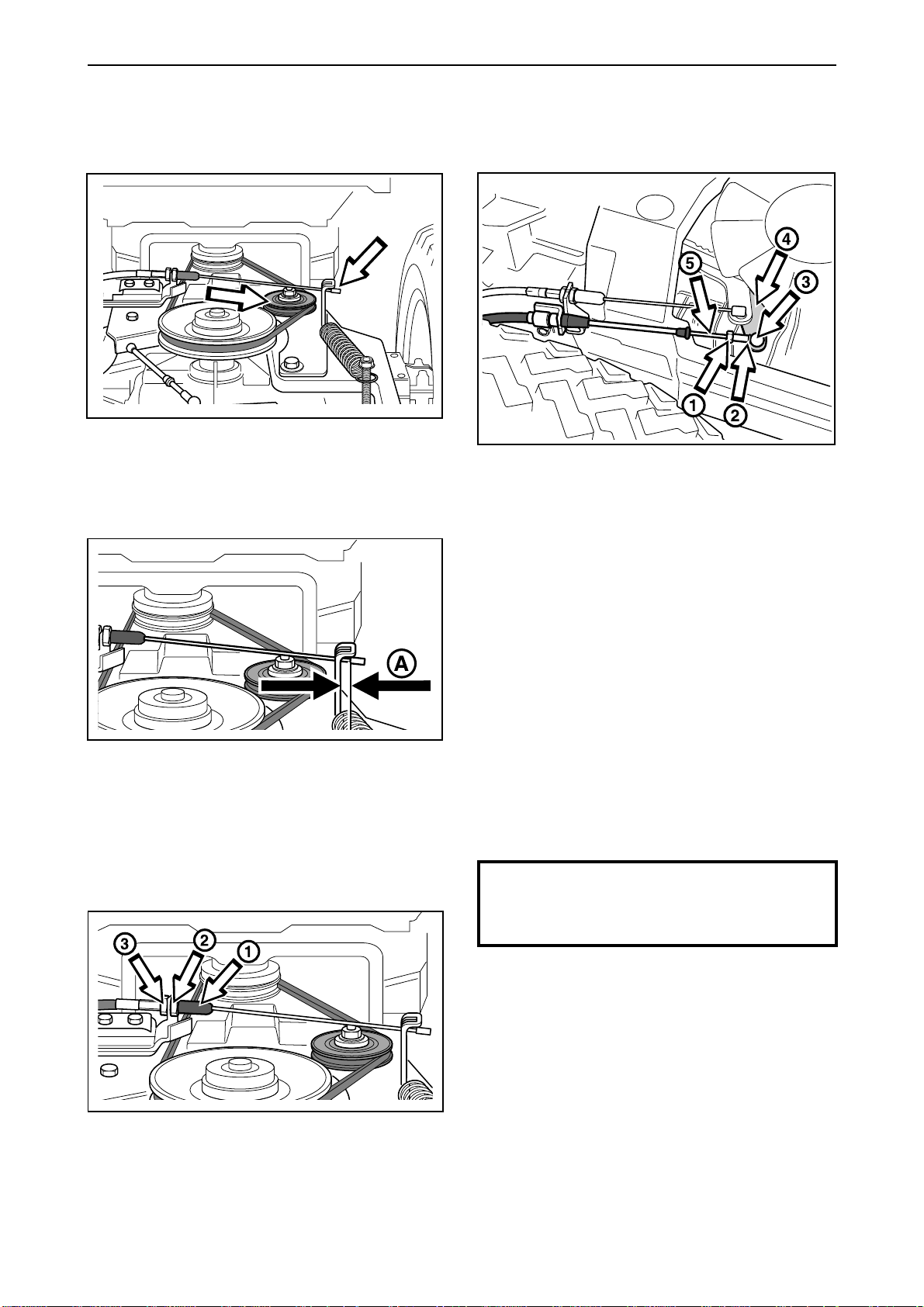

Checking and adjusting freewheel
clutch Rider 11/11 Bio
1
The freewheel clutch is correctly adjusted when the
tensioning wheel's outward movement is stopped
by the belt and not by the wire.
2
Checking and adjusting throttle control
Rider 14 Pro
1
Detach the locking nut (1) on the ball joint.
2
Press the locking spring (2) backwards so that the
spherical socket (3) can be lifted away from the pivot
on the lever (4).
There should be a play (A) of 8-10 mm between
the wire nipple and the lever.
3
3
Press the throttle pedal to the bottom and move the
lever (4) forwards as far as it goes using a
screwdriver.
4
Adjust the spherical socket (3) position on the
connecting rod (5) so that it just passes over the
pivot on the lever.
5
Lock the setting with the lock nut (1) and press the
locking spring (2) into position.
IMPORTANT INFORMATION
Check that the locking spring goes
through the hole in the spherical socket.
Adjust the freewheel clutch wire as follows:
• Pull off the rubber sleeve (1). Loosen the nut (2)
and stretch the wire with the adjuster screw (3).
• Tighten the lock nut (2) after adjustment.
26 – English
www.mymowerparts.com
Page 28
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions

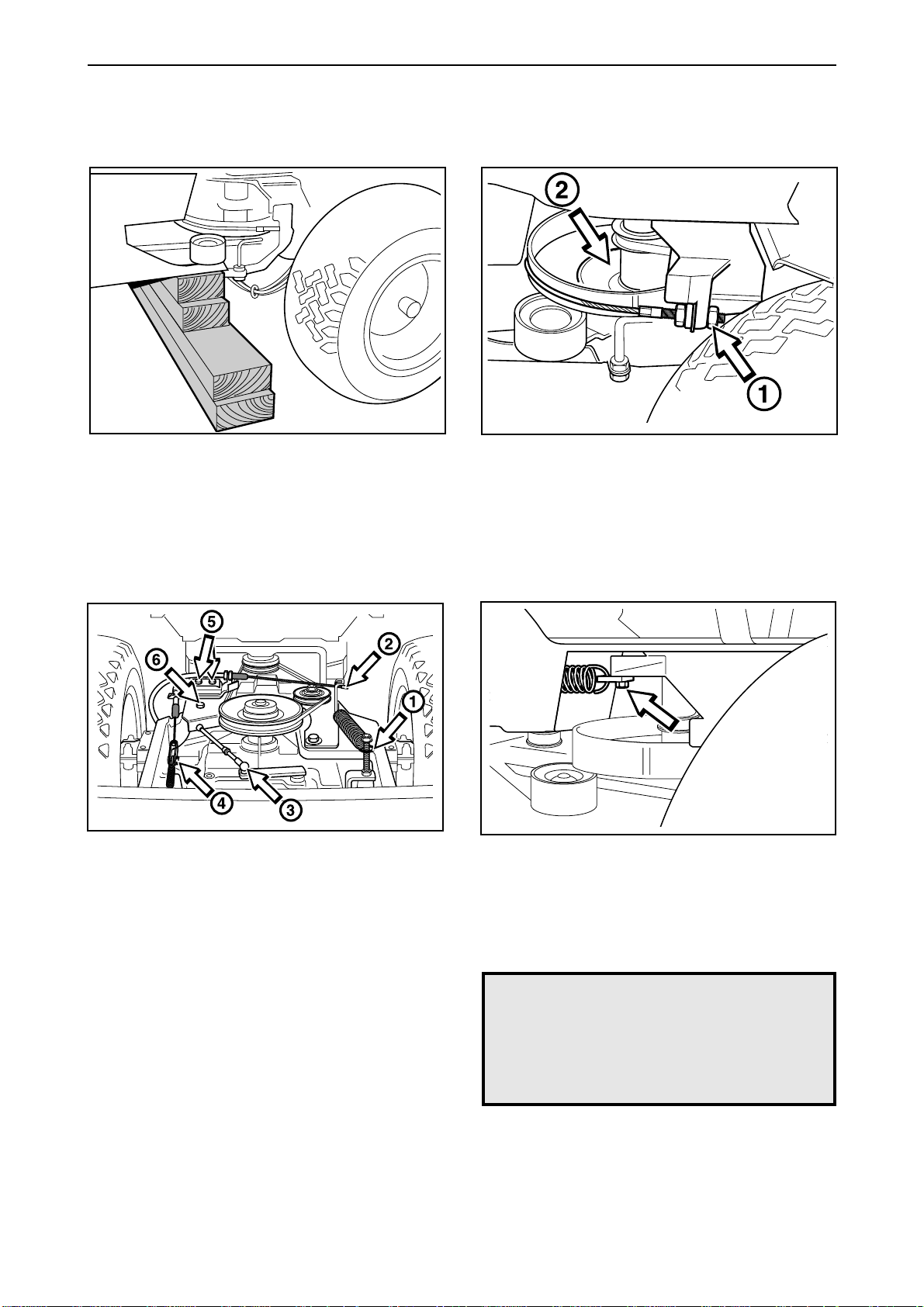

Replacing articulated steering bearing
1
• Remove the engine according to the earlier
description (see “Removing engine”).
• Block up the ride-on mower in front of the
articulated steering.
2
3
• Loosen the steering wires (1) and remove the
steering rim.
• Remove the pulley (2). Move the lower part
forwards, the upper part backwards and detach
the pulley.
4
• Release the tensioning wheel spring (1).
• Release the clutch, gear and brake wire (2, 3
and 4) and remove the wires' holder plates (5
and 6).
www.mymowerparts.com
Detach the articulation spring. This spring is
strongly tensioned and should be secured with tool
no. 506 89 93-01 before the nut is removed.
WARNING!
!
The articulation spring is strongly
tensioned and can cause injury if it
flies off. Wear safety glasses and
gloves when removing/attaching
the spring.
English – 27
Page 29
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
5
Remove the inner circlip (1) from the lower bearing
(see diagram). The rear section is now loose and
can be moved. Then detach the outer circlip (2) and
take the bearing out downwards.
Removal of swing axle
1
• Block-up the machine in front of the rear frame.
• Remove the transmission/gear box cover.
6
• Take the upper bearing out upwards, if it does not
come out easily, it should be knocked out from
below.
• Insert the new bearings and assemble the
articulated steering in the reverse removal order.
• After re-assembly, the wire tension should be
checked (see “Checking and adjusting steering
wires”). Also check that the controls and wires
are correctly adjusted.
2
• Detach the tensioning wheel spring (1) and the
clutch wire (2).
• Disconnect the tensioning wheel arm (3) from
the rear frame, and detach the belt from the gear
box pulley.
• Detach the gear and brake wires (4 and 5) and
remove the wires' holding plates (6).
• Remove the circlip and washer from the swing
axlel (7) and pull the rear frame out backwards.
28 – English
www.mymowerparts.com
Page 30
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions

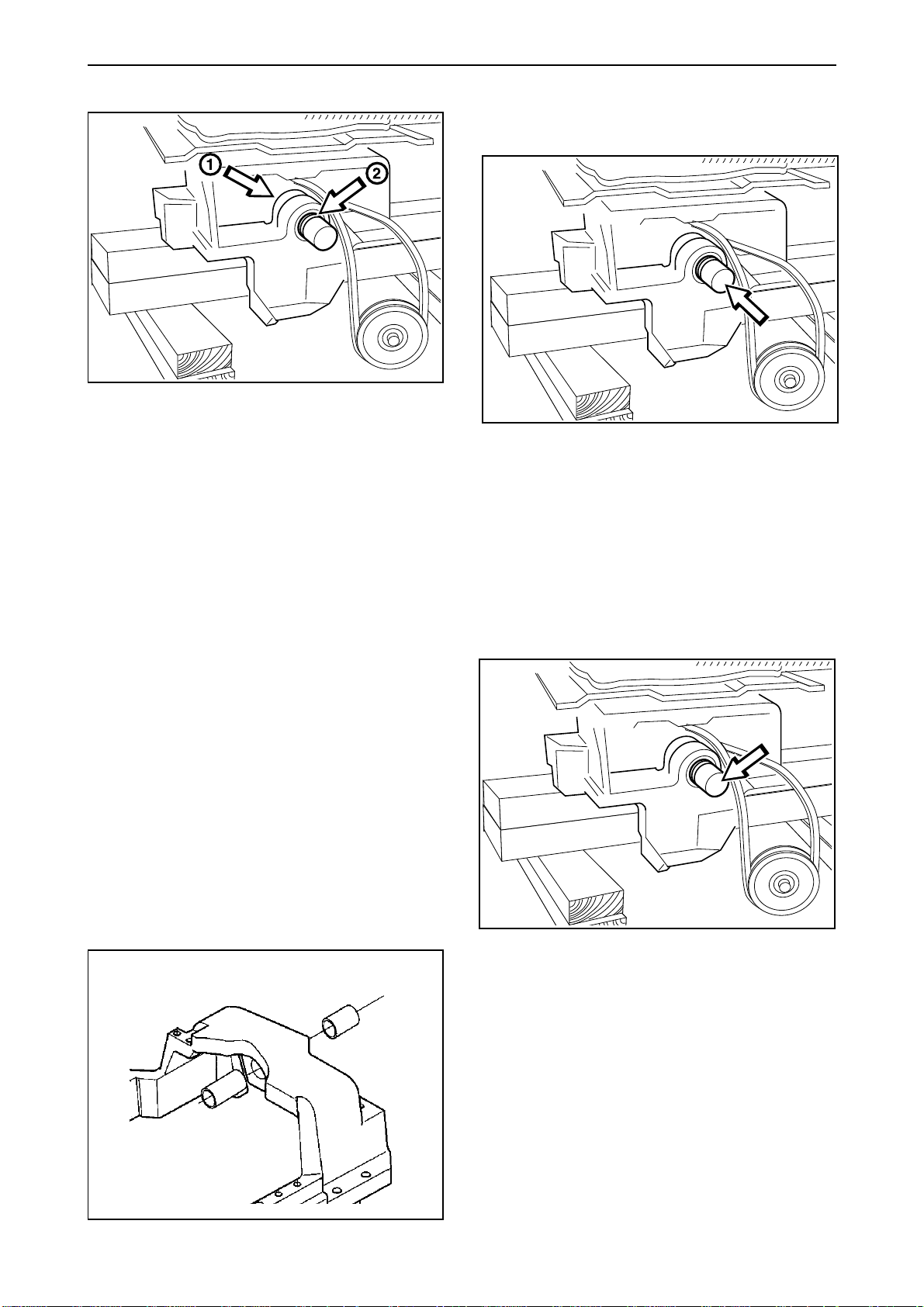

3
Remove the circlip and washer from the swing
axle's inner holder (1) and pull the swing axle out
backwards.
If the dust protection (2) is damaged, this should be
replaced by a new one.
Installation of swing axle
1
• Grease half of the axle (the half that has not
been turned down) and press it from the back
into the steering spindle (see diagram).
• Attach the washer and circlip on the swing axle's
inner holder.
Replacing bushings Rider 14 Pro
Once the swing axle has been removed the
bushings fitted to the rear frame must be replaced.
They can be removed with a standard drift.
Fit the new bushings with the aid of the standard
drift, making sure that the channels in the bushings
run horizontally. It is important that the outer edge
of the outermost bushing is flush with the outer
edge of the hole.
Lubricate the bushings with a lithium-based grease.
• Fix the dust guard (with a thin lip behind) approx.
2/3 of the way in on the axle and lubricate the
axle on both sides of the dust guard.
2
Roll the rear frame forwards and press it in on the
swing axle.
www.mymowerparts.com
English – 29
Page 31
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions

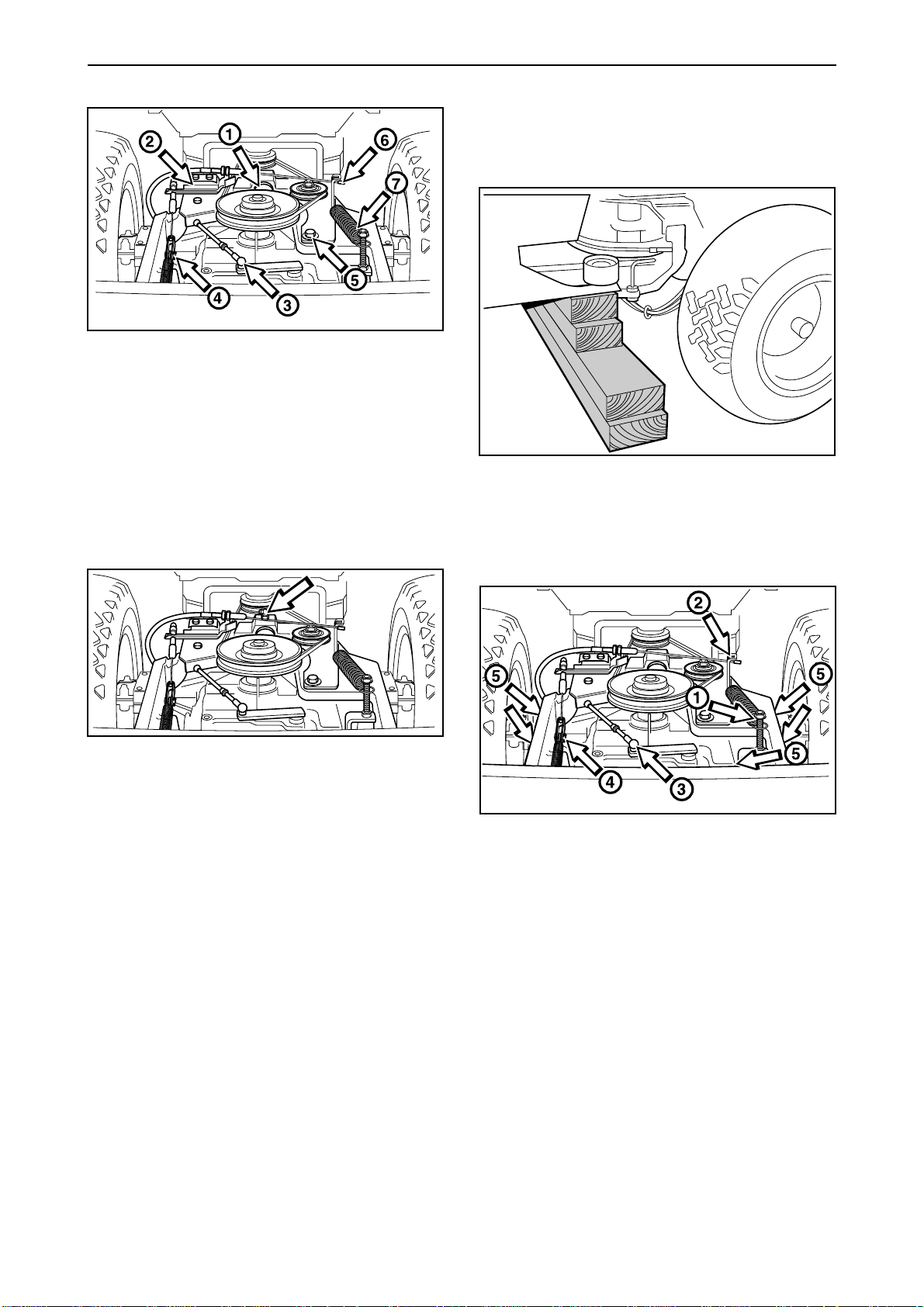

3
• Attach a washer and circlip onto the swing axle
(1).
• Firmly secure the wires' holder plates (2), as well
as the gear and brake wires (3 and 4).
• Connect the belt onto the pulley and tightly screw
the tensioning wheel arm (5) onto the rear frame.
• Attach the clutch wire (6) and the tensioning
wheel spring (7).
4

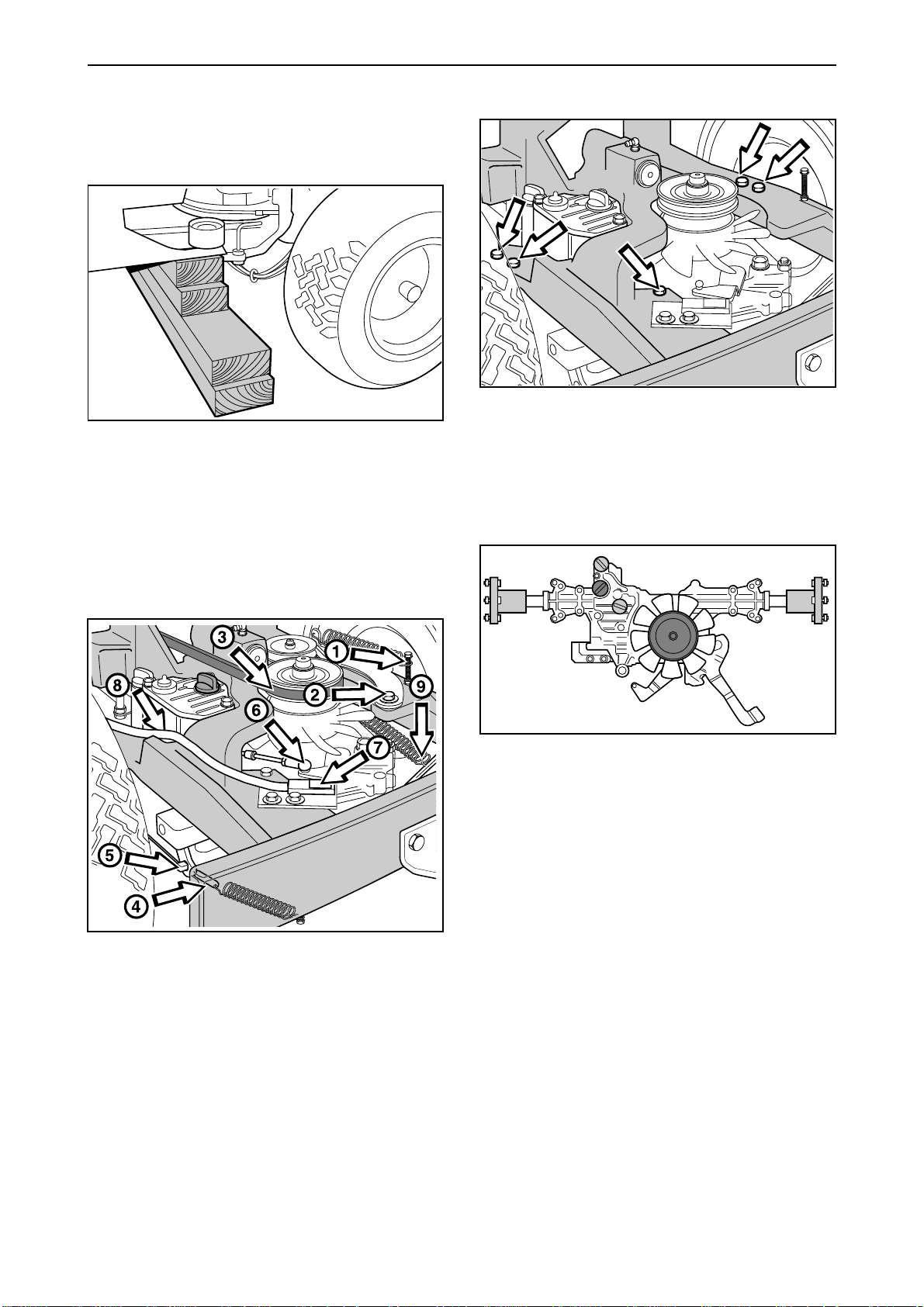

Removal/installation of gear box
Rider 11/11 Bio
1
• Block-up the machine in front of the rear frame
and dismantle the rear wheels.
• Remove the cover from over the gear box.
2
After installation of the swing axle, lubricate the
lubricating area above the swing axle housing with
molybdenum disulphide grease. Also check that the
wires and controls are correctly adjusted justerade
(see “Checking and adjusting steering wires”).
Finally, attach the transmission/gear box cover.
• Release the tensioning wheel spring (1).
• Unfasten the clutch wire (2), and detach the belt
from the gear box pulley.
• Detach the gear and brake wires (3 and 4).
• Insert a garage jack under the gear box and
unscrew the gear box's five holder screws (5).
3
• Lower the garage jack and pull out the gear box.
• Installation of the gear box is carried out in the
reverse removing gear box order
• After installation, check that the clutch, brake
and gear wires are correctly adjusted (see
“Checking and adjusting brake wire”, “Checking
and adjusting gear control” and “Checking and
adjusting freewheel clutch”).
30 – English
www.mymowerparts.com
Page 32
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
Removing/installation of hydrostatic
transmission Rider 13 H/13 H Bio and
Rider 16 H
1
• Block-up the machine in front of the rear frame
and remove the back wheels.
• Remove the transmission cover.
3
Insert a garage jack under the hydrostatic transmission and loosen its five holder screws.
4
2
• Release the tensioning wheel spring (1) and
remove the tensioning wheel arm (2).
• Dettach the drive belt (3).
• Release the brake wire spring (4) and remove
the brake wire from the brake lever (5).
• Lower the garage jack and pull out the
hydrostatic transmission.
• Installation of the hydrostatic transmission is
carried out in the reverse hydrostatic transmission removing order
• After installation, check that the brake wire and
hydrostatic transmission wire are correctly
adjusted (see “Checking and adjusting brake
wire” and “Replacing hydrostatic transmission
wire, installation step 8”). Also check the oil level
in the hydrostatic transmission and refill as
necessary.
• Disconnect the hydrostatic transmission cable (6)
and the hydrostatic transmission switch cable
(7).
• Release the clamp (8) that holds the hydrostatic
transmission cable and lay the wire and cable to
one side.
• Release the disengaged clutch control spring (9).
www.mymowerparts.com
English – 31
Page 33
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions

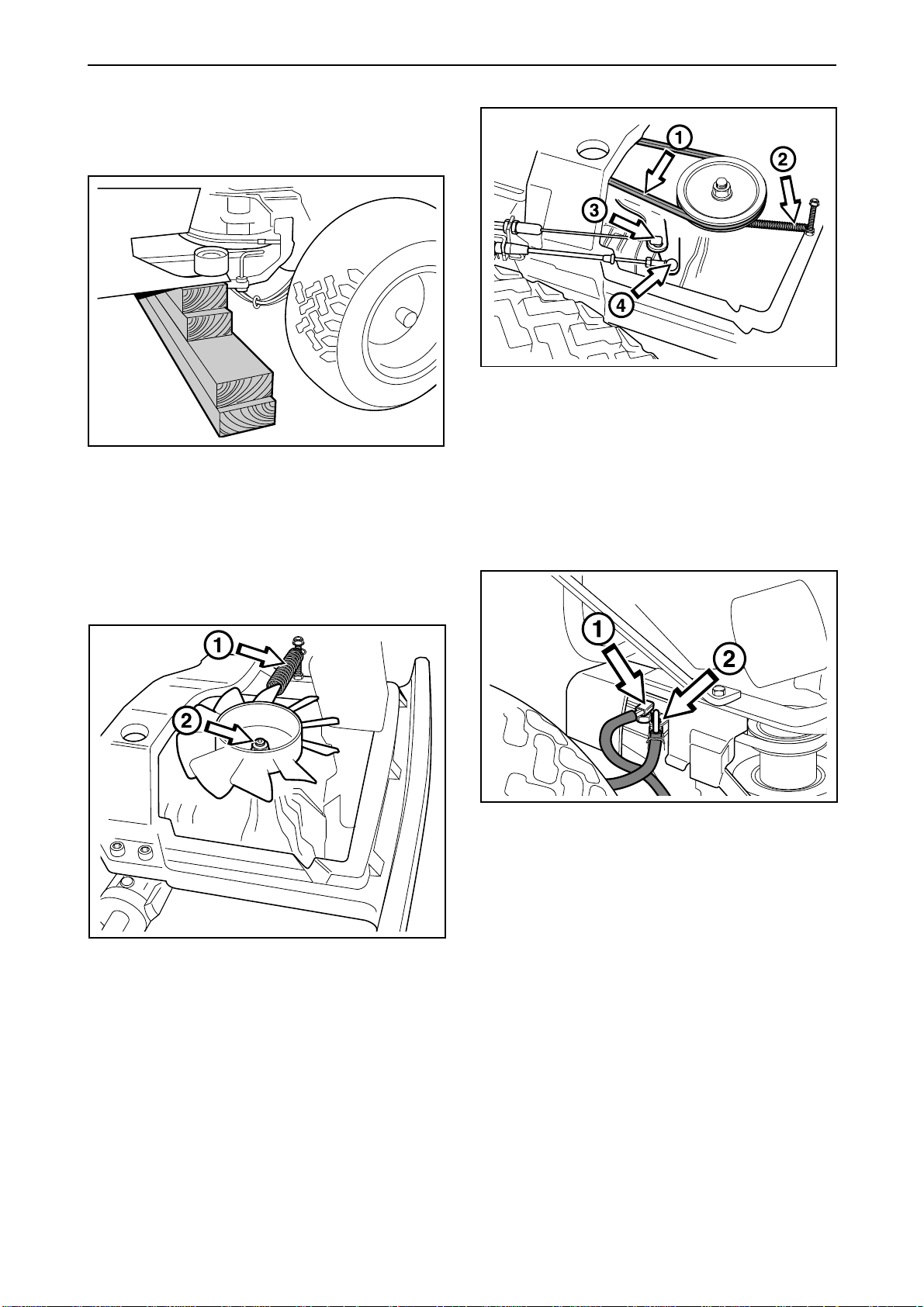

Removing/installation of hydrostatic
transmission Rider 14 Pro
1
• Block-up the machine in front of the rear frame
and remove the back wheels.
• Remove the transmission cover.
3
• Detach the drive belt (1) and release the brake
wire spring (2).
• Disconnect the brake wire (3) and dismantle the
throttle control (4).
• Remove the spring and the disengaged clutch
control.
2
• Release the tensioning wheel spring (1).
• Remove the circlip (2), lift away the washer and
fan from the input axle.
4
Disconnect the contact (1) and take off the hose
(2). Ensure that the oil does not run out, e.g. tie up
the hose higher than the oil level in the container.
32 – English
www.mymowerparts.com
Page 34
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
5
Insert a garage jack under the hydrostatic transmission and loosen its five holder screws.
6

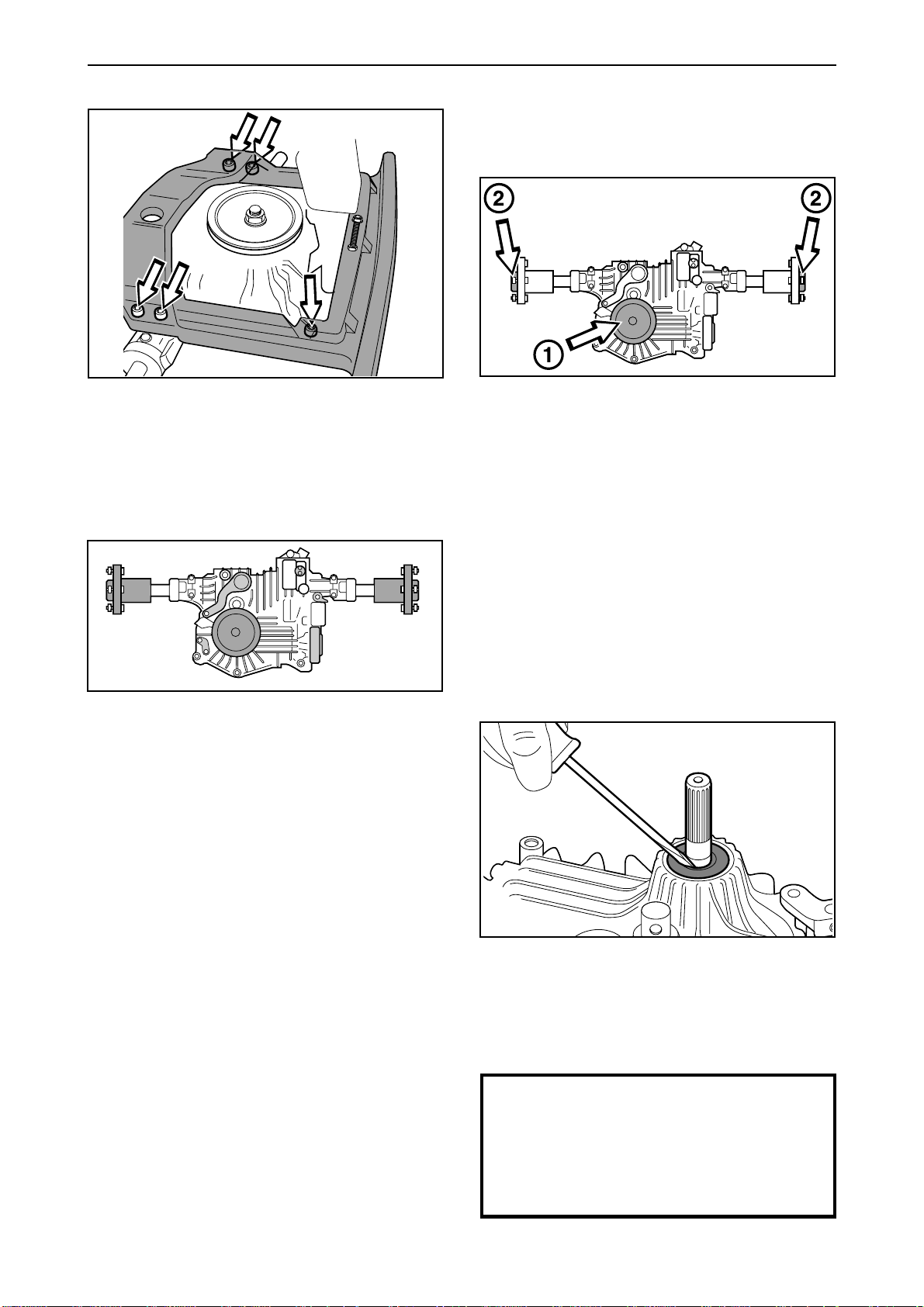

Replacing hydrostatic transmission
axle sealing collars
1
Take the hydrostatic transmission out of the ride-on
mower, as indicated in previous description (see
“Removal/installation of hydrostatic transmission”).
Remove the pulley (1) from the input shaft by
pulling it outwards. Then remove the circlip under
the pulley.
2
Dismantle the circlips which hold the wheel hubs
(2) at the axles and remove the hubs by pulling
them outwards. Do not lose the key which sits
between the hub and the axle.
• Lower the garage jack and pull out the
hydrostatic transmission.
• Installation of the hydrostatic transmission is
carried out in the reverse hydrostatic transmission removing order
• After installation, check that the brake wire and
hydrostatic transmission wire are correctly
adjusted (see “Checking and adjusting brake
wire” and (Checking and adjusting speed
control”). Also check the oil level in the
hydrostatic transmission and refill as necessary.
Sealing collar replacement - input axle
1
• Clean the input axle and the area around the
sealing collar of all dirt and rust.
• Insert a screwdriver between the sealing collar
and the axle and bend the sealing collar out of
the axle housing with a twisting motion.
IMPORTANT INFORMATION
The area around the sealing collar must be
absolutely clean! If the hydrostatic oil is
contaminated with dirt, this can lead to a
shorter hydrostatic transmission
operational life.
www.mymowerparts.com
English – 33
Page 35
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
2
• Wrap insulation tape around the input axle to
protect the new sealing collar from damage to
splines and grooves.
Start by wrapping from the bottom and continue
upwards over the axle until the entire axle is
wrapped in tape.
• Lubricate the axle and the inside of the new
sealing collar with grease so that the collar can
slide easily.
3
Sealing collar replacement - outgoing axles
1
• Clean the outgoing axle and the area around the
sealing collar of all dirt and rust.
• Insert a screwdriver between the sealing collar
and the axle and bend the sealing collar out of
the axle housing with a twisting motion.
IMPORTANT INFORMATION
Dirt must not be allowed to get into the
transmission as this can shorten its
operational life.
• Place the sealing collar on the axle with the
smooth side upwards, and
downwards.
• Use the thick end of a 1/4" extender to
knock down the sealing collar until the upside of
the collar is level with the axle housing's upper
edge.
Move the extender in a circle around the sealing
collar so that it is evenly pressed down, all the
way around.
• Remove the insulation tape from the axle and
assemble the lower circlip and the pulley with the
hexagonal hub facing upwards.
• Fasten the fan and the washer and assemble the
upper circlip.
• Install the hydrostatic transmission in the ride-on
mower as indicated in the previous description
(see “Removal/installation of hydrostatic transmission”).
carefully
press it
carefully
2
• Wrap insulation tape around the outgoing axle
from the start of the key-way and outwards until
even the circlip's groove is covered with tape.
This is done to protect the new sealing collar
from damage.
• Lubricate the axle and the inside of the new
sealing collar with grease so that the collar can
slide easily.
34 – English
www.mymowerparts.com
Page 36
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions

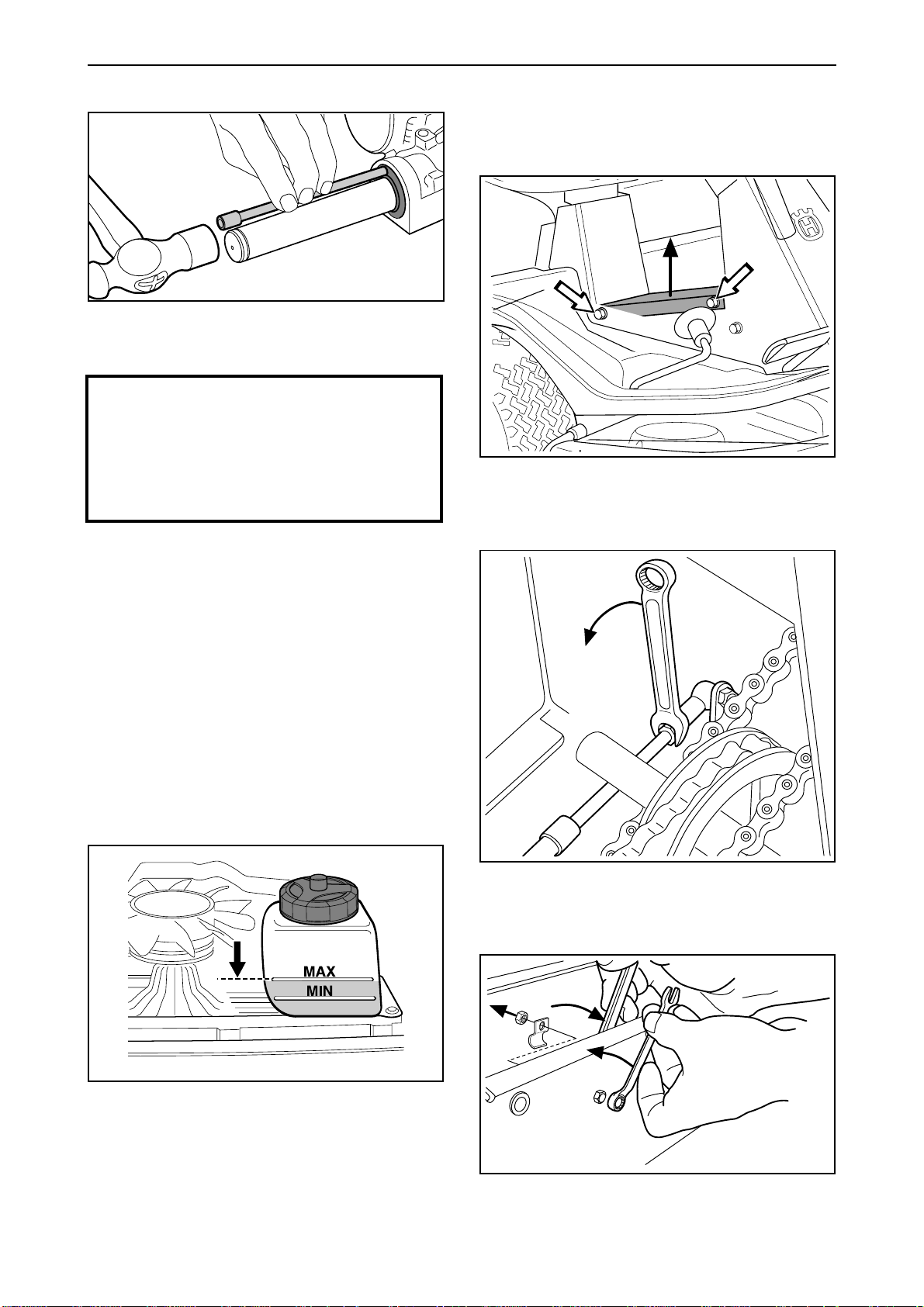

3
• Place the sealing collar on the axle, with the
metal spring inwards, and press it in
IMPORTANT INFORMATION
Before the sealing collar is completely
installed, check that the sealing collar's
metal spring reinforcement sits on the
side of the sealing collar which leads
inwards towards the transmission.
carefully
Replacing hydrostatic transmission wire
Removal of hydrostatic transmission wire
1
.
Remove the frame plate by undoing the screws
(two on each side).
2
• Use the narrow end of a 1/4" extender to
carefully
reaches the bottom of the axle housing. Only
knock on the steel cover.
Move the extender in a circle around the sealing
collar so that it is pressed in evenly all the way
around and tight against the axle.
• Remove the insulation tape from the axle and
repeat, as is necessary, the entire procedure for
the second axle.
• Install the hydrostatic transmission in the ride-on
mower as indicated in the previous description
(see “Removal/installation of hydrostatic transmission”).
knock in the sealing collar until it
Unscrew the front end of the hydrostatic transmission wire and remove the wire clip.
3
• Fill the transmission's oil container with SAE
10W30 oil until the oil level reaches the "MAX"marking.
• Operate the ride-on mower and then check that
there is no oil leaking from the new axle sealing
collars.
www.mymowerparts.com
Unbolt the front wire-retaining clip from inside the
tunnel.
English – 35
Page 37
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
4
Remove the transmission cover.
5
Follow the hydrostatic transmission wire back to the
transmission and cut through the cable tie around
the cables. Unscrew the clip that holds the trans-
mission wire.
7
Lift off the ball joint and pull out the wire.
8
6
Remove the wire clip from the rear ball joint.
Lift out the transmission wire with the linkage
attached.
36 – English
www.mymowerparts.com
Page 38
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
9
Unscrew both ball joints from the hydrostatic
transmission wire.
10
Refitting hydrostatic transmission wire
Screw the front ball joint onto the new transmission
wire and tighten the lock nut.
2
Remove the entire hydrostatic transmission wire.
Run the wire through the mower so that it follows
the same route as the old wire.
www.mymowerparts.com
English – 37
Page 39
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions

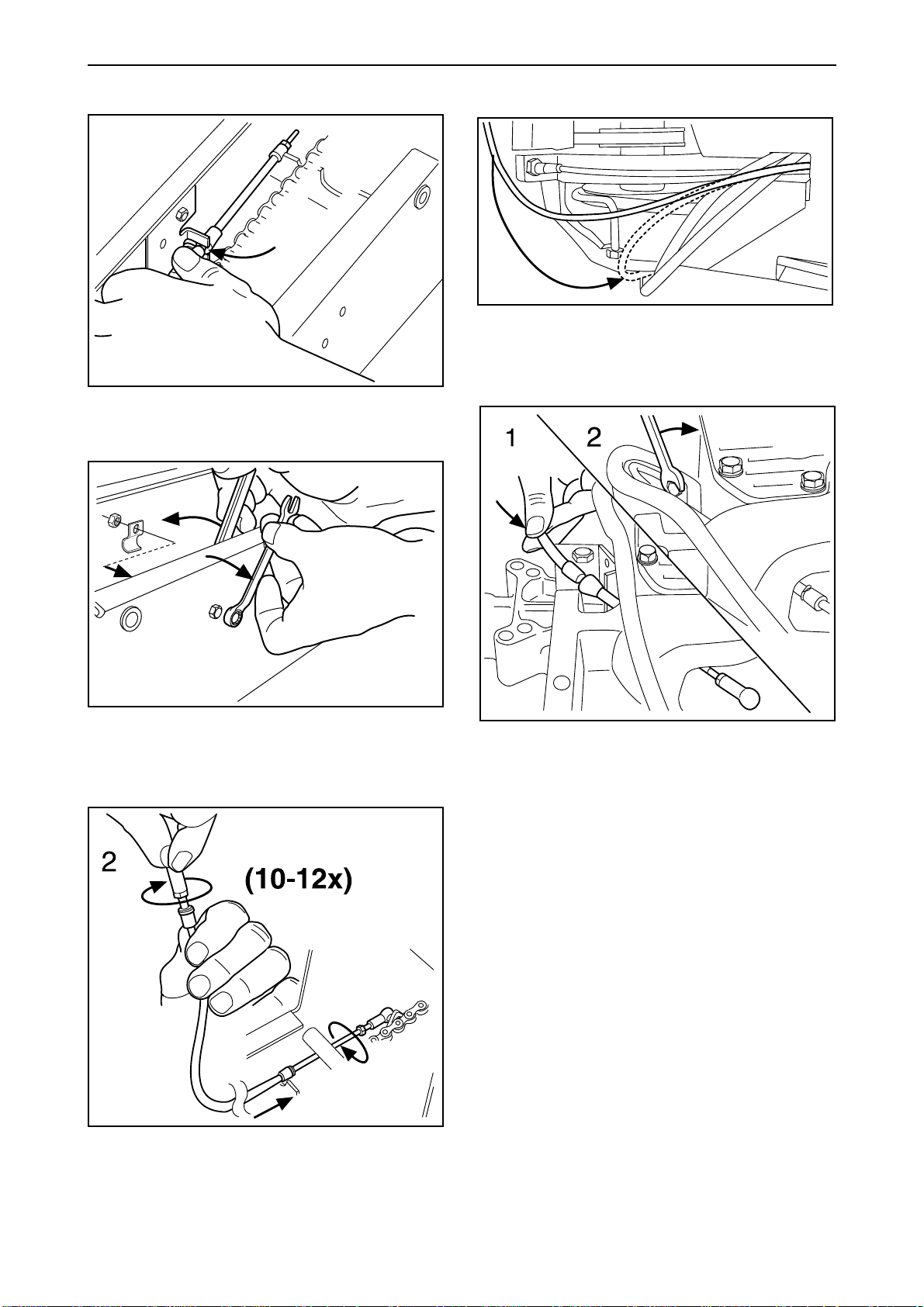

3
Push the linkage into the front slot in the tunnel.
4
6
Run the transmission wire alongside the other
cables.
7
Bolt the transmission wire-retaining clip back in
place. Press the ball joint onto its ball and refit the
wire clip.
5
Screw the ball joint onto the lower end of the
transmission wire. Tighten it 10–12 turns so that the
linkage is the correct length.
Lay the transmission wire in place and secure with
the rear clip.
38 – English
www.mymowerparts.com
Page 40
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
810
3
2
~80
4
Fully depress the hydrostatic transmission pedal
and secure it with a cable tie to set the correct wire
tension for maximum speed.
Adjust the ball joint and press it onto the ball, with
the control arm pushed in as far as it will go.
Tighten the lock nut and refit the wire clip.
9
1
Secure the transmission wire with a cable tie.
11
Secure the cables to the rear clip using a cable tie.
Tighten the lock nut on the transmission wire front
ball joint.
12
Refit the frame plate using the four screws.
www.mymowerparts.com
English – 39
Page 41
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions

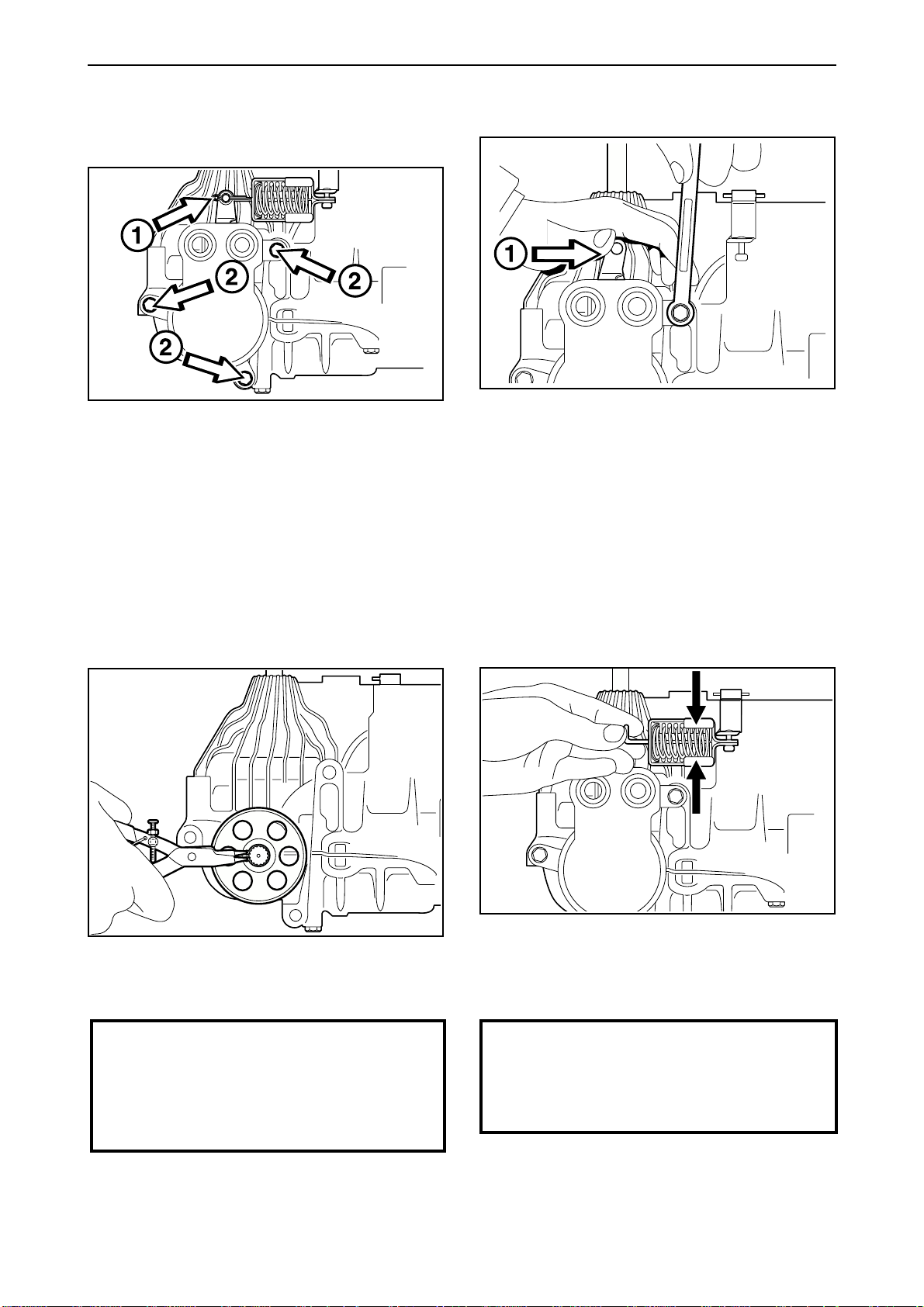

Hydrostatic transmission brake
Removal of brake
1
• Place blocks in front of and behind the wheels so
that the ride-on mower can not roll. Then, release
the parking brake.
• Remove the split pin and the washer from the
brake's connecting rod (1).
• Remove the three bolts and washers (2) from the
transmission and detach the brake lining packet.
Installation of brake
1
• Put the brake drum on the axle and attach the
circlip.
• Assemble the brake lining packet on the transmission and tighten the three bolts and washers
by hand
• Press the brake lever (1) backwards so that the
brake lining locks the drum, and draw the three
bolts with moment to 27 Nm (20 ft, lbs.), whilst
the drum is locked.
.
22
Install the brake spring with holder on the gold-
Remove the brake drum by removing the circlip and
pulling the drum outwards.
IMPORTANT INFORMATION
It is seldom necessary to remove the
brake drum. If, however, it needs to be
removed, a puller and/or penetrating oil is
needed to get it off.
coloured brake arm by passing the recesses into
the holder with metal tabs on the brake arm. Then,
turn the holder in towards the transmission.
IMPORTANT INFORMATION
Firmly fix the spring holder so that the
holder's metal tabs (shown by the arrows)
point away from the transmission.
40 – English
www.mymowerparts.com
Page 42
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions

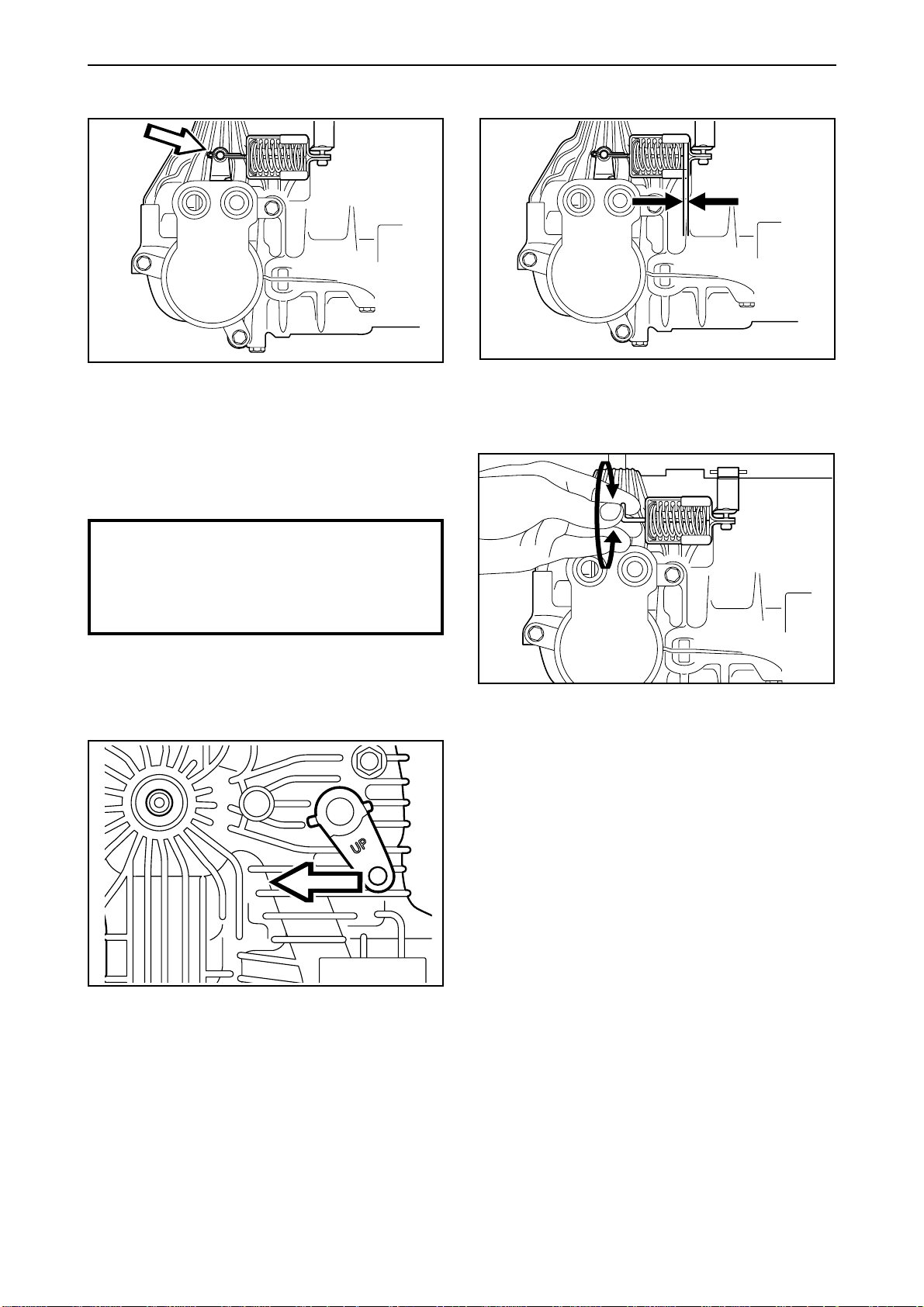

32
• Firmly attach the brake's connecting rod in the
hole on the brake lever and assemble the washer and spring clip.
• Remove the blocks in front of and behind the
wheels and continue with “Adjusting brake”.
IMPORTANT INFORMATION
Firmly attach the connecting rod so that the
washer and the spring clip are on the
outside of the brake lever (see diagram).
Adjustment of brake
1
Apply the parking brake and check that the
transmission's brake arm is pulled as far forwards
as possible (see diagram). Adjust this with the
brake wire tensioning screw (see “Checking and
adjusting brake wire”).
When the parking brake is fully applied, the gap
between the spring and the spring holder
attachment (see diagram) should be 4–8 mm.
3
Adjust the gap by:
• Releasing the parking brake.
• Loosening the connecting rod by removing the
spring clip and the washer.
• Turning the connecting rod in or out of the spring
(see diagram) to adjust the gap.
• Firmly attach the brake's connecting rod in the
hole on the brake lever and assemble the washer and spring clip. Make sure that the washer
and spring clip are on the outside of the brake
lever.
• Apply the parking brake and check the gap once
again.
• Repeat the adjustment procedure until the
correct gap is obtained.
Ineffective brake power
As the brake is only used as a parking brake, wear
is negligeable. If the brake power is nevertheless
ineffective, this can be adjusted:
• Release the three bolts (N12) which hold the
brake lining packet.
• Press on the brake lever so that the brake lining
centres itself around the brake drum and tighten
the three bolts with moment (27 Nm).
www.mymowerparts.com
English – 41
Page 43
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
Bleeding the hydrostatic transmission
oil system
1
• Check the hydrostatic transmission oil level.
• Start the engine and set the throttle control to
idle.
2
4
For immediate bleeding of the oil system, fill new oil
directly into the transmission (1) and, at the same
time, pull the pump round by hand with the brake
drum (2).
Adjustment of transmission neutral
position
1
Bleed the hydrostatic transmission oil system.
• Repeat opening and closing the disengaged
clutch control whilst the front respective rear
pedals are alternately pressed down.
• When the mower starts to move set the governor
control lever to high idle.
On Rider 13 H/13 H bio and Rider 16 H the
control is on the right side.
3
• Repeat quick starts and emergency stops until
the transmission responds as it should.
• Finally, check the hydrostatic transmission oil
level and fill as is required.
2
Lift the back of the ride-on mower up so that the
wheels are off the ground and place blocks under
the machine.
3
• The neutral position is adjusted by turning the
hexagonal axle on the transmission (see diagram).
• Start the engine and set the throttle control to full
throttle.
• Unscrew the hexagonal axle lock nut and turn
the axle clockwise until the drive shafts start to
rotate backwards.
42 – English
• Make a mark on the top of the axle.
www.mymowerparts.com
Page 44
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions

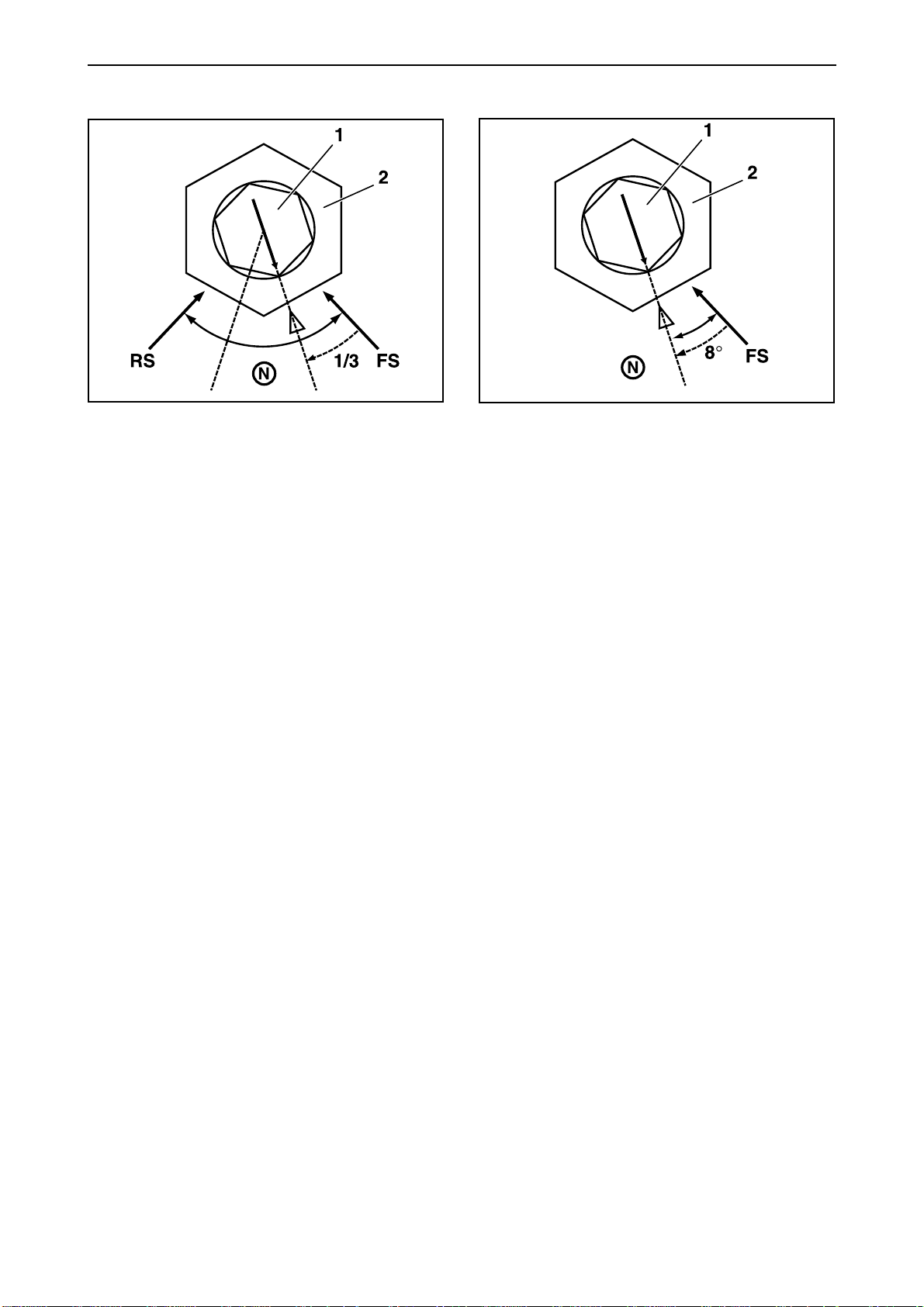

4
1 = Axle
2 = Lock nut
• Slowly turn the axle anti-clockwise until the drive
shafts stop rotating backwards and make a mark
on the transmission housing (RS).
• Slowly turn the axle anti-clockwise until the drive
shafts start to rotate forwards.
• Slowly turn the axle clockwise until the drive
shafts stop rotating forwards and make a mark
on the transmission housing (FS).
• Turn the axle clockwise 1/3 of the distance
between the marked stop points.
• Hold the axle (M8) firmly and tighten the lock nut
(M17).
• Check that the drive shafts do not rotate in the
neutral position by slowly transferring the
steering arm to the neutral position from the
forwards and reverse positions.
5
1 = Axle
2 = Lock nut
If the drive shafts do not rotate backwards despite
the hexagonal axle having rotated a full turn, the
neutral position is to be adjusted in the following
way:
• Slowly turn the axle anti-clockwise until the drive
shafts start to rotate forwards.
• Slowly turn the axle clockwise until the drive
shafts stop rotating forwards and make a mark on
the transmission housing (FS) and the axle.
• Turn the axle clockwise 8° from the mark on the
transmission housing.
• Hold the axle (M8) firmly and tighten the lock nut
(M17).
Transmission maintenance
Oil change
Most garden owners do not have tools for or
experience of changing transmission oil. The
transmission probably has a longer operational life
than other ride-on mower components, this makes
transmission oil changes less important for most
customers. However, the transmission's operational
life is increased if oil changes are made.
If the ride-on mower is used
recommended to change the oil firstly after 50
hours use and every 300 hours use thereafter.
The oil filter only needs to be changed if the transmission is opened for repairs to be made.
Transmission K 55 holds 2.2 litres and K 61 holds
3.3 litres (SAE10W/30 engine oil, class CD–SF).
www.mymowerparts.com
professionally,
it is
English – 43
Page 45
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions

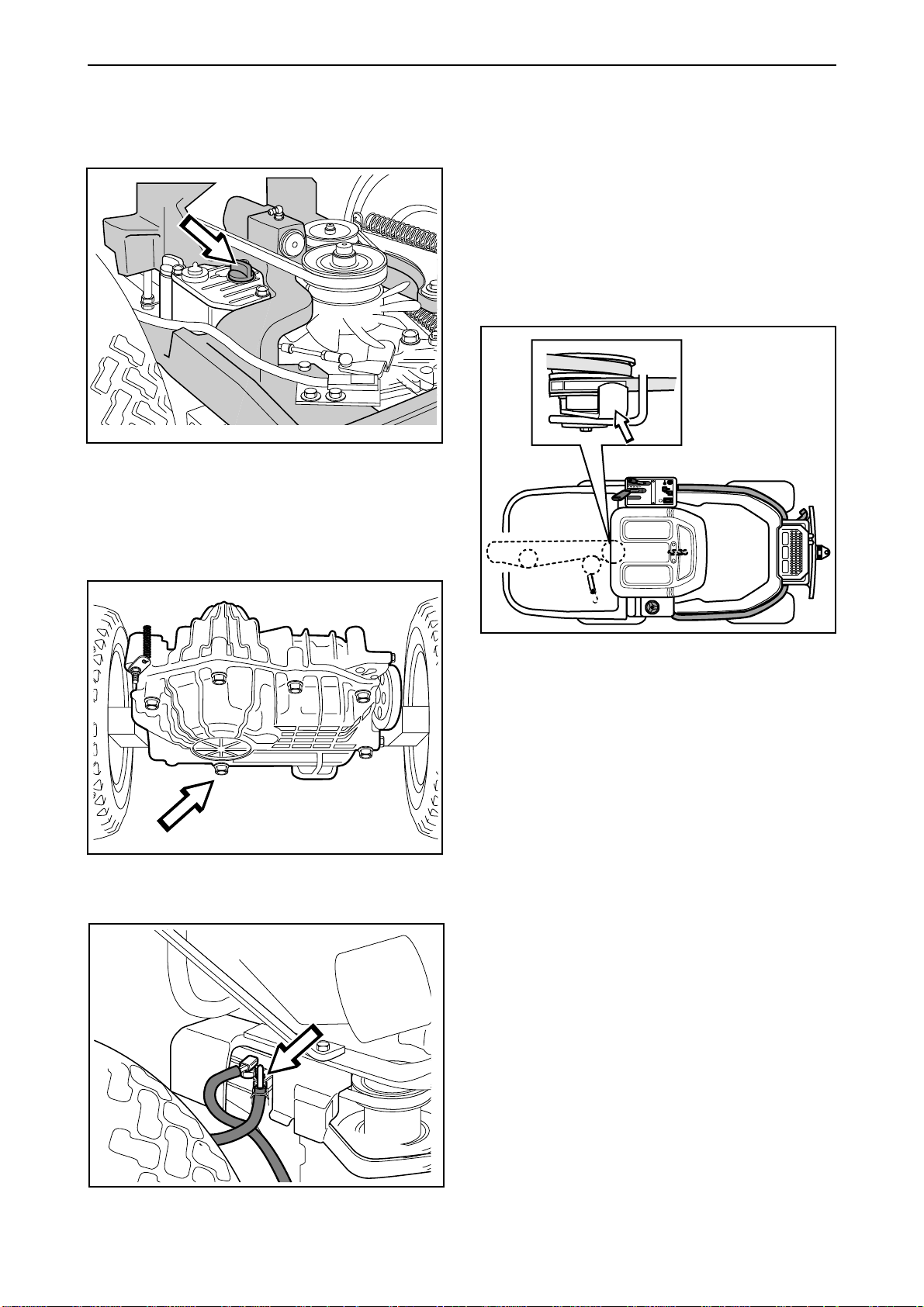

Changing oil – Rider 13 H/13 H Bio and Rider 16 H
The drain plug on transmission K 55 is in the same
position as on K 61.
K 55, filler hole
Removing the belt
Rider 11, Rider 13 H, Rider 16 H och Rider 14
Pro
Starting point when Removing the belt:
• No unit attached to the Rider.
• The front part of the belt hangs loose.
The entire belt is only dismantled as set out below,
when the snow plough is fitted on the Rider.
8
9
Changing oil – Rider 14 Pro
K 61, drain plug
1. Loosen the belt guide and support pulley.
2. Loosen the belt tensioning pulley.
3. Prise the belt off the middle pulley and remove
the belt.
Reverse the above sequence to refit the belt.
K 61, filler hole
44 – English
www.mymowerparts.com
Page 46
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions

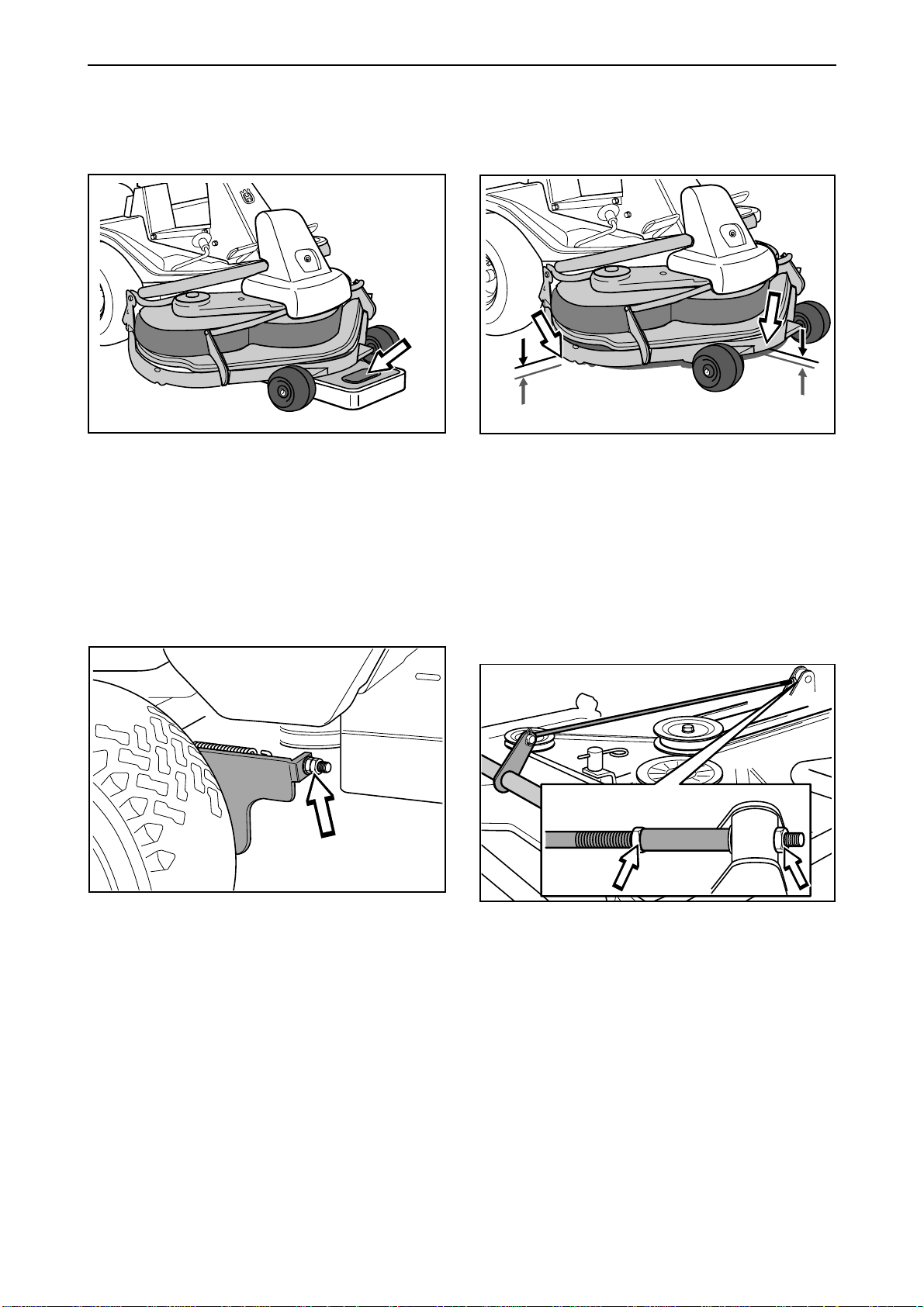

Checking and adjusting mower deck
ground pressure
1
Place a set of bathroom scales under the mower
deck's frame (front edge) so that the deck rests on
the scales.
Checking and adjusting mower deck
parallelism
1
Place the ride-on mower on an even surface and
measure the distance between the ground and the
edge of the deck, at the front and rear of the cover.
The cutting unit should slope forwards slightly so
that the rear edge is 2-4 mm higher than the front
edge.
2
Adjust the mowing deck's ground pressure with the
adjuster nuts placed behind the front wheels on
both sides of the ride-on mower. The ground
pressure should be the same on both sides,
between 12 and 15 kg.
2
Adjusting Rider 11 and Rider 13 H
2
• Remove the front cover and the right-hand
fender.
• Vertical adjustment of the mowing deck is made
with the adjuster nuts on the back edge of the liftstrut.
• Raise the mowing deck at the front edge by
shortening the lift-strut.
Lower the mowing deck at the front edge by
lengthening the lift-strut.
• Tighten the nuts against each other after the
adjustment.
• On completion of the adjustment, the deck's
parallelism should be re-checked.
• Fit the right-hand fender and the front cover.
www.mymowerparts.com
English – 45
Page 47
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
2

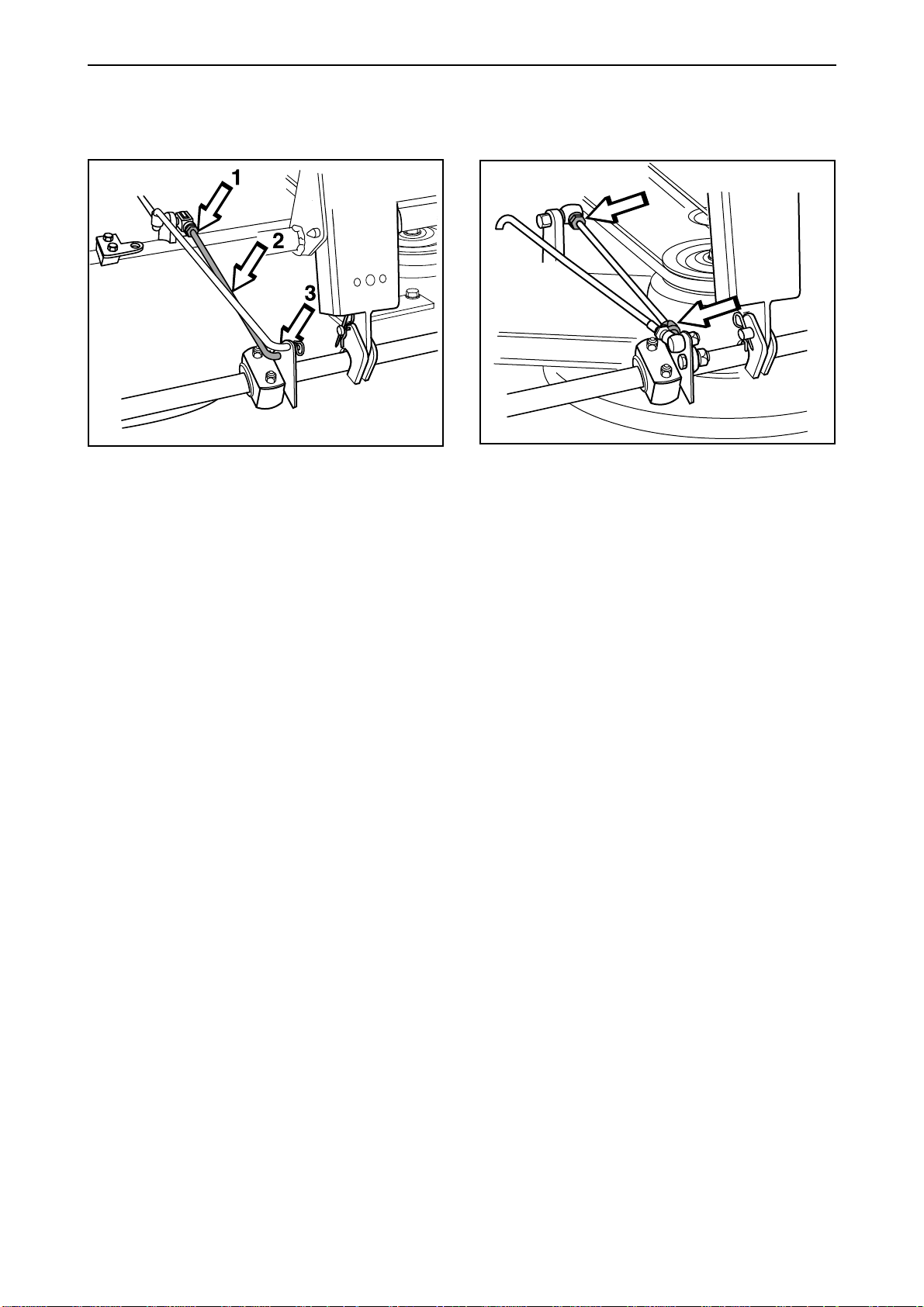

Adjusting Rider 11 Bio and Rider 13 H Bio
• Remove the front cover and the right-hand
fender.
• Unscrew the nut (1) from the parallel strut.
Remove the clip (3) and the parallel strut (2).
• Turn the fork anti-clockwise to lower the rear
edge of the hood, or clockwise to raise the rear
edge of the hood.
• Once adjustment is complete, refit the parallel
strut and clip and tighten the nut.
• Recheck the alignment of the cutting unit after
adjustment.
• Refit the right-hand fender and hood.
2
Adjusting Rider 14 Pro and Rider 16 H
• Remove the front cover and the right-hand
fender.
• Undo the nuts on the lift strut.
• Unscrew the strut (anticlockwise) to lower the
rear edge of the hood.
Screw the strut in (clockwise) to raise the rear
edge of the hood.
• Tighten the nuts after adjustment.
• On completion of the adjustment the unit’s
parallelism should be re-checked.
• Fit the right-hand fender and the front hood.
46 – English
www.mymowerparts.com
Page 48
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
Adjusting cutting height area
1
3
11
1
• Remove the right-hand fender.
2
Adjusting cutting height
2
• Loosen the nuts on the height setting arm.
Raise or lower the entire mowing deck by screwing
the nuts up or down.
If the highest cutting height is raised by 5 mm the
other fixed cutting heights will also be raised by the
same amount.
• Adjust so that the distance between the stop for
the lowest height setting and the protective
frame is 5 mm.
• Tighten the nuts.
• Check that the parallelism has not changed. If it
has changed, the parallelism must be
readjusted again.
• Check and adjust the cutting unit’s ground
pressure as set out (see “Checking and
adjusting cutting unit ground pressure”) if
necessary.
• Fit the nose.
NOTE!
The parallelism and height must be
adjusted again when changing the cutting
unit.
www.mymowerparts.com
English – 47
Page 49
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions

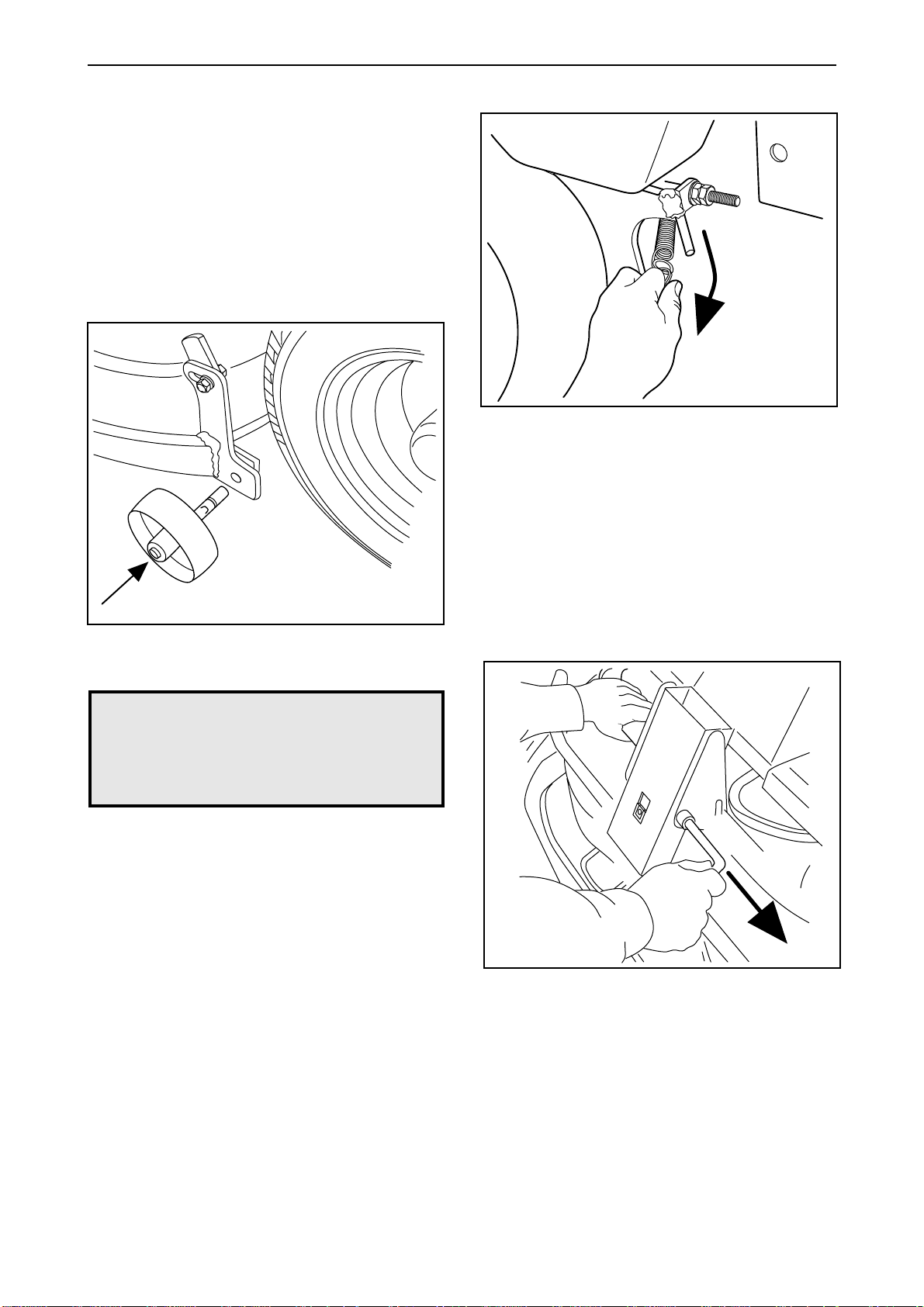

Removing the cutting unit
Rider 11 Bio, Rider 13 H Bio, Rider 14 Pro and
Rider 16 H
1
• Apply the parking brake.
• Adjust the cutting height to its lowest setting.
• Remove the front cover.
2
3
Relieve the tensioning wheel by disconnecting the
spring.
4
Fit the support wheels.
WARNING!
!
Wear protective glasses when
removing the cutting unit. The
spring which tensions up the belt
can go off and cause personal
injury.
Lift the drive belt off the cutting unit drive pulley.
5
Pull out the pin.
48 – English
www.mymowerparts.com
Page 50
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
6
Place a foot on the edge of the mowing deck. Raise
the front edge of the deck slightly, unhook the
height adjustment strut and insert it in the holder.
7
Remove the bolt and pull out the cutting unit.
www.mymowerparts.com
English – 49
Page 51
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions

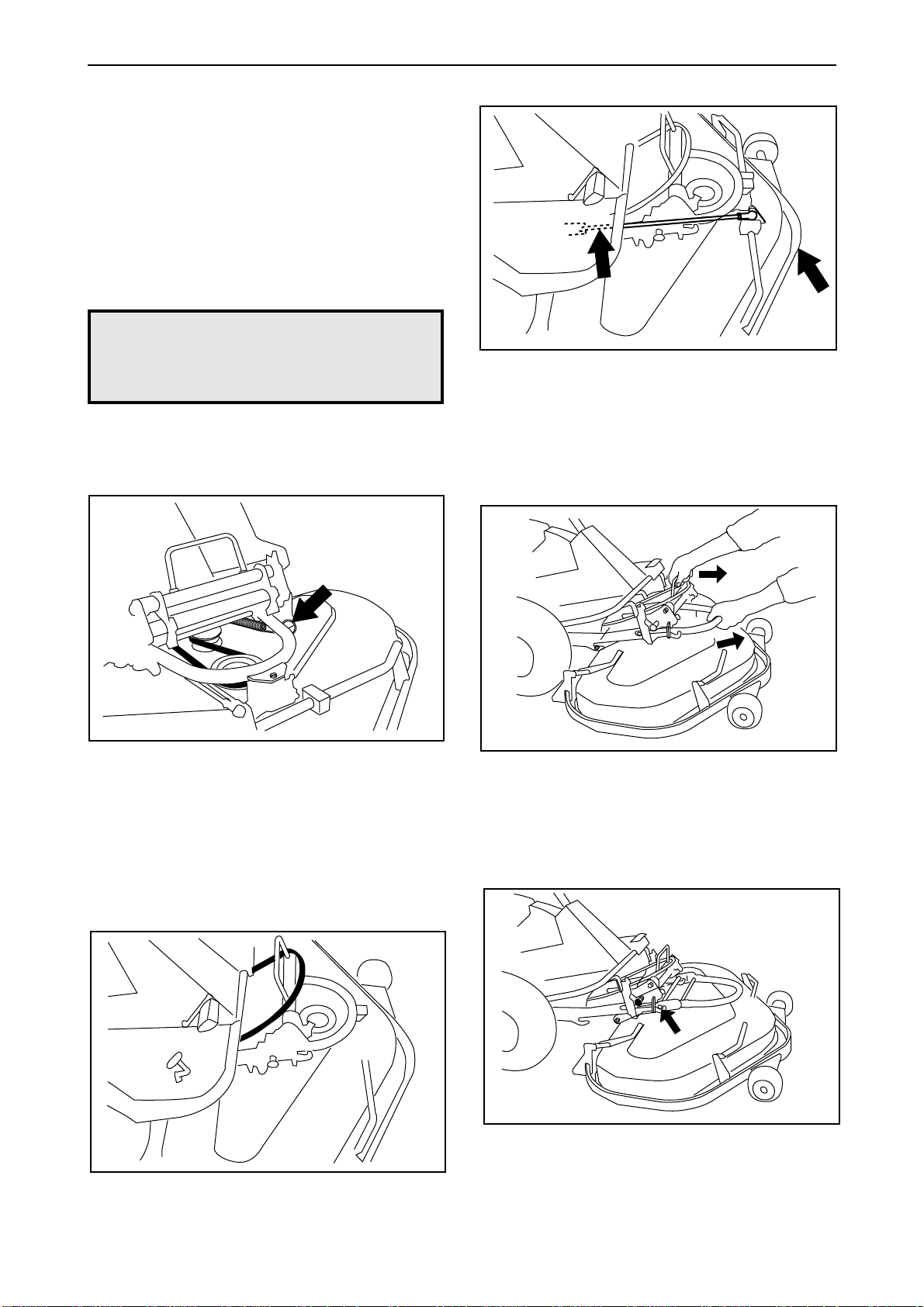

Dismantling the cutting unit
Rider 11 and Rider 13 H
1
• Place the Rider on a level surface.
• Apply the brakes by pressing down the pedal
and lock using the pushbutton.
• Lift up the unit using the lifting lever.
• Remove the nose.
WARNING!
!
2
Wear eye protection and work
gloves when working on the
mowing deck.
4
Loosen the height setting arm by moving the rear
section upwards. Off-load the arm by pulling the
frame’s front section upwards.
5
• Remove the belt adjuster’s spring.
• Lift off the belt from the belt pulley.
• Hook on the belt adjuster’s spring again.
3
• Hang the belt around the handle.
Pull the handle and unit simultaneously. Release
the handle when the unit has come out a little.
6
Pull out the unit so that it engages in the outer
hooks.
Lower the unit using the lever on the right-hand
side of the driver.
50 – English
www.mymowerparts.com
Page 52
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

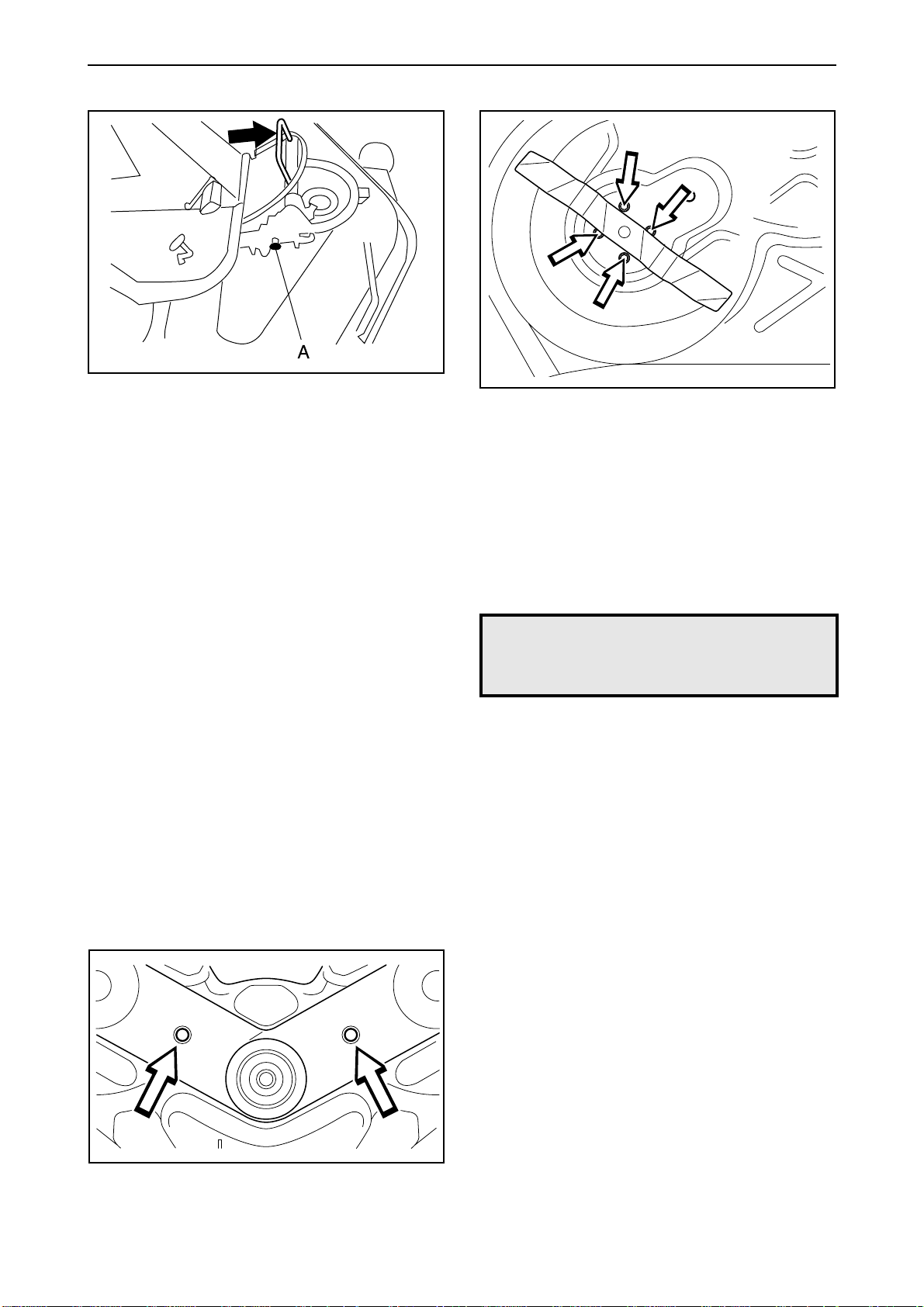

Reparation instructions
7
• Pull the handle so that the hook guard locks.
• Check that the catch (A) is in its loaded position.
• Lift the unit off of the Rider.
3
• Loosen the nuts on the eccentric plate and turn
this away.
• Loosen the four nuts (see diagram) holding the
outer blade bearing enough so that the bearing
can be moved.
• Slide the blade bearing in towards the centre
bearing and pry off the upper belt.
Replacing mowing deck belts
Belt replacement on Bio deck
A Bio deck is driven by two toothed belts that
synchronise the rotation of the blades. The belts
are located under a cover on the mowing deck.
Replace the belts in the following way:
1
• Remove the cutting deck.
• Remove the front pin/bolt from the parallel strut
and swing the strut backwards.
2
• Repeat the procedure for the lower belt.
WARNING!
Protect your hands by wearing
!
gloves when working with the
blades.
Loosen the two bolts holding the protective hood
and then lift off the hood.
www.mymowerparts.com
English – 51
Page 53
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
45
• Assembly: First fit the lower belt and then the
upper belt.
• Ensure the blades are positioned as set out in
the diagram, at 90 degrees to each other,
otherwise the belts must be adjusted. When the
blade bearings are loose the belts can be moved
around to the next tooth.
• Tighten the nuts enough so that the bearings rest
against the cutting hood but still can be moved.
IMPORTANT INFORMATION
The blades on a Bio unit should be set at
90 degrees to each other. In all other
cases the blades can collide and cause
serious damage to the cutting unit.
• Tension the belt by turning the eccentric adjuster
on top of the cutting hood. Tighten the nut.
• Tighten all nuts on the blade bearings.
Bio 103
• When the belt can be moved 7 mm inwards
using a force of 10 N ±2 the belt is adjusted
correctly.
• Fit the protective cover over the belts and
replace the parallelism arm.
1.
52 – English
Bio 90
• When the belt can be moved 8 mm inwards
using a force of 10 N ±2 the belt is adjusted
correctly.
• Fit the protective cover over the belts and
replace the parallelism arm.
www.mymowerparts.com
Page 54
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
Belt replacement on cutting unit’s with side or
rear ejectors
1
• Remove the cutting unit.
• Remove the bolt holding the parallel strut and the
two screws on the deck.
2
Removal of blades with bearings
WARNING!
When working with the mowing
!
1
• Release the spring which tensions the V-belt and
twist off the belt.
deck, use protective glasses and
gloves.
Cutting units with side or rear ejectors are powered
by
one
V-belt. Proceed as follows to replace the
V-belt:
• Loosen the spring that tensions the V-belt and
pry off the belt.
• To fit a new belt, follow the instructions above in
the reverse order.
• Unscrew the screw which holds the pulley (2)
and detach the pulley, a puller may be needed
for this. Do not lose the key which is found
between the pulley and the axle.
2
Unscrew the screw which holds the blade and
remove the screw, washer and blade.
www.mymowerparts.com
English – 53
Page 55
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
3
Unscrew the four screws which hold the blade
bearing and remove the entire bearing packet from
the mowing deck.
4
6
• Press out the axle with a puller .
• Knock out the bearings and remove the spacer.
7
Remove the hub using a puller. Do not lose the key
which is found between the pulley and the axle.
5
Remove the sheet metal safety washer.
The entire packet can be bought as a complete set
with axle housing, axle, spacer and bearing.
Model Outer bearing Middle bearing
Rider 1 1 506 53 34-01 506 53 34-02
Rider 13 H 506 75 1 1-01 506 75 11-04
Rider 16 H 506 75 1 1-05 506 75 11-04
Rider 14 Pro 506 75 1 1-05 506 75 11-04
Installation is carried out in the reverse removing
order. Ensure that the axle is fixed in the same
direction as it was removed, if not the keys will not fit
into the key-way.
Tighten the blade bearings to a torque of 20–25 Nm.
IMPORTANT INFORMATION
When screwing on the blade axle screws,
the transmission side should always be
screwed first and then the blade screws.
54 – English
www.mymowerparts.com
Page 56
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Reparation instructions
Grinding and balancing of blades
1
WARNING!
When working with the blades,
!
• Remove the blades according to the decription in
the previous section.
use protective gloves.
Pulse air valve intake filter
Cleaning the filter
• Clamp the blade in a screw vice and file it so that
it becomes sharp.
2
Balance the blade as follows:
• Fix, for example, a mandrel horizontally in a
screw vice according to the diagram.
• Push the blade onto the mandrel via the hole in
the centre of the blade and check that the blade
balances evenly. The diagram shows a blade
which needs to be adjusted, it must be ground
further to obtain the correct balance (at the
arrow).
Pulse air valves are fitted to Rider 14 Pro
• Loosen the two rubber straps and lift off the
engine hood.
• Loosen the four quick-action clips and lift off the
cover and remove the filter.
• Blow out the filter using compressed air.
• Replace the filter in the cover and secure the
cover using the quick-action clips. Replace the
engine hood.
• Installation is carried out in the reverse removing
order.
IMPORTANT INFORMATION
When the blades are removed from a Bio
90 cutting unit the spring washer that is
fitted between the blades and the nut
must be replaced.
www.mymowerparts.com
English – 55
Page 57
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
TROUBLE SHOOTING SCHEDULE
Problem Procedure
Engine will not start. • Fuel tank empty.
• Plugs defective.
• Plug connections defective.
• Dirt in carburettor or fuel pipe.
Starter does not pull round engine. • Battery flat.
• Bad contact between cables and battery terminals.
• Lift lever for cutting unit in wrong position.
• Main fuse blown. The fuse is located in front of the
battery under the battery cover .
• Ignition lock faulty.
• Brake not engaged
• Gear shift/hydrostat pedal not in neutral.
Engine does not run smoothly. • Plugs defective.
• Carburettor incorrectly set.
• Air filter clogged.
• Fuel tank vent blocked.
• Ignition setting defective.
• Dirt in fuel pipe.
Engine seems to have no power. • Air filter clogged.
• Plug defective.
• Dirt in carburettor or fuel pipe.
• Carburettor incorrectly set.
Engine overheats. • Engine overloaded.
• Air intake or cooling flanges blocked.
• Fan damaged.
• Too little or no oil in engine.
• Ignition defective.
• Plugs defective.
Battery does not charge. • One or more cells in the battery faulty.
• Bad contact between battery terminals and cables.
Machine vibrates. • Blades are loose.
• Engine is loose.
• Imbalance on one or more blades, resulting from
damage or inferior balancing after sharpening.
Uneven mowing. • Blades blunt.
• Cutting unit set skew.
• Long or wet grass.
• Grass blockage under hood.
• Different tyre pressures on right and left sides.
• Over-speeding
• Drive belts slipping.
56 – English
www.mymowerparts.com
Page 58
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Electrical system

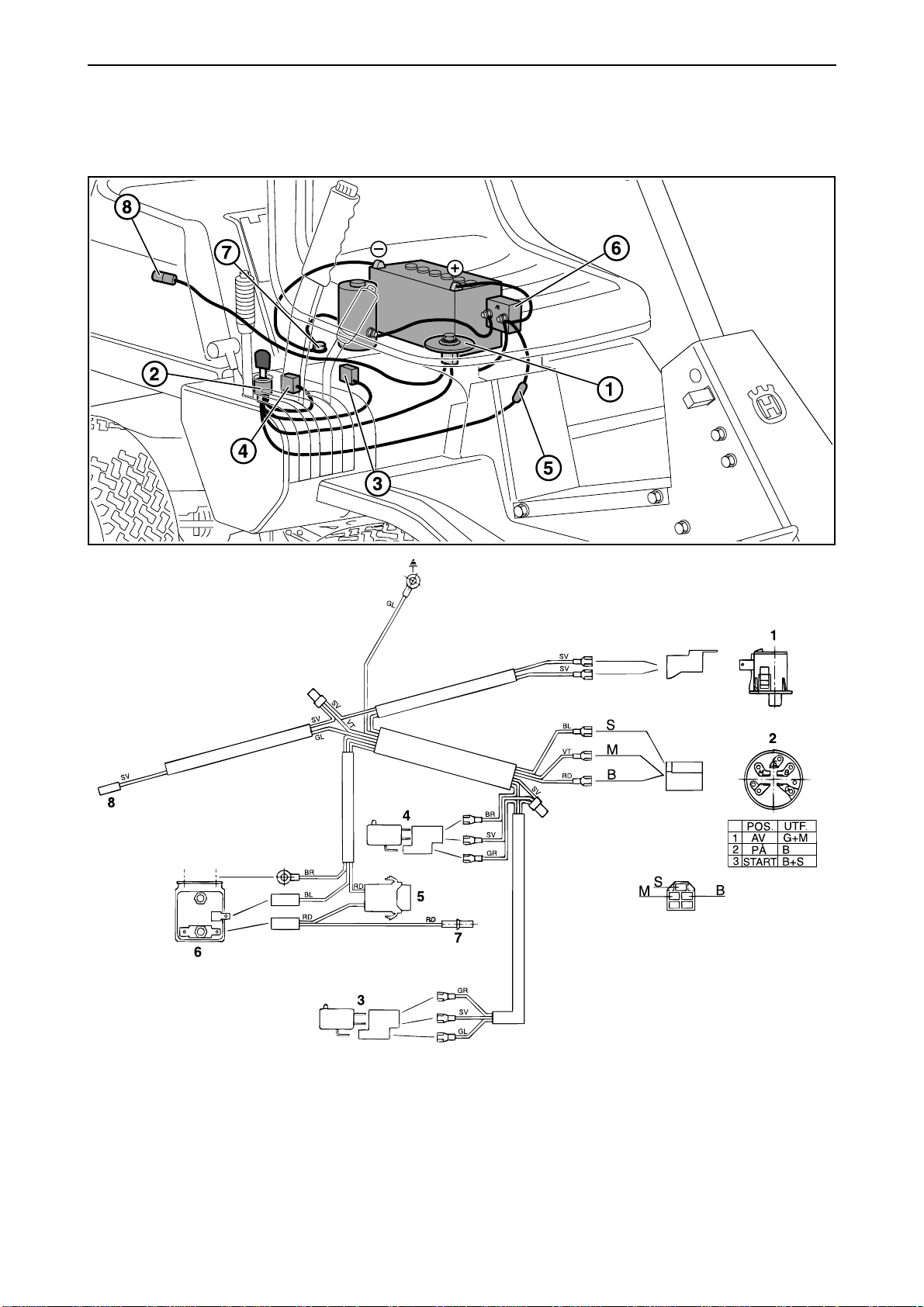

Circuit diagram Rider 11 and Rider 11 Bio
1. Microswitch, seat
2. Ignition lock
3. Microswitch, lifting lever
4. Microswitch, gear position
5. Fuse 15A
6. Starter relay
7. Engine/charging
8. Engine/stop
Key to colour abbreviations in the electrical system
SV = Black
RD = Red
BR = Brown
BL = Blue
VT = White
GR = Green
English – 57
www.mymowerparts.com
Page 59
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Electrical system
Circuit diagram Rider 13 H, Rider 13 H Bio and Rider 16 H
1. Microswitch, seat
2. Ignition lock
3. Microswitch, lifting lever
4. Microswitch, gear position
5. Fuse 15A
6. Starter relay
7. Engine/charging
8. Engine/stop
9. Engine/fuel valve, not on Rider 13 H/13 H Bio
58 – English
www.mymowerparts.com
Key to colour abbreviations in the electrical system
SV = Black
RD = Red
BR = Brown
BL = Blue
VT = White
GL = Yellow, not on Rider 13 H/13 H Bio
Page 60
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Electrical system
Circuit diagram Rider 14 Pro
1. Brake switch, hydrostatic transmission
2. Microswitch, mowing deck
3. Microswitch, seat
4. Ignition lock
5. Timing unit
6. Starter relay
7. Engine
www.mymowerparts.com
Key to colour abbreviations in the electrical system
RD = Red
BL = Blue
VT = White
SV = Black
GL = Tellow
BR = Brown
English – 59
Page 61
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
´*3)r¶6'¨
www.mymowerparts.com
Page 62
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
´*3)r¶6'¨
www.mymowerparts.com
2000W25
Loading...
