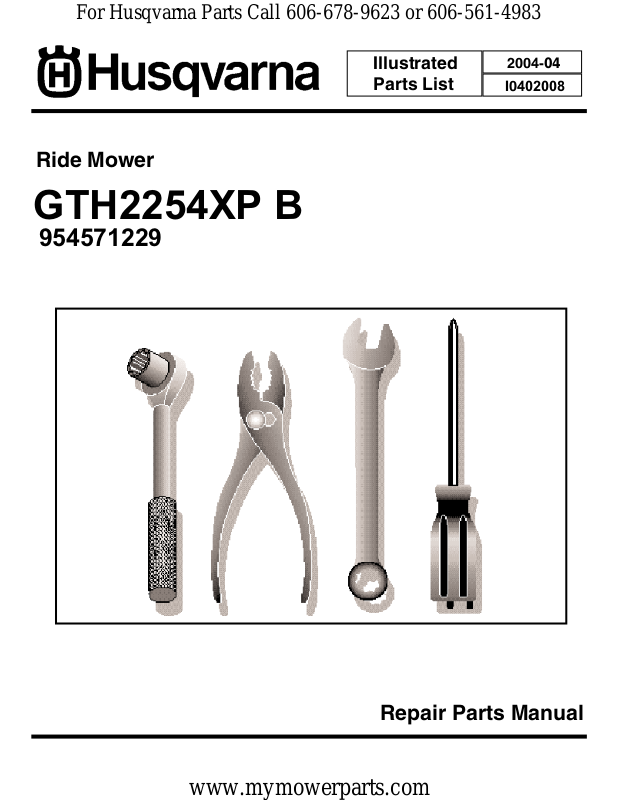

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

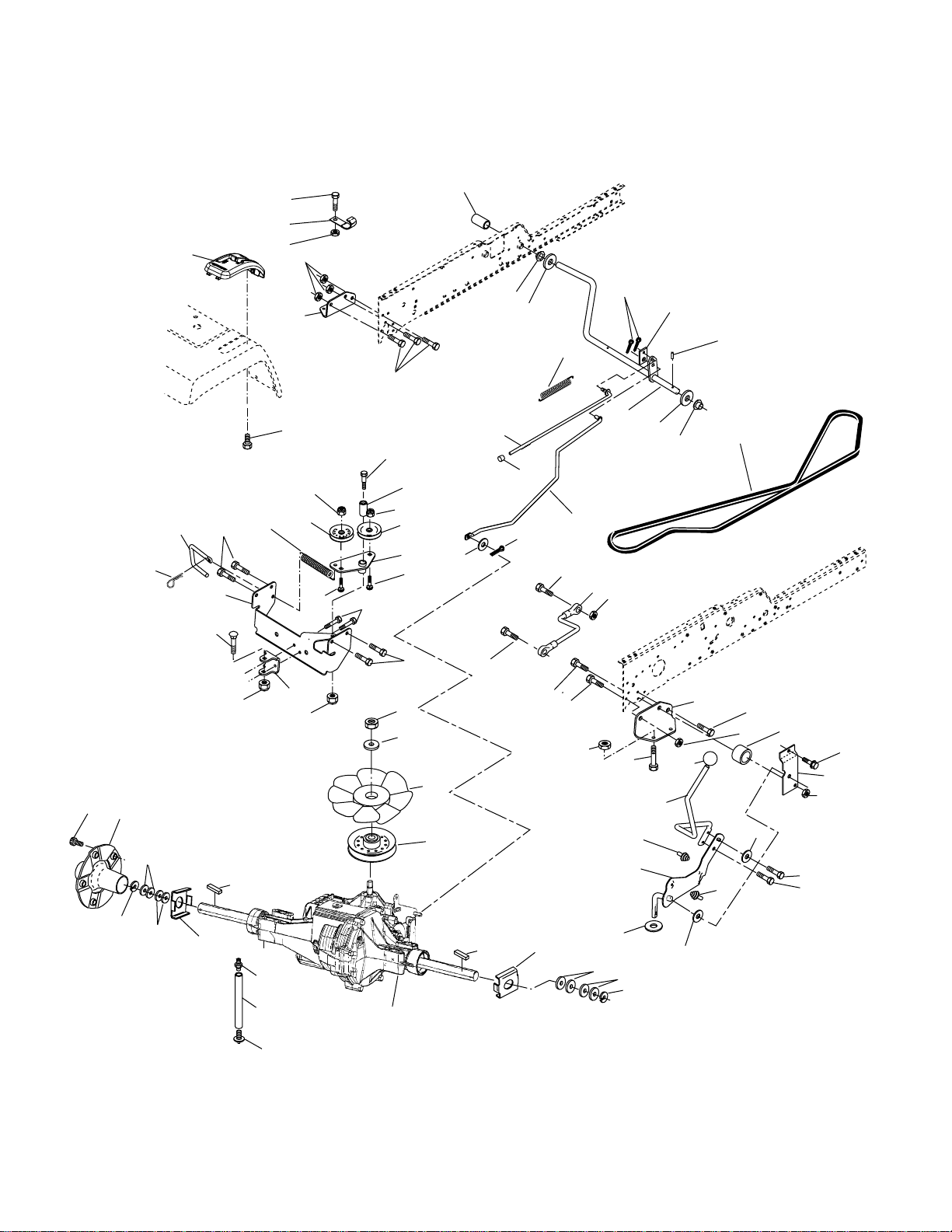

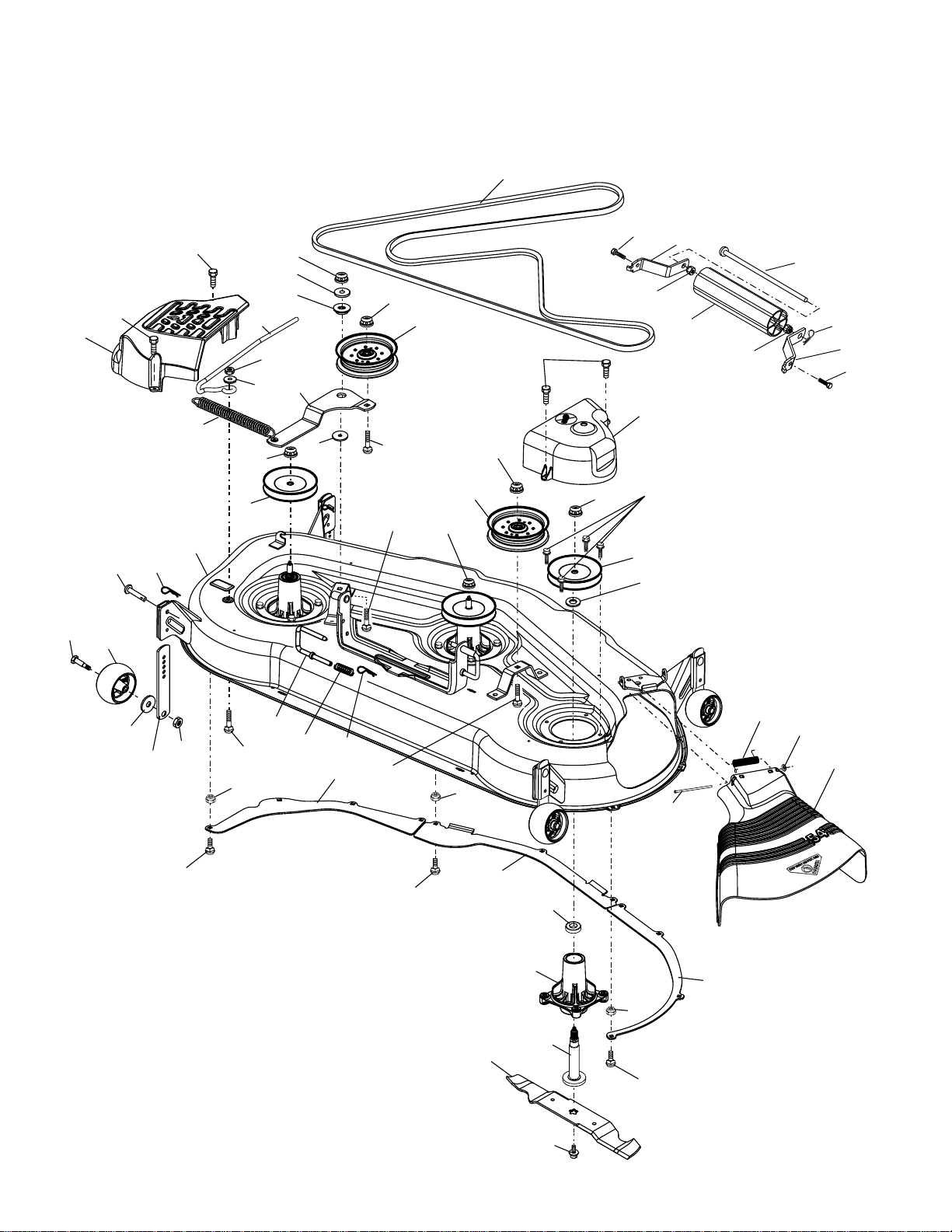

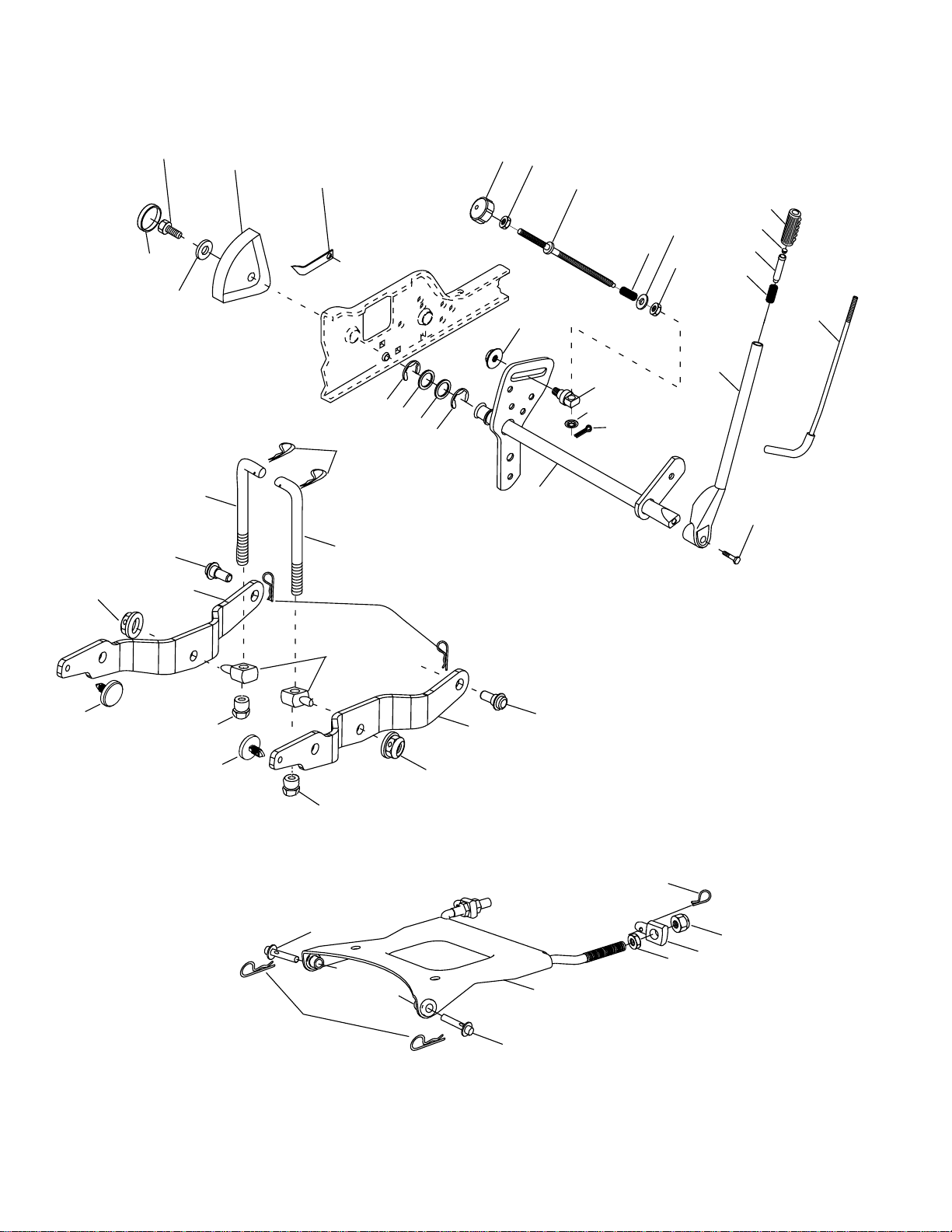

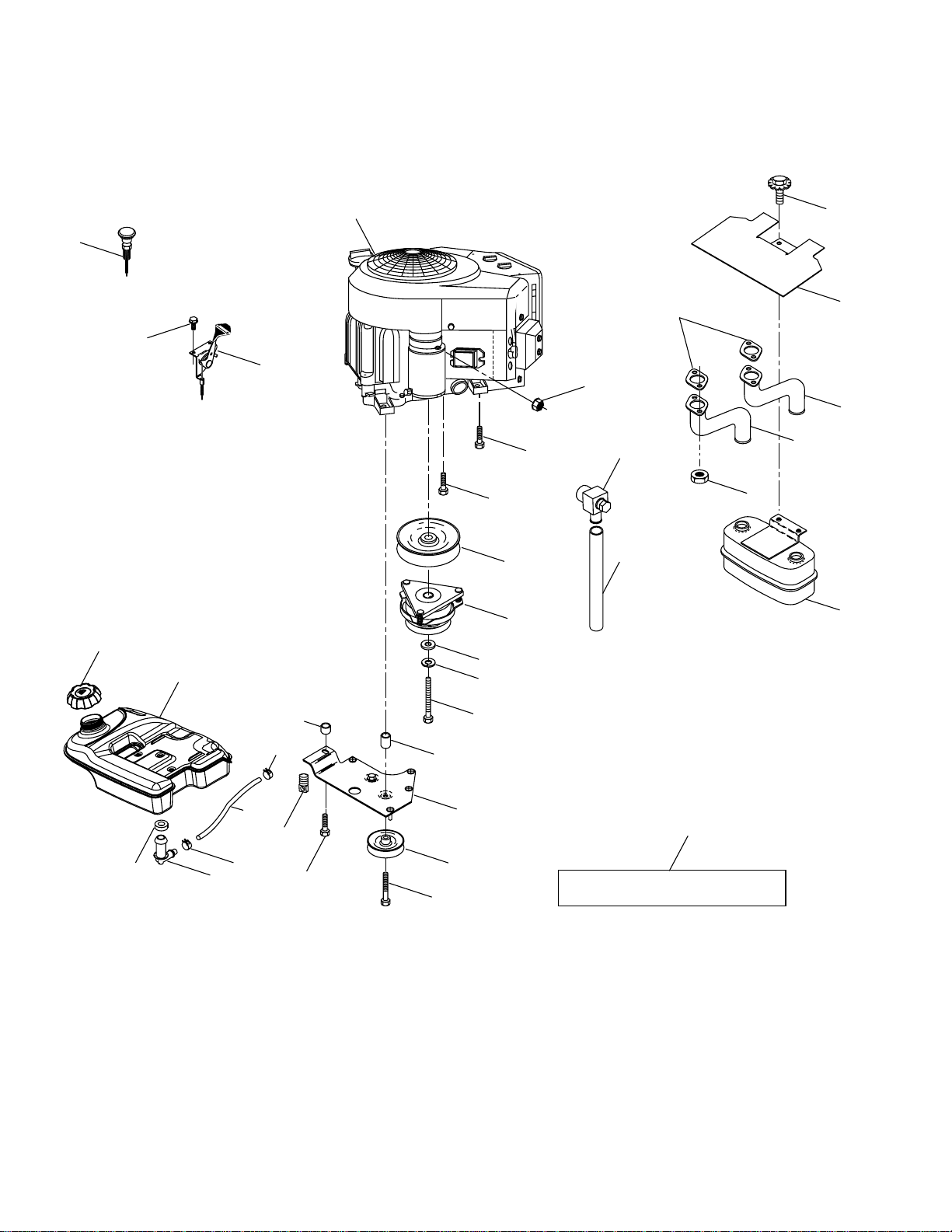

Ride Mower
GTH2254XP B
954571229
Illustrated
Parts List
2004-04
I0402008
Repair Parts Manual
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
TRACTOR - - MODEL NO. GTH2254XP (GTH2254XPB), PRODUCT NO. 954 57 12-29
SCHEMATIC
AMMETER
(OPTIONAL)
RED
IGNITION
SWITCH
BLACK
BROWN
RED
BATTERY
A
RED
FUSE
WHITE
S
B
G
BLACK
M
A1
A2L
CG
B
RED
F
H
E
A
BLACK
D
ORANGE
PTO (DISENGAGED)
BLUE
FUEL
LINE
BLACK
WHITE
CLUTCH / BRAKE
BLACK
(PEDAL UP)
(OPTIONAL)
RED
BLACK
HOUR
METER
RED
WHITE
IGNITION
UNIT
SOLENOID
RED
ELECTRIC CLUTCH
SEAT SWITCH
(NOT OCCUPIED)
GROUNDING
CONNECTOR
BLACK
SPARK PLUGS
(2 PLUGS
ON TWIN CYL. ENGINES)
M
STARTER
BLACK
GAP
IGNITION SWITCH
OFF
CIRCUITPOSITION
M+G+A1
B+A1ON + LIGHTS
B+A1ON
B+S+A1START
“MAKE”
NONE
L+A2
NONE
NONE
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR
WIRING.
RED
REMOVABLE
CONNECTIONS
FUEL SHUT-OFF
SOLENOID
CHARGING SYSTEM OUTPUT
16 AMP DC @ 3600 RPM
RED
PTO SWITCH
CIRCUITPOSITION
OFF
NON-REMOVABLE
CONNECTIONS
C+G,B+H
C+F,B+E,A+DON
REGULATOR
BROWN
28 VOLTS AC @ 3600 RPM
(REGULATOR DISCONNECTED)
ALTERNATOR
BLACK
HEADLIGHTS
G
FC
E
H
PTO SWITCH
CONNECTOR
B
A
D
29
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. GTH2254XP (GTH2254XPB), PRODUCT NO. 954 57 12-29
ELECTRICAL
22
25
42
81
40
79
21
33
30
12
0
60
A
M
P
6
S
10
11
0
45
46
50
27
26
2
1
8
12
16
29
28
30
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. GTH2254XP (GTH2254XPB), PRODUCT NO. 954 57 12-29
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 14 49-27 Battery
2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4
8 532 12 48-86 Tray, Battery
10 532 14 52-11 Bolt, Battery Front 1/4-20 x 7.5 Zinc
11 532 15 01-09 Holddown Battery Front Mount
12 532 14 57-69 Nut, Push Nylon 1.4" Battery Front
16 532 17 61-38 Switch Interlock
21 532 17 56-88 Harness Socket Light w/4152J
22 532 00 41-52 Bulb Light
25 532 18 54-61 Cable, Battery
26 532 10 88-24 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20
28 532 17 06-97 Cable, Ground
29 532 12 13-05 Switch, Plunger NC Gray
30 532 17 55-66 Switch, Ign
33 532 14 04-01 Key
40 532 18 80-34 Harness Ign.
42 532 15 43-36 Cover, Terminal Red
45 532 17 75-00 Ammeter
46 532 17 75-01 Hourmeter Snap-In
50 532 17 46-51 Switch, PTO
79 532 17 52-42 Bulbholder Asm
81 532 10 97-48 Relay Asm.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
31
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. GTH2254XP (GTH2254XPB), PRODUCT NO. 954 57 12-29

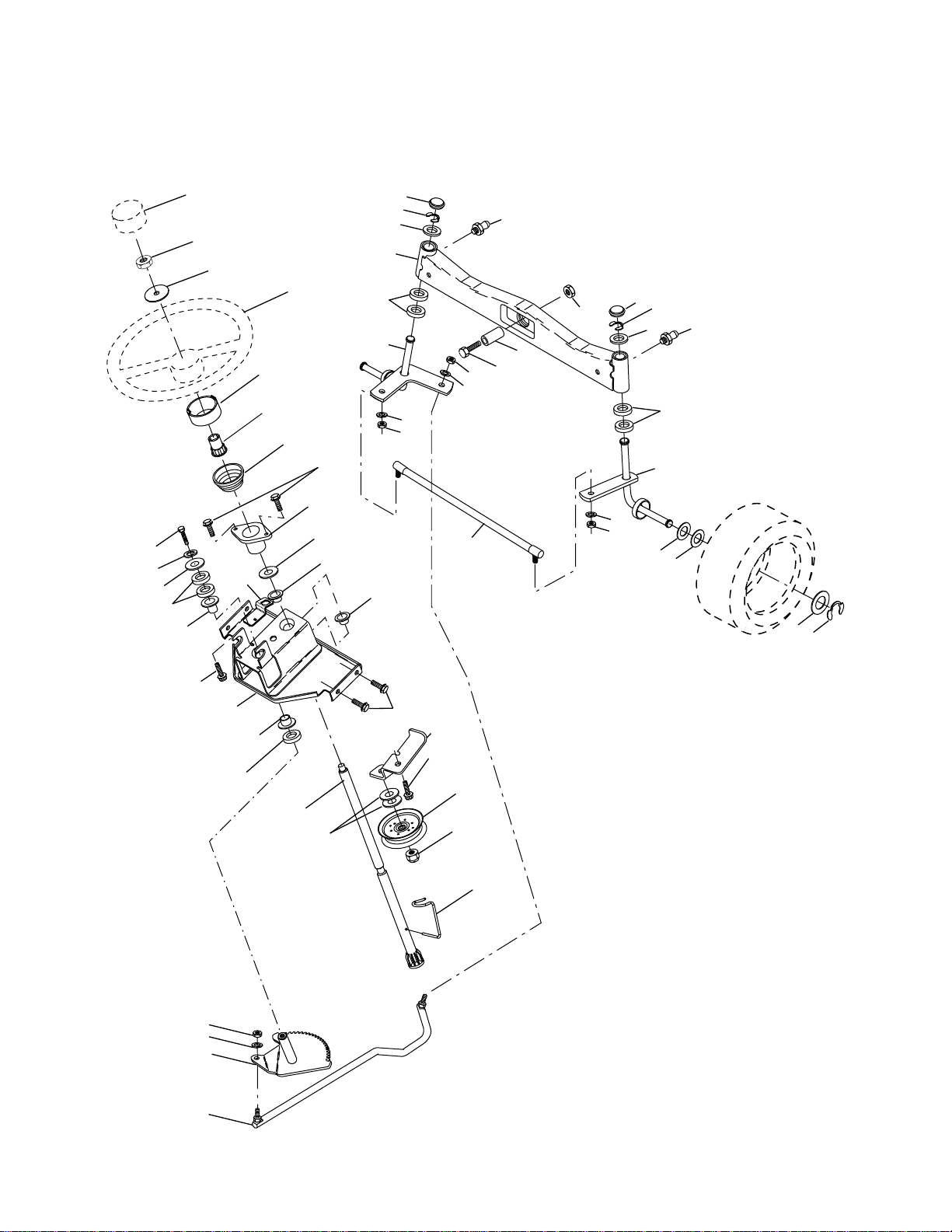

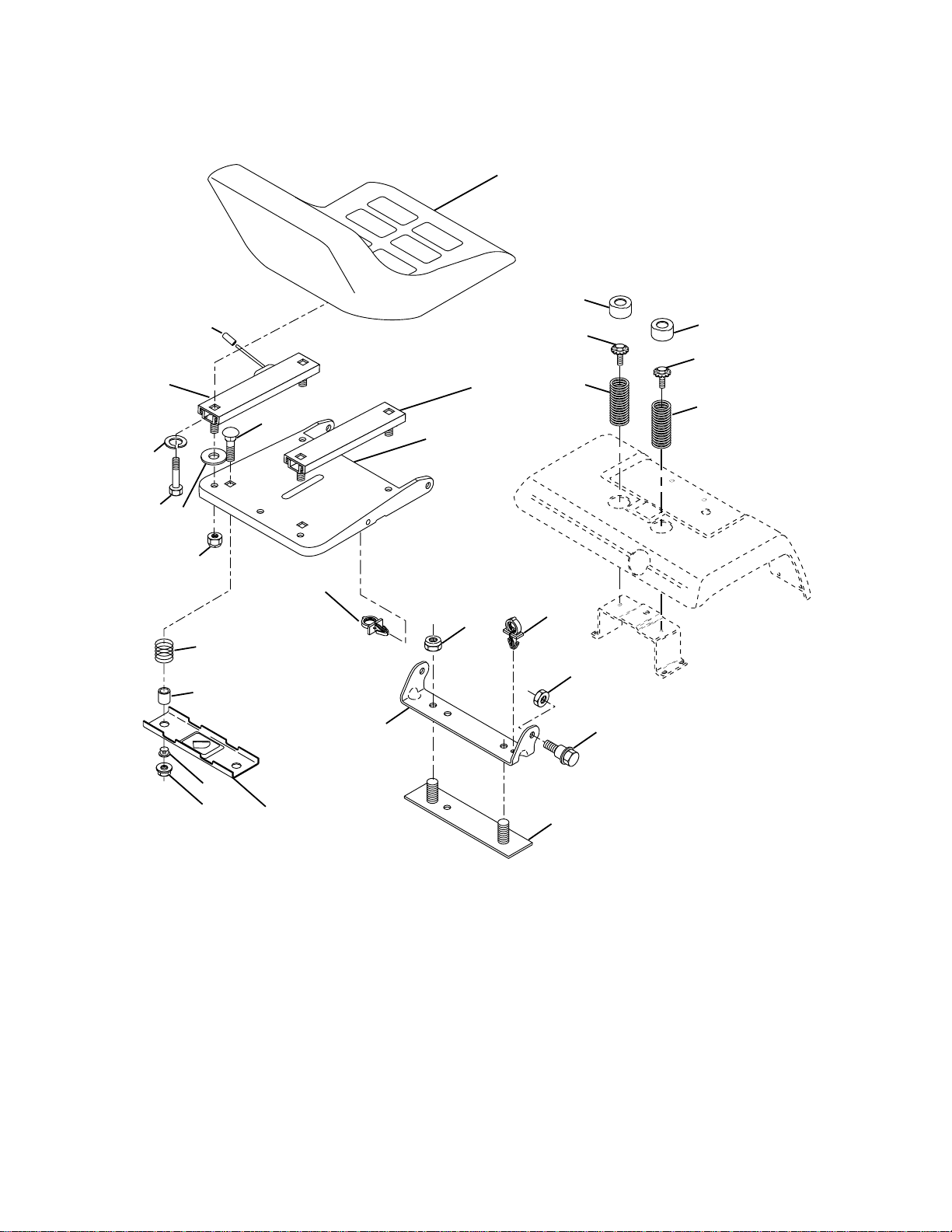

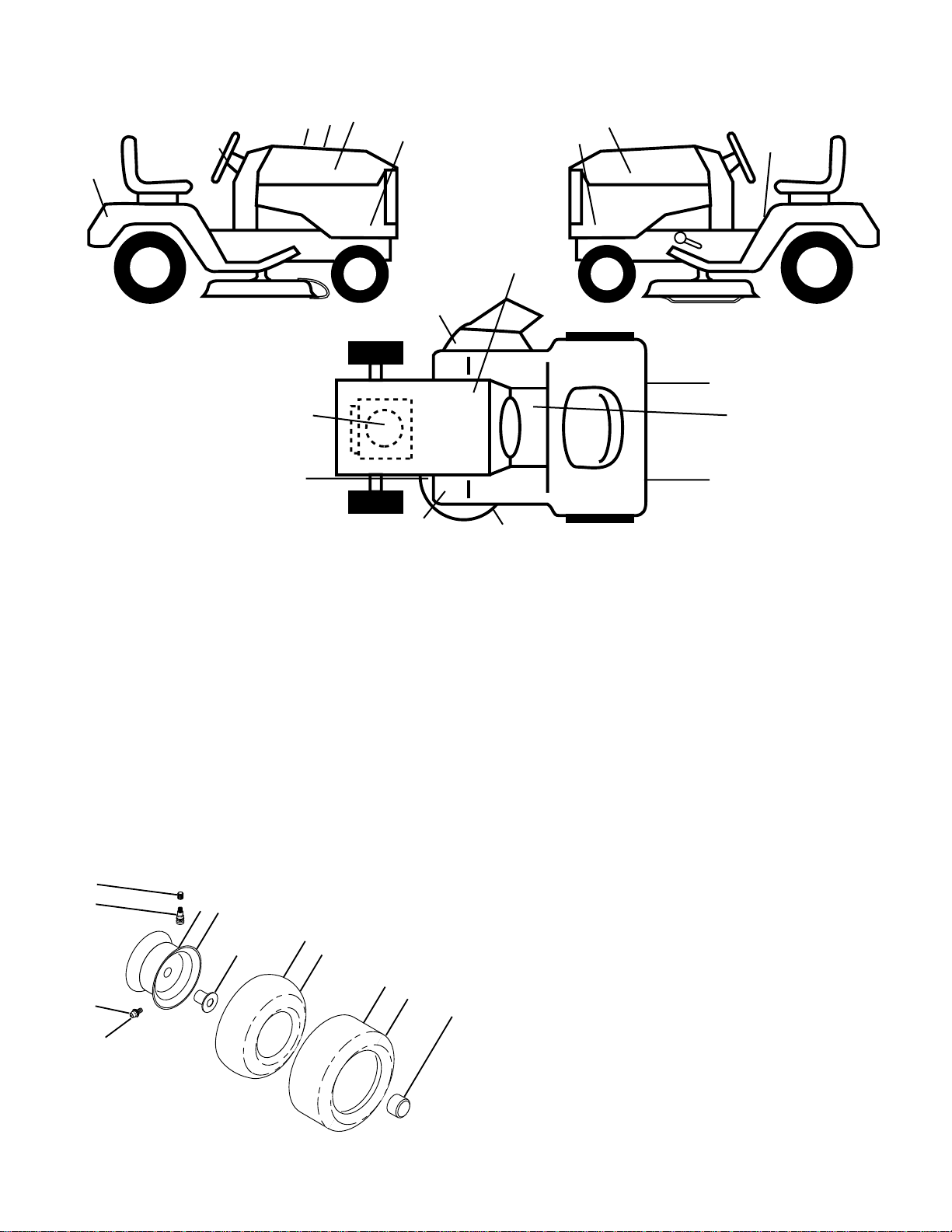

CHASSIS AND ENCLOSURES
15
165
162
47
159
58
161
158
159
37
17
138
5
130
144
14
153
130
148
130
68
35
7
7
31
122
150
122
167
6
7
159
30
156
8
146
156
18
130
143
152
156
25
21
43
84
34
91
36
169
17
28
47
17
20
19
2
17
16
36
45
169
99
166
86
36
139
36
32
39
33
84
45
17
17
17
172
142
139
17
130
50
17
1
44
17
17
17
17
24
47
chassis-stealth_45
32
