RECOMMENDED PARTS, ACCESSORIES, LUBRICANTS
141 CHAINSAW
Item Part Number Description
Air Filter 530 02 98-11
Spark Plug 503 23 51-11
Fuel Filter 530 09 56-46
Clutch Drum 530 04 70-61
Ignition Module 530 03 91-43
Starter Assy. 530 15 01-73
Switch On/Off 503 71 79-01
Front Handle 530 04 98-76
Chain Brake 530 05 48-02
Oil Pump Assy. 530 01 44-10
Normal Maintenance Parts
Fuel Cap 530 07 12-66
Oil Cap 501 76 56-02
Bar Nut 530 01 59-17
Item
Part Number Description
Bar 501 95 92-56 16" Consumer Bar (3/8").(.050")
Chain 501 84 69-56 H36-56, 16" Chain (3/8"),(.050")
Carrying Case 100 00 01-07 Orange Carrying Case with 20" Bar Protector
Chainsaw
Accessories
File Kit 505 69 81-93
Item Part Number Description
Bar and Chain
610 00 00-14 Bar and Chain Lubricant - 1 Quart
610 00 00-34 Bar and Chain Lubricant - 1 Gallon
File Kit includes: File handle, Combination file guide, 2 round files, and 1 flat file.
Use with H36 chain.
s
Lubricant
XP Premium
Item Part Number Description
Protective Glasses
Helmets 505 67 53-15 Helmet System (Husqvarna)
Protective Gloves
Apparel
Protective
Chaps
610 00 00-85 XP Premium - 2.6 oz (1 Gallon Mix)
610 00 00-82 XP Premium - 6.4 oz (2.5 Gallon Mix)
605 00 04-15 Lexa- Clear lens
605 00 04-16 Lexa- Grey lens
531 30 02-73 Xtreme Duty Work Gloves (Medium)
531 30 02-74 Xtreme Duty Work Gloves (Large)
531 30 02-75 Xtreme Duty Work Gloves (X-Large)
605 00 00-13 Pro Forest Apron Chaps (Navy Blue)
605 00 00-14 Pro Forest Apron Chaps (Orange)
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
PARTS LIST NO.
DATE
5/05/04
530163750
Updated
530163750 -- 06/09/03
WEED EATER PARTS LIST
PARAMOUNT PARTS LIST
POULAN PARTS LIST
Note: Illustration may differ from actual model due to design changes
R
R
r
R
R
PARTS LIST
MODEL(s)
141 LE
PAGE N O.
1
19
2
1
3
45
6
7
8
9
24
25
10
11
15
12
13
14
Chain Brake
Assembly
16
27
17
26
18
20
21
28
22
23
Part No. Ref. Part No. DescriptionRef.
1 530071348 Kit- - Lever & Link Assy.
2 530029879 Pin--Pivot
3 530015915 Pin--Link
4 530015911 Screw
5 530054741 Assy--Front Link
6 530016237 Spring- -Chain Brake
7 530038593 Retainer
8 530016384 Screw
9 530056531 Journal- -Right
10 530029881 Journal- -Left
11 530015910 Spring--Handguard
12 530015913 Pin--Spring
13 530052232 Band--Brake
14 530054802 Assy--Chain Brake
15 530029878 Spring- -Position
16 530049483 Cover- -Clutch
17 530015826 Pin--Bar Adjusting
18 530038593 Retainer
19 530016110 Screw--Bar Adjusting
20 530053035 Cover- -Chain Brake Spring
21 530015911 Screw
22 530016154 Screw
23 530047609 Assy--Cylinder Shield (incl. 22)
24 952030150 Spark Plug (RCJ- -7Y)
25 530069941 Kit--Cylinder (incl.#29 pg. 1 & #23 pg. 2)
Description
29
30
26 530069454 Kit--Piston (Includes pin and 28- -29)
27 530029982 Ring- -Piston (40cc)
28 530015697 Piston Pin Retainer
29 530049794 Cap- -Crankcase
30 530015897 Screw
Not Shown
530163875 Manual -- O per at or ’s -- U . S
530031135 Scrench
530047839 Decal- -Warning
REFER TO THE SERVICE REFER ENCE IN DICATED FOR MORE I NFORMATIO N. (LOCATED AT EN D OF IP L)
K
= NEW PART NUMBER FOR THIS IPLn
=
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
D
=
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
PARTS LIST NO.
DATE
5/05/04
530163750
Updated
530163750 -- 06/09/03
WEED EATER PARTS LIST
PARAMOUNT PARTS LIST
POULAN PARTS LIST
Note: Illustration may differ from actual model due to design changes
r
R
R
R
R
PARTS LIST
MODEL(s)
141 LE
PAGE N O.
2
11
16
15
14
13
5
12
10
8
7
9
6
4
3
2
1
23
17
20
19
18
Part No. Ref. Part No. DescriptionRef.

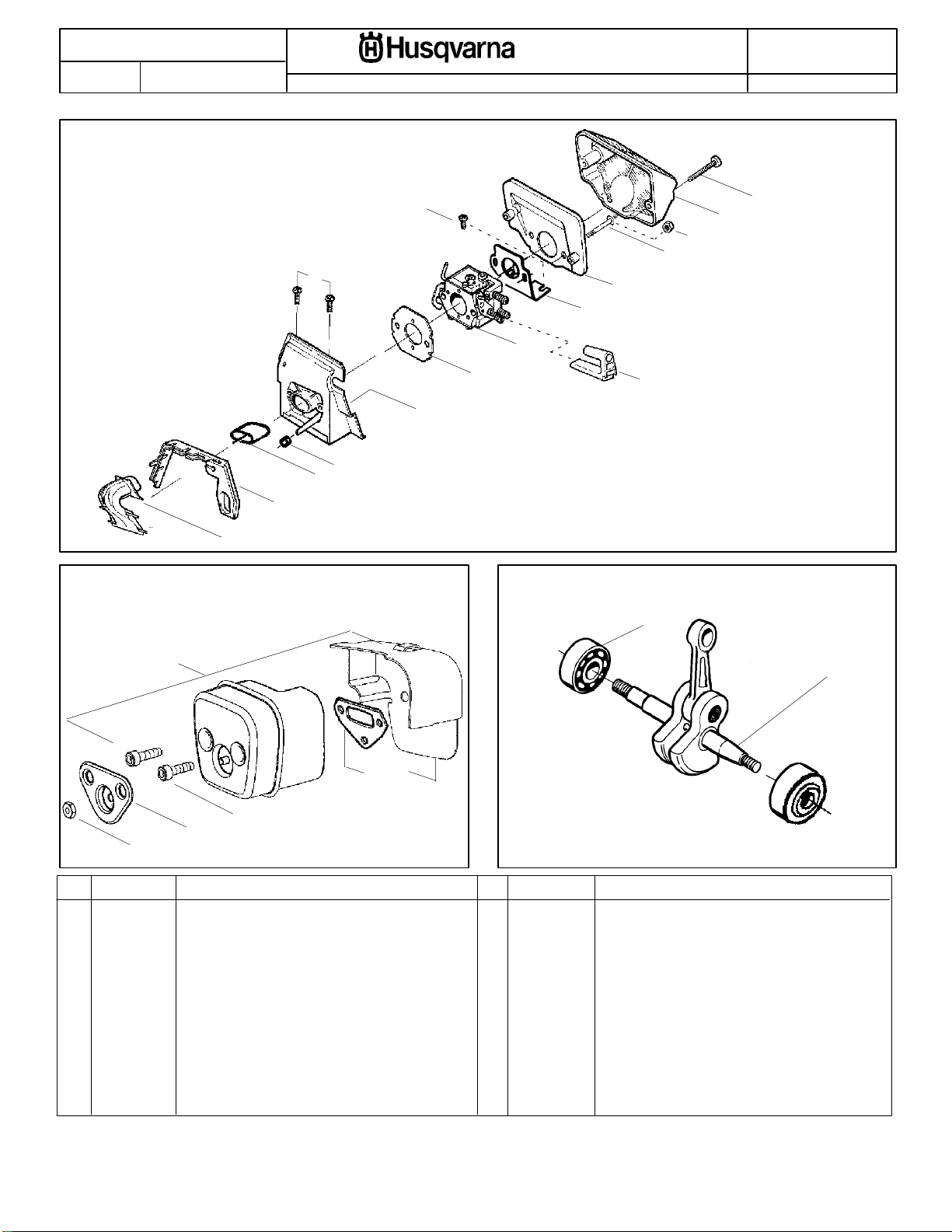

1 530029813 Assy--Turbo Air Cleaner
2 530019203 Seal - - Turbo Clean
3 530029814 Sleeve- -Intake
4 530053435 Seal--Impulse
5 530015814 Screw
6 530037465 Adapter - - Carb.
7 530019172 Gasket--Carburetor
8 530071692 Carburetor- -WT- -660
9 530035587 Grommet- -Final
10 530047767 Plate - - Support
11 530015896 Screw
12 530036582 Air Filter -- Bottom
Description
21
24
22
13 530015968 Stud - - Carb.
14 530016008 Nut
15 530029811 Air- -Filter - - T op
16 530015899 Screw
17 530071511 Kit--Muffler (Includes 20,21 & 22)
18 530016359 Nut- -Brass
19 530055600 Cover- -Bolt
20 530016338 Screw--Muffler
21 530055128 Gasket--Muffler
22 530055171 Backplate--Muffler
23 530056363 Assy. - -Bearing and Seal
24 530029794 Assy- -Crankshaft & Rod
= NEW PART NUMBER FOR THIS IPLn
=
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
D
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
PARTS LIST NO.
DATE
5/05/04
530163750
Updated
530163750 -- 06/09/03
WEED EATER PARTS LIST
PARAMOUNT PARTS LIST
POULAN PARTS LIST
Note: Illustration may differ from actual model due to design changes
R
R
r
R
R
PARTS LIST
8
MODEL(s)
141 LE
PAGE N O.
3
14
15
16
1
2
9
10
11
3
4
5
6
Oil Pickup
A’ssy.
13
25
26
28
7
A’ssy.
12
2927
Oil Pu mp
30
17
23
24
18
19
Part No. Ref. Part No. DescriptionRef.

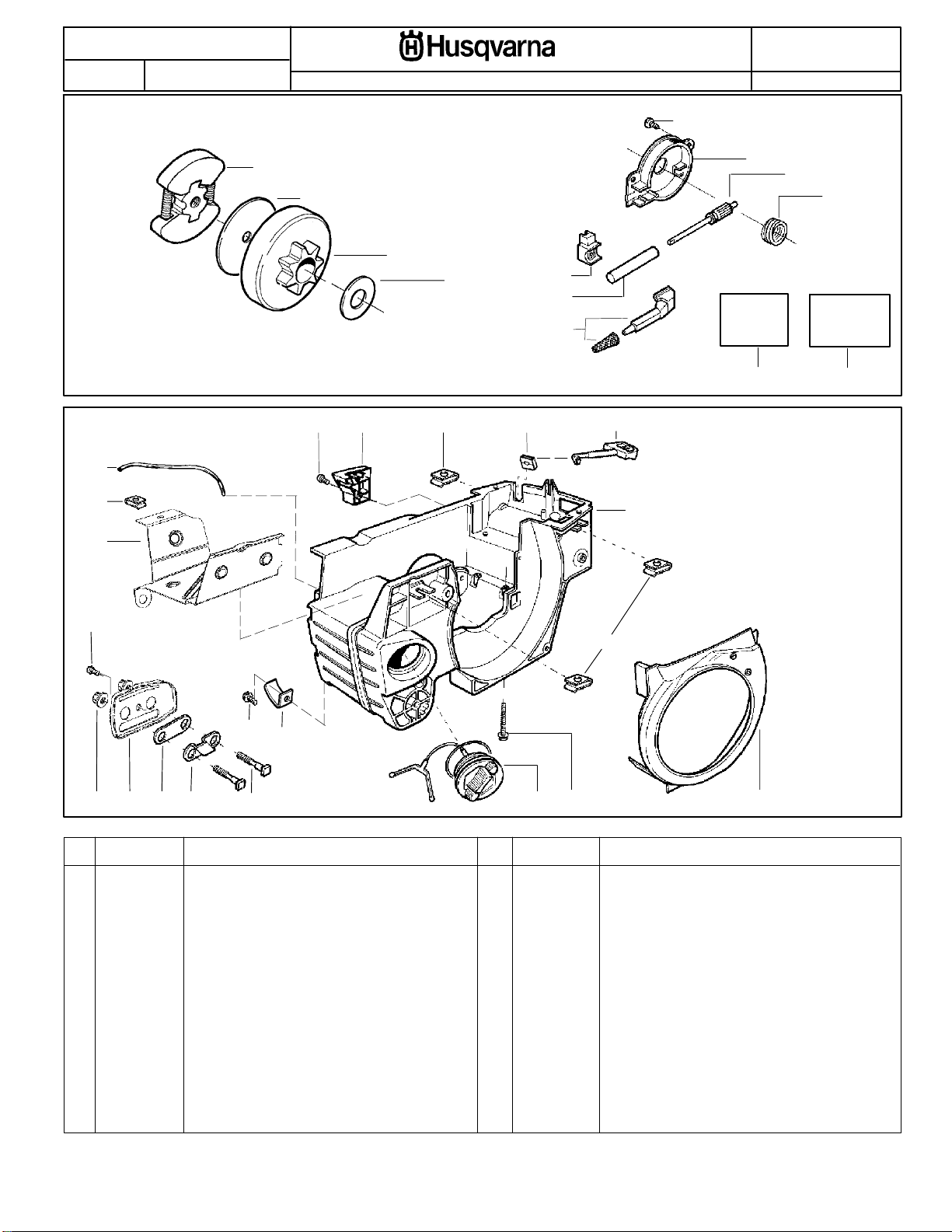

1 530014949 Assy--Clutch
2 530015611 Washer--Clutch
3 530047061 Assy--Clutch Drum w/Bearing
4 530015907 Washer--Thrust
5 530019174 Seal--Oil
6 530029834 Barrel- -Oil Pump
7 530014776 Assy--Oil Pick- -Up and Screen
8 530015896 Screw
9 530029835 Housing- -Oil Pump
10 530029838 Assy--Plunger & Gear
11 530029833 Worm-- Oil Pump
12 530014410 Assy--Oil Pump (Includes 6,9 & 10)
13 530069385 Assy--Oil Pickup (Includes #5, 7, 8, 19)
14 530052440 Tube--Oil Vent
15 530055322 Clip--Retainer
16 530055174 Shield--Heat
17 530015896 Screw (optional)
18 530015917 Nut
21
Description
22
31
33
3420
19 530047855 Plate--Bar
20 530019228 Gasket
21 530036043 Plate--Bar Stud
22 530015877 Bar Bolt
23 530015878 Screw
24 530029850 Chain Catcher
25 530015893 Screw
26 530052428 Cover
27 530015922 Nut- -Type ”U” Speed
28 530029830 Grommet
29 530029831 Lever- -Choke
30 530069942 Kit - - Chassis Ass’y.
31 530015922 Nut- -Type ”U” Speed
32 530029800 Plate--Baffle
33 530016037 Screw
34 501765602 Assy.-- Oil Tank Cap
32
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE I NFORMATIO N. (LOCATED AT EN D OF IP L)
=
= NEW PART NUMBER FOR THIS IPLn
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
=
D
K
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
*Compl. 530 15 01-73
PARTS LIST NO.
DATE
5/05/04
530163750
Updated
530163750 -- 06/09/03
WEED EATER PARTS LIST
PARAMOUNT PARTS LIST
POULAN PARTS LIST
Note: Illustration may differ from actual model due to design changes
R
R
r
R
R
PARTS LIST
MODEL(s)
141 LE
PAGE N O.
4
*7
*4
*6
*3
*5
*9
*1
*2
*8
10
11
12
13
*9
14
15
16
17
29
18
19
21
23
Ref.
Part No.

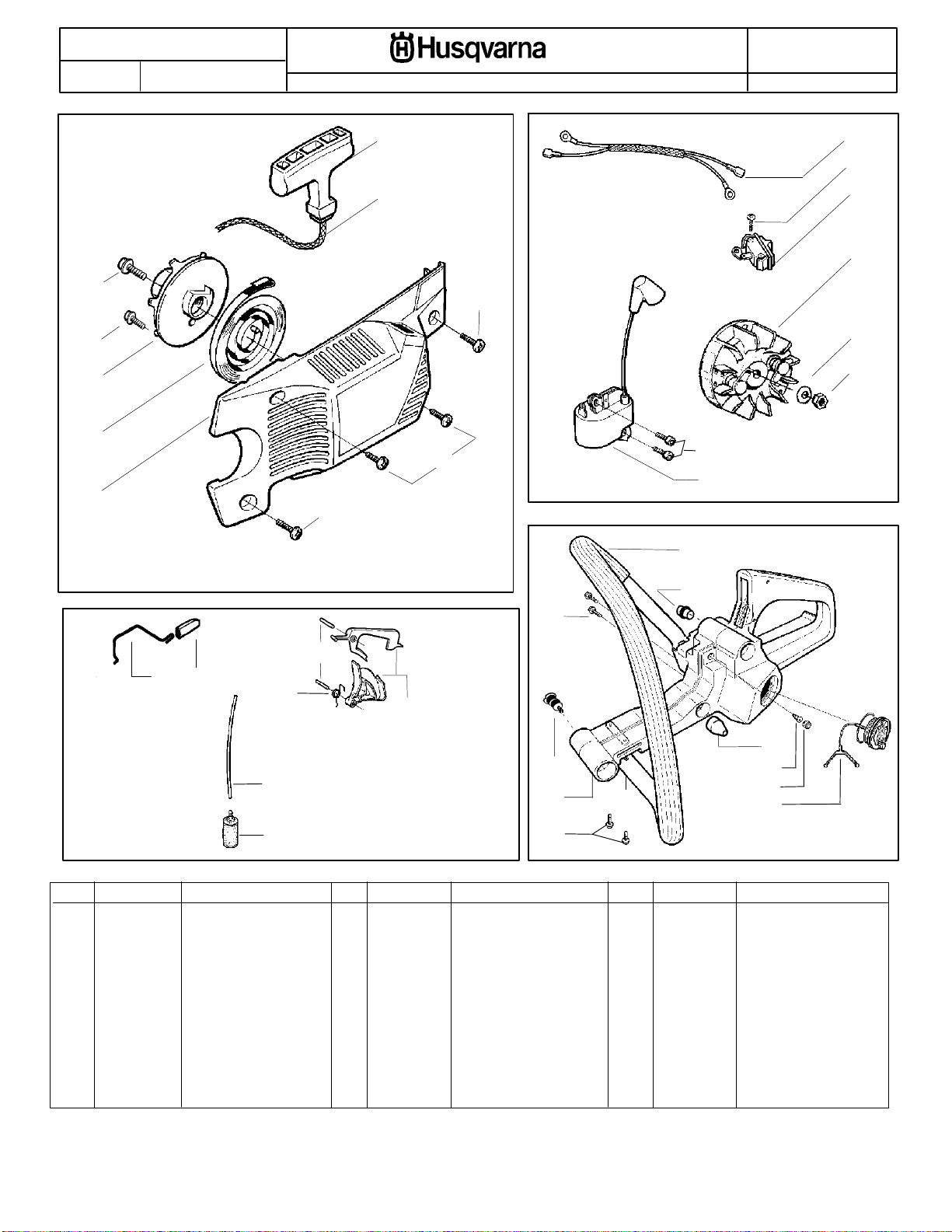

1 530038491 Handle--Starter
2 530069232 Kit- -Rope
3 530015920 Screw
4 530016080 Screw
5 530069313 Kit--Starter Pulley
6 530015891 Spring- -Recoil
7 530047599 Assy--Fan Housing
8 530015892 Screw
9 530015893 Screw
10 530403257 Assy--Leadwire Harness
11 530015896 Screw
Description
20
22
Ref. Part No. Description
12 503717901 Switch--Ignition
13 530039147 Assy. - -Flywheel
14 530015127 Washer- -Flywheel
15 530016071 Nut
16 530015895 Screw
17 530039143 Module -- Ignition
18 530029869 Wire - - Throttle
19 530029863 Cap - - Wire
20 530029860 Pin
21 530029861 Spring
22 530069587 Kit - - Throttle Trigger
23 530069247 Kit - - Fuel line
24 530014497 Assy.- - Fuel Pickup
25
26
27
2824
30
31
32
33
34
Ref. Part No. Description
25 530015940 Screw
26 530029870 Isolator
27 530055613 Assy. --Tank/Handle
28 530015843 Screw
29 530049876 Handle--Front
30 530052439 Isolator--Front Handle
31 530029984 Isolator
32 530026119 Valve - - Check
33 530038264 Plug -- Vent
34 530071266 Kit--Assy. Fuel Cap
= NEW PART NUMBER FOR THIS IPLn
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
=
D
REFER TO THE SERVICE REFER ENCE IN DICATED FOR MORE I NFORMATIO N. (LOCATED AT EN D OF IP L)
=
K
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
PARTS LIST NO.
DATE
5/05/04
530163750
Updated
530163750 -- 06/09/03
WEED EATER PARTS LIST
PARAMOUNT PARTS LIST
POULAN PARTS LIST
Note: Illustration may differ from actual model due to design changes
R
R
R
r
R
PARTS LIST

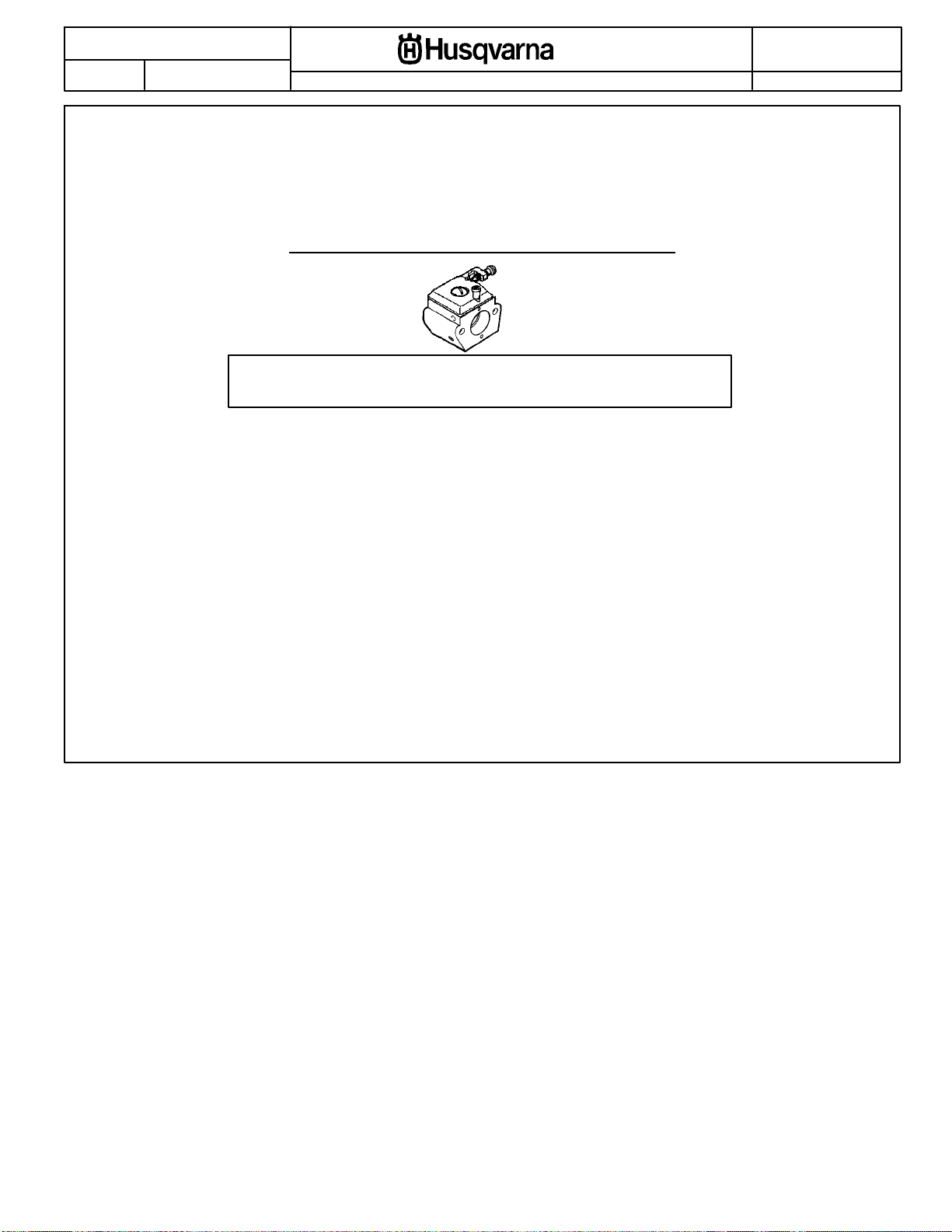

Kit -- Carburetor Assembly No. 530071692 -- WT--660
Note: No Repair kits are available for this carburetor, please order the
complete assembly part number 530--071692 -- WT--660
MODEL(s)
141 LE
PAGE N O.
5
= REFER TO TH E SERVICE REFERENC E INDI CATED FOR MORE INFORMATION. (LOCATED AT END OF IPL )
=
NEW PART NUMBER FOR THIS IPLn
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
=
D
K
www.mymowerparts.com
