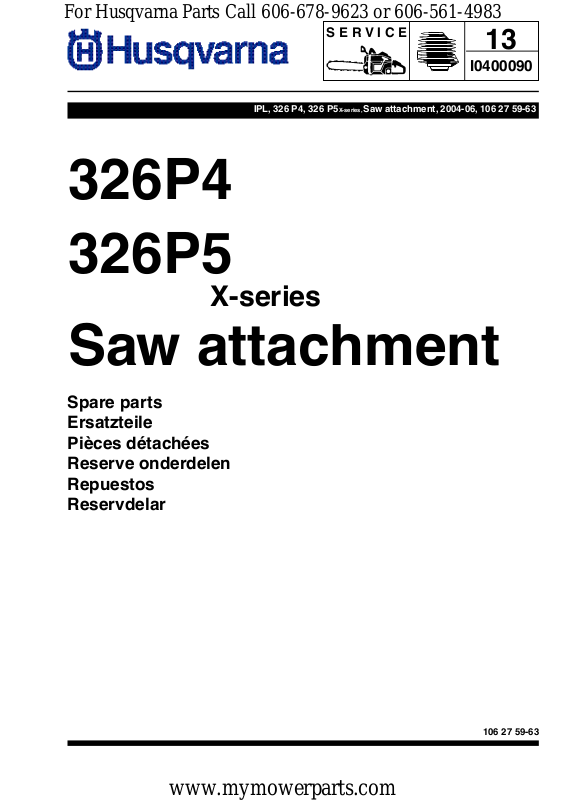

S E R V I C E
Spare parts
Ersatzteile
Pièces détachées
Reserve onderdelen
Repuestos
Reservdelar
I0400090
IPL, 326 P4, 326 P5
X-series,

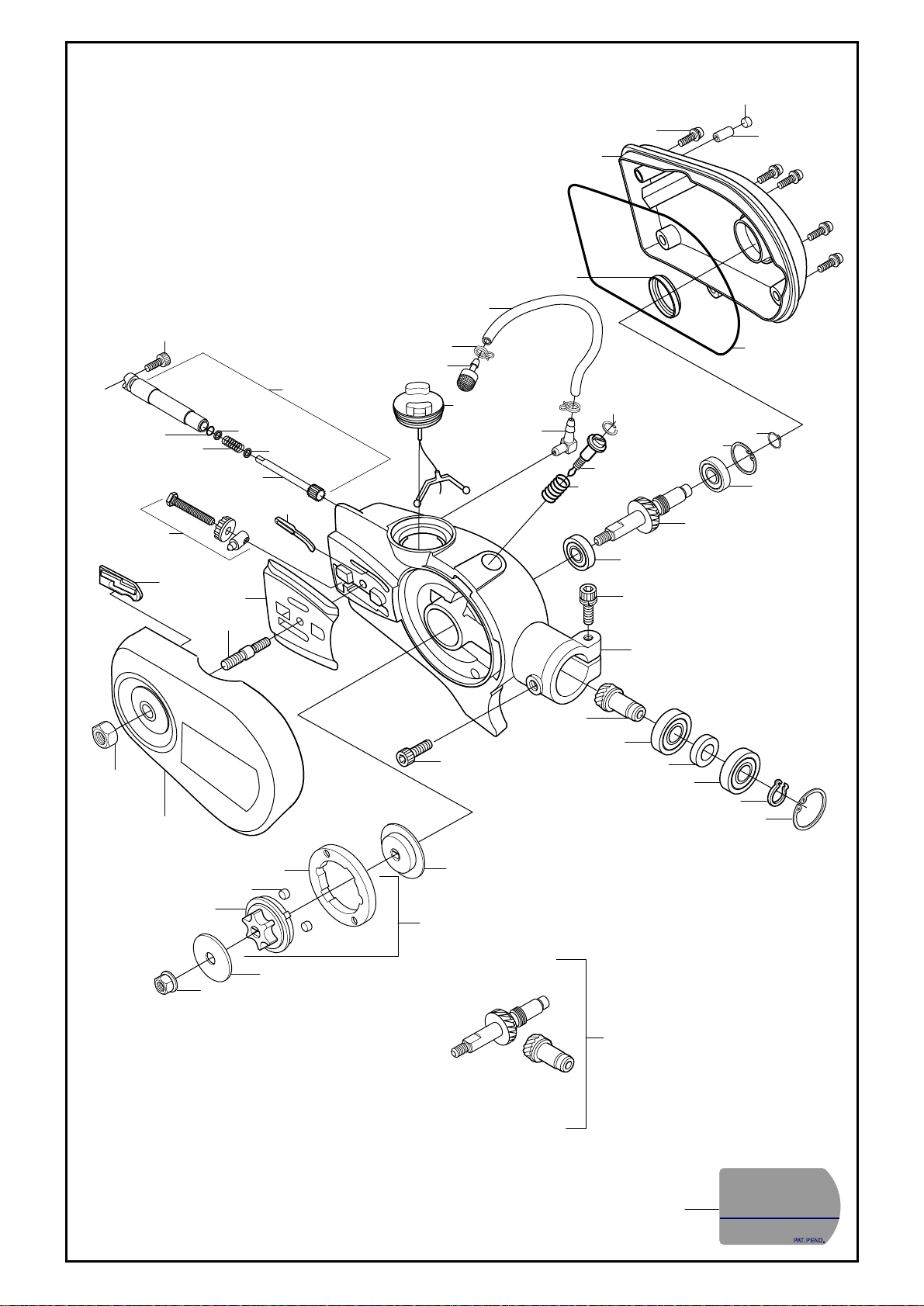

Saw attachment, 2004-06, 106 27 59-63
13
106 27 59-63
Saw attachment
326P5
326P4
X-series
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
Page 2
S
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
RECOMMENDED PARTS, ACCESSORIES, LUBRICANT
326P4/P5x Pole Saw
Item Part Number Description
Air Filt er 537 14 31-01
Air Filt er Cover 537 06 63-01
Fuel Filt er 503 44 32-01
Fuel Cap 537 09 16-01
Oil Cap 503 90 39-01
Air Purge Bubble 503 93 66-01
Start /Stop Swit ch 503 71 82-01
I gnition Modul e 537 02 53-01
Spark Plug 503 23 51-12
Start er Assy. 503 85 28-02
Starter Handle 537 00 84-01
Start er Cord 503 85 89-01
Start er Pulley 503 96 49-01
Normal Maintenance Parts
Cylinder Cover 537 14 54-01
Heat Protector, Cylinde r 537 06 66-01
Muffler Cover 537 08 05-01
Bar Nut 731 23 18-01
Chain Sprocket 537 27 18-01
Chain 501 84 69-45
Bar 501 95 92-45
Item
Bar and Chain
Part Number Description
610 00 00-14 Bar and Chain Lubricant - 1 Quart
610 00 00-34 Bar and Chain Lubricant - 1 Gallon
H36-45, 12" Chain
HL280-45, 12" Bar
XP Premium
Lubricants
Item Part Number Description
Protective Glasses 531 30 00-11 Xtreme Protective Glasses
Protective Gloves
Hearing Protectors
Protective Apparel
Helmets 505 67 53-15 Helmet System (Husqvarna)
www.mymowerparts.com
610 00 00-85 XP Premium - 2.6 oz (1 Gallon Mix)
610 00 00-82 XP Premium - 6.4 oz (2.5 Gallon Mix)
531 30 02-70 Master Grip Gloves, Medium
531 30 02-71 Master Grip Gloves, Large
531 30 02-72 Master Grip Gloves, X-Large
505 66 53-04 Husqvarna Headband Hearing Protectors
505 66 53-78 Husqvarna Landscaper Radio Hearing Protectors - Digital FM
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
A
725 53 27-55
740 42 03-00
503 18 49-01
537 22 82-01
503 80 83-02
537 32 92-01
537 19 42-01
537 19 44-01
537 29 92-01
503 23 00-16
503 23 00-16
537 33 17-01
537 29 11-01
(x2) 537 37 15-01
504 71 00-03
537 22 75-01
537 33 01-01
503 90 39-01
504 34 00-04
725 53 29-55 (x5)
537 29 09-01
735 31 27-10
537 05 68-01
503 97 82-01
738 21 99-04
725 53 33-55
503 98 13-01
537 04 03-01
537 29 10-01
735 31 12-00
738 21 00-04
*
731 23 18-01
537 24 60-01
537 27 15-01
537 27 14-01
537 27 17-01(x2)
731 71 16-51
503 23 00-68
725 53 27-55
537 27 16-01
537 27 18-01
537 22 74-01
*
738 21 99-04
537 24 77-01
738 21 99-04
735 31 11-00
735 31 25-10
*compl 537 29 90-01
537 23 00-01
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

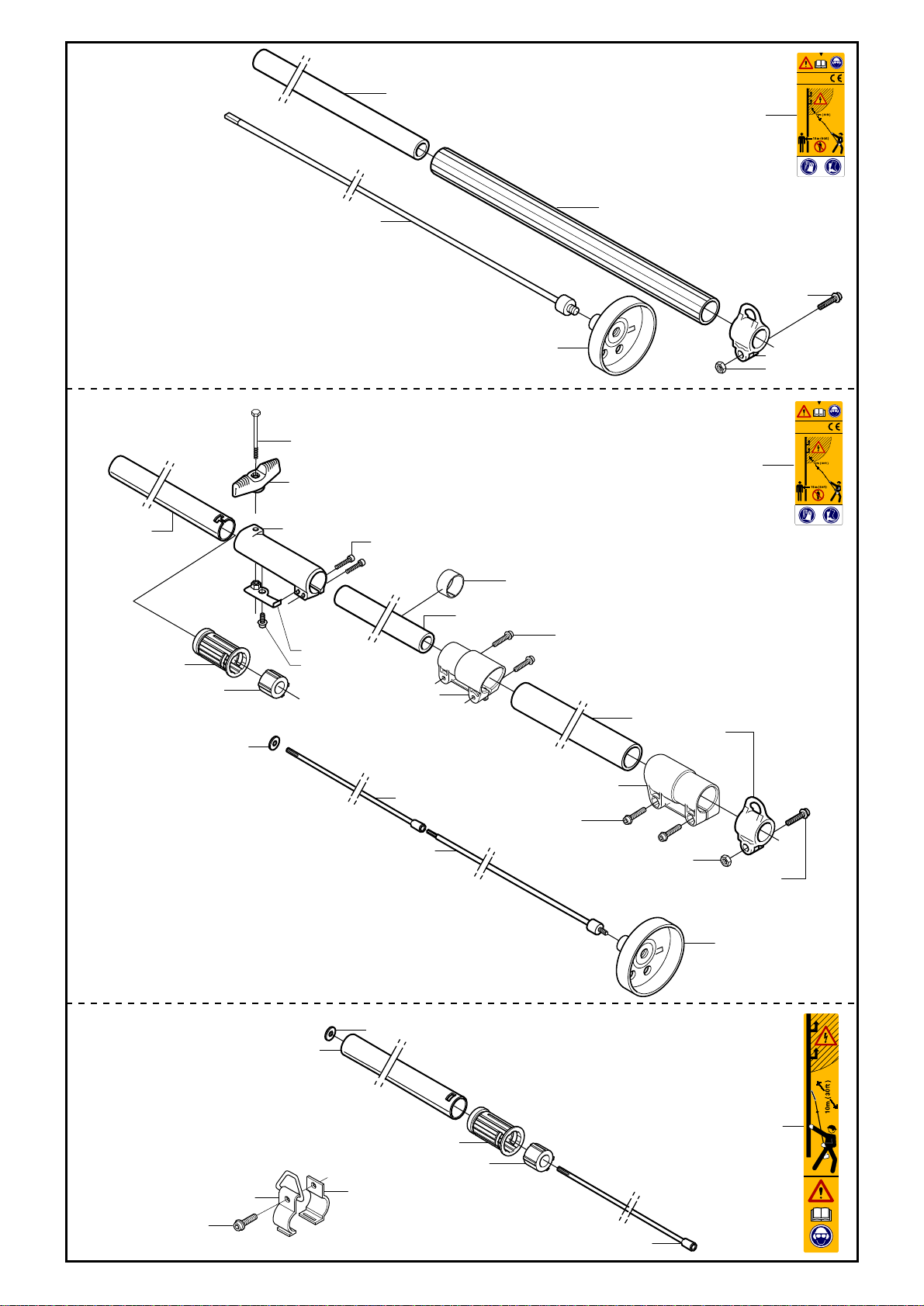

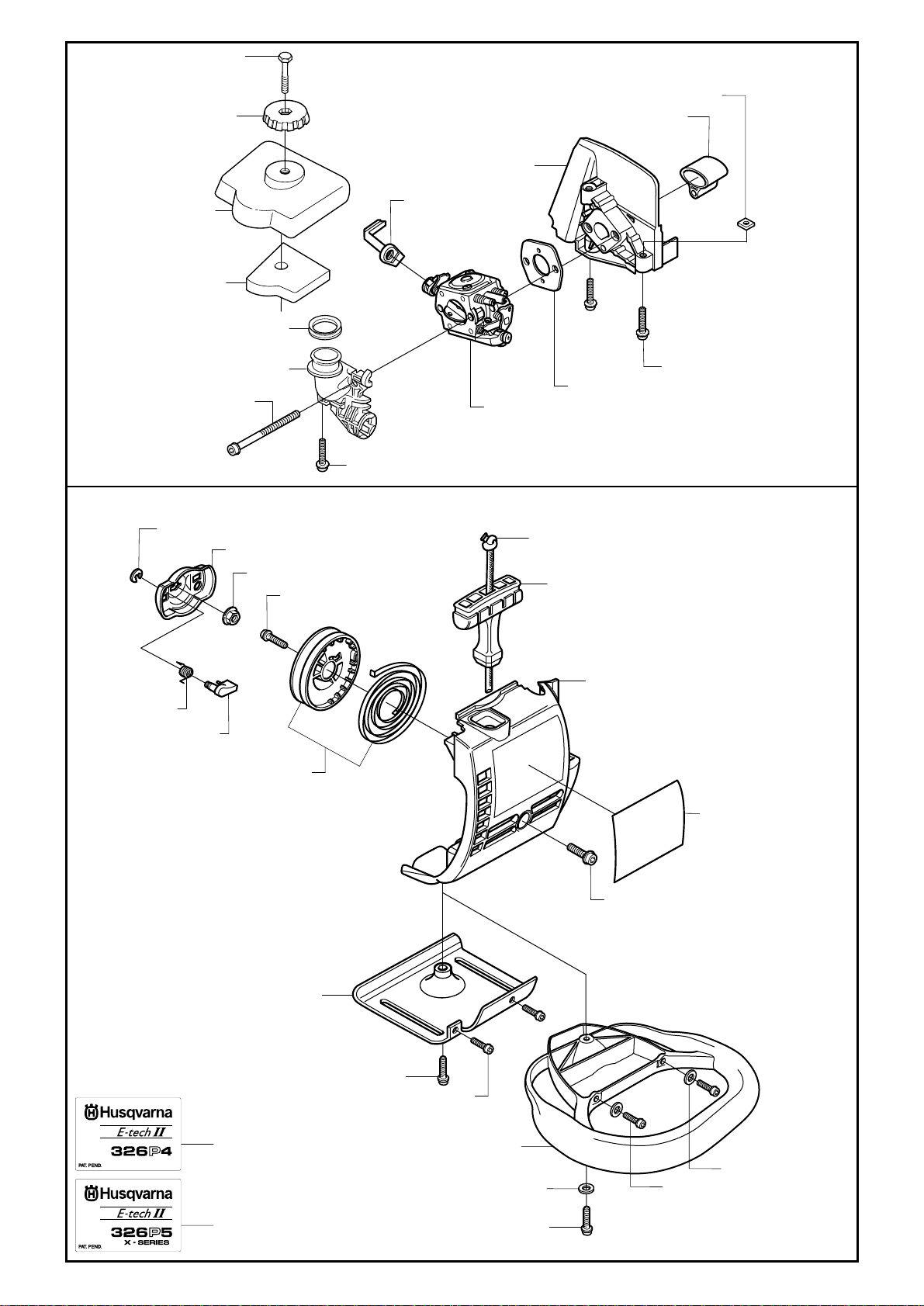

326P4
B
537 07 85-01 L=1750
537 08 38-01
326P5x
B
*L=1100
*503 98 54-01
*503 78 52-01
*735 58 55-01
L=1790 537 07 87-01
725 23 79-51
502 20 38-01
503 70 80-04
503 71 54-01
503 20 07-10
537 27 29-01
503 20 07-25 (x2)
537 17 50-01 L=1650
503 87 26-01
537 24 51-01
537 08 55-01
503 20 07-16
503 94 10-01
731 23 14-01
537 08 38-01
503 21 75-20 (x2)
537 24 68-01 L=1650
503 94 10-01
*compl 537 17 48-01

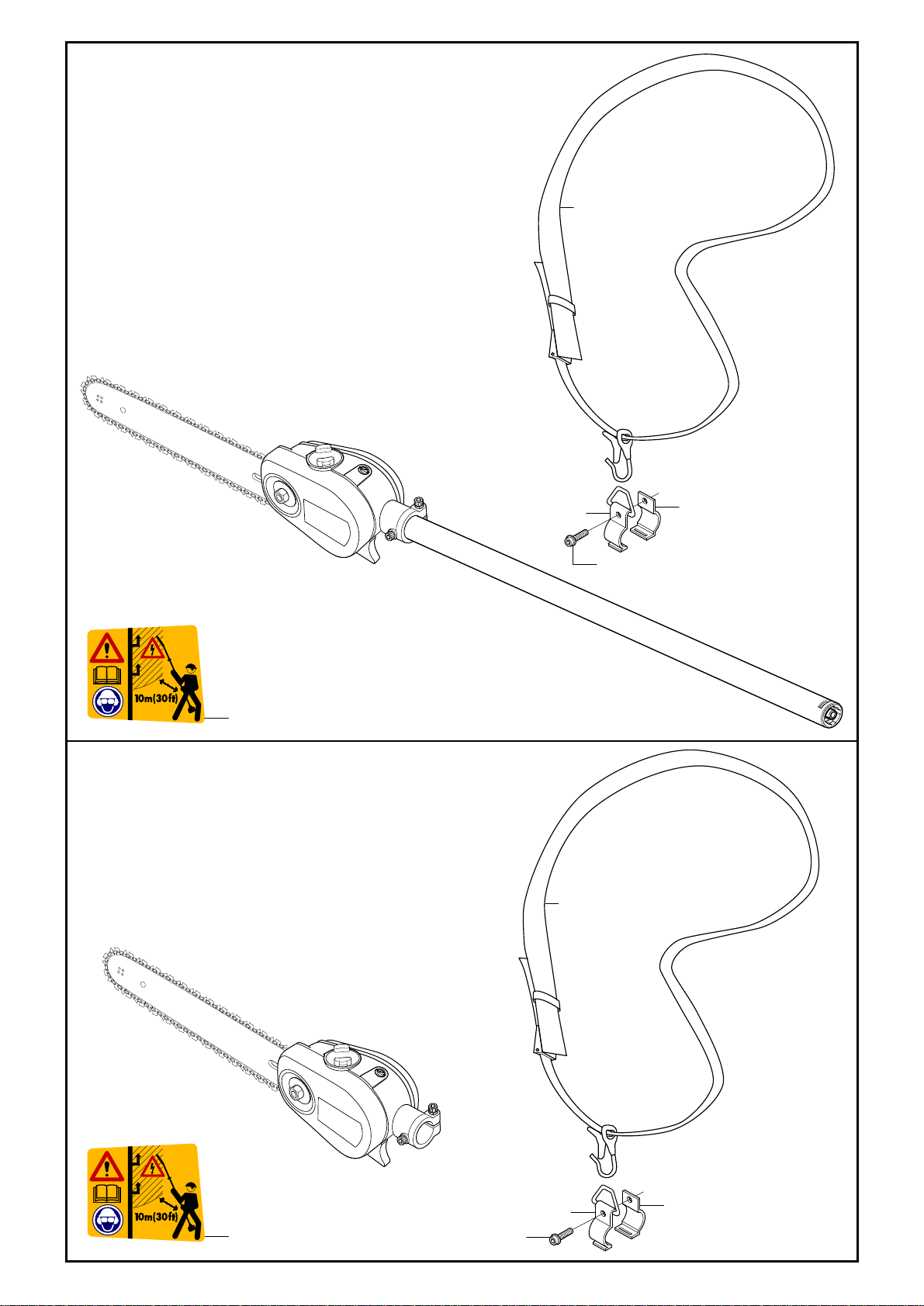

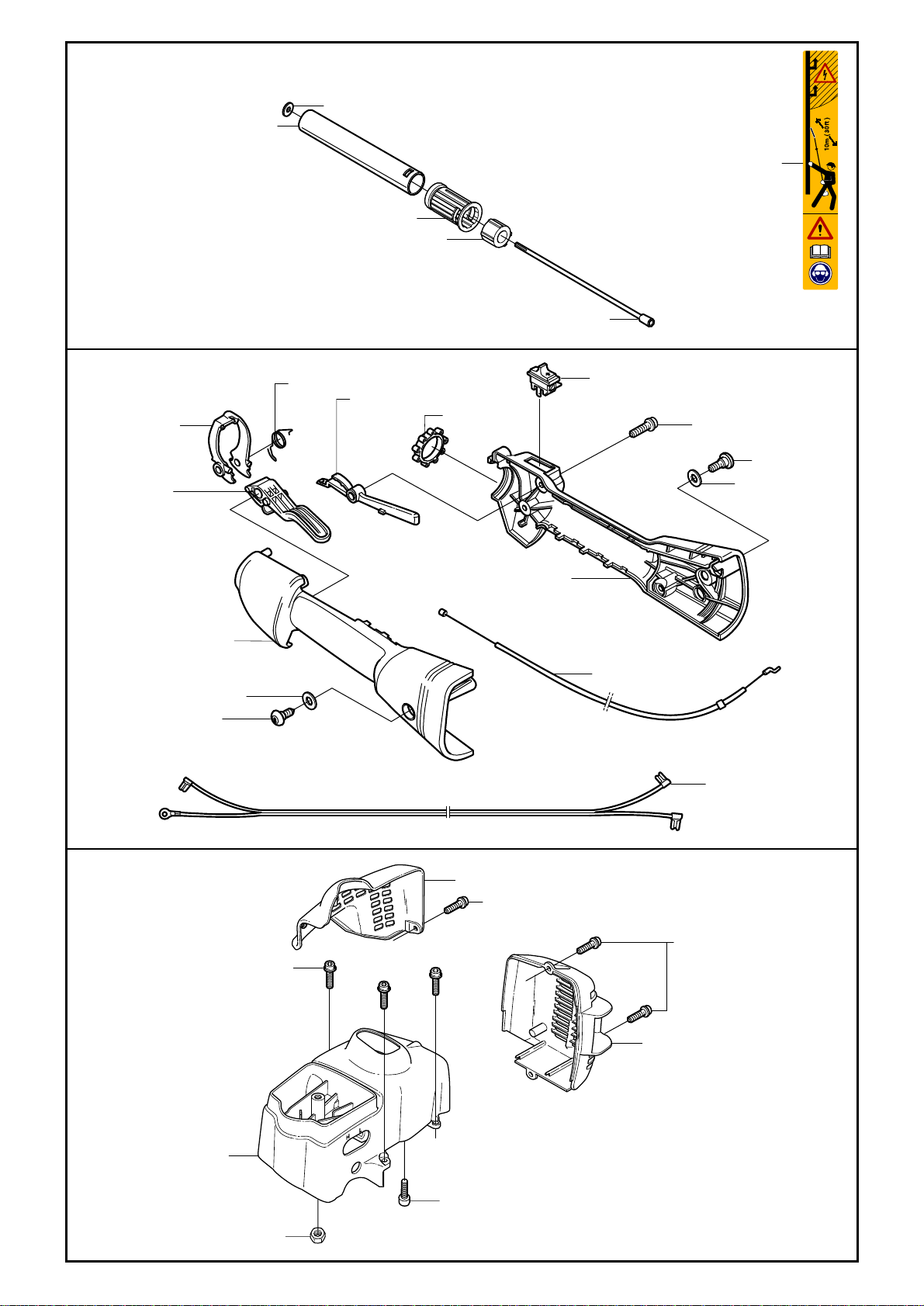

Saw Attachment
B
*compl 501 78 33-01
*503 21 83-16
L=1699 537 18 10-01
L=1100 **
*
537 18 09-01* L=1114
735 58 55-01**
**503 98 54-01
**503 78 52-01
*
537 27 29-01
503 21 75-20 (x2)
731 23 14-01
503 20 07-16
503 87 26-01
**compl 537 17 48-01
537 19 84-01
L=1114 **537 18 09-01
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Saw Attachment
B
*compl 537 19 58-01
735 58 55-01*
L=110 *
537 19 84-01
*503 98 54-01
*503 78 52-01
L=124 *537 19 59-01
C
503 91 81-01
503 87 79-01
503 99 56-01 (326P4)
503 99 56-02 (326P5x)
740 42 06-00
503 96 13-01
537 01 13-01
503 87 80-01
503 96 14-01
503 99 55-01 (326P4)
503 99 55-02 (326P5x)
503 71 82-01
503 21 66-18 (x2)
503 96 13-01
740 42 06-00
503 87 86-02
503 87 85-01
D
537 06 66-01
503 21 68-20
503 21 68-20
503 21 68-20 (x3)
537 06 65-01
537 06 61-01
503 21 71-16
731 23 14-01
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
502 20 65-03
E
503 22 65-04 (x2)
502 20 40-01
503 91 09-01
503 94 26-01
537 06 63-01
537 14 31-01
740 68 11-21
537 05 78-01
503 21 75-50 (x2)
503 21 77-16
**compl 503 87 33-02 *compl 503 85 28-01
F
735 31 08-20**
**
731 71 16-51
503 21 77-16*
503 96 25-01
503 20 03-25 (x2)
503 49 71-01
503 28 31-11
503 85 89-01*
537 00 84-01*
**503 87 36-01
**503 87 35-02
503 85 87-01*
*503 96 49-01
537 17 22-19 326P4
537 17 22-18 326P5x
503 21 68-20
537 03 41-01
503 21 66-18
(x2) 503 21 66-18
537 17 22-19 326P4
537 17 22-18 326P5x
www.mymowerparts.com
537 17 45-01
503 23 00-42
503 21 66-20
503 23 00-42 (x2)
503 21 75-16 (x2)
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

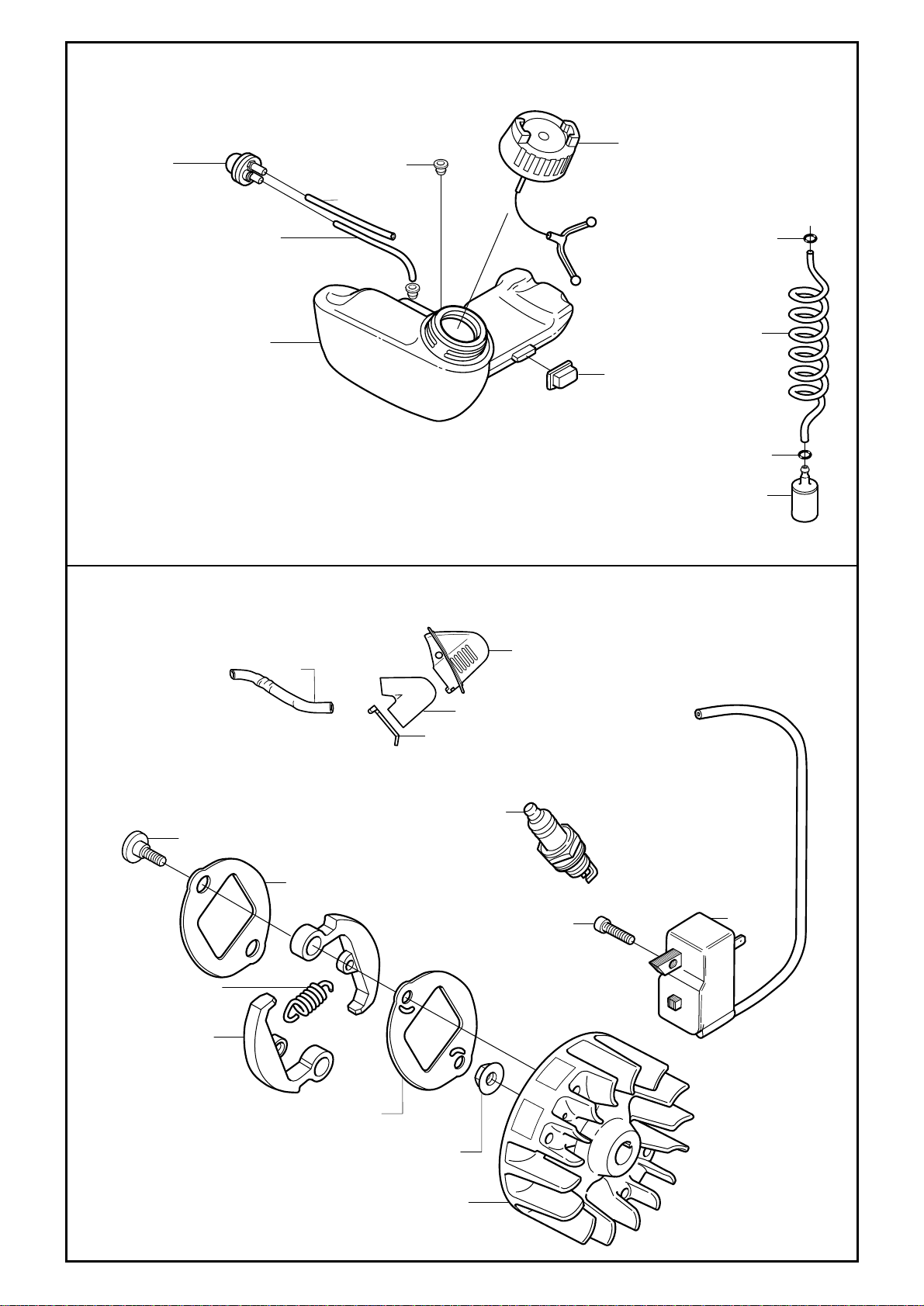

*compl 537 06 86-02
G
503 91 18-02
503 93 66-01
*503 73 58-01 (x2)
537 04 24-01
H
*537 04 24-01
*
*537 18 49-01
*503 57 76-01
503 91 10-01 (x4)
*537 18 49-01
*503 44 32-01
* compl 537 04 23-01
537 06 44-03*
*
503 84 29-02** (x2)
**503 81 60-01
**503 84 28-01 (x2)
**compl 537 03 22-01
537 23 96-01*
537 09 17-01*
503 23 51-09 Champion RCJ 6Y
537 04 67-01**
503 21 71-16 (x2)
**537 04 68-01
731 71 16-51
*
537 24 96-01
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

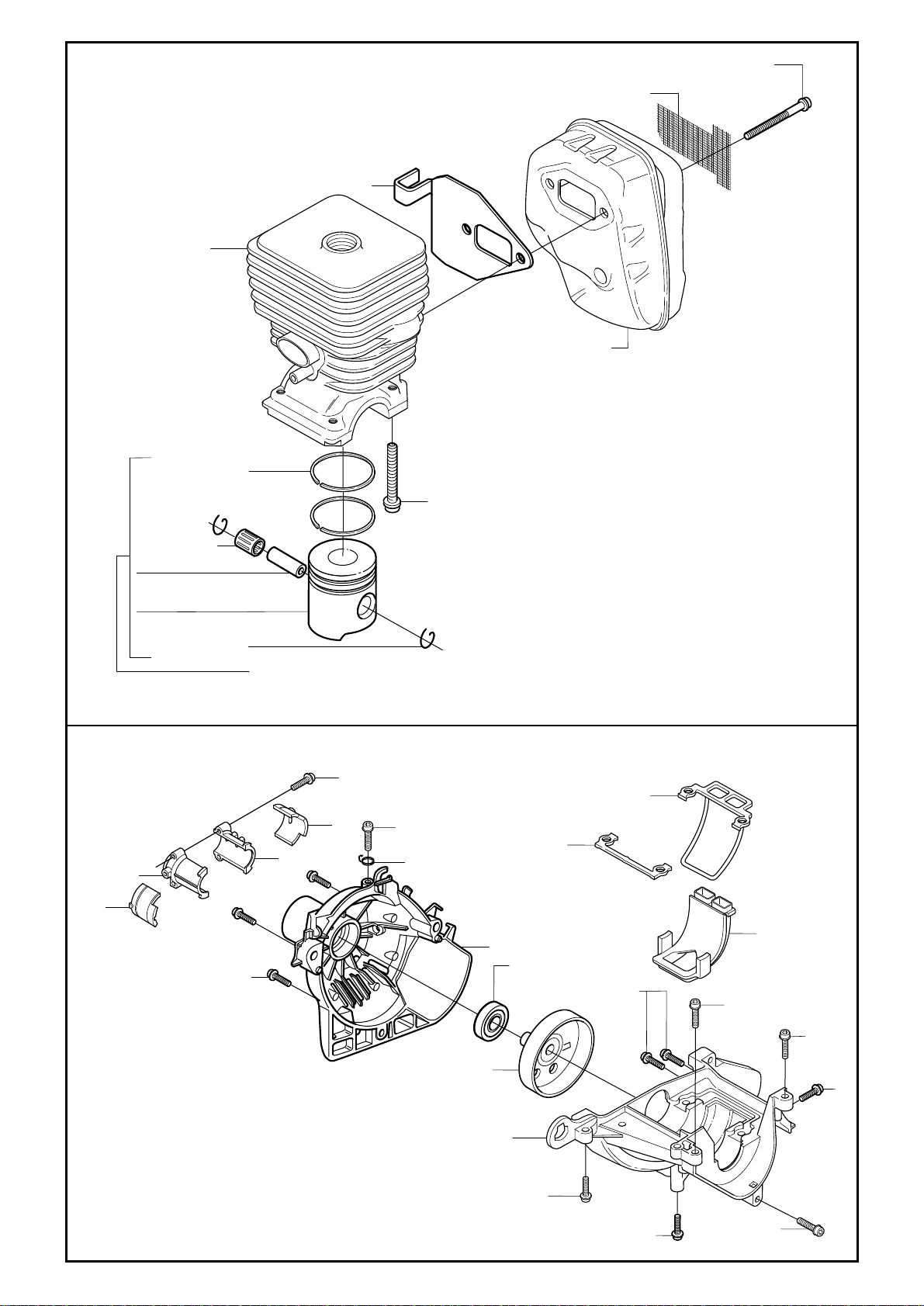

**compl 537 08 51-01
J
503 28 90-43 (x2)
*503 20 29-56 (x3)
*537 22 18-01 (x3)
537 01 41-01
**
*
*compl 537 22 17-01
725 53 37-55** (x4)
503 71 22-01
737 44 08-00 (x2)
***compl 537 30 96-01
K
***
***
*503 21 68-20 (x3)
537 08 46-71**
***
***
**compl 537 04 12-03
503 21 68-25*** (x2)
503 21 68-20**
537 07 36-01
*537 08 85-01
**
**
*503 21 66-18 (x2)
*compl 537 08 52-01
*537 06 69-01
537 06 68-01*
503 21 68-20* (x4)
503 87 26-01
*
*503 21 77-16
*503 21 66-18
www.mymowerparts.com
*
*
*
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
*compl 503 85 24-74
L
*503 94 05-01
503 94 02-01*
503 71 22-01*

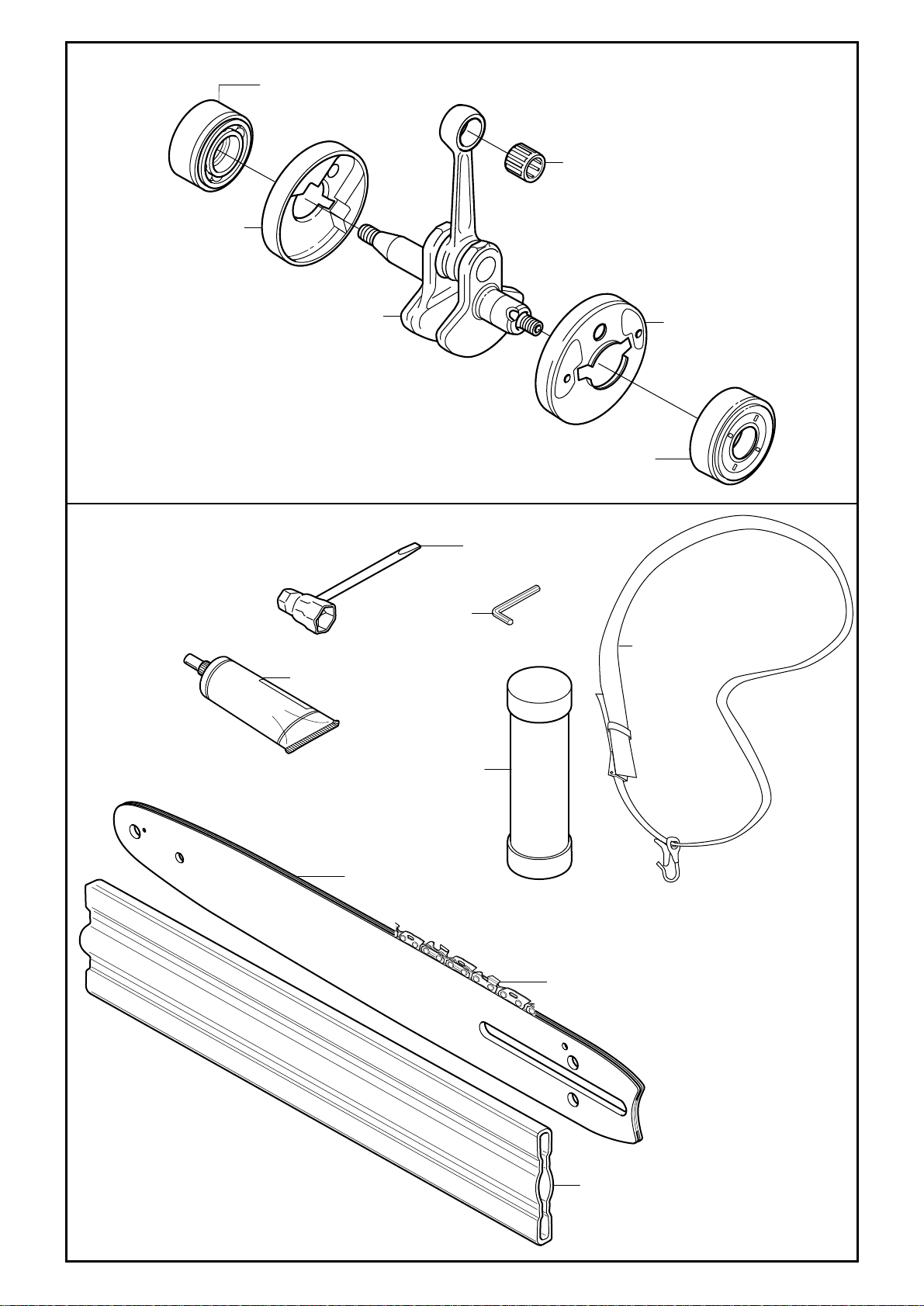

Accessories
M
Zubehöre
Accessoires
Acessorios
Tillbehör
*compl 537 04 07-10
503 98 96-01
*
*502 21 58-01
503 94 05-01*
*503 94 02-01
501 69 17-01*
537 21 62-01
537 21 62-02 (USA)
531 00 92-05
501 95 92-45 (12")
501 95 92-40 (10")
GREASE 400g
501 84 21-45 (12")
501 84 21-40 (10")
537 12 99-01
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

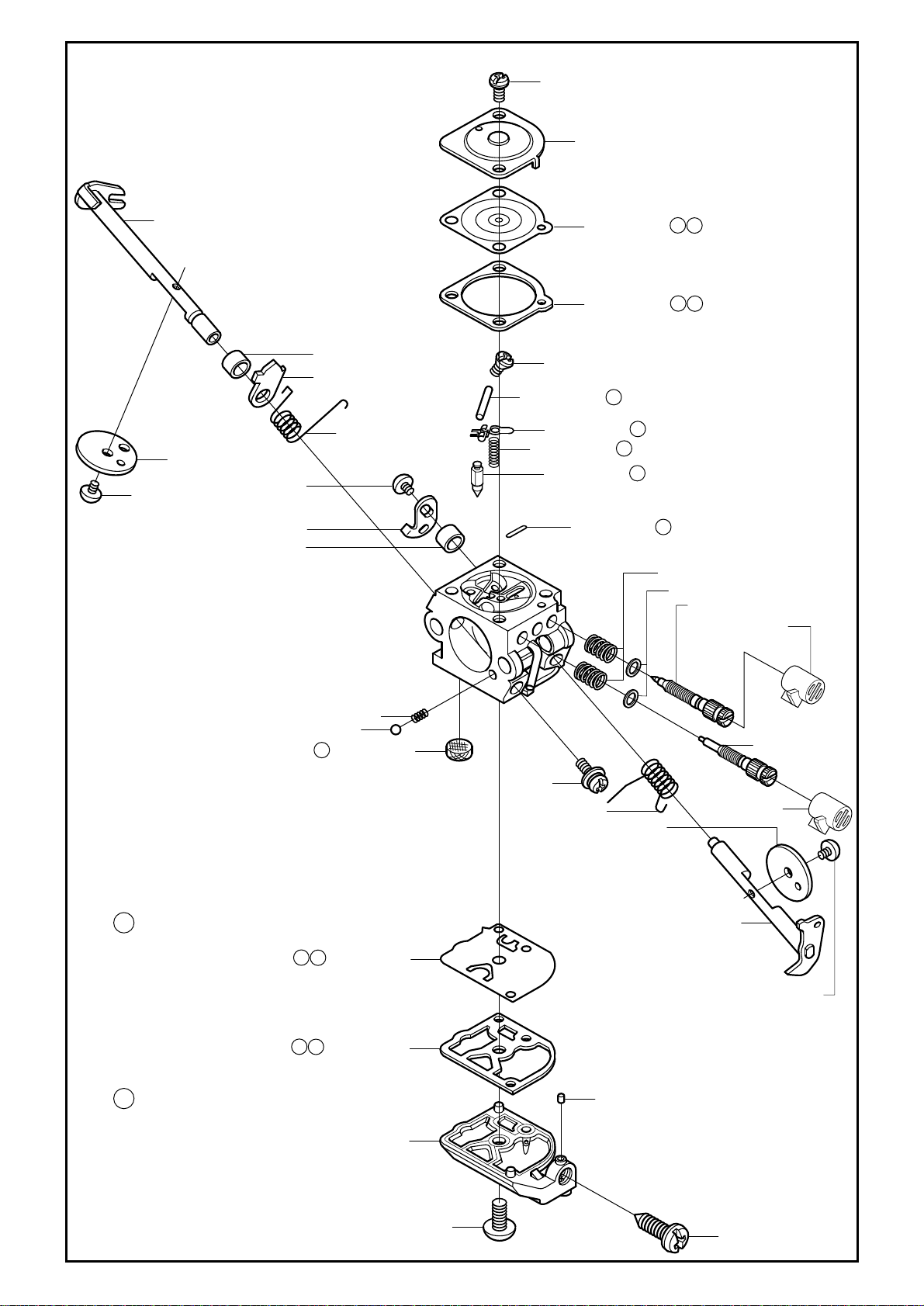

compl 503 28 31-11
N
503 48 18-01
537 02 09-01
537 02 11-01
503 47 90-01
503 48 19-01
537 04 90-01
537 02 10-01
503 48 05-01 (x2)
503 97 43-01
537 04 89-01
537 02 04-01
503 48 01-01
503 48 00-01
503 66 59-01
537 02 03-01
503 47 97-01
ZAMA C1Q - EL 12
21
21
2
2
2
2
537 01 98-01
503 47 89-01
531 00 45-52
1
Set of gaskets
Dichtungssatz
Juego de juntas
Jeu de joints
Packningssats
537 01 26-01
537 01 25-01
2
503 53 57-01
21
537 02 00-01
21
537 02 01-01
503 75 53-01
537 01 97-01
537 02 08-01
537 01 99-01
2
503 48 08-01
503 97 40-01
537 12 78-01
537 02 16-01
537 02 06-01
537 02 16-01
537 01 96-01
503 47 92-01
2
531 00 45-53
Repairkit
Reparatursatz
Juego de reparación
Kit de réparation
Reparationssats
www.mymowerparts.com
537 02 02-01
503 47 96-01
503 48 11-01
537 02 07-01
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Saw Attachment L=1100mm
compl 537 18 33-16
P
compl 537 18 33-17 (USA)
537 21 62-01
537 21 62-02 (USA)
Saw Attachment
compl 537 18 33-11
P
compl 537 18 33-12 (USA)
537 38 89-01*
*
503 21 83-16*
537 21 62-01
537 21 62-02 (USA)
*compl 501 78 33-01
*
537 38 89-01*
*503 21 83-16
www.mymowerparts.com
*compl 501 78 33-01
*
*
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

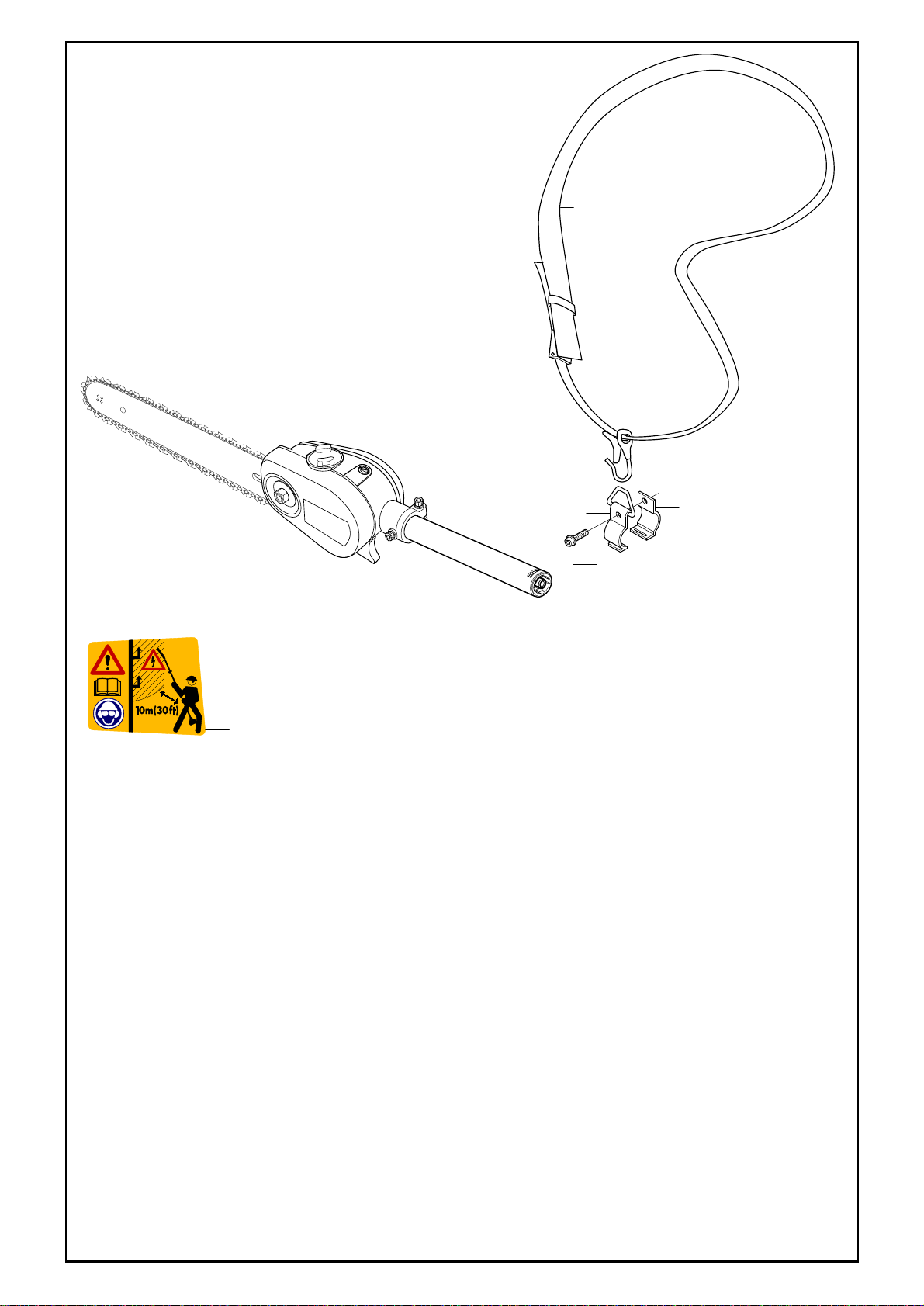

Saw Attachment L=110mm
compl 537 18 33-13
P
537 21 62-01
537 38 89-01*
*
503 21 83-16*
*compl 501 78 33-01
*
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
326P4/326P5x
Part Number Description Square Part Number Description Square
501 69 17-01 COMBI TOOL M 503 87 79-01 THROTTLE TRIGGER C
501 78 33-01 HANGING BRACKET BP 503 87 80-01 THROTTLE LOCK C
501 84 21-40 CHAIN LOOP M 503 87 85-01 WIRE C
501 84 21-45 CHAIN 36(91VG)4SE M 503 87 86-02 THROTTLE WIRE C
501 95 92-40 HL280-40 GUIDE BAR M 503 90 39-01 OIL CAP A
501 95 92-45 HL280-45 GUIDE BAR M 503 91 09-01 PARTITION E
502 20 38-01 HANDLE B 503 91 10-01 SUPPORT G
502 20 40-01 KNOB E 503 91 18-02 FUEL CAP G
502 20 65-03 SCREW E 503 91 81-01 LEVER C
502 21 58-01 L-KEY WRENCH M 503 93 66-01 AIR PURGE BUBBLE G
503 18 49-01 SPRING A 503 94 02-01 BEARING W/ HOLDER L
503 20 03-25 SCREW E 503 94 05-01 CUP L
503 20 07-10 SCREW M5 X 10 B 503 94 10-01 HARNESS HOLDER B
503 20 07-16 SCREW B 503 94 26-01 PIPE E
503 20 07-25 SCREW B 503 96 13-01 SCREW MT5X11 C
503 20 29-56 SCREW J 503 96 14-01VIBRATION DAMPER C
503 21 66-18 SCREW FCK 503 96 25-01CHOKE CONTROL E
503 21 66-20 SCREW F 503 96 49-01 STARTER PULLEY ASSY. F
503 21 68-20 SCREW DFK 503 97 40-01 WASHER N
503 21 68-25 SCREW K 503 97 43-01 COVER N
503 21 71-16 SCREW DH 503 97 82-01 SPRING A
503 21 75-16 SCREW F 503 98 13-01 PLUG A
503 21 75-20 SCREW B 503 98 54-01 HOLDER B
503 21 75-50 SCREW E 503 98 96-01 GEAR CASE GREASE M
503 21 77-16 SCREW EFK 503 99 55-01 HANDLE C
503 21 83-16 SCREW 5X14 BP 503 99 55-02 HANDLE C
503 22 65-04 NUT E 503 99 56-01 HANDLE C
503 23 00-16 WASHER 5.1X8.5 A 503 99 56-02 HANDLE C
503 23 00-42 WASHER F 504 34 00-04 NIPPLE A
503 23 00-68 FENDER WASHER A 504 71 00-03 OIL PLUMMET A
503 23 51-09 SPARK PLUG RCJ6Y H 531 00 45-52 GASKET KIT (ZAMA GND39) N
503 28 31-11 CARBURETOR EN 531 00 45-53 CARBURETOR KIT (ZAMA RB69) N
503 28 90-43 PISTION RING J 531 00 92-05GREASE 400 GRAMS M
503 44 32-01 FUEL FILTER G 537 00 84-01 STARTER HANDLE F
503 47 89-01 SPACER N 537 01 13-01 SPRING C
503 47 90-01 SCREW N 537 01 25-01 BALL N
503 47 92-01 SCREW N 537 01 26-01 SPRING N
503 47 96-01 SCREW N 537 01 41-01 GASKET J
503 47 97-01 INLET NEEDLE N 537 01 96-01SHAFT N
503 48 00-01 PIN FULCRUM N 537 01 97-01 SPRING THROTTLE N
503 48 01-01 SCREW N 537 01 98-01 ARM N
503 48 05-01 SCREW N 537 01 99-01 THROTTLE FLAP N
503 48 08-01 SPRING N 537 02 00-01PUMP DIAPHRAGM N
503 48 11-01 PLUG N 537 02 01-01GASKET N
503 48 18-01 SCREW N 537 02 02-01 COVER N
503 48 19-01 BUSHING N 537 02 03-01SPRING N
503 49 71-01 GASKET E 537 02 04-01 GASKET N
503 53 57-01 STRAINER N 537 02 06-01 NEEDLE HIGH SPEED N
503 57 76-01 FUEL HOSE G 537 02 07-01 SCREW N
503 66 59-01 LEVER N 537 02 08-01 PIN N
503 70 80-04 ADAPTER B 537 02 09-01CHOKE SHAFT N
503 71 22-01 BEARING JL 537 02 10-01 SPRING N
503 71 54-01 BRACKET B 537 02 11-01DISC N
503 71 82-01 START/STOP SWITCH C 537 02 16-01 CAP N
503 73 58-01 FUEL TANK BUSHING G 537 03 22-01 CLUTCH H
503 75 53-01 SCREW N 537 03 41-01 PLATE F
503 78 52-01 BUSHING B 537 04 03-01 VALVE A
503 80 83-02 PUMP PISTON A 537 04 07-10 ACCESSORY KIT M
503 81 60-01 SPRING H 537 04 12-03CLUTCH COVER 300 SERIES TRIM K
503 84 28-01 CLUTCH H 537 04 23-01 IGNITION MODULE H
503 84 29-02 SCREW H 537 04 24-01 HOSE G
503 85 24-74 CRANKSHAF L 537 04 67-01WASHER H
503 85 28-01 STARTER ASSY F 537 04 68-01 WASHER H
503 85 87-01 STARTER HOUSING F 537 04 89-01 DIAPHRAGM N
503 85 89-01 STARTER ROPE F 537 04 90-01 LEVER N
503 87 26-01 CLUTCH DRUM BK 537 05 68-01 SCREW A
503 87 33-02 PAWL ASSY COMPLETE F 537 05 78-01 PIPE E
503 87 35-02 STARTER PAWL F 537 06 44-03 PROTECTOR H
503 87 36-01 SPRING F 537 06 61-01 CYLINDER COVER D
IPL, 326 P4, 326 P5X-series, Saw attachment, 2004-06, 106 27 59-63
www.mymowerparts.com
Page 14
COMPRESSION SLEEVE/ISOLATOR
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
326P4/326P5x
Part Number Description Square Part Number Description Square
537 06 63-01 AIR FILTER COVER E 537 23 96-01 SPARK PLUG CONNECTION H
537 06 65-01 MUFFLER COVER D 537 24 51-01 SEALING B
537 06 66-01 HEAT PROTECTOR, CYLINDER D 537 24 60-01CLUTCH COVER, PS A
537 06 68-01 CRANKCASE K 537 24 68-01 PIPE B
537 06 69-01 GASKET K 537 24 77-01 WASHER A
537 06 86-02 TANK UNIT G 537 24 96-01 FLYWHEEL H
537 07 36-01 HOLDER K 537 27 14-01PLATE, SPROCKET A
537 07 85-01 TUBE B 537 27 15-01 SPROCKET A
537 07 87-01 SHAFT P4/P5 B 537 27 16-01 WAHER, INSIDE SPROCKET A
537 08 38-01 DECAL B 537 27 17-01 PIN, SPROCKET A
537 08 46-71 PISTON J 537 27 18-01 SPROCKET, COMPL A
537 08 51-01 CYLINDER J 537 27 29-01 LOCKING SLEEVE B
537 08 52-01 CRANKCASE K 537 29 09-01 C-CPLIP, SCREW A
537 08 55-01 GRIP B 537 29 10-01 SEAL, OIL RESERVOIR - LARGE A
537 08 85-01 GASKET K 537 29 11-01 HOSE, OIL-PS A
537 09 17-01 PLATE H 537 29 90-01 GEARS, SAW ATTACHMENT A
537 12 78-01 LOW SPPED NEEDLE N 537 29 92-01 OIL PUMP, COMPL A
537 12 99-01 PROTECTOR M 537 30 96-01
537 14 31-01 AIR FILTER E 537 32 92-01 SPACER, CLUTCH COVER A
537 17 22-18 DECAL F 537 33 01-01 SEAL, OIL RESERVOIR - SMALL A
537 17 22-19 326P4 STARTER HOUSING DECAL F 537 33 17-01 GROMENT, OIL A
537 17 45-01 PROTECTOR F 537 37 15-01 CLIP, OIL HOSE A
537 17 48-01 TUBE B 537 38 89-01 DECAL, WARNING P
537 17 50-01 TUBE B 725 23 79-51 SCREW B
537 18 09-01 SHAFT B 725 53 27-55SCREW MC6S 5X12 A
537 18 10-01 SHAFT B 725 53 29-55SCREW MC6S 5X16 A
537 18 33-11 HARNESS HOLDER, COMPL P 725 53 33-55 SCREW MC6S 5X25 A
537 18 33-12 POLE SAW HEAD W/12" BAR & CHN P 725 53 37-55 SCREW MC6S 5X35 J
537 18 33-13 SAW ATTACHMENT L=110 MM P 731 23 14-01 NUT BD
537 18 33-17 DX POLE SAW ATTACHMENT P 731 23 18-01 NUT A
537 18 49-01 O-RING G 731 71 16-51 FLANGE NUT AFH
537 19 42-01 PLATE, TENSIONER A 735 31 08-20 E-RING 4 F
537 19 44-01 BAR STUD A 735 31 11-00 RETAINING RING A
537 19 58-01 TUBE B 735 31 12-00 RETAINING RING SGA 10 A
537 19 59-01 SHAFT B 735 31 25-10RETAINING RING A
537 19 84-01 DECAL, WARNING B 735 31 27-10 RETAINING RING SGH 26 A
537 21 62-01 STRAP MP 735 58 55-01 WASHER B
537 21 62-02 SHOULDER STRAP MP 737 44 08-00 CLIP RING J
537 22 17-01 MUFFLER J 738 21 00-04 BEARING A
537 22 18-01 SCREEN J 738 21 99-04 BEARING A
537 22 74-01 CASE, SAW ATTACHMENT A 740 42 03-00 O-RING A
537 22 75-01 COVER, OIL RESERVOIR A 740 42 06-00 O-RING 8X1.6 C
537 22 82-01 CHAIN TENTIONER, POLE SAW A 740 68 11-21 SEALING E
537 23 00-01 DECAL, CLUTCH COVER -PS A
IPL, 326 P4, 326 P5X-series, Saw attachment, 2004-06, 106 27 59-63
SET
K
www.mymowerparts.com
Loading...
