PARTS LIST NO.
DATE
10/28/99
530084176
REPLACES
530084176--1/13/98

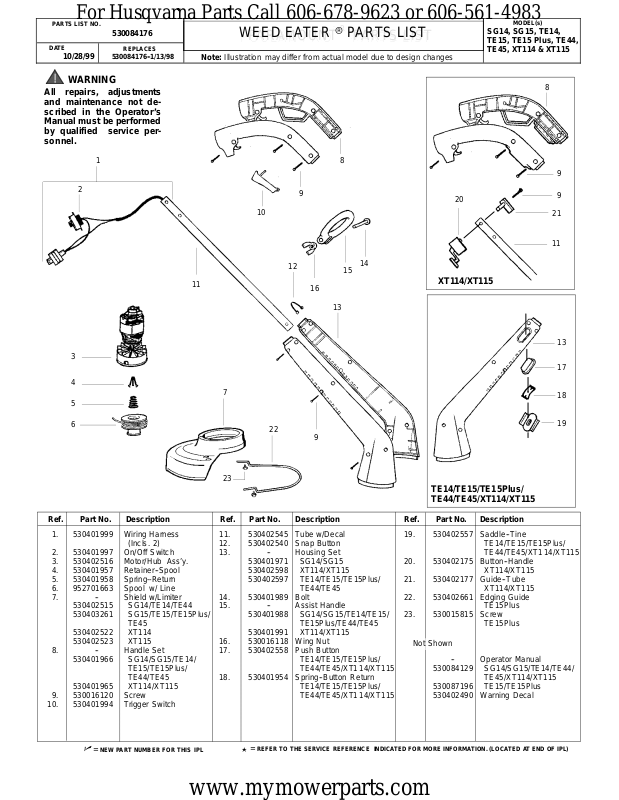

WEED EATERrPARTS LIST
PARAMOUNT P ARTS LIST
POULAN PARTS LIST
POULAN PRO PARTS LIST

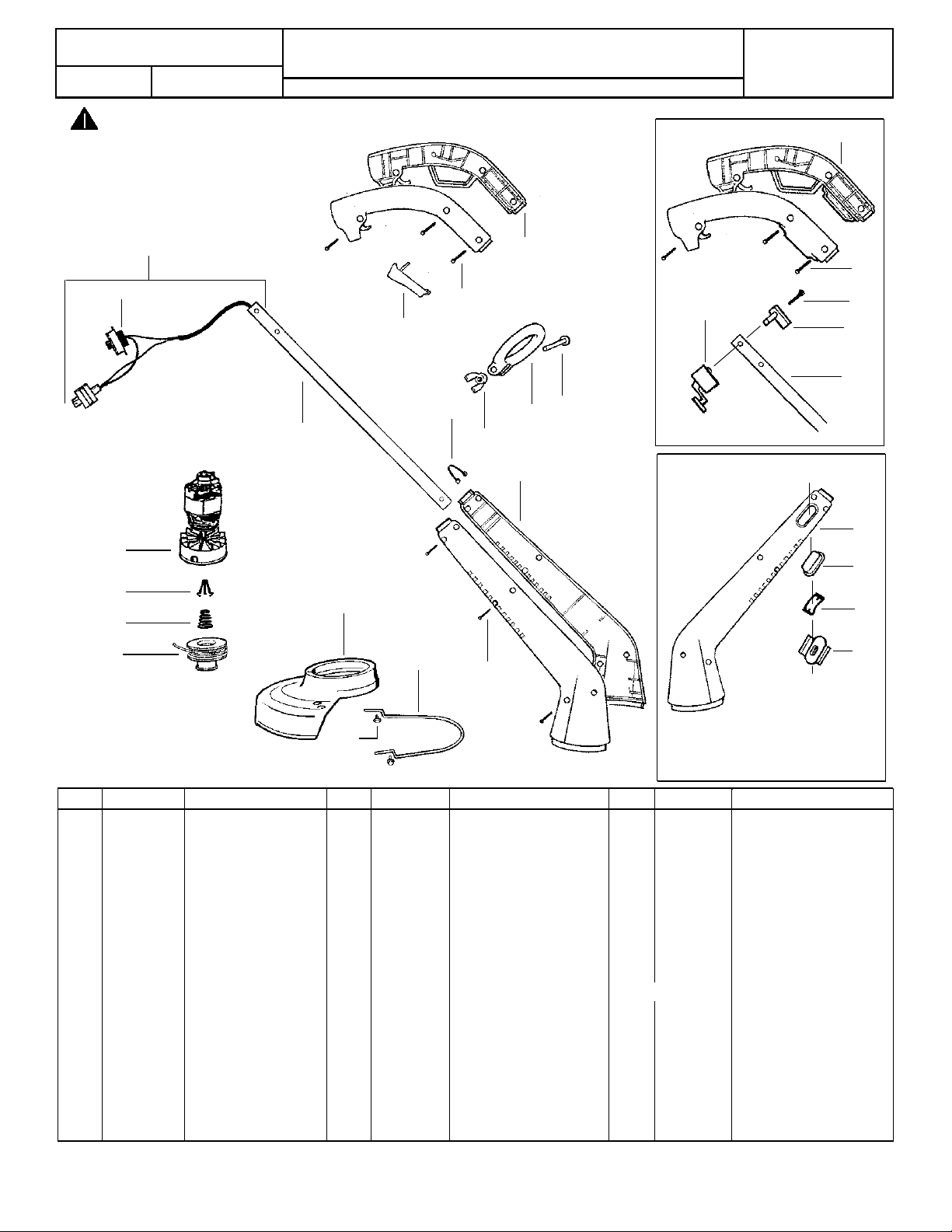

Note: Illustration may differ from actual model due to design changes
R
R
R
R
MODEL(s)
SG14, SG15, TE14,
TE15, TE15 Plus, TE44,
TE45, XT114 & XT115
WARNING
All repairs, adjustments
and maintenance not described in the Operator’s
Manual must beperformed
by qualified service personnel.
1
2
3
4
5
11
8
8
9
9
10
13
15
14
12
16
7
20
XT114/XT115
9
21
11
13
17
18
6
23
22
9
TE14/TE15/TE15Plus/
TE44/TE45/XT114/XT115
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
1. 530401999 Wiring Harness
(Incls. 2)
2. 530401997 On/Off Switch
3. 530402516 Motor/Hub Ass’y.
4. 530401957 Retainer--Spool
5. 530401958 Spring--Return
6. 952701663 Spool w/ Line
7. -- Shield w/Limiter
530402515 SG14/TE14/TE44
530403261 SG15/TE15/TE15Plus/
TE45
530402522 XT114
530402523 XT115
8. -- Handle Set
530401966 SG14/SG15/TE14/
TE15/TE15Plus/
TE44/TE45
530401965 XT114/XT115
9. 530016120 Screw
10. 530401994 Trigger Switch
11. 530402545 Tube w/Decal
12. 530402540 Snap Button
13. -- Housing Set
530401971 SG14/SG15
530402598 XT114/XT115
530402597 TE14/TE15/TE15Plus/
TE44/TE45
14. 530401989 Bolt
15. -- Assist Handle
530401988 SG14/SG15/TE14/TE15/
TE15Plus/TE44/TE45
530401991 XT114/XT115
16. 530016118 Wing Nut
17. 530402558 Push Button
TE14/TE15/TE15Plus/
TE44/TE45/XT114/XT115
18. 530401954 Spring--Button Return
TE14/TE15/TE15Plus/
TE44/TE45/XT114/XT115
19. 530402557 Saddle--Tine
TE14/TE15/TE15Plus/
TE44/TE45/XT114/XT115
20. 530402175 Button--Handle
XT114/XT115
21. 530402177 Guide--Tube
XT114/XT115
22. 530402661 Edging Guide
TE15Plus
23. 530015815 Screw
TE15Plus
Not Shown
-- Operator Manual
530084129 SG14/SG15/TE14/TE44/
TE45/XT114/XT115
530087196 TE15/TE15Plus
530402490 Warning Decal
19
n
=
NEW PART NUMBER FOR THIS IPL
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
