Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Parts Manual
MANUAL NO. 5391 10570 REV. 04 (07/20/04)
www.mymowerparts.com
Model:
968999237 / WHT3615
968999238 / WHT4817
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
MODEL NUMBER _______________________________
SERIAL NUMBER _______________________________
DA TE PURCHASED _____________________________
DEALER ADDRESS _____________________________
NOTES:
©2004 Husqvarna. All rights reserved.
Beatrice, NE. Printed in U.S.A.
2
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
CONTENTS
POWER UNIT ....................................4-5
INTERGRADED ZEROTURN
TRANSAXLE (IZT) ..............................6-7
HANDLE ASSEMBL Y .........................8-9
15 HP & 17 HP ENGINES ..................10-11

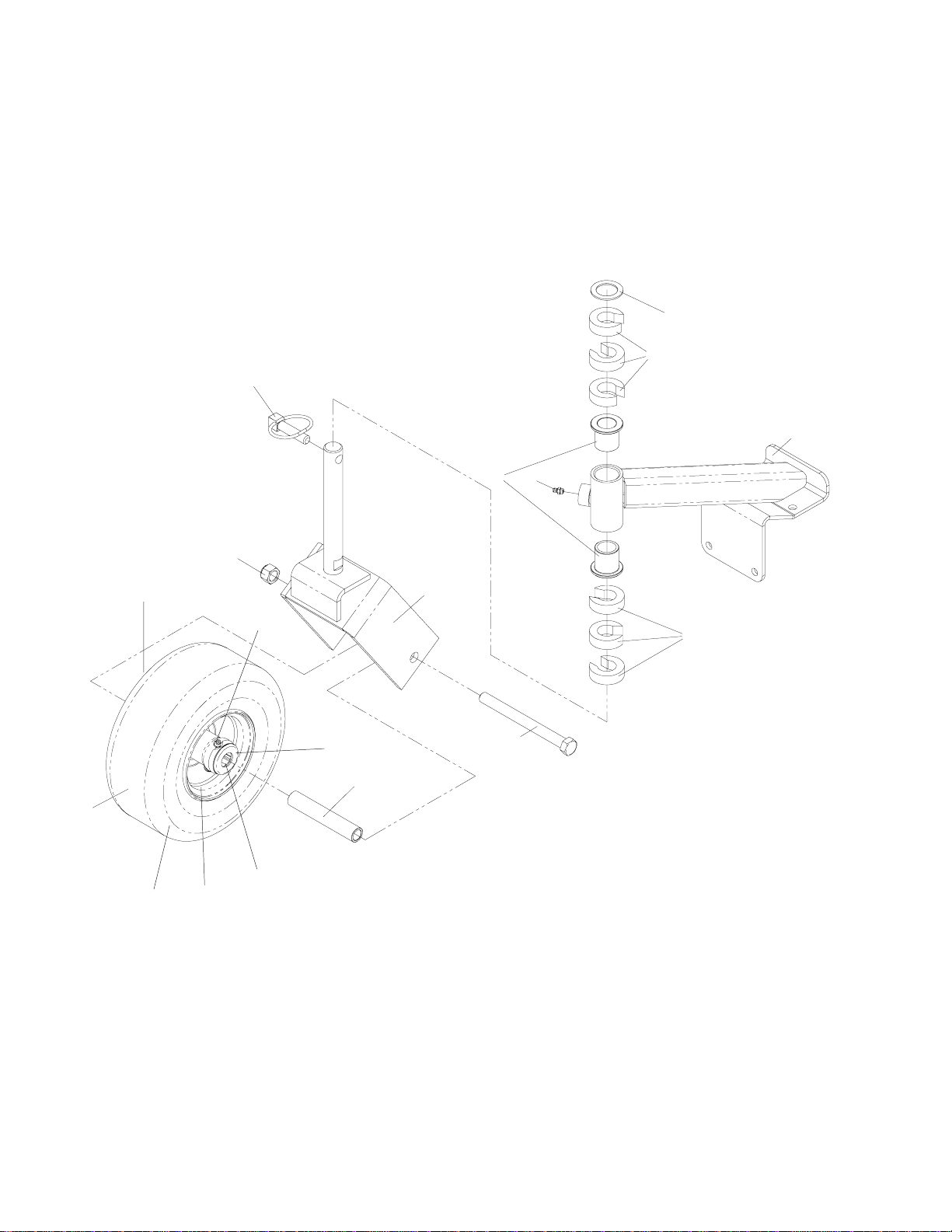

CASTER ASSEMBL Y .........................12-13

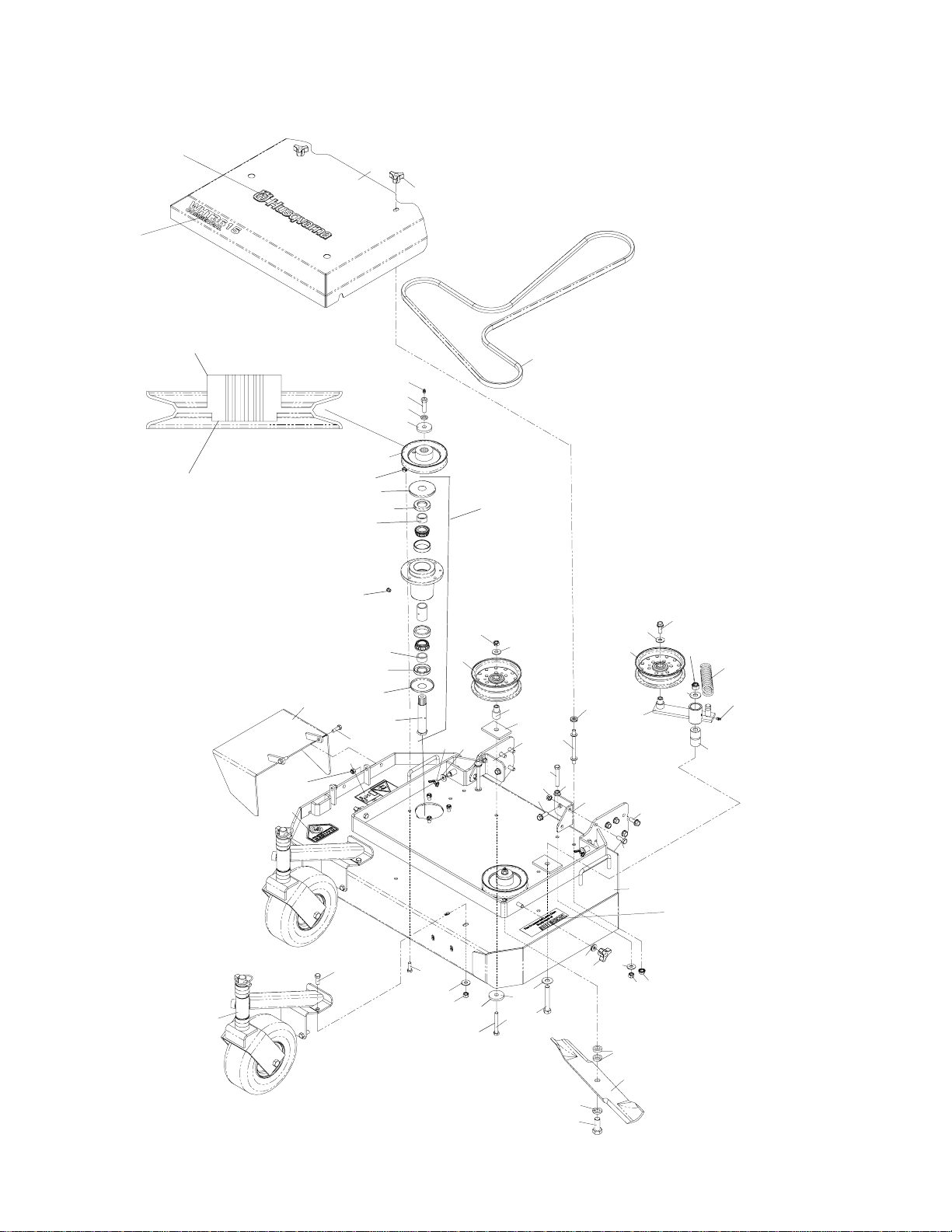

36” DECK ASSEMBLY .......................14-15
48” DECK ASSEMBLY .......................16-17
NOTE: ALL F ASTENERS ARE GRADE 5 UNLESS OTHERWISE SPECIFIED.
3
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
POWER UNIT
17
13
37
19
64
65
44
28
66
32
42
16
39
14
10
37
33
46
23
7
62
REF.
51
34
27
31
29
REF.
30
43
32
44
23
40
43
29
8
50
29
21
42
22
43
46
6
49
26
11
15
48
48
45
18
33
45
20
41
24
36
36
24
46
63
38
45
43
1
45
2
40
12
44
5
4
60
53
56
62
54
59
61
52
57
58
25
55
4
www.mymowerparts.com
9
32
47
42
3
45
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
POWER UNIT
ITEM PART NO. QTY. DESCRIPTION
1 ......539110572 ....... 1...... REAR DECK W/
........................................... DECALS
2 ......539109102 .......1...... SKID PLA TE, RIGHT
3 ......539109101 .......1...... SKID PLATE, LEFT
4 ......539109026 .......1...... NUT PLATE, LEFT
5 ......539109028 .......1...... NUT PLA TE, RIGHT
6 ......539109135.......2...... BELLCRANK,
........................................... RIGHT , ETS
7 ......539109122 .......1...... BELLCRANK,
........................................... LEFT, ETS
8 ......539109039.......2...... CONTROL
........................................... BRACKET
9 ......539109030 .......1...... REAR GUARD
10 ....539109022 .......1...... TANK SUPPORT
11 ....539101836 .......2...... SLEEVE BUSHING
12 ....539101977 .......1...... TRACTION SPRING
13 ....539105630 .......1...... FUEL TANK
14 ....539102502 .......4...... STUD, 5/16C
15 ....539102845 .......4...... SPRING , T ANK
........................................... MOUNT
16 ....539102650 .......1...... HOSE BARB, 90°
17 ....539106188 .......1...... FUEL CAP
18 ....539101881 .......1...... DECAL, PROP 65
19 ....539109099 .......1...... PLA TE, ENGINE
20 ....539104789 .......2...... DECAL, SMALL
........................................... CROWN
21 ....539105744 .......1...... DECAL, DANGER,
........................................... BELT DRIVES
22 ....539109763 .......1...... DECAL, BYP ASS/
........................................... BRAKE
23 ....539916159 .......2...... SPRING
24 ....539109023 .......1...... SPACER
25 ....539109772 .......1...... DECAL, HEIGHT
26 ....539109015 .......2...... CONTROL
........................................... LINKAGE
27 ....539977250 .......1...... SPRING
28 ....539109097 .......1...... PANEL
29 ....539976988 .......5...... HAIRPIN COTTER
30 ....539109033 .......1...... BRAKE ENGAGE-
........................................... MENT LINKAGE
31 ....539990037 .......1...... PIN COTTER,
........................................... 3/32 X 3/4
32 ....539990580 .......12.... HCS, 1/4-20 X 3/4
33 ....539976934 .......6...... HCS, 5/16-18 X 3/4
ITEM PART NO. QTY. DESCRIPTION
34 ....539990209 .......2...... HCS, 5/16-18 X 1
36 ....539101721 .......2 ...... HCS, 5/16-18 X 2 3/4
37 ....539990134 .......8...... HCS, 3/8-16 X 3/4
38 ....539990582 .......6...... HCS, 3/8-16 X 1
39 ....539990637 .......1...... HCS, 3/8-16 X 2 1/2
40 ....539990629 .......3...... HCS, 3/8-16 X 2 1/4
41 ....539102754 .......1...... HCS, 3/8-16 X 3 1/2,
........................................... GR8
42 ....539976978 .......12.... NUT, 1/4C, NYLOC
43 ....539990717 .......12.... NUT, 5/16C, NYLOC
44 ....539990546 .......7...... NUT, 3/8C,
........................................... CENTERLOCK
45 ....539976979 .......12.... NUT, 3/8C, NYLOC
46 ....539990613 .......3...... NUT, 3/8C
47 ....539990598 .......4...... W ASHER, 1/4
48 ....539990692 .......8...... W ASHER, 5/16
49 ....539990517 .......2...... W ASHER, 3/8
50 ....539990188 .......2...... WASHER, 5/16, SAE
51 ....539990187 ........2...... LOCK WASHER, 5/16
........539109104 ....... 1...... HARNESS, LOWER
........................................... (NOT SHOWN)
52 ....539110508 .......2...... DECAL, POSITION
53 ....539111449 .......1...... IDLER ARM,
........................................... WELDMENT
54 ....539101231 .......1...... IDLER SPINDLE
55 ....539919078 .......1...... IDLER PULLEY
56 ....539990550 .......1...... W ASHER, 1/2
57 ....539990692 .......1...... W ASHER, 5/16
58 ....539990546 .......1...... NUT, 3/8C,
........................................... CENTER LOCK
59 ....539101331 .......1...... NUT, 1/2C, NYLOC
60 ....539101332 .......1...... HCS, 1/2-13 X 2 3/4
61 ....539990730 .......1...... HCS, 3/8-16 X 1 3/4
62 ....539990563 .......6...... HCS, 3/8-16 X 1
63 ....539990250 .......1...... W ASHER, 1/2, SAE
64 ....539111017 .......1...... FAN GUARD
65 ....539991034 .......2...... SCREW, #10-24 X
........................................... 5/8, WASHER HEAD
66 ....539105408 .......2...... W ASHER, #10
........539109867 .......1...... CLAMP, DOUBLE
........................................... TUBE,
........................................... (NOT SHOWN)
........539976856 .......2...... WIRE TIE
........................................... (NOT SHOWN)
5
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
IZT
(Intergraded Zeroturn T ransaxle)
4
2
3
17
30
28
8
20
5
29
30
7
30
9
14
16
8
9
8
9
12
30
6
27
8
13
14
30
27
9
8
15
29
30
10
24
23
21
26
22
25
14
11
19
29
37
32
34
31
14
33
32
37
32
37
1
30
27
18
36
37
32
30
35
37
6
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
IZT
(Intergraded Zeroturn T ransaxle)
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539111018 ..1......... IZT, LEFT (AFTER SERIAL NO. 042627905)
.......... 539109000..1......... IZT, LEFT (BEFORE SERIAL NO. 042627905)
2 ........ 539111019 ..1......... IZT, RIGHT (AFTER SERIAL NO. 042627905)
.......... 539109001..1......... IZT, RIGHT (BEFORE SERIAL NO. 042627905)
3 ........ 539111445 ..1......... IZT BEL T
4 ........ 539111 108 ..1......... IZT SUPPOR T , RIGHT
5 ........ 539109006..1......... IZT SUPPORT, LEFT
6 ........ 539109008..1......... IZT SUPPORT, REAR
7 ........ 539109009..1......... IZT CONNECTOR
8 ........ 539100032..6......... BUSHING, NYLON FLANGED
9 ........ 539101949..6......... E-RING , 1/2”
10 ...... 539101173..8......... LUG NUT , 1/2”
11 ...... 539109011..2......... I ZT BYP ASS LINKAGE
12 ...... 539109012..1......... BRAKE ROD
13 ...... 539109013..1......... BRAKE LINKAGE
14 ...... 539976988..6......... HAIRPIN COTTER
15 ...... 539109014..1......... BRAKE BELLCRANK, REAR
16 ...... 539109010..1......... BRAKE BELLCRANK, FRONT
17 ...... 539109095..1......... CLUTCH TIE DOWN
18 ...... 539102845..2......... SPRING, T ANK MOUNT
19 ...... 539109032..2......... SWIVEL
20 ...... 539976434..1......... ADJ. SWIVEL, SHORT
21 ...... 539109769..2......... TIRE AND WHEEL ASSEMBL Y
22 ...... 5391 10503..1......... TIRE
23 ...... 5391 10504..1......... RIM
24 ...... 539912234..1......... VALVE STEM
25 ...... 539990187..2......... LOCKWASHER, 5/16
26 ...... 539108002..2......... HCS, 5/16-18 X 2 1/4, GR8
27 ...... 539991046..8......... HCS, 5/16-18 X 2 1/2
28 ...... 539101721..2......... HCS, 5/16-18 X 2 3/4
29 ...... 539990717..12....... NUT, 5/16C, NYLOC
30 ...... 539990188..20....... W ASHER, 5/16, SAE
31 ...... 539109975..1......... ACTUATOR ARM
32 ...... 539100032..6......... BUSHING, NYLON, FLANGED
33 ...... 539109977..1......... LEVER
34 ...... 539109978..1......... KNOB
35 ...... 539109979..1......... SHAFT
36 ...... 539109012..1......... BRAKE ROD
37 ...... 539101949..6......... E-RING , 1/2”
7
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

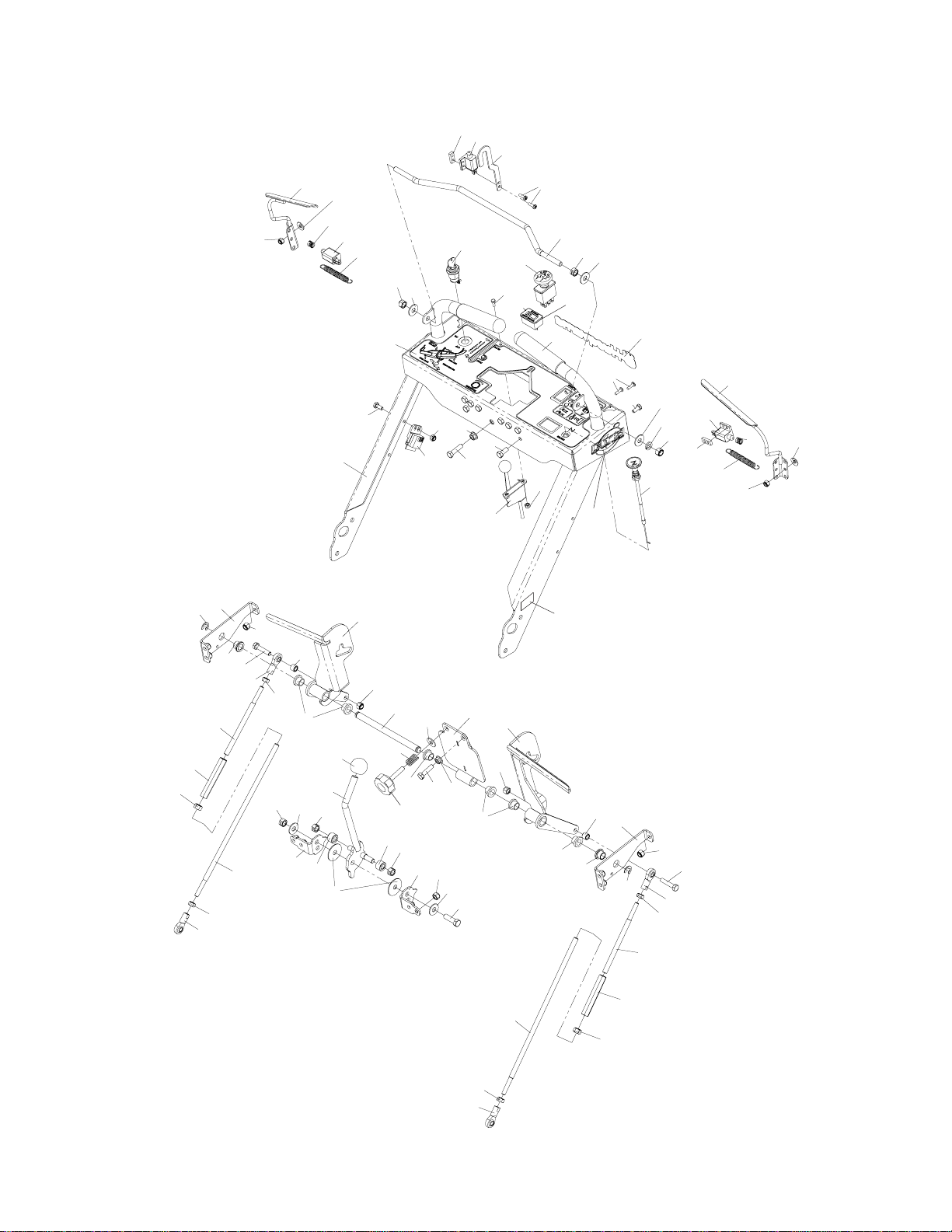

HANDLE ASSEMBL Y
29
28
9
58
33
2
16
48
39
51
52
54
32
15
17
38
40
1
28
45
27
4
52
19
55
14
41
36
42
51
53
24
47
30
6
57
59
23
37
41
30
45
12
20
41
43
55
29
28
27
18
51
38
40
22
44
31
46
50
21
5
3
56
35
39
54
34
57
10
41
11
13
57
11
26
15
25
57
47 53
10
52
41
49
39
54
15
52
34
15
16
32
2
52
48
58
39
54
33
35
56
8
7
8
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
HANDLE ASSEMBL Y
ITEM PART NO. QTY. DESCRIPTION
1 ......539110578 .....1.... HANDLE W/DECALS
2 ......539109809 ....2.... BRACE
3 ......539109811 ....1.... DRIVE LEVER, LEFT
4 ......539109813 ....4.... DRIVE LEVER, RIGHT
5 ......539109816 ....1.... PLATE, TRACKING
6 ......539109822 ....1.... BAIL
7 ......539102998 ....2.... WASHER, FRICTION
8 ......539100147 ....1.... KNOB, SHIFT
9 ......539109817 ....1.... ARM, NEUTRAL
10 ....539109614 ....2.... PLATE, FRICTION
11 ....539109612 ....2.... ROLLER
12 ....539104787 ....1.... DECAL, HUSQVARNA
13 ....539109820 ....1.... LEVER, GROUND
...................................... SPEED
14 ....539109821 ....1.... SHAFT, CROSS
15 ....539100032 ....6.... BUSHING , NYLON
...................................... FLANGED
16 ....539110552 ....2.... BUSHING , FLANGE
17 ....539109828 ....1.... OPERATOR, RIGHT
18 ....539109826 .... 1 .... OPERATOR, LEFT
19 ....539109823 .... 1.... DECAL, CONSOLE,
...................................... ETS
20 ....539109954 ....1.... CABLE, CHOKE
21 ....539102732 ....1.... CABLE, THROTTLE
22 ....539101768 ....1.... SWITCH, CLUTCH
23 ....539110862 ....1.... HOURMETER
24 ....539911853 ....1.... SWITCH, KEY
...................................... COMPLETE
25 ....539103003 ....1.... KNOB, ADJ.
26 ....539101224 ....1.... SPRING
27 ....539977250 ....2.... SPRING
28 ....539919098 ....3.... SWITCH
29 ....539102678 ....3.... PLATE, TAPPED
30 ....539976952 ....6.... SCREW, #10-24 X 5/8
...................................... MACH.
31 ....539105842 ....2.... GRIP
32 ....539102827 ....2.... SPACER, PULLEY
ITEM PART NO. QTY. DESCRIPTION
33 ....539109615 ....2.... LINKAGE, SHORT
34 ....539110598 ....2.... LINKAGE, LOWER
35 ....539109149 ....2.... TURNBUCKLE, 3/8
36 ....539101781 ....1.... MODULE
37 ....539106599 ....2.... DECAL, ETS
38 ....539110509 ....2.... SPRING , SWITCH
39 ....539102590 ....4.... BALL END, RI GHT
40 ....539990598 ....2.... WASHER, 1/4
41 ....539990517 ....5.... WASHER, 3/8
42 ....539990692 ....1.... WASHER, 5/16
43 ....539990118 ....1.... LOCKWASHER, 3/8
44 ....539990411 ....2.... HCS, #10-24 X 1/2
45 ....539990072 ....3.... HCS, 1/4-20 X 5/8, GR5
46 ....539976934 ....10.. HCS, 5/16-18 X 3/4,
...................................... GR5
47 ....539100469 ....2.... HCS, 5/16-18 X 1 1/4,
...................................... GR5
48 ....539976935 ....2.... HCS, 5/16-18 X 1 1/2,
...................................... GR5
49 ....539976941 ....1.... HCS, 3/8-16 X 1 1/4,
...................................... GR5
50 ....539976977 ....2.... NUT , #10-24, NYLOC
51 ....539976978 ....3.... NUT , 1/4C, NYLOC
52 ....539990717 ....12.. NUT , 5/16C, NYLOC
53 ....539990585 ....2.... NUT , 5/16C
54 ....539990223 ....4.... NUT , 5/16F
55 ....539976979 ....2.... NUT , 3/8C, NYLOC
56 ....539990155 ....2.... NUT , 3/8F
57 ....539990546 ....4.... NUT , 3/8C, CENTER
...................................... LOCK
58 ....539101949 ....2.... E-RING , 1/2”
........539109035....1.... WIRING HARNESS,
...................................... ETS (NOT SHOWN)
........539976856 ....3.... WIRE TIE (NOT
...................................... SHOWN)
59 ....539110864 ....1.... DECAL, DUAL HEIGHT
9
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
15 HP and 17 HP ENGINE
KAWASAKI
12
13
14
12
15
8
7
11
17
12
7
3
4
5
16
1
2
10
9
6
10
www.mymowerparts.com
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
15 HP and 17 HP ENGINE
KAWASAKI
ITEM PART NO. QTY. DESCRIPTION
1 ..... 539109639........1 ...... PULLEY
2 ..... 539101995........1 ...... KEY, 1/4” SQ. X 1 1/8”
3 ..... 539108266........1 ...... WASHER, 3/8 INTERNAL TOOTH
4 ..... 539976935........3 ...... HCS, 5/16-18 X 1 1/2, GR5
5 ..... 539990669........1 ...... HCS, 5/16-18 X 1 3/4, GR5
6 ..... 539923388........1 ...... HCS, 7/16-20 X 3, GR5
7 ..... 539990184........4 ...... NUT, 5/16C, CENTER LOCK
8 ..... 539990717........1 ...... NUT , 5/16C, NYLOC
9 ..... 539990247........1 ...... LOCKWASHER, 7/16
10 ... 539109245........1...... CLUTCH, 125 FT/LB
11 ... 539107937........1 ...... HOSE, OIL DRAIN
12 ... 539912222........4...... CLAMP, HOSE
13 ... 539104993........1...... FUEL LINE, 14”
14 ... 539916325........1...... FUEL V AL VE
15 ... 539932956........1...... FUEL LINE, 10”
16 ... 539109759........1...... SPACER
17 ... 539976966........1...... CLAMP, HOSE, 5/16-7/8
....... 539105637........1...... CLUTCH HARNESS (NOT SHOWN)
11
www.mymowerparts.com
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
CASTER ASSEMBLY
14
12
13
1
10
15
16
8
6
7
11
3
5
4
9
2
12
17
12
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
CASTER ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539110582..1......... CASTER ARM W/BUSHINGS
2 ........ 539109063..1......... CASTER FORK
3 ........ 539104556..1......... WHEEL ASSEMBLY
4 ........ 539101905..1......... TIRE
5 ........ 539104618..1......... RIM
6 ........ 539910003..1......... ZERK
7 ........ 539923557..1......... ENDCAP
8 ........ 539977356..1......... NOTCHED ENDCAP
9 ........ 539977353..2......... ROLLER BEARING
.......... 539912234..1......... AIR V ALVE (NOT SHOWN)
10 ...... 539101232..2......... BUSHING, FLANGED
11 ...... 539101872..1......... SPACER
12 ...... 539101873..6......... “C” SPACER
13 ...... 539101874..1......... LYNCH PIN, 7/16
14 ...... 539916561..1......... MACHINER Y BUSHING , 1” X 14 GA
15 ...... 539976998..1......... ZERK
16 ...... 539101331..1......... NUT, 1/2C, NYLOC
17 ...... 539101907..1......... HCS, 1/2-13 X 5 1/2, GR5
13
www.mymowerparts.com
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
36” DECK ASSEMBLY
28
30
LARGER OFFSET
HUB MUST BE TO
THE TOP
THIS SURFACE SITS
ON TOP OF SPINDLE
26
45
10
27
8
38
44
4
12
7
32
6
15
23
20
31
37
11
46
16
51
48
2
40
52
17
52
35
24
40
48
13
41
47
14
25
22
19
40
53
50
21
20
18
3
4
3
5
REF .
39
1
14
36
33
15
52
34
47
49
9
39
38
52
49
11
42
53
43
14
www.mymowerparts.com
29
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
36” DECK ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 ......539110573 ....... 1 ...... 36” DECK W/
........................................... DECALS
2 ......539108763........2...... SPINDLE ASSEMBLY,
........................................... COMPLETE
3 ......539108754 .......2 ...... SHAFT SEAL
4 ......539108758 .......2 ...... TOP & BOTTOM
........................................... SPACERS
5 ......539108760 .......1 ...... SPINDLE
6 ......539108449 .......1 ...... DUST CUP,
........................................... BOTTOM
7 ......539108450 .......1 ...... DUST CUP, TOP
8 ......539977326 .......1 ...... GREASE POPET
9 ......539100341 .......2 ...... BLADE, 18”
10 ....539104546 .......1...... DEFLECTOR
........................................... CHUTE
11 ....539106504 .......3 ...... HEAVY W ASHER
12 ....539109048 .......1...... SHIELD, BEL T, 36”
13 ....539109049 .......2...... SPACER, SHIELD
14 ....539102056 .......4...... W ASHER, 3/8,
........................................... SEALING
15 ....539102070 .......4...... KNOB, 3-PRONG
16 ....539103258 .......1...... IDLER PULLEY
........................................... (TALL)
17 ....539103295 .......1...... BUSHING , IDLER
18 ....539103427 .......1...... BUSHING , PIVOT
19 ....539103230 .......1...... IDLER ARM
20 ....539976998 .......3...... ZERK
21 ....539103256 .......1...... SPRING
22 ....539103257 .......1...... IDLER PULLEY
23 ....539109084 ....... 1...... BELT, DECK
24 ....539109053 .......1 ...... DECK SLIDE, RIGHT
25 ....539109051 .......1...... DECK SLIDE, LEFT
26 ....539913010 ....... 1...... DECAL, CPSC
27 ....539105746 .......1...... DECAL, EURO
........................................... SEVERING
28..... 539200732 .......1...... DECAL, HUSQV ARNA
29 ....539105071 .......1...... DECAL, NASCAR
ITEM PART NO. QTY. DESCRIPTION
30 .....539110510 ......1...... DECAL, WHT3615
31 .....539108766 ......2...... HCS, 7/16-20 X
........................................... 1 1/2, GR5
32 .....539107277 ......2...... PULLEY
33 .....539109578 ......2...... HCS, 5/8-18 X
........................................... 1 1/2, GR5
34 .....539976436 ...... 4 ...... SPACER, BLADE
35 .....539102236 ......1...... PAD
36 .....539990333 ...... 2...... LOCKWASHER, 5/8
37 .....539990247.......2...... LOCKWASHER, 7/16
38 .....539990209......10 .... HCS, 5/16-18 X 1,
........................................... GR5
39 .....539990563 ......12.... HCS, 3/8-16 X 1,
........................................... GR5
40 .....539990582 ......1 1.... HCS, 3/8-16 X 1,
........................................... GR5
41 .....539990637 ......1...... HCS, 3/8-16 X 2 1/2,
........................................... GR5
42 .....539102612 ......1...... HCS, 3/8-16 X 2 3/4,
........................................... GR5
43 .....539103433 ......1...... HCS, 1/2-13 X 3 1/4,
........................................... GR5
44 .....539990184 ......8...... NUT, 5/16C,
........................................... CENTER LOCK
45 .....539990717 ......2...... NUT, 5/16C, NYLOC
46 .....539100276 ......2...... NUT, 5/16C,
........................................... WINGNUT
47 .....539990613 ......3...... NUT, 3/8C
48 .....539990546 ......5...... NUT, 3/8C,
........................................... CENTER LOCK
49 .....539976979 ......9...... NUT, 3/8C, NYLOC
50 .....539101331 ......1...... NUT, 1/2C, NYLOC
51 .....539990692 ......2...... WASHER, 5/16
52 .....539990517 ......1 1.... W ASHER, 3/8
53 .....539990550 ......2...... WASHER, 1/2
15
www.mymowerparts.com
Page 16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
48” DECK ASSEMBLY
2
25
LARGER OFFSET
HUB MUST BE TO
THE TOP
THIS SURFACE SITS
ON TOP OF SPINDLE
26
37
17
24
5
51
7
42
14
10
11
15
11
3
35
27
28
10
13
12
41
6
32
9
46
53
48
18
49
23
16
4
18
46
33
49
53
23
36
22
46
34
20
49
36
47
50
19
38
21
24
REF .
45
43
35
49
44
6
39
39
50
40
44
6
16
www.mymowerparts.com
49
45
30
31
37
36
52
1
29
16
17
8
Page 17
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
48” DECK ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 ......539110575 ....... 1 ...... 48” DECK W/
........................................... DECALS
2 ......539109081 .......1 ...... SHIELD, BEL T, 48”
3 ......539104546 .......1 ...... DEFLECTOR
........................................... CHUTE
4 ......539109049 .......2 ...... SPACER, SHIELD
5 ......539108766 .......3 ...... HCS, 7/16-20 X
........................................... 1 1/2, GR5
6 ......539106504 .......5 ...... HEA VY WASHER
7 ......539107277 .......3 ...... PULLEY
8 ......539100340 .......2 ...... BLADE, 16 1/4”
9 ......539108763........2...... SPINDLE ASSEMBL Y,
........................................... COMPLETE
10 ....539108754 .......2...... SHAFT SEAL
11 ....539108758 .......2 ...... TOP & BOTTOM
........................................... SPACERS
12 ....539108760 .......1...... SPINDLE
13 ....539108449 .......1...... DUST CUP,
........................................... BOTTOM
14 ....539108450 .......1...... DUST CUP, TOP
15 ....539977326 ....... 1 ...... GREASE POPET
16 ....539102056 .......4...... W ASHER, 3/8,
........................................... SEALING
17 ....539102070 .......4...... KNOB, 3-PRONG
18 ....539103295 .......1...... BUSHING , IDLER
19 ....539103427 .......1...... BUSHING , PIVOT
20 ....539103230 .......1...... IDLER ARM
21 ....539103256 .......1...... SPRING
22 ....539103257 .......1...... IDLER PULLEY
23 ....539103258 .......2...... IDLER PULLEY
........................................... (TALL)
24 ....539976998 .......3...... ZERK
25 ....539110511 .......1...... DECAL, WHT4817
26..... 539200732........1...... DECAL, HUSQV ARNA
27 ....539105746 .......1...... DECAL, EURO
........................................... SEVERING
28 ....539913010 ....... 1...... DECAL, CPSC
29 ....539105071 .......1...... DECAL, NASCAR
ITEM PART NO. QTY. DESCRIPTION
30 ....539976436 .......4...... SPACER, BLADE
31 ....539109578 .......3...... HCS, 5/8-18 X
........................................... 1 1/2, GR5
32 ....539109244 ....... 1...... BELT, DECK
33 ....539109053 .......1 ...... DECK SLIDE, RIGHT
34 ....539109051 .......1...... DECK SLIDE, LEFT
35 ....539990209 ......14.... HCS, 5/16-18 X 1,
........................................... GR5
36 ....539990582 .......11.... HCS, 3/8-16 X 1,
........................................... GR5
37 ....539990563 .......12.... HCS, 3/8-16 X 1,
........................................... GR5
38 ....539990637 .......1...... HCS, 3/8-16 X 2 1/2,
........................................... GR5
39 ....539102612 .......2...... HCS, 3/8-16 X 2 3/4,
........................................... GR5
40 ....539103433 .......1...... HCS, 1/2-13 X 3 1/4,
........................................... GR5
41 ....539990717 .......2...... NUT, 5/16C, NYLOC
42 ....539990184 .......12.... NUT, 5/16C,
........................................... CENTER LOCK
43 ....539100276 .......2...... NUT, 5/16C,
........................................... WINGNUT
44 ....539976979 .......9...... NUT, 3/8C, NYLOC
45 ....539990613 .......3...... NUT , 3/8C
46 ....539990546 .......5...... NUT , 3/8C,
........................................... CENTER LOCK
47 ....539101331 .......1...... NUT, 1/2C, NYLOC
48 ....539990692 .......2...... W ASHER, 5/16
49 ....539990517 .......12.... W ASHER, 3/8
50 ....539990550 .......2...... W ASHER, 1/2
51 ....539990247 .......3 ...... LOCKWASHER, 7/16
52 ....539990333 .......3...... LOCKWASHER, 5/8
53 ....539102236 .......2...... PAD
17
www.mymowerparts.com
Page 18
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
Loading...
