Page 1
S E R V I C E
Spare parts
I0401901
IPL, 136LE, 2004-03
11
136 LE
www.mymowerparts.com
Page 2
RECOMMENDED PARTS, ACCESSORIES, LUBRICANTS
136 CHAINSAW
Item Part Number Description
Air Filter 530 02 98-11
Spark Plug 503 23 51-11
Fuel Filter 530 09 56-46
Clutch Drum 530 04 70-61
Ignition Module 530 03 91-43
Starter Assy. 530 15 01-73
Switch On/Off 503 71 79-01
Front Handle 530 04 98-76
Chain Brake 530 05 48-02
Oil Pump Assy. 530 01 44-10
Normal Maintenance Parts
Fuel Cap 530 07 12-66
Oil Cap 501 76 56-02
Bar Nut 530 01 59-17
Item
Part Number Description
Bar 501 95 92-56 16" Consumer Bar (3/8").(.050")
Chain 501 84 69-56 H36-56, 16" Chain (3/8"),(.050")
Carrying Case 100 00 01-07 Orange Carrying Case with 20" Bar Protector
Chainsaw
Accessories
File Kit 505 69 81-93
Item Part Number Description
Bar and Chain
610 00 00-14 Bar and Chain Lubricant - 1 Quart
610 00 00-34 Bar and Chain Lubricant - 1 Gallon
File Kit includes: File handle, Combination file guide, 2 round files, and 1 flat file. Use with H36 chain.
s
Lubricant
XP Premium
Item Part Number Description
Protective Glasses
Helmets 505 67 53-15 Helmet System (Husqvarna)
Protective Gloves
Apparel
Protective
Chaps
610 00 00-85 XP Premium - 2.6 oz (1 Gallon Mix)
610 00 00-82 XP Premium - 6.4 oz (2.5 Gallon Mix)
605 00 04-15 Lexa- Clear lens
605 00 04-16 Lexa- Grey lens
531 30 02-73 Xtreme Duty Work Gloves (Medium)
531 30 02-74 Xtreme Duty Work Gloves (Large)
531 30 02-75 Xtreme Duty Work Gloves (X-Large)
605 00 00-13 Pro Forest Apron Chaps (Navy Blue)
605 00 00-14 Pro Forest Apron Chaps (Orange)
www.mymowerparts.com
Page 3
PARTS LIST NO.
DATE
3/17/04
530086722
Replaces
530086722-- 07/25/02
WEED EATER PARTS LIST
PARAMOUNT PARTS LIST
POULAN PARTS LIST
HUSQVARNA PARTS LIST
Note: Illustration may differ from actual model due to design changes
R
R
R
R
MODEL(s)
136 LE
PAGE N O.
1
19
2
1
3
45
6
7
8
9
24
25
10
11
15
12
13
14

Chain Brake

26
Assembly
16
28
17
27
18
20
21
29
Part No. Ref. Part No. DescriptionRef.
1 530071348 Kit- - Lever & Link Assy. 2 530029879 Pin--Pivot 3 530015915 Pin--Link (front) 4 530015911 Screw 5 530054741 Assy--Front Link 6 530016237 Spring- -Chain Brake (compression) 7 530024419 Retainer 8 530016384 Screw 9 530056531 Journal- -Right
n
10 530029881 Journal- -Left 11 530015910 Spring--Handguard 12 530015913 Pin--Spring 13 530052232 Band--Brake w/slots 14 530054802 Assy--Chain Brake 15 530029878 Spring- -Position 16 530049483 Cover- -Clutch 17 530015826 Pin--Bar Adjusting 18 530038593 Retainer 19 530016110 Screw--Bar Adjusting 20 530053035 Cover- -Chain Brake Spring 21 530015911 Screw 22 530016154 Screw 23 530047609 Assy--Cylinder Shield 24 952030150 Spark Plug (RCJ- -7Y) 25 530069940 Kit--Cylinder (incl.#30)
Description
22
23
30
31
26 530037652 Insulator- -Heat 27 530069944 Piston Kit (Includes pin and 28--29) 28 530029805 Ring- -Piston (36cc) 29 530015697 Piston Pin Retainer 30 530049794 Cap- -Crankcase 31 530015897 Screw
Not Shown
530163875 Manual -- O per at or ’s -- U . S .
n
530031135 Scrench 530047839 Decal- -Warning
REFER TO THE SERV ICE REFERENCE IN DICATED FOR MORE IN FORMATION . (LOCATED AT END OF IPL )
K
= NEW PART NUMBER FOR THIS IPLn =
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
D
=
www.mymowerparts.com

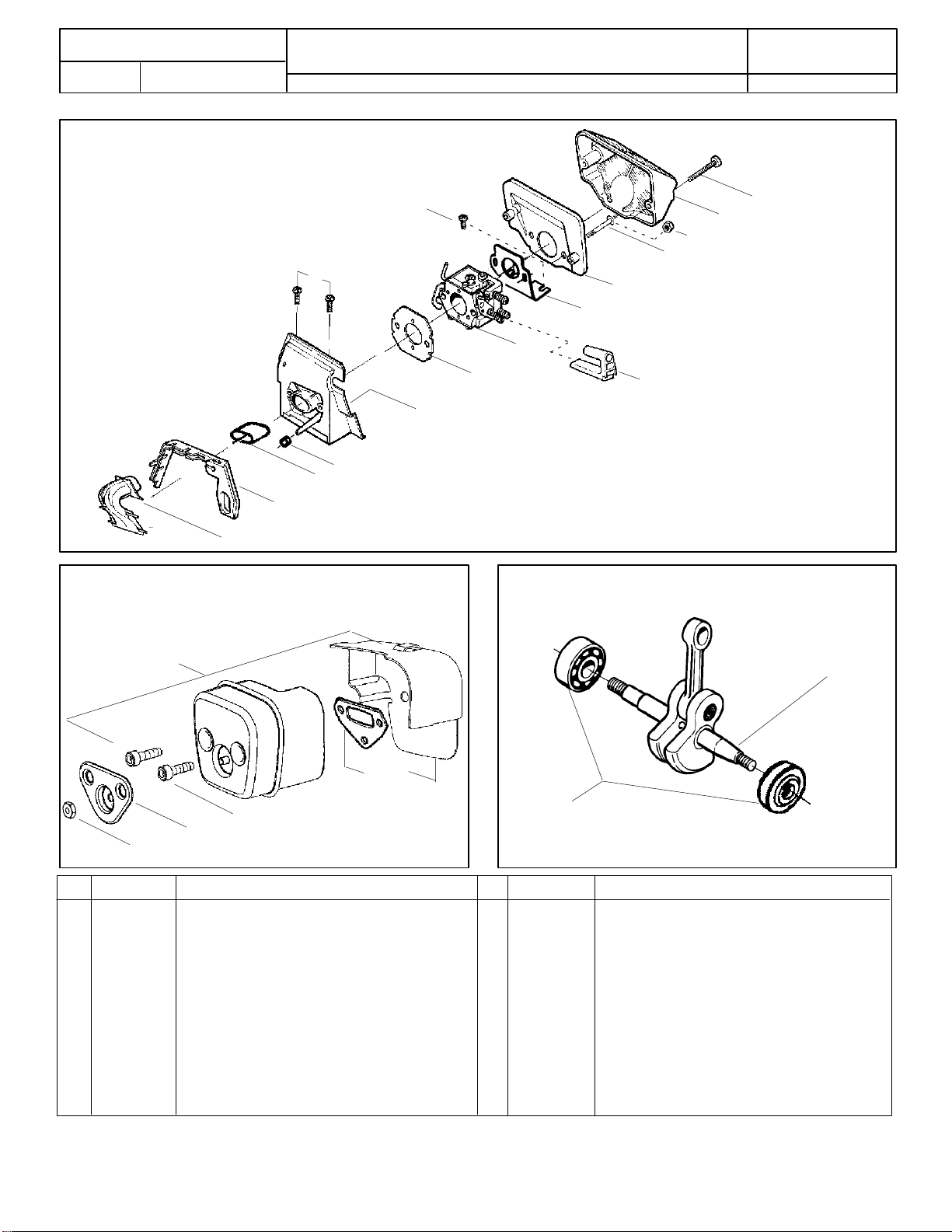

Page 4
PARTS LIST NO.
DATE
3/17/04
530086722
Replaces
530086722--07/25/02
WEED EATER PARTS LIST
PARAMOUNT PARTS LIST
POULAN PARTS LIST
HUSQVARNA PARTS LIST
Note: Illustration may differ from actual model due to design changes
R
R
R
R
MODEL(s)
136 LE
PAGE N O.
2
11
16
15
14
13
5
12
10
8
7
9
6
4
3
2
1
17
20
19
18
Part No. Ref. Part No. DescriptionRef.
1 530029813 Assy--Turbo Air Cleaner 2 530019203 Seal - - Turbo Clean 3 530029814 Sleeve- -Intake 4 530053435 Seal--Impulse 5 530015814 Screw 6 530037465 Adapter - - Carb. 7 530019172 Gasket--Carburetor 8 --- --- Carburetor
530071510 WT--540
n
530071692 WT--660
n
9 530035587 Grommet- -Final 10 530047767 Plate - - Support 11 530015896 Screw 12 530036582 Air Filter -- Bottom
Description
21
24
22
23
13 530015968 Stud - - Carb. 14 530016008 Nut 15 530029811 Air- -Filter -- T op 16 530015899 Screw 17 530071511 Kit--Muffler (Includes 20,21 & 22) 18 530016359 Nut- -Brass 19 530055600 Cover- -Bolt 20 530016338 Bolt--Muffler 21 530055128 Gasket--Muffler 22 530055171 Backplate--Muffler 23 530056363 Assy. - -Bearing and Seal 24 530029794 Assy- -Crankshaft & Rod
= NEW PART NUMBER FOR THIS IPLn =
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
D
www.mymowerparts.com

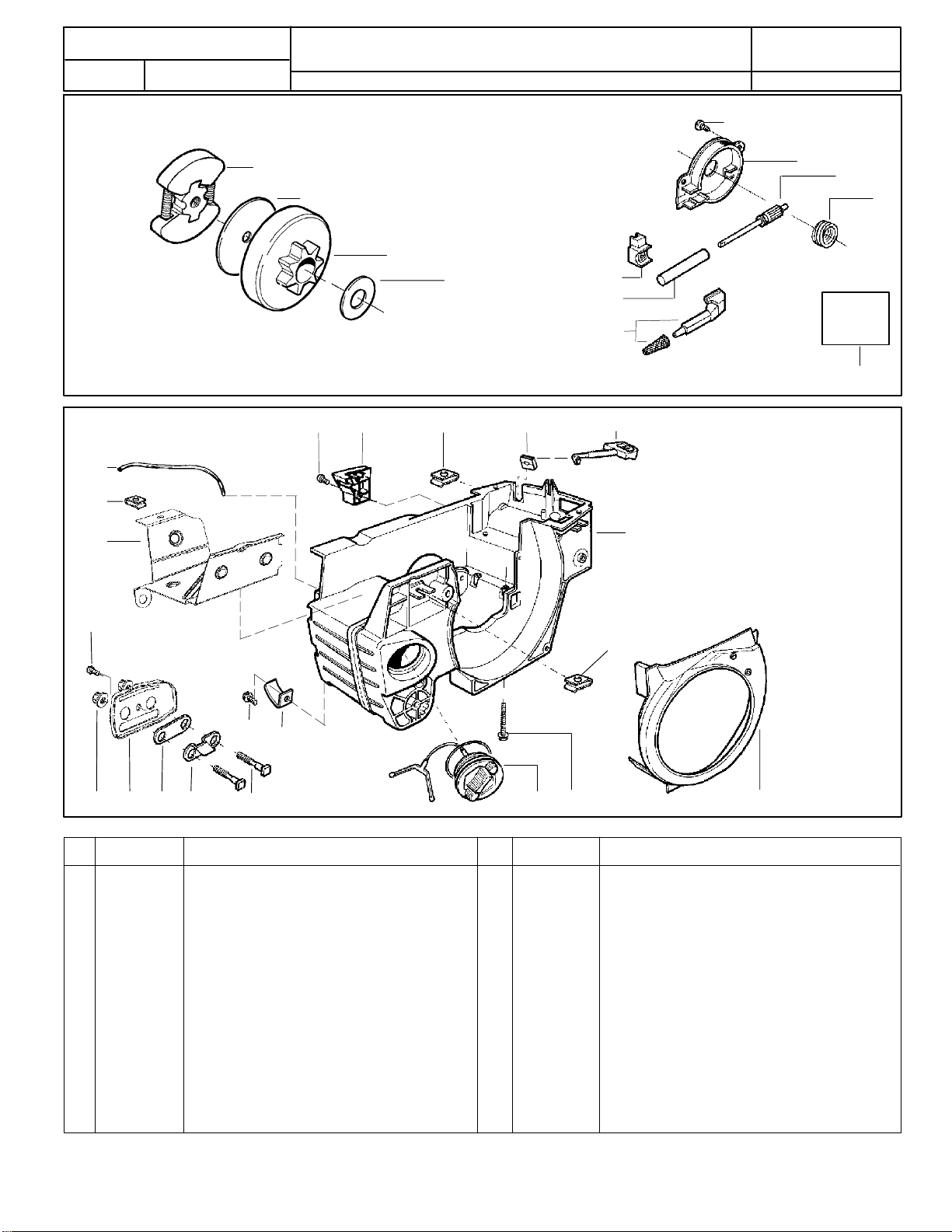

Page 5
PARTS LIST NO.
DATE
3/17/04
530086722
Replaces
530086722--7/25/02
WEED EATER PARTS LIST
PARAMOUNT PARTS LIST
POULAN PARTS LIST
HUSQVARNA PARTS LIST
Note: Illustration may differ from actual model due to design changes
R
R
R
R
8
MODEL(s)
136 LE
PAGE N O.
3
13
14
15
1
2
9
10
11
3
4
5
6

Oil Pump

7
A’ssy.
12
24
25
27
2826
29
16
22
23
17
18
Part No. Ref. Part No. DescriptionRef.
1 530014949 Assy--Clutch 2 530015611 Washer--Clutch 3 530047061 Assy--Clutch Drum w/Bearing 4 530015907 Washer--Thrust 5 530019174 Seal--Oil 6 530029834 Barrel- -Oil Pump 7 530014776 Assy--Oil Pick- -Up and Screen 8 530015896 Screw
9 530029835 Housing- -Oil Pump 10 530029838 Assy--Plunger & Gear 11 530029833 Worm-- Oil Pump 12 530014410 Assy--Oil Pump (Includes 6,9 & 10) 13 530052440 Tube--Oil Vent 14 530055322 Retainer (U- -Clip) 15 530055174 Shield--Heat 16 530015896 Screw (optional)
20
Description
21
30
3319
32
17 530015917 Nut 18 530047855 Plate--Bar 19 530019228 Gasket--oil tank 20 530036043 Plate--Bar Stud (support) 21 530015877 Bar Bolt 22 530015878 Screw 23 530029850 Chain Catcher 24 530015893 Screw 25 530052428 Cover- -Limiter 26 530015922 Nut- -Type ”U” Speed 27 530029830 Grommet- -Choke 28 530029831 Lever- -Choke 29 530069942 Kit - - Chassis Ass’y. 30 530015922 Nut- -Type ”U” Speed 31 530029800 Plate--Baffle 32 530016037 Screw 33 501765602 Assy.- - Oil Tank Cap
31
REFER TO THE SERV ICE REFERENCE IN DICATED FOR MORE INFORMATIO N. (LOCATED AT END OF IPL )
=
= NEW PART NUMBER FOR THIS IPLn
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
=
D
K
www.mymowerparts.com

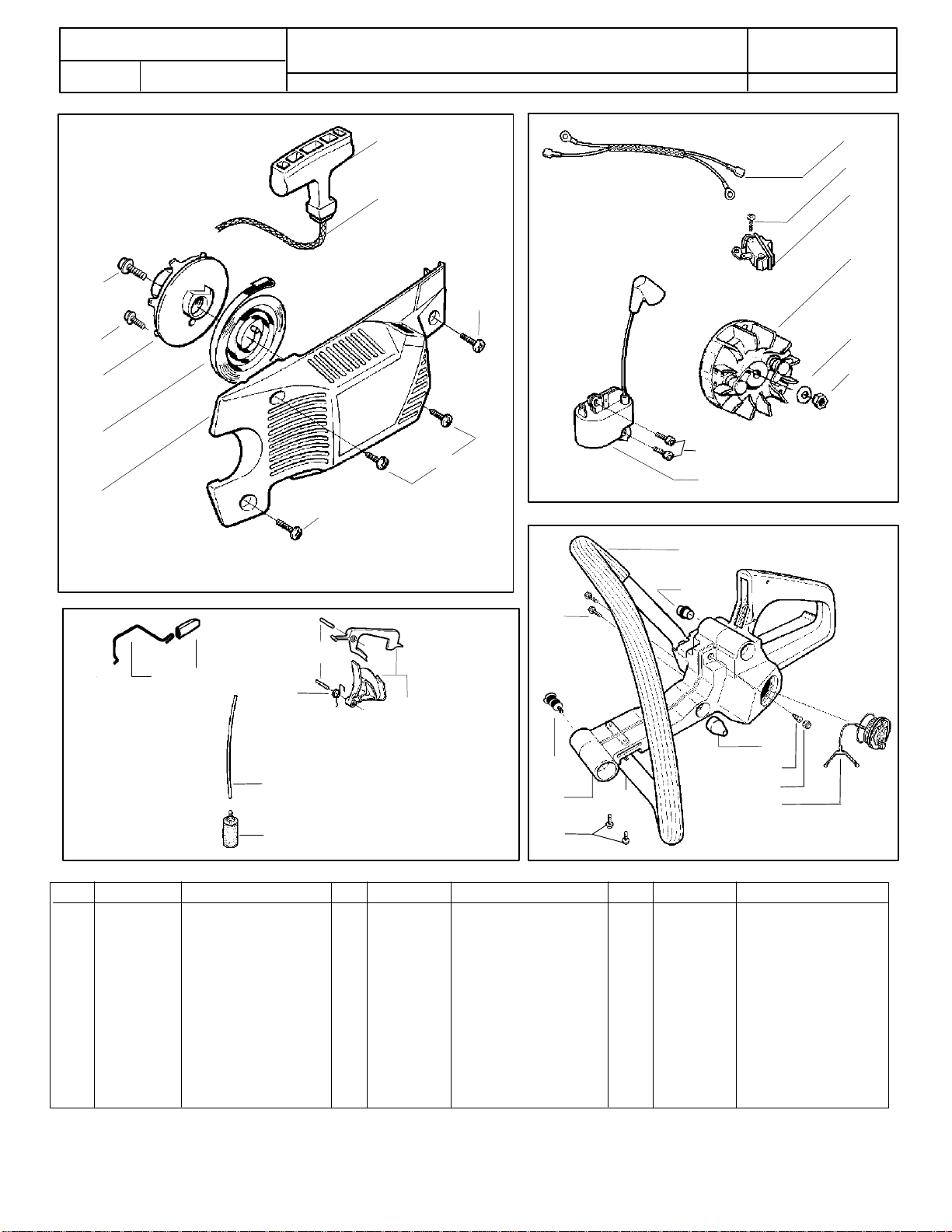

Page 6
*Compl. 530 15 01-73
PARTS LIST NO.
DATE
3/17/04
530086722
Replaces
530086722--7/25/02
WEED EATER PARTS LIST
PARAMOUNT PARTS LIST
POULAN PARTS LIST
HUSQVARNA PARTS LIST
Note: Illustration may differ from actual model due to design changes
R
R
R
R
MODEL(s)
136 LE
PAGE N O.
4
*4
*6
*7
*5
*3
*9
*1
*2
*8
10
11
12
13
*9
14
15
16
17
29
18
19
21
23
Ref.
Part No.
1 530038491 Handle--Starter 2 530069232 Kit- -Rope 3 530015920 Screw 4 530016080 Screw 5 530069313 Kit--Starter Pulley 6 530015891 Spring- -Recoil 7 530047599 Assy--Fan Housing 8 530015892 Screw
9 530015893 Screw 10 530403257 Assy--Leadwire Harness 11 530015896 Screw
12 503717901 Switch--Ignition
Description
20
22
Ref. Part No. Description
13 530039147 Assy. - -Flywheel 14 530015127 Washer- -Flywheel 15 530016071 Nut 16 530015895 Screw 17 530039143 Module -- Ignition 18 530029869 Wire - - Throttle 19 530029863 Cap - - Wire 20 530029860 Pin 21 530029861 Spring 22 530069587 Kit - - Throttle Trigger 23 530069247 Kit - - Fuel line 24 530014497 Assy.- - Fuel Pickup
25
26
27
2824
30
31
32
33 34
Ref. Part No. Description
25 530015940 Screw 26 530029870 Isolator (AV element) 27 530055613 Assy. --Tank/Handle 28 530015843 Screw
n
29 530049876 Handle--Front 30 530052439 Isolator--Front Handle 31 530029984 Isolator 32 530026119 Valve - - Check 33 530038264 Plug -- Vent 34 530071266 Kit--Fuel Cap Assy.
n
= NEW PART NUMBER FOR THIS IPLn
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
=
D
REFER TO THE SERV ICE REFERENCE IN DICATED FOR MORE IN FORMATION . (LOCATED AT END OF IPL )
=
K
www.mymowerparts.com

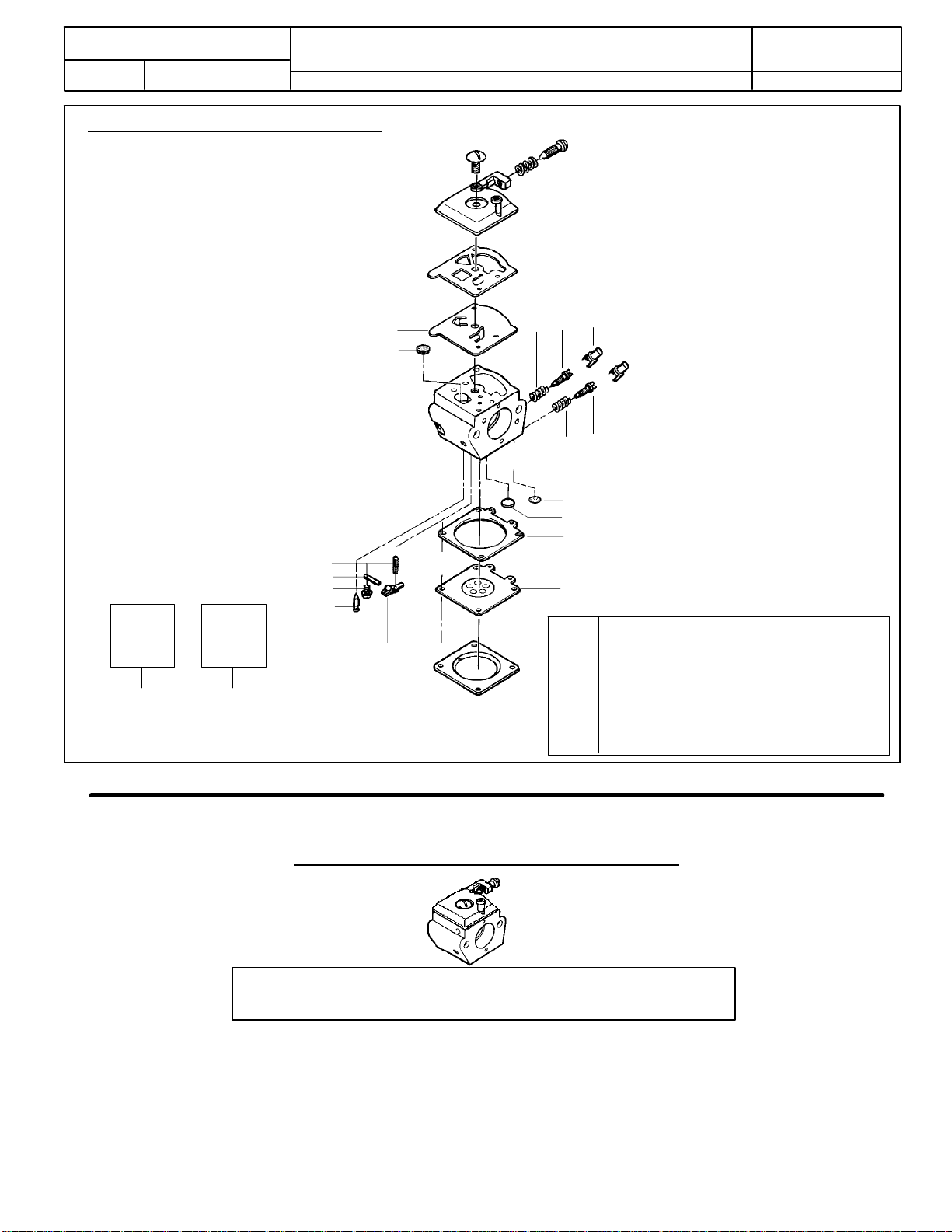

Page 7
PARTS LIST NO.
DATE
3/17/04
Carburetor Assembly # 530071510 (WT--540)
530086722
Replaces
530086722--7/25/02
Note: Illustration may differ from actual model due to design changes
WEED EATER PARTS LIST
PARAMOUNT PARTS LIST
POULAN PARTS LIST
HUSQVARNA PARTS LIST
R
R
R
R
S
1
KIT
S
KIT
KIT
KIT
KIT
2
MODEL(s)
136 LE
PAGE N O.
5
Carb. Repair Kit
3
Gasket/ Dia. Kit
4
KIT
KIT
S
KIT KIT KIT
KIT
KIT
Kit -- Carburetor Assembly No. 530071692 -- WT --660
S
Ref. Part No. Description
1. 530038479 Limiter Cap---High
2. 530038478 Limiter Cap---Low
3. 530069825 Carburetor Repair Kit
4. 530069844 Gasket Diaphragm Kit
(KIT= Indicates Contents)
( D Indicates Contents)
Note: No Repair kits are available for this carburetor, please order the complete assembly part number 530--071692 -- WT--660
= REFER TO TH E SERVIC E REFERENCE INDIC ATED FOR MORE INFOR MATION. (LOCATED AT END OF I PL)
= NEW PART NUMBER FOR THIS IPLn
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
=
D
K
www.mymowerparts.com
