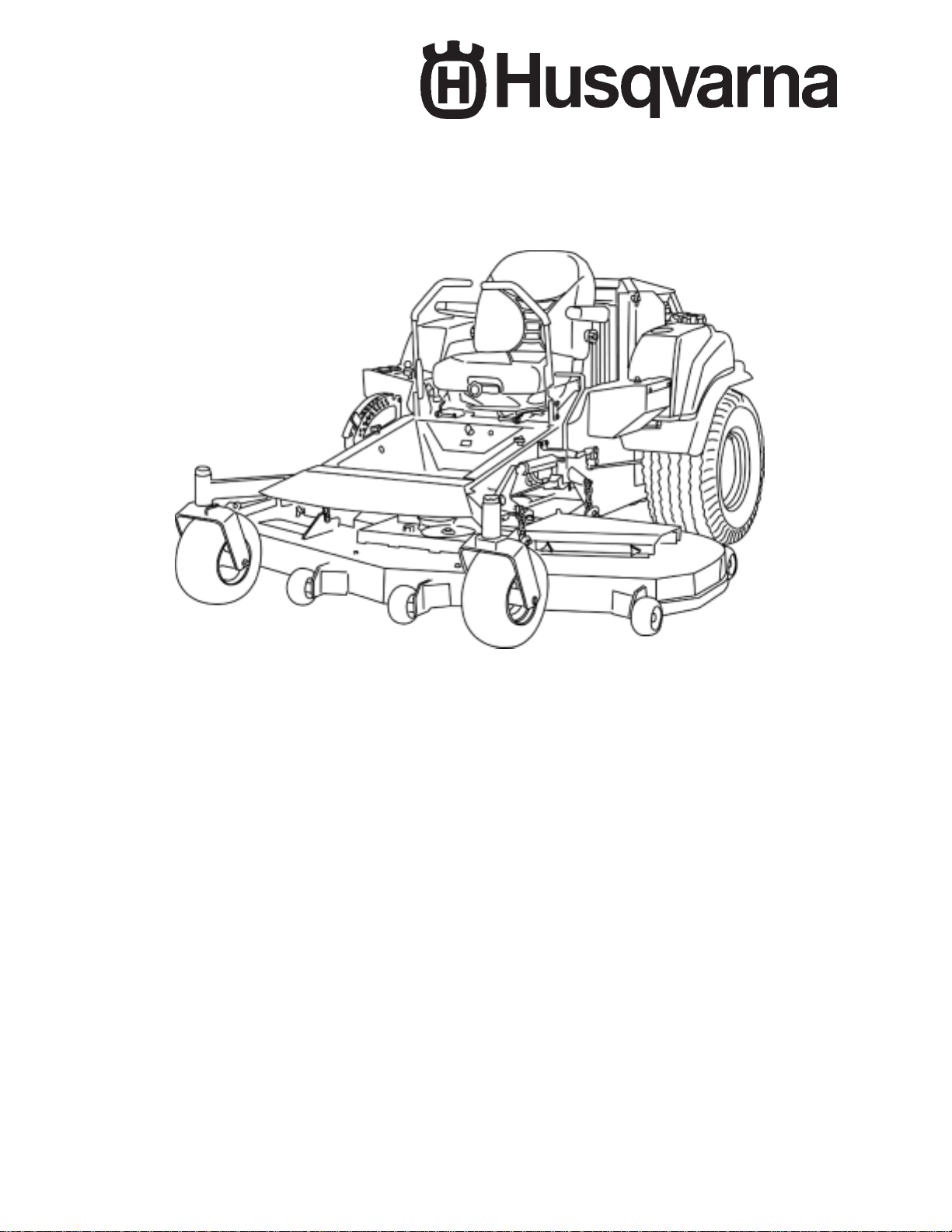

Parts Manual
MANUAL NO. 539109207 REV. 02 (1/14/04)
www.mymowerparts.com
Models:
968999214 / BZ6134D
968999216 / BZ7234D
968999218 / BZ6127D
For Serial No. 033600000 & Higher
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
©2004 Husqvarna. All Rights Reserved.
Beatrice, NE. Printed in U.S.A.
2
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
TABLE OF CONTENTS
PAGE
MAIN FRAME ASSEMBLY....................................................................... 4
ENGINE ASSEMBLY, 27 H.P. .................................................................. 6
ENGINE ASSEMBLY, 34 H.P. .................................................................. 8

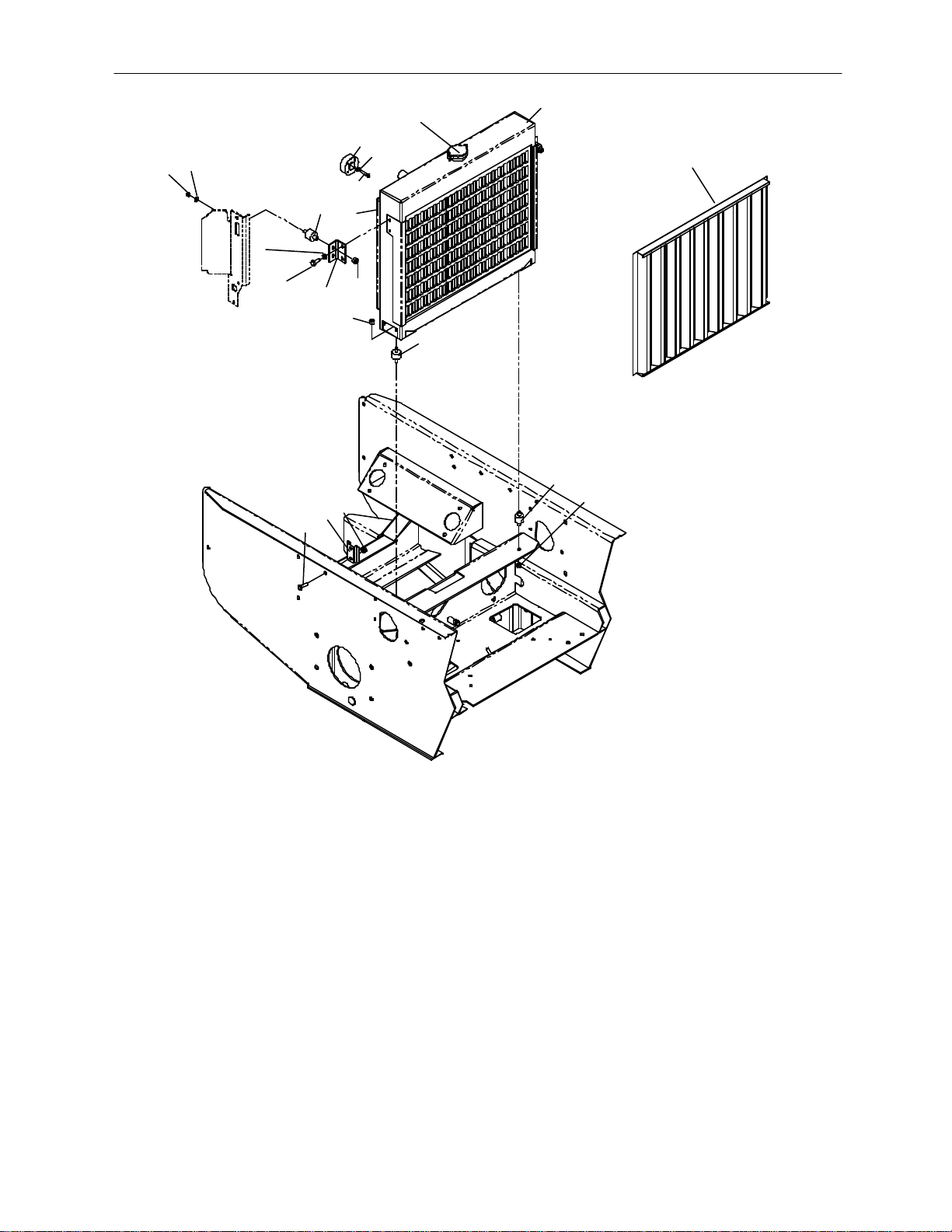

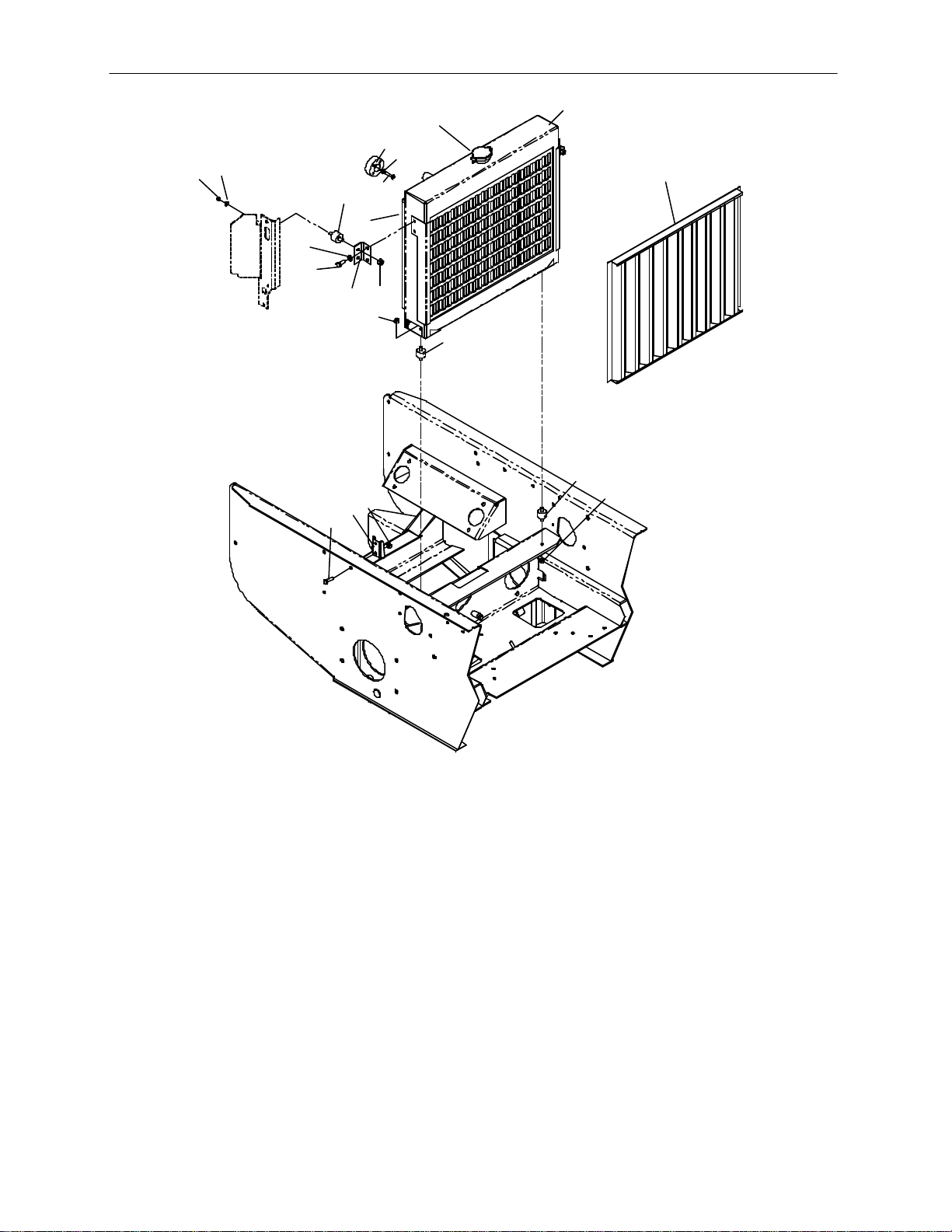

RADIATOR, 27 H.P. ................................................................................ 10
RADIATOR, 34 H.P. ................................................................................ 11

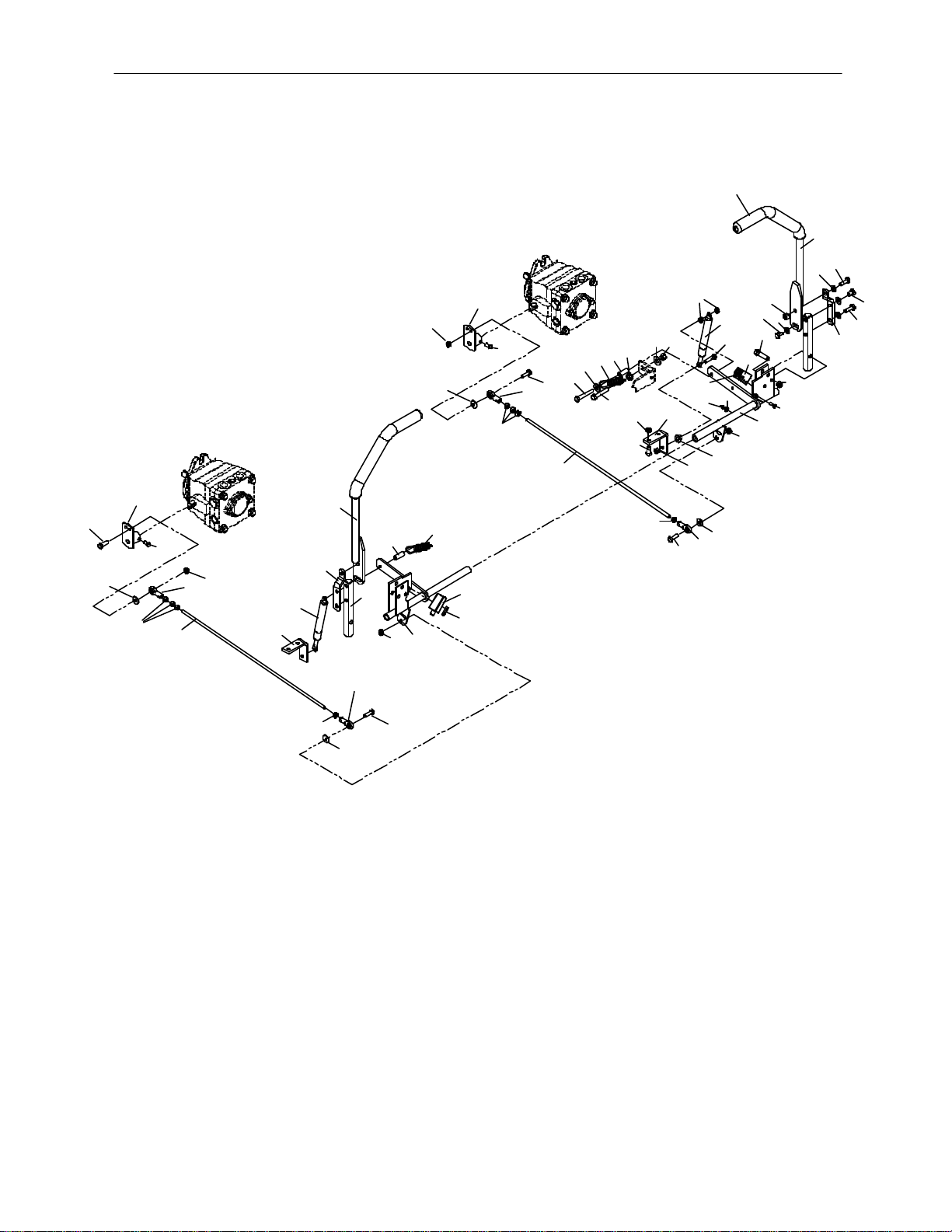

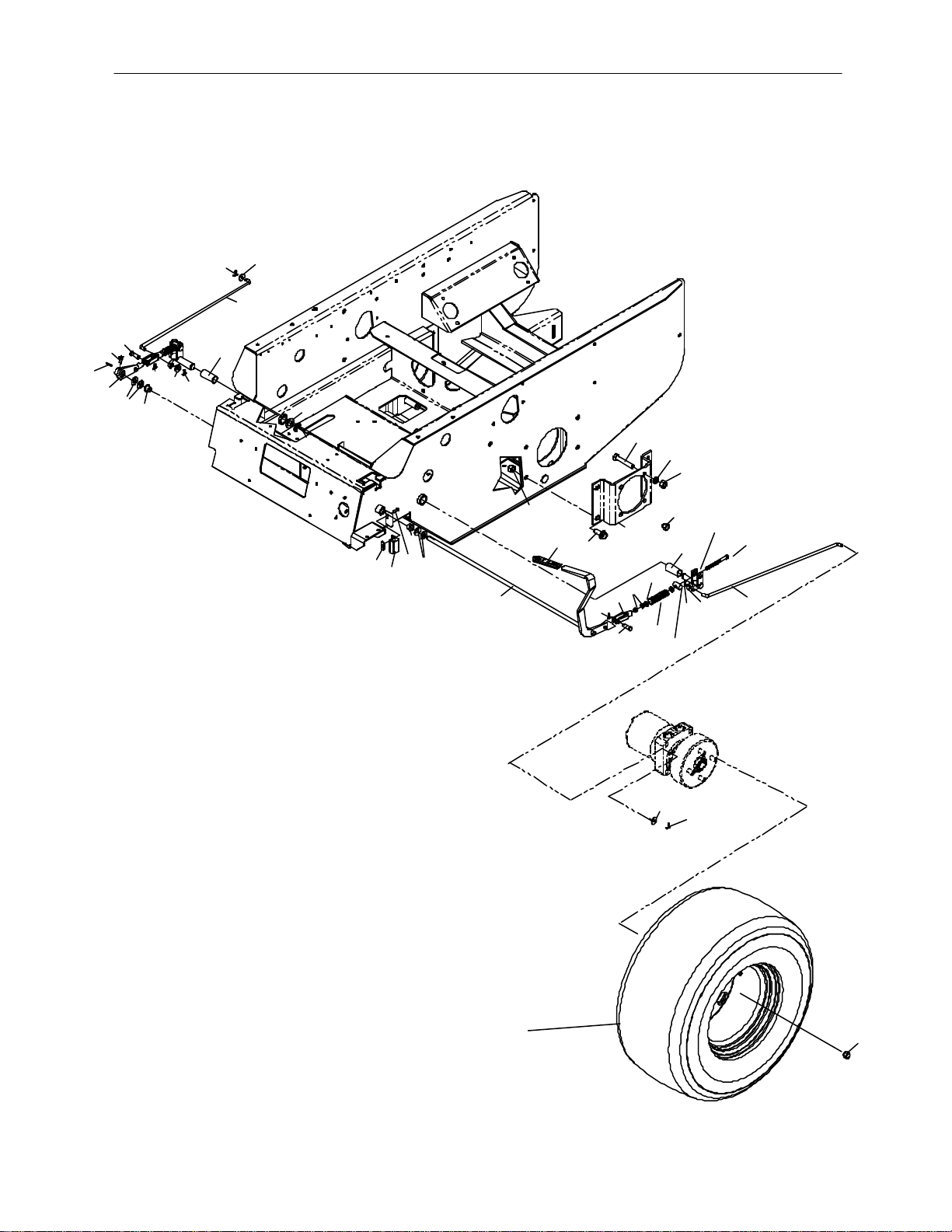

MOTION CONTROL............................................................................... 12
HYDRAULIC ASSEMBLY........................................................................ 14

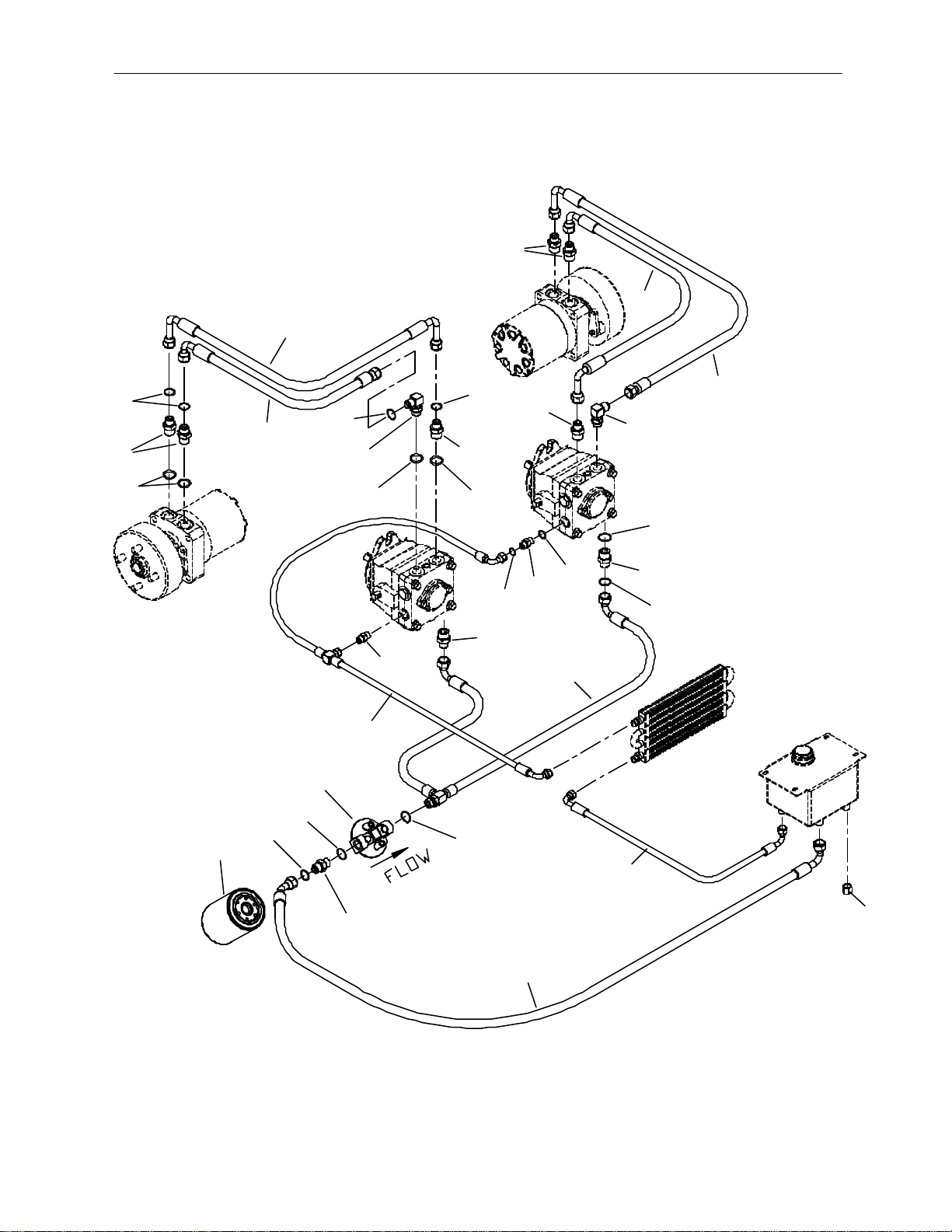

HYDRAULIC HOSES & FITTINGS ......................................................... 16

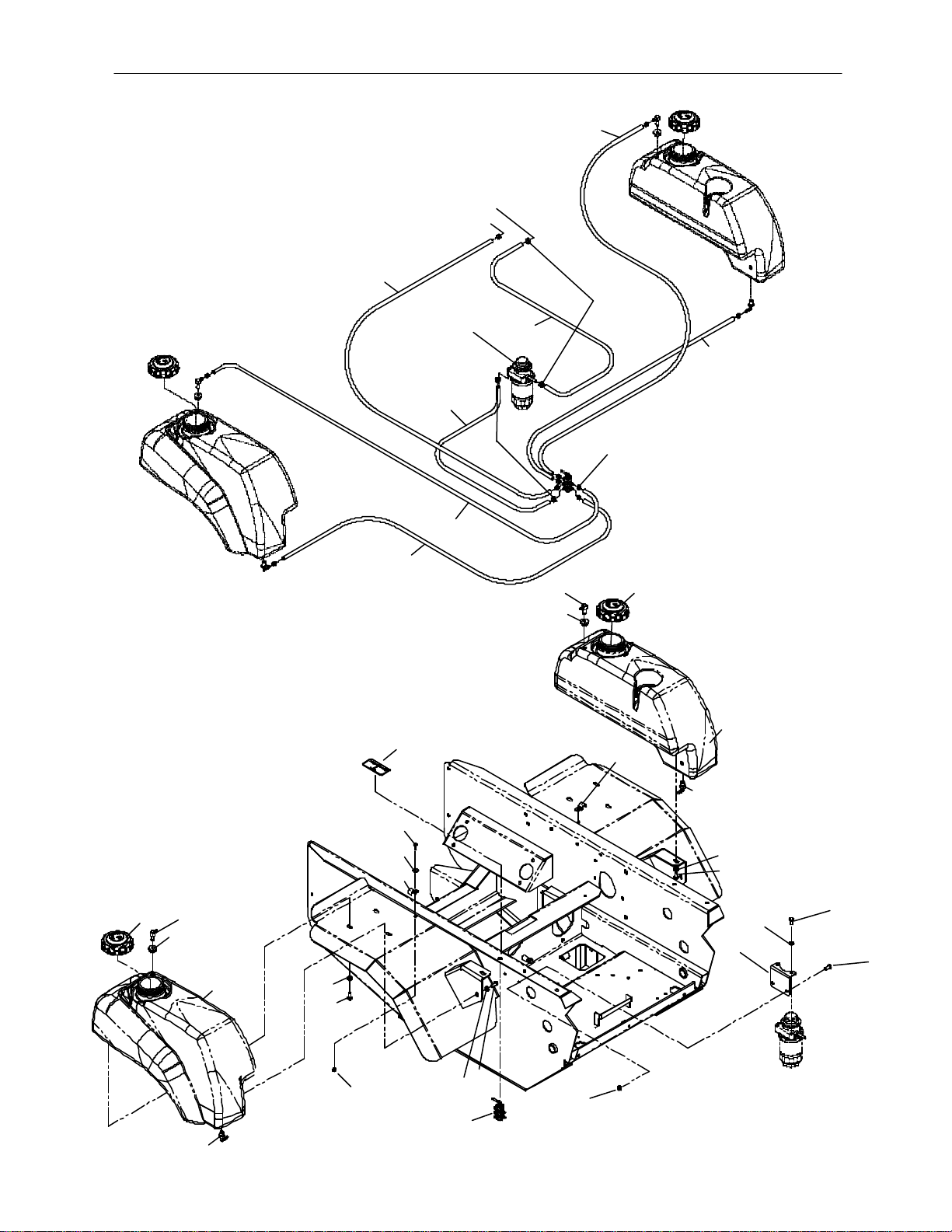

FUEL GROUP......................................................................................... 18
BRAKE GROUP LINKAGE ..................................................................... 20

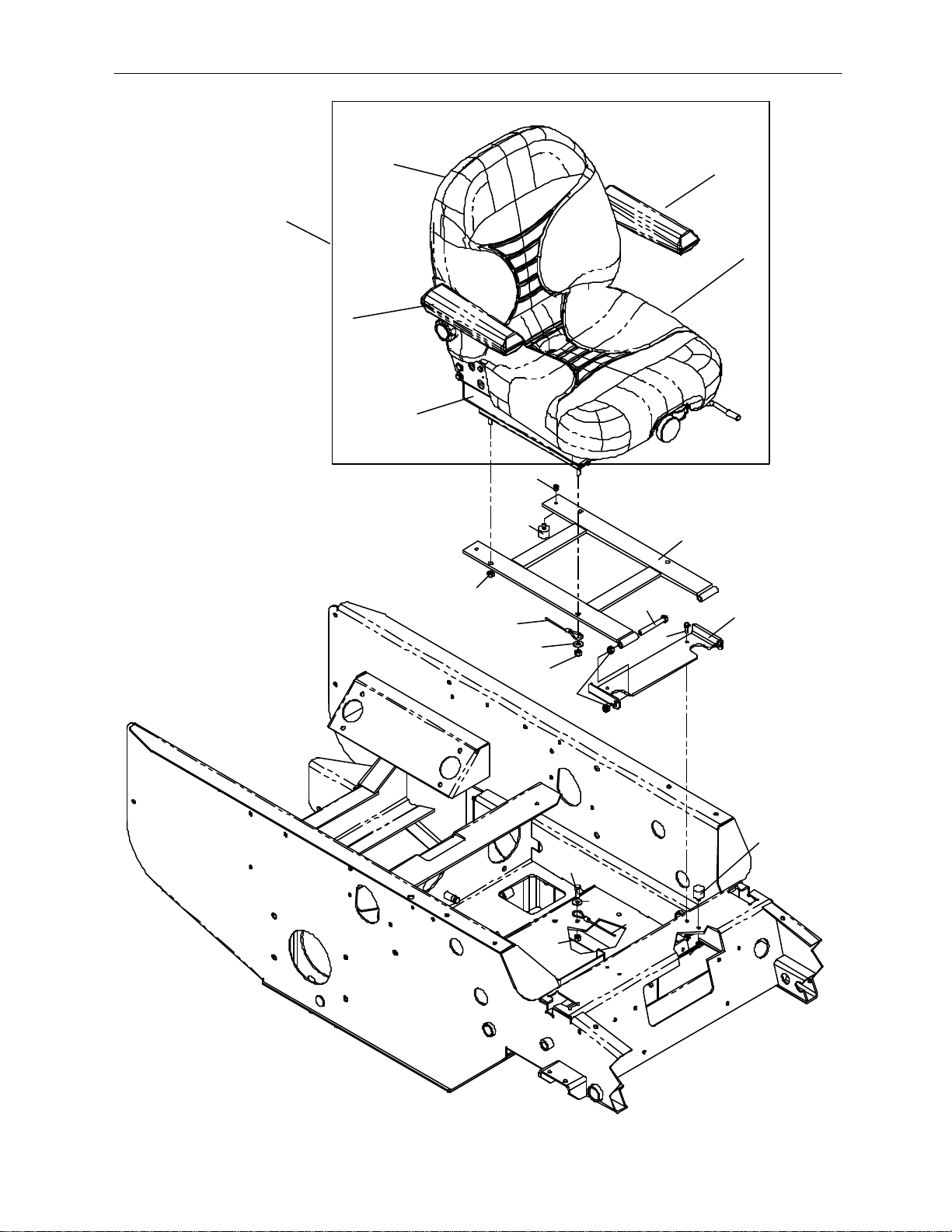

SEAT ASSEMBLY ................................................................................... 22
FOOT PEDAL......................................................................................... 24

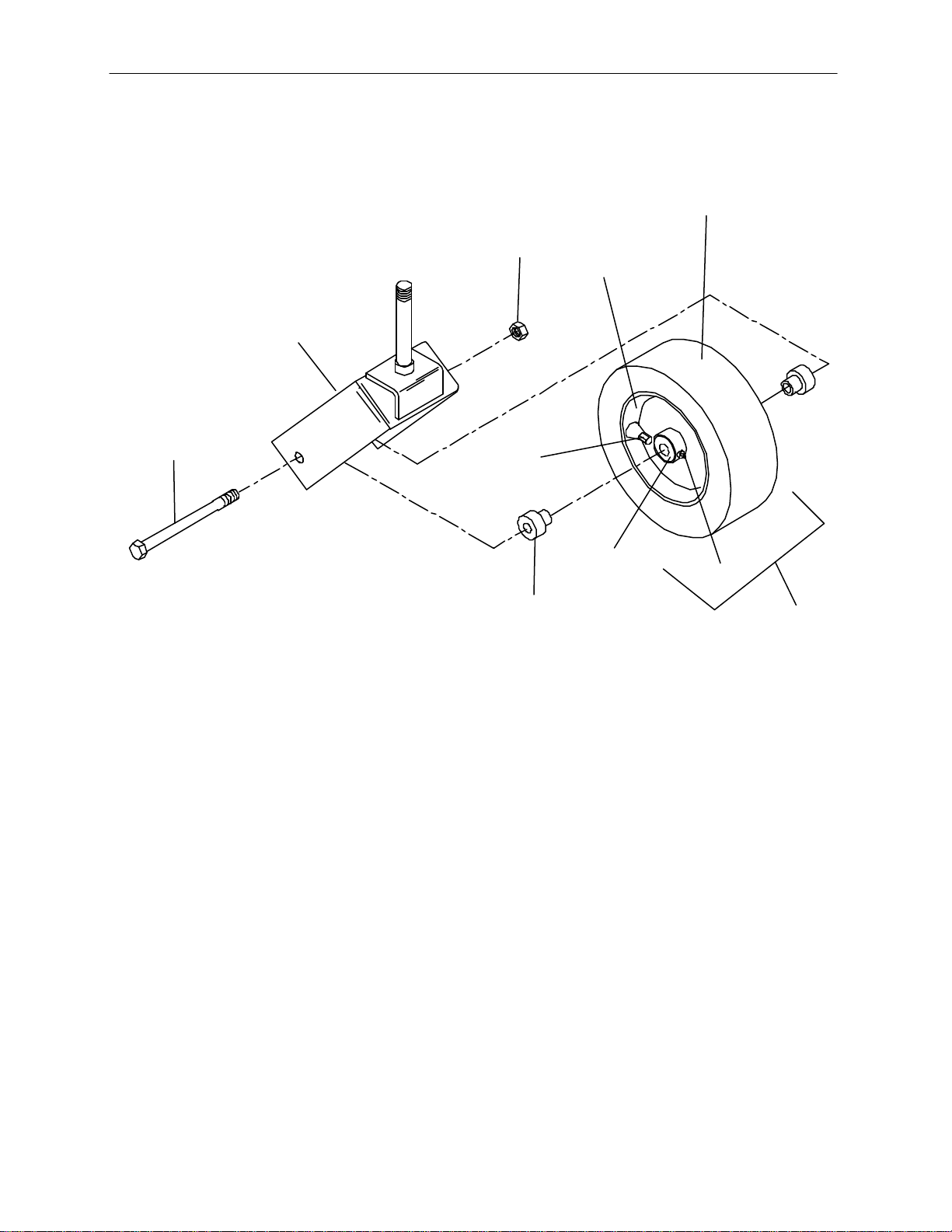

CASTER ASSEMBLY ............................................................................. 25

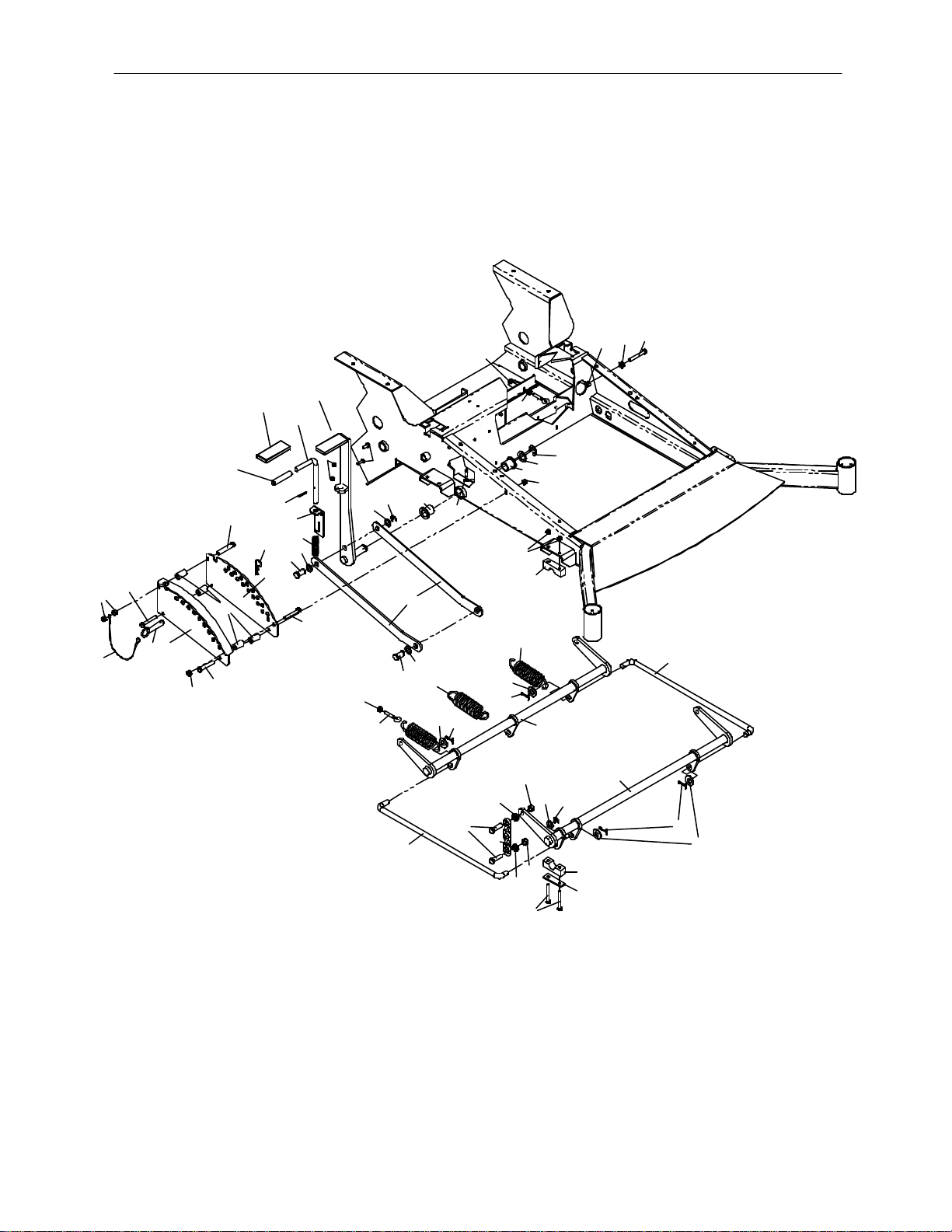

DECK LIFT (MANUAL)............................................................................ 26

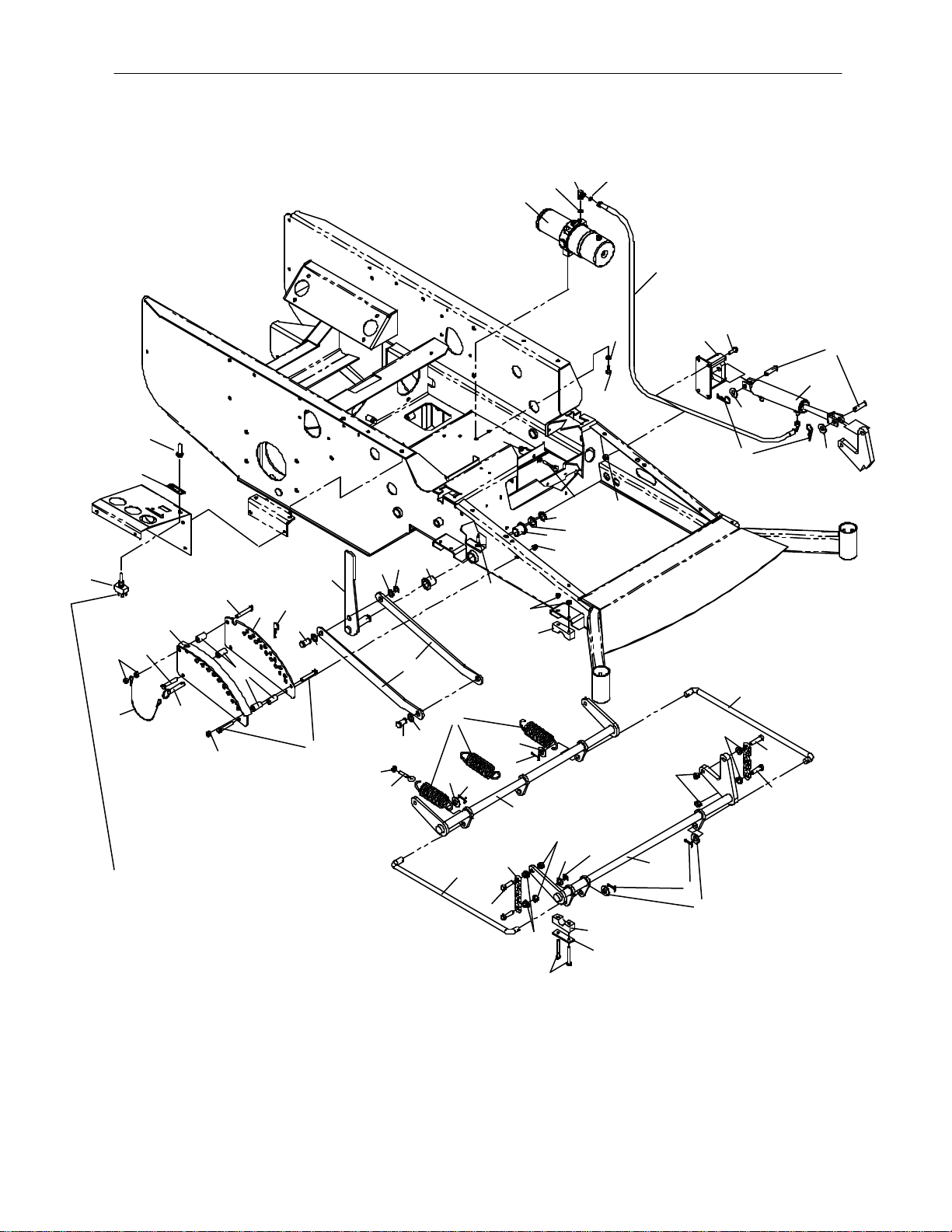

DECK LIFT (POWER) ........................................................................... 28

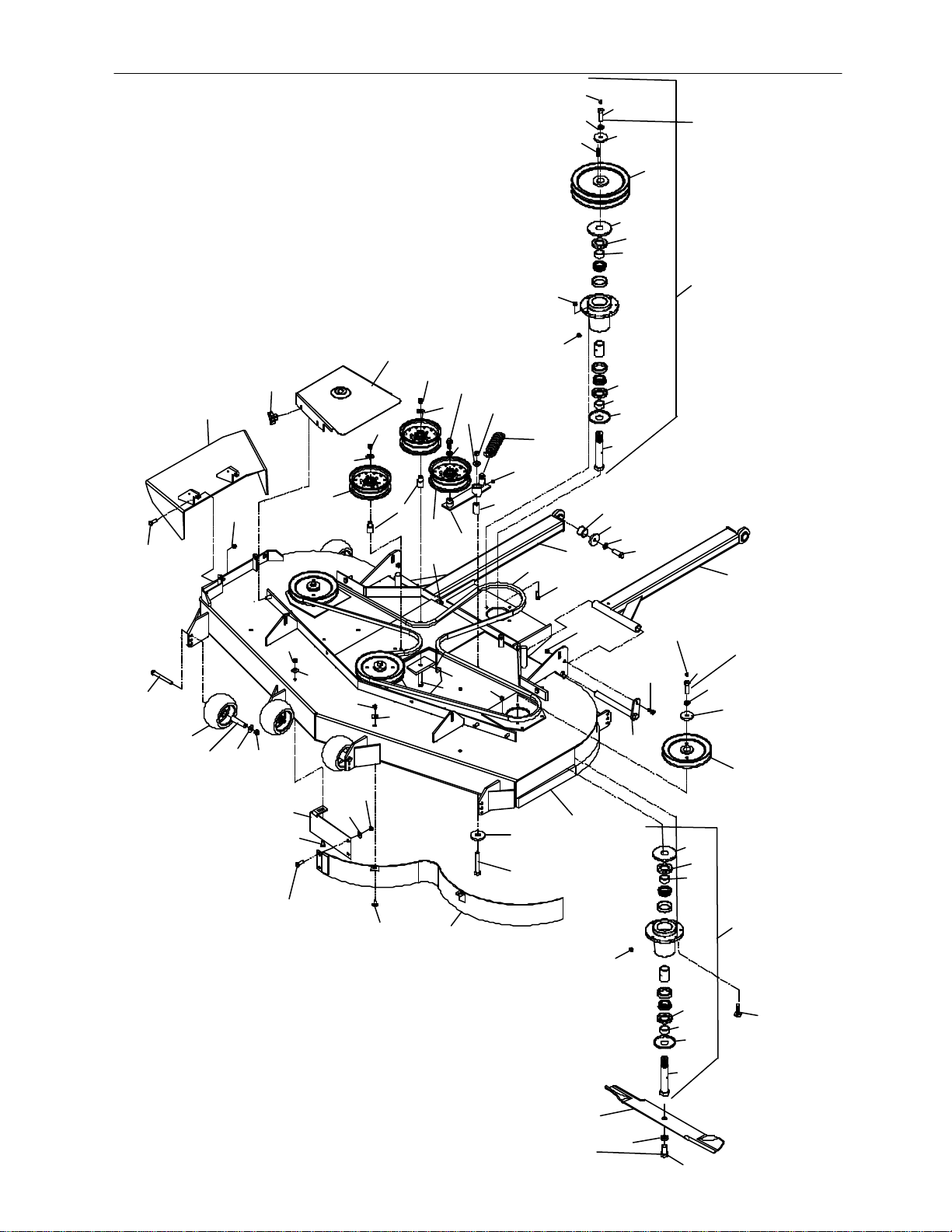

DECK ASSEMBLY, 61" ........................................................................... 30

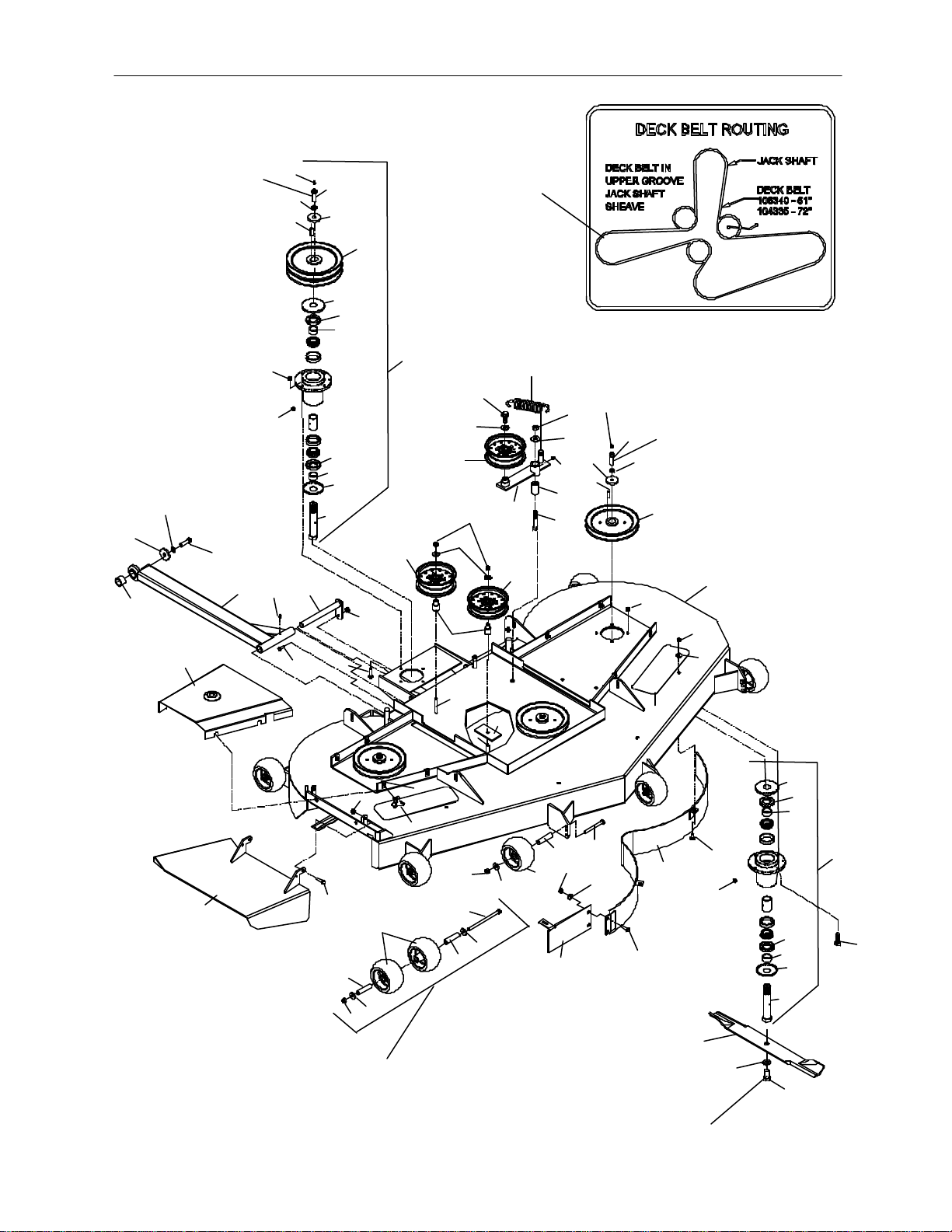

DECK ASSEMBLY, 72" ........................................................................... 32

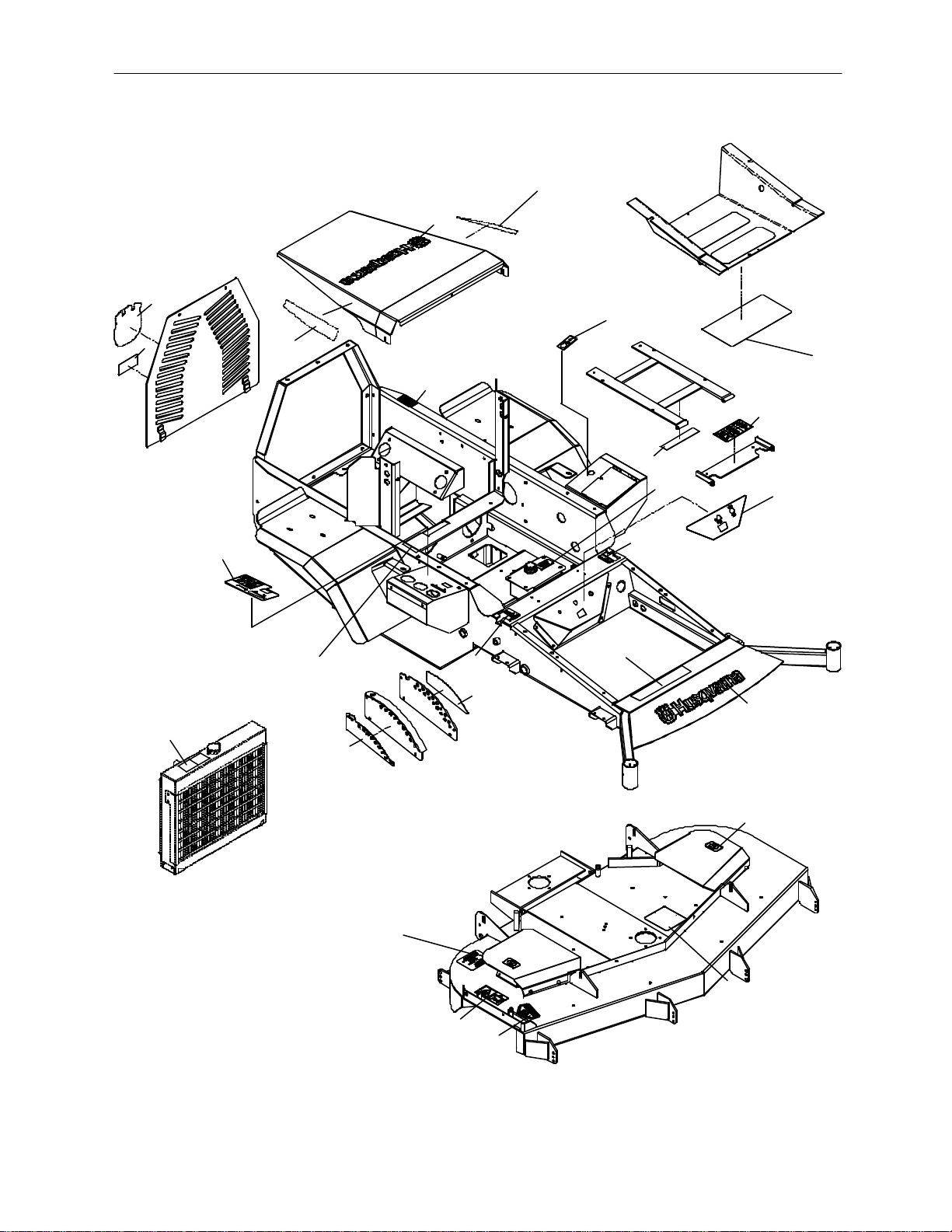

DECALS ................................................................................................. 34

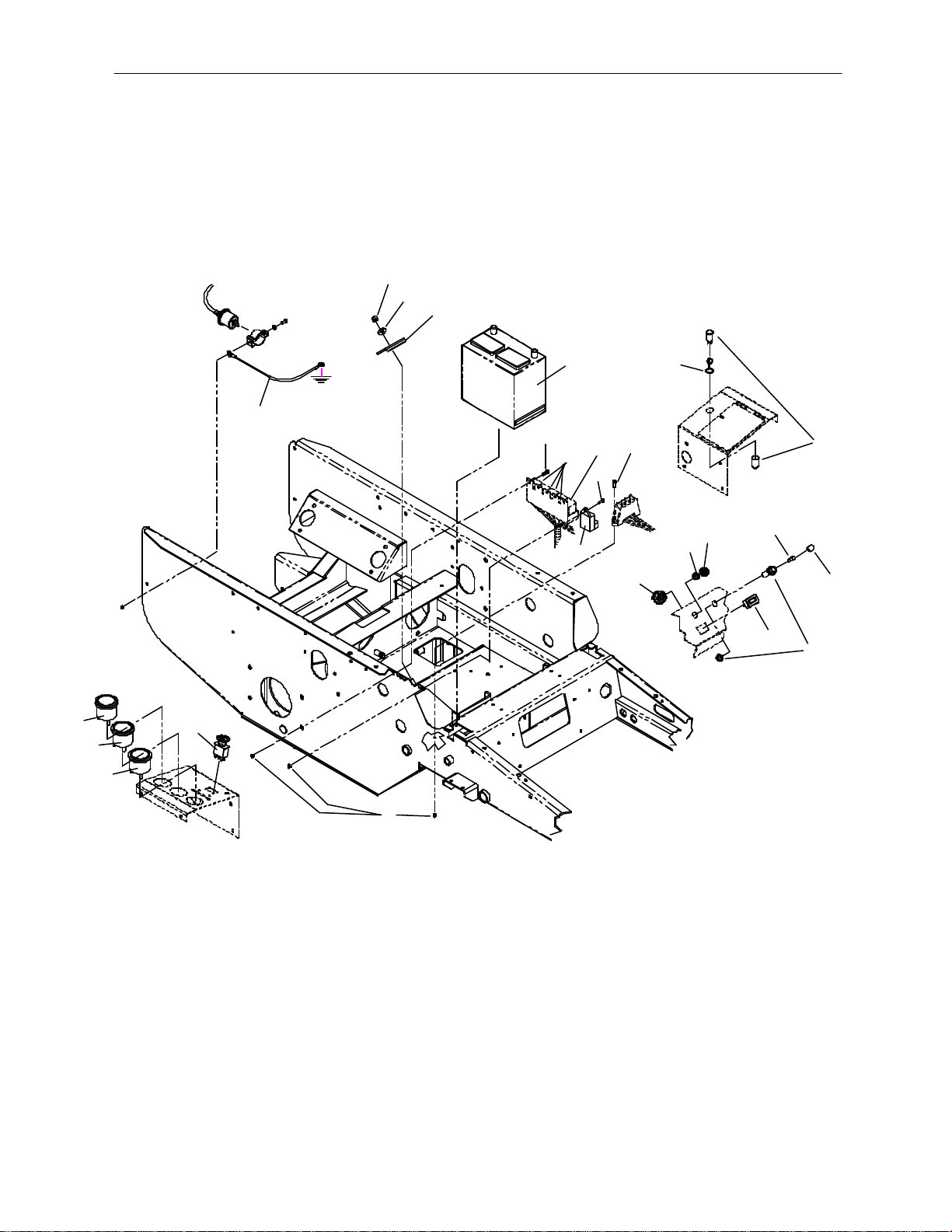

ELECTRICAL GROUP ........................................................................... 36

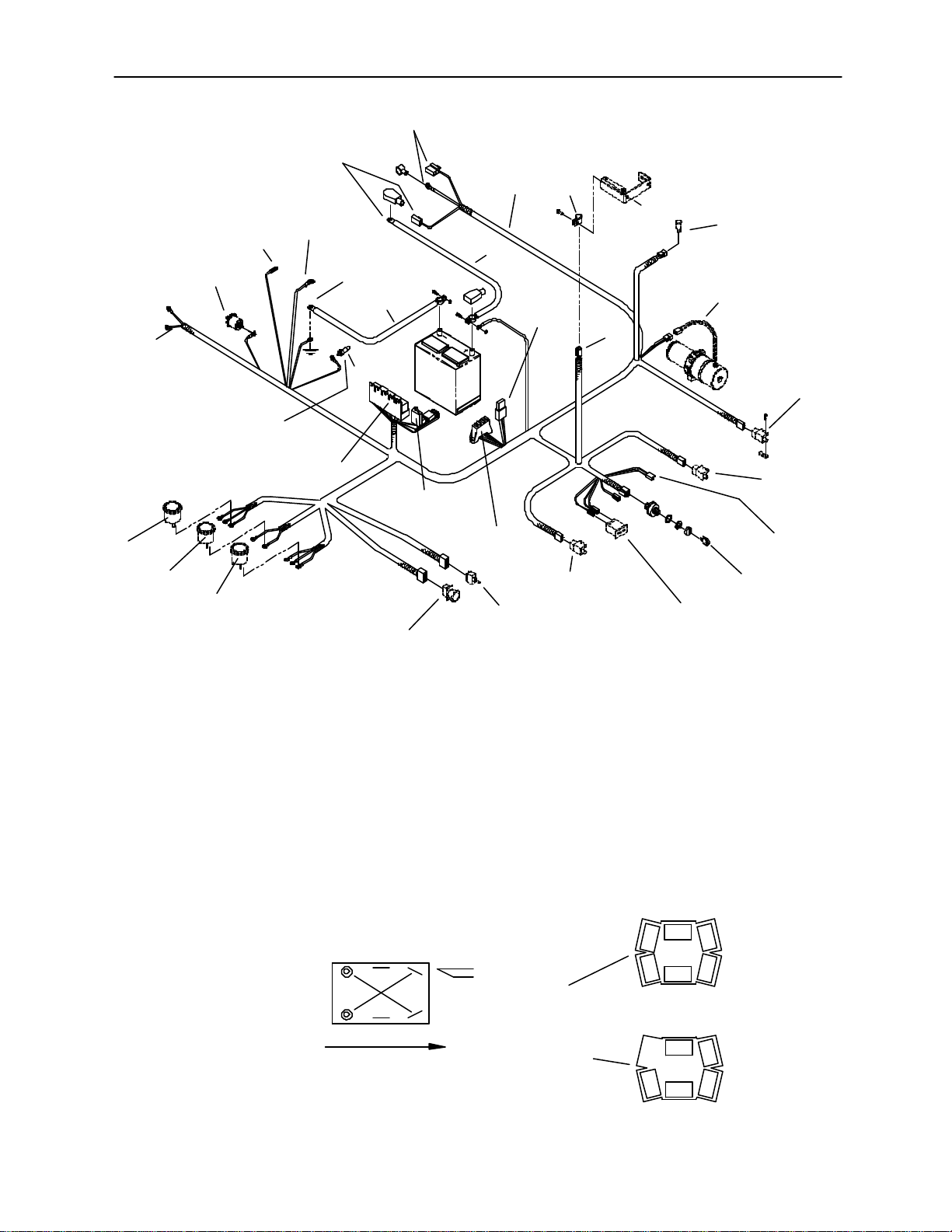

WIRE HARNESS.................................................................................... 38

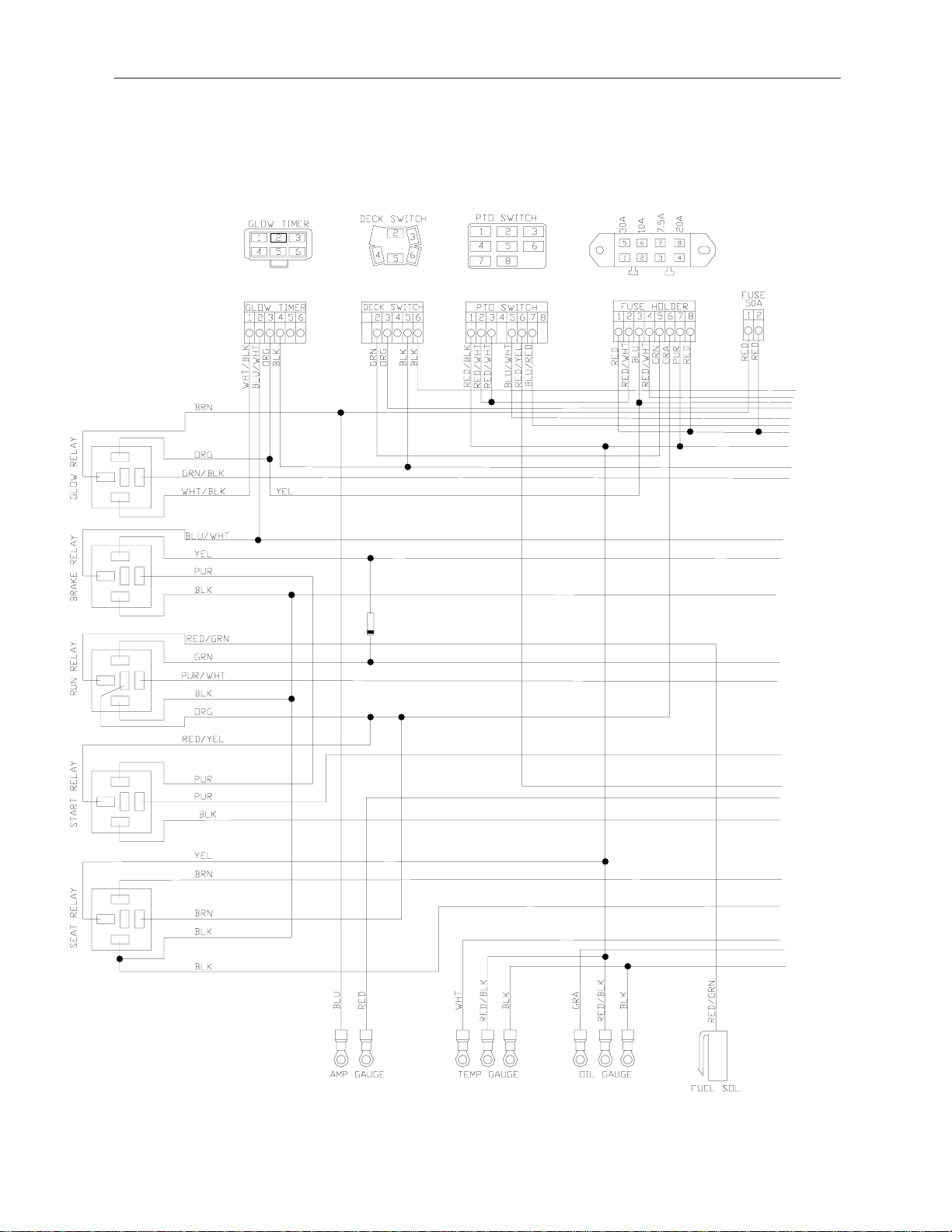

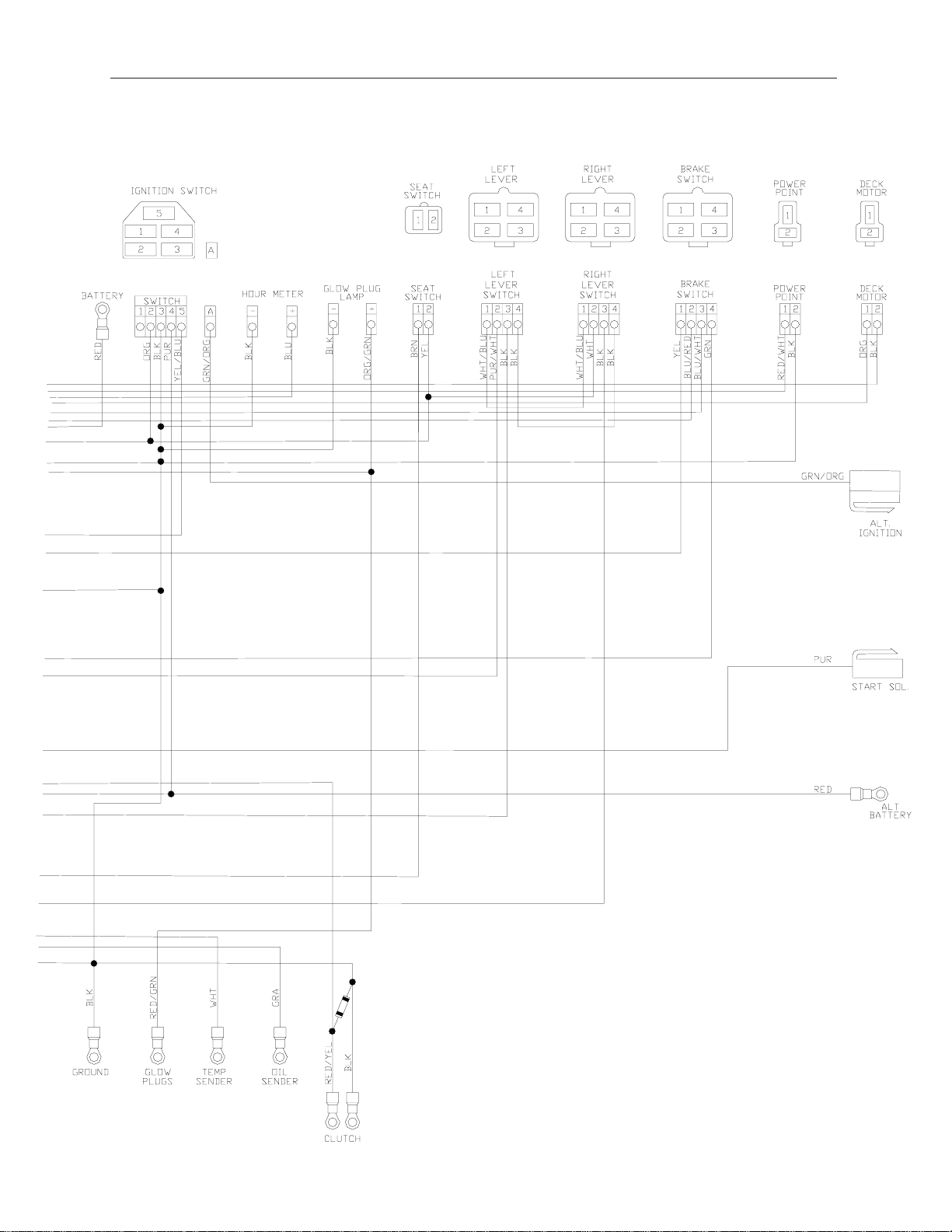

WIRING SCHEMATIC ............................................................................. 40
3
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

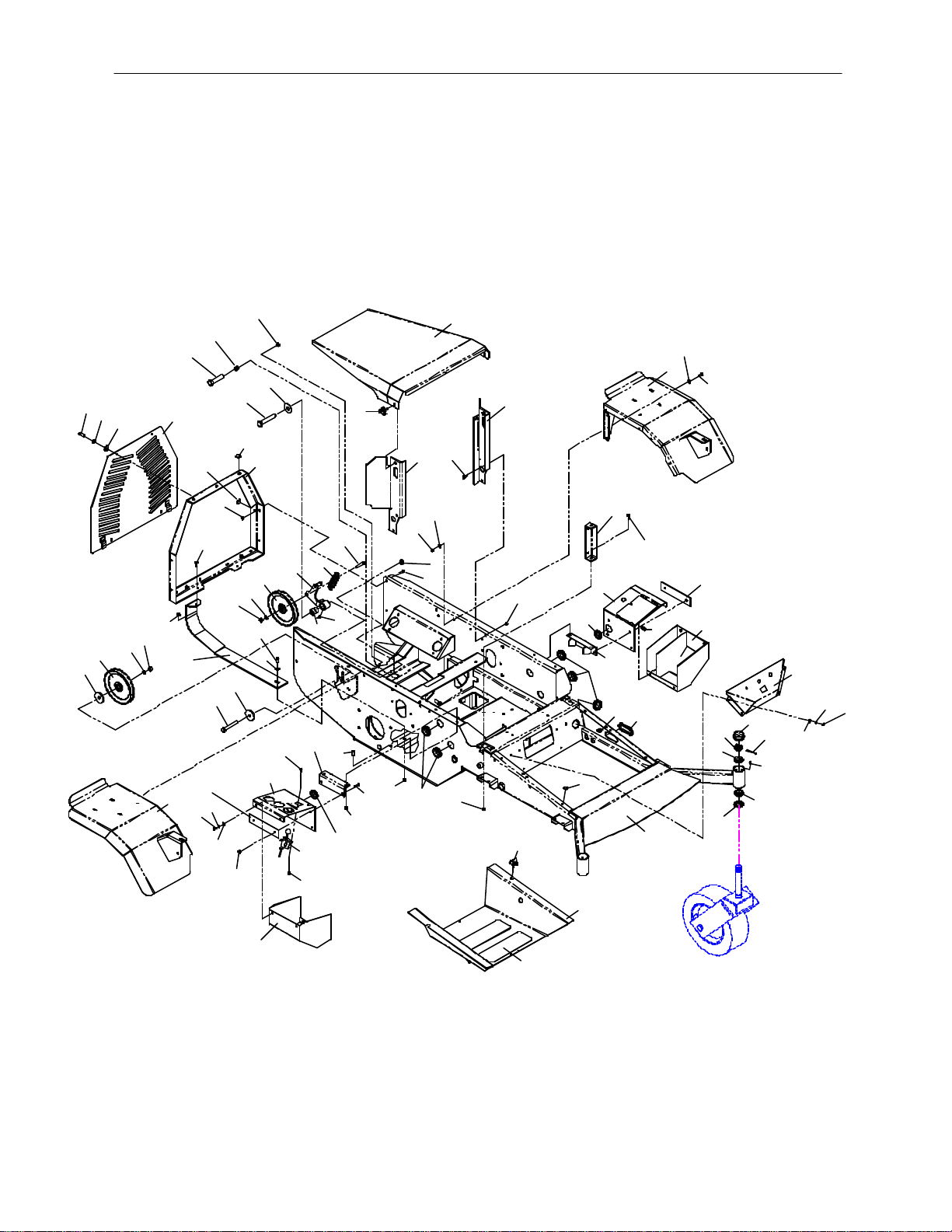

MAIN FRAME ASSEMBLY
57
51
36
61
58
59
49
49
55
56
54
60
48
2
22
4
22
49
52
37
36
58
49
52
49
44
57
12
45
10
41
46
33
59
16
7
53
43
50
39
38
52
59
40
24
21
49
52
49
47
23
3
31
8
16
14
51
28
29
27
26
28
30
32
13
50
53
43
6
51
5
24
20
19
23
15
52
9
17
12
34
25
1
31
55
52
47
49
21
11
18
4
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
MAIN FRAME ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 .....539106205..... 1 ......Frame w/decals
2 .....539108362..... 1 ......Panel, back,
.........................................w/decals
3 .....539107853..... 1 ......Hood
4 .....539107847..... 1 ......Frame, rear
5 .....539106405..... 1 ......Support, right
6 .....539106406..... 1 ......Support, left
7 .....539107205..... 1 ......Fender, right
8 .....539107206..... 1 ......Fender, left
9 .....539107781..... 1 ......Panel, top left
10 ...539107778..... 1 ......Console, top
11 ...539107776..... 1 ......Console, bottom
12 ...539107788..... 2 ......Bracket, angle
13 ...539107669..... 1 ......Console
14 ...539107791..... 1 ......Console, bottom
15 ...539108055..... 2 ......Support
16 ...539107867..... 2 ......Stiffener
17 ...539107232..... 2 ......Latch, magnetic
18 ...539977778..... 3 ......Pad, abrasive
19 ...539104721..... 1 ......Pan, floor
20 ...539102587..... 6 ......Stop, rubber
21 ...539104411 ..... 4 ......Knob w/stud
22 ...539107858..... 12 ....Grommet, bumper
23 ...539103684..... 7 ......Grommet
24 ...539107656..... 2 ......Grommet
25 ...539107210..... 1 ......Grommet
26 ...539102535..... 2 ......Cap, grease
27 ...539102851..... 2 ......Seal
28 ...539102543..... 4 ......Bearing
29 ...539102852..... 2 ......Nut, 1-14, slotted jam
30 ...539102889..... 2 ......Pin, cotter, 1/8 x 2
31 ...539990188..... 28 ....Washer, 5/16, SAE
32 ...539101474..... 2 ......Zerk
33 ...539106300..... 2 ......Plate, skid
34 ...539104763..... 2 ......`U’ clip
ITEM PART NO. QTY. DESCRIPTION
36 ...539106348..... 2 ......Idler
37 ...539106418..... 1 ......Arm
38 ...539106417..... 1 ......Bushing
39 ...539103256..... 1 ......Spring
40 ...539976998..... 1 ......Zerk
41 ...539102732..... 1 ......Cable, throttle
43 ...539990362..... 12 ....Screw, 1/4-20 x 5/8,
.........................................self-tapping
44 ...539990517..... 2 ......Washer, 3/8
45 ...539990411 ..... 2 ......Bolt, #10-24 x 1/2
46 ...539976977..... 2 ......Nut, #10-24, nyloc
47 ...539990717..... 18 ....Nut, 5/16-18, nyloc
48 ...539108346..... 1 ......Bolt, 1/2-20 x 2 1/2
49 ...539976979..... 20 ....Nut, 3/8-16, nyloc
50 ...539990598..... 12 ....Washer, 1/4
51 ...539990209..... 22 ....Bolt, 5/16-18 x 1
52 ...539990563..... 18 ....Bolt, 3/8-16 x 1
53 ...539990052..... 12 ....Lockwasher, 1/4
54 ...539107026..... 1 ......Bolt, 1/2-20 x 2, Gr.8,
55 ...539101331..... 2 ......Nut, 1/2-20, nyloc,
56 ...539990258..... 1 ......Nut, 1/2-20,
57 ...539106504..... 2 ......Washer, heavy
58 ...539990122..... 2 ......Washer, 3/8
59 ...539990692..... 4 ......Washer, 5/16
60 ...539990550..... 1 ......Washer, 1/2
61 ...539990187..... 4 ......Lockwasher, 5/16
.......539976856..... 6 ......Wire tie (Not shown)
5
www.mymowerparts.com
Page 6
39
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

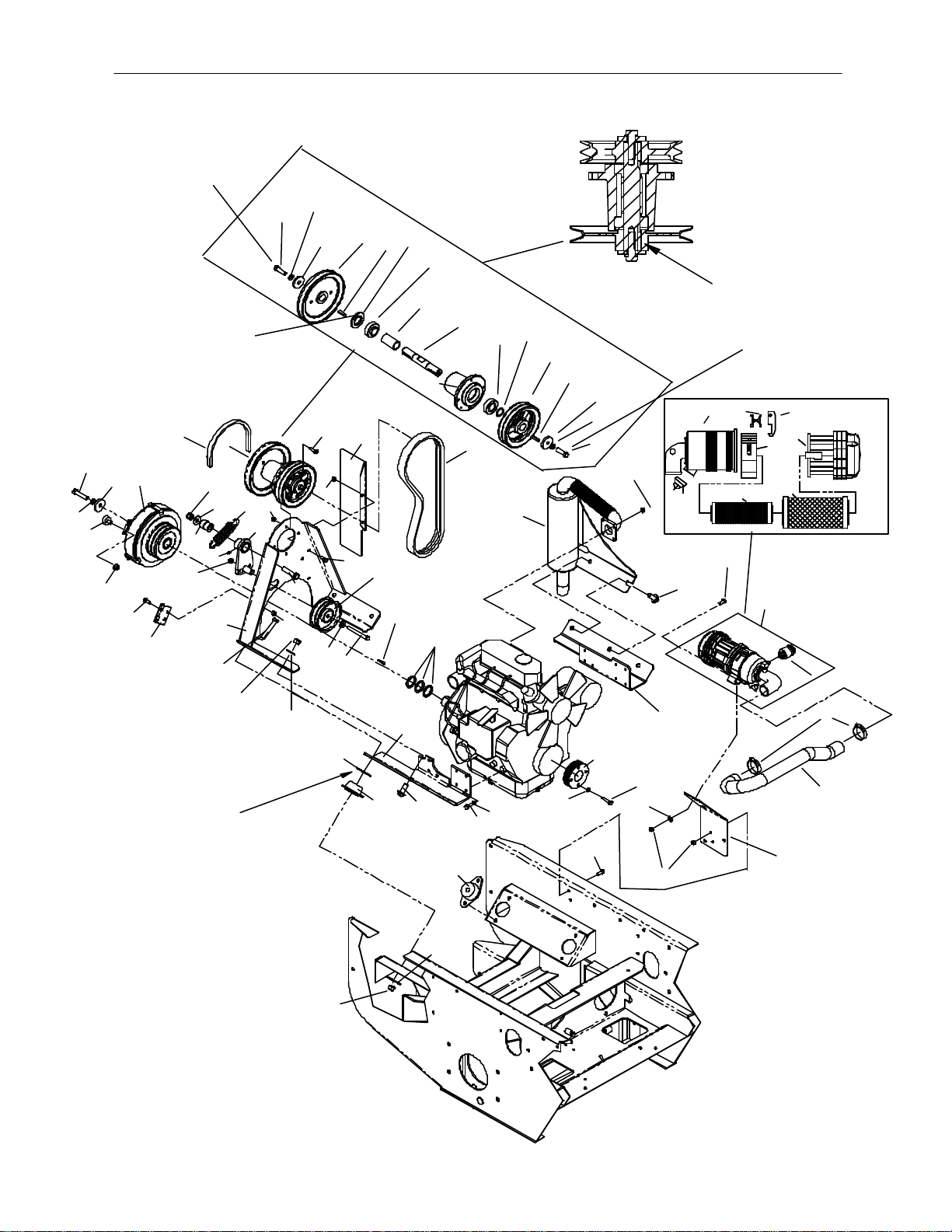

ENGINE ASSEMBLY
27 H.P.
NOTE:
TORQUE TO 45 FT/LBS
39
43
50
63
28
64
NOTE:
ASSEMBLE WITH SMALL
O.D. STEP TOWARD BEARING
19
3
15
27
4
38
26
12
24
37
5
29
13
11
36
36
33
36
25
48
35
27
51
44
46
NOTE: HUB DOWN
53
47
45
6
17
41
18
23
46
52
49
51
48
39
43
14
1
NOTE:
TORQUE TO 45 FT/LBS
57
62
56
60
27
31
61
58
59
55
20
54
38
RIGHT REAR ONLY
26
38
22
16
10
31
22
16
34
40
40
27
9
2
30
42
7
36
21
8
6
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
ENGINE ASSEMBLY
27 H.P.
ITEM P ART NO. QTY. DESCRIPTION
1 ........ 539109569........1..... Muffler
2 ........ 539106335........1..... Sheave, engine
3 ........ 539110668........1..... Clutch
4 ........ 539110654........1..... Restraint
5 ........ 539106306........1..... Jack mount
6 ........ 539107864........1..... Shield, heat
7 ........ 539107841........1..... Bracket, air filter
8 ........ 539107860........1..... Air filter hose
9 ........ 539107861........1..... Engine mount,
............................................. left
10 ...... 539107862........1..... Engine mount,
............................................. right
11 ...... 539106422........1..... Arm
12 ...... 539106417........1..... Bushing
13 ...... 539110655........1..... Spring
14 ...... 539109801........4..... Nut, M8-1.25,
............................................. stover top lock
15 ...... 539106504........1..... Washer, heavy
16 ...... 539106291........4..... Isolator mount,
............................................. engine
17 ...... 539107994........1..... Idler
18 ...... 539106338........1..... Belt, primary
19 ...... 539106339........1..... Belt, mule
20 ...... 539106376........1..... Air filter assembly
21 ...... 539106384........2..... Clamp
22 ...... 539104959........5..... Isolator washer
23 ...... 539108052........3..... Bushing, machine,
............................................. 1 1/8 x 10 ga.
24 ...... 539976998........1..... Zerk
25 ...... 539990122........1..... Washer, 3/8, SAE
26 ...... 539990550........5..... Washer, 1/2
27 ...... 539976934........8..... Bolt, 5/16-18 x 3/4
28 ...... 539991120........1..... Bolt, 7/16-20 x 2 1/2
29 ...... 539101332........4..... Bolt, 1/2-13 x 2 3/4
30 ...... 539977692........4..... Bolt, M8-1.25 x 35
31 ...... 539990622........2..... Bolt, 1/2-13 x 1 1/4,
............................................. serrated head
ITEM P ART NO. QTY. DESCRIPTION
32 ...... 539108346........1..... Bolt, 1/2-13 x 2 1/2
33 ...... 539990209........4..... Bolt, 5/16-18 x 1
34 ...... 539300600........13... Bolt, M8 x 1.25 x 20
35 ...... 539108271........1..... Bolt, 3/8-16 x 3 1/2
36 ...... 539990717........10... Nut, 5/16-18, nyloc
37 ...... 539976979........1..... Nut, 3/8-16, nyloc
38 ...... 539101331........7..... Nut, 1/2-13, nyloc
39 ...... 539990247........3..... Lockwasher, 7/16
40 ...... 539990187........17... Lockwasher, 5/16
41 ...... 539100152........1..... Key, 1/4 sq. x 1 7/8
42 ...... 539990692........2..... Washer, 5/16
43 ...... 539100141........2..... Bolt, 7/16-20 x 1 1/2
44 ...... 539107272........ 1..... Combo spacer
45 ...... 539104852........1..... Housing
46 ...... 539102677........2..... Bearing
47 ...... 539106344........1..... Spindle
48 ...... 539106504........2..... Washer, heavy
49 ...... 539106347........1..... Sheave
50 ...... 539105485........1..... Pulley
51 ...... 539101995........2..... Key, 1/4" sq. x 1 1/8"
52 ...... 539102244........1..... Machine bushing,
............................................. 18 ga
53 ...... 539102676........1..... Spacer
54 ...... 539106375........1..... Indicator, air filter
55 ...... 539106313........1..... Air filter
56 ...... 539106377........1..... Safety element
57 ...... 539108470........1..... Body, 90°
58 ...... 539108473........1..... Precleaner assembly
59 ...... 539108474........1..... Mounting bracket
60 ...... 539108472........1..... S-drain
61 ...... 539108475........2..... Clamp
62 ...... 539108476........2..... Hinge
.......... 539106327........1..... Stub shaft
............................................. (Not shown)
.......... 539109177........1..... Manifold gasket
............................................. (Not Shown)
63 ...... 539110652........1..... Bumper
64 ...... 539990585........1..... Nut, 5/16C
7
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

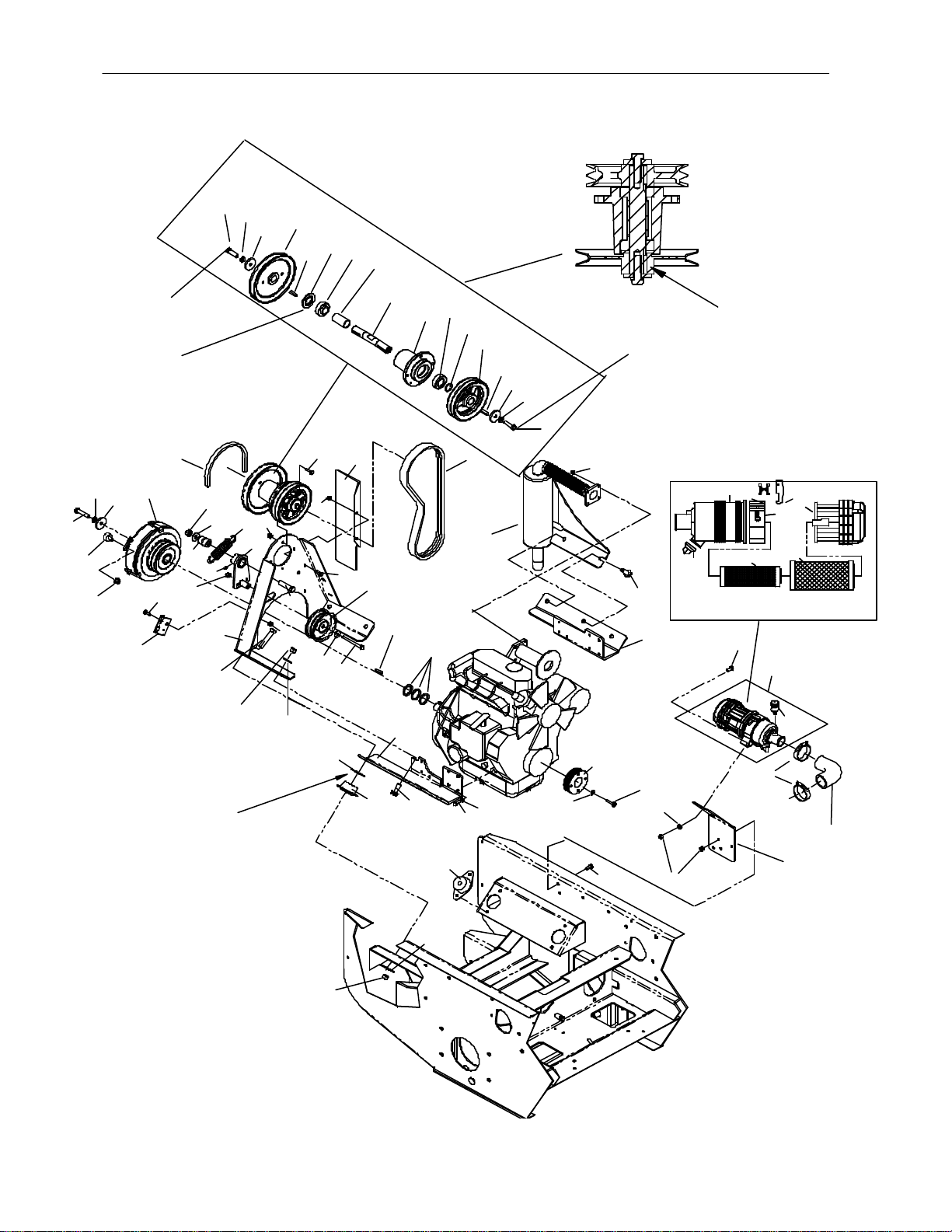

ENGINE ASSEMBLY
34 H.P.
43
39
48
50
44
51 46
53
28
NOTE:
TORQUE TO 45 FT/LBS
NOTE:
ASSEMBLE WITH SMALL
O.D. STEP TOWARD BEARING
39
63
64
3
15
27
4
19
37
12
38
24
26
29
47
46
45
33
6
36
26
32
36
25
35
27
17
41
13
36
11
5
38
23
52
18
49
1
51
48
NOTE:
TORQUE TO 45 FT/LBS
39
43
14
31
9
NOTE: HUB DOWN
6257
60
56
27
20
59
61
58
55
54
RIGHT REAR ONLY
38
22
16
10
31
22
16
34
40
40
2
30
42
27
36
21
8
7
8
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
ENGINE ASSEMBLY
34 H.P.
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539109568 ....... 1 ..... Muffler
2 ........ 539106335 ....... 1 ..... Sheave, engine
3 ........ 539110668 ....... 1 ..... Clutch
4 ........ 539110654 ....... 1 ..... Restraint
5 ........ 539106306 ....... 1 ..... Jack mount
6 ........ 539107864 ....... 1 ..... Shield, heat
7 ........ 539107841 ....... 1 ..... Bracket, air filter
8 ........ 539106381 ....... 1 ..... Hose
9 ........ 539107861 ....... 1 ..... Engine mount,
.............................................. left
10 ...... 539107862 ....... 1 ..... Engine mount,
.............................................. right
11 ...... 539106422 ....... 1 ..... Arm
12 ...... 539106417 ....... 1 ..... Bushing
13 ...... 539110655 ....... 1 ..... Spring
14 ...... 539109801 ....... 4 ..... Nut, M8-1.25,
.............................................. stover top lock
15 ...... 539106504 ....... 1 ..... Washer, heavy
16 ...... 539106291 ....... 4 ..... Isolator mount,
.............................................. engine
17 ...... 539107994 ....... 1 ..... Idler
18 ...... 539106338 ....... 1 ..... Belt, primary
19 ...... 539106339 ....... 1 ..... Belt, mule
20 ...... 539106315 ....... 1 ..... Air filter assembly
21 ...... 539106383 ....... 2 ..... Clamp
22 ...... 539104959 ....... 5 ..... Isolator washer
23 ...... 539108052 ....... 1 ..... Bushing, machine,
.............................................. 1 1/8 x 10 ga.
24 ...... 539976998 ....... 1 ..... Zerk
25 ...... 539990122 ....... 1 ..... Washer, 3/8,SAE
26 ...... 539990550 ....... 1 ..... Washer, 1/2
27 ...... 539976934 ....... 8 ..... Bolt, 5/16-18 x 3/4
28 ...... 539991120 ....... 1 ..... Bolt, 7/16- 20 x 2 1/2
29 ...... 539101332 ....... 4 ..... Bolt, 1/2-13 x 2 3/4
30 ...... 539977692 ....... 4 ..... Bolt, M8-1.25 x 35
31 ...... 539990622 ....... 2 ..... Bolt, 1/2-13 x 1 1/4,
.............................................. serrated head
32 ...... 539108346 ....... 1 ..... Bolt, 1/2-13 x 2 1/2
ITEM PART NO. QTY. DESCRIPTION
33 ...... 539990209 ....... 4 ..... Bolt, 5/16-18 x 1
34 ...... 539300600 ....... 13 ... Bolt, M8 x 1.25 x 20
35 ...... 539108271 ....... 1 ..... Bolt, 3/8-16 x 3 1/2
36 ...... 539990717 ....... 10 ... Nut, 5/16-18, nyloc
37 ...... 539976979 ....... 1 ..... Nut, 3/8-16, nyloc
38 ...... 539101331 ....... 7 ..... Nut, 1/2-13, nyloc
39 ...... 539990247 ....... 3 ..... Lockwasher, 7/16
40 ...... 539990187 ....... 17 ... Lockwasher, 5/16
41 ...... 539100152 ....... 1 ..... Key, 1/4 sq. x 1 7/8
42 ...... 539990692 ....... 2 ..... Washer, 5/16
43 ...... 539100141 ....... 3 ..... Bolt, 7/16-20 x 1 1/2
44 ...... 539107272 ....... 1 ..... Combo spacer
45 ...... 539104852 ....... 1 ..... Housing
46 ...... 539102677 ....... 2 ..... Bearing
47 ...... 539106344 ....... 1 ..... Spindle
48 ...... 539106504 ....... 2 ..... Washer, heavy
49 ...... 539106347 ....... 1 ..... Sheave
50 ...... 539105485 ....... 1 ..... Pulley
51 ...... 539101995 ....... 2 ..... Key, 1/4" sq. x 1 1/8"
52 ...... 539102244 ....... 1 ..... Machine bushing,
.............................................. 18 ga
53 ...... 539102676 ....... 1 ..... Spacer
54 ...... 539106375 ....... 1 ..... Indicator, air filter
55 ...... 539106313 ....... 1 ..... Air filter
56 ...... 539106377 ....... 1 ..... Safety element
57 ...... 539108471 ....... 1 ..... Body
58 ...... 539108473 ....... 1 ..... Precleaner assembly
59 ...... 539108474 ....... 1 ..... Mounting bracket
60 ...... 539108472 ....... 1 ..... S-drain
61 ...... 539108475 ....... 2 ..... Clamp
62 ...... 539108476 ....... 2 ..... Hinge
.......... 539106327 ....... 1 ..... Stub shaft
.............................................. (Not shown)
.......... 539109177 ....... 1 ..... Manifold gasket
.............................................. (Not Shown)
63 ...... 539110652 ....... 1 ..... Bumper
64 ...... 539990585 ....... 1 ..... Nut, 5/16C
9
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
RADIATOR
13
15
27 H.P.
14
5
2
11
1
7
3
6
8
12
10
13
9
13
1
1
13
4
13
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539106310 ....... 4 ..... Isolator
2 ........ 539990052 ....... 4 ..... Lockwasher, 1/4
3 ........ 539990187 ....... 2 ..... Lockwasher, 5/16
4 ........ 539107855 ....... 1 ..... Bracket, mounting
5 ........ 539106308 ....... 1 ..... Spacer, fan
6 ........ 539106316 ....... 1 ..... Radiator
7 ........ 539106311 ....... 1 ..... Shroud
8 ........ 539106318 ....... 1 ..... Debris guard
9 ........ 539106297 ....... 2 ..... Bracket, isolator
10 ...... 539990209 ....... 1 ..... Bolt, 5/16-18 x 1
11 ...... 539106307 ....... 4 ..... Bolt, M6-1 x 30
12 ...... 539976934 ....... 2 ..... Bolt, 5/16-18 x 3/4
13 ...... 539990717 ....... 9 ..... Nut, 5/16-18
14 ...... 539106320 ....... 1 ..... Cap, radiator
15 ...... 539990188 ....... 2 ..... Washer, 5/16, SAE
.......... 539106321 ....... 4 ..... Clamp, hose (not shown)
.......... 539106326 ....... 1 ..... Hose, lower (not shown)
.......... 539106325 ....... 1 ..... Hose, upper (not shown)
.......... 539106402 ....... 1 ..... Overflow reservoir (not shown)
.......... 539106322 ....... 2 ..... Drain, radiator (not shown)
10
www.mymowerparts.com
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
RADIATOR
34 H.P.
6
8
1
13
13
15
14
5
2
11
1
7
3
12
13
9
13
1
13
4
10
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539106310 ....... 4 ..... Isolator
2 ........ 539990052 ....... 4 ..... Lockwasher, 1/4
3 ........ 539990187 ....... 2 ..... Lockwasher, 5/16
4 ........ 539107855 ....... 1 ..... Bracket, mounting
5 ........ 539107995 ....... 1 ..... Spacer, fan
6 ........ 539106316 ....... 1 ..... Radiator
7 ........ 539106317 ....... 1 ..... Shroud
8 ........ 539106318 ....... 1 ..... Debris guard
9 ........ 539106297 ....... 2 ..... Bracket, isolator
10 ...... 539990209 ....... 1 ..... Bolt, 5/16-18 x 1
11 ...... 539300599 ....... 4 ..... Bolt, M6-1 x 40
12 ...... 539976934 ....... 2 ..... Bolt, 5/16-18 x 3/4
13 ...... 539990717 ....... 9 ..... Nut, 5/16-18
14 ...... 539106320 ....... 1 ..... Cap, radiator
15 ...... 539990188 ....... 2 ..... Washer, 5/16,SAE
.......... 539106321 ....... 4 ..... Clamp, hose (not shown)
.......... 539106326 ....... 1 ..... Hose, lower (not shown)
.......... 539106325 ....... 1 ..... Hose, upper (not shown)
.......... 539106402 ....... 1 ..... Overflow reservoir (not shown)
.......... 539106322 ....... 2 ..... Drain, radiator (not shown)
11
www.mymowerparts.com
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
MOTION CONTROL
38
1
4
23
25
21
34
26
37
13
25
31
31
16
18
10
32
21
7
31
8
21
21
34
7
8
31
6
5
13
12
35
1
31
25
20
19
18
17
11
3
2
16
27
25
6
5
20
30
11
36
31
29
35
12
9
28
19
31
22
24
15
37
4
33
14
22
23
3
21
12
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
MOTION CONTROL
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539104190 ....... 2 ..... Handle
2 ........ 539102809 ....... 2 ..... Arm, control shaft
3 ........ 539106687 ....... 2 ..... Control lever extension
4 ........ 539102593 ....... 8 ..... Washer, 3/8, spring
5 ........ 539107837 ....... 2 ..... Pump linkage bar
6 ........ 539102590 ....... 2 ..... Ball end, right
7 ........ 539105732 ....... 2 ..... Pump lever
8 ........ 539105079 ....... 2 ..... Setscrew, 5/16-18 sq. x 5/8, cone pt.
9 ........ 539103547 ....... 2 ..... Washer
10 ...... 539976998 ....... 2 ..... Zerk
11 ...... 539104995 ....... 2 ..... Spacer
12 ...... 539102720 ....... 2 ..... Dampener
13 ...... 539106412 ....... 2 ..... Bracket, L
14 ...... 539976952 ....... 4 ..... Screw, #10-24 x 5/8
15 ...... 539104363 ....... 1 ..... Control, left
16 ...... 539102591 ....... 2 ..... Ball end, left
17 ...... 539104364 ....... 1 ..... Control, right
18 ...... 539102678 ....... 2 ..... Tapped plate
19 ...... 539106269 ....... 2 ..... Switch
20 ...... 539103297 ....... 2 ..... Detent spring, rev.
21 ...... 539990692 ....... 6 ..... Washer, 5/16
22 ...... 539106776 ....... 4 ..... Bolt, 3/8-16 x 1/2
23 ...... 539990563 ....... 4 ..... Bolt, 3/8-16 x 1
24 ...... 539990655 ....... 6 ..... Bolt, 3/8-16 x 1 1/2
25 ...... 539990209 ....... 4 ..... Bolt, 5/16-18 x 1
26 ...... 539990517 ....... 2 ..... Washer, 3/8
27 ...... 539991055 ....... 2 ..... Bolt, 5/16-18 x 2 1/4, tap
28 ...... 539990627 ....... 2 ..... Bolt, 5/1618 x 1 1/4
29 ...... 539976934 ....... 4 ..... Bolt, 5/16-18 x 3/4
30 ...... 539990588 ....... 2 ..... Bolt, 3/8-16 x 2
31 ...... 539990184 ....... 14 ... Nut, 5/16-18, centerlock
32 ...... 539990585 ....... 2 ..... Nut, 5/16-18, serrated washer
33 ...... 539990546 ....... 6 ..... Nut, 3/8-16, centerlock
34 ...... 539990223 ....... 6 ..... Nut, 5/16-24
35 ...... 539991073 ....... 2 ..... Nut, 5/16-24, jam, LH
36 ...... 539990613 ....... 2 ..... Nut, 3/8-16
37 ...... 539976979 ....... 4 ..... Nut, 3/8-16, nyloc
38 ...... 539102592 ....... 2 ..... Grip
13
www.mymowerparts.com
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

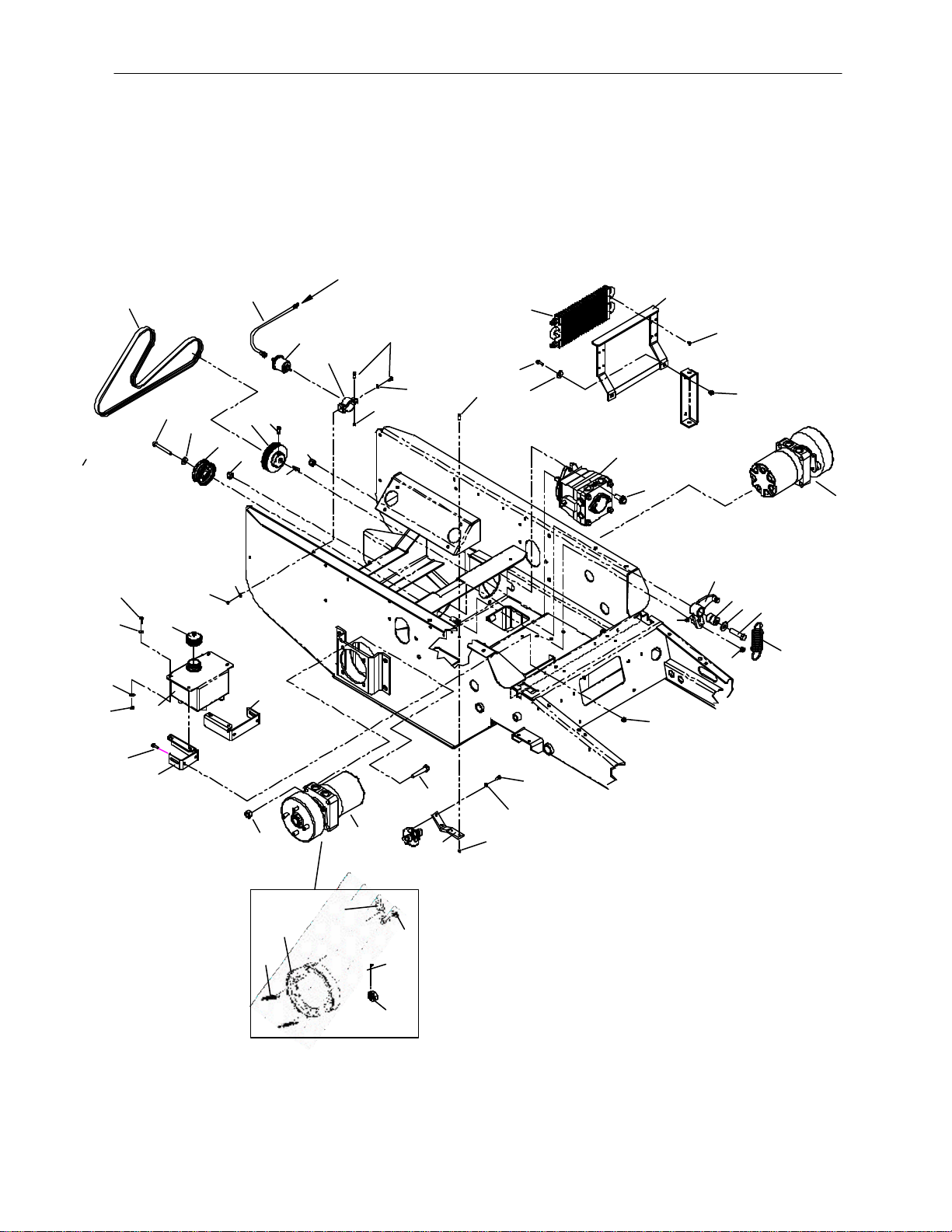

HYDRAULIC ASSEMBLY
TO ENGINE BLOCK PORT
25
20
27
14
2
21
26
5
31
29
30
34
32
36
28
7
3
21
4
6
35
24
1
19
37
30
31
30
29
32
10
15
12
22
13
23
18
16
45
31
9
39
11
21
40
41
38
43
44
42
18
17
37
29
33
31
8
14
www.mymowerparts.com
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
HYDRAULIC ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539106333 ....... 2 ..... Pump
2 ........ 539106334 ....... 2 ..... Sheave, pump
3 ........ 539102716 ....... 4 ..... Setscrew, 5/16-18 x 1
4 ........ 539109178 ....... 2 ..... Key, metric
5 ........ 539106356 ....... 1 ..... Cooler
6 ........ 539107810 ....... 1 ..... Mount, cooler
7 ........ 539107844 ....... 1 ..... Clamp, oil sender
8 ........ 539105891 ....... 1 ..... Reservoir
9 ........ 539101202 ....... 1 ..... Oil cap
10 ...... 539105026 ....... 1 ..... Tank mount, right
11 ...... 539105027 ....... 1 ..... Tank, mount, left
12 ...... 539106425 ....... 1 ..... Arm
13 ...... 539106417 ....... 1 ..... Bushing
14 ...... 539919078 ....... 1 ..... Pulley, idler
15 ...... 539912758 ....... 1 ..... Zerk
16 ...... 539102666 ....... 1 ..... Spring
17 ...... 539106290 ....... 1 ..... Mount, filter
18 ...... 539108346 ....... 9 ..... Bolt, 1/2-13 x 2 1/2
19 ...... 539990622 ....... 4 ..... Bolt, 1/2-13 x 1 1/4, serrated head
20 ...... 539101341 ....... 1 ..... Bolt, 3/8-16 x 3
21 ...... 539101331 ....... 13 ... Nut, 1/2-13, nyloc
22 ...... 539976979 ....... 3 ..... Nut, 3/8-16, nyloc
23 ...... 539990550 ....... 1 ..... Washer, 1/2
24 ...... 539990717 ....... 6 ..... Nut, 5/16-18, nyloc
25 ...... 539106341 ....... 1 ..... Belt, pump
26 ...... 539108053 ....... 1 ..... Hose
27 ...... 539990122 ....... 1 ..... Washer, 3/8, SAE
28 ...... 539106382 ....... 1 ..... Sender, oil pressure
29 ...... 539990580 ....... 8 ..... Bolt, 1/4-20 x 3/4
30 ...... 539990598 ....... 9 ..... Washer, 1/4
31 ...... 539976978 ....... 8 ..... Nut, 1/4-20, nyloc
32 ...... 539990209 ....... 6 ..... Bolt, 5/16-18 x 1
33 ...... 539990052 ....... 2 ..... Lockwasher, 1/4
34 ...... 539990548 ....... 2 ..... Bolt, 1/4-20 x 1
35 ...... 539110673 ....... 4 ..... Screw, #10 -12 x 3/4
36 ...... 539990692 ....... 2 ..... Washer, 5/16
37 ...... 539106266 ....... 1 ..... Wheel motor, left
38 ...... 539106267 ....... 1 ..... Wheel motor, right
39 ...... 539108523 ....... 2 ..... Return spring
40 ...... 539108524 ....... 2 ..... Shoe assembly
41 ...... 539108525 ....... 1 ..... Lever
42 ...... 539108526 ....... 1 ..... Clip
43 ...... 539105277 ....... 2 ..... Castle nut
44 ...... 539990297 ....... 2 ..... Cotter pin
45 ...... 539109347 ....... 1 ..... Washer, 1/4, external star
15
www.mymowerparts.com
Page 16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
HYDRAULIC HOSES AND FITTINGS
5
14
15
17
13
5 16
18
NOTE: ARROW ON FILTER
HEAD FOR CORRECT
DIRECTION OF FLOW
21
2
17
1
19
9
19
17
6
6
19
19
7
20
4
7
19
10
16
19
4
21
8
12
4
11
16
www.mymowerparts.com
3
Page 17
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
HYDRAULIC HOSES AND FITTINGS
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539105892 ....... 1 ..... Filter head
2 ........ 539105893 ....... 1 ..... Filter
3 ........ 539105168 ....... 1 ..... Cap nut, reservoir drain
4 ........ 539101237 ....... 3 ..... Straight connector
5 ........ 539106357 ....... 4 ..... Fitting, wheel motors
6 ........ 539106358 ....... 2 ..... Fitting, pumps
7 ........ 539106359 ....... 2 ..... Fitting, pumps (return side)
8 ........ 539106360 ....... 1 ..... Hose, cooler-reservoir
9 ........ 539106361 ....... 1 ..... Hose, T, pumps-cooler
10 ...... 539106362 ....... 1 ..... Hose, T, filter, out-pumps
11 ...... 539106363 ....... 1 ..... Hose, reservior-filter, in
12 ...... 539106364 ....... 1 ..... Hose, LL pump-LR mtr
13 ...... 539106365 ....... 1 ..... Hose, RR pump-RF mtr
14 ...... 539106366 ....... 1 ..... Hose, LR pump-LF mtr
15 ...... 539106367 ....... 1 ..... Hose, RL pump-RR mtr
16 ...... 539106370 ....... 2 ..... Fitting
17 ...... 539108983 ....... 8 ..... `O’ ring
18 ...... 539103114 ....... 4 ..... `O’ ring
19 ...... 539103115 ....... 6 ..... `O’ ring
20 ...... 539103118 ....... 2 ..... `O’ ring
21 ...... 539103119 ....... 3 ..... `O’ ring
17
www.mymowerparts.com
Page 18
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
FUEL GROUP
11
TO FUEL PUMP INLET
TO FUEL PUMP RETURN
13
17
15
20
10
14
28
17
9
12
19
7
3
18
1
16
18
4
21
22
16
7
3
2
4
6
5
5
23
6
27
8
6
5
26
25
24
5
18
www.mymowerparts.com
Page 19
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
FUEL GROUP
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539105329 ....... 1 ..... Fuel tank, left
2 ........ 539105330 ....... 1 ..... Fuel tank, right
3 ........ 539105245 ....... 2 ..... Grommet, rubber
4 ........ 539102650 ....... 2 ..... Hose barb, 90°
5 ........ 539976934 ....... 10 ... Bolt, 5/16-18 x 3/4
6 ........ 539101704 ....... 10 ... Washer, 5/16, sealing
7 ........ 539105244 ....... 2 ..... Elbow
8 ........ 539105331 ....... 1 ..... Valve, fuel
9 ........ 539108206 ....... 1 ..... Fuel line (38")
10 ...... 539108207 ....... 1 ..... Fuel line (35")
11 ...... 539108208 ....... 1 ..... Fuel line (79")
12 ...... 539108209 ....... 1 ..... Fuel line (57")
13 ...... 539108210 ....... 1 ..... Fuel line (54")
14 ...... 539108211 ....... 1 ..... Fuel line (34")
15 ...... 539108212 ....... 1 ..... Fuel line (13")
16 ...... 539107863 ....... 2 ..... Clip
17 ...... 539105529 ....... 4 ..... Clamp
18 ...... 539106330 ....... 2 ..... Cap, diesel fuel
19 ...... 539912222 ....... 10 ... Hose clamp
20 ...... 539105334 ....... 1 ..... Decal, fuel valve
21 ...... 539990580 ....... 2 ..... Bolt, 1/4-20 x 3/4
22 ...... 539990598 ....... 2 ..... Washer, 1/4
23 ...... 539976978 ....... 2 ..... Nut, 1/4-20, nyloc
24 ...... 539107840 ....... 1 ..... Mounting bracket
25 ...... 539990187 ....... 2 ..... Lockwasher, 5/16
26 ...... 539300600 ....... 2 ..... Bolt, M8-1.25 x 20
27 ...... 539990717 ....... 2 ..... Nut, 5/16-18, nyloc
28 ...... 539106369 ....... 1 ..... Fuel filter/pump assembly
.......... 539108448 ....... 1 ..... Fuel filter element
19
www.mymowerparts.com
Page 20
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
BRAKE GROUP
24
13
9
10
7
17
8
13
24
3
16
13
18
11
14
12
15
20
23
22
1
26
27
28
24
29
2
17
13
13
30
24
31
9
21
5
16
4
6
19
25
13
10
5
33
20
www.mymowerparts.com
32
Page 21
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
BRAKE GROUP
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539104327 ....... 2 ..... Standoff, wheel motor
2 ........ 539101173 ....... 8 ..... Nut, 1/2, lug
3 ........ 539106523 ....... 1 ..... Brake arm
4 ........ 539106526 ....... 1 ..... Brake lever
5 ........ 539102519 ....... 2 ..... Bushing, bronze
6 ........ 539105036 ....... 1 ..... Grip, park brake
7 ........ 539102717 ....... 1 ..... Setscrew, 5/16-18 sq. x 5/8
8 ........ 539106528 ....... 1 ..... Key, 1/8 sq. x 7/8
9 ........ 539107838 ....... 2 ..... Brake linkage bar
10 ...... 539977703 ....... 2 ..... Pin, clevis
11 ...... 539991050 ....... 2 ..... Bushing, machine, 3/4
12 ...... 539106269 ....... 1 ..... Switch
13 ...... 539990365 ....... 6 ..... Pin, cotter
14 ...... 539102678 ....... 1 ..... Plate, tapped
15 ...... 539976952 ....... 2 ..... Screw, #10-24 x 5/8
16 ...... 539102843 ....... 4 ..... Washer, 7/16, spring
17 ...... 539105044 ....... 2 ..... Bearing, bronze
18 ...... 539102454 ....... 2 ..... E-ring, 3/4
19 ...... 539990622 ....... 8 ..... Bolt, 1/2-13 x 1 1/4, serrated washer
20 ...... 539101332 ....... 8 ..... Bolt, 1/2-13 x 2 3/4
21 ...... 539101331 ....... 8 ..... Nut, 1/2-13, nyloc
22 ...... 539990258 ....... 8 ..... Nut, 1/2-13
23 ...... 539990254 ....... 8 ..... Lockwasher, 1/2
24 ...... 539990692 ....... 4 ..... Washer, 5/16
25 ...... 539977465 ....... 1 ..... Yoke
26 ...... 539990155 ....... 2 ..... Nut, 3/8-24
27 ...... 539990122 ....... 2 ..... Washer 3/8
28 ...... 539104986 ....... 1 ..... Spring
29 ...... 539102821 ....... 1 ..... Pin, trunion
30 ...... 539105040 ....... 1 ..... Bellcrank
31 ...... 539104984 ....... 1 ..... Bolt, 3/8-24 x 4 1/2, special
32 ...... 539101173 ....... 8 ..... Nut, 1/2, lug
33 ...... 539107713 ....... 2 ..... Tire, rear, assembly
.......... 539107715 ....... 1 ..... Tire
.......... 539105487 ....... 1 ..... Rim
.......... 539912234 ....... 1 ..... Air valve
.......... 539976856 ....... 6 ..... Wire tie
.............................................. (Not shown)
21
www.mymowerparts.com
Page 22
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
SEAT ASSEMBLY
16
5
14
17
9
3
10
4
12
10
11
8
6
13
15
1
2
7
12
4
10
22
www.mymowerparts.com
3
9
Page 23
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
SEAT ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539108360 ....... 1 ..... Seat mount
2 ........ 539105038 ....... 1 ..... Bracket w/decal, seat
3 ........ 539105039 ....... 4 ..... Stud plate mount
4 ........ 539103247 ....... 2 ..... Seat lanyard
5 ........ 539107859 ....... 1 ..... Seat suspension
6 ........ 539990580 ....... 2 ..... Bolt, 1/4-20 x 3/4
7 ........ 539990209 ....... 2 ..... Bolt, 5/16-18 x 1
8 ........ 539101341 ....... 2 ..... Bolt, 3/8-16 x 3
9 ........ 539976978 ....... 6 ..... Nut, 1/4-20, nyloc
10 ...... 539990717 ....... 6 ..... Nut, 5/16-18, nyloc
11 ...... 539990546 ....... 4 ..... Nut, 3/8-16, centerlock
12 ...... 539990692 ....... 4 ..... Washer, 5/16
13 ...... 539108716 ....... 1 ..... Armrest kit, left
14 ...... 539108717 ....... 1 ..... Armrest kit, right
15 ...... 539108718 ....... 1 ..... Seat cushion kit
16 ...... 539108719 ....... 1 ..... Back cushion kit
17 ...... 539108720 ....... 1 ..... Slide kit, seat adjustment
.......... 539108745 ....... 1 ..... Switch-snap mount kit (Not shown)
23
www.mymowerparts.com
Page 24
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

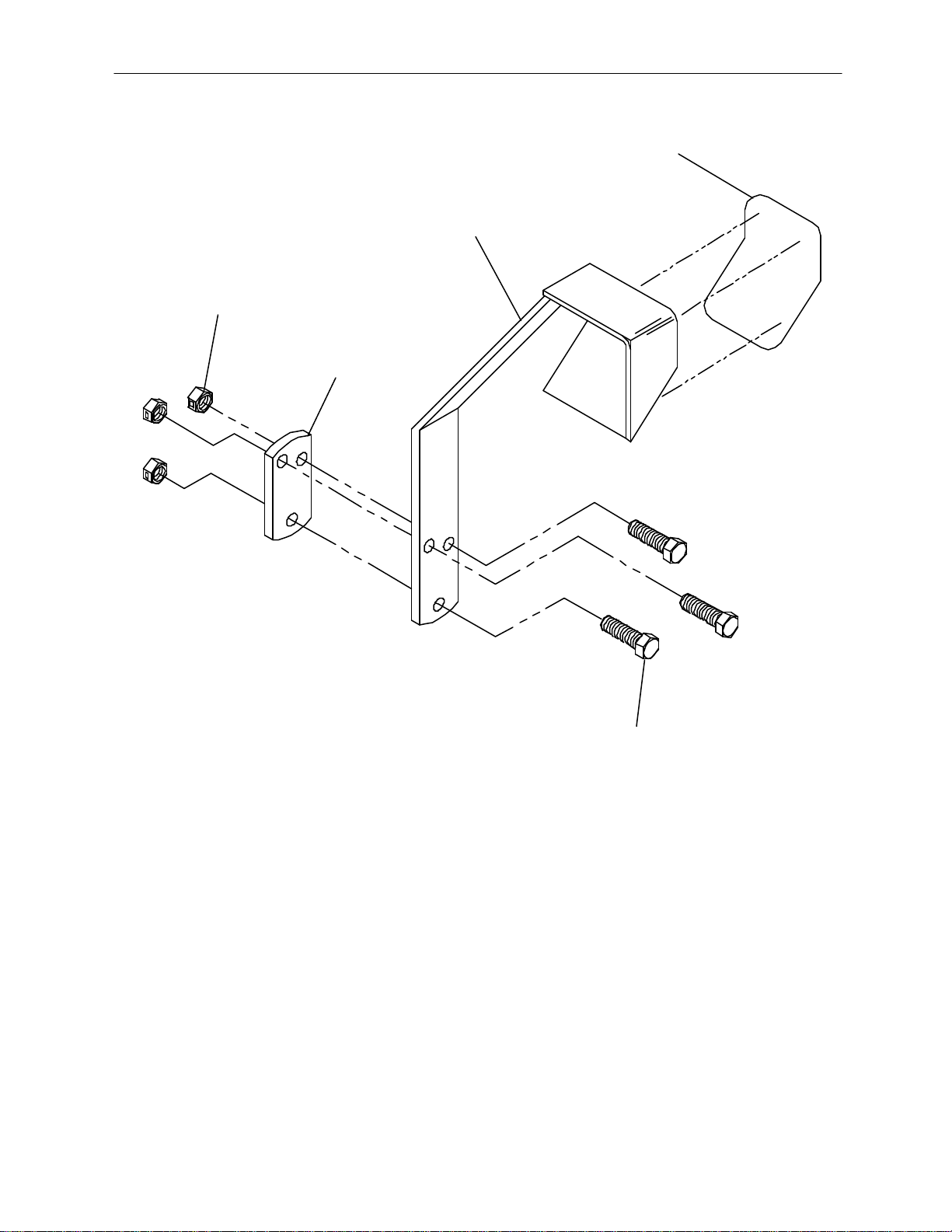

FOOT PEDAL
4
3
1
2
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539976979 ....... 3 ..... Nut, 3/8-16, nyloc
2 ........ 539105184 ....... 1 ..... Plate, tighting
3 ........ 539105181 ....... 1 ..... Pedal, lift
4 ........ 539105187 ....... 1 ..... Pad, anti-skid
5 ........ 539990655 ....... 3 ..... Bolt 3/8-16 x 1 1/2
5
24
www.mymowerparts.com
Page 25
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
CASTER ASSEMBLY
6
5
8
2
1
10
9
7
3
4
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539105517 ....... 1 ..... Bolt, 1/2-13 x 9 1/2, GD. 5
2 ........ 539105982 ....... 1 ..... Yoke, caster
3 ........ 539105518 ....... 2 ..... Spacer, axle
4 ........ 539105521 ....... 1 ..... Tire & wheel assembly
5 ........ 539101331 ....... 1 ..... Nut, 1/2-13, nyloc
6 ........ 539105522 ....... 1 ..... Tire
7 ........ 539103300 ....... 1 ..... Zerk
8 ........ 539105523 ....... 1 ..... Rim
9 ........ 539105524 ....... 2 ..... Seals
10 ...... 539912234 ....... 1 ..... Air valve
.......... 539105525 ....... 2 ..... Bearing, tapered (Not shown)
25
www.mymowerparts.com
Page 26
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
DECK LIFT
MANUAL
31
35
26
34
33
20
32
12
40
14
42
39
43
15
32
36
41
27
15
3
44
16
14
5
21
15
30 8
6
7
19 30
29
25
17
27
3
4
18
5
33
26
22
19
6
8
1
2
8
30
22
23
29
28
28
24
15
16
37
38
31
13
11
10
9
32
33
26
www.mymowerparts.com
Page 27
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
DECK LIFT
MANUAL
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539108354 ....... 1 ..... Shaft, lift, rear
2 ........ 539108355 ....... 1 ..... Shaft, lift, front
3 ........ 539101982 ....... 3 ..... Eyebolt, right
4 ........ 539101802 ....... 1 ..... E-ring, 7/8
5 ........ 539101232 ....... 2 ..... Bushing, flanged-PM
6 ........ 539104310 ....... 2 ..... Link, connecting
7 ........ 539104761 ....... 1 ..... Zerk, long
8 ........ 539990654 ....... 4 ..... Pin, cotter, 5/32 x 1 1/4
9 ........ 539104321 ....... 1 ..... Adjustment plate
10 ...... 539104530 ....... 4 ..... Spacer
11 ...... 539104323 ....... 1 ..... Adjustment plate
12 ...... 539102526 ....... 1 ..... Lift pin
13 ...... 539976989 ....... 1 ..... Hairpin, #4
14 ...... 539105060 ....... 2 ..... Pin, clevis
15 ...... 539991043 ....... 4 ..... Bushing, machine, 5/8
16 ...... 539105069 ....... 2 ..... E-ring, 5/8
17 ...... 539102641 ....... 4 ..... Lift chain
18 ...... 539923787 ....... 1 ..... Bushing, machine, 7/8
19 ...... 539104760 ....... 3 ..... Spring, extension
20 ...... 539105059 ....... 1 ..... Lanyard
21 ...... 539105050 ....... 2 ..... Lift linkage
22 ...... 539104808 ....... 8 ..... Pillow block
23 ...... 539104807 ....... 4 ..... Bar, reinforcement
24 ...... 539991046 ....... 8 ..... Bolt, 5/16-18 x 2 1/2
25 ...... 539101175 ....... 8 ..... Bolt, 7/16-14 x 1 1/2
26 ...... 539990184 ....... 11 ... Nut, 5/16-18, centerlock
27 ...... 539990585 ....... 3 ..... Nut, 5/16-18, serrated washer
28 ...... 539990839 ....... 8 ..... Nut, 7/16-14, centerlock
29 ...... 539102582 ....... 8 ..... Nut, 7/16-14, whiz
30 ...... 539976982 ....... 4 ..... Washer, 5/8
31 ...... 539990637 ....... 2 ..... Bolt, 3/8-16 x 2 1/2
32 ...... 539990629 ....... 3 ..... Bolt, 3/8-16 x 2 1/4
33 ...... 539990546 ....... 5 ..... Nut, 3/8-16, centerlock
34 ...... 539976979 ....... 1 ..... Nut, 3/8-16, nyloc
35 ...... 539990613 ....... 1 ..... Nut, 3/8-16, serrated washer
36 ...... 539108322 ....... 1 ..... Lever
37 ...... 539102515 ....... 1 ..... Grip
38 ...... 539101050 ....... 1 ..... Grip
39 ...... 539104523 ....... 1 ..... Pin
40 ...... 539106532 ....... 1 ..... Pin, 3/16 x 1 1/4, grooved
41 ...... 539990761 ....... 2 ..... Nut, 1/4-20, centerlock
42 ...... 539103534 ....... 1 ..... Pin mt, upper
43 ...... 539101058 ....... 1 ..... Spring
44 ...... 539990580 ....... 2 ..... Bolt, 1/4-20 x 3/4
.......... 539106345 ....... 1 ..... Plug (Not shown)(Top of Right Console)
27
www.mymowerparts.com
Page 28
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
DECK LIFT
POWER
48
51
44
50
49
47
22
46
9
31
38
20
ADJUST NUT LOCATION TO EXPOSE
.190 ± .015 THREADS ABOVE NUTS
BEFORE ASSEMBLY. NUTS TO BE
SEATED TOGETHER.
32
11
10
12
38
13
14
31
25
15
35
15
42
43
34
3
4
5
16
5
7
24
19
15
14
40
3
6
40
8
17
29
38
34
26
8
1
36
15
37
39
18
36
16
2
26
27
33
23
41
13
6
37
30
29
8
40
21
45
41
28
28
www.mymowerparts.com
Page 29
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
DECK LIFT
POWER
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539108354 ....... 1 ..... Shaft, lift, rear
2 ........ 539107134 ....... 1 ..... Shaft, lift, front
3 ........ 539101982 ....... 3 ..... Eyebolt, right
4 ........ 539101802 ....... 1 ..... E-ring, 7/8
5 ........ 539101232 ....... 2 ..... Bushing, flanged-PM
6 ........ 539104310 ....... 2 ..... Link, connecting
7 ........ 539104761 ....... 1 ..... Zerk, long
8 ........ 539990654 ....... 4 ..... Pin, cotter, 5/32 x 1 1/4
9 ........ 539104321 ....... 1 ..... Adjustment plate
10 ...... 539104530 ....... 4 ..... Spacer
11 ...... 539104323 ....... 1 ..... Adjustment plate
12 ...... 539102526 ....... 1 ..... Lift pin
13 ...... 539976989 ....... 1 ..... Hairpin, #4
14 ...... 539105060 ....... 2 ..... Pin, clevis
15 ...... 539991043 ....... 4 ..... Bushing, machine, 5/8
16 ...... 539105069 ....... 2 ..... E-ring, 5/8
17 ...... 539102641 ....... 4 ..... Lift chain
18 ...... 539923787 ....... 1 ..... Bushing, machine, 7/8
19 ...... 539104760 ....... 3 ..... Spring, extension
20 ...... 539105059 ....... 1 ..... Lanyard
21 ...... 539107227 ....... 2 ..... Pin, clevis, 1/2 x 1 3/4
22 ...... 539108232 ....... 1 ..... Decal, lift switch
23 ...... 539107130 ....... 1 ..... Cylinder mounting
24 ...... 539105050 ....... 2 ..... Lift linkage
25 ...... 539107137 ....... 1 ..... Lift lever
26 ...... 539104808 ....... 8 ..... Pillow block
27 ...... 539104807 ....... 4 ..... Bar, reinforcement
28 ...... 539991046 ....... 8 ..... Bolt, 5/16-18 x 2 1/2
29 ...... 539101175 ....... 7 ..... Bolt, 7/16-14 x 1 1/2
30 ...... 539108073 ....... 1 ..... Bolt, 7/16-14 x 1 3/4, GR 5
31 ...... 539990629 ....... 3 ..... Bolt, 3/8-16 x 2 1/4
32 ...... 539990637 ....... 1 ..... Bolt, 3/8-16 x 2 1/2
33 ...... 539990563 ....... 4 ..... Bolt, 3/8-16 x 1
34 ...... 539990184 ....... 11 ... Nut, 5/16-18, centerlock
35 ...... 539990585 ....... 3 ..... Nut, 5/16-18, serrated washer
36 ...... 539990839 ....... 8 ..... Nut, 7/16-14, centerlock
37 ...... 539102582 ....... 8 ..... Nut, 7/16-14, whiz
38 ...... 539990546 ....... 5 ..... Nut, 3/8-16, centerlock
39 ...... 539976979 ....... 4 ..... Nut, 3/8-16, nyloc
40 ...... 539976982 ....... 4 ..... Washer, 5/8
41 ...... 539990550 ....... 2 ..... Washer, 1/2
42 ...... 539990118 ....... 2 ..... Lockwasher, 3/8
43 ...... 539990134 ....... 2 ..... Bolt, 3/8-16 x 3/4
44 ...... 539107226 ....... 1 ..... Power unit/hydraulic lift
45 ...... 539107769 ....... 1 ..... Cylinder
46 ...... 539107868 ....... 1 ..... Switch
47 ...... 539107869 ....... 1 ..... Switch boot
48 ...... 539107870 ....... 2 ..... Fitting
49 ...... 539107871 ....... 2 ..... Hose assembly
50 ...... 539108984 ....... 2 ..... `O’ ring
51 ...... 539108985 ....... 2 ..... `O’ ring
29
www.mymowerparts.com
Page 30
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
DECK ASSEMBLY
23
36
5
56
62
57
61
58
30
4
32
53
6
59
60
55
51
52
51
52
54
7
8
NOTE:
TORQUE TO 45 FT/LBS
50
30
61 INCH
21
20
24
26
20
25
31
19
19
40
37
39
38
31
41
29
35
19
5
4
25
18
16
17
19
20
13
14
5
14
15
15
5
22
5
12
27
28
42
1
49
5
15
5
14
62
34
33
NOTE:
TORQUE TO 45 FT/LBS
3 PLACES
57
7
6
3
2
48
44
45
43
44
45
47
4
9
NOTE:
TORQUE TO 90 FT/LBS
3 PLACES
10
30
www.mymowerparts.com
46
11
Page 31
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
DECK ASSEMBLY
61 INCH
ITEM PART NO. QTY. DESCRIPTION
1 ..... 539106217 .... 1 ......61" Deck w/decals
2 ..... 539107278 .... 3 ......Pulley
4 ..... 539990209 .... 18 ....Bolt, 5/16-18 x 1
5 ..... 539990184 .... 25 ....Nut, 5/16-18,
.........................................centerlock
6 ..... 539106504 .... 5 ......Washer, heavy
7 ..... 539990247 .... 5 ......Lockwasher, 7/16
8 ..... 539100141 .... 2 ......Bolt, 7/16-20 x 1 1/2
9 ..... 539101733 .... 3 ......Blade, 21"
10 ... 539990333 .... 3 ......Lockwasher, 5/8
11 ... 539103299 .... 3 ......Bolt, 5/8-18 x 1 1/4
12 ... 539105465 .... 1 ......Main weldment
13 ... 539105461 .... 1 ......Baffle, center
14 ... 539990799 .... 5 ......Bolt, 5/16-18 x 5/8,
.........................................carriage
15 ... 539990692 .... 5 ......Washer, 5/16
16 ... 539102643 .... 6 ......Anit-scalp roller
17 ... 539102698 .... 6 ......Bushing
18 ... 539102754 .... 6 ......Bolt, 3/8-16 x 3 1/2
19 ... 539990517 .... 9 ......Washer, 3/8
20 ... 539990546 .... 8 ......Nut 3/8-16,
.........................................centerlock
21 ... 539108611 .... 1 ......Belt shield, 61", right
....... 539108610 .... 1 ......Belt shield, 61", left
.........................................(Not shown)
22 ... 539103303 .... 2 ......Pad
23 ... 539106340 .... 1 ......Belt, 61"
24 ... 539103295 .... 2 ......Bushing, idler
25 ... 539103257 .... 2 ......Pulley, idler
26 ... 539103258 .... 1 ......Pulley, idler, tall
27 ... 539990637 .... 2 ......Bolt, 3/8-16 x 2 1/2
28 ... 539102243 .... 1 ......Washer, support
29 ... 539102070 .... 6 ......Knob, three prong
ITEM PART NO. QTY. DESCRIPTION
30 ... 539107751 ....2......Strut weldment
31 ... 539976998 ....3......Zerk
32 ... 539106401 ....1......Spacer, strut
33 ... 539105480 ....2......Pin weldment
34 ... 539976934 ....2......Bolt, 5/16-18 x 3/4
35 ... 539106512 ....1......Chute, discarge
36 ... 539105192 ....1......Spring
37 ... 539990582 ....1......Bolt, 3/8-16 x 1, ser.
38 ... 539101331 ....1......Nut, 1/2-13, nyloc
39 ... 539990550 ....1......Washer, 1/2
40 ... 539103230 ....1......Idler arm
41 ... 539103427 ....1......Bushing, pivot
42 ... 539103433 ....1......Bolt, 1/2-13 x 3 1/4, GD. 5
43 ... 539108763 ....1......Cutter housing, complete
44 ... 539108754....2......Shaft seal
45 ... 539108758....2......Spacer
46 ... 539108760....1......M ini spindle
4 7 ... 539108449 ....1 ......Dust cap, bottom
48 ... 539108450....1......Dust cap, top
49 ... 539977326....1......Grease popet
50 ... 539108768 ....1......Jackshaft assembly,
........................................lower
51 ... 539108754 ....2......Shaft seal
52 ... 539108758....2......Spacer
53 ... 539108767....1......Jackshaft spindle
54 ... 539108449....1......Dust cap, bottom
55 ... 539108450....1......Dust cap, top
56 ... 539977326....1......Grease popet
57 ... 539101175 ....4......Bolt, 7/16-20 x 1 1/2,
........................................GD. 5, special
58 ... 539101995 ....1......Key, 1/4" sq. x 1 1/8"
59 ... 539106504 ....1......Washer, heavy
60 ... 539106346 ....1......Sheave
61 ... 539990247 ....1......Lockwasher, 7/16
62 ... 539976998 ....4......Zerk
31
www.mymowerparts.com
Page 32
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
DECK ASSEMBLY
72 INCH
NOTE:
TORQUE TO 45 FT/LBS
6
14
5
28
31
22
9
58
24
64
60
63
27
26
59
61
53
54
55
57
54
56
8
53
62
23
52
41
6
20
7
21
9
6
19
44
20
33
25
24
32
42
43
14
13
64
59
NOTE:
TORQUE TO 45 FT/LBS
15
3 PLACES
12
1
9
9
39
30
17
9
8
3
6
7
LOCATED UNDERNEATH DECK
ON CENTER GUSSET
29
34
2
18
17
4
3
7
6
5
6
3
9
2
39
35
40
38
37
51
38
10
NOTE:
TORQUE TO 90 FT/LBS
3 PLACES
11
47
48
50
46
49
46
47
45
8
36
32
www.mymowerparts.com
Page 33
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
DECK ASSEMBLY
72 INCH
ITEM PART NO. QTY. DESCRIPTION
1 ..... 539106218 ....1......72" Deck w/decals
2 ..... 539102643 ....8......Anti-scalp roller
3 ..... 539102698 ....8......Bushing
4 ..... 539102754 ....6......Bolt, 3/8-16 x 3 1/2
5 ..... 539105422 ....1......Bolt, 3/8-16 x 6, Gd. 8
6 ..... 539990517 ....11 ....Washer, 3/8
7 ..... 539990546 ....9......Nut, 3/8-16,
........................................centerlock
8 ..... 539990209 ....18....Bolt, 5/16-18 x 1
9 ..... 539990184 ....25....Nut, 5/16-18,
........................................centerlock
10 ... 539105476 ....3......Blade, 25"
11 ... 539105634 ....3......Washer, 5/8, spring
12 ... 539107279 ....3......Pulley
13 ... 539101995 ....3......Key, 1/4" sq. x 1 1/8"
14 ... 539106504 ....5......Washer, heavy
15 ... 539990247 ....5......Lockwasher, 7/16
16 ... 539100141 ....2......Bolt, 7/16-20 x 1 1/2
17 ... 539990637 ....2......Bolt, 3/8-16 x 2 1/2
18 ... 539103303 ....2......Pad
19 ... 539103295 ....2......Bushing, idler
20 ... 539103257 ....1......Pulley, idler
21 ... 539103258 ....2......Pulley, idler (tall)
22 ... 539107750 ....1......Strut, right
....... 539107751 ....1......Strut, left (Not shown)
23 ... 539104335 ....1......72" Deck belt
24 ... 539976998 ....3......Zerk
25 ... 539103433 ....1......Bolt, 1/2-13 x 3 1/4,
........................................Gd. 5
26 ... 539105480 ....1......Pin
....... 539102619 ....1......Pin, pivot (Not shown)
27 ... 539976934 ....2......Bolt, 5/16-18 x 3/4
28 ... 539106401 ....1......Spacer, strut
29 ... 539104763 ....8......"U" clip
30 ... 539108270 ....1......Chute, discharge
ITEM PART NO. QTY. DESCRIPTION
31 ... 539108920 ....1......Shield, belt, right
....... 539108922 ....1......Shield, belt, left
........................................(Not shown)
32 ... 539103427 ....1......Bushing, pivot
33 ... 539105192 ....1......Spring
34 ... 539104411 ....8......Knob w/stud
35 ... 539105615 ....1......Baffle, center
36 ... 539105633 ....3......Bolt, 5/8-18 x 2, Gd. 8
37 ... 539105614 ....1......Baffle, center curved
38 ... 539990799 ....5......Bolt, 5/16-18 x 5/8,
........................................carriage
39 ... 539990692 ....5......Washer, 5/16
40 ... 539977778 ....2......Pad, abrasive
41 ... 539990582 ....1......Bolt, 3/8-16 x 1, ser.
42 ... 539101331 ....1......Nut, 1/2-13, nyloc
43 ... 539990550 ....1......Washer, 1/2
44 ... 539103230 ....1......Idler arm
45 ... 539108764 ....1......Cutter housing, complete
46 ... 539108754....2......Shaft seal
47 ... 539108758....2......Spacer
48 ... 539108761....1......M ini spindle
4 9 ... 539108449 ....1 ......Dust cap, bottom
50 ... 539108450....1......Dust cap, top
51 ... 539977326....1......Grease popet
52 ... 539108768 ....1......Jackshaft assembly,
........................................lower
53 ... 539108754 ....2......Shaft seal
54 ... 539108758....2......Spacer
55 ... 539108767....1......Jackshaft spindle
56 ... 539108449....1......Dust cap, bottom
57 ... 539108450....1......Dust cap, top
58 ... 539977326....1......Grease popet
59 ... 539101175 ....4......Bolt, 7/16-20 x 1 1/2,
........................................GD. 5, special
60 ... 539101995 ....1......Key, 1/4" sq. x 1 1/8"
61 ... 539106504 ....1......Washer, heavy
62 ... 539106346 ....1......Sheave
63 ... 539990247 ....1......Lockwasher, 7/16
64 ... 539976998 ....4......Zerk
33
www.mymowerparts.com
Page 34
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
DECALS
24
4
7
5
22
26
25
15
9
10
16
17
23
18
19
20
10
21
11
8
14
13
4
6
2
1
34
www.mymowerparts.com
12
3
Page 35
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
DECALS
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539913010 ....... 1 ..... Decal, CPSC
2 ........ 539105746 ....... 1 ..... Decal, Euro servering
3 ........ 539108335 ....... 1 ..... Decal, Belt routing
4 ........ 539104790 ....... 2 ..... Decal, Husqvarna
5 ........ 539105744 ....... 1 ..... Decal, Euro danger, belt drives
6 ........ 539105232 ....... 1 ..... Decal, Anti-scalp
7 ........ 539105803 ....... 1 ..... Decal, crown
8 ........ 539105745 ....... 1 ..... Decal, Euro battery warning
9 ........ 539101881 ....... 1 ..... Decal, Prop 65
10 ...... 539103333 ....... 2 ..... Decal, Motion control
11 ...... 539105785 ....... 1 ..... Decal, Euro warning
12 ...... 539105743 ....... 2 ..... Decal, Euro no step
13 ...... 539108121 ....... 1 ..... Decal, Front Console
14 ...... 539105301 ....... 1 ..... Decal, Mobil
15 ...... 539105334 ....... 1 ..... Decal, Fuel valve
16 ...... 539104899 ....... 1 ..... Decal, Height indication
17 ...... 539104898 ....... 1 ..... Decal, Height indication
18 ...... 539106248 ....... 1 ..... Decal, BZ6134D
19 ...... 539106250 ....... 1 ..... Decal, BZ7234D
20 ...... 539106252 ....... 1 ..... Decal, BZ6127D
21 ...... 539108124 ....... 1 ..... Decal, Service
22 ...... 539108122 ....... 1 ..... Decal, Right Console
23 ...... 539108123 ....... 1 ..... Decal, 12V DC
24 ...... 539108262 ....... 1 ..... Decal, 34 Turbo, left
.......... 539108264 ....... 1 ..... Decal, 27 Diesel, left
25 ...... 539108263 ....... 1 ..... Decal, 34 Turbo, right
.......... 539108265 ....... 1 ..... Decal, 27 Diesel, right
26 ...... 539108497 ....... 1 ..... Decal, HOT
.......... 539100128 ....... 1 ..... Decal, engine exhaust (Not shown)
35
www.mymowerparts.com
Page 36
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
ELECTRICAL GROUP
11
10
9
16
15
14
12
3
8
7
5
4
19
18
2
17
1
23
12
20
21
12
22
6
13
36
www.mymowerparts.com
Page 37
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
ELECTRICAL GROUP
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539102423 ....... 1 ..... Battery
2 ........ 539108016 ....... 1 ..... Hourmeter, LCD w/flash alert
3 ........ 539101770 ....... 1 ..... Switch, ignition
4 ........ 539103177 ....... 1 ..... Nut, ignition switch
5 ........ 539103178 ....... 1 ..... Cap, ignition switch nut
6 ........ 539101768 ....... 1 ..... Switch, clutch
7 ........ 539107856 ....... 1 ..... Power source housing
8 ........ 539107857 ....... 1 ..... Power source cap
9 ........ 539107755 ....... 1 ..... Clamp
10 ...... 539990692 ....... 1 ..... Washer, 5/16
11 ...... 539990717 ....... 1 ..... Nut, 5/16-18
12 ...... 539106312 ....... 5 ..... Bolt, , #10-24 x 3/4
13 ...... 539976977 ....... 5 ..... Nut, #10-24, nyloc
14 ...... 539105246 ....... 1 ..... Gauge, temperature
15 ...... 539106388 ....... 1 ..... Gauge, amperes
16 ...... 539106387 ....... 1 ..... Gauge, oil pressure
17 ...... 539107920 ....... 1 ..... Lamp socket
18 ...... 539108174 ....... 1 ..... Lens
19 ...... 539108175 ....... 1 ..... Lamp
20 ...... 539108361 ....... 1 ..... Relay, Glow Plug
21 ...... 539102914 ....... 4 ..... Relay
22 ...... 539108348 ....... 1 ..... Timer/glow plug
.......... 539101771 ....... 1 ..... Fuse, 7.5 AMP, 32 volts, (Not Shown)
.......... 539102086 ....... 1 ..... Fuse, 20 AMP, 32 volts, (Not Shown)
.......... 539108978 ....... 1 ..... Fuse, 10 AMP, 32 volts, (Not Shown)
.......... 539108979 ....... 1 ..... Fuse, 30 AMP, 32 volts, (Not Shown)
.......... 539108980 ....... 1 ..... Fuse, 50 AMP, 32 volts, (Not Shown)
23 ...... 539109346 ....... 1 ..... Ground
37
www.mymowerparts.com
Page 38
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
WIRE HARNESS
TO ALTERNATOR
TO STARTER
ELECTRIC
CLUTCH
OIL PRESSURE
GAUGE
AMP
GAUGE
TO FUEL
TO OIL
PRESSURE
SENDER
TEMPERATURE
GAUGE
SOLENOID
TO WATER
TEMPERATURE
SENDER
TO GLOW
PLUGS
RED/GRAY
RED/GRAY
GRAY
BLACK
TO RELAYS
GROUND TO
ENGINE BOLT
BLACK -
5
WHITE
TO PTO SWITCH
RED +
3
TO GLOW
PLUG TIMER
1
2
MAIN
SYSTEM
FUSE
RED
SUB-SYSTEM
FUSES
TO RIGHT MOTION
CONTROL LEVER
TO DECK LIFT
SWITCH ON UNITS
SO SUPPLIED
4
BLUE +
TO
SEAT
BLACK -
12 VOLT DC POWER
POINT
TO LIFT PUMP/MTR.
ON UNITS SO SUPPLIED
TO PARK BRAKE
TO LEFT MOTION
CONTROL LEVER
TO GLOW PLUG
INDICATOR LAMP
KEY SWITCH
TO HOUR/SERVICE
METER
ITEM PART NO. QTY. DESCRIPTION
1 ........ 539106390 ....... 1 ..... Harness, engine, diesel
2 ........ 539107941 ....... 1 ..... Cable, postive
3 ........ 539107942 ....... 1 ..... Cable, negative
4 ........ 539102685 ....... 1 ..... Loom clip
5 ........ 539106386 ....... 1 ..... Sender, temperature
DECK LIFT SWITCH
VIEWED FROM TERMINAL SIDE
DECK LIFT SWITCH
MOWER FRONT
DOUBLE GREEN
TO FRONT ON
HARNESS REV.
WIH 6 HOLE
CONNECTOR
HARNESS REV.
WIH 5 HOLE
CONNECTOR
SELF ALIGNING
38
www.mymowerparts.com
Page 39
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

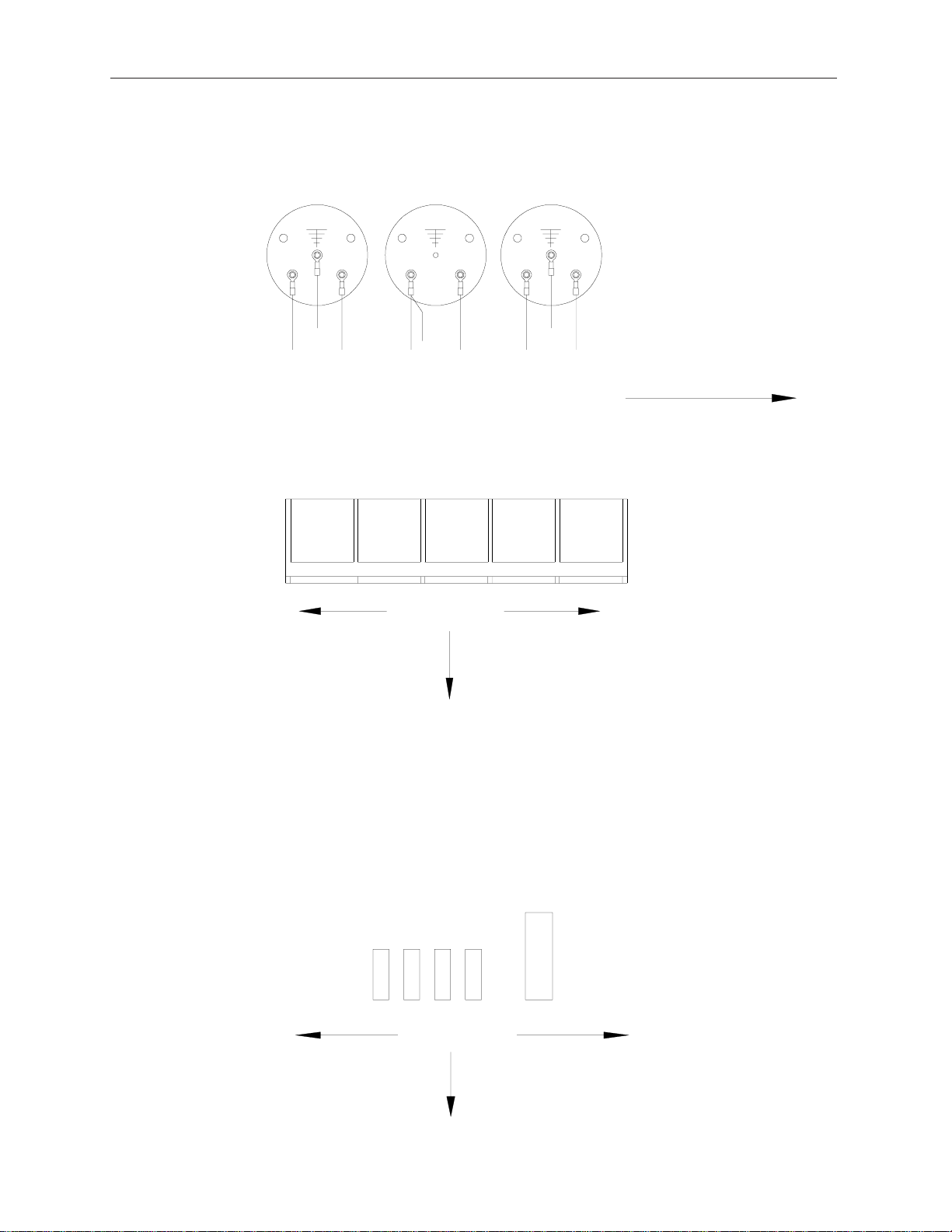

WIRE HARNESS
GAUGE WIRING
VIEWED FROM TERMINAL SIDE
OIL
PRESSURE
GAUGE
BLACK
GRA Y
RED
AMP
GAUGE
RED
PURPLE
BLUE
TEMPERATURE
GAUGE
BLACK
WHITE
RED
MOWER FRONT
CLUTCH
REAR MOWER FRONT
START
RUN
RELAYS
BRAKE
GLOW
PLUGS
RIGHT
RIGHT SIDE
CLUTCH
POWER DECK LIFT
30A
INTERLOCK SYSTEM
12V DC POWER POINT
10A
7.5A
20A
FUSES
MOWER FRONT
MAIN SYSTEM
50A
LEFT
39
www.mymowerparts.com
Page 40
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
WIRING SCHEMATIC
40
www.mymowerparts.com
Page 41
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
WIRING SCHEMATIC
41
www.mymowerparts.com
Page 42
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
Loading...
