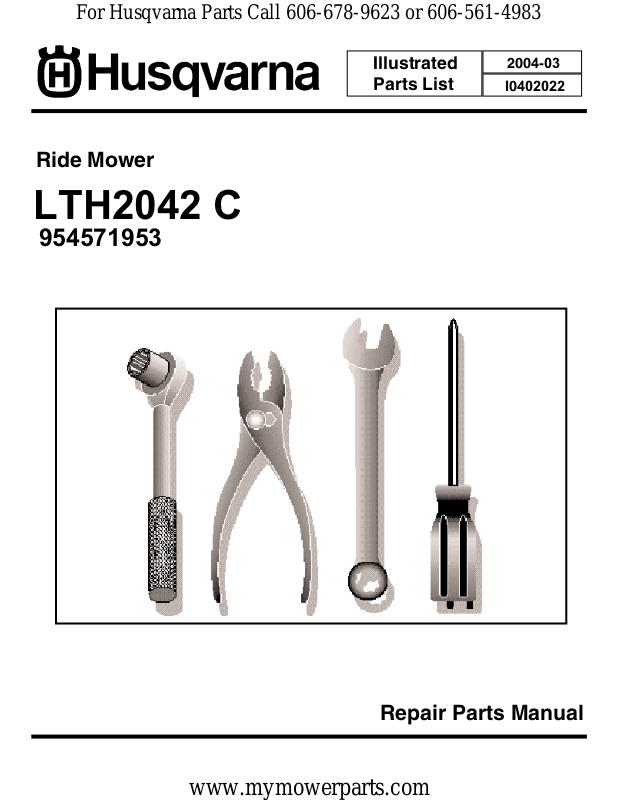

Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Ride Mower
LTH2042 C
954571953
Illustrated
Parts List
2004-03
I0402022
Repair Parts Manual
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
TRACTOR - - MODEL NUMBER LTH2042 (LTH2042C), PRODUCT NO. 954 57 19-53
SCHEMATIC
A
AMMETER
(OPTIONAL)
RED
B
G
L
IGNITION
SWITCH
BLACK
RED
BLACK
BATTERY
RED
FUSE
WHITE
RED
M
STARTER
BLACK
SOLENOID
S
M
A1
CLUTCH / BRAKE
(PEDAL UP)
WHITE
A2
SEAT SWITCH
(NOT OCCUPIED)
WHITE
BLACK
BLACK
HOUR
ATT'MENT CLUTCH
BLACK
(CLUTCH OFF)
BLACK
BLACK
GROUNDING
CONNECTOR
METER
ORANGE
BLUE
(OPTIONAL)
FUEL
LINE
BLACK
IGNITION
UNIT
SPARK
PLUG
GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1RUN/LIGHT
B+A1RUN
B+S+A1START
“MAKE”
NONE
A2+L
NONE
NONE
FUEL SHUT-OFF
(IF SO EQUIPPED)
02731
28 VOLTS AC @ 3600 RPM
(REGULATOR DISCONNECTED)
SOLENOID
RED
CHARGING SYSTEM OUTPUT
15 AMP DC @ 3600 RPM
REGULATOR
ALTERNATOR
BROWN
NON-REMOVABLE
CONNECTIONS
HEADLIGHTS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
27
BLACK
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LTH2042 (LTH2042C), PRODUCT NO. 954 57 19-53
ELECTRICAL
22
24
27
43
27
42
25
41
27
27
26
21
40
16
33
16
30
D
.
C
.
A
M
P
E
R
E
S
2
27
1
45
28
52
29
55
91
179720
8
_27
Battery
90
28
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LTH2042 (LTH2042C), PRODUCT NO. 954 57 19-53
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 14 49-27 Battery
2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4
8 532 18 64-91 Box Battery
16 532 17 61-38 Switch Interlock
21 532 17 56-88 Harness Asm Light W/4152j
22 532 00 41-52 Bulb Light #1156
24 532 12 47-88 Cable Battery 6 Ga. 11" red
25 532 14 61-48 Cable Battery 6 Ga. 22" red w/16 wire
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 14 54-91 Cable Ground 6 Ga. 21" black
29 532 12 13-05 Switch Plunger Gray
30 532 17 55-66 Switch Ign Delta
33 532 14 04-01 Key Ign Molded Generic
40 532 17 97-20 Harness Ign.
41 871 11 04-08 Bolt Blk Fin Hex 1/4 - 20 x 1/2
42 532 13 15-63 Cover Terminal Red
43 532 17 88-61 Solenoid
45 532 12 28-22 Ammeter Rectangular 15 amp
52 532 14 19-40 Protection Wire Loop
55 817 49 05-08 Screw THDROL 5/16-18 x 1/2
90 532 18 04-49 Cover Terminal
91 532 19 02-70 Strap Battery Mount Front
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
29
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LTH2042 (LTH2042C), PRODUCT NO. 954 57 19-53
CHASSIS AND ENCLOSURES
259
212
28
17
10
18
10
30
159
31
209
209
5
5
261
58
260
258
39
278
208
206
11
209
209
2
142
209
9
207
26
60
143
74
38
144
26
142
209
14
38
209
208
64
1
13
144
60
26
26
37
14
145
37
208
chassis-husqy.stlt_28
30
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LTH2042 (LTH2042C), PRODUCT NO. 954 57 19-53
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 532 17 46-19 Chassis Stamping
2 532 17 65-54 Drawbar
5 532 15 52-72 Bumper
9 532 19 19-41 Dashboard
10 872 14 06-08 Bolt Rdhd Sqnk 3/8-16 unc x 1
11 532 17 49-96 Panel Dash Lh
13 532 18 17-19 Panel Dash Rh
14 817 49 06-08 Screw Thdrol 3/8-16 x 1/2
17 532 18 73-48 Hood
18 532 18 49-21 Bumper Hood
20 532 18 06-79 Plate Battery
23 532 12 40-28 Bushing Snap
26 873 80 06-00 Nut Lock w/Insert 3/8-16 unc
28 532 18 52-92 Grille Lens Asm Includes Key #'s
212, 258, 259, 260, 261
30 532 19 20-13 Fender
31 532 13 99-76 Bracket
37 817 49 05-08 Screw Thdrol 5/16-18 x 1/2
38 532 17 57-10 Bracket Asm Pivot Mower Rear
39 532 17 47-14 Bracket Pivot Hood
58 532 18 44-62 Duct Air
60 872 14 06-06 Bolt RDHD SQNK 3/8-16 x 3/4
64 532 15 47-98 Dash Lower Stlt
74 873 68 06-00 Nut Crownlock 3/8-16
142 532 17 57-02 Plate Reinforcement Stlt
143 532 18 66-89 Bracket Swaybar Chassis
144 532 17 55-82 Bracket Ft Rest
145 532 15 65-24 Rod Pivot Chassis Hood
159 532 16 65-08 Cupholder
206 532 17 01-65 Bolt Shoulder 5/16-18 TT
207 817 67 05-08 Screw Thdrol 5/16-18 x 1/2 TYTT
208 817 67 06-08 Screw Thdrol 3/8-16 x 1/2 Ty-TT
209 817 00 06-12 Screw 3/8-16 x 3/4
212 532 18 35-48 Insert Lens Refl ect
219 817 00 05-12 Screw 5/16-18 x 3/4
258 532 18 52-14 Lens RH
259 532 18 52-13 Lens LH
260 532 18 54-29 Cover Lens
261 532 18 54-33 Insert, Grille
278 532 19 16-17 Screw 10 x 3/4 Single Lead-Hex
- - 532 00 54-79 Plug
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
31
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LTH2042 (LTH2042C), PRODUCT NO. 954 57 19-53

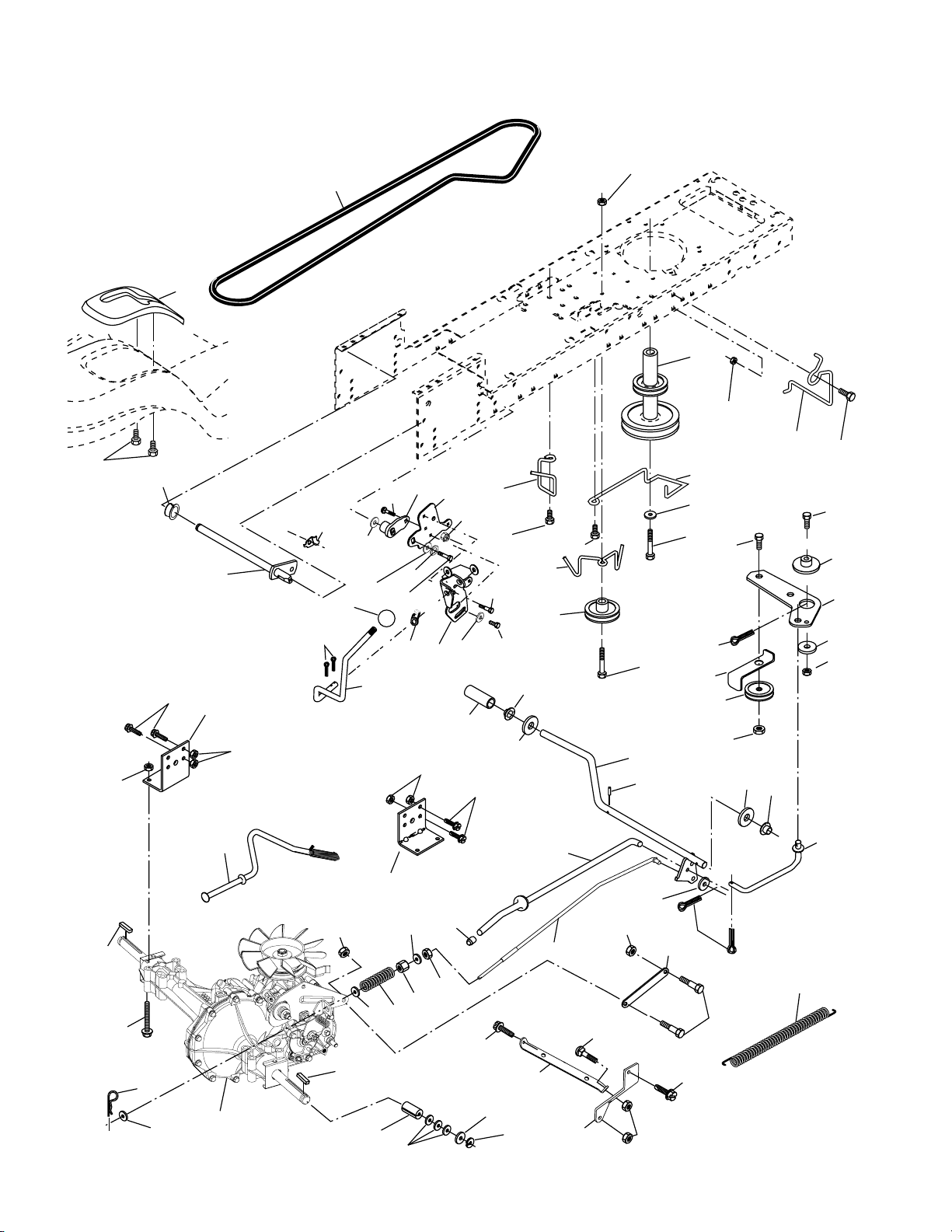

DRIVE
120
57
89
63
212
69
16
77
197
32
81
30
95
52
169
10
16
21
198
112
8
30
161
14
163
82
26
159
165
52
158
162
29
83
156
62
32
59
168
166
61
36
35
41
38
28
22
56
16
34
39
37
26
84
27
66
64
65
49
27
47
120
50
36
35
70
116
202
150
48
151
51
53
15
96
26
24
19
25
26
200
263
77
1
74
75
78
76
71
73
16
199
263
drive-hydro.stlt_60
55
32
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LTH2042 (LTH2042C), PRODUCT NO. 954 57 19-53
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - - Transaxle Hydro Gr Model 314-0510
(Order parts from transaxle mfg.)
8 532 16 58-66 Rod Shift Fender
10 876 02 04-16 Pin Cotter 1/8 x 1 CAD
14 810 04 04-00 Washer Lock Hvy Helical 1/4
15 874 49 05-44 Bolt Hex Flg Hd 5/16-18 x Gr.5
16 873 80 05-00 Nut Lock Hex W/Ins. 5/16-18 unc
19 873 80 06-00 Nut Lock Hex W/Wsh 3/8-16 unc
21 532 14 08-45 Knob, Deluxe
22 532 16 94-98 Rod, Brake Hydro
24 873 35 06-00 Nut
25 532 10 68-88 Spring, Brake Rod
26 819 13 13-16 Washer
27 876 02 04-12 Pin Cotter 1/8 x 3/4 CAD.
28 532 17 57-65 Rod, Parking Brake
29 532 07 16-73 Cap, Parking Brake
30 532 16 95-92 Bracket, Transaxle
32 874 76 05-12 Bolt Hex Hd 5/16-18 unc x 3/4
34 532 17 55-78 Shaft, Foot Pedal
35 532 12 01-83 Bearing, Nylon
36 819 21 16-16 Washer
37 532 12 49-63 Pin, Roll
38 532 17 91-14 Pulley, Composite
39 872 11 06-22 Bolt
41 532 17 55-56 Keeper, Belt Idler
47 532 12 77-83 Pulley, Idler, V-Groove
48 532 15 44-07 Bellcrank Clutch Grnd Drv Stl
49 532 12 32-05 Retainer, Belt
50 872 11 06-12 Bolt
51 873 68 06-00 Nut
52 873 68 05-00 Nut Crownlock 5/16-18
53 532 10 57-10 Link, Clutch
55 532 10 57-09 Spring, Return, Clutch
56 817 06 06-20 Screw 3/8-16 x 1-1/4
57 532 14 02-94 V-Belt, Ground Drive
59 532 16 96-91 Keeper, Center Span
61 817 12 06-14 Screw 3/8-16 x .875
62 532 12 48-72 Cover, Pedal
63 532 17 54-10 Pulley, Clutch Eng
64 532 17 39-37 Bolt Hex 7/16-20 x 4 Ga. 5
65 810 04 07-00 Washer
66 532 15 47-78 Keeper Belt Engine
69 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4-1/2 unc
KEY PART
NO. NO. DESCRIPTION
70 532 13 46-83 Guide Belt Mower Drive RH
71 532 16 91-83 Strap Torque Lh Hydro
73 532 16 91-82 Strap Torque Rh Hydro
74 532 13 70-57 Spacer, Axle
75 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
76 812 00 00-01 E-Ring
77 532 12 35-83 Key, Square
78 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
81 532 16 55-96 Shaft Asm. Cross Hydro
82 532 16 57-11 Spring Torsion T/A
83 819 17 12-16 Washer 17/32 x 3/4 x 16 Ga.
84 532 16 95-94 Link Transaxle
89 532 19 18-16 Console, Shift
95 532 17 02-01 Control Asm Bypass Hydro
96 532 12 47-88 Retainer Spring 1" Zinc/Cad
112 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.
116 872 14 06-08 Boulon 3/8-16 x 1
120 873 90 06-00 Nut Lock Flg 3/8-16
150 532 17 54-56 Spacer Retainer
151 819 13 32-10 Washer 13/32 x 2 x 10 Ga.
156 532 16 60-02 Washer Srrtd 5/16 ID x 1.0 x .125 Tk
158 532 16 55-89 Bracket Shift Mount
159 532 18 39-00 Hub Shift
161 872 14 04-06 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
162 873 68 04-00 Nut Crownlock 1/4-20 unc
163 874 78 04-16 Bolt Hex Fin 1/4-20 unc x 1 Gr. 5
165 532 16 56-23 Bracket Pivot Lever
166 817 49 05-10 Screw 5/16-18 x 5/8 TT Yellow
168 532 16 54-92 Bolt Shoulder 5/16-18 x .561 TT
169 532 16 55-80 Plate Fastening Cross Shf. STLT/
CRD
197 532 16 96-13 Nyliner Snap-In 5/8" ID
198 532 16 95-93 Washer Nyl. 7/8 ID x .105"
199 532 16 96-12 Bolt Shoulder 5/16-18 unc
200 872 14 05-08 Bolt Rdhd Sq Neck 5/16-18 unc x 1
202 872 11 06-14 Bolt Carr Sh 3/8-16 x 1-3/4 Gr. 5
212 532 14 52-12 Nut Hex Flg Lock
263 817 00 06-12 Screw 3/8-16 x 3/4
NOTE: All component dimensions give in U.S. inches.
1 inch = 25.4 mm.
33
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LTH2042 (LTH2042C), PRODUCT NO. 954 57 19-53

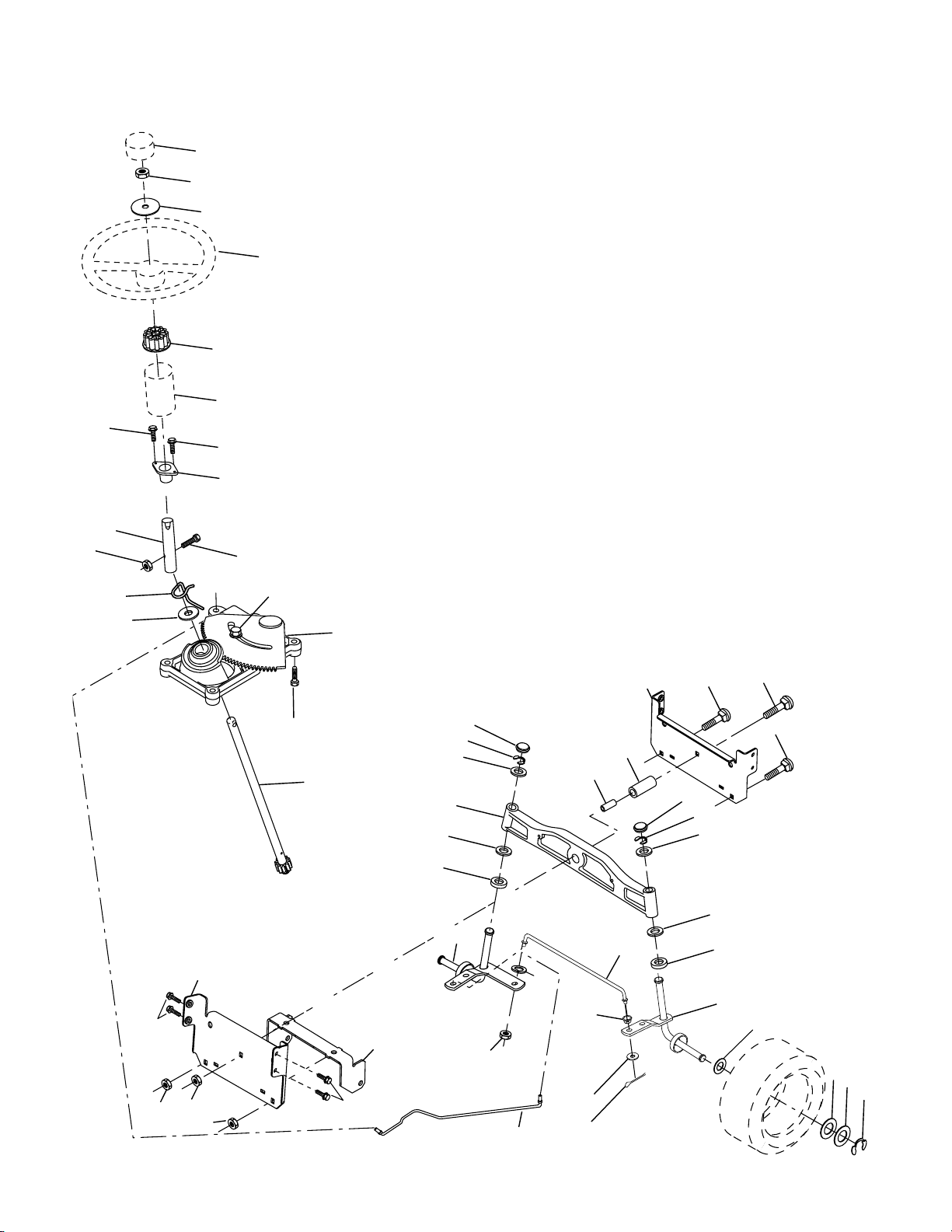

STEERING ASSEMBLY
38
12
39
1
41
42
37
37
51
44
91
43
68
36
54
88
29
17
71
87
5
68
46
8
6
2
3
11
13
65
32
67
46
8
6
87
67
67
5
29
15
steering_pl.lt_47
15
15
26
82
29
40
10
28
30
34
www.mymowerparts.com
4
43
43
95
8
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LTH2042 (LTH2042C), PRODUCT NO. 954 57 19-53
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532 16 66-27 Wheel Steering
2 532 18 47-06 Axle Asm
3 532 16 98-40 Spindle Asm LH
4 532 16 98-39 Spindle Asm RH
5 532 12 49-31 Bearing Race Thrust Harden
6 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring Klip #t5304-75
10 532 17 51-21 Link Drag
11 810 04 06-00 Washer Lock Hvy Hlcl Spr 3/8
12 873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf
13 532 13 65-18 Spacer Brg Axle Front
15 532 14 52-12 Nut Hex Flange Lock
17 532 18 06-41 Shaft Asm Strg
26 532 12 68-47 Bushing Link Drag Blk LR
28 819 13 14-16 Washer 13/32 x 7/8 X 16 Ga.
29 817 00 06-12 Screw 3/8-16x3/4
30 876 02 04-12 Pin Cotter 1/8 x 3/4 Cad
32 532 13 04-65 Rod Tie Wire Form 19 75 Mech
36 532 15 50-99 Bushing Strg
37 532 15 29-27 Screw
38 532 16 66-26 Cap Wheel Steering
39 819 18 24-11 Washer 9/16 x 1-1/2 11 Ga.
40 873 54 06-00 Nut Crownlock 3/8-24
41 532 15 99-45 Adaptor Wheel Strg
42 532 16 96-34 Boot Steering Shaft
43 532 12 17-49 Washer 25/32 x 1 1/4 X 16 Ga.
44 532 18 06-40 Extension Steering Shaft LR/LT
46 532 12 12-32 Cap Spindle Fr Top Blk
51 873 54 04-00 Nut Crownlock 1/4-28
54 871 13 04-20 Bolt Hex 1/4-28 unf x 1-1/4 Gr. 8
65 532 16 03-67 Spacer Brace Axle
67 872 11 06-18 Bolt Rdhd Sq 3/8-16 x 2-1/4
68 532 16 98-27 Axle, Brace
71 532 17 51-46 Steering Asm
82 532 16 98-35 Bracket Susp Chassis Front
87 532 17 39-66 Washer Flat .781 x 1 1/2 x .14
88 532 17 51-18 Bolt Shoulder 7/16-20
91 532 17 55-53 Clip Steering
95 532 18 89-67 Washer Harden .793 x 1.637 x .060
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
35
www.mymowerparts.com
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LTH2042 (LTH2042C), PRODUCT NO. 954 57 19-53

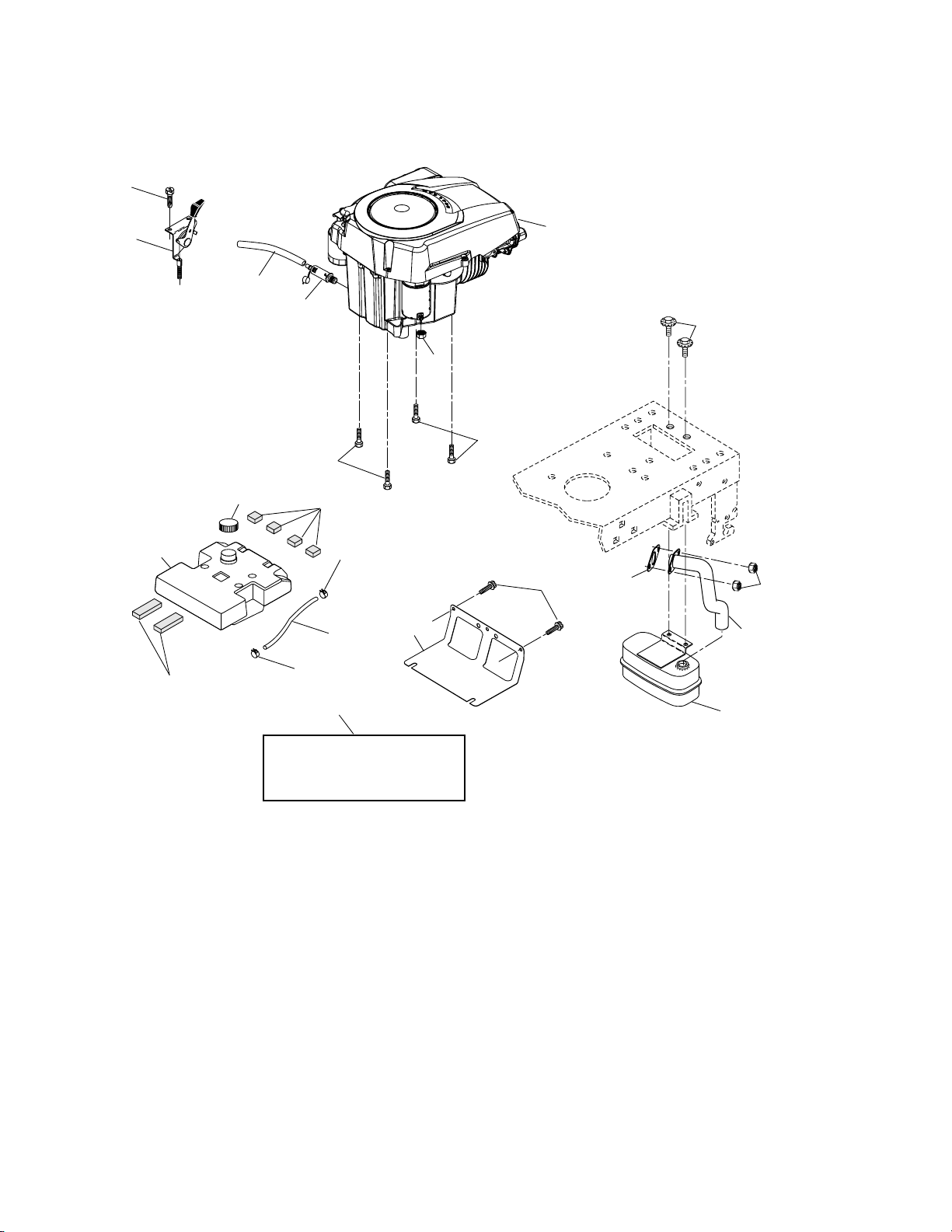

ENGINE
2
45
3
8
13
116
117
4
1
14
38
81
105
105
32
31
39
33
34
37
29
33
23
OPTIONAL EQUIPMENT
Spark Arrester
KEY PART
NO. NO. DESCRIPTION
1 532 17 08-05 Control Throttle/Choke Flag
2 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 1/2
3 - - - - - - - - Engine, Kohler SV600
(Order parts from engine manufac-
turer)
4 532 18 86-55 Muffl er
8 532 17 18-77 Bolt 5/16-18 unc x 3/4
13 532 18 59-09 Gasket Eng
14 532 14 84-56 Tube Drain Oil Easy
23 532 16 98-37 Shield Brn/Dbr Guard
29 532 13 71-80 Kit Spark Arrestor (Flat Scrn)
31 532 15 71-03 Tank Fuel
32 532 16 16-96 Cap Asm Fuel
33 532 12 34-87 Clamp Hose Black
34 532 10 60-82 Pod Spacer 1 x 1 x 1
engine-kohler_44
KEY PART
NO. NO. DESCRIPTION
37 532 14 21-58 Line Fuel 64"
39 532 10 92-27 Pod Spacer 1.75 x .75 x .06
38 532 18 16-54 Plug Drain Oil Easy
45 817 00 06-12 Screw Hex wsh Thdr 3/8-16 x 3/4
81 873 51 04-00 Nut Keps Hex 1/4-20
105 817 12 06-16 Screw 3/8-16 x 1
116 532 18 43-62 Nut Hex Flange Toplock M8-1.25
117 532 18 86-54 Tube Exhaust
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
Kohler Co. 1-800-544-2444
Tecumseh Products 1-800-558-5402
Honda Engines 1-800-426-7701
Kawasaki 1-949-460-5688
36
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LTH2042 (LTH2042C), PRODUCT NO. 954 57 19-53

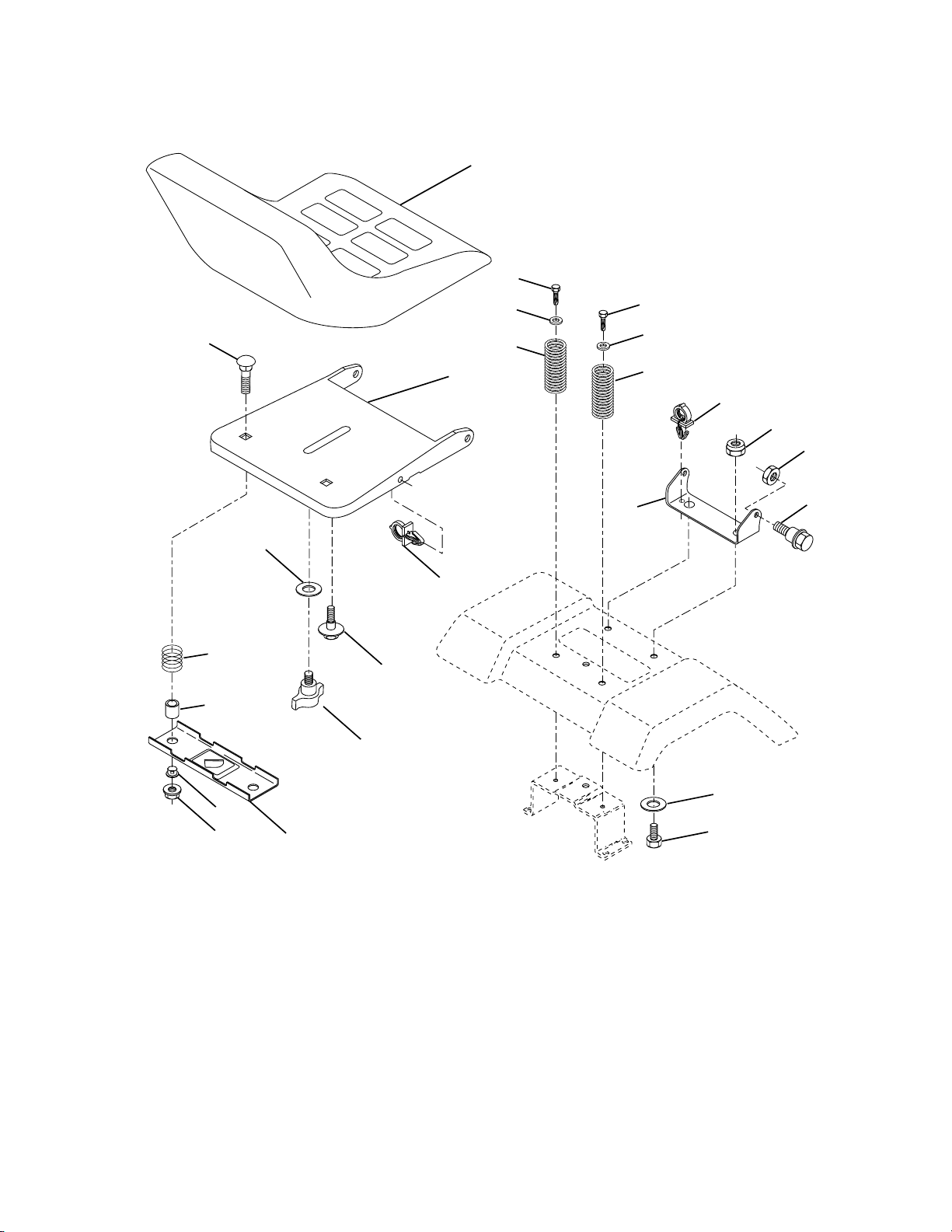

SEAT ASSEMBLY
1
8
8
9
7
5
6
14
9
7
10
22
24
16
15
13
17
seat_lt.knob_1
KEY PART
NO. NO. DESCRIPTION
12
11
25
2
5
4
3
KEY PART
NO. NO. DESCRIPTION
21
1 532 19 01-20 Seat
2 532 14 05-51 Bracket Pivot Seat 8 720
3 871 11 06-16 Bolt Fin Hex 3/8-16 unc X 1
4 819 13 16-10 Washer 13/32 x 1 x 10 Ga.
5 532 14 50-06 Clip Push-In
6 873 80 06-00 Nut Hex w/Ins. 3/8-16 unc
7 532 12 41-81 Spring Seat Cprsn 2 250 Blk Zi
8 817 00 06-16 Screw 3/8-16 x 1
9 819 13 16-14 Washer 13/32 x 1 x 14 Ga.
10 532 18 24-93 Pan Seat
11 532 16 63-69 Knob Seat
12 532 12 12-46 Bracket Mounting Switch
www.mymowerparts.com
13 532 12 12-48 Bushing Snap Blk Nyl 50 Id
14 872 05 04-12 Bolt Rdhd Sqnk 1/4-20 x 1-1/2
15 532 13 43-00 Spacer Split 28x 96 Yel Zinc
16 532 12 12-50 Spring Cprsn 1 27 Blk Pnt
17 532 12 39-76 Nut Lock 1/4 Lge Flg Gr. 5 Zinc
21 532 17 18-52 Bolt Shoulder 5/16-18 unc-2A
22 873 80 05-00 Nut Hex Lock W/Ins 5/16-18
24 819 17 19-12 Washer 17/32 x 1-3/16 x 12 Ga.
25 532 12 70-18 Bolt Shoulder 5/16-18 x .62
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
37
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LTH2042 (LTH2042C), PRODUCT NO. 954 57 19-53

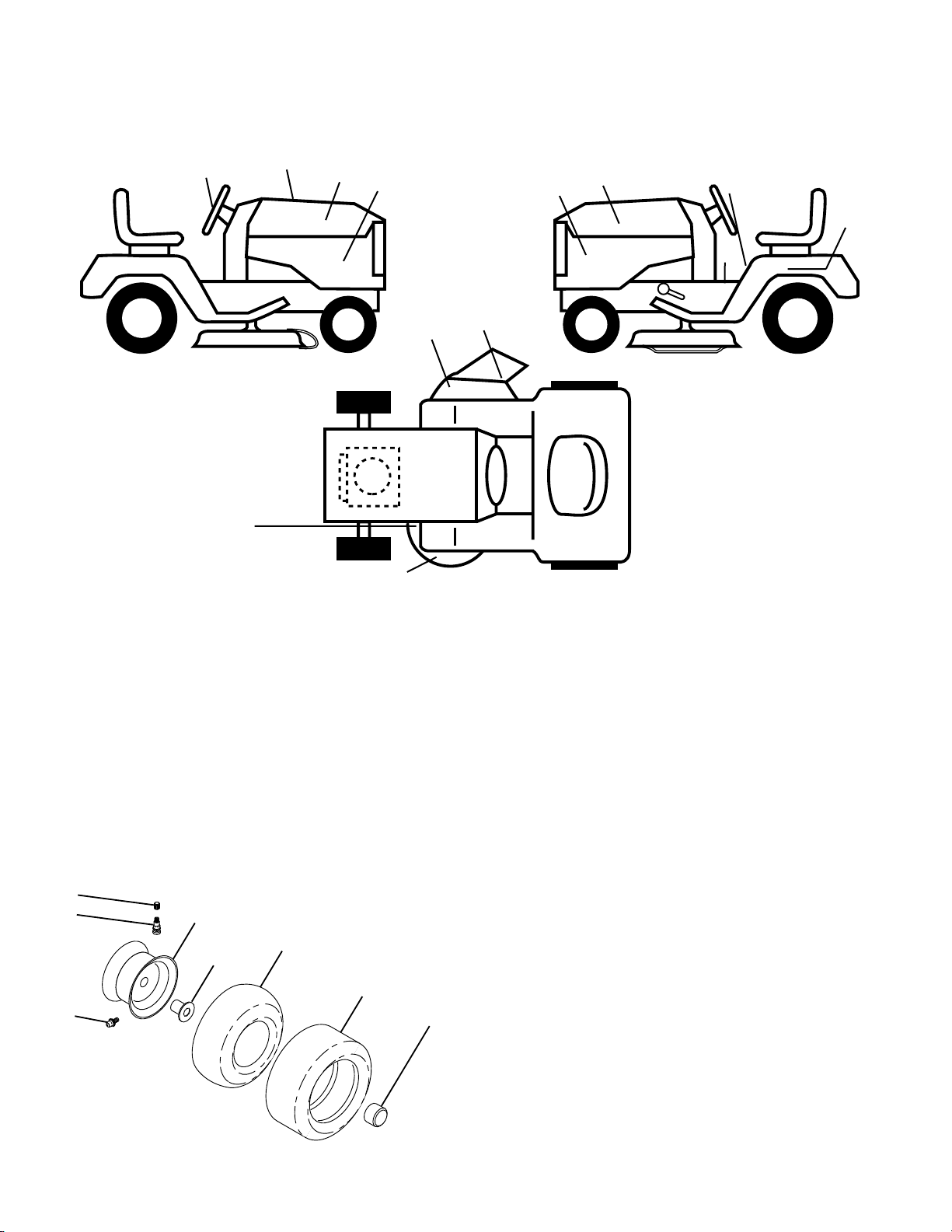

DECALS
12
14
KEY PART
NO. NO. DESCRIPTION
1 532 15 70-32 Decal Oper. Step Thru Eng/Fr
2 532 17 23-31 Decal Deck Heavy duty 12 Ga.
3 532 18 89-16 Decal Hood RH
4 532 18 89-17 Decal Hood LH
5 532 18 09-41 Decal Hood Cust.
7 532 17 91-28 Decal Deck B 42
8 532 17 05-63 Decal Warning
10 532 15 71-40 Decal Fender Danger Eng/Fr
11 532 18 94-47 Decal Side Panel
5
3
11
2
11
8
7
KEY PART
NO. NO. DESCRIPTION
12 532 18 89-25 Decal Steering Wheel
14 532 16 03-96 Decal V-Belt Schematic
20 532 14 50-05 Decal Bat Dan/Psn
- - 532 13 83-11 Decal Handle Lft Height Adjust
- - 532 16 69-60 Decal Bypass Lt Hydro
- - 532 18 96-71 Decal Replc Part
- - 532 18 82-53 Pad Footrest RH
- - 532 18 82-52 Pad Footrest LH
- - 532 19 19-90 Manual Owner's (English)
4
10
20
1
WHEELS & TIRES
1
2
6
5,8
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
4,10
7
3,9
11
3 532 10 62-22 Tire F Ts 15 x 6 0 - 6 Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 13 83-36 Rim Asm 6" front Silver Service
6 532 12 49-57 Fit ting Grease (Front Wheel Only)
7 532 12 49-59 Bear ing Flange (Front Wheel Only)
8 532 13 83-37 Rim Asm 8" rear Silver Service
9 532 12 20-82 Tire R. TS 20 x 10-8 C. Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 17 50-39 Cap Axle Blk 1 50 x 1 00
- - 532 14 43-34 Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
38
www.mymowerparts.com
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LTH2042 (LTH2042C), PRODUCT NO. 954 57 19-53

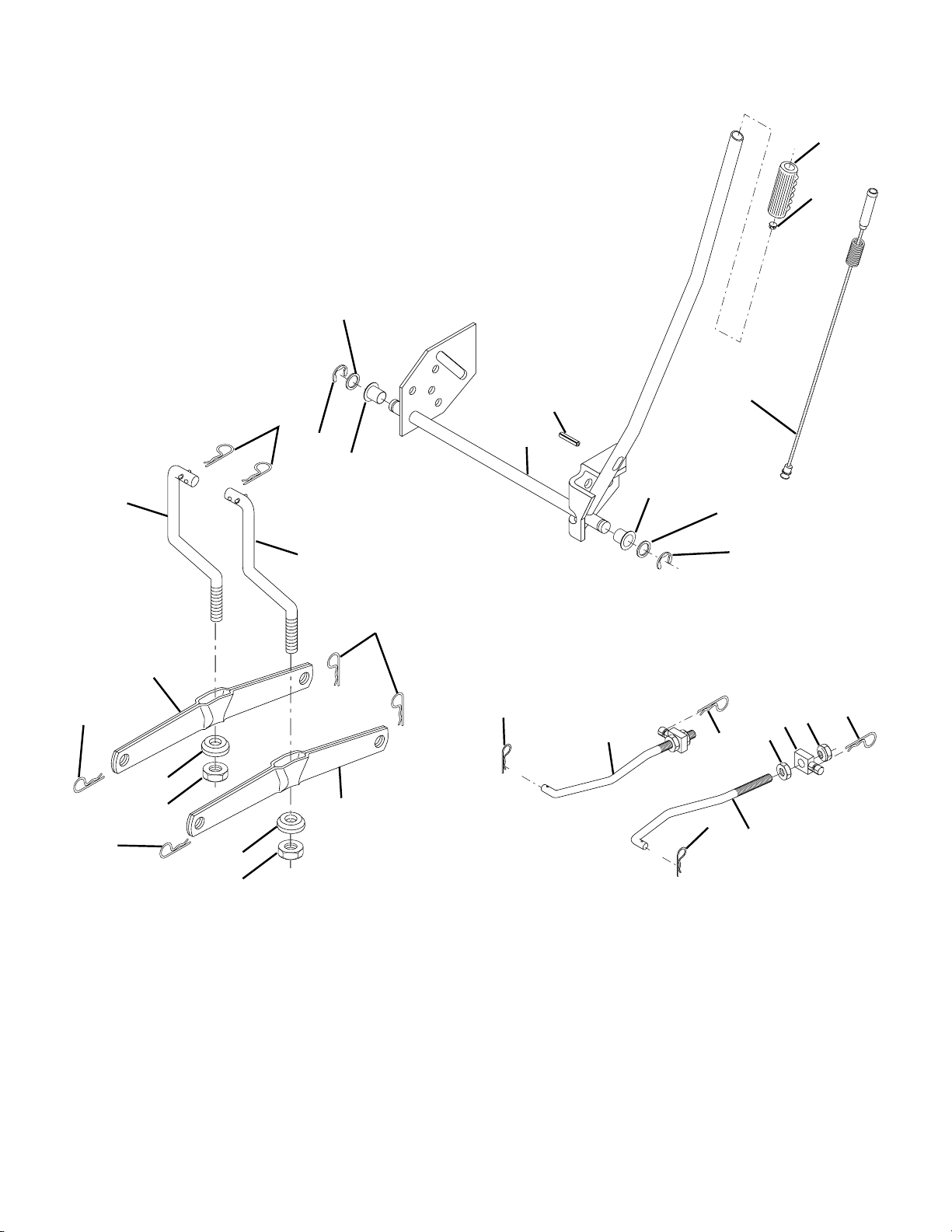

MOWER LIFT
5
7
8
13
13
11
19
31
32
31
13
4
12
19
3
1
2
6
6
5
4
13
20
15
17
16
18
20
20
20
15
32
KEY PART
NO. NO. DESCRIPTION
1 532 15 94-60 Wire Asm Inner W/plunger LT
2 532 15 94-71 Shaft Asm Lift
3 532 10 57-67 Pin Groove
4 812 00 00-02 E Ring #5133-62
5 819 21 16-21 Washer PLTD 21/32 x 1 x 21Ga.
6 532 12 01-83 Bearing Nylon Blk 629 Id
7 532 12 56-31 Grip Handle Bi cy cle
8 532 12 45-26 Button Plunger Black
11 532 13 98-65 Link Lift LH
12 532 13 98-66 Link Lift RH
www.mymowerparts.com
lift-rh.1piece_3
KEY PART
NO. NO. DESCRIPTION
13 532 12 46-70 Retainer Spring
15 532 17 32-88 Link Front
16 873 35 08-00 Nut Jam Hex 1/2-13 unc
17 532 17 56-89 Trunnion
18 873 80 08-00 Nut Lock W/Wsh 1/2-13 unc
19 532 13 98-68 Arm Suspension Rear
20 532 16 35-52 Spring, Retainer
31 532 16 98-65 Bearing Pvt. Lift
32 873 54 06-00 Nut Crownlock 3/8-24
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
39
Page 16
132
95
94
182
91
183
132
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LTH2042 (LTH2042C), PRODUCT NO. 954 57 19-53

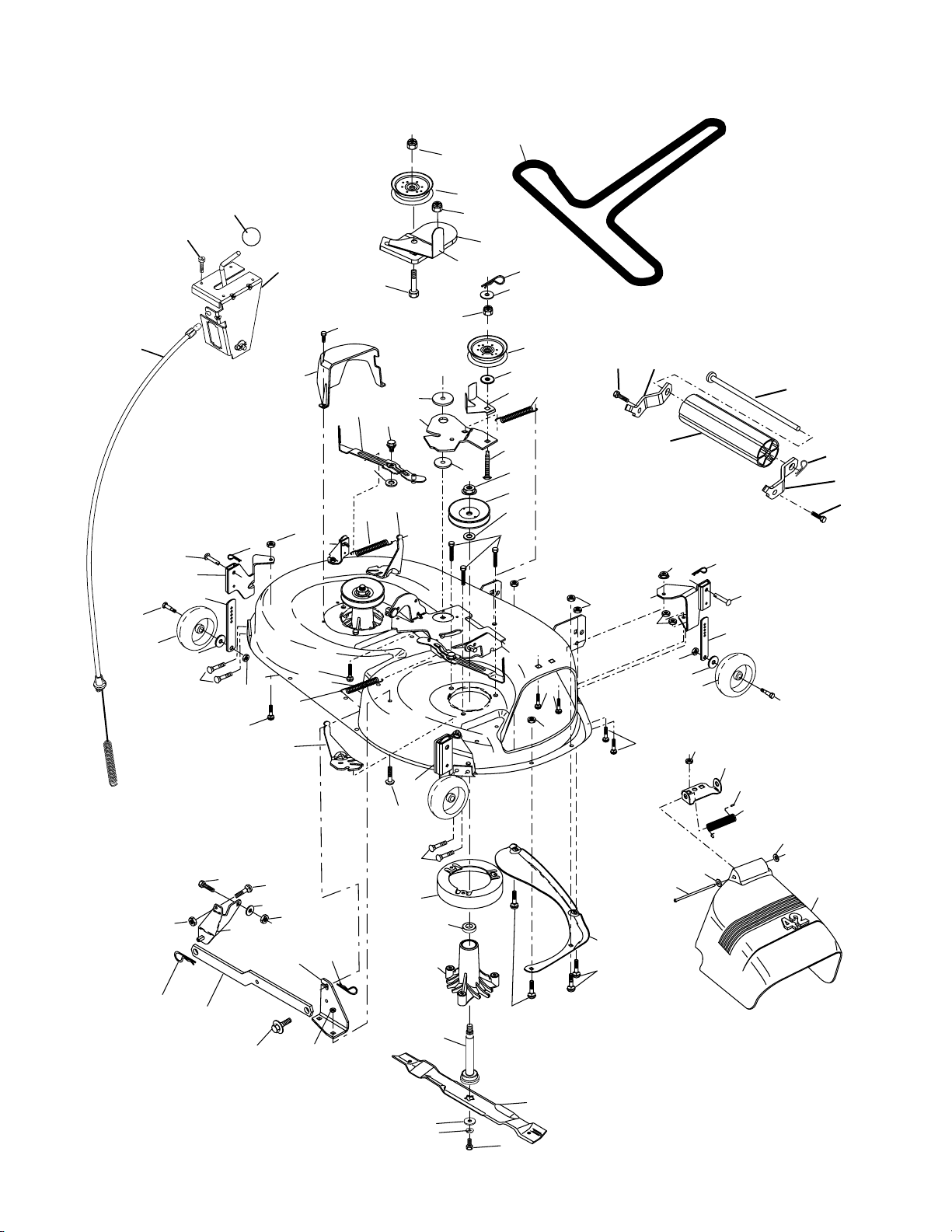

MOWER DECK
68
40
152
116
158
42_clutch_mod_7
134
135
117
136
119
113
67
118
2
5
185
1
147
142
44
21
34
140
46
53
48
147
159
52
142
2
56
55
138
144
40
36
54
40
143
59
146
31
30
150
184
33
32
45
145
21
148
21
21
5
139
21
21
118
119
2
117
2
21
134
136
116
23
24
25
26
130
92
5
6
131
129
19
92
149
4
21
3
113
16
10
14
9
15
20
18
18
13
11
8
28
29
42_D_man-t-path_stlt_4.
27
www.mymowerparts.com
40
Page 17
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LTH2042 (LTH2042C), PRODUCT NO. 954 57 19-53
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 532 18 20-32 Deck Asm 42"weldment
2 872 14 05-06 Bolt Rdhd Sqnk 5/16-18 unc x 3/4
3 532 13 80-17 Bracket Asm Fr Sway Bar 38/42
4 532 16 54-60 Bracket Asm Deck 42"sway Bar
5 532 12 46-70 Retainer Spring
6 532 17 80-24 Deck Sway Bar
8 532 85 08-57 Bolt 3/8 - 24 x 1.25 Gr. 8
9 810 03 06-00 Washer Lock Hvy 3/8
10 532 14 02-96 Washer Hard Blade Mower Vented
(The following blades are available)
11 532 13 41-49 Blade, 42"
(For mulching mowers only)
- - 532 13 97-75 Blade, 42" Mulching Premium
(For better wear when mulching)
- - 532 13 89-71 Blade, 42" Hi-Lift
(For bagging or discharging)
13 532 13 76-45 Shaft Asm W/lower Bearing
14 532 12 87-74 Housing Mandrel Vented
15 532 11 04-85 Bearing Ball Man drel
16 532 17 44-93 Stripper Mower
18 872 14 05-05 Bolt Rdhd Sqnk 5/16-18 x 5/8
19 532 13 28-27 Bolt Shoulder
20 532 15 97-70 Baffl e Vortex 42
21 873 68 05-00 Nut Crownlock 5/16-18 unc
23 532 17 75-63 Bracket Defl ector Mower 42"
24 532 10 53-04 Cap Sleeve 80x 112 Blk Mower
25 532 12 37-13 Spring Torsion Defl ector 2 52
26 532 11 04-52 Nut Push Phos & Oil
27 532 17 18-59 Shield Defl ector Mower 42" Blk
28 819 11 10-16 Washer 11/32 x 5/8 x 16 Ga.
29 532 13 14-91 Rod Hinge 42"6 75 Wlg
30 532 17 39-84 Screw Thd Rolling
31 532 18 76-90 Washer Spacer
32 532 15 35-35 Pulley Mandrel 42"
33 532 17 83-42 Nut Toplock Flng
34 872 11 06-12 Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5
36 532 13 14-94 Pulley Idler Flat
40 873 90 06-00 Nut Lock Flg 3/8-16 unc
44 532 14 00-88 Guard Mandrel LH Black
45 532 12 47-88 Spring Retainer 1" Zinc/cad
46 532 13 77-29 Screw Hex Thd Cut 1/4-20 x 5/8 T
48 532 13 39-44 Washer Hardened Smaller
52 532 13 98-88 Bolt Shoulder 5/16-18 unc Blkz
53 532 18 49-07 Arm Asm Pad Brake
54 532 17 85-15 Washer Hardened
55 532 15 50-46 Arm Idler 42"mower LT/YT
56 532 16 57-23 Spacer Retainer Mower
KEY PART
NO. NO. DESCRIPTION
59 532 14 10-43 Guard TUV Idler
67 532 10 69-32 Knob Rd 3/8-16 Plstc Thds Blk
68 532 14 49-59 V-Belt Mower 42"
91 532 18 05-32 Bracket Asm Noseroller LH
92 873 80 06-00 Nut 3/8-16 unc
94 532 13 22-64 Roller Nose 38 & 42
95 532 18 05-33 Bracket Asm Noseroller RH
113 817 06 05-12 Screw 5/16-18 x 3/4
116 532 18 42-19 Bolt Shoulder 3/8-16 x 3-5/8
117 532 13 39-57 Wheel Gauge Donut Wide
118 873 93 06-00 Nut Centerlock 3/8-16
119 819 12 14-14 Washer 3/8 x 7/8
129 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
130 874 78 06-16 Bolt 3/8-16 x 1 Gr.5
131 872 14 06-08 Bolt 3/8-16 x 1
132 817 00 06-12 Screw 3/8-16 x .75
134 532 15 69-41 Pin Head Rivet
135 532 15 97-65 Bracket Asm Whl Ga. Rear LH
136 532 15 59-86 Bar Adjusting Gauge Wheel
138 532 15 97-63 Bracket Asm Whl Ga. Rear RH
139 532 15 97-67 Bracket Asm Whl Ga. Front Rh
140 532 15 97-68 Bracket Asm Whl Ga. Front LH
142 532 16 58-90 Arm Spring Brake Mower
143 532 15 71-09 Bracket Arm Idler 42"
144 532 15 86-34 Keeper Belt 42" Clutch
145 532 16 58-88 Pulley Idler Flat
146 532 17 19-77 Bolt Carriage Idler
147 532 13 13-35 Spring Extension
148 532 16 90-22 Spring Return Idler
149 532 16 58-98 Retainer Spring Yellow
150 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.
152 532 16 96-76 Clutch Cable 42"
158 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 1/2
159 872 14 06-14 Bolt Rdhd Sqn 3/8-16 unc x 1-3/4
182 532 17 91-26 Rod Roller Nose Std.
183 532 16 35-52 Retainer Spring
184 819 13 14-10 Washer 13/32 x 7/8 x 10 Ga.
185 532 18 82-34 Head Asm Cable Clutch
- - 532 13 07-94 Mandrel Assembly(Includes Housing, Shaft and Shaft Hardware OnlyPulley not Included)
- - 532 18 57-72 Replacement Mower, Complete
(Std. deck-order separately nose
roller and gauge wheel components
key nos. 5, 91, 94, 95, 113, 116-119,
132, 134, 136, 182, 183)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
www.mymowerparts.com
Loading...
