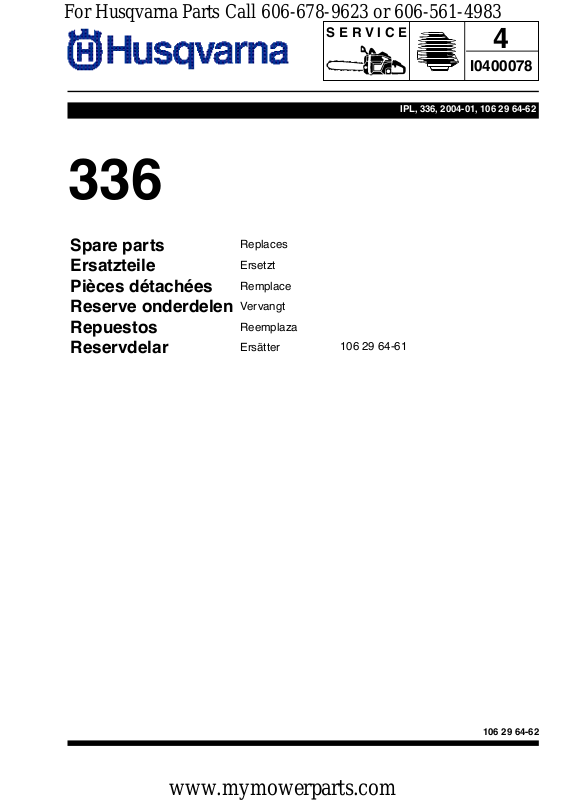

S E R V I C E

Spare parts Ersatzteile Pièces détachées Reserve onderdelen Repuestos Reservdelar

Replaces

Ersetzt

Remplace

Vervangt

Reemplaza

Ersätter

106 29 64-61

I0400078

IPL, 336, 2004-01, 106 29 64-62

336

106 29 64-62

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

Page 2

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

*compl 503 79 91-04

*503 81 71-01

503 85 46-01*

735 31 08-20*

735 31 10-20*

537 09 28-01*

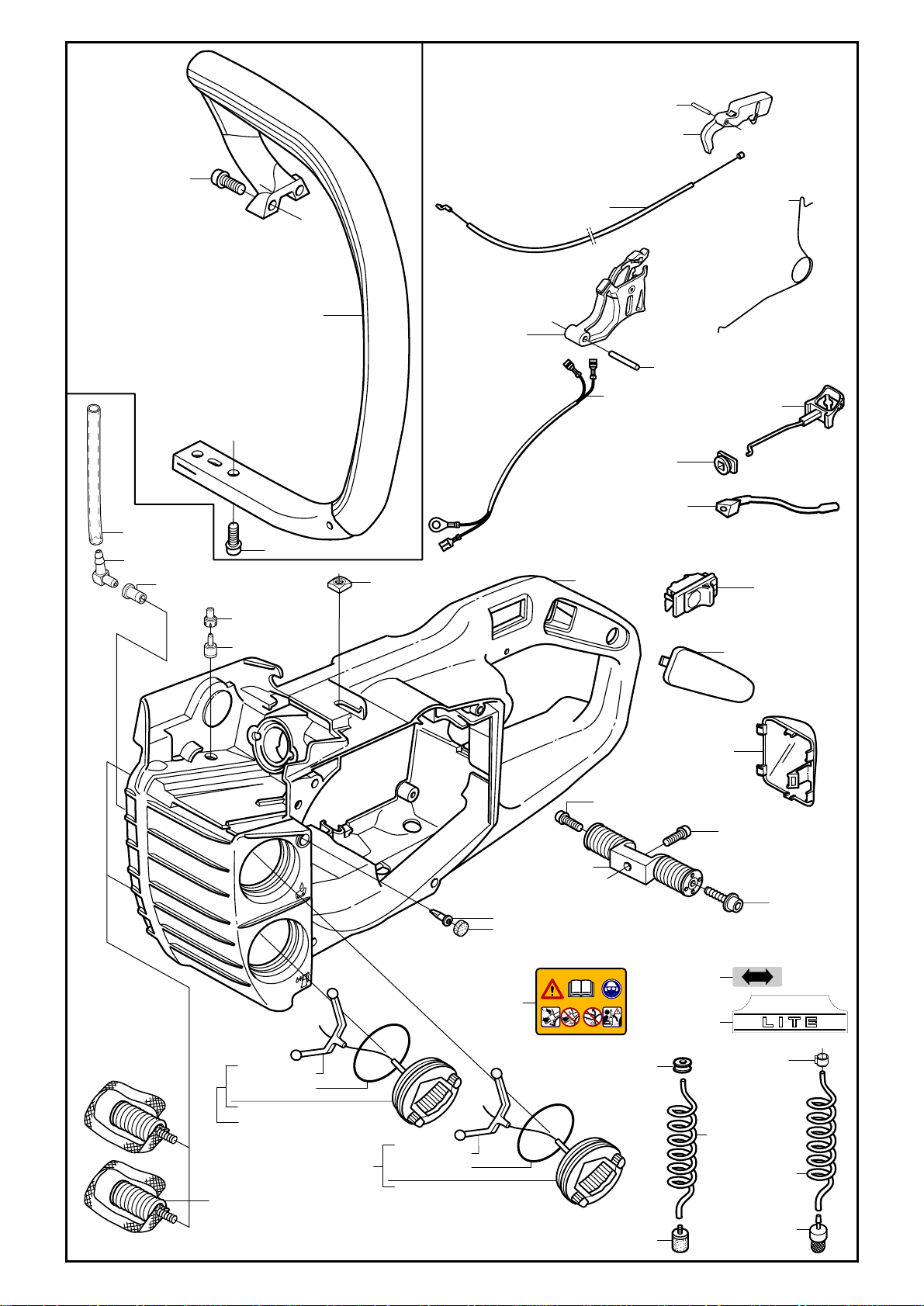

720 12 33-00* 503 21 28-10*

501 87 53-01* 503 90 83-01*

503 80 97-02*

537 09 90-01*

503 90 88-01

*503 86 20-01

503 22 00-01

*503 85 51-01

503 14 51-01

503 80 52-01* 503 21 28-10* (x4)

503 71 40-03

503 52 12-04

(1/4) 537 07 91-01 (3/8) 503 82 22-71

(.325) 503 81 93-71

503 25 46-01

www.mymowerparts.com

Page 3

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

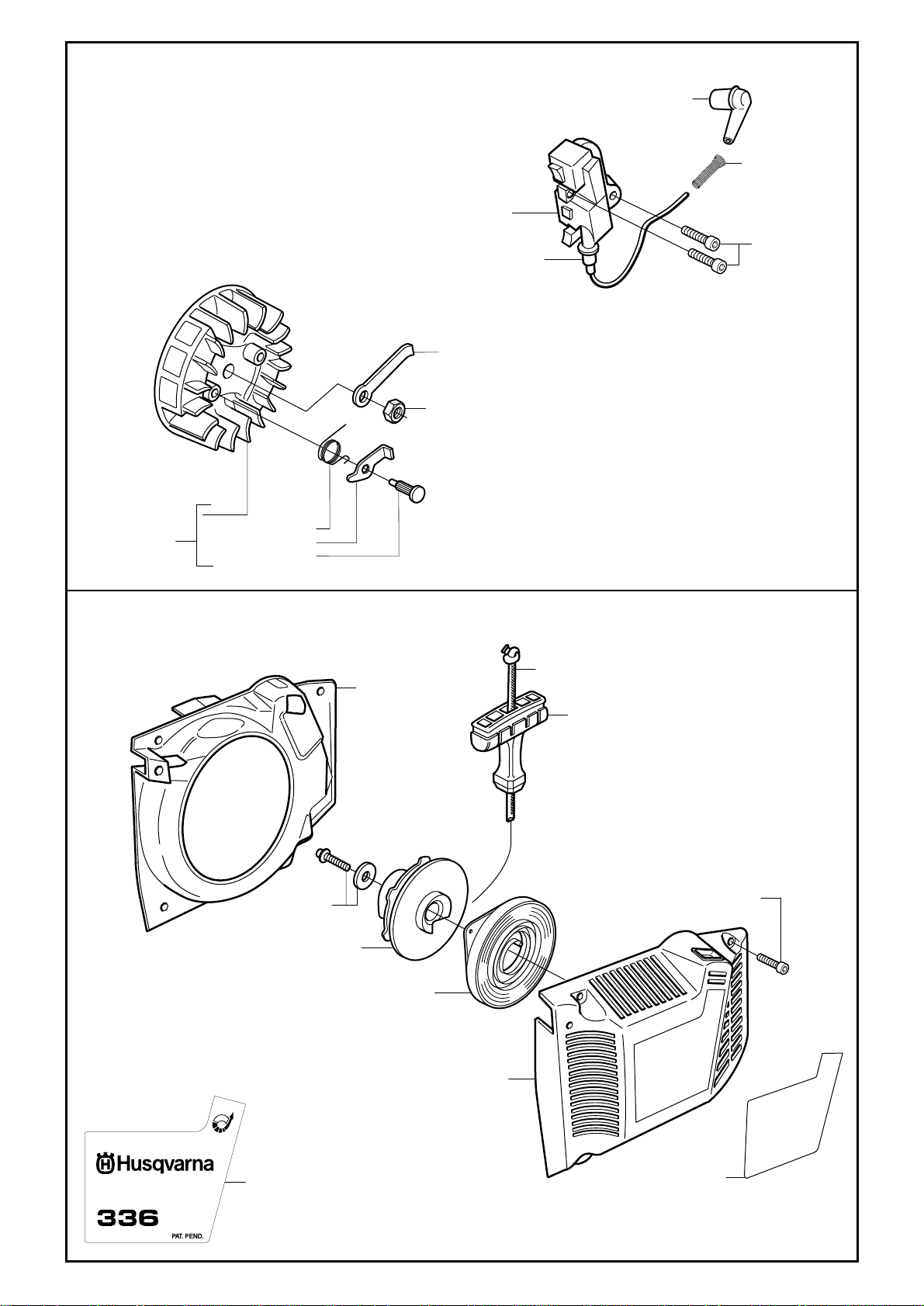

*compl 537 13 59-03

537 07 61-01 (52µ) 537 07 61-02 (80µ)

503 20 32-16

*502 20 65-03

537 07 60-02

502 20 83-01*

537 26 74-01

503 28 31-15

Zama C1Q-EL20

503 21 75-50 (x2)

537 24 19-01

503 21 58-25 (x2) 503 21 58-25 (x2)

537 19 07-01537 05 54-01

*compl 503 93 03-03

**compl 537 19 50-01

537 24 12-01

*724 12 87-59 *503 82 17-01

503 20 02-16 (x3)

www.mymowerparts.com

Page 4

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

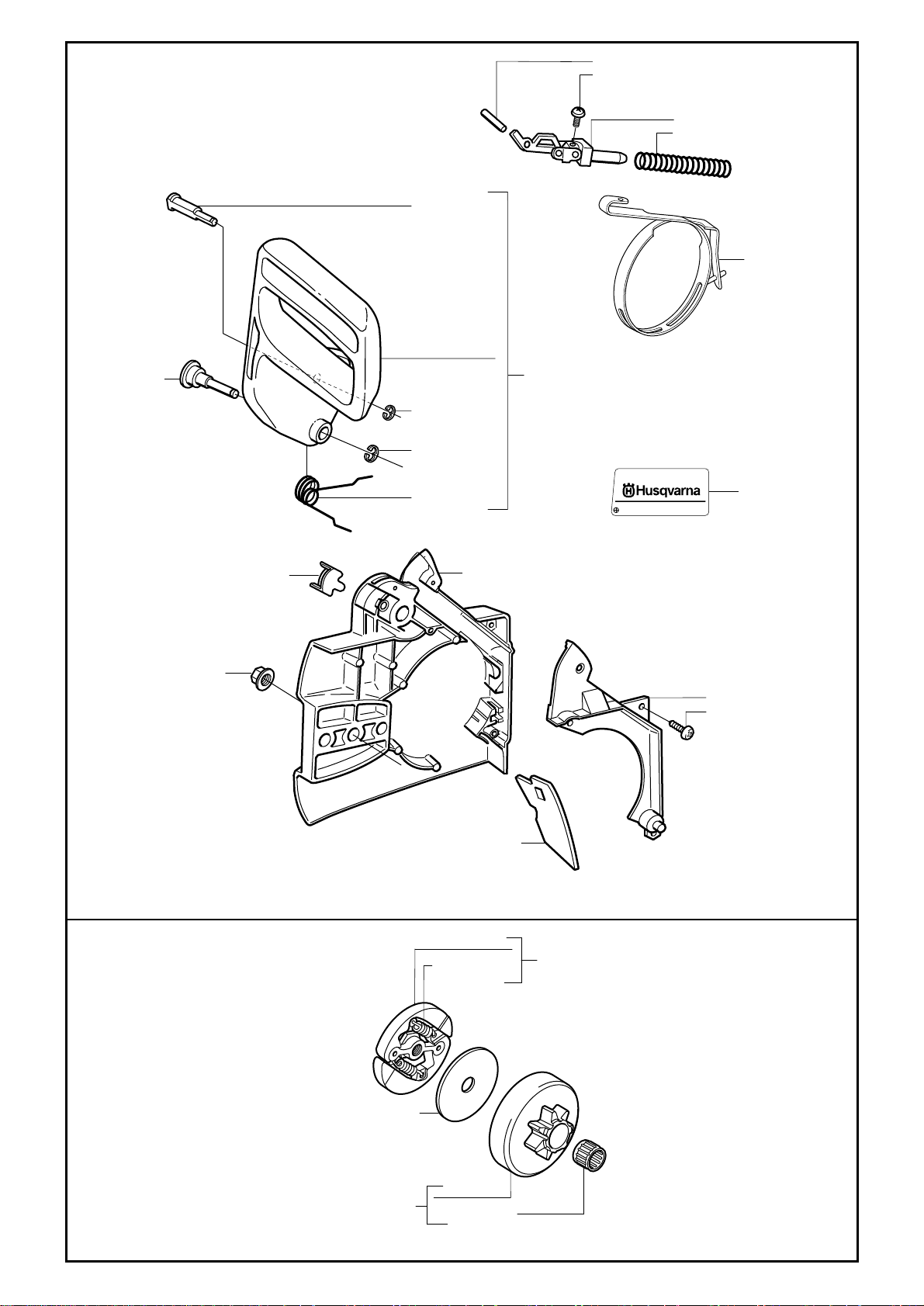

501 48 54-02

503 92 42-01

537 16 21-04

503 20 25-16

503 90 09-01

503 90 98-02

503 22 10-11

503 79 06-03

*compl 503 79 25-02

503 81 81-01 (x2) 503 71 02-03 (x2) 503 79 05-02 (x2)

*503 21 77-16

*537 20 19-01

505 30 51-25*

503 82 25-02

503 54 39-01*

503 21 58-25 (x4)

AIR INJECTION

537 16 24-03 (336)

www.mymowerparts.com

*501 76 31-01

*503 81 85-01

537 16 24-03 (336)

Page 5

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

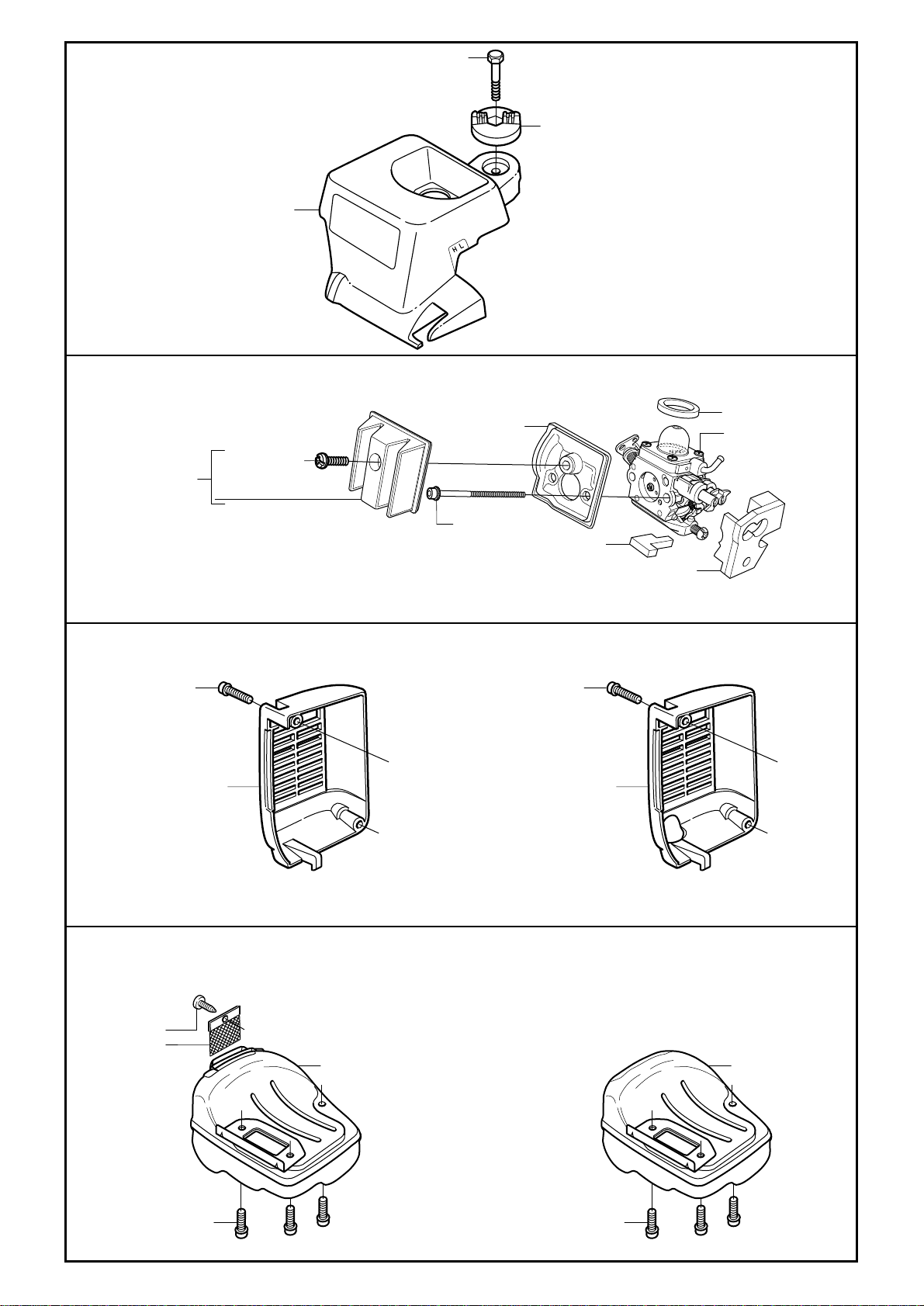

*compl 537 09 21-01 **compl 537 16 73-01

537 15 77-02

503 99 49-72*

*503 28 90-34

*737 44 10-00

*compl 503 84 53-72

537 10 04-01

503 41 41-01*

503 82 11-01

504 34 00-04*

503 23 51-08

RCJ-7Y

503 55 22-01*

***

537 24 45-01

537 11 32-03

537 18 00-01*

***compl 537 12 68-04

*503 93 45-01

*compl 503 79 22-04

(.250) 503 78 92-03 (.325) 503 78 92-02

503 86 38-01

*503 98 62-01

*501 62 33-01 (x2)

503 20 02-16

***compl 537 18 91-01

(3/8) 503 78 92-01

503 20 02-16

***

*503 93 45-01

503 72 31-01

503 41 41-01*

*503 98 94-02

537 05 68-01

503 97 81-02 503 97 82-01

503 80 83-02* 503 18 49-01* 503 23 00-16* (x2)

537 04 61-01*

**501 81 92-01

**501 45 27-02 **501 45 41-01 503 20 02-40 (x2)

**compl 537 10 65-01

501 45 43-01*

503 20 02-25 (x2)

www.mymowerparts.com

Page 6

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

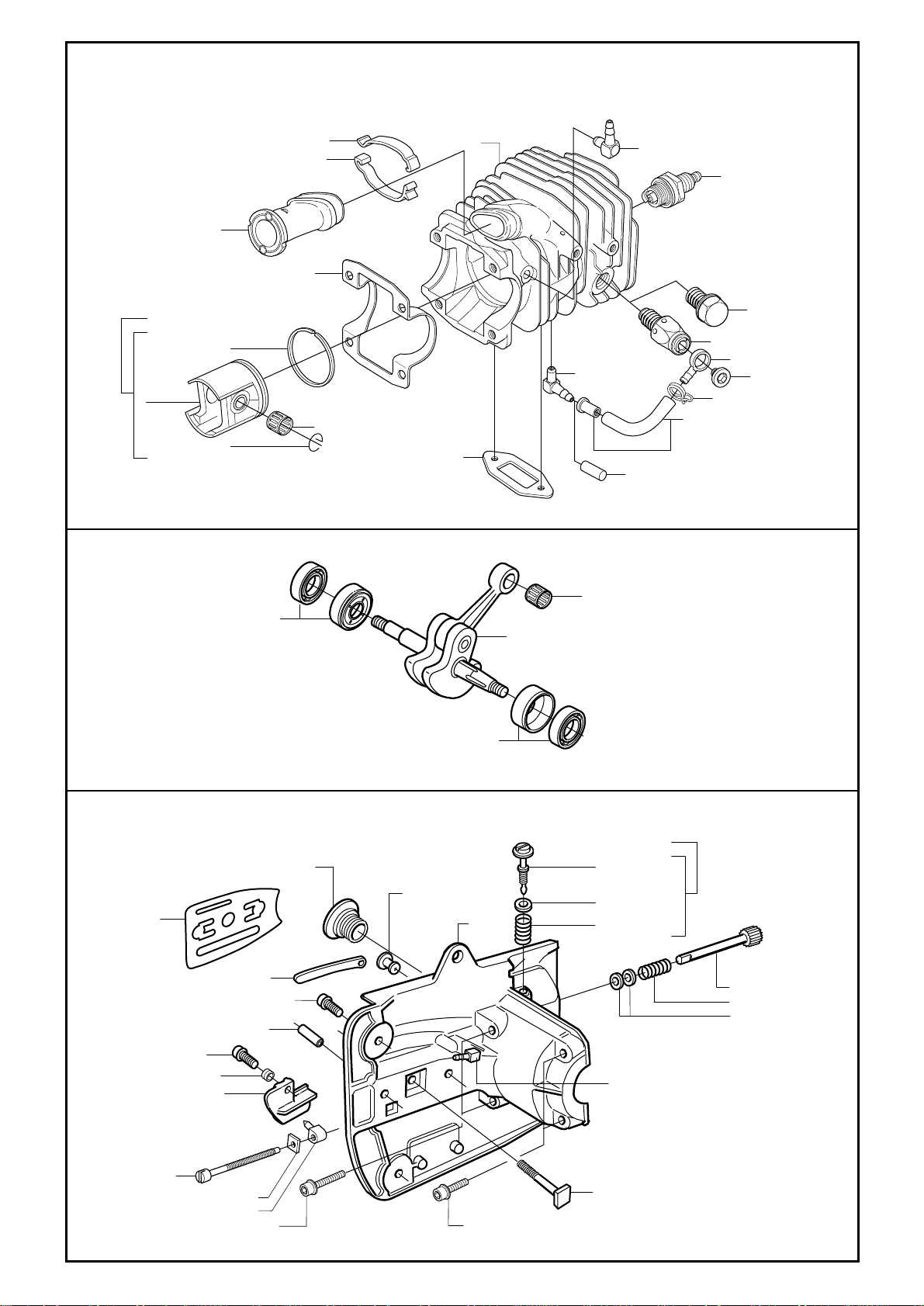

*compl 537 08 89-03

*720 12 40-20

*503 55 66-01

503 21 57-16 (x2)

*537 07 58-01

537 07 25-01

*503 82 98-01

*503 73 64-01

720 12 75-20*

537 04 24-07

501 82 25-01

537 05 28-01*

503 21 57-16

537 13 97-01* 537 28 23-01*

503 22 65-04*

537 07 40-01*

537 08 64-01

503 84 26-01

503 20 02-16

537 07 04-01

503 71 82-01

STOP

537 05 93-01*

537 06 35-01

503 20 02-16

503 57 89-01 503 26 30-17

compl 501 81 96-04

compl 501 81 96-02

503 85 38-04 (x2)

www.mymowerparts.com

*503 98 74-01

503 57 89-01 503 26 30-17

503 82 33-02

530 02 61-19* 503 98 13-01*

537 12 76-01

(JP only)

537 09 80-01

(JP only)

503 73 58-01

503 44 32-01

503 20 02-16

OFF

537 05 11-01

503 57 76-02

503 96 75-01

Page 7

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

*compl 503 28 31-15

*503 47 90-01

*537 27 41-01

*503 47 89-01

537 27 38-01*

537 27 44-01*

537 27 43-01*

537 27 48-01* (x4)

537 27 49-01*

537 27 50-01*

537 27 45-01*

537 27 46-01*

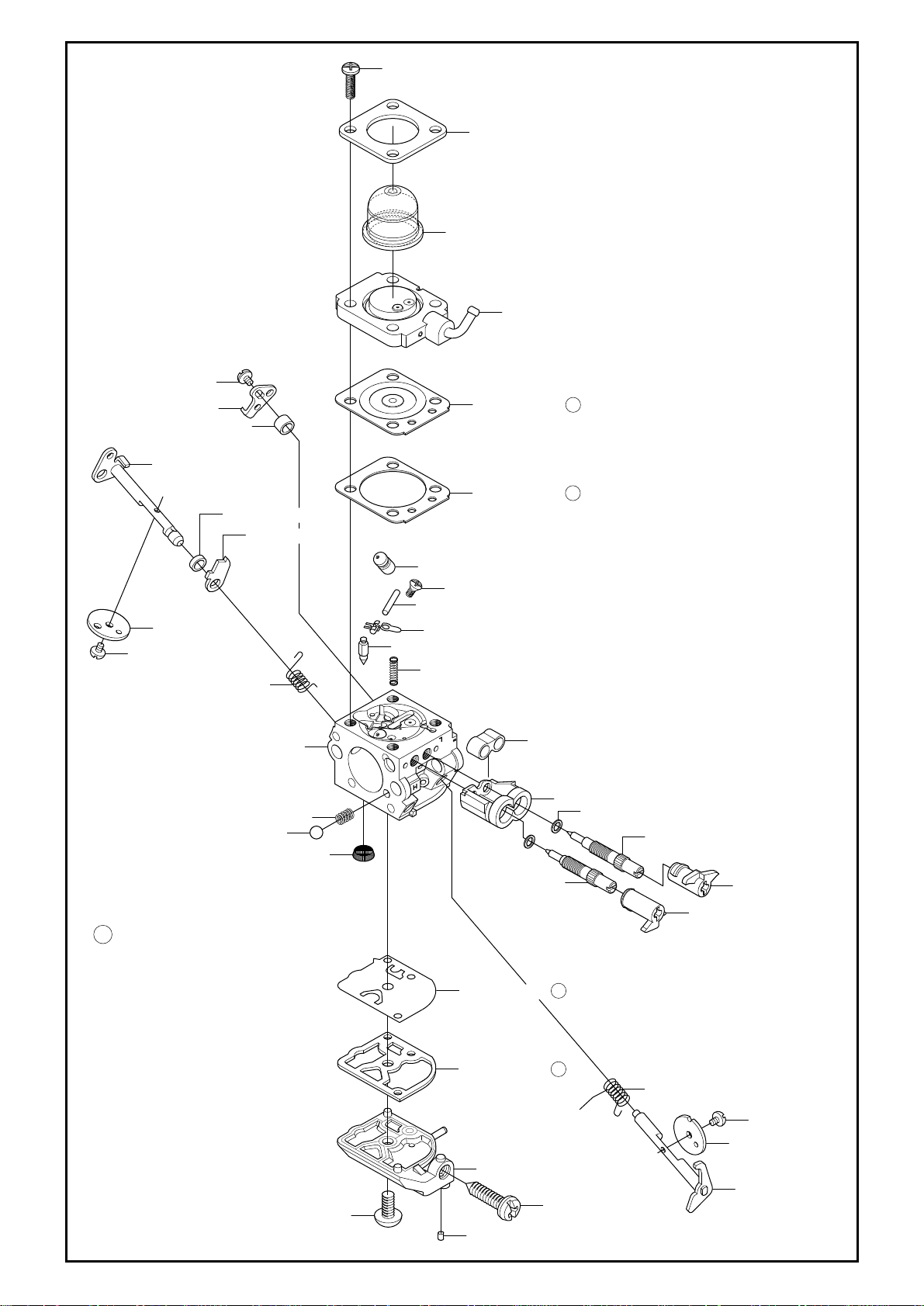

Zama C1Q-EL20

537 27 47-01*

537 27 39-01*

503 48 18-01*

*537 27 40-01

*537 01 25-01

537 24 18-01

Set of gaskets Dichtungssatz Jeu de joints Juego de juntas Packningssats

*537 01 26-01

*503 53 57-01

537 27 30-01*

503 48 01-01*

503 48 00-01*

503 66 59-01*

503 47 97-01*

537 27 34-01*

H *537 27 36-01

537 02 00-01*

537 27 42-01*

503 90 34-01*

503 97 40-01* (x2)

537 27 35-01* L

503 90 32-01 L

503 90 33-01 H

537 02 01-01*

537 27 33-01*

*503 47 96-01

503 48 11-01*

537 27 37-01*

www.mymowerparts.com

537 01 97-01*

503 48 18-01*

537 27 32-01*

537 27 31-01*

Page 8

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

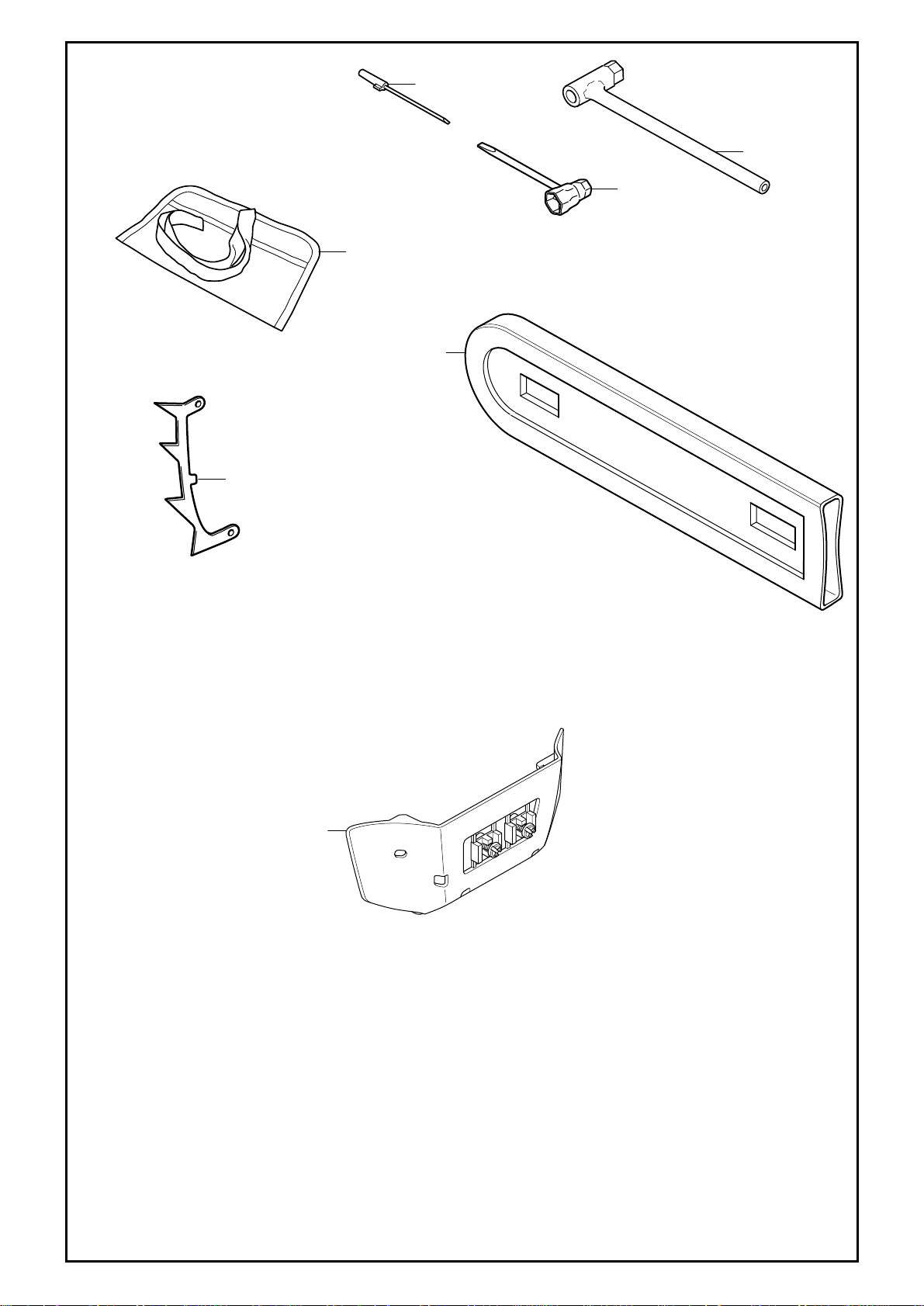

Accessories

Zubehöre Accessoires Acessorios Tillbehör

*compl 537 09 92-01

537 13 73-01*

501 83 44-09

501 60 02-03*

502 11 46-02*

501 69 17-01*

503 81 73-01

compl 537 11 41-01

www.mymowerparts.com

Page 9

501 45 27-02 L 501 45 41-01 L 501 45 43-01 L 501 48 54-02 G 501 60 02-03 Q 501 62 33-01 L 501 69 17-01 Q 501 76 31-01 H 501 81 92-01 L 501 81 96-02 N

501 81 96-04 N 501 82 25-01 N 501 83 44-09 Q 501 87 53-01 A 502 11 46-02 Q 502 20 65-03 C 502 20 83-01 C 503 14 51-01 B 503 18 49-01 L 503 20 02-16 F

503 20 02-16 F 503 20 02-16 L 503 20 02-16 L 503 20 02-16 N 503 20 02-16 N 503 20 02-16 N 503 20 02-25 L 503 20 02-40 L 503 20 25-16 G 503 20 32-16 D

503 21 28-10 A 503 21 28-10 A 503 21 57-16 M 503 21 57-16 N 503 21 58-25 E 503 21 58-25 E 503 21 58-25 H 503 21 75-50 D 503 21 77-16 H 503 22 00-01 A

503 22 10-11 G 503 22 65-04 N 503 23 00-16 L 503 23 51-08 J 503 25 46-01 B 503 26 30-17 N 503 26 30-17 N 503 28 31-15 D 503 28 31-15 P 503 28 90-34 J

503 41 41-01 J 503 41 41-01 K 503 44 32-01 N 503 47 89-01 P 503 47 90-01 P 503 47 96-01 P 503 47 97-01 P 503 48 00-01 P 503 48 01-01 P 503 48 11-01 P

503 48 18-01 P 503 48 18-01 P 503 52 12-04 B 503 53 57-01 P 503 54 39-01 H 503 55 22-01 J 503 55 66-01 N 503 57 76-02 N 503 57 76-02 N 503 57 89-01 N

503 57 89-01 N 503 66 59-01 P 503 71 02-03 G 503 71 40-03 B 503 71 82-01 N 503 72 31-01 L 503 73 58-01 N 503 73 64-01 N 503 78 92-01 L 503 78 92-02 L

503 78 92-03 L 503 79 05-02 G 503 79 06-03 G 503 79 22-04 L 503 79 25-02 H 503 79 91-04 A 503 80 52-01 A 503 80 83-02 L 503 80 97-02 A 503 81 71-01 A

503 81 73-01 Q 503 81 81-01 G 503 81 85-01 H 503 81 93-71 B 503 82 11-01 J 503 82 17-01 F 503 82 22-71 B 503 82 25-02 H 503 82 33-02 N 503 82 98-01 N

503 84 26-01 N 503 84 53-72 K 503 85 38-04 N 503 85 46-01 A 503 85 51-01 A 503 86 20-01 A 503 86 38-01 L 503 90 09-01 G 503 90 32-01 P 503 90 33-01 P

503 90 34-01 P 503 90 83-01 A 503 90 88-01 A 503 90 98-02 G 503 92 42-01 G 503 93 03-03 E 503 93 45-01 K 503 93 45-01 K 503 96 75-01 N 503 97 40-01 P

503 97 81-02 L 503 97 82-01 L 503 98 13-01 N 503 98 62-01 L 503 98 74-01 N 503 98 94-02 L 503 99 49-72 J 504 34 00-04 J 504 34 00-04 J 505 30 51-25 H

530 02 61-19 N 537 01 25-01 P 537 01 26-01 P 537 01 97-01 P 537 02 00-01 P 537 02 01-01 P 537 04 24-07 N 537 04 61-01 L 537 05 11-01 N 537 05 28-01 N

537 05 54-01 E 537 05 68-01 L 537 05 93-01 N 537 06 35-01 N 537 07 04-01 N 537 07 25-01 M 537 07 40-01 N 537 07 58-01 N 537 07 60-02 D 537 07 61-01 D

537 07 61-02 D 537 07 91-01 B 537 08 64-01 N 537 08 89-03 N 537 08 89-03 N 537 09 21-01 J 537 09 28-01 A 537 09 80-01 N 537 09 90-01 A 537 09 92-01 Q

537 10 04-01 J 537 10 65-01 L 537 11 32-03 J 537 11 41-01 Q 537 12 68-04 J 537 12 76-01 N 537 13 59-03 C 537 13 73-01 Q 537 13 97-01 M 537 15 77-02 J

537 16 54-04 G 537 16 24-03 H 537 16 24-03 H 537 16 73-01 J 537 18 00-01 J 537 18 91-01 L 537 19 07-01 E 537 19 50-01 F 537 20 19-01 H 537 24 12-01 D

537 24 18-01 P 537 24 19-01 D 537 24 45-01 J 537 26 74-01 D 537 27 30-01 P 537 27 31-01 P 537 27 32-01 P 537 27 33-01 P 537 27 34-01 P 537 27 35-01 P

537 27 36-01 P 537 27 37-01 P 537 27 38-01 P 537 27 39-01 P 537 27 40-01 P 537 27 41-01 P 537 27 42-01 P 537 27 43-01 P 537 27 44-01 P 537 27 45-01 P

537 27 46-01 P 537 27 47-01 P 537 27 48-01 P 537 27 49-01 P 537 27 50-01 P 537 28 23-01 N 720 12 33-00 A 720 12 40-20 N 720 12 75-20 N 724 12 87-59 F

735 31 08-20 A 735 31 10-20 A 737 44 10-00 J

PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE

Set of gaskets, Dichtungssats, Jeu de joints, Juego de juntas, Packningssats

N = New part, Neues teil,

Nouvelle piece, Nueva pieza Ny detalj

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com
