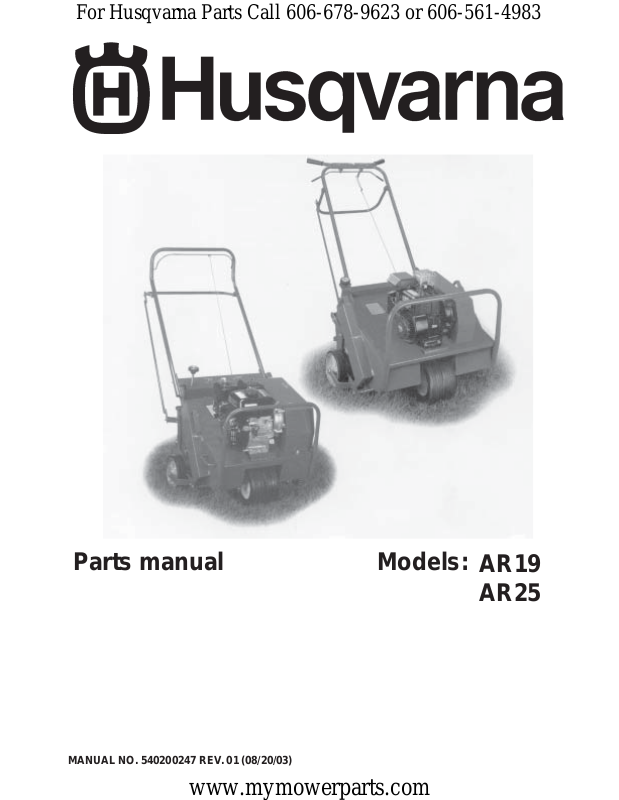

Parts manual
MANUAL NO. 540200247 REV. 01 (08/20/03)
www.mymowerparts.com
Models:
AR19
AR25
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Index
Replacement Parts List Page
Unit Assembly and Parts Diagrams
Main Frame - Model AR19...................................................................................................3
Handle and Control - Model AR19 .......................................................................................4
Rear Wheel Model - AR19...................................................................................................5
Power Train and T ine Rotor - Model AR19 ..........................................................................6
Main Frame - Model AR25...................................................................................................8
Handle and Control - Model AR25........................................................................................ 9
Rear Wheel - Model AR25...................................................................................................10
Power Train and T ine Rotor - Model AR25........................................................................... 12
2
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

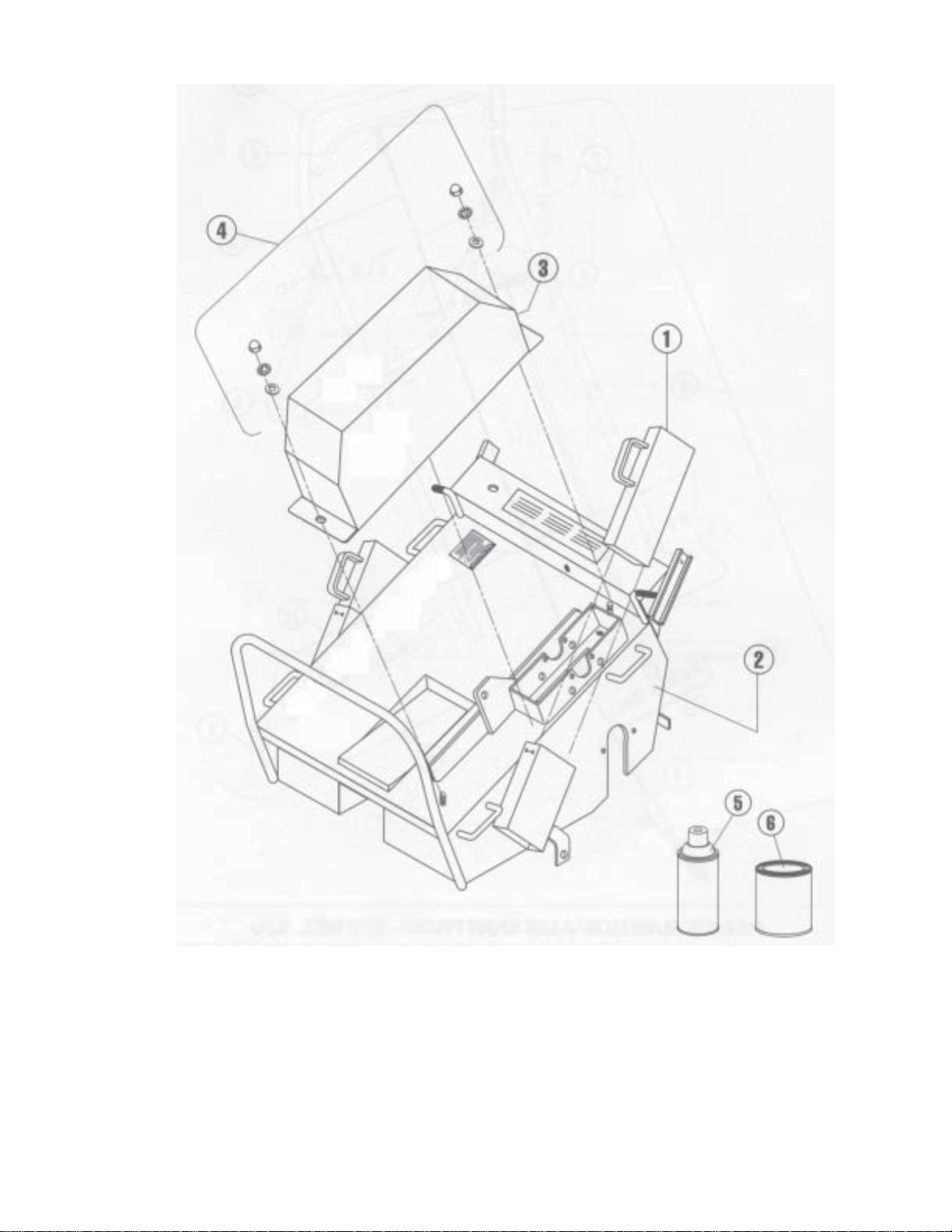

MAIN FRAME - MODEL AR19
ITEM PART NO. DESCRIPTION
1 ........540007600................ Weight, 36 lbs., solid steel
2 ........540007601................ Housing with decals
3 ........540007602................ Drive guard with decals
4 ........540007200................ Drive guard fastener kit
5 ........540000732................ Paint, orange, 12.5 oz. can
6 ........540000729................ Paint, orange, 1qt. can
7 ........540007603................ Decal kit, AR19
3
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

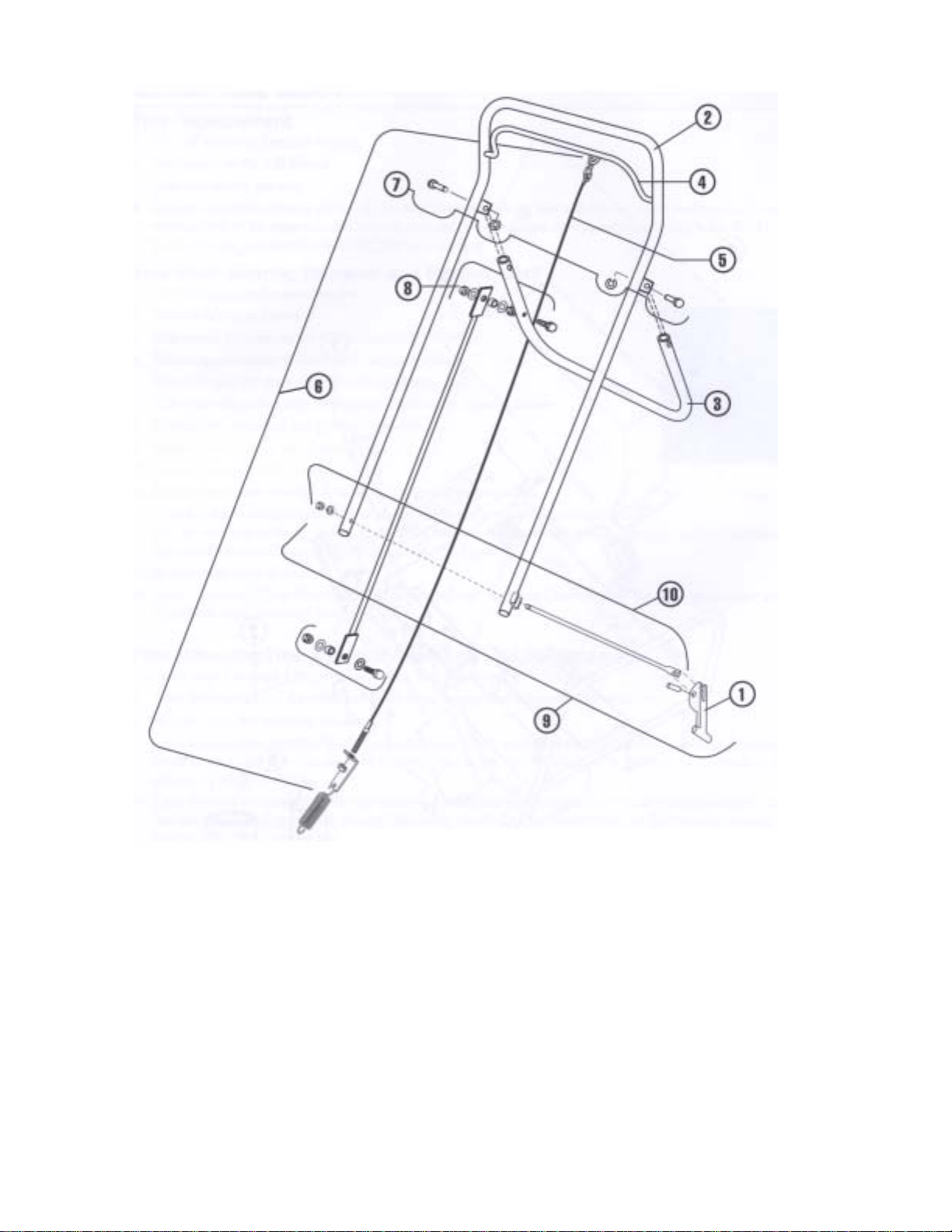

HANDLE AND CONTROL - MODEL AR19
ITEM PART NO. DESCRIPTION
1 ........540005256................ Cam, locking
2 ........540007610................ Handle
3 ........540007611................ Handle, control, rear wheel
4 ........540007612................ Bail
5 ........540007189................ Clutch cable
6 ........540007222................ Clutch cable kit complete assembly except 540005129
7 ........540007223................ Pin kit, rear wheel control handle
8 ........540007224................ Control rod kit, rear wheel
9 ........540007613................ Cam rod kit, with cam
10 ......540007614 ................ Cam rod kit, without cam
4
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

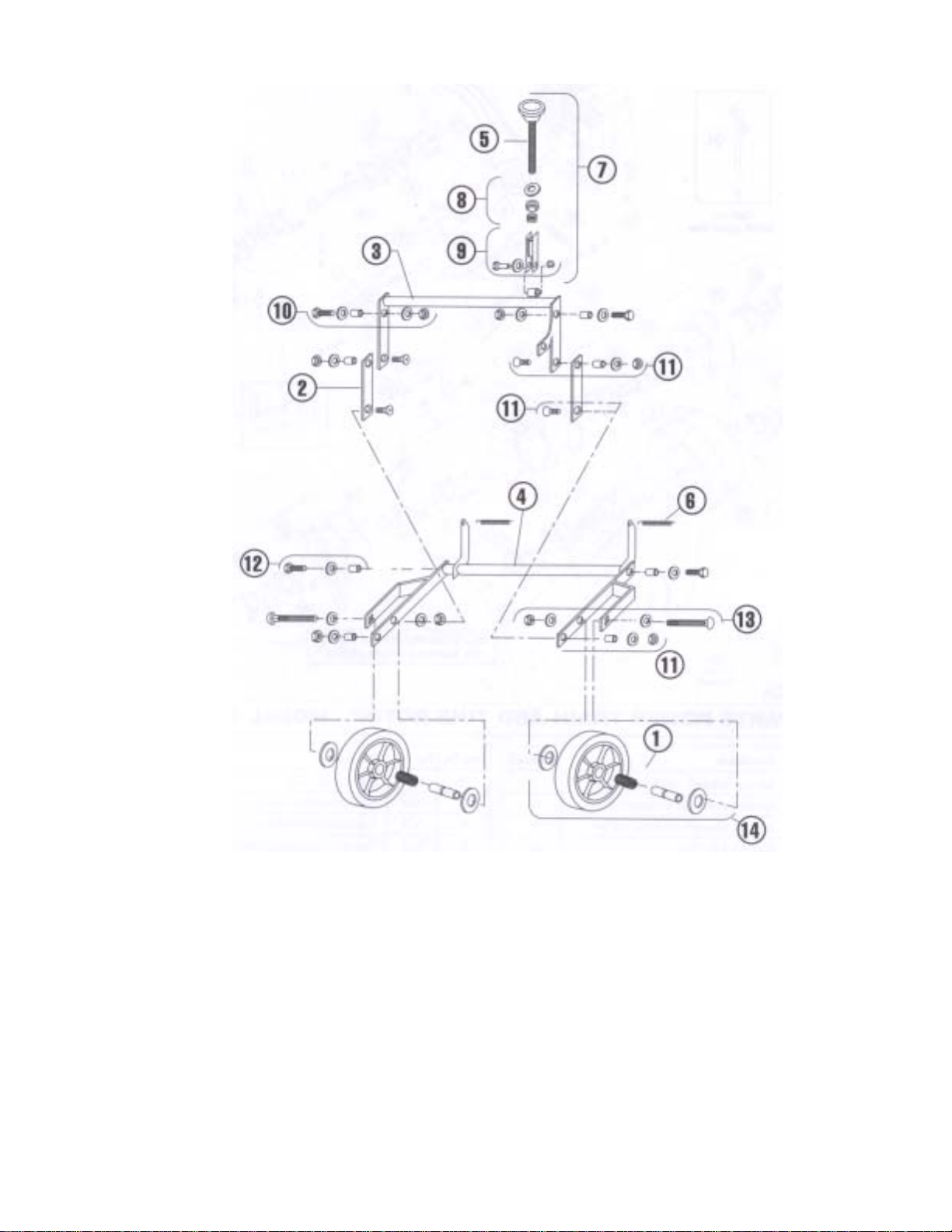

REAR WHEEL - MODEL AR19
ITEM PART NO. DESCRIPTION
1 ........540000048................ Bearing, roller with bushing and seals
2 ........540007107................ Lift link
3 ........540007133................ Torque arm, depth adjustment
4 ........540007620................ Wheel carriage, axle
5 ........540007163................ Knob, depth/stability
6 ........540007195................ Spring, axle
7 ........540007213................ Control kit, depth/stability
8 ........540007214................ Knob spring kit, depth/stability
9 ........540007215................ Bracket kit, depth/stability
10 ......540007216................ Fastener kit, torque arm/housing
11 ...... 540007217................ Fastener kit, linkage
12 ......540007218................ Fastener kit carriage/housing
13 ......540007621................ Bolt kit, rear wheel
14 ......540007220................ Wheel kit, rear, with roller bearing, bushing and seals
5
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

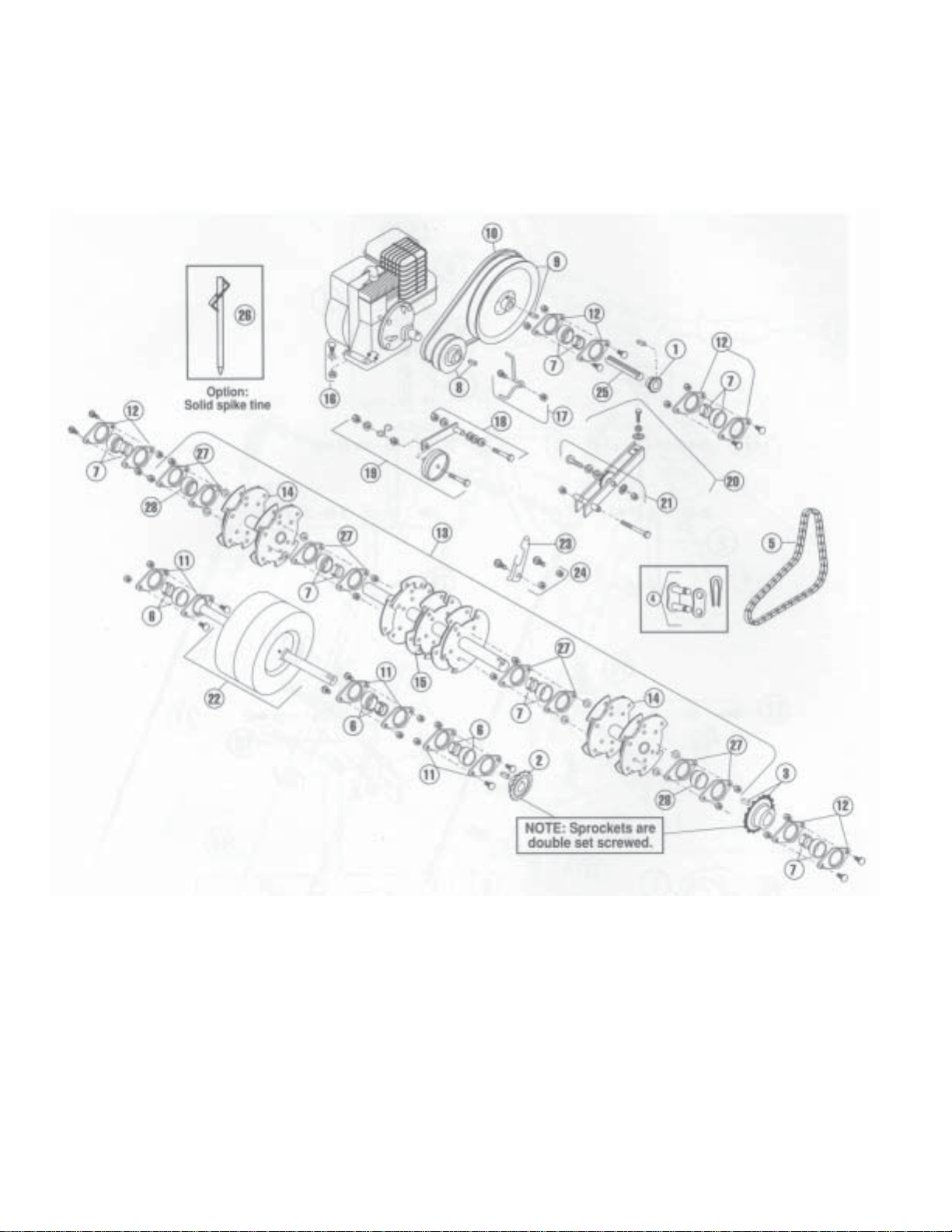

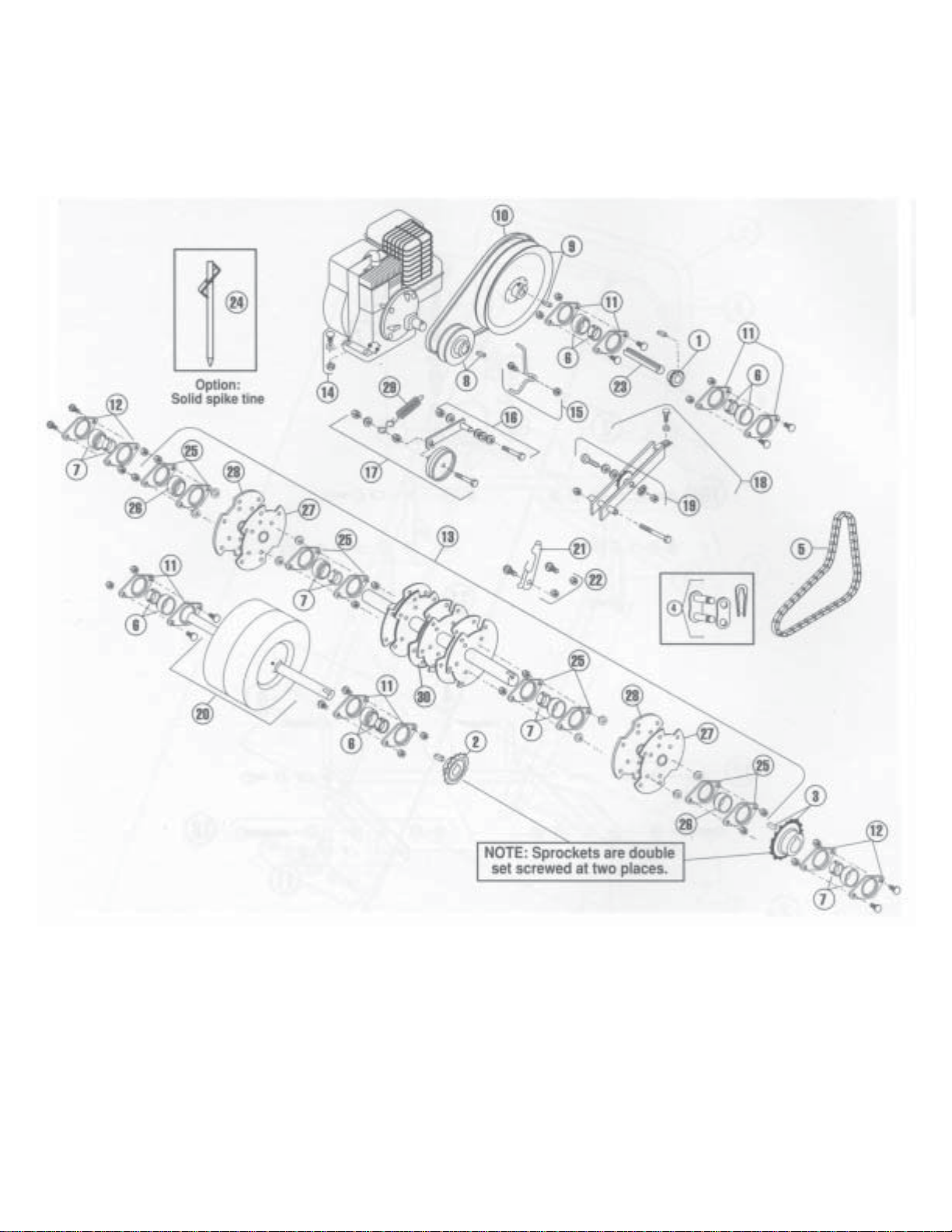

POWER TRAIN AND TINE ROTOR - MODEL AR19
6
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
POWER TRAIN AND TINE ROTOR - MODEL AR19
ITEM PART NO. DESCRIPTION
1 ........540007630........Sprocket, jackshaft, with key and spacer
2 ........540000302........Sprocket, wheel, with set screws and key
3 ........540000303........Sprocket, rotor, with set screws and key
4 ........540000307........Master link for 540000308
5 ........540000308........Chain, #40 perma lube roller
6 ........540000315........Bearing, 3/4” with lock collar
7 ........540000317........Bearing, 1” with lock collar
8 ........540000328........V-pulley, A-4” with set screws and key
9 ........540000332........V-pulley, A-10” with set screws and key
10 ......540000336........V-belt, A-44” special
11 ...... 540005185........Stamping kit w/fasteners (for 3/4” bearing)
12 ......540005786........Stamping kit w/fasteners (for 1” bearing)
13 ......540007631........Rotor shaft, tine without bolts
14 ......540007204........Fastener kit, engine
15 ......540007205........Belt keeper kit
16 ......540007206........Idler arm kit, pulley
17 ......540007632........Idler pulley kit
18 ......540007633........Idler arm kit, chain
19 ......540007634........Idler sprocket kit, chain
20 ......540007635........Front wheel and shaft kit
21 ......540007636........Tine set, closed spoon, 30 each
540007112........Tine set, closed spoon, 6 each
22 ......540007637........Tine/spike fastener kit, 72 ea. bolt s and nuts
540007103........T ine/spike fastener kit, 12 ea. bolt s and nuts
23 ......540007232........Jackshaft, with key
24 ......540007638........Spike set, 30 each
25 ......540007105........Stamping kit, w/nuts and washers (for 1” bearing)
26 ......540007108........Bearing 1” (does not include lock collar
27 ......540007639........Left rotor plate
28 ......540007640........Right rotor plate
29 ......540005129........Spring clutch
30 ......540007641........Rotor shaft, center
7
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

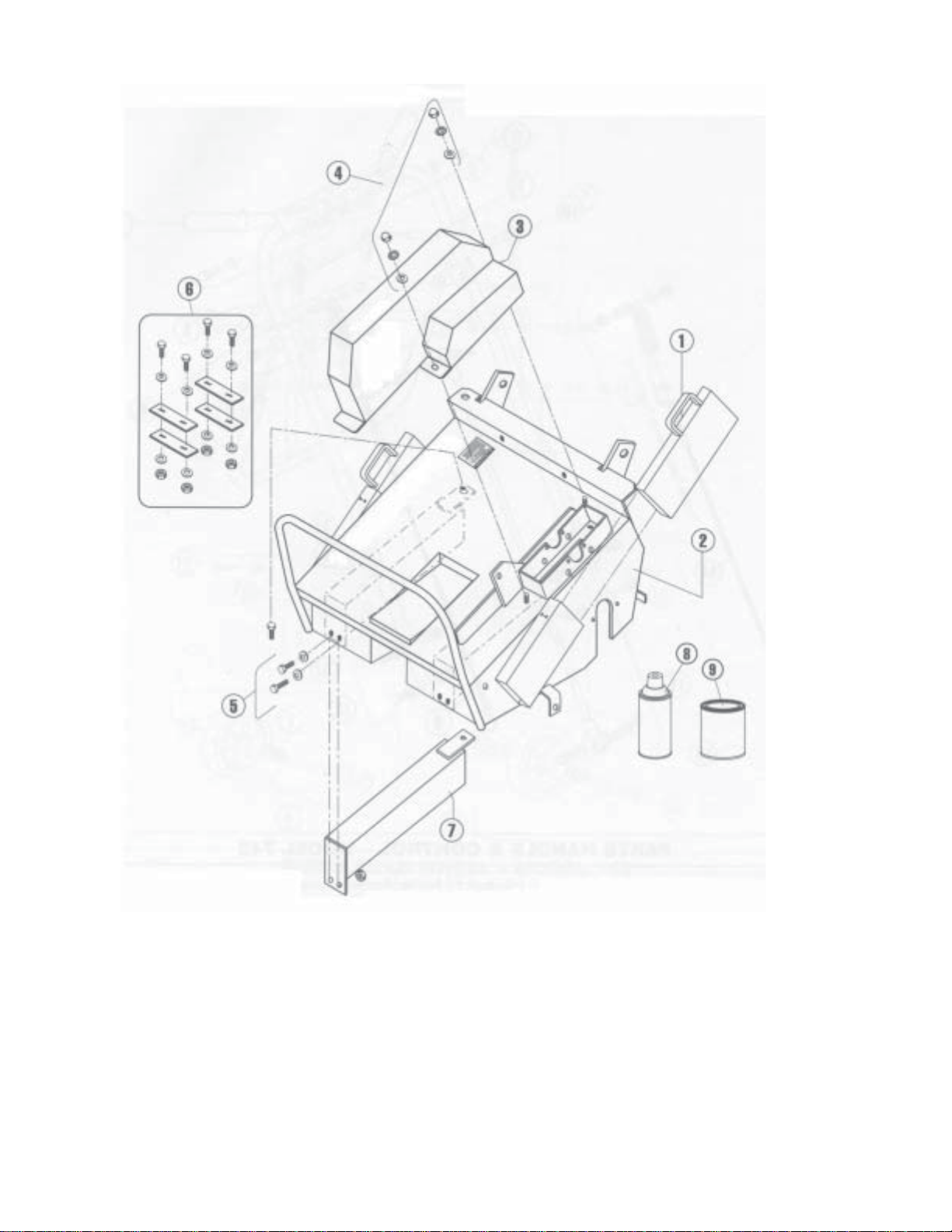

MAIN FRAME - MODEL AR25
ITEM PART NO. DESCRIPTION
1 ........540007600................ Weight, 36 lbs., solid steel, removable
2 ........540007400................ Housing with decals
3 ........540007401................ Drive guard with decals
4 ........540007200................ Drive guard fastener kit
5 ........540007402................ Fastener kit, weight
6 ........540007203................ Plate kit, for Honda engine
7 ........540007403................ 36 lb. weight, mounted
8 ........540000732................ Paint, orange, 12.5 oz. can
9 ........540000729................ Paint, orange, 1qt. can
10 ......540007404 ................ Decal kit, AR25
8
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

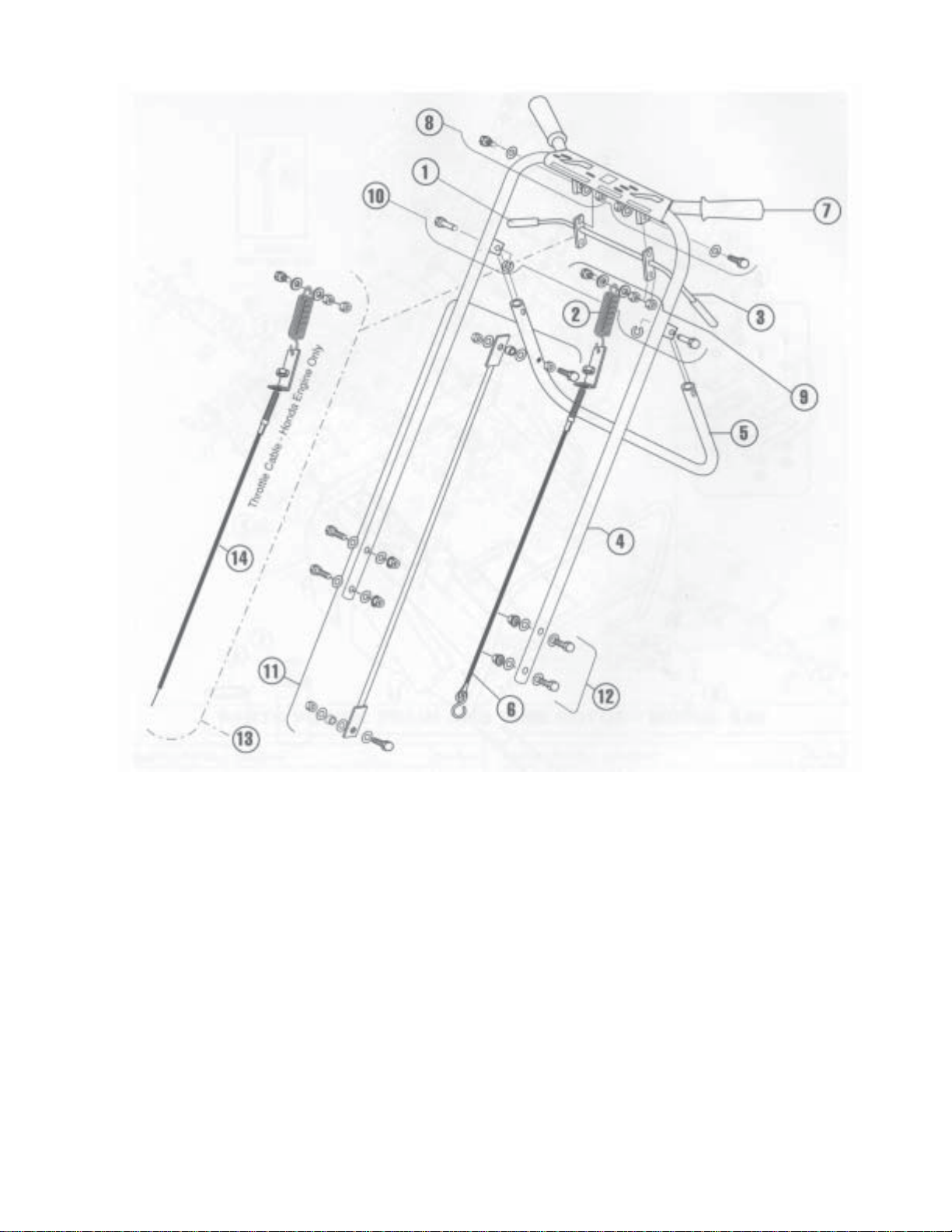

HANDLE AND CONTROL - MODEL AR25
ITEM PART NO. DESCRIPTION
1 ........540000034................ Grip, clutch
2 ........540005129................ Spring, clutch
3 ........540007149................ Clutch control, with grips
540007405................ Clutch/throttle control, Honda engines only
4 ........540007406................ Handle with grips
5 ........540007174................ Handle, control, rear wheel
6 ........540007189................ Clutch cable
7 ........540007191................ Grips, pair
8 ........540007221................ Fastener kit, clutch control to handle
9 ........540007222................ Clutch cable kit (complete assembly, except 540005129)
10 ......540007223................ Pin kit, rear wheel control handle
11 ...... 540007224................ Rear wheel control rod kit
12 ......540007117................ Fastener kit, handle
13 ......540007407................ Throttle cable kit - Honda engine only (complete assembly except
540005129)
14 ......540007408................ Throttle cable
9
www.mymowerparts.com
Page 10

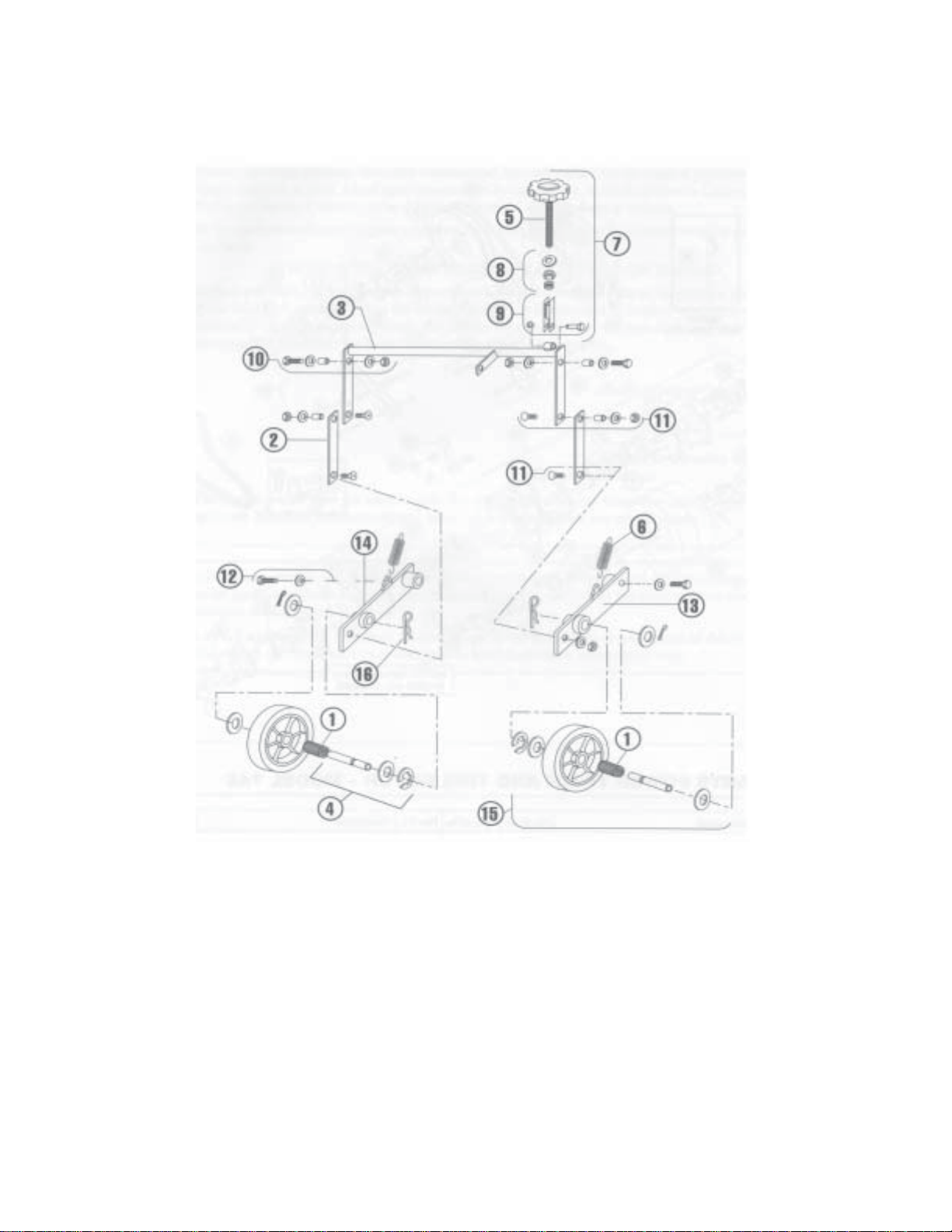

For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REAR WHEEL - MODEL AR25
10
www.mymowerparts.com
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REAR WHEEL - MODEL AR25
ITEM PART NO. DESCRIPTION
1 ........540007409................ Bearing, roller with seals
2 ........540007107................ Lift link
3 ........540007119................ Torque arm, depth adjustment
4 ........540007410................ Axle kit, axle, E-clip, 2 washers, cotter pin, hairpin cotter
5 ........540007163................ Knob, depth/stability
6 ........540007195................ Spring, axle
7 ........540007213................ Control kit, depth/stability
8 ........540007214................ Knob spring kit, depth/stability
9 ........540007215................ Bracket kit, depth/stability
10 ......540007216 ................ Fastener kit, torque arm/housing
11 ...... 540007217................ Fastener kit, linkage
12 ......540007411 ................ Fastener kit carriage/housing
13 ......540007412 ................ Wheel arm right
14 ......540007413 ................ Wheel arm left
15 ......540007414 ................ Wheel assembly wheel, bearing, 2 seals, axle, 2 washers, E-clip,
cotter pin, hairpin cotter
16 ......540007415 ................ Cotter key, hairpin
11
www.mymowerparts.com
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
POWER TRAIN AND TINE ROTOR - MODEL AR25
12
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
POWER TRAIN AND TINE ROTOR - MODEL AR25
ITEM PART NO. DESCRIPTION
1 ........540007416........Sprocket, jackshaft, with key
2 ........540007417........Sprocket, wheel, with set screws and key
3 ........540007418........Sprocket, rotor,with set screws and key
4 ........540007419........Master link for 540007420
5 ........540007420........Chain, #50 perma lube roller
6 ........540000315........Bearing, 3/4” with lock collar
7 ........540000317........Bearing, 1” with lock collar
8 ........540000328........V-pulley, A-4” with set screws and key
9 ........540007421........V-pulley, A-10” with set screws and key
10 ......540000336 ........V-belt, A-44” special
11 ...... 540005185........Stamping kit w/fasteners (for 3/4” bearing)
12 ......540005786 ........Stamping kit w/fasteners (for 1” bearing)
13 ......540007422 ........Tine rotor shaft assembly, complete
14 ......540007423 ........Outer rotor plate kit
15 ......540007424 ........Center tine rotor shaft
16 ......540007204 ........Fastener kit, engine
17 ......540007205 ........Belt keeper kit
18 ......540007206 ........Idler arm kit, pulley
19 ......540007207 ........Idler pulley kit
20 ......540007425 ........Idler arm kit, chain
21 ......540007426 ........Idler sprocket kit, chain
22 ......540007120 ........Front wheel and shaft kit
23 ......540007111 ........Tine set, closed spoon, 42 each
5400071 12........Tine set, closed spoon, 6 each
24 ......540007102 ........Tine/spike fastener kit, 96 ea. bolts and nut s
540007103........Tine/spike fastener kit, 12 ea. bolt s and nut s
25 ......540007427 ........Jackshaft, with key
26 ......540007104 ........Spike set, 42 each
27 ......540007105 ........Stamping kit (for 1” bearing) with nuts and washers
28 ......540007108 ........Bearing 1” (does not include lock collar)
13
www.mymowerparts.com
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
14
www.mymowerparts.com
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
15
www.mymowerparts.com
Page 16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Technical assistance:
For technical assistance please contact your Local Dealer.
www.mymowerparts.com
