Husqvarna I0401006 Parts Manuals

Download

Page 1

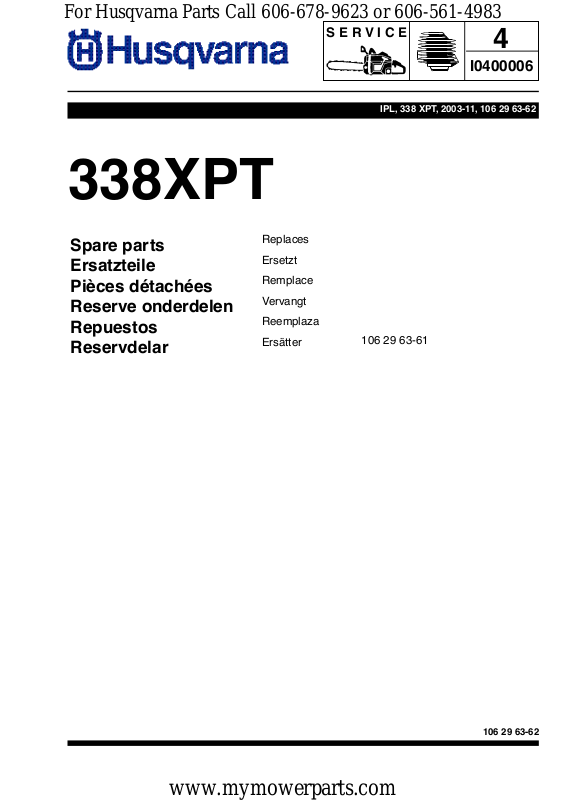

S E R V I C E

Spare parts Ersatzteile Pièces détachées Reserve onderdelen Repuestos Reservdelar

Replaces

Ersetzt

Remplace

Vervangt

Reemplaza

Ersätter

106 29 63-61

I0400006

IPL, 338 XPT, 2003-11, 106 29 63-62

338XPT

106 29 63-62

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

Page 2

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

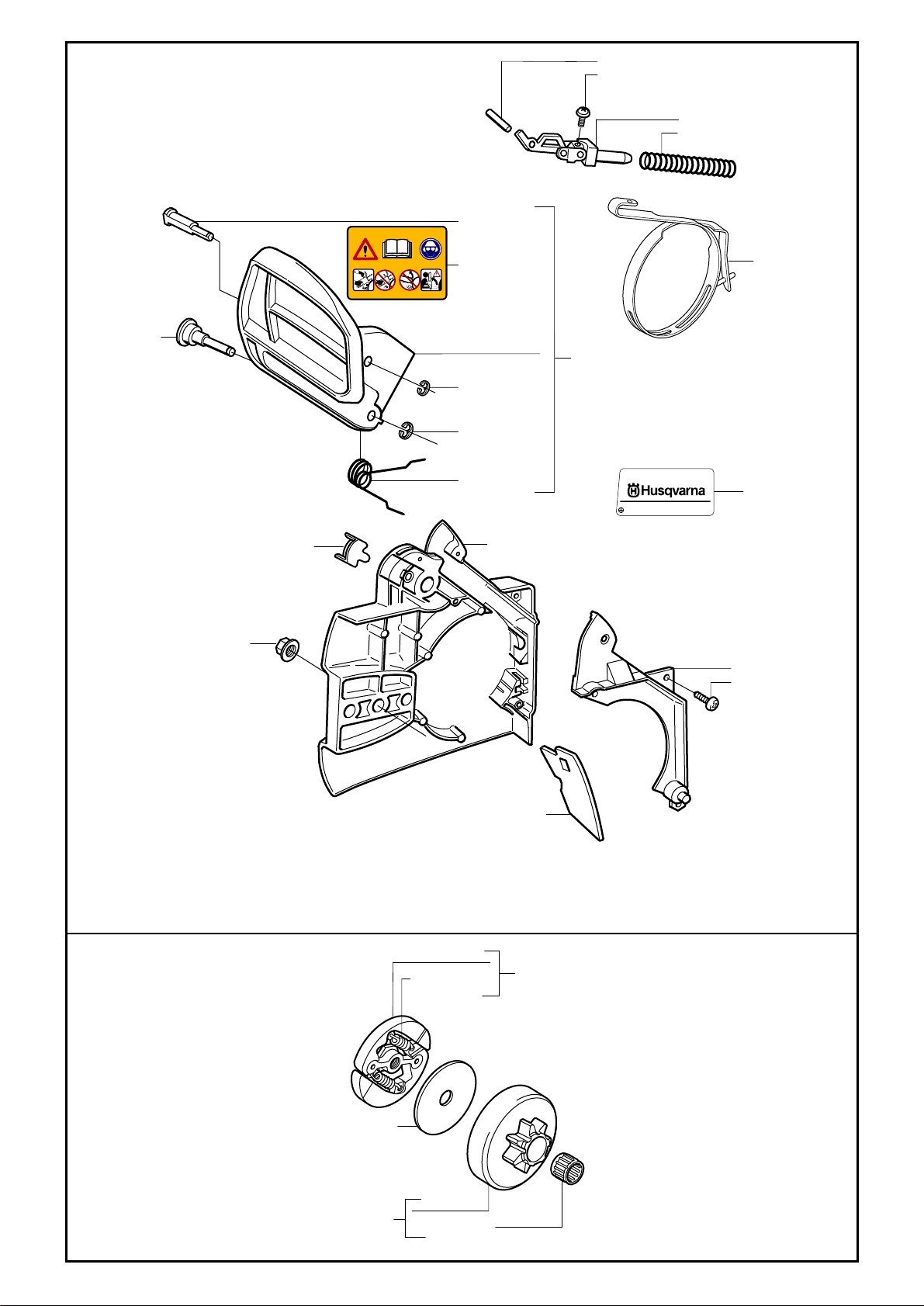

*compl 503 93 52-03

*503 81 71-01

503 85 46-01*

503 98 74-01*

735 31 08-20*

735 31 10-20*

537 09 28-01*

503 93 53-01*

720 12 33-00* 503 21 28-10*

501 87 53-01* 503 90 83-01*

503 80 97-02*

503 90 88-01

*503 86 20-01

503 22 00-01

*503 85 51-01

503 14 51-01

503 80 52-01* 503 21 28-10* (x4)

503 71 40-03

503 52 12-04

(3/8) 503 82 22-71

503 25 46-01

www.mymowerparts.com

Page 3

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

*compl 503 79 26-02

502 20 40-01* 502 20 65-03*

*compl 537 02 15-01

503 82 09-02*

*503 96 72-01

503 21 73-25 (x2)

*503 96 71-01

503 21 75-50 (x2)

503 81 14-02

503 28 31-14

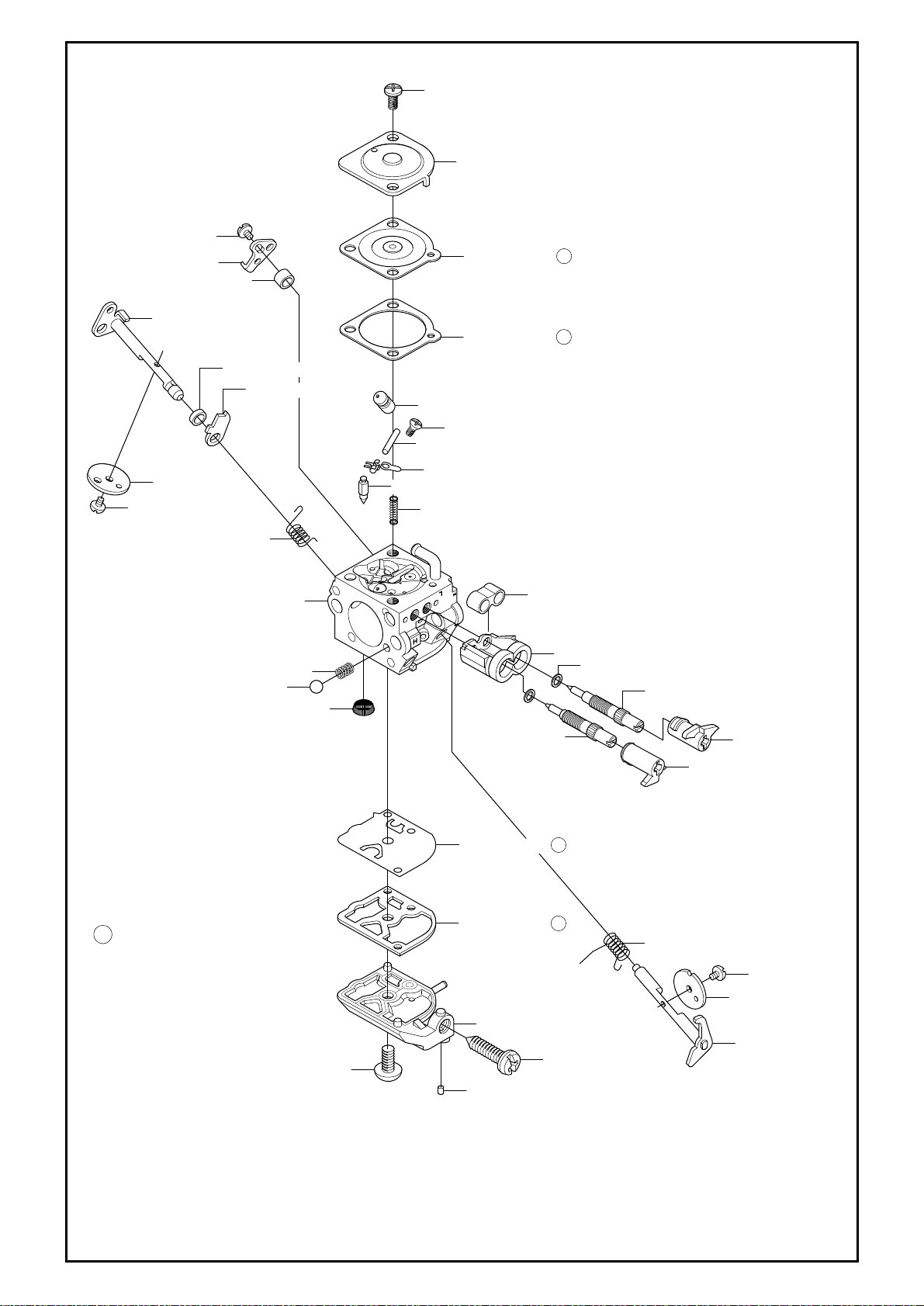

Zama C1Q-EL19

537 24 19-01

537 24 12-01

503 21 73-25 (x2)

537 19 04-01

*compl 503 93 03-03 **compl 537 19 50-01

*724 12 87-59 *503 82 17-01

503 20 02-16 (x3)

www.mymowerparts.com

503 20 02-16 (x3)

Page 4

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

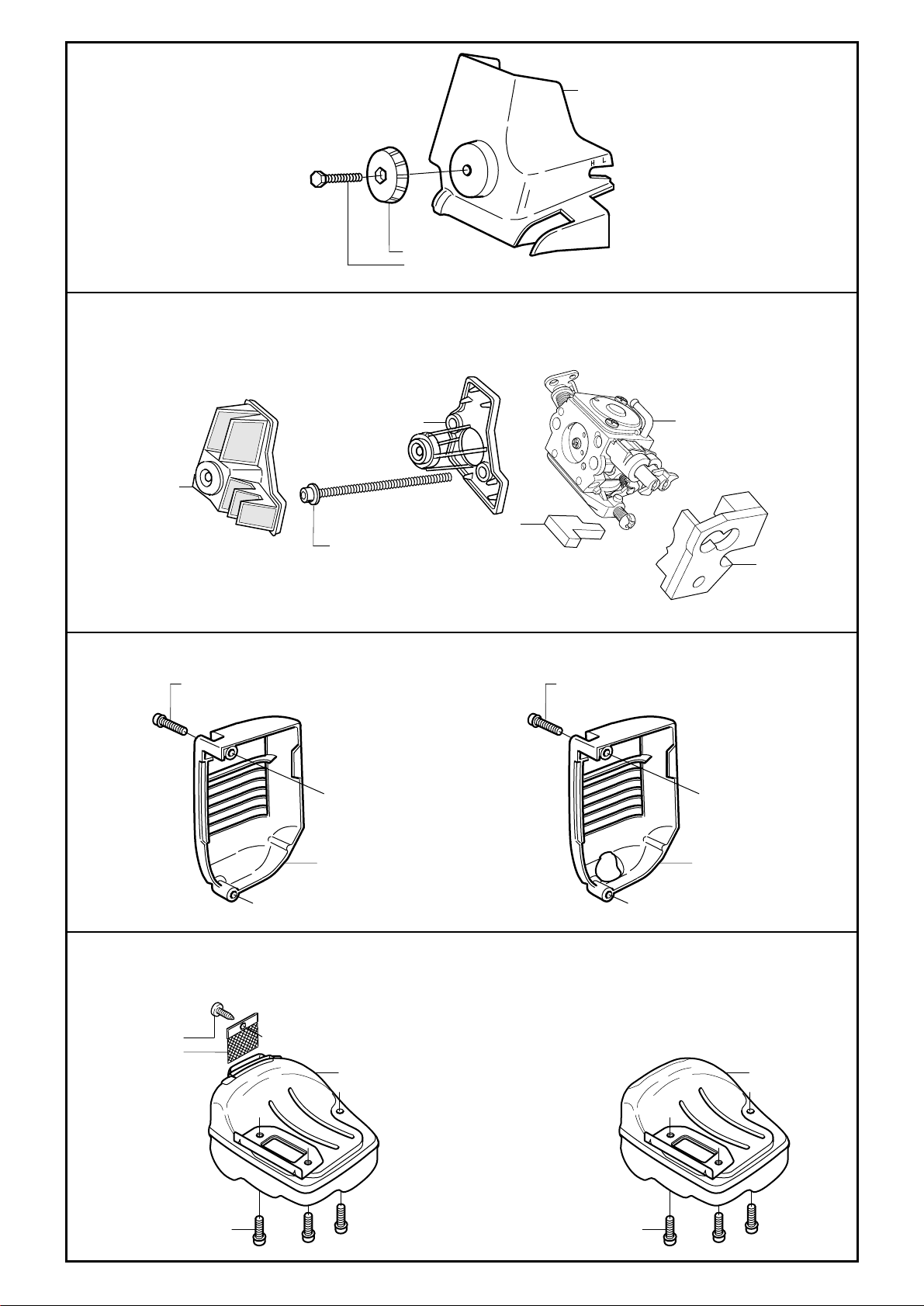

501 48 54-02

503 92 42-01

537 16 21-01

503 20 25-16

503 90 09-01

503 90 98-01

503 22 10-11

503 79 06-03

*compl 503 79 25-01

503 81 81-01 (x2) 503 71 02-03 (x2) 503 79 05-02 (x2)

*503 21 77-16

*537 20 19-01

505 30 51-25*

503 82 25-02

537 00 84-01*

503 21 73-25 (x4)

AIR INJECTION

503 90 87-03 (338XPT)

www.mymowerparts.com

*501 76 31-01

*503 81 85-01

503 90 87-03 (338XPT)

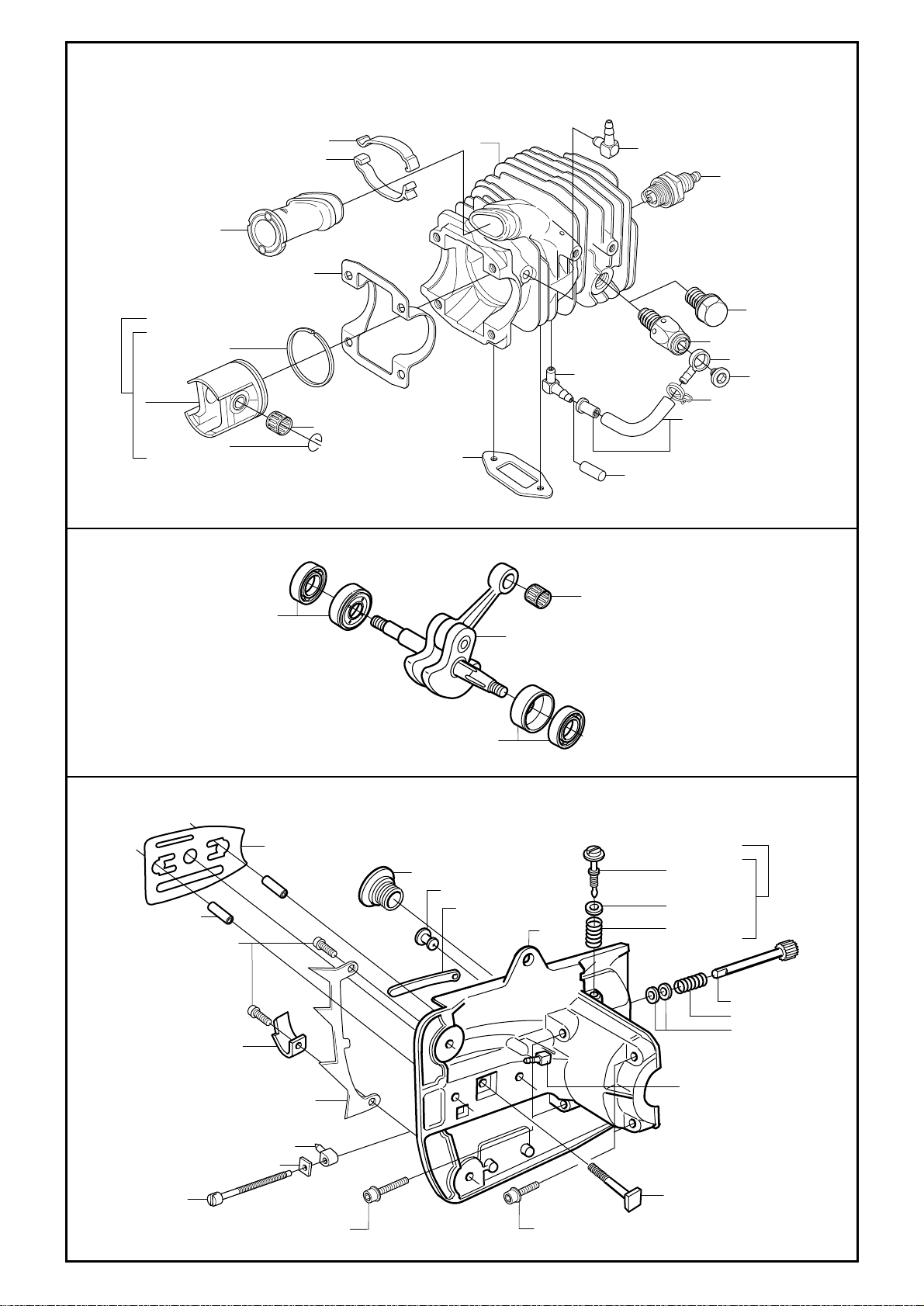

Page 5

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

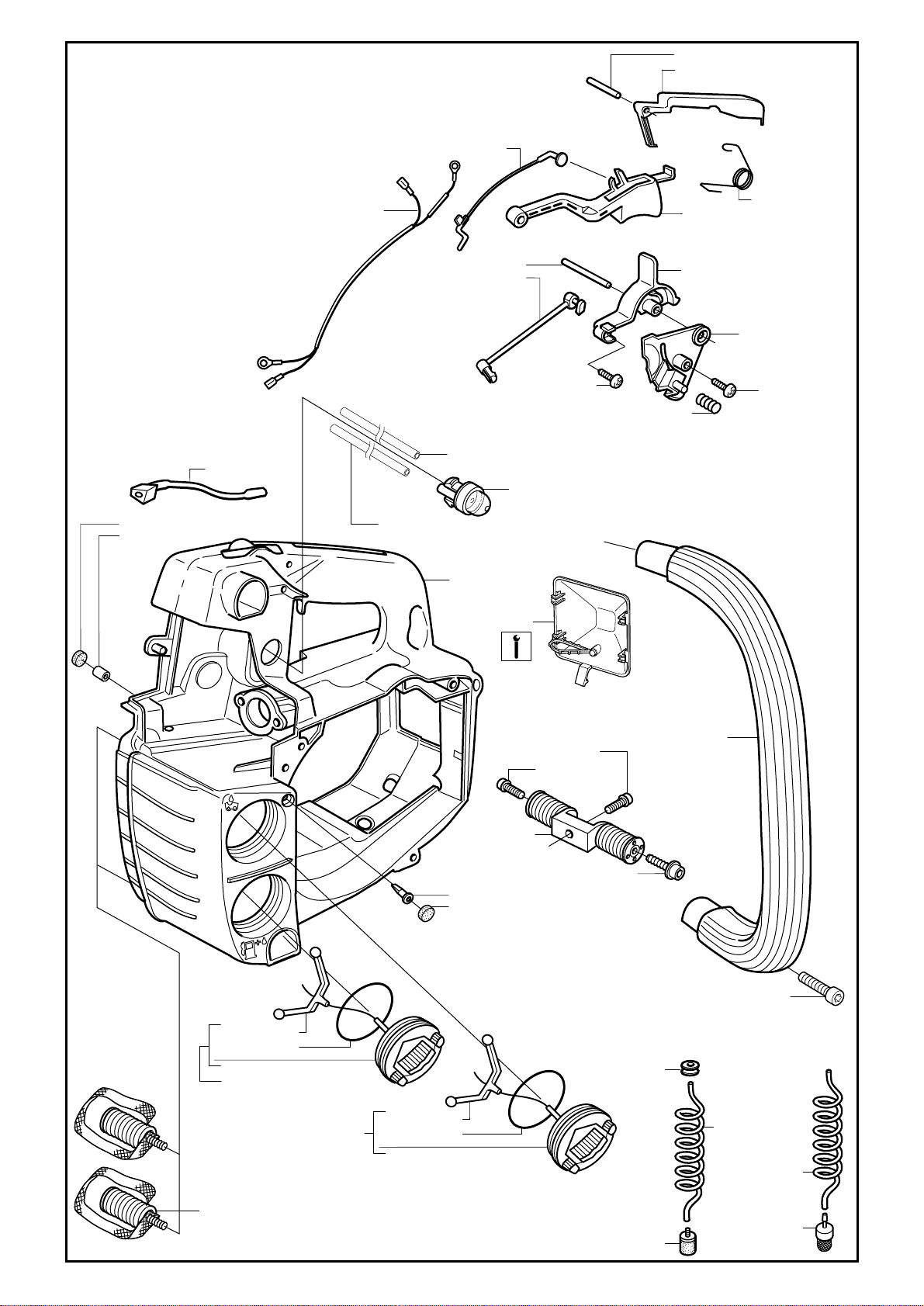

*compl 537 13 20-01

537 15 77-01

537 13 27-01*

*503 28 90-03

*737 44 10-00

537 10 04-01

**compl 537 16 73-01

503 41 41-01*

503 82 11-01

504 34 00-04*

503 23 51-08

RCJ-7Y

503 55 22-01*

***

537 24 45-01

537 11 32-03

537 18 00-01*

***compl 537 12 68-04

*compl 503 84 53-72

*compl 503 79 22-04

*501 62 33-01 (x2)

503 20 02-16 (x2)

*503 93 45-01

503 86 38-01

*503 93 45-01

503 78 92-01 (3/8)

503 72 31-01

503 98 62-01*

503 41 41-01*

*503 98 94-02

537 05 68-01

503 97 81-02

503 97 82-01

501 68 68-01

**compl 537 10 65-01

**501 45 27-02

**501 81 92-01

503 81 73-01

**501 45 41-01

503 20 02-40 (x2)

www.mymowerparts.com

503 80 83-02* 503 18 49-01* 503 23 00-16* (x2)

537 04 61-01*

501 45 43-01*

503 20 02-25 (x2)

Page 6

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

*compl 537 24 95-02

503 84 26-01

*503 96 32-01

503 82 28-01

*720 12 46-20 503 82 27-02

537 04 24-08

*729 56 55-01

503 93 66-01

720 12 40-20* 503 81 33-01*

503 85 13-01*

503 81 32-01*

503 81 34-01*

503 81 35-01*

503 21 28-10*

*503 92 96-01

503 60 04-01 501 62 98-01

537 04 24-09

*537 08 93-01

503 81 69-01

503 20 02-16

503 82 33-02

503 20 02-16

530 02 61-19* 503 98 13-01*

503 57 89-01 503 26 30-17

compl 501 81 96-04

compl 501 81 96-02

503 85 38-04 (x2)

www.mymowerparts.com

503 57 89-01 503 26 30-17

503 21 88-30 (x2)

503 73 58-01

503 57 76-02

503 96 75-01

503 44 32-01

Page 7

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

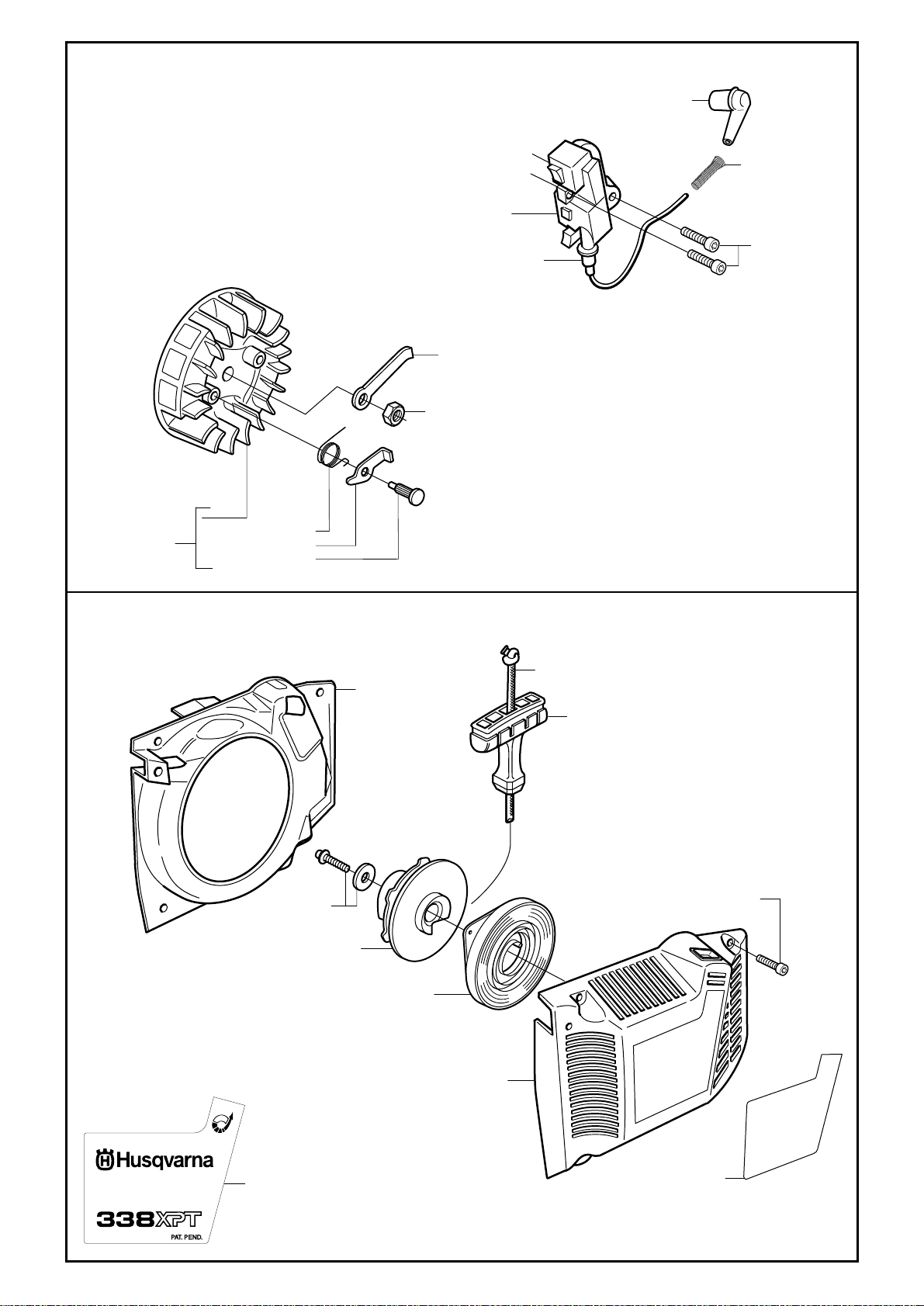

*compl 503 28 31-14

*503 47 90-01

*537 27 41-01

*503 47 89-01

537 27 38-01*

537 27 39-01*

503 48 18-01*

537 27 44-01*

537 27 43-01*

503 48 05-01* (x2)

503 97 43-01*

537 04 89-01*

537 02 04-01*

537 27 30-01*

503 48 01-01*

503 48 00-01*

503 66 59-01*

503 47 97-01*

537 27 34-01*

Zama C1Q-EL19

*537 27 40-01

*537 01 25-01

531 00 45-52

Set of gaskets Dichtungssatz Jeu de joints Juego de juntas Packningssats

*537 01 26-01

*503 53 57-01

*503 47 96-01

537 27 42-01*

H *537 27 36-01

537 02 00-01*

537 02 01-01*

537 27 33-01*

537 27 37-01*

503 48 11-01*

503 90 34-01*

503 97 40-01* (x2)

537 27 35-01* L

503 90 32-01 L

503 90 33-01 H

537 01 97-01*

503 48 18-01*

537 27 32-01*

537 27 31-01*

www.mymowerparts.com

Page 8

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

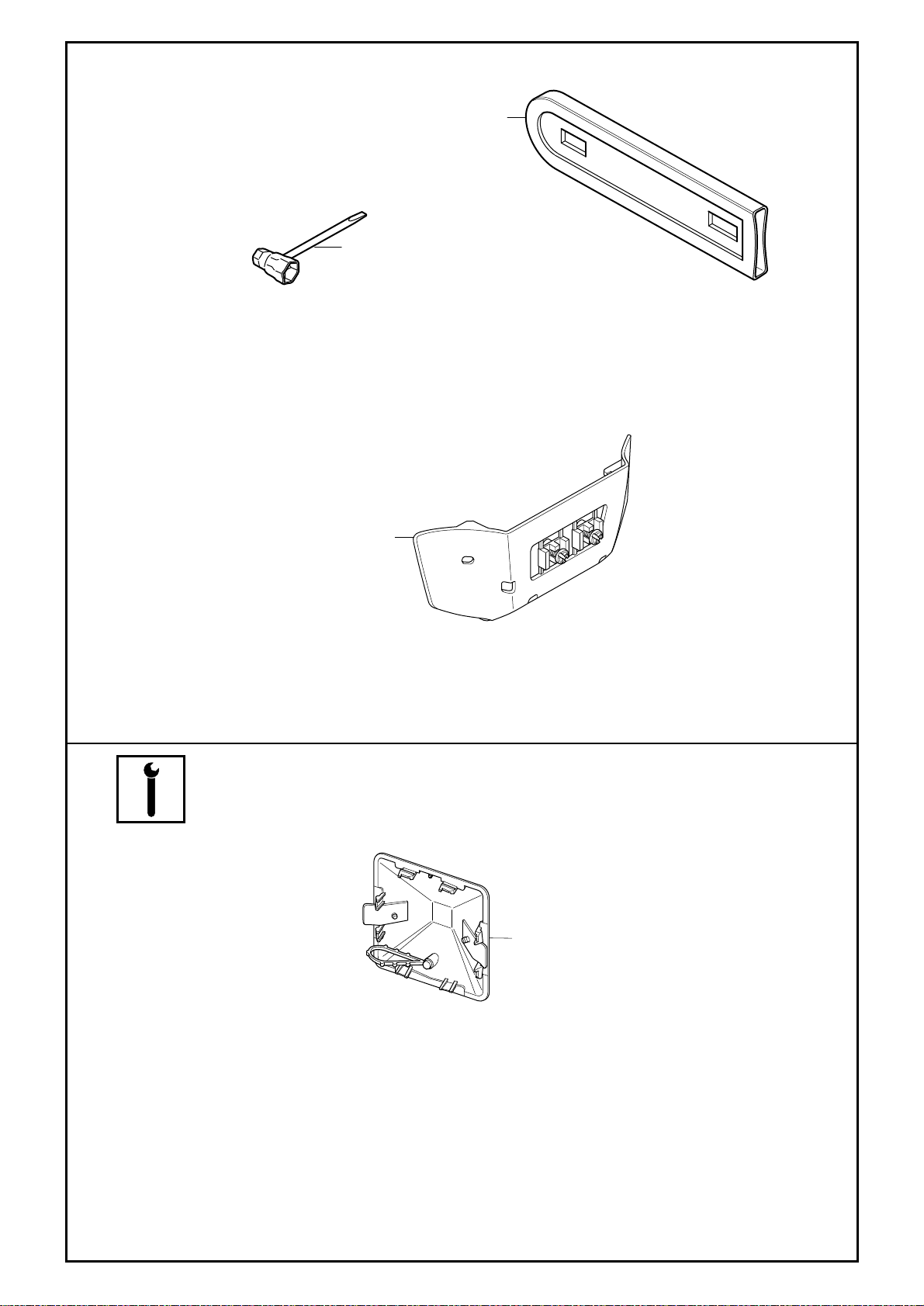

Accessories

Zubehöre Accessoires Acessorios Tillbehör

501 69 17-01

501 83 44-09

compl 537 11 41-01

Up to:

-001200207

537 09 88-01

www.mymowerparts.com

Page 9

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE

501 45 27-02 L 501 45 41-01 L 501 45 43-01 L 501 48 54-02 G 501 62 33-01 L 501 62 98-01 M 501 63 06-01 H 501 68 68-01 L 501 69 17-01 P 501 76 31-01 H

501 81 92-01 L 501 81 96-02 M 501 81 96-04 M 501 83 44-09 P 501 87 53-01 A 502 20 40-01 C 502 20 65-03 C 503 14 51-01 B 503 18 49-01 L 503 20 02-16 F,M,L

503 20 02-25 L 503 20 02-40 L 503 20 25-16 G 503 21 28-10 A,M 503 21 73-25 E,H 503 21 75-50 D 503 21 77-16 H 503 21 88-30 M 503 22 00-01 A 503 22 10-11 G

503 81 34-01 M 503 81 35-01 M 503 81 69-01 M 503 81 71-01 A 503 81 73-01 L 503 81 81-01 G 503 81 85-01 H 503 82 09-02 C 503 82 11-01 J 503 82 17-01 F

503 82 22-71 B 503 82 25-02 H 503 82 27-02 M 503 82 28-01 M 503 82 33-02 M 503 84 26-01 M 503 84 53-72 K 503 85 13-01 M 503 85 38-04 M 503 85 46-01 A

503 85 51-01 A 503 86 20-01 A 503 86 38-01 L 503 90 09-01 G 503 90 32-01 N 503 90 33-01 N 503 90 34-01 N 503 90 83-01 A 503 90 87-03 H 503 90 88-01 A

537 10 65-01 L 537 11 32-01 J 537 12 68-04 J 537 13 19-02 J 537 13 27-01 J 537 15 77-01 J 537 16 21-01 G 537 16 73-01 J 537 18 00-01 J 537 19 04-01 E

537 19 50-01 F 537 20 19-01 H 537 24 12-01 D 537 24 19-01 D 537 24 45-01 J 537 24 95-02 M 537 27 30-01 N 537 27 31-01 N 537 27 32-01 N 537 27 33-01 N

537 27 34-01 N 537 27 35-01 N 537 27 36-01 N 537 27 37-01 N 537 27 38-01 N 537 27 39-01 N 537 27 40-01 N 537 27 41-01 N 537 27 42-01 N 537 27 43-01 N

503 23 00-16 L 503 23 51-08 J 503 25 46-01 B 503 26 30-17 M 503 28 31-14 D,N 503 28 90-03 J 503 41 41-01 J,K 503 44 32-01 M 503 47 89-01 N 503 47 90-01 N

503 47 96-01 N 503 47 97-01 N 503 48 00-01 N 503 48 01-01 N 503 48 05-01 N 503 48 11-01 N 503 48 18-01 N 503 52 12-04 B 503 53 57-01 N 503 55 22-01 J

503 57 76-02 M 503 57 89-01 M 503 60 04-01 M 503 66 59-01 N 503 71 02-03 G 503 71 40-03 B 503 72 31-01 L 503 73 58-01 M 503 78 92-01 L 503 79 05-02 G

503 90 98-01 G 503 92 42-01 G 503 92 96-01 M 503 93 03-03 F 503 93 45-01 K 503 93 52-03 A 503 93 53-01 A 503 93 66-01 M 503 96 32-01 M 503 96 71-01 D

503 96 72-01 D 503 96 75-01 M 503 97 40-01 N 503 97 43-01 N 503 97 81-02 L 503 97 82-01 L 503 98 13-01 M 503 98 62-01 L 503 98 74-01 A 503 98 94-02 L

504 34 00-04 J 505 30 51-25 H 530 02 61-19 M 531 00 45-52 N 537 00 84-01 H 537 01 25-01 N 537 01 26-01 N 537 01 97-01 N 537 02 00-01 N 537 02 01-01 N

537 27 44-01 N 720 12 33-00 A 720 12 40-20 M 720 12 46-20 M 724 12 87-59 F 729 56 55-01 M 735 31 08-20 A 735 31 10-20 A 737 44 10-00 J

503 79 06-03 G 503 79 22-04 L 503 79 25-01 H 503 79 26-02 C 503 80 52-01 A 503 80 83-02 L 503 80 97-02 A 503 81 14-02 E 503 81 32-01 M 503 81 33-01 M

Set of gaskets, Dichtungssats, Jeu de joints, Juego de juntas, Packningssats

537 02 04-01 N 537 02 15-01 D 537 04 24-08 M 537 04 24-09 M 537 04 61-01 L 537 04 89-01 N 537 05 68-01 L 537 08 93-01 M 537 09 28-01 A 537 10 04-01 J

N = New part, Neues teil,

Nouvelle piece, Nueva pieza Ny detalj
