Introduction
Congratulations on your purchase of the HP LaserJet 5000 series
printer! This printer is available in three configurations , as described
below .
HP LaserJet 5000 printer
The HP LaserJet 5000 printer is a 16 ppm laser printer that comes
standard with a 100-sheet multi-purpose T ray 1, a 250-sheet T r ay 2,
and 4 MB of memory. It is designed for workgroups and can print
on paper sizes up to A3 and 11 x 17.
HP LaserJet 5000 N printer
The HP LaserJet 5000 N printer is a 16 ppm laser printer that comes
standard with a 100-sheet multi-purpose T ray 1, a 250-sheet T r ay 2,
a 500-sheet Tray 3, 8 MB of memory, and an HP JetDirect 600N
print server card for connecting to an Ethernet or LocalT alk network.
It is designed for network users and can print on paper sizes up to
A3 and 11 x 17.
HP LaserJet 5000 GN printer
The HP LaserJet 5000 GN printer is a 16 ppm laser printer that
comes standard with a 100-sheet multi-purpose T ray 1, a 250-sheet
T ra y 2, a 500-sheet T ray 3, 12 MB of memory , an HP JetDirect 600N
print server card for connecting to an Ethernet or LocalT alk network,
and a hard disk drive. The printer is designed for network users and
can print on paper sizes up to A3 and 11 x 17.
EN
The illustrations in this guide will be based on the HP LaserJet 5000
printer unless otherwise stated.
Getting Started Guide 1
Installation Checklist
This guide will help you set up and install the new printer . For proper
installation, please complete each section in order.
Unpack the printer steps 1-4
Install the printer steps 5-10
Connect the printer cables step 11
Install printing software step 12
Verify printer setup step 13
2 Getting Started Guide
EN
Step 1. Prepare Printer Location
Printer Size
55 in (139.8 cm)
24.6 in (62.5 cm)
10.6 in (27.0 cm)
18.5 in (47.0 cm)
18.5 in (47.0 cm)
11.9 in (30.3 cm)
18.7 in (47.5 cm) 18.6 in (47.3 cm)
4.3 in (11.0 cm)
Figure 1 HP LaserJet 5000 Printer Dimensions (Top and Side Views)
EN
Getting Started Guide 3
55 in (139.8 cm)
24.6 in (62.5 cm)
10.6 in (27.0 cm)
11.9 in (30.3 cm)
18.5 in (47.0 cm)
24.4 in (62.0 cm)
6.1 in (15.5 cm)
Figure 2 HP LaserJet 5000 N/5000 GN Printer Dimensions (Top and Side Views)
4 Getting Started Guide
EN
55 in (139.8 cm)
24.6 in (62.5 cm)
10.6 in (27.0 cm)
18.5 in (47.0 cm)
11.9 in (30.3 cm)
6.5 in (16.6 cm)
29.7 in (75.5 cm)
Figure 3 Maximum Accessories Configuration (Top and Side Views)
Printer Weight (without toner cartridge)
HP LaserJet 5000 printer: 50 lb (23 kg)
•
HP LaserJet 5000 N/5000 GN printers: 75 lb (34 kg)
•
HP LaserJet 5000 GN printer with duplexer and optional
•
250-sheet feeder: 114 lb (52 kg)
EN
Getting Started Guide 5
Location requirements for the printer
A sturdy, level surface for
•
placement
Space allowance around the
•
printer
A well ventilated room
•
No exposure to direct
•
sunlight or chemicals,
including ammonia based
cleaning solutions
Adequate power supply
•
A stable environment—no
•
abrupt temperature or
humidity changes
Relative humidity 20% to
•
80%
Room temperature 50° to
•
91° F (15° to 32.5° C)
6 Getting Started Guide
EN
Step 2. Check Package Contents
Toner
Cartridge
Figure 4 Package Contents
Printer
Printer
Software
Tray 3
(500 sheet
paper feeder,
5000 N and
5000 GN only)
Printer
Documentation
Power Cord
Note
EN
A printer cable is not included in the package contents. See
Chapter 1 of the printer user’s guide for ordering information.
Getting Started Guide 7
Step 3. Remove Internal Packaging
Note
Save all packing material. You may
need to repack the printer at a later
date.
Remove the tape from the front of
1
the printer.
Remove the tape from the back of
2
the printer.
Open Tray 1 and remove the
3
cardboard spacer and pieces of
tape.
Open the top cover and remov e the
4
internal packing material.
8 Getting Started Guide
EN
Control
panel and
display
Tray 2
Step 4. Locate Printer Parts
The following illustrations give the location and names of the
important printer parts.
Paper stop
Tray 1
(250-sheet)
Top output bin
Paper size indicator
(set with dial inside tray)
Top cover
(100-sheet)
Paper level
indicator
Latches
Power
switch
Power
connector
Parallel interface
connector
Figure 5 Printer Parts (front and rear views)
EN
(to open rear door)
Network, I/O, or hard disk
Rear door
(paper jam access)
Rear output bin
(straight-through
paper path)
Product
serial
number
Accessory
connector
Serial interface
connector
(EIO slots)
Getting Started Guide 9
Step 5. Install Accessories
Install any accessories that you have purchased with the printer.
(This includes the 500-sheet feeder and tray for the HP LaserJet
5000 N and 5000 GN printers.) Use the installation instructions that
are packaged with the accessories.
HP JetDirect
600N EIO print
server
Duplex Printing
Accessory
(or duplexer, for
2-sided printing)
250-sheet
feeder and tray
500-sheet
feeder and tray
Figure 6 Optional Accessories
Hard disk
EIO card
Memory, Font,
or Flash DIMM
10 Getting Started Guide
EN
Step 6. Install Toner Cartridge
Open the printer’s top cover.
1
Remove the toner cartridge from its
packaging (save packaging for
possible cartridge storage).
Caution
To prevent damage to the toner
cartridge, do not expose it to light for
more than a few minutes.
Remove the black sheet from the
2
toner cartridge.
Rotate the cartridge and gently
3
shake it from side to side to
distribute the toner evenly inside the
cartridge.
Locate the sealing tape tab on the
4
end of the cartridge. Carefully bend
the tab back and forth until it
separates from the cartridge.
EN
Continued on the next page.
Getting Started Guide 11
Firmly pull the tab straight out from
5
the cartridge to remove the entire
length of tape. Avoid touching any
black toner on the tape.
Note
If the tab separates from the tape,
grasp the tape and pull it out of the
cartridge.
Note
If toner gets on your clothing, wipe it off
with a dry cloth and wash clothing in
cold water. (Hot water sets toner into
fabric.)
Position the cartridge as shown with
6
the arrow pointing into the printer.
Slide the cartridge into the printer as
far as it will go and close the top
cover.
12 Getting Started Guide
EN
Step 7. Load Tray 2
1
2
3
Note
The printer may jam if the paper size
setting does not match the size of
paper loaded.
4
5
Pull Tray 2 out of the printer and
raise the tray cover.
Remove the packing cardboard and
tape.
Set the dial in the tray to the desired
setting so the printer will read the
correct paper size.
T o reposition the rear b lue guide, tilt
it toward the front of the tray and
remove it.
Align the rear guide with the desired
paper size. With the guide angled
slightly toward the front of the tray,
insert it into the appropriate holes.
Rotate the rear guide upright until it
snaps into place.
EN
Continued on the next page.
Getting Started Guide 13
Adjust the side guides to the desired
6
paper size.
Load paper into the tray.
7
Make sure the paper is flat in the tray
8
at all four corners and below the tabs
on the guides.
Close the tray cover and slide the
9
tray into the printer.
Note
See the printer user’s guide for
instructions on loading and printing on
custom-size paper.
14 Getting Started Guide
EN
Step 8. Load Tray 1 (optional)
T ra y 1 is a multi-purpose tray and holds
up to 100 sheets of paper,
approximately 10 envelopes, or
20 index cards.
Note
Paper loaded in Tray 1 will be printed
first unless the Tray 1 setting is
changed from the printer control panel.
T o change the order which tra ys will be
printed from, see the printer user’s
guide.
Open Tra y 1 by pulling do wn on the
1
top center of the door. Pull out the
tray extension until it clicks into
place.
Flip open the second tray e xtension
2
if the paper is longer than 9 inches
(229 mm).
Adjust the guides to the desired
3
paper size.
Load paper. The paper should fit
4
under the tabs on the guides.
Load letter or A4 paper with the
•
long edge toward the printer.
Load legal, 11 x 17, or A3 paper
•
with the short edge toward the
printer.
Note
See the sections on letterhead,
envelopes, and duple xing in the printer
user’s guide for proper orientation of
specific jobs.
EN
Getting Started Guide 15
Step 9. Attach Power Cord
Locate the power switch on the right
1
side of the printer. Make sure the
printer is turned off.
Connect the power cord to the
2
printer and a grounded power strip
or an AC outlet.
Turn the printer on.
3
After the printer warms up, the
4
READY
the control panel display and the
Ready light should remain on. If the
READY
see the problem solving chapter in
the
message should appear on
message does not appear,
printer user’s guide.
READY
16 Getting Started Guide
EN

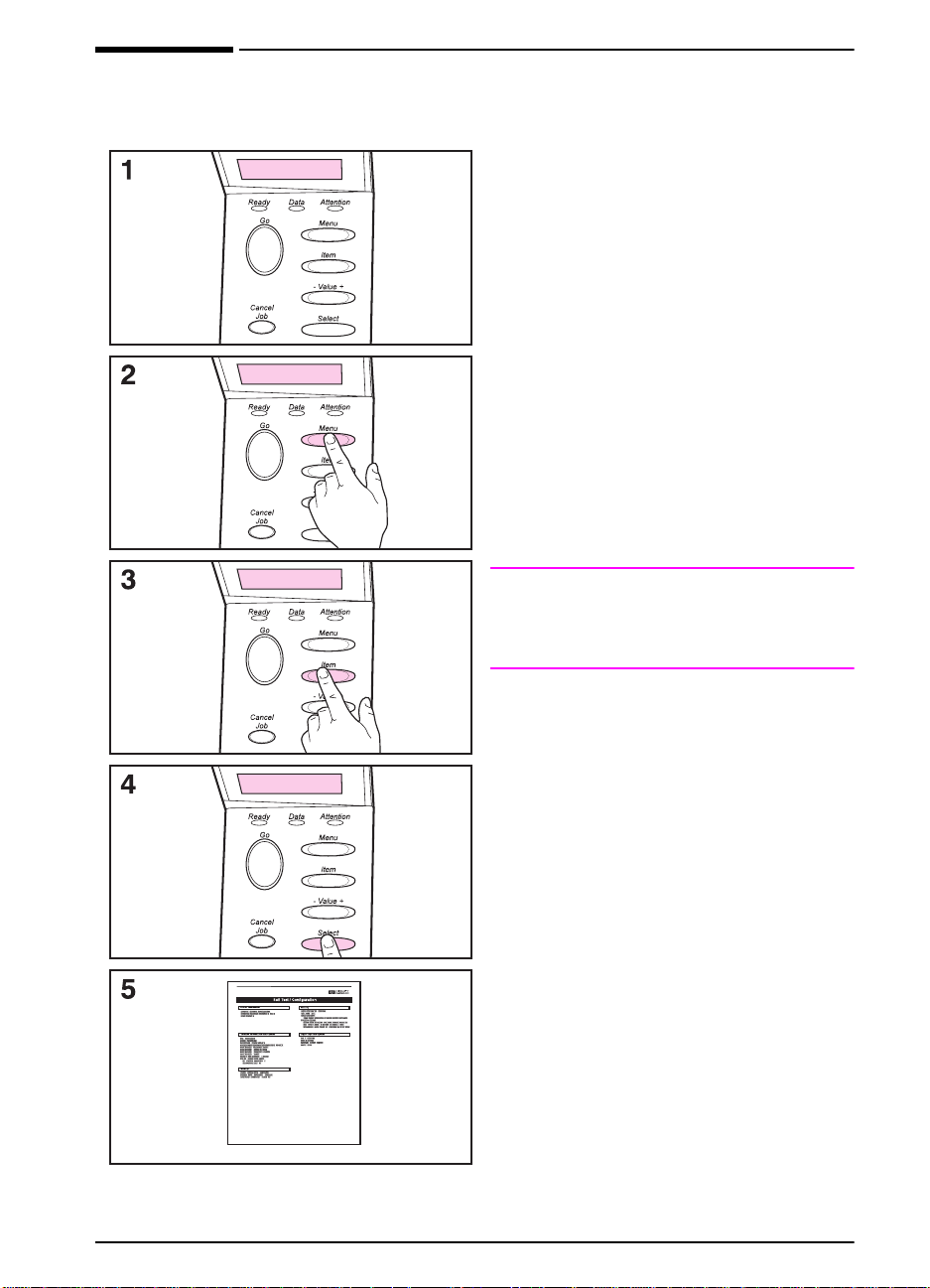

Step 10. Test the Printer
READY
INFORMATION
MENU
PRINT
CONFIGURATION
Print a configuration page to make sure
the printer is operating correctly.
Make sure the printer is on and the
1
message is displayed.
READY
Press
2
[Menu]
INFORMATION MENU
Press
3
[Item]
PRINT CONFIGURATION
Press
4
[Select]
until the display reads
.
until the display reads
.
to print the
configuration page.
The configuration page shows the
5
printer’s current configuration.
Note
A JetDirect network configuration page
will also print for the HP LaserJet
5000 N and 5000 GN printers.
EN
PRINT
CONFIGURATION
Getting Started Guide 17
Step 11. Connect Printer Cables
The HP LaserJet 5000 printer includes an accessory connector and
two interface ports: an IEEE-1284 parallel and an RS-232C serial
port.
The HP LaserJet 5000 N and 5000 GN printers also include an
HP JetDirect 600N print server card with an additional three ports:
LocalTalk, Ethernet 10Base-T (RJ-45), and 10Base2 (BNC).
10Base-T cable
and RJ-45 port
Parallel cable and
IEEE-1284 port
LocalTalk
cable and port
Figure 7 Interface Ports
Accessory port
Serial cable
and port
ThinLAN cable
and BNC port
18 Getting Started Guide
EN
Connecting Parallel Cable
T o ensure reliability , use an IEEE-1284
bi-directional parallel cable. (These
cables are clearly marked with
“IEEE-1284.”) Only IEEE-1284 cables
support all of the printer’s advanced
features.
Caution
Make sure the printer is turned off.
Connect the parallel cable to the
1
parallel port.
Snap the wire clips in place to
2
secure the cable to the printer.
The cable should install easily. If
installation is difficult, check the
cable orientation.
Connect the other end of the cable
3
to the proper connector on the
computer.
EN
Note
See the printer user’s guide for
information on ordering a two or three
meter IEEE-1284 parallel cable.
Getting Started Guide 19
Connecting Serial Cable
If you are connecting the printer with
the serial port, follow these
instructions.
Caution
Make sure the printer is turned off
before connecting the serial cable.
Caution
Do not connect a serial cable to the
accessory port.
Connect the serial cable to the serial
1
port.
The cable should install easily. If
installation is difficult, check the
cable orientation.
Lock the serial cable into place with
2
the two cable screws.
Connect the other end of the cable to
the proper connector on the computer.
Note
See the printer user’s guide for
information on ordering a serial cable.
20 Getting Started Guide
EN
Connecting to Apple LocalTalk Network
Use the LocalT alk port to connect to an
Apple LocalTalk network. (This port is
only available on the HP LaserJet
5000 N and 5000 GN printers.)
Caution
Make sure the printer is turned off
before connecting to the LocalTalk
port.
Carefully check the orientation of
1
the pins on the LocalTalk cable with
the LocalTalk port.
Connect the cable to the port.
2
Connect the other end of the cable to
the proper connector on the computer.
Note
The HP JetDirect 600N print server
card supports a LocalTalk and one
Ethernet cabling connection at the
same time.
Note
See the printer user’s guide for
information on ordering a Macintosh
Computer serial cable.
EN
Getting Started Guide 21
Connecting to Ethernet 10Base-T Network
Use the RJ-45 port to connect the printer to an Ethernet 10Base-T
network. (This port is only available on the HP LaserJet 5000 N and
5000 GN printers.)
Caution
Note
Make sure the printer is turned off before connecting to the RJ-45
port.
For connection to a fast Ethernet (100Base-TX) network, an
optional HP JetDirect 600N 10/100Base-TX print server is required.
This card features a single RJ-45 port.
Figure 8 Connecting to Ethernet 10Base-T Network
Connect a twisted-pair network cable to the RJ-45 port on the HP
•
JetDirect 600N print server card.
Connect the other end of the cable to the network.
•
Note
22 Getting Started Guide
The HP JetDirect 600N print server card supports one Ethernet
(RJ-45 or BNC) cabling connection at a time.
EN
Connecting to Ethernet 10Base2 Network
Use the BNC port to connect the printer to an Ethernet 10Base2
network. (This port is only available on the HP LaserJet 5000 N and
5000 GN printers.)
Caution
Make sure the printer is turned off before connecting to the BNC
port.
Figure 9 Connecting to Ethernet 10Base2 Network
Attach one section of your ThinLAN cable to the BNC “T”
•
connector.
Note
EN
Attach another ThinLAN cable section or a 50 Ohm terminator to
•
the other side of the BNC “T” connector. If you are attaching the
printer to the end of a network cable, you must connect a 50 Ohm
terminator.
Connect the BNC “T
•
The HP JetDirect 600N print server card supports one Ethernet
(RJ-45 or BNC) cabling connection at a time.
” to the BNC port.
Getting Started Guide 23
Attaching an Accessory Connector
The accessory connector is used for adding optional paper handling
(external input, output, and paper finishing) devices provided by
HP-authorized hardware developers. For specific installation
instructions, see the documentation provided with these products.
Caution
Caution
Make sure the printer is turned off before connecting a device to the
accessory connector.
Do not connect the accessory cable to the serial port.
24 Getting Started Guide
EN
Step 12. Install Printing Software
The printer comes with printing software on a compact disc. The
printer drivers on this compact disc must be installed to take full
advantage of the printer features. If y our computer does not have a
CD-ROM drive but you have access to one, you can copy the
compact disc onto diskettes for installation on your computer.
If you do not have access to a CD-R OM drive, a diskette is pro vided
with the basic printer drivers. (The diskette does not hav e all of the
software available on the compact disc.) The most recent drivers
are available on the Internet. Depending on the configuration of
Windows-driven computers, the installation progr am f or the printer
software automatically checks the computer f or Internet access to
obtain the latest software.
See the HP Support pages at the front of the printer user’s guide
and the Readme file on the diskette for additional inf ormation or to
order diskettes if you do not have Internet access.
Installing Network Software
If the printer is to be used on a Novell or Windows NT network, the
networking software should be installed and configured on the
network before individual users install the printing software.
Note
EN
Load the HP JetAdmin software from the compact disc, and run it.
1
At this time load
configured the printer on the network, load the additional HP printing
software.
See the HP JetDirect Print Server software installation guide and
2
the HP JetAdmin software to configure the printer for your
network.
the HP Jet Admin software. Once you have
only
Getting Started Guide 25
Installing Windows Printing Software (CD)
For Windows 95 and Windows NT 4.0
Close all running applications.
1
Insert the compact disc into the CD-ROM drive. (Depending on
2
the computer configuration, the installation program may
automatically start.)
Click
3
Click
4
Type
5
command line box and click OK.
Follow the instructions on the computer screen.
6
.
Start
.
Run
D:\SETUP
(or the appropriate drive directory letter) in the
For Windows 3.1x, Windows 3.11, and NT 3.5x
Close all running applications.
1
Insert the compact disc into the CD-ROM drive.
2
In the
3
4
5
6
Windows Program Manager
Click
Type
command line box and click OK.
Follow the instructions on the computer screen.
.
Run
D:\SETUP
(or the appropriate drive directory letter) in the
screen, click the
File
1
menu.
1. Includes only HP’s PostScript Level 2 Emulation (or Level 1 Emulation for
Windows 3.1 x) and FontSmart
26 Getting Started Guide
EN
Installing Macintosh Printing Software
Quit all open applications.
1
Insert the compact disc into the CD-ROM drive.
2
Double-click the
3
Installer
screen.
Open the
4
Click the
5
Chooser
Apple LaserWriter
your Macintosh dealer.
If you are on a network with multiple zones, select the z one in the
6
AppleTalk Zones
box where the printer is located. If this is
unknown, ask your network administrator.
Double-click the desired printer. An icon should appear.
7
Choose a Background Printing option. Select On if you want to
8
work on the computer at the same time a job is being printed.
Close the
9
Chooser
upper left corner.
icon and follow the instructions on the
from the
Apple
menu.
icon. If the icon is not there, contact
by clicking the go-away (close) box in the
EN
Getting Started Guide 27
Step 13. Verify Printer Setup
The easiest way to verify that the installation has been completed
successfully is to print a document from a software application.
Open a software application of your choice and open or create a
1
simple document.
Make sure the correct printer name appears.
2
Print the document.
3
If the document prints, installation is complete. If nothing prints or
if the document does not print correctly, see the problem solving
chapter in the printer user’s guide.
Congratulations, the printer setup is complete!
28 Getting Started Guide
EN
Printed on at least
50% Total Recycled Fiber with
at least 10% Post-Consumer Paper
Copyright© 1998
Hewlett-Packard Co.
Printed in USA
Manual PartNo.
C4110-90926
*C4110-90926*
*C4110-90926*
C4110-90926
Loading...
