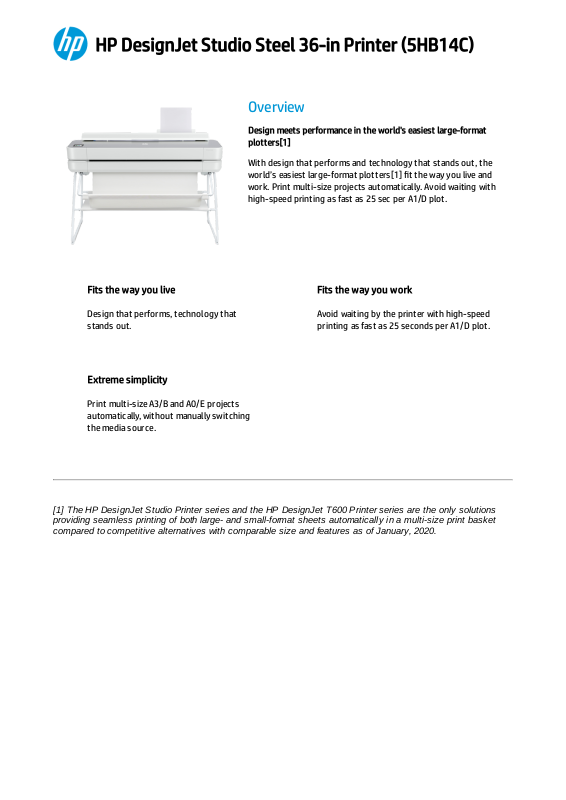

HP DesignJet Studio Steel 36-in Printer (5HB14C)
Overview
Design meets performance in the world's easiest large-format
plotters[1]
With design that performs and technology that stands out, the
world’s easiest large-format plotters[1] t the way you live and
work. Print multi-size projects automatically. Avoid waiting with
high-speed printing as fast as 25 sec per A1/D plot.
Fits the way you live
Design that performs, technology that
stands out.
Fits the way you work
Avoid waiting by the printer with high-speed
printing as fast as 25 seconds per A1/D plot.
Extreme simplicity
Print multi-size A3/B and A0/E projects
automatically, without manually switching
the media source.
[1] The HP DesignJet Studio Printer series and the HP DesignJet T600 Printer series are the only solutions
providing seamless printing of both large- and small-format sheets automatically in a multi-size print basket
compared to competitive alternatives with comparable size and features as of January, 2020.
Specications
Print quality color (best) Up to 2400 x 1200 optimized dpi
Functions Print
Connectivity, standard Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11
Software included
HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP
DesignJet Utility for Windows, HP Support Assistant
Energy star certied Yes
Minimum dimensions (W x D x H) 1317 x 555 x 932 mm
Minimum dimensions (W x D x H) 51.9 x 21.9 x 36.7 in
Weight 41.7 kg
Weight 91.9 lb
Power consumption <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)
Environmental certication ENERGY STAR; WEEE; EU RoHS; EAEU RoHS; REACH; ErP
What's in the box
HP DesignJet Studio Steel 36-in Printer, printer stand, automatic sheet
feeder, roll cover, printhead, introductory ink cartridges, spindle, quick
reference guide, setup poster, power cord
Services (Care Pack)
UD5M4E HP 2 year NBD Onsite Support;UD5M5E HP 3 year NBD Onsite
Support;UD5M6E HP 4 year NBD Onsite Support;UD5M7E HP 5 year NBD
Onsite Support;UD5M8PE HP 1 year Post Warranty NBD Onsite
Support;UD5M9PE HP 2 year Post Warranty NBD Onsite Support
Warranty One-year limited hardware warranty
Additional specications
Accessories B3Q37A HP DesignJet 36-in Spindle
Acoustic power emissions (active,
printing)
5.8 B(A) (operating), <3.4 B(A) (idle)
Acoustic pressure emissions 42 dB(A) (operating), <16 dB(A) (idle)
Color(s) of printing supplies Cyan, magenta, yellow, black
Electromagnetic compatibility
Compliant with Class B requirements, including: USA (FCC rules), Canada
(ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM),
China (CCC), Japan (VCCI); Certied as Class B product: Korea (KCC)
Finished output handling
Sheet feed, roll feed, automatic sheet feeder, media bin, automatic
horizontal cutter
High capacity of page yield
(colour)
20 ml of ink yields 101 A1/D pages, taking into account maintenance
routines[2]
Ink drop 5.5 pl (C, M, Y); 12 pl (K)
Ink types Dye-based (C, M, Y); pigment-based (K)
Internal Storage None
Line accuracy ±0.1%[3]
Maximum optical density (black) 8 L* min/2.10 D[4]
Media sizes standard (metric rolls) 279 to 914 mm
Media sizes standard (sheets,
rolls)
11 to 36 in
Media sizes supported Auto sheet feeder: A, B; manual feed: A, B, C, D, E
Media sizes supported Auto sheet feeder: A4, A3; manual feed: A4, A3, A2, A1, A0
Media sizes, custom
Auto sheet feeder: 210 x 279 to 330 x 482 mm; manual feed: 210 x 279 to
914 x 1897 mm
Media sizes, custom
Auto sheet feeder: 8.3 x 11 to 13 x 19 in; manual feed: 8.3 x 11 to 36 x
74.7 in
Media thickness Up to 11.8 mil
Media thickness (metric) Up to 0.3 mm
Media types
Bond and coated paper (bond, coated, heavyweight coated, plain, bright
white, blueprint), technical paper (natural tracing), lm (clear, matte),
photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive
(adhesive, polypropylene)
Media weight, recommended 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (auto sheet feeder)
Media width, maximum 914 mm
Media width, maximum 36 in
Memory 1 GB
Model size 914 mm
Model size 36 in
Non-Operating Humidity Range 0 to 95% RH
Non-printable area (cut-sheet) 5 x 5 x 5 x 5 mm
Non-printable area (cut-sheet) 0.2 x 0.2 x 0.2 x 0.2 in
Non-printable area (roll media) 5 x 5 x 5 x 5 mm
Non-printable area (roll media) 0.2 x 0.2 x 0.2 x 0.2 in
Number of print cartridges 4 (C, M, Y, K)
Operating altitude Up to 9843 ft
Operating altitude Up to 3000 m
Operating humidity range 20 to 80% RH
Operating temperature range 41 to 104ºF
Operating temperature range 5 to 40ºC
Package dimensions (W x D x H) 57.9 x 22.6 x 25.4 in
Package dimensions (W x D x H) 1470 x 575 x 646 mm
Package weight 62 kg
Package weight 136.7 lb
Power
Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200
mA max
Print Technology Ink
Print cartridge volume delivered 80 ml (K); 38 ml (K); 29 ml (C, M, Y)
Print head nozzles 1376
Print heads 1 (cyan, magenta, yellow, black)
Print languages HP-GL/2, HP-RTL, CALS G4, JPEG, URF
Print multi-size les in one click Yes
Print speed 25 sec/page on A1, 82 A1 prints per hour[1]
Print speed 25 sec/page on D, 82 D prints per hour[1]
Print technology HP Thermal Inkjet
Printer drivers included Raster driver for Windows and macOS
Product logos
ENERGY STAR; Gold IPv6 Ready; Wi-Fi CERTIFIED; Windows 10 Compatible;
Hi-Speed USB; AirPrint
Recommended media
Q1396A HP Universal Bond Paper (FSC® certied)[5] (recyclable)[6] 610
mm x 45.7 m (24 in x 150 ft);C6019B HP Coated Paper (FSC® certied)[5]
(recyclable)[6] 610 mm x 45.7 m (24 in x 150 ft);C6029C HP Heavyweight
Coated Paper (FSC® certied)[5] (recyclable)[6] 610 mm x 30.5 m (24 in x
100 ft)
Recycled plastic in hardware 10%
Remote print enabled Yes
Roll external diameter 3.9 in
Roll external diameter 100 mm
Roll maximum input 1
Roll maximum weight 13.6 lb
Roll maximum weight 6.2 kg
Safety
USA and Canada (CSA certied); EU (LVD, EN 60950-1 and EN 62368-1
compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA); Singapore
(PSB); China (CCC); Argentina (IRAM); India (BIS); Mexico (NYCE)
Storage temperature range -13 to 131ºF
Storage temperature range -25 to 55ºC
Supported Primary Applications Line drawings; Presentations; Renderings
Theoretical minimum line width 0.0008 in
Theoretical minimum line width 0.02 mm
UPC number
(ABG) 194850665684; (ACJ) 194850665691; (B19) 194850665585; (B1K)
194850665660; (BCD) 194850665677
Web address for additional
information
http://www.hp.com/go/designjetstudio
★ : Recommended
Ink/Toner/Paper/Printer Supplies
Ink Supplies
HP Graphic Arts Inks/Printheads
HP 712 2-pack 80-ml Black DesignJet Ink Cartridges 3WW89A
HP 712 29-ml Cyan DesignJet Ink Cartridge 3ED67A
HP 712 29-ml Magenta DesignJet Ink Cartridge 3ED68A
HP 712 29-ml Yellow DesignJet Ink Cartridge 3ED69A
HP 712 3-pack 29-ml Cyan DesignJet Ink Cartridge 3ED77A
HP 712 3-pack 29-ml Magenta DesignJet Ink Cartridge 3ED78A
HP 712 3-pack 29-ml Yellow DesignJet Ink Cartridge 3ED79A
HP 712 38-ml Black DesignJet Ink Cartridge 3ED70A
HP 712 80-ml Black DesignJet Ink Cartridge 3ED71A
HP 712B 38-ml Black DesignJet Ink Cartridge 3ED28A
HP 712B 80-ml Black DesignJet Ink Cartridge 3ED29A
HP 713 DesignJet Printhead Replacement Kit 3ED58A
★ : Recommended
Accessories
Paper Handling
Spindles
HP DesignJet 36-in Spindle B3Q37A
Disclaimer — Copyright
© Copyright 2020 HP Development Company, L.P. The information contained herein is subject to change without
notice. The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional
warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
