HoshizakiHoshizaki America, Inc.
Modular Crescent Cuber
Models
KM-501MAH
KM-501MWH
KM-501MRH
“A Superior Degree
of Reliability”
SERVICE MANUAL
www.hoshizaki.com
|
Number: 73137 |
|
|
Issued: 10-16-2006 |
|
Revised: 3-27-2007 |
||
|
IMPORTANT
Only qualified service technicians should attempt to service or maintain this icemaker. No such service or maintenance should be undertaken until the technician has thoroughly read this Service Manual.
HOSHIZAKI provides this manual primarily to assist qualified service technicians in the service and maintenance of the icemaker.
Should the reader have any questions or concerns which have not been satisfactorily addressed, please call or write to the HOSHIZAKI Technical Support Department for assistance.
HOSHIZAKI AMERICA, INC.
618 Highway 74 South
Peachtree City, GA 30269
Attn: HOSHIZAKI Technical Support Department
Phone: 1-800-233-1940 Technical Service
(770) 487-2331
Fax: 1-800-843-1056
(770) 487-3360
Web Site: www.hoshizaki.com
NOTE: To expedite assistance, all correspondence/communication MUST include the following information:
•Model Number
•Serial Number
•Complete and detailed explanation of the problem
Please review this manual. It should be read carefully before the icemaker is serviced or maintenance operations are performed. Only qualified service technicians should service and maintain the icemaker. This manual should be made available to the technician prior to service or maintenance.
CONTENTS |
|
I. Specifications...................................................................................................................... |
5 |
A. Icemaker........................................................................................................................ |
5 |
1. KM-501MAH (air-cooled)......................................................................................... |
5 |
2. KM-501MWH (water-cooled).................................................................................... |
6 |
3. KM-501MRH (remote air-cooled)............................................................................. |
7 |
B. Condensing Unit............................................................................................................ |
8 |
1. URC-6F.................................................................................................................... |
8 |
II. General Information.......................................................................................................... |
10 |
A. Construction................................................................................................................ |
10 |
1. KM-501MAH (air-cooled)....................................................................................... |
10 |
2. KM-501MWH (water-cooled).................................................................................. |
11 |
3. KM-501MRH (remote air-cooled)........................................................................... |
12 |
B. Sequence of Operation................................................................................................ |
13 |
1. One Minute Fill Cycle............................................................................................. |
13 |
2. Initial Harvest Cycle .............................................................................................. |
13 |
3. Freeze Cycle ......................................................................................................... |
13 |
4. Pump-Out Cycle .................................................................................................... |
13 |
5. Normal Harvest Cycle ........................................................................................... |
13 |
C. Control Board.............................................................................................................. |
15 |
1. Control Board Layout............................................................................................. |
16 |
2. Features................................................................................................................. |
17 |
a) Maximum Water Supply Period – 6 minutes....................................................... |
17 |
b) Harvest Backup Timer and Freeze Timer............................................................ |
17 |
c) High Temperature Safety..................................................................................... |
17 |
d) Low Water Safety................................................................................................ |
17 |
e) High Voltage and Low Voltage Cut-outs.............................................................. |
17 |
f) LED Lights and Audible Alarm Safeties............................................................... |
18 |
3. Controls and Adjustments...................................................................................... |
19 |

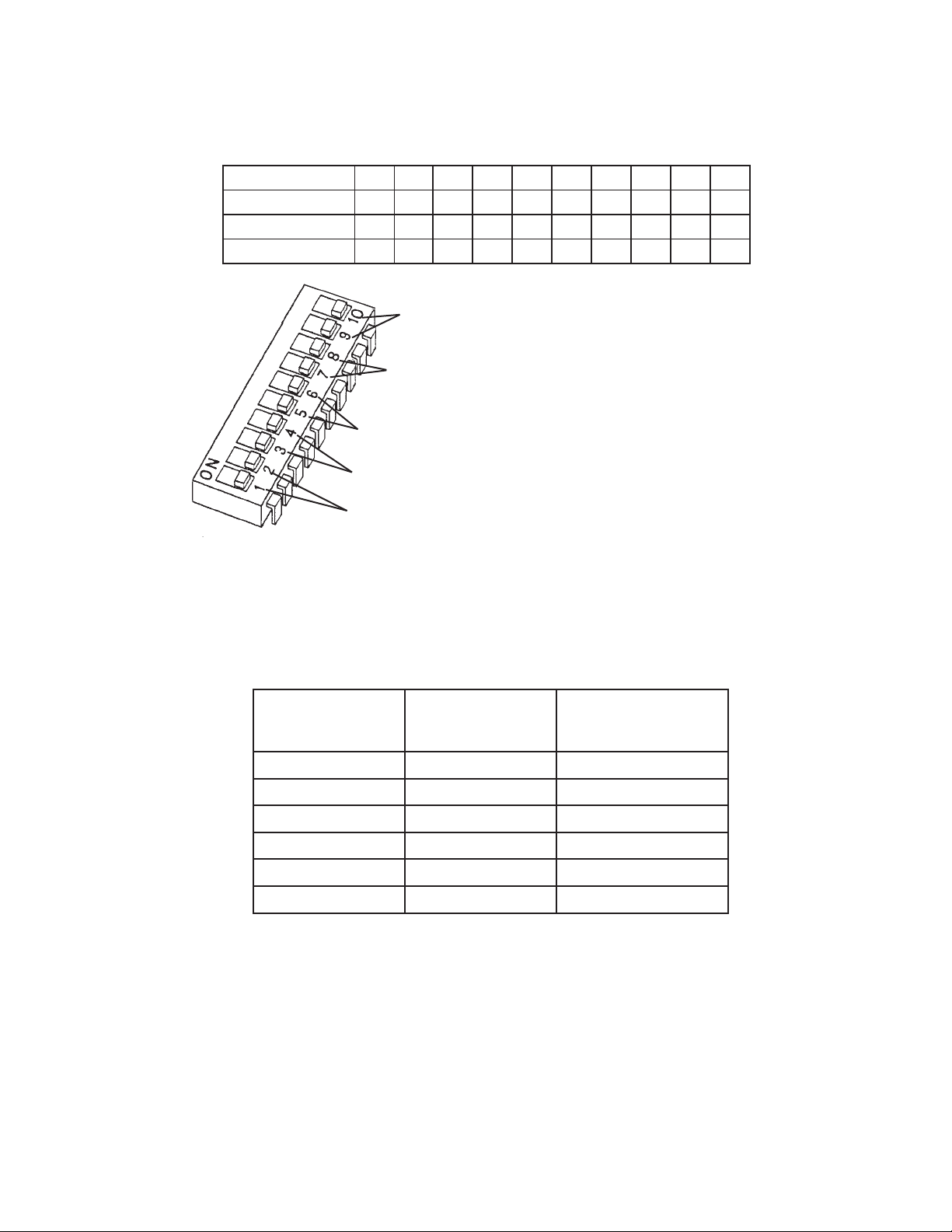

a) Default Dip Switch Settings................................................................................. |
19 |
b) Harvest Control – Thermistor.............................................................................. |
19 |
c) Harvest Timer (dip switch 1 & 2)......................................................................... |
20 |
d) Pump-Out Timer (dip switch 3 & 4)..................................................................... |
20 |
e) Pump-Out Frequency Control (dip switch 5 & 6)................................................. |
21 |
f) Freeze Timer (dip switch 9 & 10).......................................................................... |
21 |
g) Bin Control.......................................................................................................... |
21 |
4. Control Board Check Procedure............................................................................ |
22 |
5. Control Board Replacement................................................................................... |
22 |
III. Technical Information....................................................................................................... |
23 |

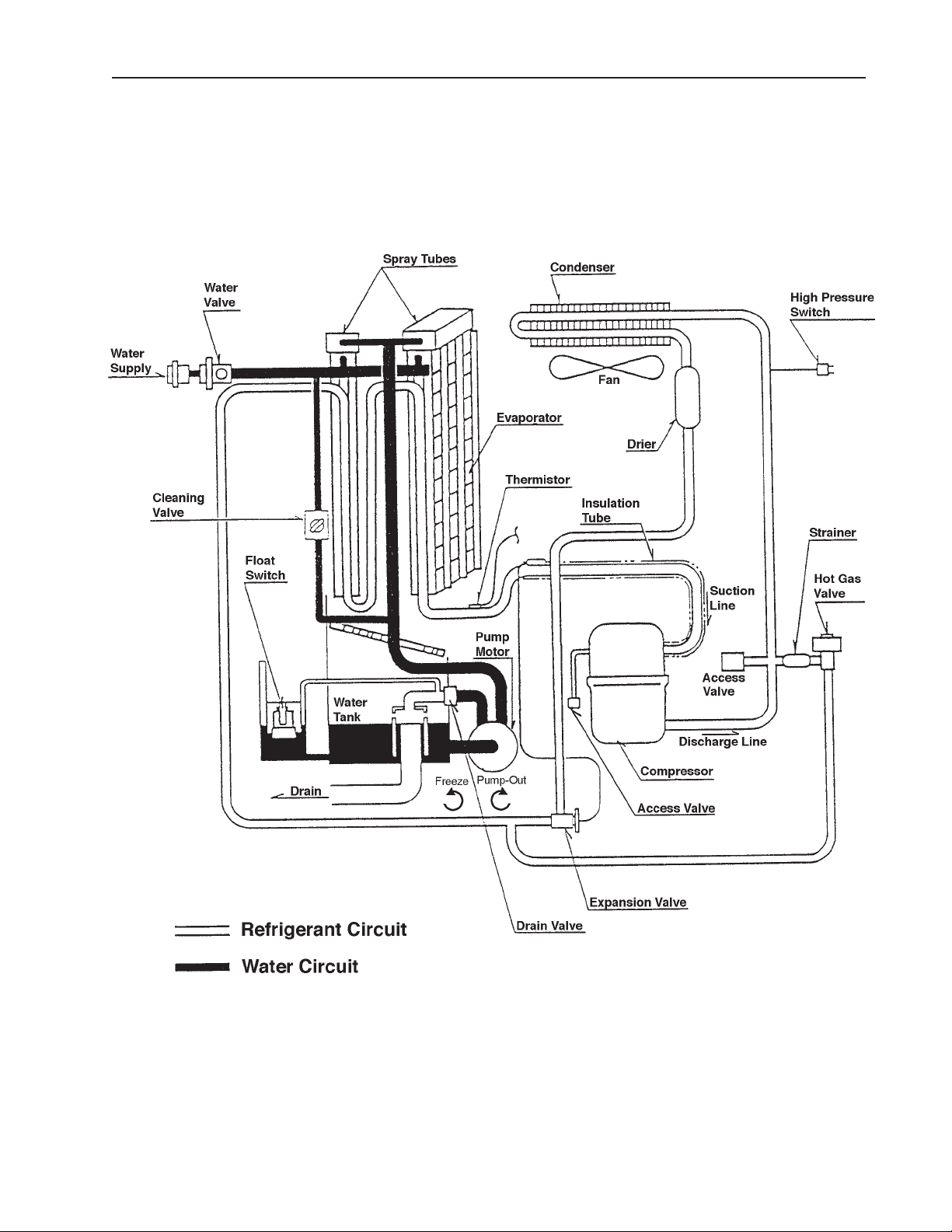

A. Water Circuit and Refrigeration Circuit........................................................................ |
23 |
1. KM-501MAH (air-cooled)....................................................................................... |
23 |
2. KM-501MWH (water-cooled).................................................................................. |
24 |
3. KM-501MRH (remote air-cooled)........................................................................... |
25 |
B. Wiring Diagrams.......................................................................................................... |
26 |
1. KM-501MAH (air-cooled) and KM-501MWH (water-cooled).................................. |
26 |
2. KM-501MRH (remote air-cooled)........................................................................... |
27 |
C. Timing Chart................................................................................................................ |
28 |
D. Performance Data........................................................................................................ |
30 |
1. KM-501MAH (air-cooled)....................................................................................... |
30 |
2. KM-501MWH (water-cooled).................................................................................. |
31 |
3. KM-501MRH (remote air-cooled)........................................................................... |
32 |
IV. Service Diagnosis............................................................................................................ |
33 |
A. 10-Minute KM Diagnostic Procedure .......................................................................... |
33 |
B. Diagnostic Charts........................................................................................................ |
34 |
1. No Ice Production................................................................................................... |
34 |
2. Evaporator is Frozen Up......................................................................................... |
38 |
3. Low Ice Production................................................................................................. |
39 |
4. Abnormal Ice.......................................................................................................... |
39 |
5. Other...................................................................................................................... |
39 |
V. Removal and Replacement of Components..................................................................... |
41 |
A. Service for Refrigerant Lines....................................................................................... |
41 |
1. Refrigerant Recovery............................................................................................. |
41 |
2. Evacuation and Recharge (R-404A)...................................................................... |
41 |
B. Brazing......................................................................................................................... |
42 |
C. Removal and Replacement of Compressor................................................................. |
42 |
D. Removal and Replacement of Drier............................................................................. |
43 |
E. Removal and Replacement of Expansion Valve.......................................................... |
44 |
F. Removal and Replacement of Hot Gas Valve and Line Valve ..................................... |
44 |
G. Removal and Replacement of Evaporator................................................................... |
45 |
H. Removal and Replacement of Water Regulating Valve - Water Cooled Model Only... |
46 |
I. Adjustment of Water Regulating Valve - Water-Cooled Model Only.............................. |
46 |
J. Removal and Replacement of Headmaster (Condensing Pressure Regulator - C.P.R.) |
|
- Remote Air-Cooled Model Only.............................................................................. |
47 |
K. Removal and Replacement of Thermistor................................................................... |
48 |
L. Removal and Replacement of Fan Motor..................................................................... |
49 |
M. Removal and Replacement of Inlet Water Valve......................................................... |
49 |
N. Removal and Replacement of Pump Motor................................................................. |
49 |
O. Removal and Replacement of Spray Tubes................................................................. |
50 |
VI. Cleaning and Maintenance Instructions.......................................................................... |
51 |
A. Cleaning and Sanitizing Procedures............................................................................ |
51 |
1. Cleaning Procedure............................................................................................... |
52 |
2. Sanitizing Procedure - Following Cleaning Procedure........................................... |
53 |
B. Maintenance................................................................................................................ |
53 |
C. Preparing the Icemaker for Long Storage.................................................................... |
54 |
AC SUPPLY VOLTAGE |
115/60/1 |
|
|
|
|
|
AMPERAGE |
13 A ( 5 Min. Freeze AT 104°F / WT 80°F) |
|
||||
MINIMUM CIRCUIT AMPACITY |
20 A |
|
|
|
|
|
MAXIMUM FUSE SIZE |
20 A |
|
|
|
|
|
APPROXIMATE ICE PRODUCTION |
Ambient |
WATER TEMP. (°F) |
||||
PER 24 HR. |
Temp.(°F) |
50 |
|
70 |
|
90 |
lbs./day ( kg/day ) |
70 |
*498 (226) |
|
474 (215) |
|
433 (197) |
Reference without *marks |
80 |
480 (218) |
|
442 (201) |
|
397 (180) |
|
90 |
474 (215) |
|
*416 (189) |
|
372 (169) |
SHAPE OF ICE |
100 |
463 (210) |
|
406 (184) |
|
332 (150) |
Crescent Cube |
|
|
|
|
|
|
ICE PRODUCTION PER CYCLE |
9.5 lbs. (4.3 kg) 480 pcs. |
|
|
|
||
APPROXIMATE STORAGE CAPACITY |
N/A |
|
|
|
|
|
ELECTRIC & WATER CONSUMPTION |
90/70°F |
|
|
70/50°F |
|
|
ELECTRIC W (kWH/100 lbs.) |
1210(7.0) |
|
|
1140(5.5) |
|
|
WATER gal./24HR (gal./100 lbs.) |
89(21.3) |
|
|
245(49.1) |
|
|
EXTERIOR DIMENSIONS (WxDxH) |
22" x 27-3/8" x 30-5/16" (560 x 695 x 770 mm) |
|
||||
EXTERIOR FINISH |
Stainless Steel, Galvanized Steel (Rear) |
|
||||
WEIGHT |
Net 151 lbs. (69 kg), Shipping |
175 lbs. (80 kg) |
|
|||
CONNECTIONS - ELECTRIC |
Permanent - Connection |
|
|
|
||
- WATER SUPPLY |
Inlet |
1/2" FPT |
|
|
|
|
- DRAIN |
Outlet |
3/4" FPT |
|
|
|
|
|
|
3/8" OD Tube |
|
|
|
|
CUBE CONTROL SYSTEM |
Float Switch |
|
|
|
|
|
HARVESTING CONTROL SYSTEM |
Hot Gas and Water, Thermistor and Timer |
|
||||
ICE MAKING WATER CONTROL |
Timer Controlled. Overflow Pipe |
|
||||
COOLING WATER CONTROL |
N/A |
|
|
|
|
|
BIN CONTROL SYSTEM |
Thermostat |
|
|
|
|
|
COMPRESSOR |
Hermetic, Model AKA9455ZXA |
|
|
|
||
CONDENSER |
Air-Cooled , Fin and tube type |
|
|
|
||
EVAPORATOR |
Vertical type, Stainless Steel and Copper |
|
||||
REFRIGERANT CONTROL |
Thermostatic Expansion Valve |
|
|
|
||
REFRIGERANT CHARGE |
R-404A, 1 lb. 10 oz. (735g) |
|
|
|
||
DESIGN PRESSURE |
High 467PSIG, Low 210PSIG |
|
|
|
||
P.C. BOARD CIRCUIT PROTECTION |
High Voltage Cut-out ( Internal ) |
|
|
|
||
COMPRESSOR PROTECTION |
Auto-reset Overload Protector ( Internal ) |
|
||||
REFRIGERANT CIRCUIT PROTECTION |
Auto-reset High Pressure Control Switch |
|
||||
LOW WATER PROTECTION |
Float Switch |
|
|
|
|
|
ACCESSORIES -SUPPLIED |
N/A |
|
|
|
|
|
-REQUIRED |
Ice Storage Bin |
|
|
|
|
|
OPERATING CONDITIONS |
VOLTAGE RANGE |
|
|
104 - 127 V |
||
|
AMBIENT TEMP. |
|
|
45 -100° F |
||
|
WATER SUPPLY TEMP. |
|
|
45 - 90° F |
||
|
WATER SUPPLY PRESSURE |
|
|
10 - 113 PSIG |
Note: We reserve the right to make changes in specifications and design without prior notice.
AC SUPPLY VOLTAGE |
115/60/1 |
|
|
|
|
|
AMPERAGE |
10 A ( 5 Min. Freeze AT 104°F / WT 80°F) |
|
||||
MINIMUM CIRCUIT AMPACITY |
20 A |
|
|
|
|
|
MAXIMUM FUSE SIZE |
20 A |
|
|
|
|
|
APPROXIMATE ICE PRODUCTION |
Ambient |
WATER TEMP. (°F) |
||||
PER 24 HR. |
Temp.(°F) |
50 |
|
70 |
|
90 |
lbs./day ( kg/day ) |
70 |
*498 (226) |
|
495 (224) |
|
465 (211) |
Reference without *marks |
80 |
496 (225) |
|
491 (223) |
|
447 (203) |
|
90 |
495 (224) |
|
*488 (221) |
|
449 (204) |
SHAPE OF ICE |
100 |
480 (218) |
|
479 (217) |
|
413 (187) |
Crescent Cube |
|
|
|
|
|
|
ICE PRODUCTION PER CYCLE |
9.5 lbs. (4.3 kg) 480 pcs. |
|
|
|
||
APPROXIMATE STORAGE CAPACITY |
N/A |
|
|
|
|
|
ELECTRIC & WATER CONSUMPTION |
90/70°F |
|
|
70/50°F |
|
|
ELECTRIC W (kWH/100 lbs.) |
1080(5.3) |
|
|
1070(5.2) |
|
|
WATER gal./24HR (gal./100 lbs.) |
101(20.8) |
|
|
177(35.6) |
|
|
WATER COOLED CONDENSER |
670(137) |
|
|
390(78) |
|
|
gal./24HR (gal./100 lbs.) |
|
|
|
|
|
|
EXTERIOR DIMENSIONS (WxDxH) |
22" x 27-3/8" x 30-5/16" (560 x 695 x 770 mm) |
|
||||
EXTERIOR FINISH |
Stainless Steel, Galvanized Steel (Rear) |
|
||||
WEIGHT |
Net 151 lbs. (69 kg), Shipping |
175 lbs. (80 kg) |
|
|||
CONNECTIONS - ELECTRIC |
Permanent - Connection |
|
|
|
||
- WATER SUPPLY |
Inlet |
1/2" FPT |
|
|
|
|
- DRAIN |
Outlet |
3/4" FPT |
|
|
|
|
|
|
3/8" OD Tube |
|
|
|
|
CUBE CONTROL SYSTEM |
Float Switch |
|
|
|
|
|
HARVESTING CONTROL SYSTEM |
Hot Gas and Water, Thermistor and Timer |
|
||||
ICE MAKING WATER CONTROL |
Timer Controlled. Overflow Pipe |
|
||||
COOLING WATER CONTROL |
Pressure Regulator |
|
|
|
||
BIN CONTROL SYSTEM |
Thermostat |
|
|
|
|
|
COMPRESSOR |
Hermetic, Model AKA9455ZXA |
|
|
|
||
CONDENSER |
Water-cooled, Tube in tube type |
|
|
|
||
EVAPORATOR |
Vertical type, Stainless Steel and Copper |
|
||||
REFRIGERANT CONTROL |
Thermostatic Expansion Valve |
|
|
|
||
REFRIGERANT CHARGE |
R-404A, 15 oz. (425g) |
|
|
|
||
DESIGN PRESSURE |
High 427PSIG, Low 210PSIG |
|
|
|
||
P.C. BOARD CIRCUIT PROTECTION |
High Voltage Cut-out ( Internal ) |
|
|
|
||
COMPRESSOR PROTECTION |
Auto-reset Overload Protector ( Internal ) |
|
||||
REFRIGERANT CIRCUIT PROTECTION |
Auto-reset High Pressure Control Switch |
|
||||
LOW WATER PROTECTION |
Float Switch |
|
|
|
|
|
ACCESSORIES -SUPPLIED |
N/A |
|
|
|
|
|
-REQUIRED |
Ice Storage Bin |
|
|
|
|
|
OPERATING CONDITIONS |
VOLTAGE RANGE |
|
|
104 - 127 V |
||
|
AMBIENT TEMP. |
|
|
45 -100° F |
||
|
WATER SUPPLY TEMP. |
|
|
45 - 90° F |
||
|
WATER SUPPLY PRESSURE |
|
|
10 - 113 PSIG |
Note: We reserve the right to make changes in specifications and design without prior notice.
AC SUPPLY VOLTAGE |
115/60/1 |
|
|
|
|
|
|
AMPERAGE |
15 A ( 5 Min. Freeze AT 104°F / WT 80°F) |
|
|||||
MINIMUM CIRCUIT AMPACITY |
20 A |
|
|
|
|
|
|
MAXIMUM FUSE SIZE |
20 A |
|
|
|
|
|
|
APPROXIMATE ICE PRODUCTION |
Ambient |
|
WATER TEMP. (°F) |
|
|||
PER 24 HR. |
Temp.(°F) |
|
50 |
70 |
|
90 |
|
lbs./day ( kg/day ) |
|
70 |
|
*482 (219) |
475 (215) |
|
437 (198) |
Reference without *marks |
|
80 |
|
476 (216) |
465 (211) |
|
412 (187) |
|
|
90 |
|
475 (215) |
*457 (207) |
|
410 (186) |
SHAPE OF ICE |
100 |
|
458 (208) |
446 (202) |
|
367 (166) |
|
Crescent Cube |
|
|
|
|
|||
ICE PRODUCTION PER CYCLE |
9.5 lbs. (4.3 kg ) 480 pcs. |
|
|
|
|||
APPROXIMATE STORAGE CAPACITY |
N/A |
|
|
|
|
|
|
ELECTRIC & WATER CONSUMPTION |
90/70°F |
|
|
70/50°F |
|
||
ELECTRIC W (kWH/100 lbs.) |
1260(6.6) |
|
|
1220(6.1) |
|
|
|
WATER gal./24HR (gal./100 lbs.) |
90(19.6) |
|
|
182(37.8) |
|
|
|
EXTERIOR DIMENSIONS (WxDxH) |
22" x 27-3/8" x 30-5/16" (560 x 695 x 770 mm) |
|
|||||
EXTERIOR FINISH |
Stainless Steel, Galvanized Steel (Rear) |
|
|||||
WEIGHT |
Net 151 lbs. ( 69 kg ), Shipping 175 lbs. ( 80 kg ) |
|
|||||
CONNECTIONS - ELECTRIC |
Permanent - Connection |
|
|
|
|||
- WATER SUPPLY |
Inlet |
1/2" FPT |
|
|
|
||
- DRAIN |
Outlet |
3/4" FPT |
|
|
|
||
|
|
3/8" OD Pipe |
|
|
|
||
CUBE CONTROL SYSTEM |
Float Switch |
|
|
|
|
|
|
HARVESTING CONTROL SYSTEM |
Hot Gas and Water, Thermistor and Timer |
|
|||||
ICE MAKING WATER CONTROL |
Timer Controlled. Overflow Pipe |
|
|||||
COOLING WATER CONTROL |
N/A |
|
|
|
|
|
|
BIN CONTROL SYSTEM |
Thermostat |
|
|
|
|
|
|
COMPRESSOR |
Hermetic, |
Model AKA9455ZXA |
|
||||
CONDENSER |
Air-cooled Remote, Condenser Unit URC 6F |
|
|||||
EVAPORATOR |
Vertical type, Stainless Steel and Copper |
|
|||||
REFRIGERANT CONTROL |
Thermostatic Expansion Valve |
|
|
|
|||
|
Condensing Pressure Regulator on URC-6F |
|
|||||
REFRIGERANT CHARGE |
R-404A, |
|
4 lbs. 0 oz. ( 1800 g ) |
|
|||
|
( Icemaker 2 lbs. 1.5 oz. Cond. Unit 1 lb. 14 oz. ) |
|
|||||
DESIGN PRESSURE |
High 467 PSIG, Low 230 PSIG |
|
|
|
|||
P.C. BOARD CIRCUIT PROTECTION |
High Voltage Cut-out ( Internal ) |
|
|||||
COMPRESSOR PROTECTION |
Auto-reset Overload Protector ( Internal ) |
|
|||||
REFRIGERANT CIRCUIT PROTECTION |
Auto-reset High Pressure Control Switch |
|
|||||
LOW WATER PROTECTION |
Float Switch |
|
|
|
|
|
|
ACCESSORIES -SUPPLIED |
N/A |
|
|
|
|
|
|
-REQUIRED |
Ice Storage Bin, Remote Condenser Unit |
|
|||||
OPERATING CONDITIONS |
VOLTAGE RANGE |
|
|
104 - 127 V |
|||
|
AMBIENT TEMP. |
|
|
45 -100° F |
|||
|
WATER SUPPLY TEMP. |
|
|
45 - 90° F |
|||
|
WATER SUPPLY PRESSURE |
|
10 - 113 PSIG |
Note: We reserve the right to make changes in specifications and design without prior notice.
B.Condensing Unit
1.URC-6F
18-1/8" (460 mm.) |
17-1/8" (435 mm.) |
14-9/16" (370 mm.) |
17-7/8" (454 mm.) |
2-1/2" (63 mm.) |
14-15/16" (380 mm.)
24" (610 mm.)
23-1/32"
(585 mm.)
19-11/16" |
6/16" x 3/4" (10 mm. x 20 mm.) |
(500 mm.) |
4 x 2 (SLOTTED HOLES) |
14-1/8" (358 mm.) |
14-15/16" (380 mm.) |
15-11/16" (398 mm.) |
18-1/8"
(460 mm.)
20-15/32"
(520 mm.)
21-15/16"
(557 mm.)
7/8" DIA. HOLE (23 mm. DIA.)
6-5/16"
(160 mm.)
2-15/16"
(75 mm.)
SPECIFICATIONS
MODEL: URC-6F
EXTERIOR
DIMENSIONS (W x D x H)
REFRIGERANT CHARGE
WEIGHT
CONNECTIONS
REFRIGERANT
ELECTRICAL
CONDENSER
HEAD PRESSURE CONTROL
AMBIENT CONDITION
Galvanized Steel
21-15/16" x 15-11/16" x 17-7/8" (557 x 398 x 453.8 mm.)
R404A 1 lb. 2 oz. (505 g)
Net 61 lbs. (28 kg)
Shipping 68 lbs. (31 kg)
One Shot Couplings (Parker)
Permanent Connection
Air-cooled
Condensing Pressure Regulator
Min. -20°F - Max. +122°F (-29°C to +50°C) Outdoor use
A.Construction
1.KM-501MAH (air-cooled)
Spray Tubes
Control Switch
Bin Control Thermostat
Expansion Valve
Compressor
Float Switch
Water Pump
Water Supply Inlet
Condenser
Hot Gas Valve
Fan Motor
Condenser
Drier
Control Box
10
Spray Tubes |
Water Supply Inlet |
Control Switch |
|
|
Water Regulator |
Bin Control Thermostat |
|
Expansion Valve |
Hot Gas Valve |
Compressor |
|
Float Switch |
Drier |
Water Pump |
Control Box |
11
Spray Tubes |
Water Supply Inlet |
Control Switch |
|
|
Junction Box |
Bin Control Thermostat |
|
Expansion Valve |
Receiver Tank |
Compressor |
|
Float Switch |
Drier |
Water Pump |
Hot Gas Valve |
|
Line Valve |
|
Control Box |
12
The steps in the sequence are as outlined below. When power is supplied, a 5 second delay occurs at startup. Note that the order of the LEDs from the outer edge of the board is 1, 4, 3, 2.
LED 4 is on. WV opens and the fill period begins. After 1 minute, the board checks for a closed F/S. If F/S is closed, the harvest cycle begins. If not, WV will remain energized
through additional 1 minute cycles until water enters the sump and F/S closes. This serves as a low water safety to protect the water pump.
LEDs 1, 4, and 2 are on. WV remains open, Comp and FMR energize, HGV opens, and harvest begins. As the evaporator warms, the thermistor located on the suction line checks for a 48°F (9°C) temperature. When 48°F (9°C) is reached, a 3.9 kΩ signal turns
the harvest over to the adjustable harvest timer which is factory set for normal conditions.
The timer has settings of 60, 90, 120, and 180 seconds (dip switch 1 & 2). The water valve is open during harvest for a maximum of 6 minutes or the length of harvest, whichever is shorter. When the harvest timer completes its count down, the harvest cycle is complete and the freeze cycle starts. The minimum total time allowed by the board for a complete harvest cycle is 2 minutes.
LED 1 is on. Comp and FMR continue to run, PM and FMS energize, LLV opens, HGV and WV close and the freeze cycle starts. For the first 5 minutes the control board will not accept a signal from F/S. This 5 minute minimum freeze acts as a short cycle protection. At the end of 5 minutes, F/S assumes control. As ice builds on the evaporator the water level in the sump lowers. The freeze continues until F/S opens and terminates ice production.
LEDs 1, 3, and 2 are on. Comp and FMR continue to run, HGV opens, LLV closes, and
FMS deenergizes. PM stops for 2 seconds and reverses, taking water from the bottom of the sump and forcing pressure against the check valve seat allowing water to go through the check valve and down the drain. At the same time water flows through the small tube to power flush the F/S. When the pump-out timer stops counting, the pump out is complete. Pump out always occurs on the 2nd harvest after startup. Then, depending on the control board setting, pump out occurs every cycle, or every 2nd, 5th or 10th cycle (dip switch 5 &
6).
LEDs 1, 4, and 2 are on. Comp and FMR continue to run, HGV remains open and WV opens. As the evaporator warms, the thermistor reaches 48°F (9°C). The control board then receives the thermistor's 3.9 kΩ signal and starts the harvest timer. The water valve is open during harvest for a maximum of 6 minutes or the length of harvest, whichever is shorter. When the harvest timer completes its count down, the harvest cycle is complete and the next freeze cycle starts. The unit continues to cycle through 3, 4 and 5 sequence until the bin control senses ice and shuts the unit down.
Legend: Comp–compressor; FMR–remote fan motor; FMS–self-contained fan motor;
F/S–float switch; HGV–hot gas valve; LLV–Liquid Line Valve; PM–pump motor; WV–inlet water valve
13
KM-501MAH, KM-501MWH, KM-501MRH Sequence Flow Chart and Component Operation
Cycle Steps |
|
|
|
|
|
|
|
2. Harvest Cycle |
|
|
|
3. Freeze Cycle |
|
|
|
|
|
|
|
|
1. One Minute |
|
• Maximum inlet water valve time: 6 minutes |
|
• Minimum freeze time: 5 minutes |
4. Pump-Out |
|||||||||||||
|
|
|
|
||||||||||||||||
|
|
|
Fill Cycle |
|
• Maximum harvest time: 20 minutes |
|
• Maximum freeze time: freeze timer setting |
|
Cycle |
|
|
|
Thermistor in |
1 to 3 minute timer |
5 minute timer |
F/S in |
|
|
Initial startup always |
|
control |
in control |
in control |
control |
|
|
|
|
|
|
|
|
|
14 |
begins here |
|
F/S closed |
|
F/S closed |
|
|
"E" board will have |
F/S Check |
F/S Check |
|
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
5 second delay |
WV Energized |
Comp energized |
Thermistor temp |
Comp continues |
Freeze cycle |
Pump motor stops |
|
|
F/S open |
HGV energized |
reaches 48°F (9°C) |
FMR continues |
operation turned |
for 2 sec. and then |
|
|
FMR energized |
(3.9 kΩ or less) |
HGV de-energized |
over to F/S |
reverses for 10/20 sec. |
|
|
|
|
WV continues |
Harvest timer starts |
WV de-energized |
|
each 1, 2, 5, or 10 cycles. |
|
|
|
|
|
PM energized |
|
Comp continues |
|
|
|
|
F/S open |
FMS energized |
|
FMR continues |
|
|
|
|
If F/S is open, compressor stops and cycle returns to 1 minute fill |
HGV energized |
||
|
|
|
|
FMS de-energized |
|||
|
|
|
|
|
|
|
Legend:Comp - compressor |
FMS - self-contained fan motor |
HGV - hot gas valve |
WV - inlet water valve |
FMR - remote fan motor |
F/S - float switch |
PM - pump motor |
|
|
|
|
|
C.Control Board
•A HOSHIZAKI exclusive solid-state control is employed in KM-501MAH, KM 501MWH and KM 501MRH Modular Crescent Cubers.
•All models are pretested and factory-adjusted.
CAUTION
1.Fragile, handle very carefully.
2.A control board contains integrated circuits, which are susceptible to failure due to static discharge. It is especially important to touch the metal part of the unit when handling or replacing the board.
3.Do not touch the electronic devices on the board or the back of the board to prevent damage to the board.
4.Do not change wiring and connections. Do not misconnect K3, K4 and K5, because the same connector is used for the thermistor and float switch. K4 is not connected.
5.Always replace the whole board assembly if it goes bad.
6.Do not short out power supply to test for voltage.
15
Control Products "E" Control Board
Alarm Reset Switch |
Dip Switch |
Backup Freeze
Timer LED
Backup Harvest
Timer LED
Alarm Buzzer
Power LED (lights when power is supplied to the board)
Relay LEDs (4) (indicate which relays are energized as listed below)
LED 2
Hot Gas Valve (HGV)
Self-Contained Fan
Motor (FMS) (FMS off when LED on)
LED 3
Pump Motor (PM) (on at pump out only)
LED 4
Water Valve (WV)
LED 1
Compressor (Comp) Remote Fan Motor (FMR)
Transformer
Connector
Output Test Switch
(used to test relays on board)
Connector K3 Harvest Control (thermistor)
Connector K4 Open
(not connected)
Microprocessor (board revision level indicated by last 2 digits on label)
Connector K5
Float Switch
Part Number
Connector K1
Pins #1 through #10
#1, 9 Magnetic Contactor #2 Hot Gas Valve
#3 Line Valve
Self-Contained Fan Motor (FMS) #4 Pump Motor (icemaking)
#5 Pump Motor (drain) #6 Water Valve
#7, 10 Power (line, bin control) #8 Open
Switch for "C" board and "ALPINE" board (service boards only)
|
Control Board |
|
|
Part Number |
2A1410-01 (factory); 2A1410-02 (service) |
|
|
Type |
HOS-001A (Control Products - 10 Pin) |
|
|
16
a)Maximum Water Supply Period – 6 minutes
Inlet water valve opening, in the harvest cycle, is limited by the harvest timer. The water valve cannot remain open longer than the maximum period. The water valve can close in less than six minutes if the harvest cycle is completed.
b)Harvest Backup Timer and Freeze Timer
The harvest backup timer shuts down the icemaker if, for two cycles in a row, the harvest cycle takes more than 20 minutes to complete. The control board will signal this problem using 2 beeps every 3 seconds.
The freeze timer shuts down the icemaker if, for two cycles in a row, the freeze cycle takes longer than the time specified to complete. The control board will signal this problem using 3 beeps every 3 seconds. The time is factory set using dip switches 9 & 10.
The reset button on the control board must be pressed with power on to reset either of these safeties.
c)High Temperature Safety
The temperature of the suction line in the refrigeration circuit is limited by the high temperature safety. This protects the unit from excessively high temperatures. If the evaporator temperature rises above 127 ± 7°F (53 ± 4°C), the thermistor operates the safety. This shuts down the circuit and the icemaker automatically stops.
The control board will signal this problem using 1 beep every 3 seconds. The reset button on the control board must be pressed with power on to reset the safety.
d)Low Water Safety
If the pump motor is operated without water, the mechanical seal can fail. To prevent this type of failure, the control board checks the position of the float switch at the end of the initial one minute water fill cycle and at the end of each harvest cycle.
If the float switch is in the up position (electrical circuit closed), the control board changes to the ice making cycle. If the float switch is in the down position (electrical circuit open), the control board changes to additional one minute water fill cycles until water enters the sump and the float switch closes. When the float switch closes, the control board changes to the ice making cycle. The unit will not start without adequate water in the sump. This serves as a low water safety to protect the pump motor from mechanical seal failure.
For water-cooled model, if the water is shut off, the unit is protected by the high pressure switch.
e)High Voltage and Low Voltage Cut-outs
The maximum and minimum allowable supply voltages of this icemaker are limited by the high voltage and low voltage cut-outs.
If miswiring (especially on single phase 3 wire models) causes excessive voltage (147Vac
±5% or more) on the control board, the high voltage cut-out shuts down the circuit in 3 seconds and the icemaker automatically stops. The control board will signal this problem using 7 beeps every 3 seconds.
The icemaker also automatically stops in cases of insufficient voltage (92Vac ±5% or less). The control board will signal this problem using 6 beeps every 3 seconds. When the proper supply voltage is resumed, the icemaker automatically starts running again.
17
