Harman Kardon AVR-5000-RDS Service manual

AVR5000RDS

Audio/Video Receiver

DD, DTS, HDCD, MP3

PRELIMINARY

SERVICE – TECHNICAL MANUAL

Harman International SNC - Harman Consumer International 2,route de Tours 72500 Château du Loir

Technical Specifications

Audio Section

Stereo Mode Continuous Average Power (FTC)

80 Watts per channel, 20Hz–20kHz, @ < 0.07% THD, both channels driven into 8 ohms

Five-Channel Surround Modes Power Per Individual Channel

Front L&R channels: 70 Watts per channel, @ < 0.07% THD, 20Hz–20kHz into 8 ohms

Center channel: 70 Watts, @ < 0.07% THD, 20Hz–20kHz into 8 ohms

Surround channels: 70 Watts per channel, @ < 0.07% THD, 20Hz–20kHz into 8 ohms

Input Sensitivity/Impedance

Linear (High Level) 200mV/47kohms Signal-to-Noise Ratio (IHF-A) 95dB Surround System Adjacent Channel Separation

Analog Decoding 40dB

(Pro Logic, etc.)

Dolby Digital (AC-3) 55dB

DTS 55dB

Frequency Response

@ 1W (+0dB, –3dB) 10Hz–100kHz High Instantaneous

Current Capability (HCC) ±45 Amps Transient Intermodulation

Distortion (TIM) Unmeasurable Rise Time 16 µsec Slew Rate 40V/µsec**

FM Tuner Section

Frequency Range 87.5–108MHz Usable Sensitivity IHF 1.3 µV/13.2dBf Signal-to-Noise Ratio Mono/Stereo: 70/65dB (DIN) Distortion Mono/Stereo: 0.15/0.3% Stereo Separation 35dB @ 1kHz Selectivity ±300kHz: 65dB Image Rejection 80dB IF Rejection 90dB

AM Tuner Section

Frequency Range 520–1611kHz Signal-to-Noise Ratio 45dB Usable Sensitivity Loop: 500µV Distortion 1kHz, 50% Mod: 0.8% Selectivity ±9kHz: 30dB

Video Section

Video Format PAL/NTSC Input Level/Impedance 1Vp-p/75 ohms Output Level/Impedance 1Vp-p/75 ohms Video Frequency Response 10Hz–8MHz (–3dB)

General

Power Requirement AC 220-240V/50Hz Power Consumption 78W idle, 694W maximum

Dimensions (Max)

Width 440mm Height 167mm Depth 435mm Weight 15.9 kg

Depth measurement includes knobs, buttons and terminal connections. Height measurement includes feet and chassis. All features and specifications are subject to change without notice.

Harman Kardon is a registered trademark, and Power for the digital revolution is a trademark, of Harman International Industries, Inc.

TM

is a trademark of Harman International Industries,Inc.

(Patent No.5,386,478). *Manufactured under license from Dolby Laboratories.

†

DTS and DTS Surround are trademarks of Digital Theater Systems, Inc.

††

UltraStereo is a trademark of UltraStereo Corp.

VMAx is a trademark of Harman International Industries, Inc., and is an implementation of Cooper Bauck Transaural Stereo under patent license.

Logic 7 is a registered trademark of Lexicon, Inc.

Crystal is a registered trademark of Cirrus Logic Corp.

HDCD is a registered trademark of Pacific Microsonics, Inc.

**Without input anti slewing and output isolation networks.

TECHNICAL SPECIFICATIONS 57













I

E

D

B

C

F

G

A

H

PL DWG NO.: 4KJHAVRD

PL TITLE : AVRD SERIES MECH PL

ISSUE DATE: 05-22-00 ISSUED BY : CHICK PETER * = CRITICAL ITEM

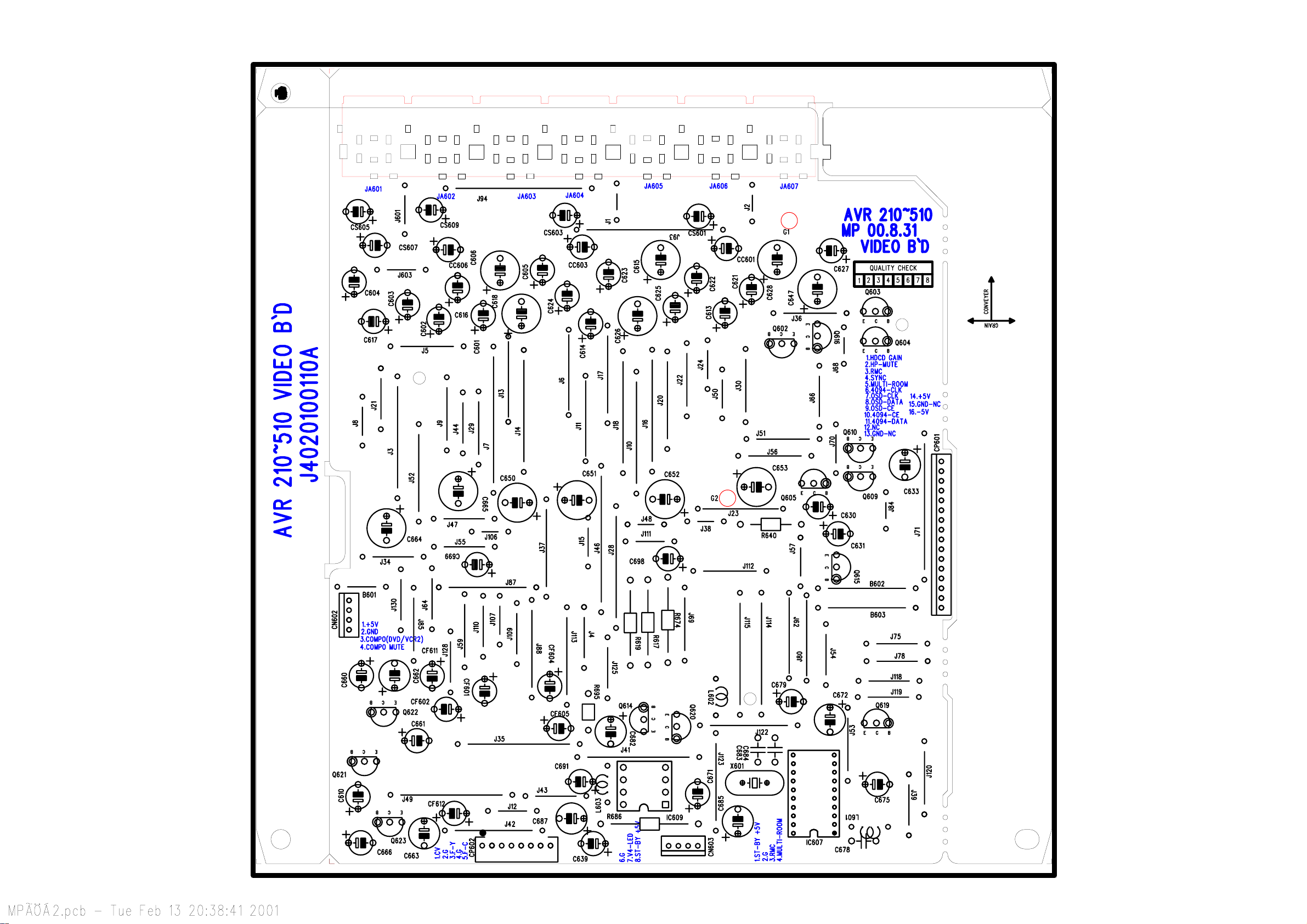

ITEM DRAWING NO. PART NAME/TE X T UM QTYFAC A JE00007702EA FRONT BD ASM AVR2000EU PC 1 A JE00007703EA FRONT BD ASM AVR3000EU PC 1 A JE00007704EA FRONT BD ASM AVR4000EU PC 1 A JE00007705EA FRONT BD ASM AVR5000EU PC 1 B JE00008502EA VIDEO BD ASM AVR2000EU PC 1 B JE00008503EA VIDEO BD ASM AVR3000/40000EU PC 1 B JE00008505EA VIDEO BD ASM AVR5000EU PC 1 C JE00009302EA DSP BD ASM AVR2000EU PC 1 C JE00009303EA DSP BD ASM AVR3000EU PC 1 C JE00009304EA DSP BD ASM AVR4000EU PC 1 C JE00009305EA DSP BD ASM AVR5000EU PC 1 D JE00009902EA MAIN BD ASM AVR2000EU PC 1 D JE00009903EA MAIN BD ASM AVR3000EU PC 1 D JE00009904EA MAIN BD ASM AVR4000EU PC 1 D JE00009905EA MAIN BD ASM AVR5000EU PC 1 E JE00010102EA SURROUND BD ASM AVR2000EU PC 1 E JE00010103EA SURROUND BD ASM AVR3000EU PC 1 E JE00010104EA SURROUND BD ASM AVR4000EU PC 1 E JE00010105EA SURROUND BD ASM AVR5000EU PC 1 F JE00008902UA PROCESSOR BD ASM AVR2000/3000EU PC F JE00008903UA PROCESSOR BD ASM AVR4000EU PC F JE00008905UA PROCESSOR BD ASM AVR5000EU PC G J4099100180X TUNER EU KST-9011 AVR2/3/4/5000EU PC 1 H JE00008102UA KEY BD ASM AVR2000/3000EU PC H JE00008103UA KEY BD ASM AVR4000/5000EU PC I NO PARTS POWER BD ASM AVR2000EU PC I NO PARTS POWER BD ASM AVR3000EU PC I NO PARTS POWER BD ASM AVR4000EU PC I NO PARTS POWER BD ASM AVR5000EU PC 9 J85000017300 PANEL FRONT AVR5000EU PC 1 9 J85000017400 PANEL FRONT AVR4000EU PC 1 9 J85000017500 PANEL FRONT AVR2000/3000EU PC 1 / JE00007702EA FRONT PANEL ASSY AVR2000EU PC / JE00007703EA FRONT PANEL ASSY AVR3000EU PC / JE00007704EA FRONT PANEL ASSY AVR4000EU PC / JE00007705EA FRONT PANEL ASSY AVR5000EU PC 13 J85100022000 KNOB VOLUM MAIN HIPS 94H AVR2/3/4/5000EU PC 1 16 J85100009000 KNOB TONE HIPS AVR2/3/4/5000EU PC 1 14 J85300020501 WINDOW W/BADGE AVR5000EU PC 1 14 J85300020601 WINDOW W/BADGE AVR4000EU PC 1 14 J85300020701 WINDOW W/BADGE AVR3000EU PC 1 14 J85300020801 WINDOW W/BADGE AVR2000EU PC 1 10 J85500004000 FILTER DISPLAY AVR2/3/4/5000EU PC 1 5 J46205000001 SW PUSH, POWER, SD AVR2/3/4/5000EU PC 1 / J4305100061X CNT ASSY 2P 500MME PC 1 / J4305100075X CNT ASS'Y 2P 500MM PC 1 / J4305100076X CNT ASS'Y 2P 500MM PC 1 7 J85200049000 BUTTON POWER HIPS AVR2/3/4/5000EU PC 1 8 J85200052000 BUTTON STANDBY AVR2/3/4/5000EU PC 1 22 J85200051000 BUTTON 3-KEYS HIPS AVR2/3/4/5000EU PC 23 J85200053000 BUTTON 5-KEYS HIPS AVR2/3/4/5000EU PC

18 J85200050000 BUTTON 7-KEYS HIPS AVR2/3/4/5000EU PC 6 J85400019000 INDICATOR STANDBY PC 1 17 J85400020000 INDICATOR VIDEO 4 PC 1 4 J60300002000 BRACKET HEADPHONE PC 1 1 J60100008000 COVER TOP AVR2/3/4/5000EU PC 1 25 J60000010000 CHASSIS MAIN AVR2/3/4/5000EU PC 1 66 J60120501100 COVER-BOTTOM AVR2/3/4/5000EU PC 1 / J5636140220X SCREW AVR2/3/4/5000EU PC 1 57 J60120502000 TRANS-BOTTOM PC 1 24 J85900501000 FOOT-ASS'Y AVR2/3/4/5000EU PC 1 24 J85900503000 FOOT-RUBBER AVR2/3/4/5000EU PC 1 / J60200012000 FRAME-GUIDE SECC T PC 1 / J60300501000 BRKT-PCB PC 1 / J5214004010X BRKT MAIN H/S AVR2 PC 1 55 J97200503000 CUSHION-BRK'T EVA AVR2/3/4/5000EU PC 1 / J60020003200 CH FRONT SECC 1.0T PC 1 40 J60500009000 HEATSINK MAIN AVR4/5 PC 1 40 J60500011000 HEATSINK MAIN AVR3 PC 1 40 J60500014000 HEATSINK MAIN AVR2 PC 1 / J5241004030X HEAT-SINK(POWER)35 PC 1 38 J60500010000 HEATSINK SURROUND PC 1 38 J60500012000 HEATSINK SURROUND PC 1 38 J60500015000 HEATSINK SURROUND PC 1 W1 J5541001010X WASHER SPRING PC 1 W2 J5541001020X WASHER FLAT PC 1 43 J2802410022X POWER TRANS 230/50 AVR4000EU PC 1 43 J2802410051X POWER TRANS 230/50 AVR2000/3000EU PC 1 43 J2802410061X POWER TRANS 230/50 AVR5000EU PC 1 47 J2812420032X STAND-BY TRANSFORMER AVR2/3/4/5000EU 45 J2161001032X CORD POWER CE AVR2/3/4/5000EU PC 1 W3 J5541001030X WASHER SPRING PC 1 W4 J5541001040X WASHERPLAT INNER PC 1 54 J60110009100 PANEL REAR SAVR5000 PC 1 54 J60110009300 PANEL REAR AVR4000 PC 1 54 J60110009500 PANEL REAR AVR3000 PC 1 54 J60110009700 PANEL REAR AVR2000 PC 1 44 J65100000100 BUSHING-AC CORD PC 1 / J97200501000 PCB SPONGE PC 1 46 J97200502000 CUSHION(A)EVA AVR2/3/4/5000EU PC 1 S1 J5636140010X SCREW PC 1 S2 J5636140040X SCREW PC 1 / J5636130080X SCREW PC 1 / JAVR7000SCRW SCREW 3X12PT AVR2/3/4/5000EU PC 1 S3 J5636140080X SCREW A124008000 AVR2/3/4/5000EU PC 1 S9 J90720301080 SCREW 3*10 TEETH T PC 1 S4 J5636140150X SCREW AVR2/3/4/5000EU PC 1

PL DWG NO.: JE000077

PL TITLE : AVRD SER.FRONT BD ASM

ISSUE DATE: 05-22-00 ISSUED BY : KK HO * = CRITICAL ITEM

E ITEM DRAWING NO. PART NAME/TEXT UM QTYFAC #005 JE00007702EA AVR2000EU FRTBD AS PC #006 JE00007703EA AVR3000EU FRTBD AS PC #007 JE00007704EA AVR4000EU FRTBD AS PC #008 JE00007705EA AVR5000EU FRTBD AS PC '050 7043654016 D-SLP 1N4148 100.0 PC 1 '051 J63330000600 SPONGE SENSOR H:25 PC 1 '052 J4420040300X CNT PLUG 2.5 3P PC 1 CN201 J4305100051X CNT ASSY 7P 450MM PC 1 CN202 J4305100052X CNT ASSY 3P 620MM PC 1 CN203 J4305100055X CNT ASSY 9P 400MM PC 1 CN204 J4305100053X CNT ASSY 4P 100MM PC 1 CN205 J4305100058X CNT ASSY 4P 360MM PC 1 CN206 J4305100057X CNT ASSY 10P 220MM PC 1 CN207 J4112213801X FPC CABLE 21P 380M PC 1 CN208 J4112275001X FPC CABLE 27P 500M PC 1 CN209 J4305100059X CNT ASSY 8P 500MM PC 1 CN210 J4305100063X CNT ASSY 2P 100MM PC 1 CP201 J4422212740X FPC PLUG 27P 1.25 PC 1 CP202 J4422212140X FPC PLUG 21P 1.25M PC 1 CP203 J4420030840X CNT PLUG 2.0 ST 8P PC 1 CP204 J4420030540X CNT PLUG 2.0 ST 5P PC 1 C203 2026783030 CE 47U0F +20% 16.0 PC 1 C210 2026888030 CE 10U0F +20% 50.0 PC 1 C216 J3433247321X CAP GOLD 0.047F 5. PC 1 D201 J2301213022X LED GN LTL1CHGEC 3 PC 1 D202 J2301213022X LED GN LTL1CHGEC 3 PC 1 D203 J2301213022X LED GN LTL1CHGEC 3 PC 1 D204 J2301213022X LED GN LTL1CHGEC 3 PC 1 D205 J2301213022X LED GN LTL1CHGEC 3 PC 1 D206 J2301213022X LED GN LTL1CHGEC 3 PC 1 D207 J2301213022X LED GN LTL1CHGEC 3 PC 1 D208 J2301213022X LED GN LTL1CHGEC 3 PC 1 D209 J2301213022X LED GN LTL1CHGEC 3 PC 1 D210 J2301213022X LED GN LTL1CHGEC 3 PC 1 D211 J2301213022X LED GN LTL1CHGEC 3 PC 1 D212 J2301213022X LED GN LTL1CHGEC 3 PC 1 D213 J2301213022X LED GN LTL1CHGEC 3 PC 1 D214 J2301213022X LED GN LTL1CHGEC 3 PC 1 D215 J2301213022X LED GN LTL1CHGEC 3 PC 1 D216 J2301213022X LED GN LTL1CHGEC 3 PC 1 D217 J2301213022X LED GN LTL1CHGEC 3 PC 1 D218 J2301213022X LED GN LTL1CHGEC 3 PC 1 D219 J2301213022X LED GN LTL1CHGEC 3 PC 1 D220 J2301213022X LED GN LTL1CHGEC 3 PC 1 D221 J2301213022X LED GN LTL1CHGEC 3 PC 1 D222 J2301213022X LED GN LTL1CHGEC 3 PC 1 D223 J2301213022X LED GN LTL1CHGEC 3 PC 1 D224 J2301213022X LED GN LTL1CHGEC 3 PC 1 D225 J2301213022X LED GN LTL1CHGEC 3 PC 1 D226 J2301213022X LED GN LTL1CHGEC 3 PC 1 D227 J2301213022X LED GN LTL1CHGEC 3 PC 1

D228 J2301213022X LED GN LTL1CHGEC 3 PC 1 D229 J2301213022X LED GN LTL1CHGEC 3 PC 1 D230 J2301213022X LED GN LTL1CHGEC 3 PC 1 D231 J2301213022X LED GN LTL1CHGEC 3 PC 1 D232 J2301213022X LED GN LTL1CHGEC 3 PC 1 D233 J2301213022X LED GN LTL1CHGEC 3 PC 1 D234 J2301213022X LED GN LTL1CHGEC 3 PC 1 D235 J2301213022X LED GN LTL1CHGEC 3 PC 1 D236 J2301213022X LED GN LTL1CHGEC 3 PC 1 D237 J2301213022X LED GN LTL1CHGEC 3 PC 1 D238 J2301213022X LED GN LTL1CHGEC 3 PC 1 D239 J2301213022X LED GN LTL1CHGEC 3 PC 1 D240 J2301213022X LED GN LTL1CHGEC 3 PC 1 D241 J2301213022X LED GN LTL1CHGEC 3 PC 1 D242 J2301213022X LED GN LTL1CHGEC 3 PC 1 D243 J2301213022X LED GN LTL1CHGEC 3 PC 1 D244 J2301213022X LED GN LTL1CHGEC 3 PC 1 D245 J2301213022X LED GN LTL1CHGEC 3 PC 1 D246 J2301213022X LED GN LTL1CHGEC 3 PC 1 D247 J2301213022X LED GN LTL1CHGEC 3 PC 1 D256 J2302210012X LED RED/GREEN 3F PC 1 D257 J2302210012X LED RED/GREEN 3F PC 1 D260 J2301213022X LED GN LTL1CHGEC 3 PC 1 FL201 J2352230020X VFD HNA-16LL15 PC 1 FN201 J60600006000 SHIELD FENCE TONE PC 1 IC201 J2132314070X IC CPU CXP82860-31 PC 1 IC201 J2132314071X IC CPU CXP82860-31 PC 1 IC201 J2132314074X IC CPU DCR600 CXP8 PC 1 IC201 J2132314075X IC CPU CXP82860-32 PC 1 IC205 J2110212000X IC OPAMP 2068DD PC 1 JA201 J44303000100 JACK RCA 3P PC 1 JA202 J44311000100 JACK S-VIDEO 1P PC 1 L201 J2616247920X COIL 4.7UH K PC 1 L202 J2616247920X COIL 4.7UH K PC 1 RM201 J2411220017X REM 38HZ PC 1 RM201 J2411320014X REM 38KHZ PC 1 VR201 J32616100001 ENCODER EC 16E PC 1 VR202 J32214000201 VR-ROTARY 14MM PC 1 VR203 J32214000201 VR-ROTARY 14MM PC 1 VR204 J32214000101 VR-ROTARY 14MM PC 1 C2 W201 J4305100025X LUG WIRE 1P 200MM PC 1 X201 J3911030020X RESONATOR ZTA10MTT PC 1

PL DWG NO.: JE000078

PL TITLE : AVRD SER.FRONT BD APP

ISSUE DATE: 05-22-00 ISSUED BY : KK HO * = CRITICAL ITEM

E ITEM DRAWING NO. PART NAME/TEXT UM QTYFAC #005 JE00007802EA AVR2000EU FRTBD AP PC #006 JE00007803EA AVR3000EU FRTBD AP PC #007 JE00007804EA AVR4000EU FRTBD AP PC #008 JE00007805EA AVR5000EU FRTBD AP PC '021 J4020100070A PCB FRONT 384*163 PC 1 CL201 1500213030 CE 10U0F +20% 16.0 PC 1 CL202 3093623071 CC 100P0F +5% -5% PC 1 CL203 8043459071 CC 22P0F +5% -5% 5 PC 1

CL204 1500213030 CE 10U0F +20% 16.0 PC 1 CL205 1500213030 CE 10U0F +20% 16.0 PC 1 CL206 J3640183232X CAP M POLY 18NF 10 PC 1 CL207 J3640823232X CAP M POLY 82NF 10 PC 1 CL208 J3640332232X CAP POLY 3N3F 100V PC 1 CL209 J3640183232X CAP M POLY 18NF 10 PC 1 CR201 1500213030 CE 10U0F +20% 16.0 PC 1 CR202 3093623071 CC 100P0F +5% -5% PC 1 CR203 8043459071 CC 22P0F +5% -5% 5 PC 1 CR204 1500213030 CE 10U0F +20% 16.0 PC 1 CR205 1500213030 CE 10U0F +20% 16.0 PC 1 CR206 J3640183232X CAP M POLY 18NF 10 PC 1 CR207 J3640823232X CAP M POLY 82NF 10 PC 1 CR208 J3640332232X CAP POLY 3N3F 100V PC 1 CR209 J3640183232X CAP M POLY 18NF 10 PC 1 C201 2026783030 CE 47U0F +20% 16.0 PC 1 C202 2026783030 CE 47U0F +20% 16.0 PC 1 C204 2026901030 CE 47U0F +20% 50.0 PC 1 C214 2026783030 CE 47U0F +20% 16.0 PC 1 C215 2026783030 CE 47U0F +20% 16.0 PC 1 C219 2026901030 CE 47U0F +20% 50.0 PC 1 C220 2026888030 CE 10U0F +20% 50.0 PC 1 C232 2026783030 CE 47U0F +20% 16.0 PC 1 C233 2026783030 CE 47U0F +20% 16.0 PC 1 C234 J3470110871X CE SG 0.1UF 50V M PC 1 C235 J3600473330X CP .047U 100V K PC 1 C236 J3600473330X CP .047U 100V K PC 1 Q222 J2021220001X TR NPN KRC107M PC 1 Q222 J2021220102X TR NPN DTC114YSA PC 1 Q223 J2021220001X TR NPN KRC107M PC 1 Q223 J2021220102X TR NPN DTC114YSA PC 1 Q224 J2021220001X TR NPN KRC107M PC 1 Q224 J2021220102X TR NPN DTC114YSA PC 1 Q225 J2021220001X TR NPN KRC107M PC 1 Q225 J2021220102X TR NPN DTC114YSA PC 1 Q226 J2021220001X TR NPN KRC107M PC 1 Q226 J2021220102X TR NPN DTC114YSA PC 1 Q227 J2021020801X TR MPSA06 Y TO-92 PC 1 Q233 J2021000601X TR PNP MPSA56 Y PC 1 Q235 J2021220001X TR NPN KRC107M PC 1 Q235 J2021220102X TR NPN DTC114YSA PC 1

PL DWG NO.: JE000080

PL TITLE : AVRD SER. FRONT BD SMT

ISSUE DATE: 05-22-00 ISSUED BY : KK HO * = CRITICAL ITEM

E ITEM DRAWING NO. PART NAME/TEXT UM QTYFAC #005 JE00008002EA AVR2000EU FRTBD SM PC #006 JE00008003EA AVR3000EU FRTBD SM PC #007 JE00008004EA AVR4000EU FRTBD SM PC #008 JE00008005EA AVR5000EU FRTBD SM PC CL211 1105867091 CCCFMIN 100P0F +5% PC 1 CR211 1105867091 CCCFMIN 100P0F +5% PC 1 C205 2026729091 CCCFMIN 100N0F +80 PC 1 C206 5088236091 CCCFMIN 33P0F +5% PC 1 C208 5088236091 CCCFMIN 33P0F +5% PC 1

C209 2026729091 CCCFMIN 100N0F +80 PC 1 C211 1507090091 CCCFMIN 820P0F +10 PC 1 C212 1507090091 CCCFMIN 820P0F +10 PC 1 C213 2026729091 CCCFMIN 100N0F +80 PC 1 C217 2026729091 CCCFMIN 100N0F +80 PC 1 C218 2026729091 CCCFMIN 100N0F +80 PC 1 C228 1105867091 CCCFMIN 100P0F +5% PC 1 C229 1105867091 CCCFMIN 100P0F +5% PC 1 C230 1105867091 CCCFMIN 100P0F +5% PC 1 C237 2026729091 CCCFMIN 100N0F +80 PC 1 C238 2026729091 CCCFMIN 100N0F +80 PC 1 C239 2026729091 CCCFMIN 100N0F +80 PC 1 C240 2026729091 CCCFMIN 100N0F +80 PC 1 C241 2026729091 CCCFMIN 100N0F +80 PC 1 C242 2026729091 CCCFMIN 100N0F +80 PC 1 C244 2026729091 CCCFMIN 100N0F +80 PC 1 C245 2026729091 CCCFMIN 100N0F +80 PC 1 C246 1105867091 CCCFMIN 100P0F +5% PC 1 C247 1105867091 CCCFMIN 100P0F +5% PC 1 C248 1105867091 CCCFMIN 100P0F +5% PC 1 D248 J2244010104X DIODE CHIP 1SS355 PC 1 D249 J2244010104X DIODE CHIP 1SS355 PC 1 D250 J2244010104X DIODE CHIP 1SS355 PC 1 D251 J2244010104X DIODE CHIP 1SS355 PC 1 D253 J2244010104X DIODE CHIP 1SS355 PC 1 D254 J2244010104X DIODE CHIP 1SS355 PC 1 D255 J2244010104X DIODE CHIP 1SS355 PC 1 D261 J2244010104X DIODE CHIP 1SS355 PC 1 D262 J2244010104X DIODE CHIP 1SS355 PC 1 D263 8044051091 RMGCFMIN 0 OHM +0% PC 1 D264 8044051091 RMGCFMIN 0 OHM +0% PC 1 IC202 J2141004002X IC BU4094 SOP16 PC 1 IC203 J2141004002X IC BU4094 SOP16 PC 1 IC204 J2141004002X IC BU4094 SOP16 PC 1 Q201 J2041220202X TR DTC114TK SMT3 PC 1 Q201 J2041220701X TR KRC111S SOT23 PC 1 Q202 J2041220202X TR DTC114TK SMT3 PC 1 Q202 J2041220701X TR KRC111S SOT23 PC 1 Q203 J2041220202X TR DTC114TK SMT3 PC 1 Q203 J2041220701X TR KRC111S SOT23 PC 1 Q204 J2041220202X TR DTC114TK SMT3 PC 1 Q204 J2041220701X TR KRC111S SOT23 PC 1 Q205 J2041220202X TR DTC114TK SMT3 PC 1 Q205 J2041220701X TR KRC111S SOT23 PC 1 Q206 J2041220202X TR DTC114TK SMT3 PC 1 Q206 J2041220701X TR KRC111S SOT23 PC 1 Q207 J2041220202X TR DTC114TK SMT3 PC 1 Q207 J2041220701X TR KRC111S SOT23 PC 1 Q208 J2041220202X TR DTC114TK SMT3 PC 1 Q208 J2041220701X TR KRC111S SOT23 PC 1 Q209 J2041220202X TR DTC114TK SMT3 PC 1 Q209 J2041220701X TR KRC111S SOT23 PC 1 Q210 J2041220202X TR DTC114TK SMT3 PC 1 Q210 J2041220701X TR KRC111S SOT23 PC 1 Q211 J2041220202X TR DTC114TK SMT3 PC 1 Q211 J2041220701X TR KRC111S SOT23 PC 1 Q212 J2041220202X TR DTC114TK SMT3 PC 1 Q212 J2041220701X TR KRC111S SOT23 PC 1

Q213 J2041220202X TR DTC114TK SMT3 PC 1 Q213 J2041220701X TR KRC111S SOT23 PC 1 Q214 J2041220202X TR DTC114TK SMT3 PC 1 Q214 J2041220701X TR KRC111S SOT23 PC 1 Q215 J2041220202X TR DTC114TK SMT3 PC 1 Q215 J2041220701X TR KRC111S SOT23 PC 1 Q216 J2041220202X TR DTC114TK SMT3 PC 1 Q216 J2041220701X TR KRC111S SOT23 PC 1 Q217 J2041220202X TR DTC114TK SMT3 PC 1 Q217 J2041220701X TR KRC111S SOT23 PC 1 Q218 J2041220202X TR DTC114TK SMT3 PC 1 Q218 J2041220701X TR KRC111S SOT23 PC 1 Q219 J2041220202X TR DTC114TK SMT3 PC 1 Q219 J2041220701X TR KRC111S SOT23 PC 1 Q220 J2041220202X TR DTC114TK SMT3 PC 1 Q220 J2041220701X TR KRC111S SOT23 PC 1 Q221 J2041220202X TR DTC114TK SMT3 PC 1 Q221 J2041220701X TR KRC111S SOT23 PC 1 Q228 J2041220102X TR NPN DTC114YKA PC 1 Q228 J2041220201X TR CHIP NPN KRC107 PC 1 Q229 J2041220102X TR NPN DTC114YKA PC 1 Q229 J2041220201X TR CHIP NPN KRC107 PC 1 Q231 J2041220102X TR NPN DTC114YKA PC 1 Q231 J2041220201X TR CHIP NPN KRC107 PC 1 Q232 J2041220102X TR NPN DTC114YKA PC 1 Q232 J2041220201X TR CHIP NPN KRC107 PC 1 Q234 J2041220102X TR NPN DTC114YKA PC 1 Q234 J2041220201X TR CHIP NPN KRC107 PC 1 Q236 J2041200101X TR PNP KRA107S PC 1 Q236 J2041200102X TR PNP DTA114YKA PC 1 Q237 J2041220102X TR NPN DTC114YKA PC 1 Q237 J2041220201X TR CHIP NPN KRC107 PC 1 RL201 2047195091 RMGCFMIN 1K0 OHM + PC 1 RL202 5088663091 RMGCFMIN 100K0 OHM PC 1 RL203 5088667091 RMGCFMIN 1M0 OHM + PC 1 RL204 1106648091 RMGCFMIN 47K0 OHM PC 1 RL205 9057440091 RMGCFMIN 470R0 OHM PC 1 RL206 5088663091 RMGCFMIN 100K0 OHM PC 1 RL207 2047194091 RMGCFMIN 680R0 OHM PC 1 RL208 6044439091 RMGCFMIN 3K9 OHM + PC 1 RL209 6044440091 RMGCFMIN 22K0 OHM PC 1 RL210 8044039091 RMGCFMIN 2K2 OHM + PC 1 RR201 2047195091 RMGCFMIN 1K0 OHM + PC 1 RR202 5088663091 RMGCFMIN 100K0 OHM PC 1 RR203 5088667091 RMGCFMIN 1M0 OHM + PC 1 RR204 1106648091 RMGCFMIN 47K0 OHM PC 1 RR205 9057440091 RMGCFMIN 470R0 OHM PC 1 RR206 5088663091 RMGCFMIN 100K0 OHM PC 1 RR207 2047194091 RMGCFMIN 680R0 OHM PC 1 RR208 6044439091 RMGCFMIN 3K9 OHM + PC 1 RR209 6044440091 RMGCFMIN 22K0 OHM PC 1 RR210 8044039091 RMGCFMIN 2K2 OHM + PC 1 R201 8044037091 RMGCFMIN 150R0 OHM PC 1 R202 8044037091 RMGCFMIN 150R0 OHM PC 1 R203 8044037091 RMGCFMIN 150R0 OHM PC 1 R204 8044037091 RMGCFMIN 150R0 OHM PC 1 R205 8044037091 RMGCFMIN 150R0 OHM PC 1 R206 8044037091 RMGCFMIN 150R0 OHM PC 1

R207 8044037091 RMGCFMIN 150R0 OHM PC 1 R208 8044037091 RMGCFMIN 150R0 OHM PC 1 R209 8044037091 RMGCFMIN 150R0 OHM PC 1 R210 8044037091 RMGCFMIN 150R0 OHM PC 1 R211 8044037091 RMGCFMIN 150R0 OHM PC 1 R212 8044037091 RMGCFMIN 150R0 OHM PC 1 R213 8044037091 RMGCFMIN 150R0 OHM PC 1 R214 8044037091 RMGCFMIN 150R0 OHM PC 1 R215 8044037091 RMGCFMIN 150R0 OHM PC 1 R216 8044037091 RMGCFMIN 150R0 OHM PC 1 R217 8044037091 RMGCFMIN 150R0 OHM PC 1 R218 8044037091 RMGCFMIN 150R0 OHM PC 1 R219 8044037091 RMGCFMIN 150R0 OHM PC 1 R220 8044037091 RMGCFMIN 150R0 OHM PC 1 R221 8044037091 RMGCFMIN 150R0 OHM PC 1 R222 8044037091 RMGCFMIN 150R0 OHM PC 1 R223 8044037091 RMGCFMIN 150R0 OHM PC 1 R224 8044037091 RMGCFMIN 150R0 OHM PC 1 R225 8044037091 RMGCFMIN 150R0 OHM PC 1 R226 8044037091 RMGCFMIN 150R0 OHM PC 1 R227 8044037091 RMGCFMIN 150R0 OHM PC 1 R228 8044037091 RMGCFMIN 150R0 OHM PC 1 R229 8044037091 RMGCFMIN 150R0 OHM PC 1 R230 8044037091 RMGCFMIN 150R0 OHM PC 1 R231 8044037091 RMGCFMIN 150R0 OHM PC 1 R232 8044037091 RMGCFMIN 150R0 OHM PC 1 R233 8044037091 RMGCFMIN 150R0 OHM PC 1 R234 8044037091 RMGCFMIN 150R0 OHM PC 1 R235 8044037091 RMGCFMIN 150R0 OHM PC 1 R236 8044037091 RMGCFMIN 150R0 OHM PC 1 R237 8044037091 RMGCFMIN 150R0 OHM PC 1 R238 8044037091 RMGCFMIN 150R0 OHM PC 1 R239 8044037091 RMGCFMIN 150R0 OHM PC 1 R240 8044037091 RMGCFMIN 150R0 OHM PC 1 R241 8044037091 RMGCFMIN 150R0 OHM PC 1 R242 8044037091 RMGCFMIN 150R0 OHM PC 1 R243 8044037091 RMGCFMIN 150R0 OHM PC 1 R244 8044037091 RMGCFMIN 150R0 OHM PC 1 R245 8044037091 RMGCFMIN 150R0 OHM PC 1 R246 8044037091 RMGCFMIN 150R0 OHM PC 1 R247 8044037091 RMGCFMIN 150R0 OHM PC 1 R249 2047195091 RMGCFMIN 1K0 OHM + PC 1 R250 2047195091 RMGCFMIN 1K0 OHM + PC 1 R251 2047195091 RMGCFMIN 1K0 OHM + PC 1 R252 7043420091 RMGCFMIN 100R0 OHM PC 1 R253 2047195091 RMGCFMIN 1K0 OHM + PC 1 R254 2047195091 RMGCFMIN 1K0 OHM + PC 1 R255 2047195091 RMGCFMIN 1K0 OHM + PC 1 R256 2047195091 RMGCFMIN 1K0 OHM + PC 1 R257 7043420091 RMGCFMIN 100R0 OHM PC 1 R258 2047195091 RMGCFMIN 1K0 OHM + PC 1 R259 2047195091 RMGCFMIN 1K0 OHM + PC 1 R260 2047195091 RMGCFMIN 1K0 OHM + PC 1 R261 2047195091 RMGCFMIN 1K0 OHM + PC 1 R264 7043420091 RMGCFMIN 100R0 OHM PC 1 R265 2047195091 RMGCFMIN 1K0 OHM + PC 1 R266 3094431091 RMGCFMIN 4K7 OHM + PC 1 R267 3094431091 RMGCFMIN 4K7 OHM + PC 1

R268 3094431091 RMGCFMIN 4K7 OHM + PC 1 R269 3094431091 RMGCFMIN 4K7 OHM + PC 1 R270 3094431091 RMGCFMIN 4K7 OHM + PC 1 R271 2047195091 RMGCFMIN 1K0 OHM + PC 1 R272 2047195091 RMGCFMIN 1K0 OHM + PC 1 R273 2047195091 RMGCFMIN 1K0 OHM + PC 1 R274 2047195091 RMGCFMIN 1K0 OHM + PC 1 R275 2047195091 RMGCFMIN 1K0 OHM + PC 1 R276 7043420091 RMGCFMIN 100R0 OHM PC 1 R277 1035519091 RMGCFMIN 2R2 OHM + PC 1 R278 1035519091 RMGCFMIN 2R2 OHM + PC 1 R279 5088661091 RMGCFMIN 10K0 OHM PC 1 R280 5088661091 RMGCFMIN 10K0 OHM PC 1 R281 5088661091 RMGCFMIN 10K0 OHM PC 1 R283 5088661091 RMGCFMIN 10K0 OHM PC 1 R284 2047195091 RMGCFMIN 1K0 OHM + PC 1 R285 2047195091 RMGCFMIN 1K0 OHM + PC 1 R286 5088661091 RMGCFMIN 10K0 OHM PC 1 R287 1106650091 RMGCFMIN 68K0 OHM PC 1 R288 1106650091 RMGCFMIN 68K0 OHM PC 1 R289 1106648091 RMGCFMIN 47K0 OHM PC 1 R290 3094431091 RMGCFMIN 4K7 OHM + PC 1 R291 7043420091 RMGCFMIN 100R0 OHM PC 1 R292 5088663091 RMGCFMIN 100K0 OHM PC 1 R293 1106646091 RMGCFMIN 8K2 OHM + PC 1 R294 5088661091 RMGCFMIN 10K0 OHM PC 1 R295 2047195091 RMGCFMIN 1K0 OHM + PC 1 R296 2047195091 RMGCFMIN 1K0 OHM + PC 1 R297 2047195091 RMGCFMIN 1K0 OHM + PC 1 R298 3094431091 RMGCFMIN 4K7 OHM + PC 1 R299 3094431091 RMGCFMIN 4K7 OHM + PC 1 R300 3094431091 RMGCFMIN 4K7 OHM + PC 1 R351 9057440091 RMGCFMIN 470R0 OHM PC 1 R352 9057440091 RMGCFMIN 470R0 OHM PC 1 R353 1106642091 RMGCFMIN 390R0 OHM PC 1 R354 1106642091 RMGCFMIN 390R0 OHM PC 1 R356 9057440091 RMGCFMIN 470R0 OHM PC 1 R357 9057440091 RMGCFMIN 470R0 OHM PC 1 R358 1106642091 RMGCFMIN 390R0 OHM PC 1 R359 1106642091 RMGCFMIN 390R0 OHM PC 1 R361 2047192091 RMGCFMIN 220R0 OHM PC 1 R362 2047192091 RMGCFMIN 220R0 OHM PC 1 R363 2047192091 RMGCFMIN 220R0 OHM PC 1 R364 2047195091 RMGCFMIN 1K0 OHM + PC 1 R365 8044037091 RMGCFMIN 150R0 OHM PC 1 R366 2047195091 RMGCFMIN 1K0 OHM + PC 1

PL DWG NO.: JE000081

PL TITLE : AVRD SER.KEY BD ASM

ISSUE DATE: 05-22-00 ISSUED BY : KK HO * = CRITICAL ITEM

E ITEM DRAWING NO. PART NAME/TEXT UM QTYFAC CN401 J4305100054X CNT ASSY 8P 100MM PC 1 CN402 J4305100056X CNT ASSY 5P 100MM PC 1 CN403 J4305100062X CNT ASSY 3P 600MM PC 1 CN404 J4305100071X CNT ASSY 7P 100MM PC 1 CP403 J4420030240X CON WAFER 2P 2.0 PC 1 CP404 J4420030440X CNT PLUG 4P 2.0MM PC 1 CP405 J4420030440X CNT PLUG 4P 2.0MM PC 1 D401 J2302210012X LED RED/GREEN 3F PC 1 D401 J2302310012X LED RED/GREEN 5 PC 1 FN401 J60300028000 BKT GROUND ET 0.5T PC 1 FN402 J60300028000 BKT GROUND ET 0.5T PC 1 HP401 J44329000102 JACK MIC 9P GOLD PC 1 IC401 J2123239001X IC PC-17T1 PHOTOCO PC 1 IC402 J2123239001X IC PC-17T1 PHOTOCO PC 1 JA401 J44302401201 JACK RCA 4P S PC 1 JA402 J44333000001 STEREO JACK JW-350 PC 1 JA403 J44333000001 STEREO JACK JW-350 PC 1 JA404 J44333000001 STEREO JACK JW-350 PC 1 L401 J2616247020X COIL 47UH PC 1 L402 J2616247020X COIL 47UH PC 1 Q402 J2021200002X TR PNP DTA114YS PC 1 Q402 J2021200501X TR PNP KRA107M PC 1 C2 W401 J4305100025X LUG WIRE 1P 200MM PC 1

PL DWG NO.: JE000082

PL TITLE : AVRD SER.KEY BD APP

ISSUE DATE: 05-22-00 ISSUED BY : KK HO * = CRITICAL ITEM

E ITEM DRAWING NO. PART NAME/TEXT UM QTYFAC '021 J4020100080A PCB KEY 247*163 PC 1 Q403 J2021200002X TR PNP DTA114YS PC 1 Q403 J2021200501X TR PNP KRA107M PC 1

PL DWG NO.: JE000084

PL TITLE : AVRD SER. KEY BD SMT

ISSUE DATE: 05-22-00 ISSUED BY : KK HO * = CRITICAL ITEM

E ITEM DRAWING NO. PART NAME/TEXT UM QTYFAC C401 3093924091 CCCFMIN 22N0F +10% PC 1 C402 3093924091 CCCFMIN 22N0F +10% PC 1 C403 1105933091 CCCFMIN 2N2F +10% PC 1 C404 1105933091 CCCFMIN 2N2F +10% PC 1 C405 2026729091 CCCFMIN 100N0F +80 PC 1 C406 2026729091 CCCFMIN 100N0F +80 PC 1 C409 1105867091 CCCFMIN 100P0F +5% PC 1 C410 1105867091 CCCFMIN 100P0F +5% PC 1

C411 1105867091 CCCFMIN 100P0F +5% PC 1 C412 1105867091 CCCFMIN 100P0F +5% PC 1 C413 1105867091 CCCFMIN 100P0F +5% PC 1 C414 1105867091 CCCFMIN 100P0F +5% PC 1 C415 2026729091 CCCFMIN 100N0F +80 PC 1 C416 2026729091 CCCFMIN 100N0F +80 PC 1 D402 J2244010104X DIODE CHIP 1SS355 PC 1 D403 J2244010104X DIODE CHIP 1SS355 PC 1 D404 J2244010104X DIODE CHIP 1SS355 PC 1 D405 J2244010104X DIODE CHIP 1SS355 PC 1 D406 J2244010104X DIODE CHIP 1SS355 PC 1 J407 8044051091 RMGCFMIN 0 OHM +0% PC 1 J408 8044051091 RMGCFMIN 0 OHM +0% PC 1 Q401 J2041220102X TR NPN DTC114YKA PC 1 Q401 J2041220201X TR CHIP NPN KRC107 PC 1 R401 5088661091 RMGCFMIN 10K0 OHM PC 1 R402 2047195091 RMGCFMIN 1K0 OHM + PC 1 R403 7043423091 RMGCFMIN 1K2 OHM + PC 1 R404 4043829091 RMGCFMIN 1K5 OHM + PC 1 R405 8044039091 RMGCFMIN 2K2 OHM + PC 1 R406 5088659091 RMGCFMIN 2K7 OHM + PC 1 R407 1106644091 RMGCFMIN 3K3 OHM + PC 1 R408 8044040091 RMGCFMIN 5K6 OHM + PC 1 R409 1106646091 RMGCFMIN 8K2 OHM + PC 1 R410 9057443091 RMGCFMIN 18K0 OHM PC 1 R411 5088661091 RMGCFMIN 10K0 OHM PC 1 R412 2047195091 RMGCFMIN 1K0 OHM + PC 1 R413 7043423091 RMGCFMIN 1K2 OHM + PC 1 R414 4043829091 RMGCFMIN 1K5 OHM + PC 1 R415 8044039091 RMGCFMIN 2K2 OHM + PC 1 R416 5088659091 RMGCFMIN 2K7 OHM + PC 1 R417 1106644091 RMGCFMIN 3K3 OHM + PC 1 R418 8044040091 RMGCFMIN 5K6 OHM + PC 1 R419 1106646091 RMGCFMIN 8K2 OHM + PC 1 R420 9057443091 RMGCFMIN 18K0 OHM PC 1 R421 6044437091 RMGCFMIN 180R0 OHM PC 1 R422 6044437091 RMGCFMIN 180R0 OHM PC 1 R423 2047194091 RMGCFMIN 680R0 OHM PC 1 R424 2047194091 RMGCFMIN 680R0 OHM PC 1 R427 9057440091 RMGCFMIN 470R0 OHM PC 1 R428 9057440091 RMGCFMIN 470R0 OHM PC 1 R429 9057440091 RMGCFMIN 470R0 OHM PC 1 R430 6044439091 RMGCFMIN 3K9 OHM + PC 1 R431 1106648091 RMGCFMIN 47K0 OHM PC 1 R432 6044435091 RMGCFMIN 47R0 OHM PC 1 R433 6044435091 RMGCFMIN 47R0 OHM PC 1 R434 6044438091 RMGCFMIN 270R0 OHM PC 1 R435 5088661091 RMGCFMIN 10K0 OHM PC 1 R436 1106648091 RMGCFMIN 47K0 OHM PC 1
